All-Aluminum Aesthetics Enhanced For Colder Climates And Rain
Performance When Closed Matters Most
Large openings are easy to design and there are many options to choose from. When selecting a product that best fits your project, how it performs when closed is important.

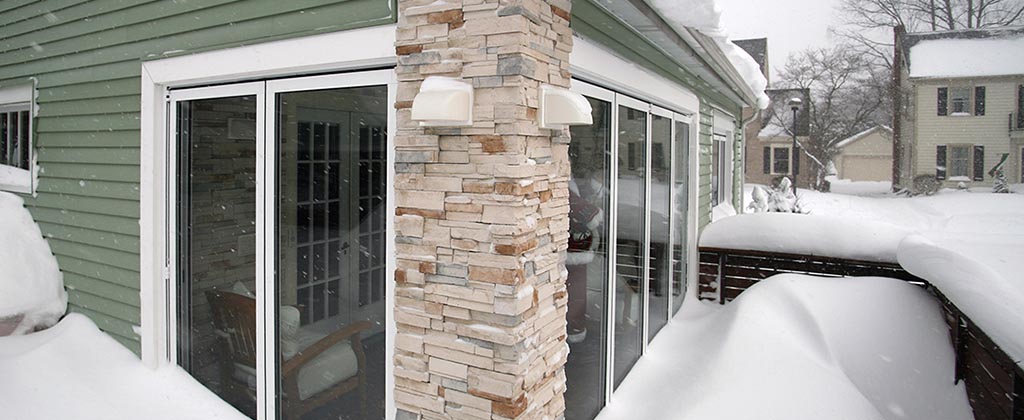

All Climate Performance
NanaWall products are NFRC rated and certified for true energy efficiency in all climates.
Certified Testing Standards
NanaWall products endure the latest AAMA testing standards for air, water, structural, and forced entry.
Sustainable Design
NanaWall products contribute to multiple LEED rating systems and potentially several credit categories.
Air, Water, Structural, Thermal, Forced Entry & Acoustical Results
Florida Product Approval #24434.1
Higher Weather Performance (Raised) Sill - SL60
| Type of Test | Inward Opening Units | Outward Opening Units | ||||
|---|---|---|---|---|---|---|
|
Air Infiltration 1ASTM E-283, ft3/min./ft. |
@ 1.57 psf (75 Pa): 0.02 A3 3 @ 6.24 psf (300 Pa): 0.06 |
@ 1.57 psf (75 Pa): 0.01 A3 3 @ 6.24 psf (300 Pa): 0.01 |
||||
|
Water Penetration 1 *ASTM E-547 and E-331 |
No uncontrolled water entry |
No uncontrolled water entry |
||||
|

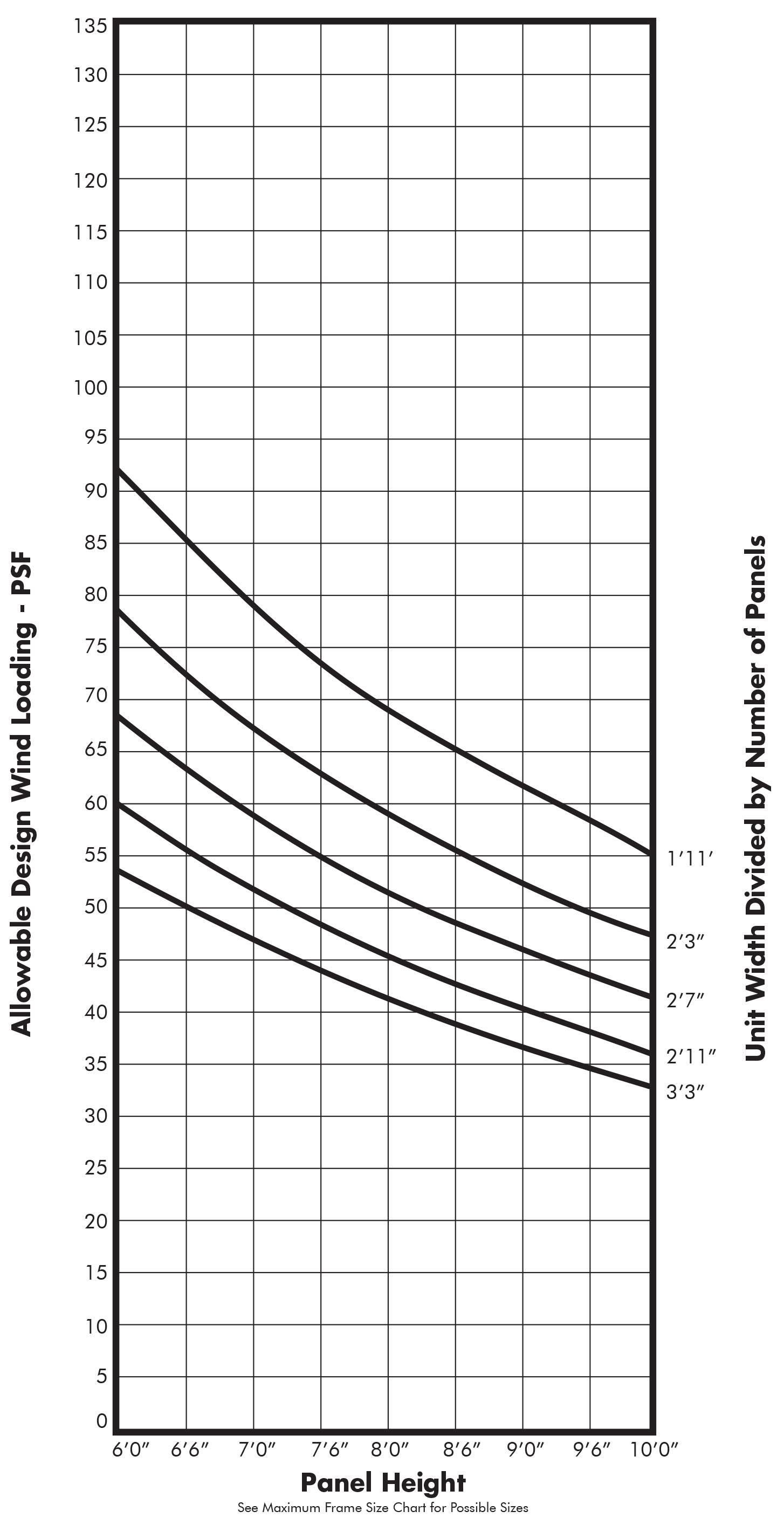

Structural Load DeflectionASTM E-330: pass See design windload charts for other sized panels. Note that the structural test pressures were 50% higher than the design pressures. |
design pressure 2
Class SP-PG45, Panel size - 2’ 11” x 7’ 9” |
design pressure 2
Class SP-PG45, Panel size - 2’ 11” x 7’ 9” |
||||
|
Forced Entry Resistance 1PAS24 certified |
In accordance with AAMA -1304 requirements PAS24: option of burglary resistance |
|||||
|
Life Cycle Performance |
The SL60 meets the German “DIN EN 1191/12400 Classification,” where a unit is tested after 20,000 opening and closing cycles and is still functional. |
|||||
|
Acoustical Performance 4 |
Achieved STC and Rw values of 36 with STC 38 laminated glass. |
|||||
1 Excerpts of results of 9’5” W x 8’2 1/2” H three panel units (3L and 3R configurations) tested by Architectural Testing, Inc., Fresno, CA, an independent testing laboratory in August 2006.
2 Excerpts of results of 9’7” W x 8’5” H three panel unit (3L configuration) tested by Architectural Testing, Inc., Fresno, CA, an independent testing laboratory in April 2013.
3 For Canada, tested to NAFS-08 or equivalent and CSA A44051-09 (with weep holes installed by others to drain standing water in sill channels).
4 Excerpts of results with raised sill tested by Nusing Mobile Trennwandtechnile, Munster, Germany, an independent testing laboratory, in August 2005.
* Water rating may not be applicable for configuration not tested, especially even panels and even panels configurations.
|
Thermal Performance(Top Hung Units) |
Rated, certified and labeled in accordance with NFRC 100 + 200 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| inward opening units | outward opening units | |||||||||
| Type of Glass (1 lite)4 | Center of Glass U-Factor | IG Glass Thickness | Unit U-Factor | SHGC 5 | VT 6 | 2015 Energy Star | Unit U-Factor | SHGC 5 | VT 6 | 2015 Energy Star |
| Double IG Clear (air filled) |
.48 | 15/16” (24 mm) |
.51 | .52 | .55 | - | .51 | .52 | .55 | - |
| Double IG Low E (argon filled) | .26 | 15/16” (24 mm) |
.35 | .19 | .42 | - | .35 | .19 | .42 | - |
| Double IG Low E (air filled) |
.30 | 15/16” (24 mm) |
.38 | .19 | .42 | - | .39 | .19 | .42 | - |
| Double IG Low E #2 & #4 surfaces (argon filled) | .21 | 15/16” (24 mm) |
.32 | .19 | .41 | - | .32 | .19 | .41 | - |
| Double IG Low E #2 & #4 surfaces (air filled) | .24 | 15/16” (24 mm) |
.34 | .19 | .41 | - | .35 | .19 | .41 | - |
| Triple IG Low E x 2 (argon filled) | .13 | 1 3/8” (35 mm) |
.26 | .17 | .30 | * | .26 | .17 | .30 | * |
| Triple IG Low E x 2 (air filled) |
.16 | 1 3/8” (35 mm) |
.28 | .17 | .30 | * | .29 | .17 | .30 | * |
|
Thermal Performance(Floor Supported Units) |
Rated, certified and labeled in accordance with NFRC 100 + 200 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| inward opening units | outward opening units | |||||||||
| Type of Glass (1 lite)4 | Center of Glass U-Factor | IG Glass Thickness | Unit U-Factor | SHGC 5 | VT 6 | 2015 Energy Star | Unit U-Factor | SHGC 5 | VT 6 | 2015 Energy Star |
| Double IG Clear (air filled) |
.48 | 15/16” (24 mm) |
.51 | .52 | .56 | - | .51 | .52 | .56 | - |
| Double IG Low E (argon filled) | .26 | 15/16” (24 mm) |
.34 | .19 | .43 | - | .35 | .19 | .43 | - |
| Double IG Low E (air filled) |
.30 | 15/16” (24 mm) |
.38 | .20 | .43 | - | .38 | .20 | .43 | - |
| Double IG Low E #2 & #4 surfaces (argon filled) | .21 | 15/16” (24 mm) |
.31 | .19 | .42 | - | .31 | .19 | .42 | - |
| Double IG Low E #2 & #4 surfaces (air filled) | .24 | 15/16” (24 mm) |
.33 | .19 | .42 | - | .34 | .19 | .42 | - |
| Triple IG Low E x 2 (argon filled) | .13 | 1 3/8” (35 mm) |
.25 | .17 | .31 | * | .25 | .17 | .31 | * |
| Triple IG Low E x 2 (air filled) |
.16 | 1 3/8” (35 mm) |
.27 | .17 | .31 | * | .28 | .17 | .31 | * |
Notes
4 NFRC simulated U factors of units with a horizontal mullion will have values of .01 to .03 higher than units with no horizontal mullion. Please contact NanaWall for details.
5 SHGC = Solar Heat Gain Coefficient
6 VT = Visible Transmittance
* 2015 Energy Star Qualification Criteria: U-Factor for doors in all climate zones ≤.30, SHGC ≤.25 in South/South Central zones and ≤.40 in North/North Central zones. (For guidance only. NanaWall is not a participant of the Energy Star program.)
Values shown are for limited select glass types only. Call NanaWall (800.873.5673 | 415.383.3148) for U-Factor & SHGC for other glass types including Suntuitive Dynamic glass options.
Hybrid Performance Sill - SL60
| Type of Test | Inward Opening Units | Outward Opening Units | ||||
|---|---|---|---|---|---|---|
|
Air Infiltration 1ASTM E-283, ft3/min./ft. |
@ 1.57 psf (75 Pa): 0.05 A3 3 @ 6.24 psf (300 Pa): 0.13 |
@ 1.57 psf (75 Pa): 0.02 A3 3 @ 6.24 psf (300 Pa): 0.10 |
||||
|
Water Penetration *ASTM E-547 and E-331 |
No uncontrolled water entry1 Subject to the following adaptions of the sill in the field by others;
Please note that due to the varying site requirements and conditions, these sills will not be prepared for drainage by Nana Wall Systems, Inc. If this drainage system is desired, we recommend that qualified professionals construct this system on the project site strictly in accordance with NanaWall instructions with good waterproofing techniques, if drain connections are not made or are not possible, unit may leak with wind driven rain. |
|||||
|
Structural Load Deflection1ASTM E-330: pass See design windload charts for other sized panels Note that the structural test pressures were 50% higher than the design pressures. |
design pressure 1
Class SP-PG45, Panel size - 3’ 1” x 8’ 1” |
design pressure 1
Class SP-PG45, Panel size - 3’ 1” x 8’1” |
||||
|
Forced Entry Resistance 1PAS24 certified |
In accordance with AAMA -1304 requirements PAS24: option of burglary resistance |
|||||
|
Life Cycle Performance |
The SL60 meets the German “DIN EN 1191/12400 Classification,” where a unit is tested after 20,000 opening and closing cycles and is still functional. |
|||||
1 Excerpts of results of 13’1” W x 8’6” H (4000 mm x 2600 mm) 4 panel unit with hybrid sill tested by Architectural Testing Inc., an independent testing laboratory, in October 2015 per AAMA/WDMA/CSA 101/I.S.2/A440, NAFS - North American Fenestration Standard.
3 For Canada, tested to NAFS-08 or equivalent and CSA A44051-09 (with weep holes installed by others).
* Water rating may not be applicable for configuration not tested, especially even panels and even panels configurations.
|
Thermal Performance(Top Hung Units) |
Rated, certified and labeled in accordance with NFRC 100 + 200 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| inward opening units | outward opening units | |||||||||
| Type of Glass (1 lite)4 | Center of Glass U-Factor | IG Glass Thickness | Unit U-Factor | SHGC 5 | VT 6 | 2015 Energy Star | Unit U-Factor | SHGC 5 | VT 6 | 2015 Energy Star |
| Double IG Clear (air filled) |
.48 | 15/16” (24 mm) |
.51 | .53 | .56 | - | .52 | .53 | .56 | - |
| Double IG Low E (argon filled) | .26 | 15/16” (24 mm) |
.35 | .19 | .43 | - | .36 | .19 | .43 | - |
| Double IG Low E (air filled) |
.30 | 15/16” (24 mm) |
.38 | .20 | .43 | - | .39 | .20 | .43 | - |
| Double IG Low E #2 & #4 surfaces (argon filled) | .21 | 15/16” (24 mm) |
.32 | .19 | .42 | - | .32 | .19 | .42 | - |
| Double IG Low E #2 & #4 surfaces (air filled) | .24 | 15/16” (24 mm) |
.34 | .19 | .42 | - | .35 | .19 | .42 | - |
| Triple IG Low E x 2 (argon filled) | .13 | 1 3/8” (35 mm) |
.26 | .17 | .31 | * | .26 | .17 | .31 | * |
| Triple IG Low E x 2 (air filled) |
.16 | 1 3/8” (35 mm) |
.28 | .17 | .31 | * | .29 | .17 | .31 | * |
|
Thermal Performance(Floor Supported Units) |
Rated, certified and labeled in accordance with NFRC 100 + 200 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| inward opening units | outward opening units | |||||||||
| Type of Glass (1 lite)4 | Center of Glass U-Factor | IG Glass Thickness | Unit U-Factor | SHGC 5 | VT 6 | 2015 Energy Star | Unit U-Factor | SHGC 5 | VT 6 | 2015 Energy Star |
| Double IG Clear (air filled) |
.48 | 15/16” (24 mm) |
.51 | .54 | .57 | - | .52 | .54 | .57 | - |
| Double IG Low E (argon filled) | .26 | 15/16” (24 mm) |
.34 | .20 | .44 | - | .35 | .20 | .44 | - |
| Double IG Low E (air filled) |
.30 | 15/16” (24 mm) |
.38 | .20 | .44 | - | .38 | .20 | .44 | - |
| Double IG Low E #2 & #4 surfaces (argon filled) | .21 | 15/16” (24 mm) |
.31 | .19 | .43 | - | .31 | .19 | .43 | - |
| Double IG Low E #2 & #4 surfaces (air filled) | .24 | 15/16” (24 mm) |
.33 | .19 | .43 | - | .34 | .19 | .43 | - |
| Triple IG Low E x 2 (argon filled) | .13 | 1 3/8” (35 mm) |
.25 | .17 | .31 | * | .25 | .17 | .31 | * |
| Triple IG Low E x 2 (air filled) |
.16 | 1 3/8” (35 mm) |
.27 | .17 | .31 | * | .28 | .17 | .31 | * |
Notes
4 NFRC simulated U factors of units with a horizontal mullion will have values of .01 to .03 higher than units with no horizontal mullion. Please contact NanaWall for details.
5 SHGC = Solar Heat Gain Coefficient
6 VT = Visible Transmittance
* 2015 Energy Star Qualification Criteria: U-Factor for doors in all climate zones ≤.30, SHGC ≤.25 in South/South Central zones and ≤.40 in North/North Central zones. (For guidance only. NanaWall is not a participant of the Energy Star program.)
Values shown are for limited select glass types only. Call NanaWall (800.873.5673 | 415.383.3148) for U-Factor & SHGC for other glass types including Suntuitive Dynamic glass options.
Low Profile Sill - SL60
| Type of Test |
Inward Opening Units |
Outward Opening Units | ||||
|---|---|---|---|---|---|---|
|
Air Infiltration 1ASTM E-283, ft3/min./ft. |
@ 1.57 psf (75 Pa): 0.10 A3 3 @ 6.24 psf (300 Pa): 0.37 |
@ 1.57 psf (75 Pa): 0.08 A3 3 @ 6.24 psf (300 Pa): 0.17 |
||||
|
Water Penetration 1ASTM E-547 and E-331 |
#1 Unit with weep holes from middle channel; No uncontrolled water entry Subject to the following adaptions of the sill in the field by others;
#2 Unit with weep holes from inner channel; No uncontrolled water entry Subject to the following adaptions of the sill in the field by others;
Please note that due to the varying site requirements and conditions, these sills will not be prepared for drainage by Nana Wall Systems, Inc. If this drainage system is desired, we recommend that qualified professionals construct this system on the project site strictly in accordance with NanaWall instructions with good waterproofing techniques, if drain connections are not made or are not possible, unit may leak with wind driven rain. |
|||||
|
Structural Load Deflection 1ASTM E-330: pass See design windload charts for other sized panels Note that the structural test pressures were 50% higher than the design pressures. |
design pressure
For saddle sill specimen #2 above, class SP-PG35, Panel size - 3’1” x 8’ (weep holes by others) |
design pressure
For saddle sill specimen #2 above, class SP-PG35, Panel size - 3’1” x 8’ (weep holes by others) |
||||
|
Forced Entry Resistance 1PAS24 certified |
In accordance with AAMA -1304 requirements PAS24: option of burglary resistance |
|||||
|
Life Cycle Performance |
The SL60 meets the German “DIN EN 1191/12400 Classification,” where a unit is tested after 20,000 opening and closing cycles and is still functional. Meets AAMA 920 for swing panel attached to the side jamb with surface mounted hinges: 500,000 cycles pass 2 |
|||||
1 Excerpts of results of 13’1” W x 8’6” H (4000 mm x 2600 mm) 4 panel unit with saddle sill tested by Architectural Testing Inc., an independent testing laboratory, in October 2015 per AAMA/WDMA/CSA 101/I.S.2/A440, NAFS - North American Fenestration Standard.
2 Excerpts from result of 3/4" W x 8'5" H one panel unit tested by Architectural Testing Inc., Fresno, CA, an independent testing laboratory in April 2013.
3 For Canada, tested to NAFS-08 or equivalent and CSA A44051-09 (with weep holes installed by others).
|
Thermal Performance(Top Hung Units) |
Rated, certified and labeled in accordance with NFRC 100 + 200 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| inward opening units | outward opening units | |||||||||
| Type of Glass (1 lite)4 | Center of Glass U-Factor | IG Glass Thickness | Unit U-Factor | SHGC 5 | VT 6 | 2015 Energy Star | Unit U-Factor | SHGC 5 | VT 6 | 2015 Energy Star |
| Double IG Clear (air filled) |
.48 | 15/16” (24 mm) |
.52 | .52 | .56 | - | .52 | .52 | .56 | - |
| Double IG Low E (argon filled) | .26 | 15/16” (24 mm) |
.36 | .19 | .43 | - | .36 | .19 | .43 | - |
| Double IG Low E (air filled) |
.30 | 15/16” (24 mm) |
.39 | .20 | .43 | - | .39 | .20 | .43 | - |
| Double IG Low E #2 & #4 surfaces (argon filled) | .21 | 15/16” (24 mm) |
.32 | .19 | .42 | - | .33 | .19 | .42 | - |
| Double IG Low E #2 & #4 surfaces (air filled) | .24 | 15/16” (24 mm) |
.35 | .19 | .42 | - | .35 | .19 | .42 | - |
| Triple IG Low E x 2 (argon filled) | .13 | 1 3/8” (35 mm) |
.26 | .17 | .31 | * | .27 | .17 | .31 | * |
| Triple IG Low E x 2 (air filled) |
.16 | 1 3/8” (35 mm) |
.29 | .17 | .31 | * | .29 | .17 | .31 | * |
|
Thermal Performance(Floor Supported Units) |
Rated, certified and labeled in accordance with NFRC 100 + 200 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| inward opening units | outward opening units | |||||||||
| Type of Glass (1 lite)4 | Center of Glass U-Factor | IG Glass Thickness | Unit U-Factor | SHGC 5 | VT 6 | 2015 Energy Star | Unit U-Factor | SHGC 5 | VT 6 | 2015 Energy Star |
| Double IG Clear (air filled) |
.48 | 15/16” (24 mm) |
.51 | .53 | .57 | - | .52 | .53 | .57 | - |
| Double IG Low E (argon filled) | .26 | 15/16” (24 mm) |
.35 | .20 | .44 | - | .35 | .20 | .44 | - |
| Double IG Low E (air filled) |
.30 | 15/16” (24 mm) |
.38 | .20 | .44 | - | .39 | .20 | .44 | - |
| Double IG Low E #2 & #4 surfaces (argon filled) | .21 | 15/16” (24 mm) |
.31 | .19 | .43 | - | .32 | .19 | .43 | - |
| Double IG Low E #2 & #4 surfaces (air filled) | .24 | 15/16” (24 mm) |
.34 | .19 | .43 | - | .34 | .19 | .43 | - |
| Triple IG Low E x 2 (argon filled) | .13 | 1 3/8” (35 mm) |
.25 | .17 | .31 | * | .25 | .17 | .31 | * |
| Triple IG Low E x 2 (air filled) |
.16 | 1 3/8” (35 mm) |
.28 | .17 | .31 | * | .28 | .17 | .31 | * |
Notes
4 NFRC simulated U factors of units with a horizontal mullion will have values of .01 to .03 higher than units with no horizontal mullion. Please contact NanaWall for details.
5 SHGC = Solar Heat Gain Coefficient
6 VT = Visible Transmittance
* 2015 Energy Star Qualification Criteria: U-Factor for doors in all climate zones ≤.30, SHGC ≤.25 in South/South Central zones and ≤.40 in North/North Central zones. (For guidance only. NanaWall is not a participant of the Energy Star program.)
Values shown are for limited select glass types only. Call NanaWall(800.873.5673 | 415.383.3148) for U-Factor & SHGC for other glass types including Suntuitive Dynamic glass options.
Flush Sill - SL60
| Type of Test |
Inward Opening Units |
Outward Opening Units | ||||
|---|---|---|---|---|---|---|
|
Air Infiltration 1ASTM E-283, ft3/min./ft. |
@ 1.57 psf (75 Pa): 0.10 A3 3 @ 6.24 psf (300 Pa): 0.37 |
@ 1.57 psf (75 Pa): 0.08 A3 3 @ 6.24 psf (300 Pa): 0.17 |
||||
|
Structural Load Deflection1ASTM E-330: pass See design windload charts for other sized panels Note that the structural test pressures were 50% higher than the design pressures. |
design pressure
|
design pressure
|
||||
|
Forced Entry Resistance 1PAS24 certified |
In accordance with AAMA -1304 requirements PAS24: option of burglary resistance |
|||||
|
Life Cycle Performance |
The SL60 meets the German “DIN EN 1191/12400 Classification,” where a unit is tested after 20,000 opening and closing cycles and is still functional. Meets AAMA 920 for swing panel attached to the side jamb with surface mounted hinges: 500,000 cycles pass2 |
|||||
1 Excerpts of results of 13’1” W x 8’6” H (4000 mm x 2600 mm) 4 panel unit with flush sill tested by Architectural Testing Inc., an independent testing laboratory, in October 2015 per AAMA/WDMA/CSA 101/I.S.2/A440, NAFS - North American Fenestration Standard.
2 Excerpts from result of 3/4" W x 8'5" H one panel unit tested by Architectural Testing Inc., Fresno, CA, an independent testing laboratory in April 2013.
|
Thermal Performance(Top Hung Units) |
Rated, certified and labeled in accordance with NFRC 100 + 200 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| inward opening units | outward opening units | |||||||||
| Type of Glass (1 lite)4 | Center of Glass U-Factor | IG Glass Thickness | Unit U-Factor | SHGC 5 | VT 6 | 2015 Energy Star | Unit U-Factor | SHGC 5 | VT 6 | 2015 Energy Star |
| Double IG Clear (air filled) |
.48 | 15/16” (24 mm) |
.52 | .53 | .56 | - | .52 | .53 | .56 | - |
| Double IG Low E (argon filled) | .26 | 15/16” (24 mm) |
.35 | .19 | .43 | - | .35 | .19 | .43 | - |
| Double IG Low E (air filled) |
.30 | 15/16” (24 mm) |
.39 | .20 | .43 | - | .39 | .20 | .43 | - |
| Double IG Low E #2 & #4 surfaces (argon filled) | .21 | 15/16” (24 mm) |
.32 | .19 | .42 | - | .32 | .19 | .42 | - |
| Double IG Low E #2 & #4 surfaces (air filled) | .24 | 15/16” (24 mm) |
.34 | .19 | .42 | - | .34 | .19 | .42 | - |
| Triple IG Low E x 2 (argon filled) | .13 | 1 3/8” (35 mm) |
.26 | .17 | .31 | * | .26 | .17 | .31 | * |
| Triple IG Low E x 2 (air filled) |
.16 | 1 3/8” (35 mm) |
.28 | .17 | .31 | * | .29 | .17 | .31 | * |
|
Thermal Performance(Floor Supported Units) |
Rated, certified and labeled in accordance with NFRC 100 + 200 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| inward opening units | outward opening units | |||||||||
| Type of Glass (1 lite)4 | Center of Glass U-Factor | IG Glass Thickness | Unit U-Factor | SHGC 5 | VT 6 | 2015 Energy Star | Unit U-Factor | SHGC 5 | VT 6 | 2015 Energy Star |
| Double IG Clear (air filled) |
.48 | 15/16” (24 mm) |
.51 | .54 | .57 | - | .51 | .54 | .57 | - |
| Double IG Low E (argon filled) | .26 | 15/16” (24 mm) |
.34 | .20 | .44 | - | .35 | .20 | .44 | - |
| Double IG Low E (air filled) |
.30 | 15/16” (24 mm) |
.38 | .20 | .44 | - | .38 | .20 | .44 | - |
| Double IG Low E #2 & #4 surfaces (argon filled) | .21 | 15/16” (24 mm) |
.31 | .19 | .43 | - | .31 | .19 | .43 | - |
| Double IG Low E #2 & #4 surfaces (air filled) | .24 | 15/16” (24 mm) |
.33 | .19 | .43 | - | .34 | .19 | .43 | - |
| Triple IG Low E x 2 (argon filled) | .13 | 1 3/8” (35 mm) |
.25 | .17 | .31 | * | .25 | .17 | .31 | * |
| Triple IG Low E x 2 (air filled) |
.16 | 1 3/8” (35 mm) |
.27 | .17 | .31 | * | .28 | .17 | .31 | * |
Notes
4 NFRC simulated U factors of units with a horizontal mullion will have values of .01 to .02 higher than units with no horizontal mullion. Please contact NanaWall for details.
5 SHGC = Solar Heat Gain Coefficient
6 VT = Visible Transmittance
* 2015 Energy Star Qualification Criteria: U-Factor for doors in all climate zones ≤.30, SHGC ≤.25 in South/South Central zones and ≤.40 in North/North Central zones. (For guidance only. NanaWall is not a participant of the Energy Star program.)
Values shown are for limited select glass types only. Call NanaWall (800.873.5673 | 415.383.3148) for U-Factor & SHGC for other glass types including Suntuitive Dynamic glass options.
Design Windload
(Derived From Comparative Analysis) Test Unit Size: 9'5" W x 8'2 1/2" H (3 panels)
Please note that some jurisdictions may limit the use of these charts or may not accept them at all. Design pressures and/or sizes may be restricted to what was tested. For Florida approved products, please see detailed FL Evaluation Report for restrictions.
Please also note that chart is only applicable for units with referenced Nana Wall supplied locking.
