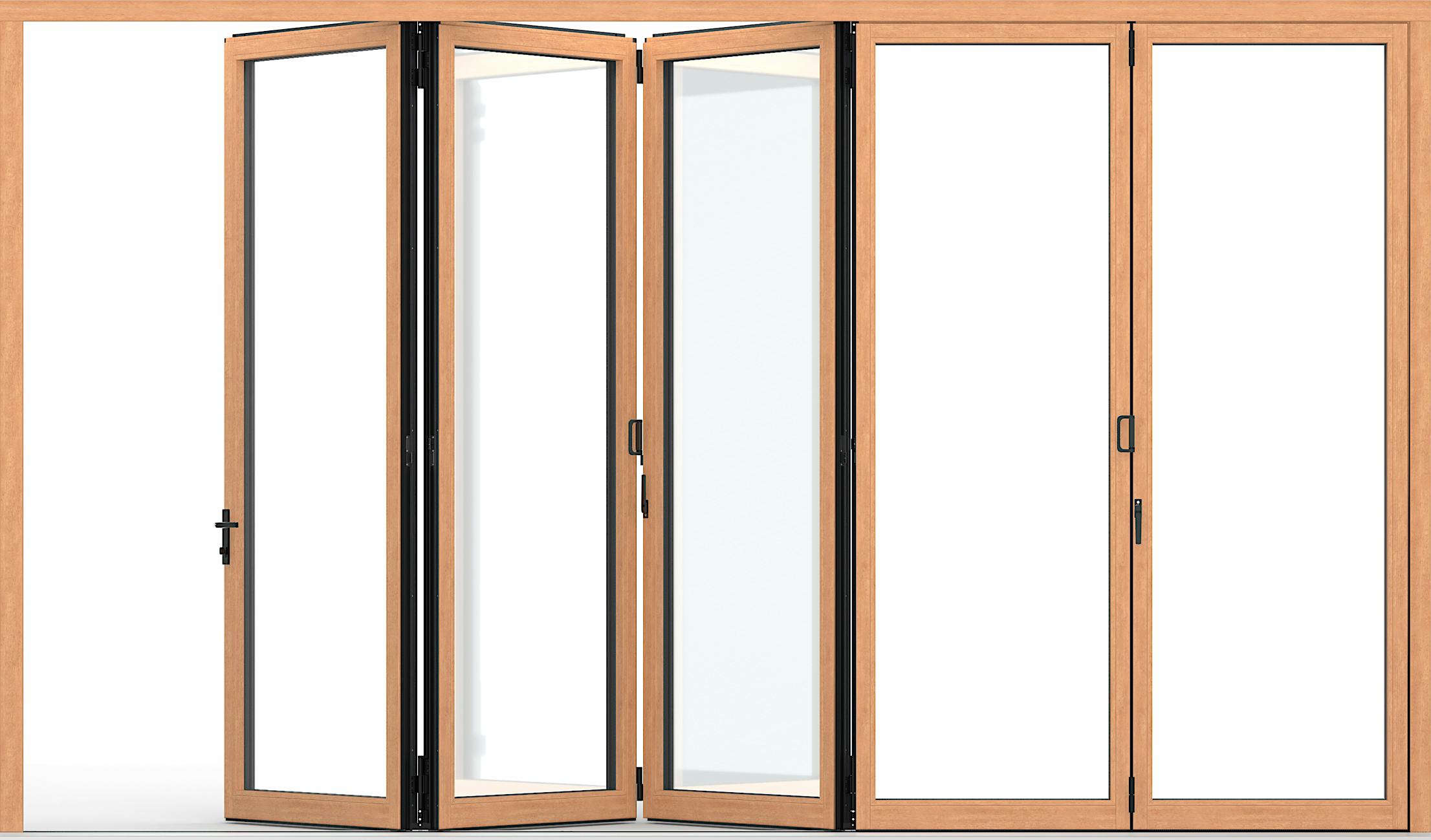

NW Clad 740
Slimmest Aluminum Clad Folding Glass Wall
- Slimmest Aluminum Clad Frame in the Folding Door Industry
- Heights Up to 9′ 10″ (3000 mm)

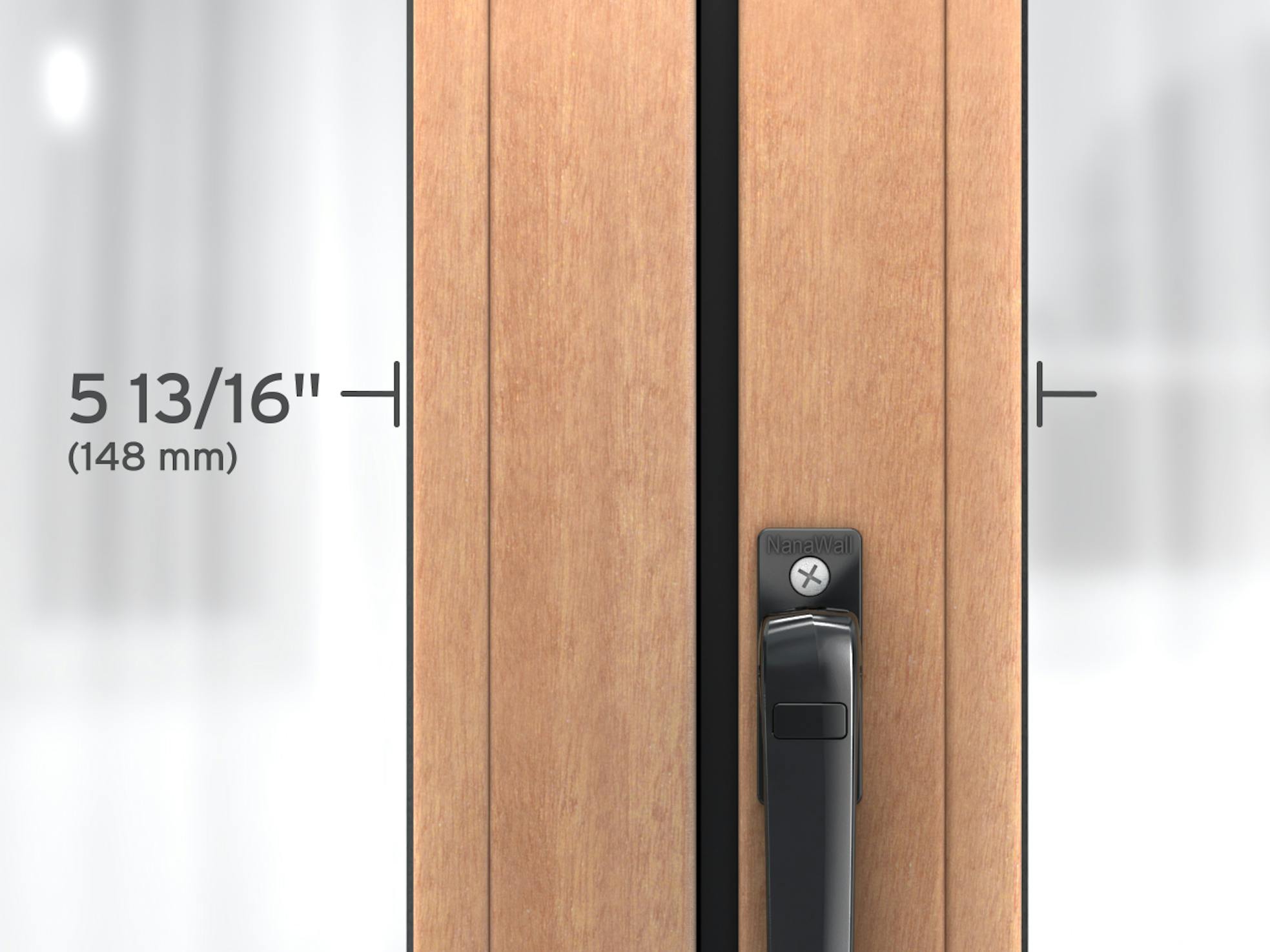

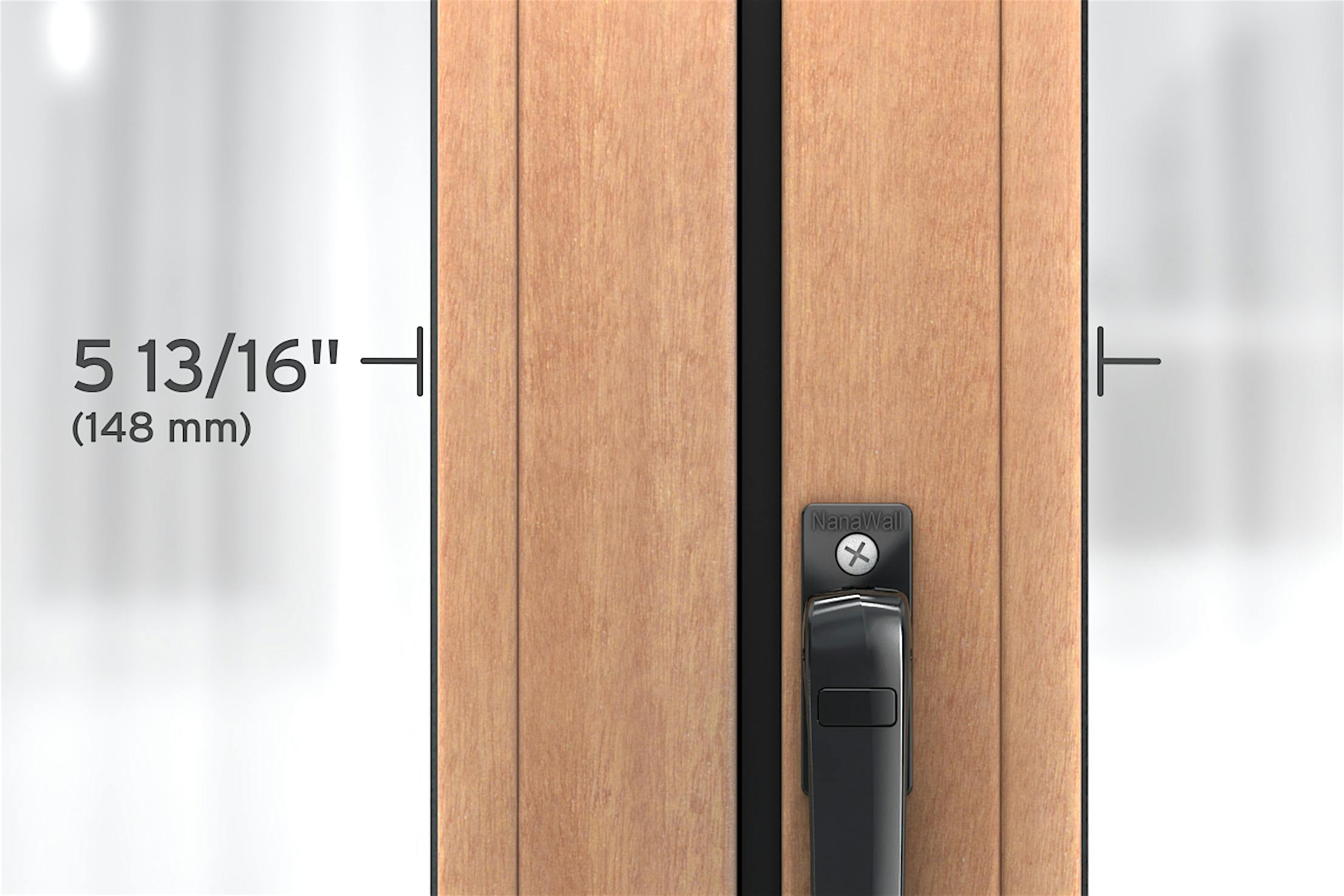

- Intersection of Two Folding Panels Is 5 13/16″ (148 mm)
Slim Design, Beautiful Aesthetics

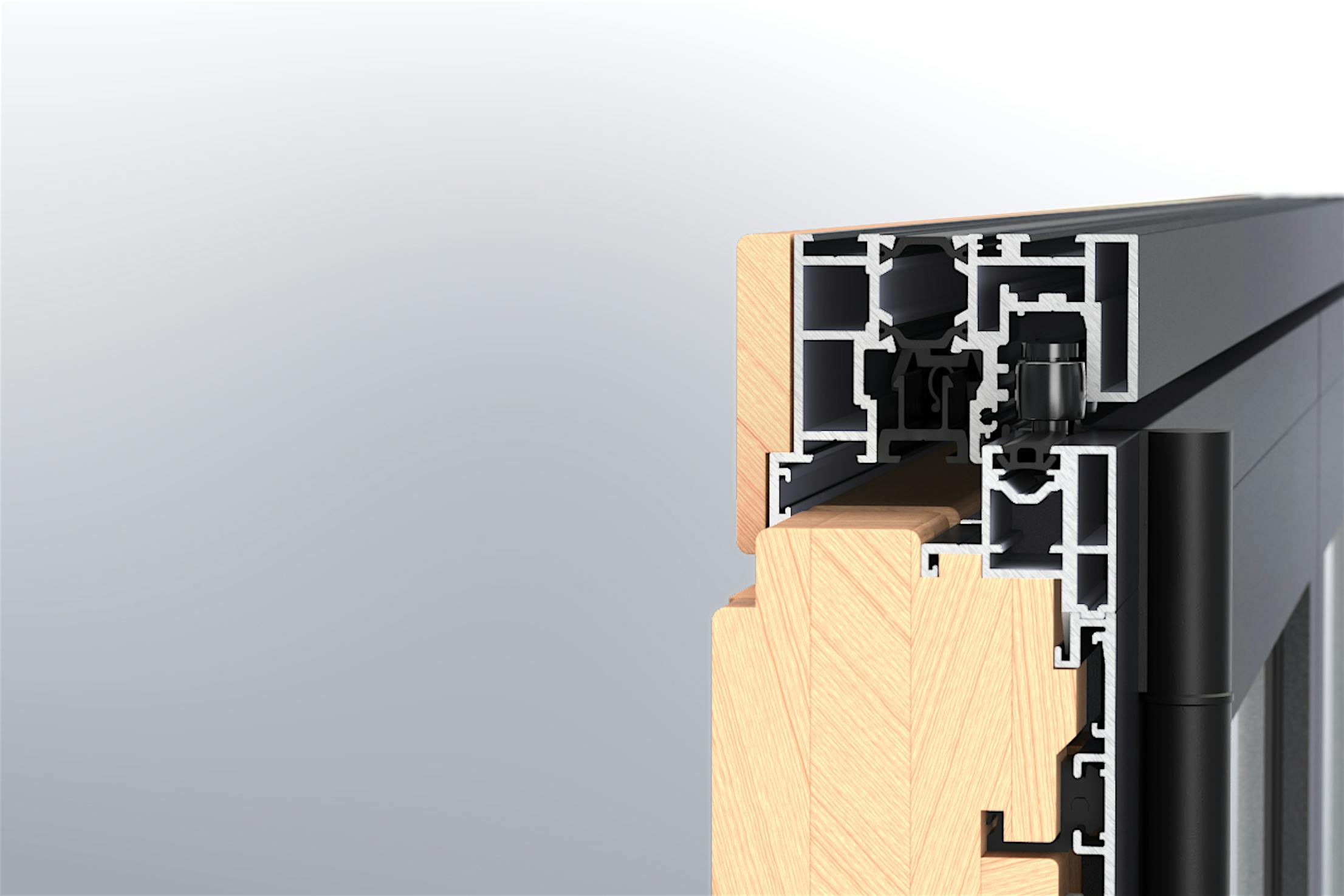

NW Clad 740 provides the slimmest aluminum clad frame in the folding door industry. With the warmth of a quadruple laminated cross-grained wood frame to the interior and durable aluminum cladding on the exterior, the profile is styled in a crisp, angular design. The slim nature of this system provides an intersection of two folding panels at a mere 5 13/16″ (148 mm). This floor supported system offers an extremely streamlined appearance with minimal exposed hardware, creating a new level of aesthetics.
Fourth Generation Energy-Efficient Clad Folding Glass Wall
Designed for energy efficiency and strong weather performance, the best-in-class NW Clad 740 provides exceptional protection from outside elements and delivers comfort and security when closed. As a NanaWall product, the NW Clad 740 has been put through rigorous independent performance testing for air, water, structural, and forced entry.
Broad Product Configurability
These floor supported panels are capable of impressive heights up to 9' 10" (3000 mm). As a custom-built architectural solution, this system is available in inswing or outswing configurations, and open corner designs.

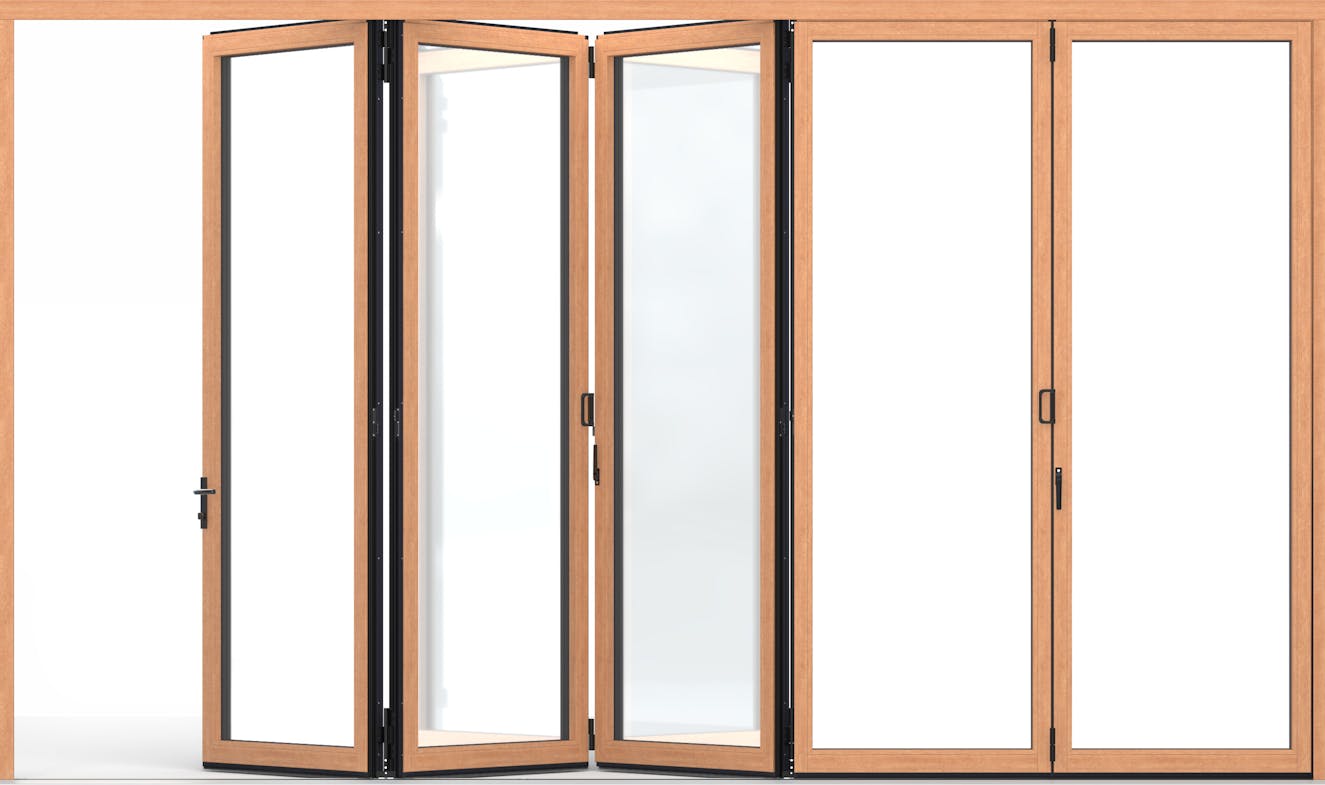

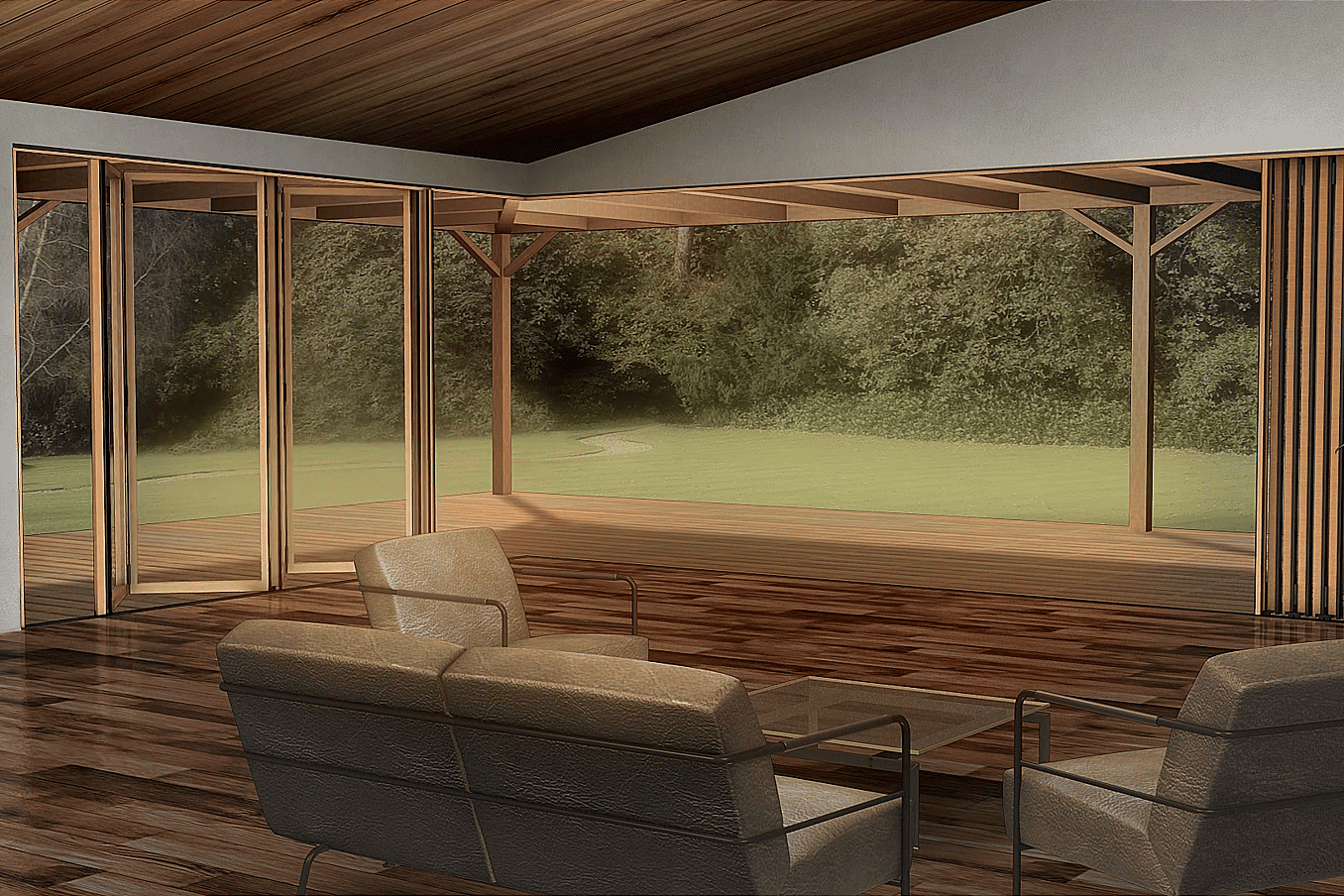

Panel sets are able to move and stack either to the right, left, or center within the same track allowing the panels to be stacked in the most convenient location as needed. With FourFold and SixFold, wider opening sizes are possible.

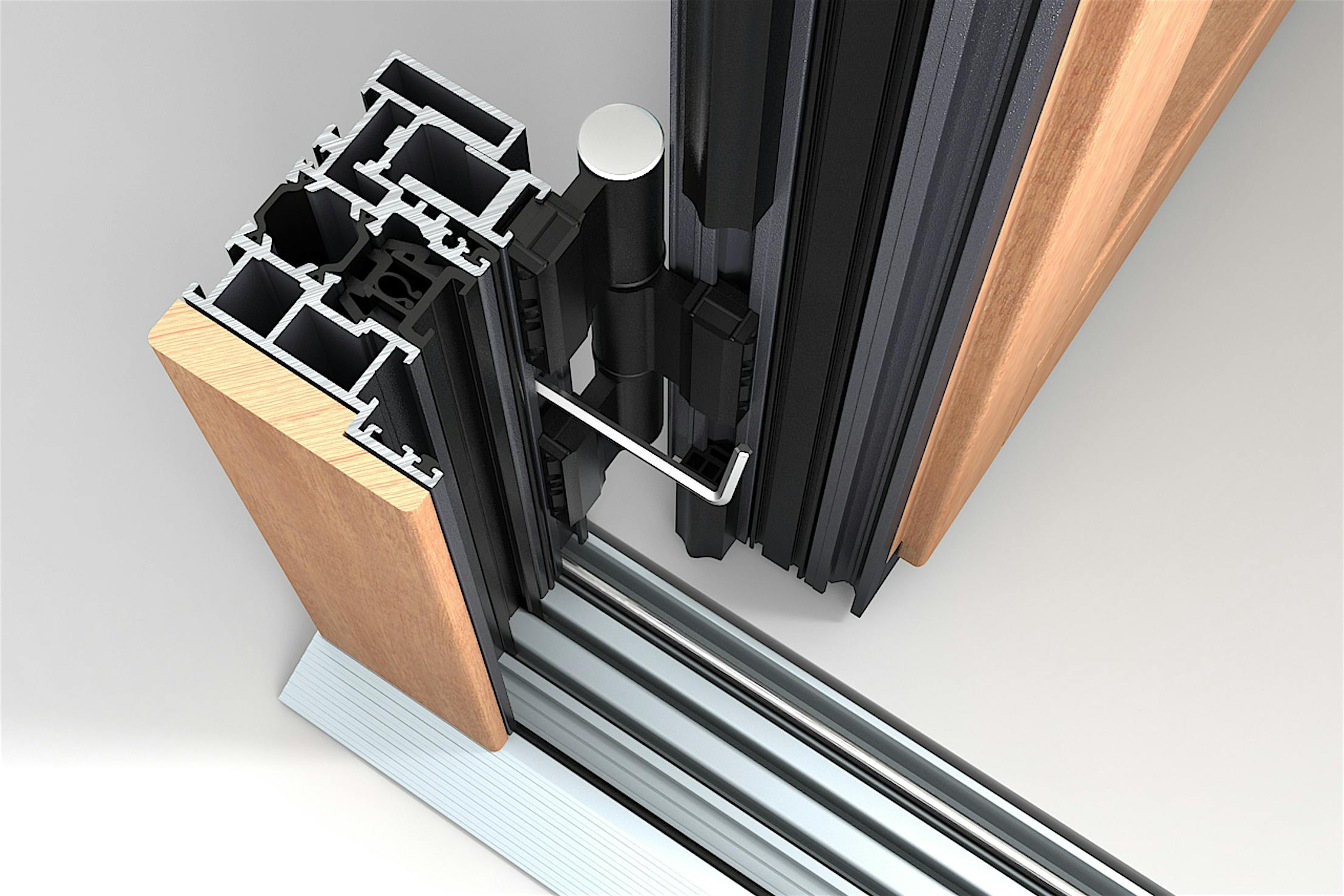

Durable aluminum extrusions provide cladding over solid wood frames to create a protective skin on the exterior for enhanced weather resistance and low maintenance. NW Clad 740 incorporates rear ventilation and clip attachments between the aluminum and wood that allow the two different materials to expand and contract, without constraint, during temperature fluctuations. This rear ventilation principle allows moisture to dissipate, which is especially needed in environments where temperatures are extremely hot, humid, or cold.
NW Clad 740 is manufactured with sustainably harvested wood options that meet the international standards of FSC or PEFC. Market availability of quadruple laminated cross-grained wood may differ by wood species.
These panel sets are able to move and stack either to the right, left, or center within the same track allowing the panels to be stacked in the most convenient location as needed.
Floor supported systems are ideal for applications where load-bearing capability of the header is a concern.
- Provides long-term durability and smooth operation.
- Control construction costs. Requires less header load and limits the need for extensive pre-cambering.
- Improves likelihood of keeping existing header when retrofitting/remodeling.

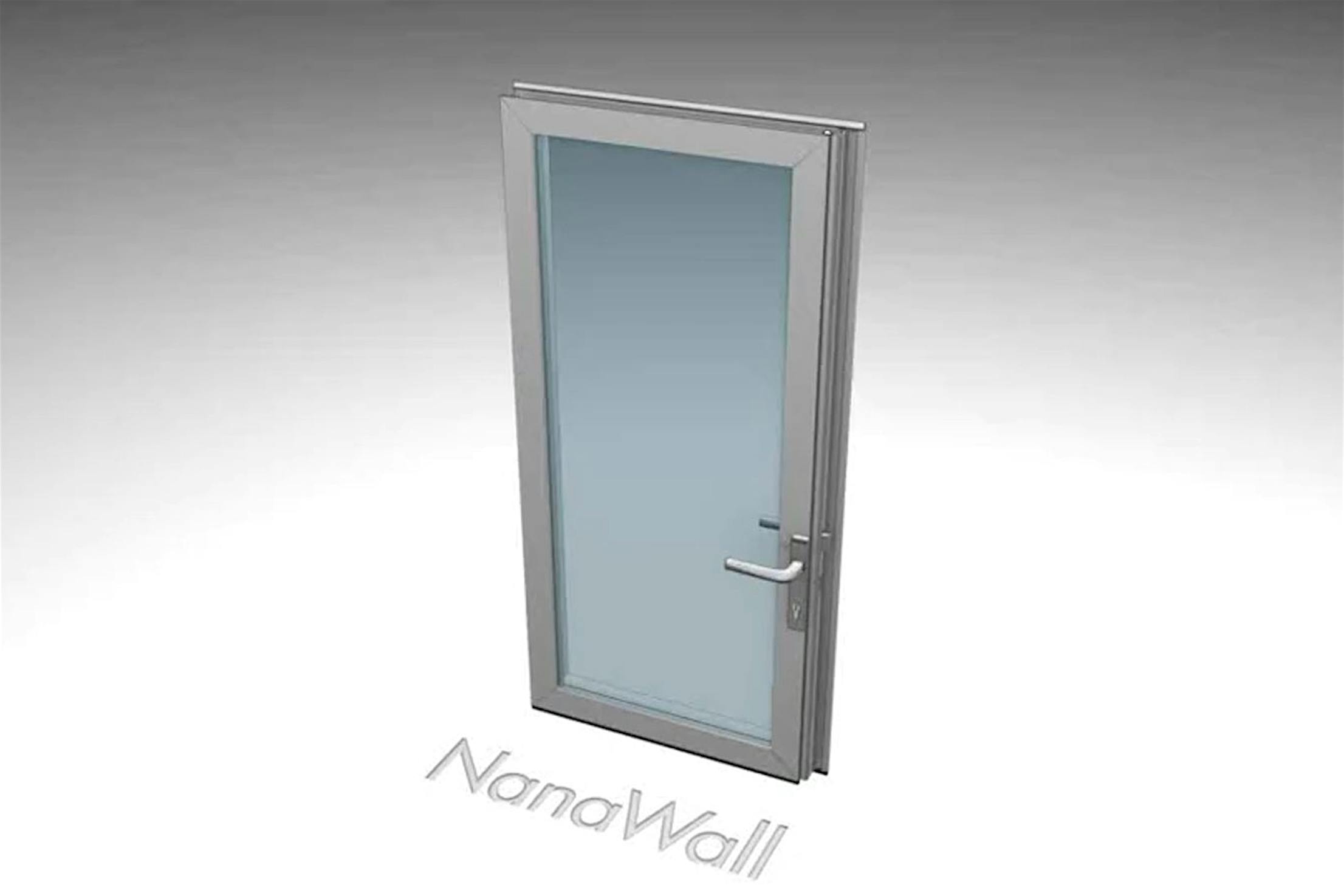

To accommodate traffic flow, swing panels up to 3′ 3″ (1000 mm) can be added either to the end of a chain of panels for systems with an odd number of panels folding in one direction or hinged to the side jamb, depending on unit height and configuration.
Swing panels have been tested and passed over 500,000 cycles and can be optionally outfitted with higher kickplates for ADA compliance. Top door closers by others are possible.

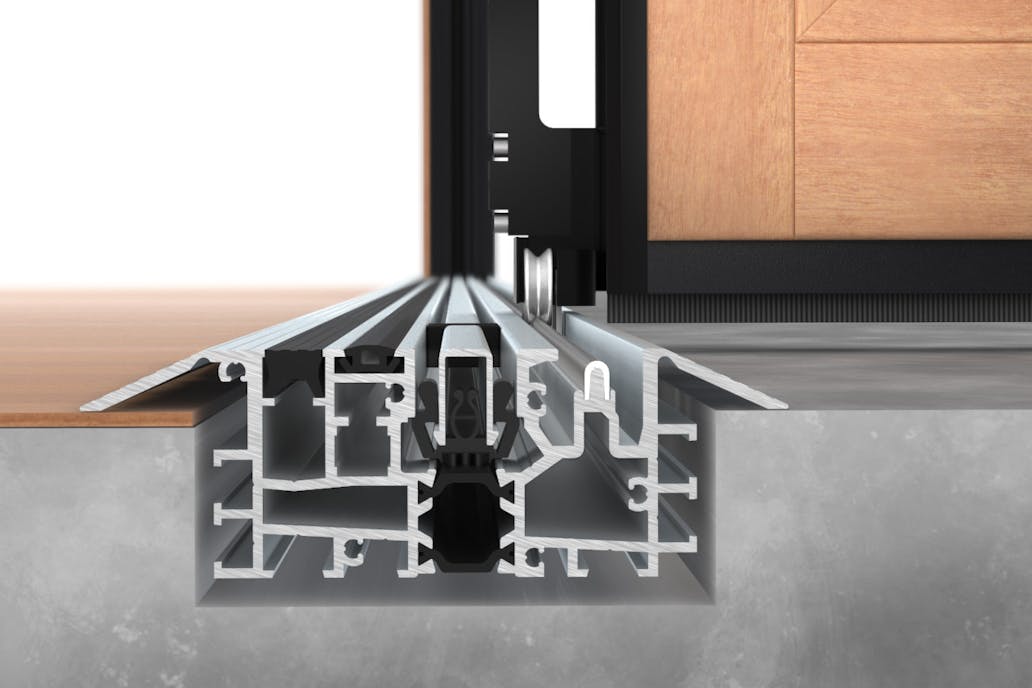

Four Sill Options with High Heel Resistant Feature
NW Clad 740 has four sill options: Hybrid, Low Profile Saddle Sill, Low Profile Saddle Sill with UniverSILL®, and Flush. Standard to all sills is removable aluminum high heal resistant sill inserts. These inserts provide ADA compliance for the Low Profile Saddle and Flush sills and create a very barefoot-friendly transition.
See Sill Options

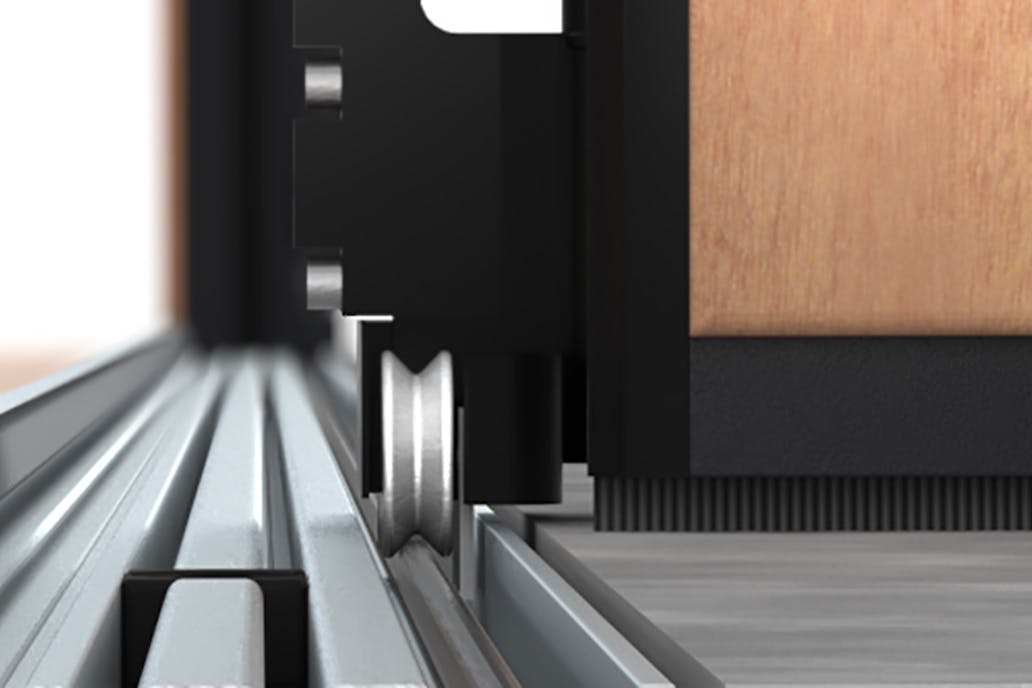

Unique Gothic Arch Roller Design for Frictionless, Smooth Operation

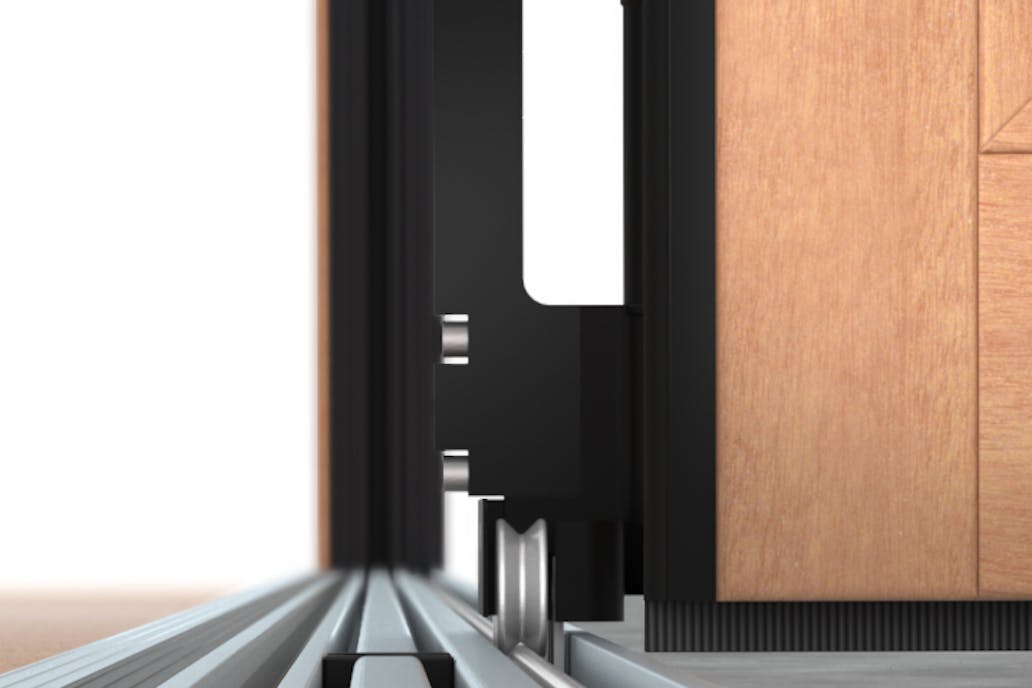

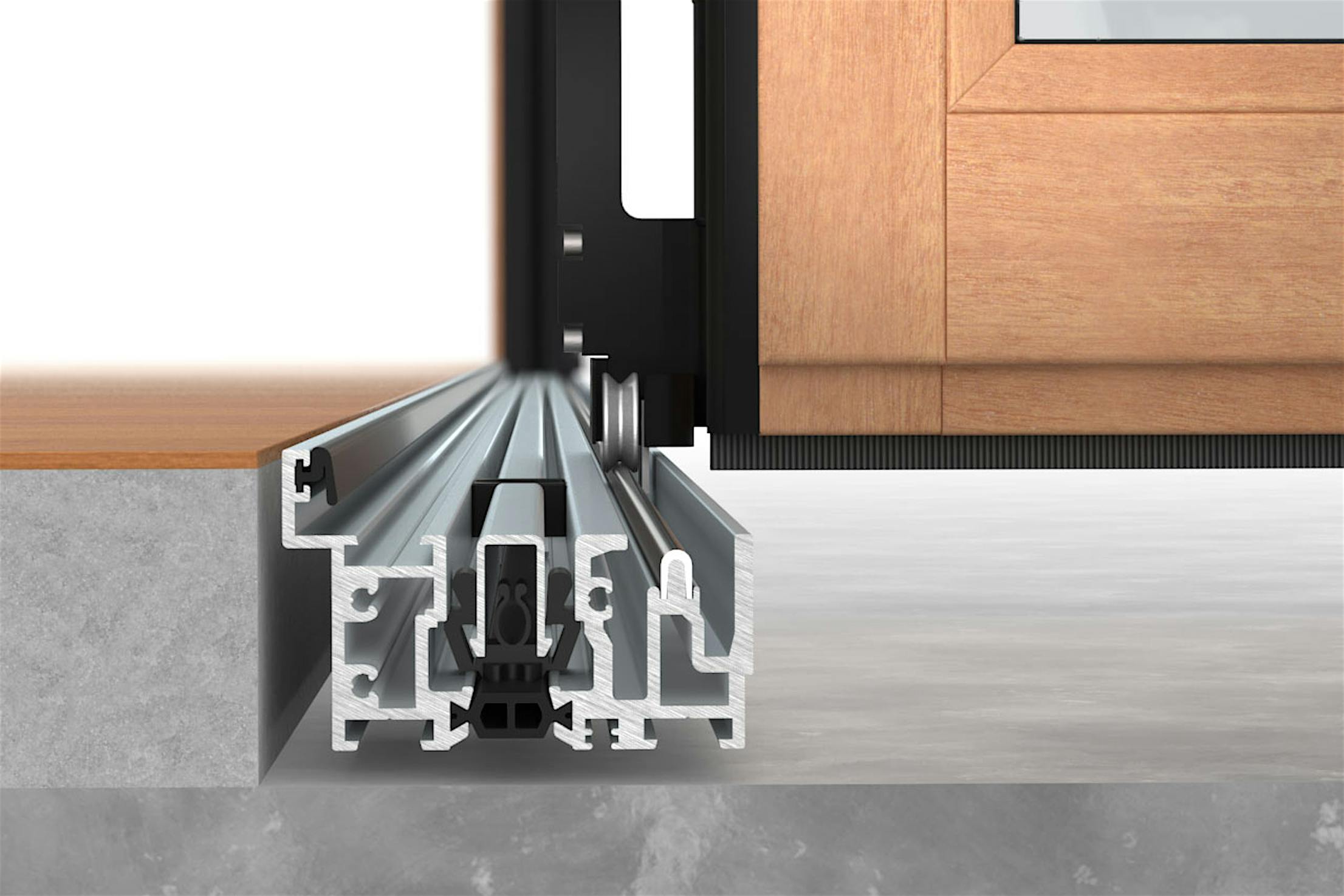

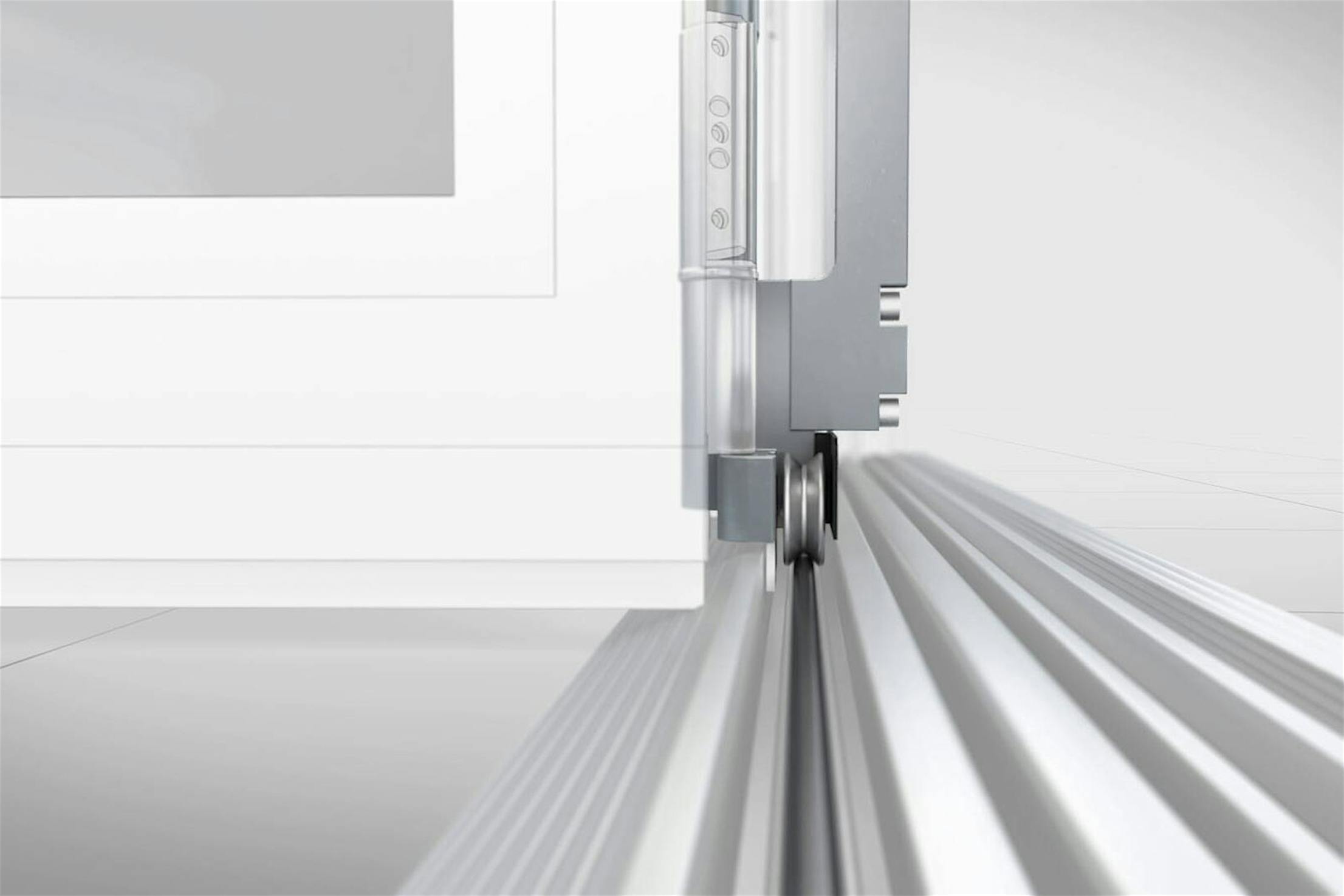

The running carriage rolls above the water table on two stainless steel wheels with a unique Gothic arch design supported by a double row of ball bearings. With a 2-point contact of each wheel to the floor track, the system glides quietly and smoothly with less friction by providing an equal distribution of weight on the stainless steel track.
- Stainless steel for clean appearance with sealing cushion to avoid thermal conductivity
- Provides optimal load transfer so less connection points required
- For enhanced aesthetics, all frame attachment points are hidden

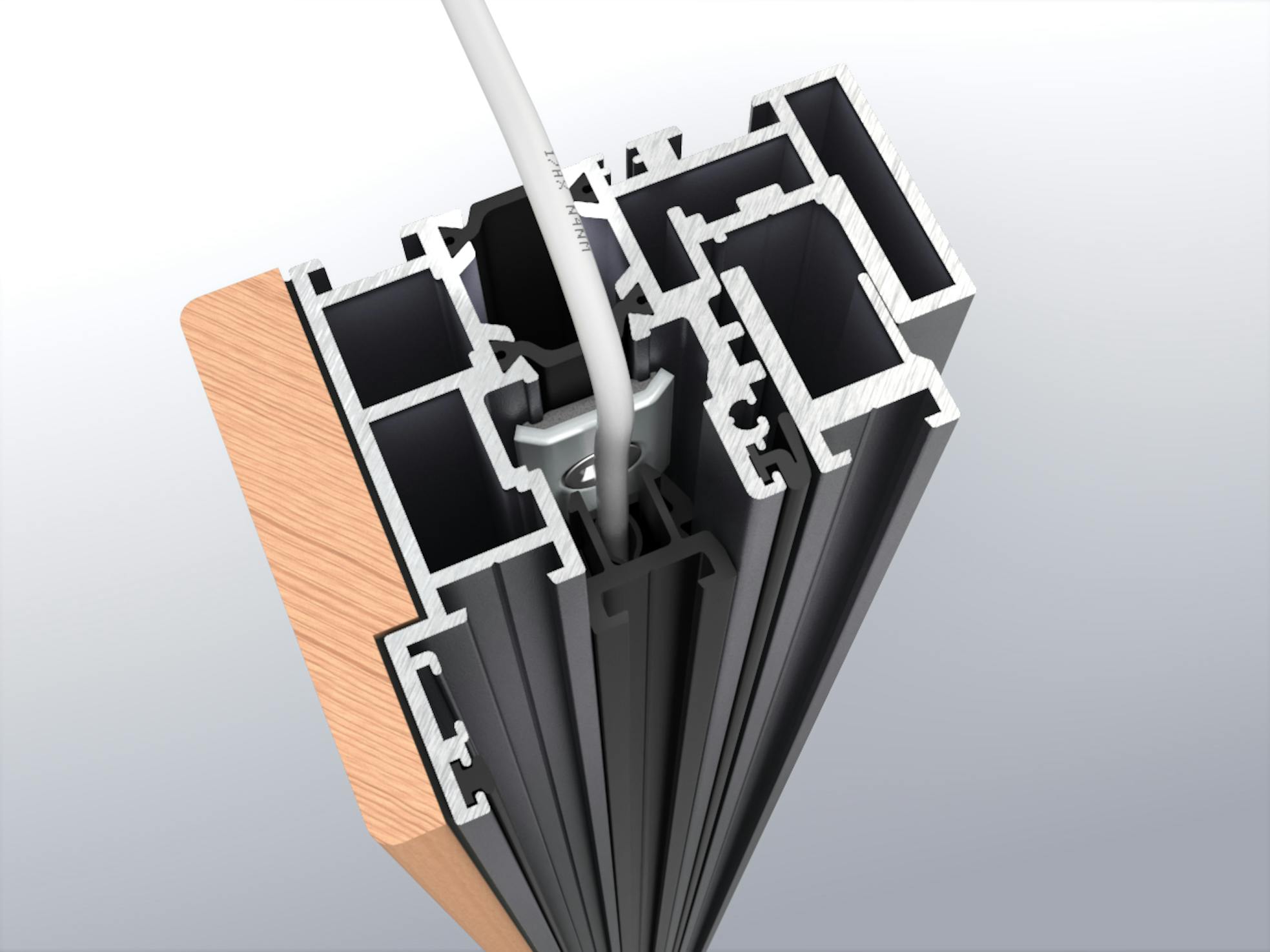

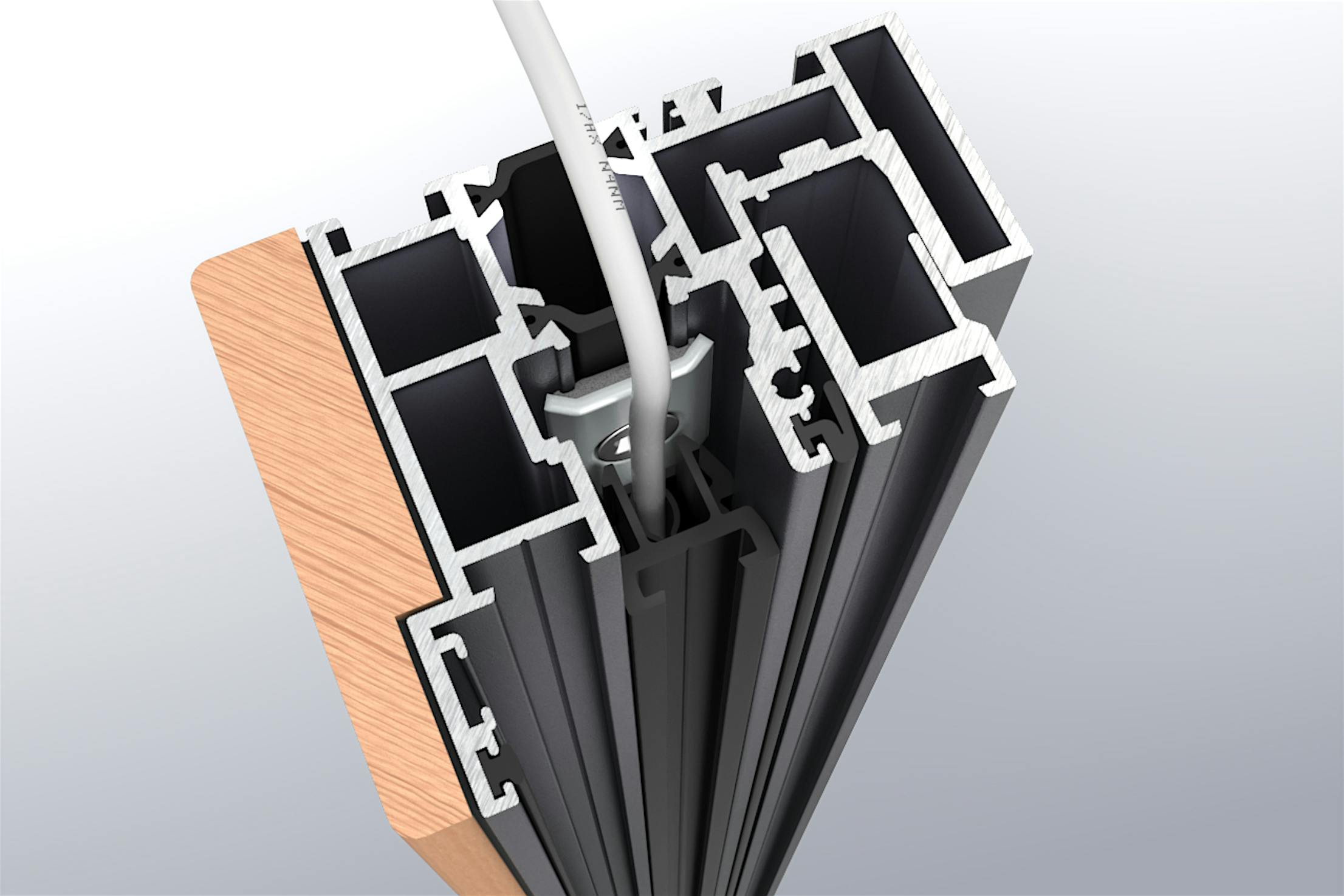

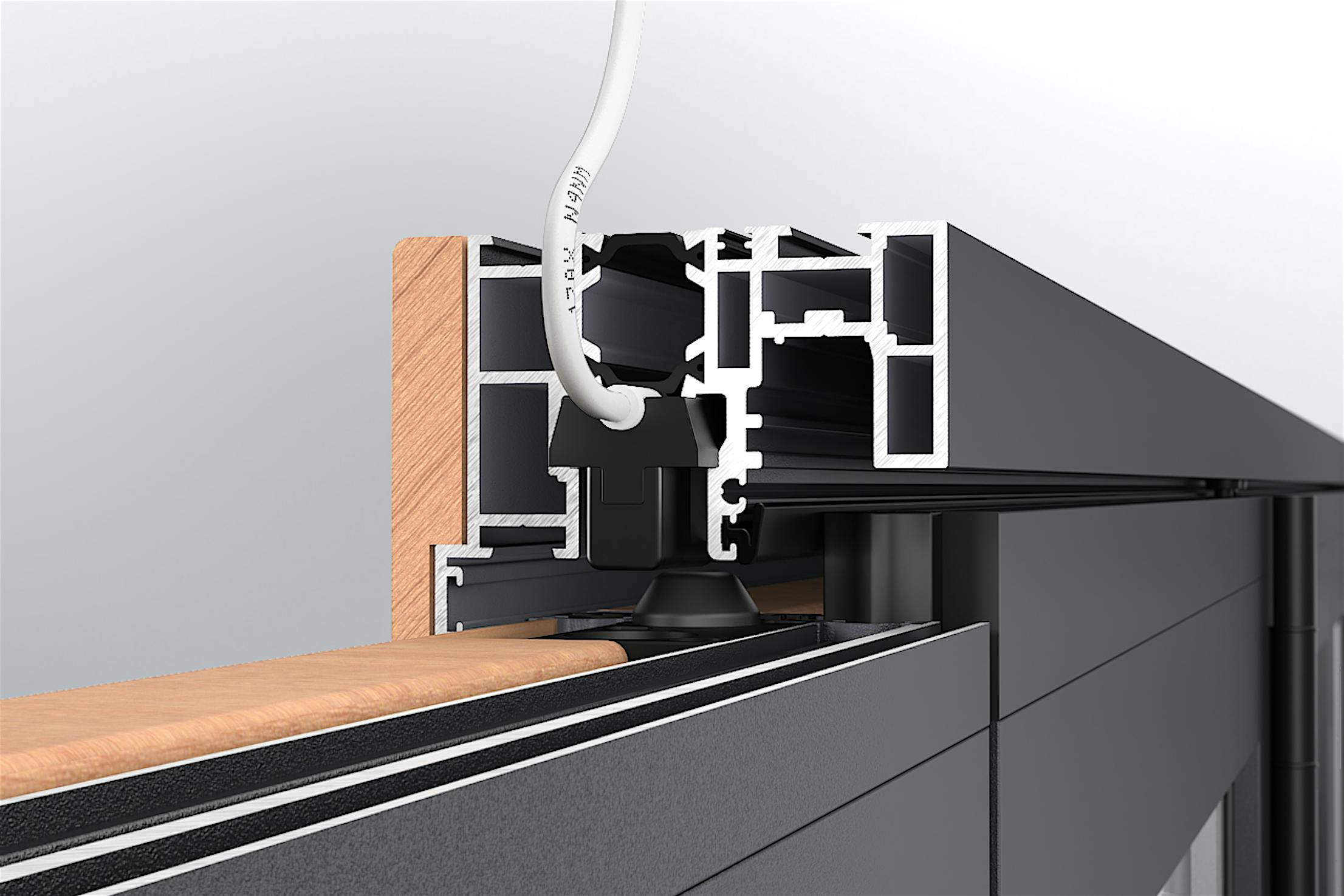

- Offers space for concealed cable routing for security systems by others
- Patented lateral adjustment of +/- 3/16″(5 mm) to allow for construction tolerance
- Adjusts easily should extreme panel expansion/contraction occur
- Panel guide helps system glide through head track with smooth operation
- System operated on floor supported technology for ease of movement

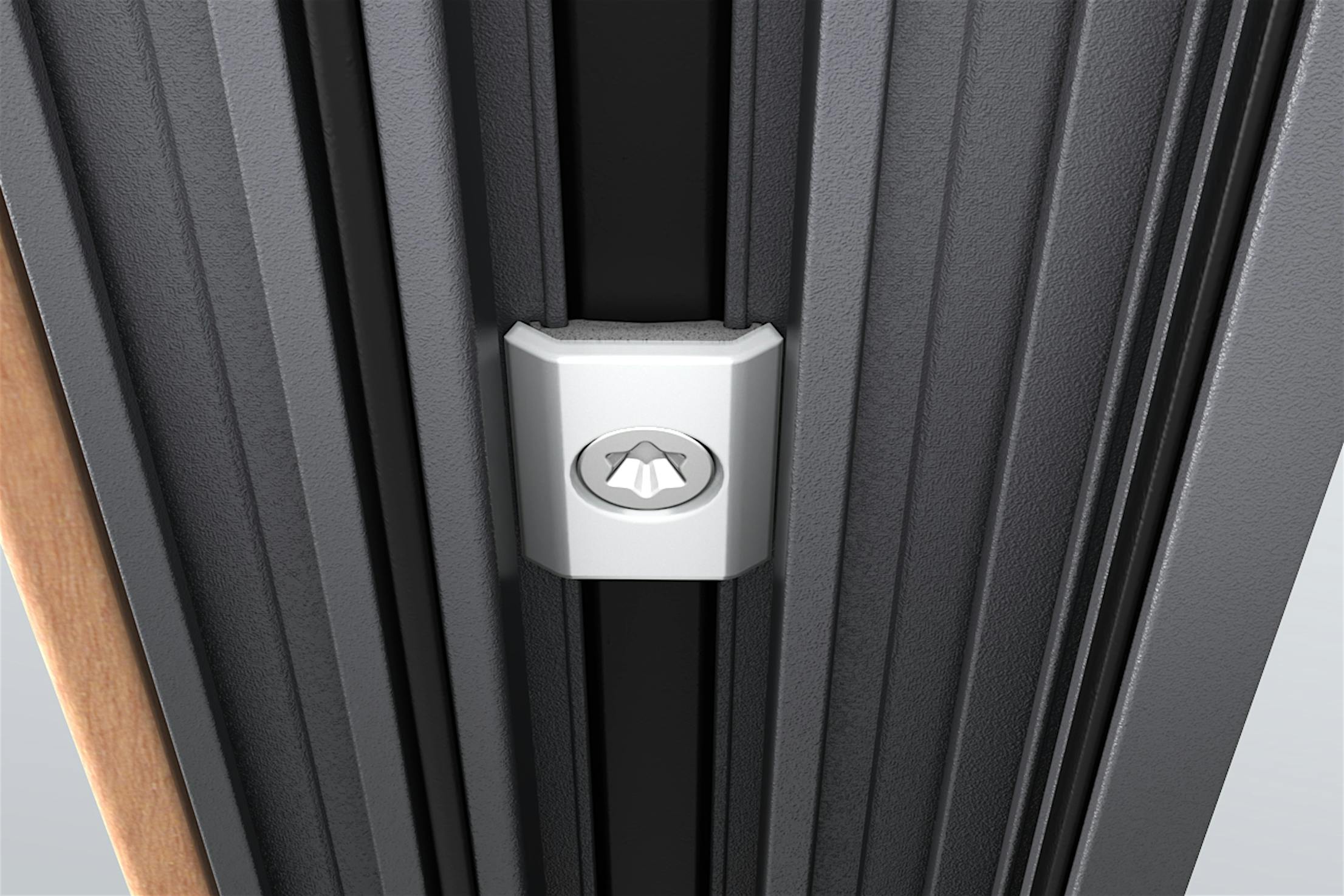

- Proprietary engineered component stacks FourFold and SixFold panel sets neatly and securely when in open position
- Allows for dynamic stacking of panels at the left, right, or center of opening operating on Floor Supported Technology

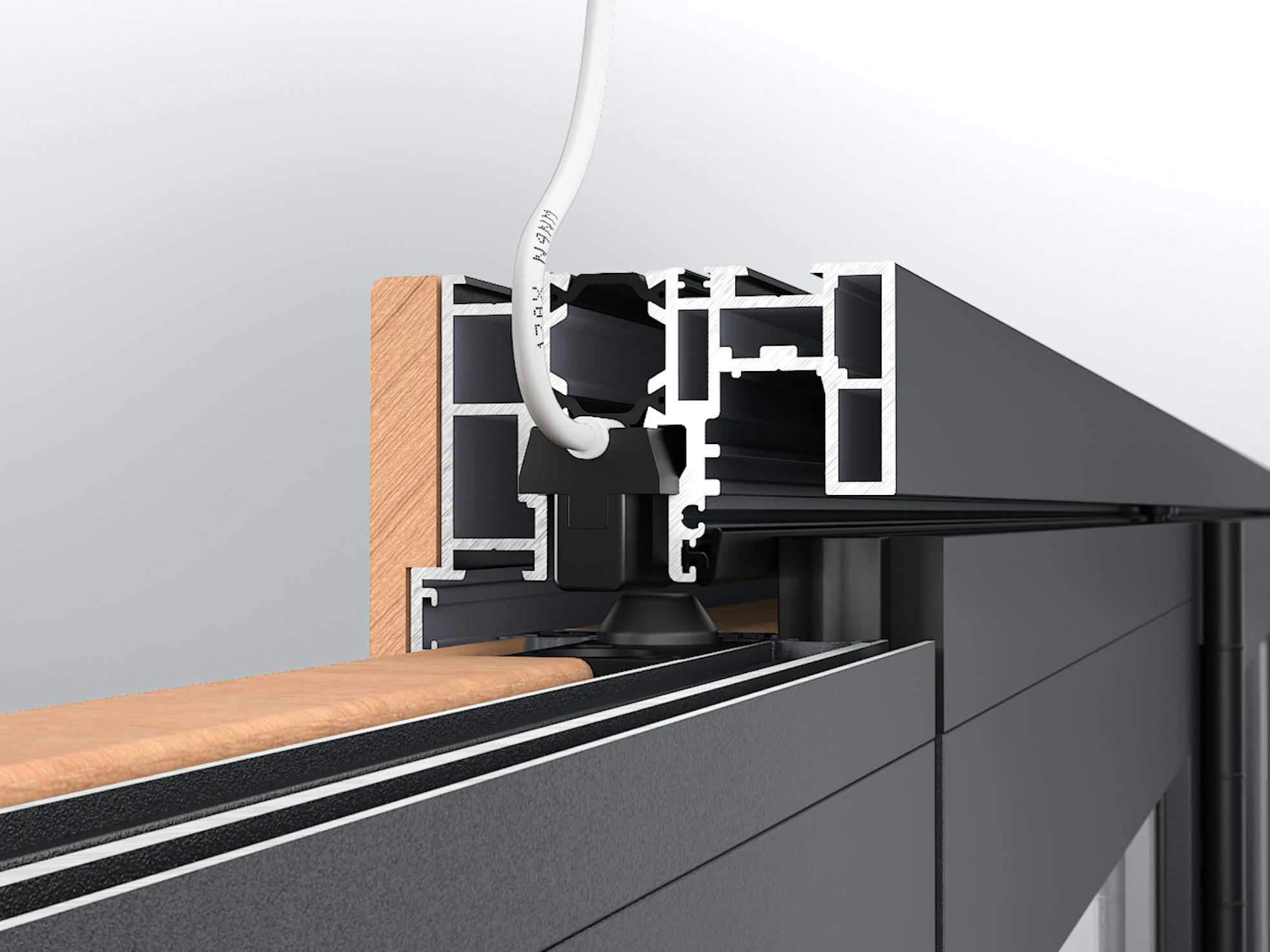

- Lock monitoring is available with Reed contact (by others) and specialized magnetic locking rod endcap to connect to home security systems
- Can be connected to count opening/closing cycles to identify when maintenance should be performed (by others)

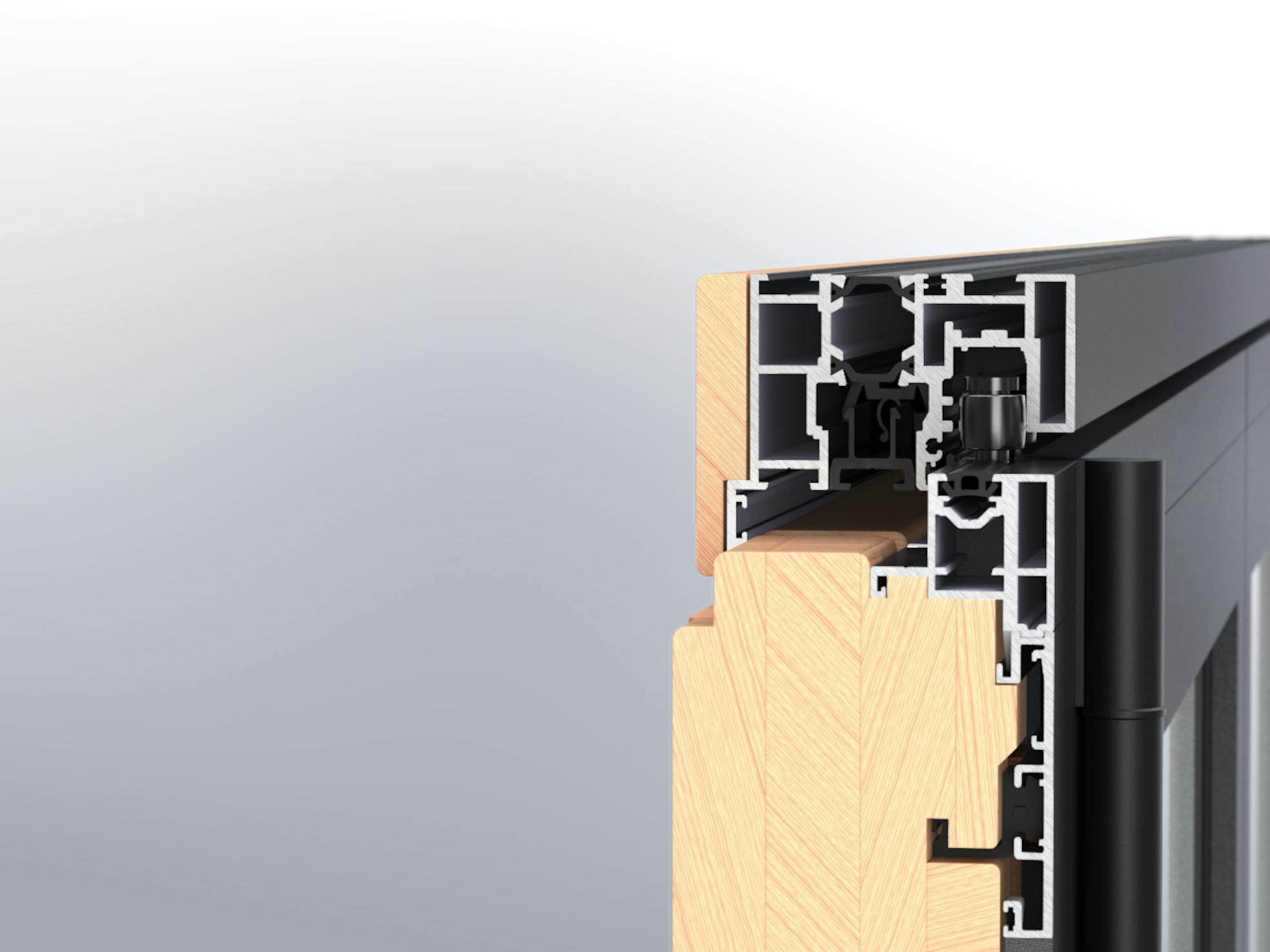

- Crisp, angular profile design for a modern aesthetic

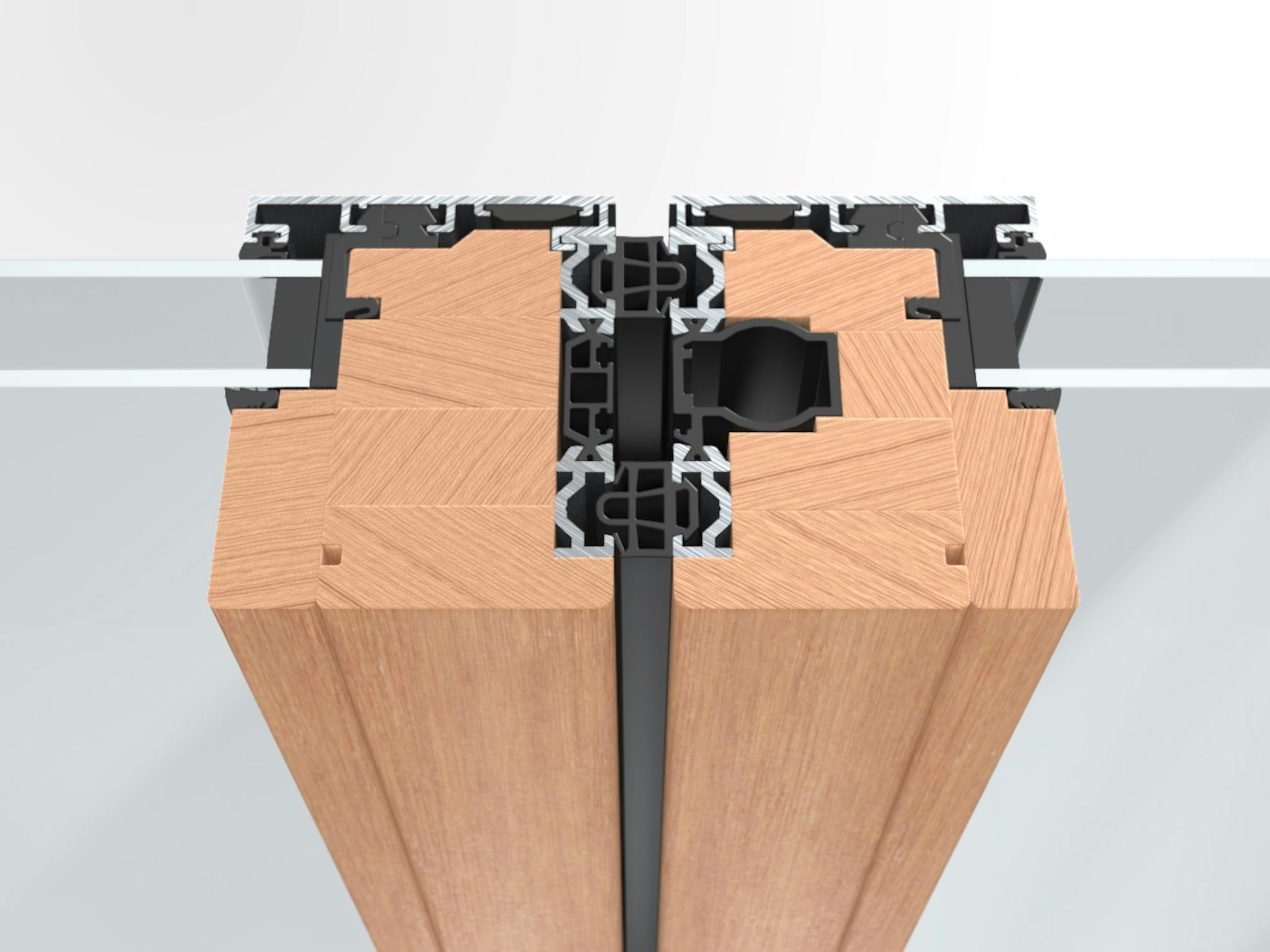

- Intersection of two folding panels is a mere 5 13/16″(148 mm) for minimal sightlines

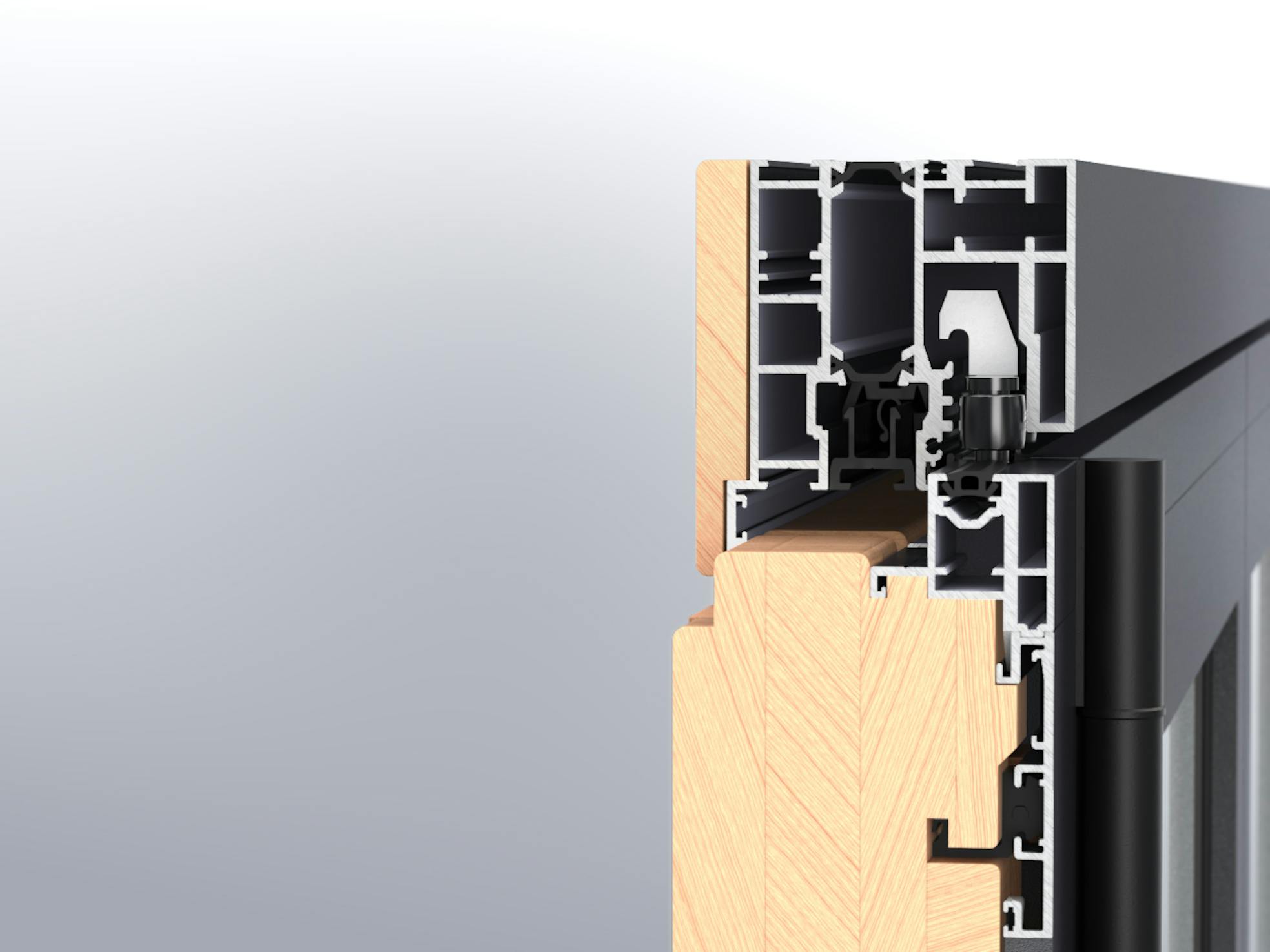

- Flat handle multi-point secure locking with 1″ (24 mm) throw bolt top and bottom

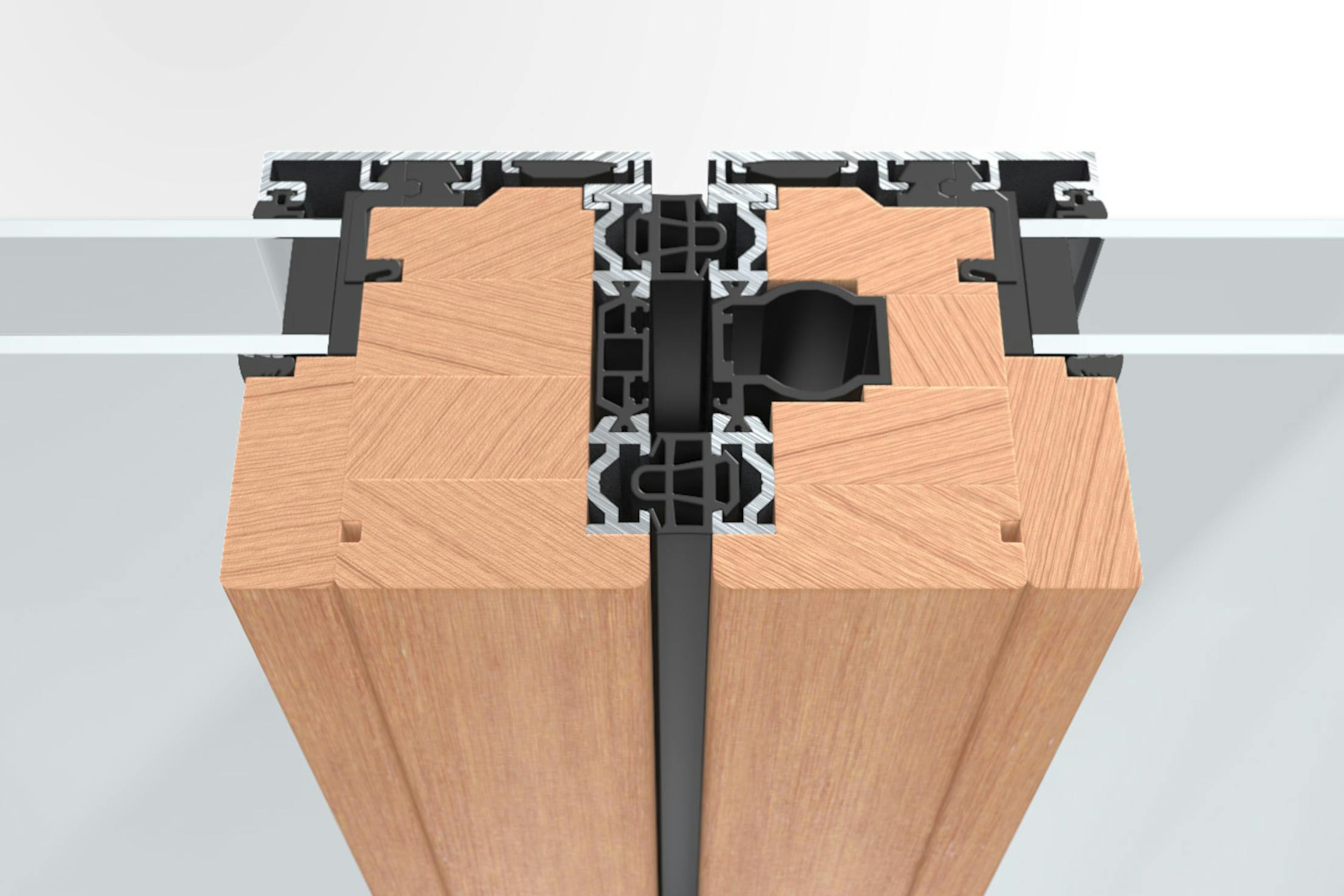

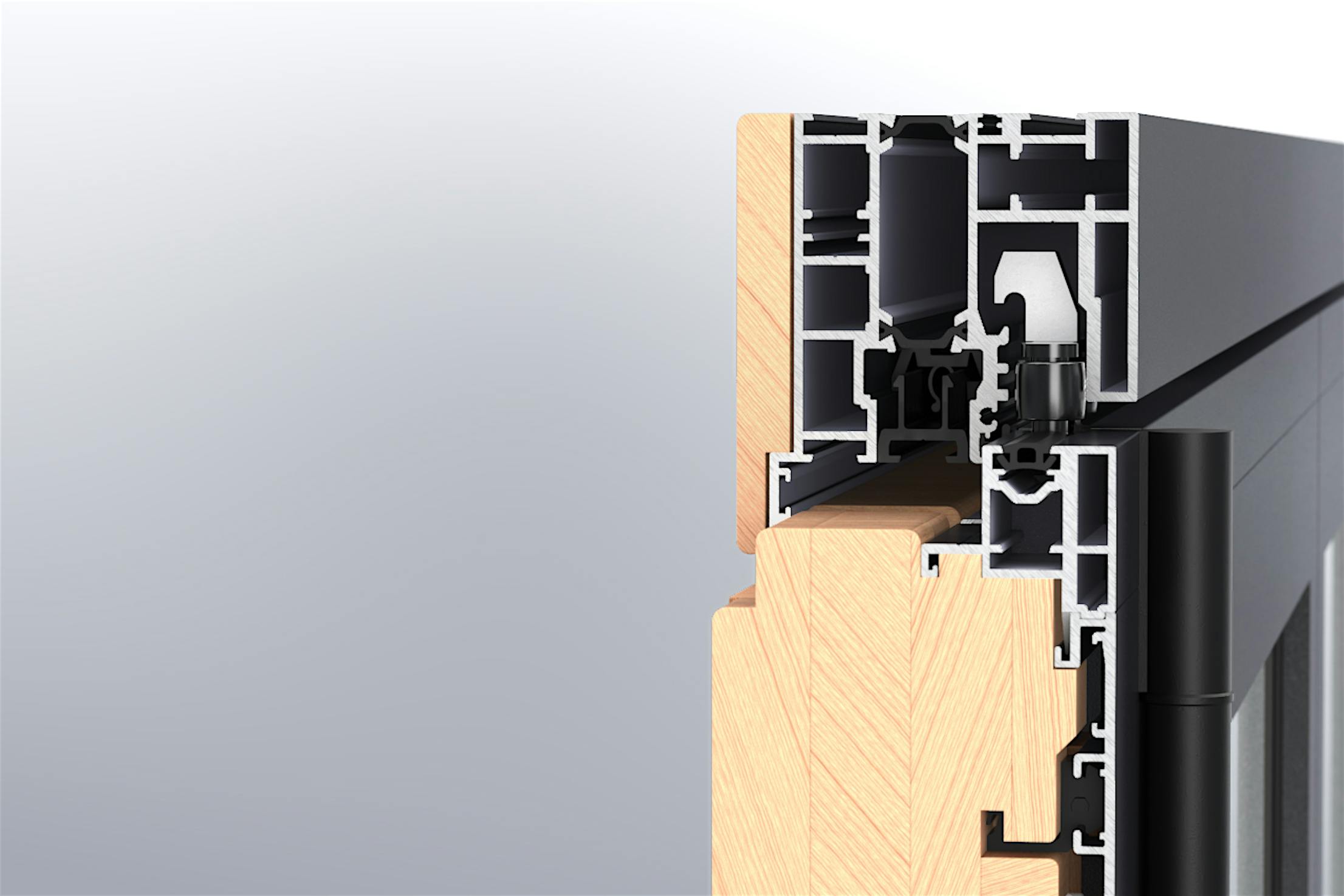

- Clip attachment of cladding provides rear ventilation for moisture dissipation between the two materials
- Sustainably harvested, single-species solid wood core
- Creates structural integrity and provides long-term durability

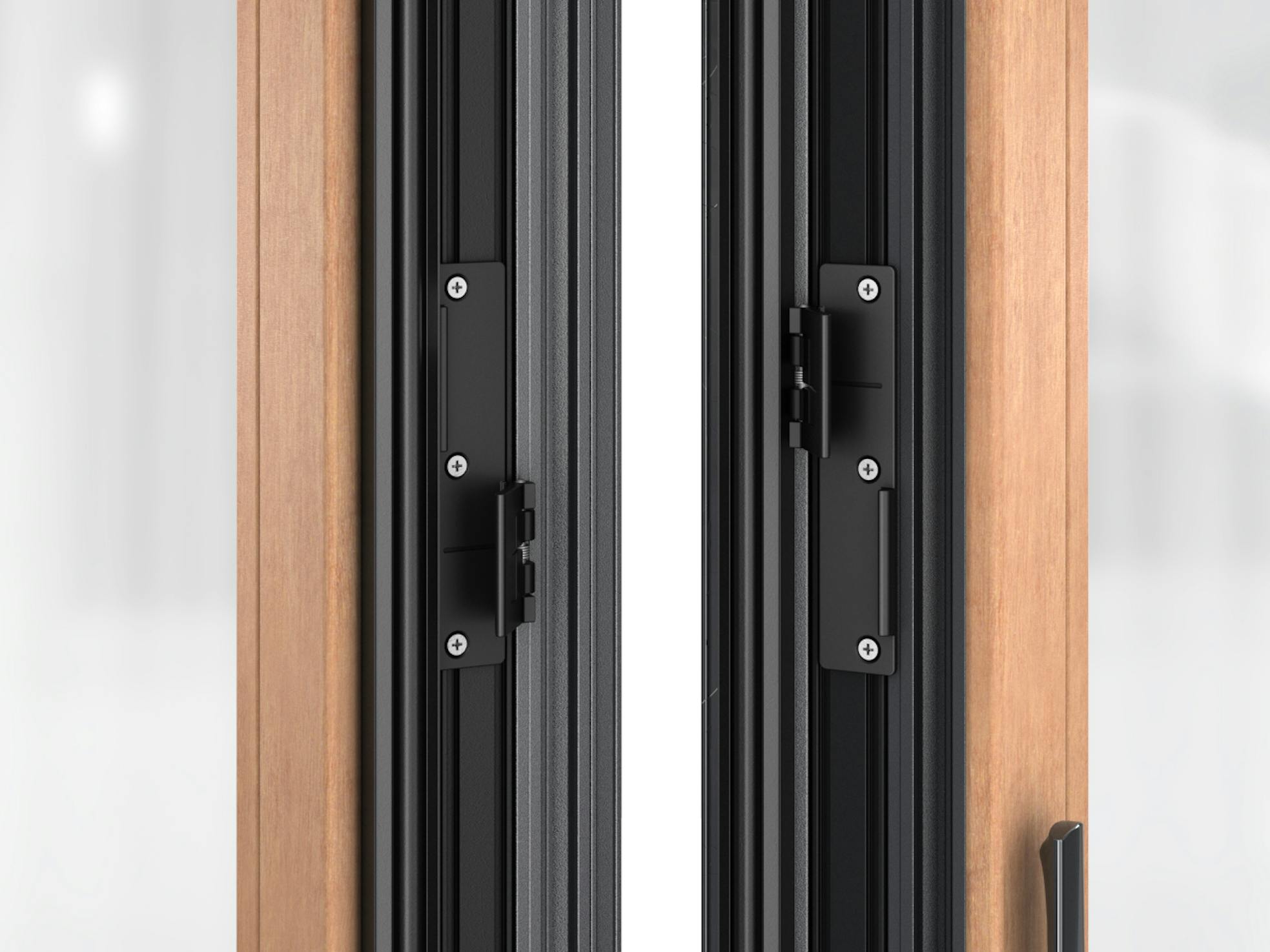

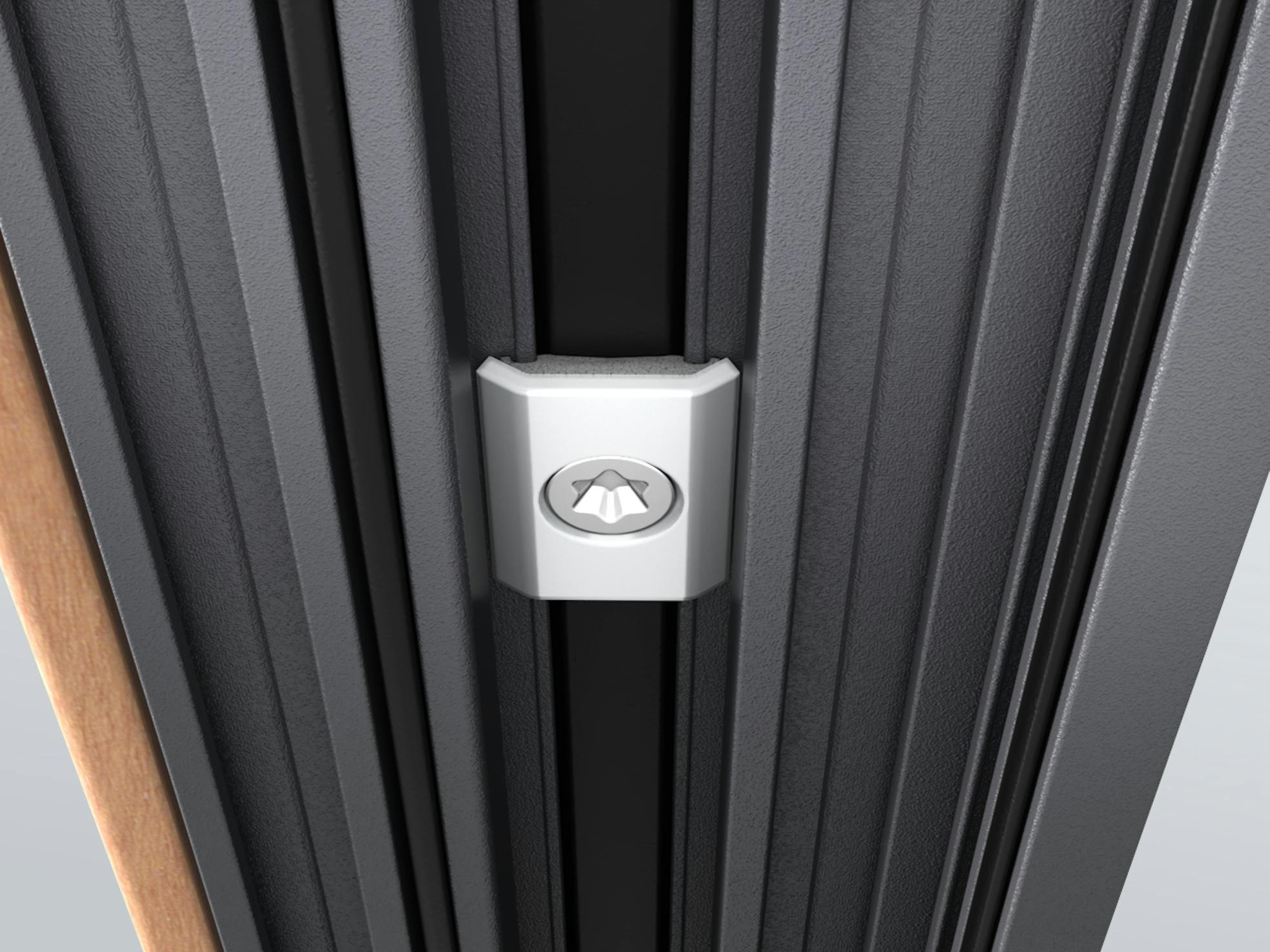

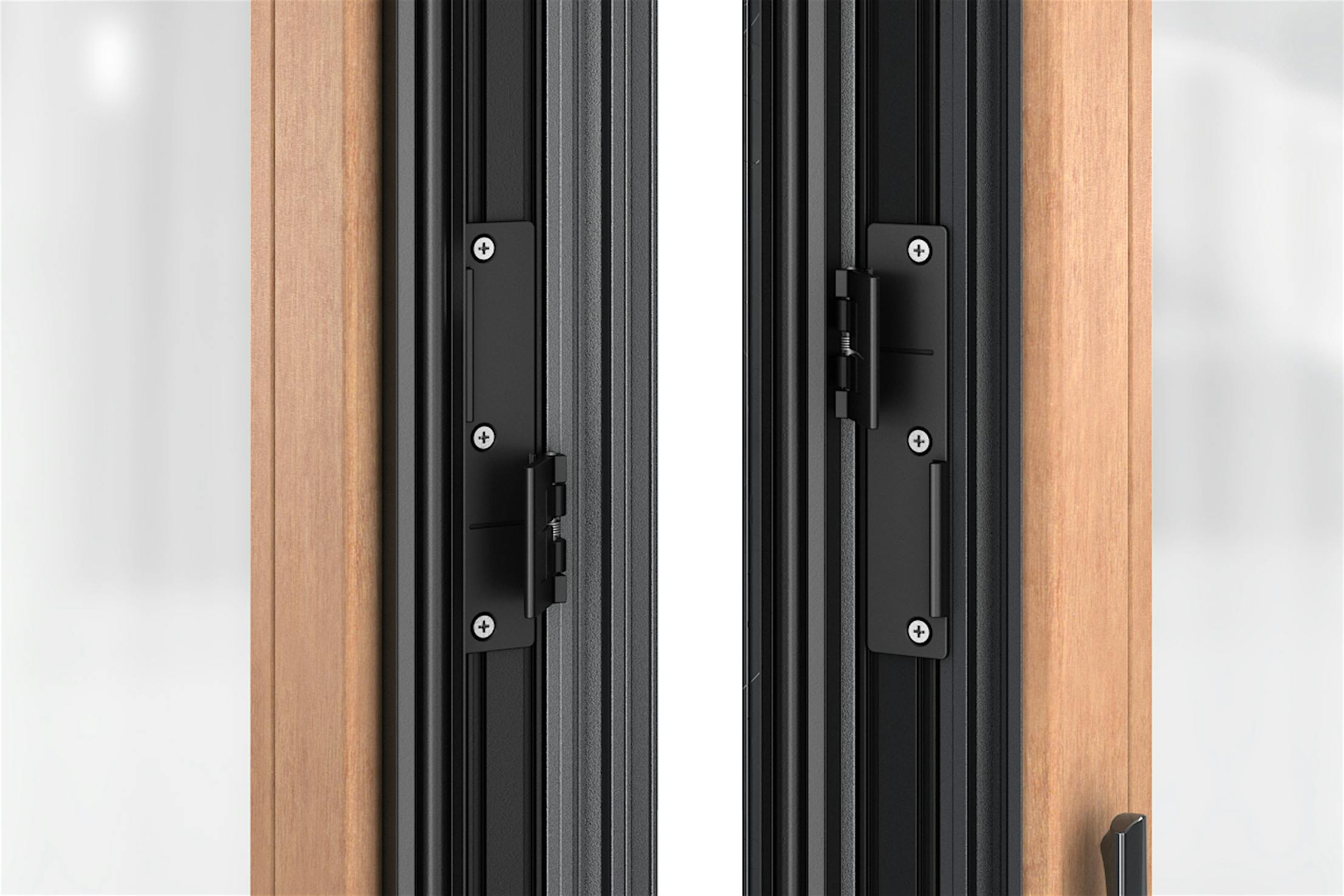

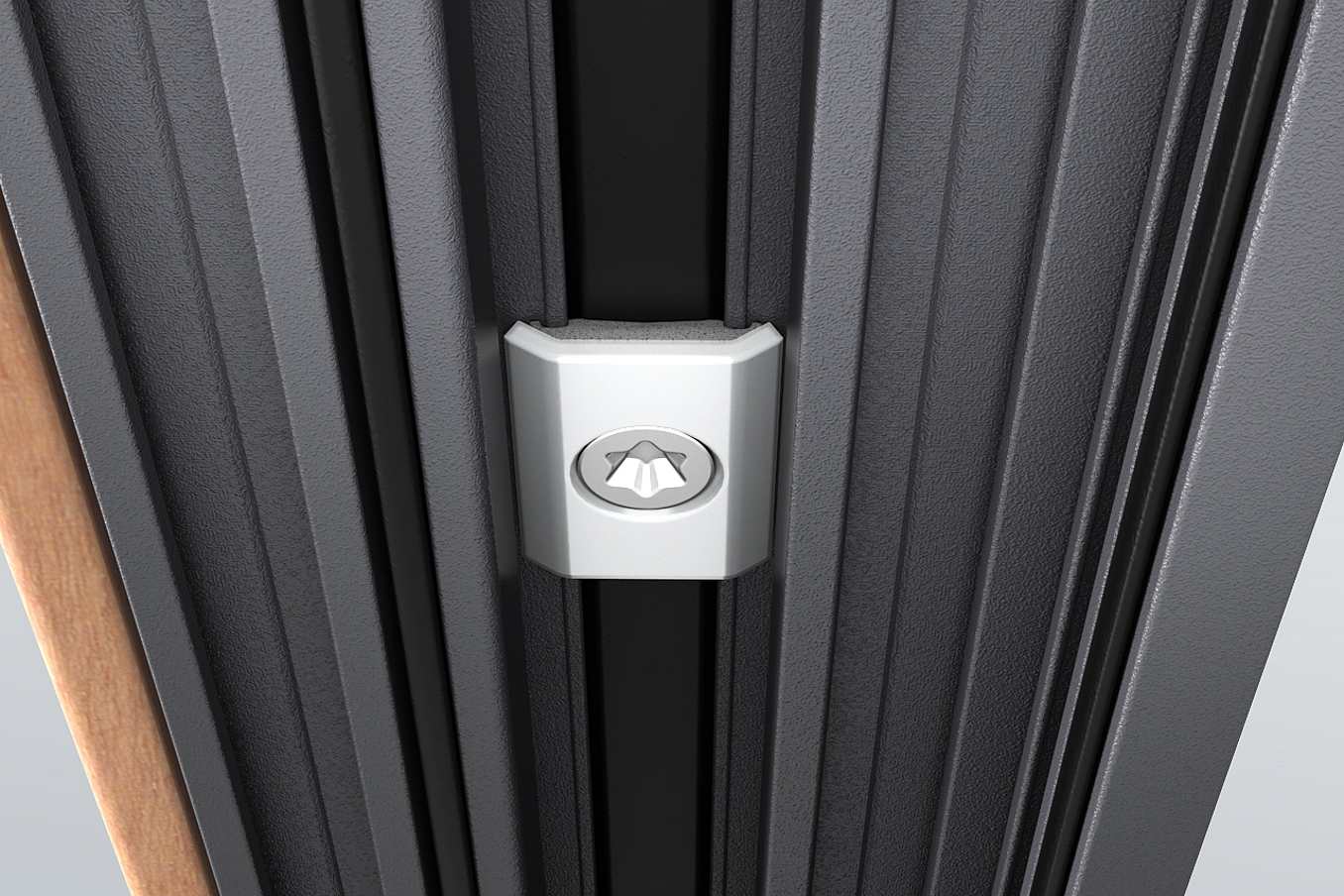

- Hidden spring-loaded TwinX mechanism aligns panels over 7′ (2150 mm)

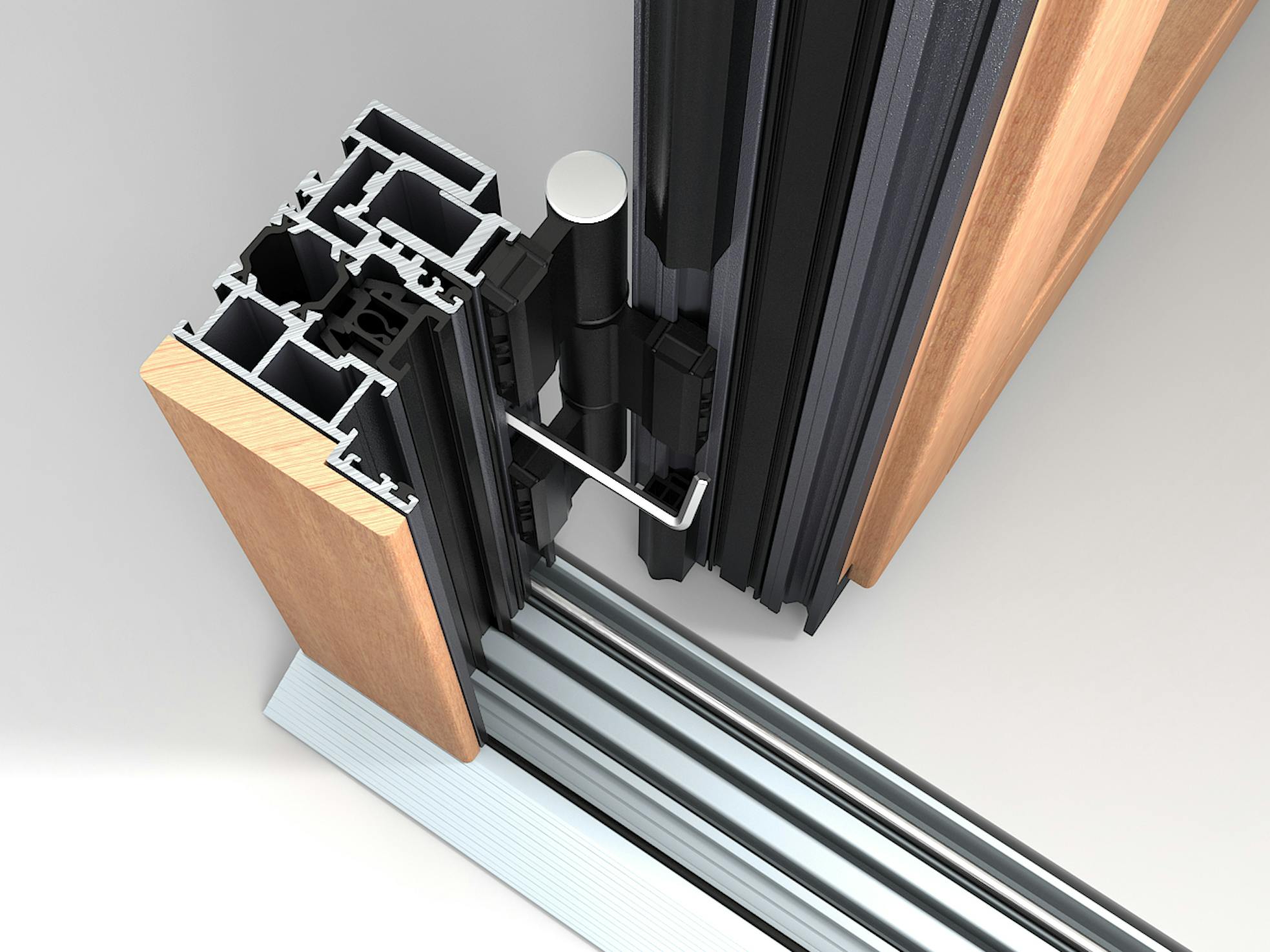

- Patented TwinX interlocks panels and provides structural reinforcement to eliminate exposed hinges in the middle of the system

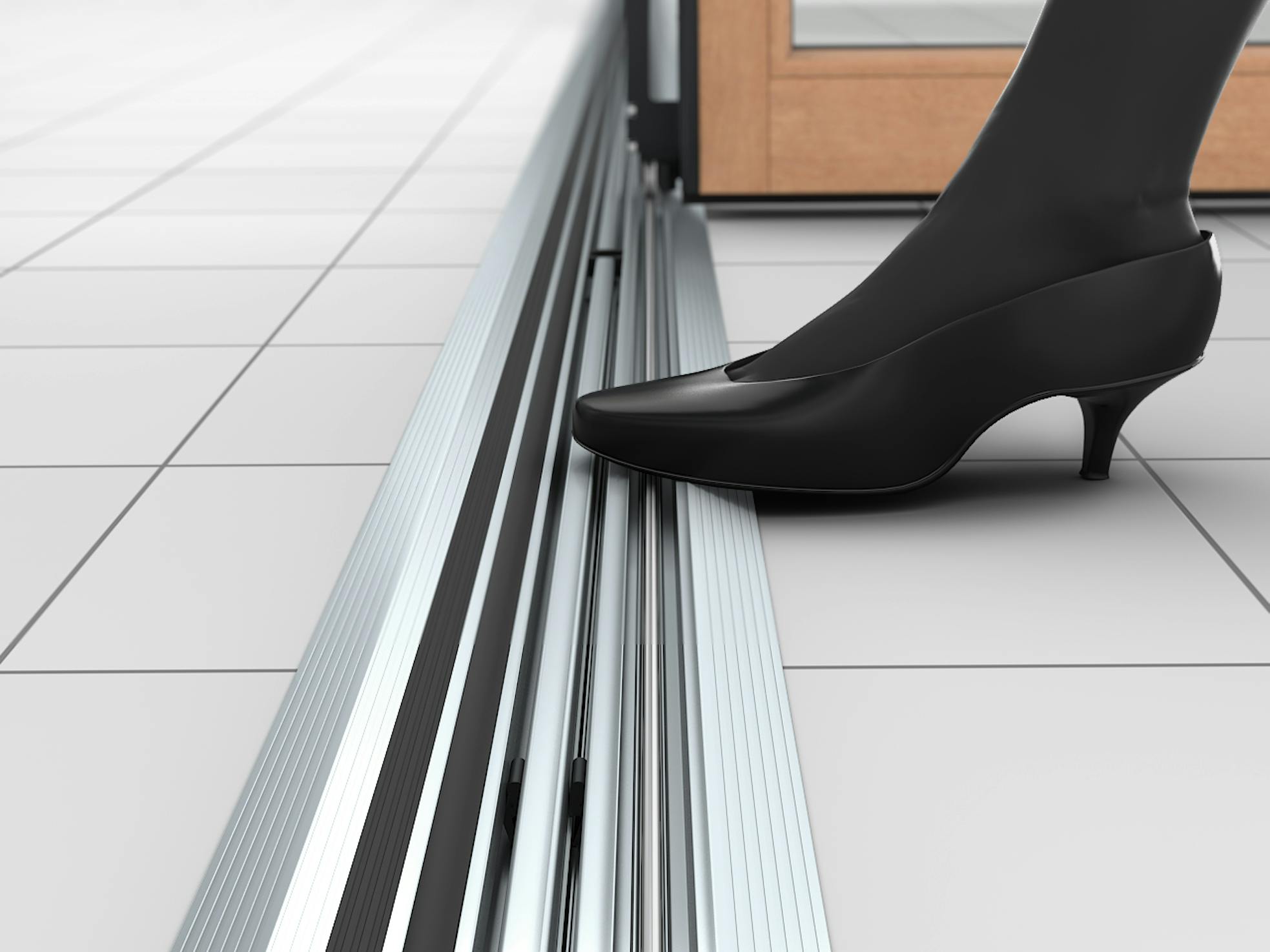

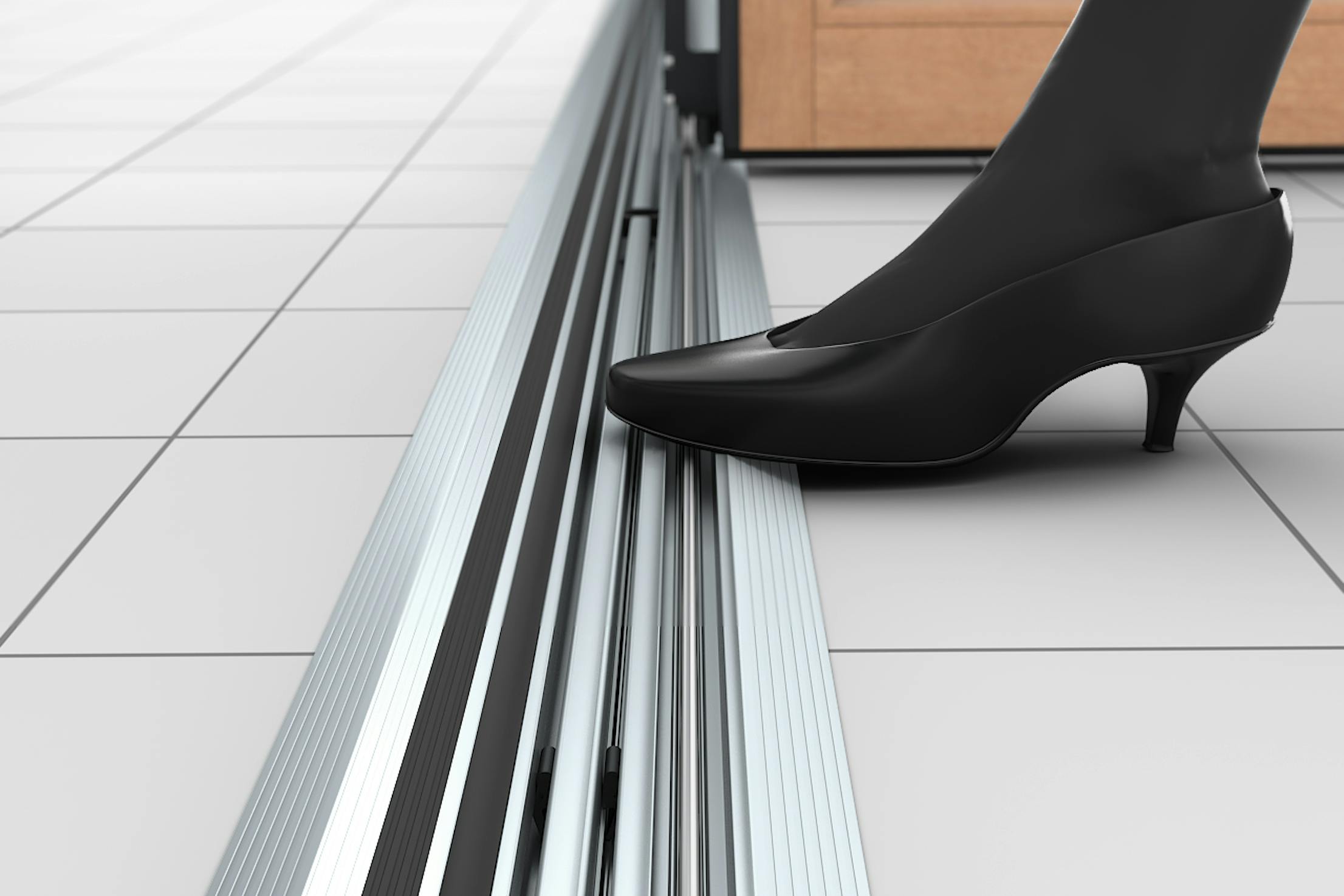

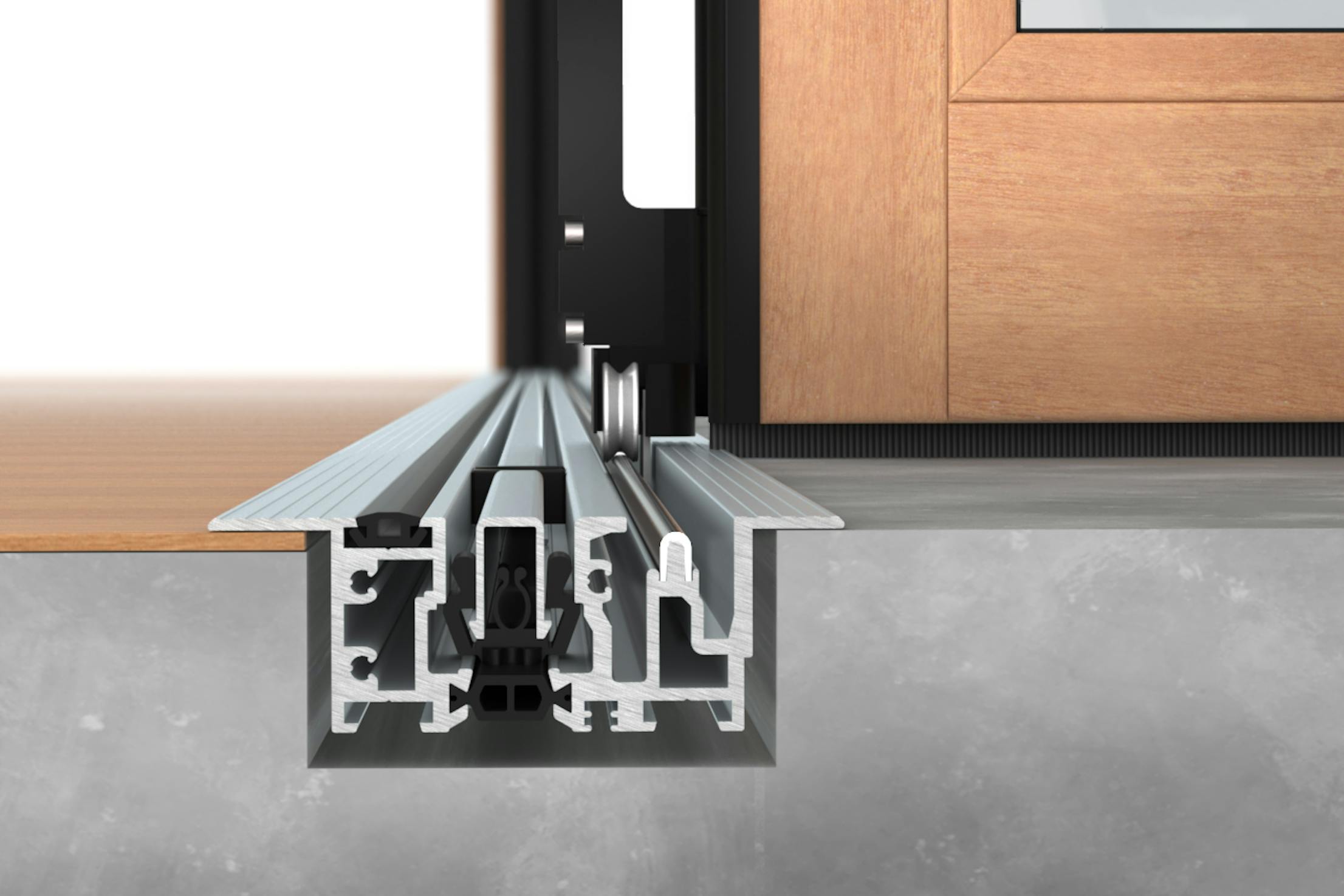

- Creates barefoot and heel friendly transitions while protecting from debris accumulation in floor track
- Provides ADA compliance for Low Profile Saddle and Flush sills

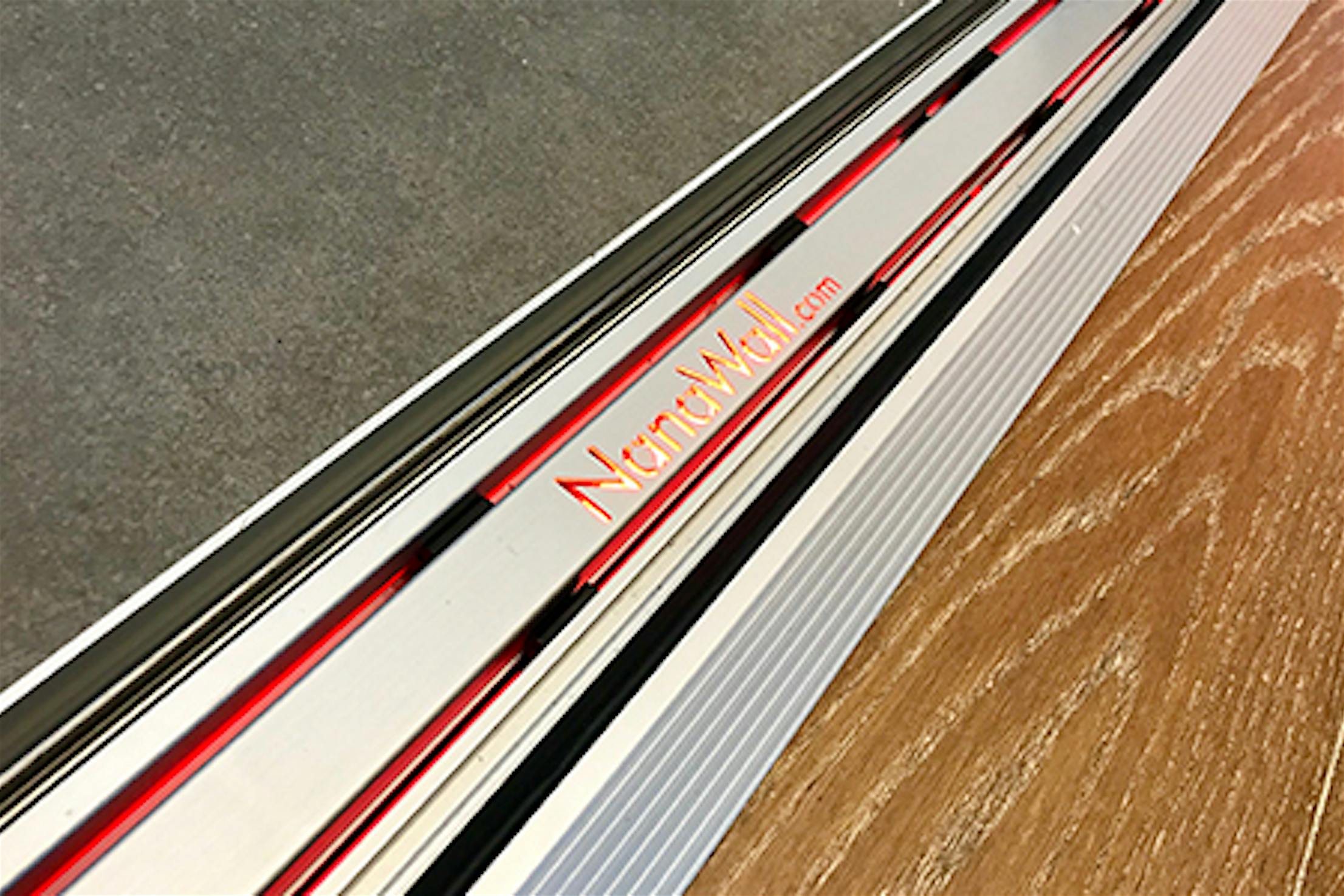

- Produces channel for LED rope light floor illumination (by others)
- Available for outswing only

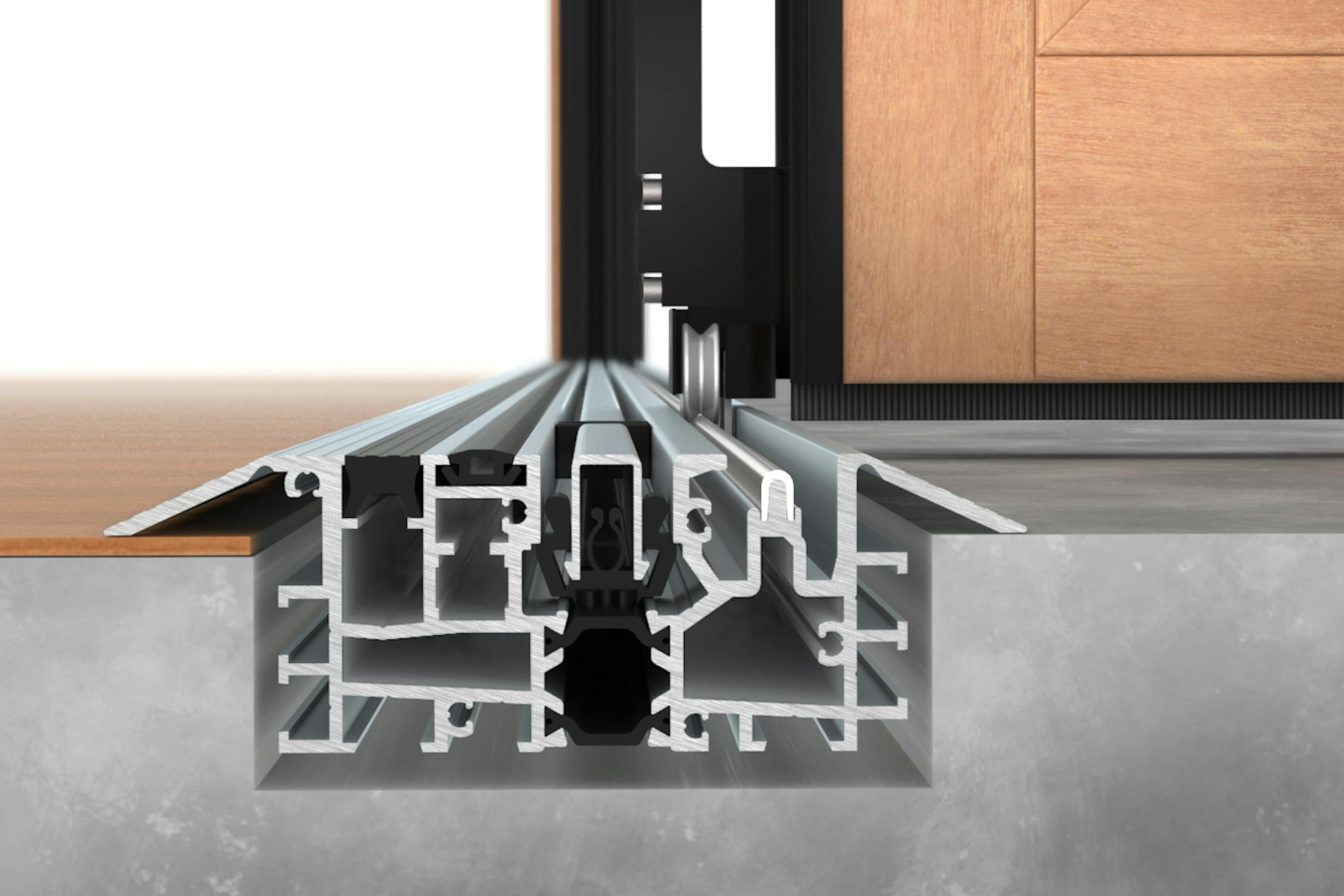

- Thermally broken, provided with high heel resistant insert

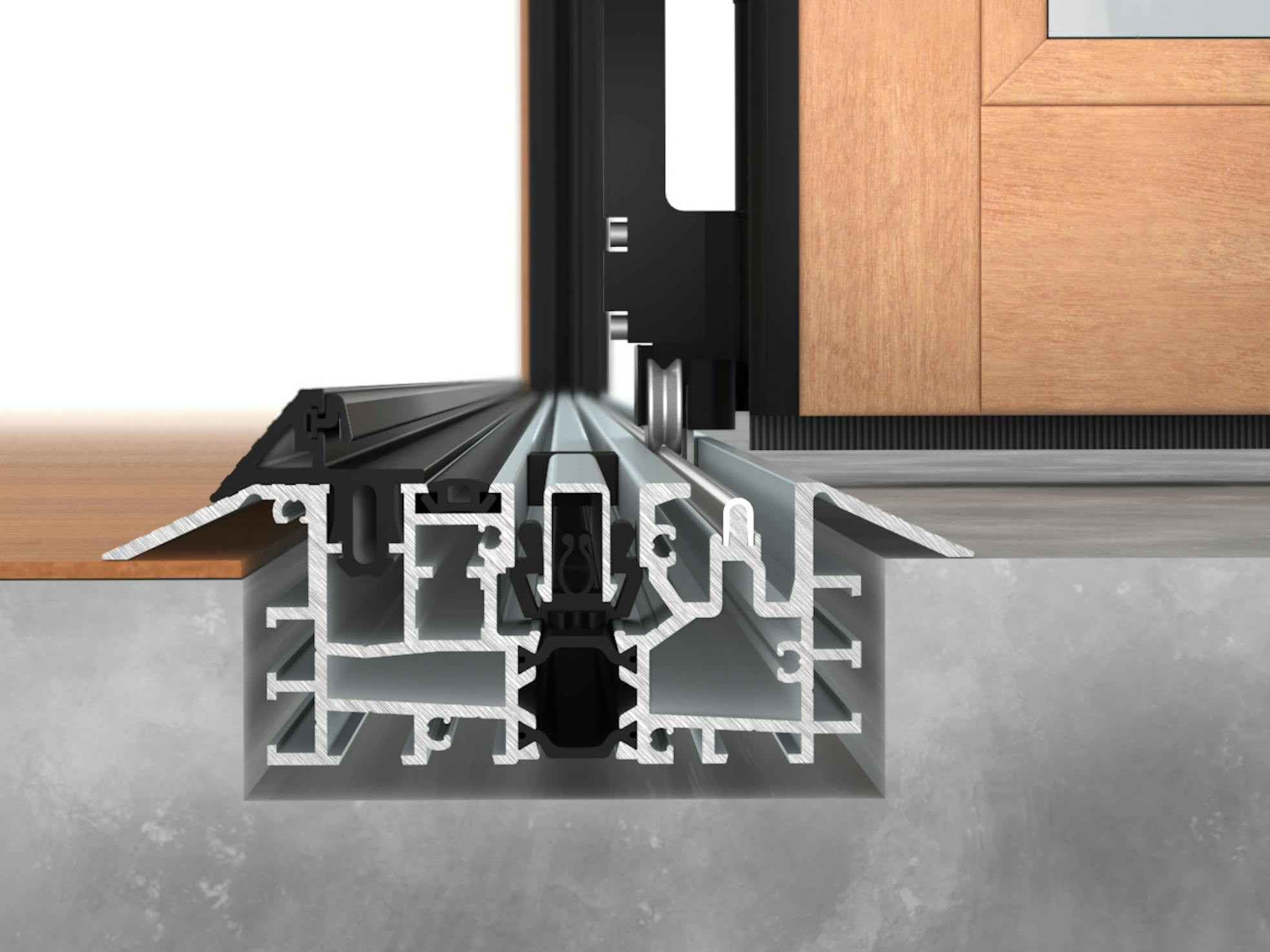

- Easily convert Saddle Sill into a higher weather rated sill for enhanced water and air protection as needed
- Unique Gothic arch roller design for effortless operation

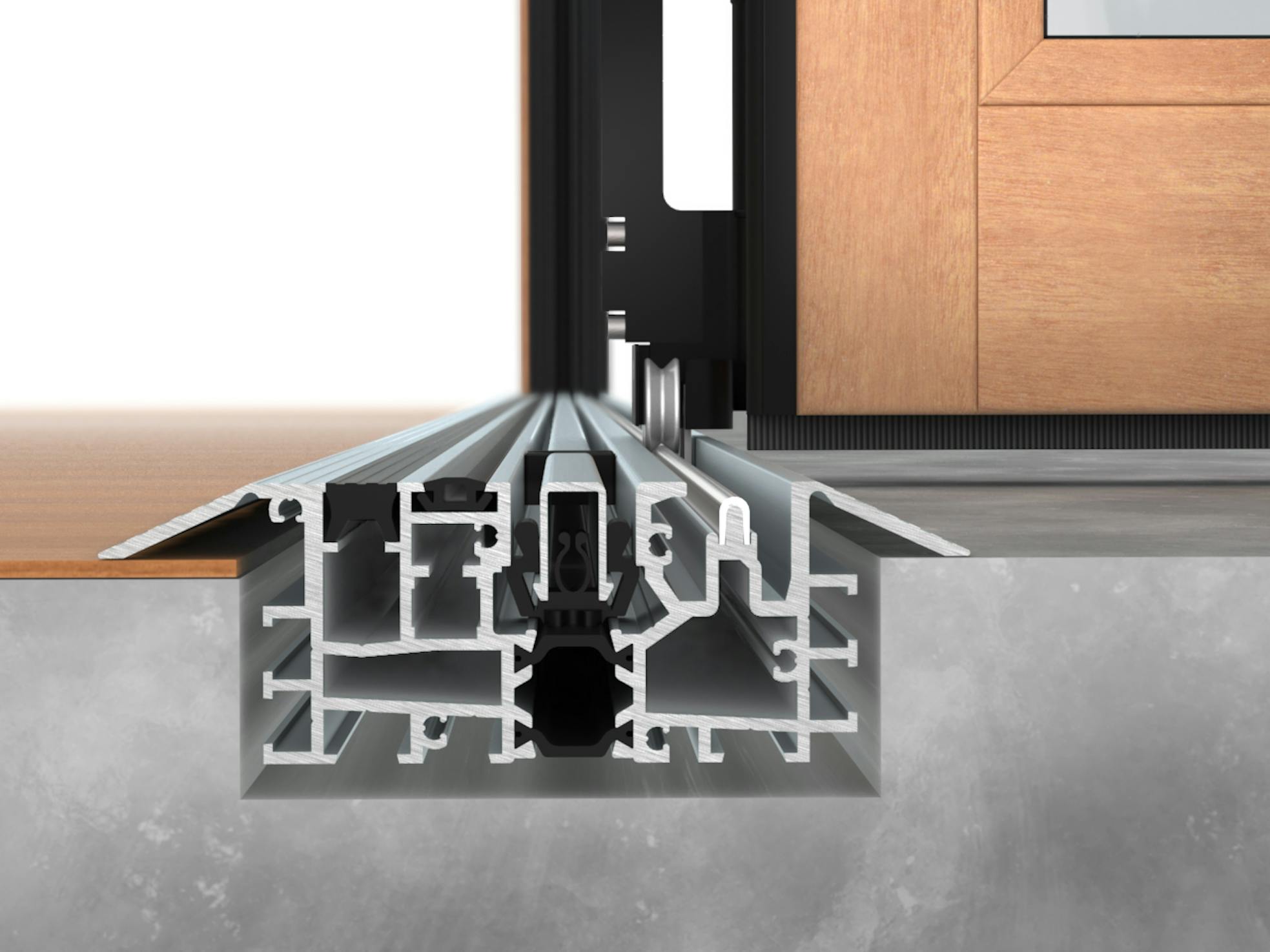

- Outswing shown, inswing also available
- Thermally broken, ADA compliant, high heel and barefoot friendly
- Sufficient water rating provided
- Unique Gothic arch roller design for effortless operation
- Outswing shown, inswing also available

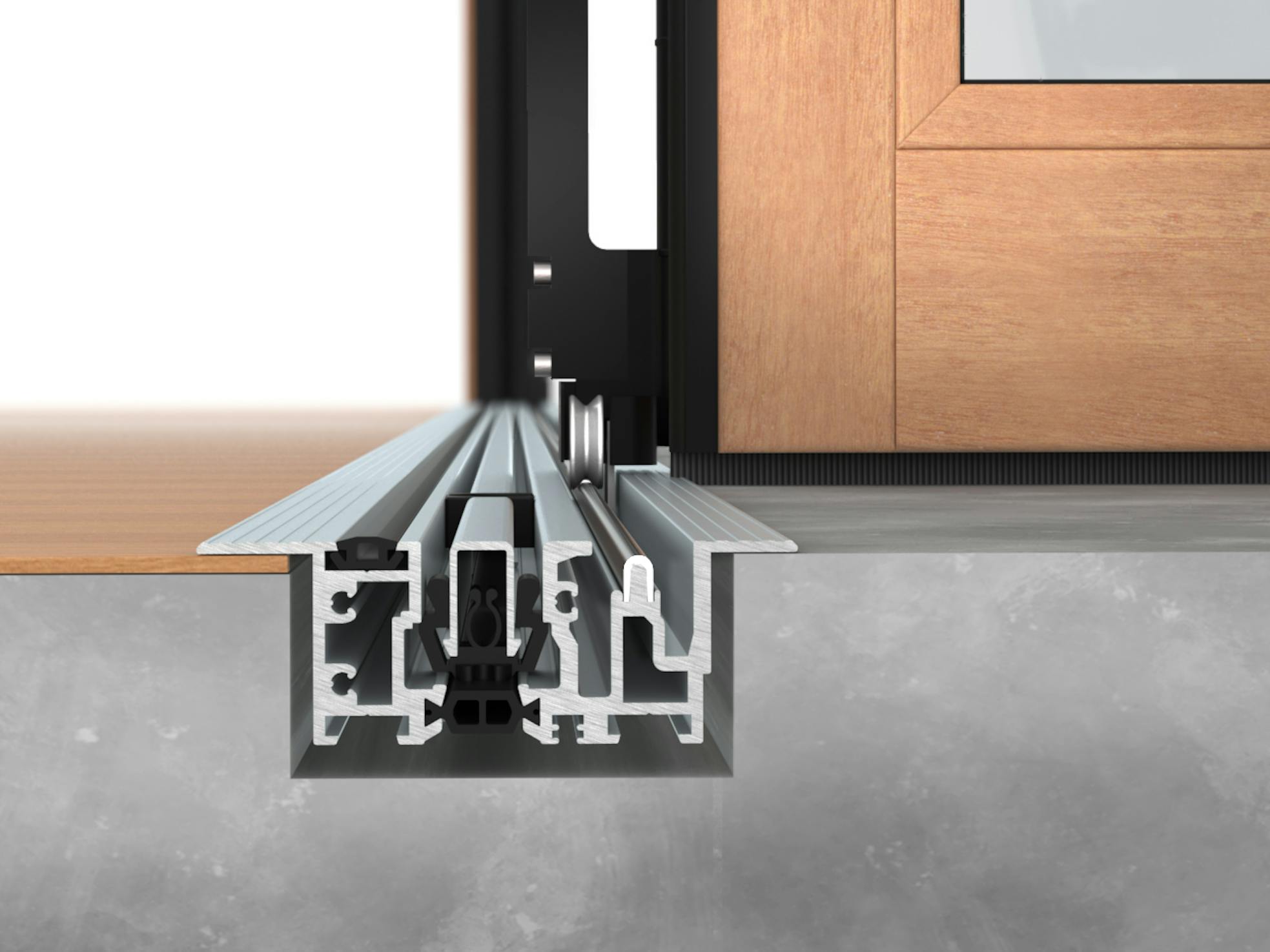

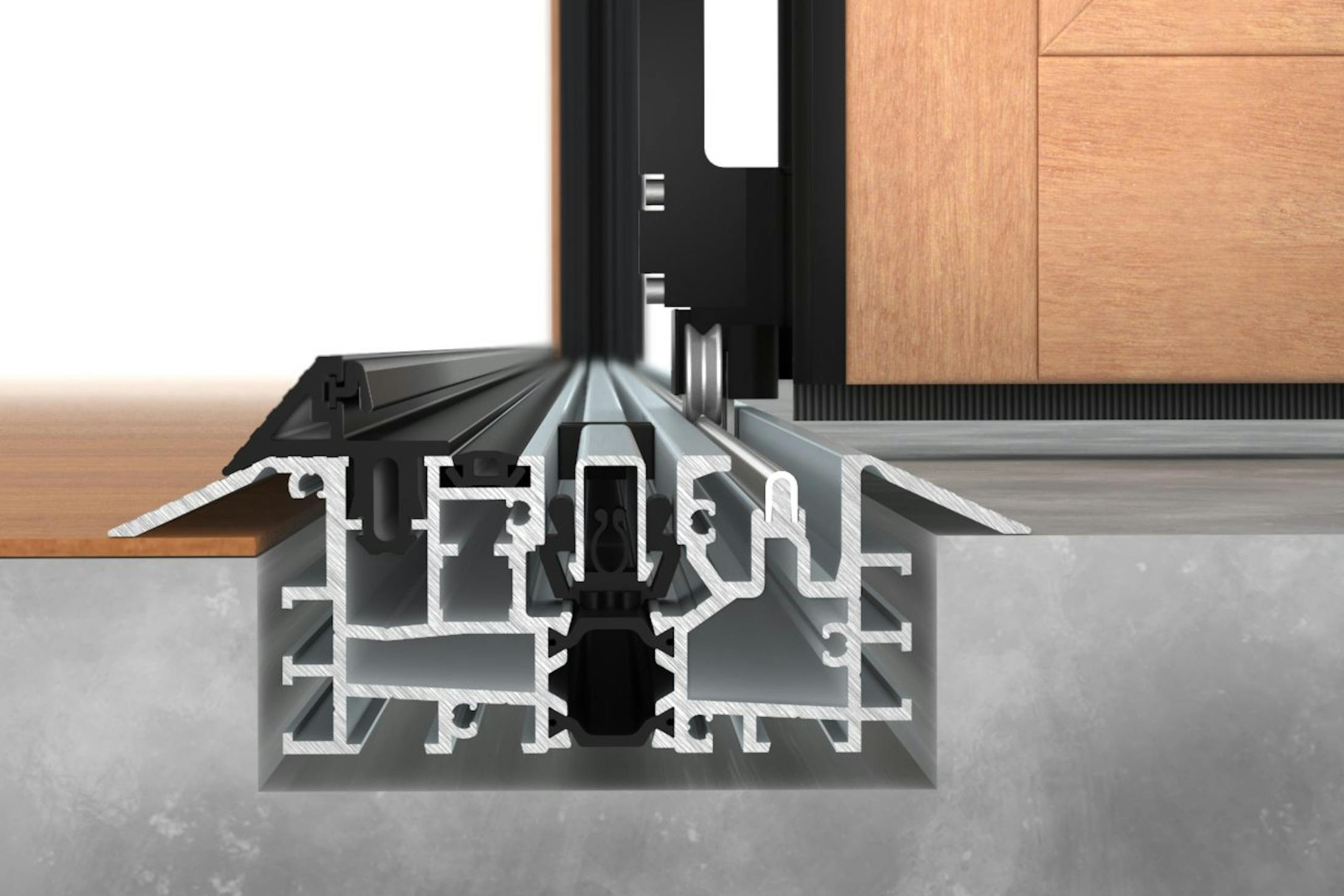

- Thermally broken, provided with high heel resistant insert
- Built for higher water rating and weather resistance with compression gasketing on all sides
- Unique Gothic arch roller design for effortless operation
- Outswing shown, inswing also available

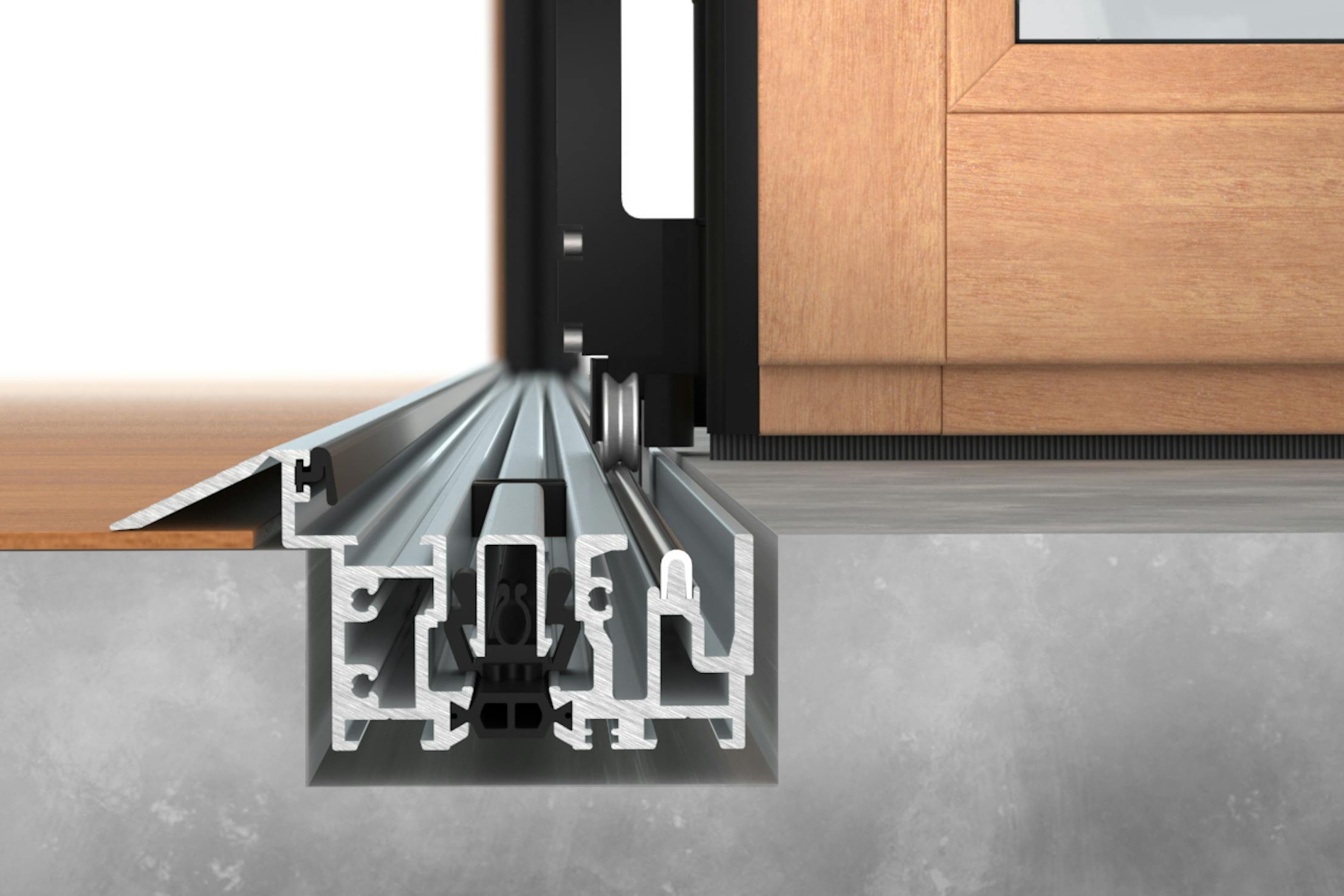

- Thermally broken, ADA compliant, high heel and barefoot friendly
- For interiors or protected exteriors where water performance is not needed
- Unique Gothic arch roller design for effortless operation

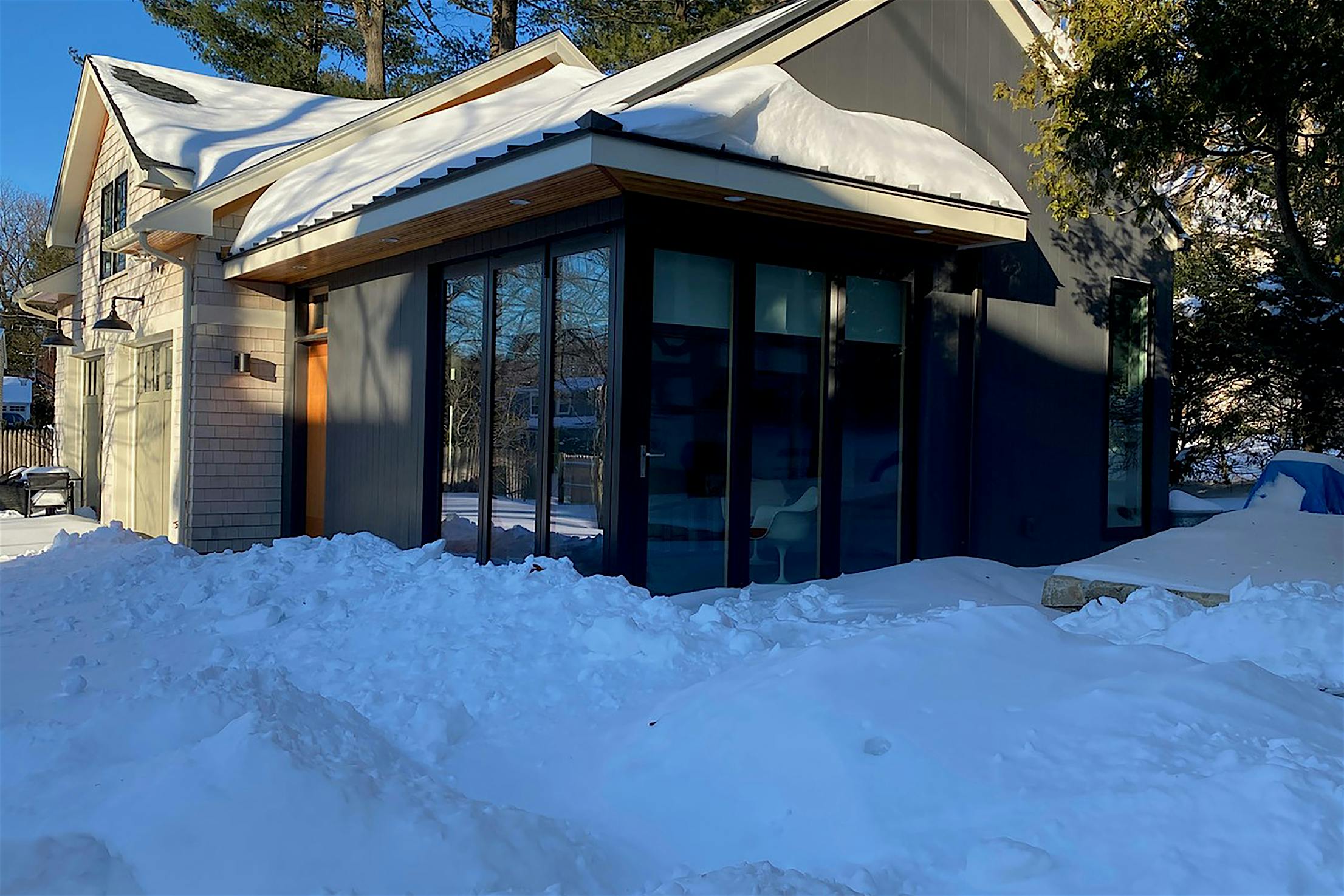

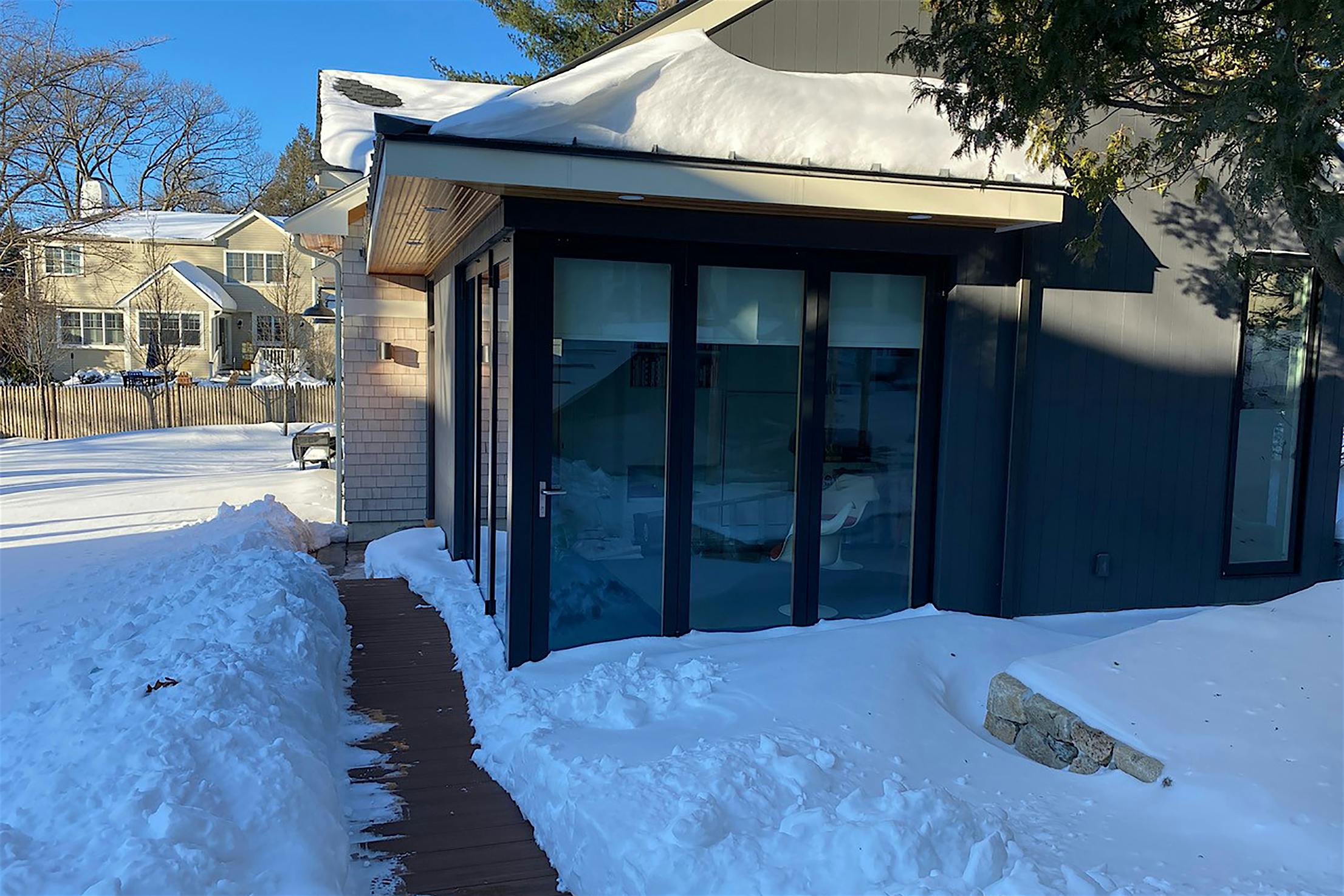

Extreme Weather Resistant
Energy-efficient by design, our glass walls keep the elements at bay, ensuring that even as seasons or temperatures change, your interior comfort will always remain the same.
Certified Testing Standards
NanaWall products endure the latest AAMA testing standards for air, water, structural, and forced entry.
Highly Energy-Efficient
Designed to keep the elements at bay, holding warmth inside while acting as a transparent barrier to the weather outside.
Sustainable Design
NanaWall products contribute to multiple LEED rating systems and potentially several credit categories.
Greater Security With Enhanced Energy Efficiency

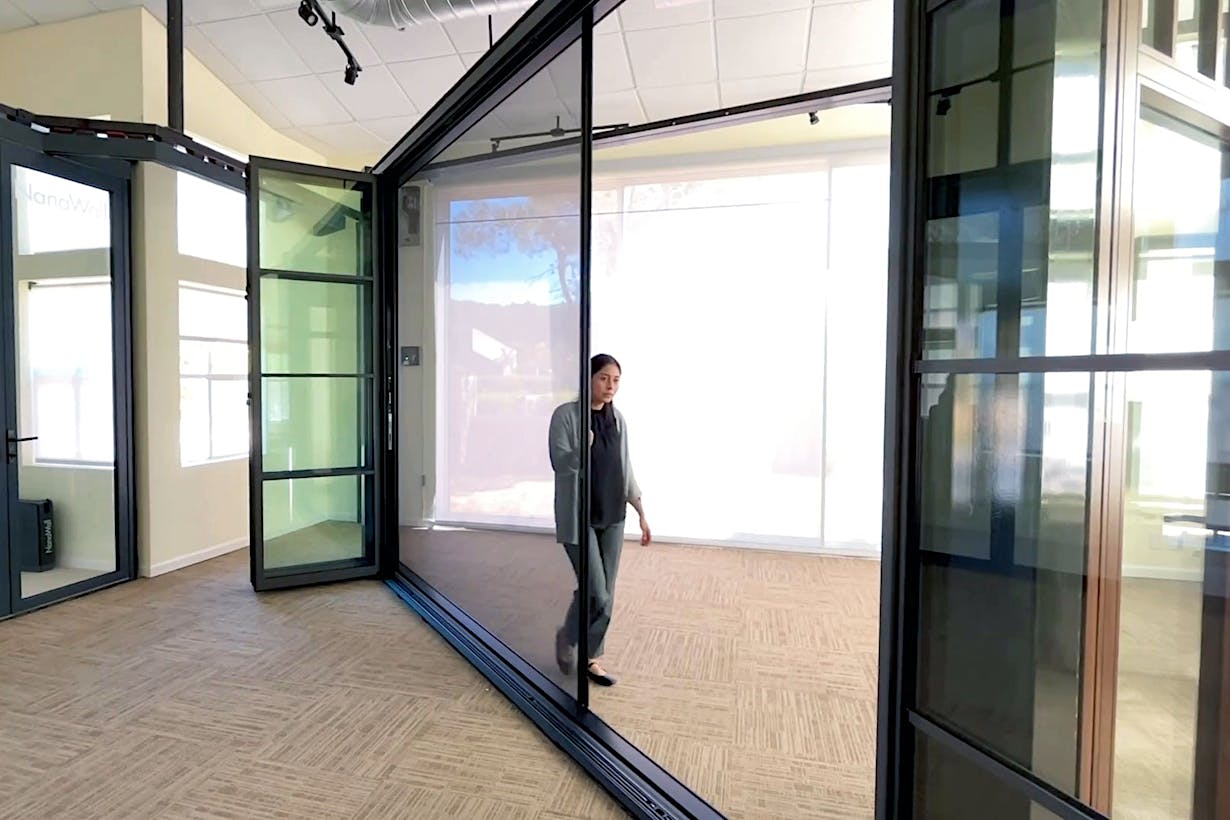

Inside Generation 4 walls are innovations designed to meet the challenges of wind, water, extreme temperatures, forced entry, and structural load.
Test Results
NanaWall systems meet or exceed air, water, structural, and forced entry tests for weather, durability, and security.
Florida Product Approval # FL41108
See Air, Water, Structural, Thermal, and Forced Entry ResultsWhat Our Customers Have to Say
Brooklyn Home
Creating the New Family Living Space for homeschooling, COVID-19 safe open-air play dates, dining area and outdoor movie night.
Whistler Residence
To highlight the mountain views at this Whistler BC location, a NanaWall Wood Framed Aluminum Clad WA67 was specified in six panels with a pair of swing panels at the center to function similarly to French doors when the system is closed.
"We chose NanaWall for their strong reputation, large number of available options, ease of operation, and for the beauty of the product. It's wonderful to open them all up, bring the outside in and let the fresh air flow through our home."
— Dave Chapman, Homeowner
50 standard colors that come at no additional cost, with an additional 200+ colors to choose from.
See Finish Options
To ensure the longevity of our wood systems, we provide triple and quadruple laminated cross-grains to accommodate the wood’s natural expansion and contraction.
See Wood Options
NW Clad 740 has four sill options: Hybrid, Low Profile Saddle, Low Profile Saddle with UniverSILL®, and Flush.
Standard to all sills is removable aluminum high heal resistant sill inserts. These inserts provide ADA compliance for the Low Profile Saddle and Flush sills. Furthermore, the inserts offer protection from dirt and debris collecting in the bottom track.
See Sill Options
A fundamental benefit of this next generation folding glass wall is energy efficiency. The solid wood frames also offer the additional insulative and thermal advantage provided by natural wood. Depending on glass type selection, NW Clad 740 offers exceptional thermal performance values as low as “.21”. The system comes standard with continuous seals along the face of each panel frame.
The glass pocket can accommodate glass from 1 1/8" (28 mm) to 1 7/8" (48 mm) insulated glass.
See Glazing Options
Stylish Handles in Multiple Finishes
Our handles are both functional and stylish and can be customized to accentuate your space and reflect your style.
See Handle Options
Locking for Maximum Security
Standard to the system is concealed locking between folding panels that operates with a 180° turn of a flat handle.
See Locking Options
Retractable Screens by Others
A retractable screen add-on is perfect for blocking bugs while providing privacy and fresh air. Screens are not available through NanaWall Systems.
Retractable Screens by Others

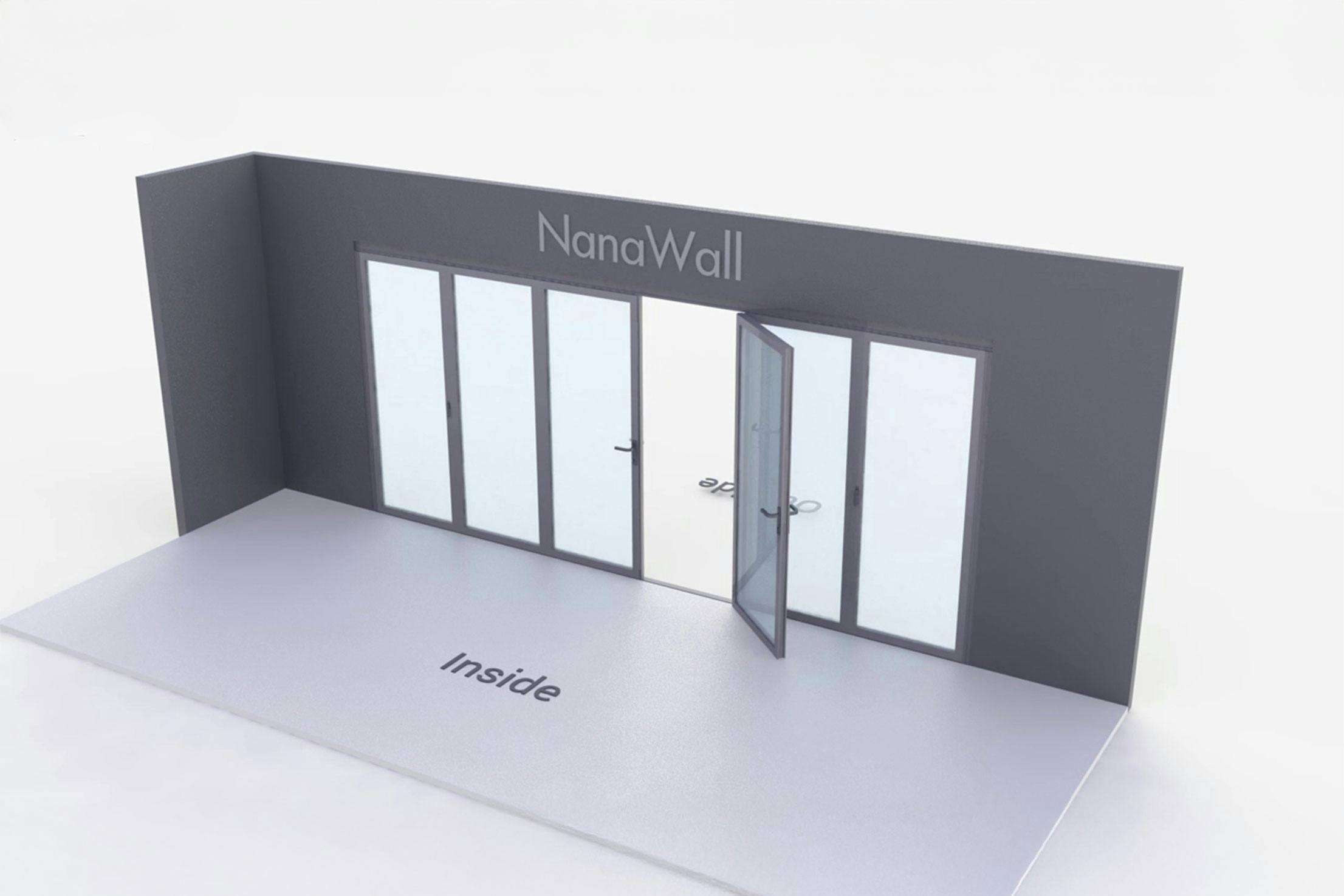

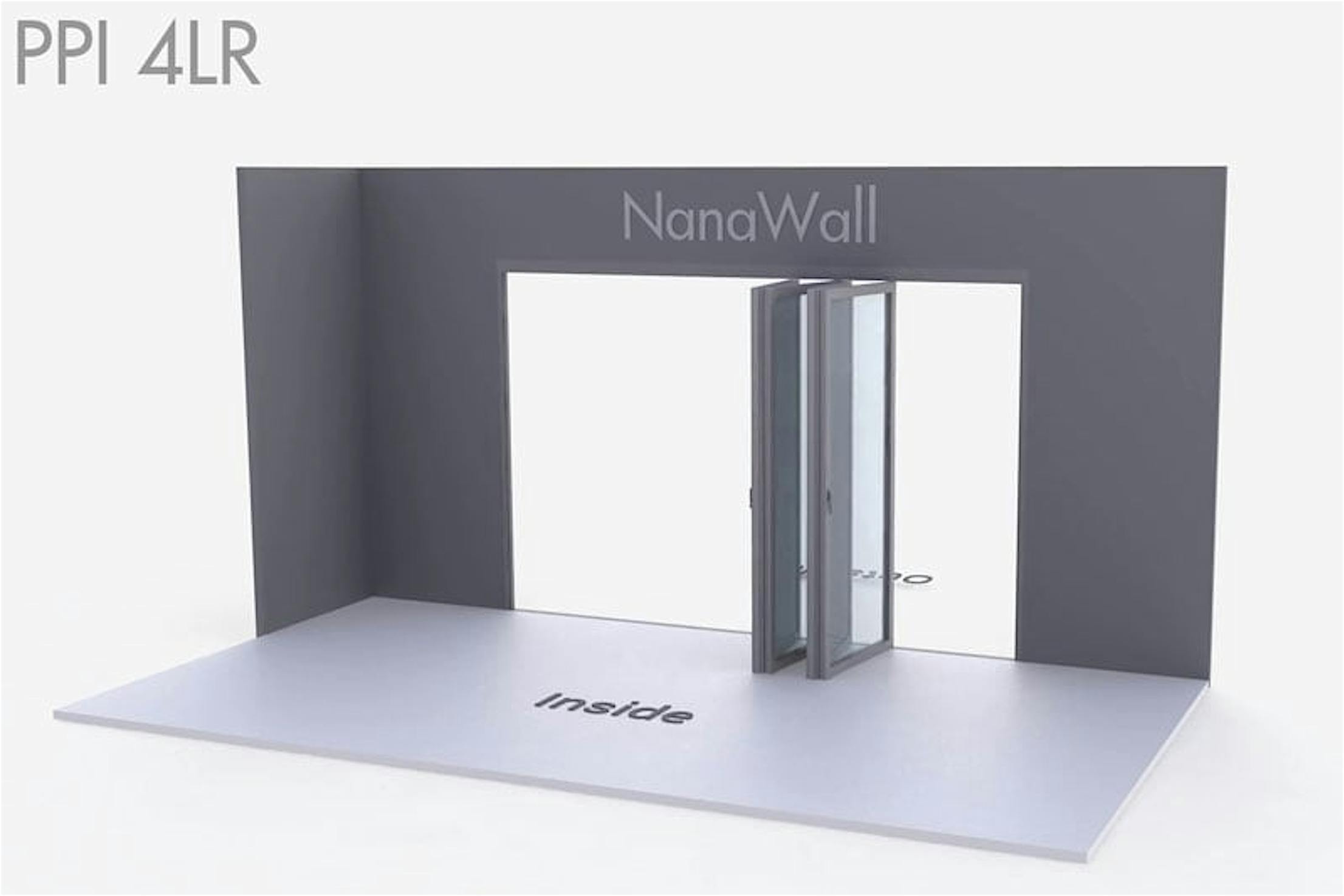

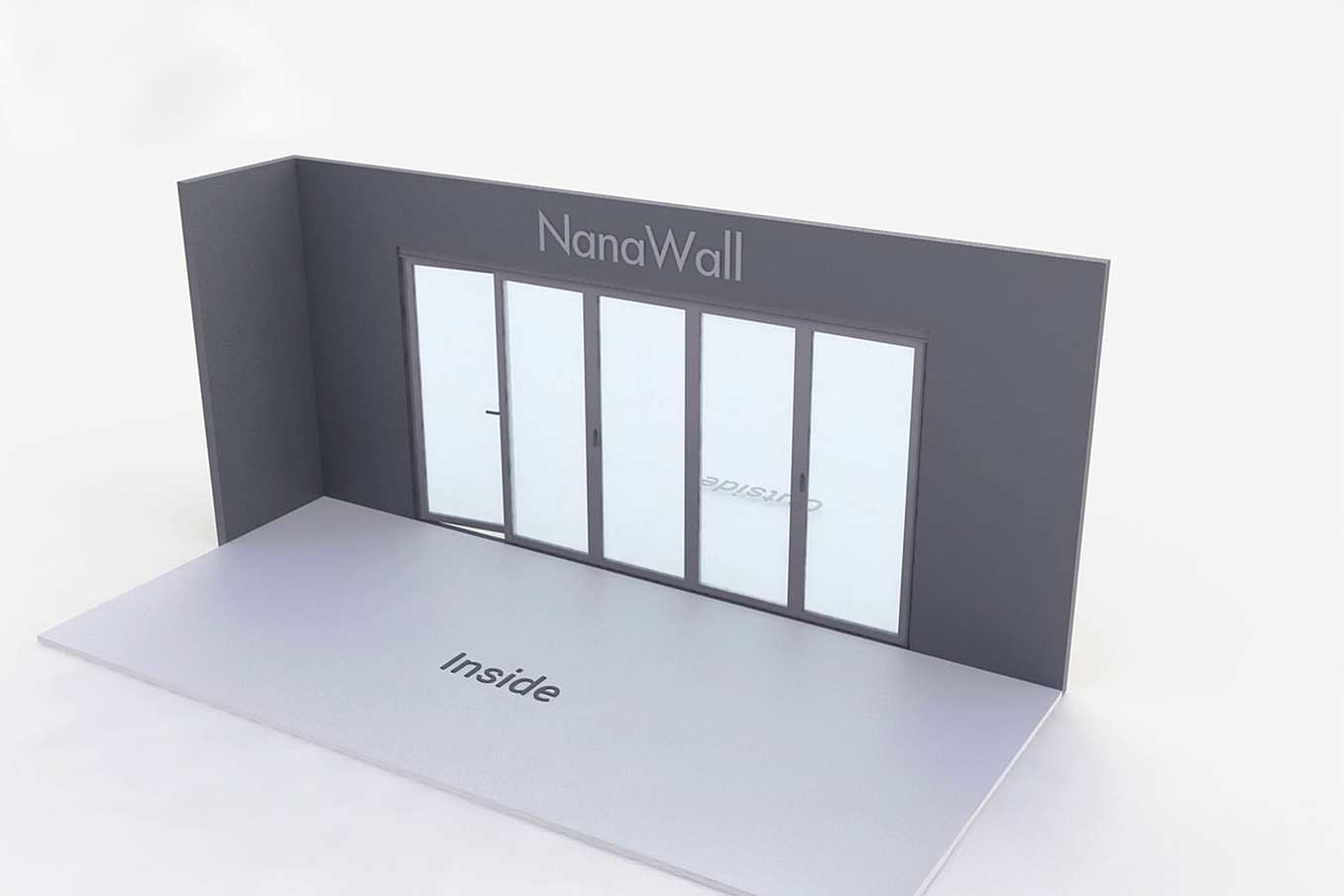

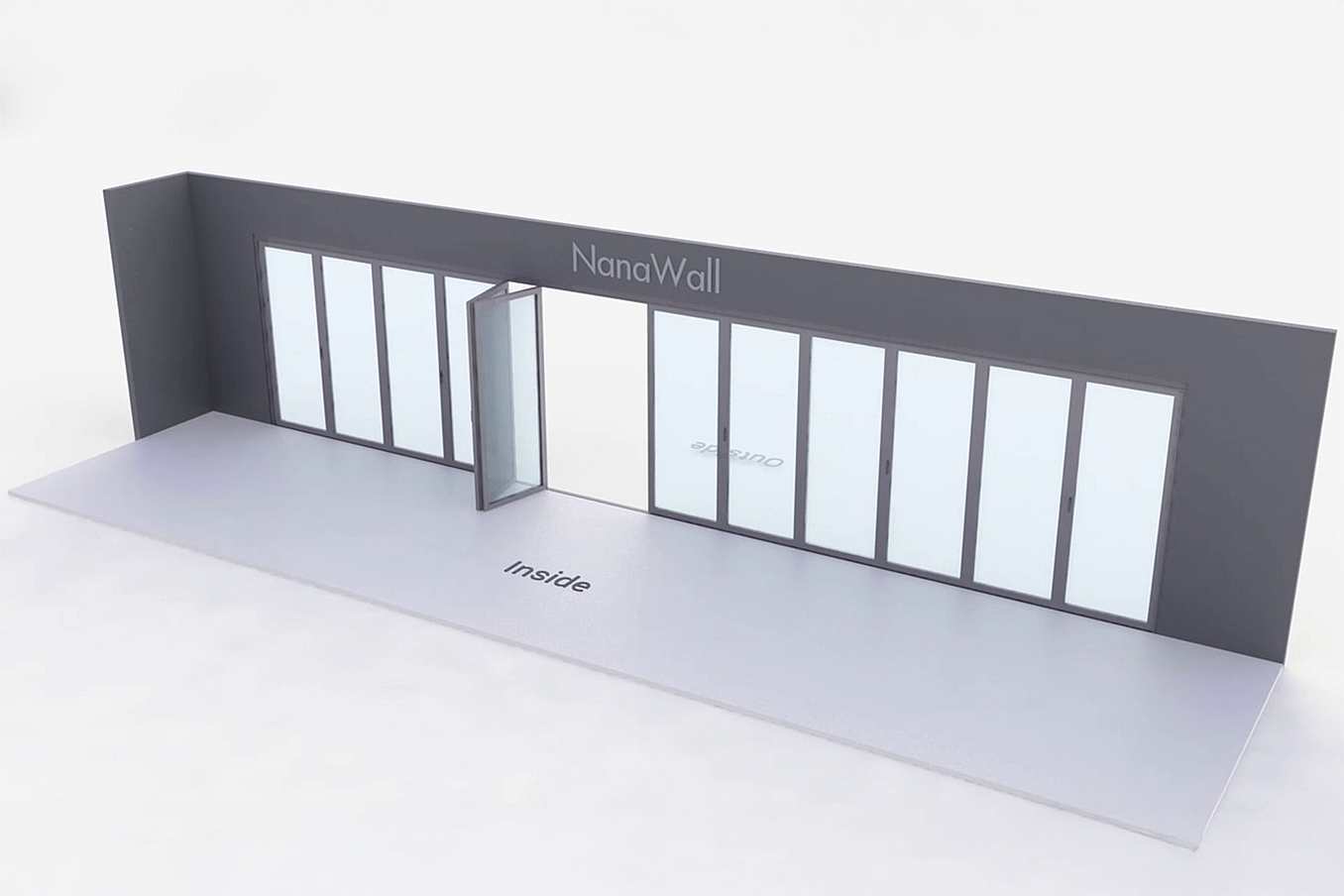

Over 90 standard configurations for straight forward folding systems
All Standard Configurations

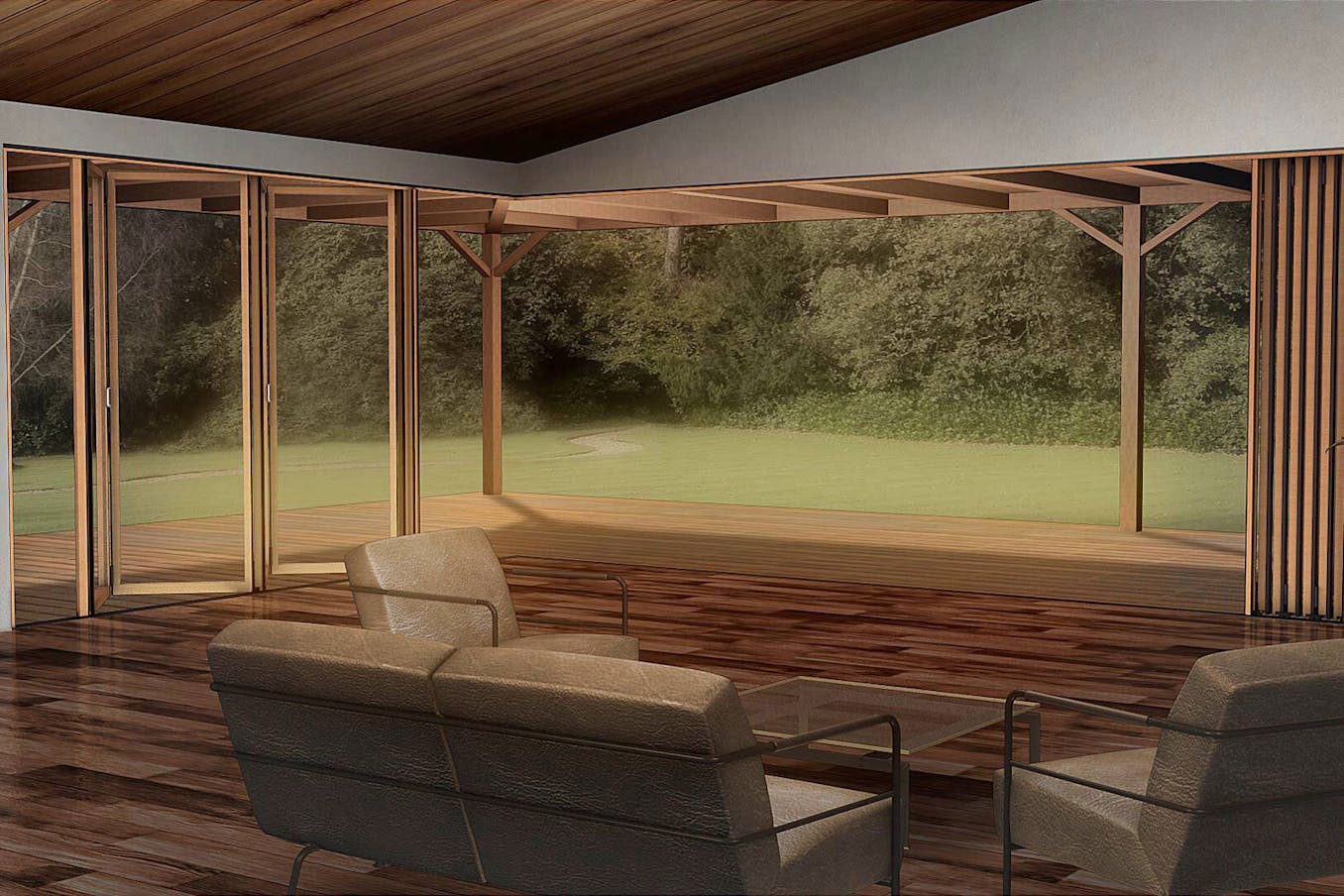

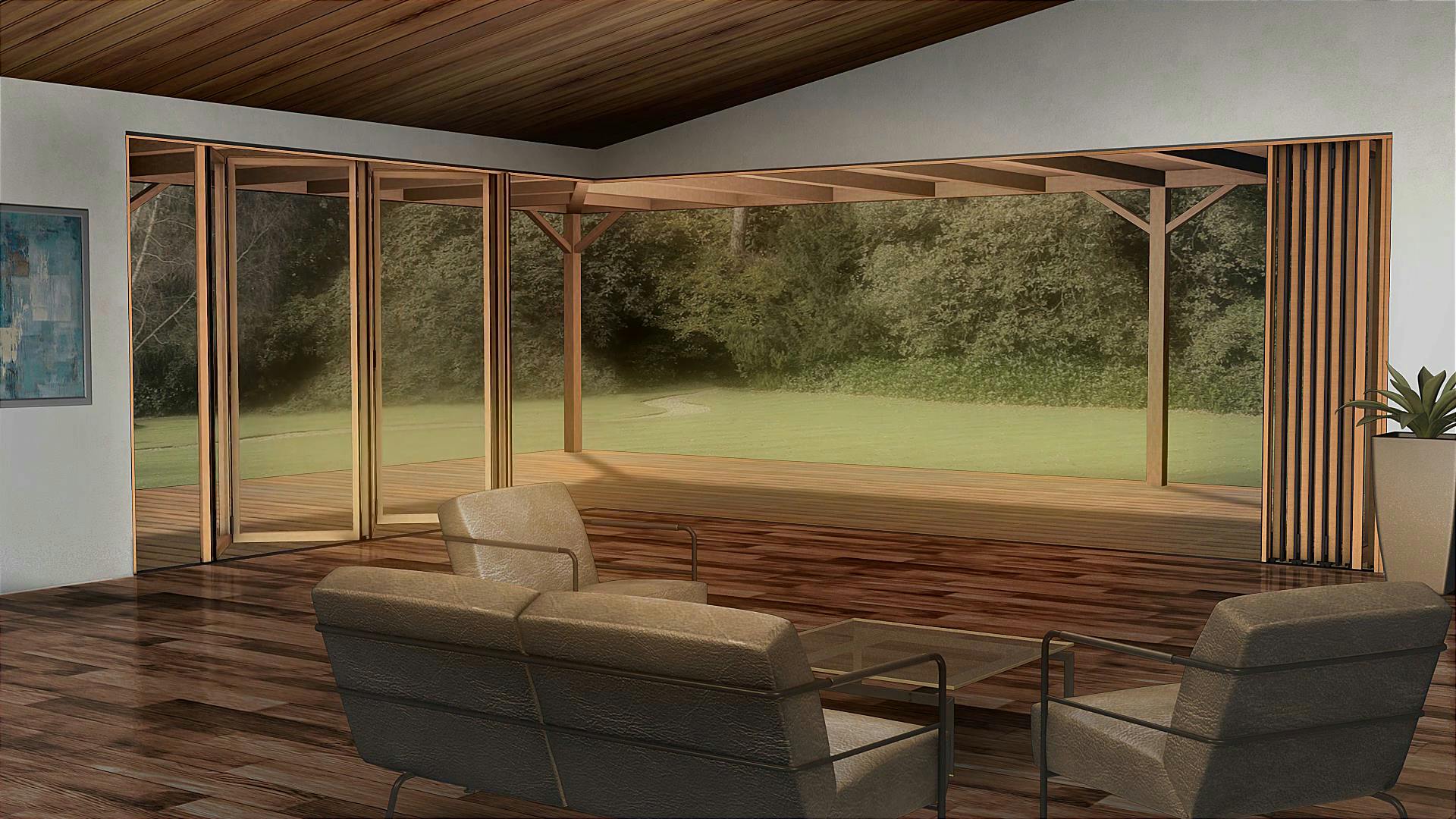

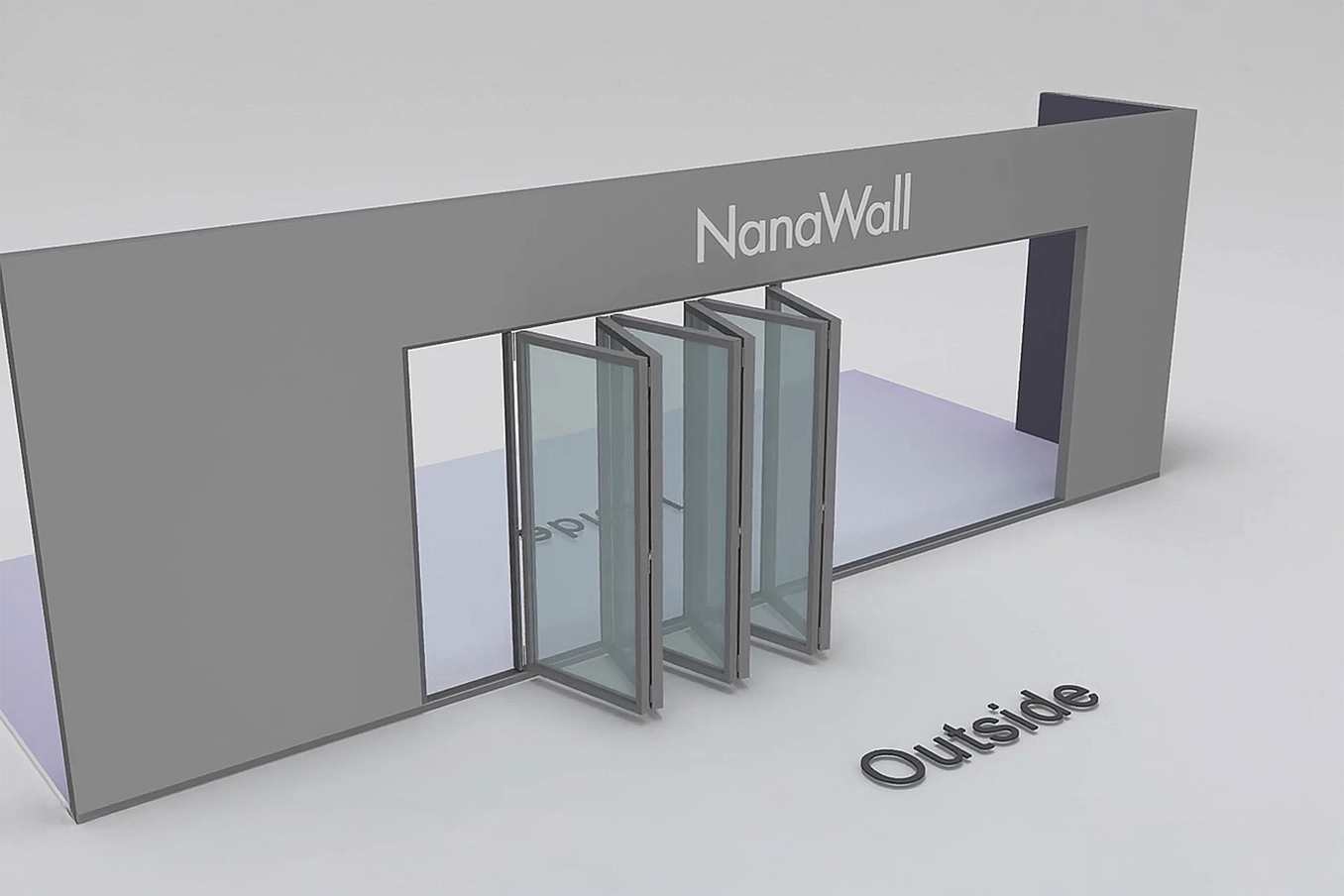

FourFold and SixFold Panel Sets are able to move and stack either to the right, left, or center within the same track allowing the panels to be stacked in the most convenient location as needed.
More Configurations

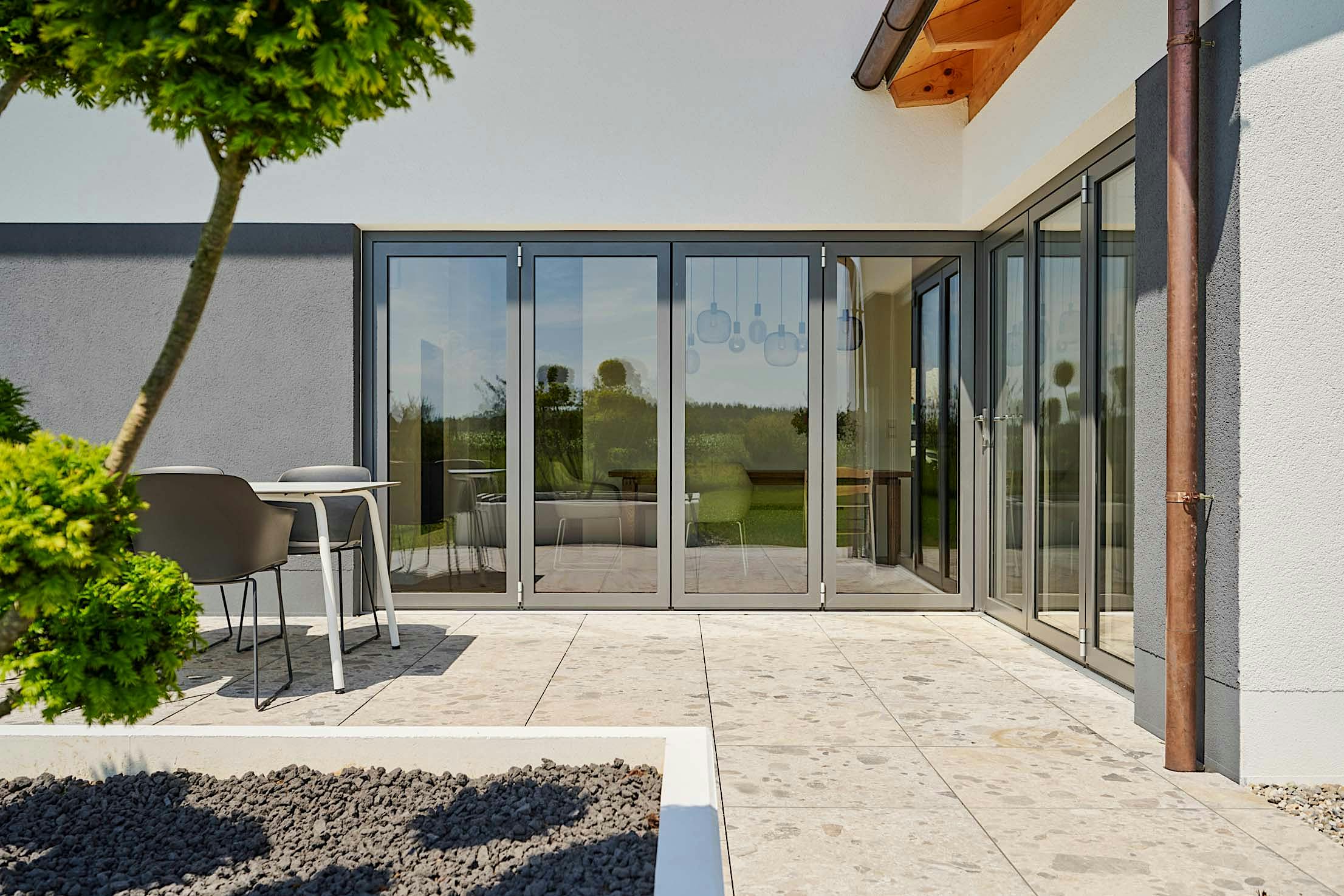

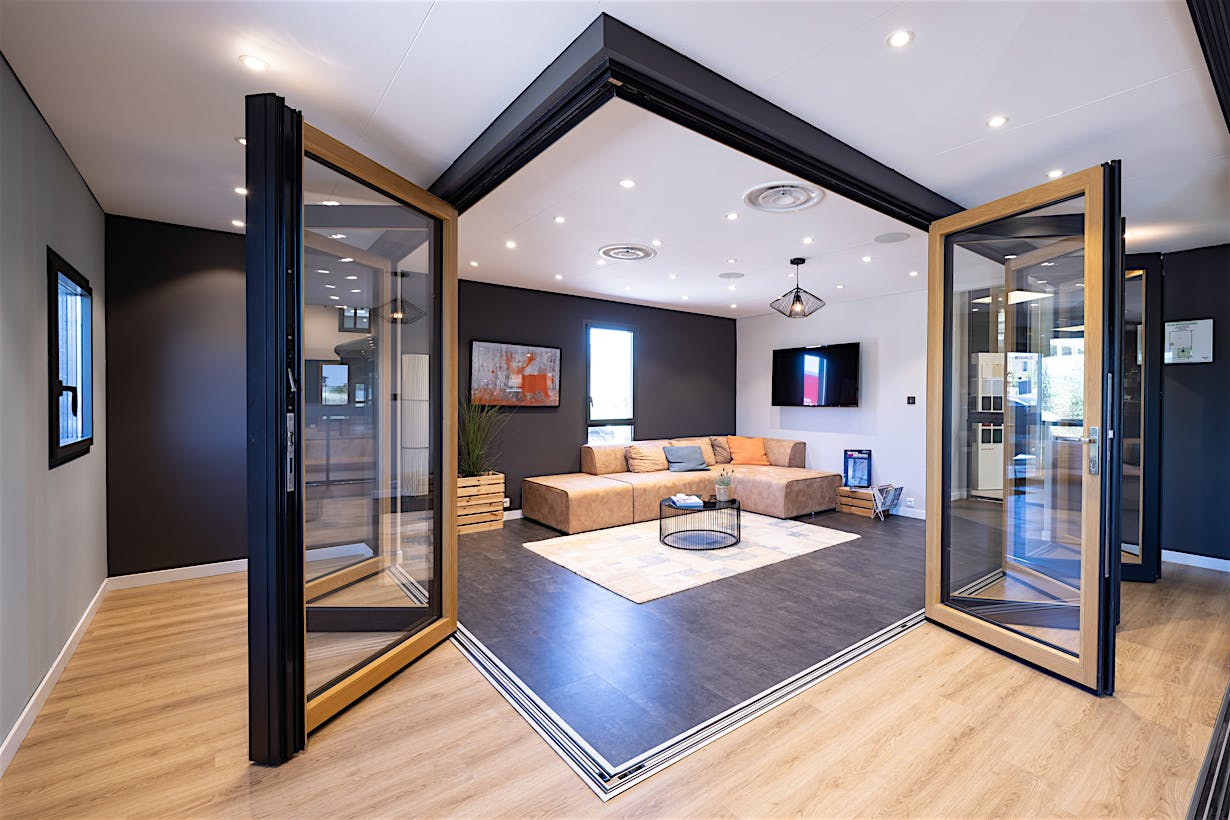

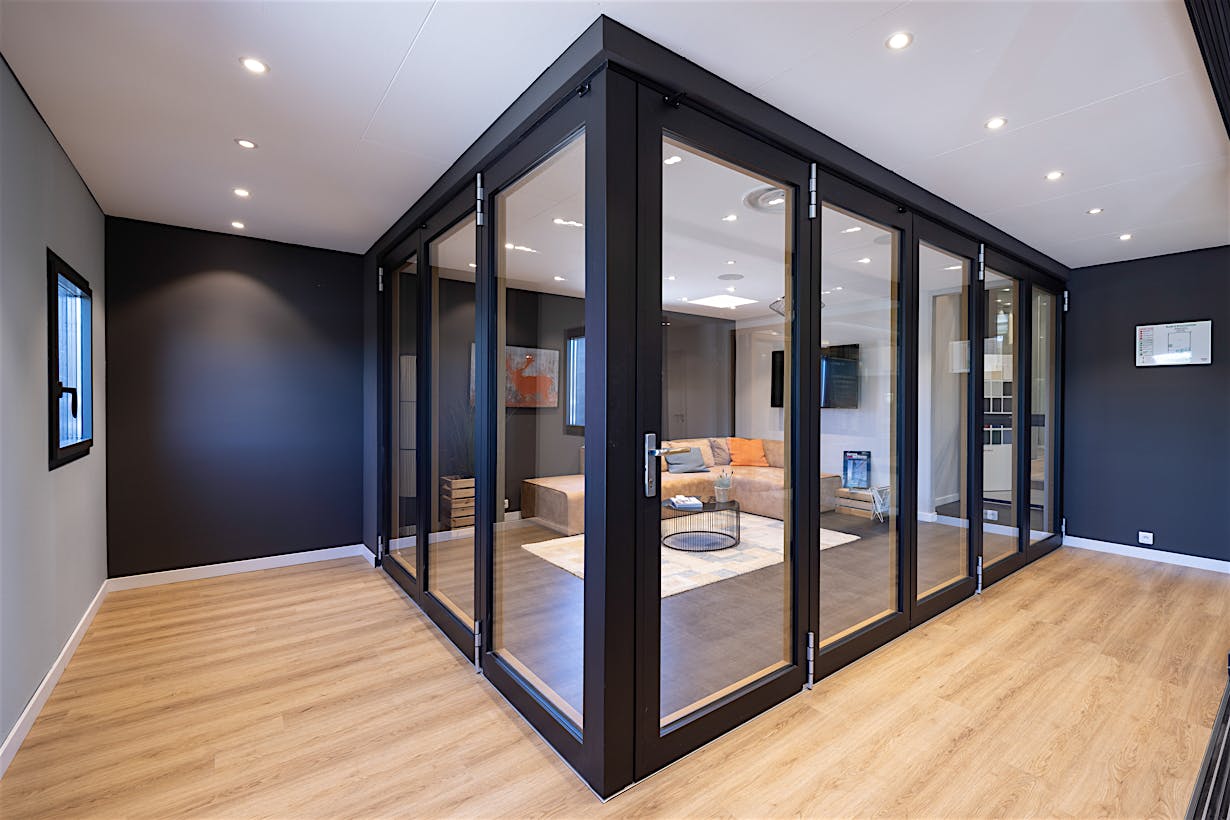

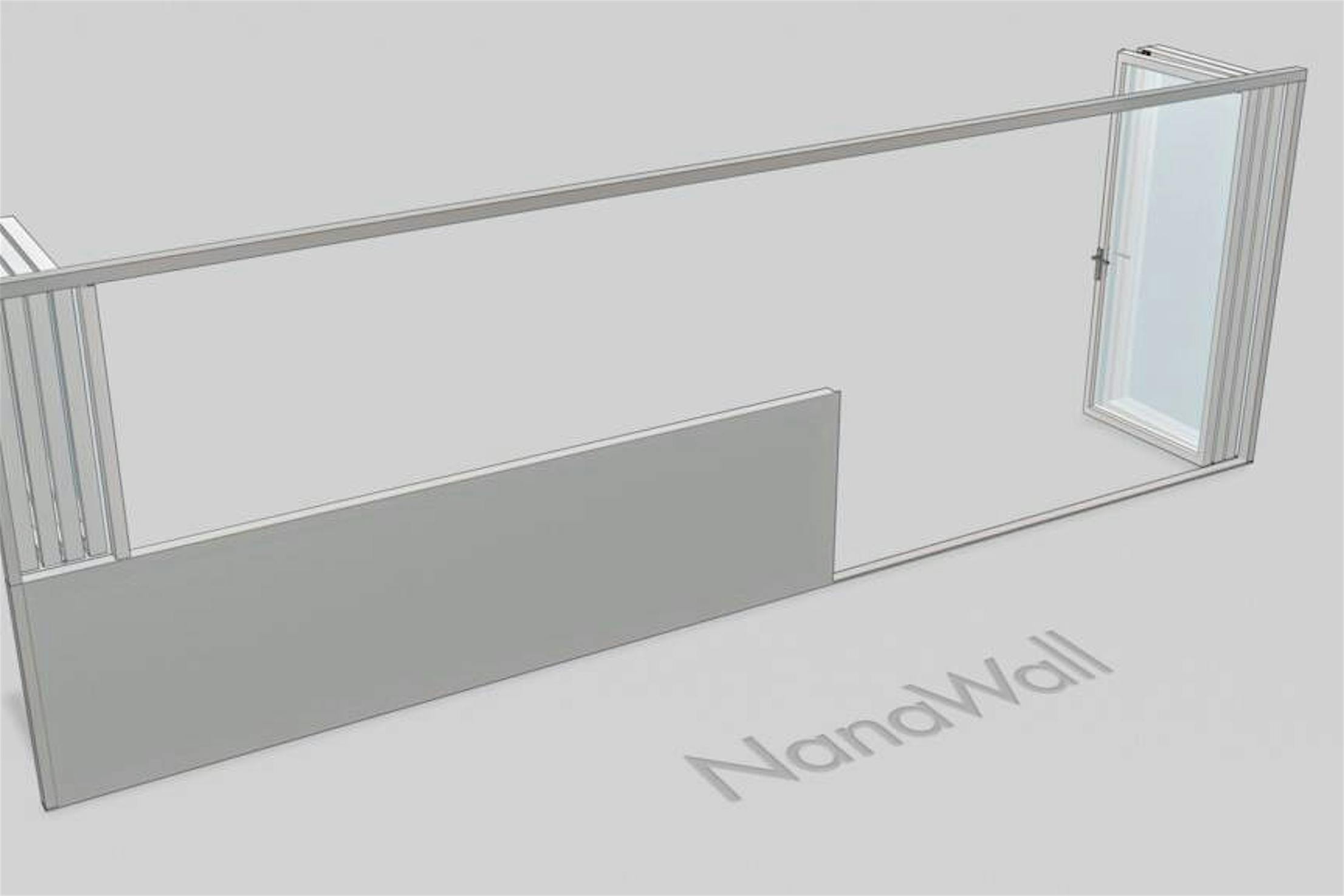

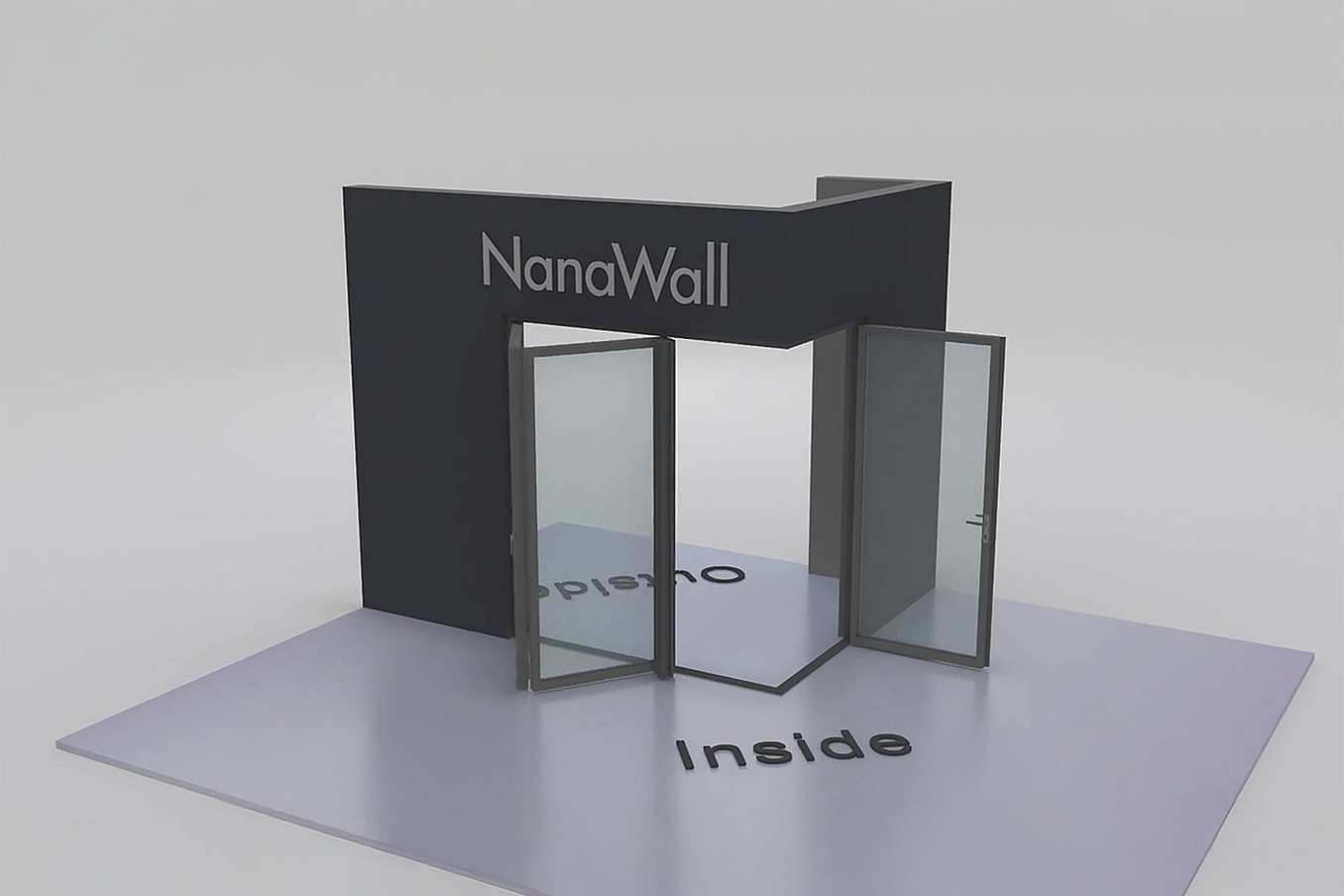

All standard configurations are available in cornerless options.
More Configurations

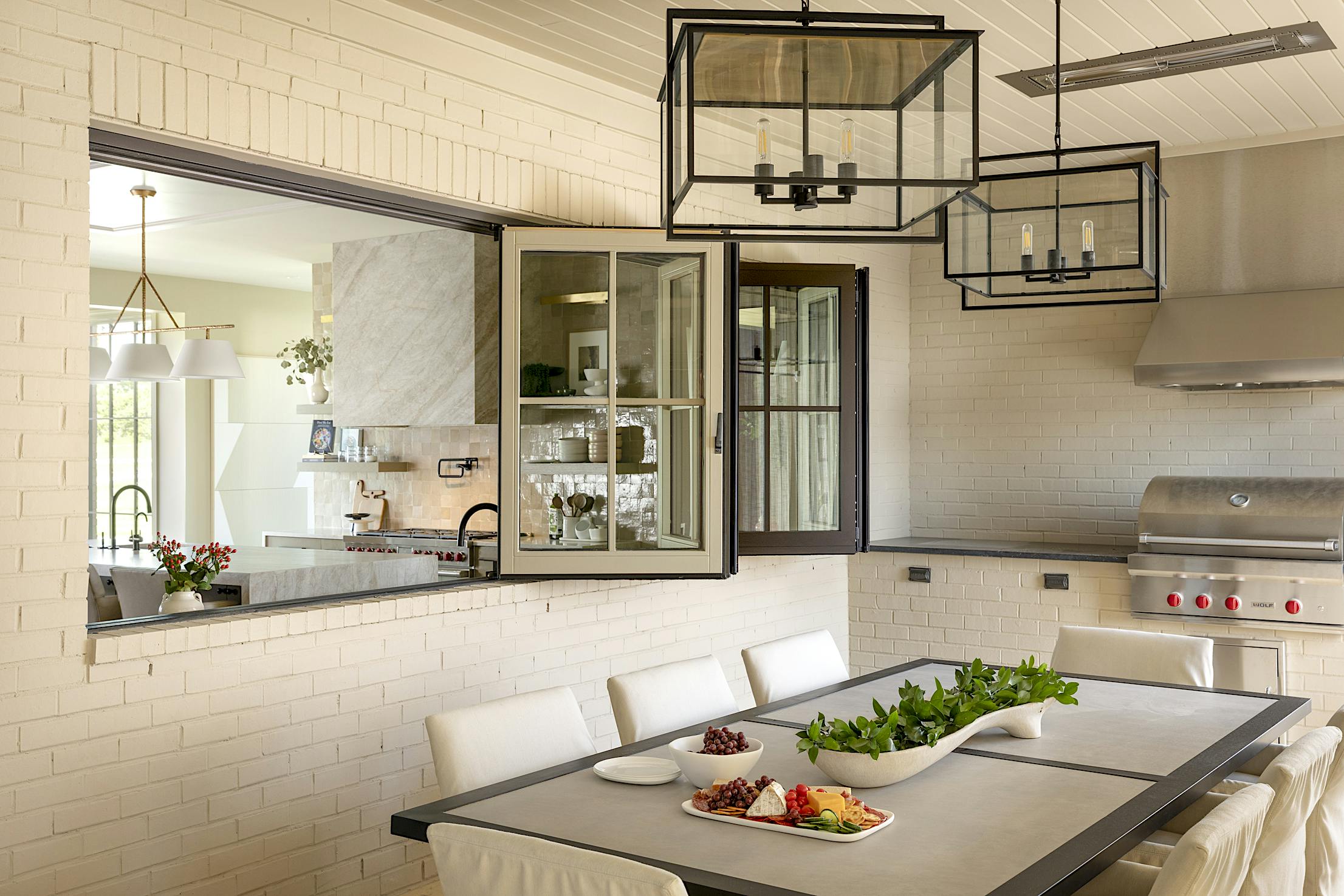

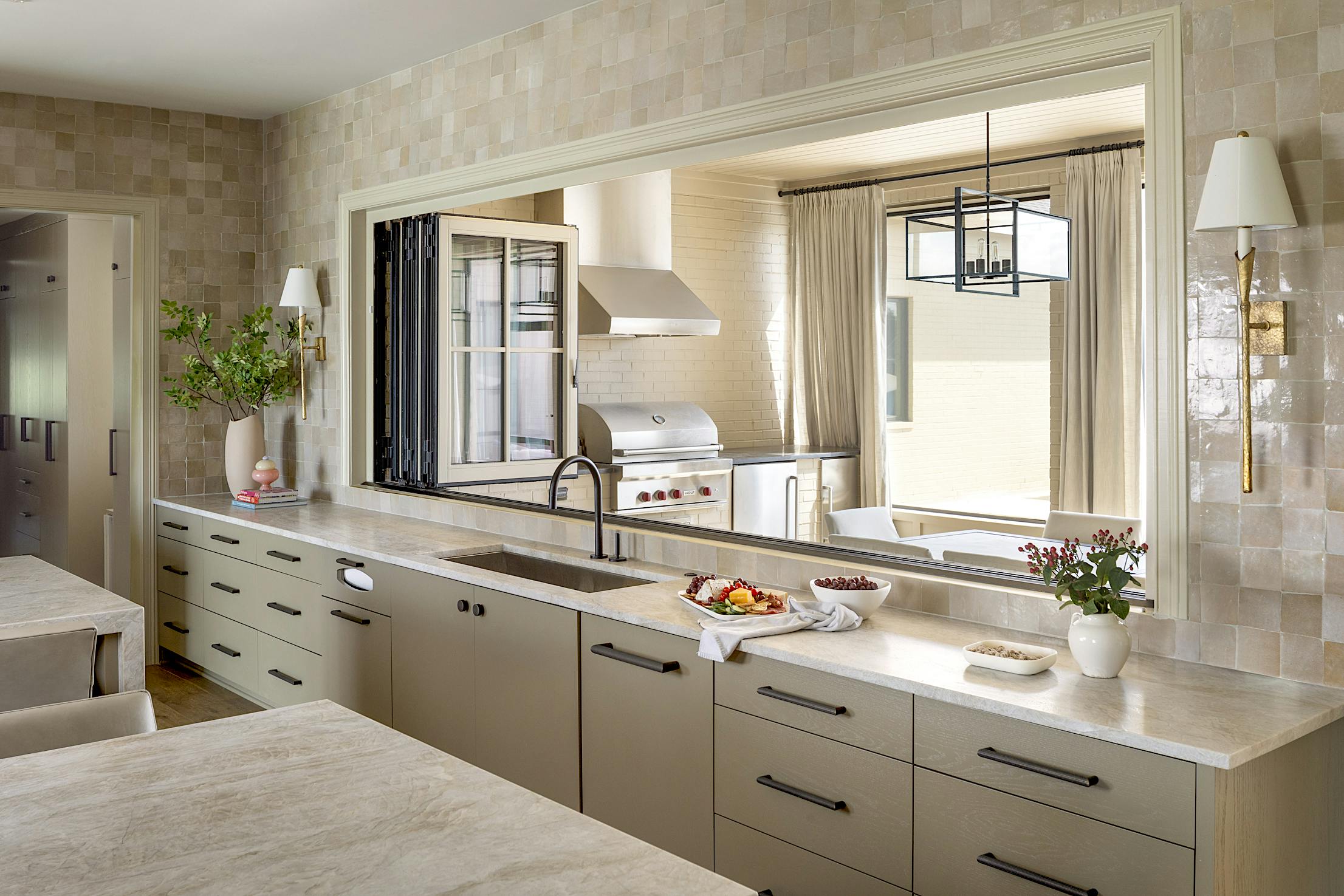

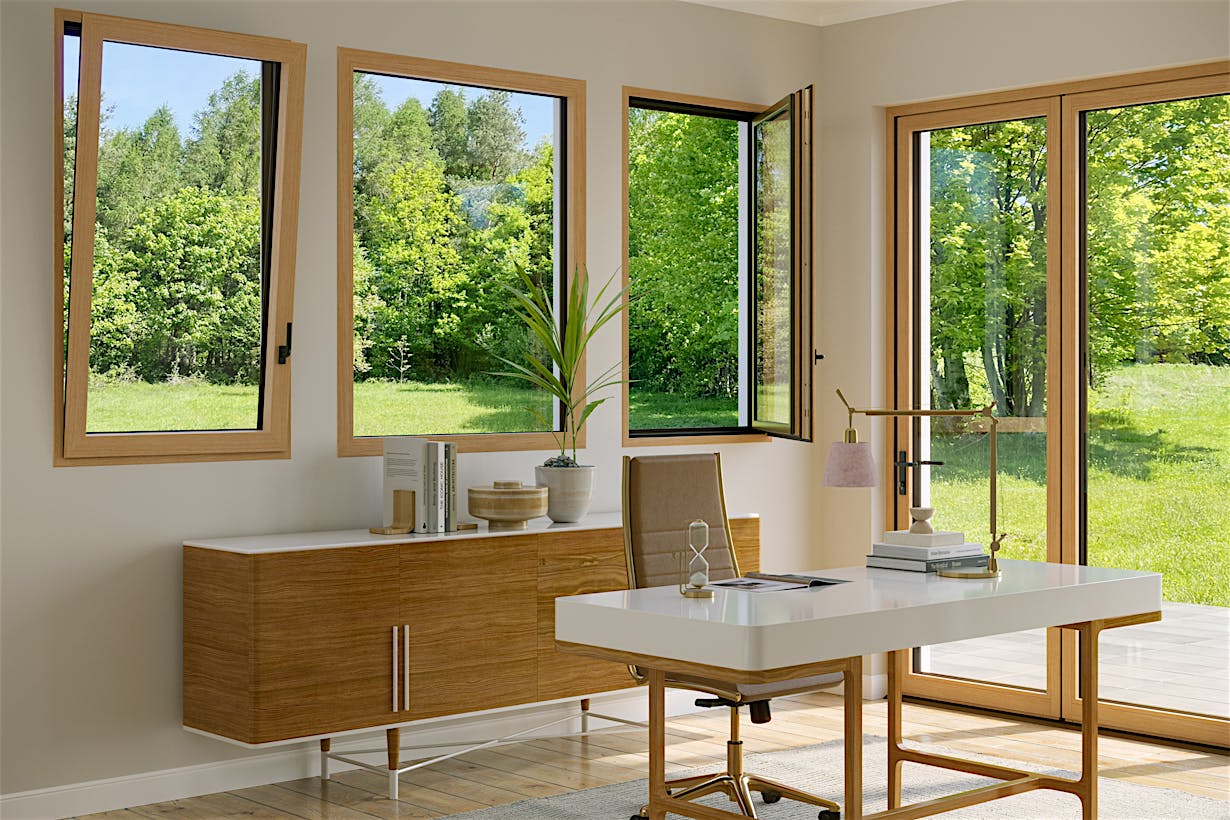

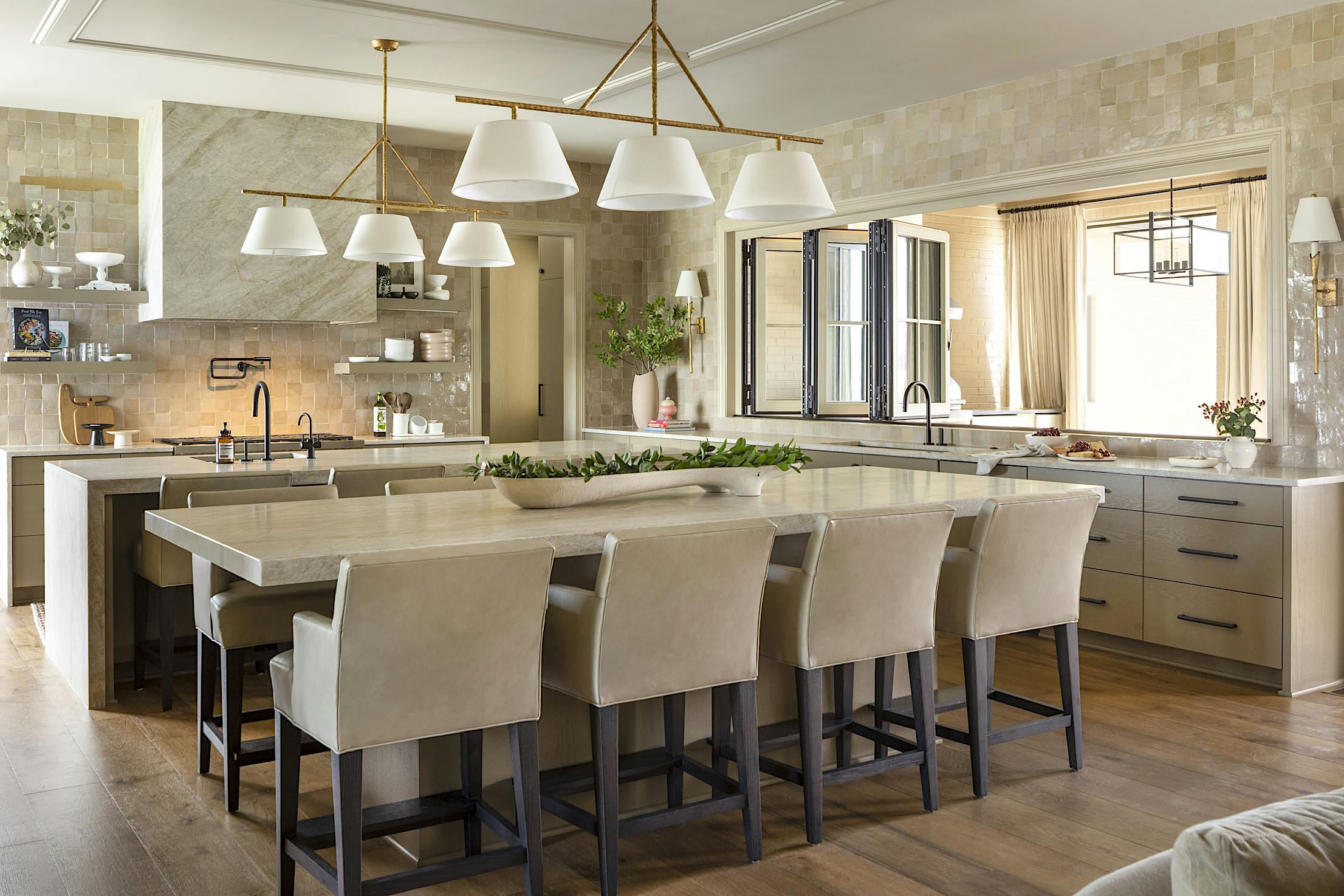

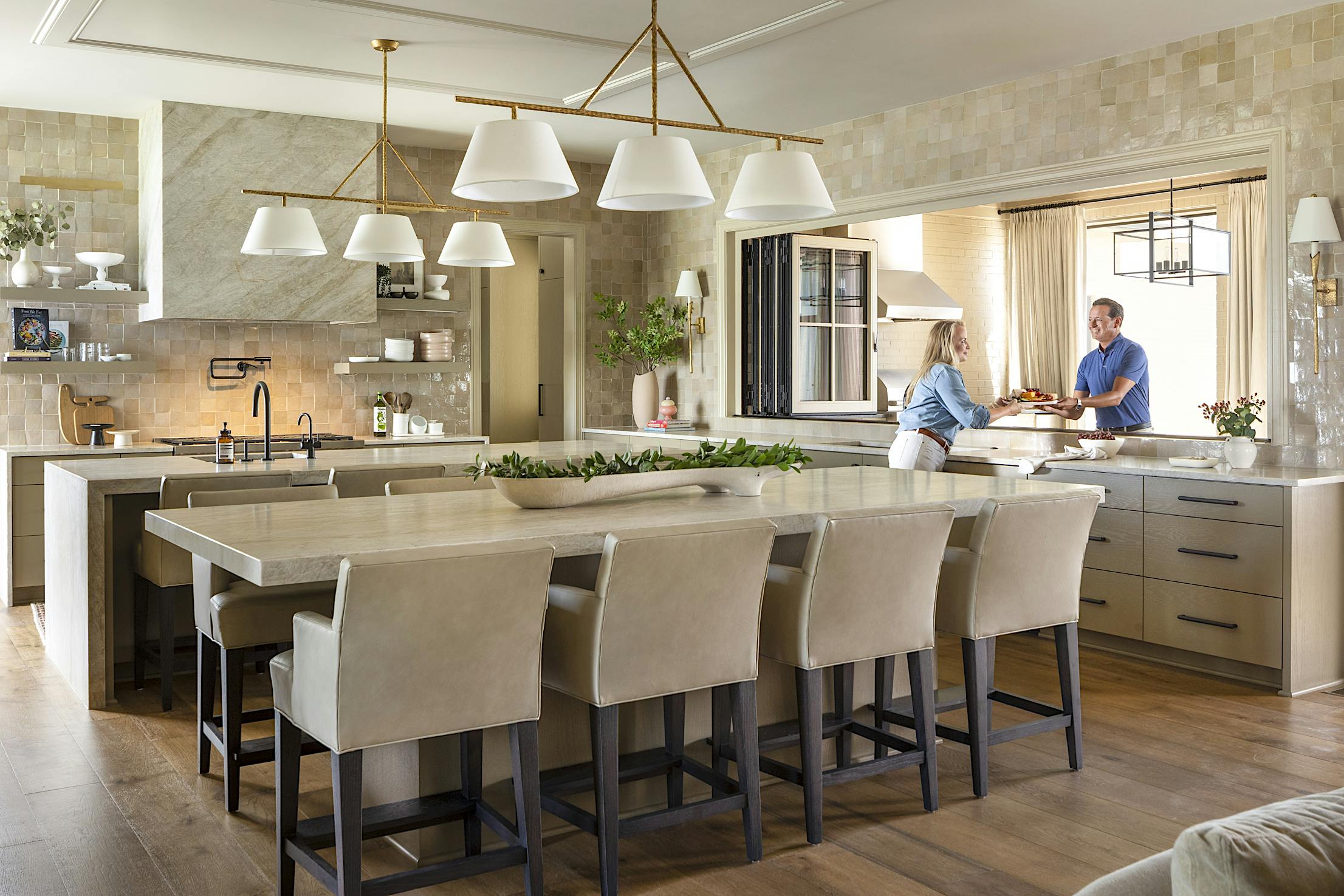

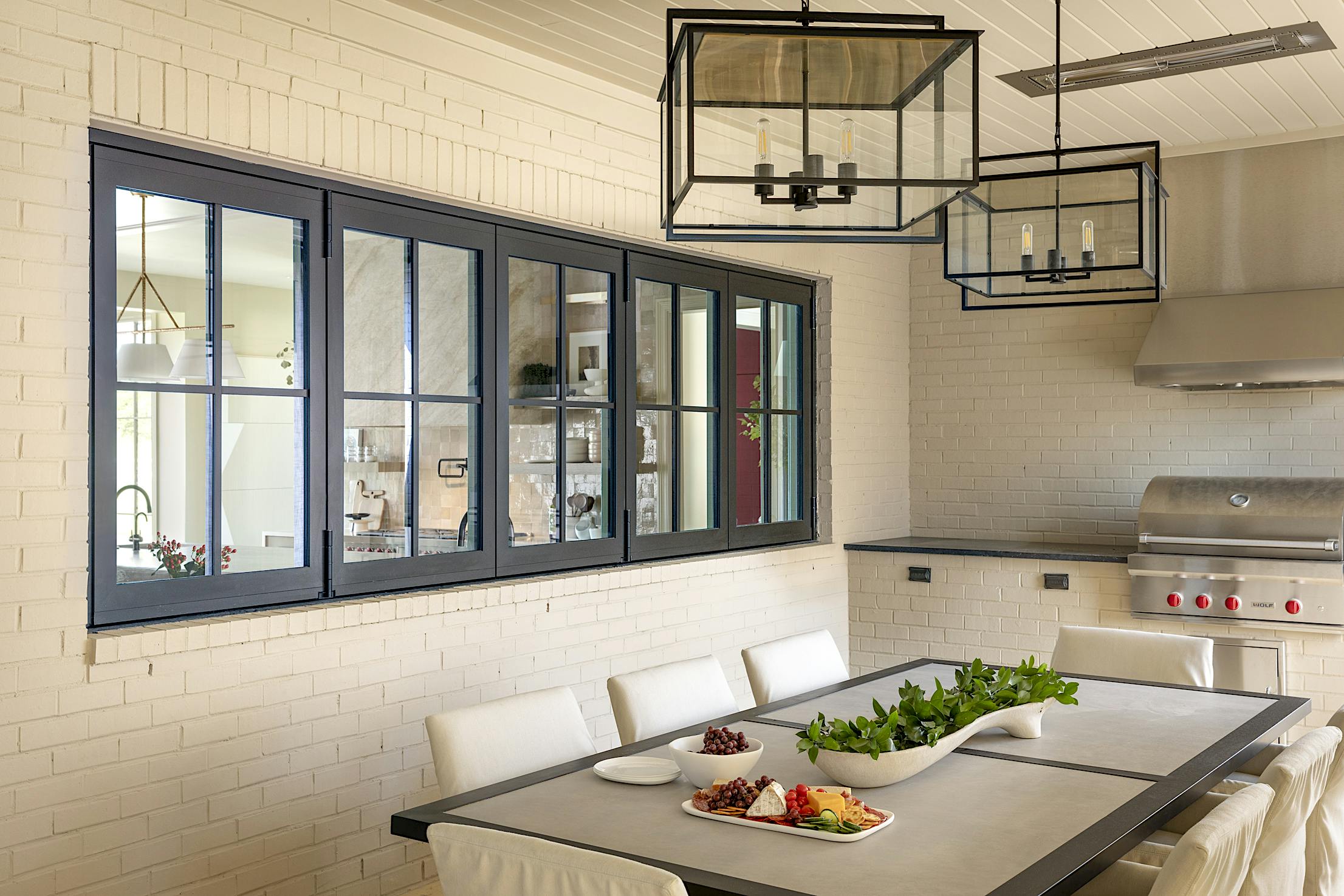

Combine a NanaWall Folding Glass Window with a NanaWall Folding Glass Wall seamlessly
