Service and Support
With You Every Step of the Way
Each NanaWall system is backed by a team of dedicated experts and professionals here to make sure your project is on track, on time, and on budget. Our dedication to both product and service quality ensure that you have the support you need before your project has started and long after its completion.
Single Source Responsibility
As a single source supplier, we oversee every part of the manufacturing process to ensure that our integrated designs meet the highest quality material and engineering standards.
Dedicated Support Team
Available to answer any questions to keep your project moving forward.
Engineered for everyday use with the warranty to back it up.
Certified Installation Network
A dedicated network of NanaWall installers, certified by us.
Our dedicated support team is committed to helping contractors troubleshoot or advise at any point during the planning, designing or building phases of a project.
We can help select the right products for the task at hand, whether it’s choosing the appropriate glass wall system, hardware accessories, or customization options.
Because we streamline our process by manufacturing all our products in-house, we can provide the most accurate lead times in the industry–keeping your project on budget and on time.
What our Customers Have to Say

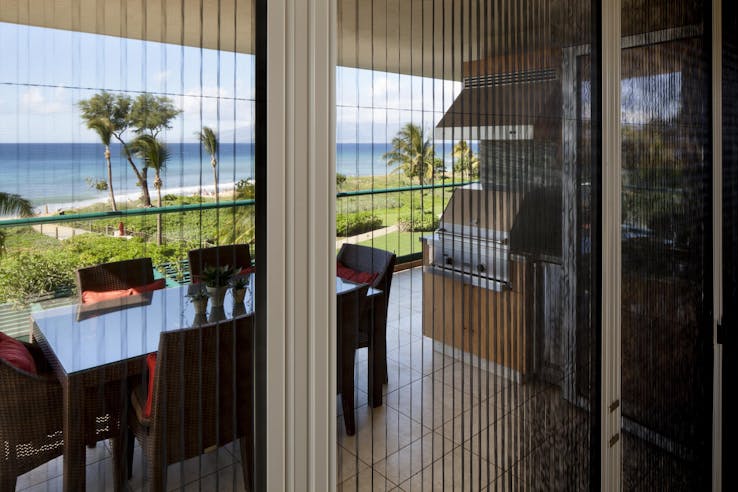

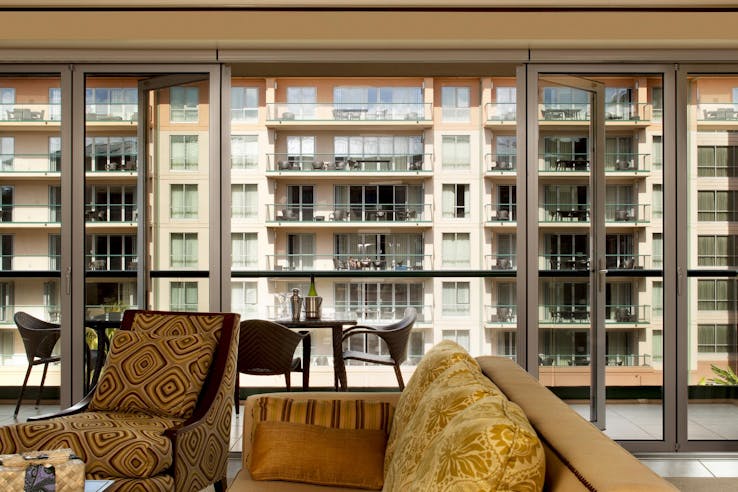

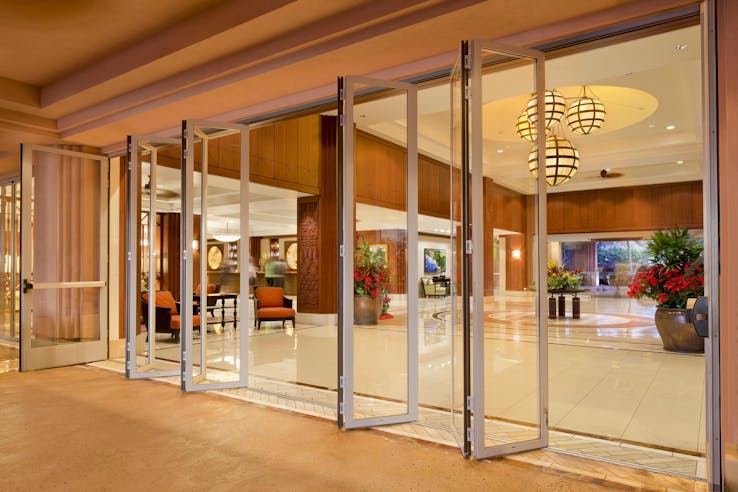

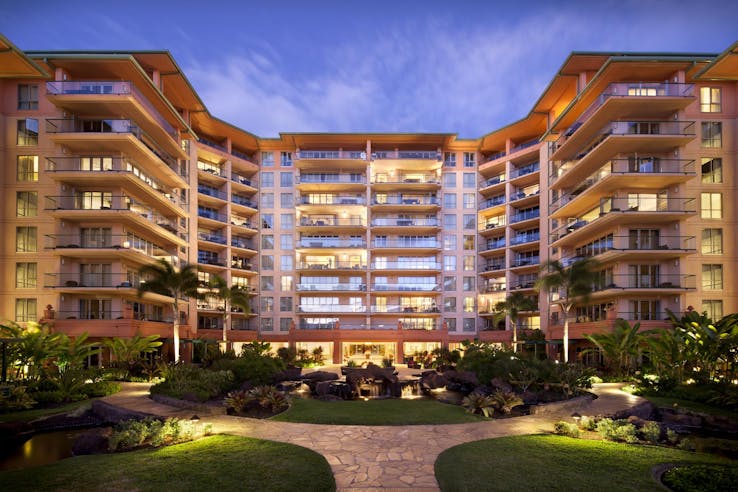

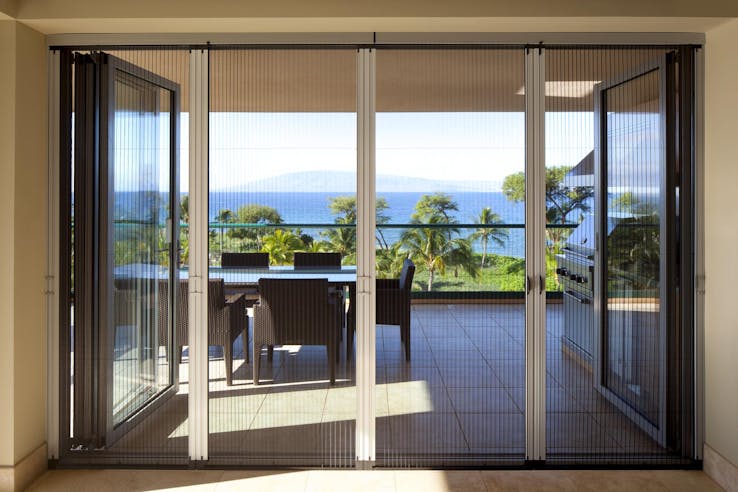

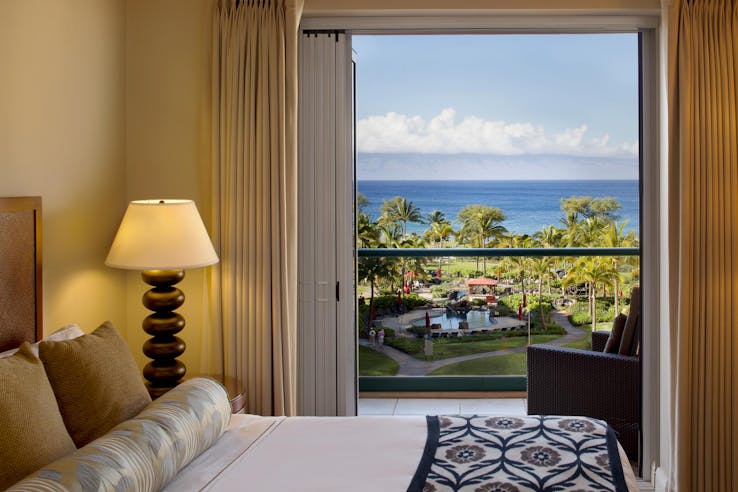

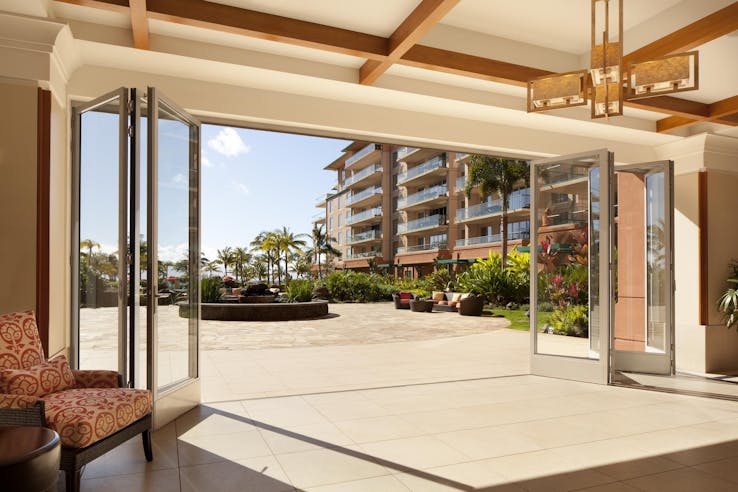

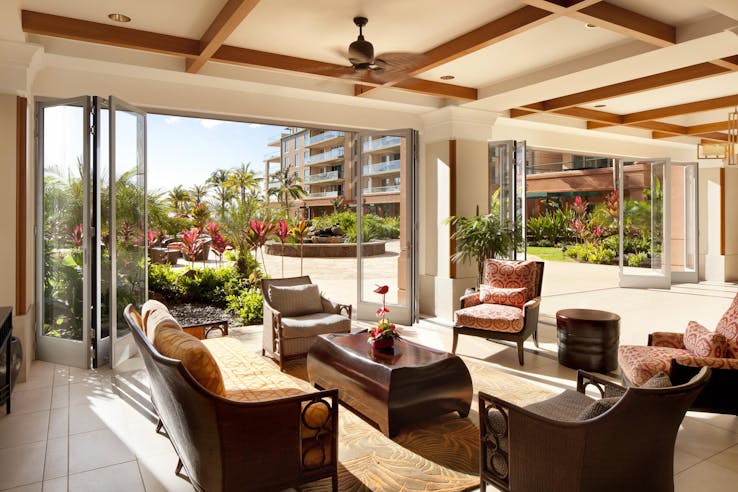

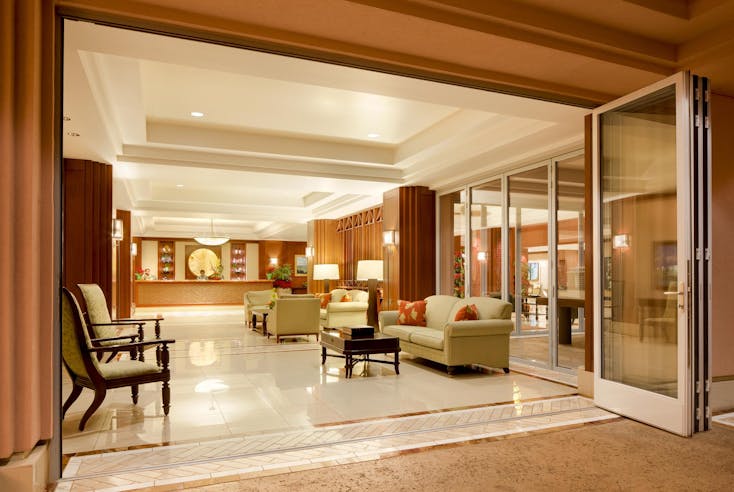

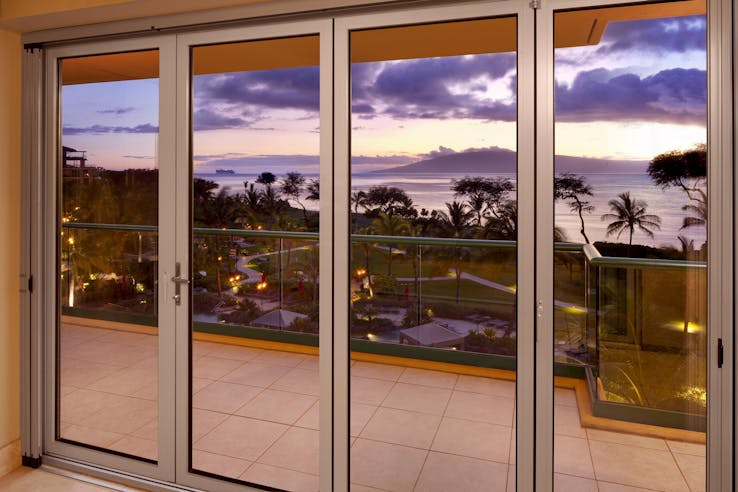

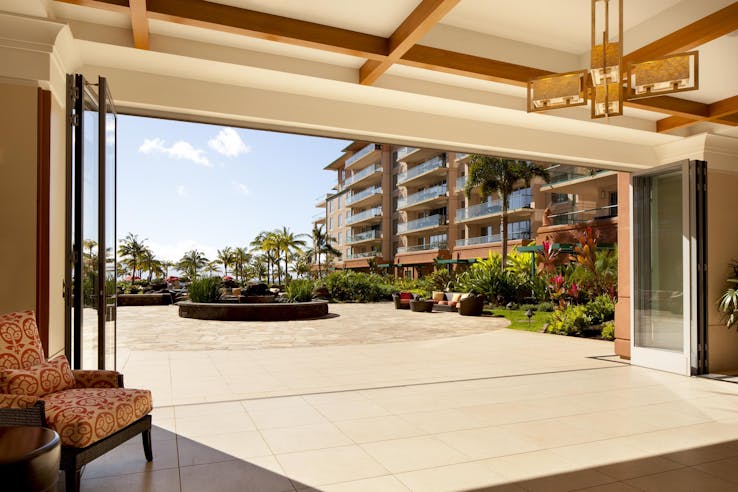

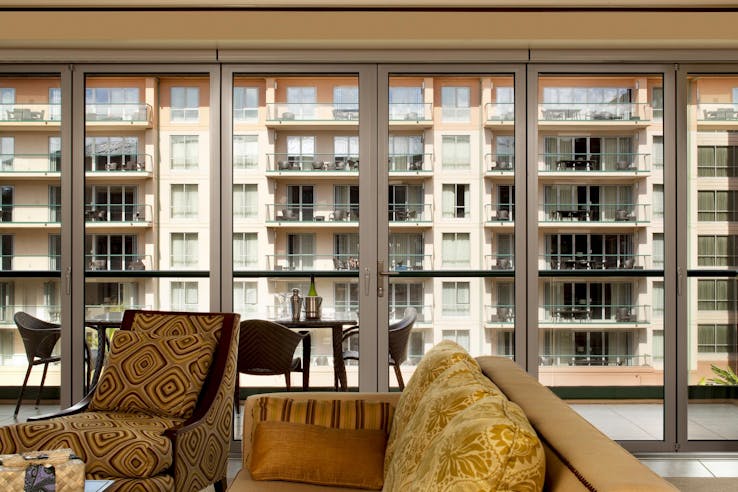

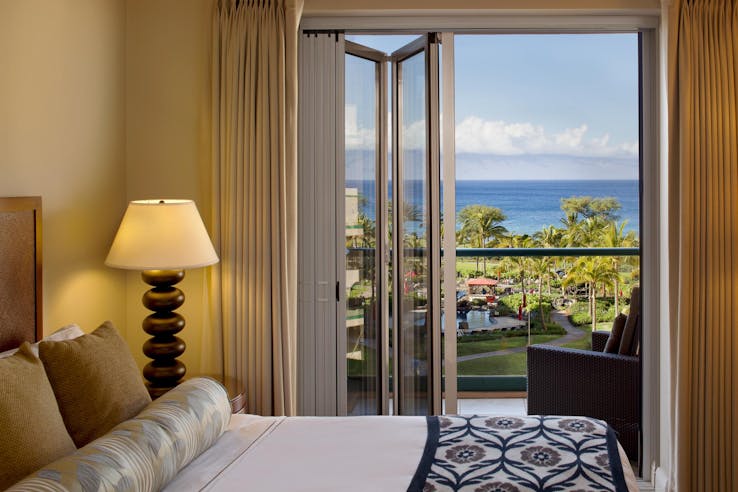

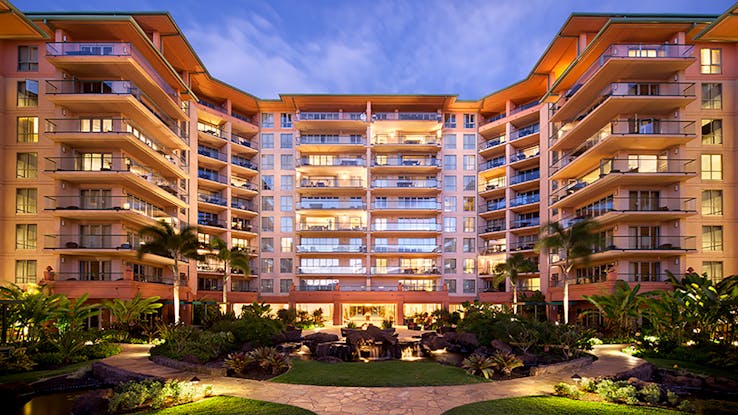

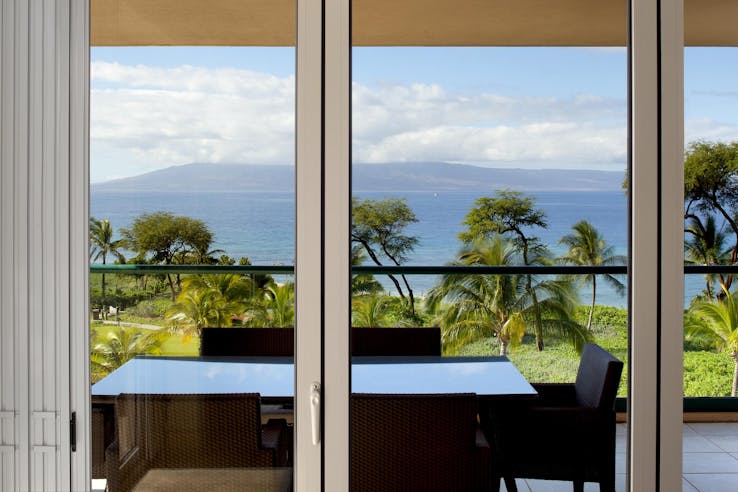

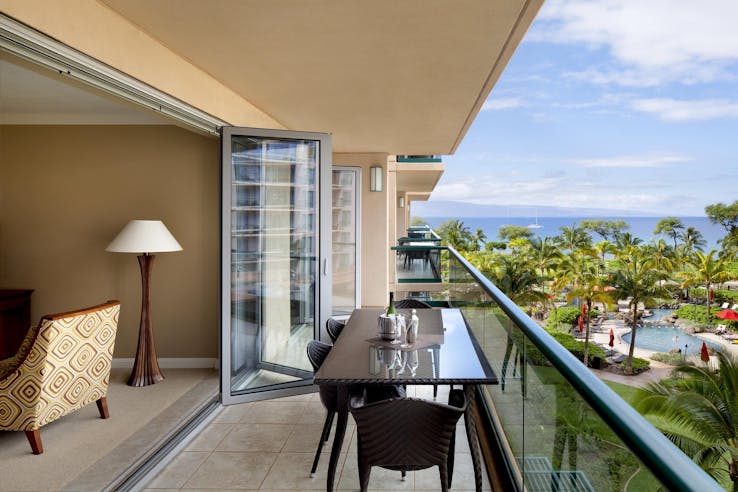

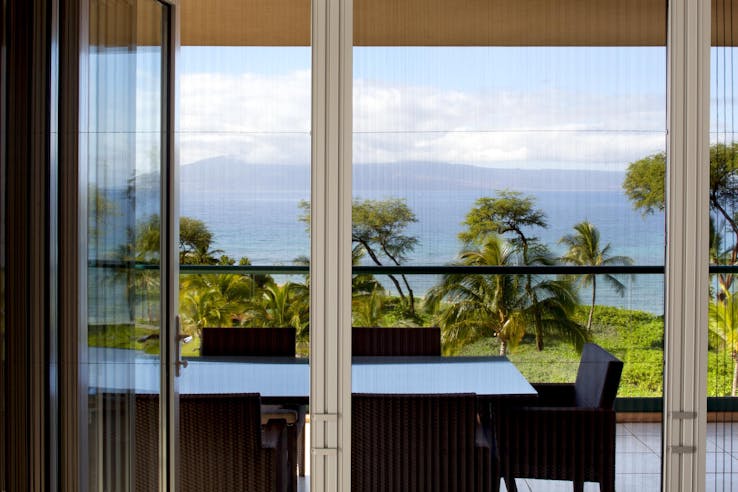

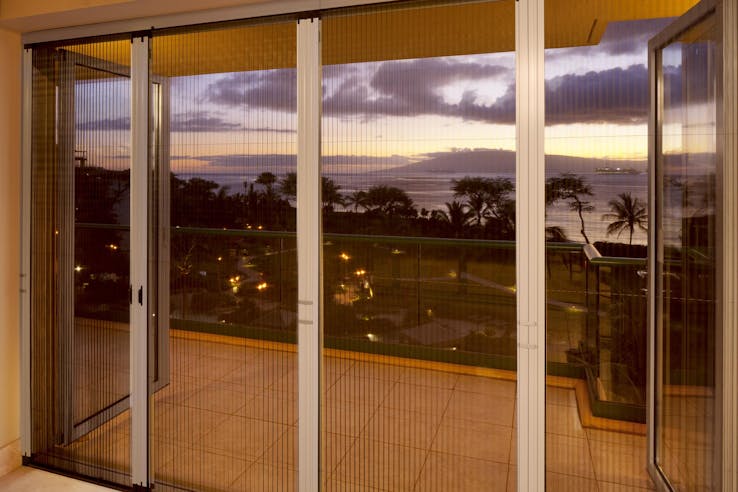

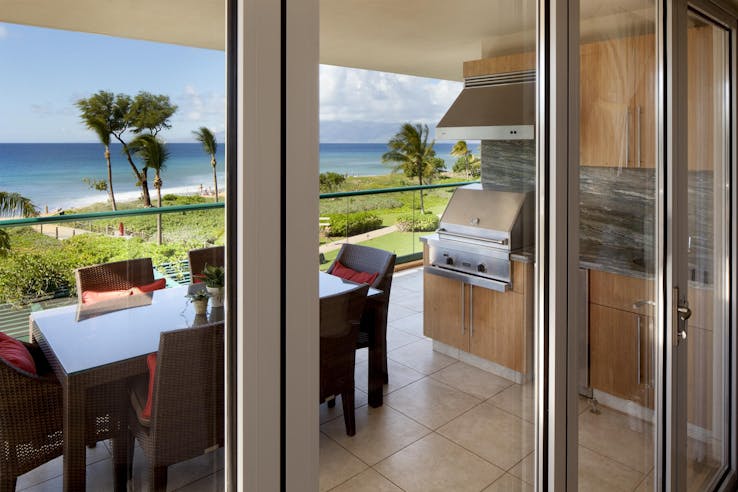

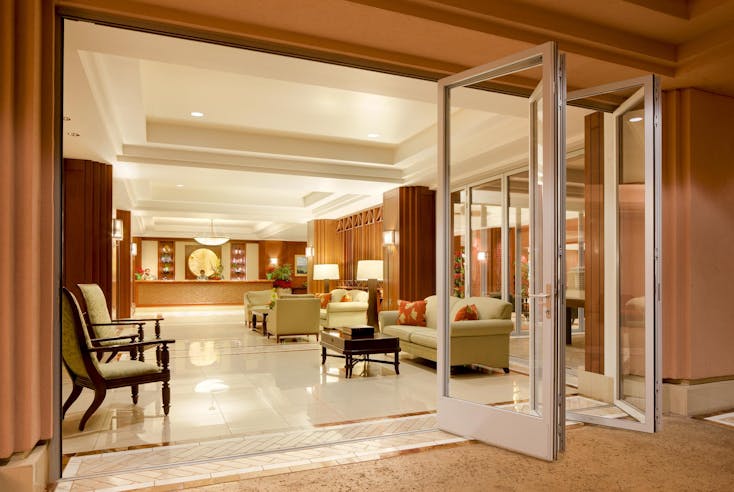

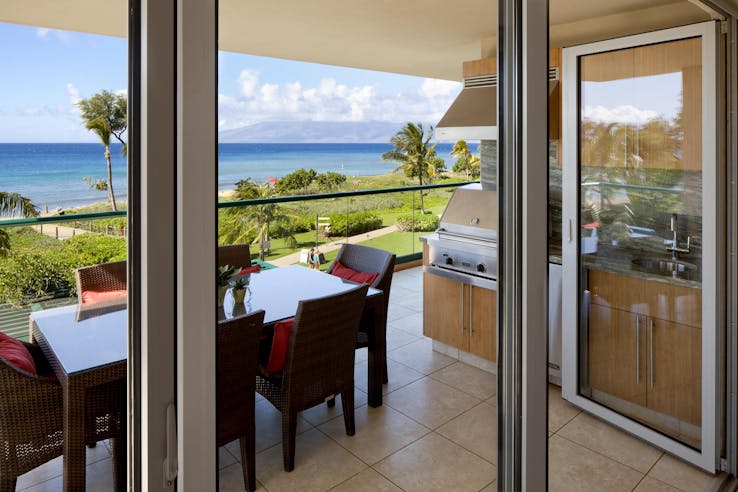

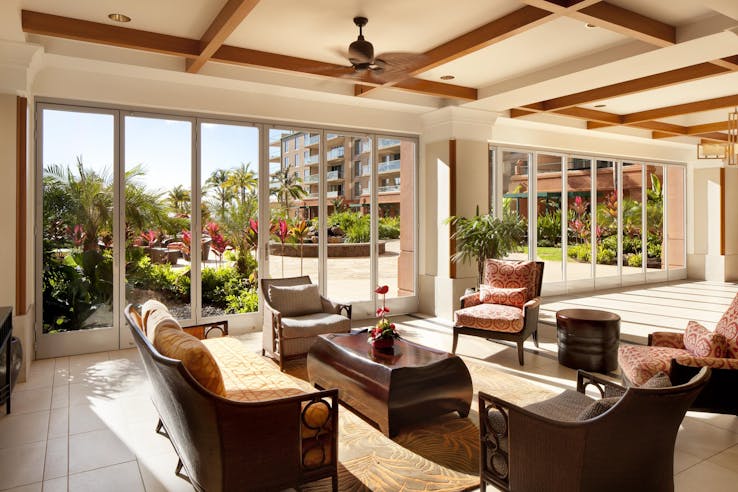

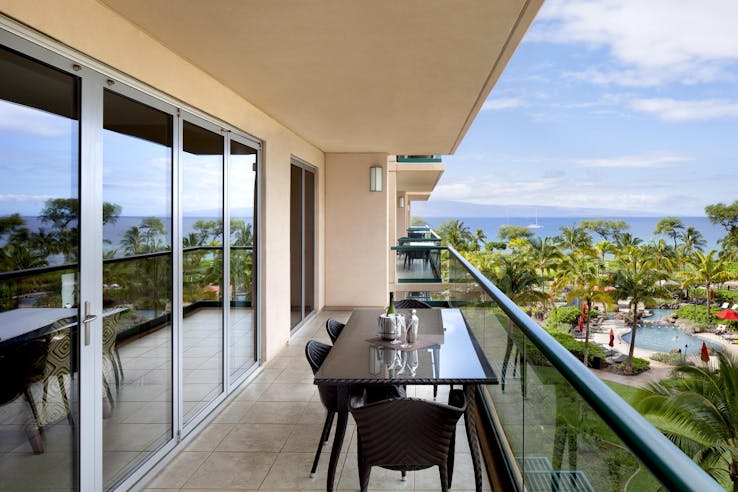

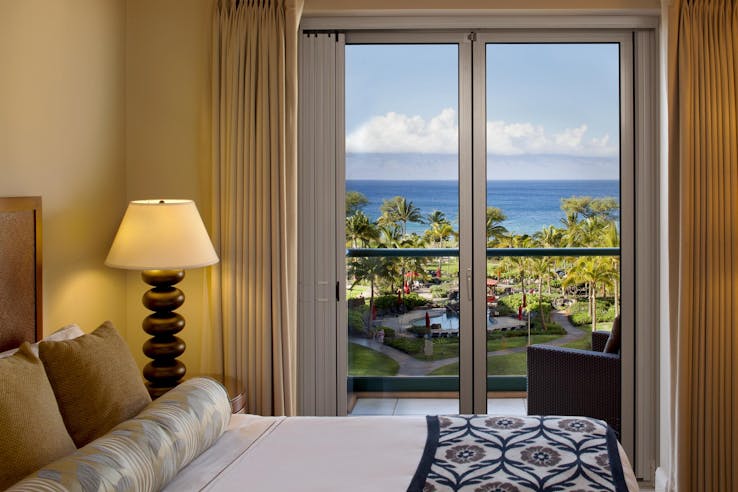

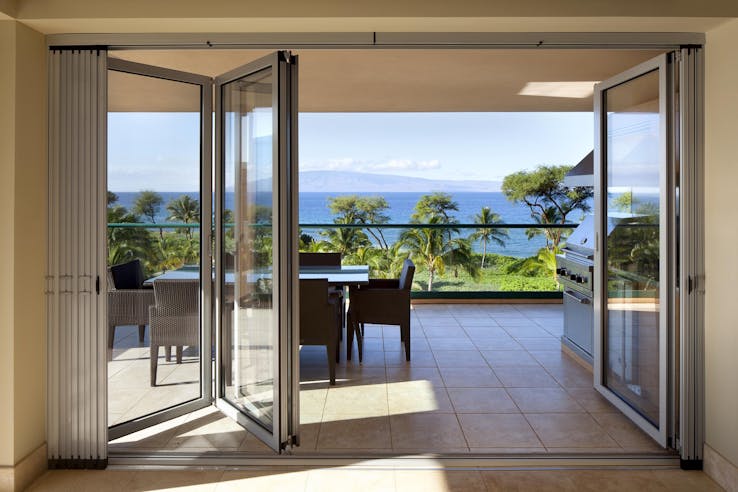

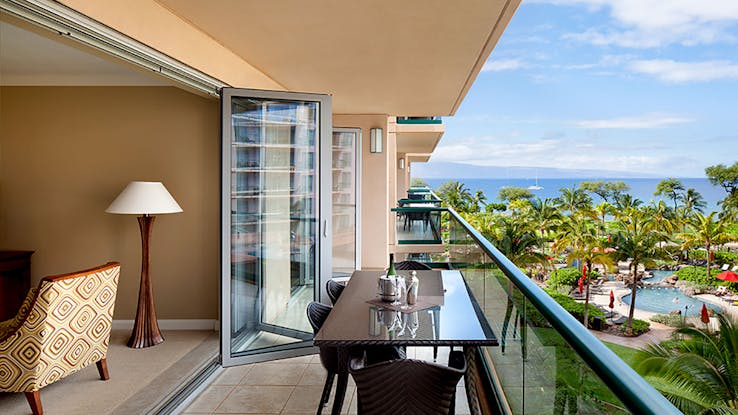

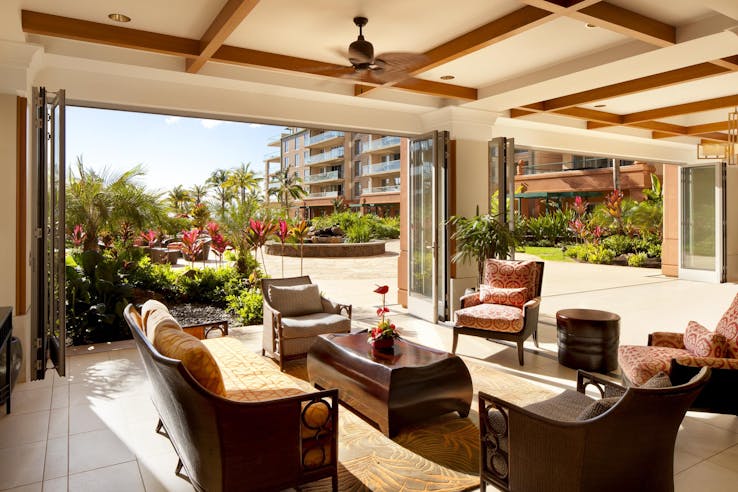

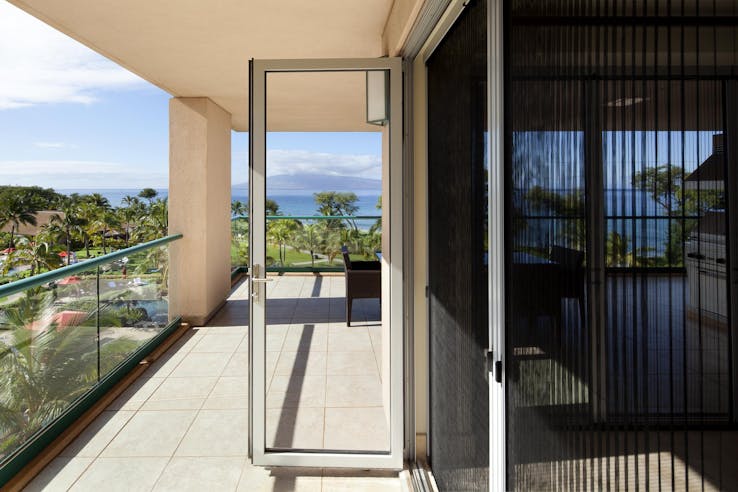

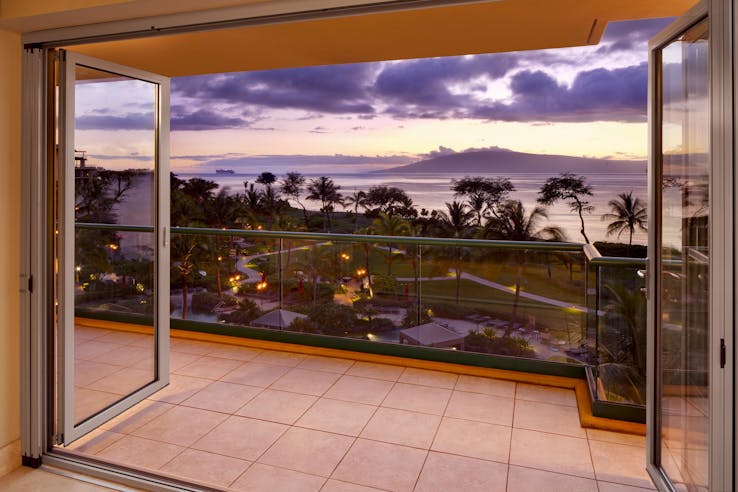

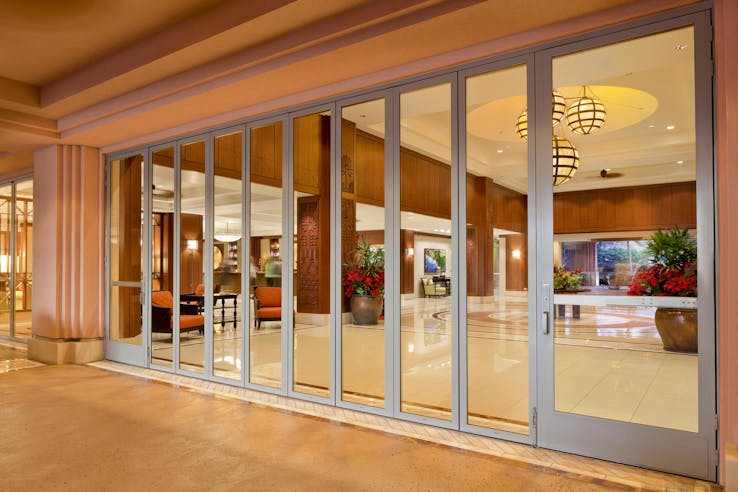

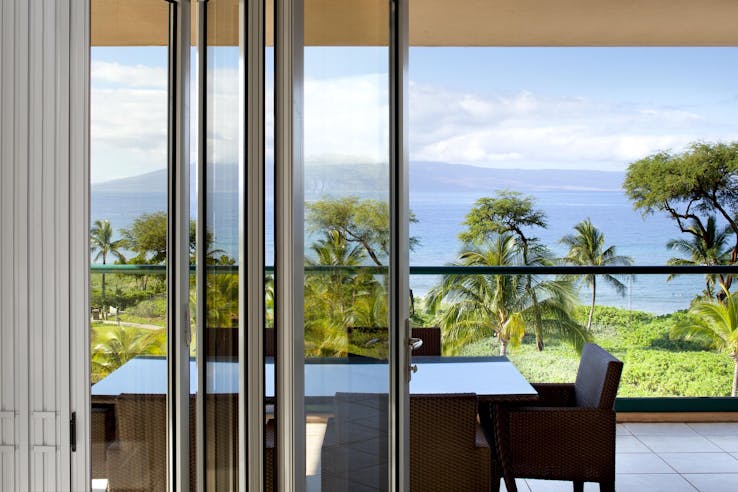

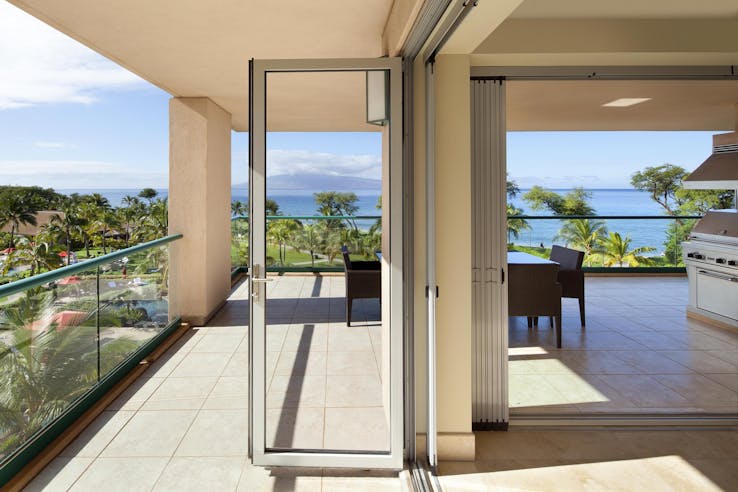

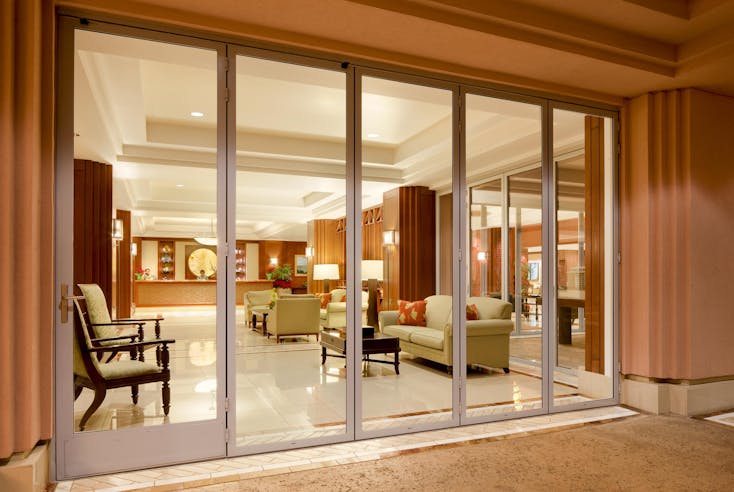

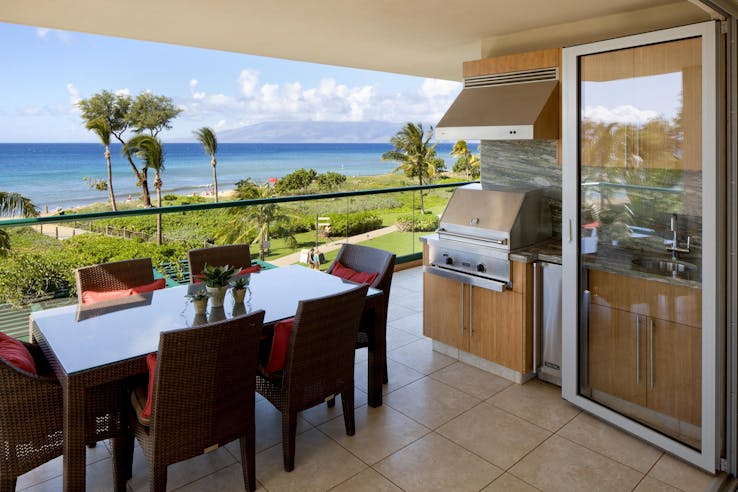

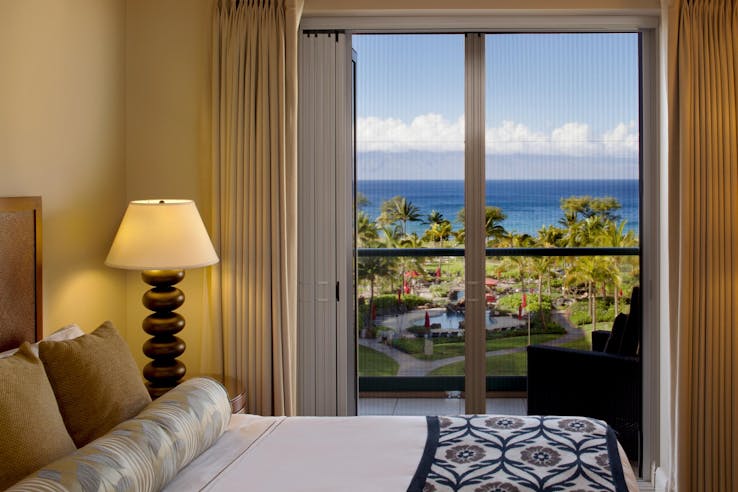

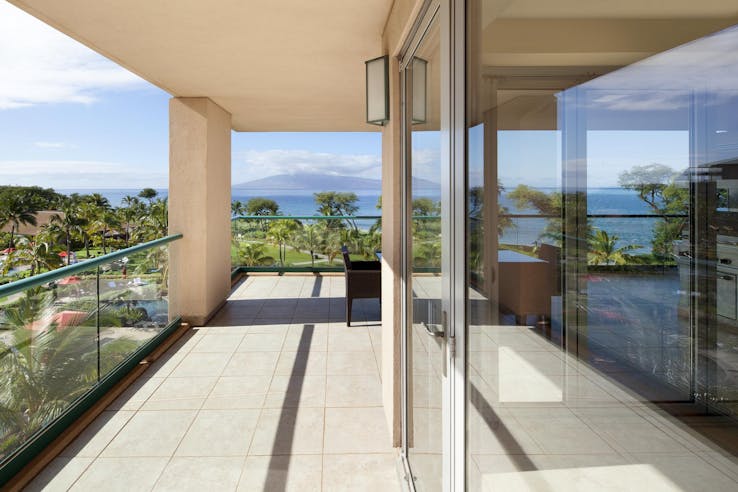

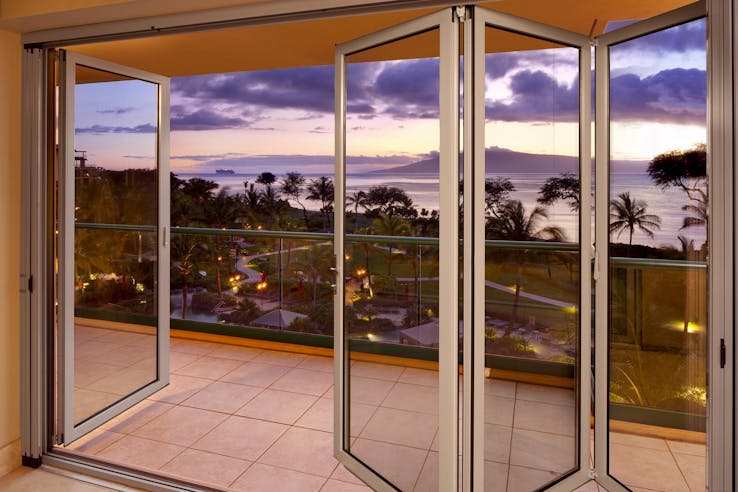

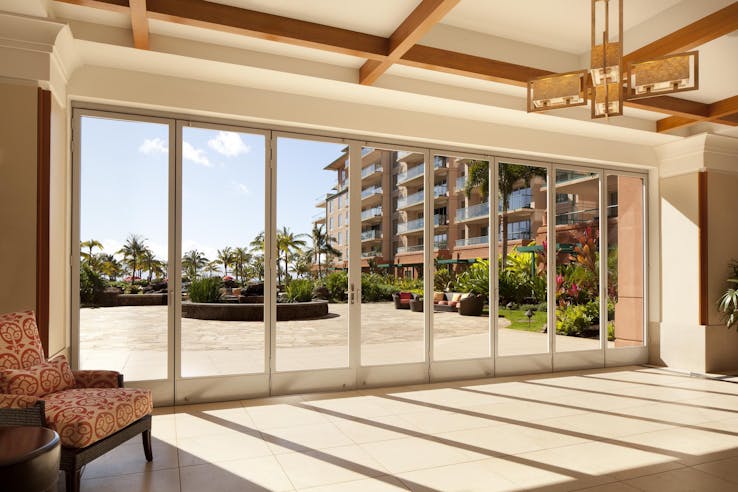

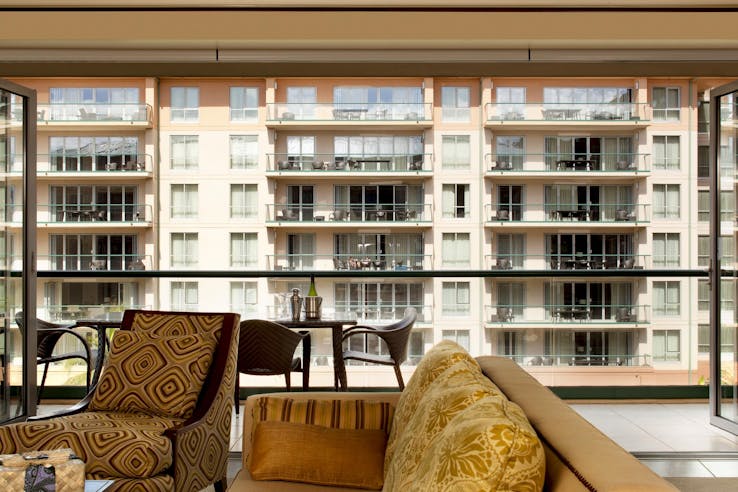

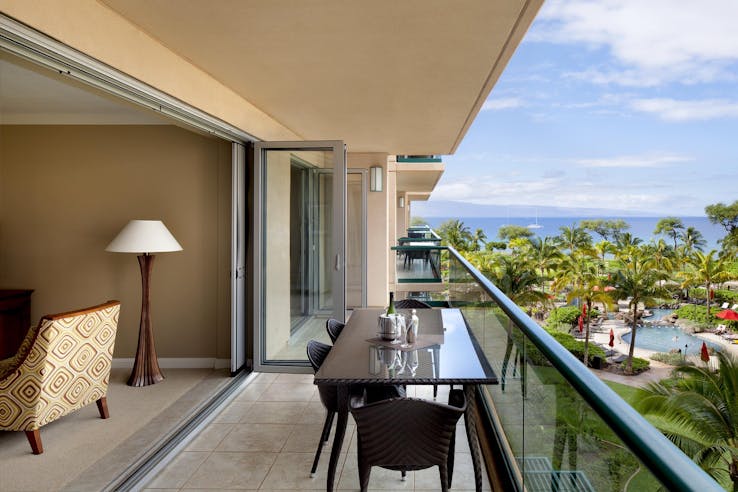

Combined with a Screen Classic component, NanaWall systems successfully transforms the living space of each apartment into outdoor living space, while thoroughly resisting the worst of tropical weather systems when closed.

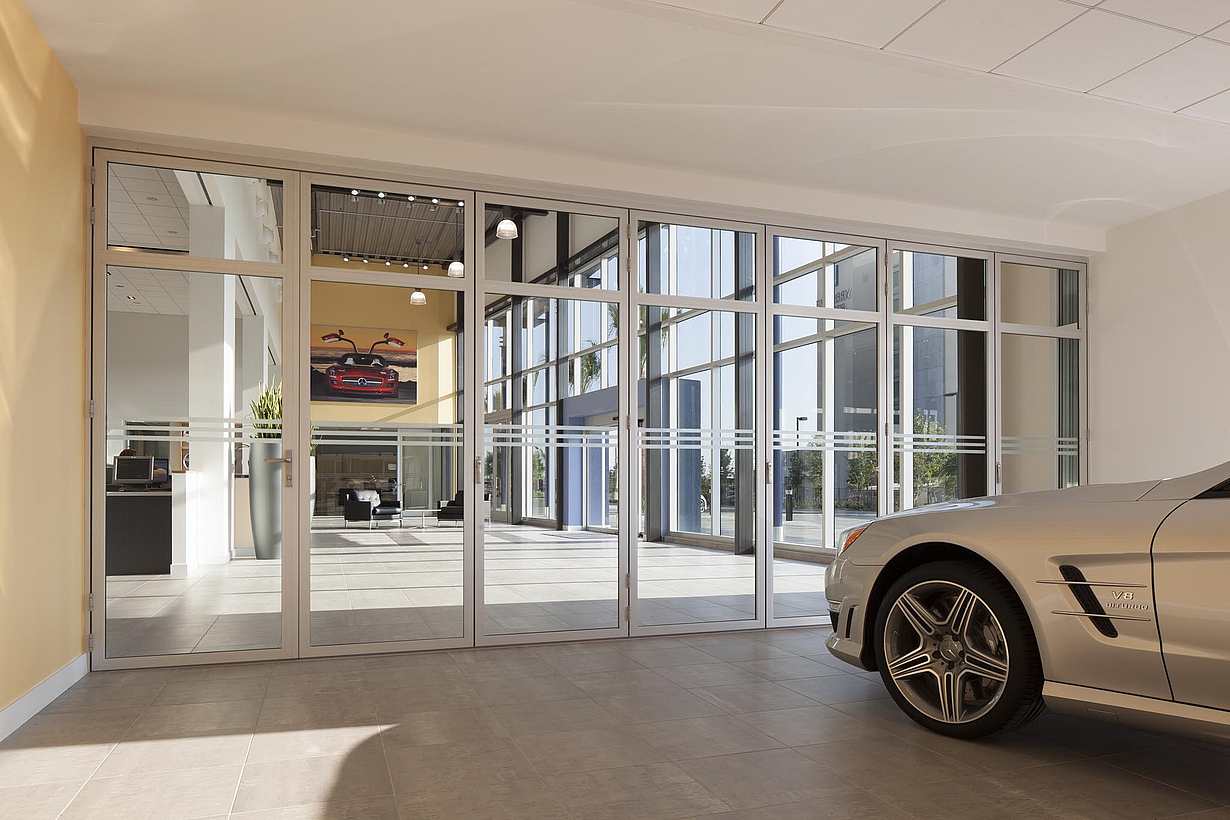

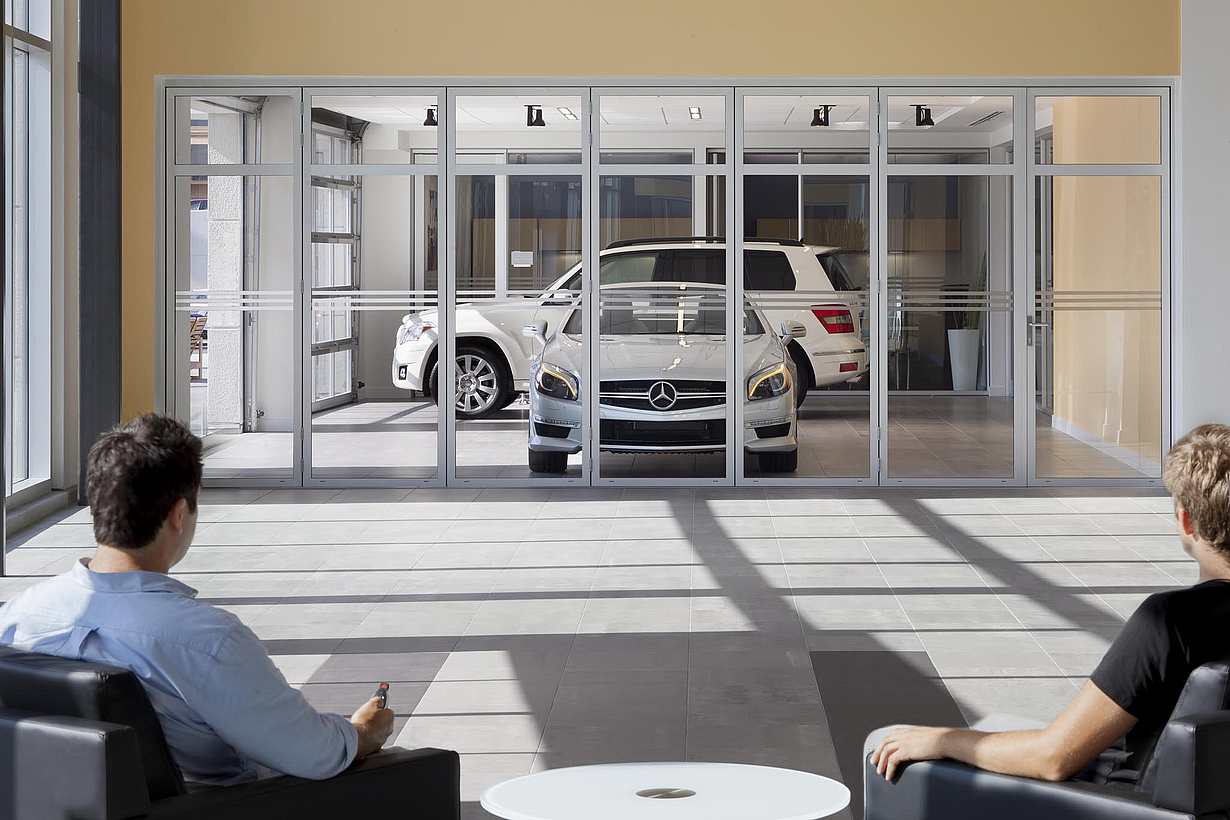

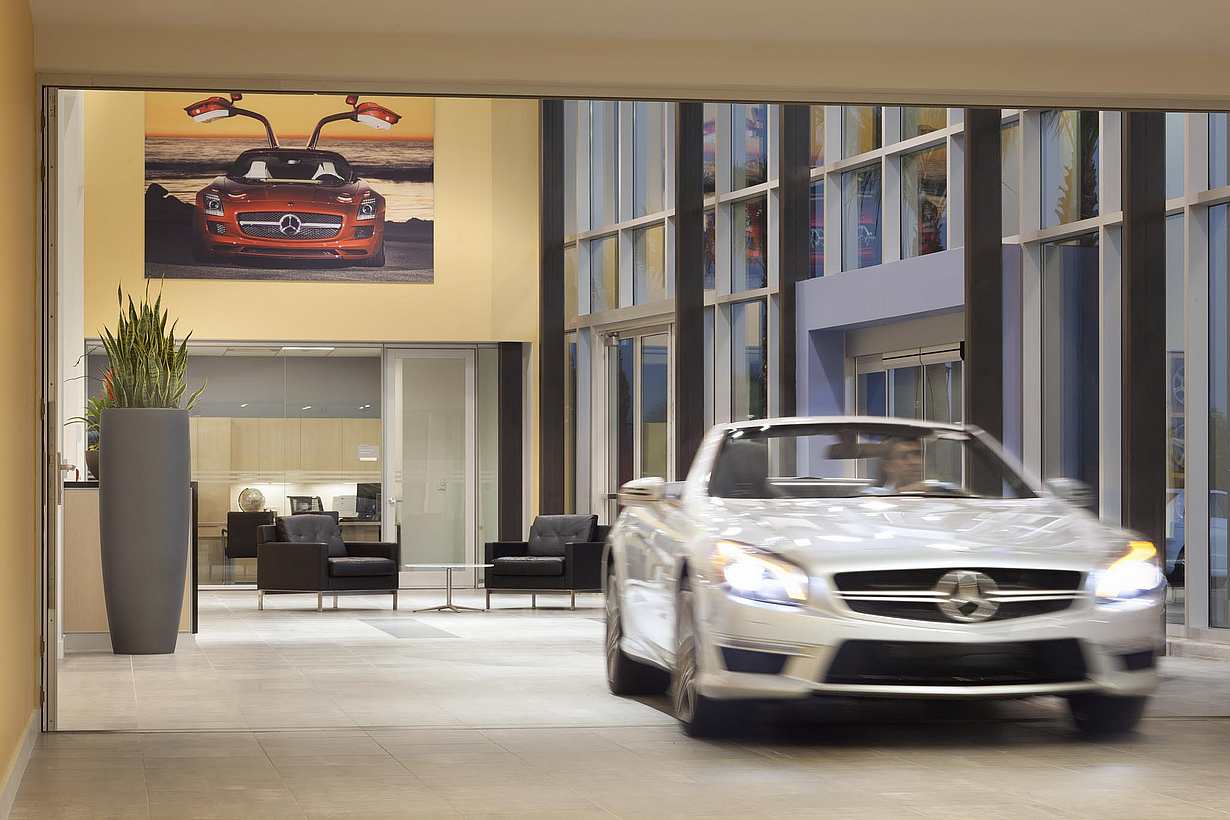

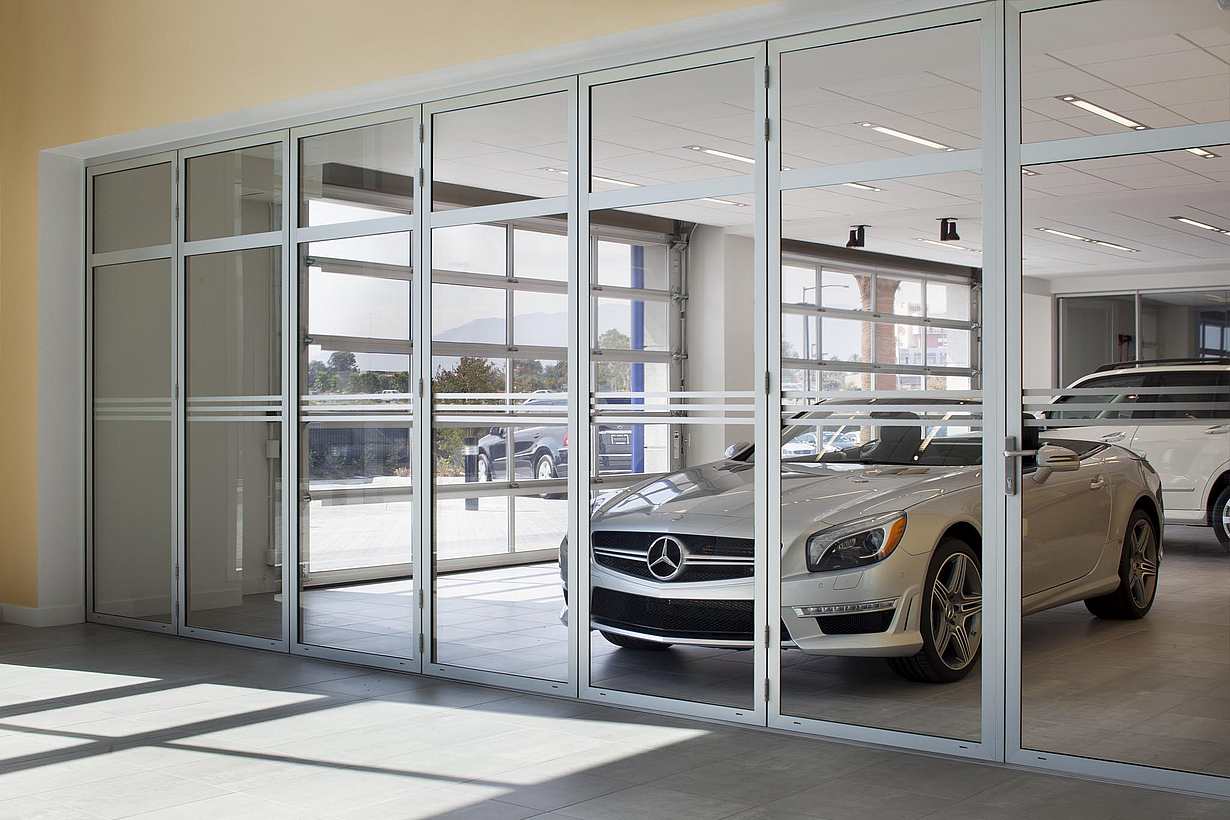

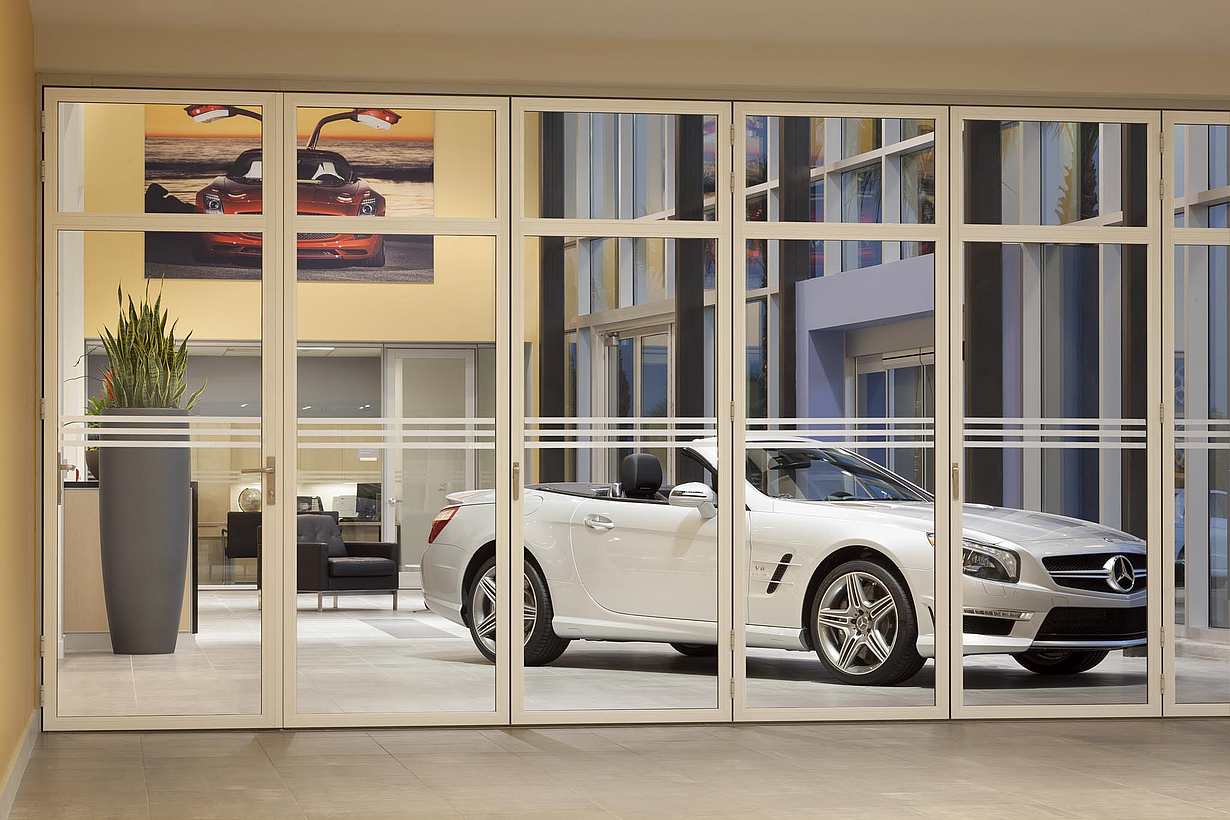

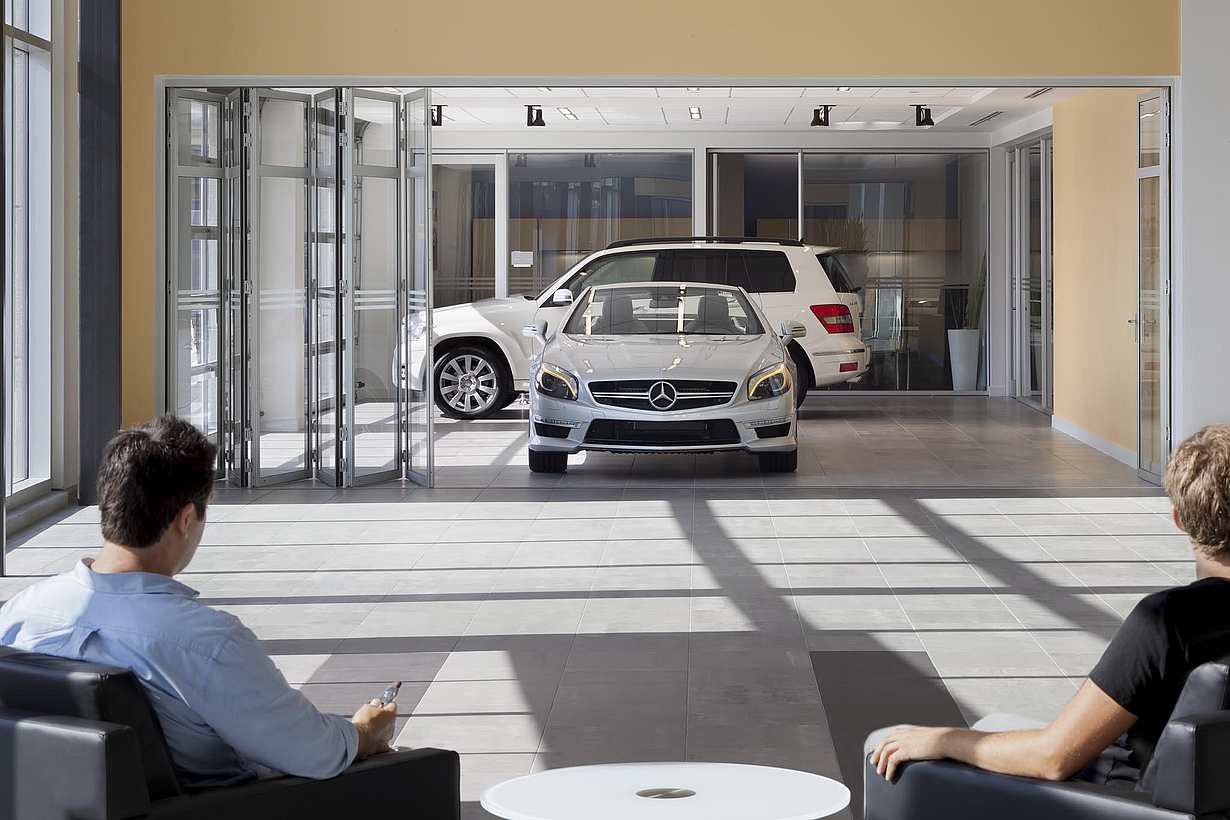

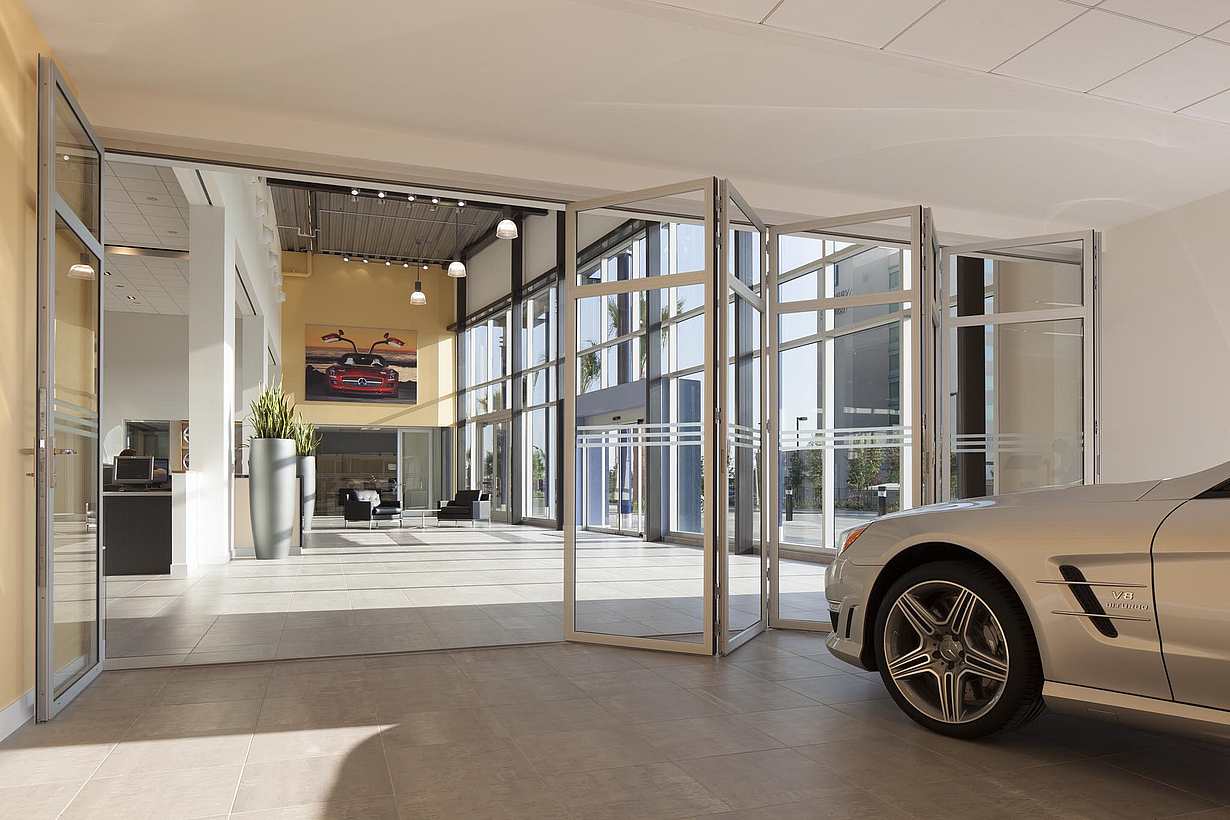

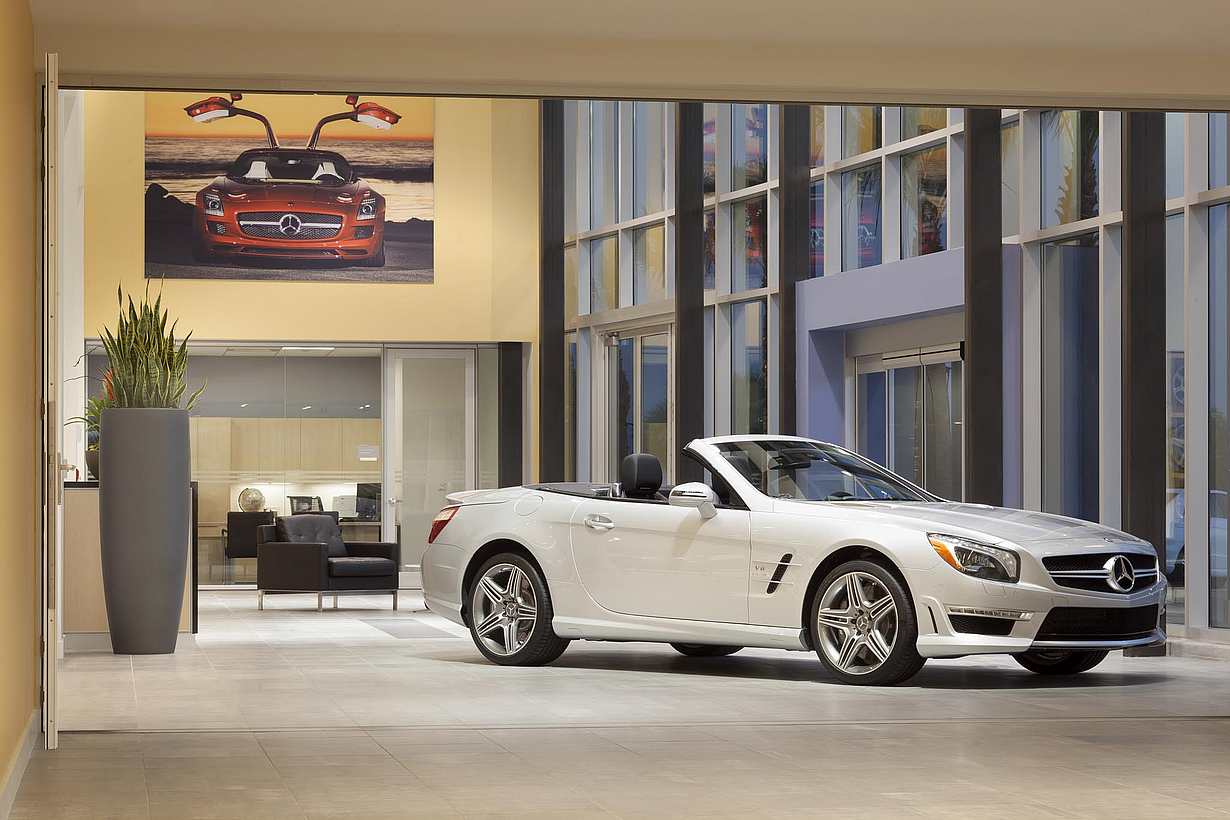

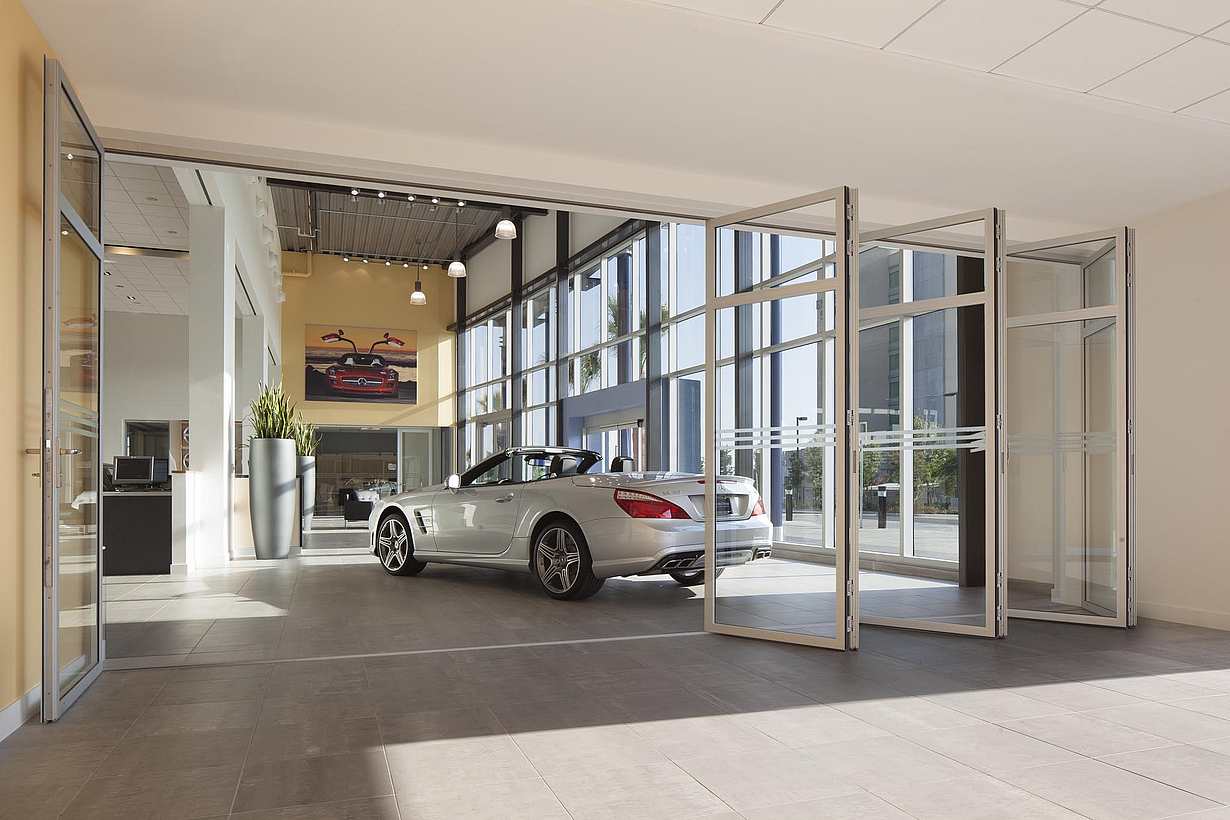

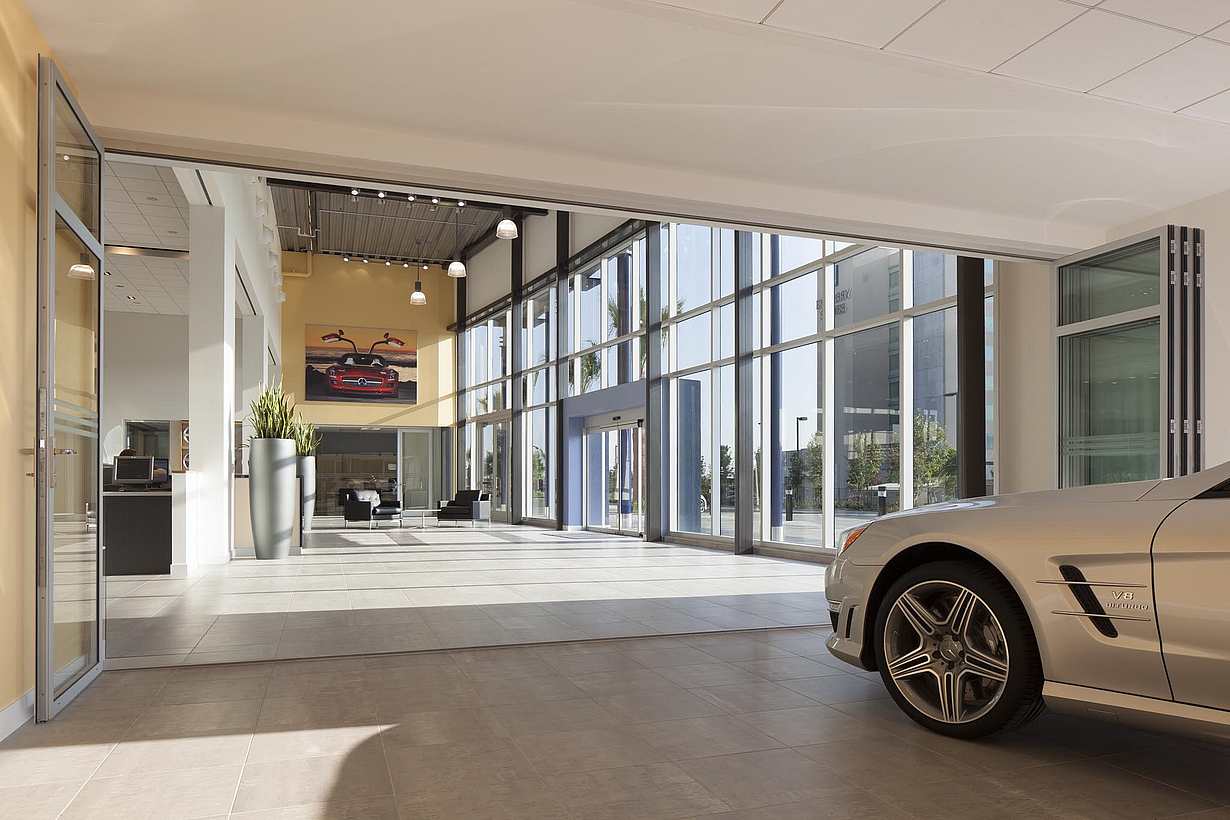

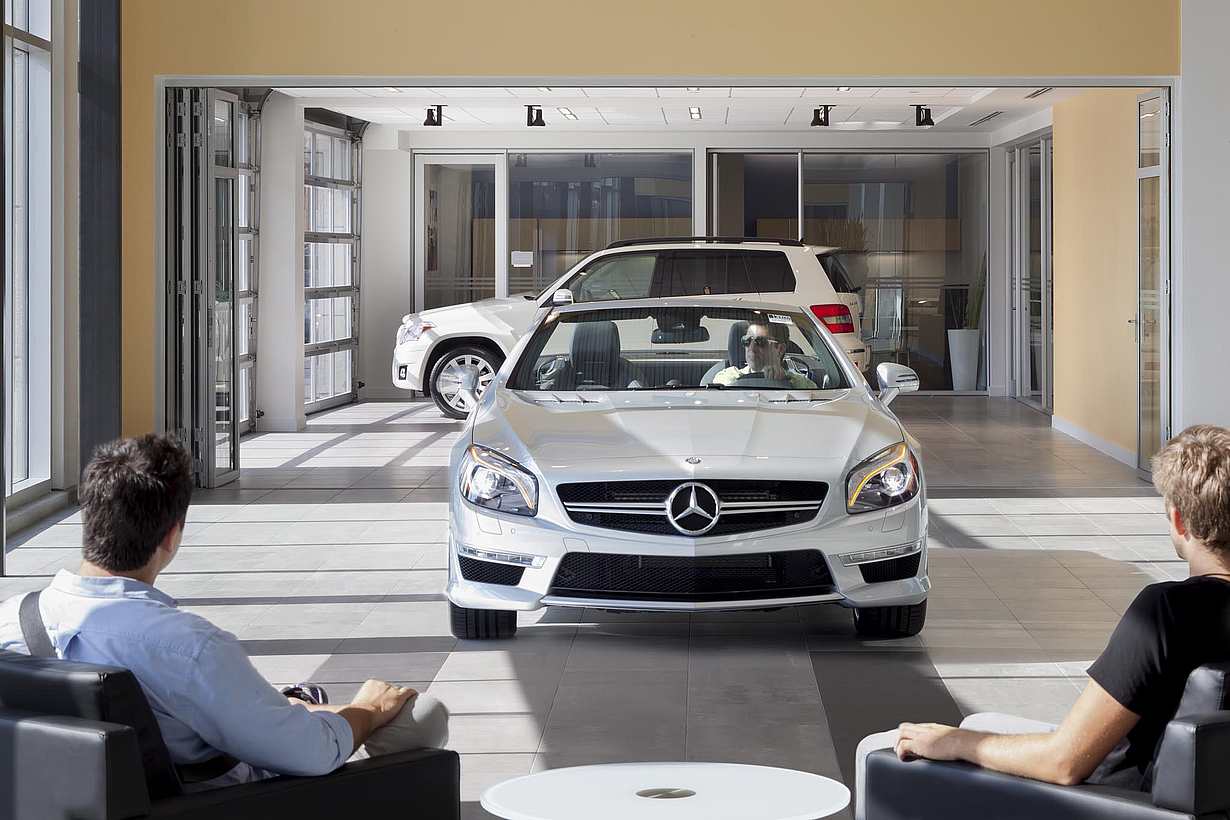

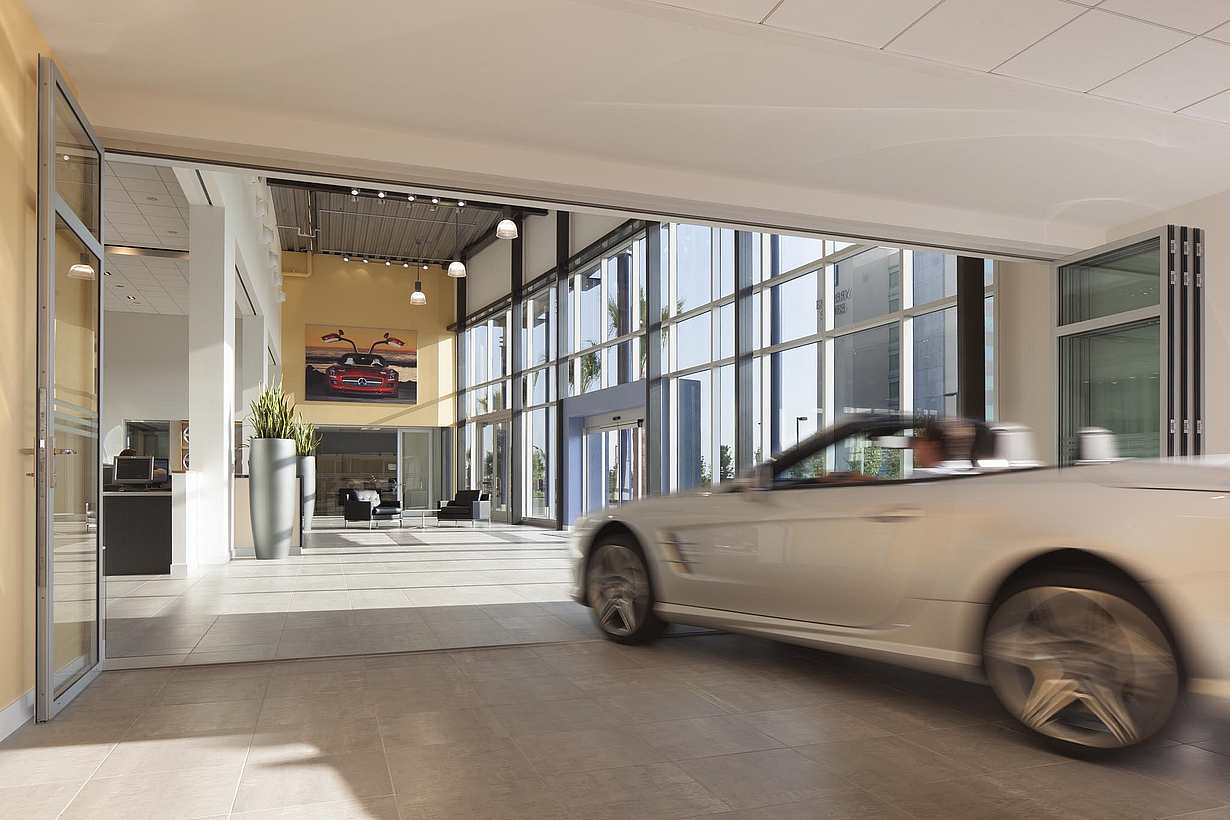

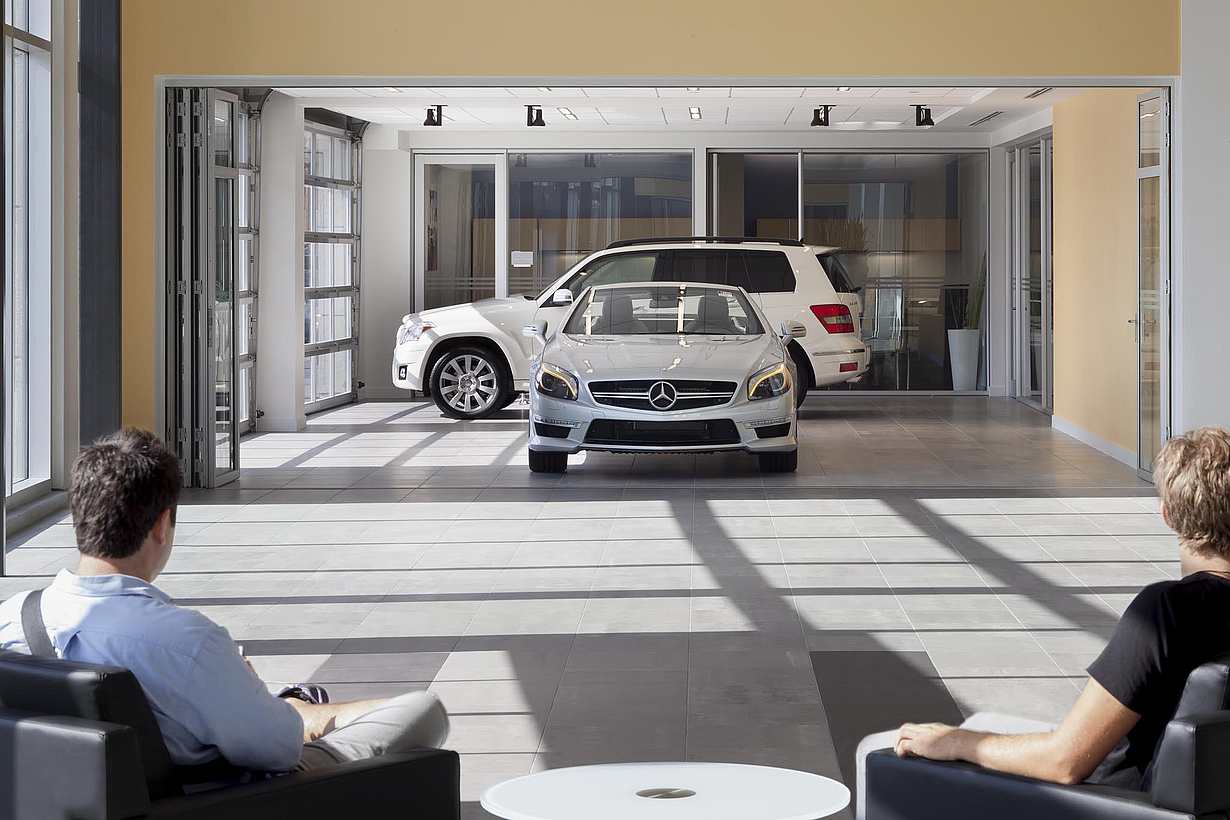

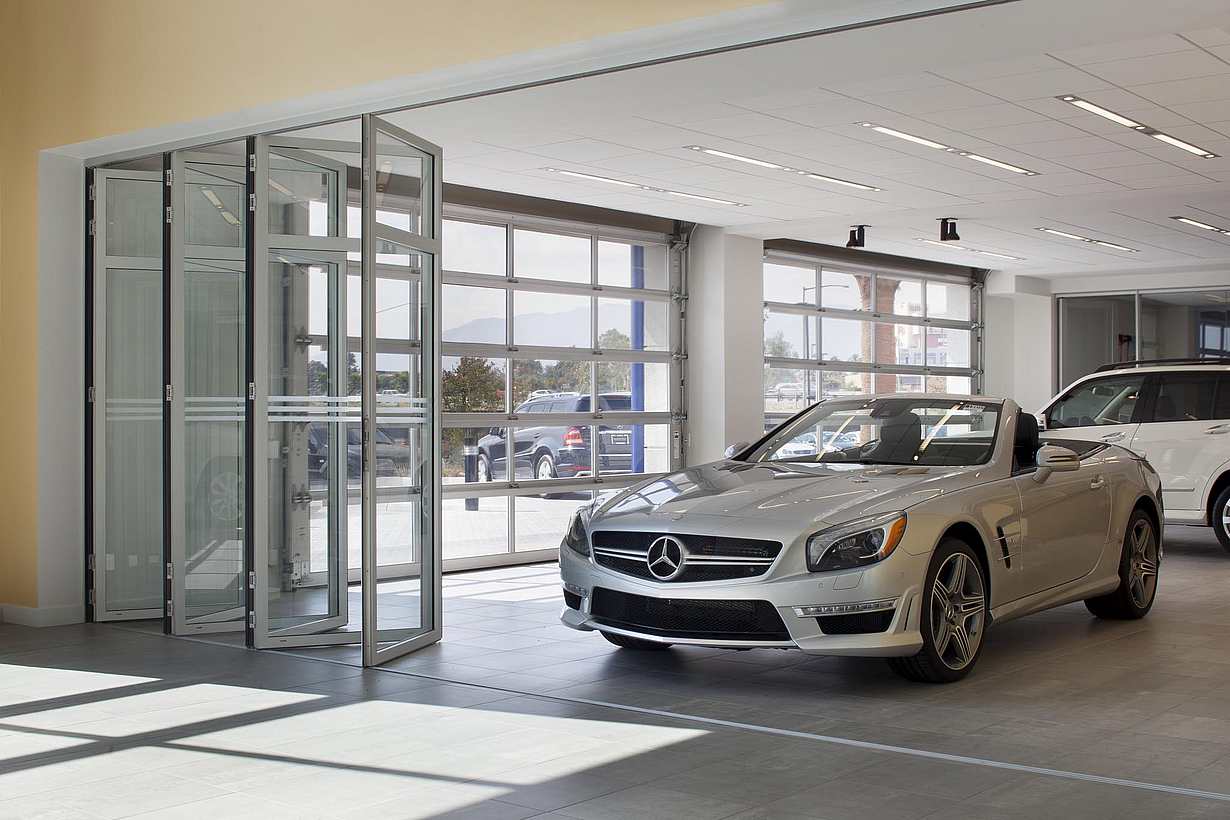

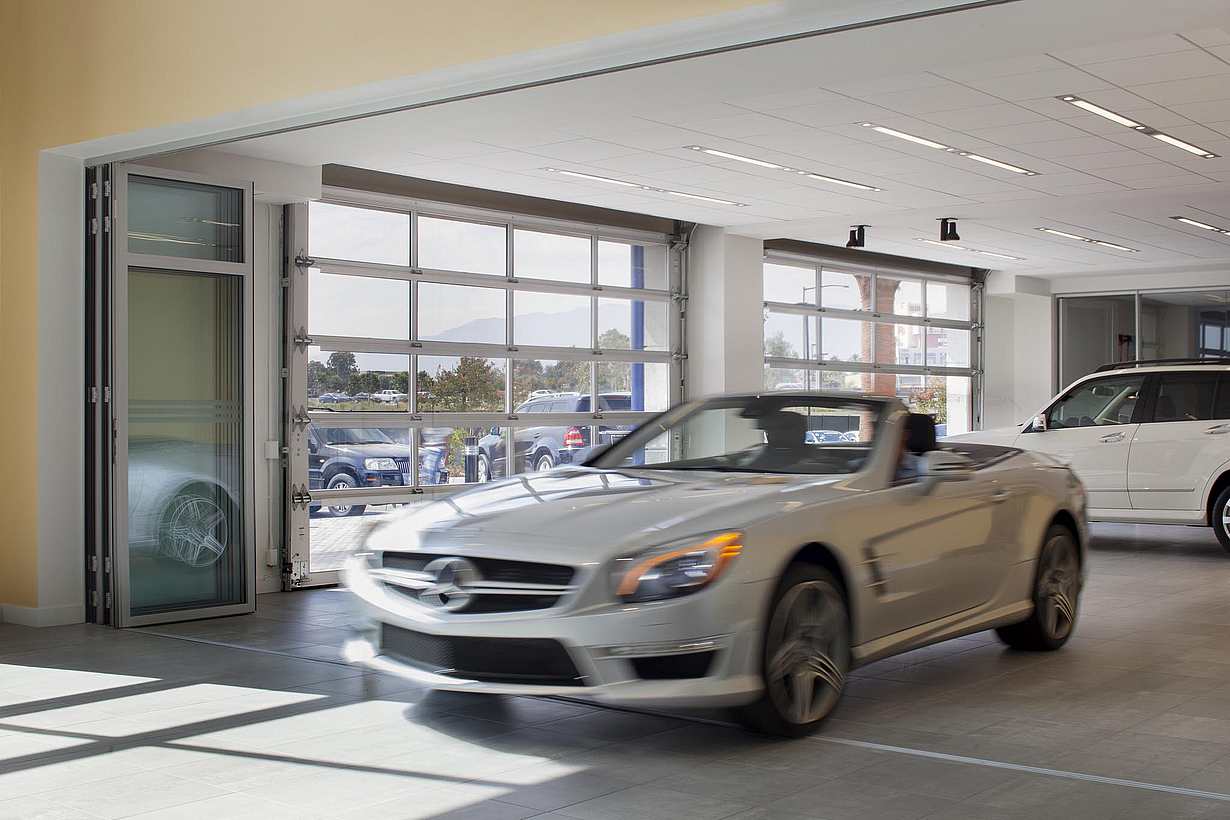

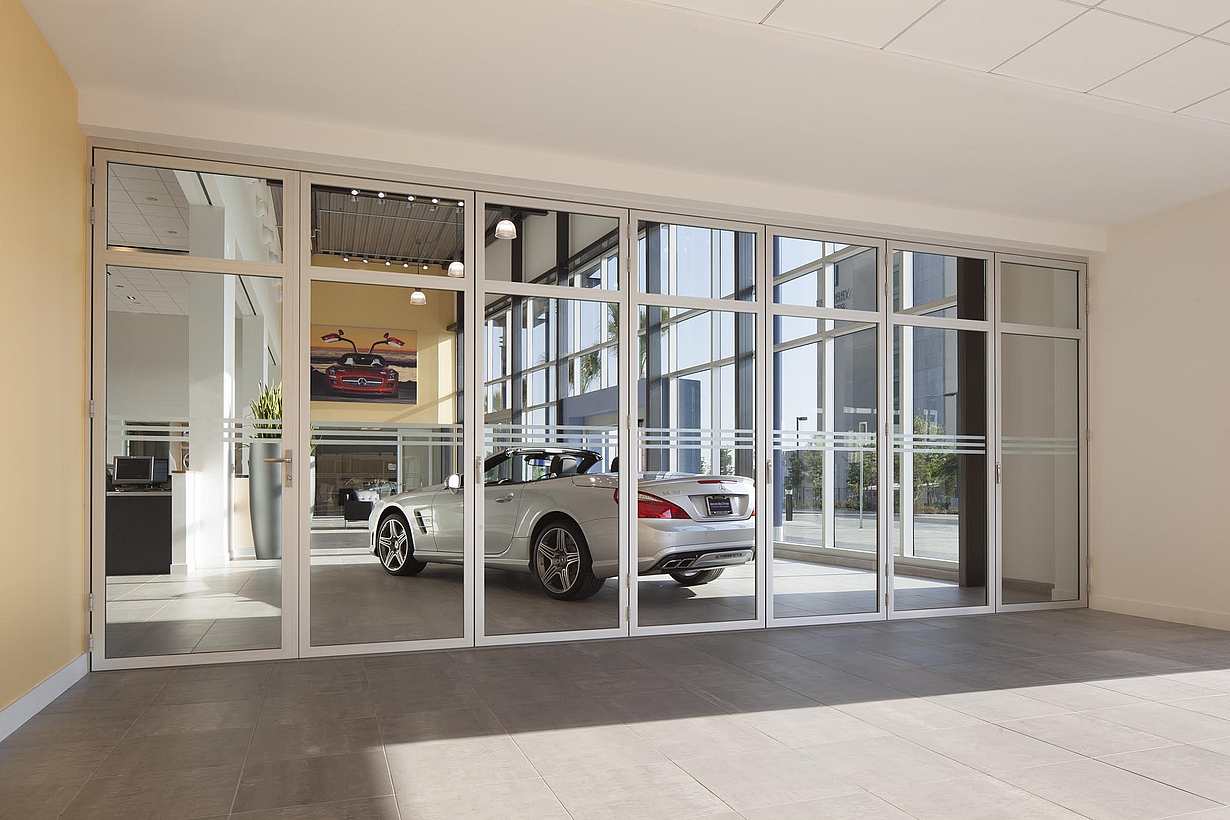

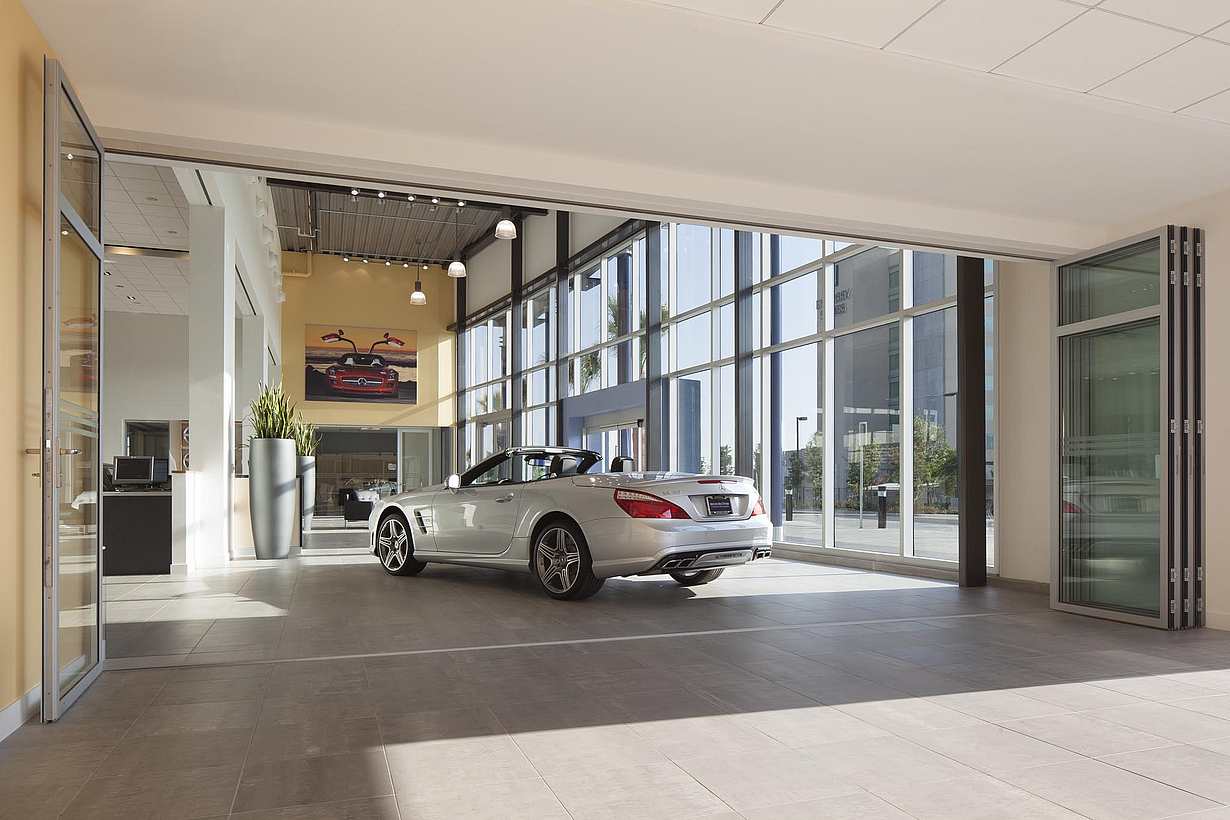

Mercedes Benz of Ontario

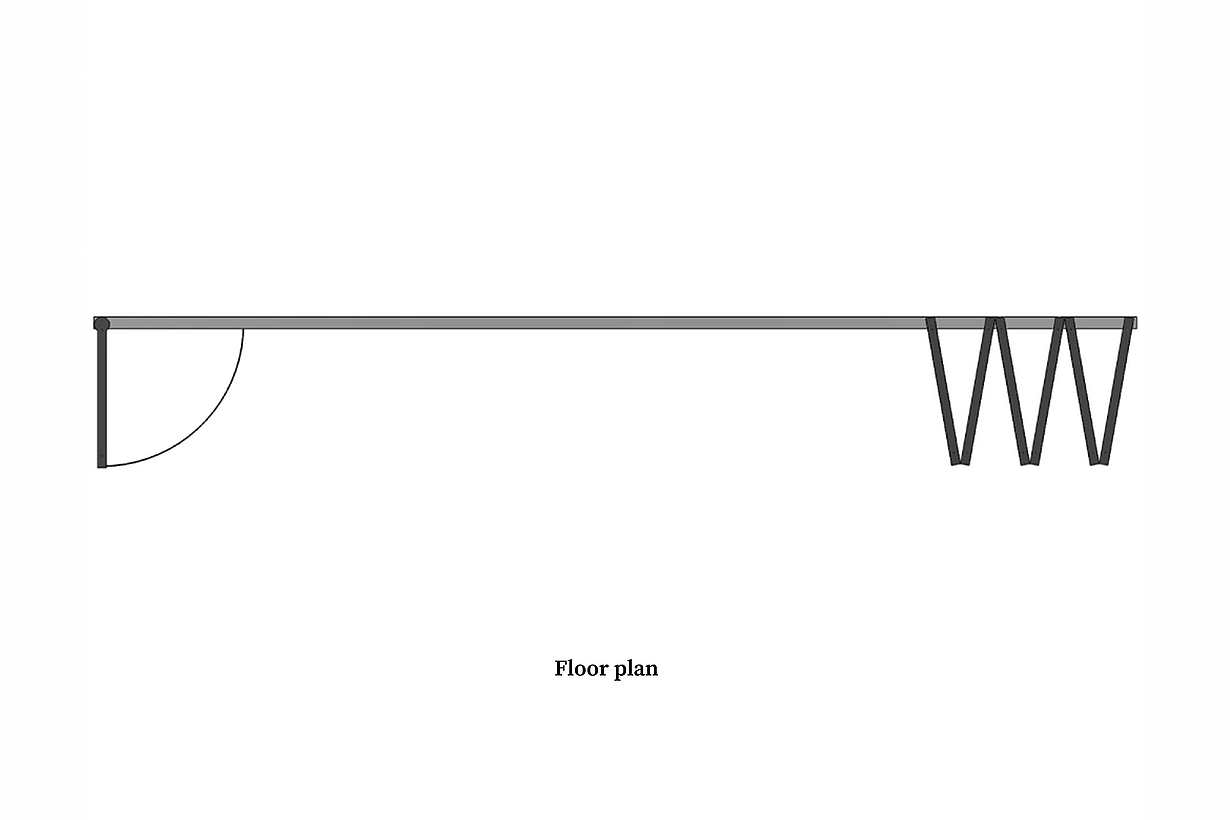

When designing a new auto showroom in Ontario CA, inventory access presented a unique challenge. As the architect discovered, there are few products which can provide a 9- to 12-foot clear width and still match the interior storefront design.
“Given the choice of multi-leaf partition systems, there really are few products with the proven track record to sustain the day-to-day use of an automotive retail environment—which is why we chose NanaWall.”
— Erich "Deeg" Snyder, Gensler, Architect
Standard Lead Times as of September 9th, 2022
Standard lead times shown are from an order being finalized to deliver to the jobsite. Refer to your order agreement for actual lead time. Lead times may vary. Please contact your local area representative for the more accurate and current lead-times.
If faster lead times are required or if additional shipping options are needed, please consult with NanaWall directly at 888.411.NANA (6262) for possible ways to expedite an order.
* For orders with custom finishes, custom wood, special glazing, segmented units, add two weeks to the above lead times.
Lead times subject to change without notice.
|Model||Current Lead Time|
Folding Glass Walls
SL60, SL45, SL70, SL73 Hurricane
NW Aluminum 640, NW Acoustical 645, NW Aluminum 840
NW Wood 540, NW Acoustical 545, NW Clad 740
12 - 15 weeks
20 - 24 weeks (15-18 Fast Track)
18 - 22 weeks (15-18 Fast Track)
18 - 22 weeks (15-18 Fast Track)
Sliding Glass Walls
20 - 24 weeks
18 - 22 weeks
24 - 28 weeks
Frameless Glass Walls
HSW75, FSW75, CSW75, PrivaSEE™, ClimaCLEAR™
11 - 13 weeks
Please see the Installation Instructions/Owner's Manual for each system.

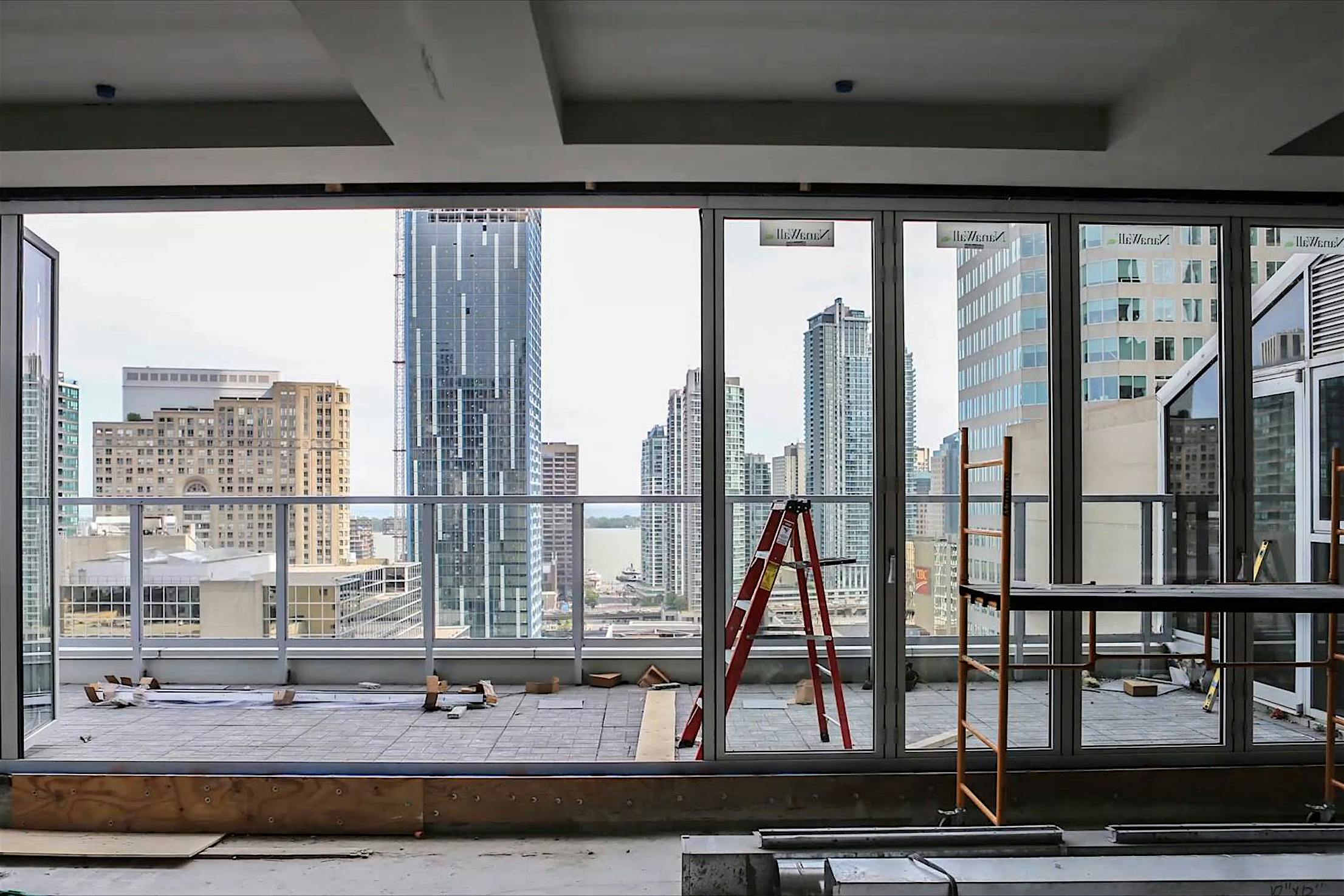

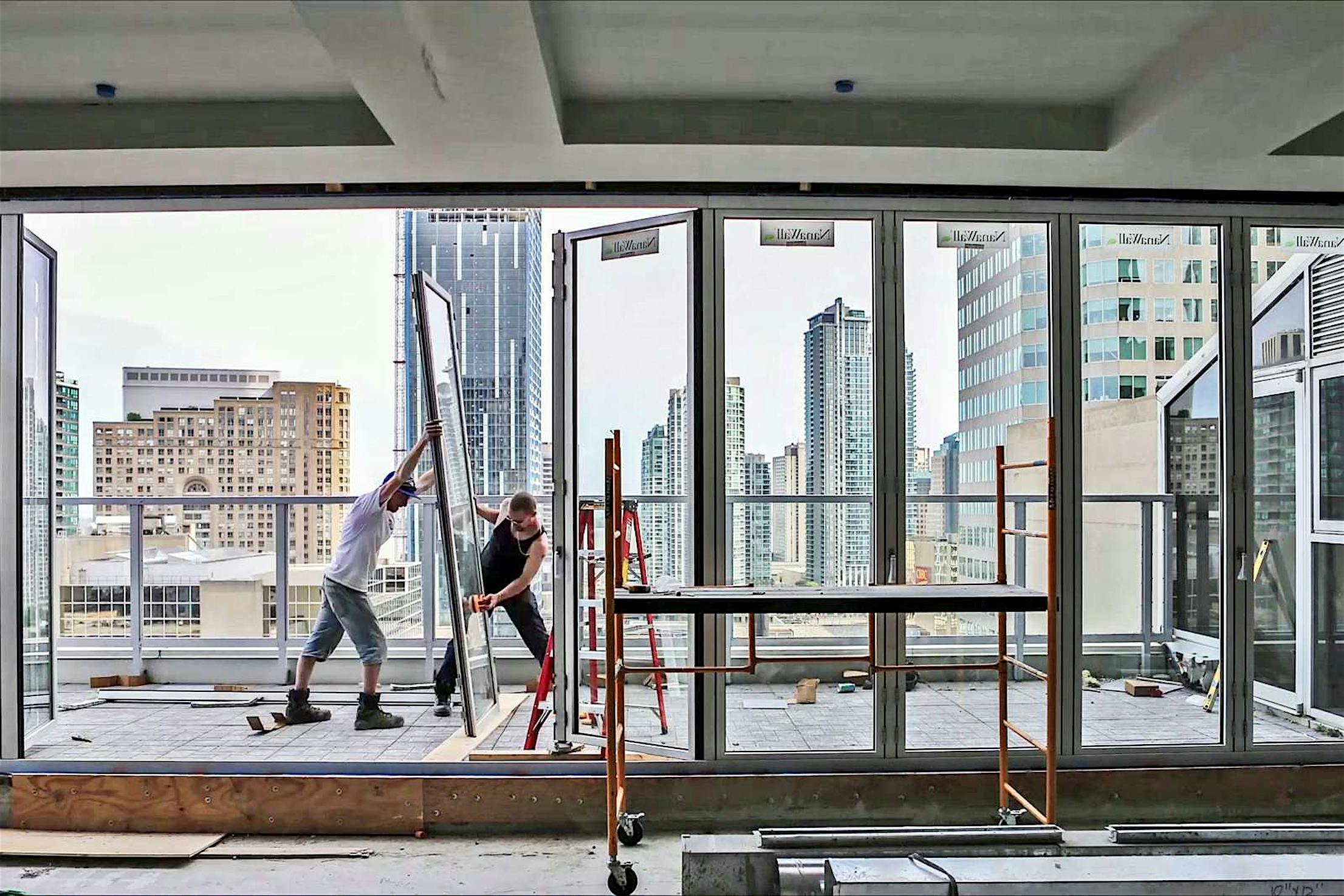

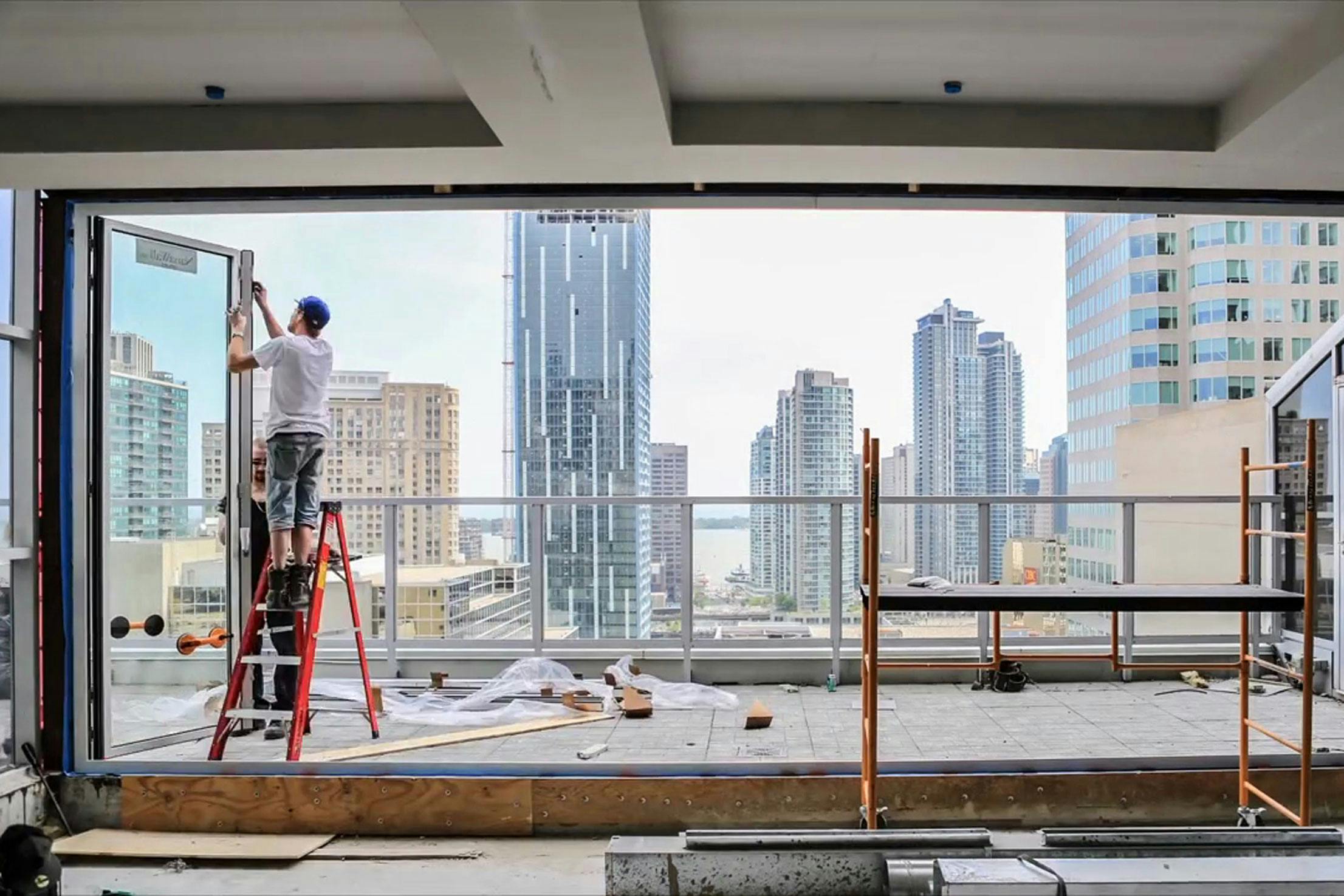

NanaWall System, Inc. has independent, factory trained installers throughout North America, including Mexico, Canada, Caribbean and Central America. Choosing a trained installer ensures the best possible installation of your new NanaWall.
Having folding or sliding walls installed has never been easier.
Maintenance and Repair Services
Certified installers are available for servicing, repairs, and routine maintenance of your system.
Please contact your local Nanawall Sales Representative to arrange certified installation services for your project.
The approximate weight of a panel is the following:
Single Impact Glazing
Tempered Single Glazing
4-4.5 * lbs/sqf
Tempered Triple Glazing
6-8.5 * lbs/sqft
*The higher values applies to taller units
Insulated Impact Glazing
Insulated Tempered Glazing
5.5-8 * lbs/sqf
For these systems the weight of a panel with 1/2" glass is 8 lbs/sqft.
The approximate weight of a panel for double glazed is 10 lbs/sqft and for double glazed laminated is 12 lbs/sqft.
For cero III the approximate weight of a panel for triple glazed is 13 lbs/sqft and for triple glazed laminated is 15 lbs/sqft.
The vertical structural deflection of the header should be the lesser of L/720 of the span and 1/4" under full loads. Structural support for lateral loads (both windload and when the panels are stacked open) must also be provided.
NW Aluminum 640, NW Acoustical 645, NW Reinforced 647, NW Aluminum 840, NW Reinforced 847, SL70, SL73 Hurricane, SL82, and SL60, NW Wood 540, NW Acoustical 545, NW Clad 740, please note that there is no vertical load on the header.
It is recommended that all building loads be applied to the header prior to installing the NanaWall. If so and if a reasonable amount of time has been allowed for the effect of this dead load on the header, only then can the building's live can be used to meet the above requirements of L/720 or 1/4". If not, both the dead and live loads needs to be considered.
To order parts for your NanaWall product, please visit our Online Parts Store.
Have specific questions about your project? Contact the NanaWall Service Department.
Everything from product overviews to detailed specifications.
Many answers to common questions can be found under the FAQ.
All NanaWall products need regular maintenance to ensure that all components are functioning smoothly and properly. Minimal usage units should undergo and inspection and adjustment at least once a year. For high usage units, inspection and adjustment should happen at least twice a year. If damaged components are found, have them replaced immediately to avoid further damage to your product.
Please note that the environment within one mile of a sea coast can be extremely corrosive. Products installed in this environment will typically deteriorate sooner than products installed in a less severe environment.
Connect with Our Service Experts
Many answers to common questions can be found under the FAQ section above. For more detailed information or if you have specific questions about your project, you can contact the NanaWall Service Department via email: email@example.com, or call NanaWall (866) 210-4168 ext.256.
Service Hours of Operation
Monday - Friday from 7AM PST to 5PM PST
NanaWall Service Team
Solomon Stutzky, Co-Service Department Manager - Ext.211
Yani Ortiz, Parts & Service Specialist - Ext. 285
Rizwan Jelani, Parts & Service Specialist - Ext. 238
Muqbil Murad, Parts & Service Specialist - Ext. 296
Please note that you should have your job specific information available when contacting the NanaWall Service Department. Any one of the line items below will help your service Technician to locate your job specific information.
Here is an example of information to have ready:
- NanaWall order number
- Name of the original purchaser
- Original project name and project address
- Product model number and configuration
NanaWall is pleased to provide the following warranty to the owner of NanaWall products, including the initial purchaser and all subsequent owners (“Owner”), subject to all terms and conditions stated herein. This Warranty supersedes all previous product warranties and is the exclusive statement of all commitments and rights of NanaWall with respect to its products sold on or after May 1, 2022, to be installed in the United States (excluding territories) or Canada.
NanaWall shall have no obligation to respond under this Warranty until receipt of proper notice of a claim and an opportunity to respond. Upon notice and confirmation by NanaWall of a condition covered under this Warranty, NanaWall will respond in good faith and in a timely manner as follows:
For ten (10) years from the date of delivery by NanaWall (“Delivery”), NanaWall will respond as follows:
Insulated Glass. For an insulated glass unit with a permanent material obstruction of vision due to a premature failure of the glass seal, NanaWall will ship a replacement glass unit or panel. Exception: insulated glass units for cero® are covered for five (5) years from Delivery.
Powder Coat or Baked-on Fluoropolymer Surface Finish of Aluminum Profiles. For powder coat or baked-on fluoropolymer surface finish not functioning as an Effective Surface Material (“ESM”*), NanaWall will, at its option, (1) assume reasonable costs to restore the finish using standard commercial refinishing techniques or (2) ship replacement parts. Uneven fading is not a covered condition due to environmental variables.
*An ESM is a finish without (1) substantial cracking, chipping, or peeling due to the deterioration of the finish (exclusive of mechanical damage); (2) chalking in excess of a numerical rating of 8 as per ASTM D 659; or (3) fading or color changes in excess of 5 NBS units as per ASTM D 2244
Rollers. For a roller with material or workmanship issues that significantly impair proper operation and function, NanaWall will ship a replacement roller.
Wood and Other Remaining Components (for product installed by an independent NanaWall Certified Installer or Approved Installer**). For all remaining components of NanaWall products not otherwise addressed herein with a material or workmanship issue that substantially impairs operation and function, NanaWall will, at its option, (1) ship a replacement part or product or (2) ship any replacement part or replacement product in the same stage of fitting and/ or finishing as originally supplied by NanaWall. This includes wood frame components, hinges, handles, locking mechanisms, tracks, beads, and weather-stripping.
For five (5) years from Delivery, NanaWall will respond as follows:
Laminated Glass. For a laminated glass unit with permanent material obstruction of vision due to premature delamination, NanaWall will ship a replacement glass unit or panel.
Wood and Other Remaining Components (for product NOT installed by an independent NanaWall Certified Installer or Approved Installer**). For all remaining components of NanaWall products not otherwise addressed herein with a material or workmanship issue that substantially impairs operation and function, NanaWall will ship a replacement part or product without charge in the same stage of fitting and/ or finishing as originally supplied by NanaWall. This includes wood frame components, hinges, handles, locking mechanisms, tracks, and weather-stripping.
For three (3) years from Delivery, NanaWall will respond as follows:
Anodized Surface Finish of Aluminum Profiles. For anodized surface finish of aluminum profile not functioning as an ESM,* NanaWall will, at its option, (1) assume reasonable costs to restore the finish on a non-compliant (non-ESM) material using standard commercial refinishing techniques or (2) ship a replacement part.
For one (1) year from Delivery, NanaWall will respond as follows:
Screens. For a screen part (excluding the screen mesh) with a material or workmanship issue that substantially impairs the function of the screen, NanaWall will, at its option, (1) ship a replacement screen or (2) upon return by owner, repair the screen without charge.
This Warranty does not cover labor costs to remove existing parts or products, install a replacement part or product, costs to finish wood products, or the cost to repair or replace surrounding substrates, trim, or other work. Nor does it cover costs incurred due to delays or other construction costs, costs for late or damaged delivery, loss of revenue, loss of time, liquidated damages, inconvenience, or loss of use of the product or any parts or components. NanaWall reserves the right to determine whether or not a covered condition exists. If the claim is not covered under this Warranty, NanaWall may charge and collect a fee for on-site product inspections.
Any replacement part or product will be shipped to the location of original product delivery by NanaWall. Replacement products will be the closest equivalent current product and may not be an exact match to the original. If providing a replacement part or product is not commercially practicable, NanaWall may elect to refund the purchase price of the affected product in full satisfaction of its obligations.
Wood. Wood components must be properly finished on all sides promptly after receipt of unit before installation of unit, and prior to exposure to weather. Repair or replacement of a warped wood panel or frame can be delayed by up to 12 months from date of claim to allow the wood component to adjust to local environmental conditions.
Glass. Unloading the replacement glass/panel from the delivery truck is the responsibility of the owner. Due to the weight of the product, appropriate manpower and/or equipment will be needed to unload and move the glass/panel to the location for replacement. Depending on the size of the replacement part and interior building dimensions, it may not be possible to transport the glass/panel through the interior of the building. NanaWall is not responsible for any costs associated with moving the replacement glass/panel at the delivery location.
**Whether an installer is an independent NanaWall Certified Installer or Approved Installer is determined by the installer’s status as of the date of delivery. NanaWall maintains information regarding the installers designated as Certified Installers or Approved Installers.
Written notice of any claim under this Warranty with supporting documents such as photos or videos must be given to Nana Wall Systems, Inc. via email to firstname.lastname@example.org or via mail to 100 Meadowcreek Drive, Corte Madera, CA 94925, promptly when discovered. A condition will not be covered under this Warranty if there is a failure to notify NanaWall in writing (1) within 7 days of receipt of the product for any defect which an ordinary inspection would reveal, (2) within a reasonable time during the warranty period after an impairment in operation and use is manifest or a hidden defect is discovered, or (3) for claims first made after expiration of the coverage period outlined in this Warranty.
Any responsibility of NanaWall is contingent upon owner fulfilling its notice obligations as stated in this Warranty. The owner shall have no standing to assert a claim absent timely notice to NanaWall and an opportunity to cure. The remedies prescribed in this Warranty are the exclusive and sole remedies available to the owner who hereby waives any claim not encompassed herein. This exclusivity and waiver survive expiration of warranty coverages herein. In no event shall the liability of NanaWall or any seller of NanaWall product exceed the price paid for the product.
This Warranty is the sole and exclusive warranty for NanaWall products. All other warranties, express or implied, including any warranty of merchantability or fitness for a particular purpose, are disclaimed. nanawall shall not be liable for consequential or incidental damages. Some state and federal laws may not allow disclaimers of implied warranties or exclusions of incidental or consequential damages, so these limitations or exclusions may not apply to you. Where federal law prohibits disclaimer of implied warranties, the duration of any implied warranty is limited to the duration of the relevant coverage period, if less than the statutory limitation period. This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
This Warranty may only be modified by a writing signed by an officer of NanaWall. Any action taken by NanaWall does not create a new warranty or extend the duration of the original product warranty. A failure by NanaWall to enforce a warranty provision shall not constitute a waiver barring subsequent enforcement.
This Warranty does not cover the following conditions, or any damage or issues caused in whole or part by the following:
- Product selection, application, storage, handling, modification, or waterproofing; Movement of surrounding substrates, including deflection of the header of more than ¼", or any other stresses on product; Installation, flashing, or integration into the structure; Failure to prevent the effects of sheeting rain or water; Failure to install proper weep holes in sill where needed, and failure to properly drain water exiting weep holes in the sill; Failure to meet code or specification requirements.
- Finishing by anyone other than NanaWall, including but not limited to, not properly finishing all sides of wood products promptly after receipt of unit, before installation of unit and before exposure to weather, finishing exterior wood in dark colors, or not refinishing periodically; Discoloration of finish; Failure to immediately repair any breaches such as scratches, chips, or abrasions in any finish or aluminum profile.
- Condensation, frost, or mold caused by high interior relative humidity; Installation near swimming pools; Harsh chemicals such as road salt, solvents, acid, brick or mortar wash, or cleaning chemicals; Corrosion or tarnish on product installed within two (2) miles of any coastal area or body of salt water, or other harsh or corrosive environments or chemicals.
- Normal weathering, wear and tear; Failure to follow the NanaWall operation and maintenance instructions; Failure to operate the product for more than one month; Failure to clean and maintain aluminum surfaces in accordance with AAMA 609 and 610 or not maintaining adequate cleaning records.
- Imperfections in glass that do not affect the product’s structural integrity or obscure vision and cannot be detected from within 10 feet as per ASTM C 1036; Accidental or spontaneous glass breakage; Glass breakage due to thermal or other stresses, or glass with film or other coatings applied to the surface; Industry accepted bow, warp or distortion in glass, and minor variations in glass color; Glass not installed as per NanaWall’s instructions.
- Variations in wood grain or color; Warp within the allowable warp tolerance for wood panels per ANSI/WDMA I.S. 6A-01; Warpage on wood panels caused by leaving panels in the open position exposed to the elements or not engaging the locking points properly when in the closed position; Resin or sap bleeding from wood panels.
- Panel shrinkage or expansion caused by change in weather; Expansion or bowing of aluminum units caused by exposure to sunlight or caused by temperature difference between interior and exterior panel surfaces.
- Acts of God, falling objects, fire, accidents, external forces, or other conditions beyond NanaWall’s control.
- Gas fill or retention levels in insulated glass units.
- Field testing of Product; Performance of the Product in conformance to any published NanaWall testing results (e.g. air infiltration, water infiltration, structural loading). Published test results measure the laboratory performance of a single sample of the product of a certain size and configuration. Performance during testing may vary depending upon handling, installation, use, maintenance, and testing.
- Products or components not supplied by NanaWall; Products that have not been paid for in full; Products ordered in larger sizes or special configurations beyond NanaWall’s published specifications. Product with glass that is heavier than NanaWall specifications; Product that has been modified or altered in any manner.
