WD65
Clean Lines Design Flexibility for Special Applications in Solid Wood
- FoldFlat 90-degree stacking
- Large Exterior Openings are possible
- The easy-to-operate system offers versatile functions
Smooth Detailing Narrow Sightlines

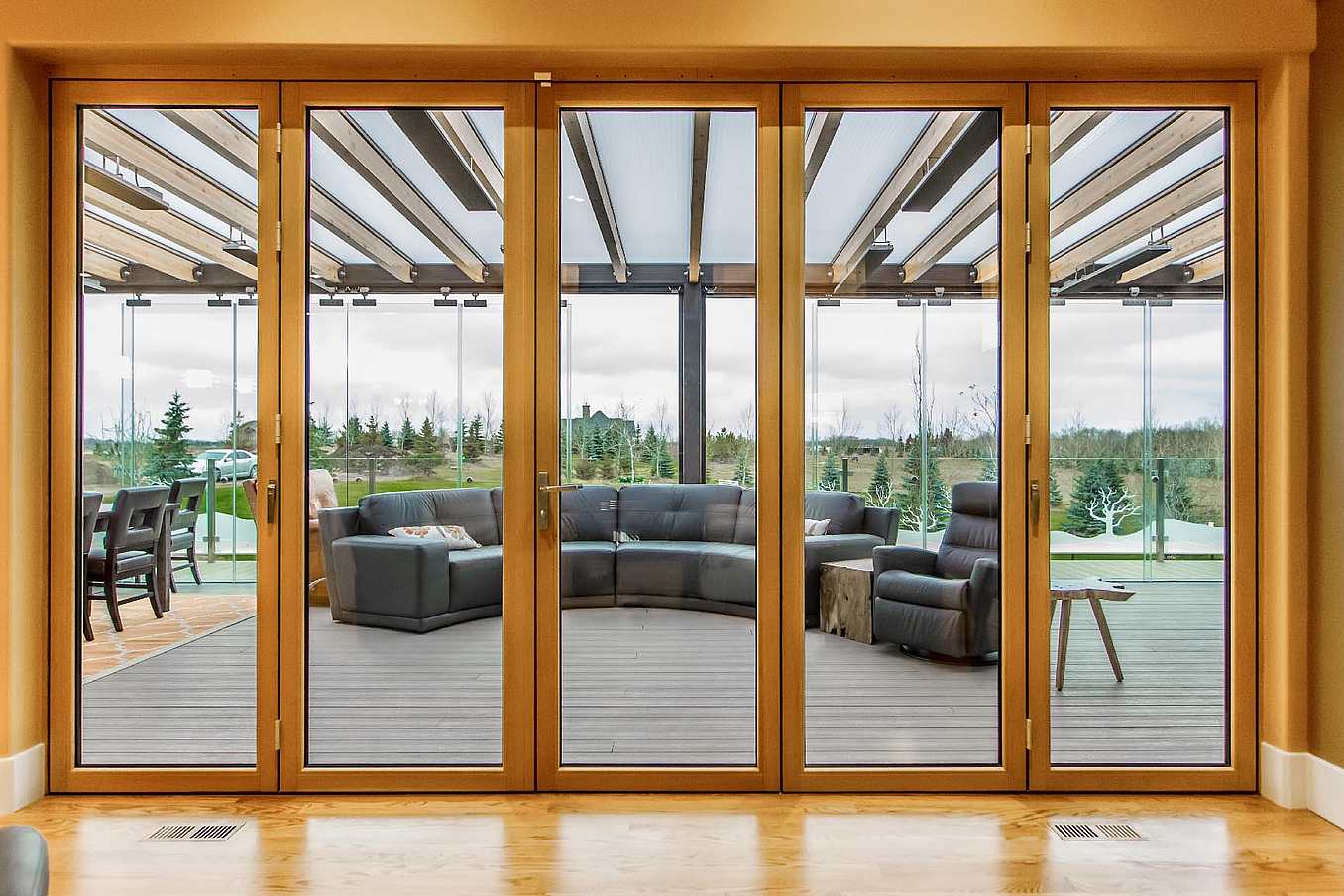

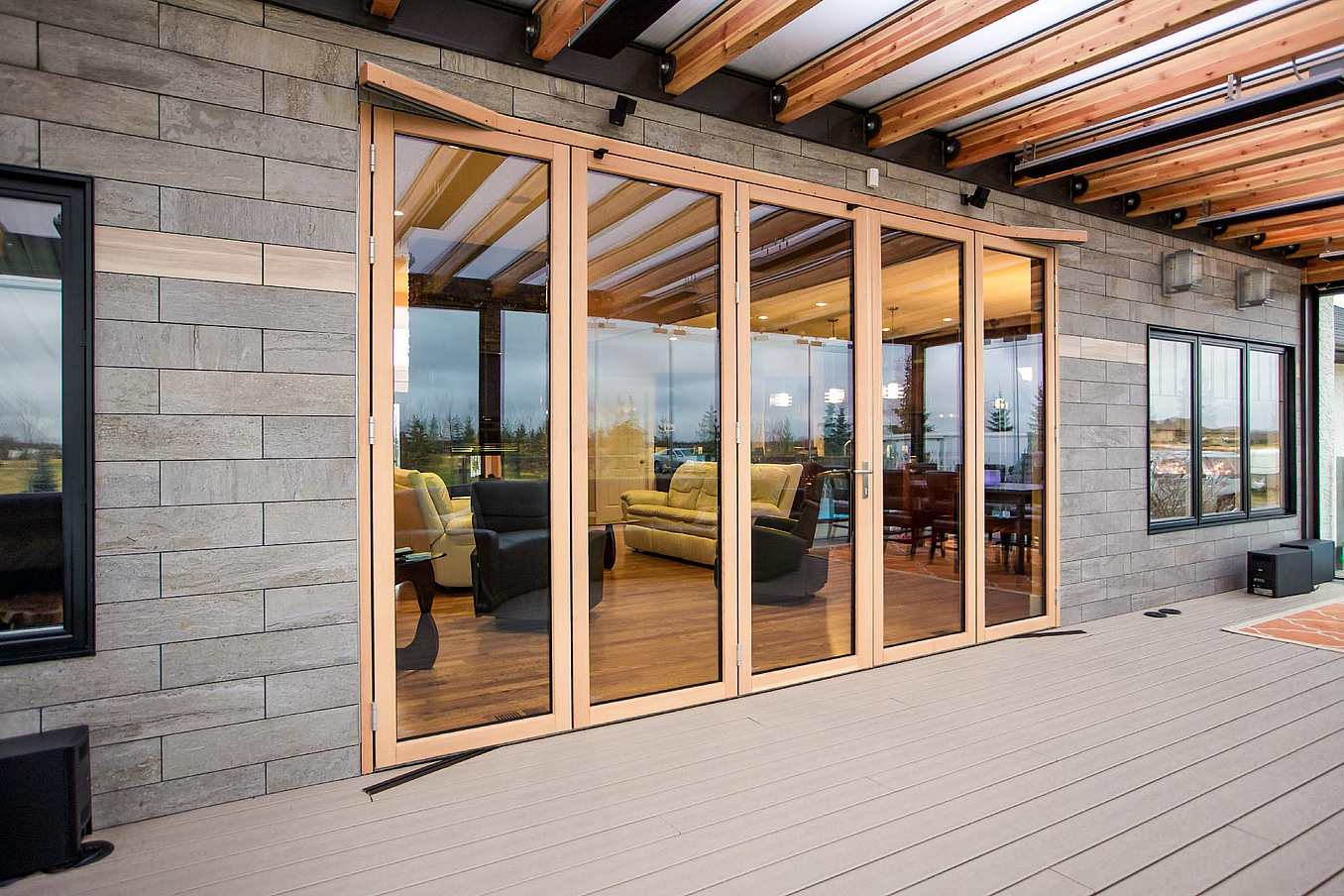

Beautifully sculpted all-wood design with eased edges and detailing around the frame and door panels accent the equal sightlines that form a picture frame like appearance. All folding and locking hardware is integrated into the profiles for a clean look. There are no surface mounted hinges.
Enhanced Design Options
NanaWall WD65 features all the standard configuration options of a folding glass wall plus so much more. This top-hung system is capable of unlimited widths and many specialty design options that allow you the freedom to operate beyond a typical straight wall design.
Full Exposure
The NanaWall® WD65 has been independently tested for air and water penetration resistance, structural deflection, and forced entry. Also with NFRC rated, certified and labeled thermal performance.

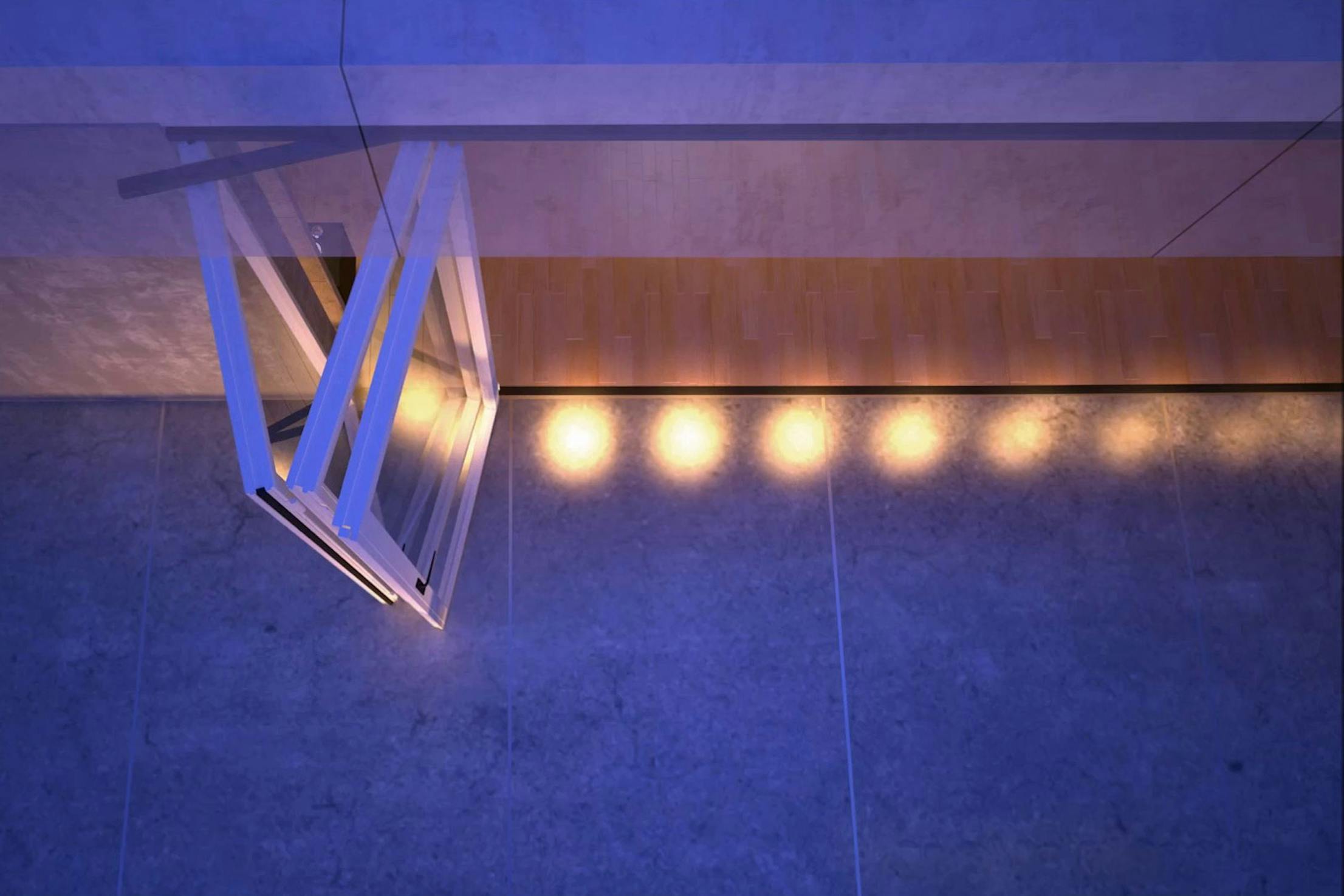

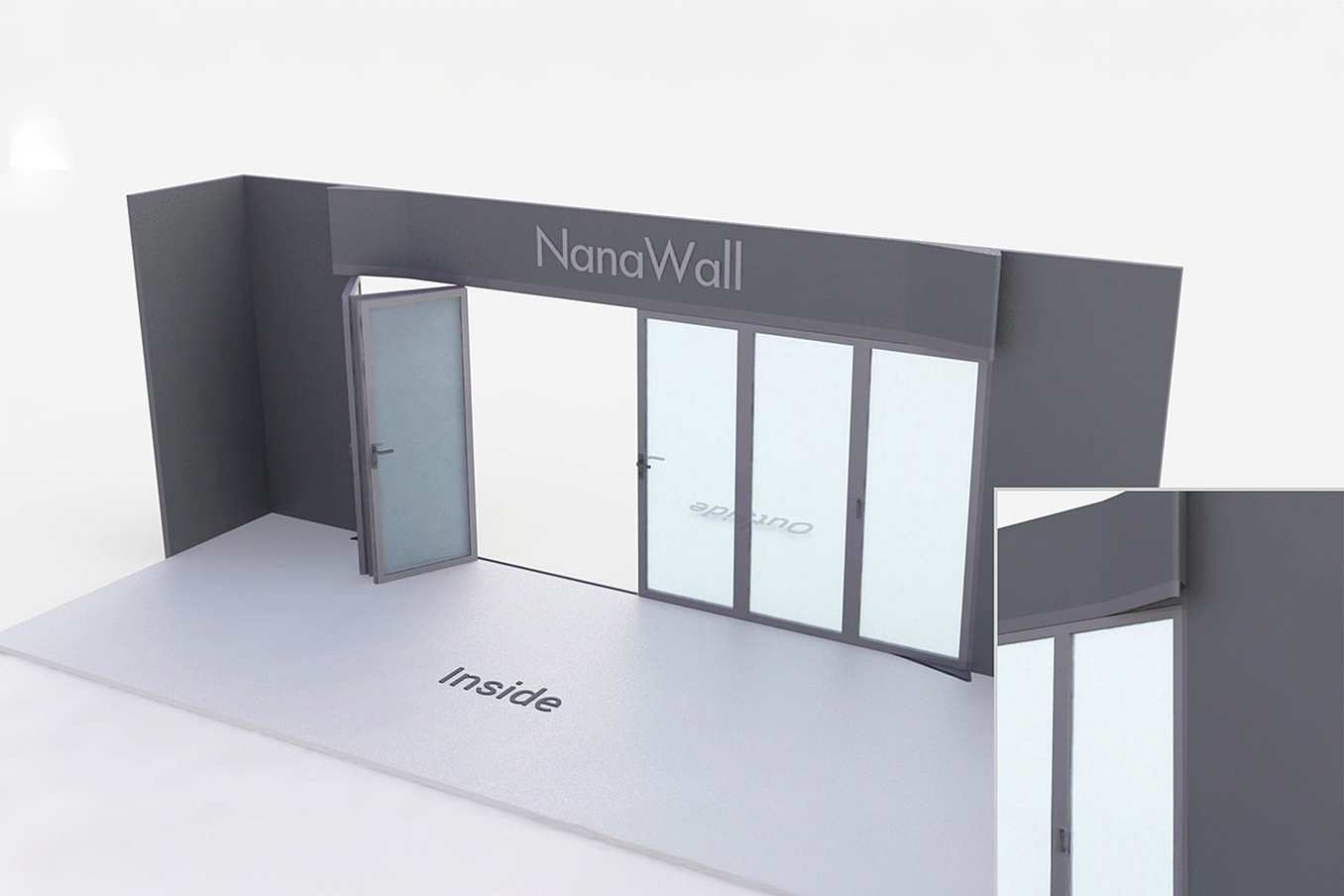

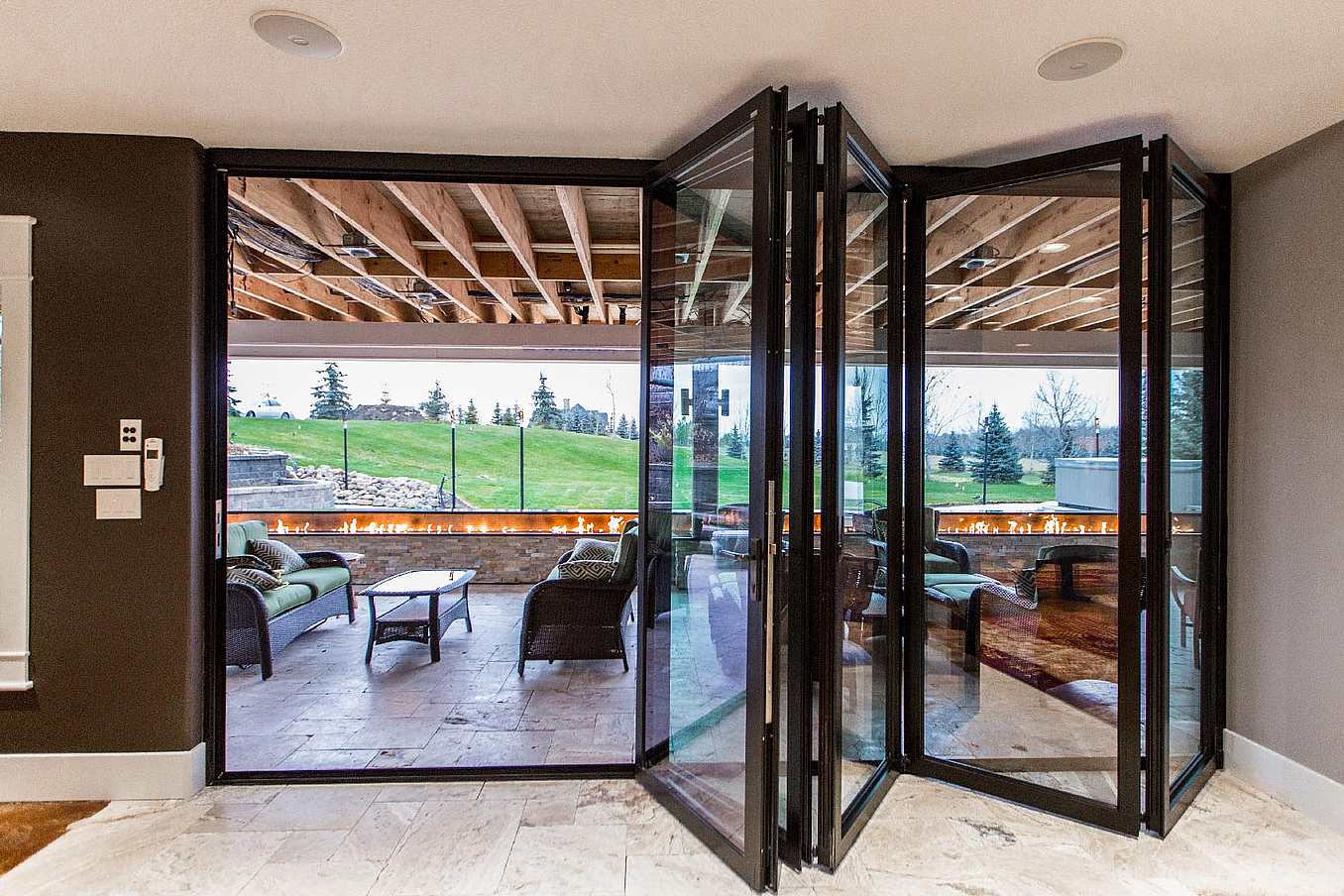

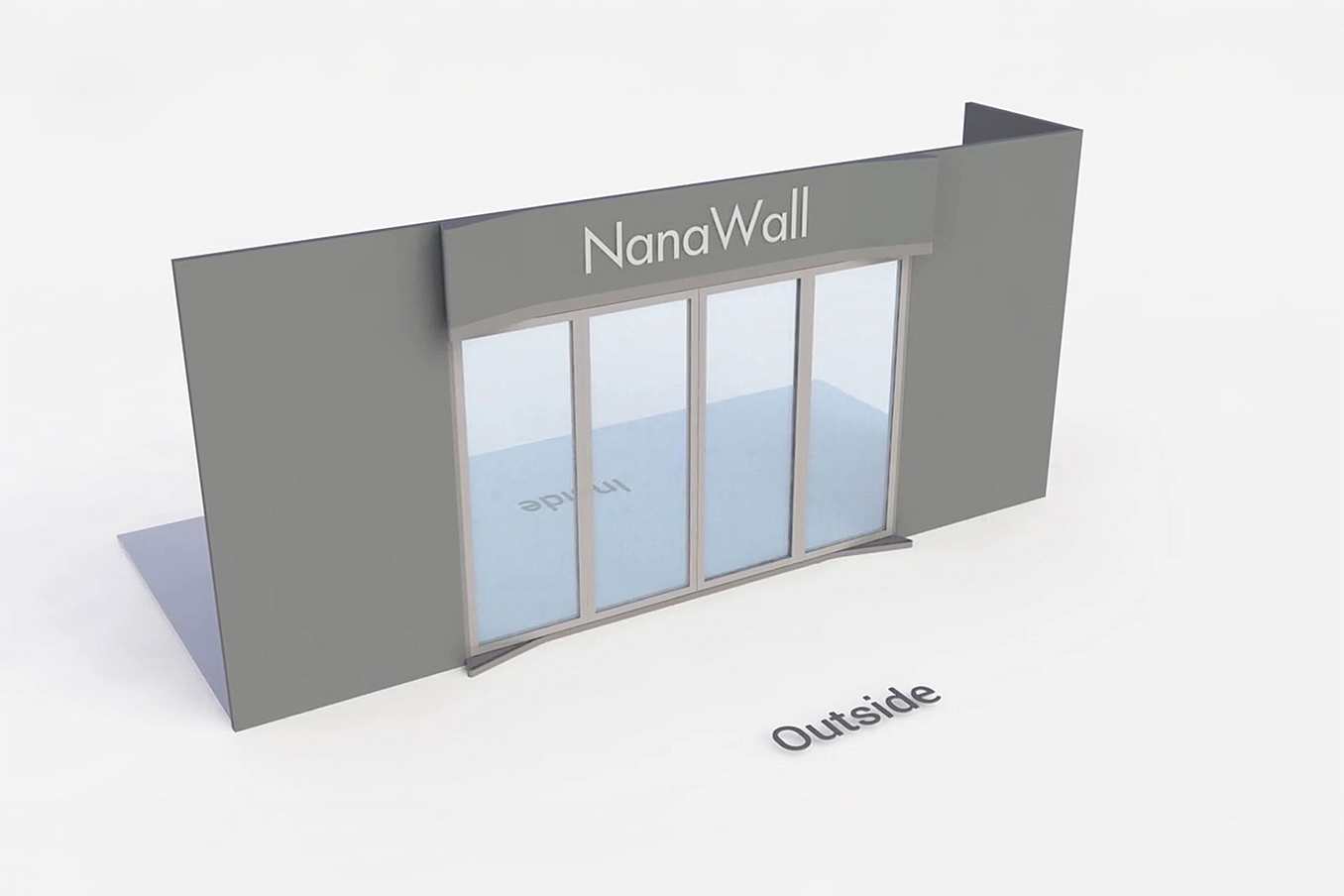

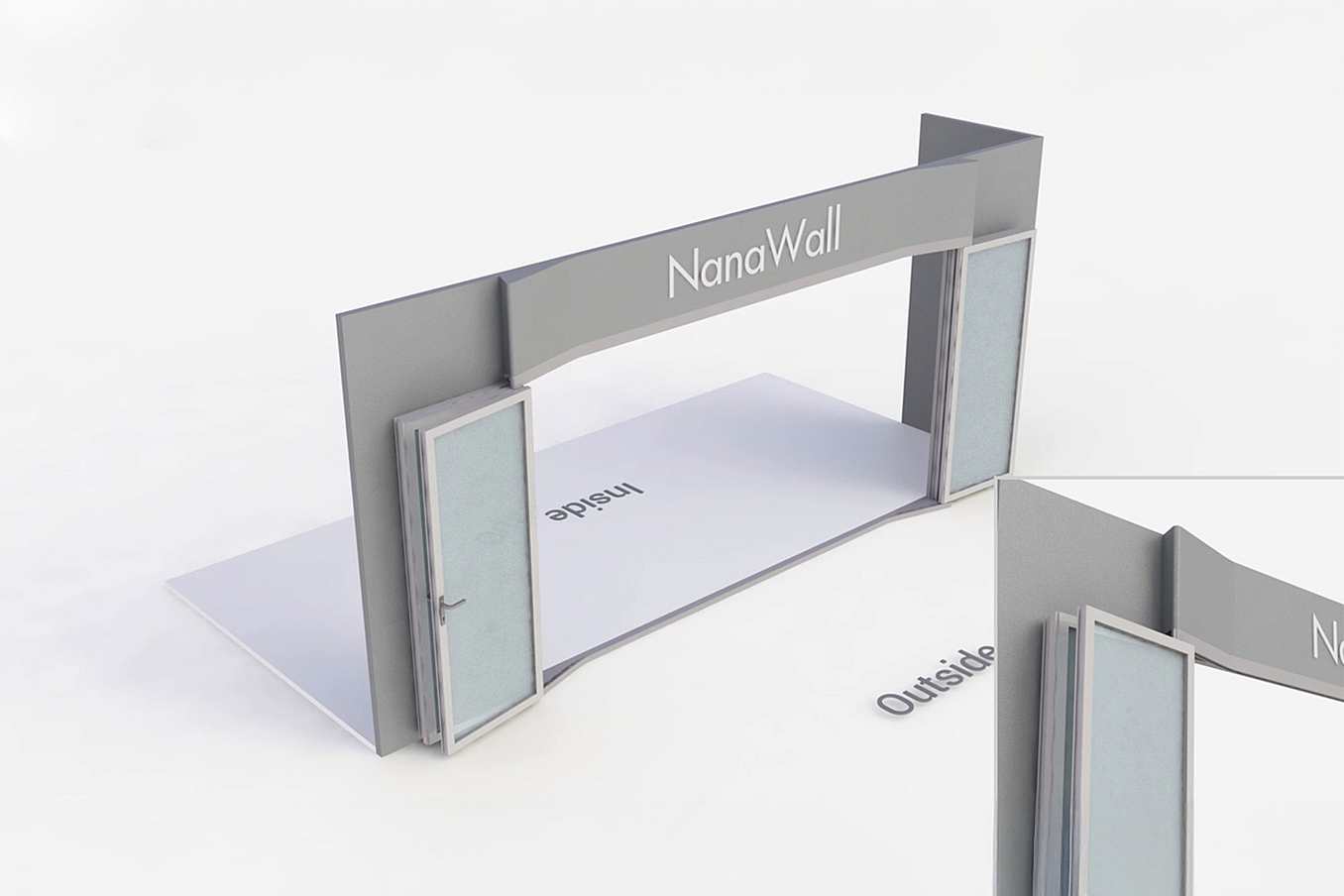

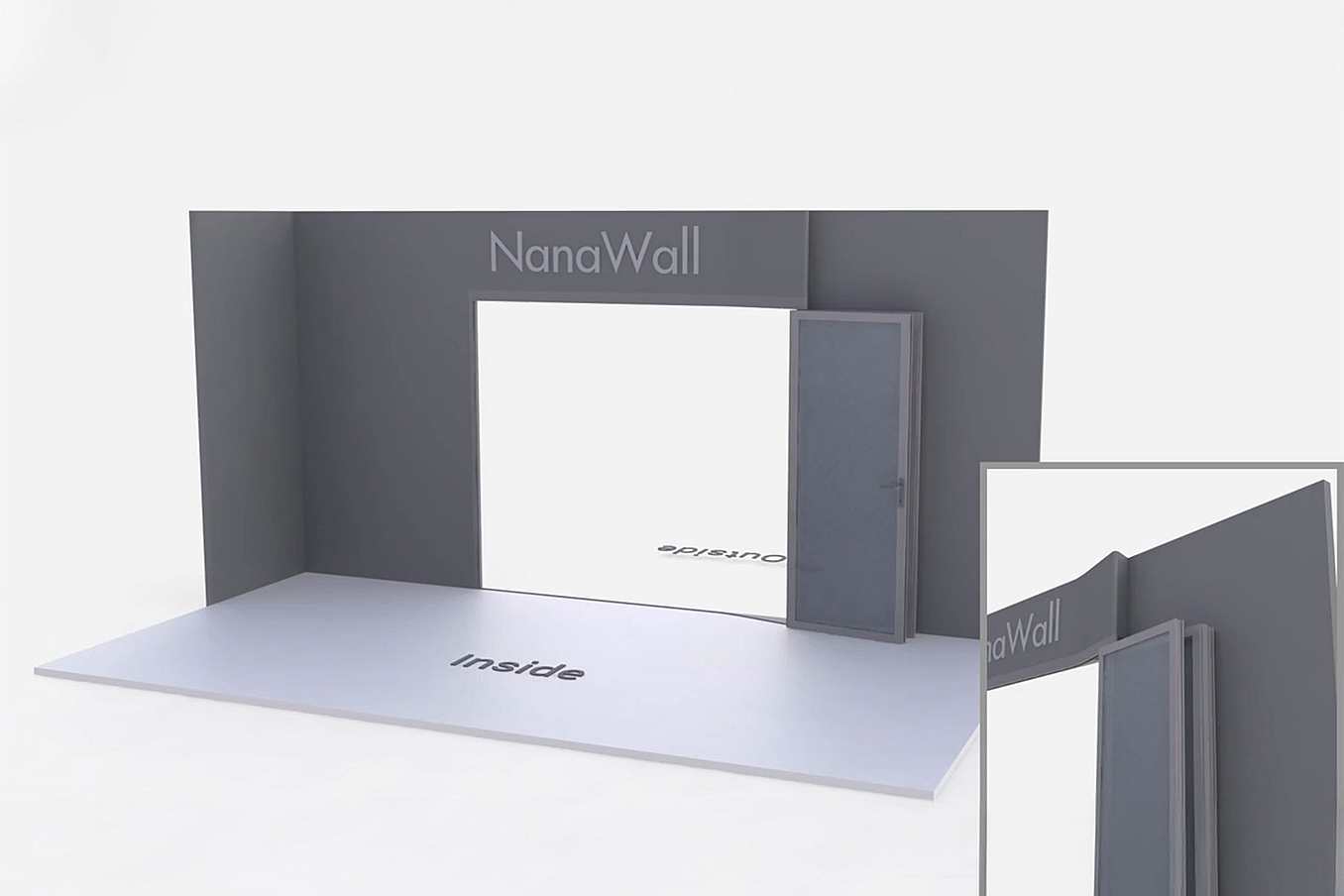

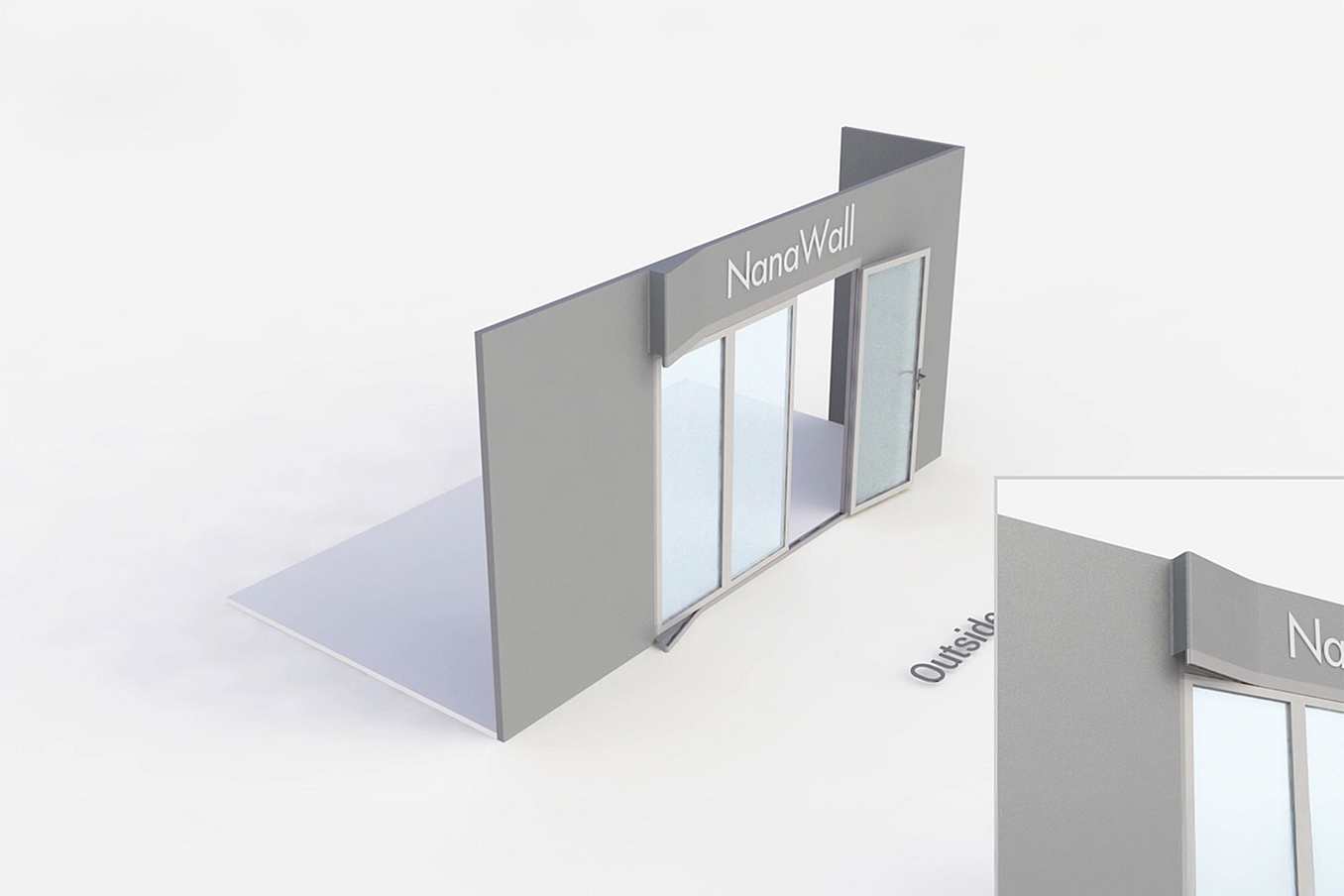

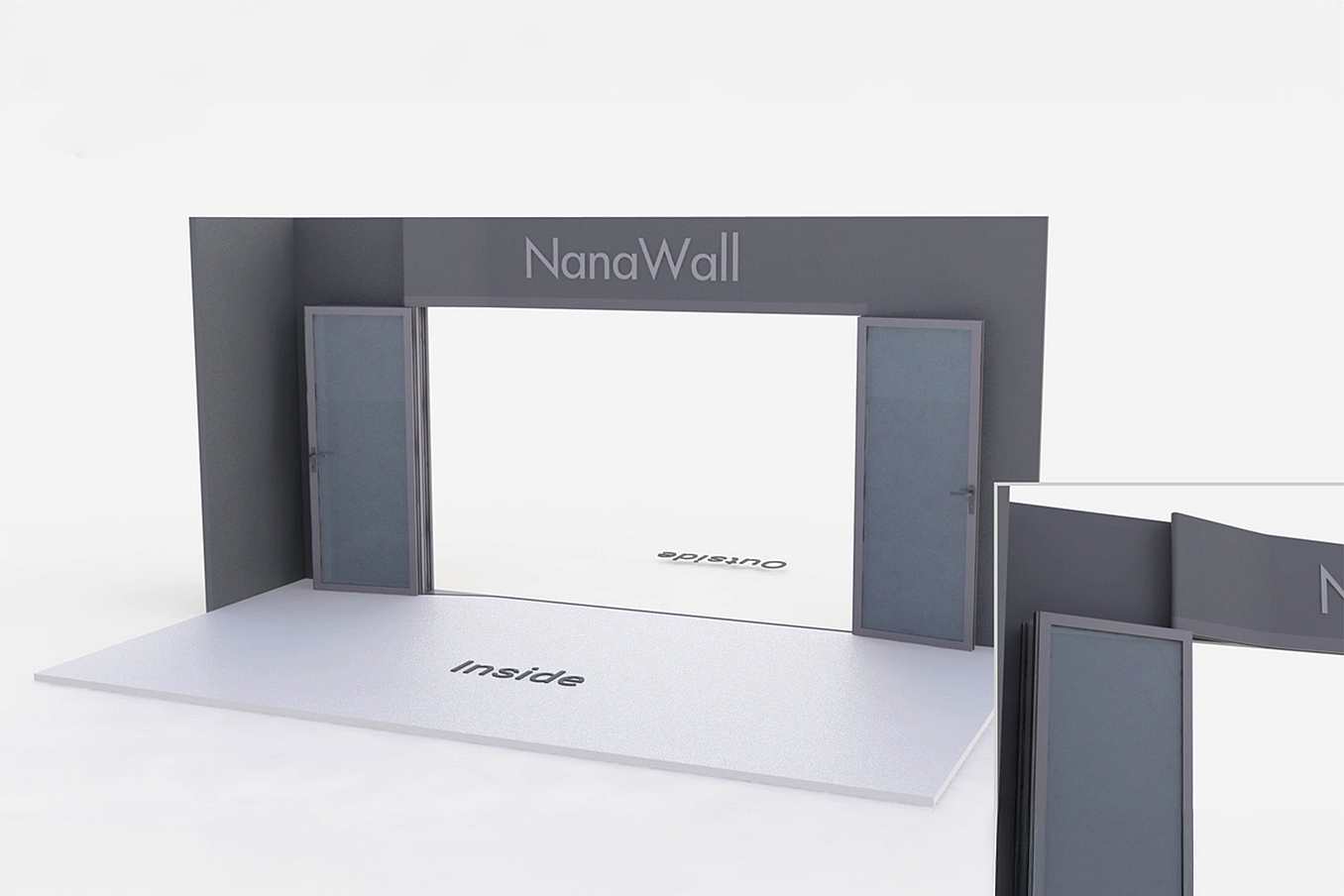

Proprietary technology allows folding panels to stack 180-degrees to plane of the opening providing a true breakthrough in the folding door industry. With FoldFlat, the panels fold and then pivot all the way back to stack out of and parallel to the opening.
- Full 180° Movement
- Expanded Point of View
A NanaWall specialty configuration combining both a pass-through window and folding door into the same opening is just one of the many wall designs possible.
Window Door Combination
- Door/Window Combinations

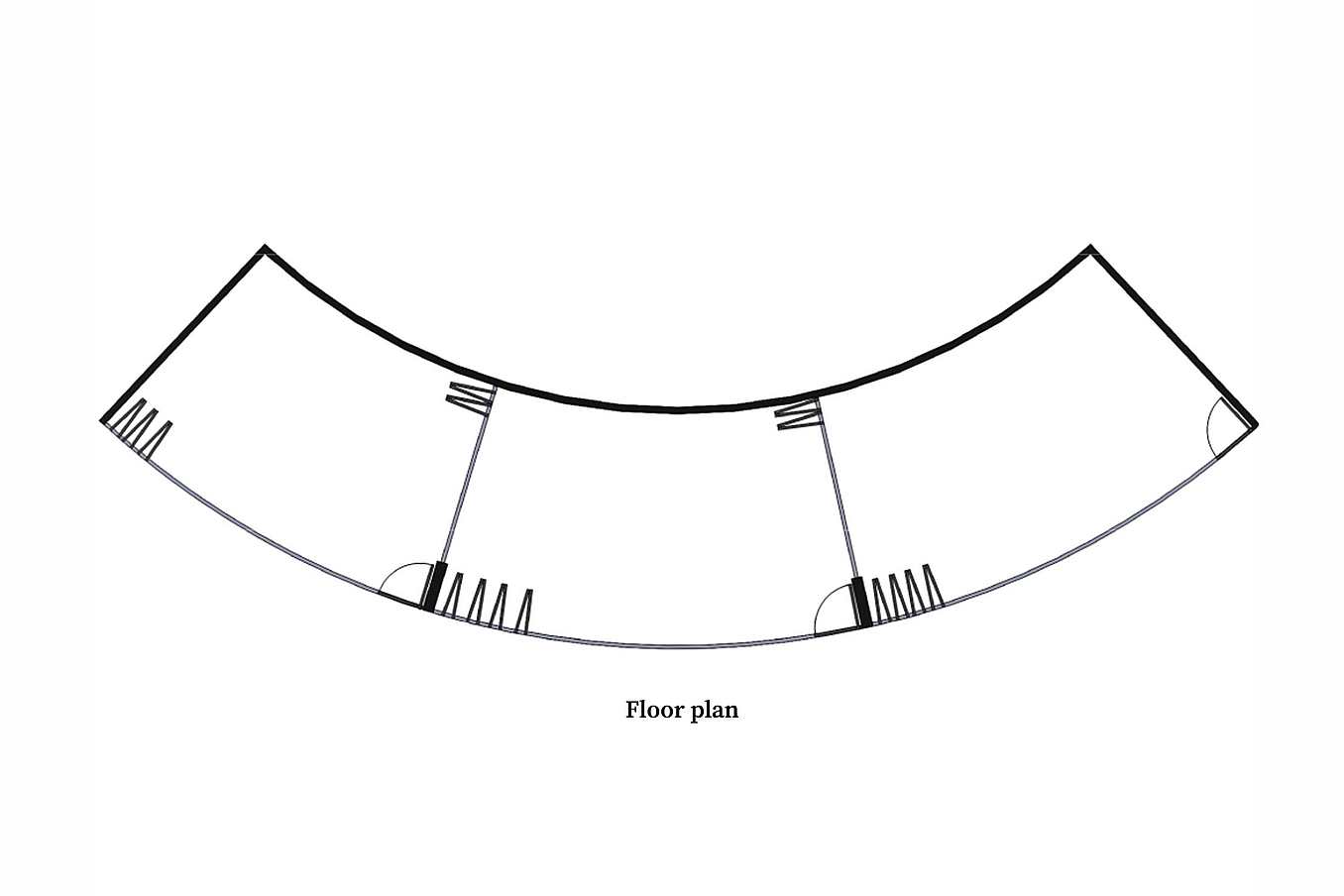

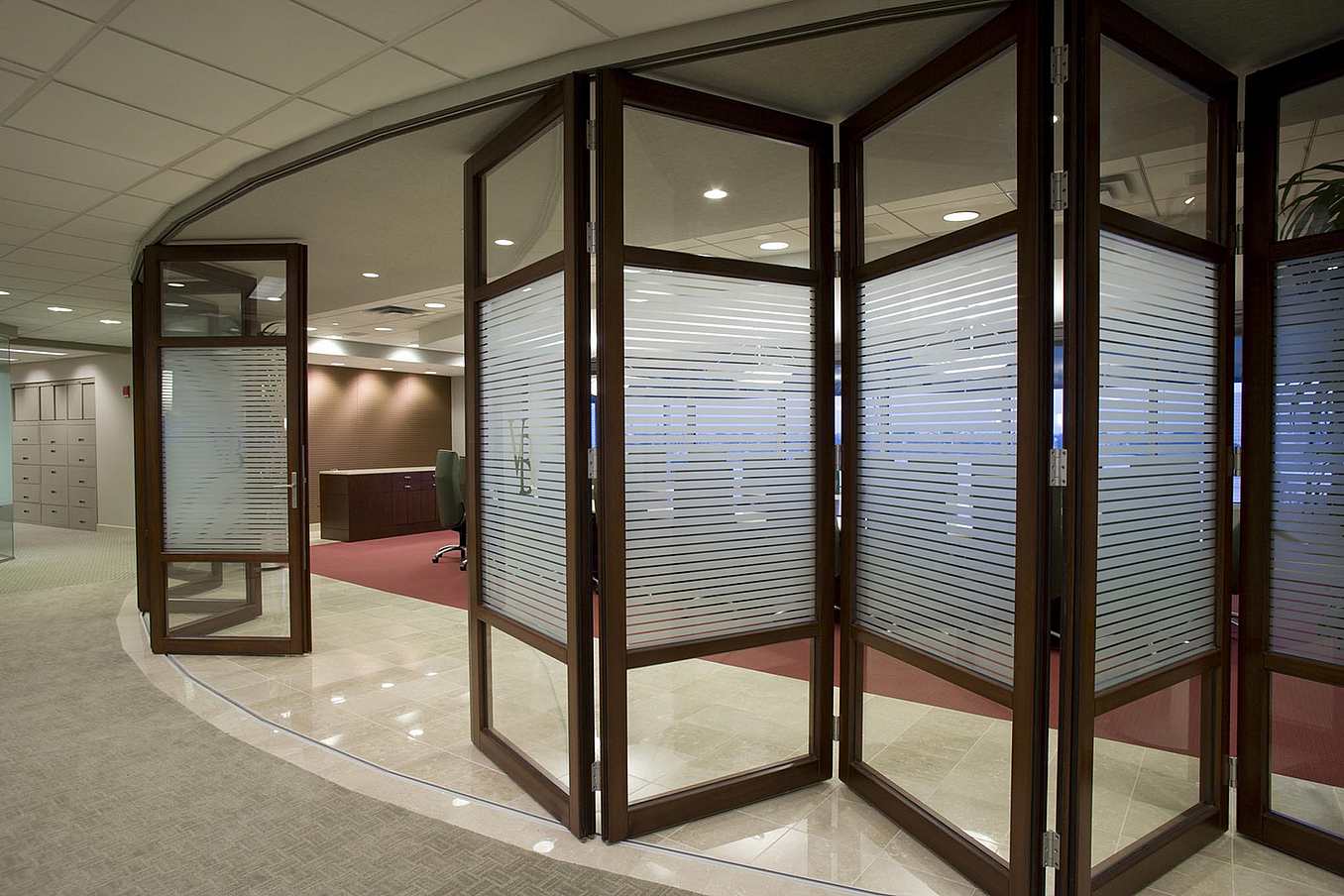

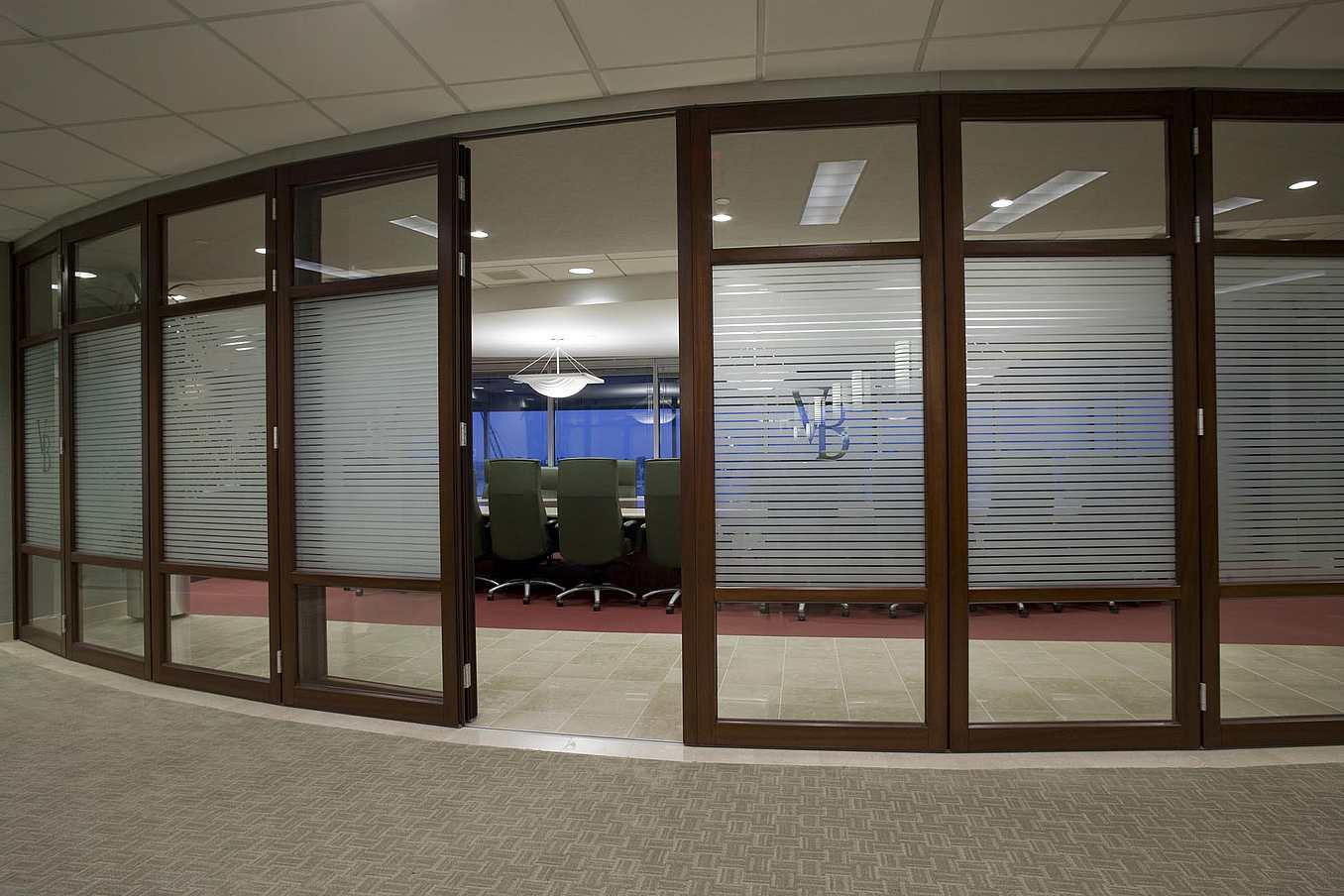

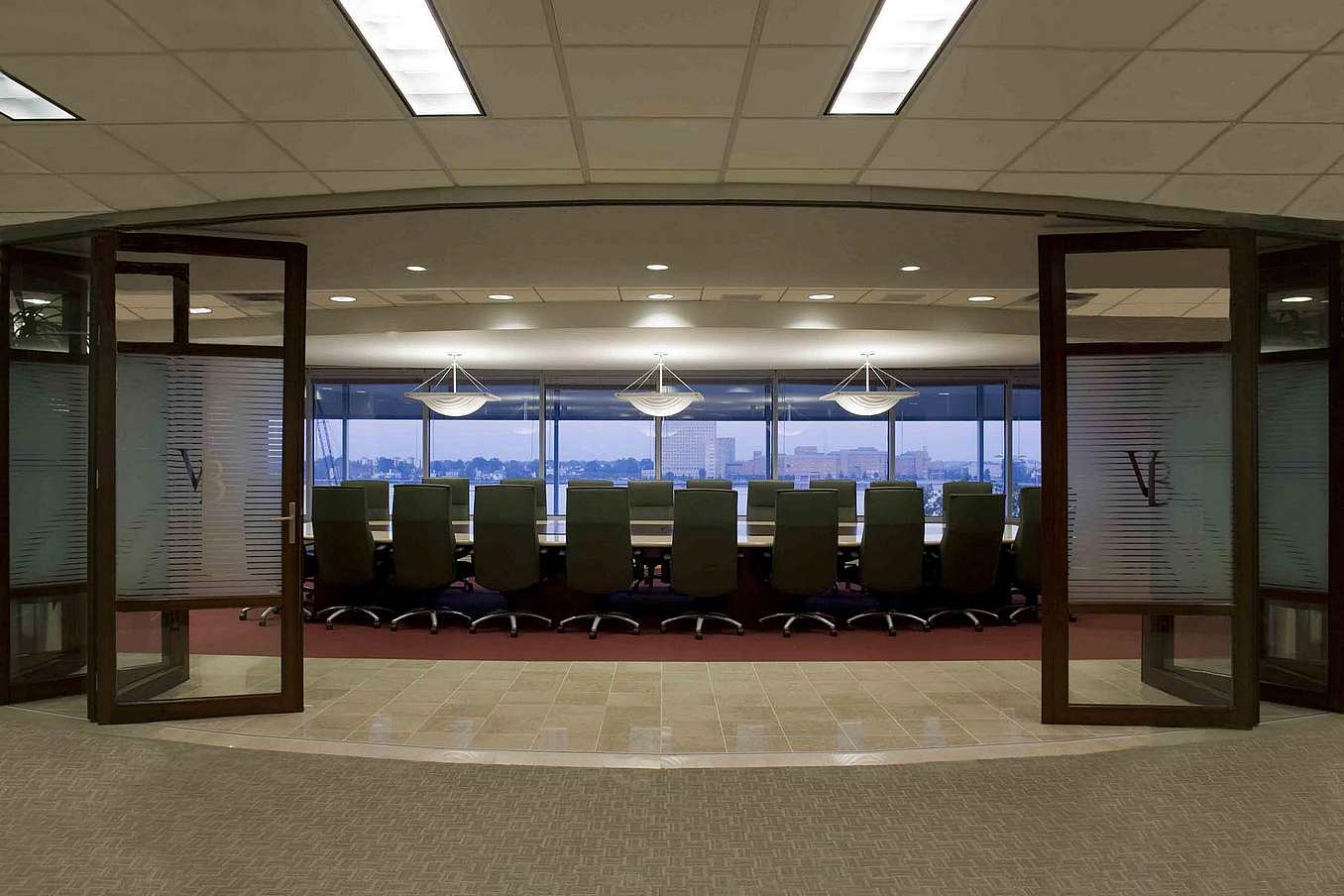

- Segmented Radius
- Inward/Outward Openings
- Center Pivot Stacking

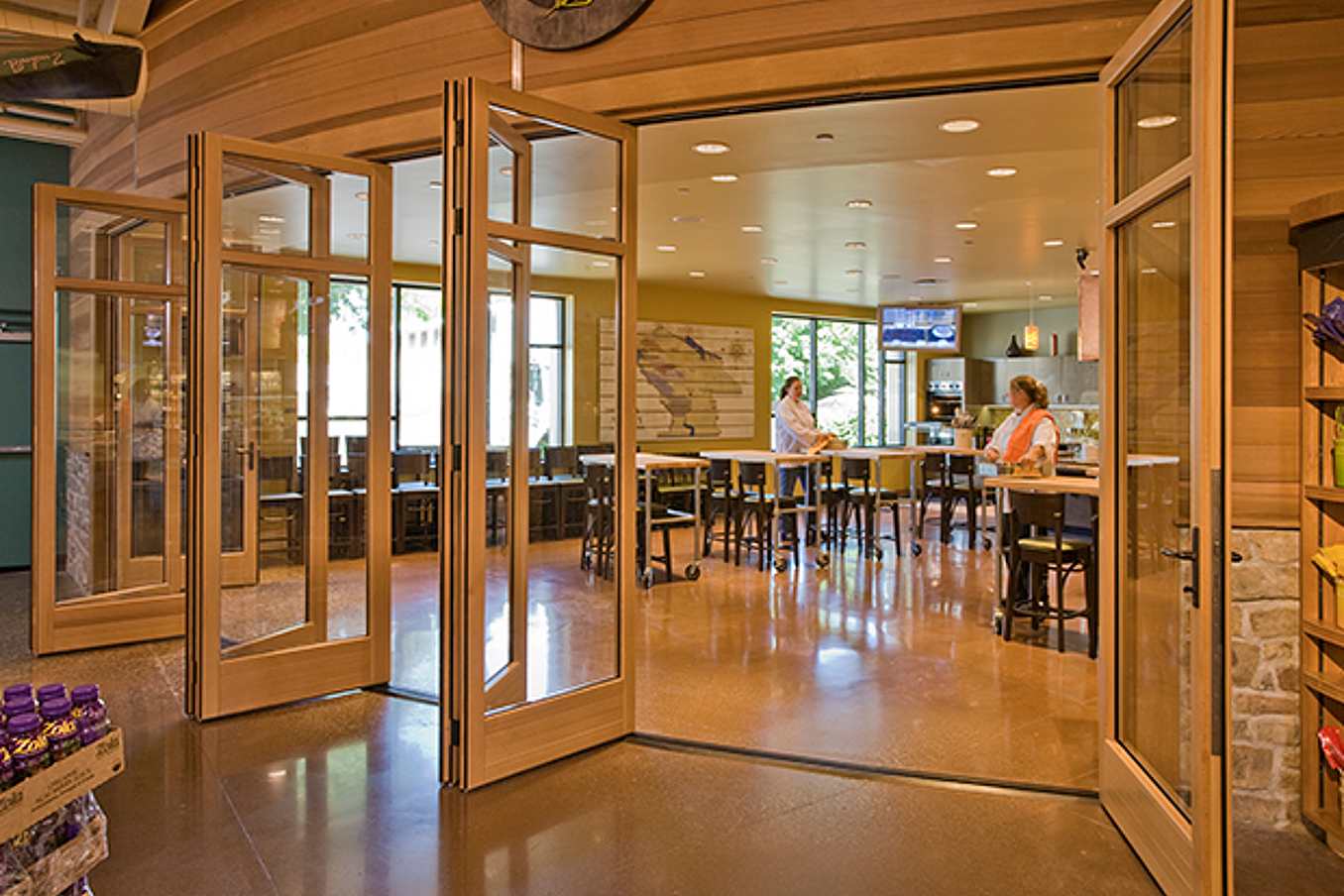

- Unhinged Paired Panels

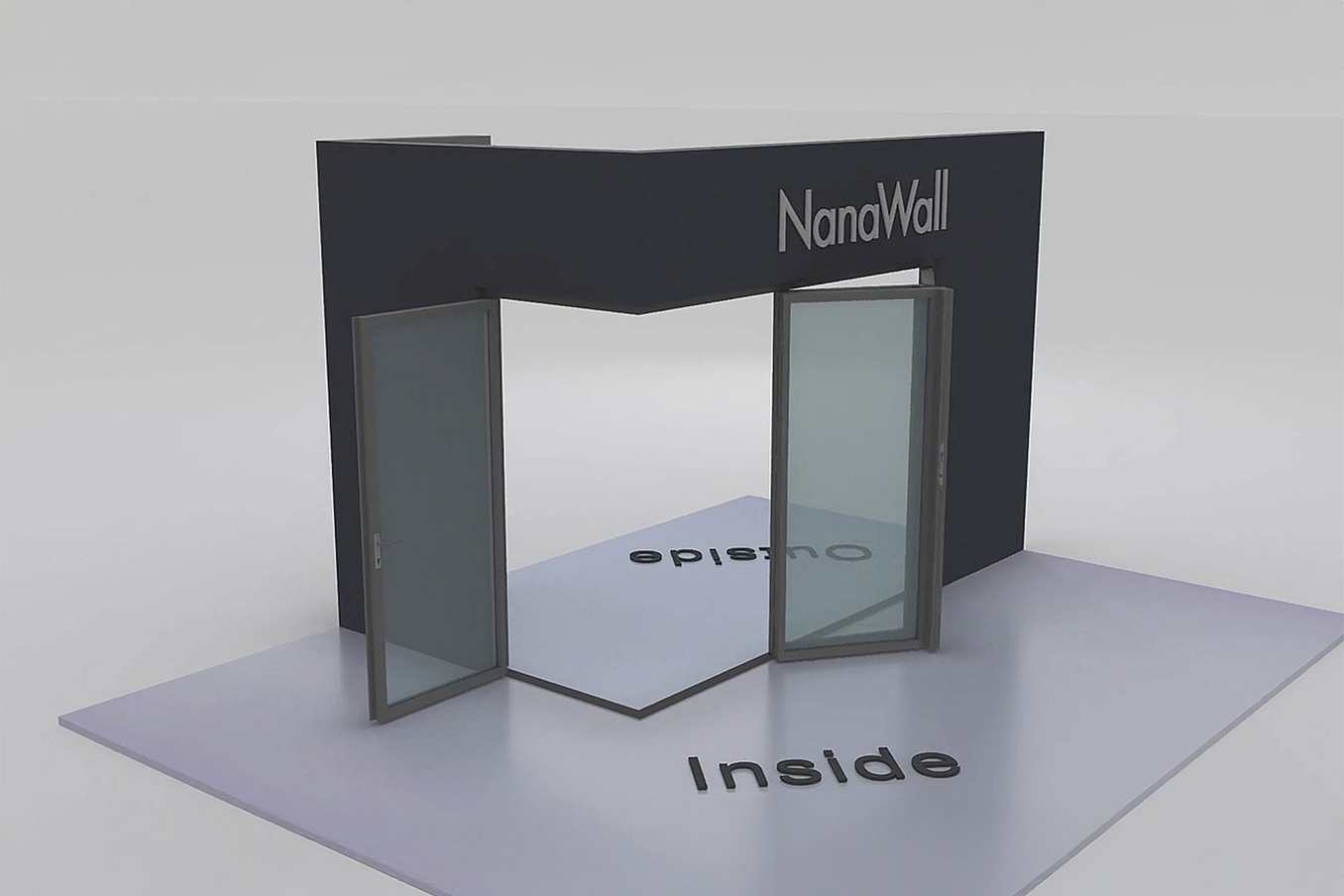

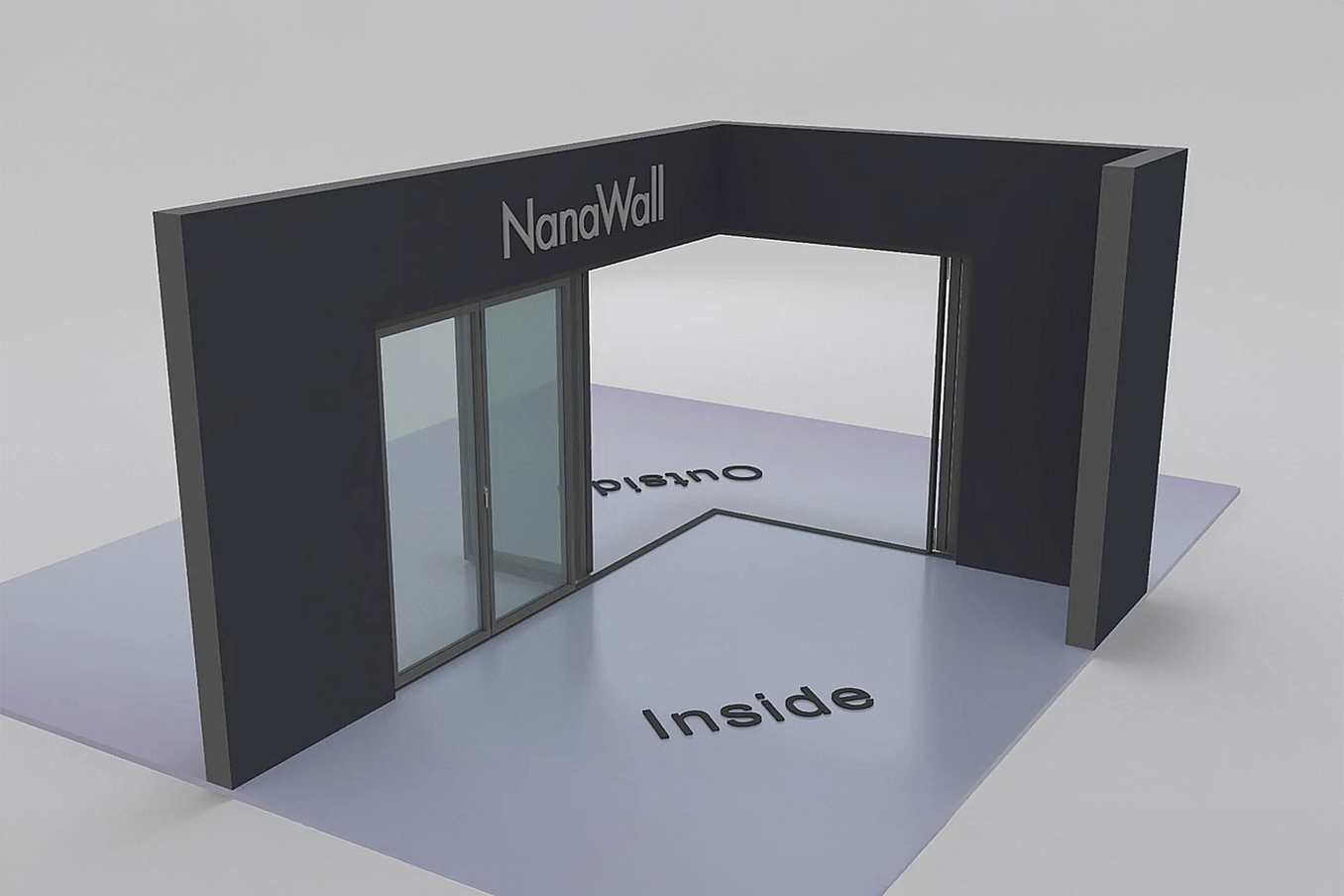

- Cornerless
Continued Long-term Satisfactory Operation
Smooth sliding and folding operations are assured even when dirt or debris might collect in the bottom track. State-of the-art hardware is used with patented, sealed, ball bearing running carriages. Long-term ease of operation is also assured with compensation and adjustment features

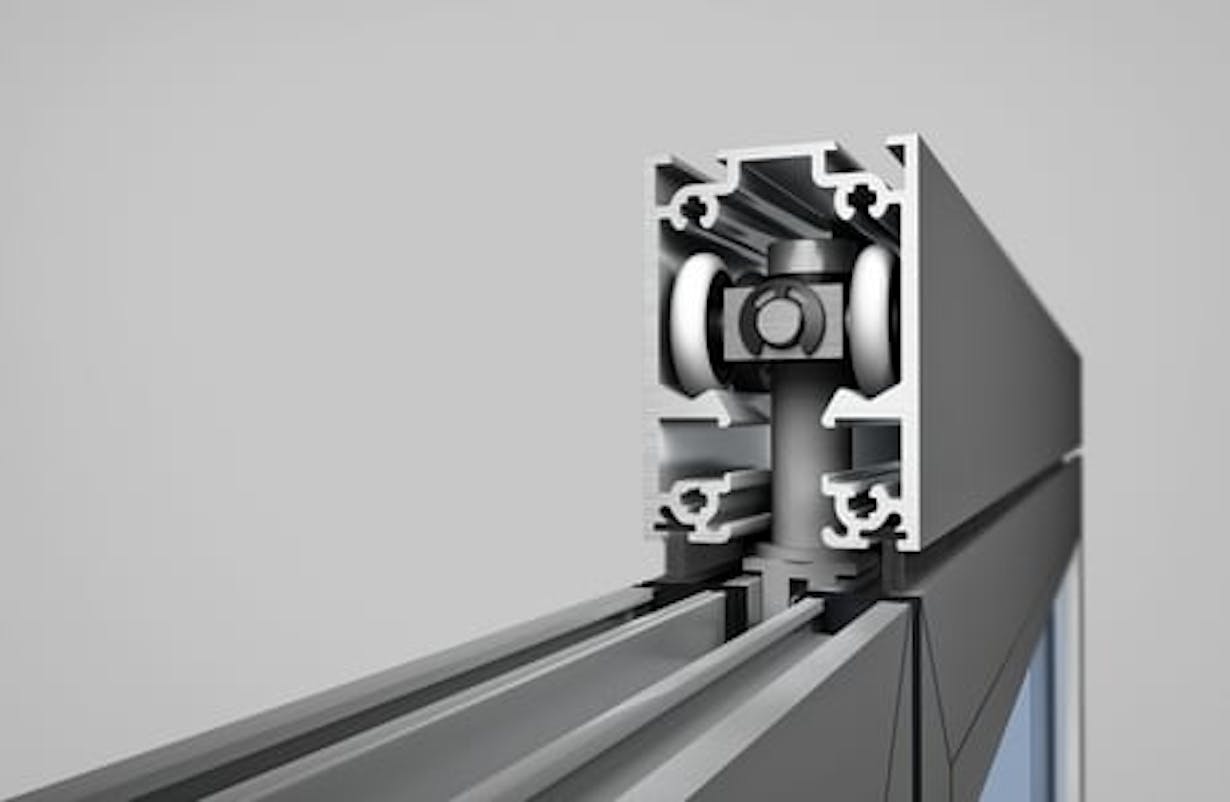

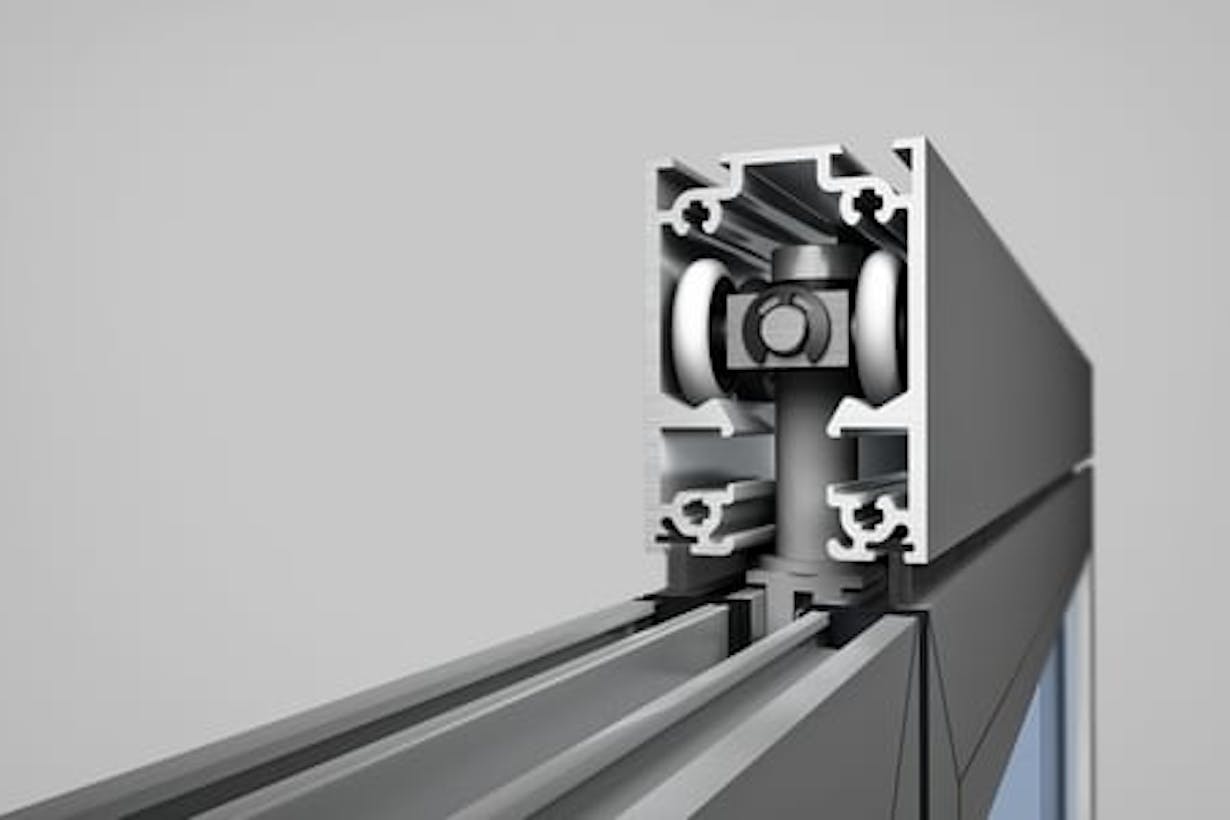

Dual Independent Roller Axles
Engineered in Germany, the NanaWall WD65 roller makes many of the specialty design features possible
Quiet And Smooth Top To Bottom
The WD65 system is top hung, where the main weight is carried by the head track. The bottom track is a guide. Our sound-free roller material remains smooth and round even when stationary for long periods of time, resists extreme temperatures.
Extreme Weather Resistant
Energy-efficient by design, our glass walls keep the elements at bay, ensuring that even as seasons or temperatures change, your interior comfort will always remain the same.
Certified Testing Standards
NanaWall products endure the latest AAMA testing standards for air, water, structural, and forced entry.
Highly Energy-Efficient
Designed to keep the elements at bay, holding warmth inside while acting as a transparent barrier to the weather outside.
Sustainable Design
NanaWall products contribute to multiple LEED rating systems and potentially several credit categories.
Performance When Closed Matters Most
Large openings are easy to design and there are many options to choose from. When deciding on a product that best for your project, performance when closed needs to be considered.
Test Results
The NanaWall® WD65 has been independently tested for air and water penetration resistance, structural deflection, and forced entry. Also with NFRC rated, certified and labeled thermal performance.
Air, Water, Structural, Thermal, and Forced Entry ResultsWhat Our Customers Have to Say

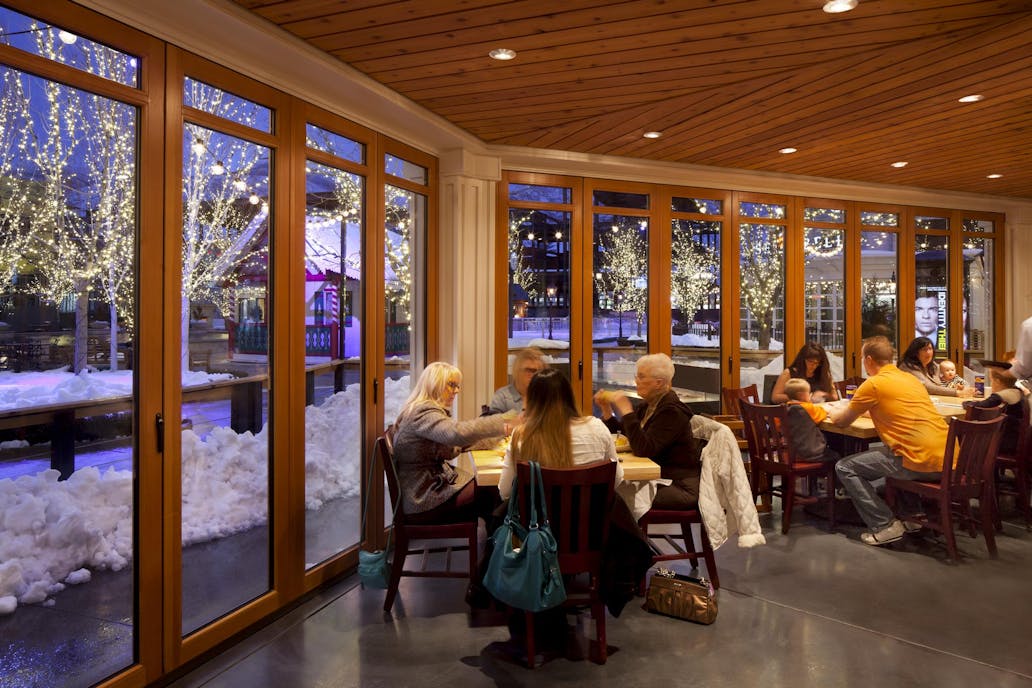

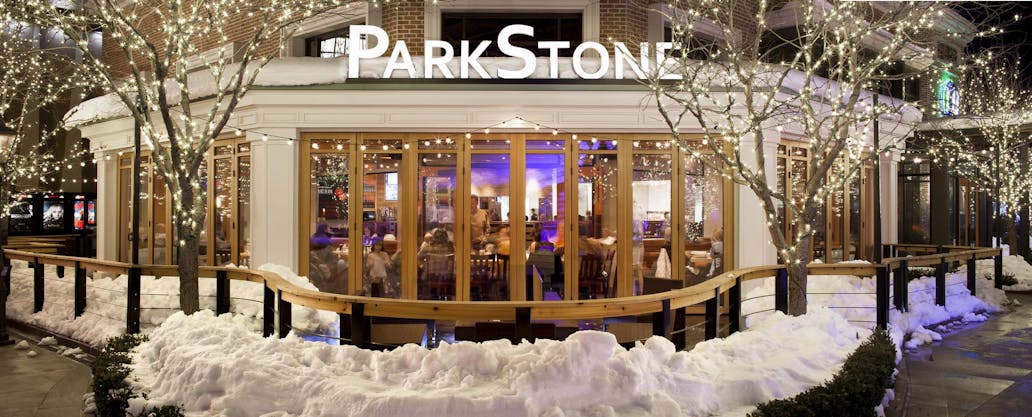

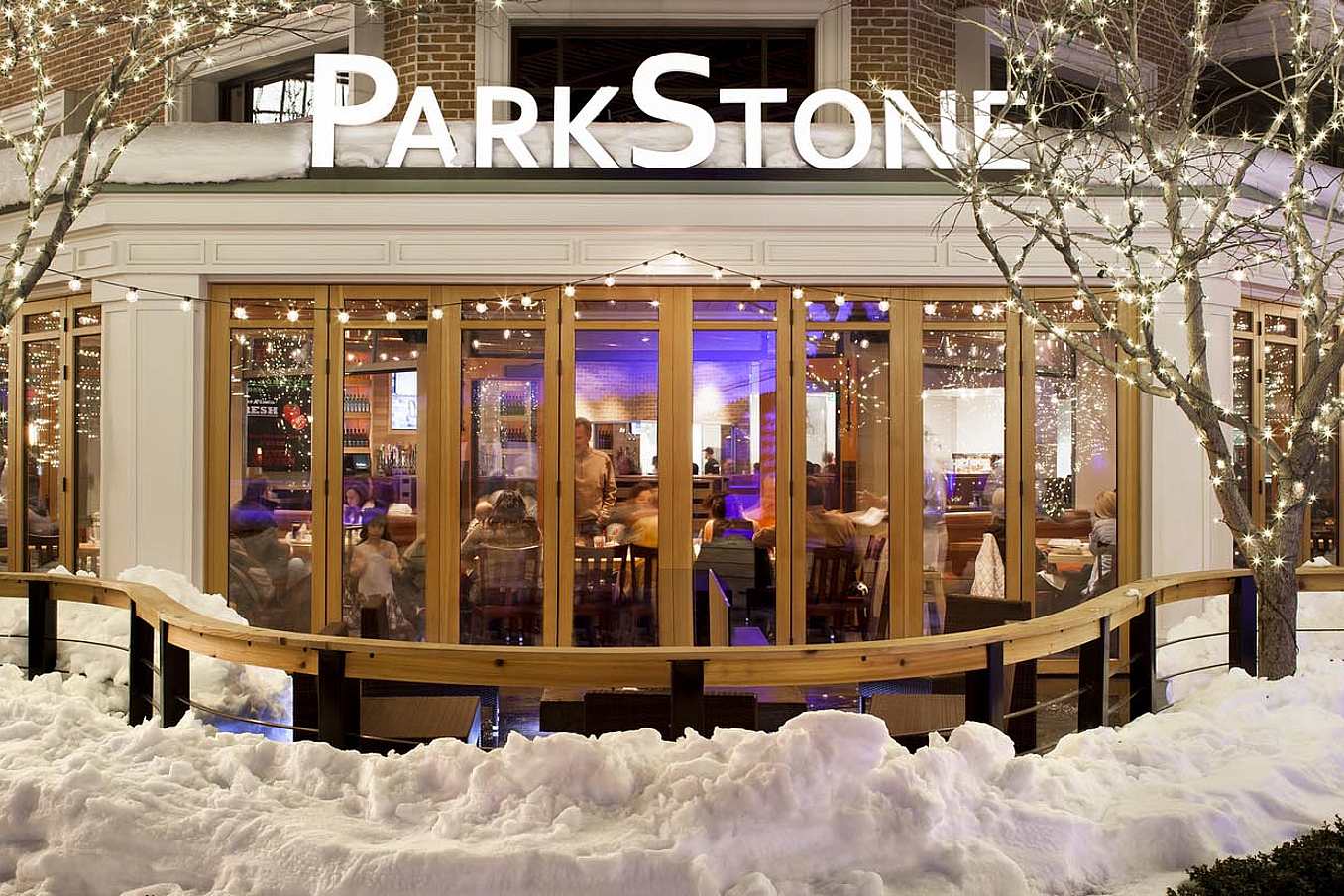

ParkStone Wood Kitchen
The patrons of the ParkStone Wood Kitchen are not only treated to oak wood-grilled cuisine, but are surrounded by an aesthetically pleasing, performance-driven wall solution when Utah fall weather sets in.

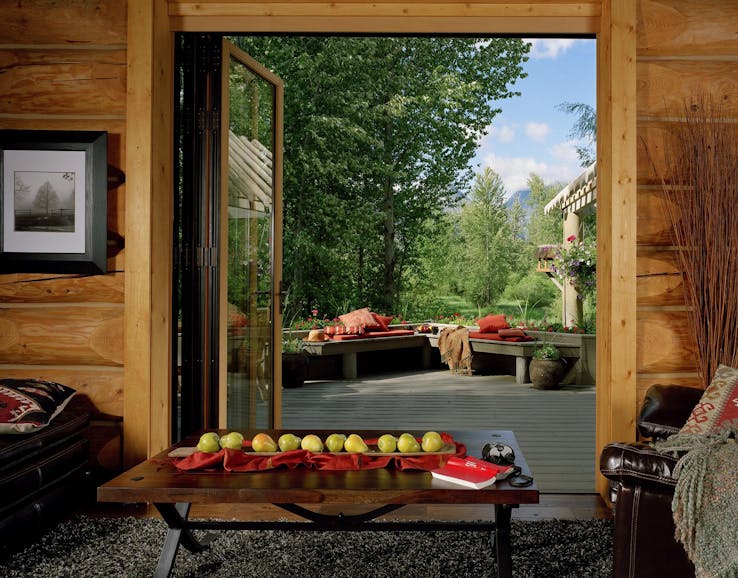

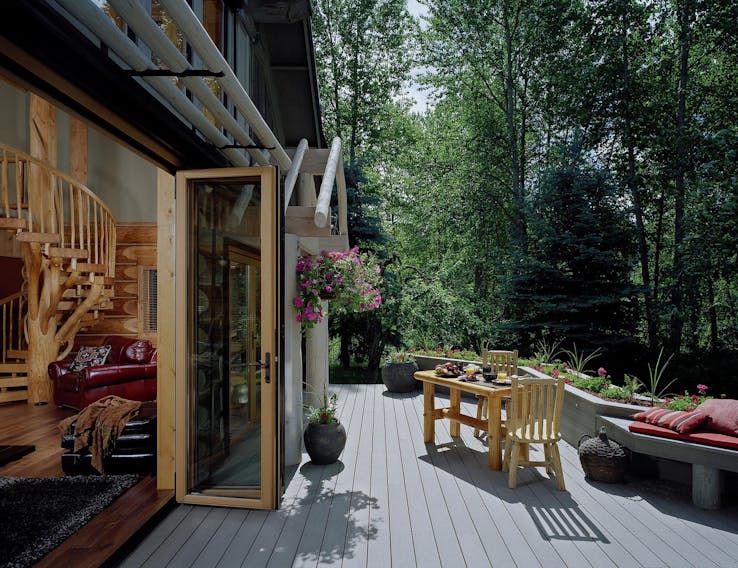

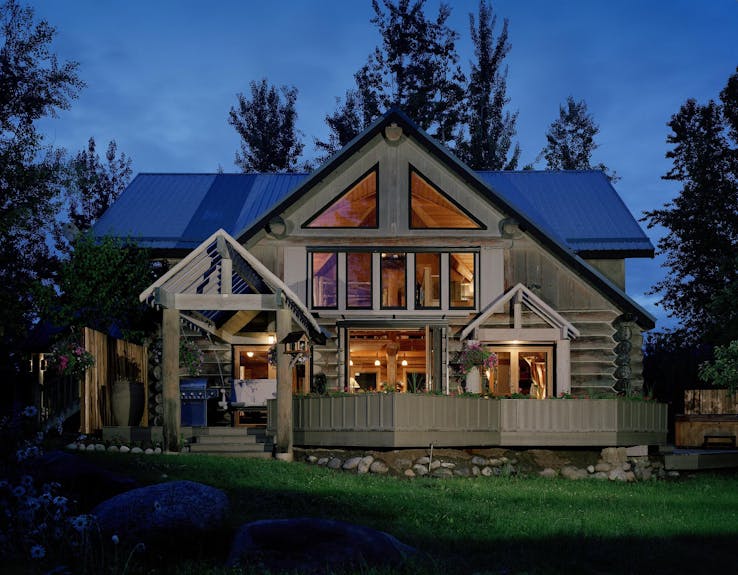

Run of the River
To further enhance the connection to nature at this Washington location, the design team specified the WD65 Wood Framed Folding System, with a NanaScreen add-on to keep out mosquitoes.
"We specified NanaWall because of the high quality of the product and the ease of operation, the hardware works beautifully."
— Dennis Erwood, Architect

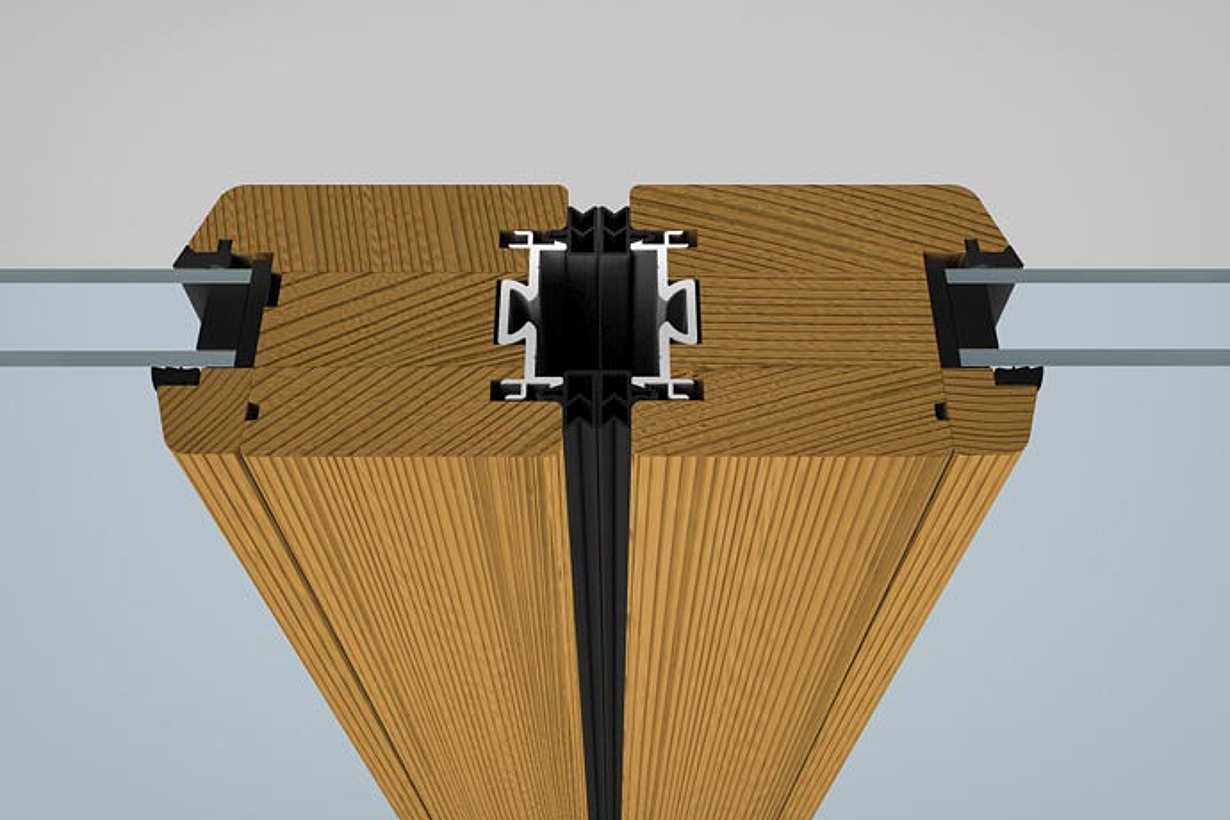

To ensure the longevity of our wood systems, we provide triple laminated cross-grains to accommodate the wood’s natural expansion and contraction.
See Wood Options

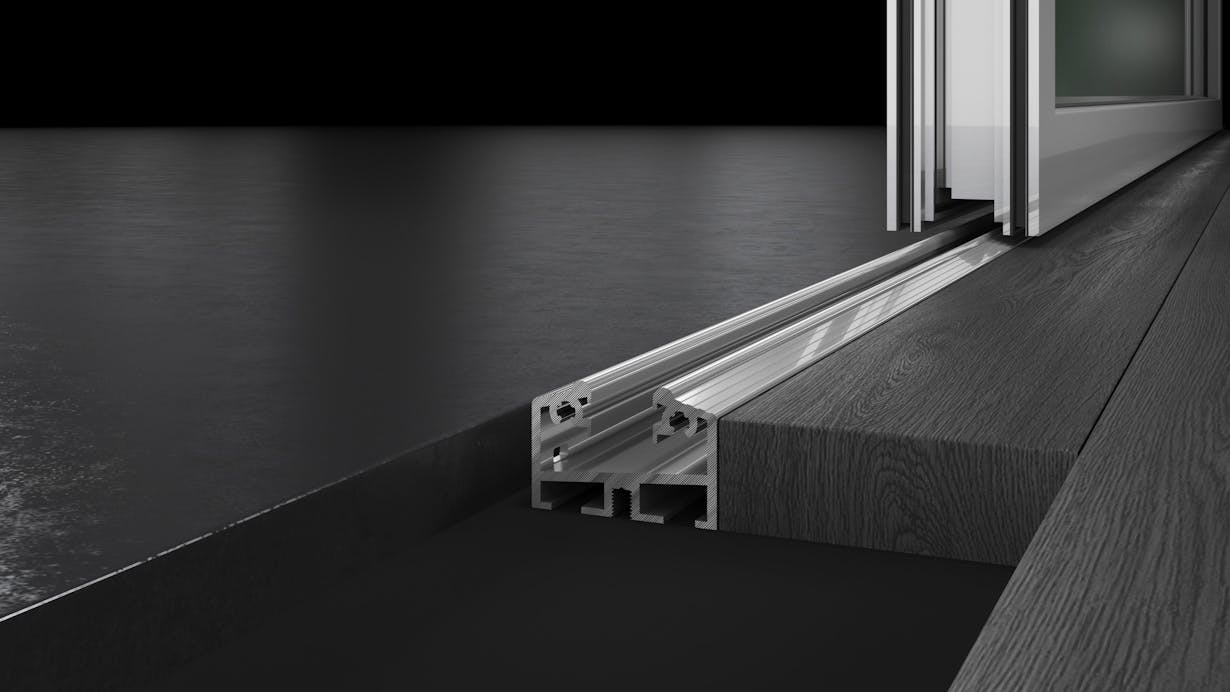

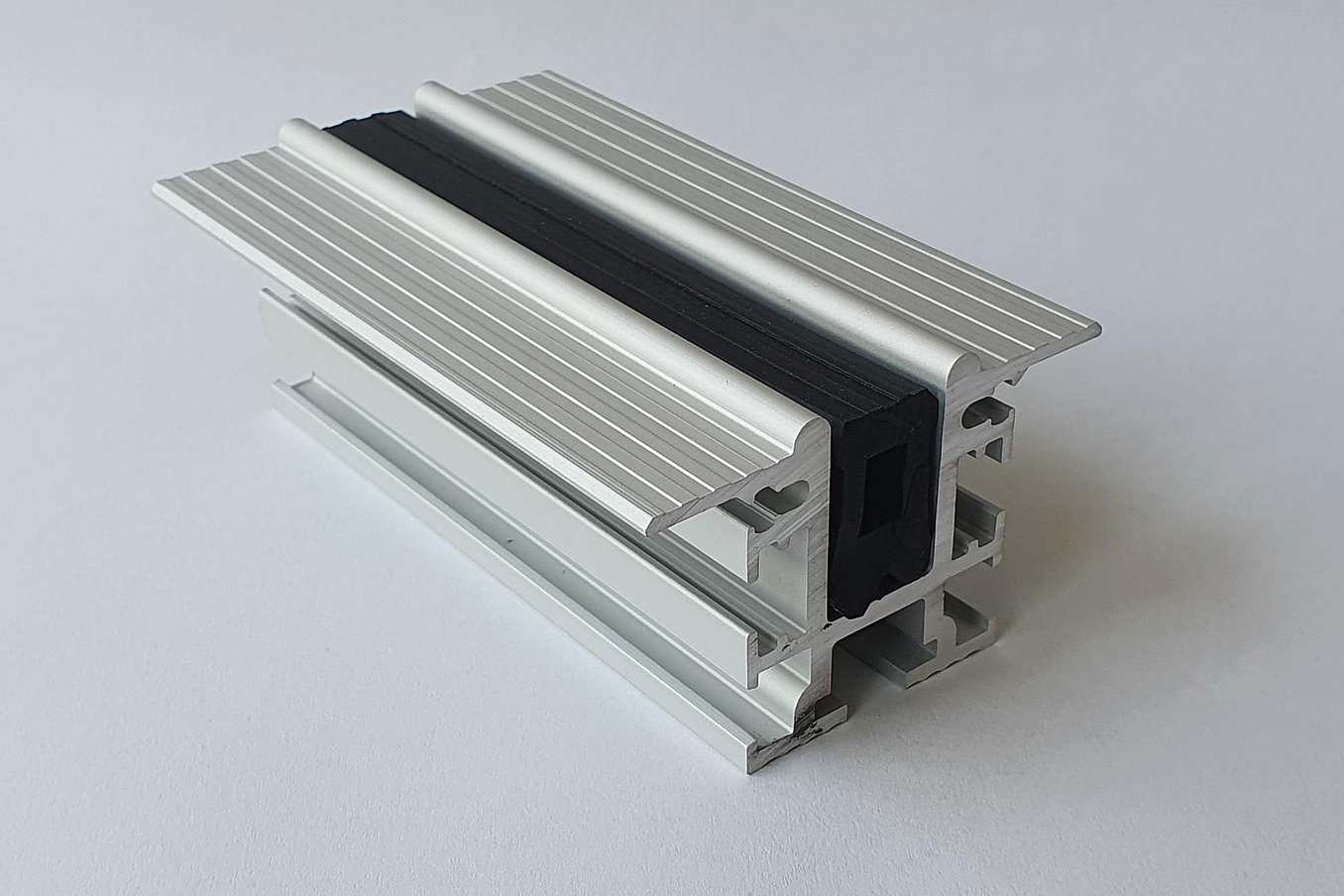

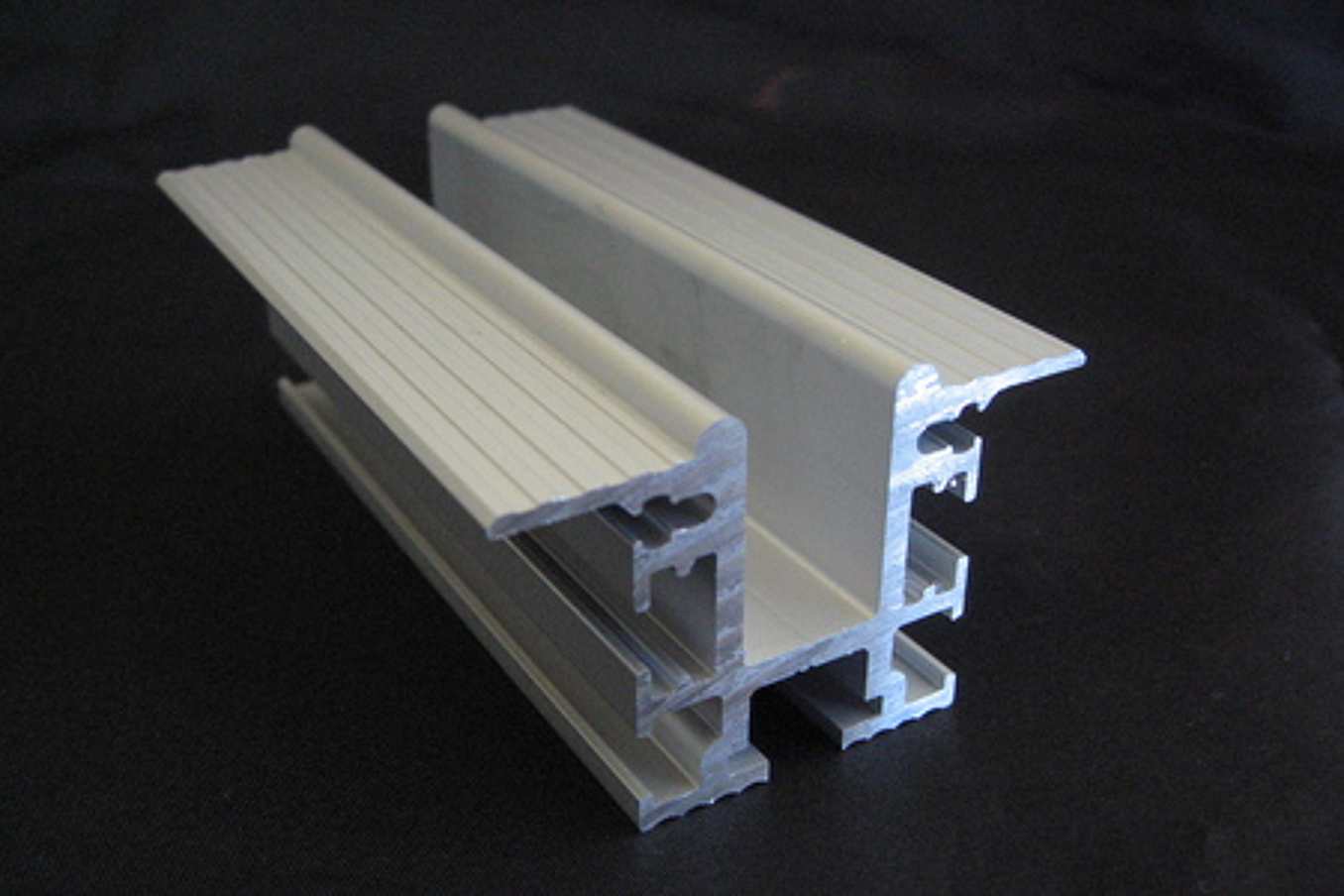

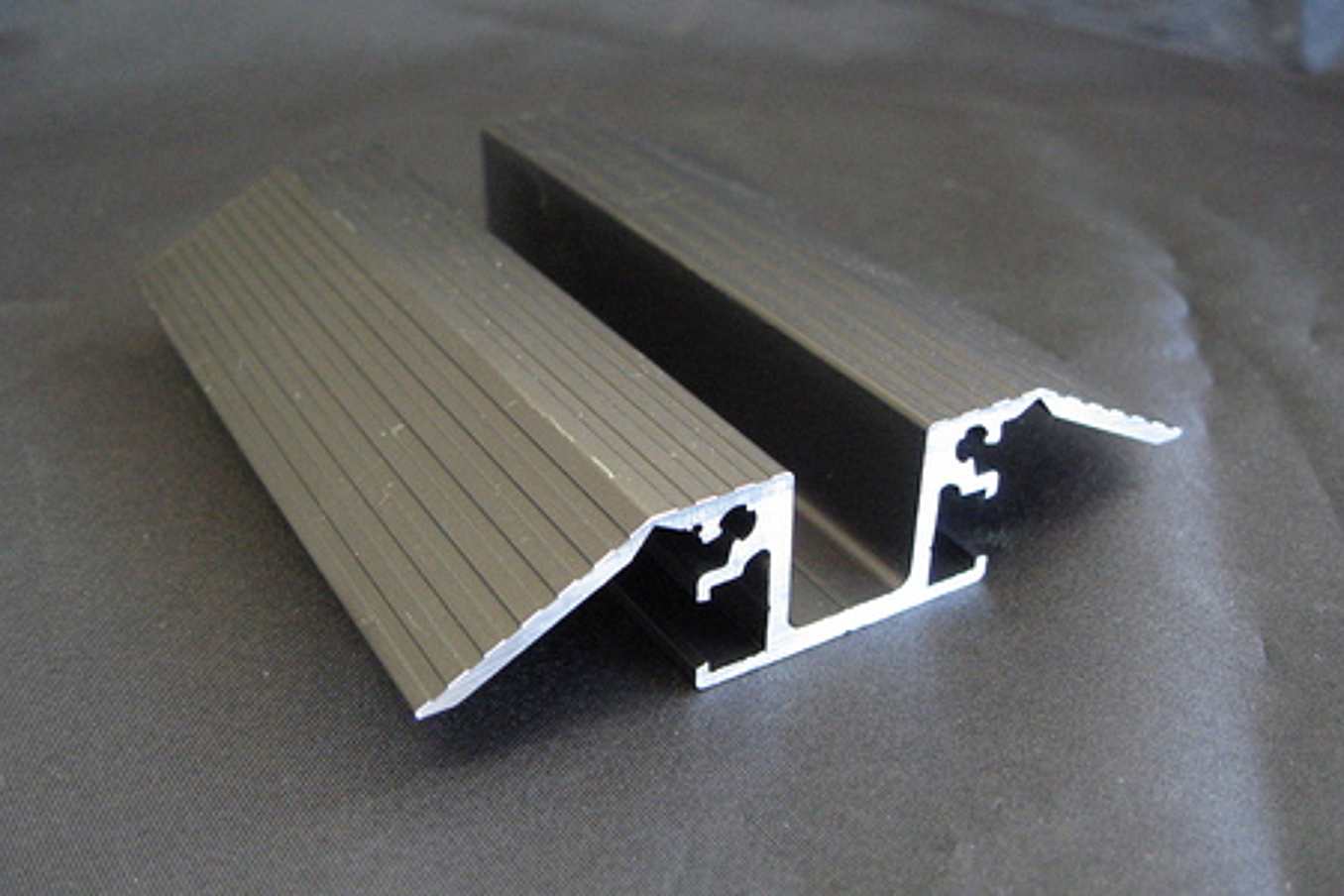

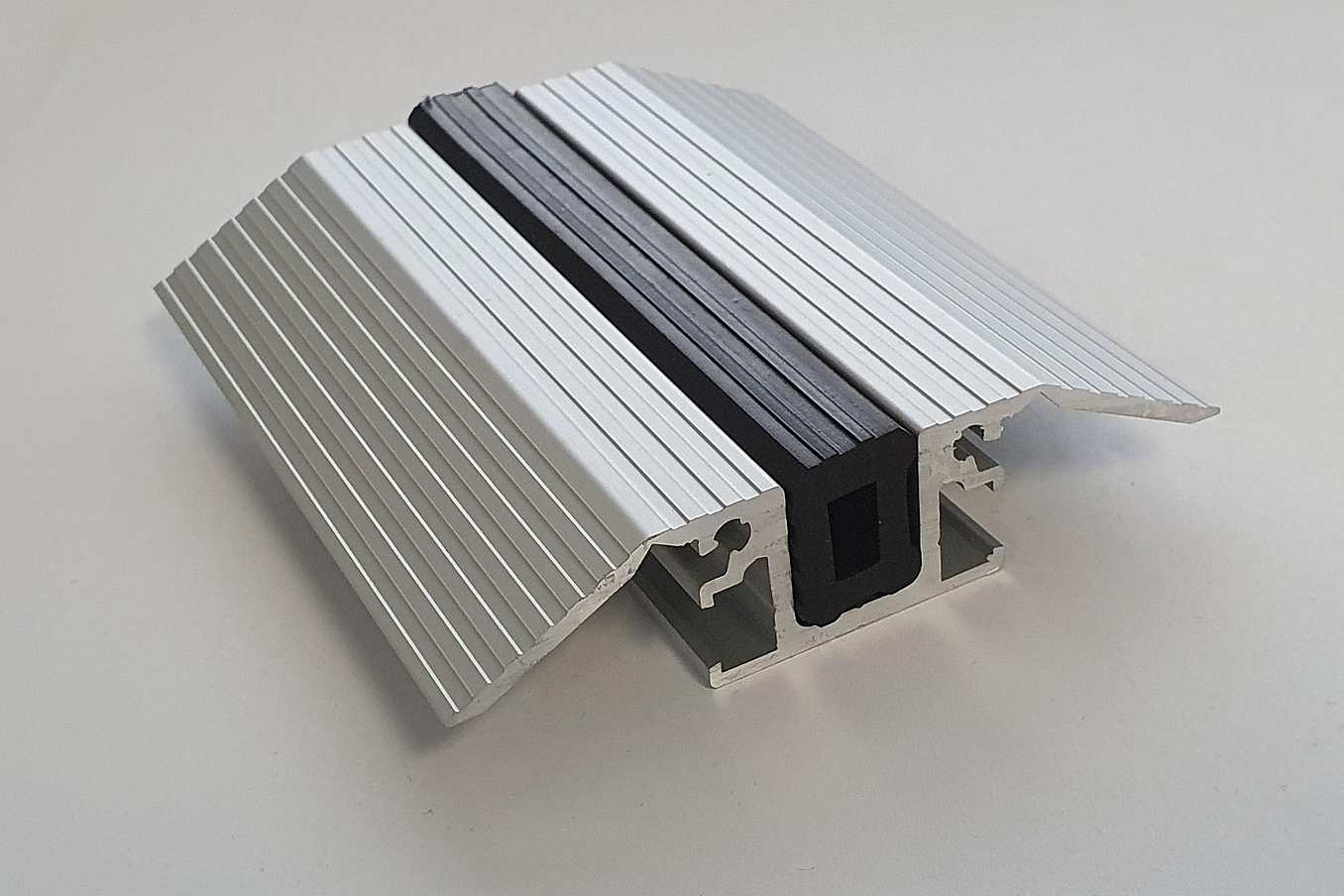

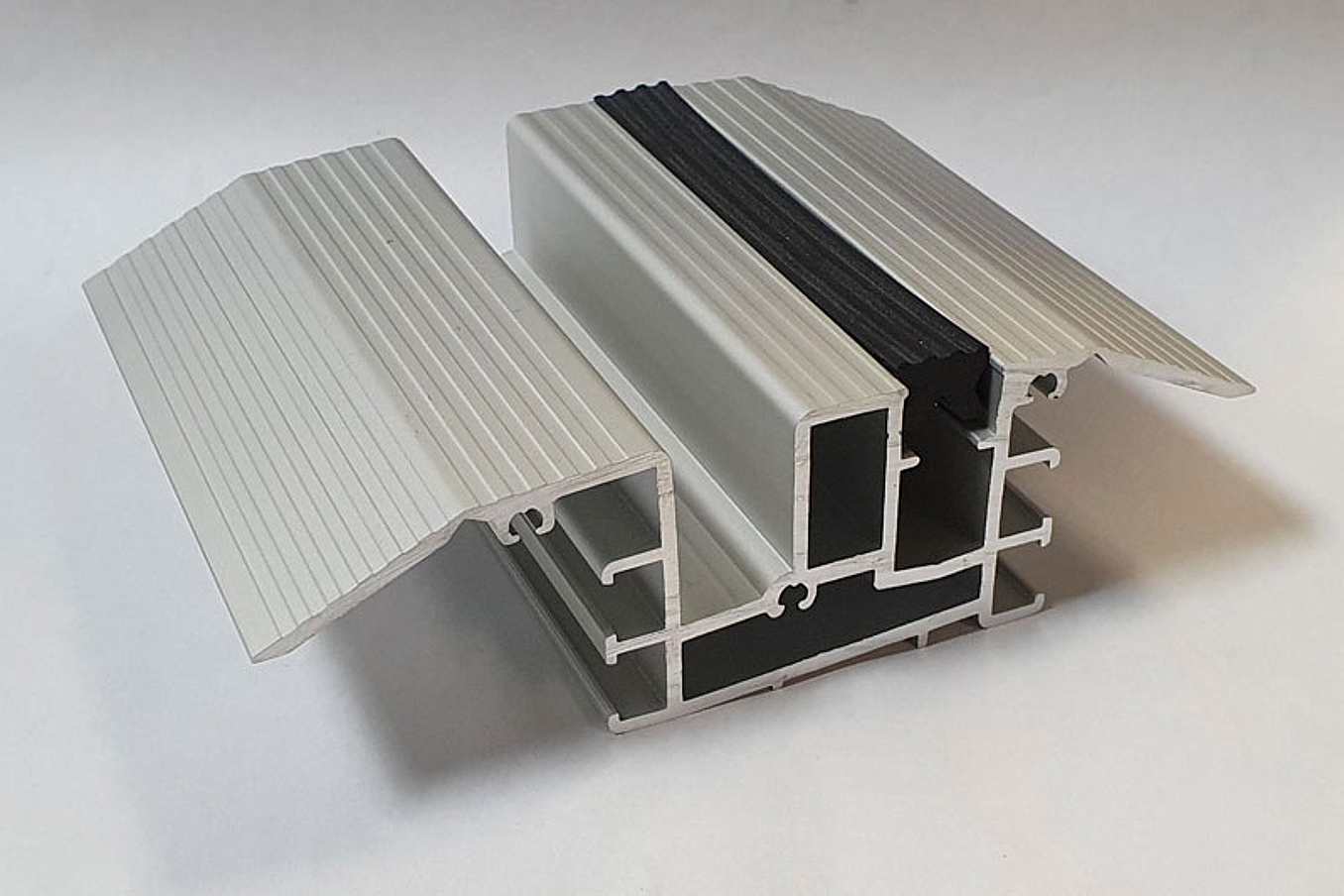

WD66 comes with 4 sill options: Standard Sill, Low Profile Saddle, Flush Sill & Surface Mounted Interior Sill.
See Sill Options
Units can be supplied glazed with 15/16" clear double insulating safety, 15/16" double insulating Low-E safety, 1 1/2" triple insulating glass, 1/4" single tempered, other high performing safety glass such as Heat Mirror, special tint, etc. or other glass on request.
See Glazing Options

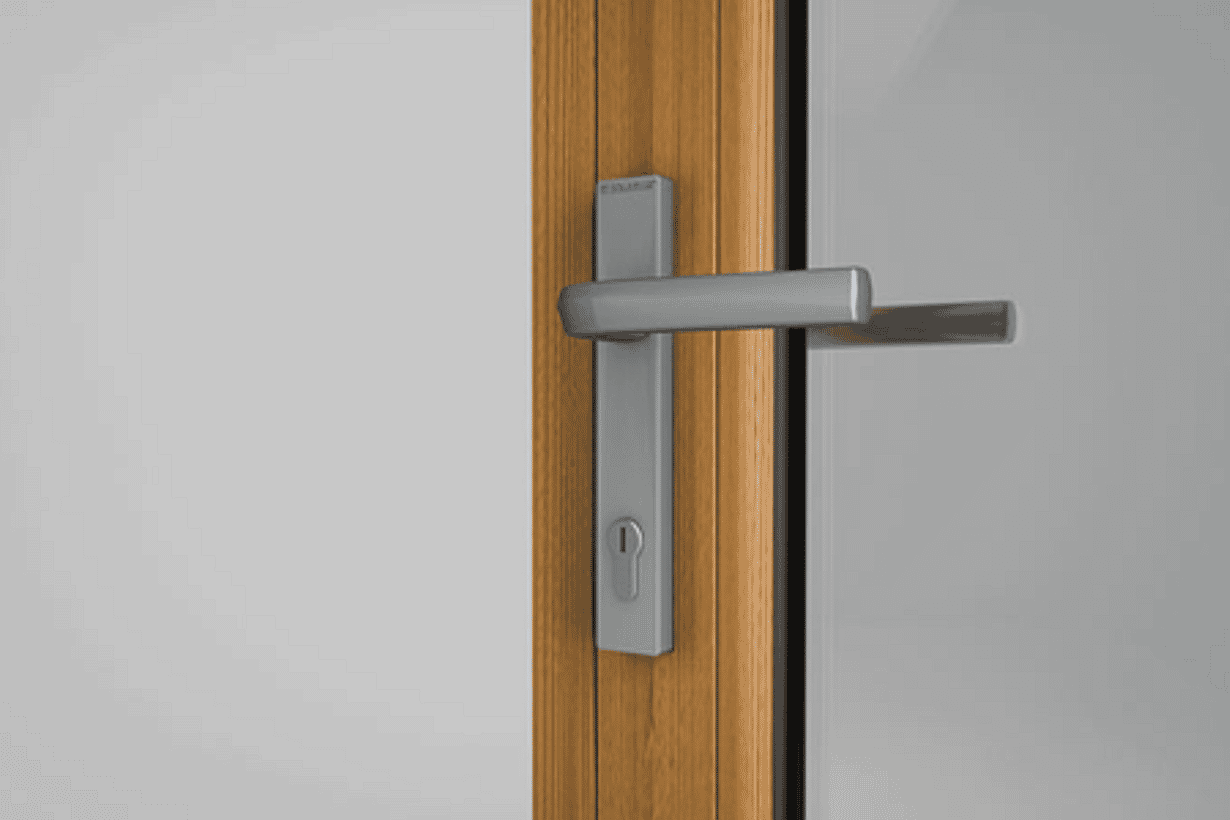

Stylish Handles in Multiple Finishes
Our handles are both functional and stylish and can be customized to accentuate your space and reflect your style.
See Handle Options
Locking for Maximum Security
Standard to the system is concealed locking between folding panels that operates with a 180° turn of a flat handle.
See Locking Options
Retractable Screens by Others
A retractable screen add-on is perfect for blocking bugs while providing privacy and fresh air. Screens are not available through NanaWall Systems.
Retractable Screens by Others

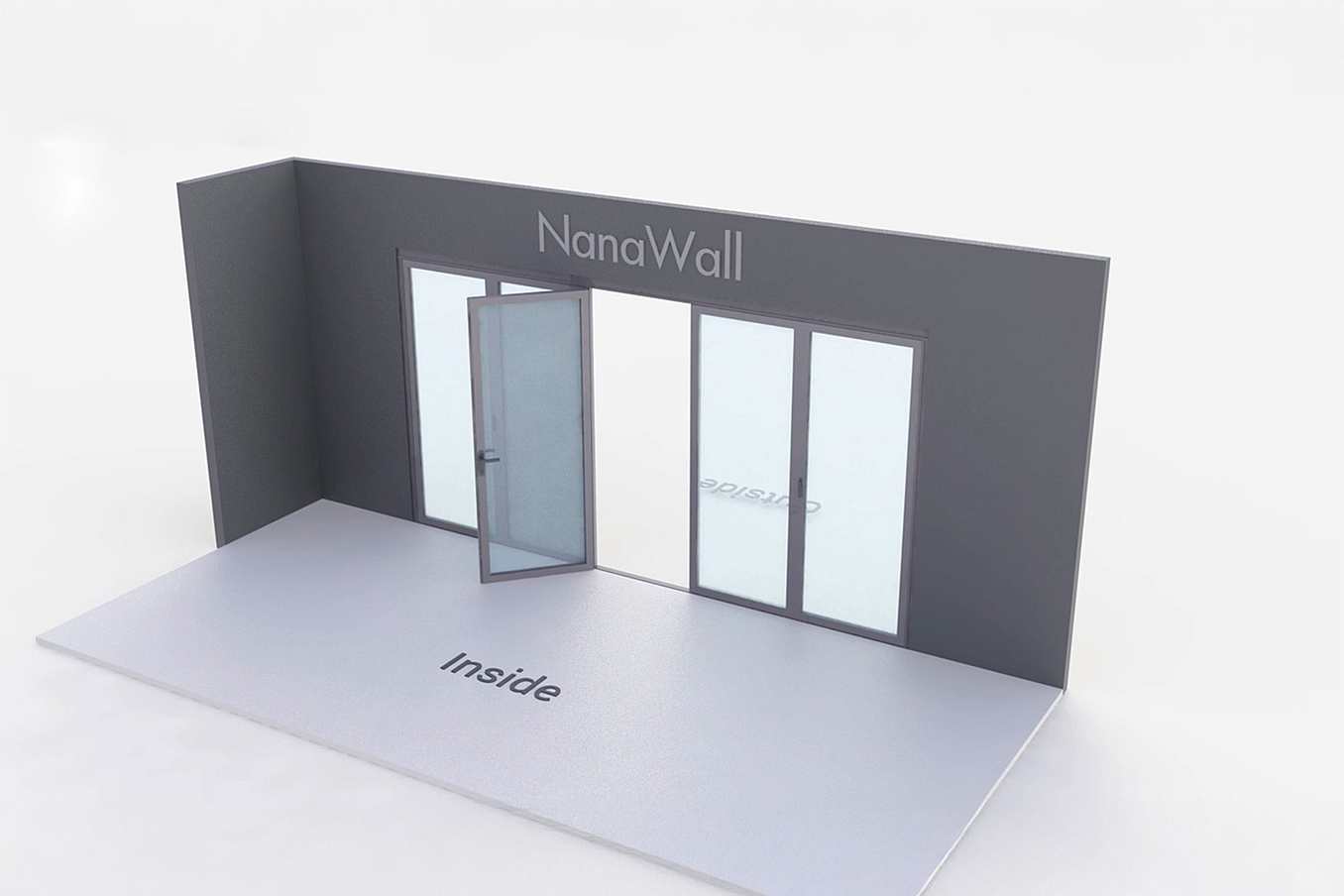

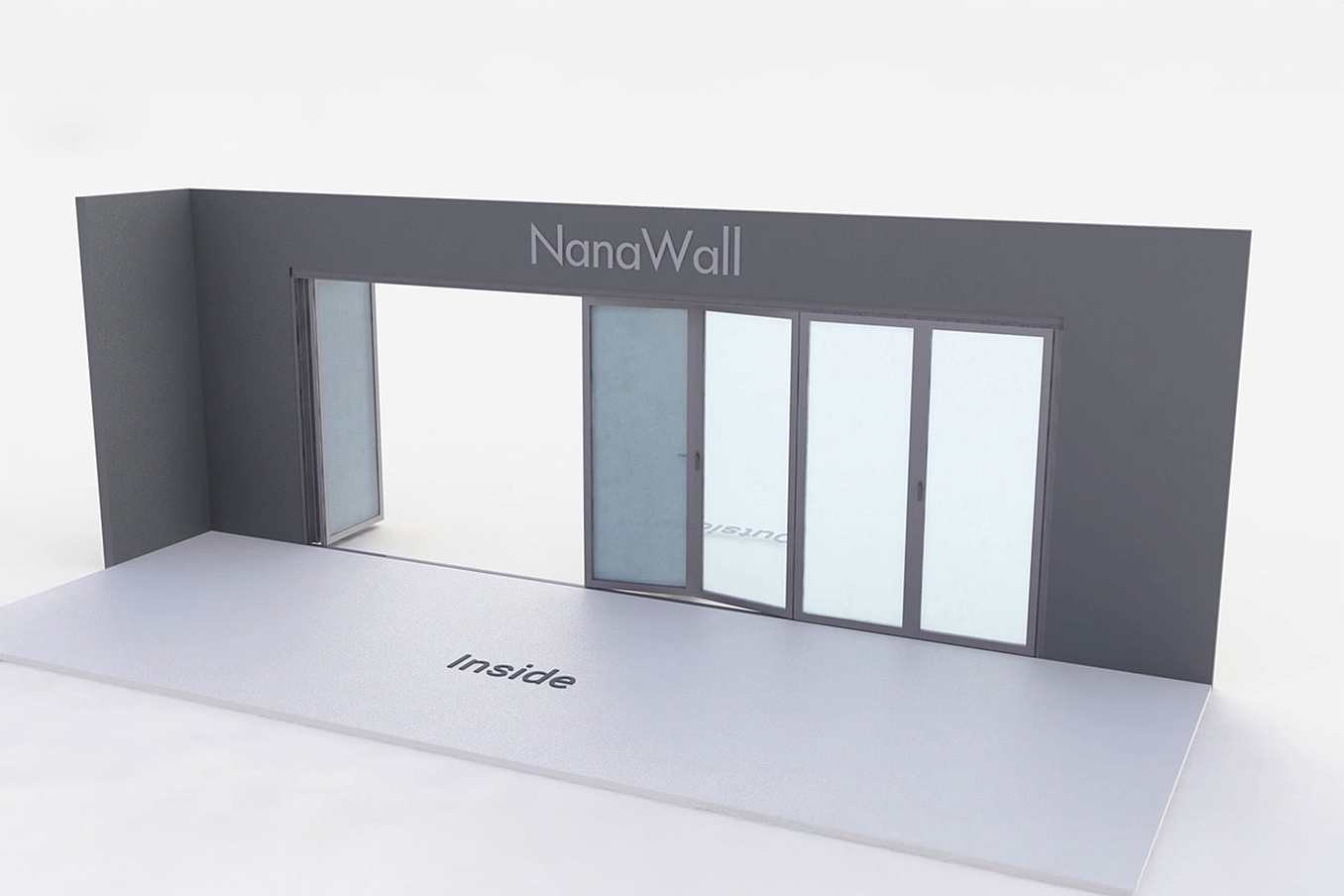

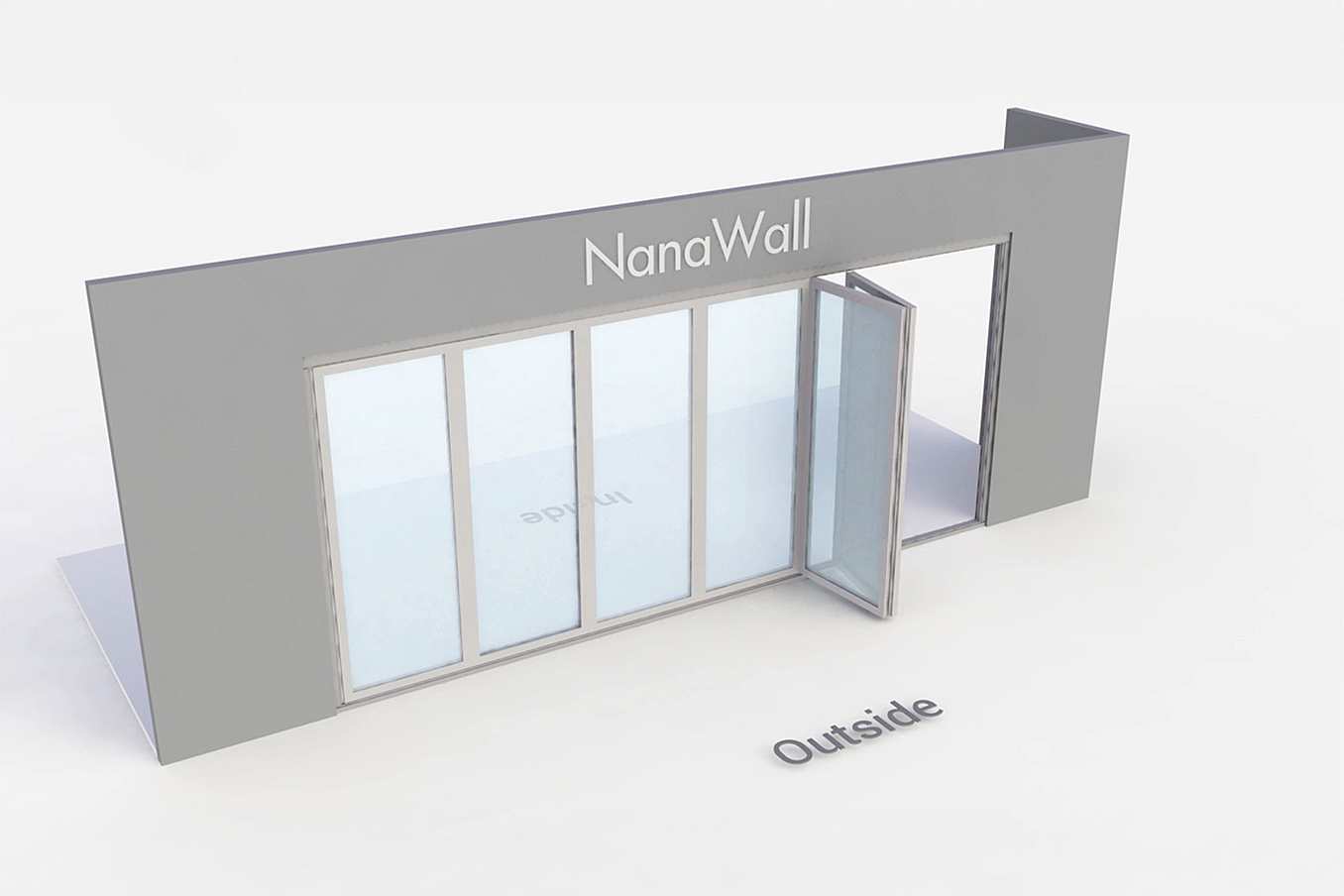

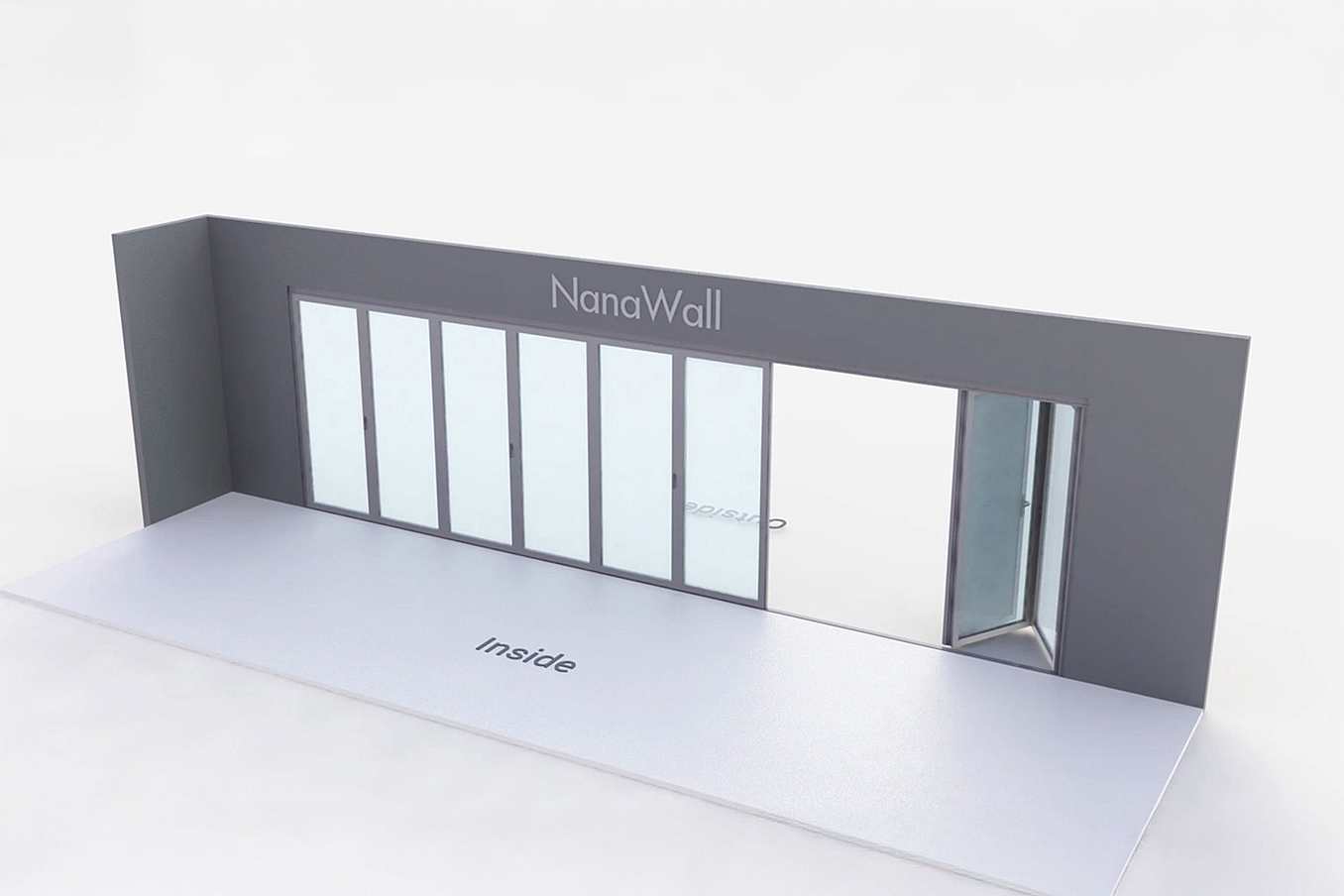

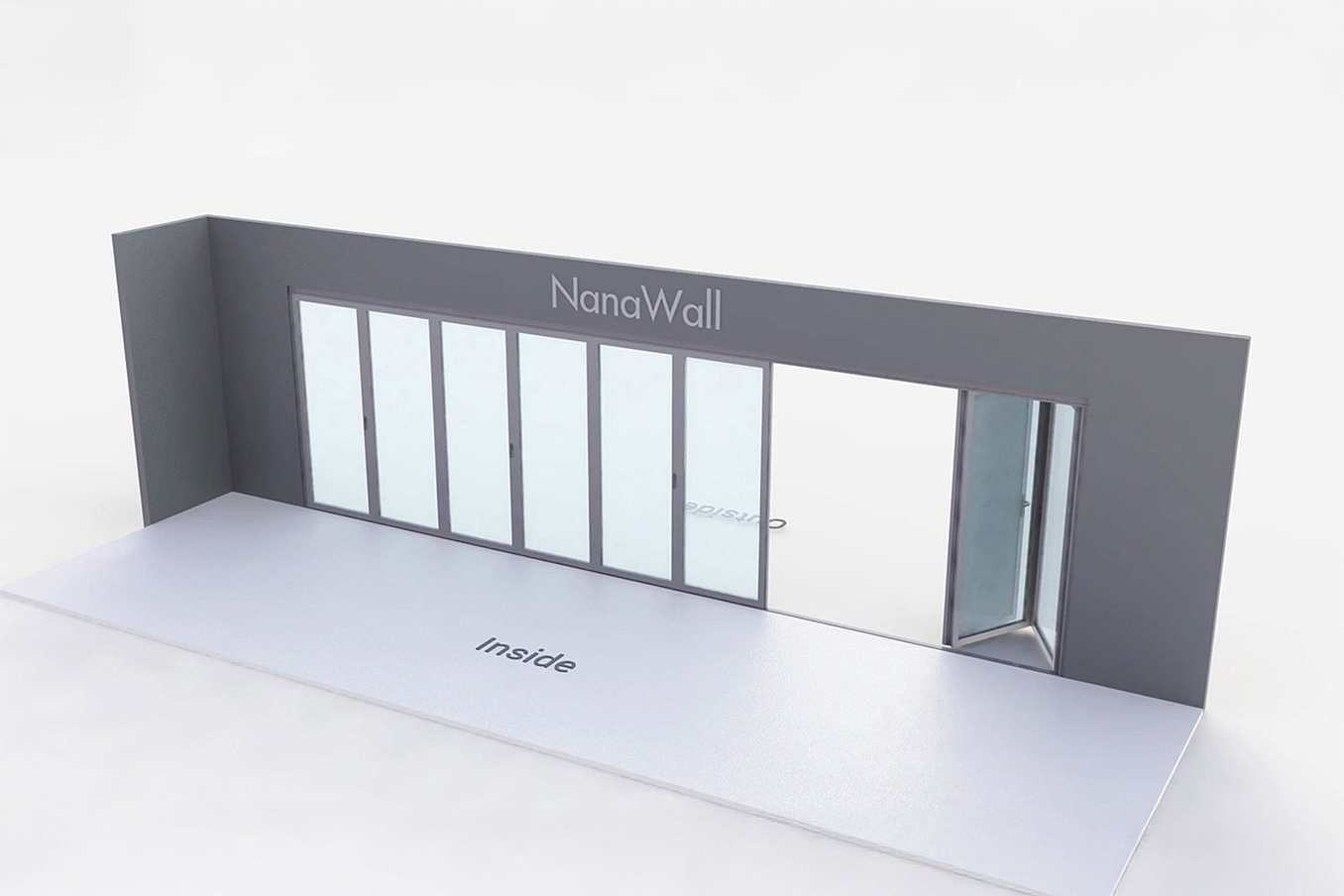

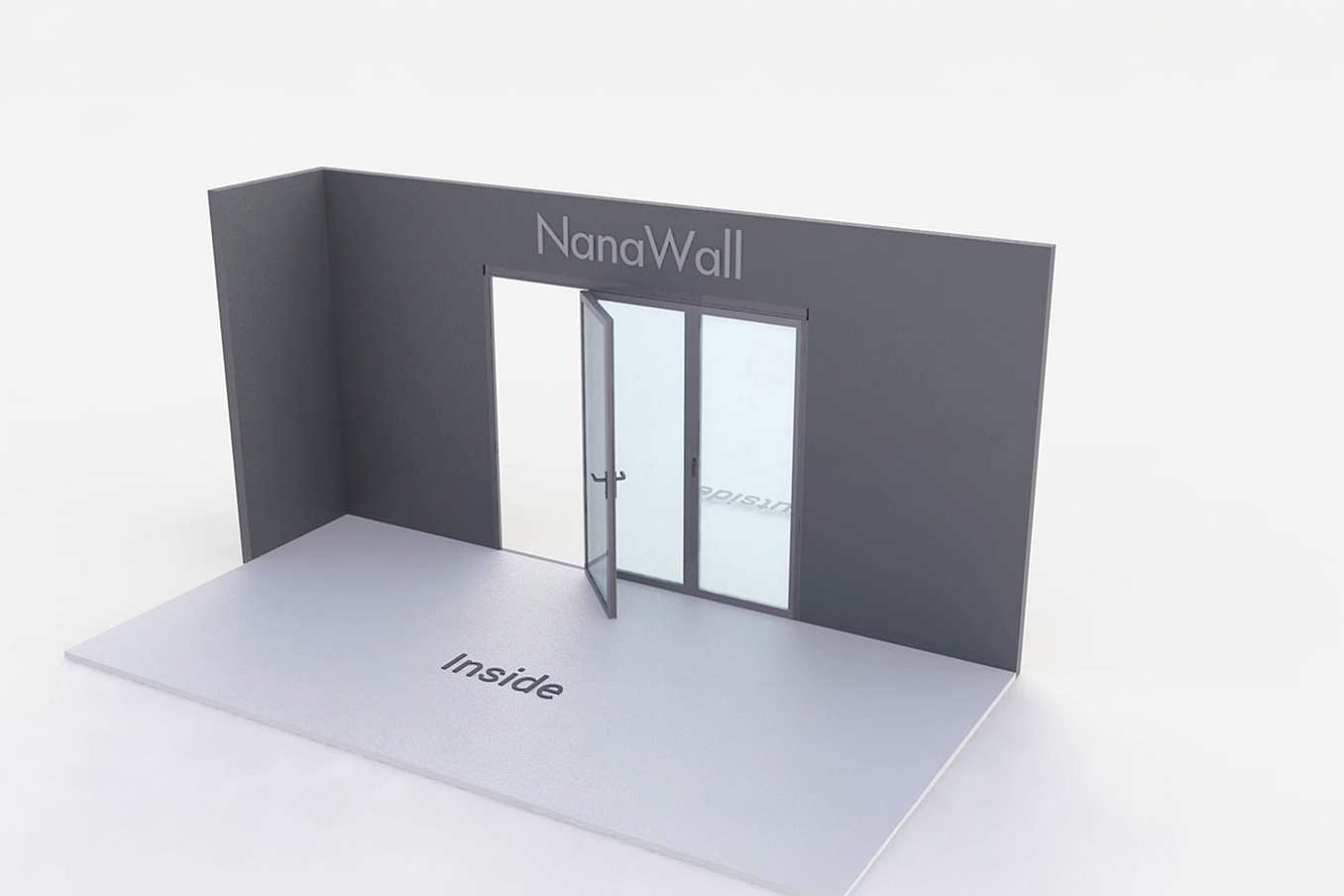

Over 90 standard configurations for straight forward folding systems
All Standard Configurations

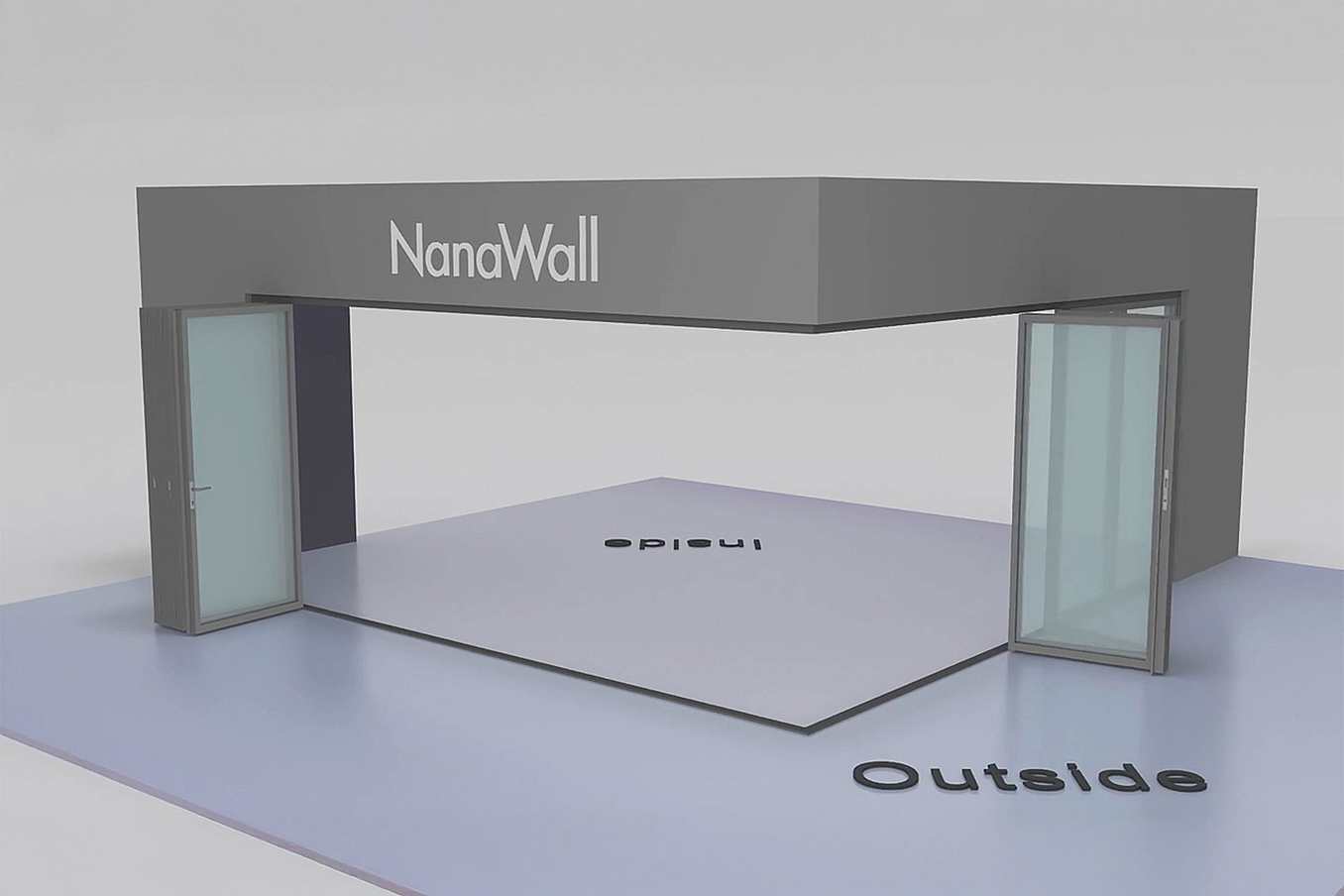

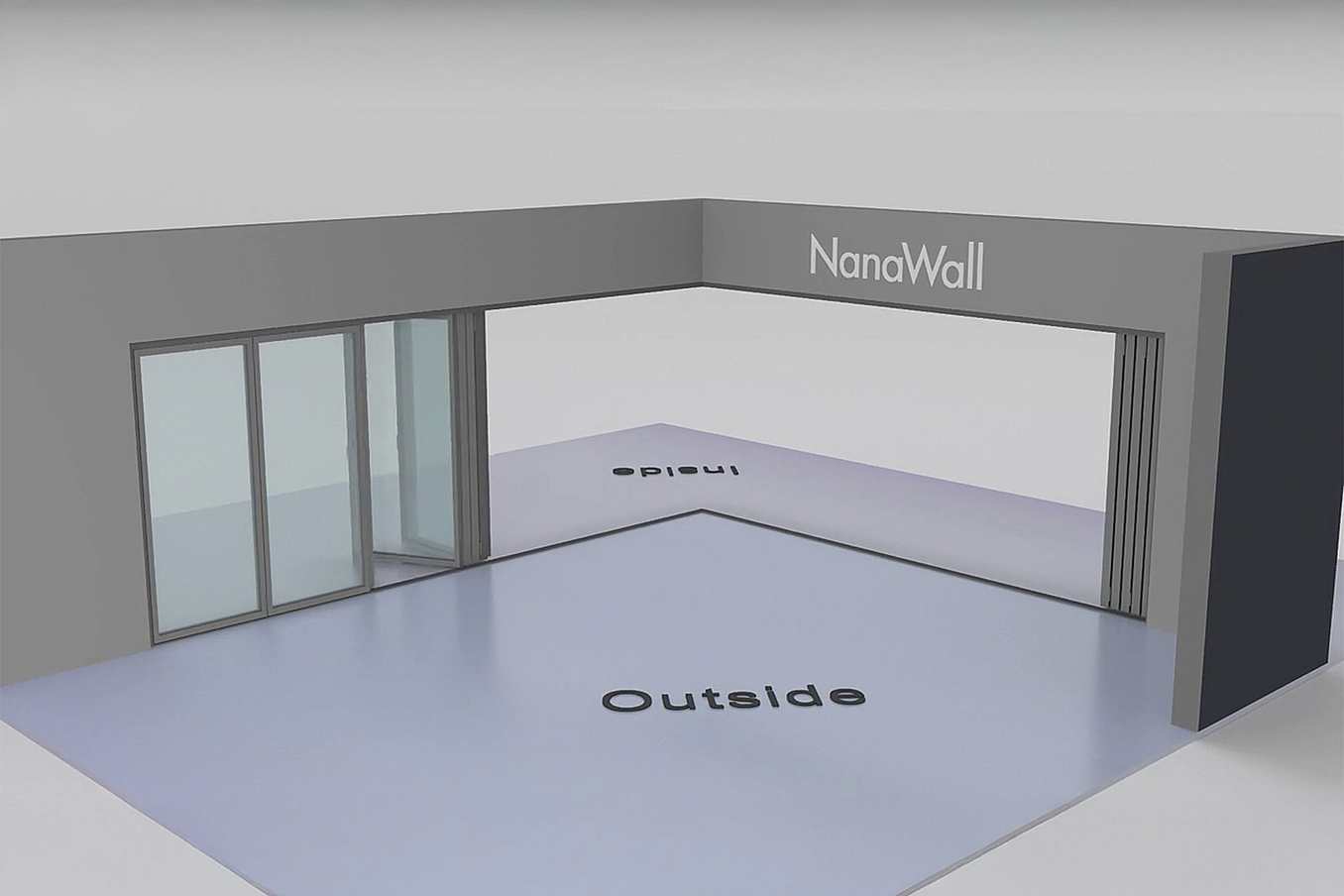

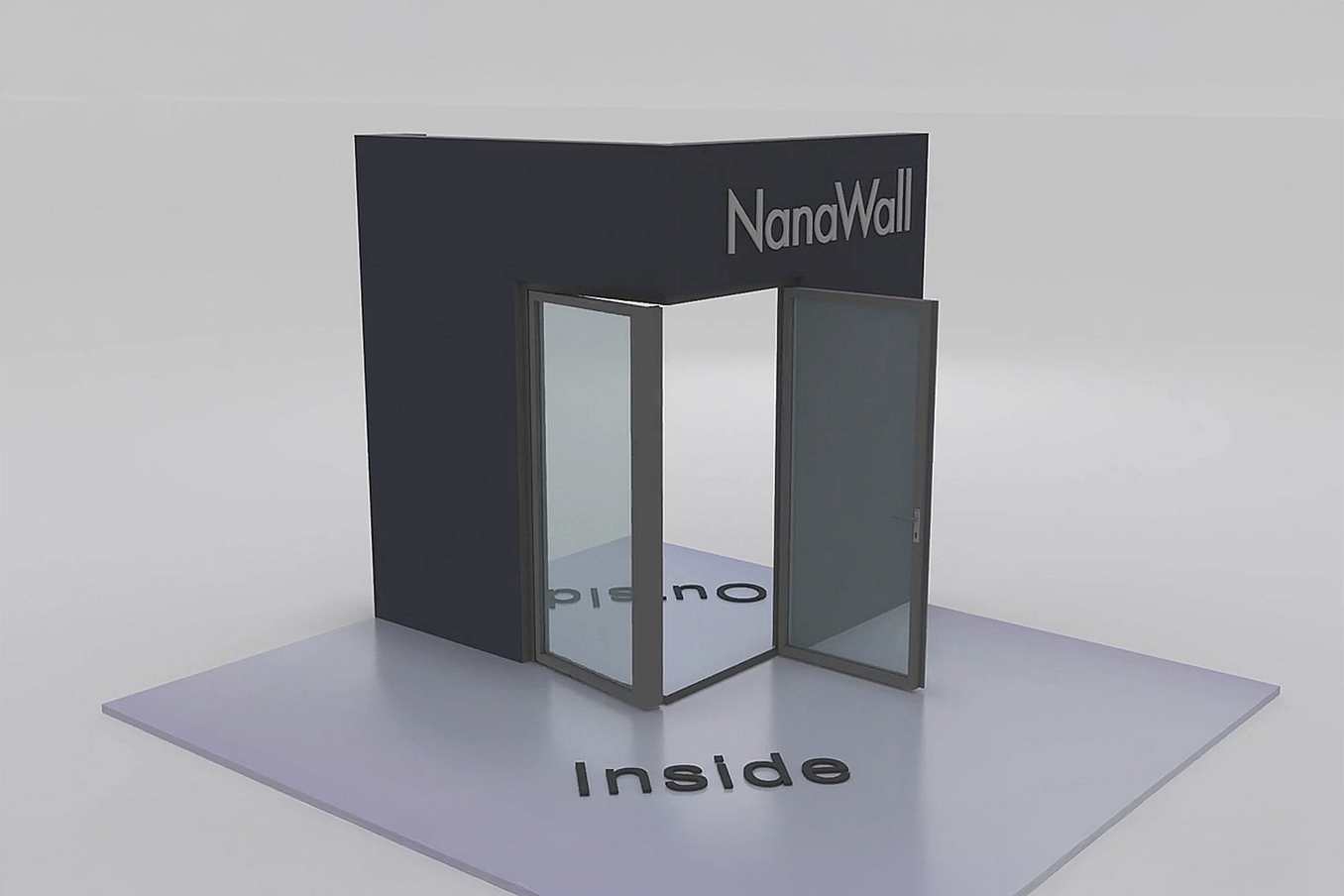

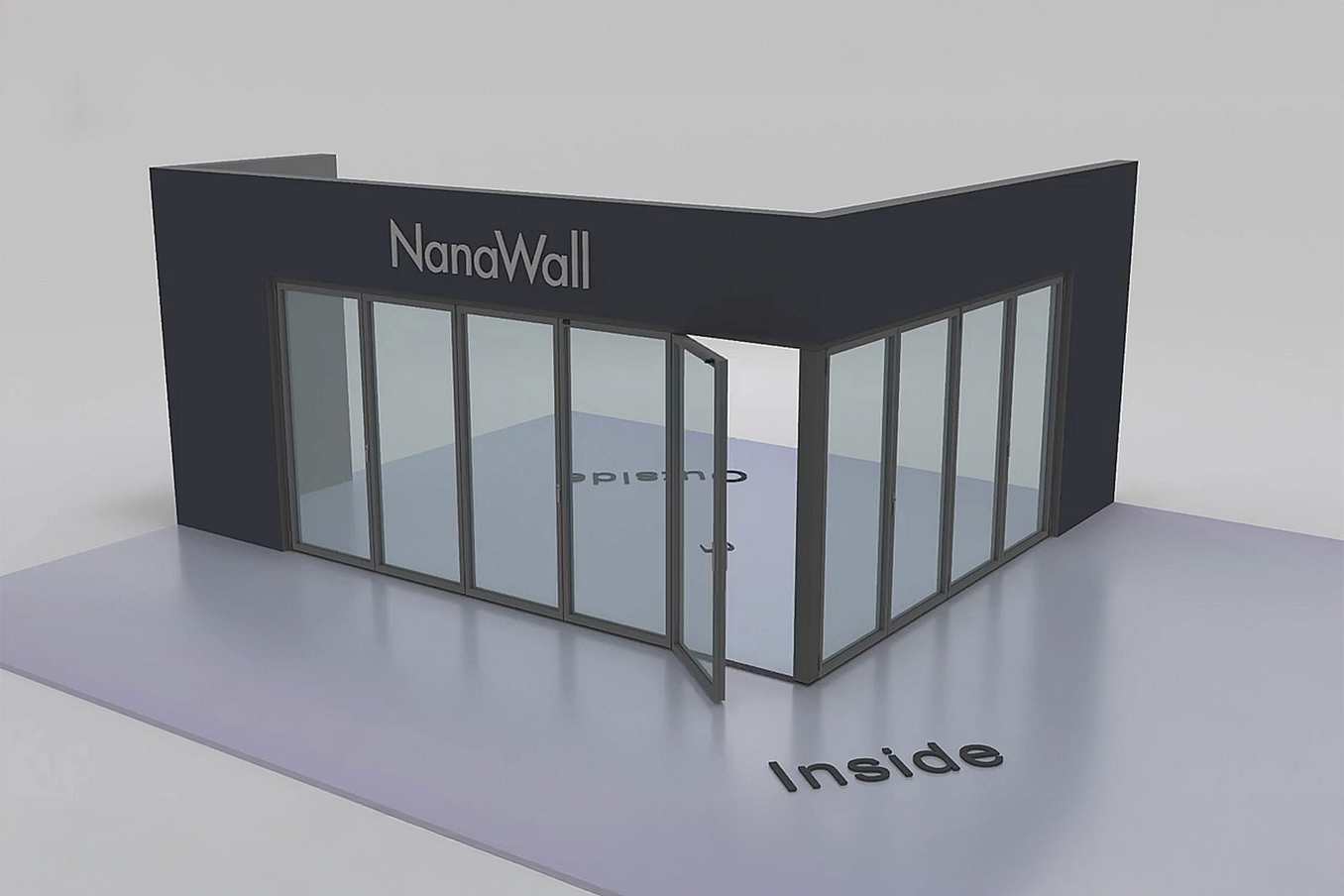

All standard configurations are available in cornerless options.
More Configurations

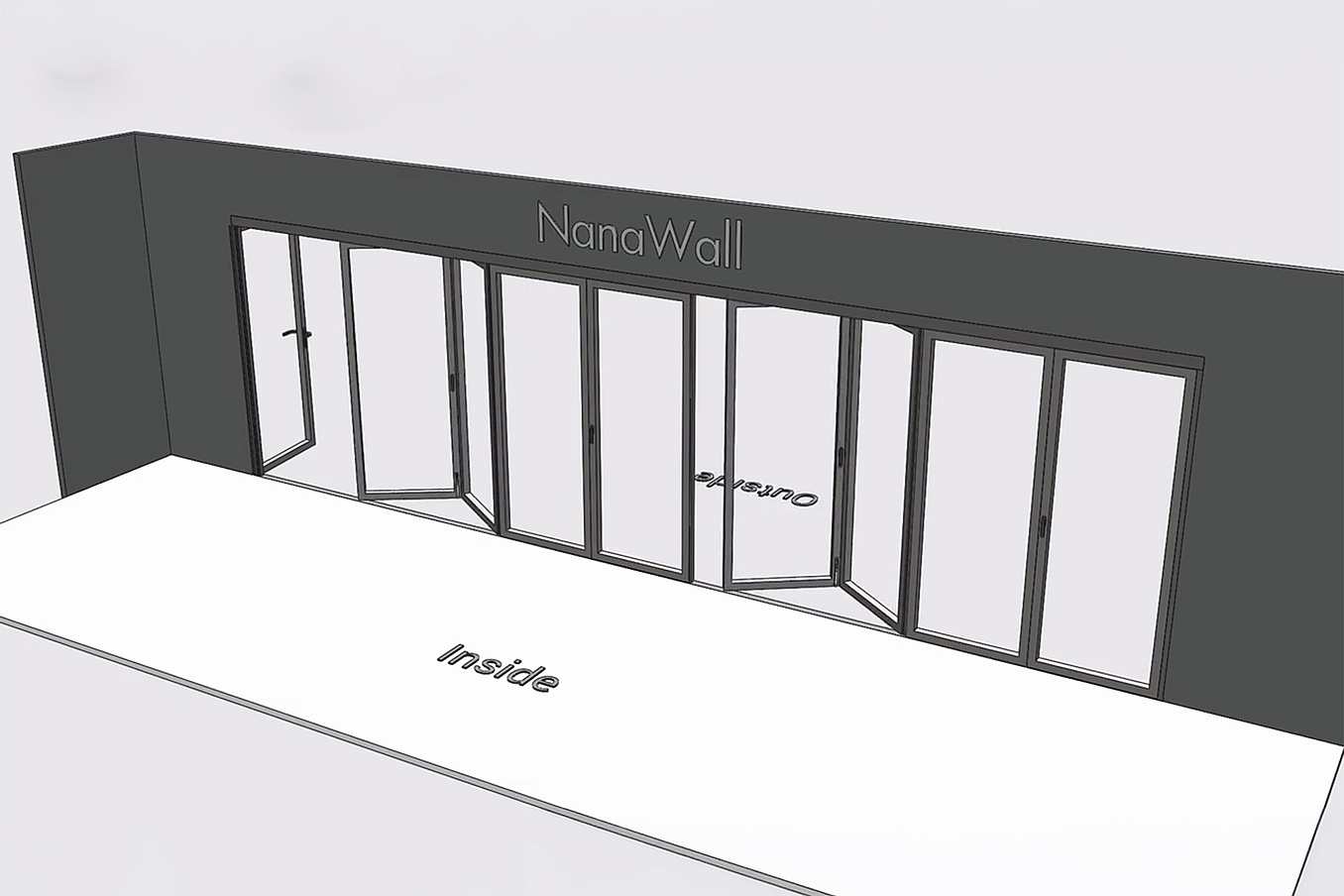

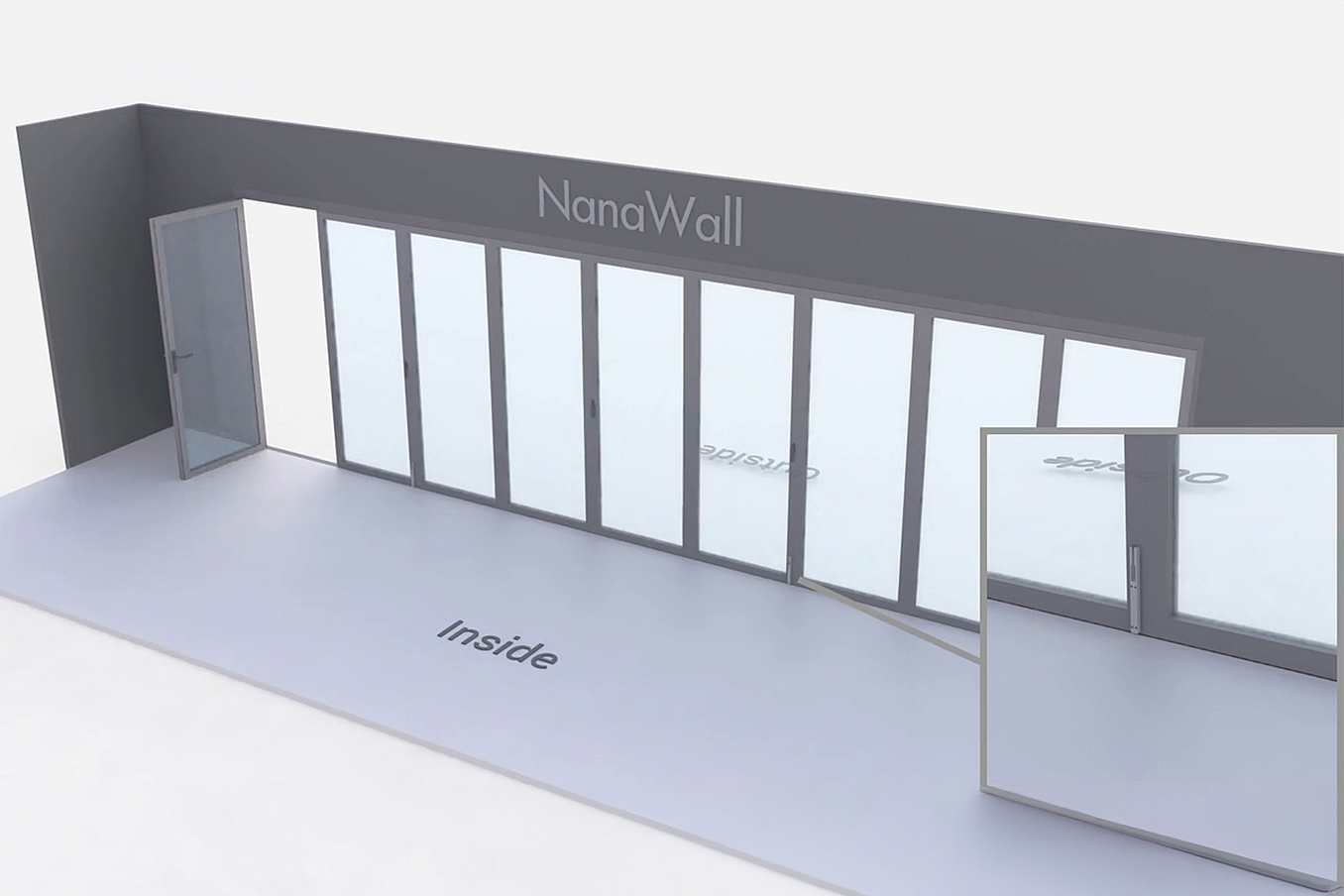

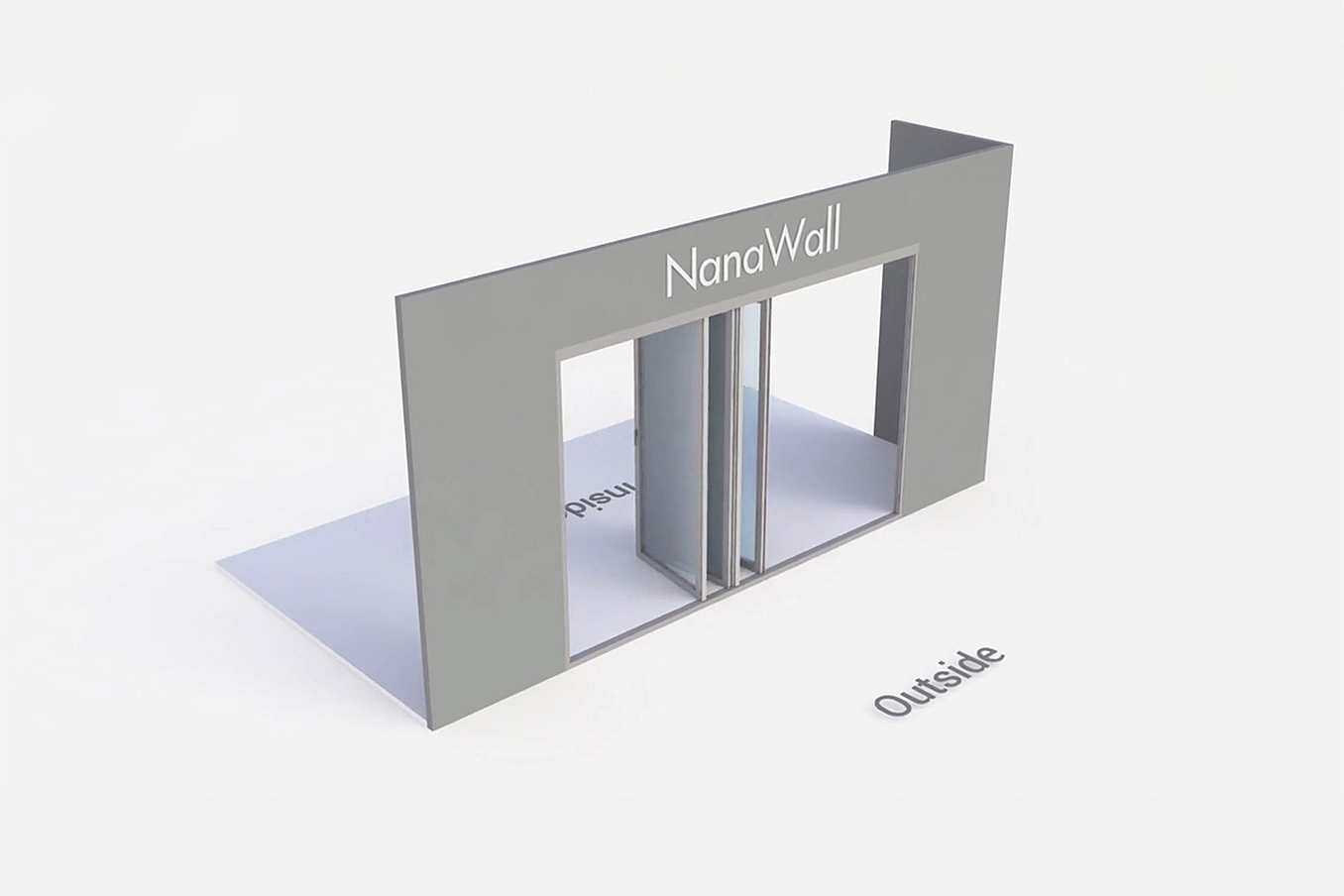

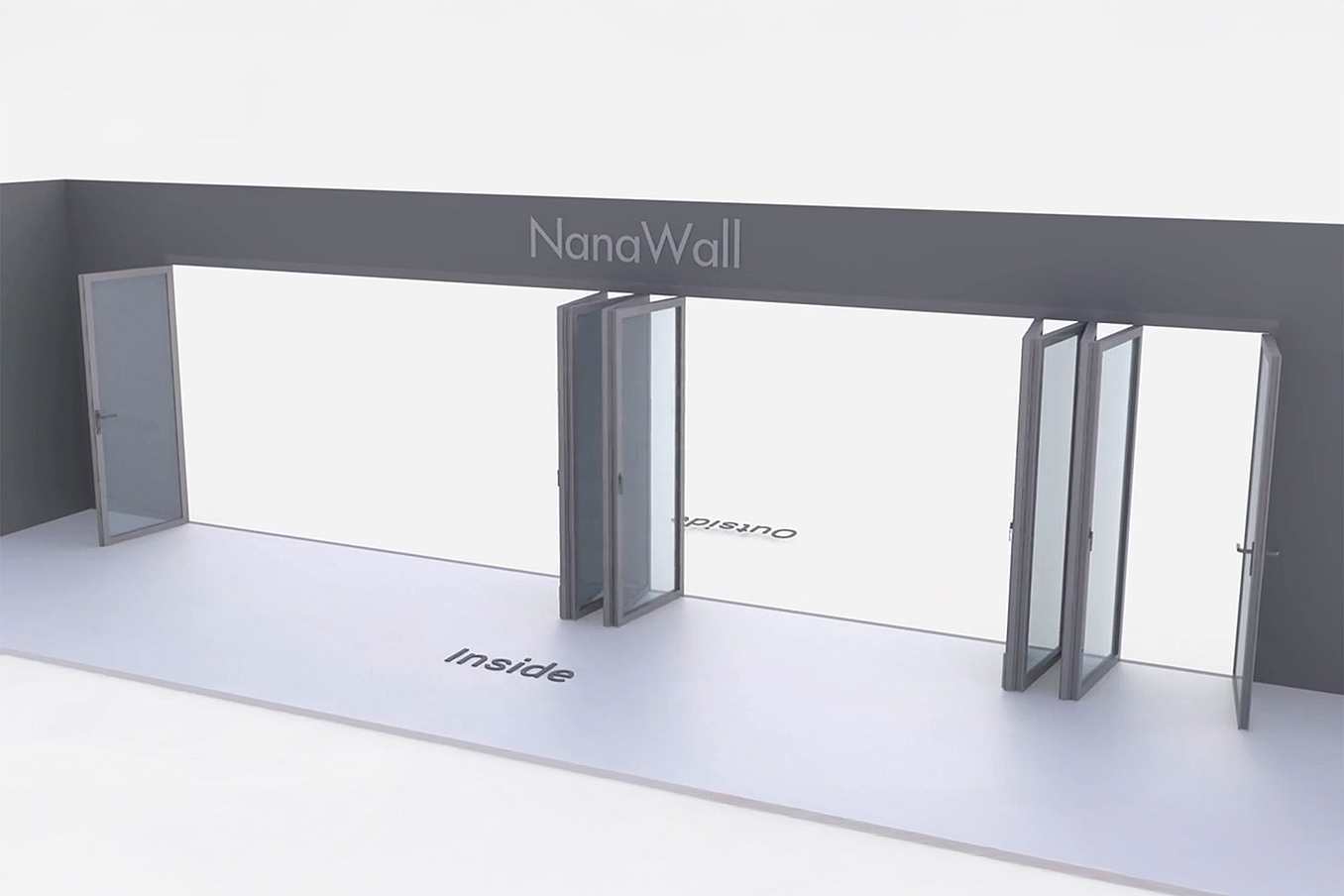

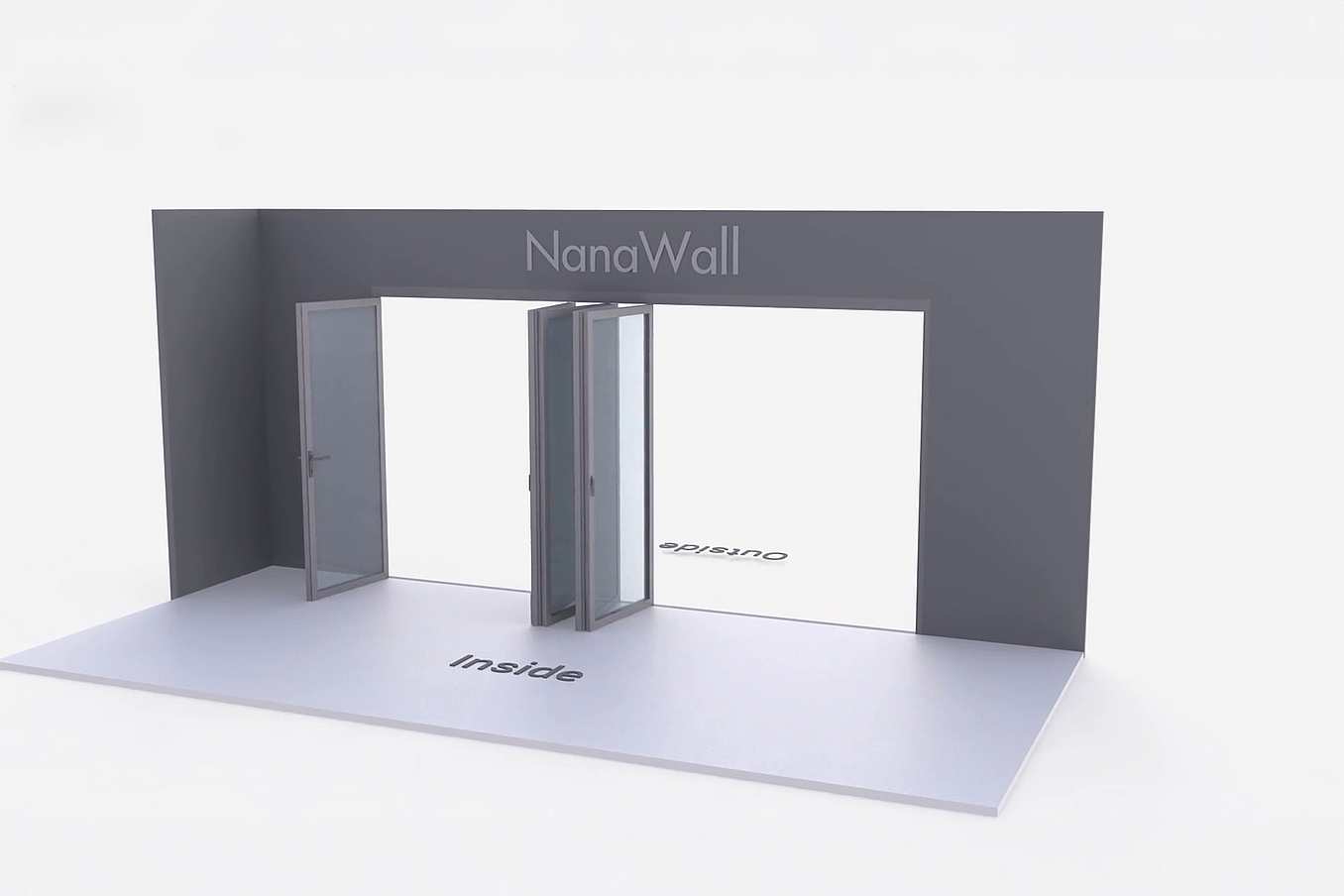

In any standard folding configuration, between folding panels stacking to the left and folding panels stacking to the right, additional floating left/right paired panels, fourfold or sixfold panel sets can be added. Shown are some typical examples.
More Configurations
Taking Folding Glass Walls Beyond Traditional 90-degree Stacking
More Configurations
Combine a NanaWall Folding Glass Window with a NanaWall Folding Glass Wall seamlessly
More Configurations
- Unhinged Paired Panels
- Segmented Radius

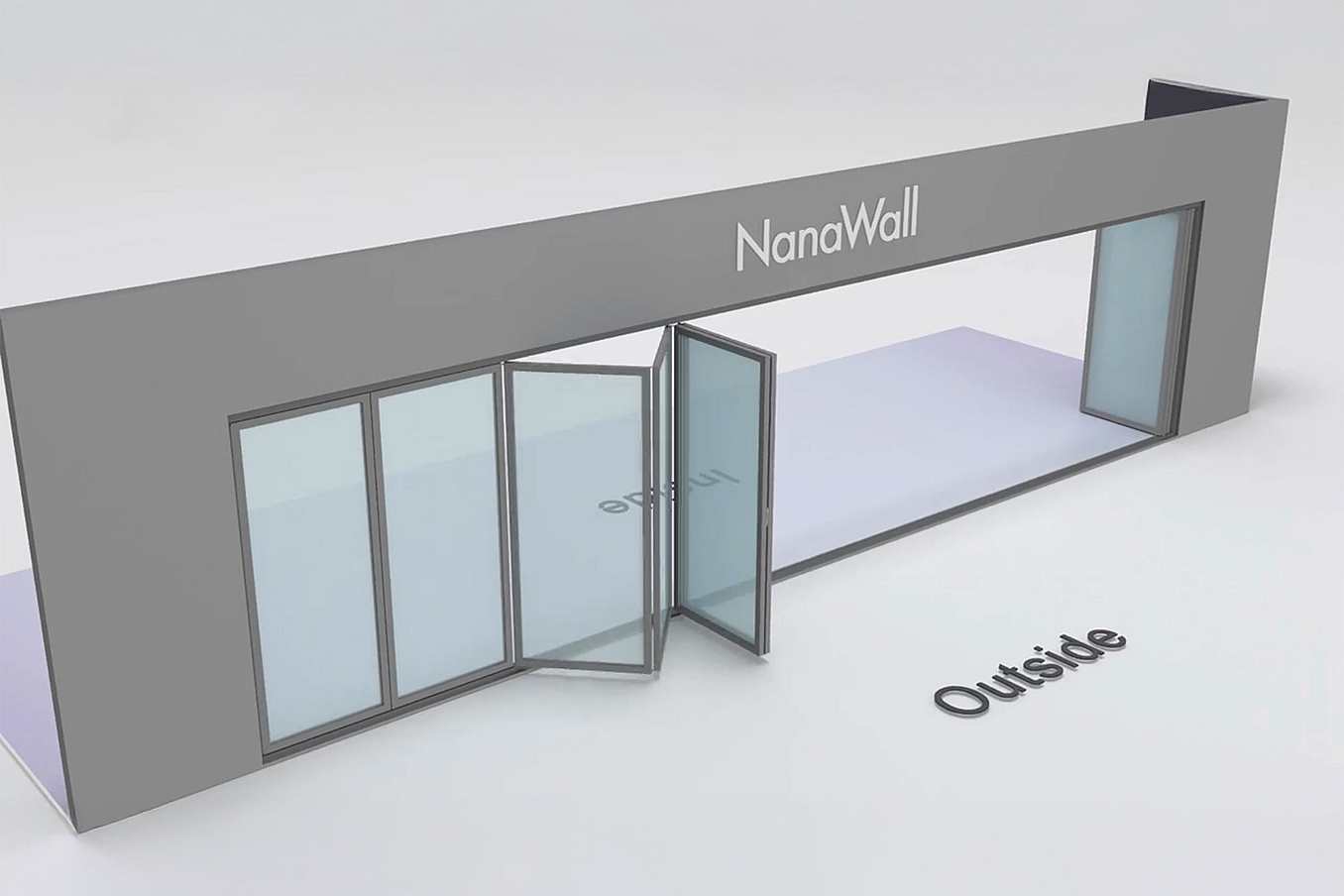

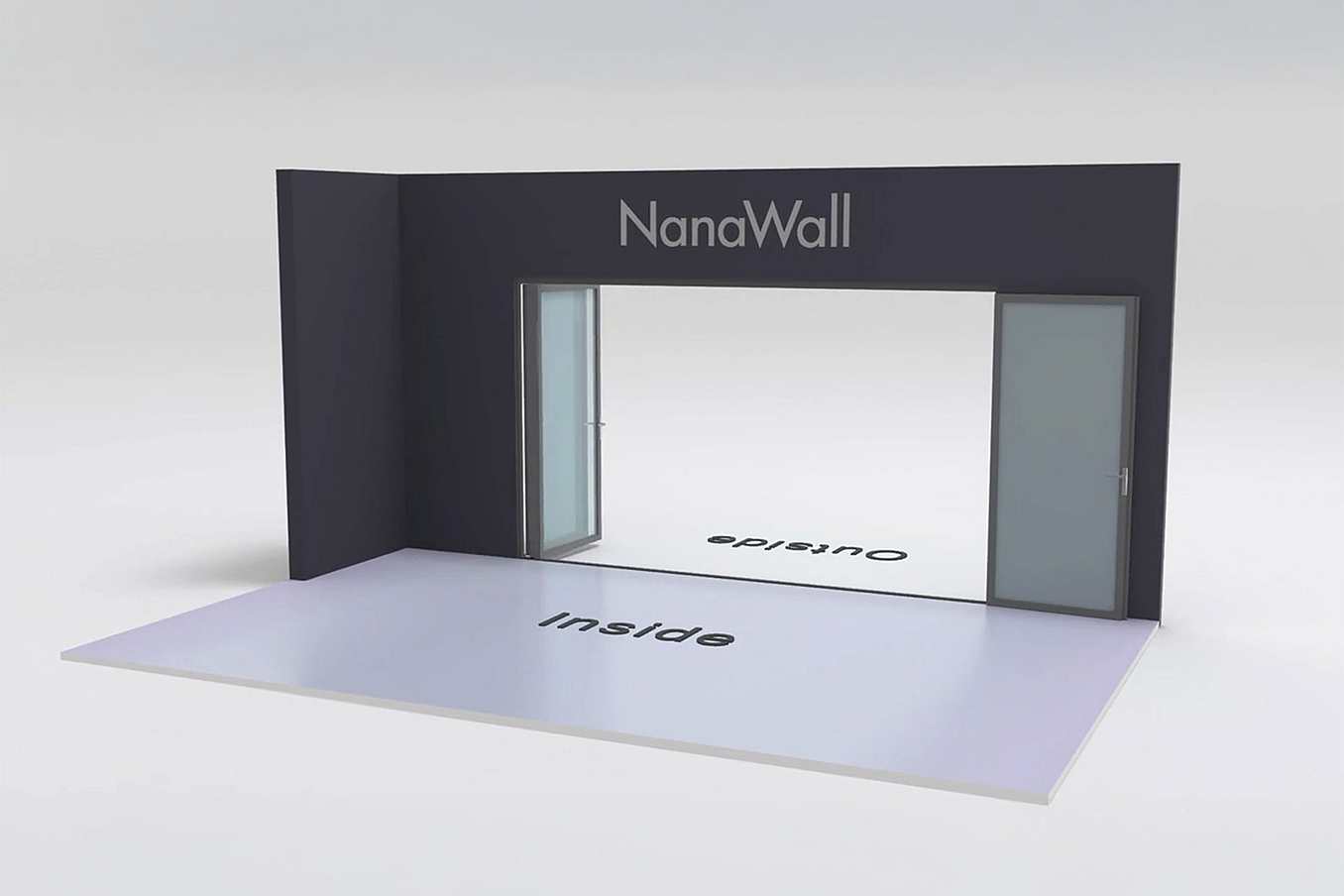

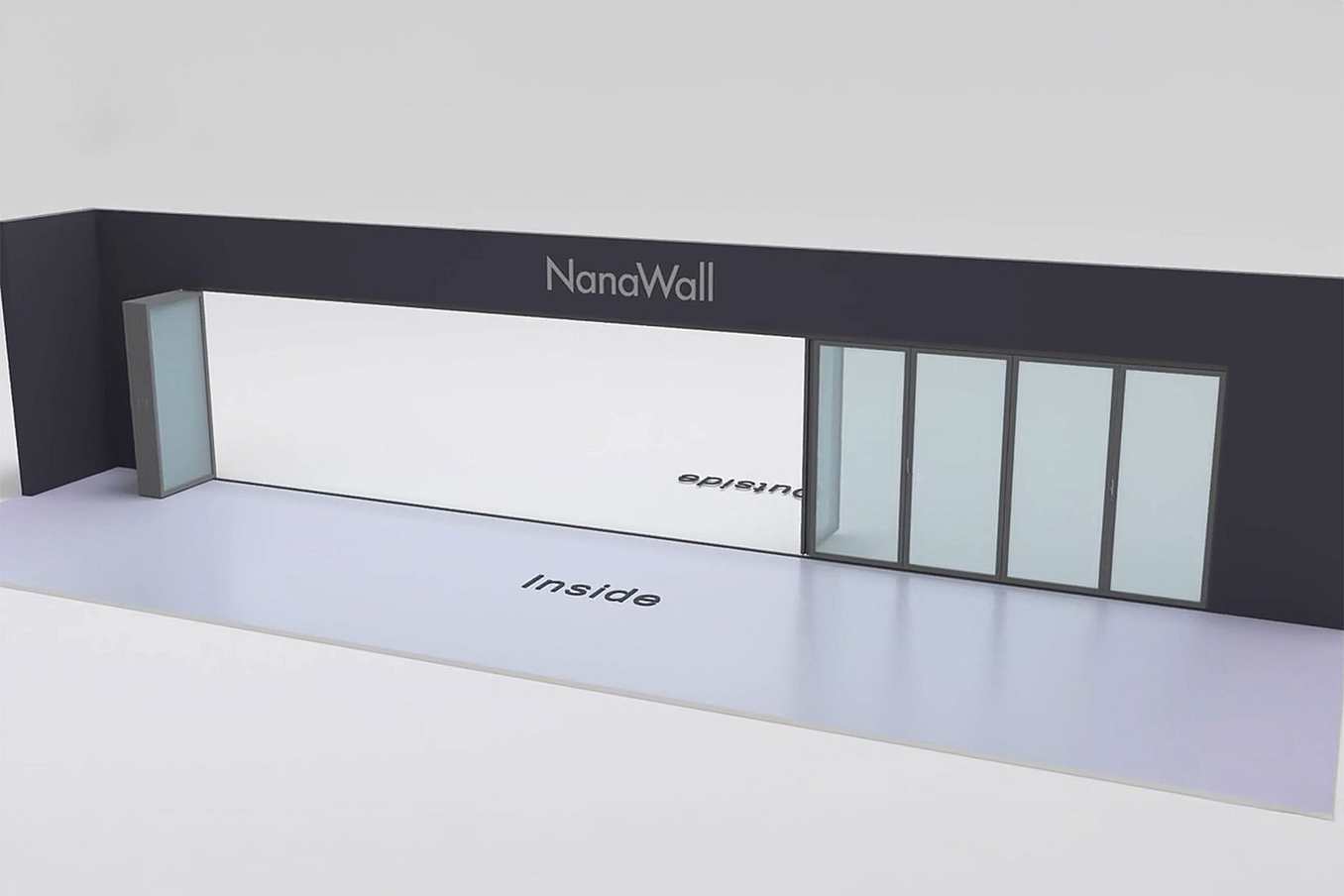

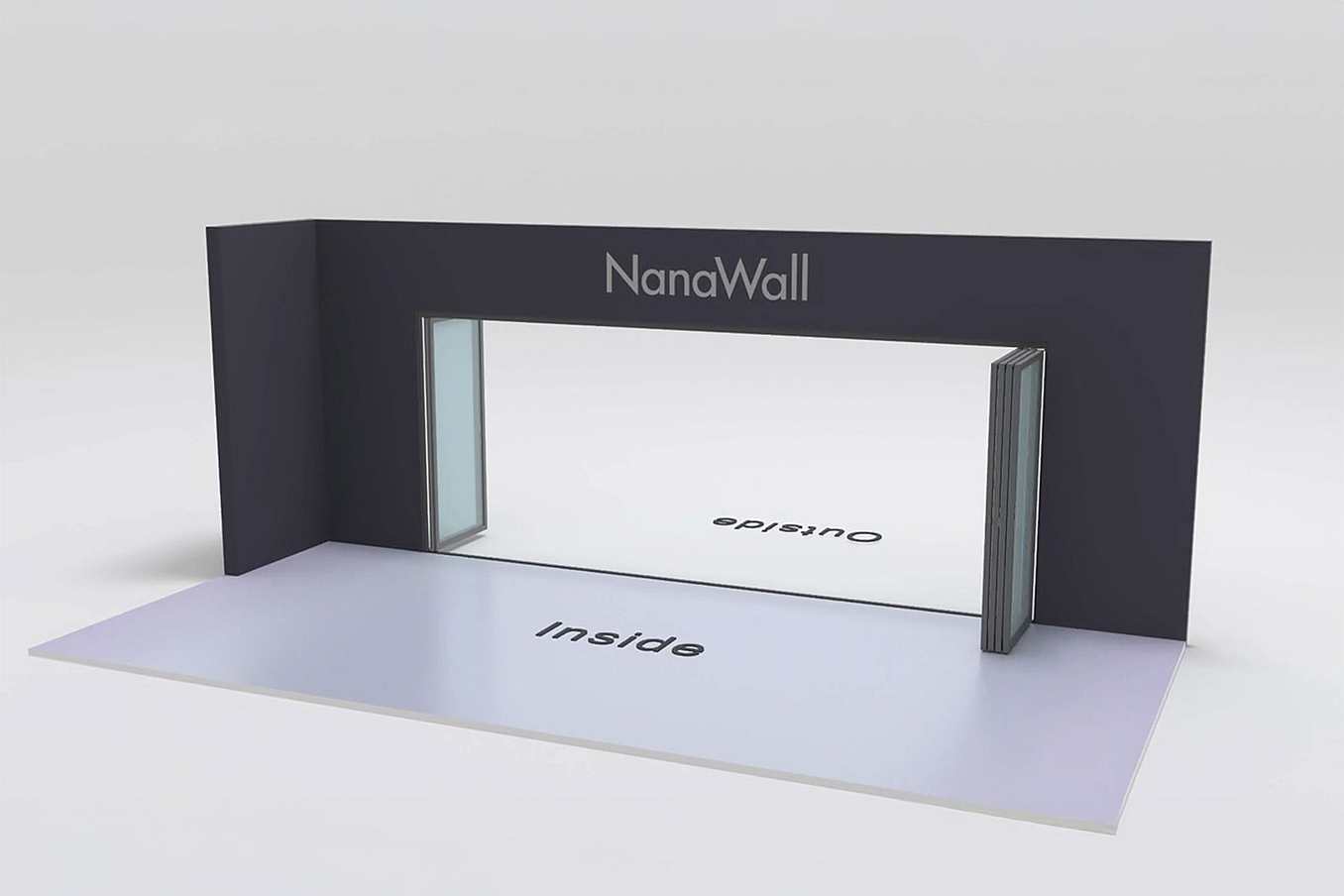

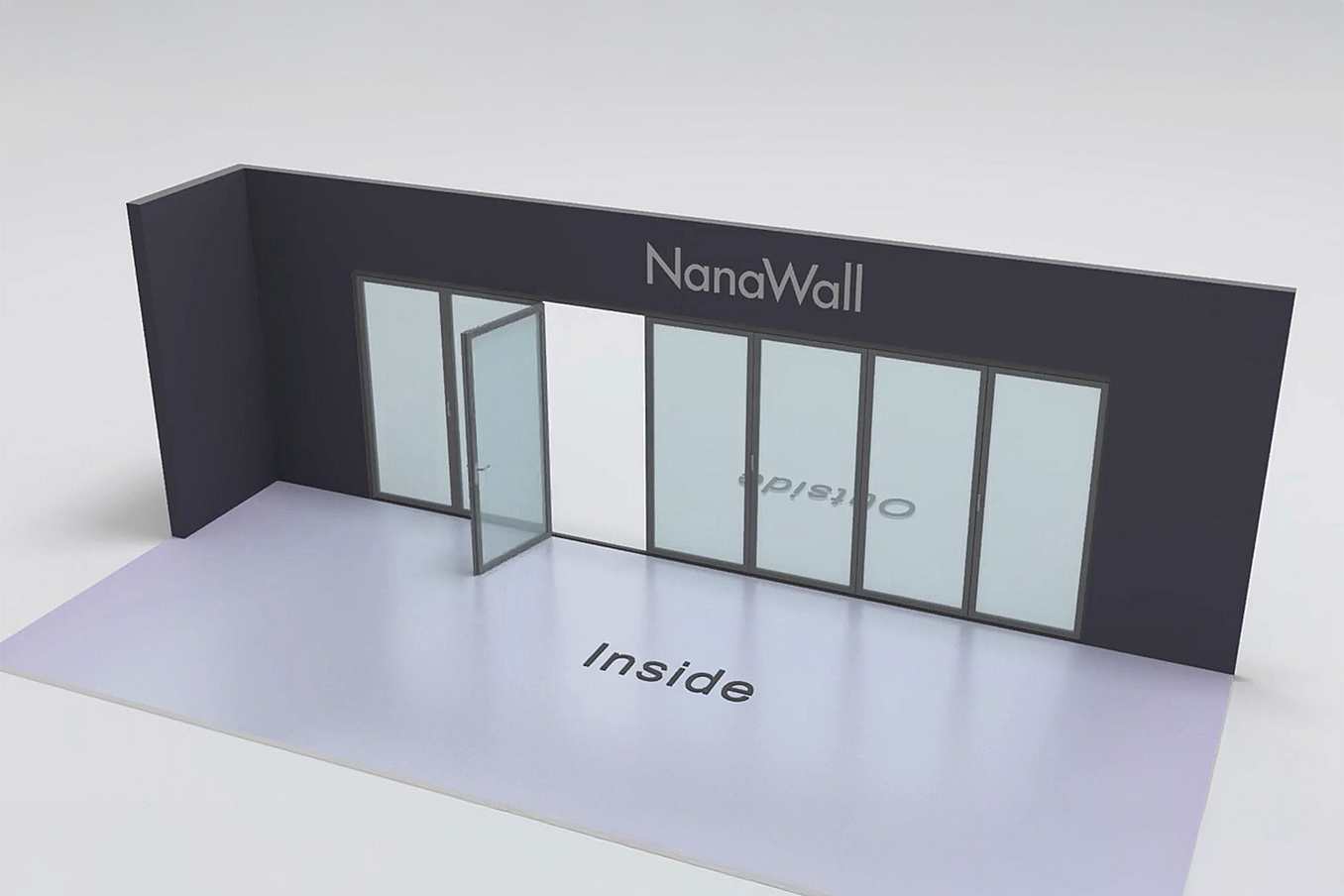

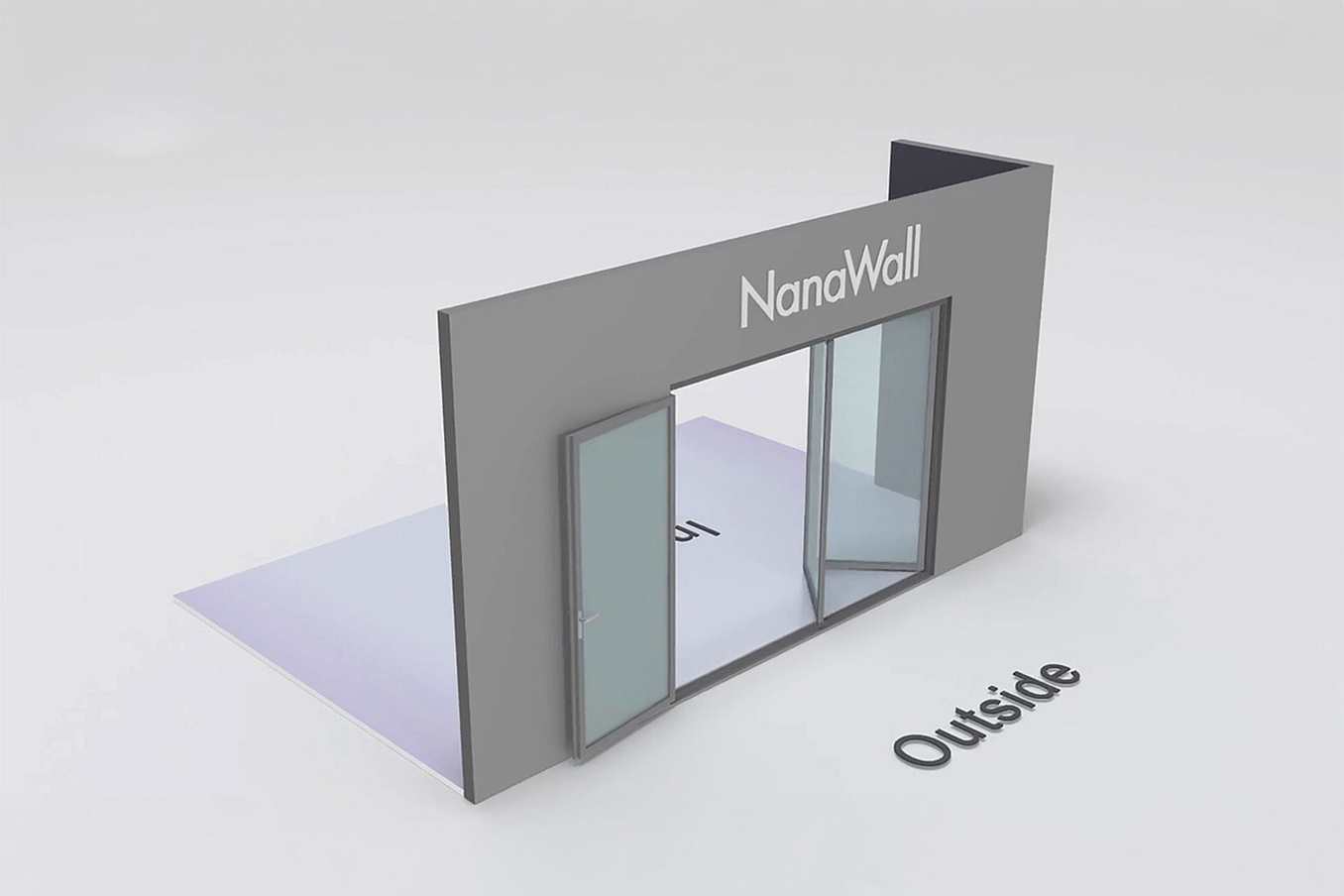

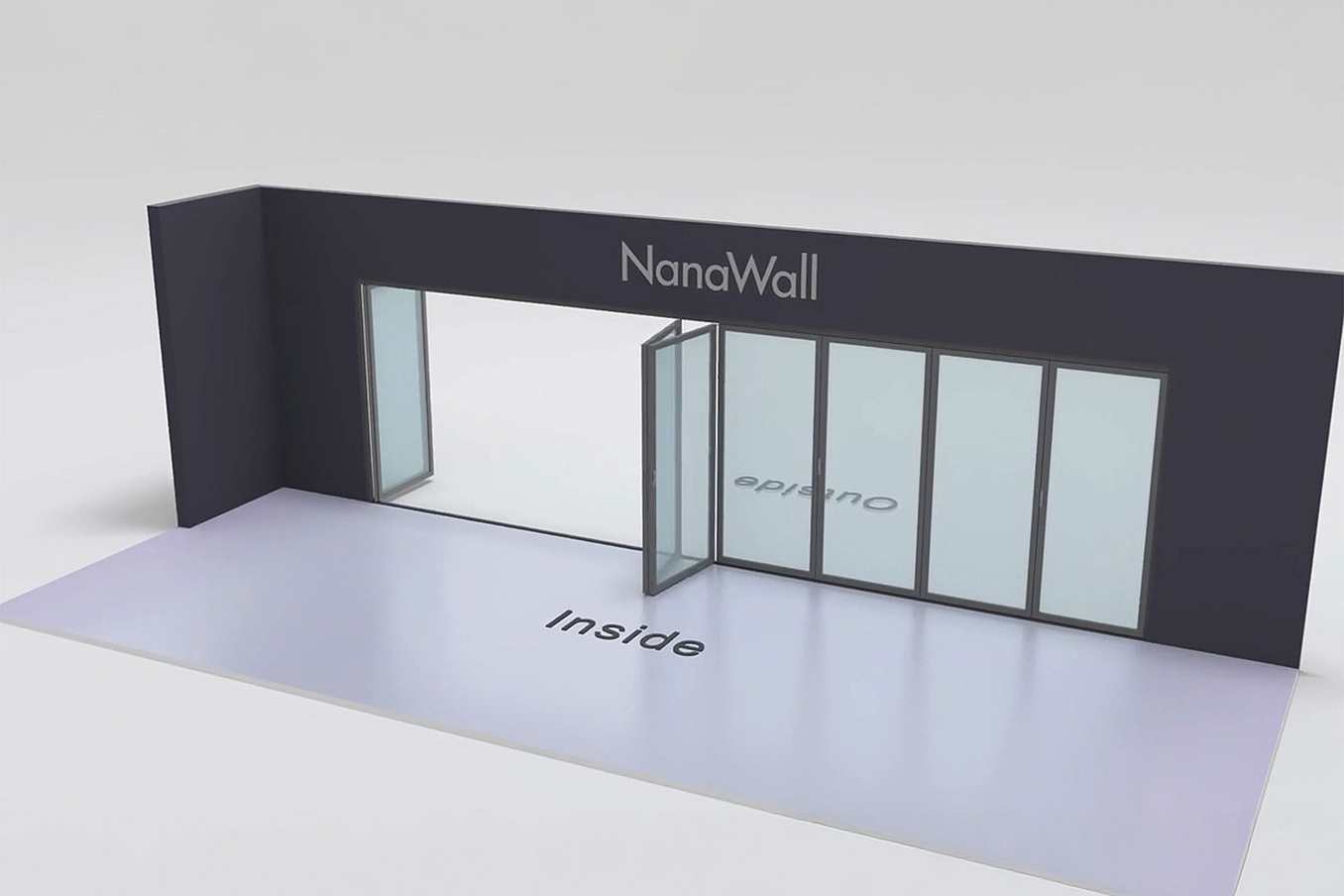

- Inward/Outward Combination
- Center Pivot Stacking
