NW Aluminum 640
Slimmest Aluminum Framed Folding Glass Door
- Thermally broken exterior system delivers exceptional energy efficiency
- Ultra-slim panel frame measuring 1 3/4" (45 mm) for sleek, minimal aesthetics
- Floor supported panels capable of heights up to 11′ 6″ (3500 mm)
Slimmest Profile with Minimal Aesthetics
With the slimmest aluminum frame of the NanaWall folding product line, the frame profile is styled in a crisp, angular design. The intersection of two folding panels is a mere 3 7/8″ (99 mm). This floor supported system offers an extremely streamlined appearance with minimal exposed hardware, creating a new level of aesthetics.
Exceptional Energy Efficiency and Weather Performance
Designed for energy efficiency and strong weather performance, this thermally broken aluminum framed folding glass door provides exceptional protection from outside elements and delivers comfort and security when closed.
Custom-Built Architectural Solution with Limitless Configurability
As a custom-built architectural solution, systems are available in inswing or outswing configurations and open corner designs. Capable of creating openings of unlimited widths, floating panel sets can be stacked in the most convenient location for ultimate flexibility.
FourFold and SixFold Panel Sets are able to move and stack either to the right, left, or center within the same track allowing the panels to be stacked in the most convenient location as needed.
Floor supported systems are ideal for applications where load-bearing capability of the header is a concern.
- Provides long-term durability and smooth operation.
- Control construction costs. Requires less header load and limits the need for extensive pre-cambering.
- Improves likelihood of keeping existing header when retrofitting/remodeling.

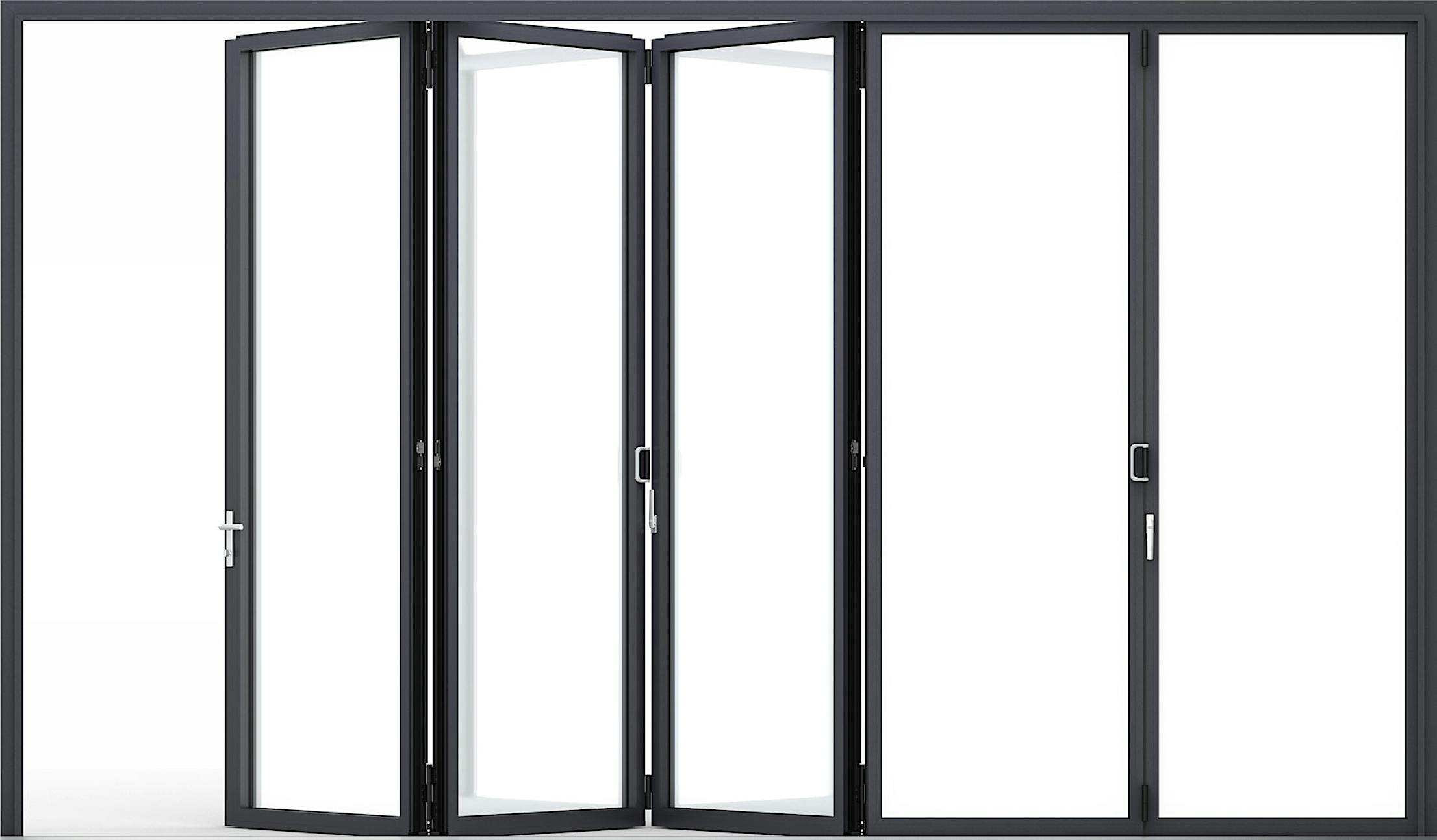

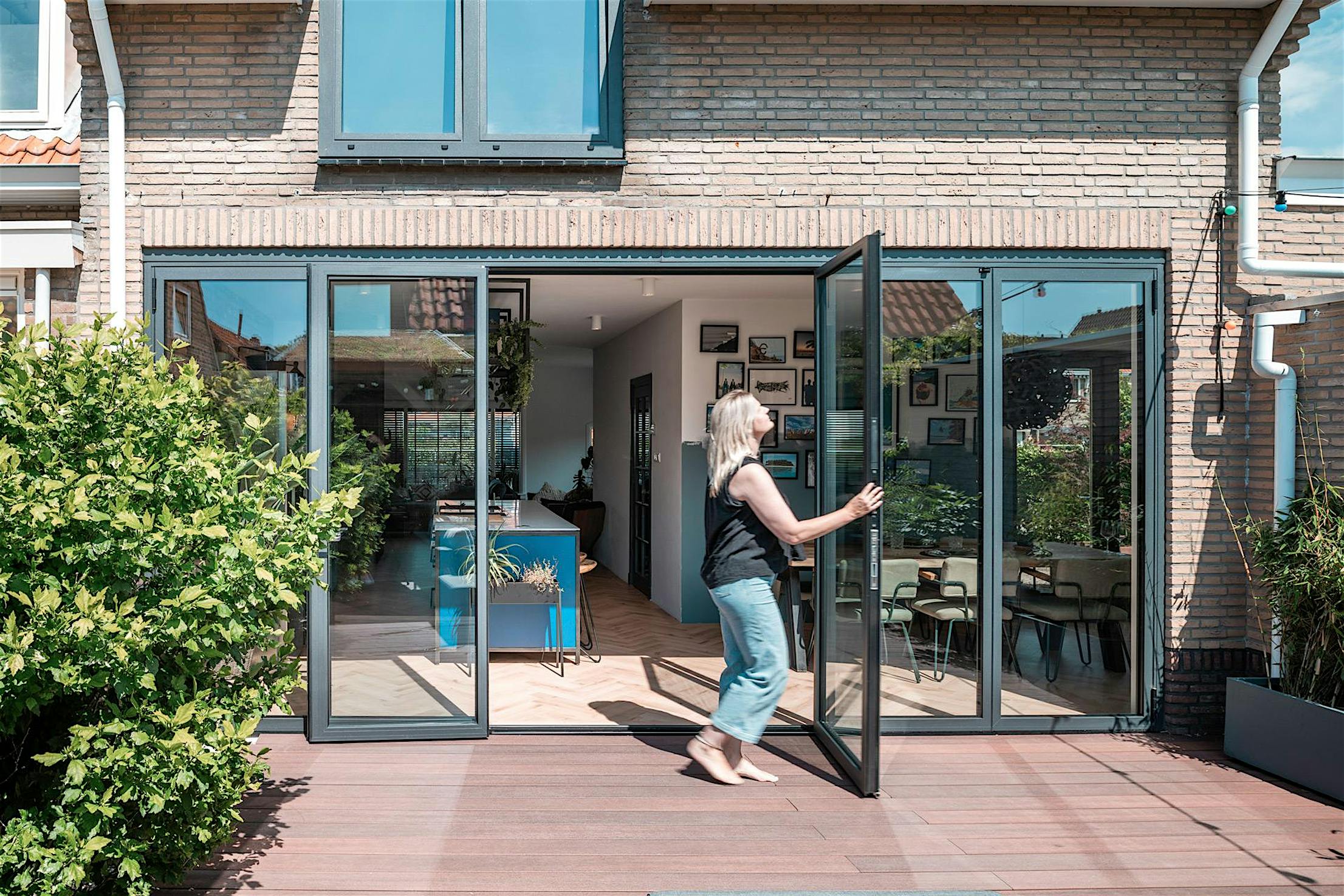

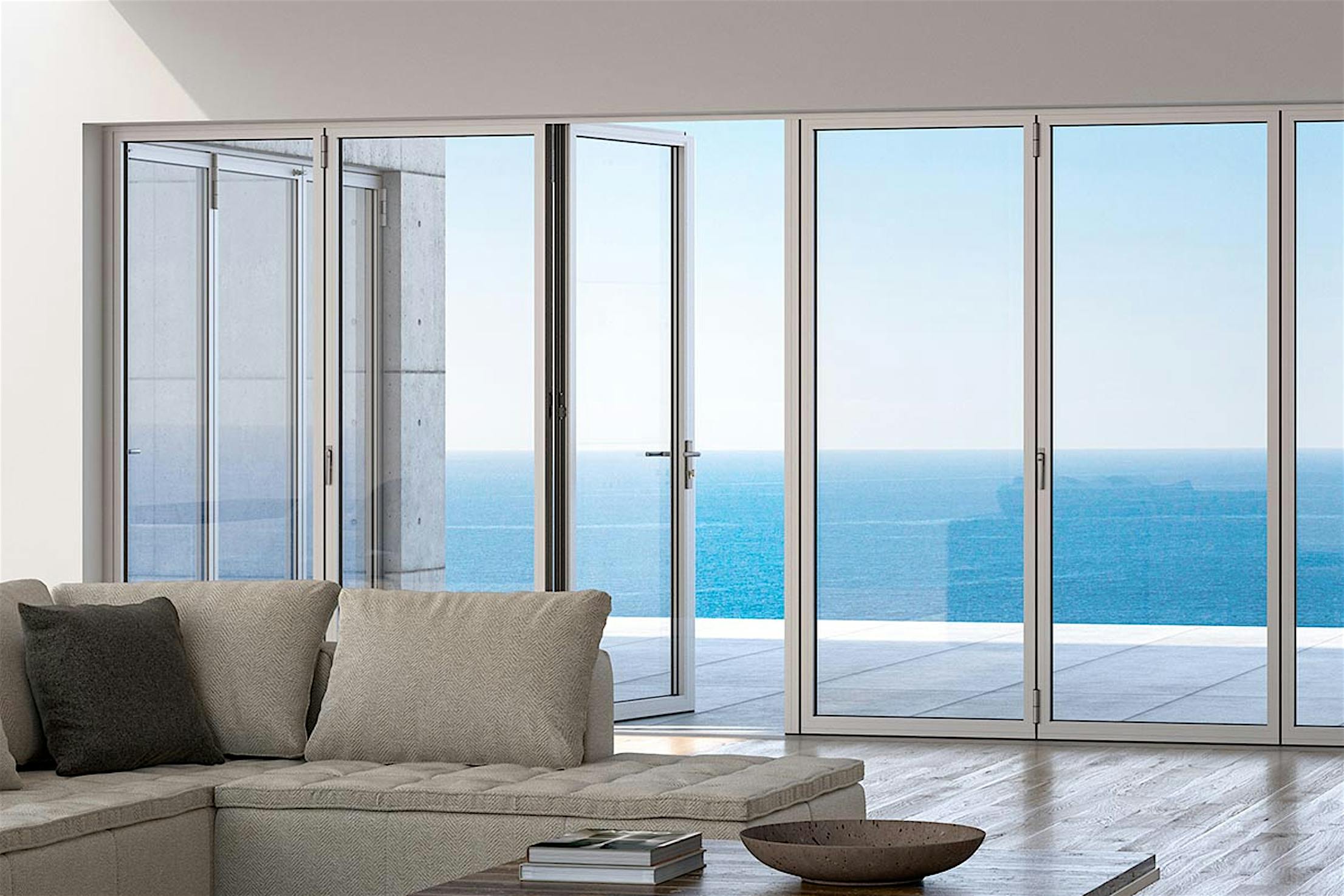

To accommodate easy access, swing panels can be added either to the end of a chain of an odd number of panels folding in one direction or hinged to the side jamb, depending on unit height and configuration.
NW Aluminum 640 allows for up to 3′ 3″ (1000 mm) swing panel hinged to the side jamb. Swing panels have been tested and passed over 500,000 cycles and can be optionally outfitted with higher kickplates for ADA compliance, panic hardware, and top door closers by others.

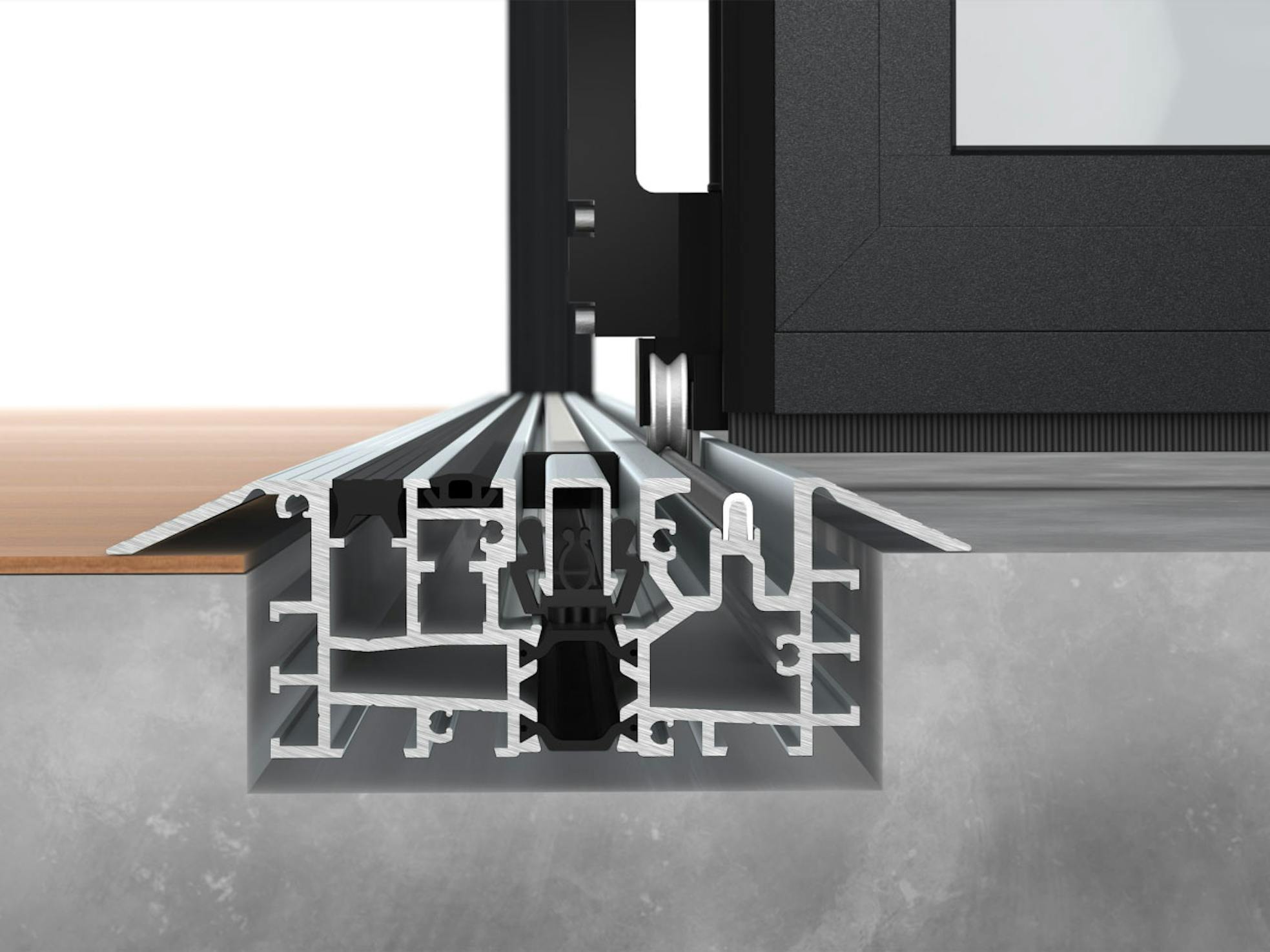

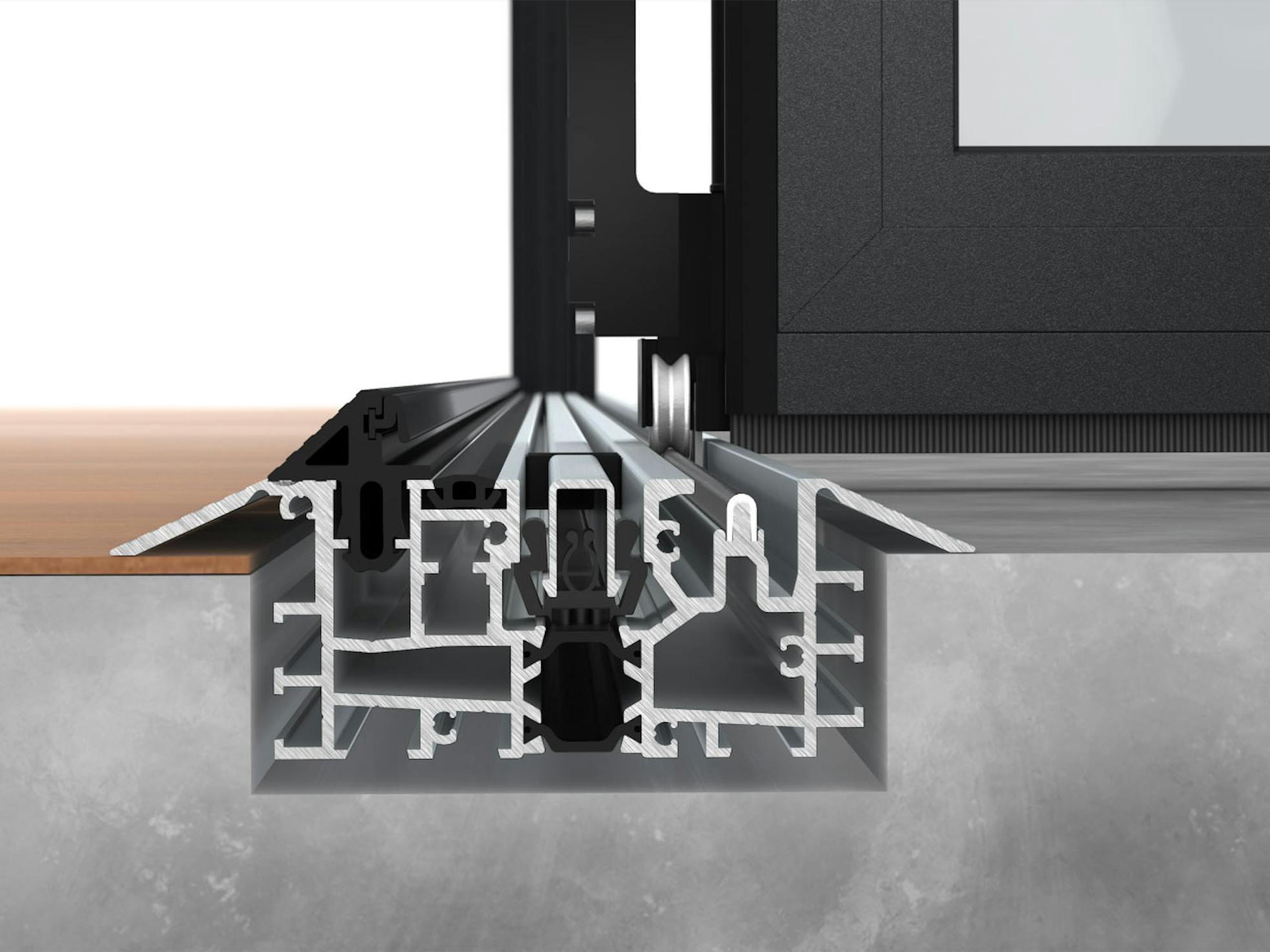

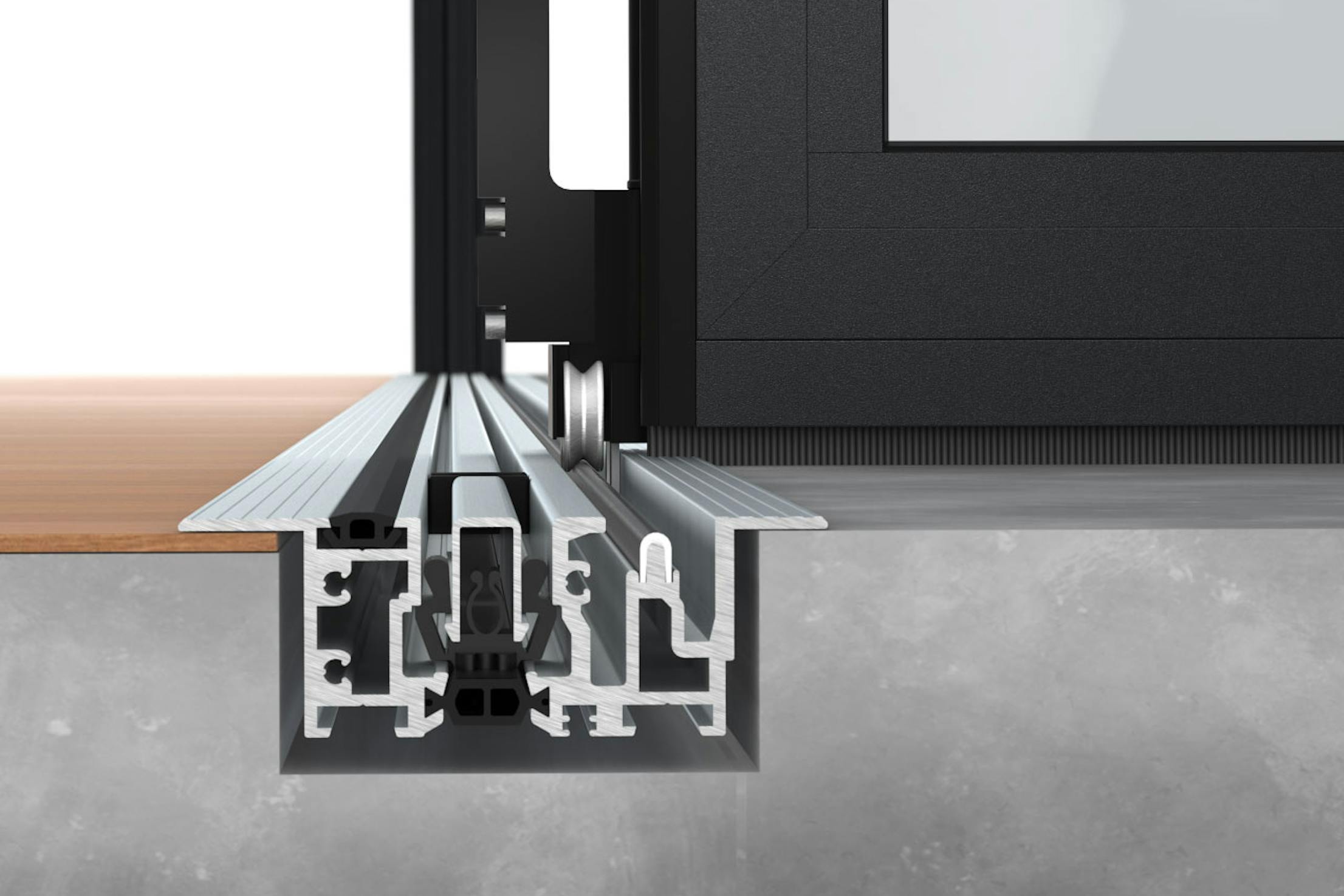

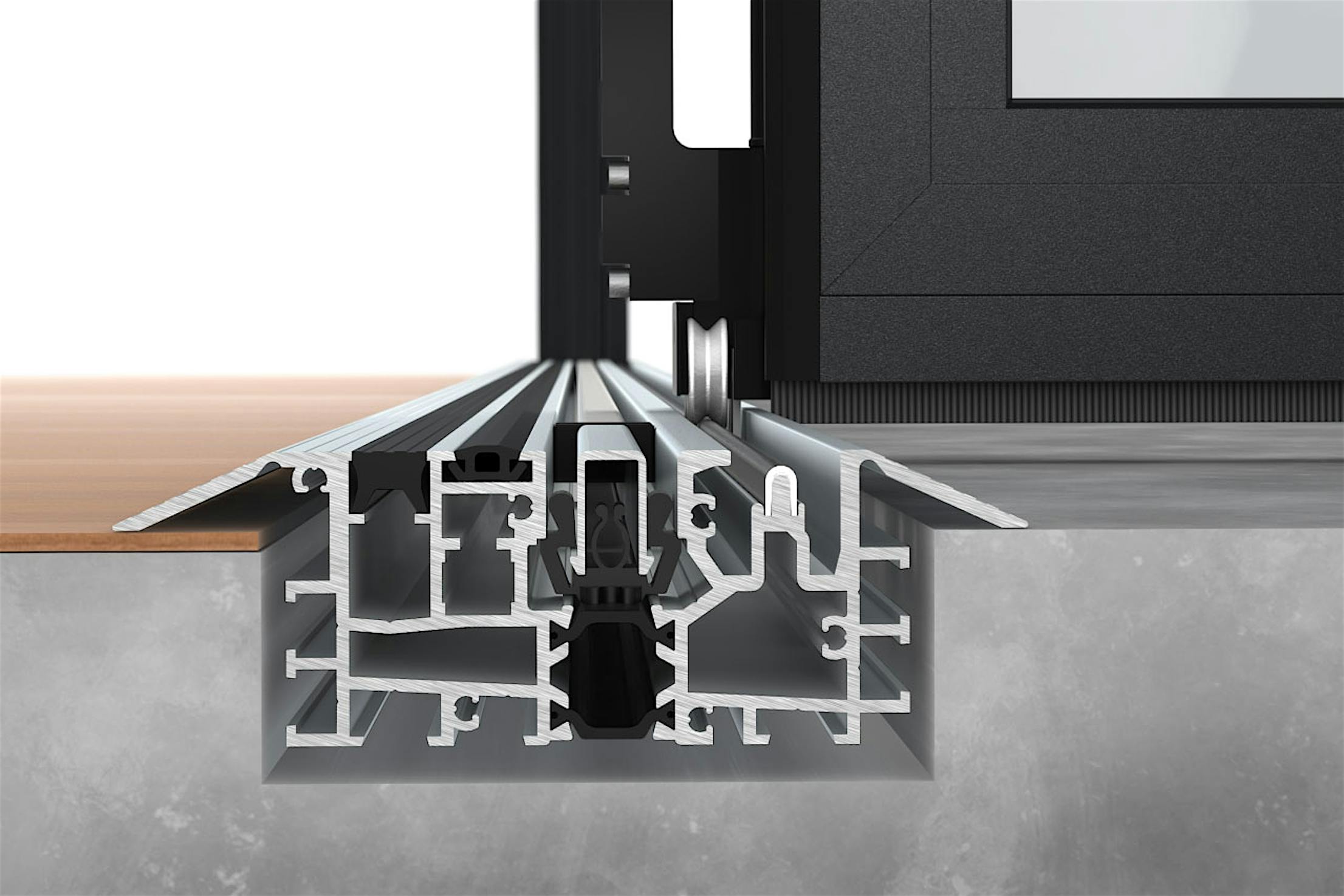

Three Sill Options with High Heel Resistant Feature
NW Aluminum 640 has three sill options: Performance, Low Profile Saddle, Low Profile Saddle with UniverSILL®. Standard to all sills is removable aluminum high heel resistant inserts. These inserts provide ADA compliance for the Low Profile Saddle and create barefoot-friendly transitions. Also, the inserts offer protection from dirt and debris collecting in the bottom track.
See Sill Options

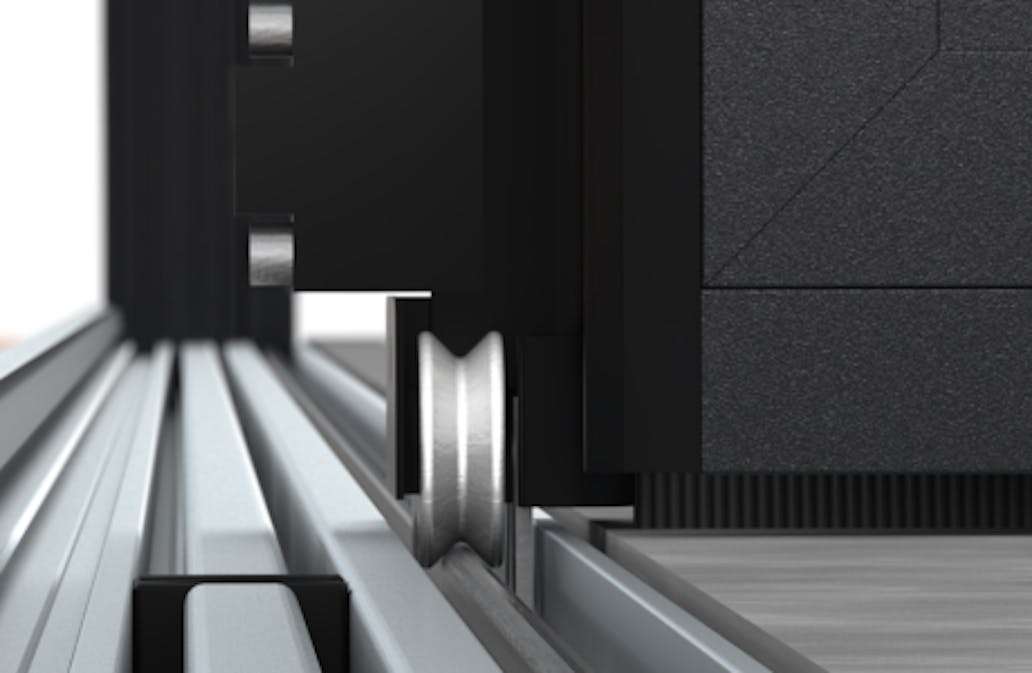

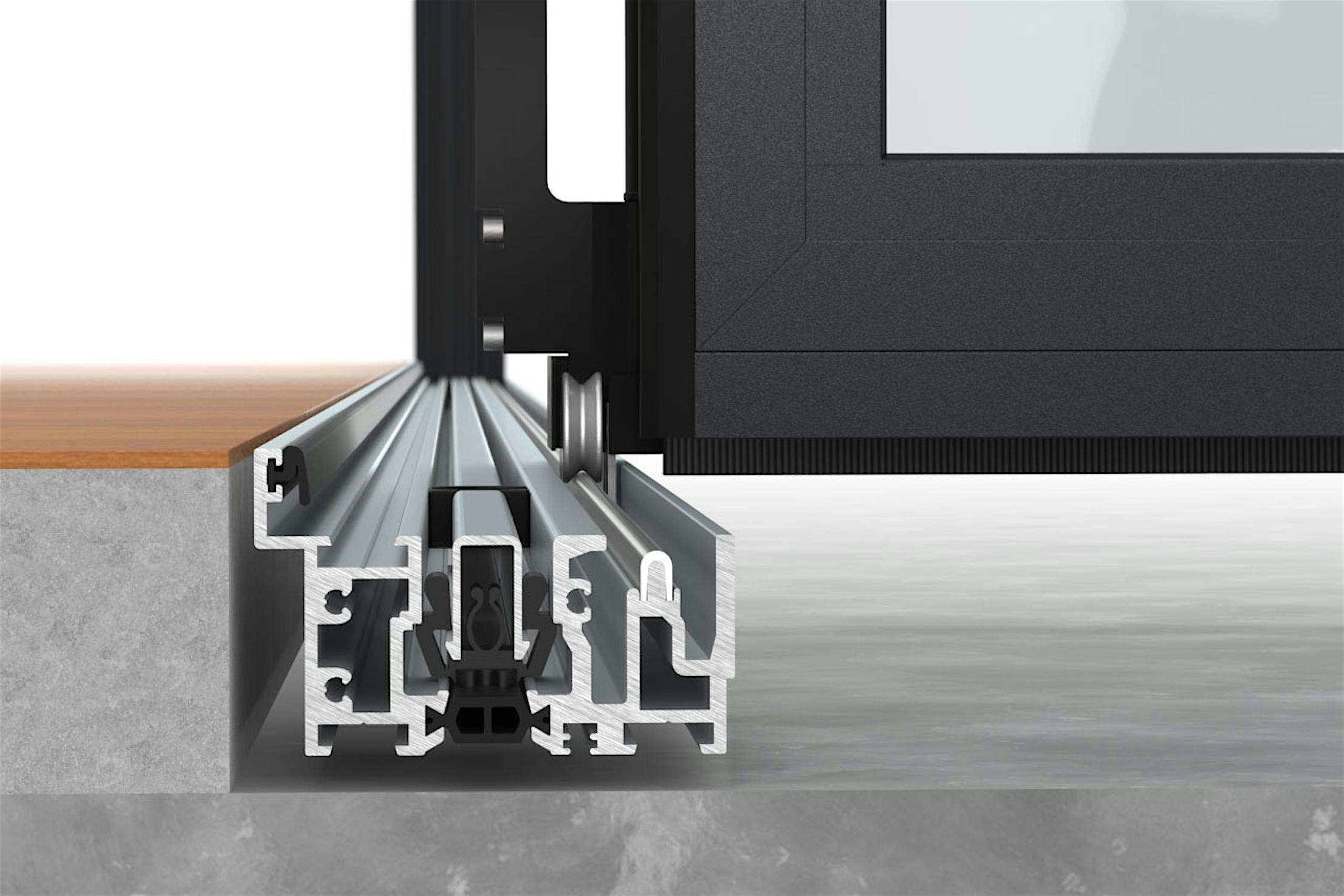

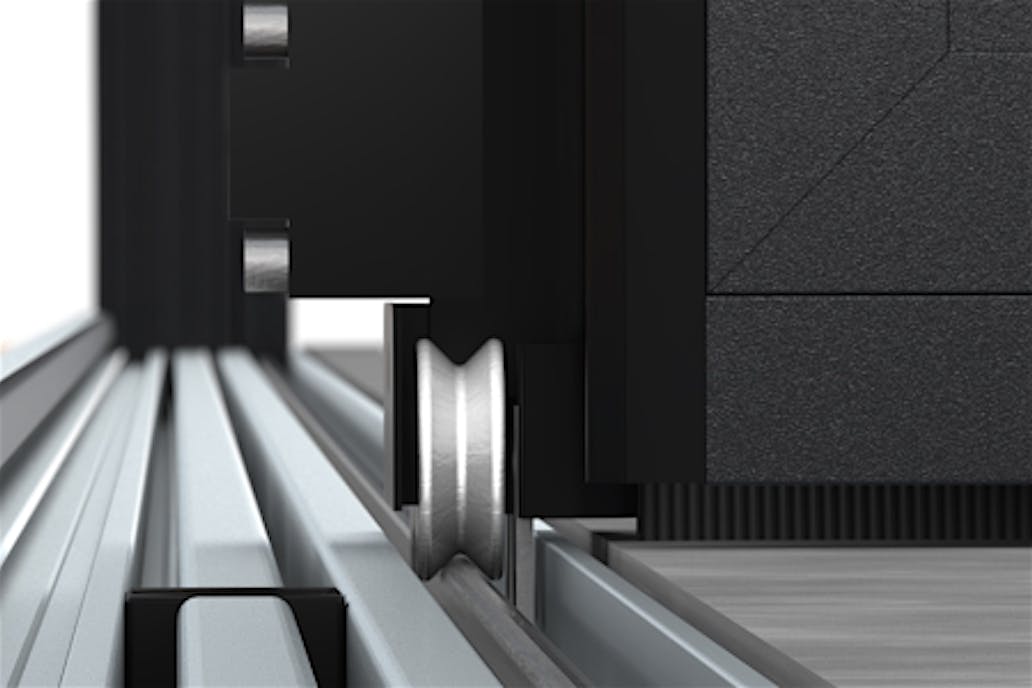

Unique Roller Design for the Smoothest Operation

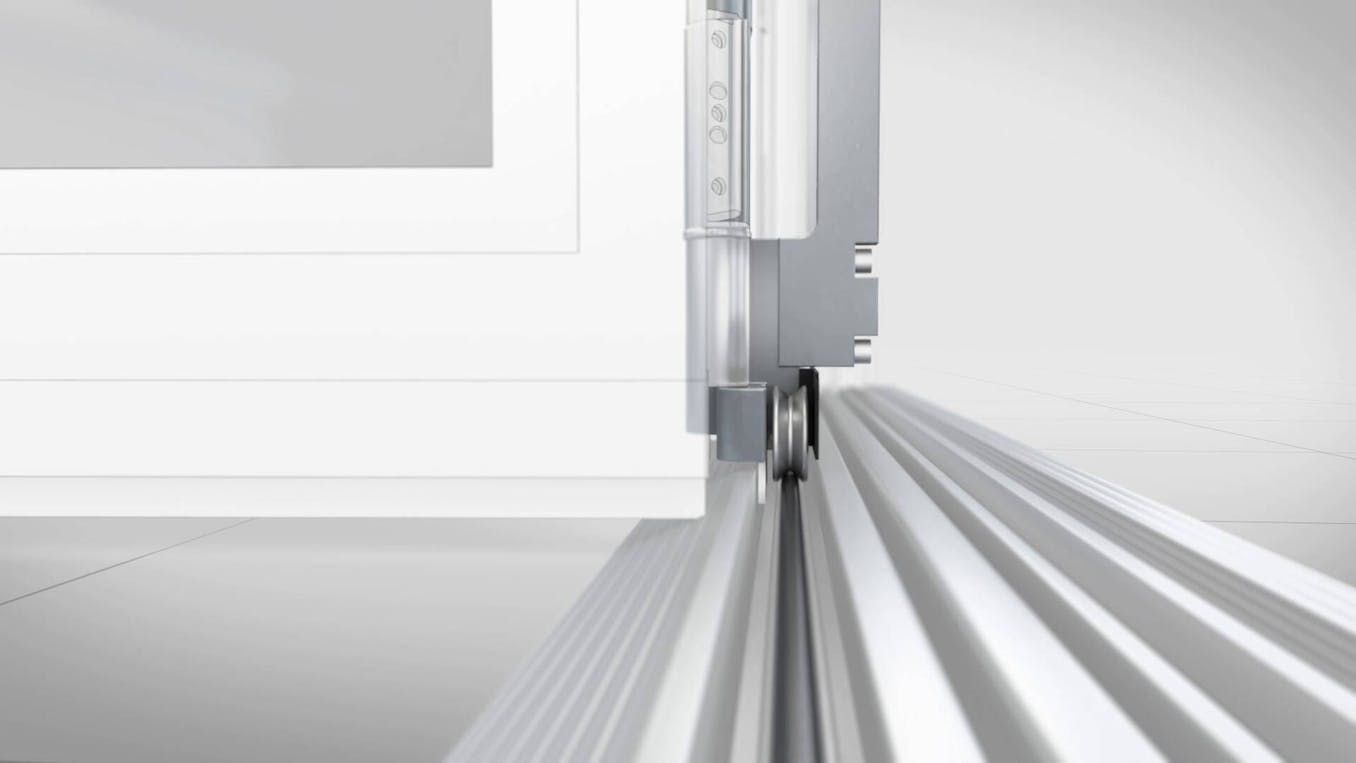

The running carriage rolls above the water table on two stainless steel wheels with a unique Gothic arch design supported by a double row of ball bearings. With a 2-point contact of each wheel to the floor track, the system glides quietly and smoothly with less friction by providing an equal distribution of weight on the stainless steel track.
Explore the Features and Benefits of Generation 4

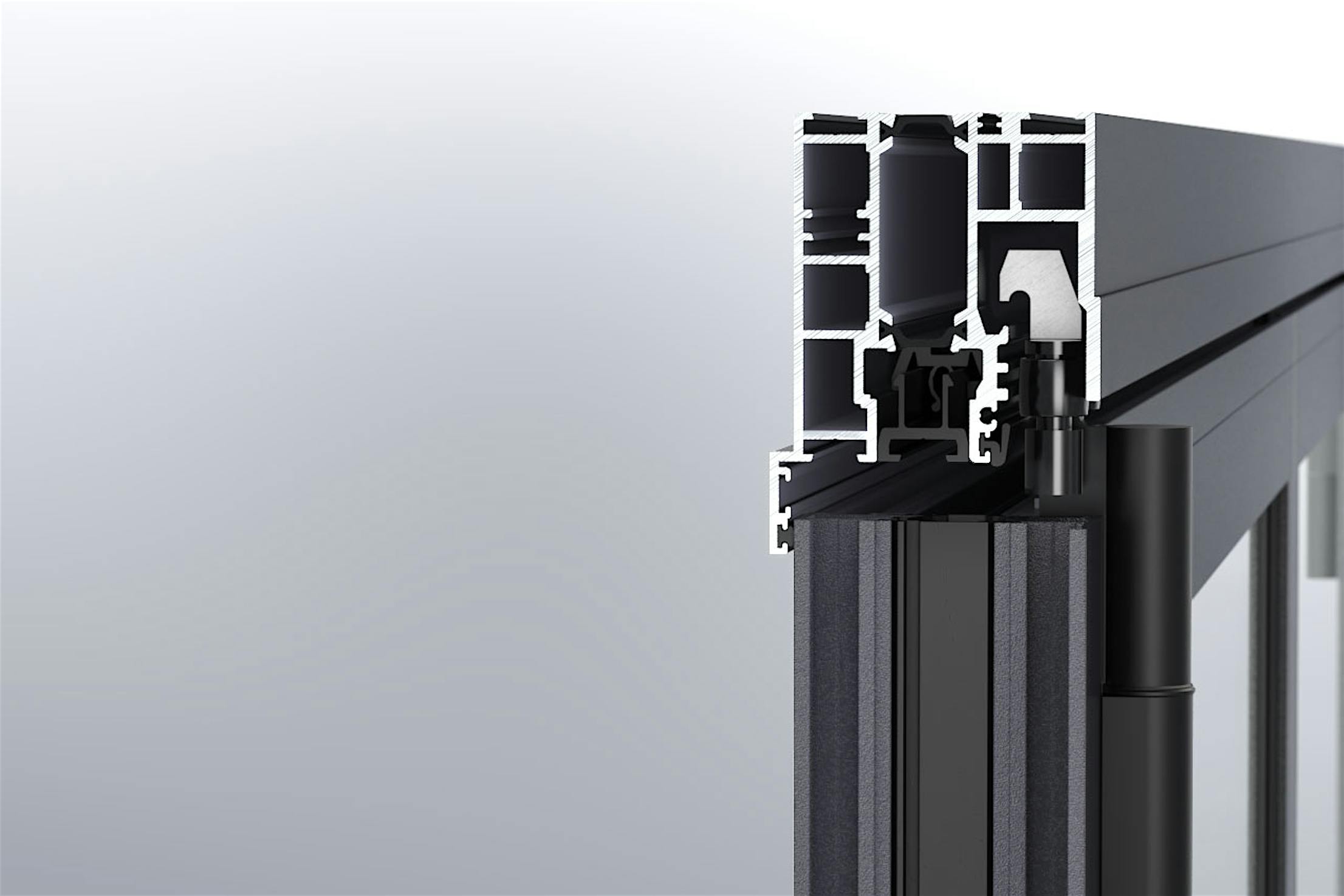

- Stainless steel for clean appearance with sealing cushion to avoid thermal conductivity
- Provides optimal load transfer so less connection points required
- For enhanced aesthetics, all frame attachment points are hidden

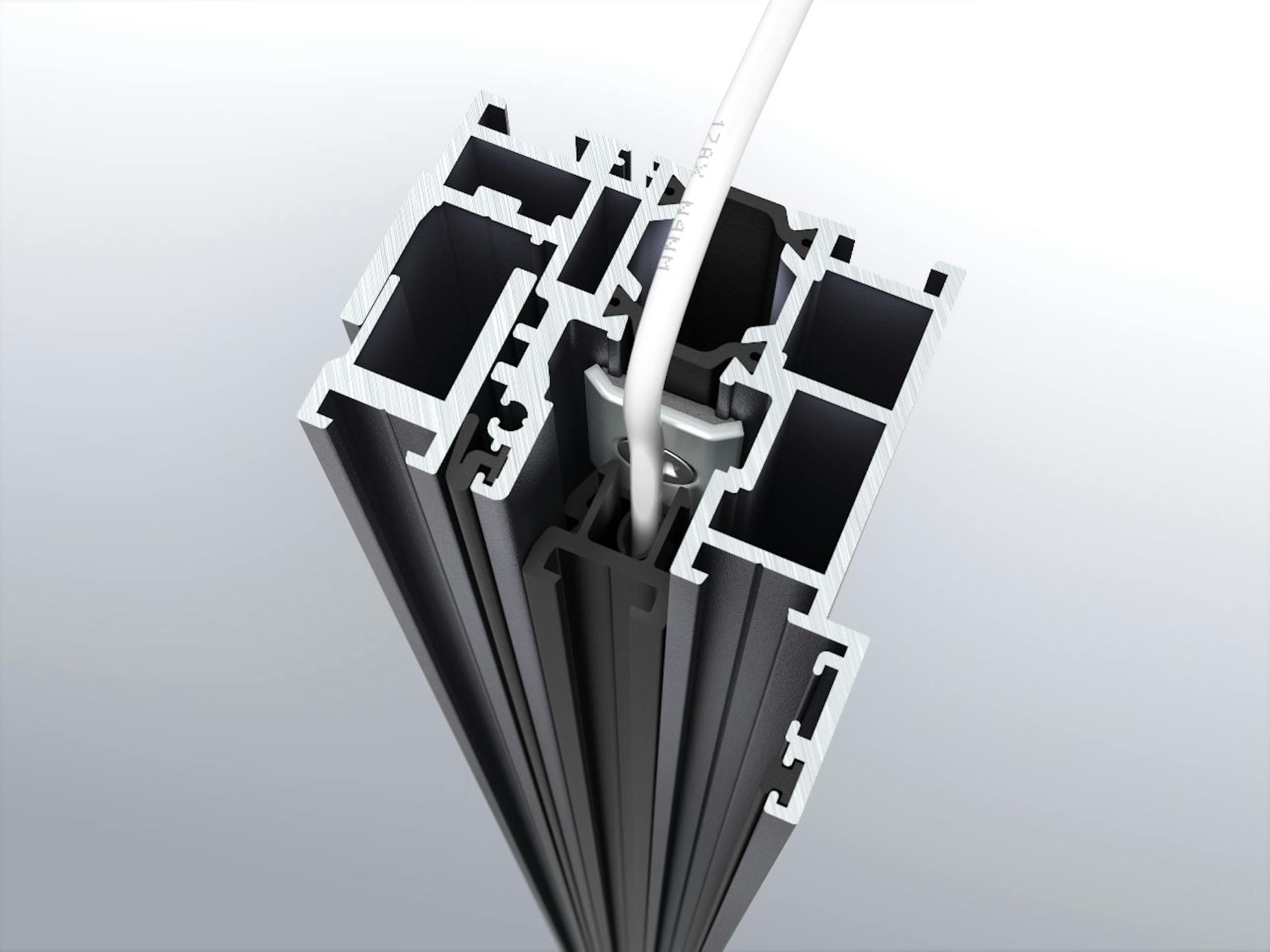

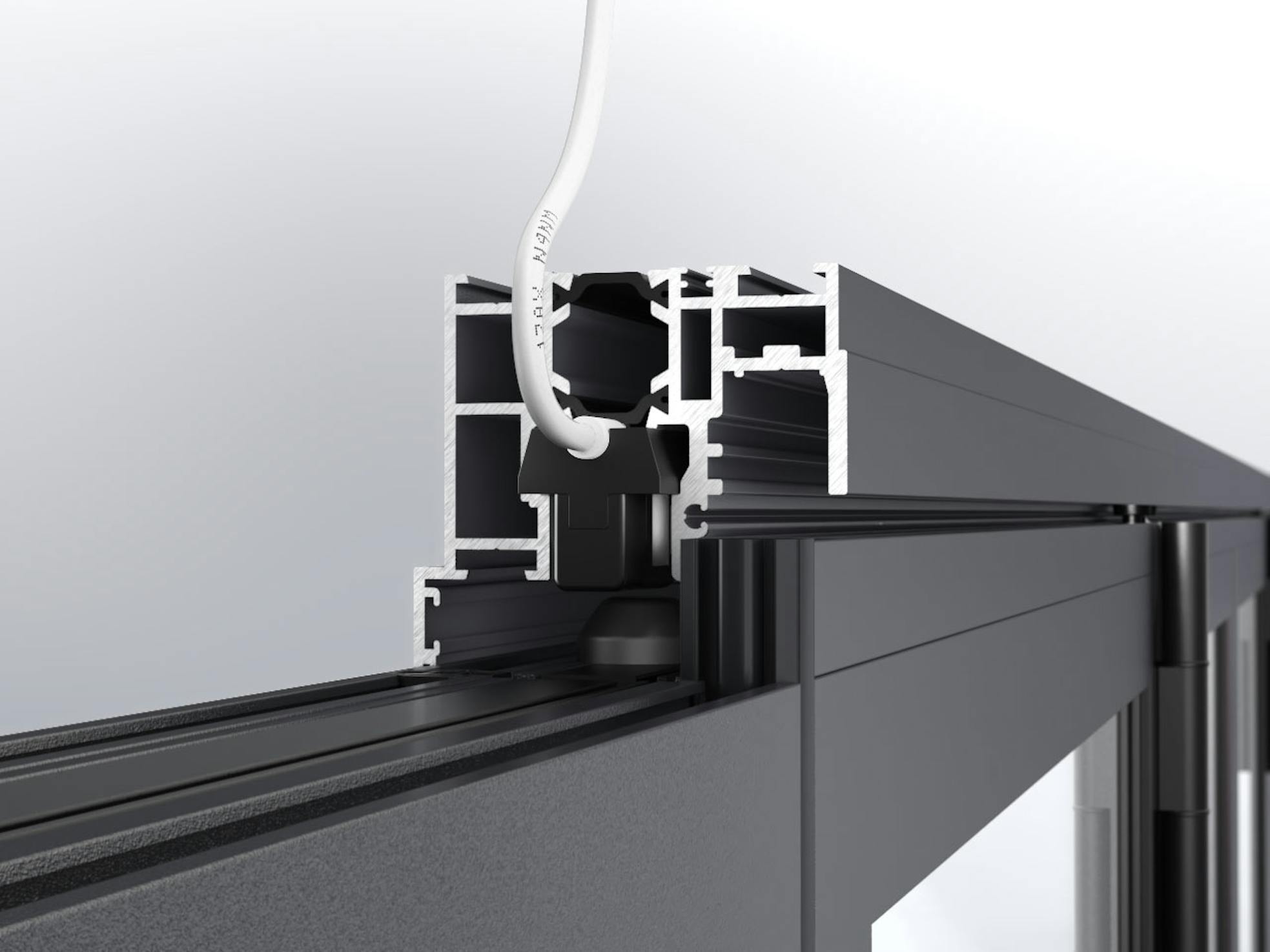

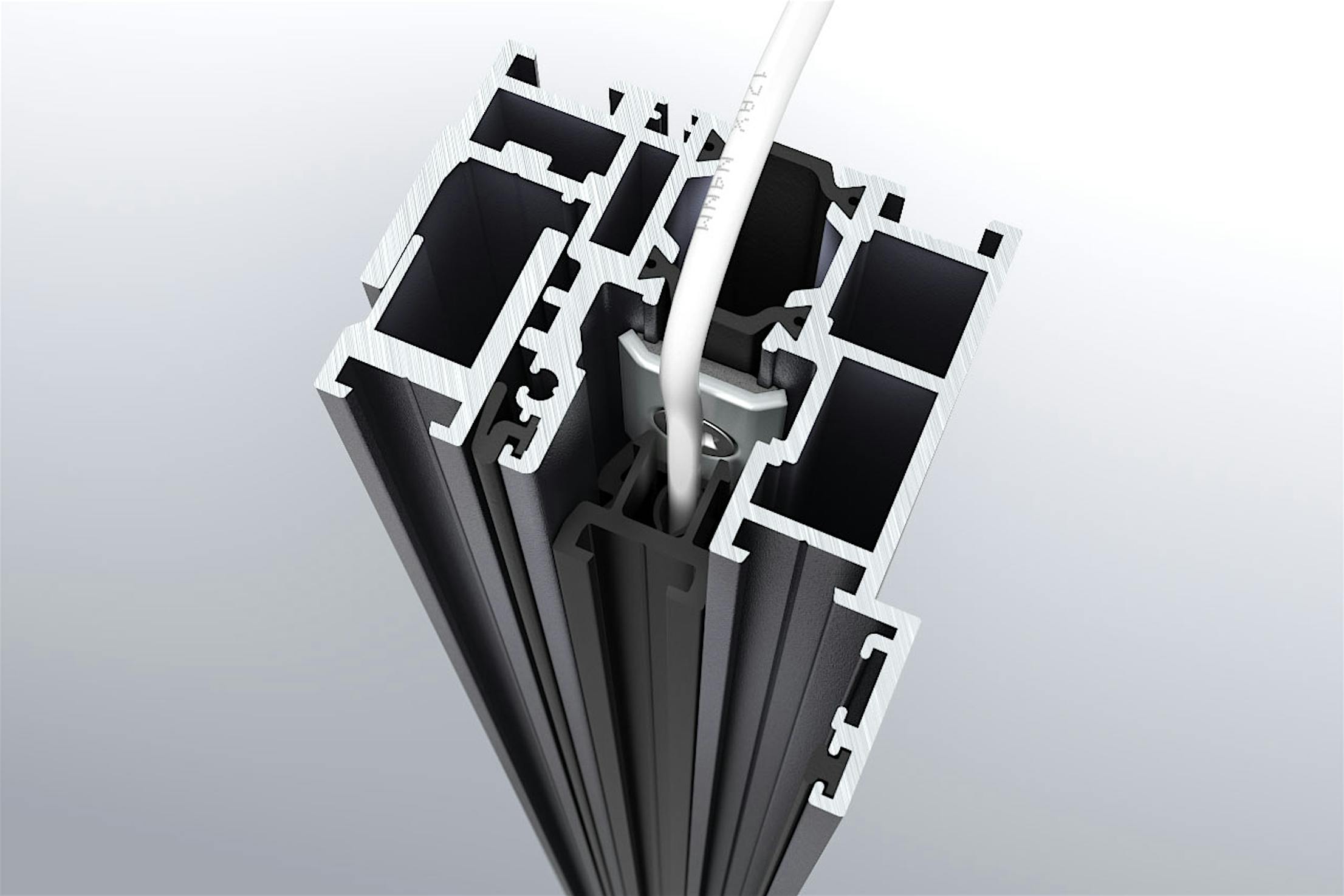

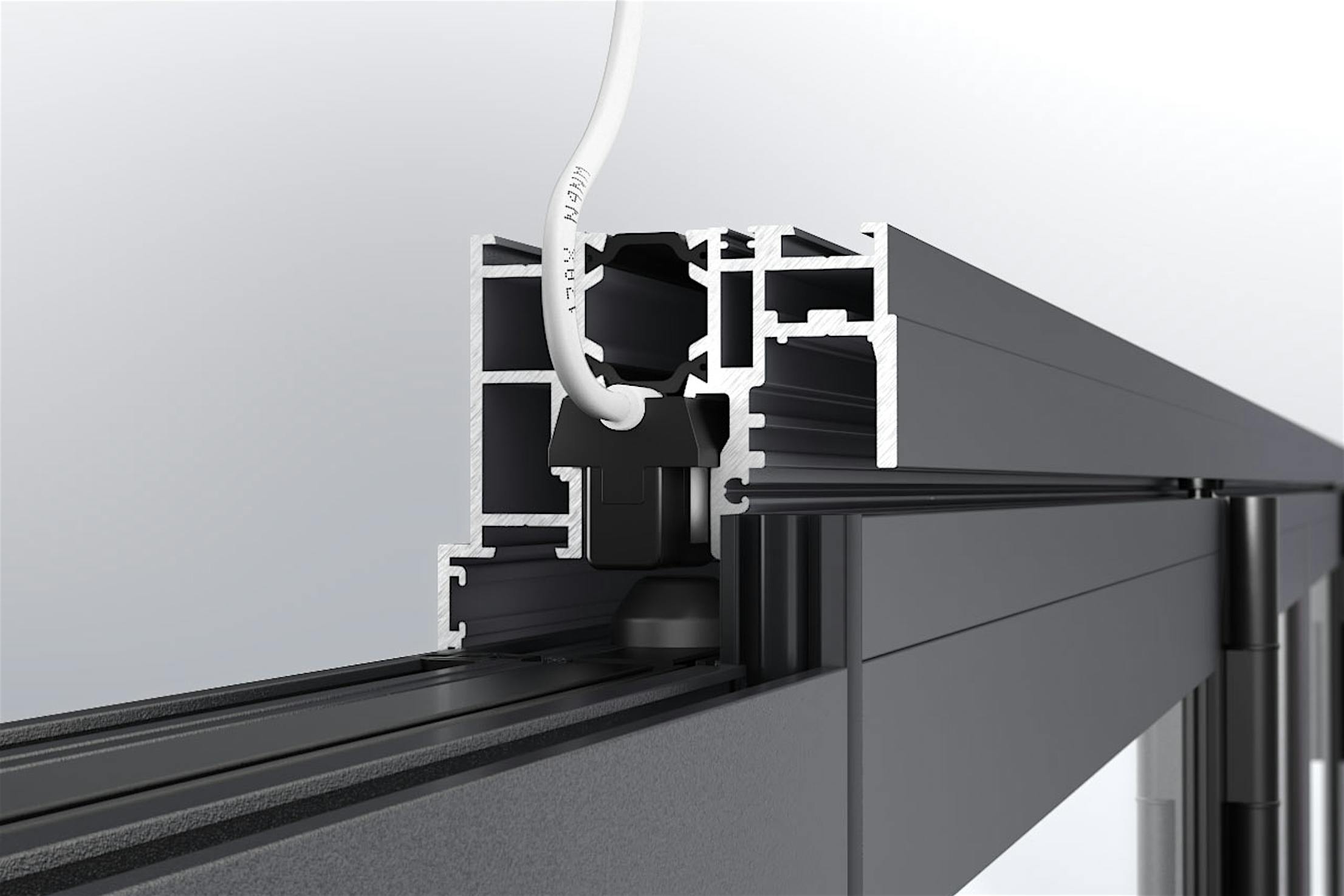

- Offers space for concealed cable routing for security systems by others

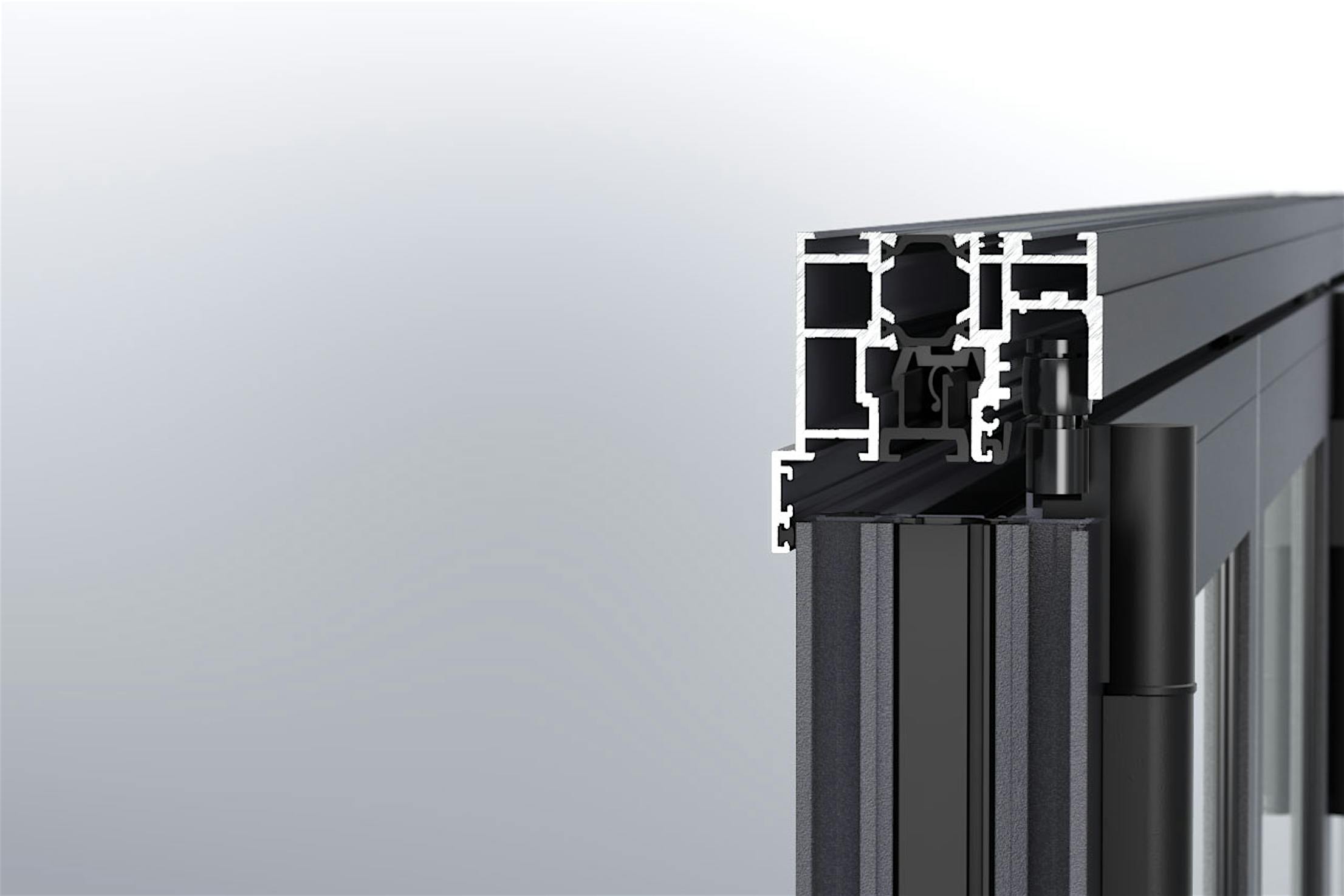

- Patented lateral adjustment of +/- 3/16″ (5 mm) to allow for construction tolerance
- Adjusts easily should extreme panel expansion/contraction occur

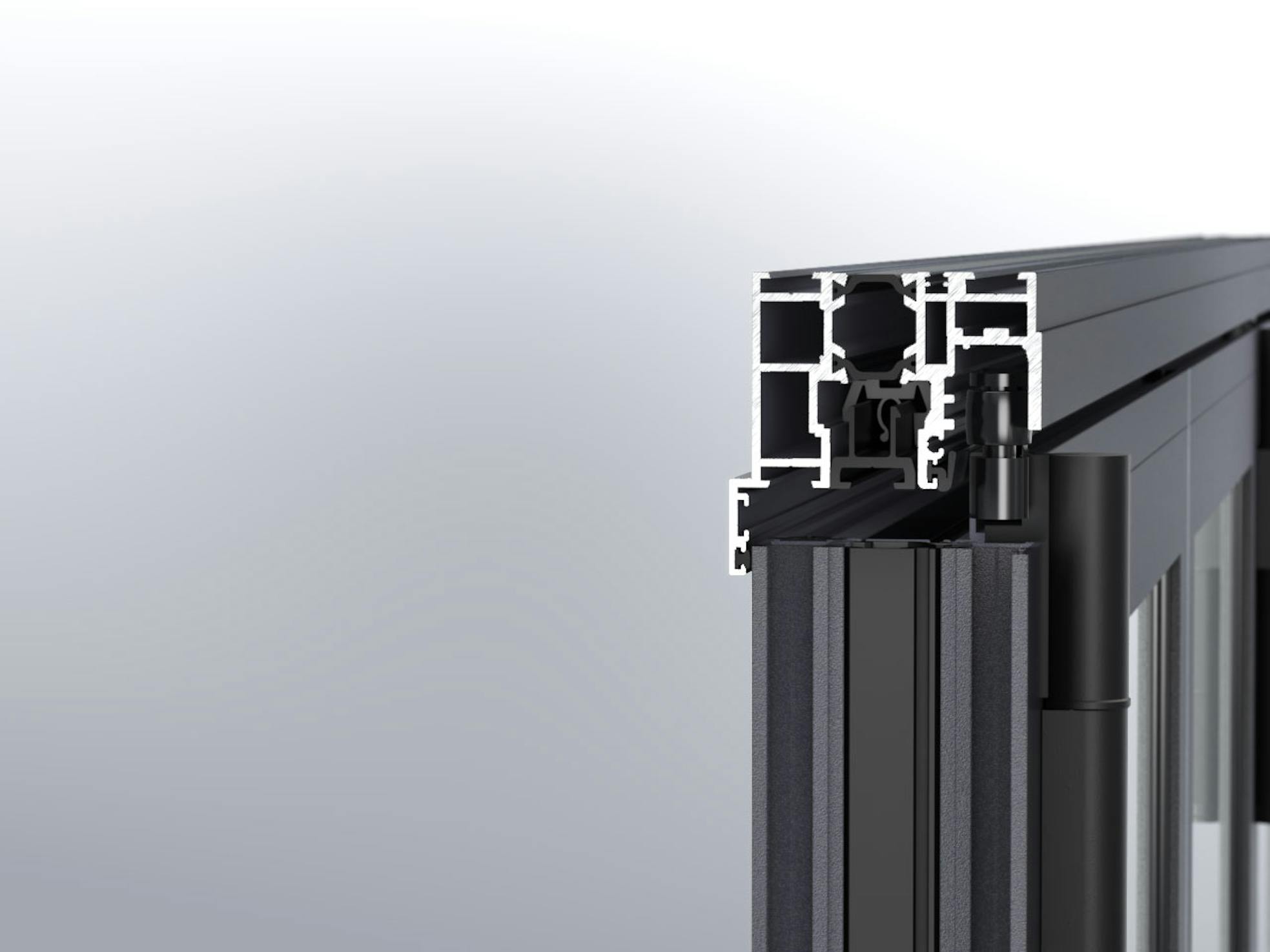

- Panel guide helps system guide through head track with smooth operation
- System operated on floor supported technology for ease of movement
- Proprietary engineered component stacks FourFold and SixFold panel sets neatly and securely when in open position
- Allows for dynamic stacking of panels at the left, right, or center of opening
- For state-of-the-art security, lock monitoring available with Reed contact (by others) and specialized magnetic locking rod end cap
- Can be connected to count opening/closing cycles to identify when maintenance should be performed (by others)
- Crisp, angular profile design for a modern aesthetic

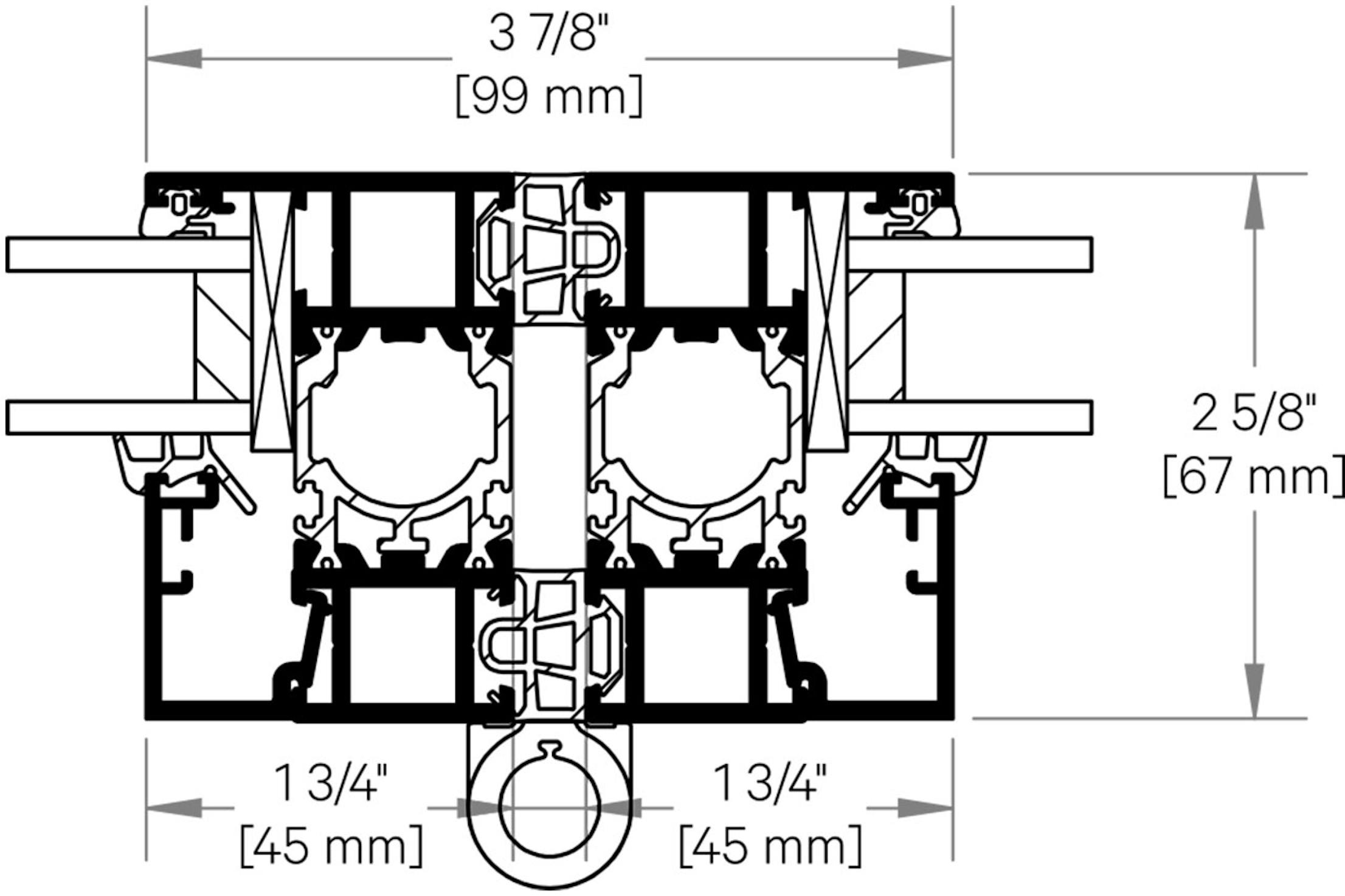

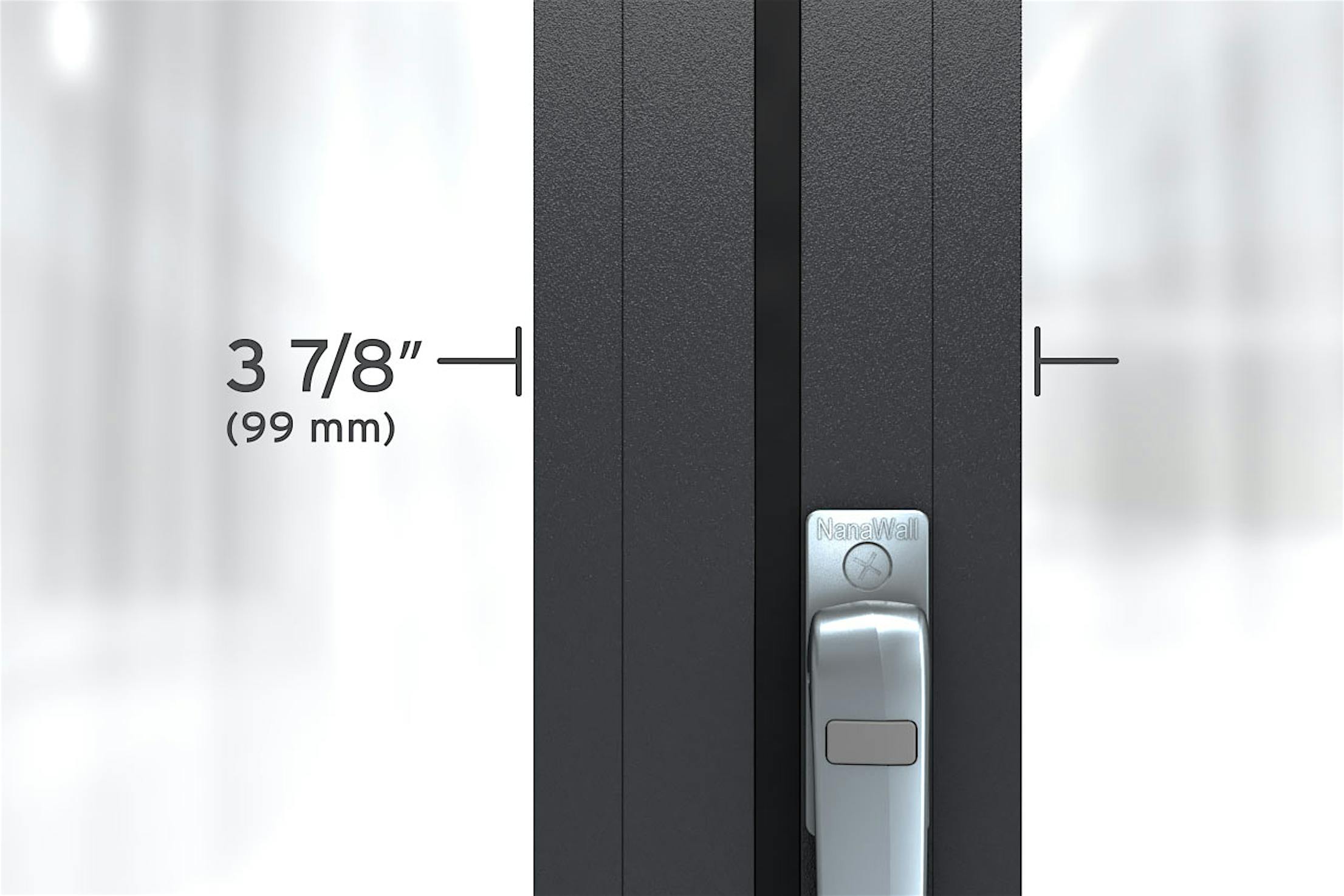

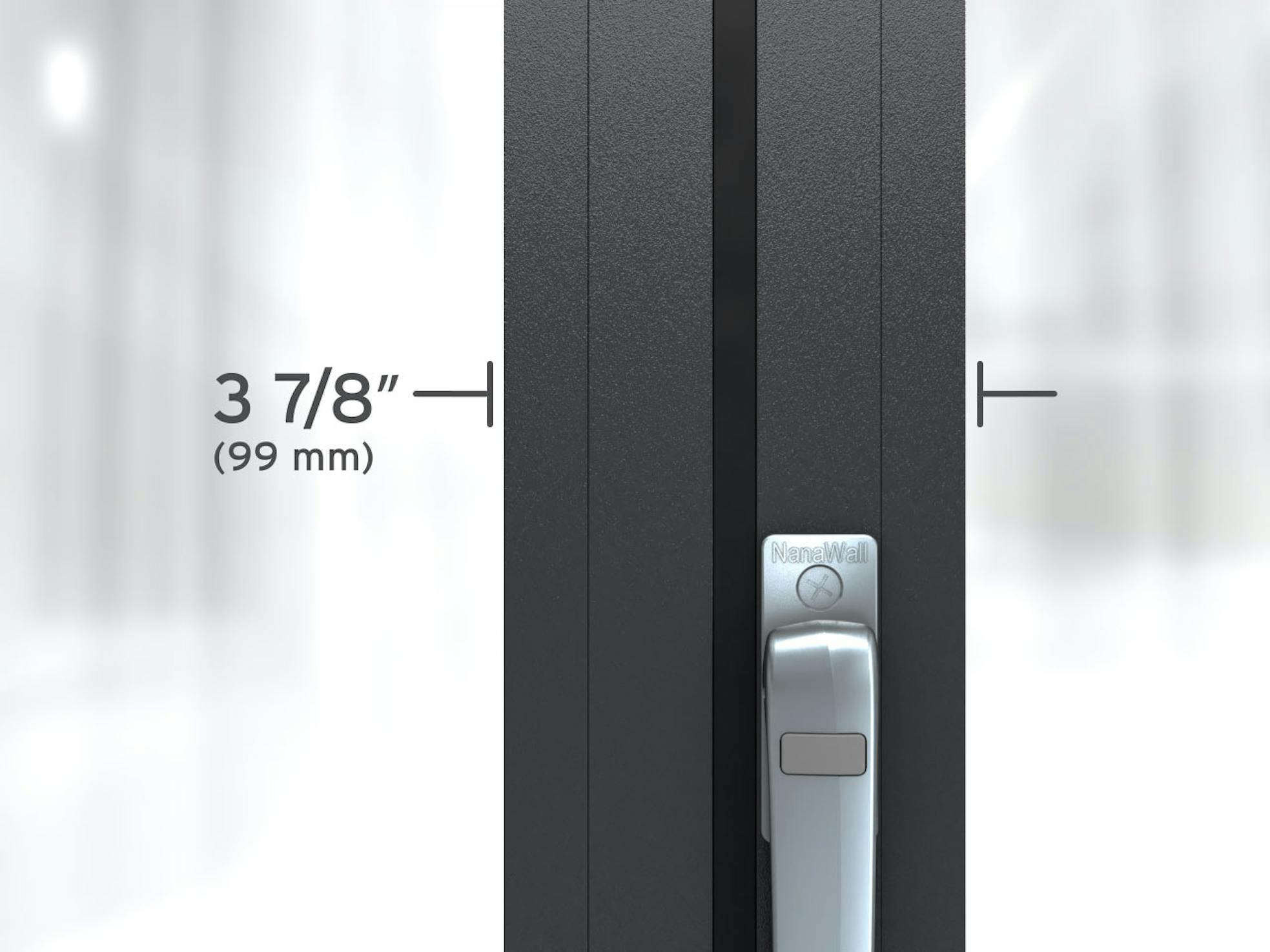

- Intersection of two folding panels is a mere 3 7/8″ (99 mm) for minimal sightlines
- Flat handle multi-point secure locking with 1″ (24 mm) throw bolt top and bottom

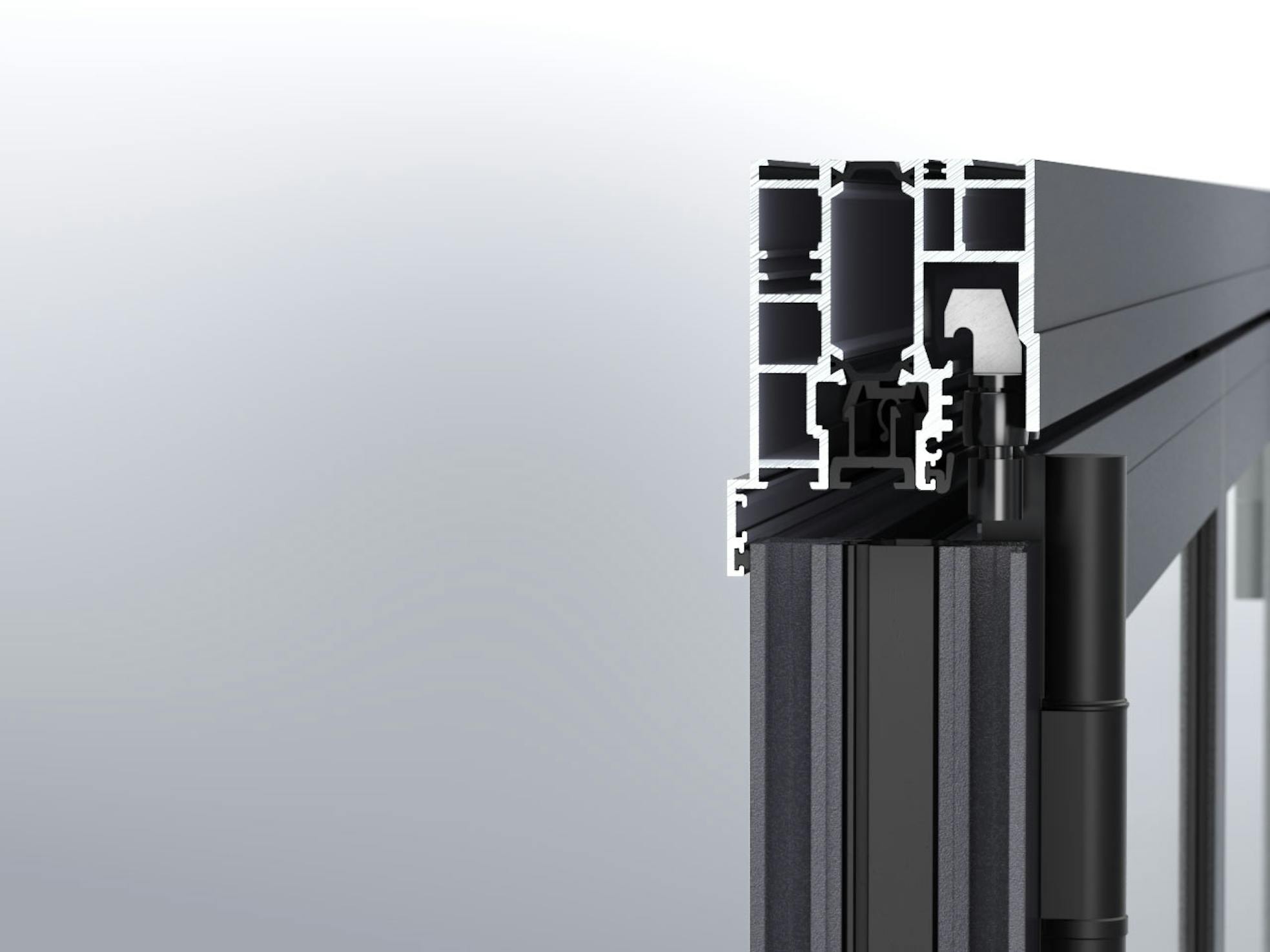

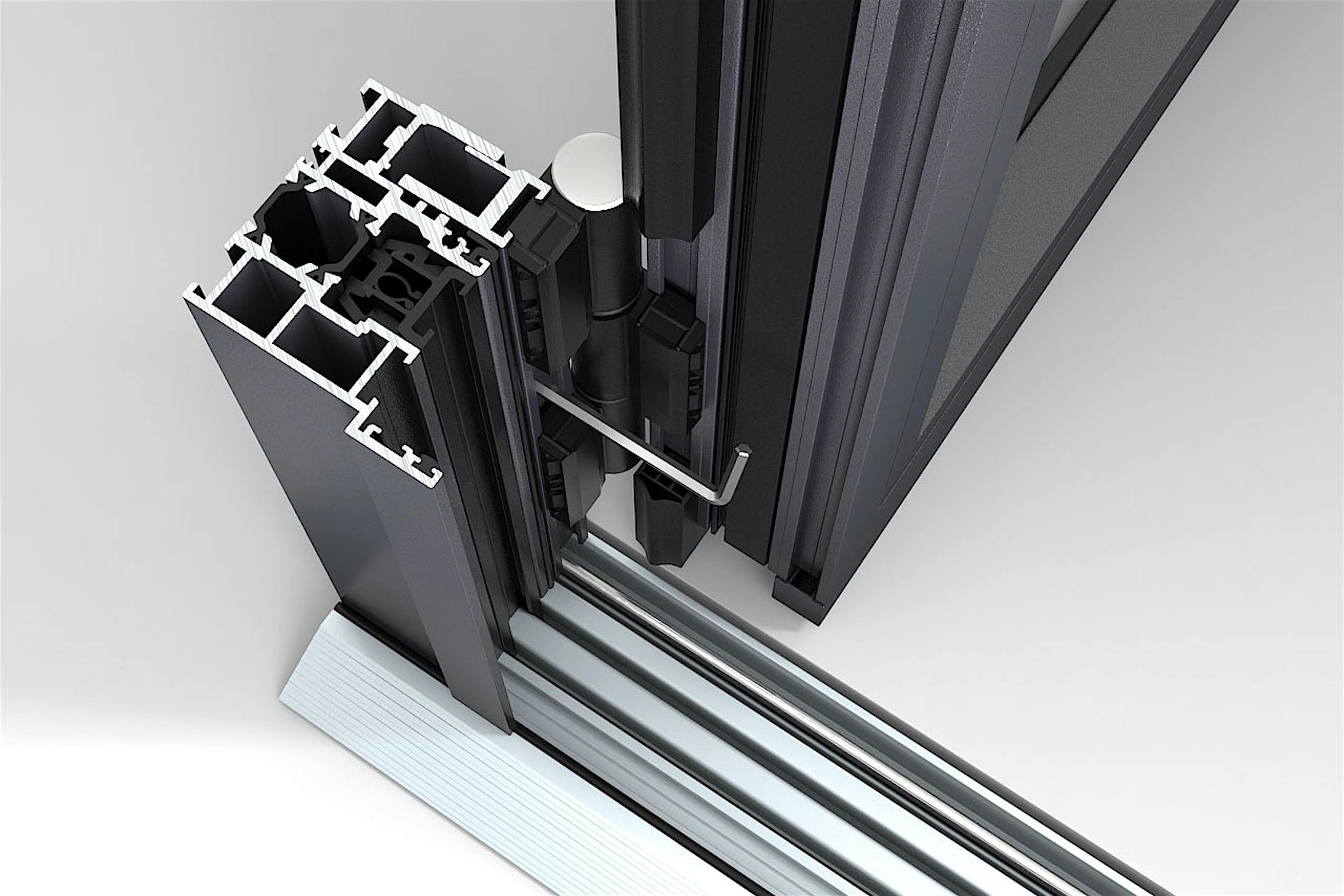

- The Bionic Turtle® single piece thermal break provides outstanding insulation within frame profiles

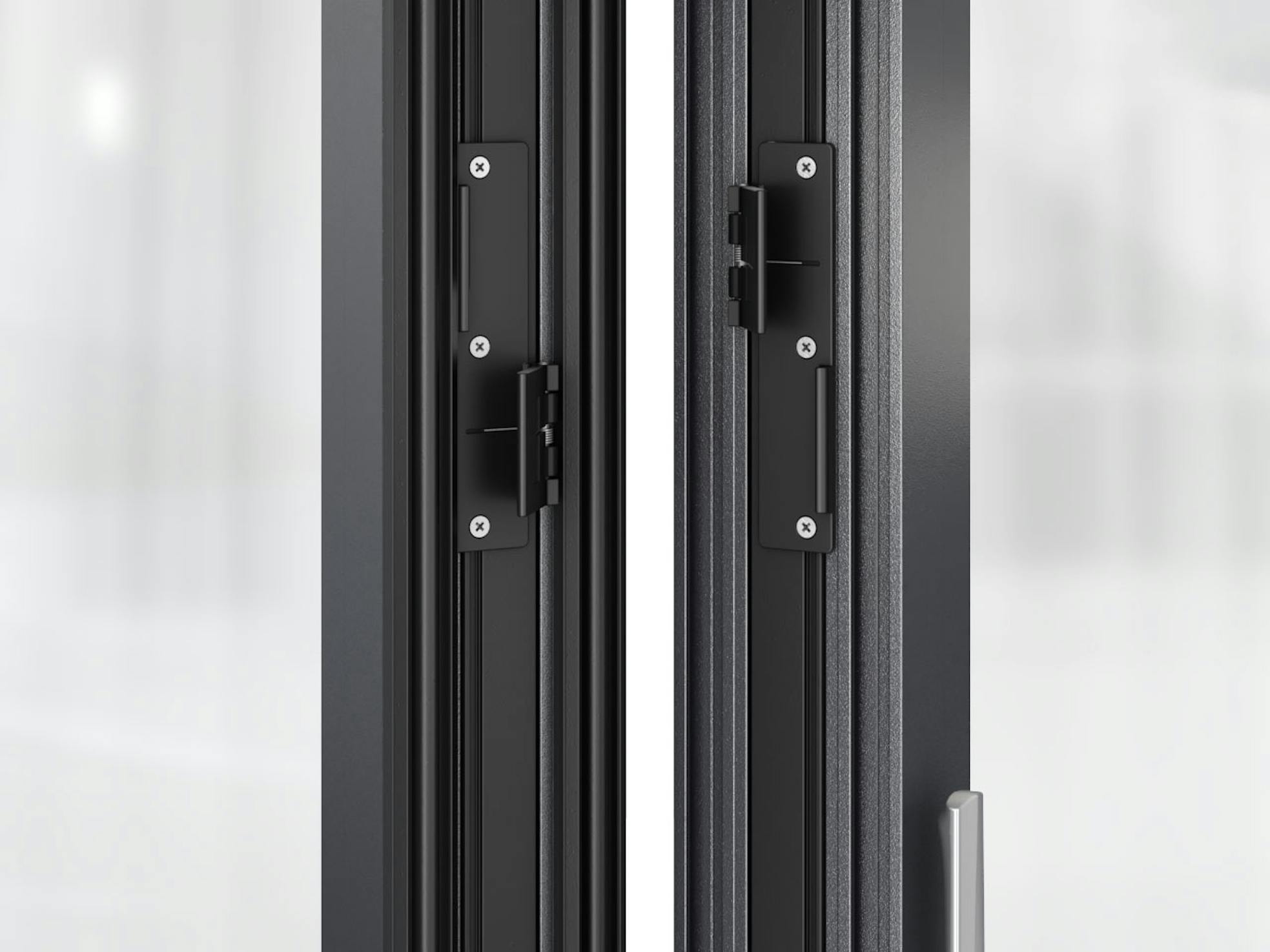

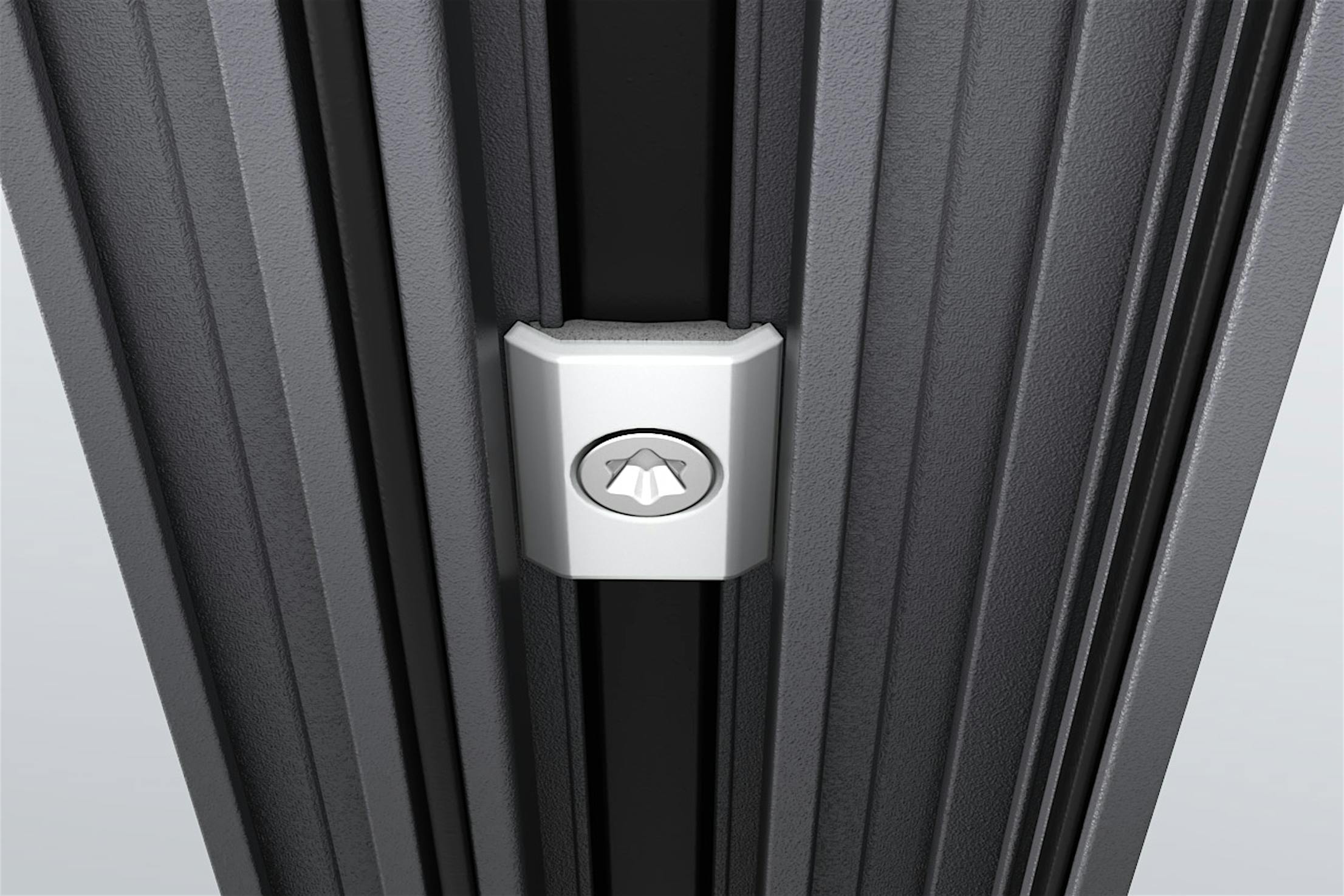

- Unique patented design houses the system’s locking rods to afford the extremely slim profile appearance

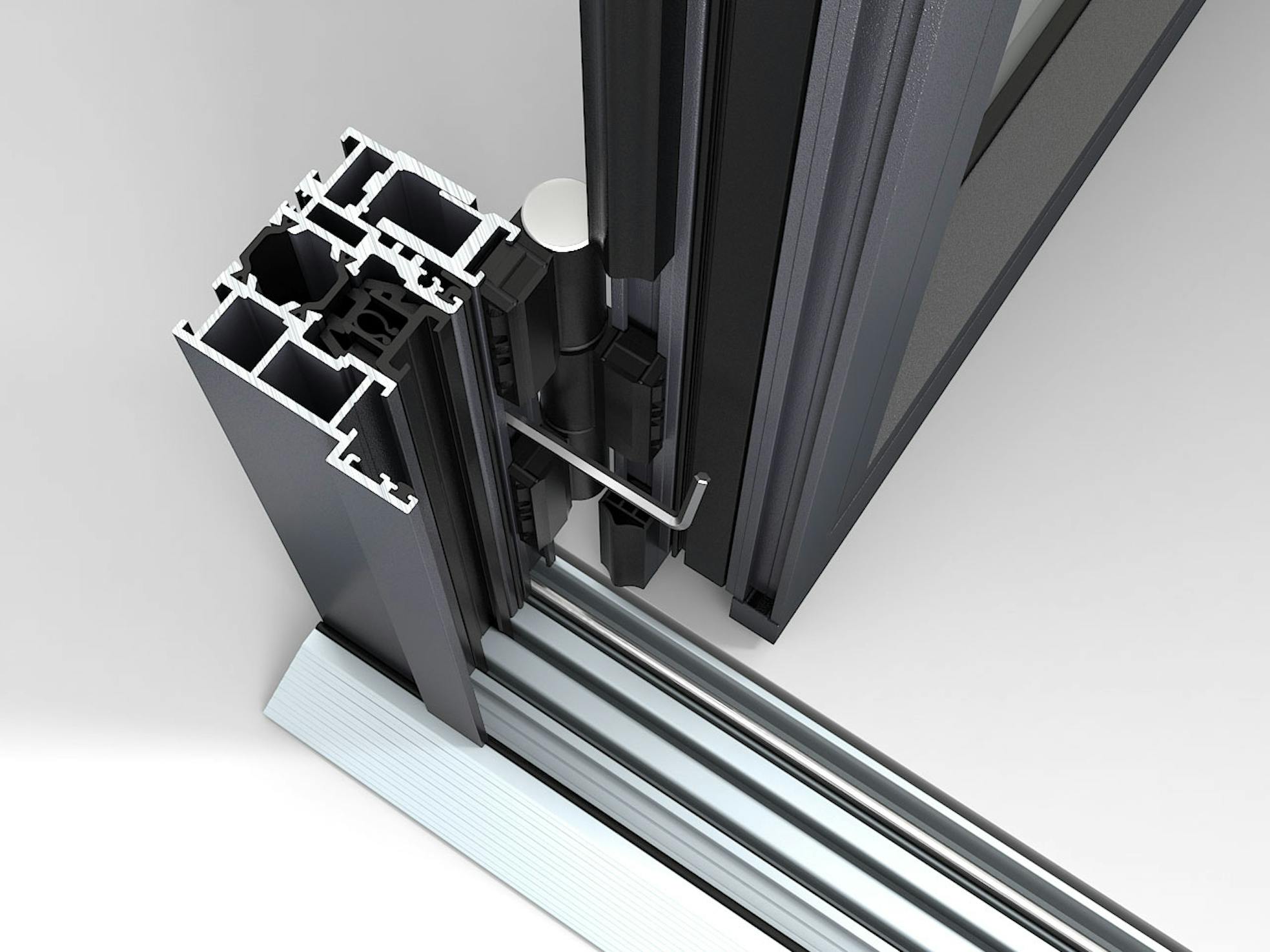

- Hidden spring-loaded TwinX mechanism aligns panels over 7′ (2150 mm)

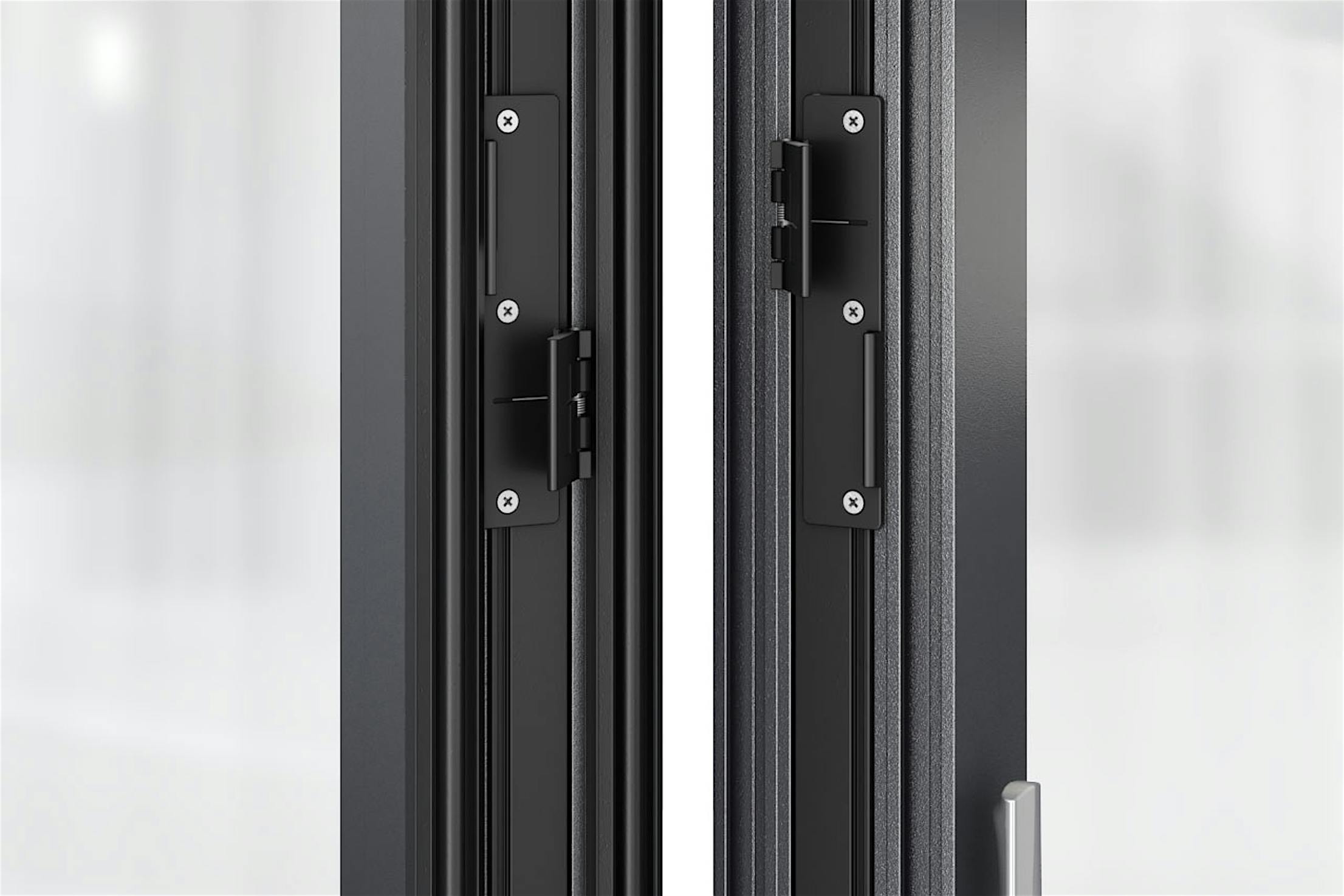

- Patented TwinX interlocks panels and provides structural reinforcement to eliminate exposed hinges in the middle of the system

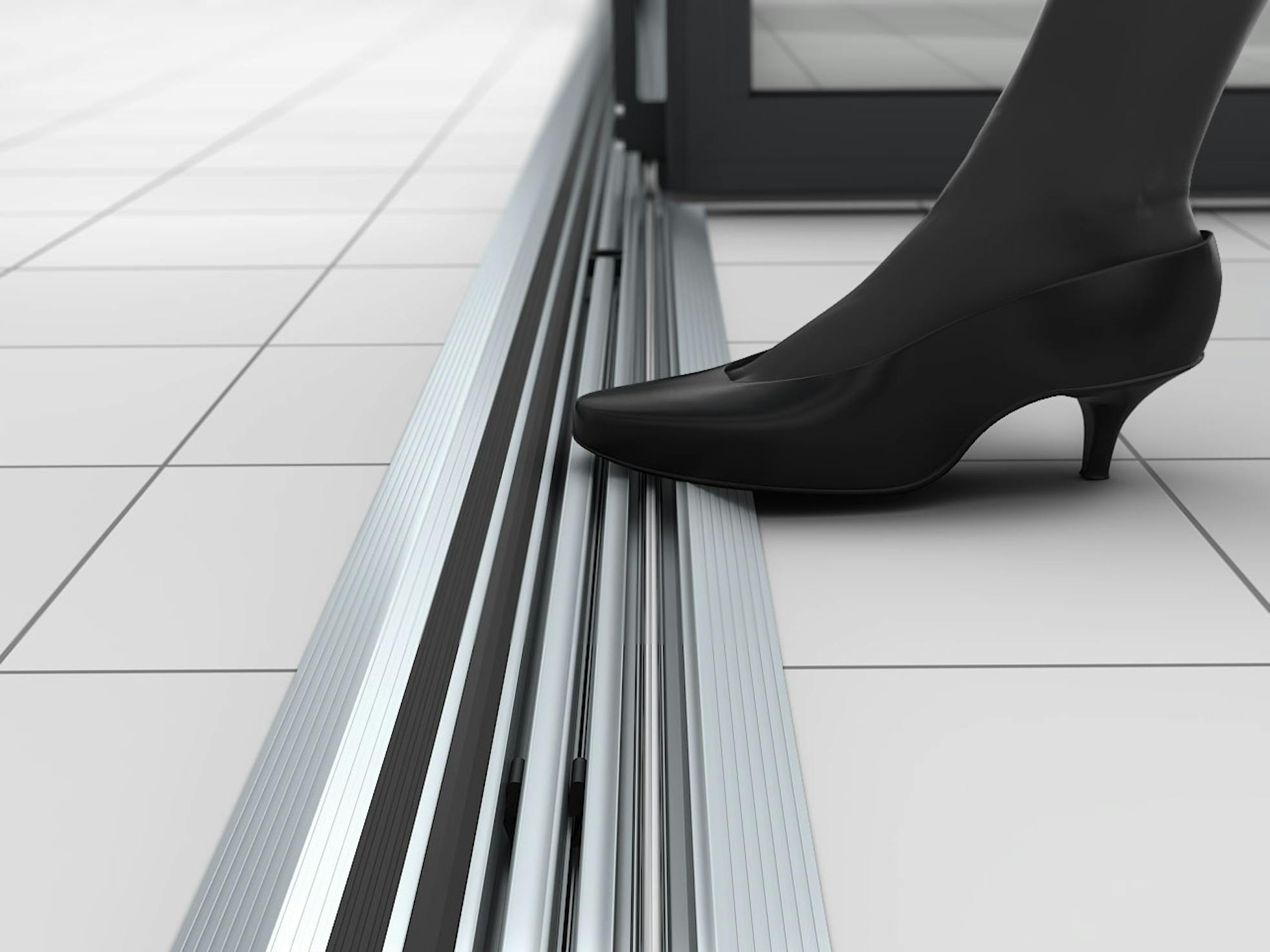

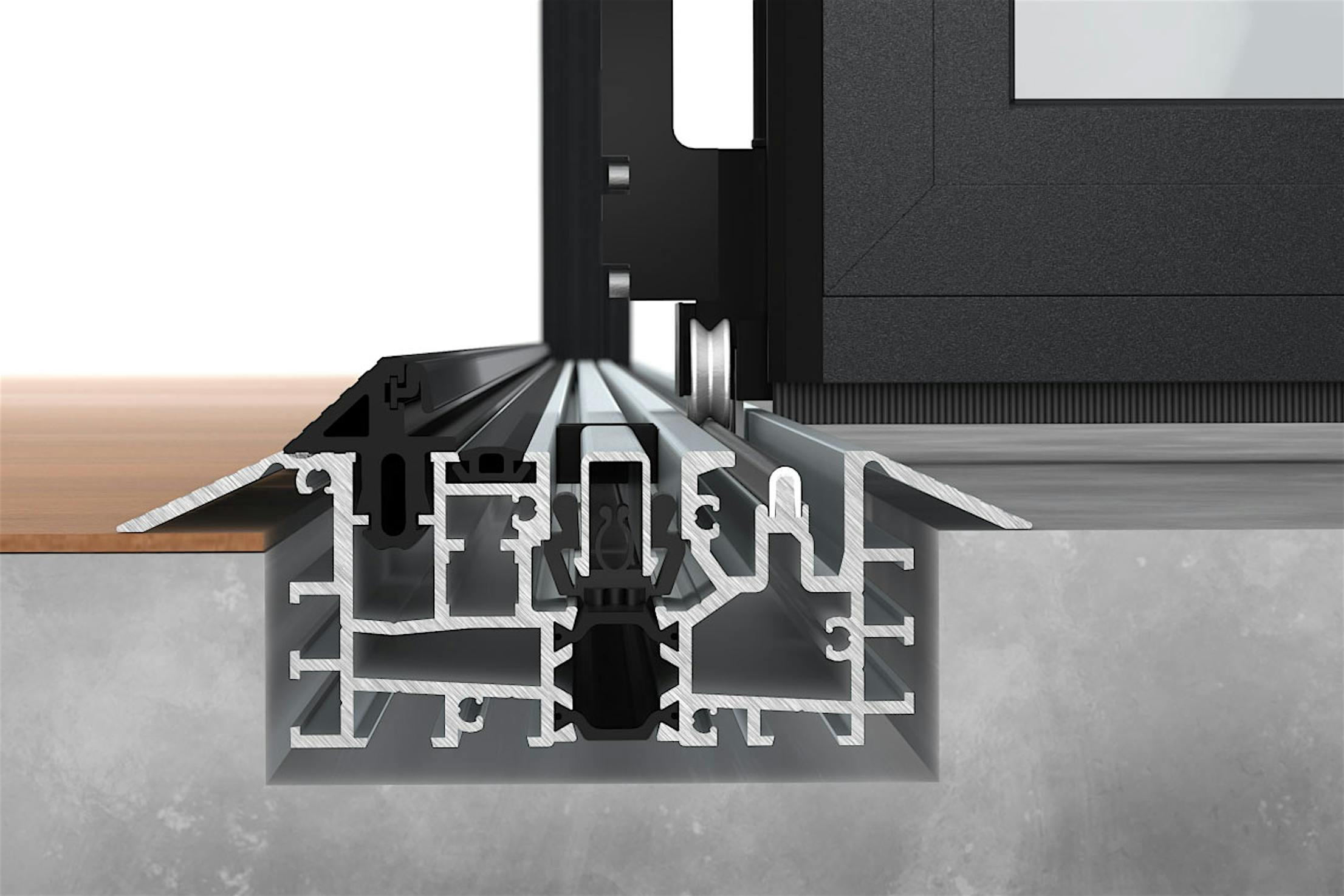

- Creates barefoot and heel friendly transitions while protecting from debris accumulation in floor track
- Provides ADA compliance for Low Profile Saddle and Flush sills
- Produces channel for LED rope light floor illumination (by others)
- Available for outswing only
- Thermally broken, provided with high heel resistant insert
- Easily convert Saddle Sill into a higher weather rated sill for enhanced water and air protection as needed
- Unique Gothic arch roller design for effortless operation
- Outswing shown, inswing also available
- Thermally broken, ADA compliant, high heel and barefoot friendly
- Sufficient water rating provided
- Unique Gothic arch roller design for effortless operation
- Outswing shown, inswing also available
- Thermally broken, provided with high heel resistant insert
- Built for higher water rating and weather resistance with compression gasketing on all sides
- Unique Gothic arch roller design for effortless operation

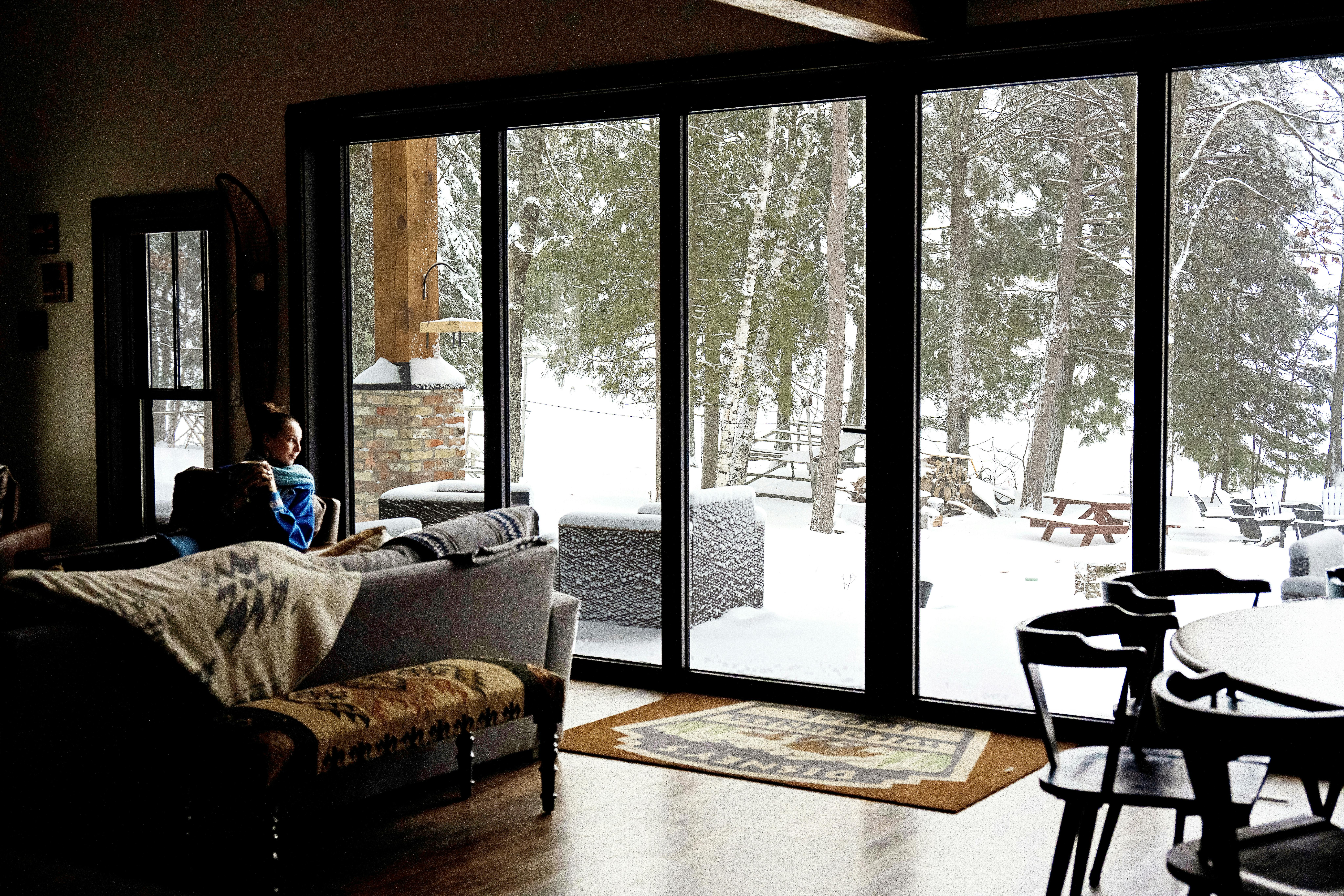

Extreme Weather Resistant
Energy-efficient by design, our glass walls keep the elements at bay, ensuring that even as seasons or temperatures change, your interior comfort will always remain the same.
Certified Testing Standards
NanaWall products endure the latest AAMA testing standards for air, water, structural, and forced entry.
Highly Energy-Efficient
Designed to keep the elements at bay, holding warmth inside while acting as a transparent barrier to the weather outside.
Sustainable Design
This product contributes to multiple LEED rating systems and has HPD and EPD certification.
Download Declaration Documents
Test Results
Inside Generation 4 systems are innovations designed to meet the challenges of wind, water, extreme temperatures, forced entry, and structural load. Besides housing the system’s locking rods, our Bionic Turtle®—a patented, single-piece insulbar design—provides an exceptional insulating thermal break between the frame profiles: adding energy efficiency and year-round comfort.
Florida Product Approval # FL38736
See Air, Water, Structural, Thermal, and Forced Entry Results
Performance When Closed Matters Most
Large openings are easy to design and there are many options to choose from. When selecting a product that best fits your project, how it performs when closed is important.
| Performance Metric | Overall Tested Performance |
|---|---|
| Design Pressure | +50 / –55 psf (ASTM E-330) |
| Structural Load | Class CW-PG25 |
| Water Penetration | No leakage @ 9 psf (450 Pa) – Performance Sill No leakage @ 5.43 psf (260 Pa) – Low Profile Saddle Sill (ADA-Compliant, Barefoot-Friendly) |
| Air Infiltration | 0.03 @ 75 Pa / 0.07 @ 300 Pa |
| Thermal (U-Value) | 0.31 (Double Glazed Low E) 0.24 (Triple Glazed Low E) |
| Cycle Performance | 500,000 cycles (pass) swing panel 20,000 open and closing cycles |
| Forced Entry | AAMA 1304 (pass) |
| Acoustics (STC) | Up to a Unit STC 45 (interior model) and OITC 37 |
| Sill-Specific Performance | View performance data by sill: Performance Sill | Low Profile Saddle Sill | Low Profile Saddle Sill with UniverSILL® |
Values shown are manufacturer-published test data. Always compare complete test reports for project specification.
50 standard colors that come at no additional cost, with an additional 200+ colors to choose from.
See Finish Options
With the slim nature of Generation 4 products, NW Aluminum 640 can be customized with popular SE colors for a truly classic steel look while benefiting from the superior performance of an aluminum folding glass door. Simulated divided lites (SDL) can be specified in patterns of your choice.
Slimline Steel Effect
NW Aluminum 640 has three sill options: Performance, Low Profile Saddle, Low Profile Saddle with UniverSILL®.

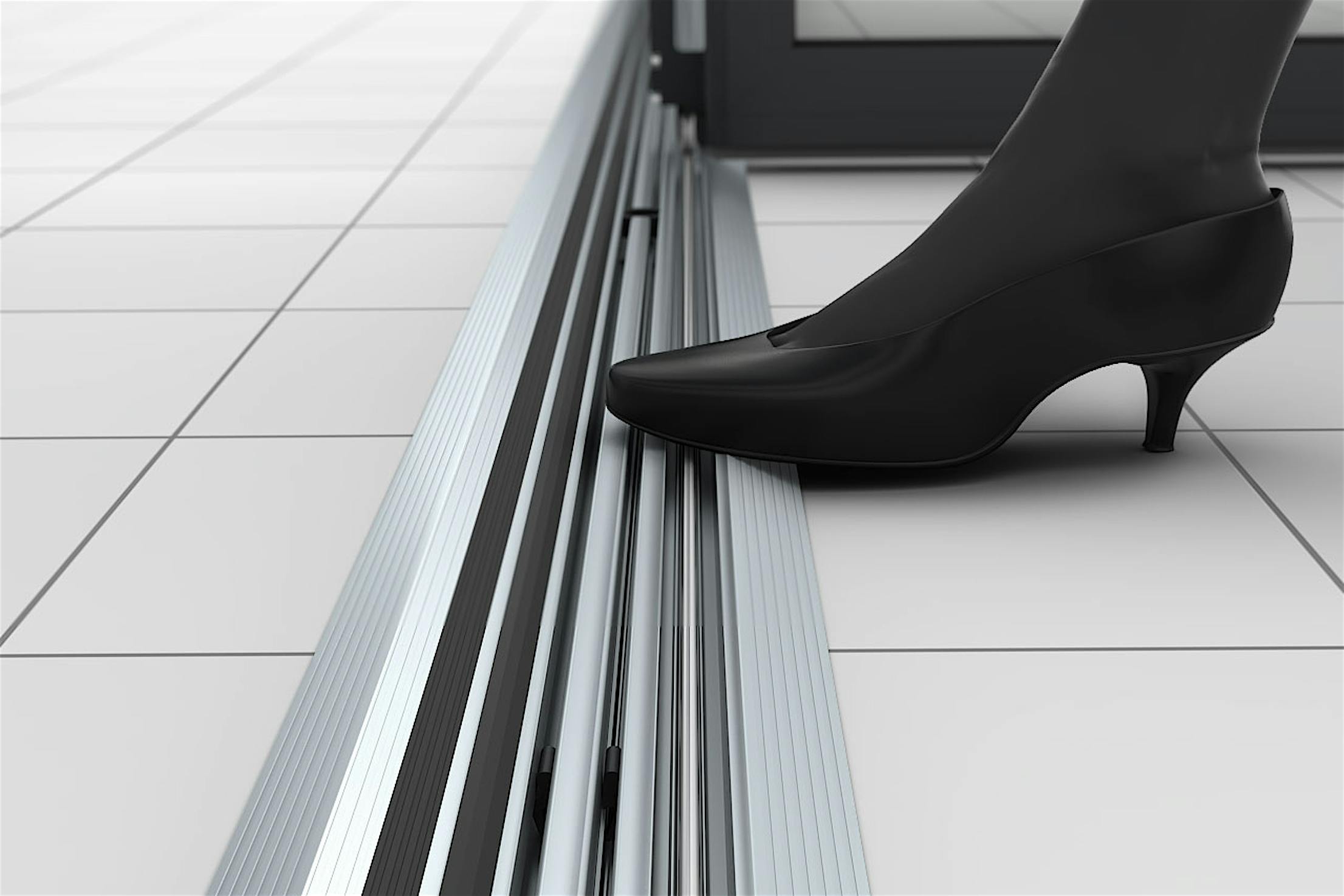

Standard to all sills is removable aluminum high heal resistant sill inserts. These inserts provide ADA compliance for the Low Profile Saddle sill. Furthermore, the inserts offer protection from dirt and debris collecting in the bottom track.
See Sill Options

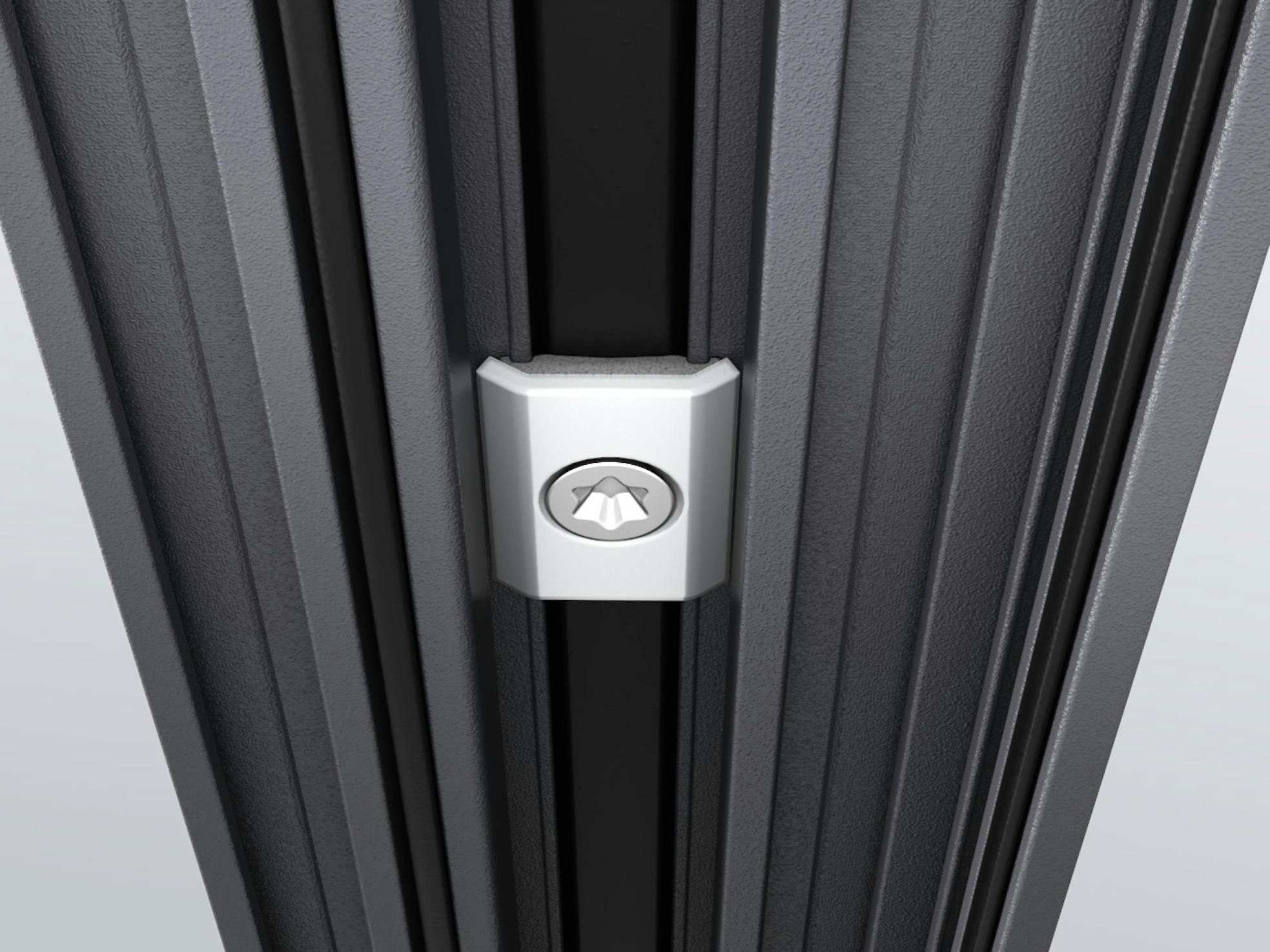

Standard to the system is concealed locking between folding panels that operates with a 180° turn of a flat handle.
See Locking Options
A fundamental benefit of this next generation folding glass wall is energy efficiency. Depending on glass type selected, NW Aluminum 640 offers thermal performance values as low as “.24”. The system comes standard with continuous seals along the face of each panel frame. Furthermore, standard for each system are two levels of insulating thermal breaks for optimal defense from heat and cold.
The glass pocket can accommodate glass from 15/16″ (24 mm) to 1 3/4″ (45 mm) insulated glass.
See Glazing Options

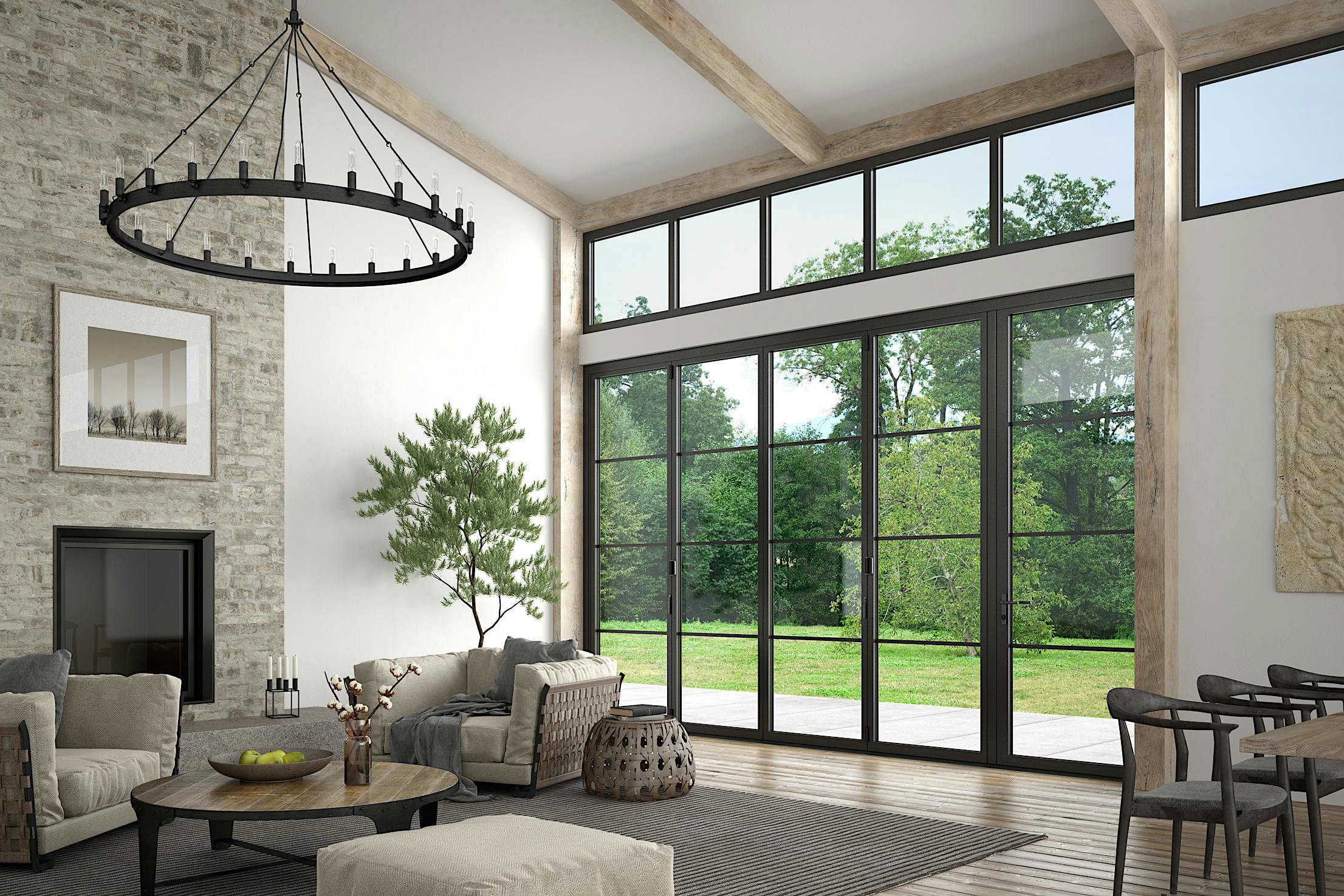

Customize NW Aluminum 640 with simulated divided lites (SDLs) to complement a range of architectural styles. SDLs create the appearance of individual panes while maintaining the performance of a continuous insulated glass unit. Choose from a variety of grid patterns and configurations to achieve your desired aesthetic.
Explore Divided Lites

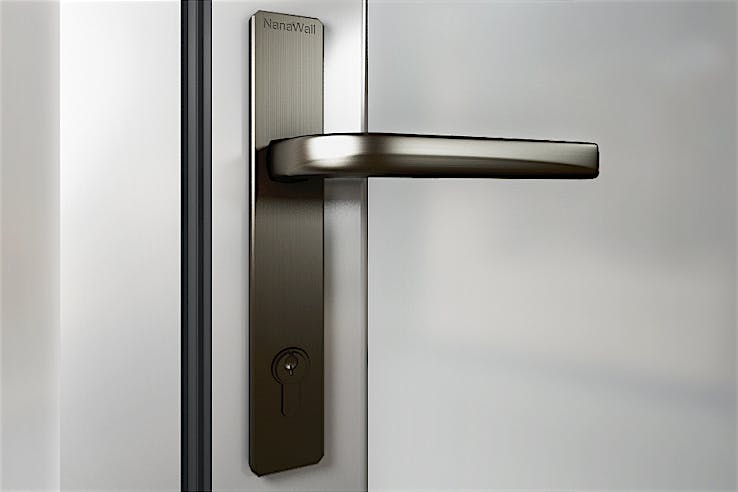

Stylish Handles in Multiple Finishes
Our handles are both functional and stylish and can be customized to accentuate your space and reflect your style.
NW MultiSlide 630
NW MultiSlide 630 is a complementary sliding glass wall that offers the same uniform glass lines as the NW Aluminum 640.

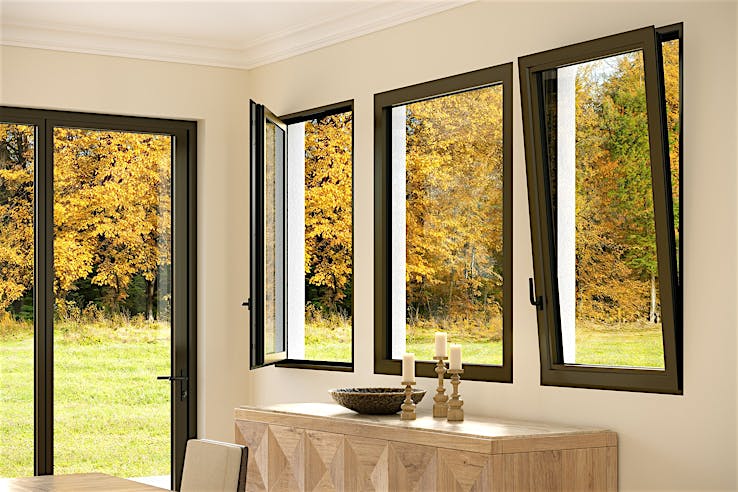

Generation 4 Tilt Turn and Fixed Windows
Generation 4 Tilt Turn and Fixed window systems offer concealed hinge hardware and the same clean lines as our accordion glass doors.
Retractable Screens
A retractable screen add-on is perfect for blocking bugs while providing privacy and fresh air. Screens are not available through NanaWall Systems.
Design and customize systems using our 3D CAD/Revit/Spec Configurators or contact our dedicated design team for more possibilities.

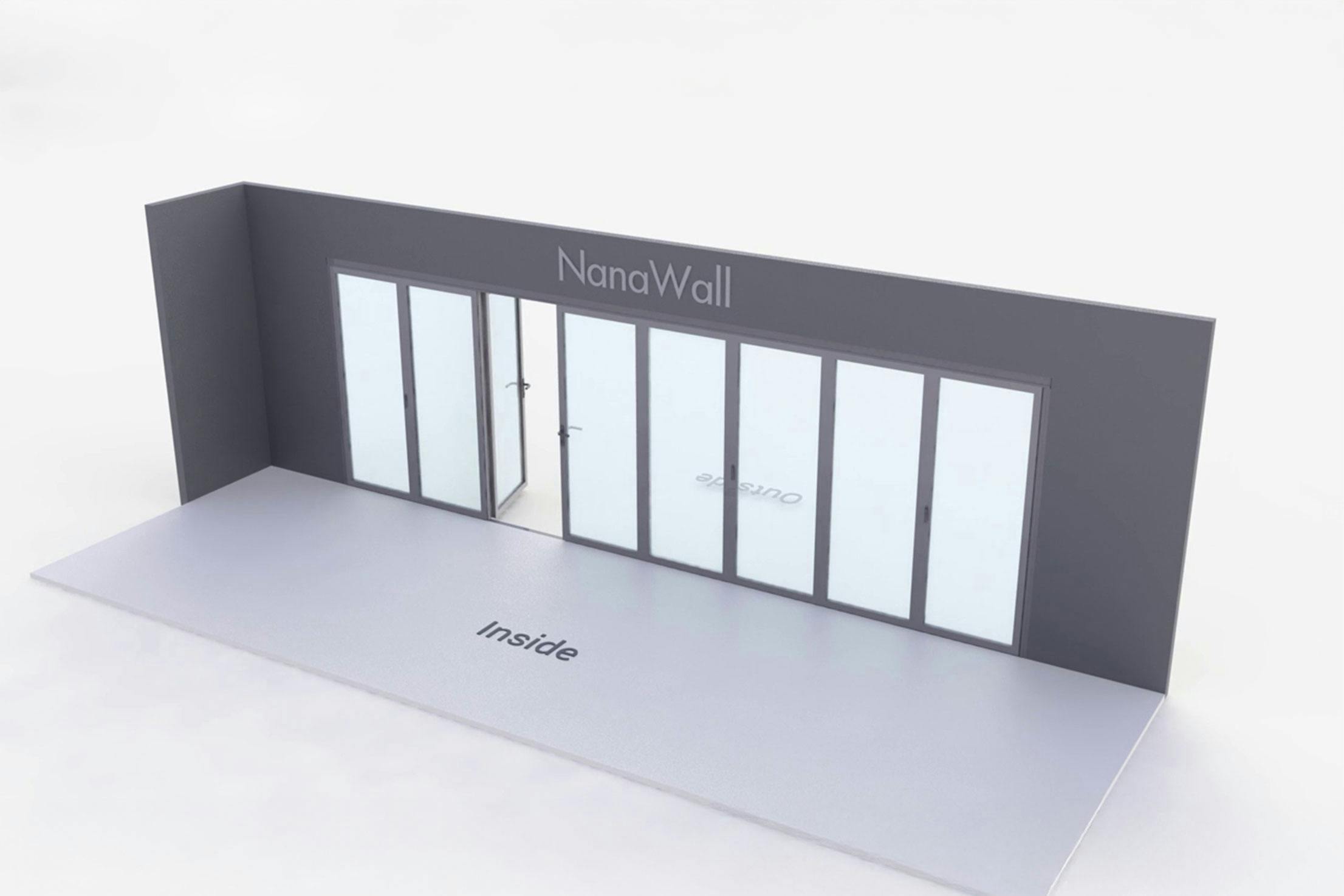

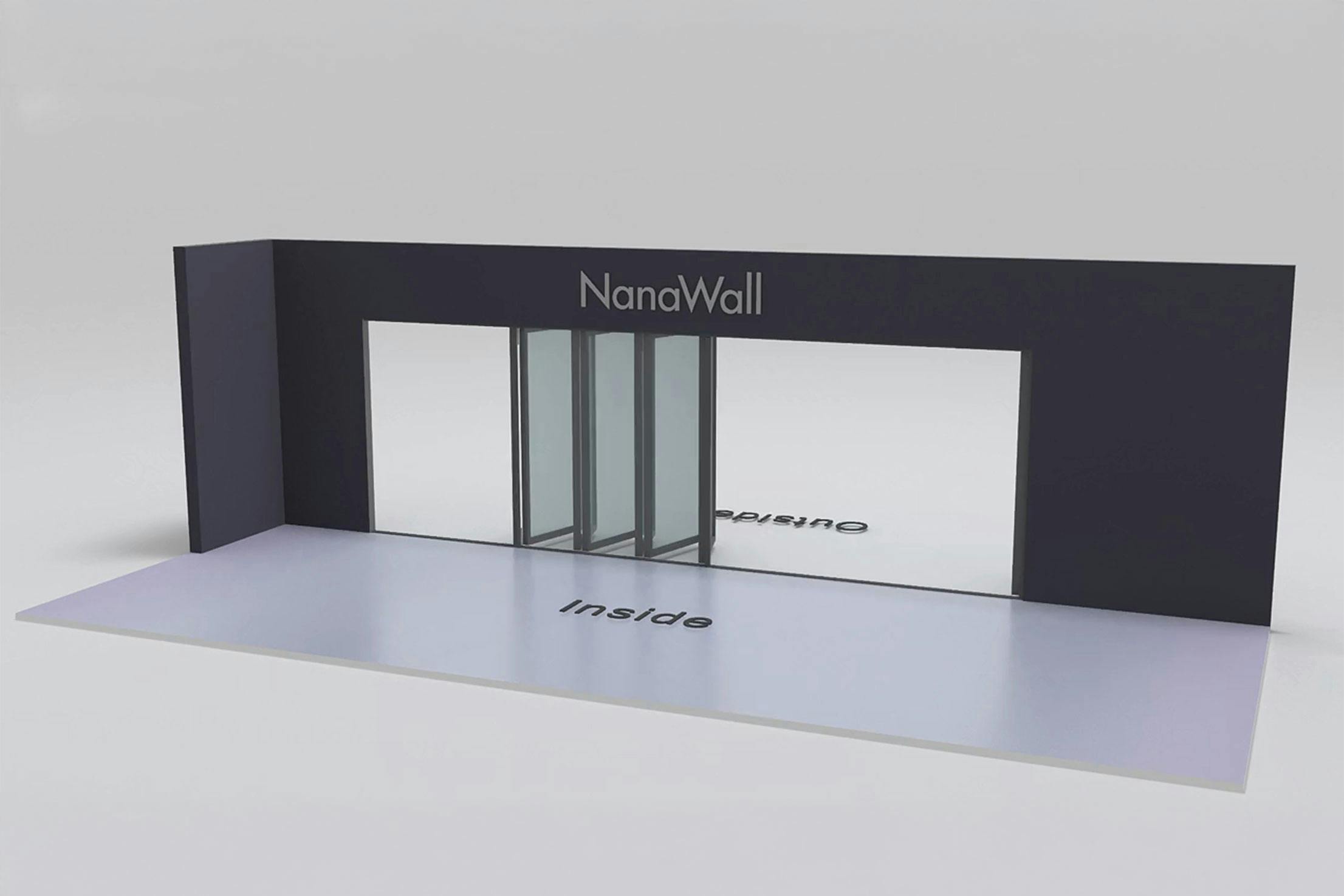

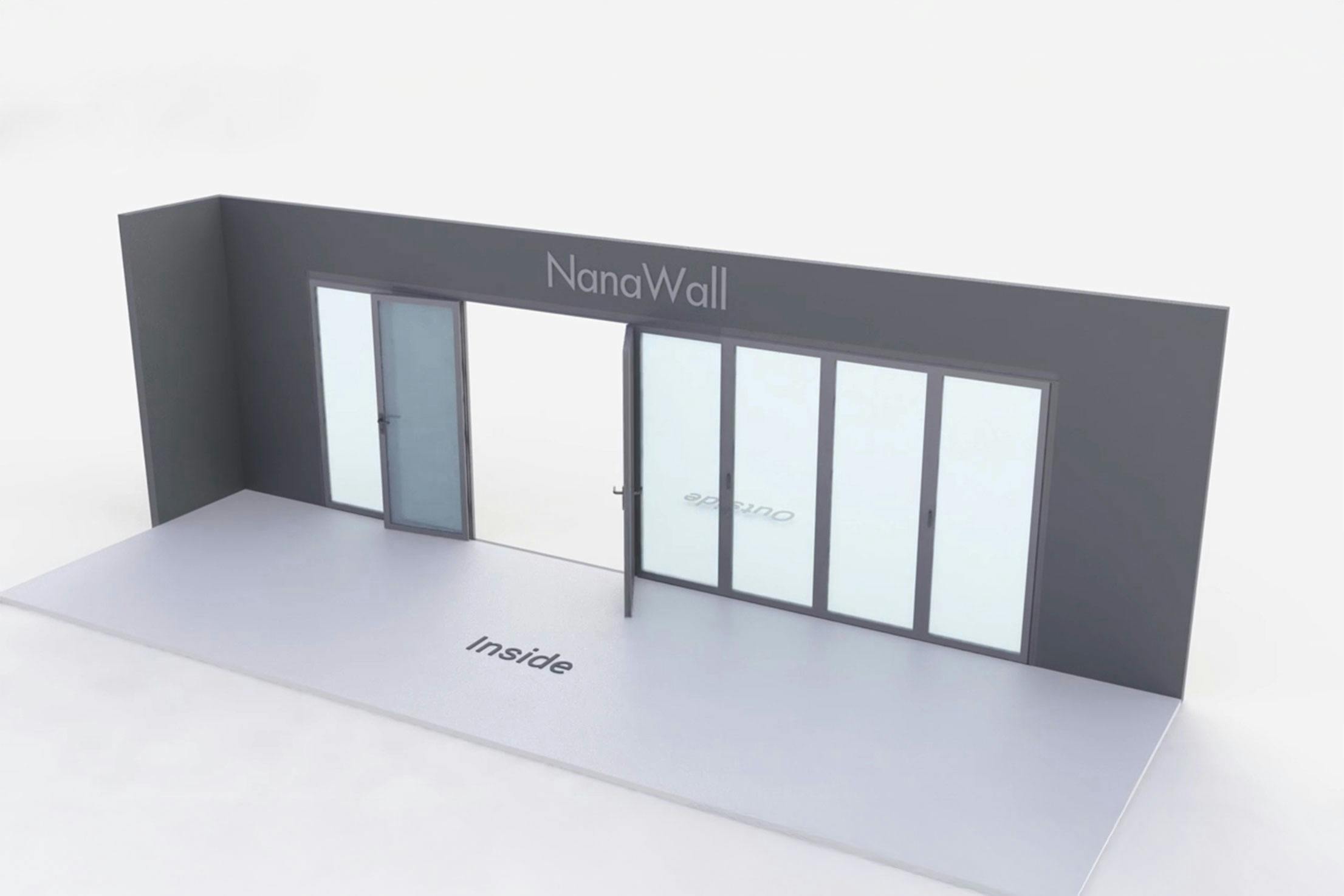

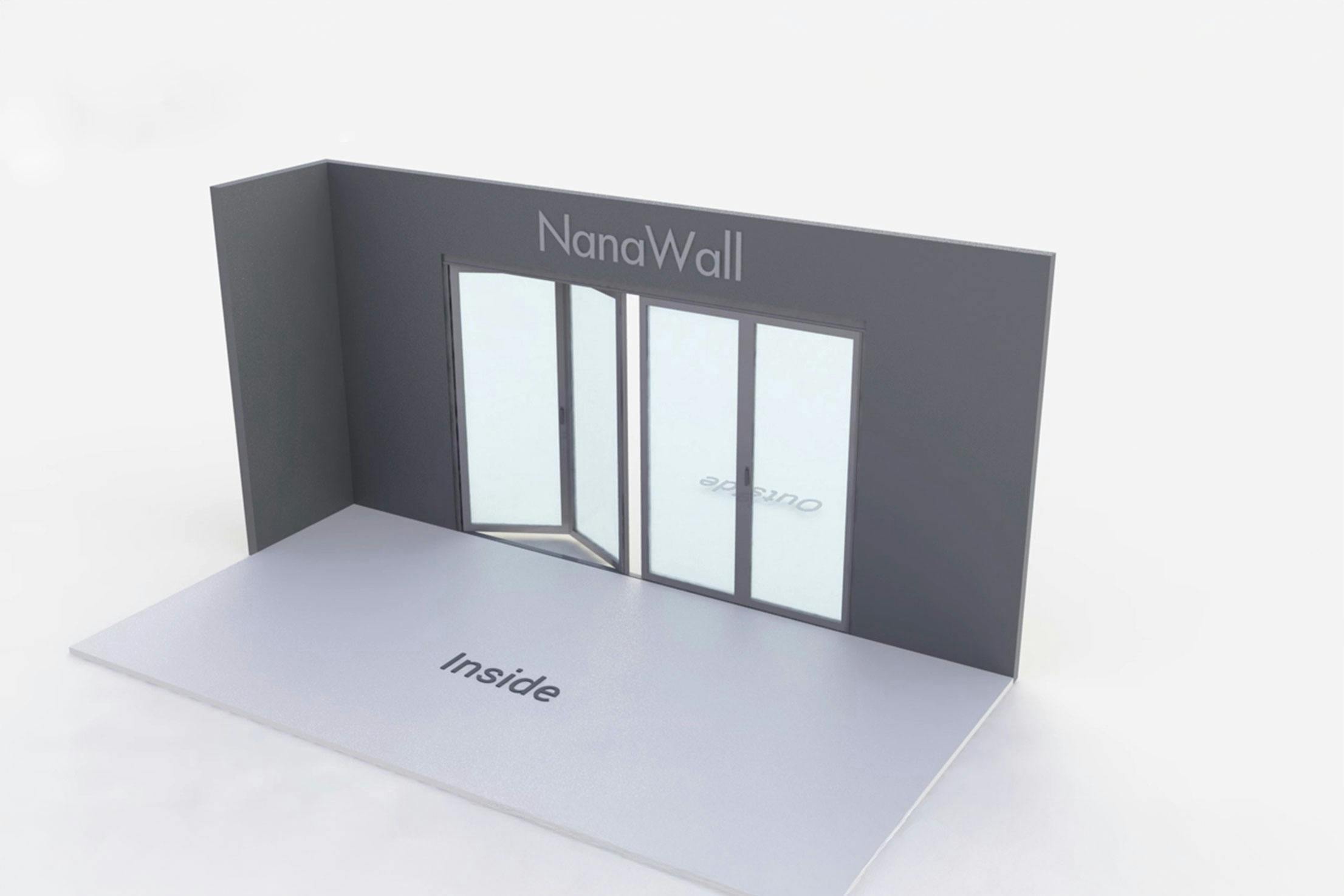

Over 90 standard configurations for straight-forward folding systems.
Standard configurations show the most common way folding glass wall panels align across a straight opening. Panels operate in a continuous line without special conditions such as corner openings, wall pockets, or intersections, making this layout a clear starting point for planning straightforward openings.
View More Standard Configurations View Product Applications

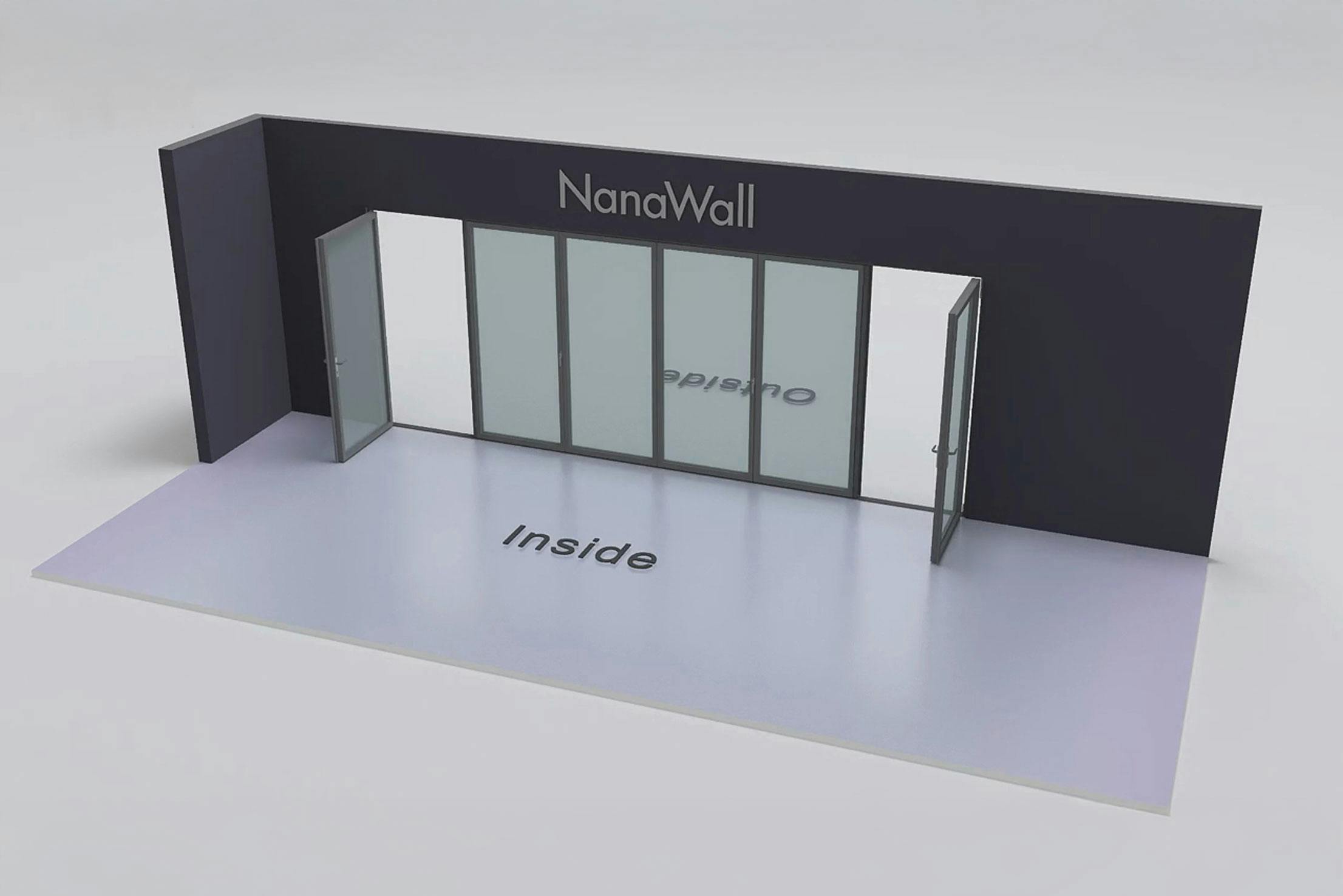

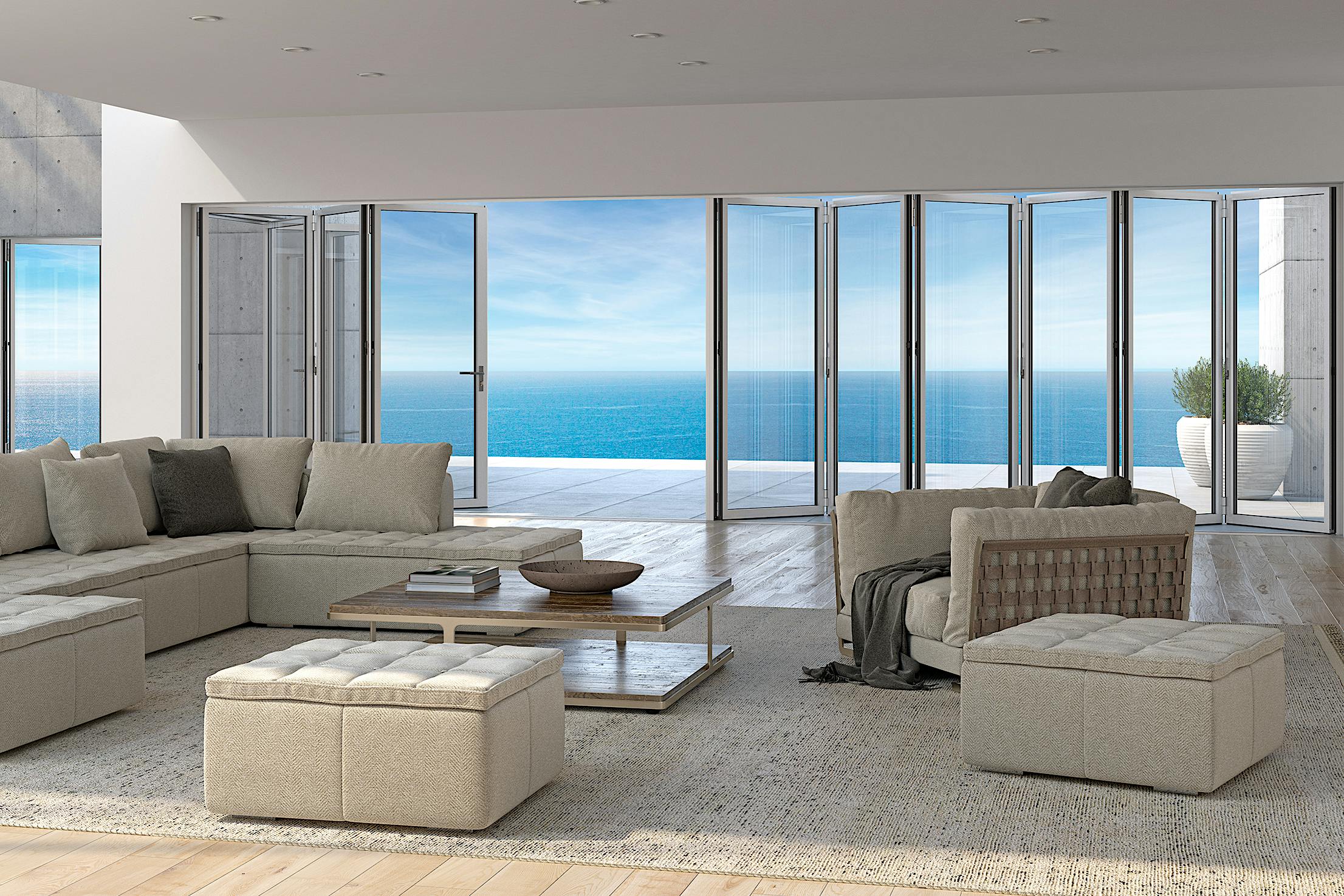

FourFold or SixFold panel sets use four or six connected folding panels operating along a single track. Panels move and stack to the right, left, or center, allowing flexible positioning based on layout and access needs.
View More FourFold / SixFold Panel Sets View Product Applications

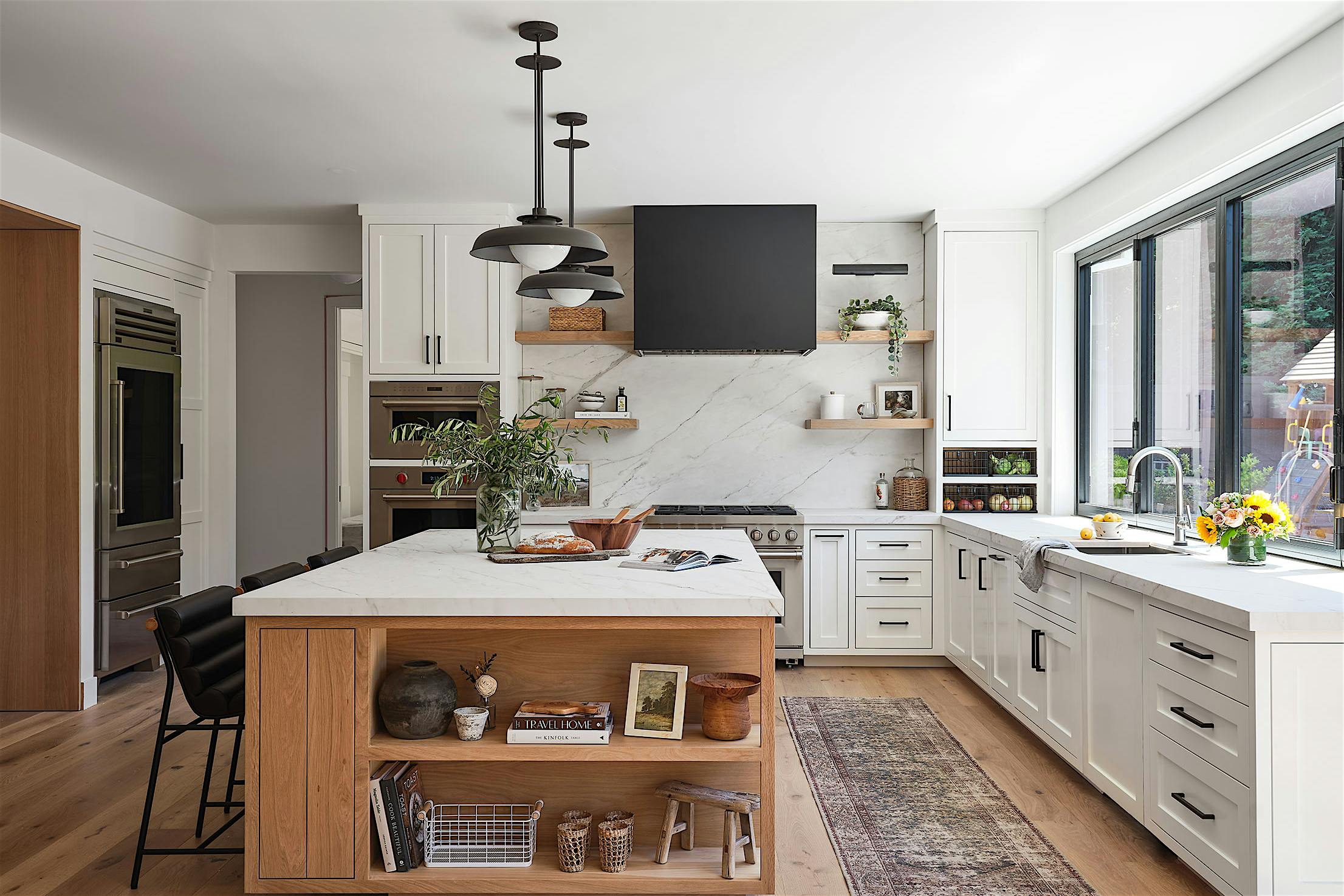

Window-door combination configurations integrate folding windows and folding glass doors within the same opening or wall plane, enabling independent control of daylight, ventilation, and entry. Commonly used for indoor/outdoor kitchens, this layout supports flexible layout design and a clean, consistent visual flow across the space.
View More Window-Door Configurations View Product Applications

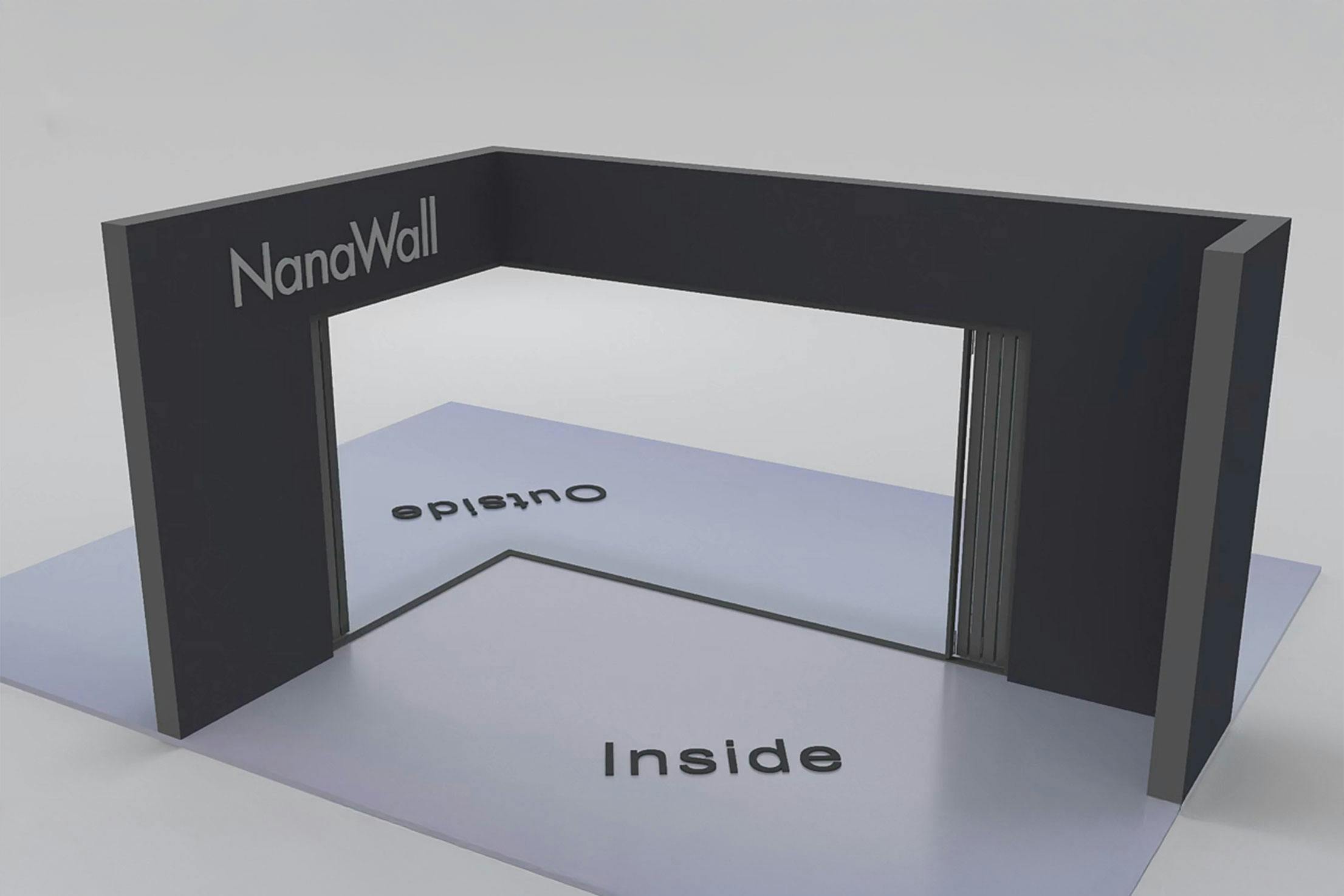

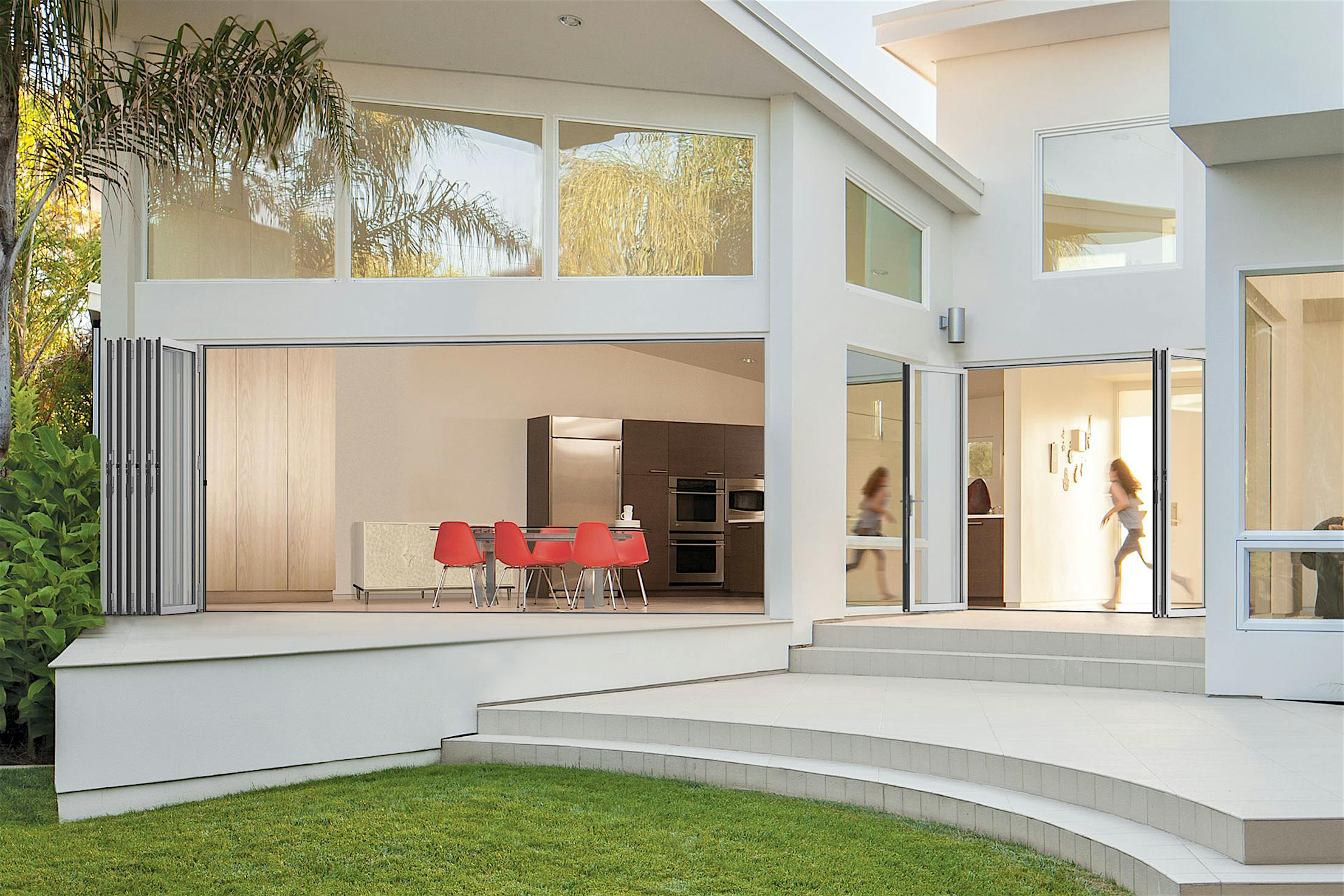

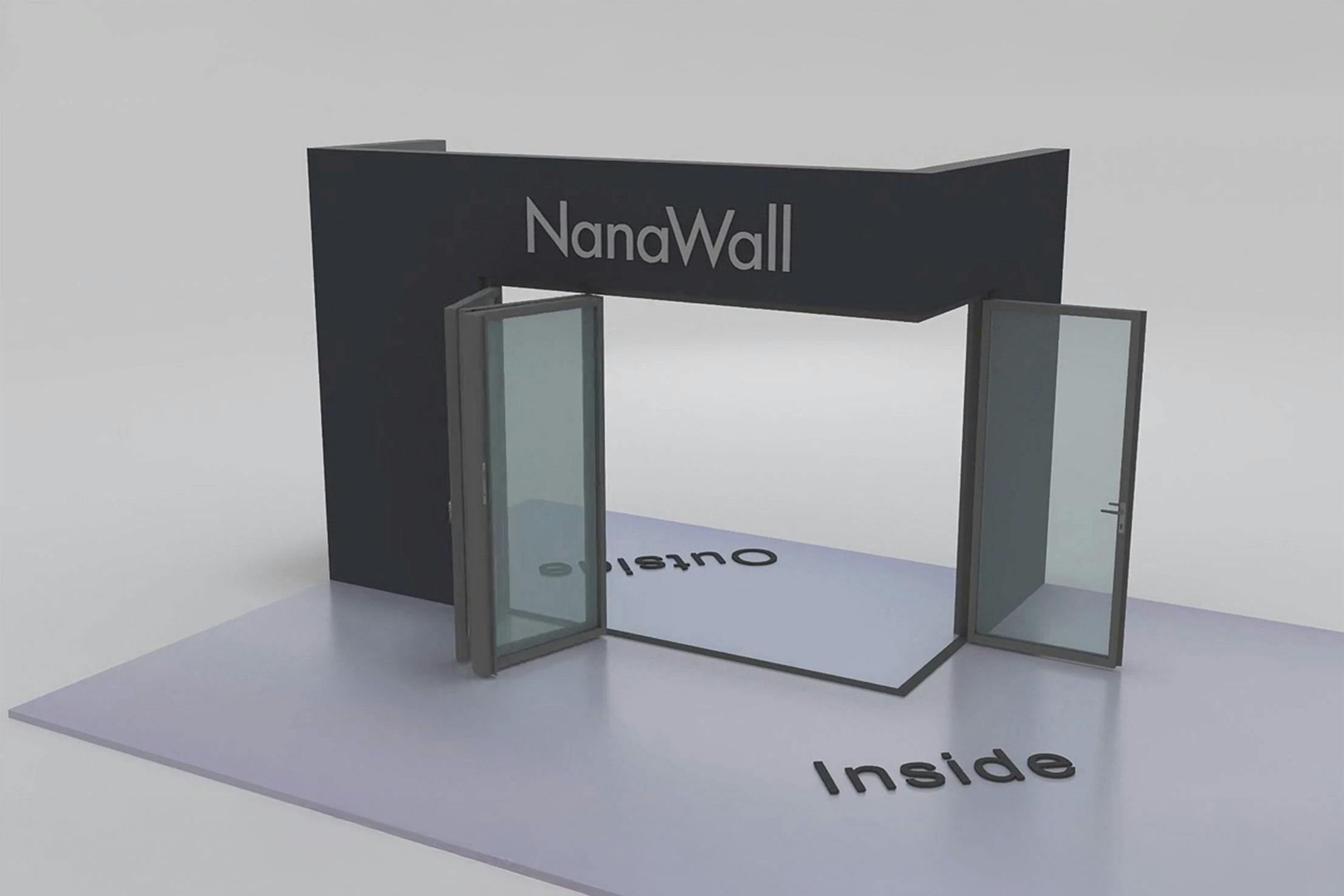

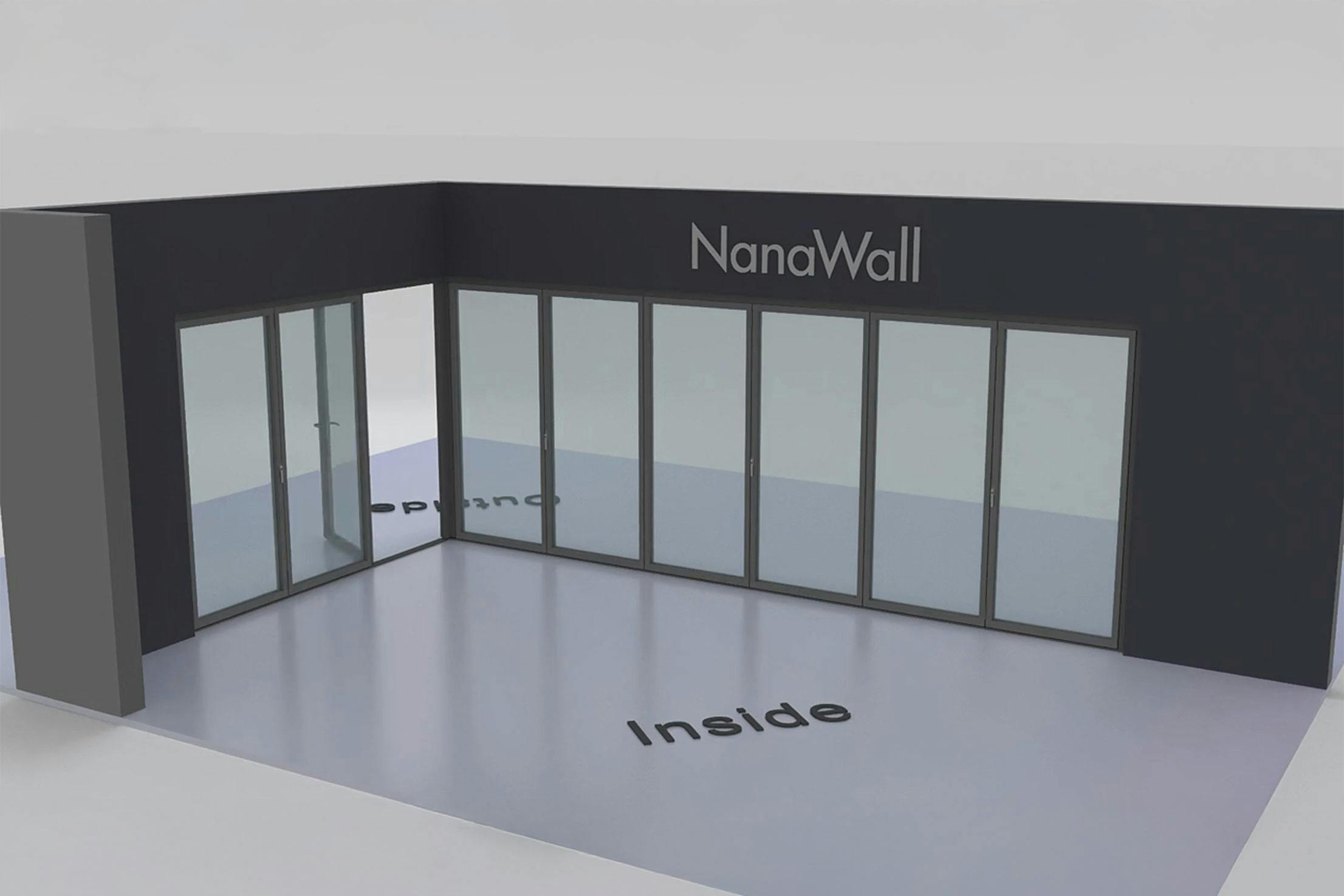

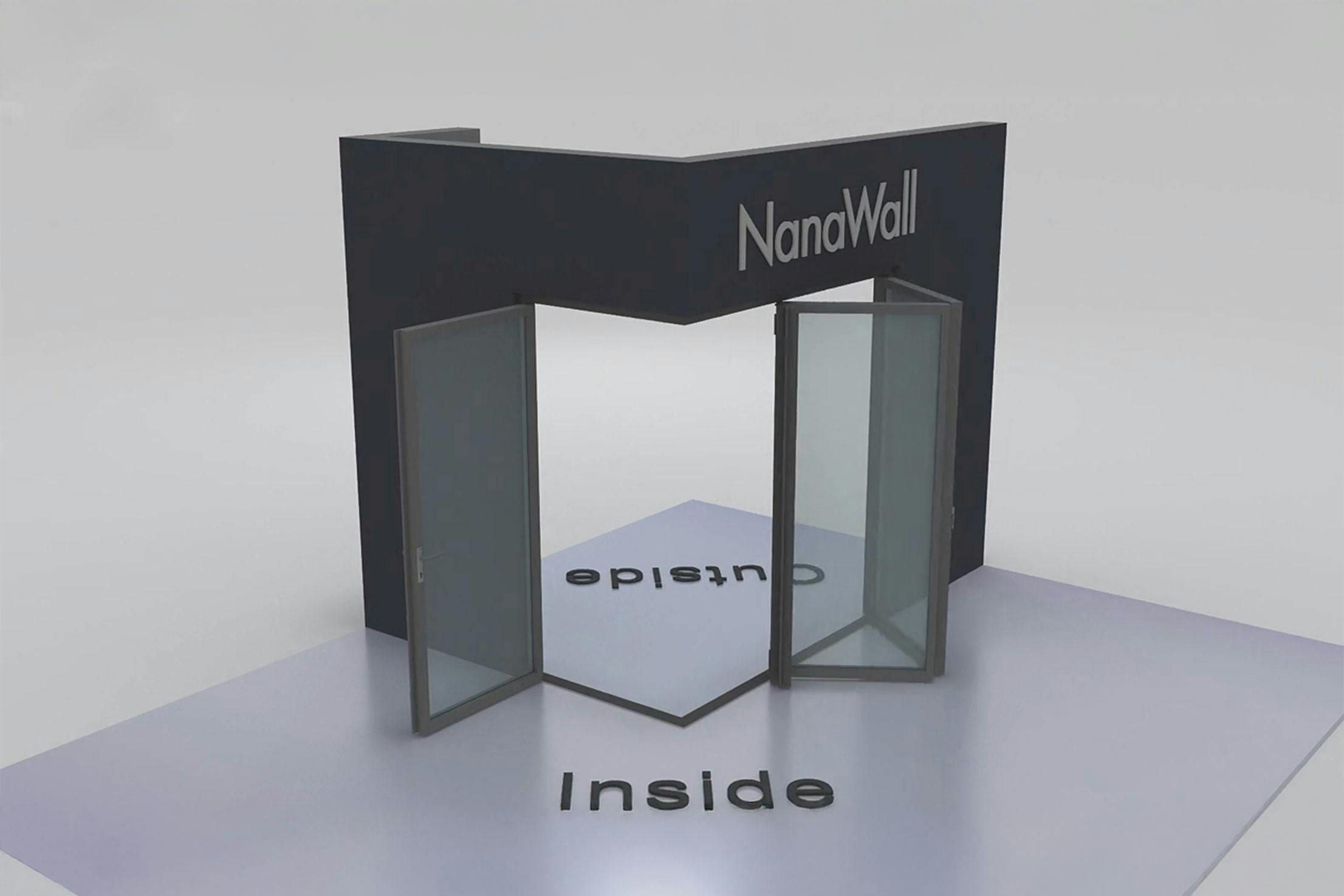

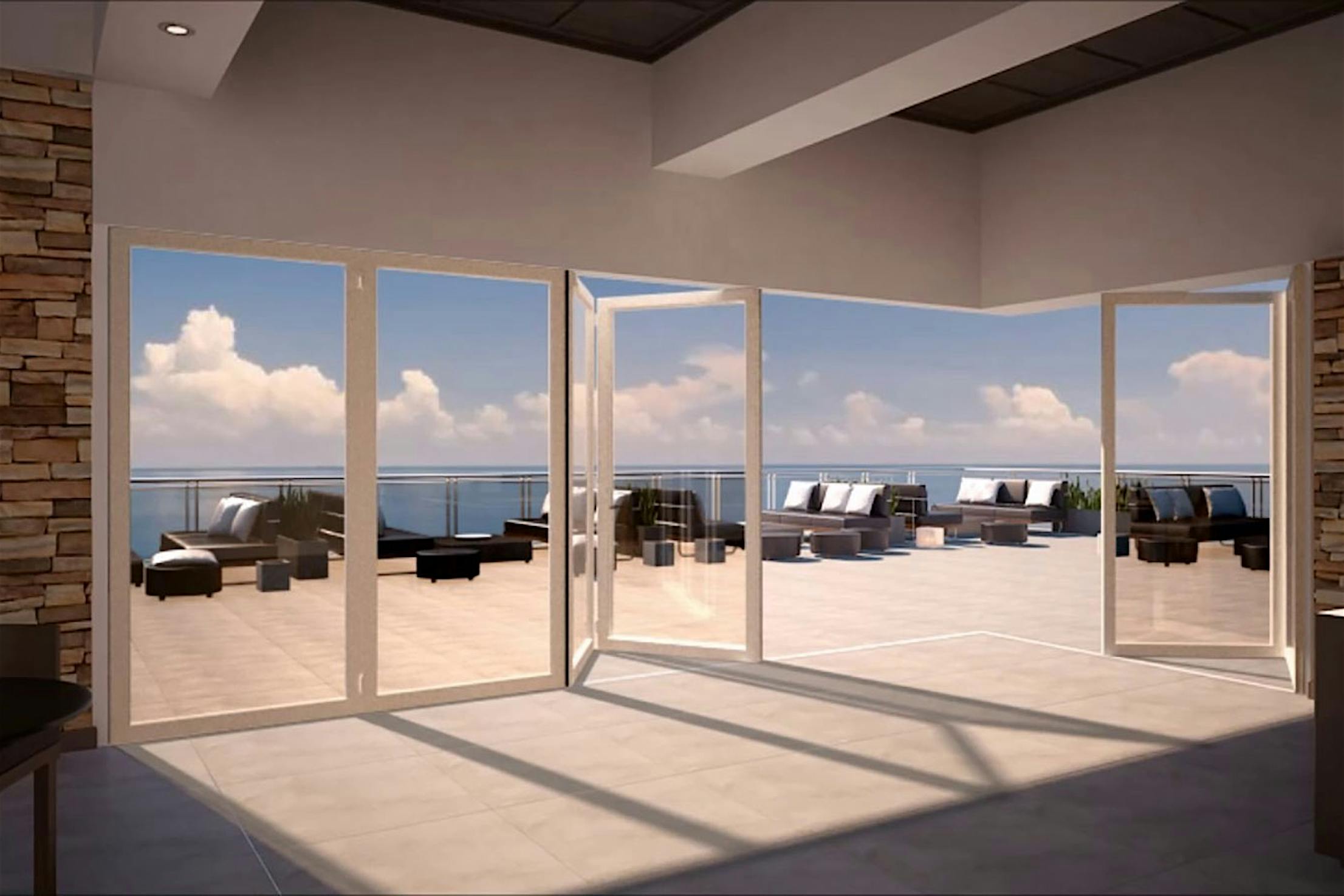

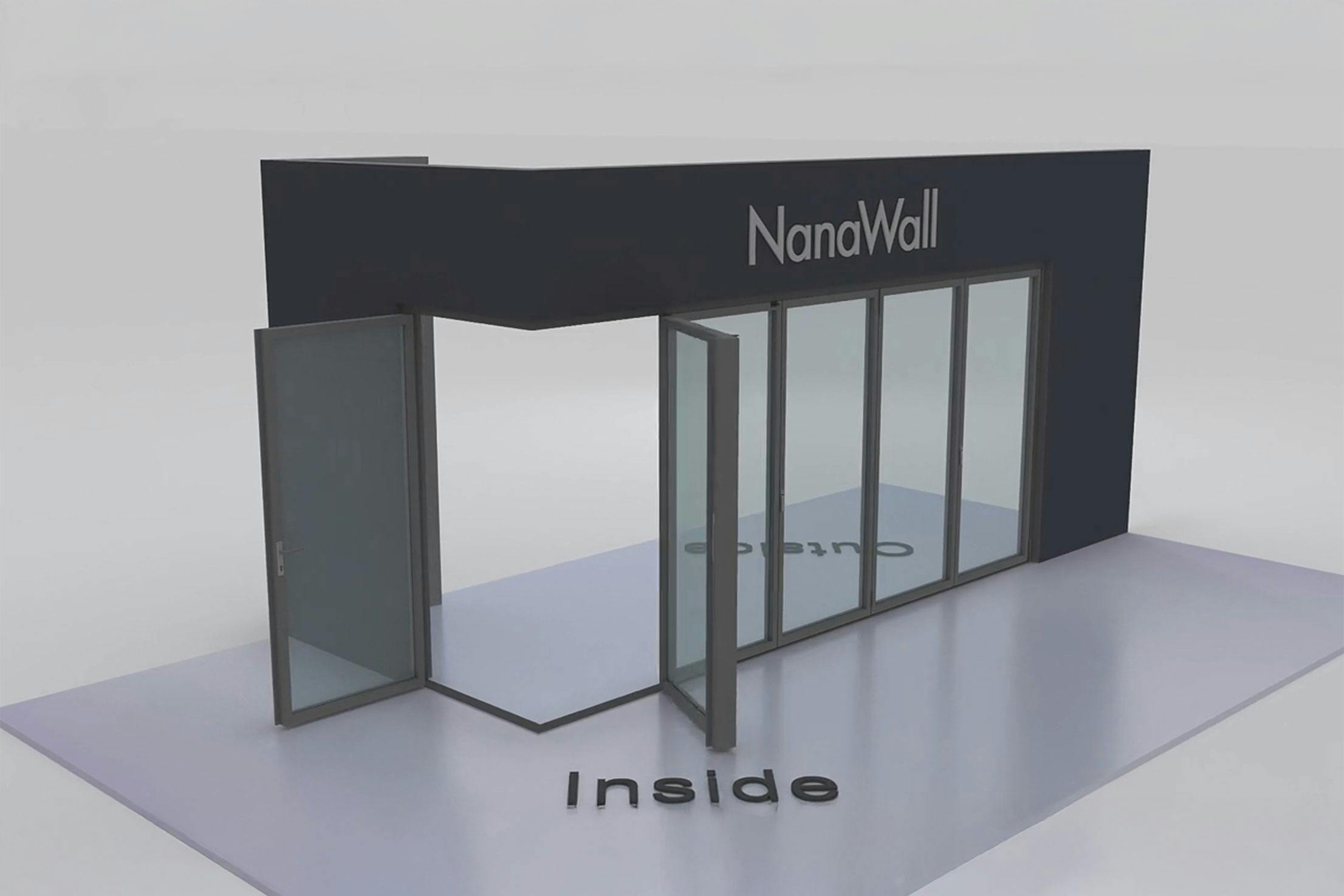

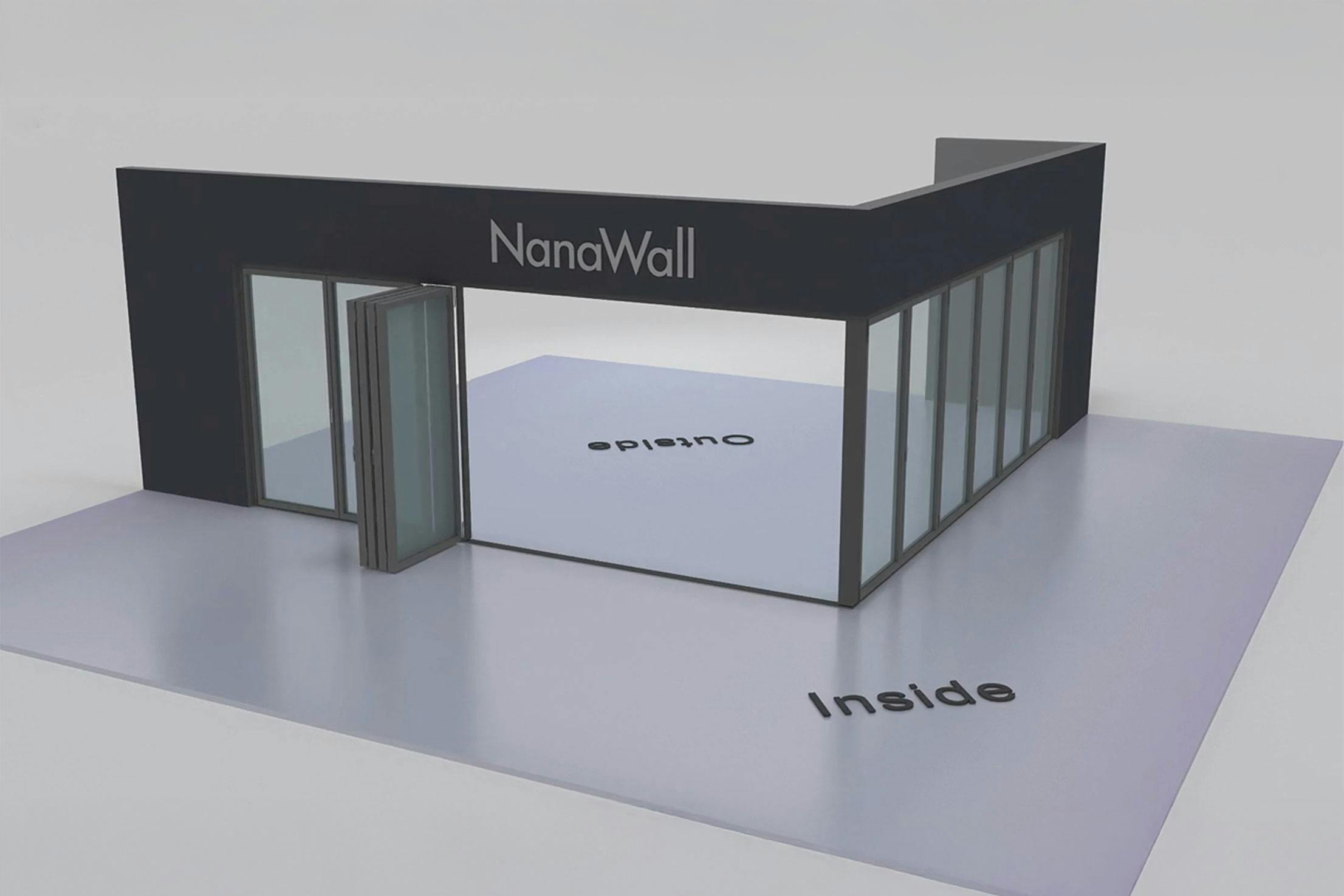

Cornerless (Open Corner) configurations remove the vertical corner post where two operable glass walls meet at 90°, allowing panels to open in multiple directions and create a fully unobstructed corner opening. This layout enhances visual openness, spatial flow, and flexible indoor-outdoor transitions.
All standard configurations are available in cornerless options.
View More Open Corner Configurations View Product Applications
Pocketing configurations allow glass door panels to slide fully into a concealed wall pocket, creating a completely unobstructed opening and maximizing clear opening width. This layout supports clean sightlines and seamless indoor-outdoor transitions while integrating directly into the wall structure.
View More Pocketing Configurations
Specialty configurations address architectural conditions that fall outside standard layouts, using custom engineering to accommodate complex geometry, structural constraints, or project-specific design requirements. These configurations enable advanced design flexibility for specialized interior and exterior applications.
View More Specialty Configurations View Product ApplicationsWhat Our Customers Have to Say
Fairway Edge
This net-zero and accessible home in Camas, WA is designed for modern living with a unique open corner design to embrace panoramic views.
Hilton Scottsdale North at Cavasson
This Hilton hotel in Scottsdale uses NanaWall systems across 11 locations to maximize mountain views and indoor-outdoor flexibility.
“Although we always pictured those floor-to-ceiling windows, we weren’t 100 percent convinced of how it would be executed until NanaWall was introduced to the equation,” says the homeowner. “We can’t imagine our dream home without it now!”
NW Aluminum 640 features the slimmest aluminum frame in the industry and in the NanaWall folding product line, delivering minimal sightlines and a clean, modern aesthetic. Its streamlined design enhances natural light and unobstructed views with exceptional, verified performance results. NW Aluminum 640 supports extended open widths with FourFold and SixFold floating panel sets.
Yes. This system is specifically designed for exterior applications, featuring a patented thermally broken aluminum frame that delivers excellent energy efficiency, weather resistance, and overall durability in various climates.
NW Aluminum 640 is engineered for superior thermal performance, with values as low as 0.24, depending on glazing options. It includes a patented thermal break design and continuous seals to help maintain indoor comfort and reduce energy loss.
As a custom-built architectural solution, the NW Aluminum 640 offers:
- Inswing or outswing configurations
- Open corner designs
- Window door combination designs
- Unlimited width openings
- Flexible panel stacking locations (left, right, or center)
This allows architects and designers to tailor the system to virtually any project requirement.
The system supports floor supported panels up to 11′ 6″ (3500 mm) in height, with panel widths up to about 3′ 3″ (1000 mm), enabling expansive openings and seamless indoor-outdoor transitions.
The floor supported design:
- Reduces structural load on the header
- Enhances long-term durability
- Enables smoother operation
- Simplifies retrofit applications by minimizing structural modifications
