Monumental System Engineered For The Most Demanding Applications
- Unit heights up to 10′ 6″ (3200 mm) are possible
- Mix and match from three frameless system options
- Exterior capabilities

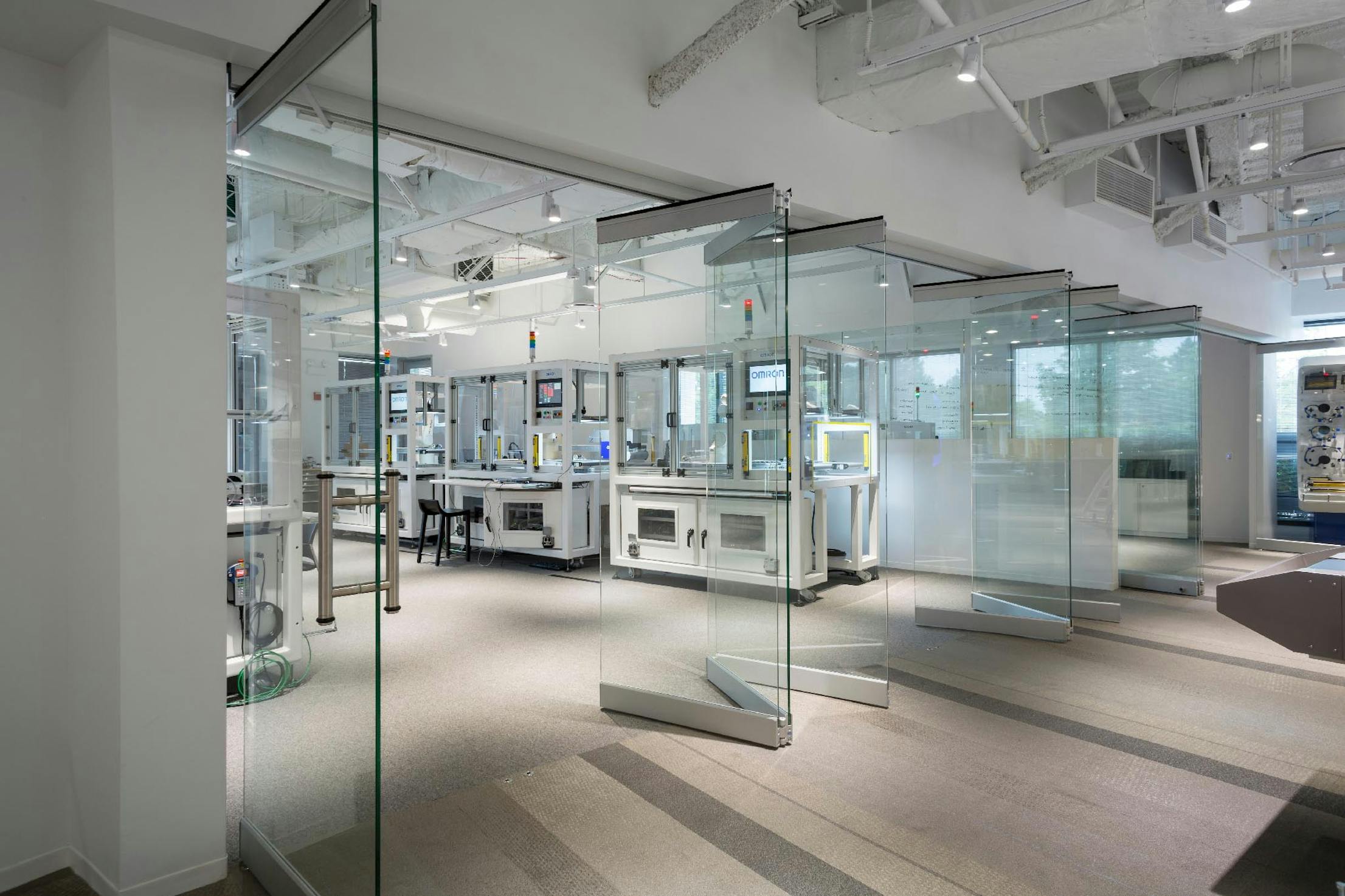

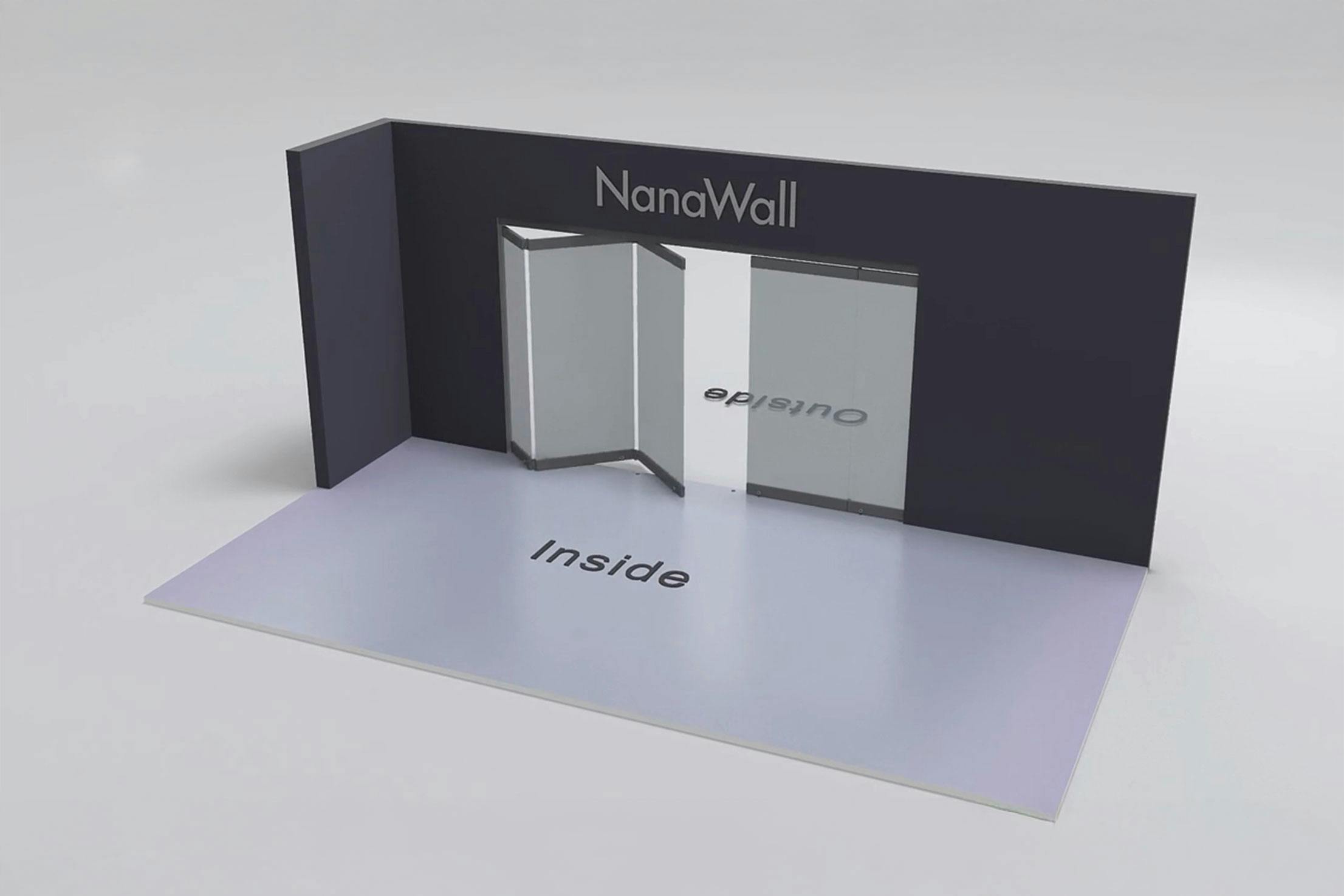

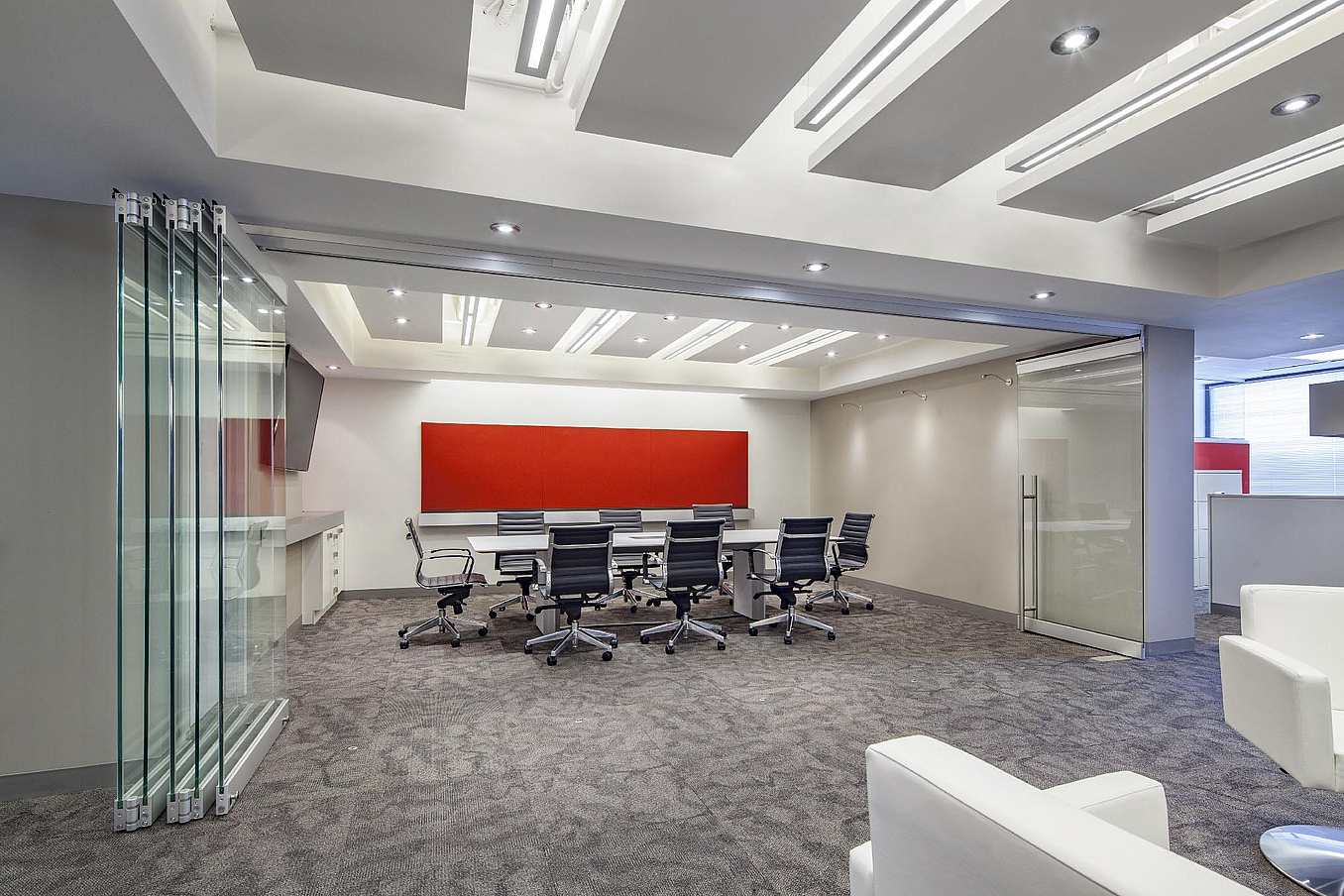

Frameless Center Pivot Folding Systems for Space Management

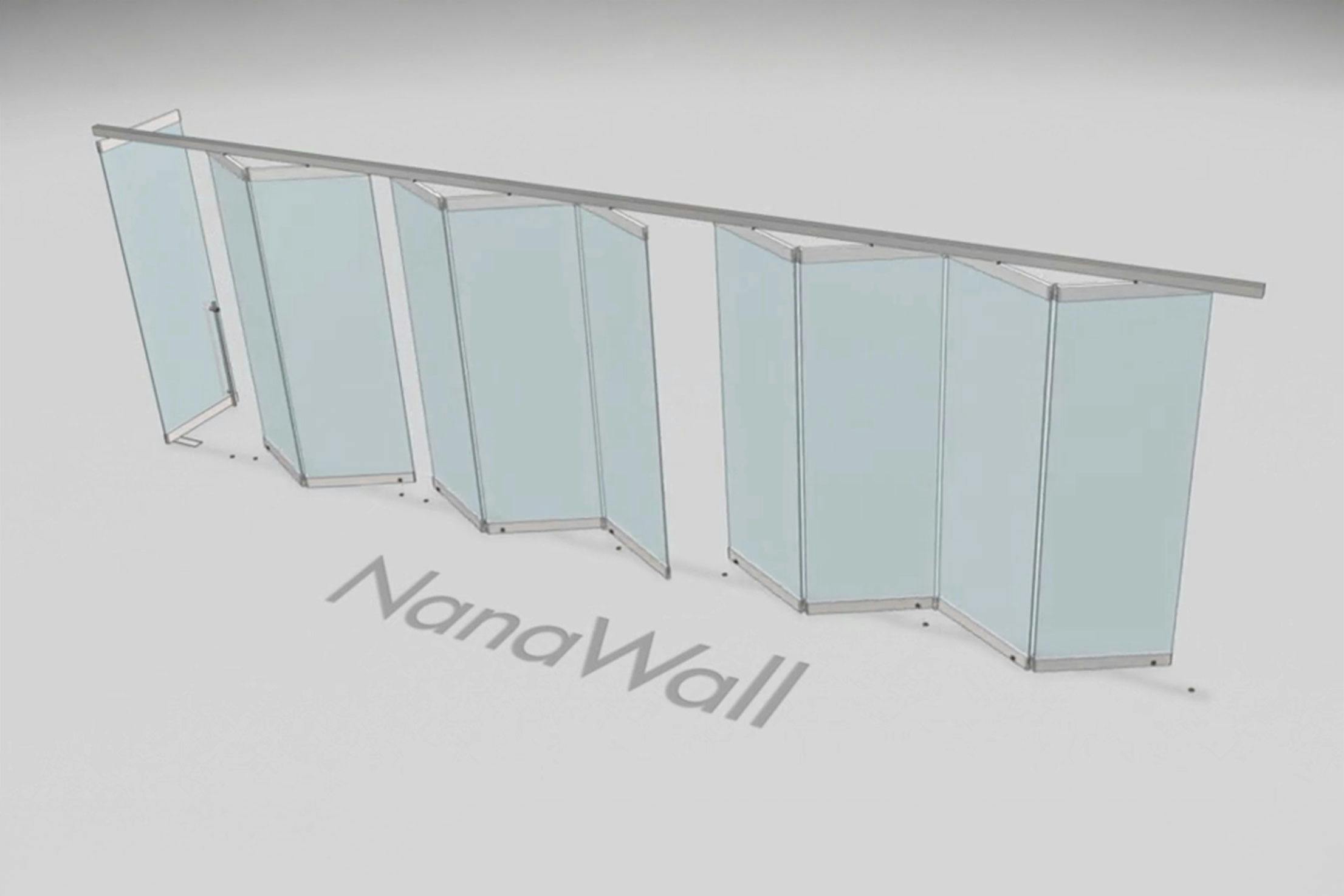

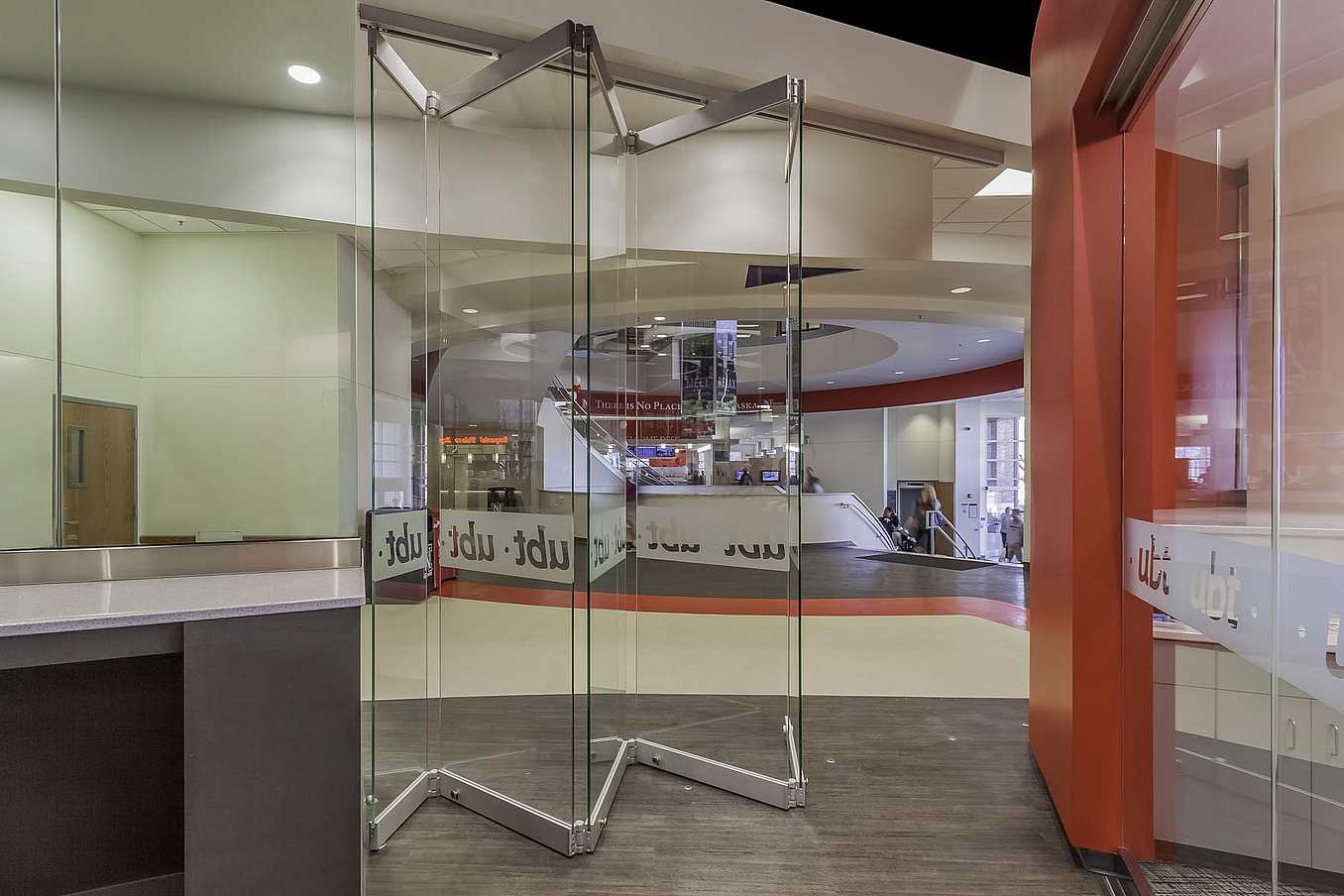

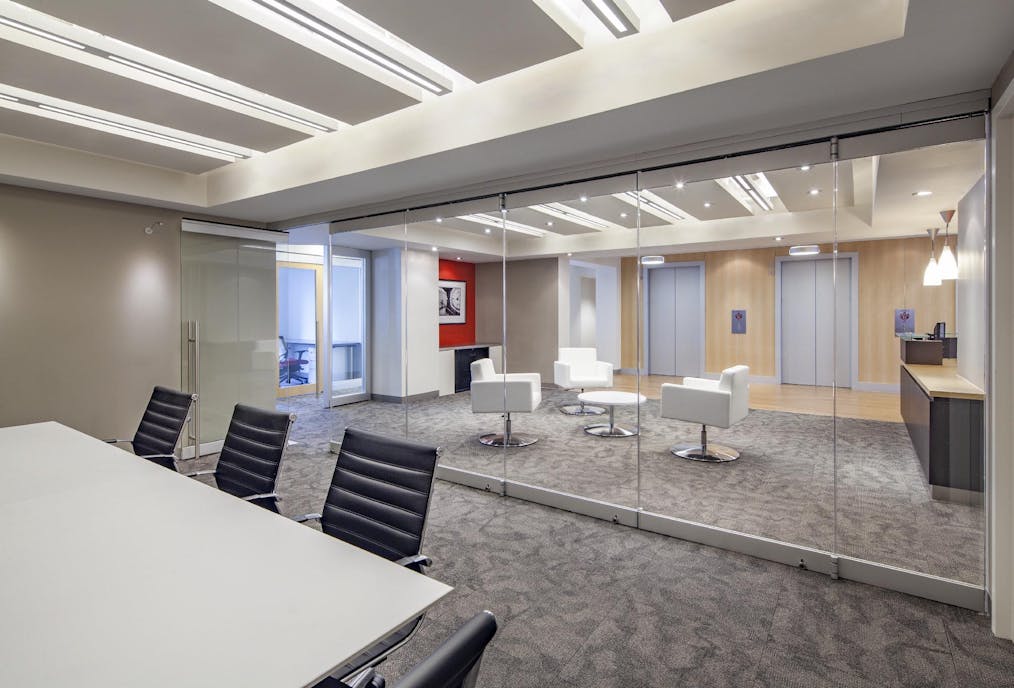

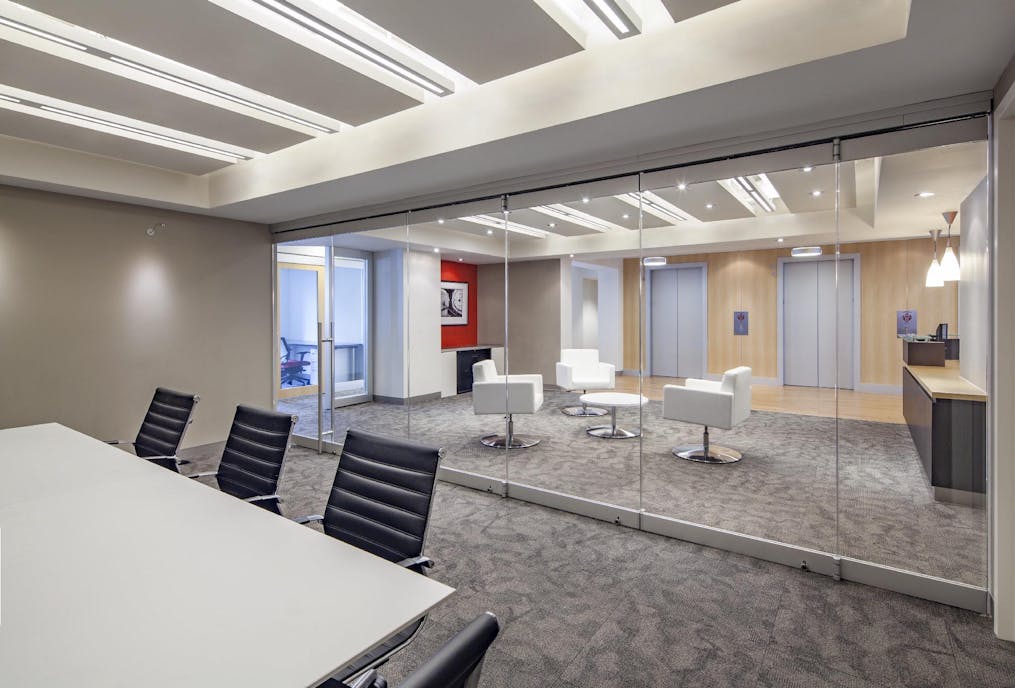

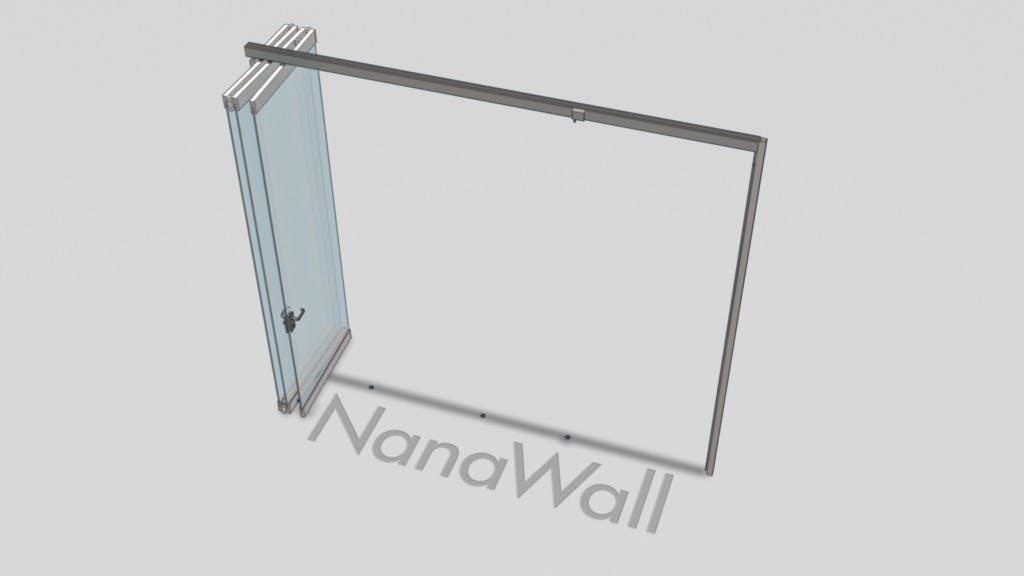

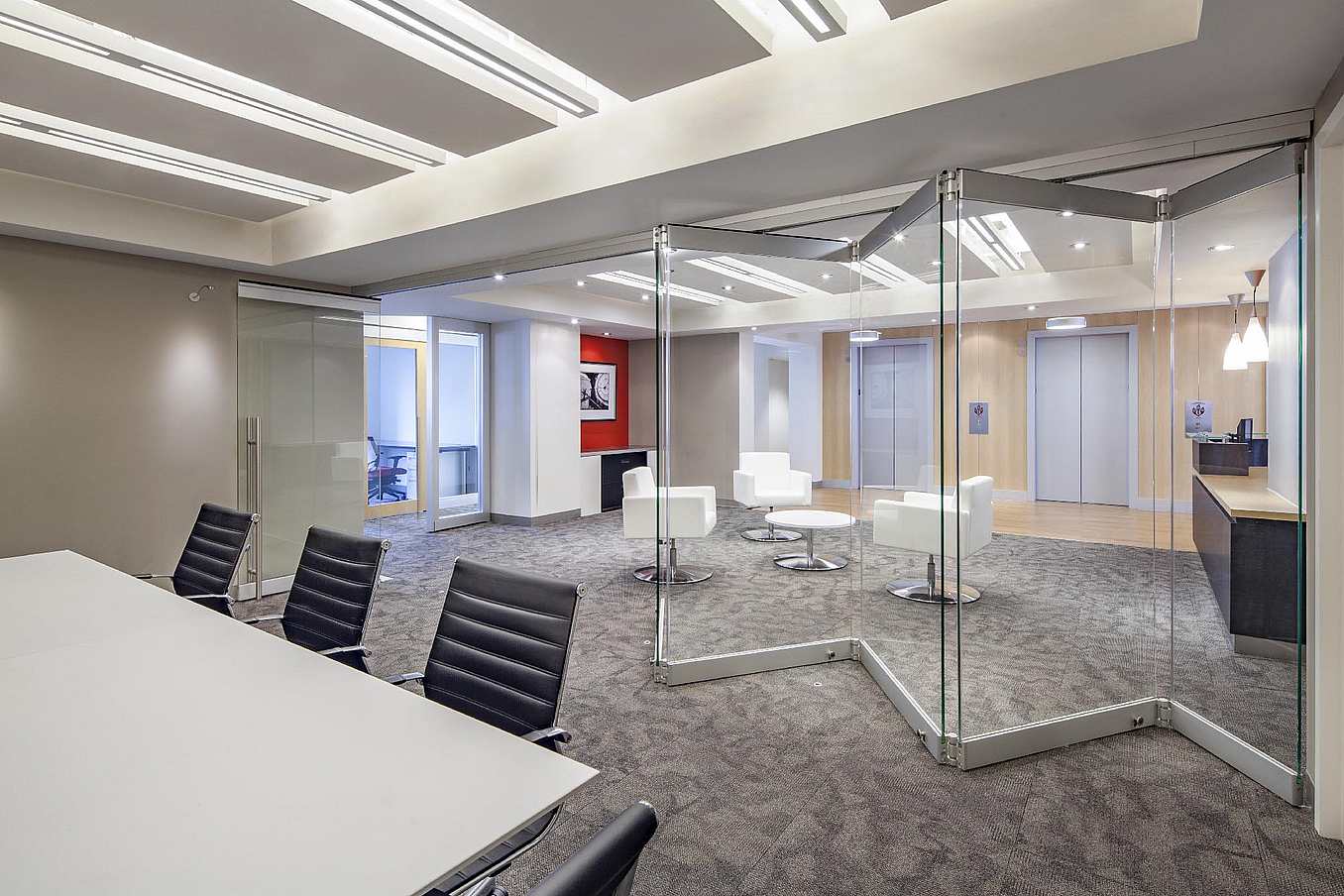

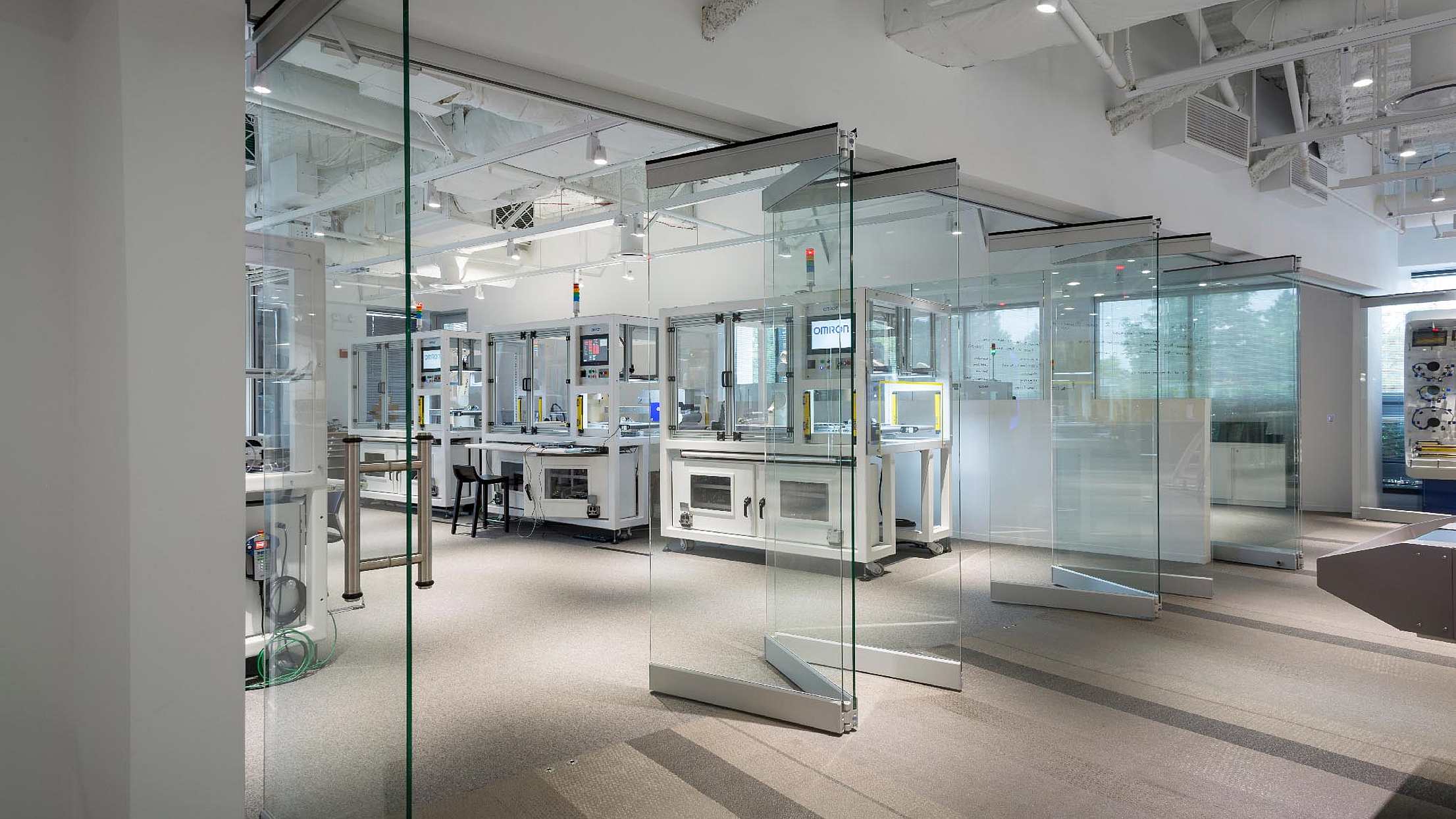

Create an unlimited span of top-hung center pivot folding panels with the addition of paired panels to optimize space management or to solve unique design challenges between support columns. CSW75 does not require the use of a floor track.

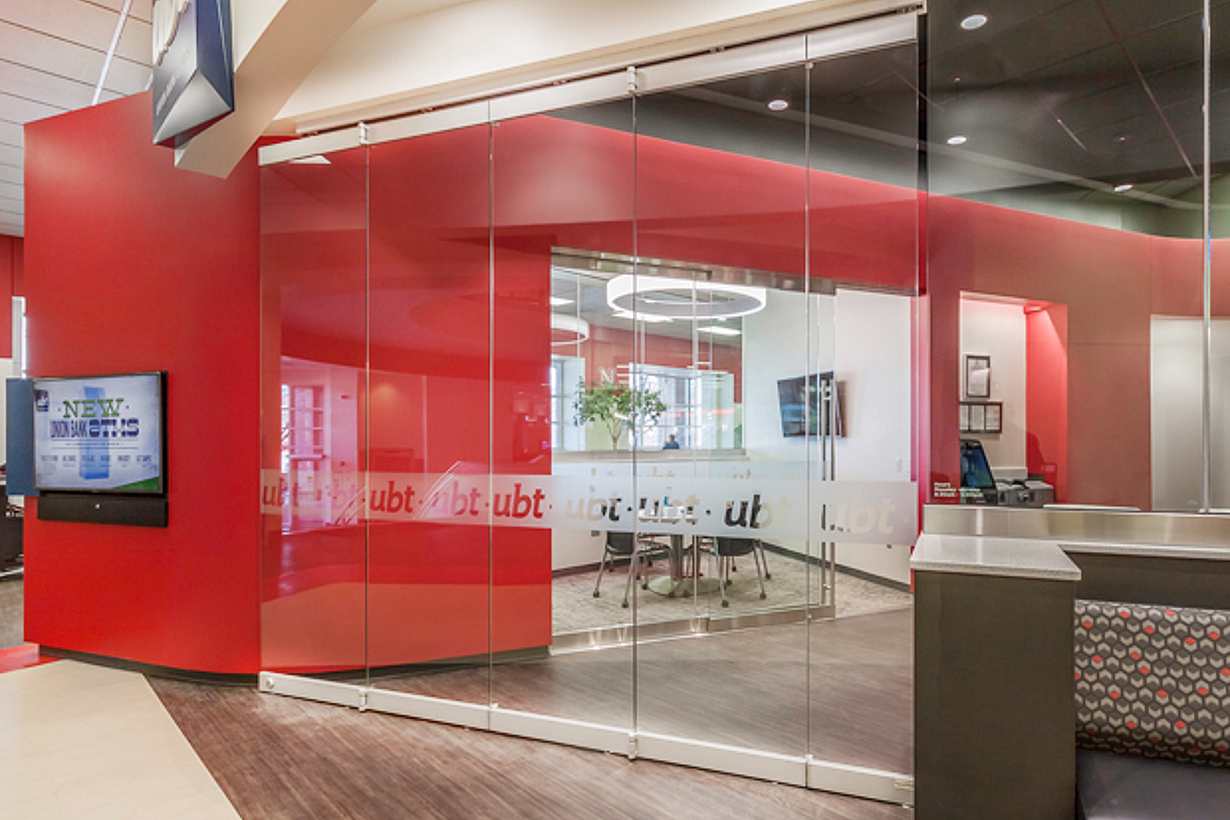

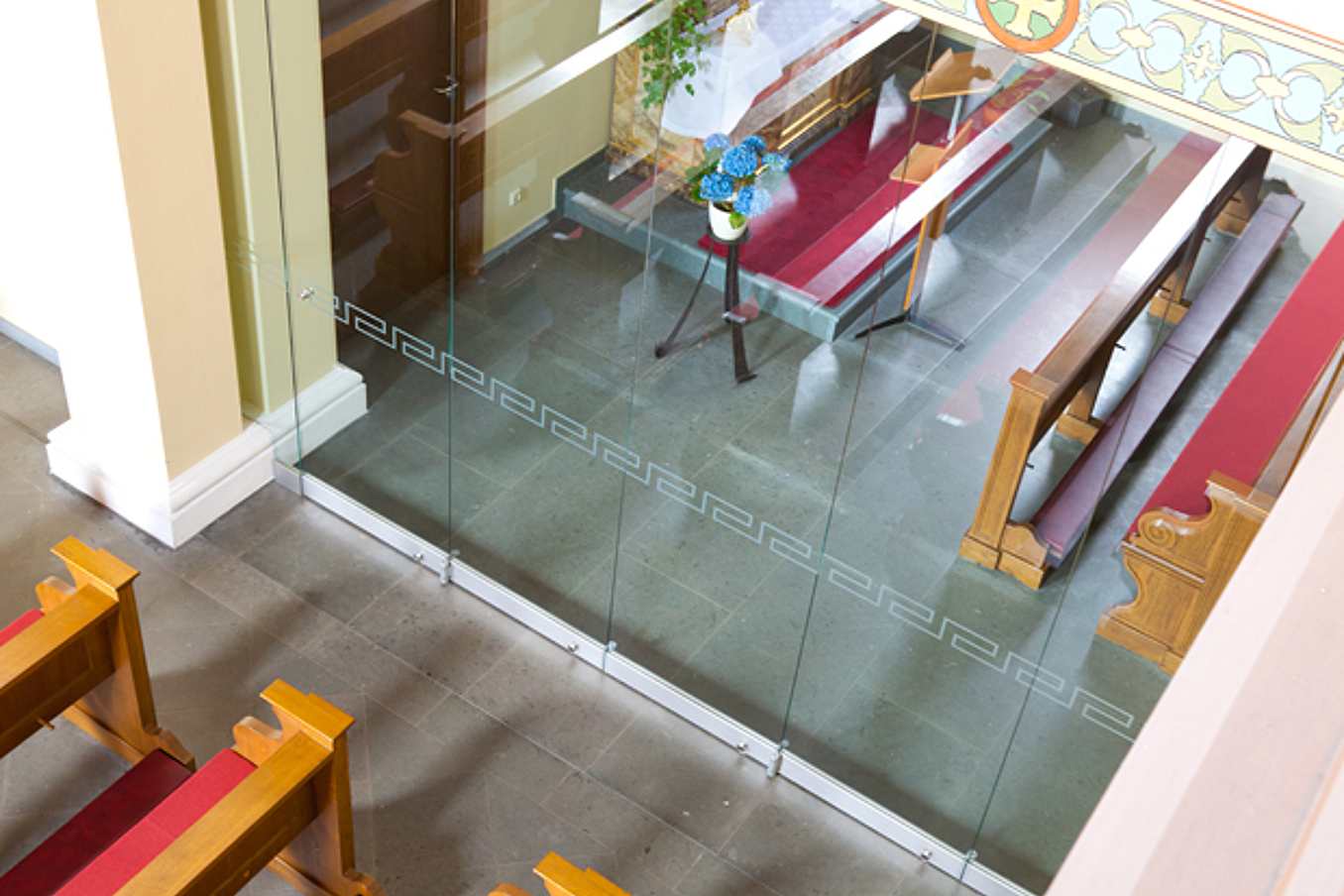

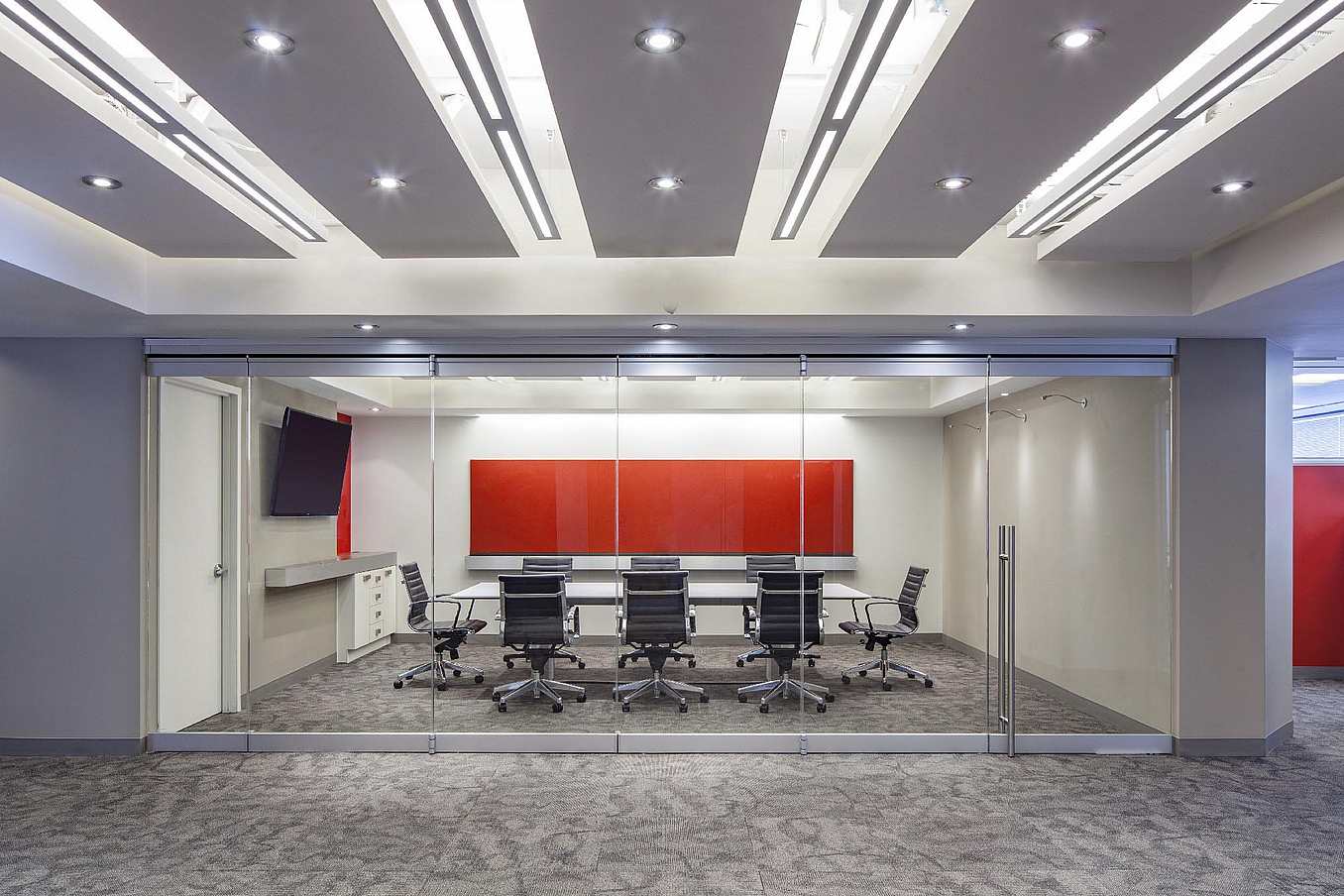

3 15/16" Continuous Rail for Outstanding Aesthetics
The CSW75 system comes standard with a 3 15/16" (100 mm) continuous top and bottom horizontal rail, allowing for a beautiful aesthetic and maximum glass. Customized rail options are available in increments of 3/16" (5mm) from 5 1/4" (133mm) to 7 13/16" (198mm). To meet ADA requirements, two options are offered: a 10" (254 mm) bottom rail or a 4 3/4" (120 mm) chamfer bottom rail.

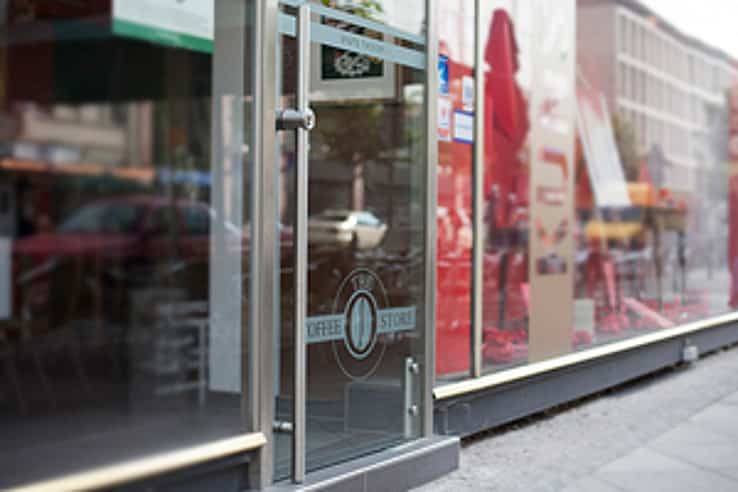

CSW75 can be used in exterior applications as a windbreak. Please note that at this time, CSW75 is not rated for air and water infiltration or acoustical performance.

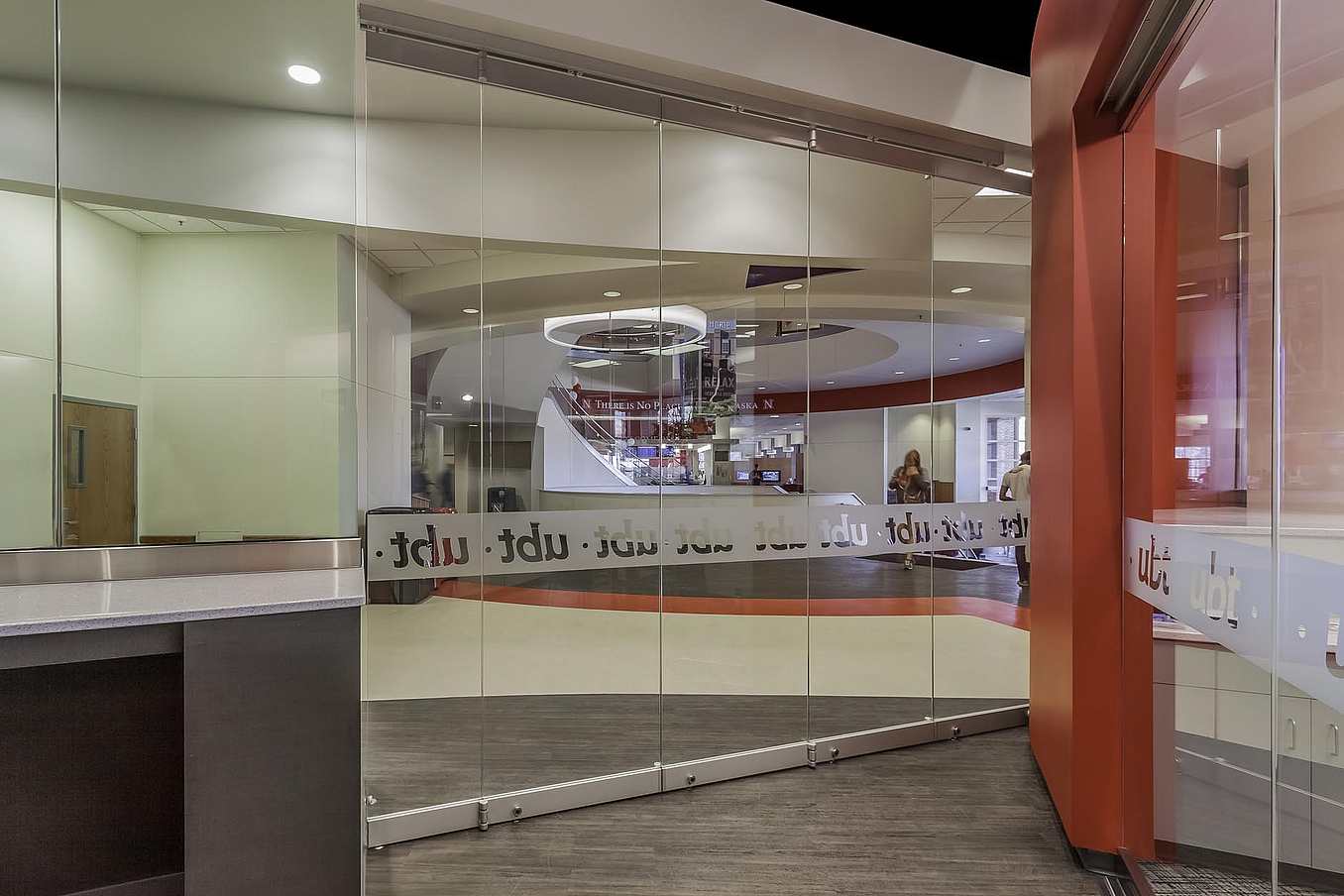

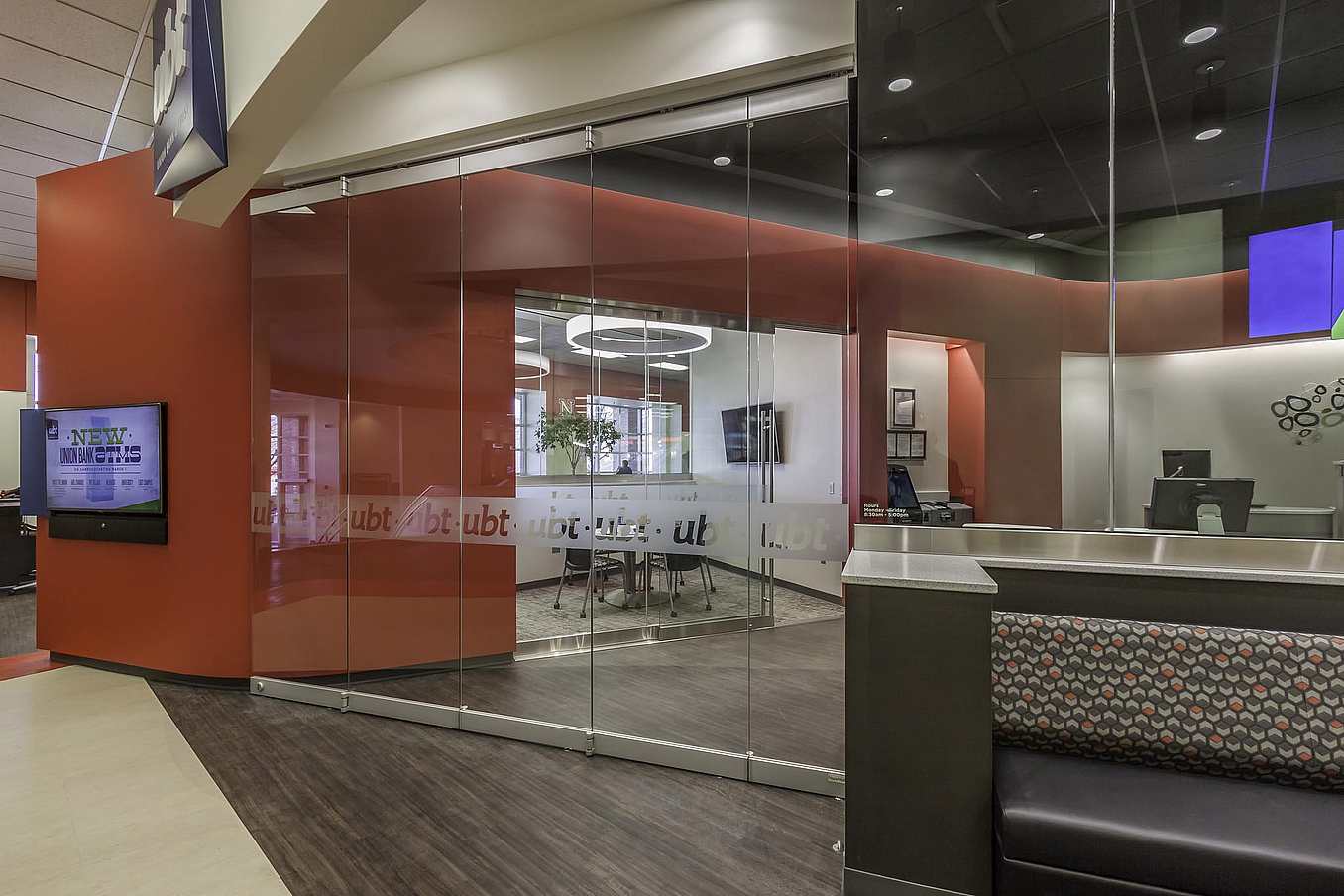

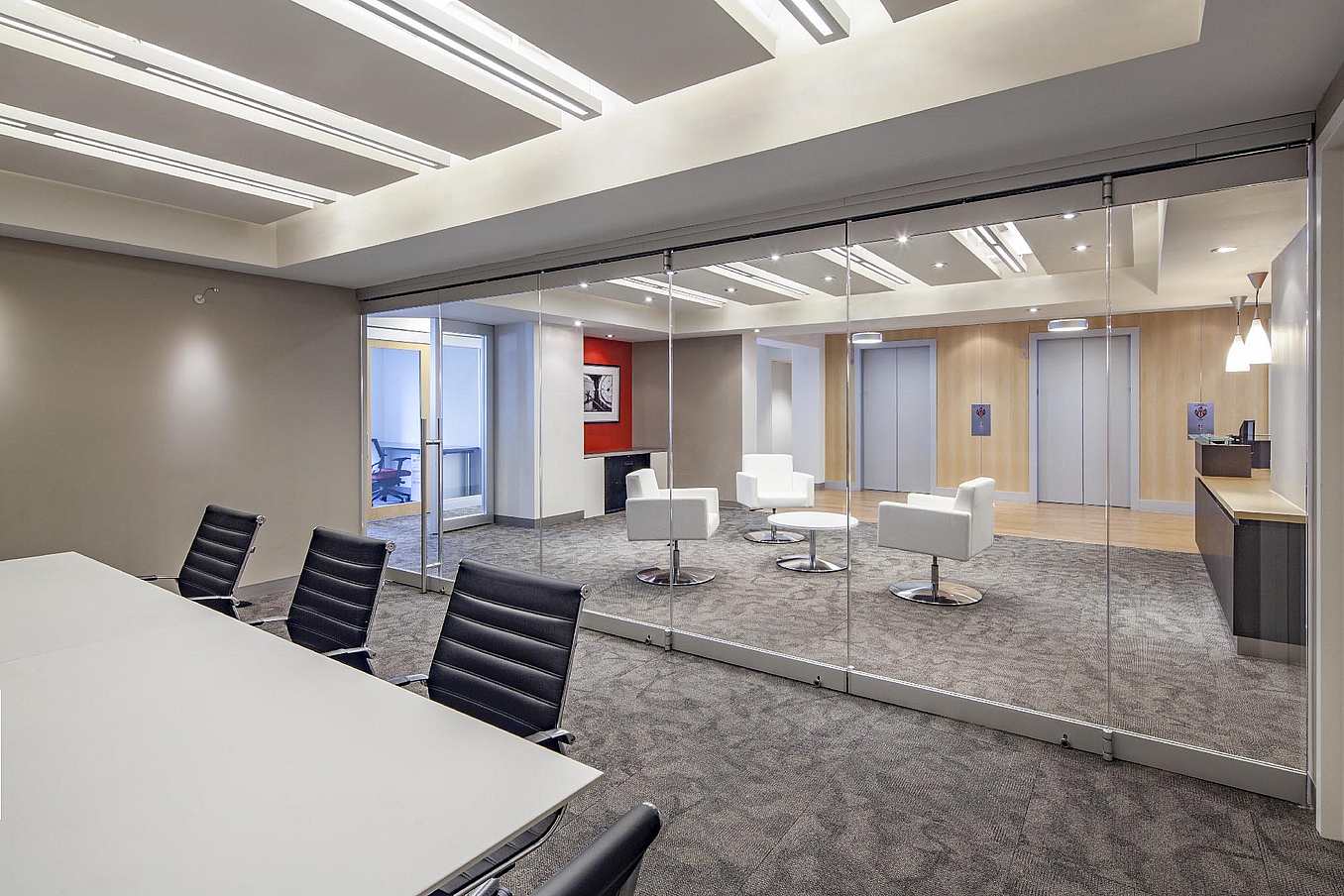

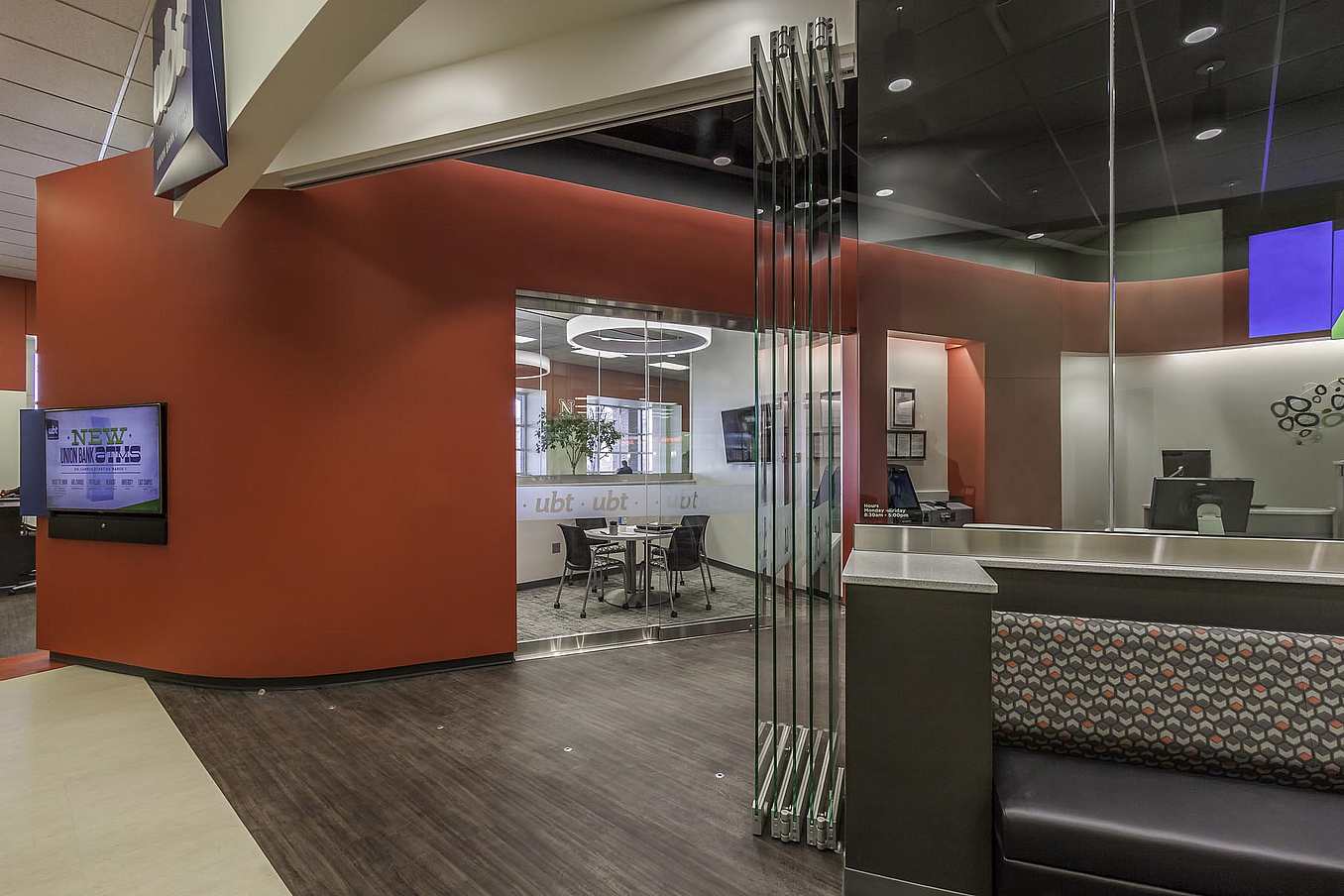

CSW75, FSW75, AND HSW75 combinations are possible. All three frameless systems utilize the same head track and share the same 3 15/16 (100mm) continuous top and bottom horizontal rails. Solve unique design challenges with three different systems that maintain the same continuous look.

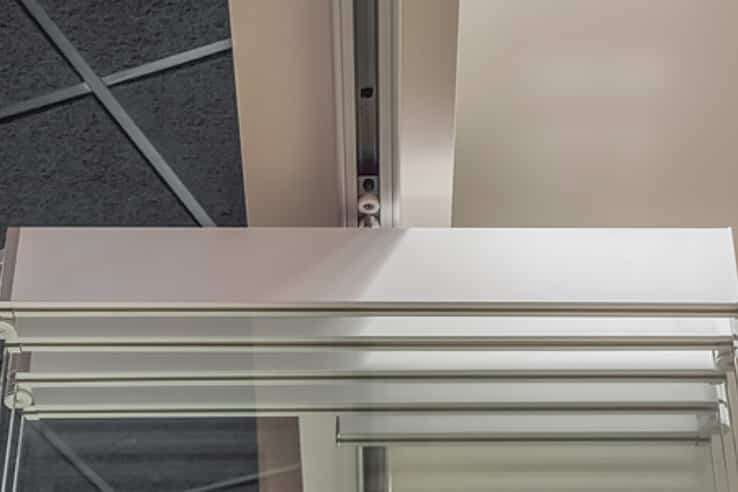

The rollers are designed using hardened steel ball bearings with glass fiber reinforced polyamide wheels with memory effect for quiet and smooth operation. Polyamide bumpers are added to each end of the roller to avoid metal to metal contact of the rollers inside the track.

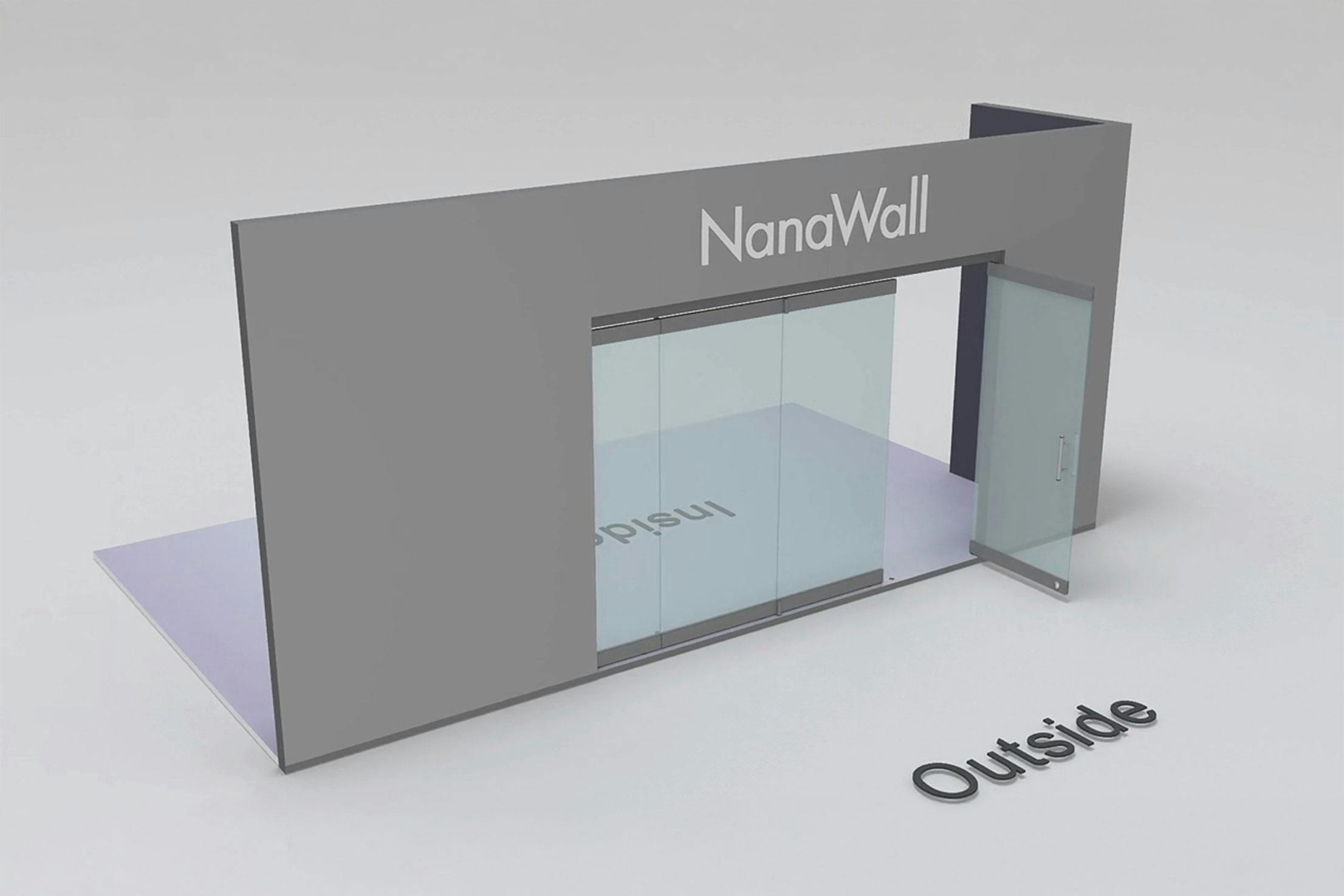

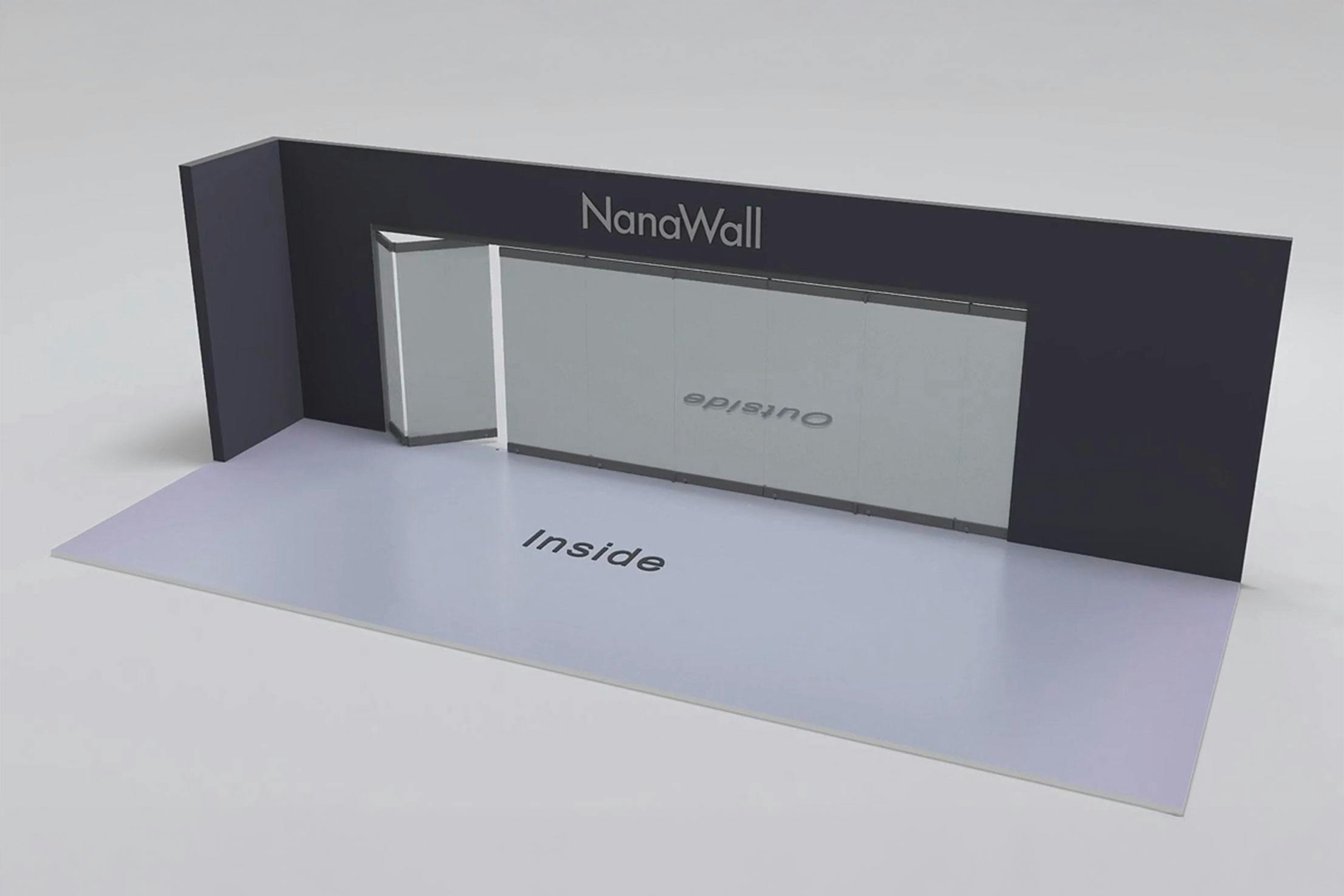

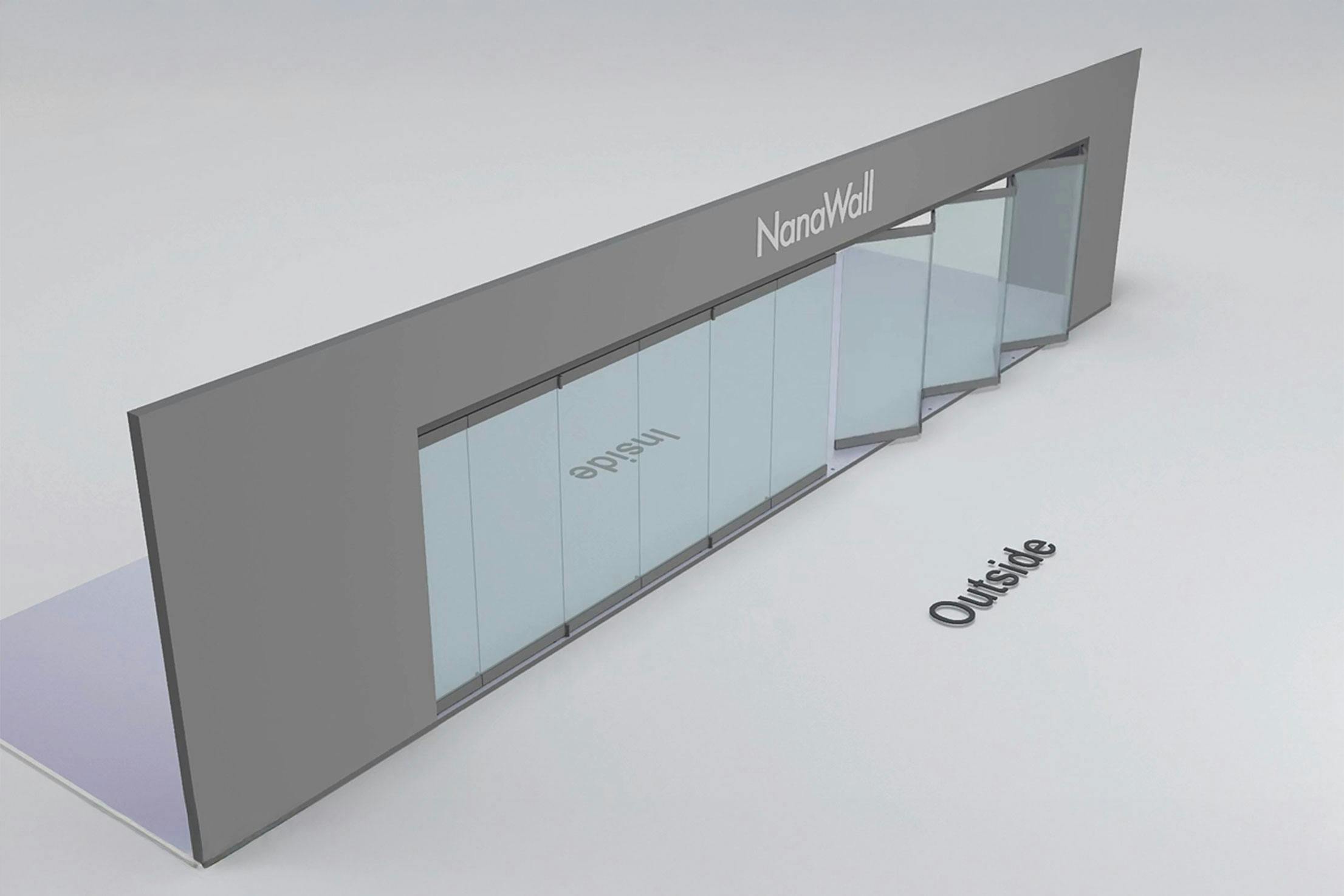

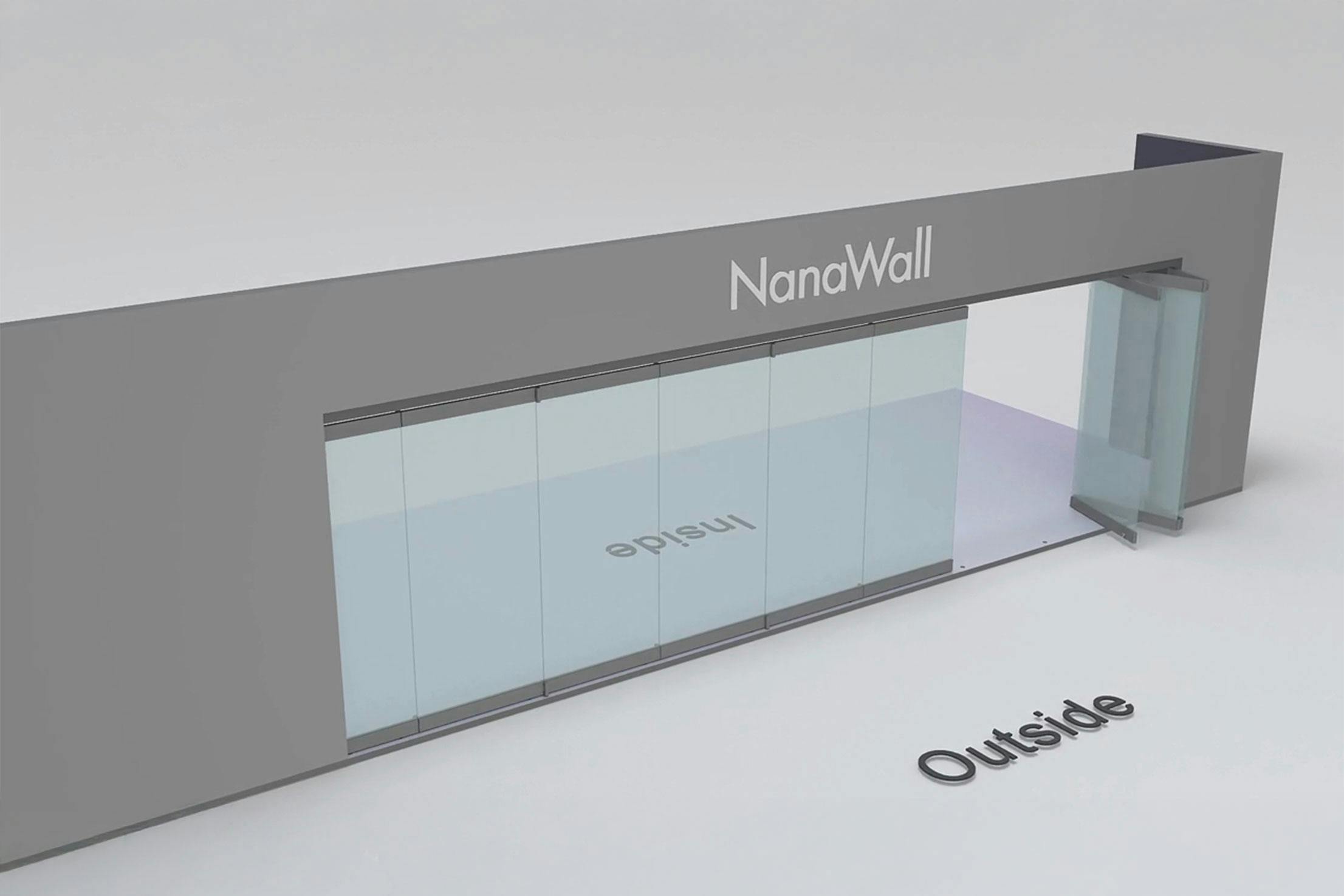

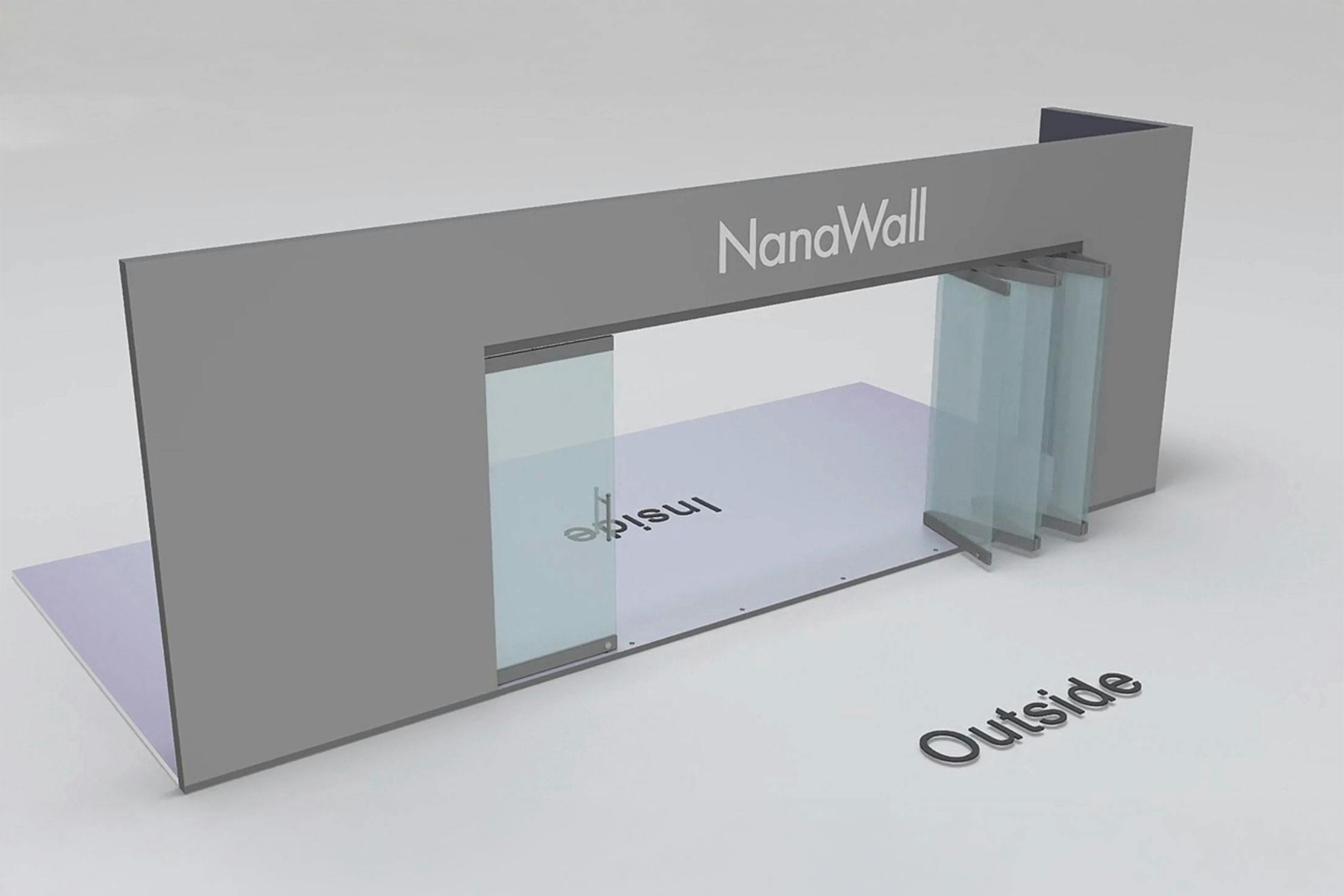

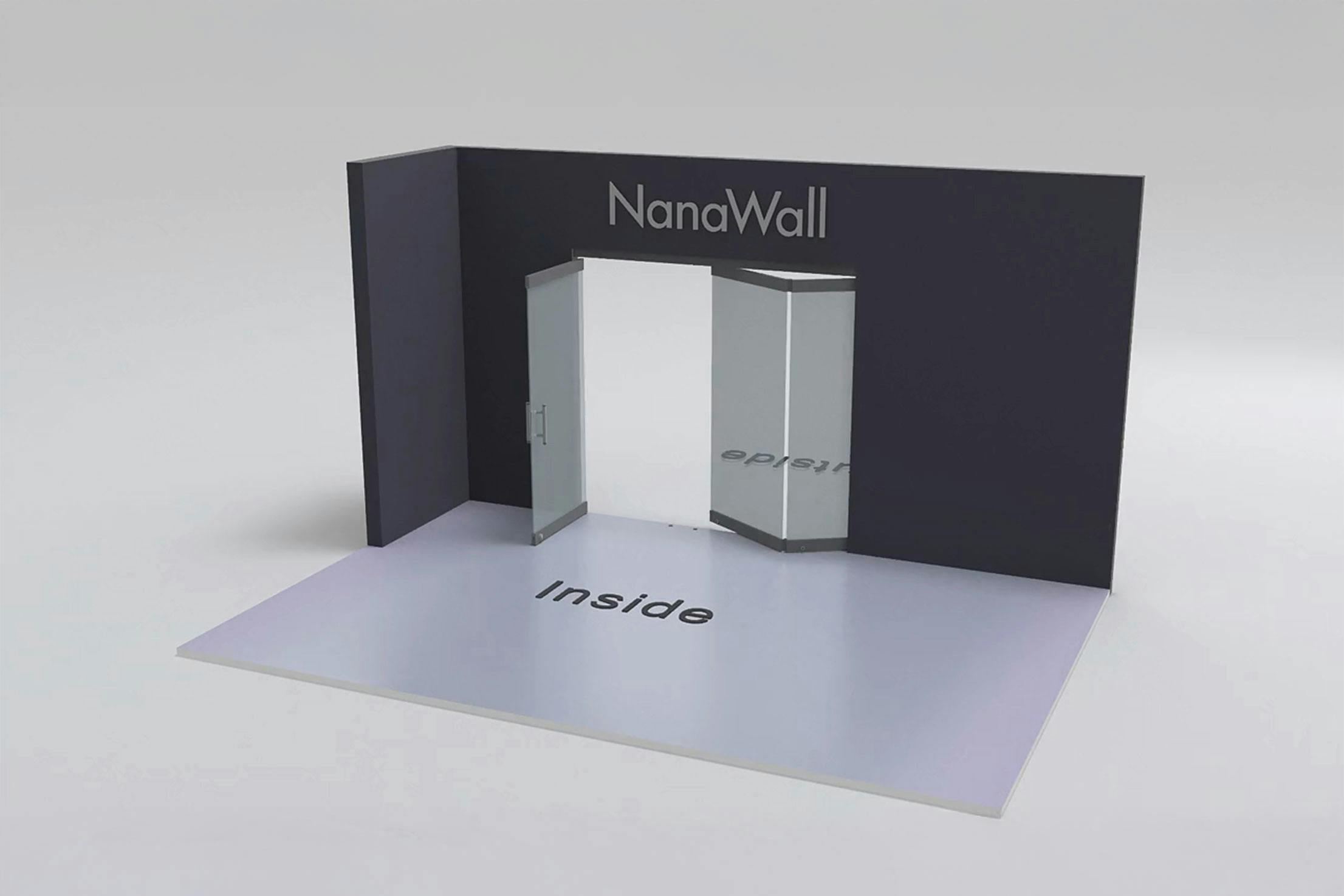

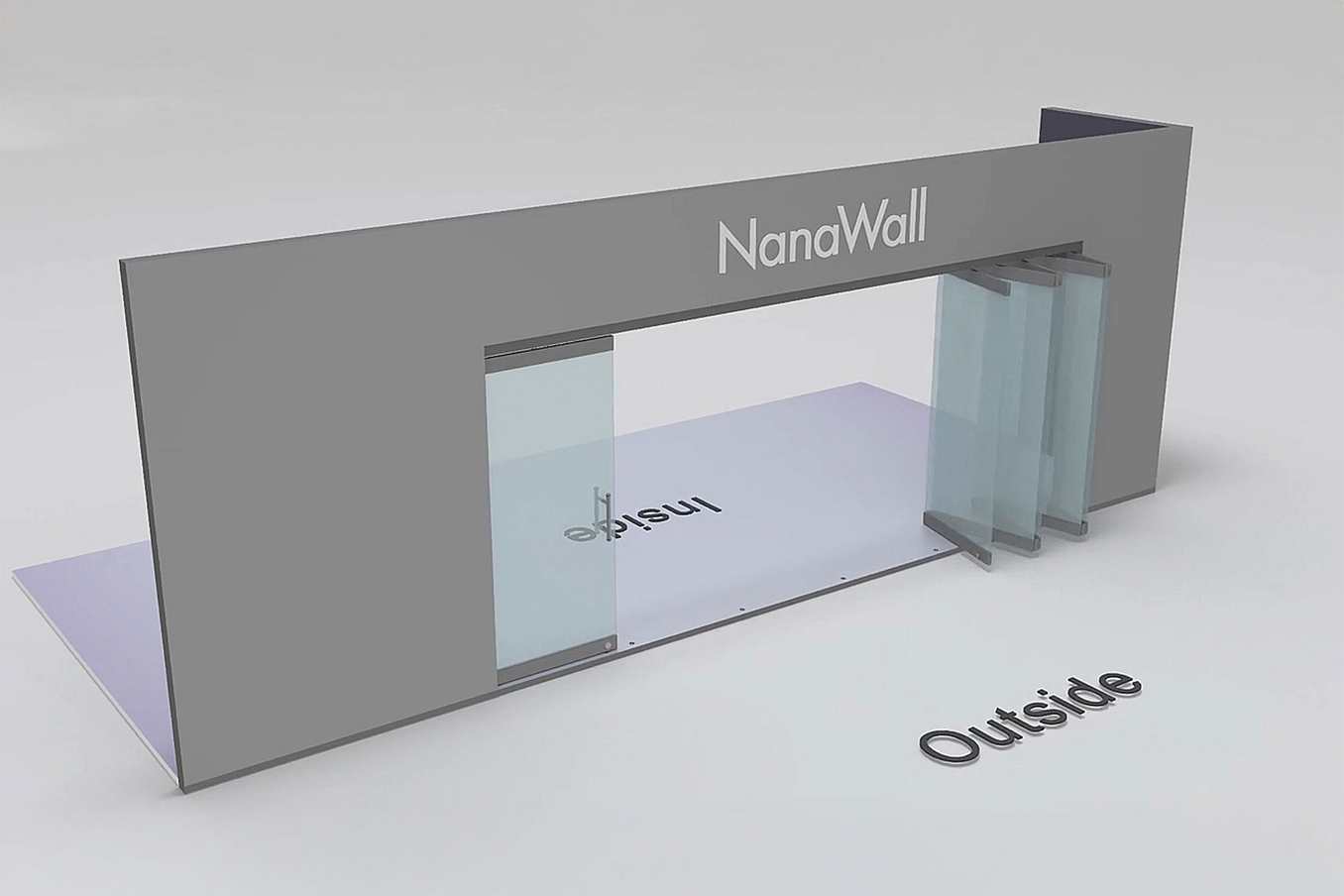

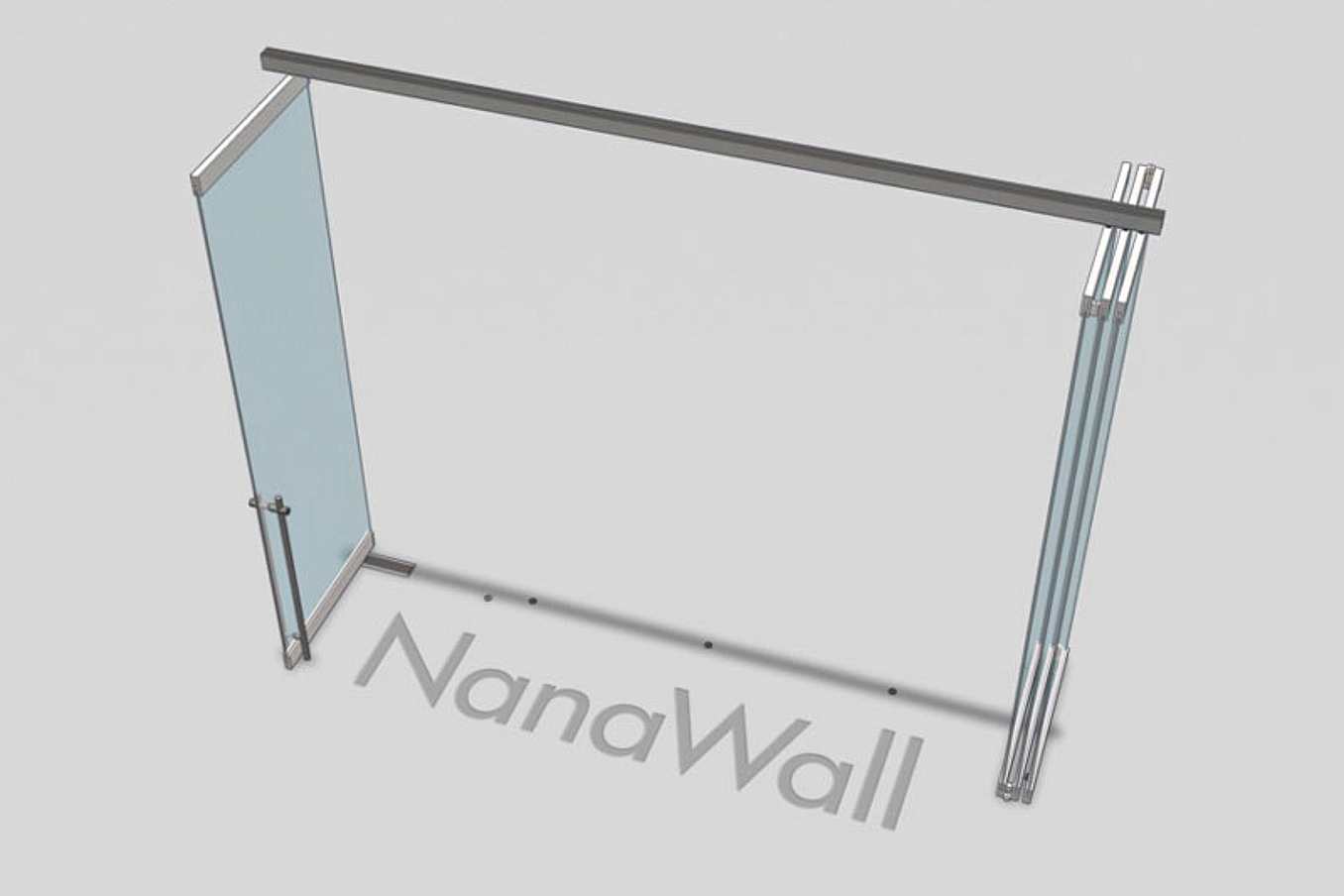

A single action swing panel is available attached to the end of a chain of panels that fold away along with the rest of the system. For additional traffic pattern requirements, a pair of single action swing panels can be added to function similarly to French doors.
- Unit heights up to 10′ 6″ (3200 mm) are possible.
- Folding panels are available up to 3′ 3″ (1000 mm) in width.
- Single action panels hinged off bi-folding panels are available up to 3′ 3″ (1000 mm) in width.
- Non-sliding end single/double action panels are available up to 3′ 7″ (1100 mm) in width.
- End folding panel will be half the width of a folding panel.
End panels can be single/double action panels with pivot points or single/double action panels with offset hinges that are capable of opening 180°. Single/double action panels with pivot points have passed 500,000 cycle testing.

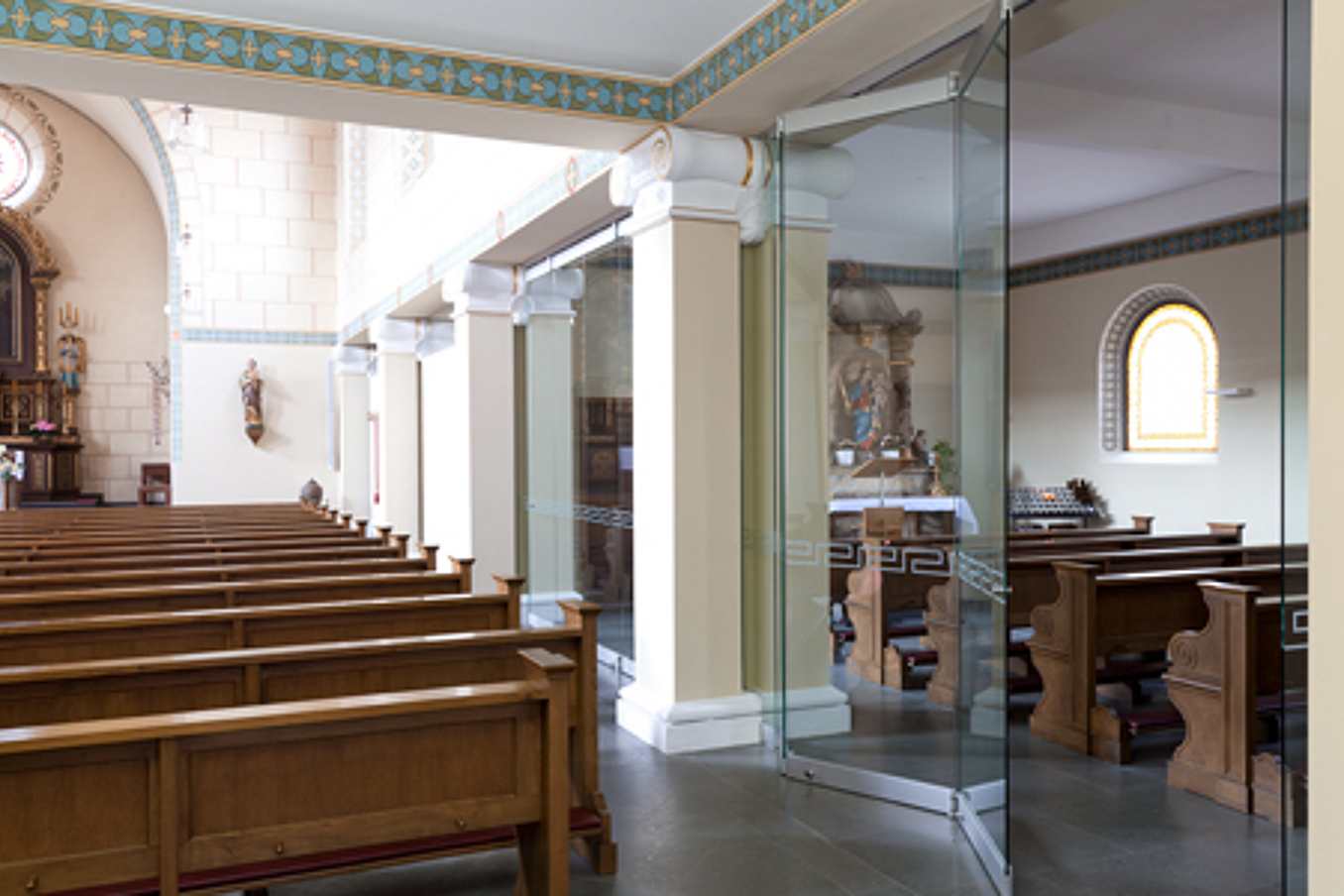

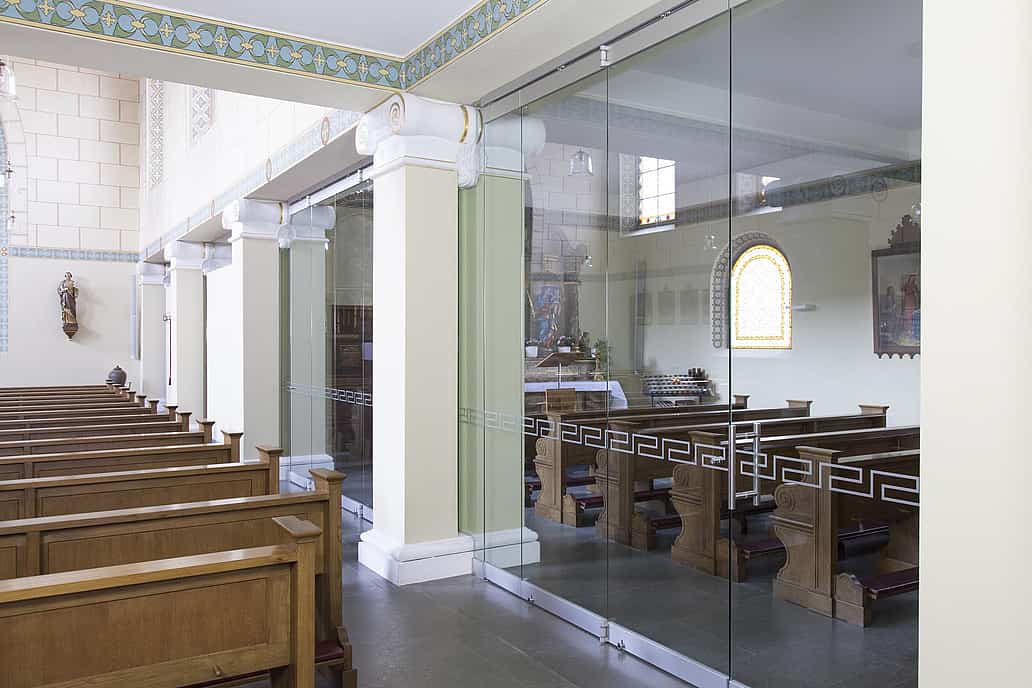

Added Security and Acoustical Buffering in an All Glass System

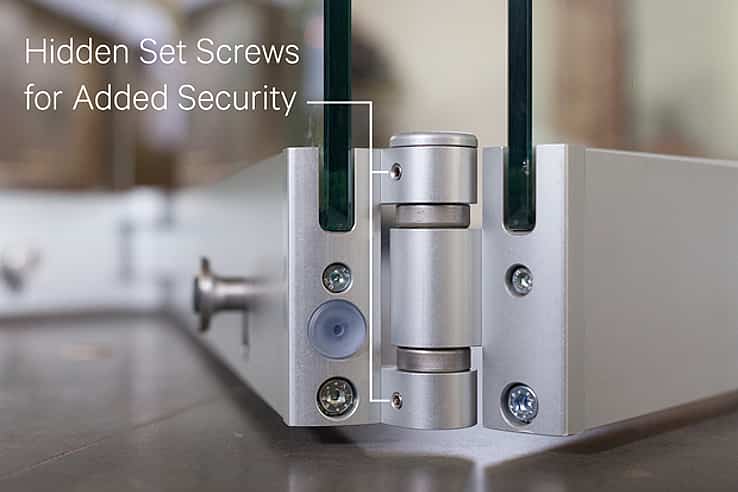

As a standard security measure, two hidden set screws per hinge are accessible only when the unit is in the open position. For projects requiring higher levels of security, or an increased acoustical barrier, NanaWall CSW75 can be configured with laminated glass.
Adjustable Floor Sockets
Standard to the CSW75 are eccentric floor sockets. The built-in adjustability helps to deal with tolerances and building settlements.
Convenient Handle Height Locking
An optional locking ladder pull integrates a locking mechanism with a profile cylinder at hand height into the tubular designed handle eliminating the need to kneel to lock the door at the bottom rail. Locking ladder pulls come in a brushed stainless steel finish.

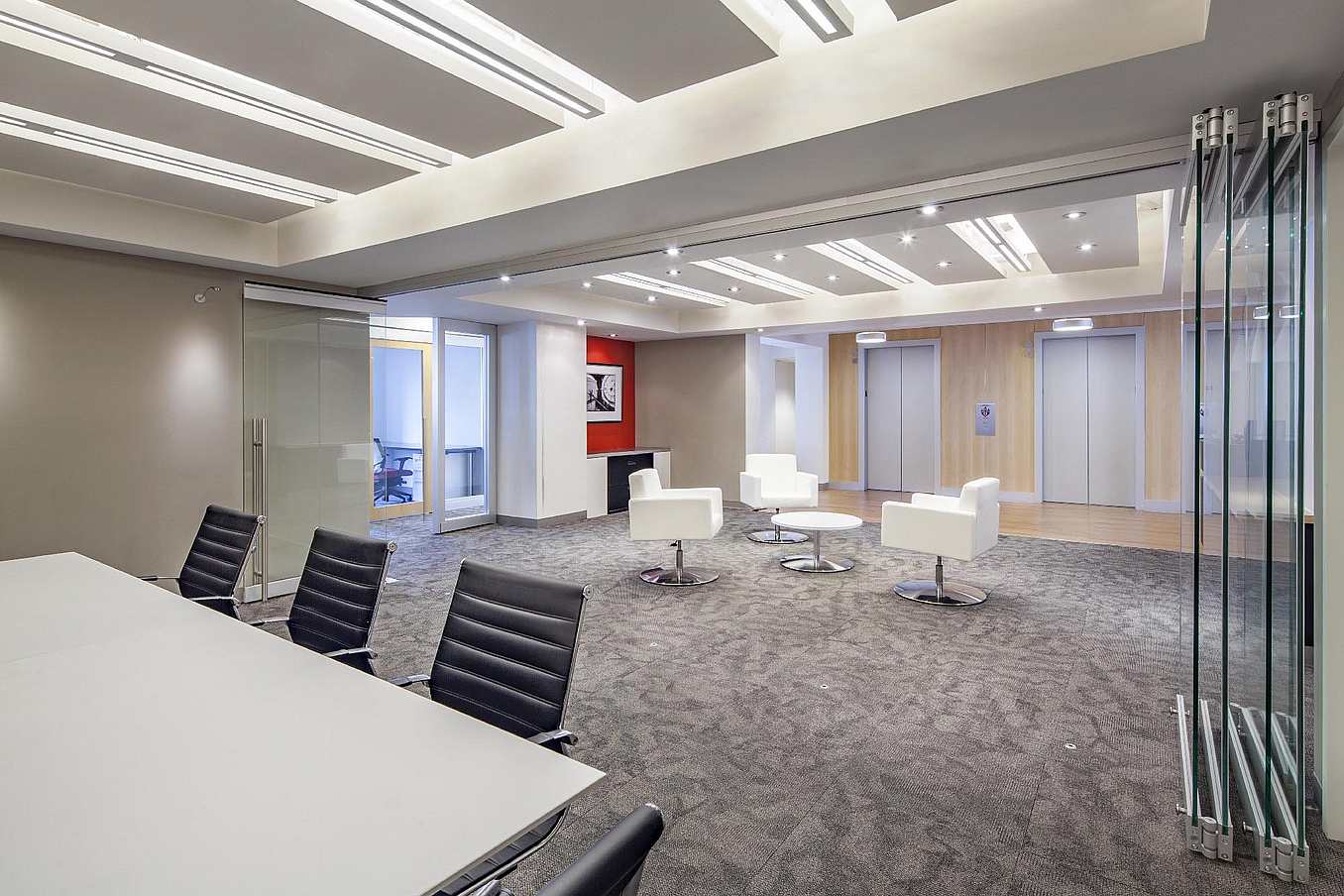

No Need for Additional Structural Support

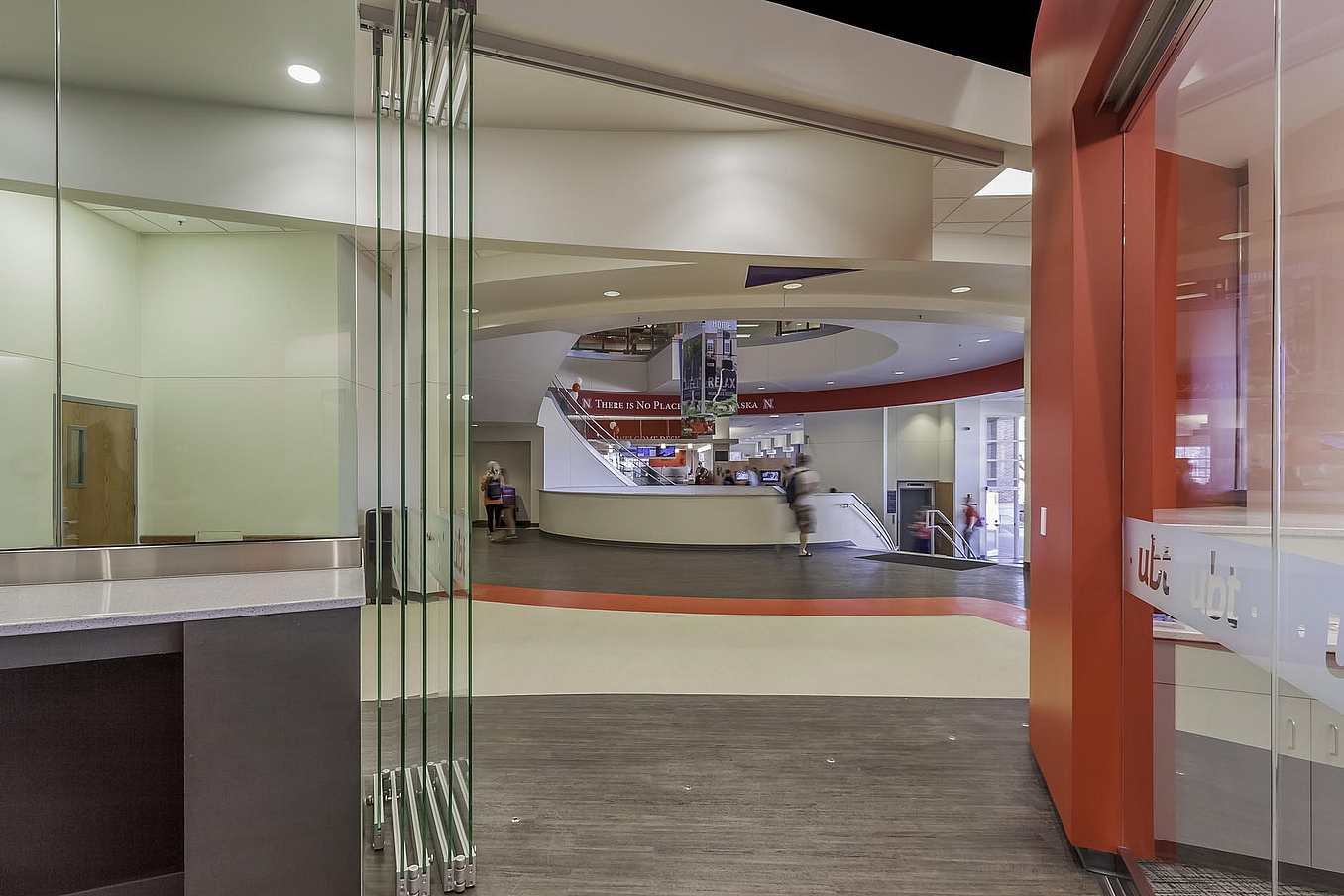

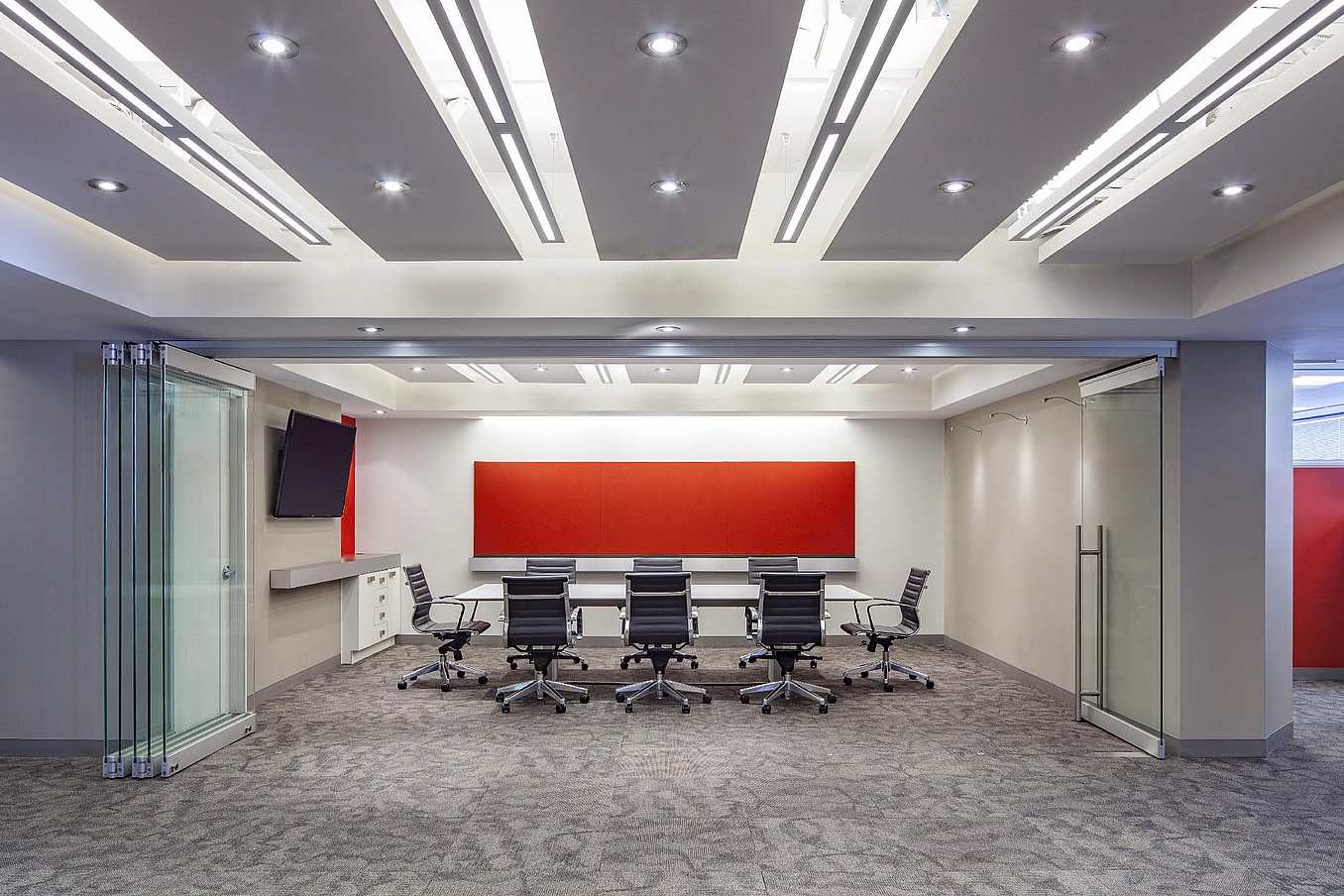

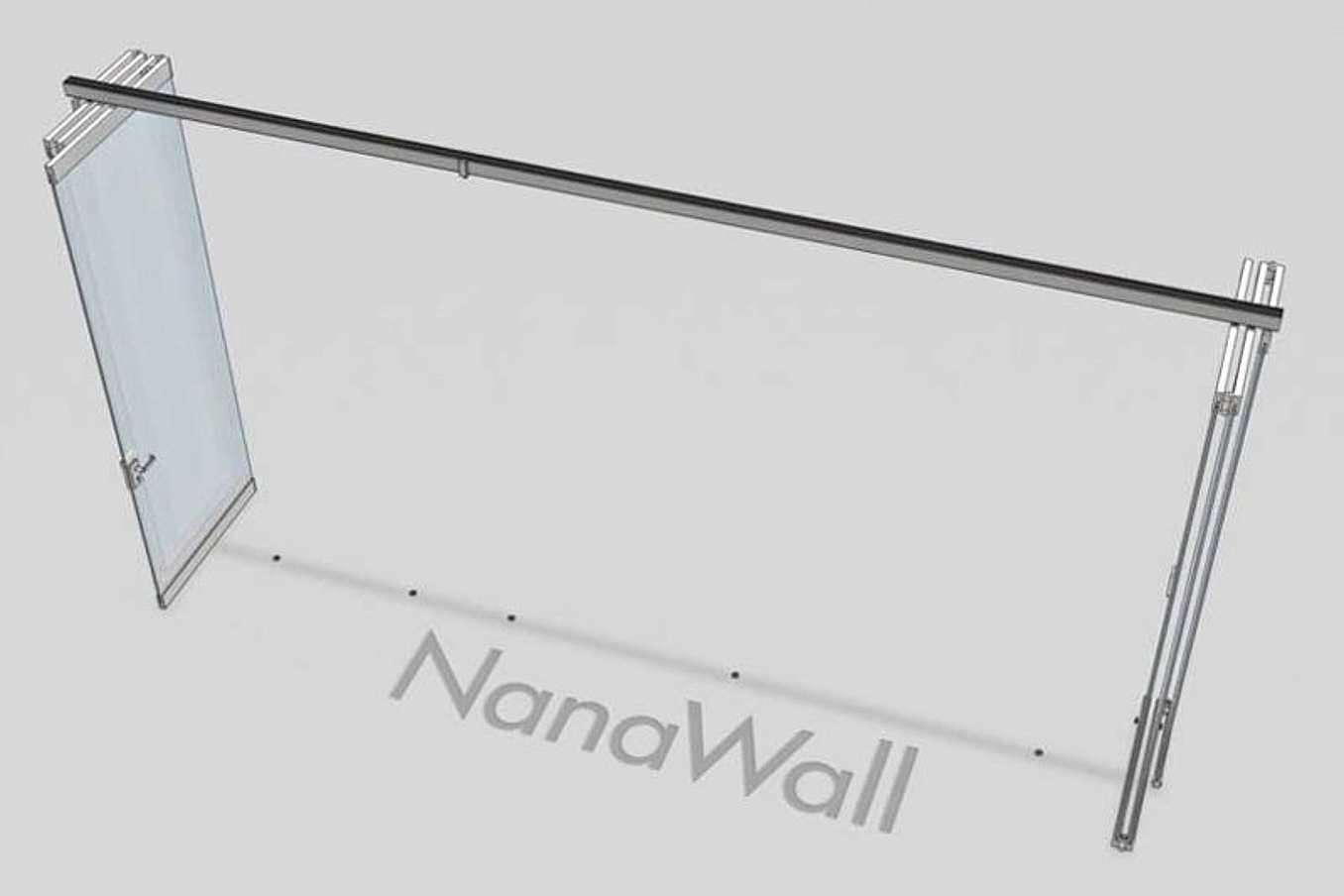

With the CSW75 there is no need for additional structural support for the parking of the panels since parking remains within the plane of the opening.
Ease of Operation
NanaWall systems offer single-handed operation and move smoothly with little effort
Design with no limits – our glass walls can be tailored to your imagination.
Sill options designed specifically for interior applications.
NanaWall products contribute to multiple LEED rating systems and potentially several credit categories.
Performance When Closed Matters Most
Large openings are easy to design and there are many options to choose from. When deciding on a product that best for your project, performance when closed needs to be considered
100,000 Cycle Testing
Single/double action panels with pivot points have passed 100,000 cycle testing.
