NW Acoustical 645
Interior Aluminum Framed Folding Glass Wall for Superior Acoustical Control
- Thermally Broken System Delivers Exceptional Acoustical Performance Up to Unit STC 45
- Ultraslim Panel Frame Measuring 1 3/4" (45 mm)
- Floor Supported Panels Capable of Heights Up to 11′ 6″ (3500 mm)
Sound Control Up To Unit STC 45

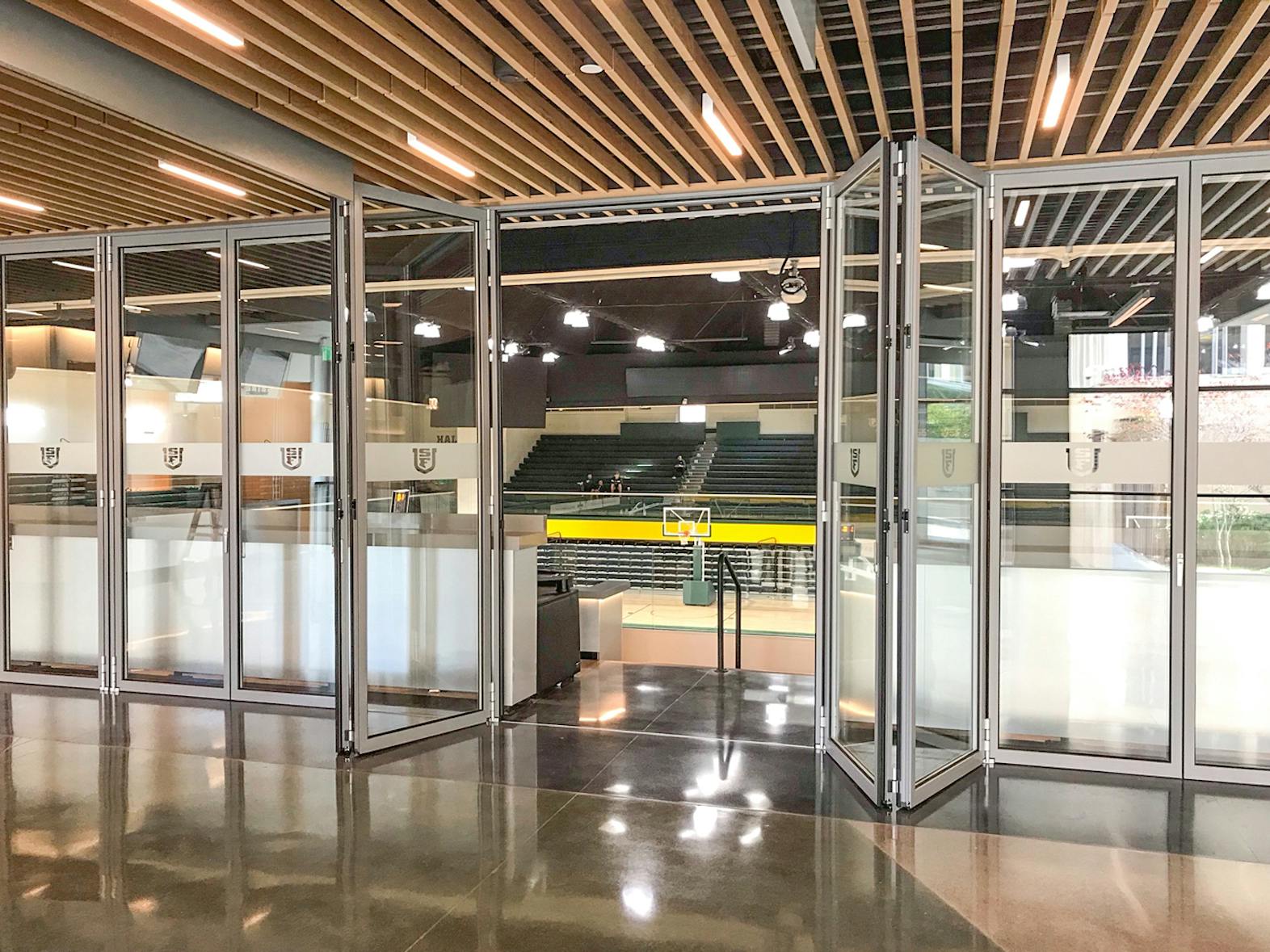

NW Acoustical 645 is the first floor supported folding glass wall able to achieve unprecedented sound control up to an impressive unit STC 45.
This system combines sleek acoustically separated aluminum framing and specialized gasketing with sound-enhanced glass to achieve optimal performance with the range of unit STC from STC 32 up to STC 45—all while allowing maximal transparency and natural daylight to flood interior spaces.
Minimal Sightline Equals Increased Transparency

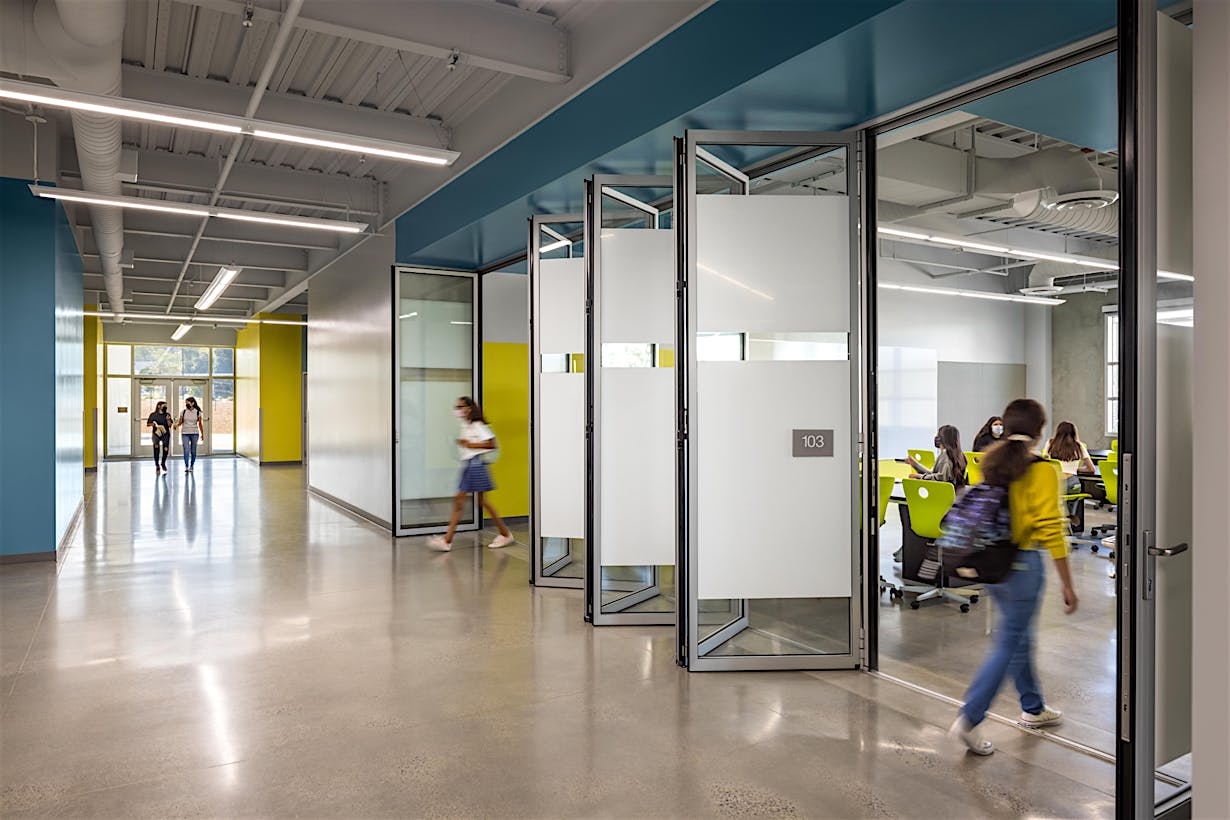

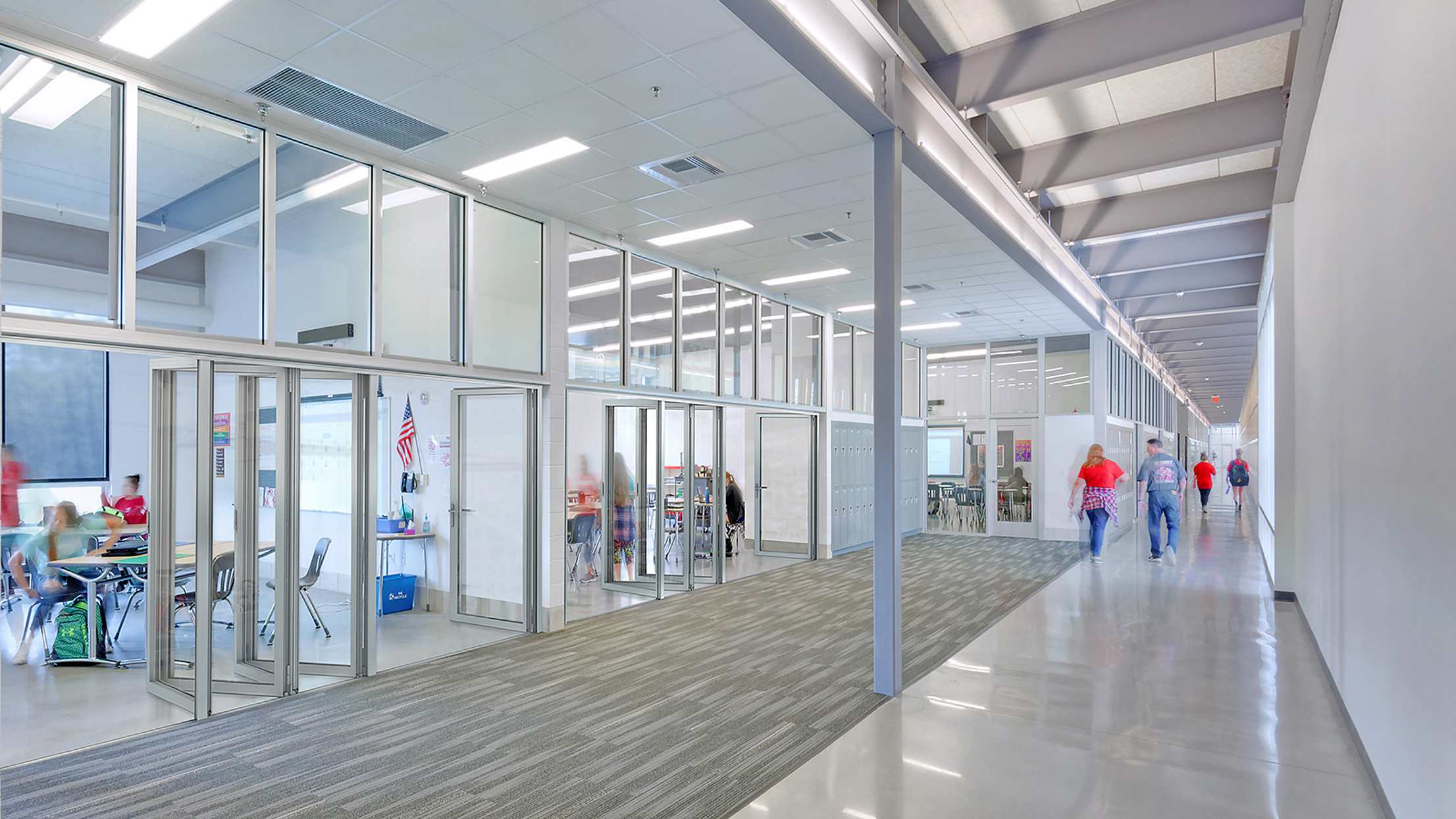

With an ultra-thin frame profile, NW Acoustical 645 is specifically engineered for educational applications and for interior spaces where acoustical privacy, ease of use, and transparency are of utmost concern.
NW Acoustical 645 is an award-winning product.
ADA Compliant Flush Sill for School Design

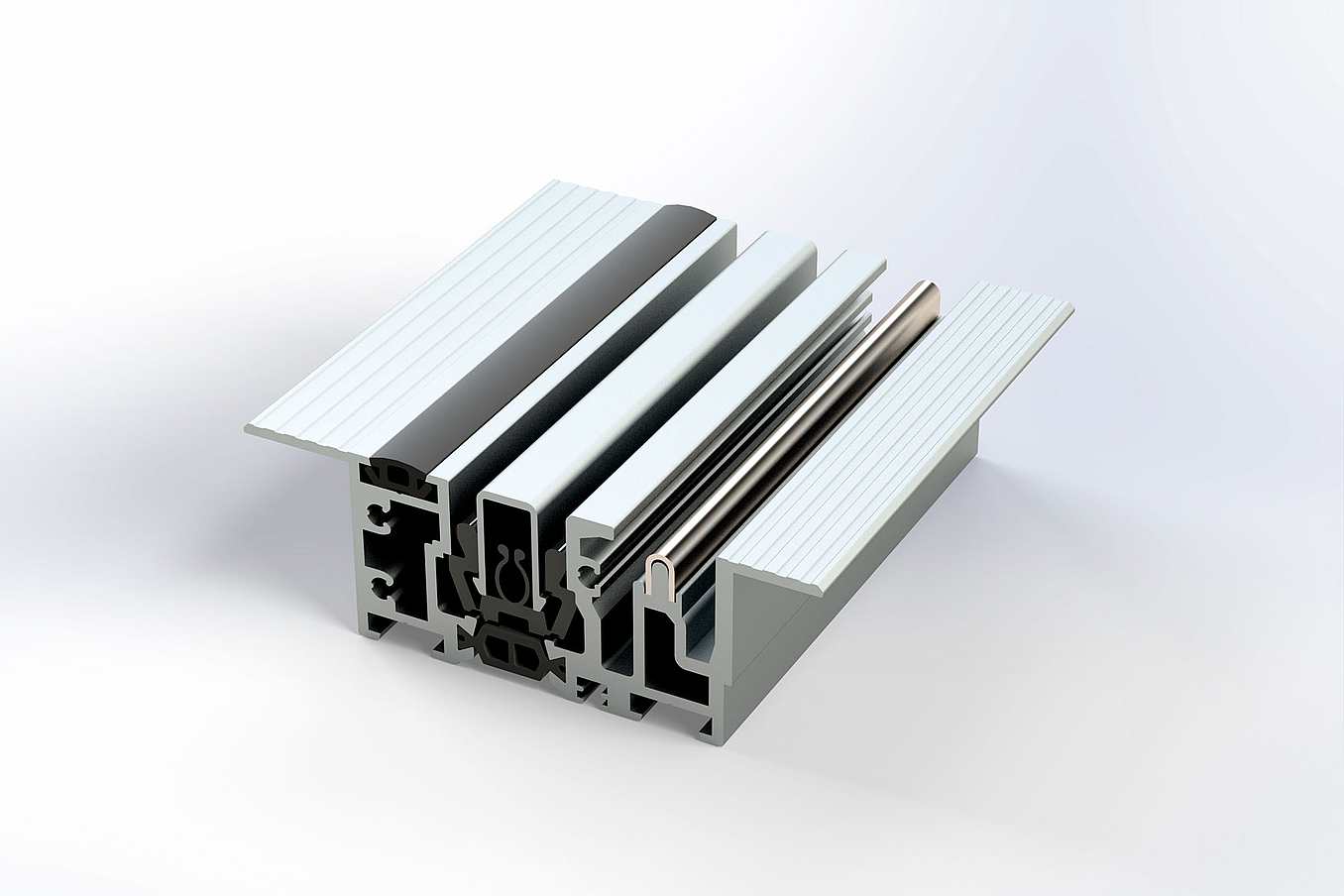

The Flush sill option is ADA compliant with an aluminum floor track insert that provides high heel protection. This sill can be installed directly over finished flooring creating clean transitions between interior spaces.
See Sill Options

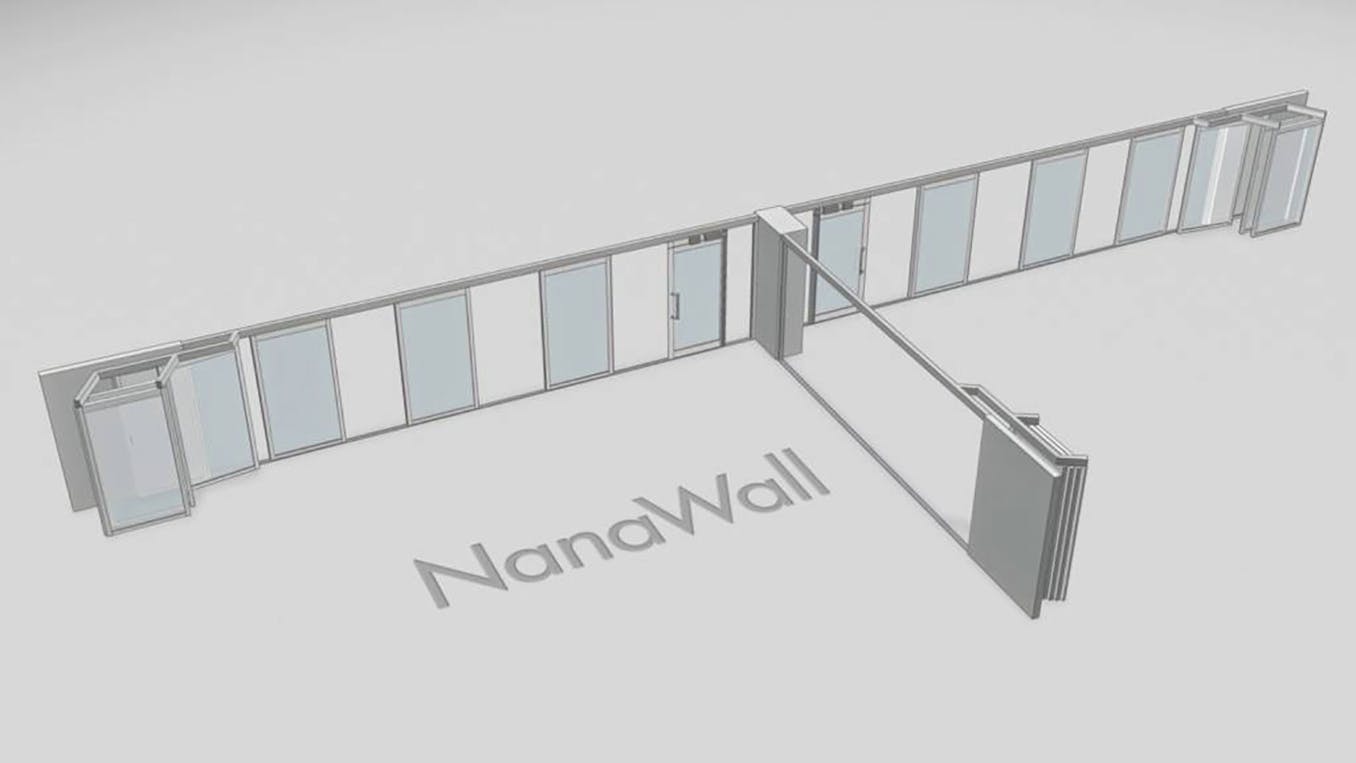

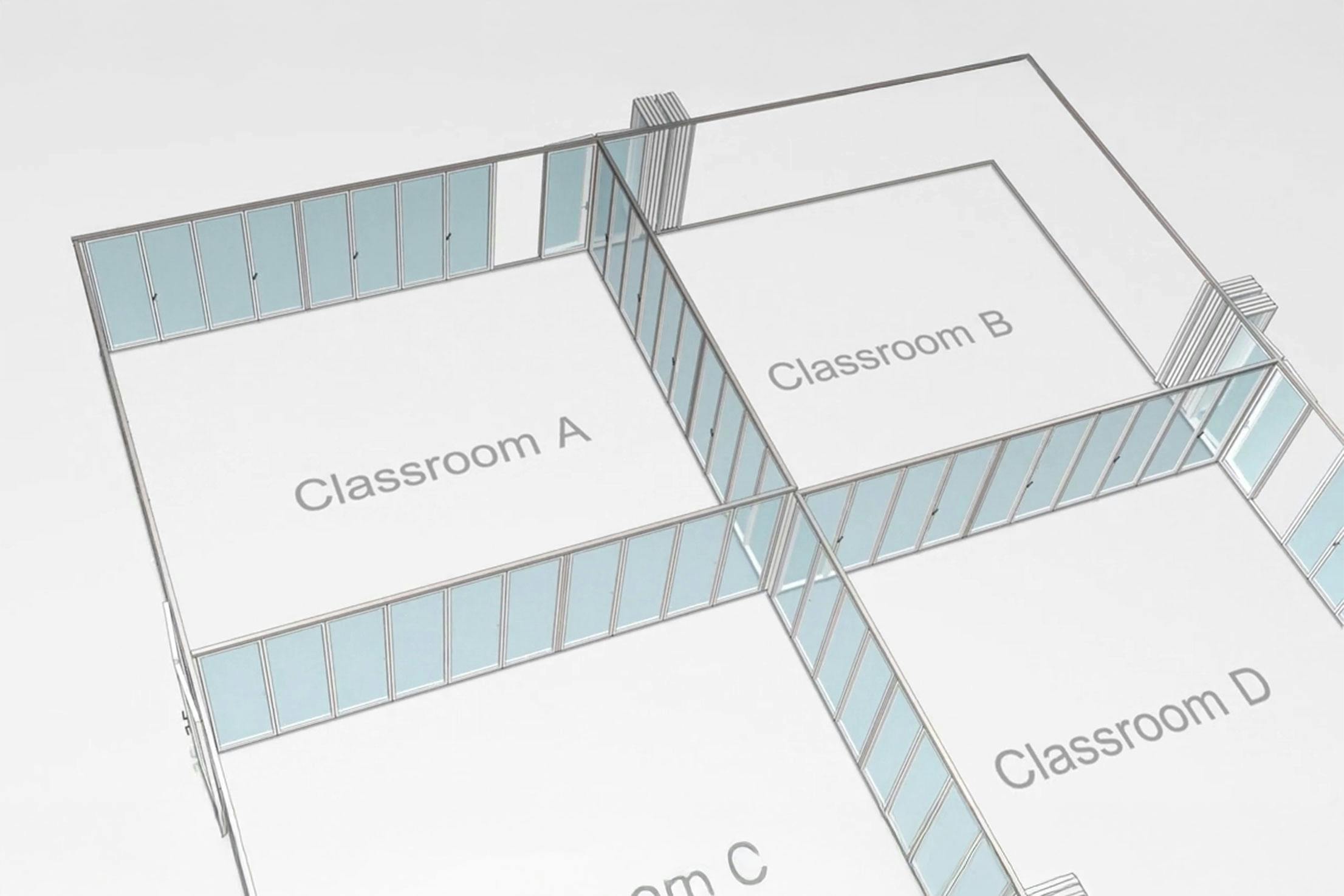

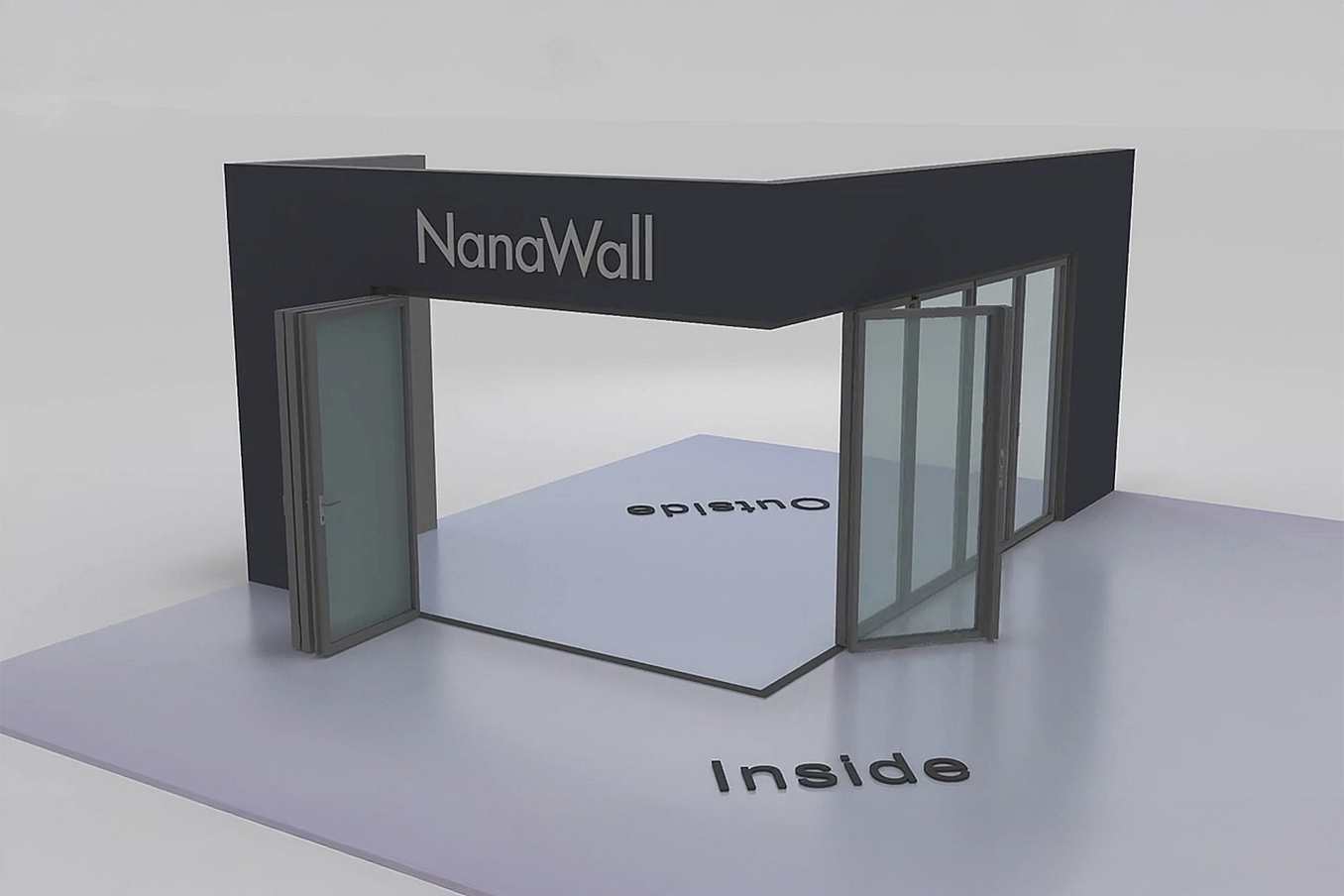

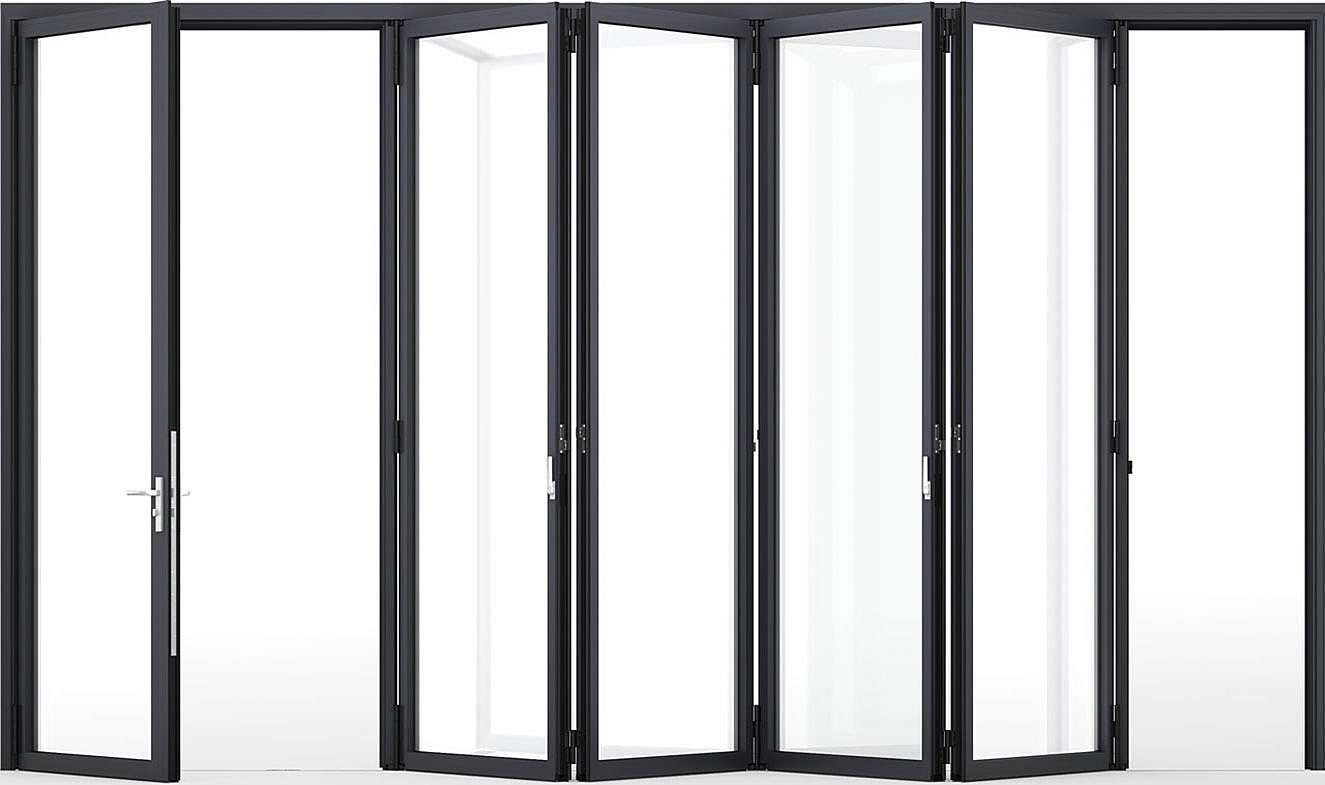

This folding system allows for larger opening sizes and flexible space management with the integration of FourFold or SixFold panel sets. These panels are able to move and stack to the right, left, or center within the same track allowing the panels to be stacked in the most convenient location. The system may be either inswing or outswing, and open corner and T-intersection configurations are possible.
NW Acoustical 645 is the only floor supported folding opening glass wall to achieve unit STC 45. With floor supported systems, the main weight of the unit is carried by the lower stainless steel wheel assembly gliding on top of the stainless steel floor track. The top track is used merely as a guide. Floor supported systems are ideal for applications where load-bearing capability of the header is a concern.

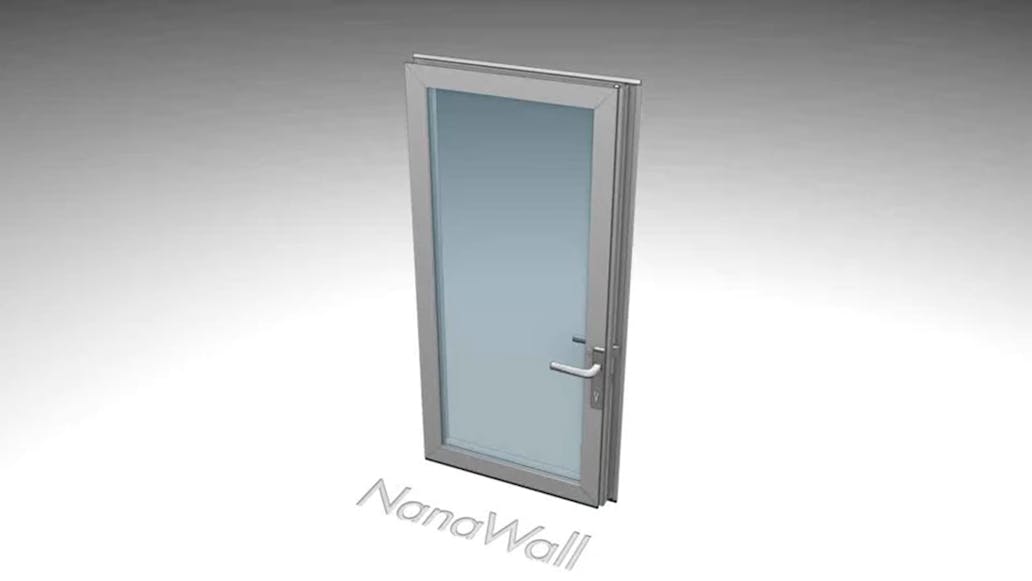

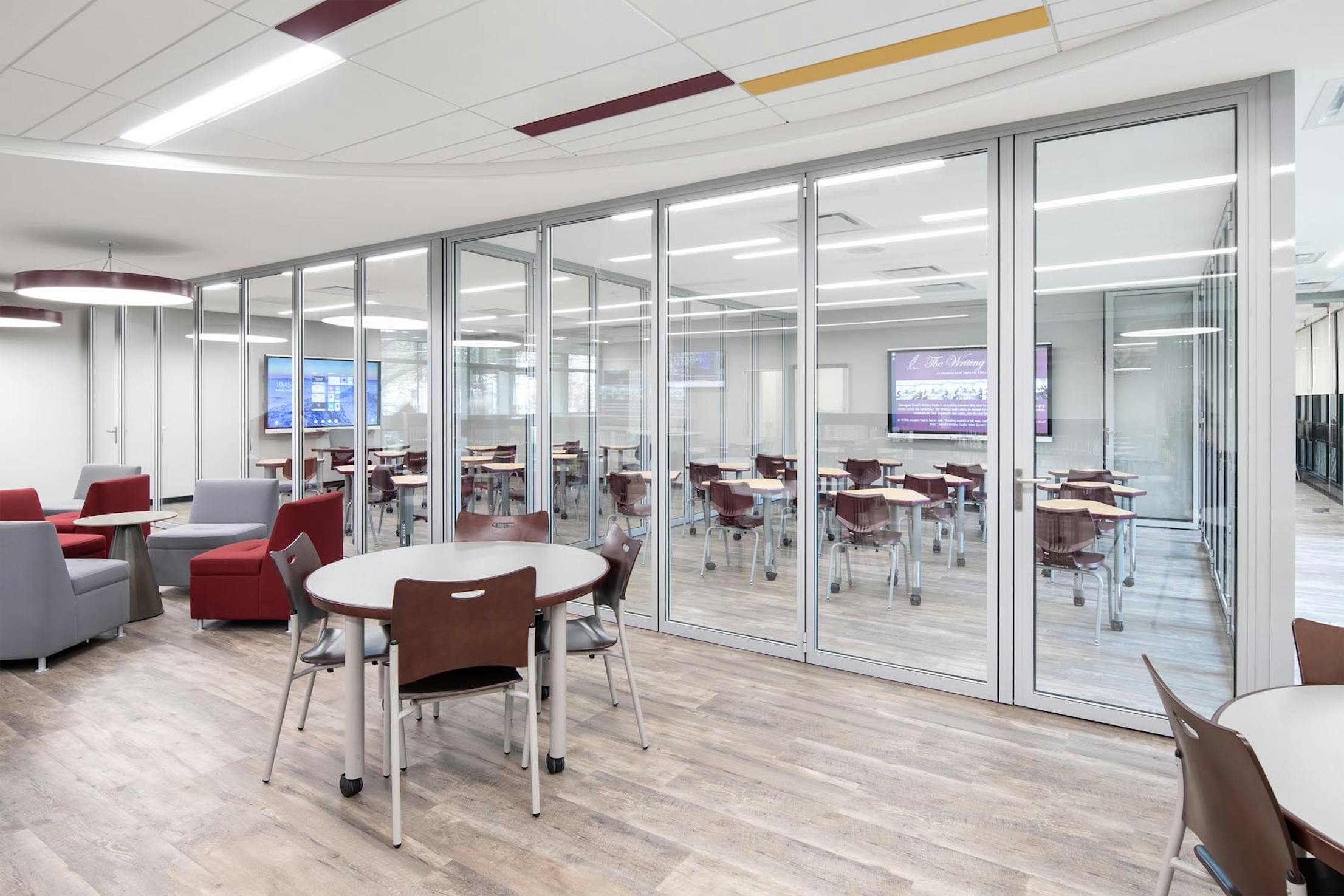

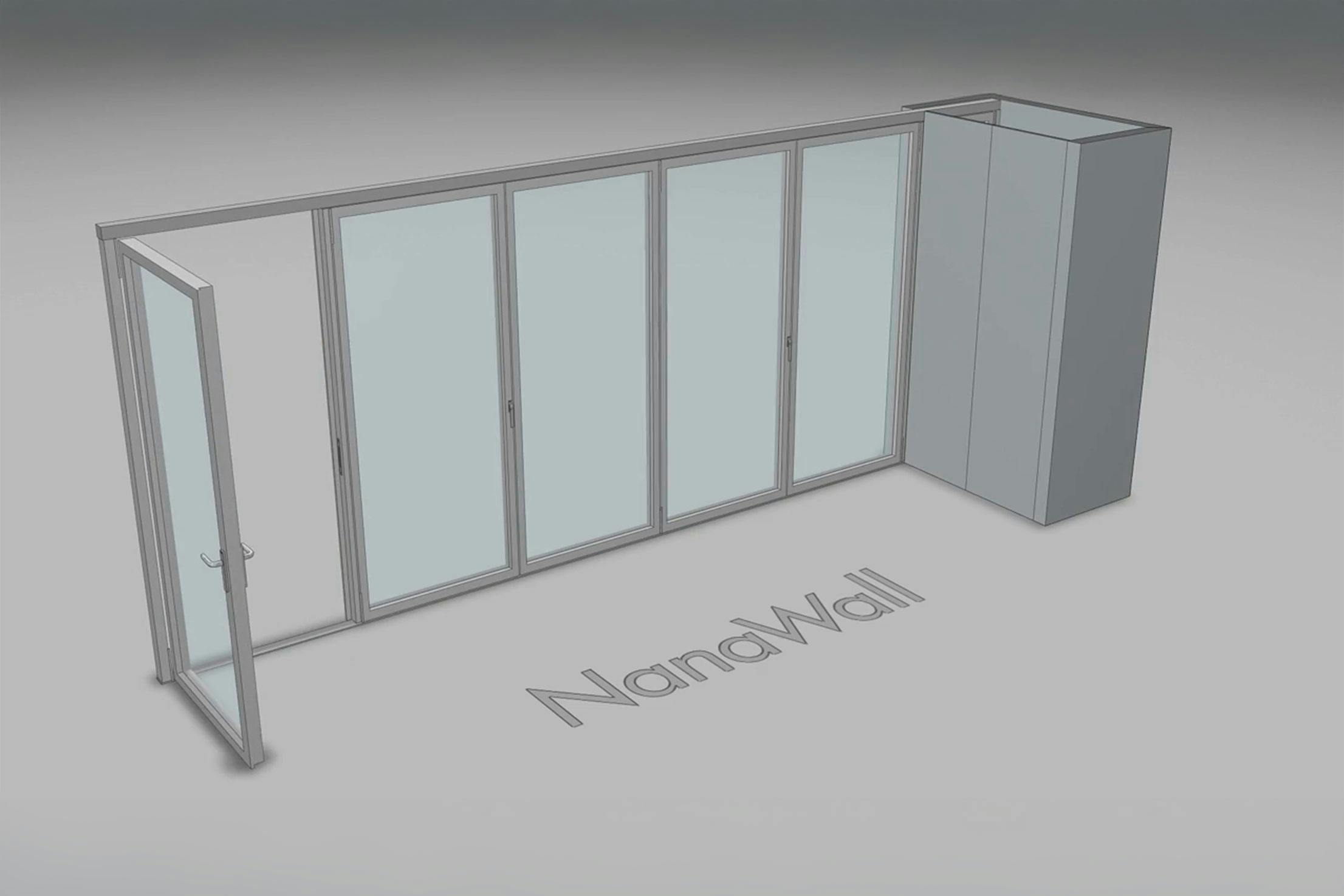

To accommodate traffic flow, NW Acoustical 645 configuration options allow for an up to 3' 3" (1000 mm) swing door at the side jamb at one end or both. For requirements of unit STC 44 or less, swing doors can be added to an odd number of panels hinged to the jamb. Optional higher kickplates, panic hardware, and top door closers are available.
Unique Gothic Arch Roller Design for Ease of Operation
NW Acoustical 645 is engineered for ease of use. Hinged panels are intuitive and quick to operate allowing staff to easily open or close the system on demand.

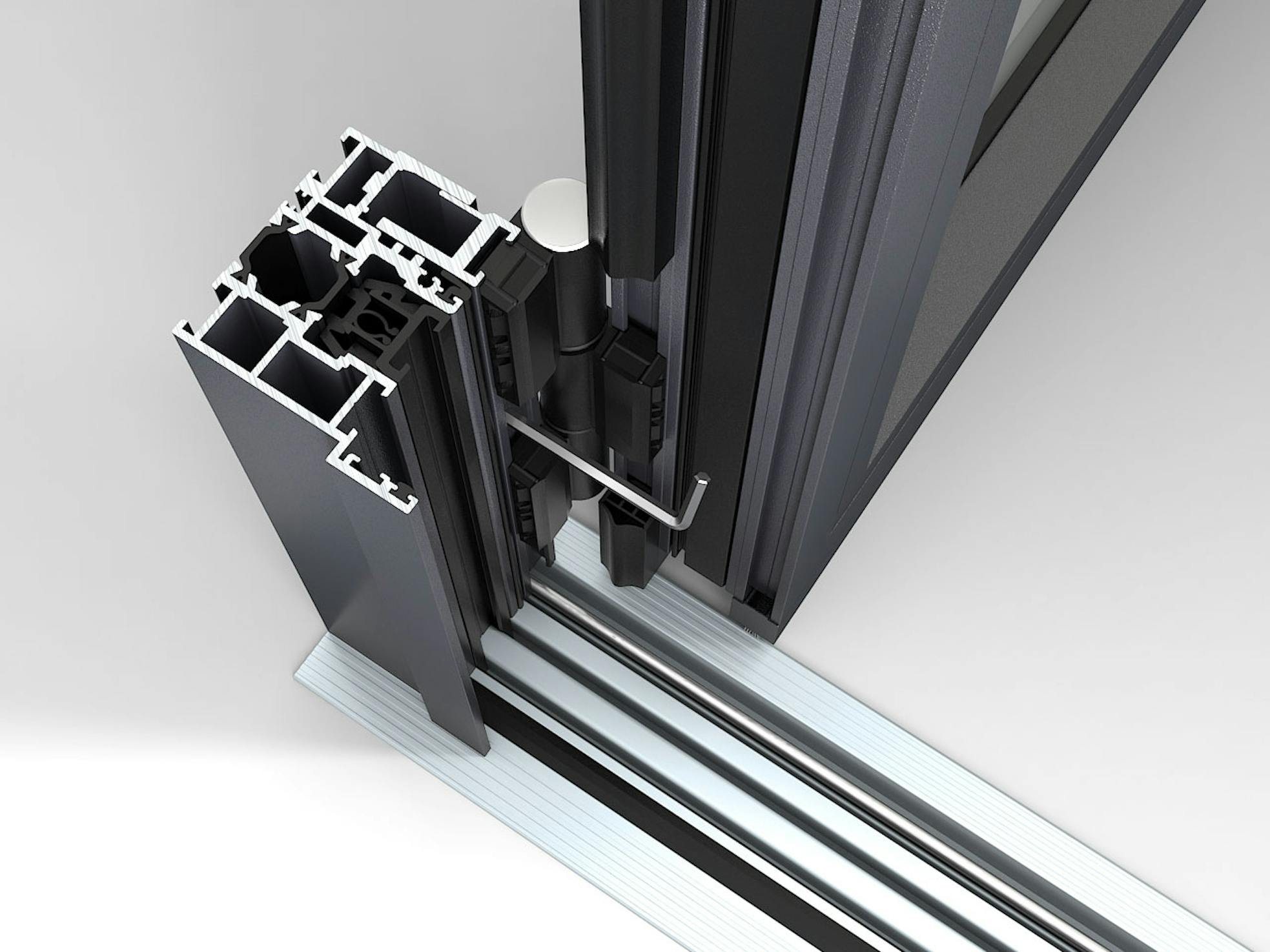

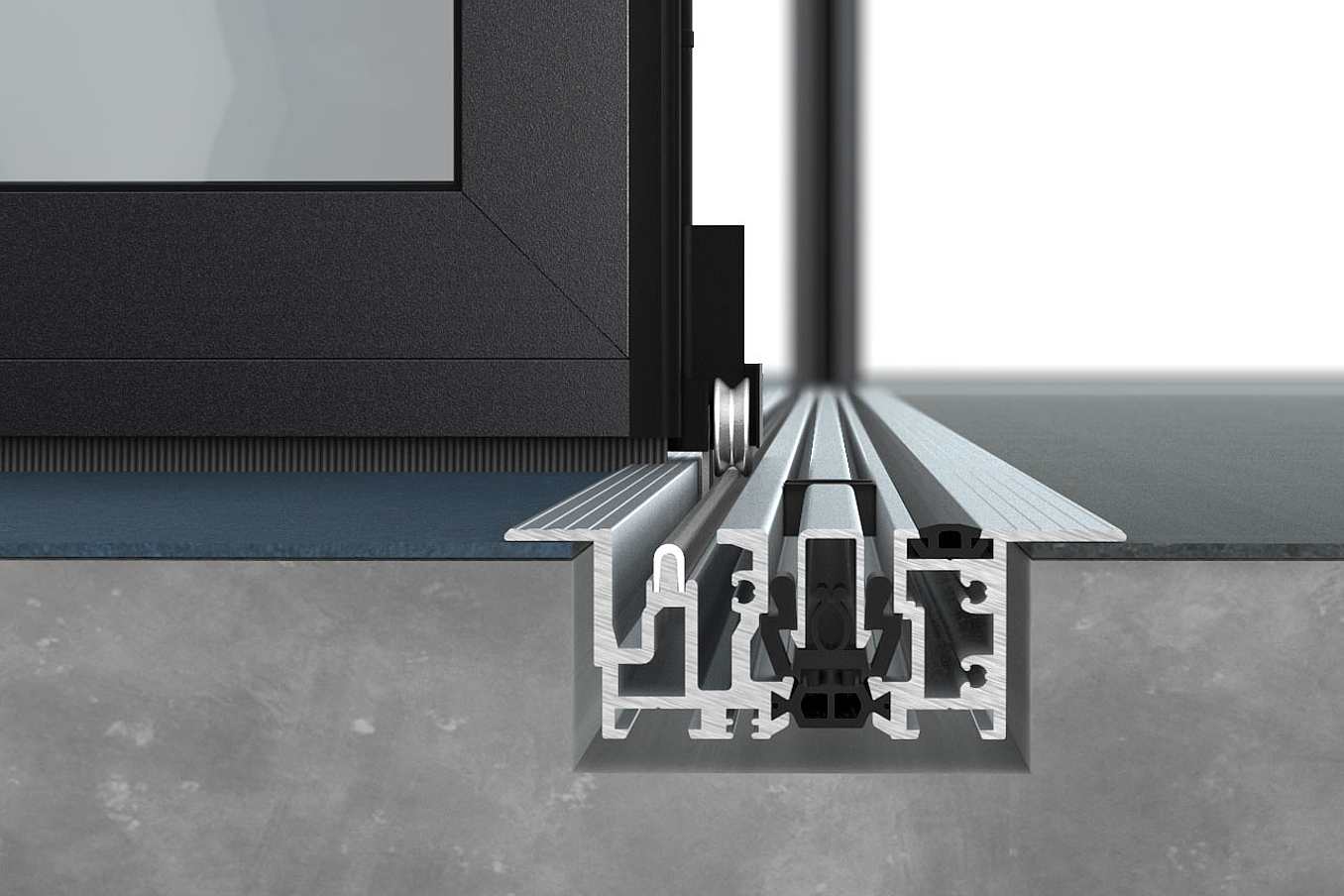

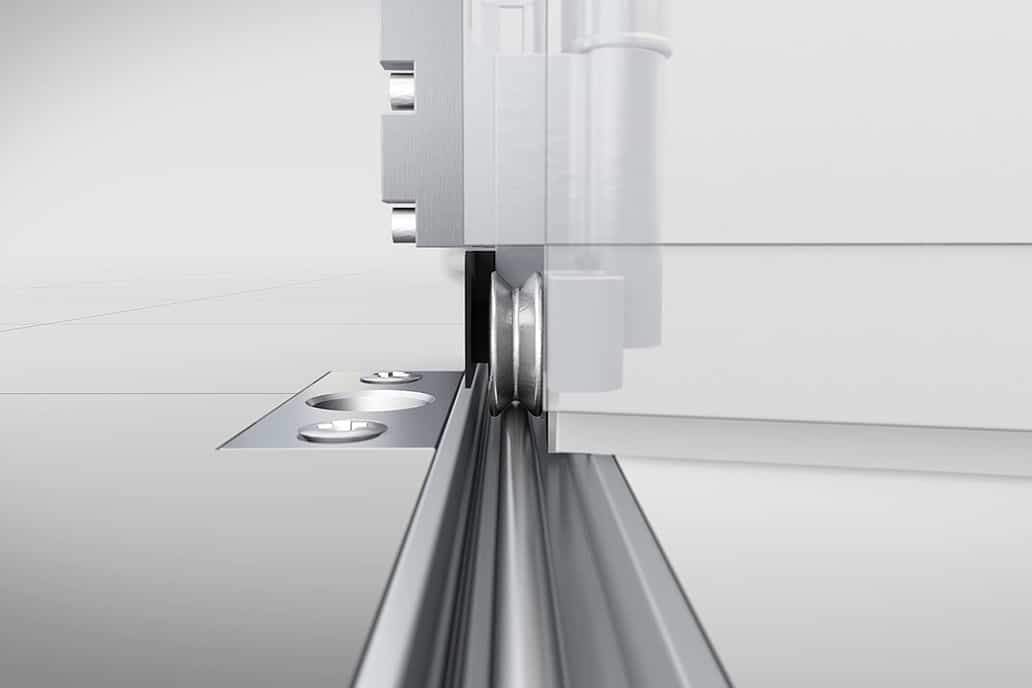

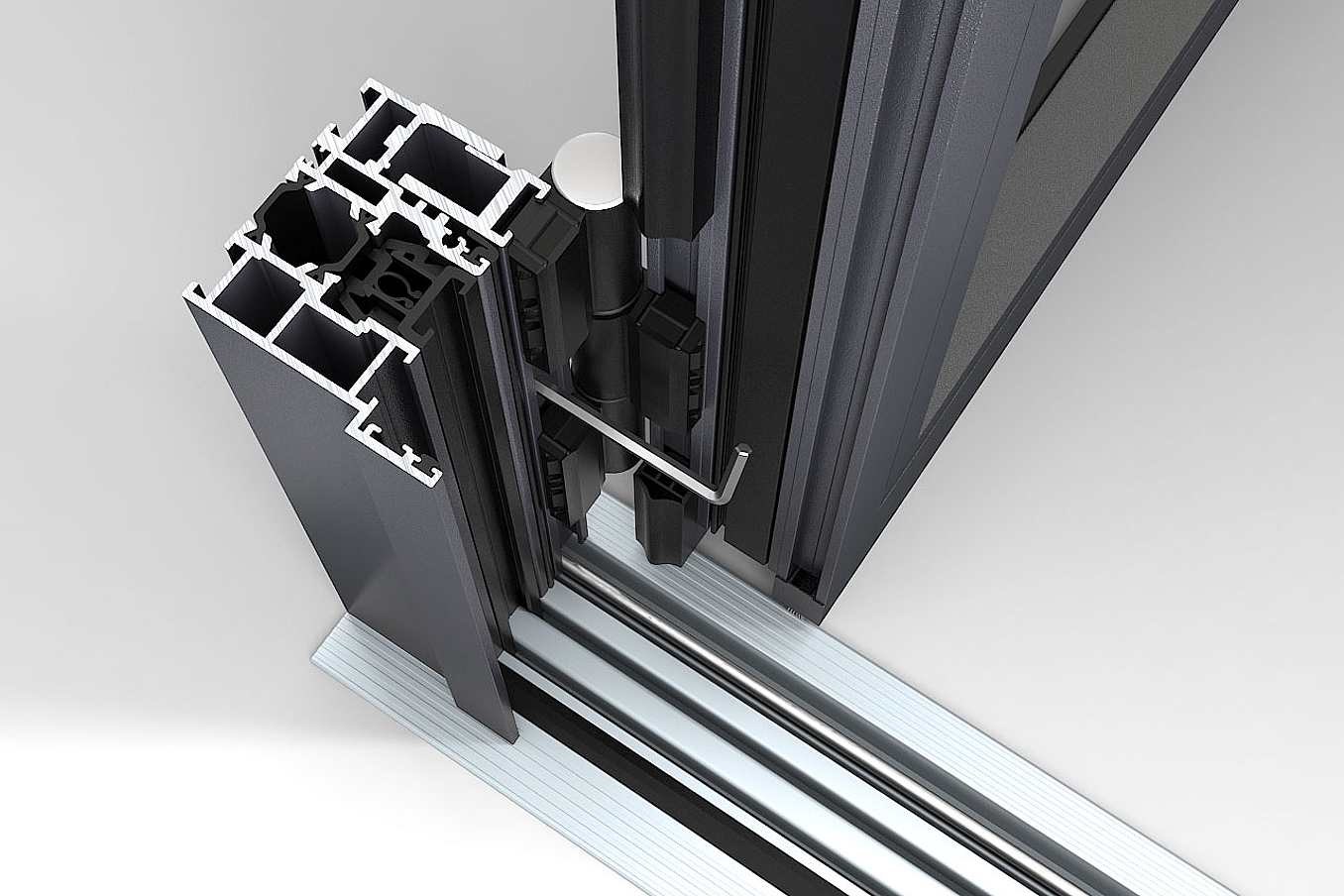

The running carriage rolls on a Gothic arch stainless steel wheel design supported by a double row of ball bearings. With a 2-point contact of each wheel to the floor track, the system glides quietly and smoothly with less friction by providing an equal distribution of weight on the stainless steel track.

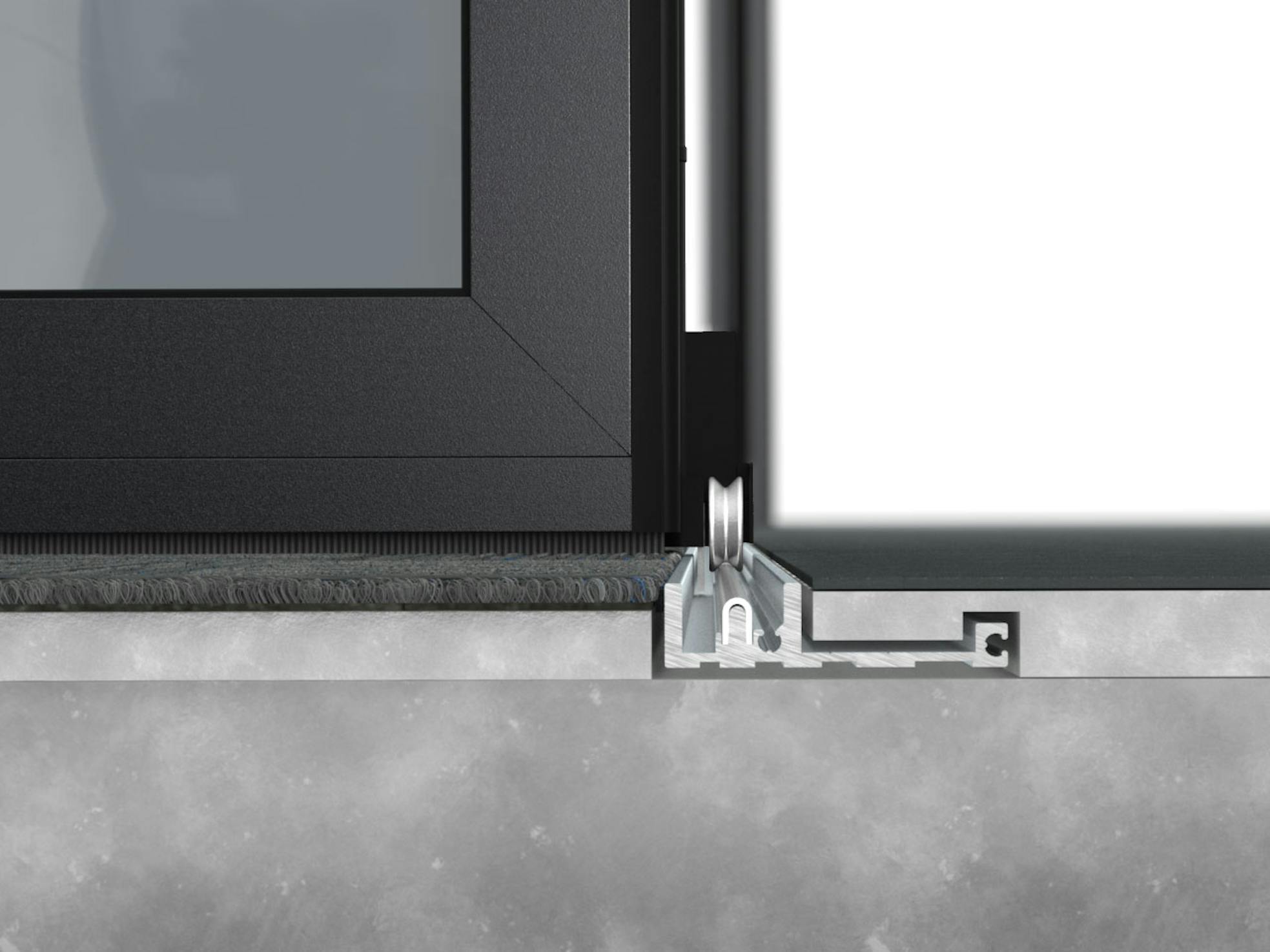

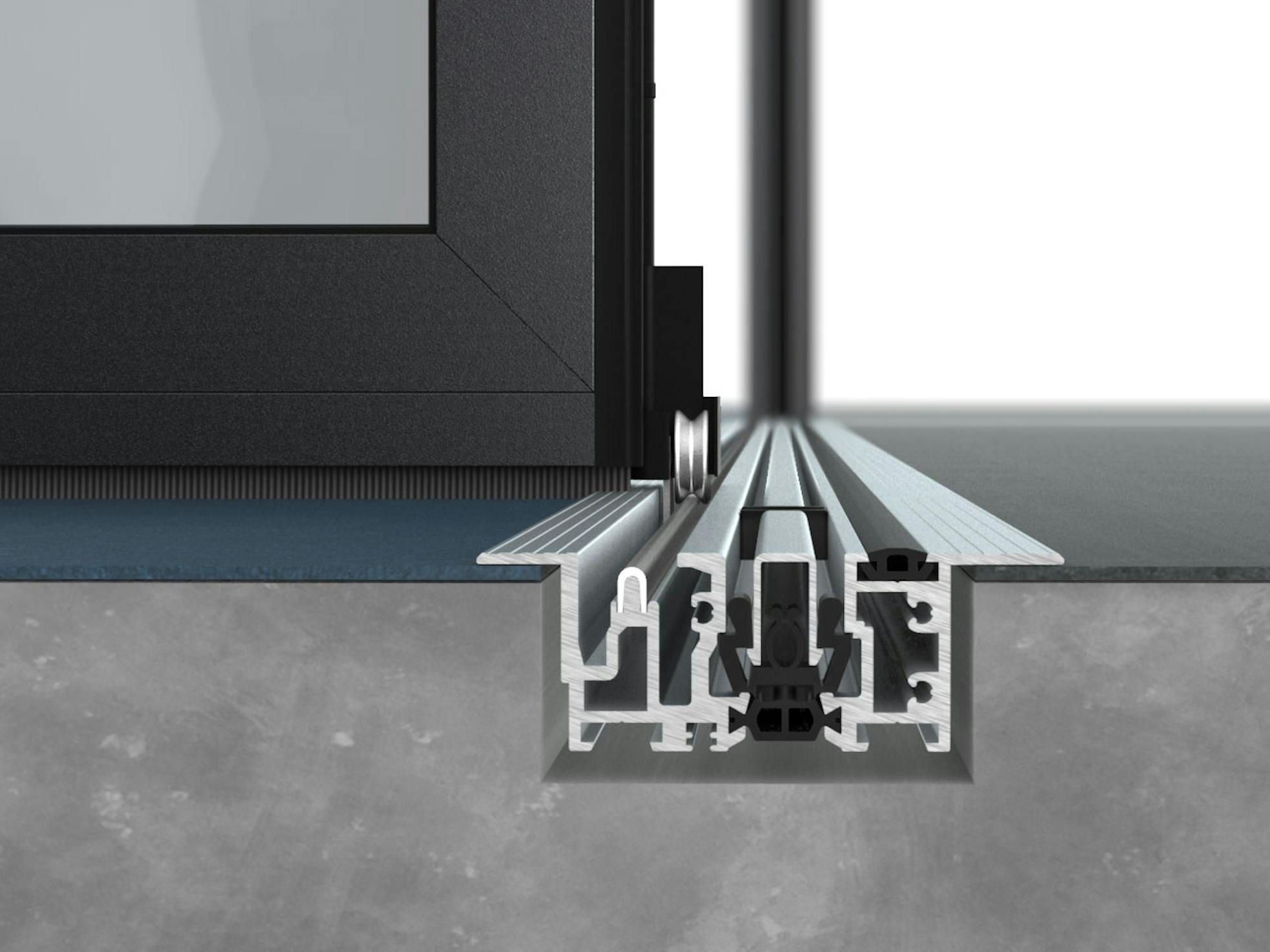

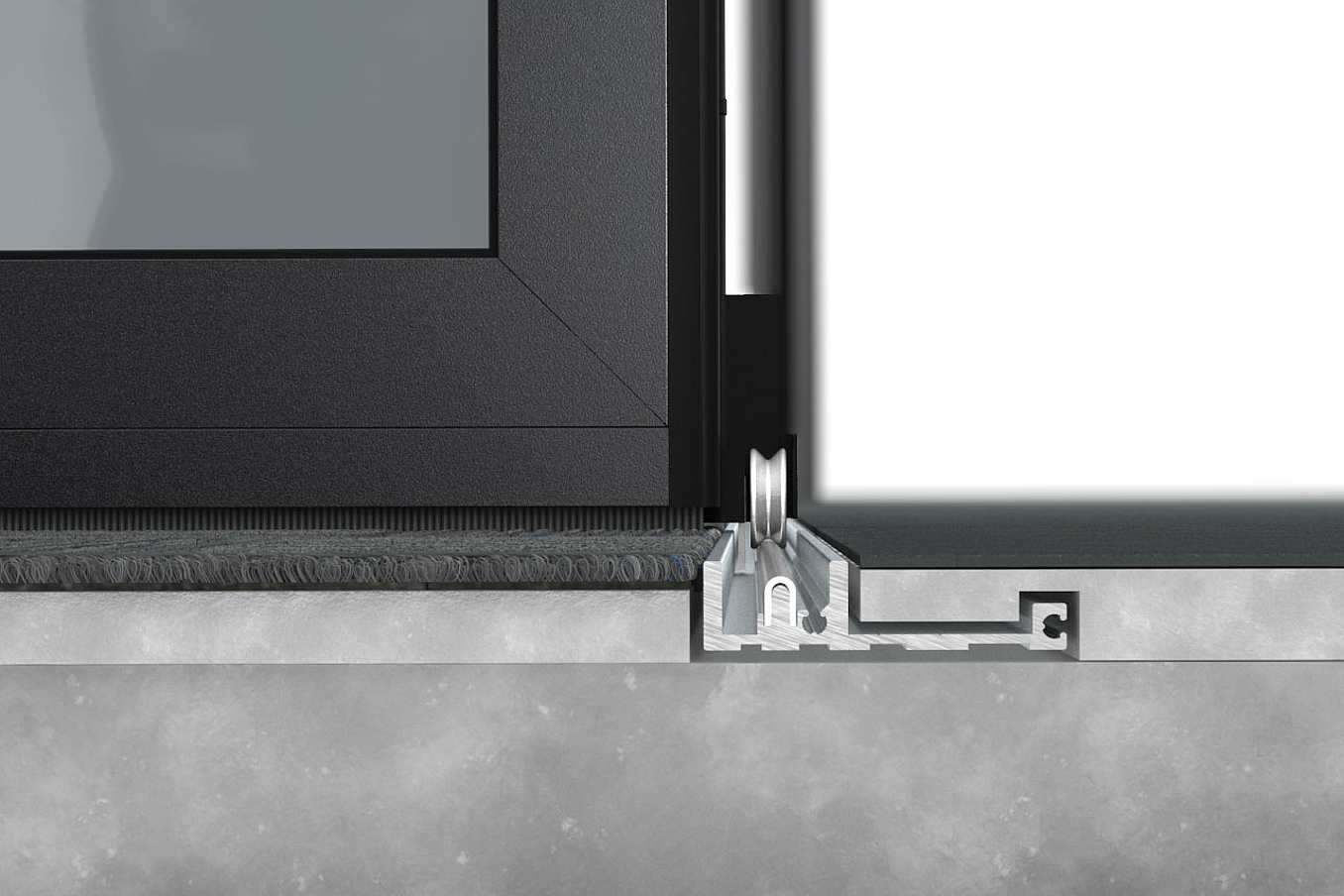

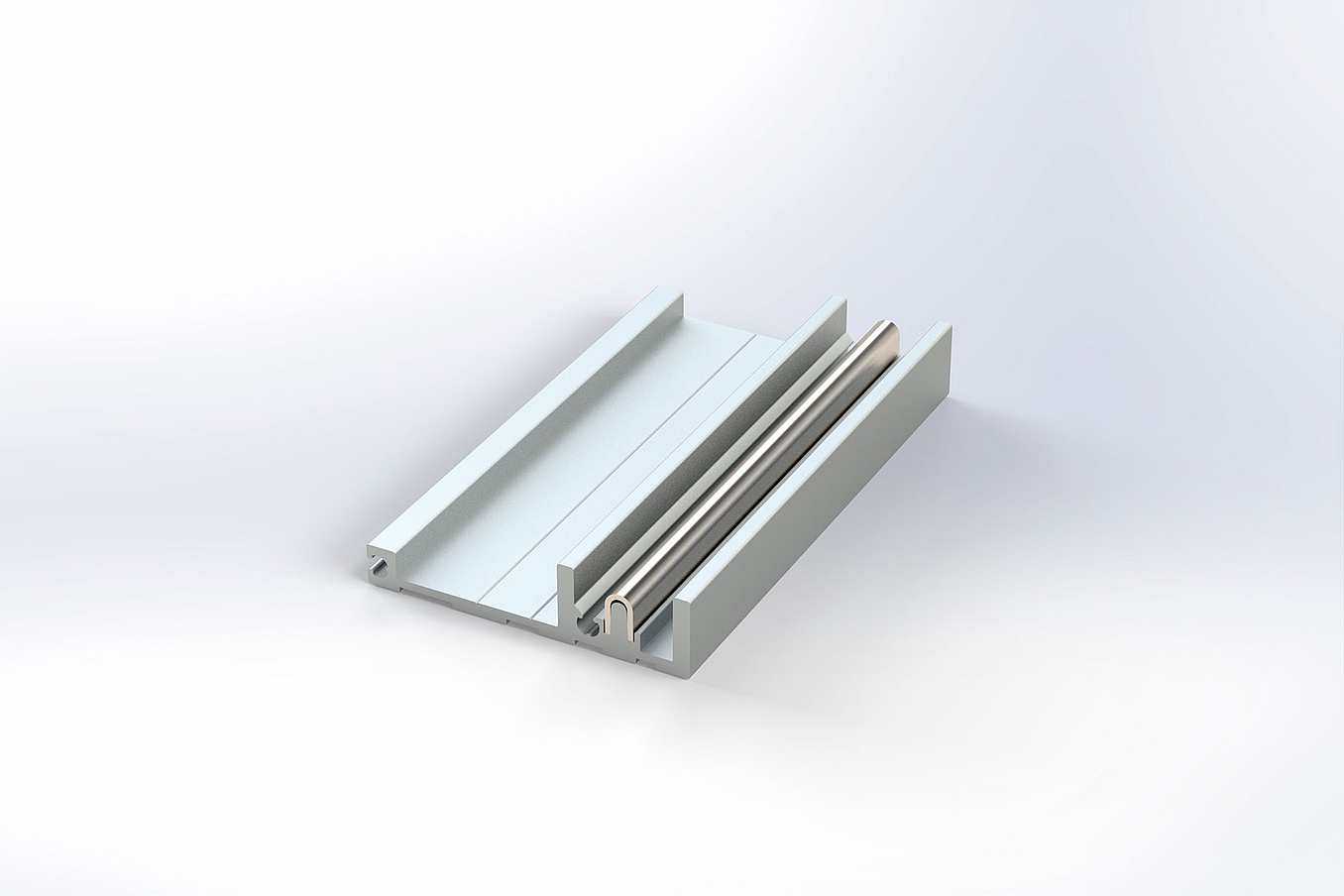

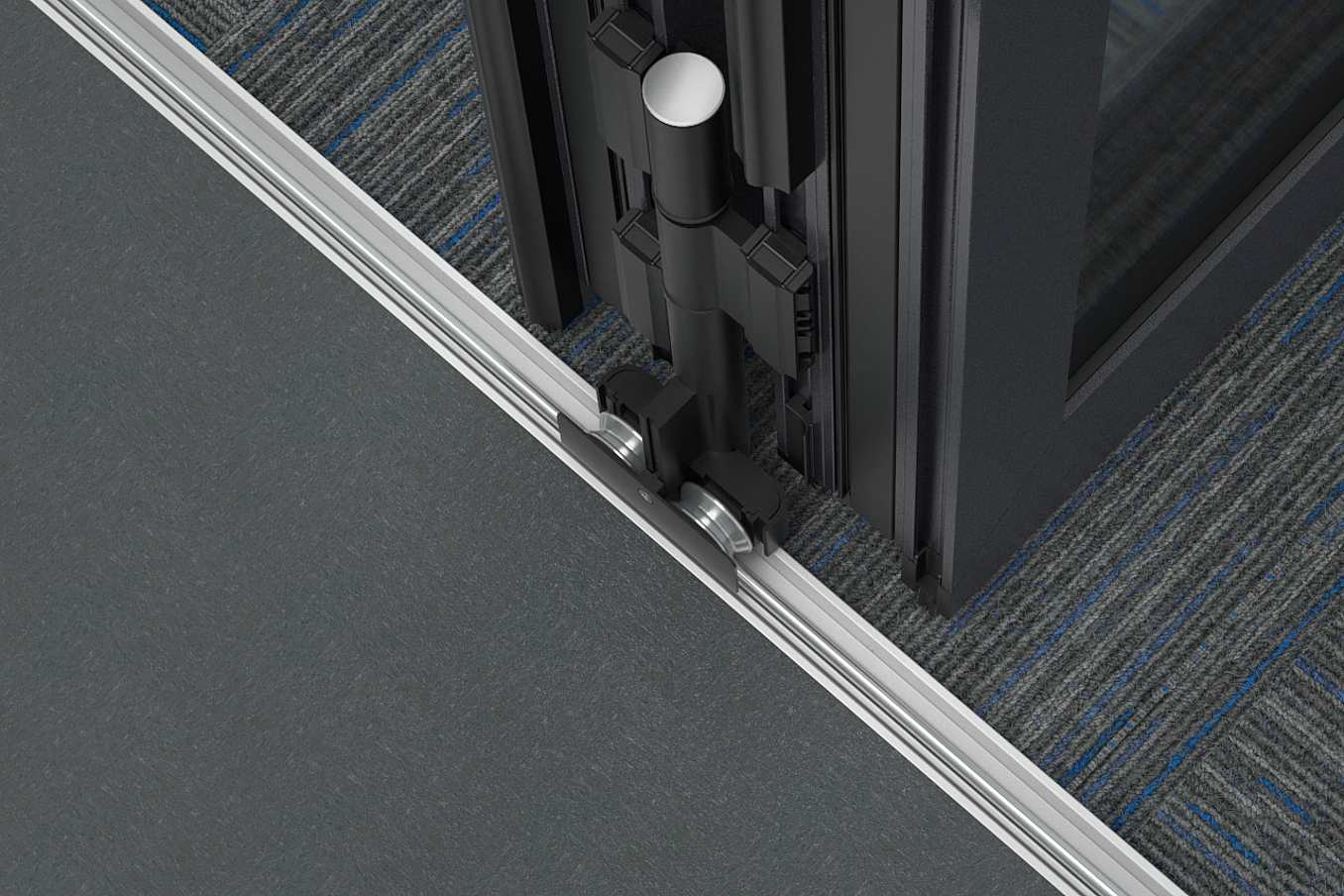

Minimal Surface Mounted Flush Sill for Seamless Integration
Designed specifically for interior applications, the Minimal Surface Mounted Flush sill is ADA compliant and when installed with finished flooring, has only a mere 15/16" (23.5 mm) visible groove.
The shallow surface mounted sill allows for easy installation. This sill can be installed on the foundation or sub-floor and finished flooring can butt up to the floor track creating a seamless integration between interior spaces.
See Sill OptionsExplore the Features and Benefits of Generation 4
- Stainless steel for clean appearance with sealing cushion to avoid thermal conductivity
- Provides optimal load transfer so less connection points required
- For enhanced aesthetics, all frame attachment points are hidden
- Provides an extra boost to acoustical performance

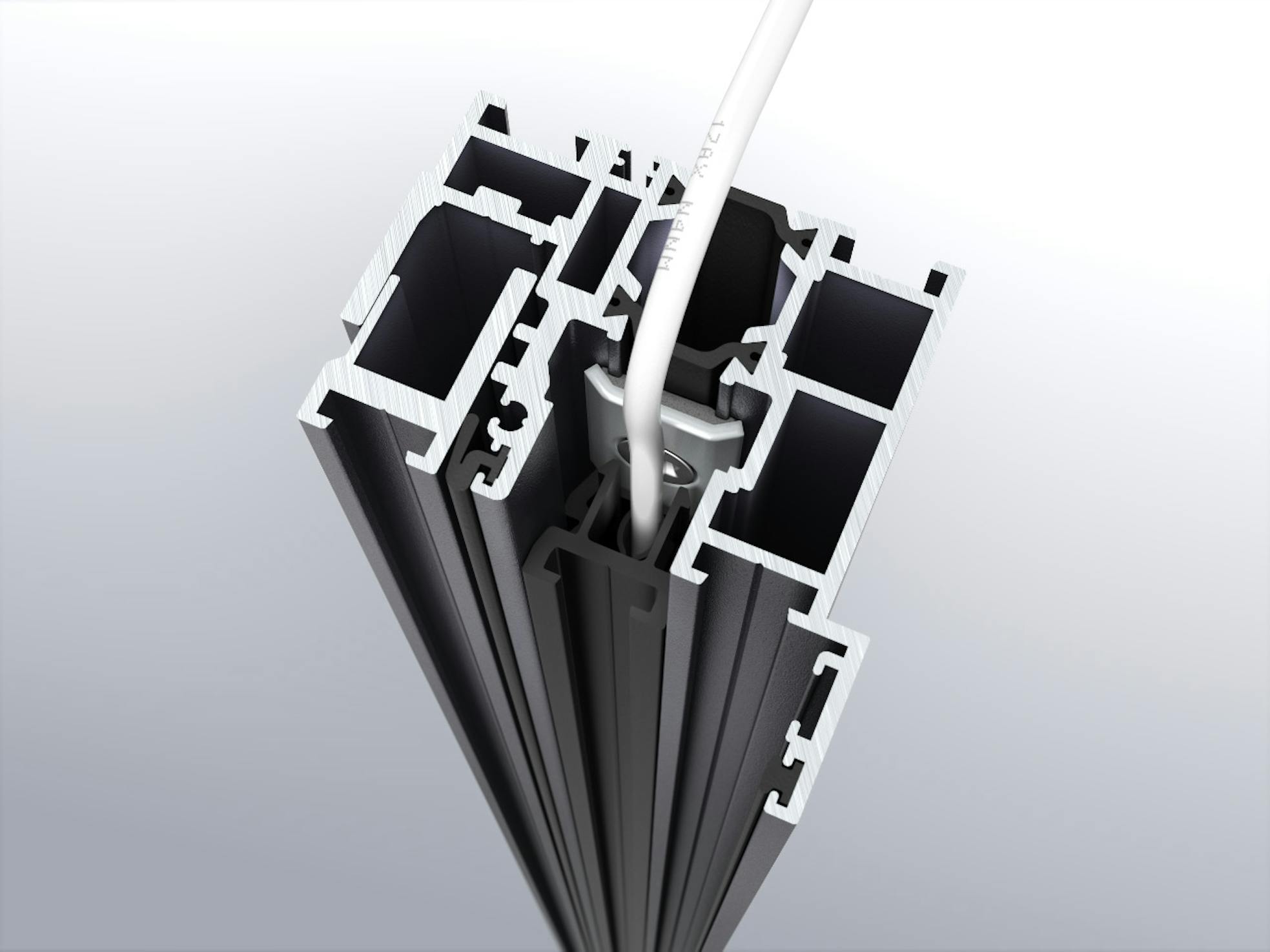

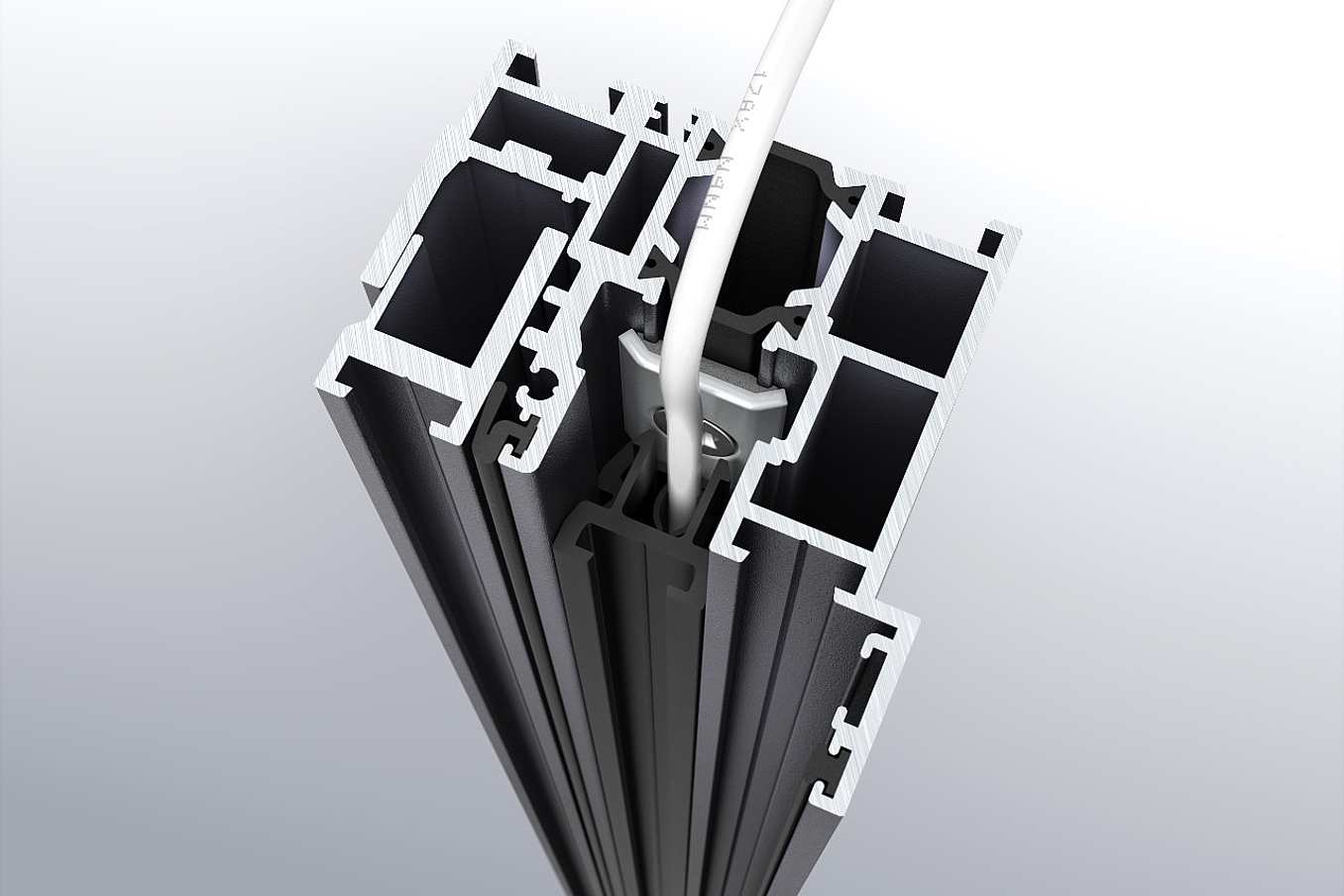

- Offers space for concealed cable routing for security systems by others
- Patented lateral adjustment of +/- 3/16″ (5 mm) to allow for construction tolerance
- Adjusts easily should extreme panel expansion/contraction occur
- Proprietary engineered component stacks FourFold and SixFold panel sets neatly and securely when in open position
- Allows for dynamic stacking of panels at the left, right, or center of opening

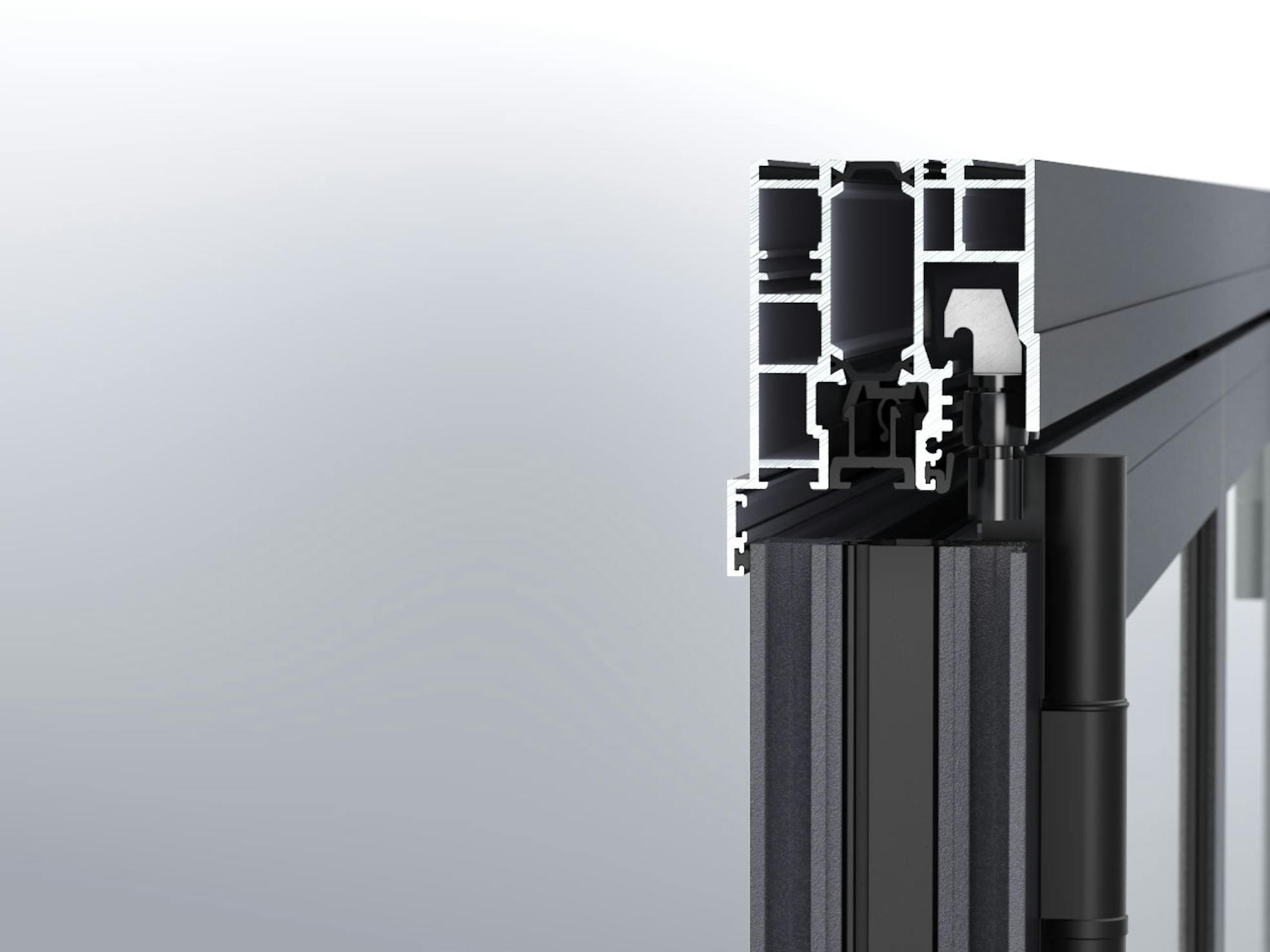

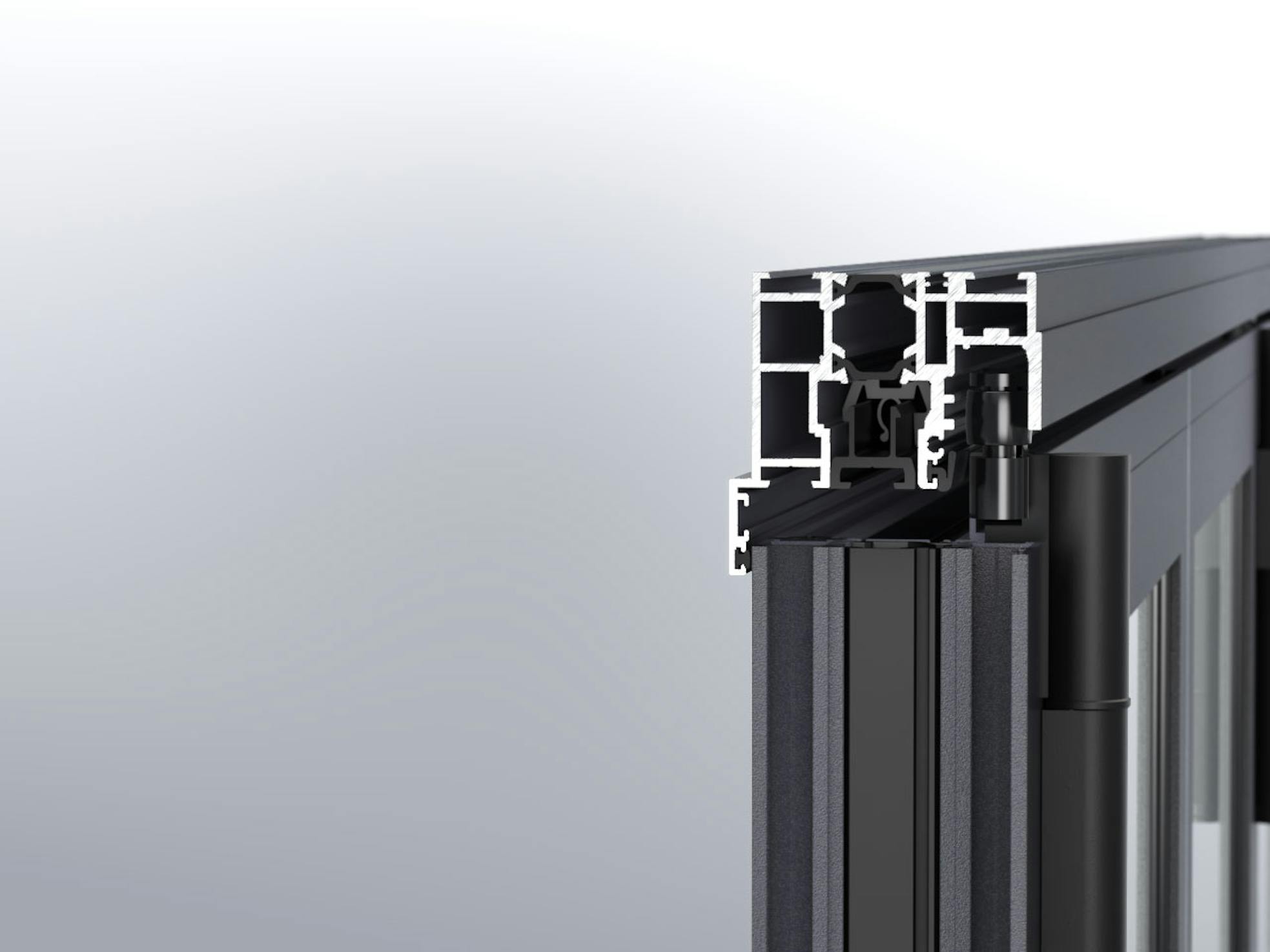

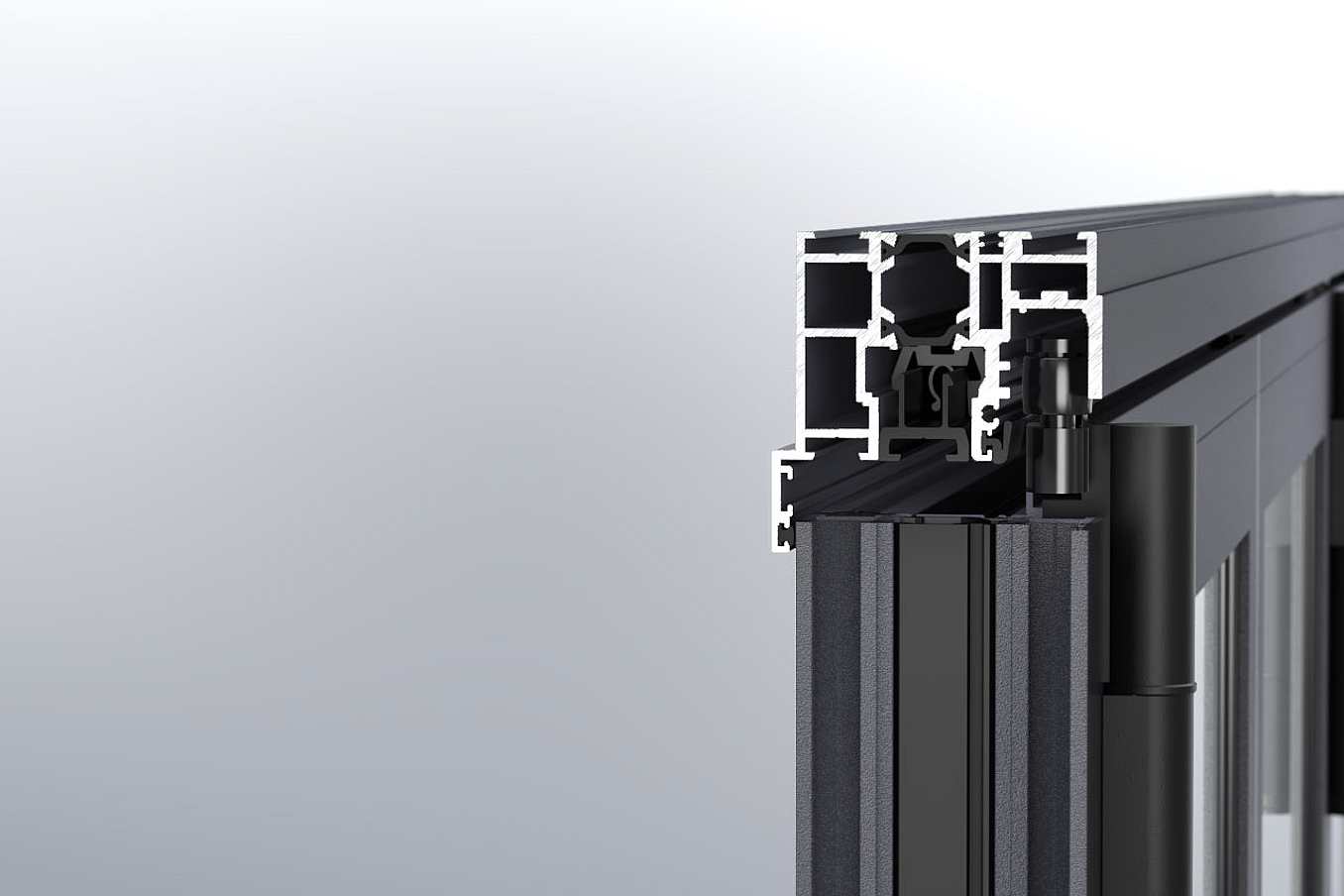

- Panel guide helps system glide through head track with smooth operation
- System operated on floor supported technology for ease of movement
- Crisp, angular profile design for a modern aesthetic

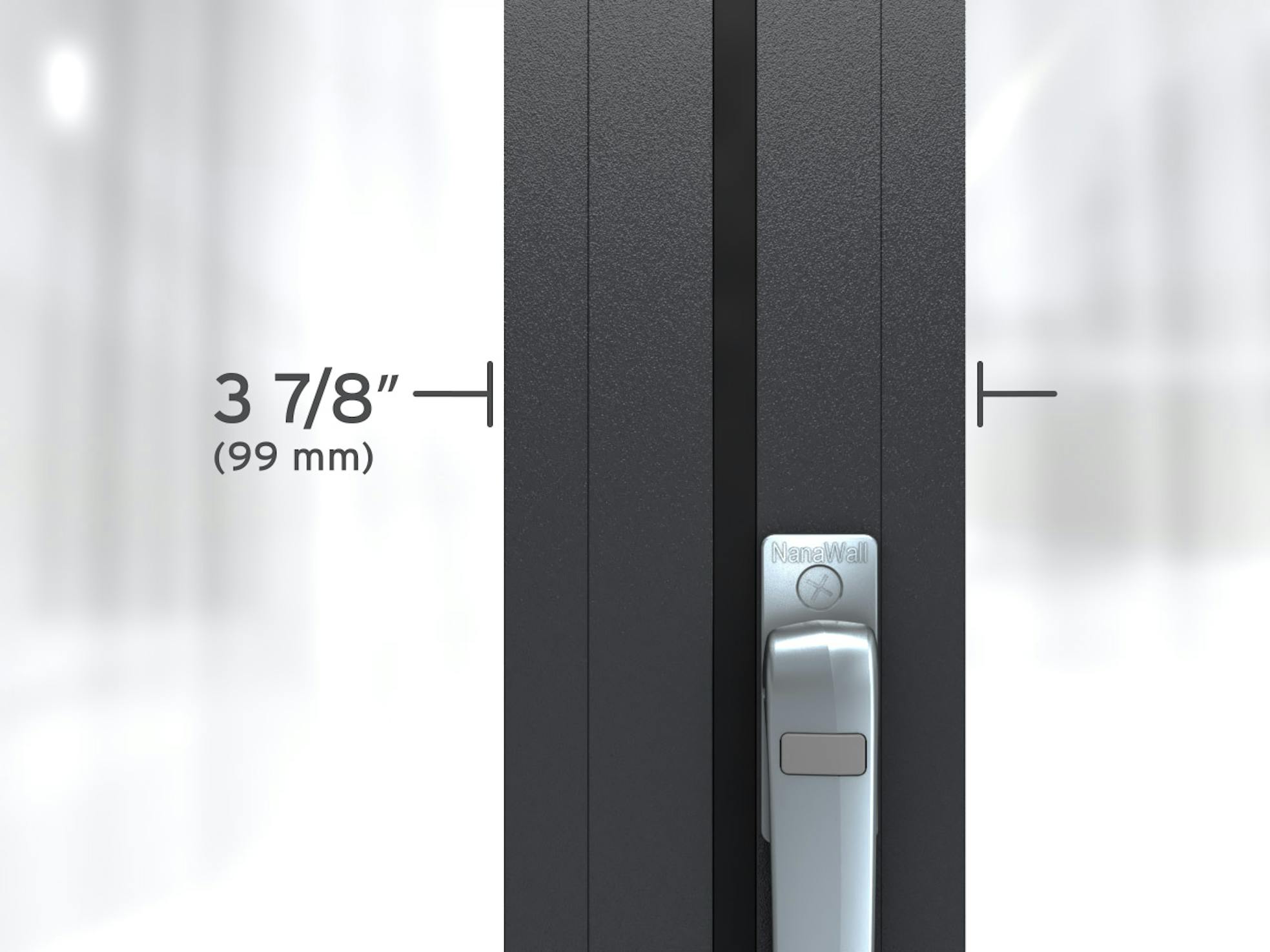

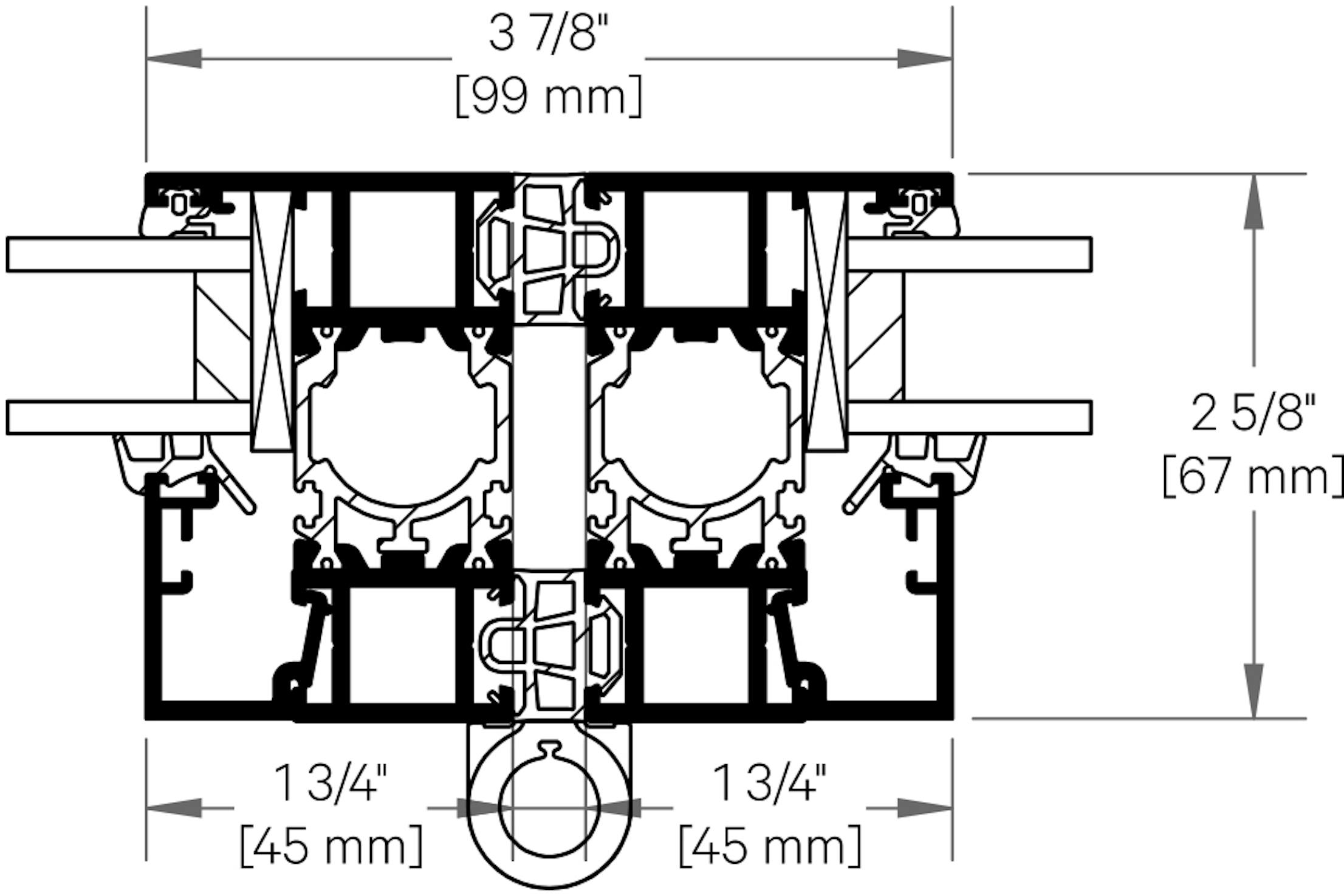

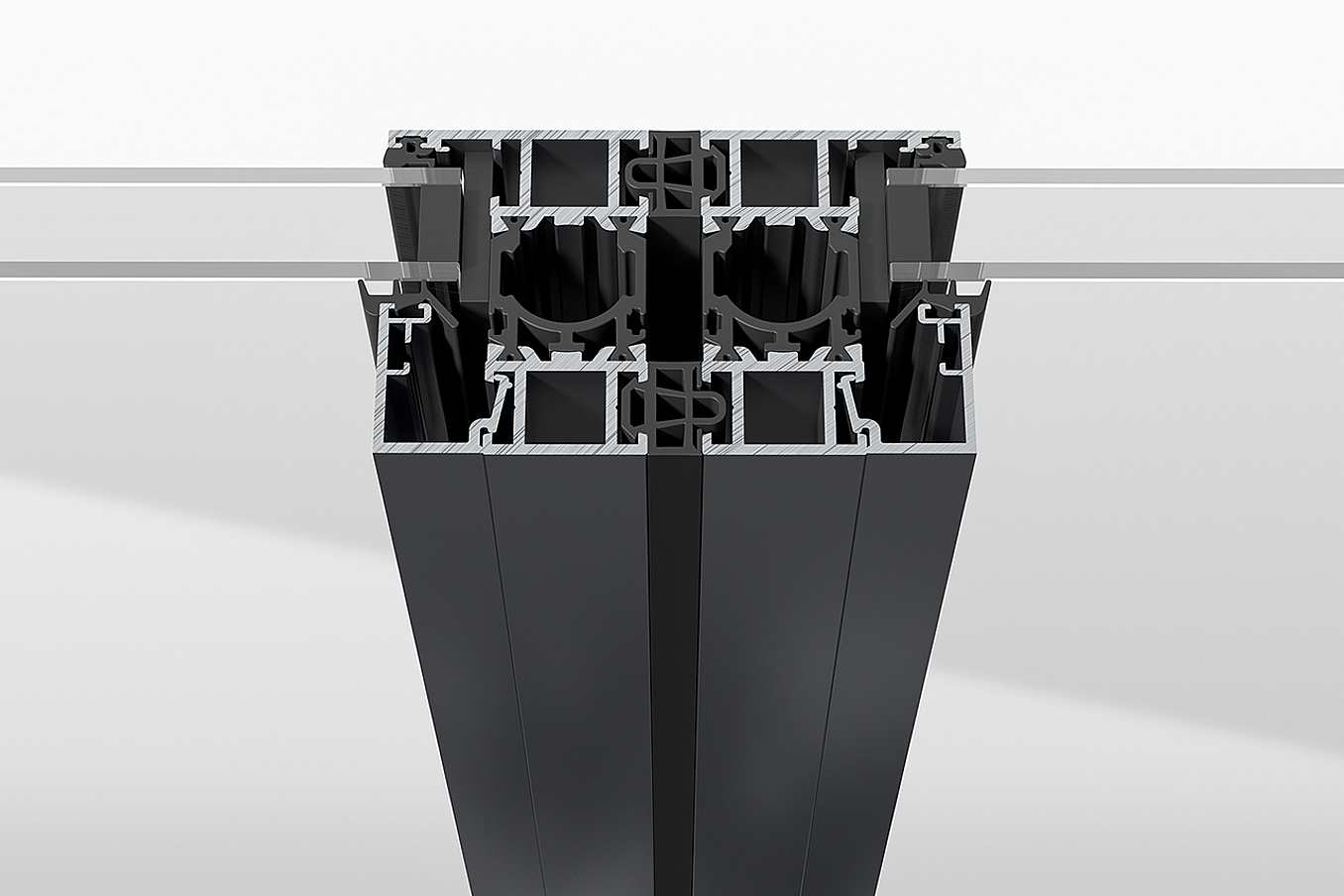

- Intersection of two folding panels is a mere 3 7/8″ (99 mm) for minimal sightlines

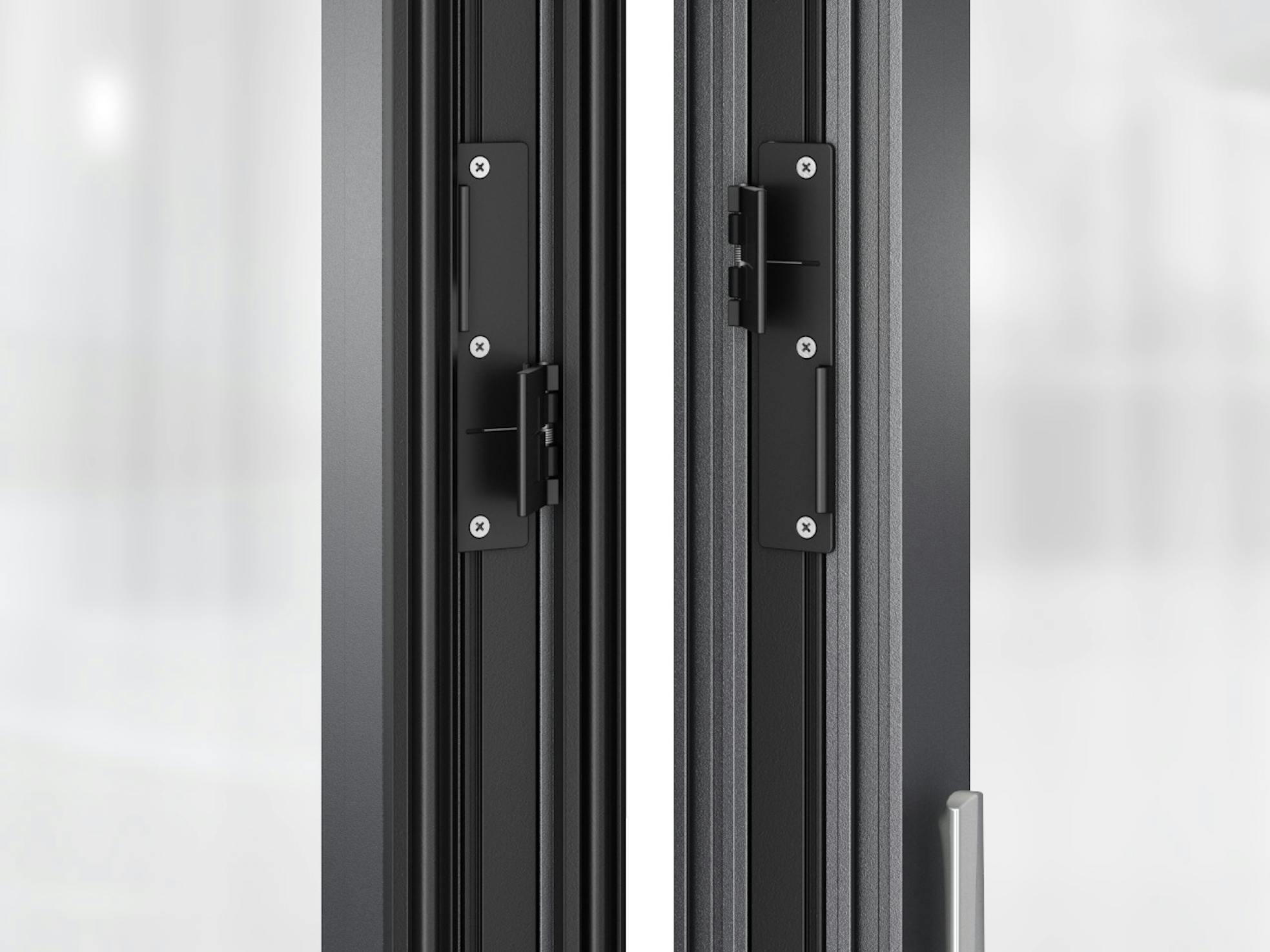

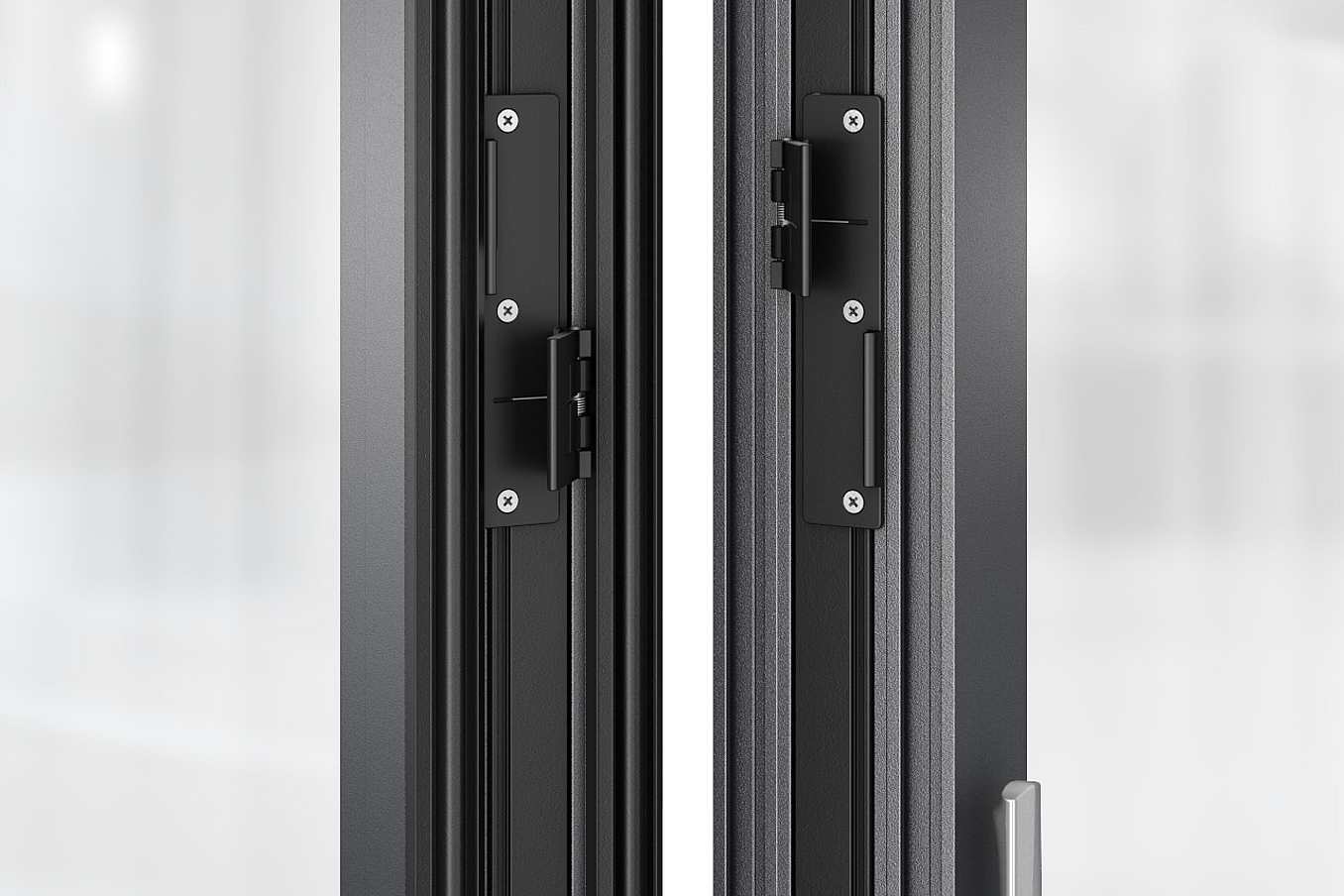

- Flat handle multi-point secure locking with 1″ (24 mm) throw bolt top and bottom

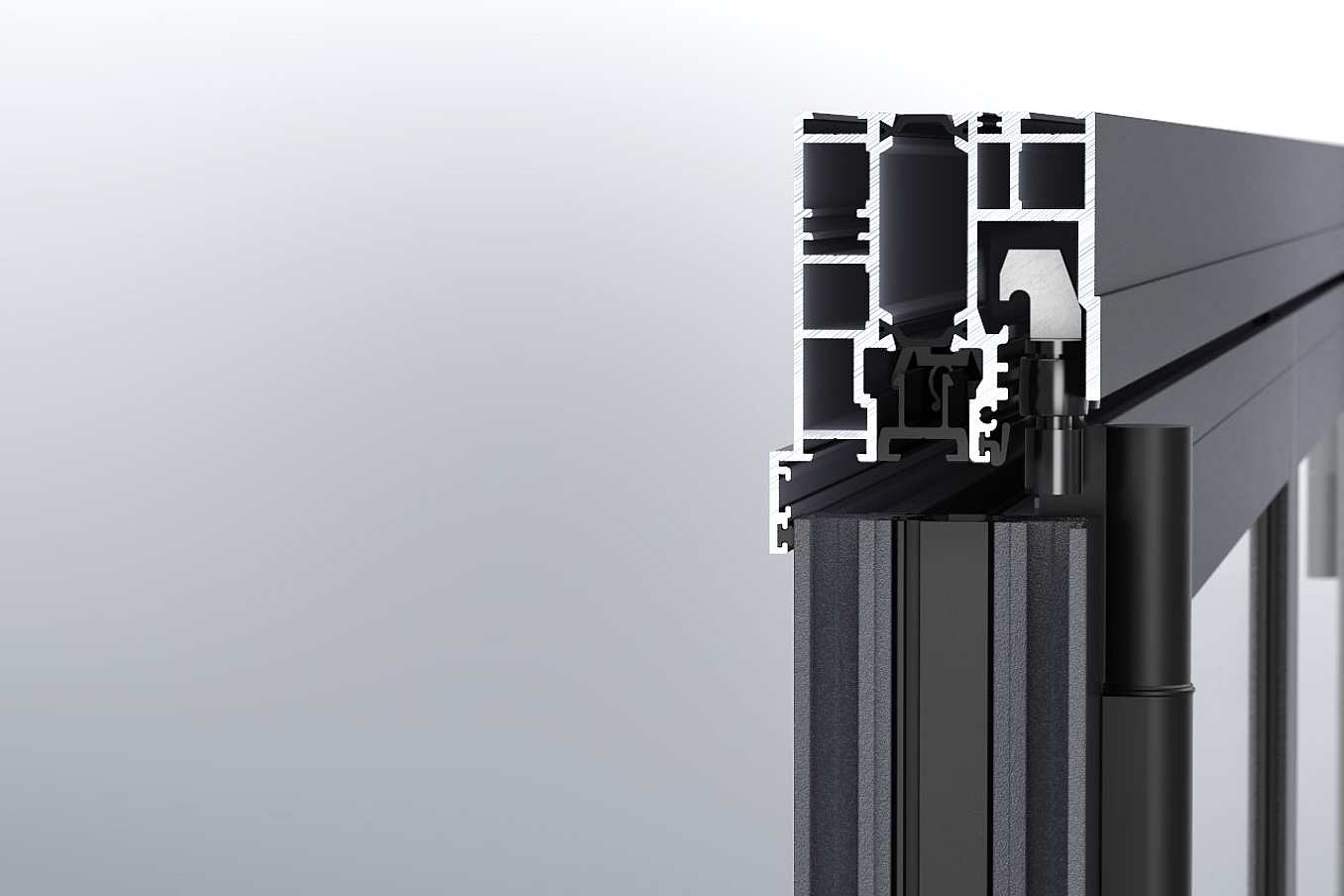

- The Bionic Turtle® single piece thermal break provides outstanding acoustical separation within frame profiles
- Unique patented design houses the system’s locking rods to afford the extremely slim profile appearance

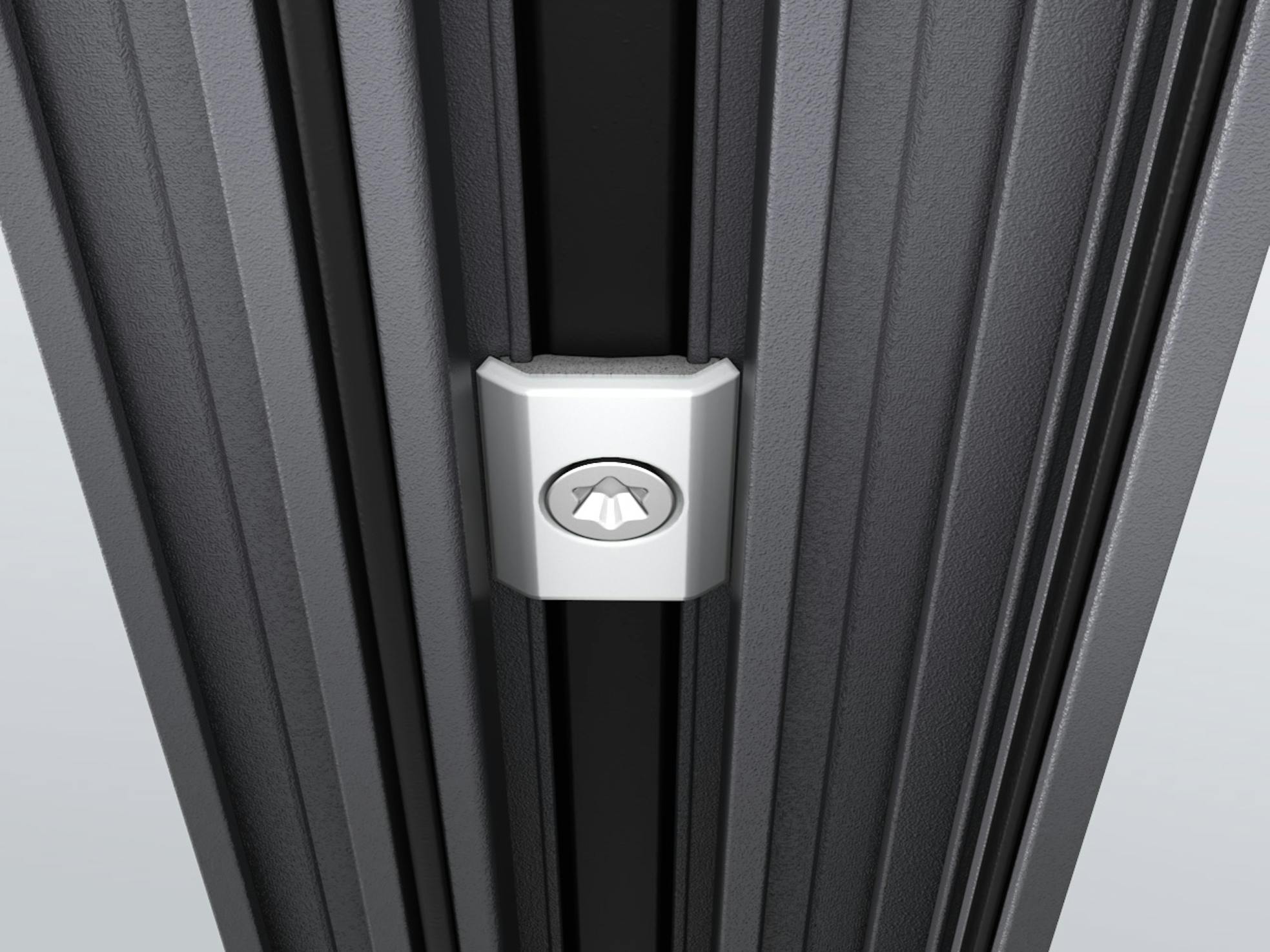

- Hidden spring-loaded TwinX mechanism aligns panels over 7′ (2150 mm)
- Patented TwinX interlocks panels and provides structural reinforcement to eliminate exposed hinges in the middle of the system
- Inswing shown, outswing also available
- Thermally broken, ADA compliant, high heel and barefoot friendly
- Unique Gothic arch roller design for effortless operation
- Inswing shown, outswing also available
- ADA compliant, high heel and barefoot friendly
- Shallow design for easy installation
- Unique Gothic arch roller design for effortless operation
Extreme Sound Control
NanaWall systems meet or exceed air, water, structural, and forced entry tests for weather, durability, and security
Ease of Operation
NanaWall systems offer single-handed operation and move smoothly with little effort
Interior Ready
Sill options designed specifically for interior applications.
Sustainable Design
NanaWall products contribute to multiple LEED rating systems and potentially several credit categories.
Up to Unit STC 45 Possible
This system combines sleek acoustically separated aluminum framing and specialized gasketing with sound-enhanced glass to achieve optimal performance with the range of unit STC from STC 32 up to STC 45—all while allowing maximal transparency and natural daylight to flood interior spaces.
Acoustical Performance Results
Test Results

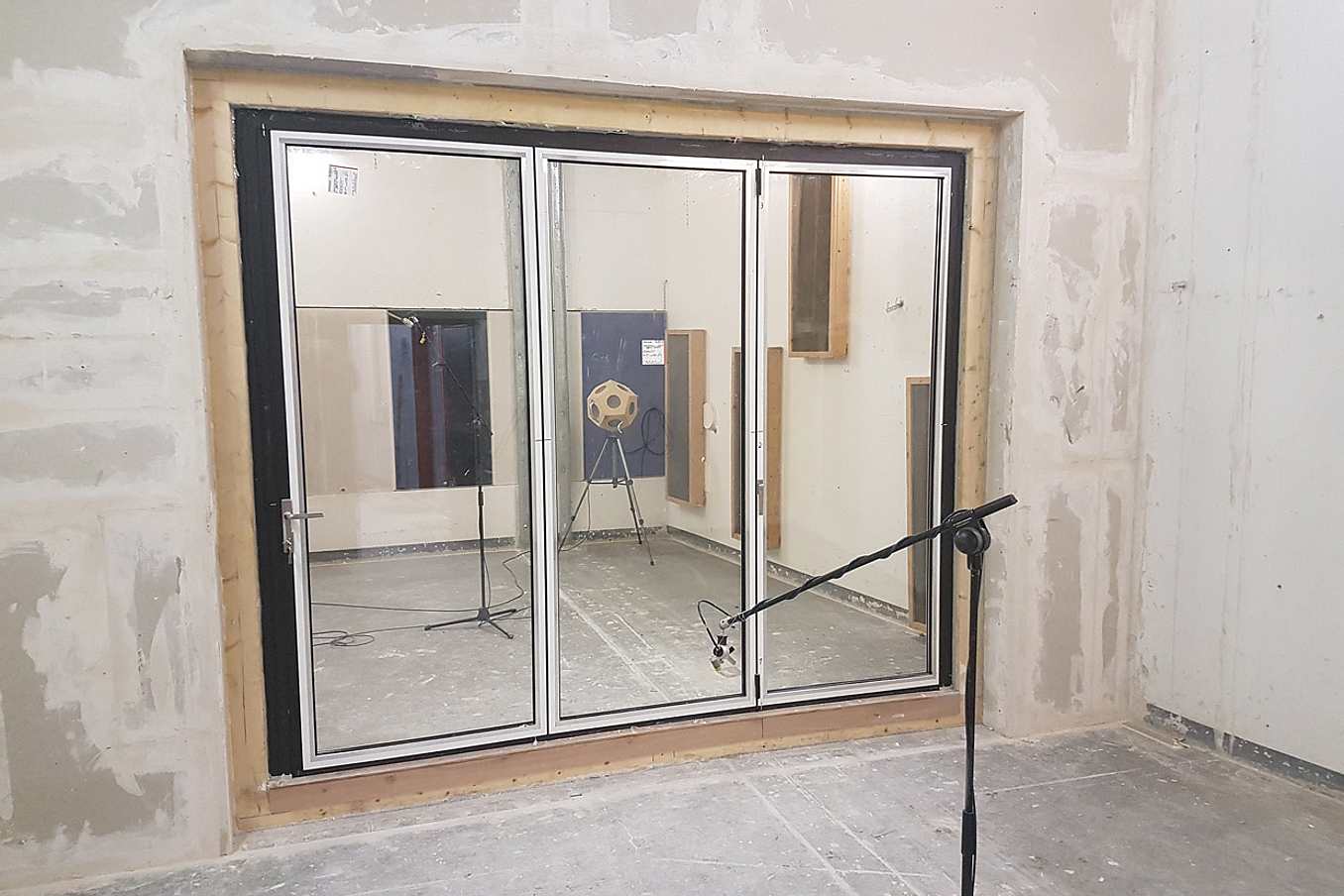

NanaWall NW Acoustical 645 has been tested at an accredited and certified independent laboratory. We test our product to meet the highest standards of ASTM E90, ISO 10140-1, 2, 4, 5. STC calculations meets standards of ASTM E413, and ISO 717-1.
See Air, Operation, and Forced Entry ResultsWhat Our Customers Have to Say
CompTIA Office
With "order and light" as the watchwords of the renovation project of the interior of CompTIA, KUBE set about finding ways to create a feeling of openness, while also providing privacy through sound attenuation.

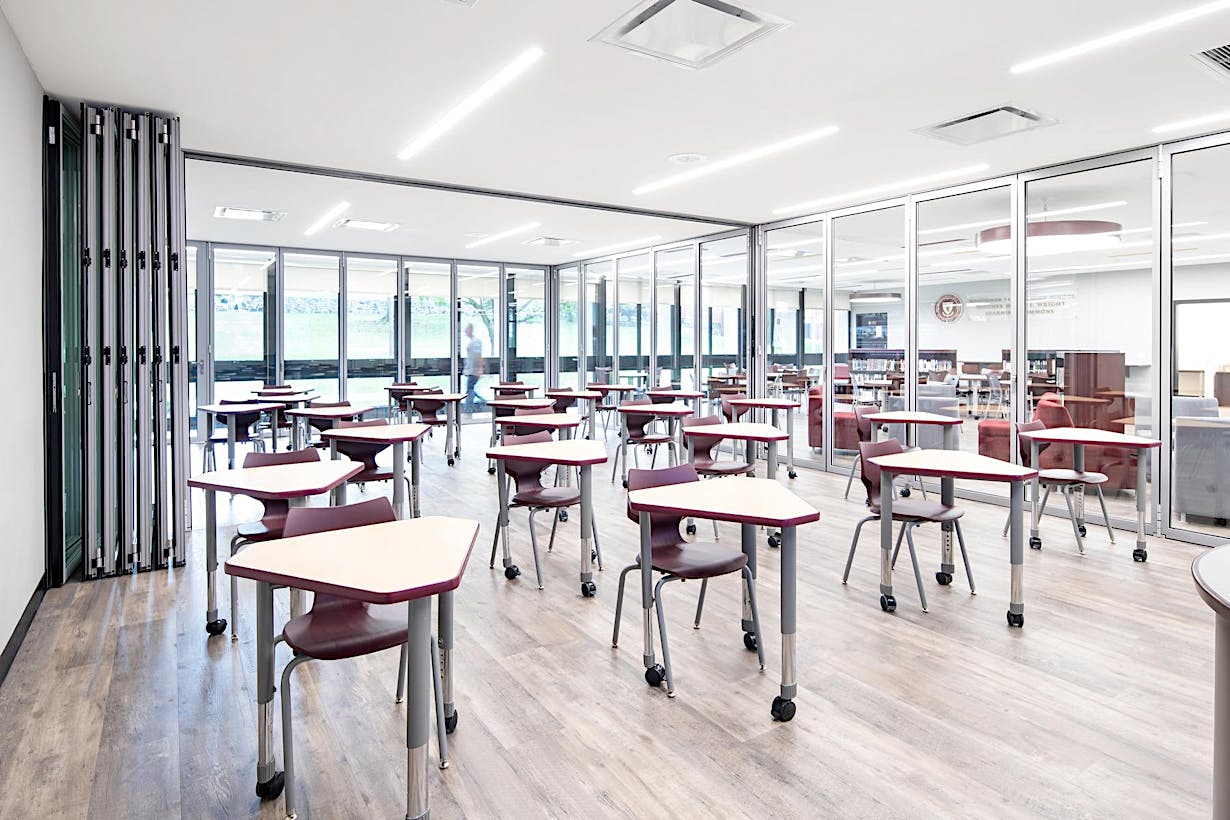

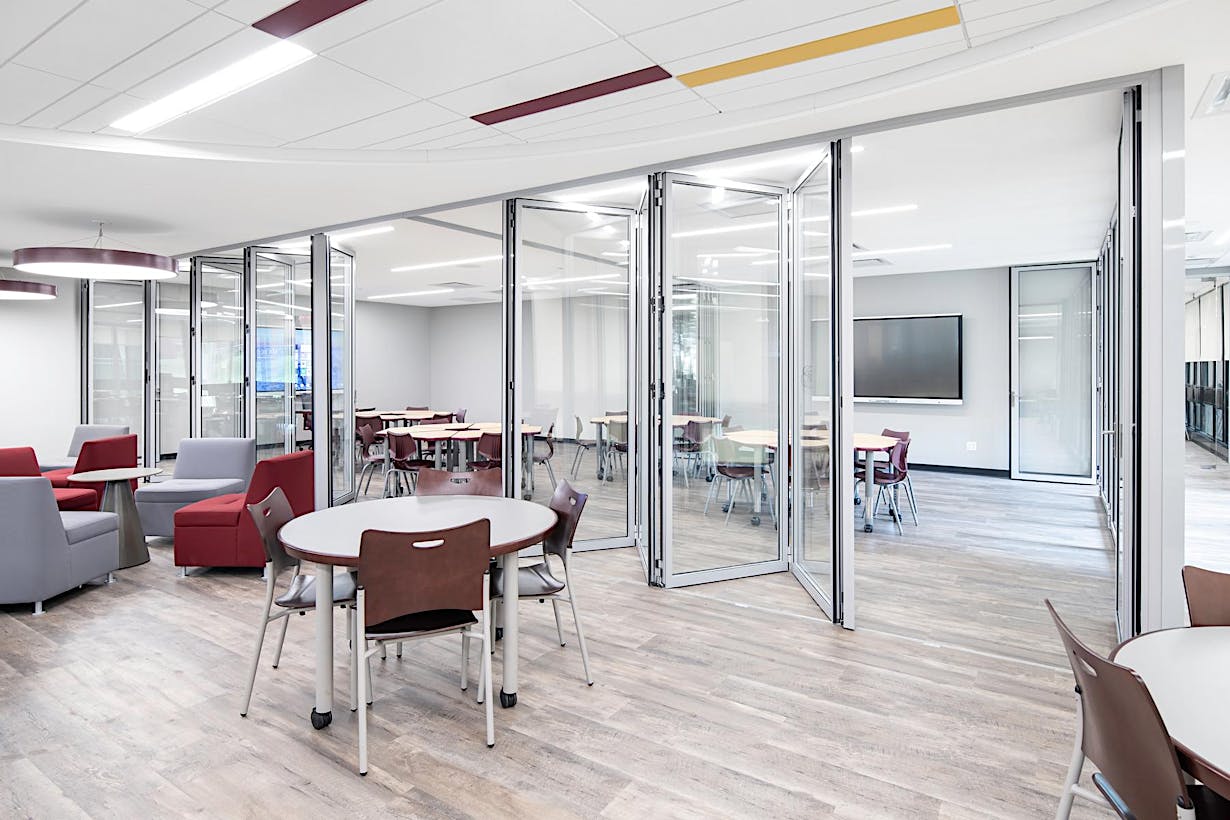

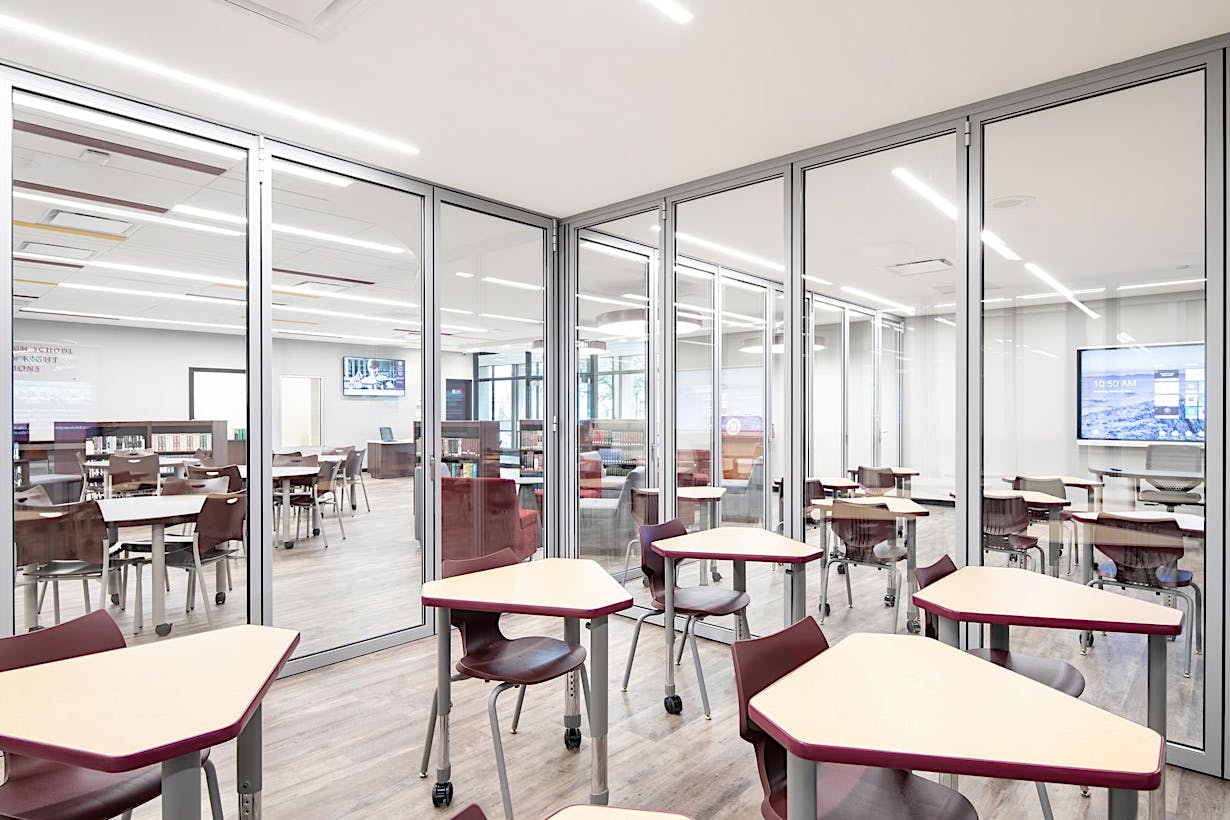

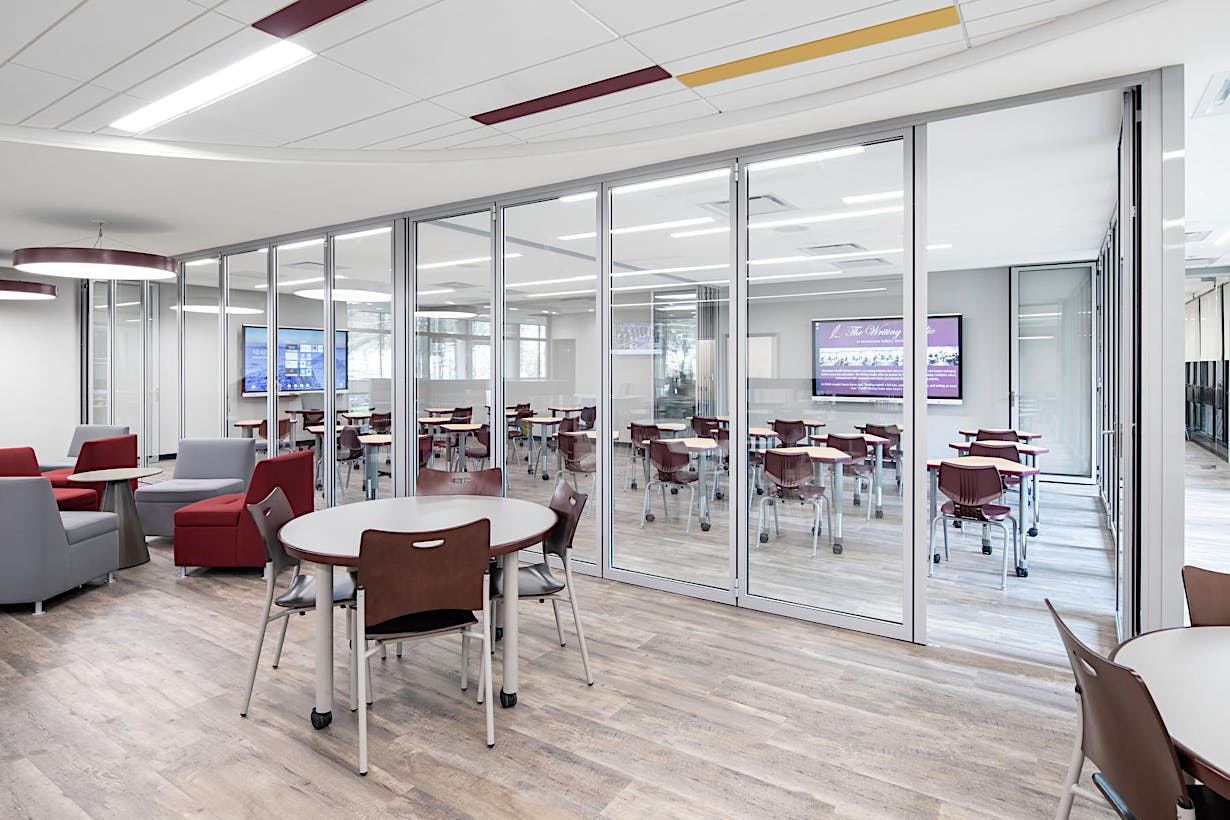

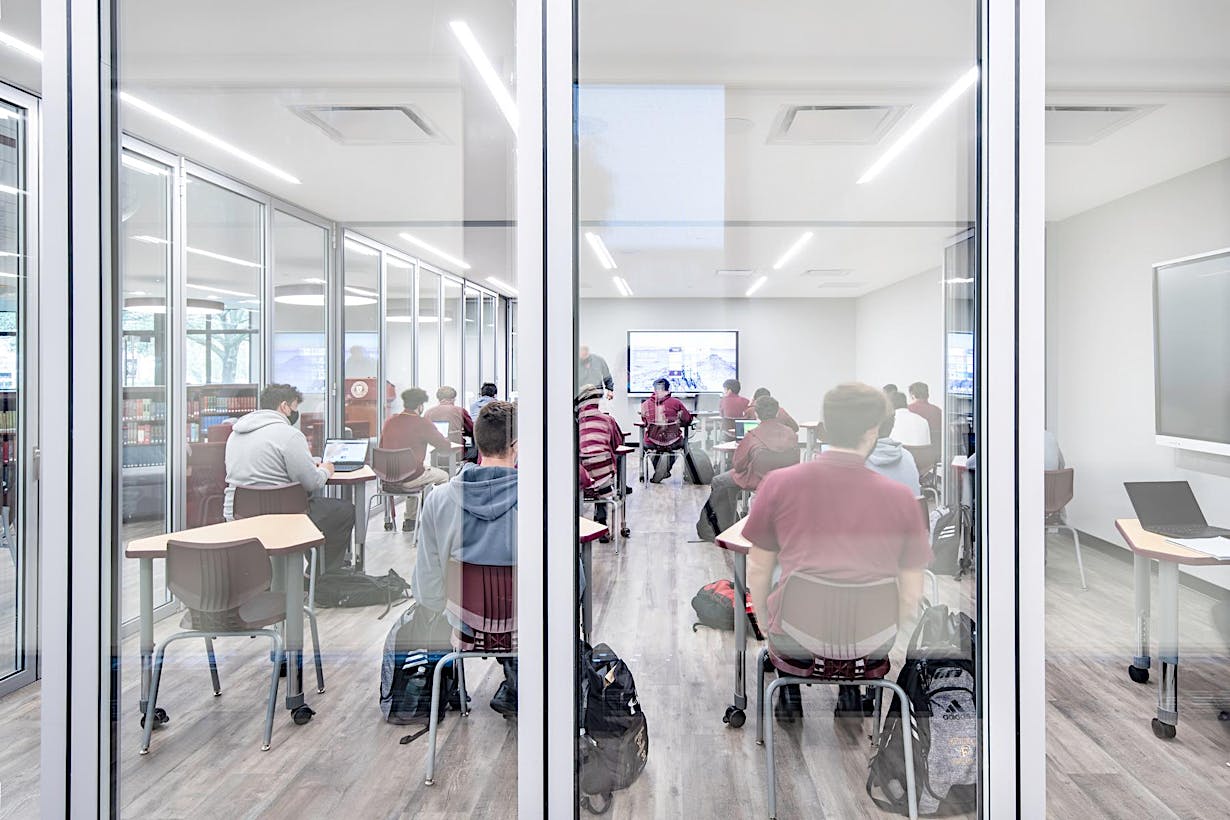

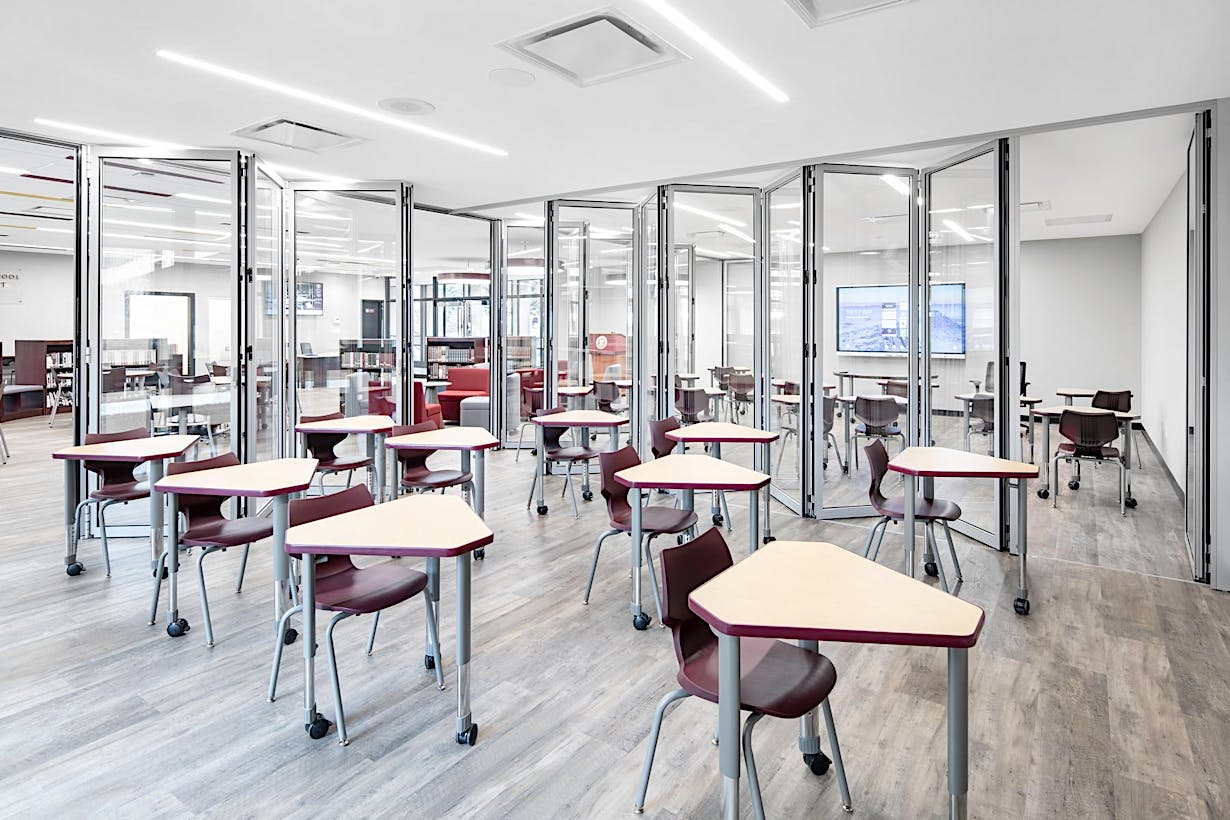

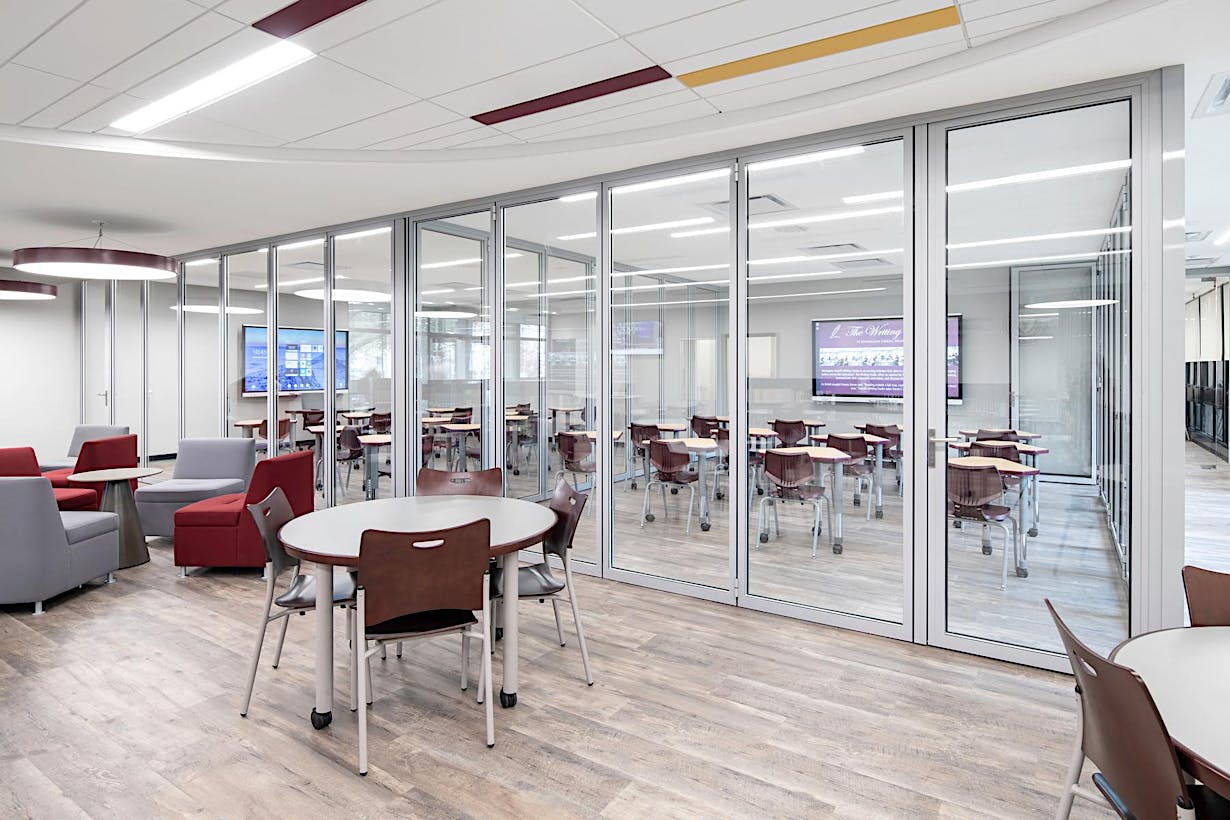

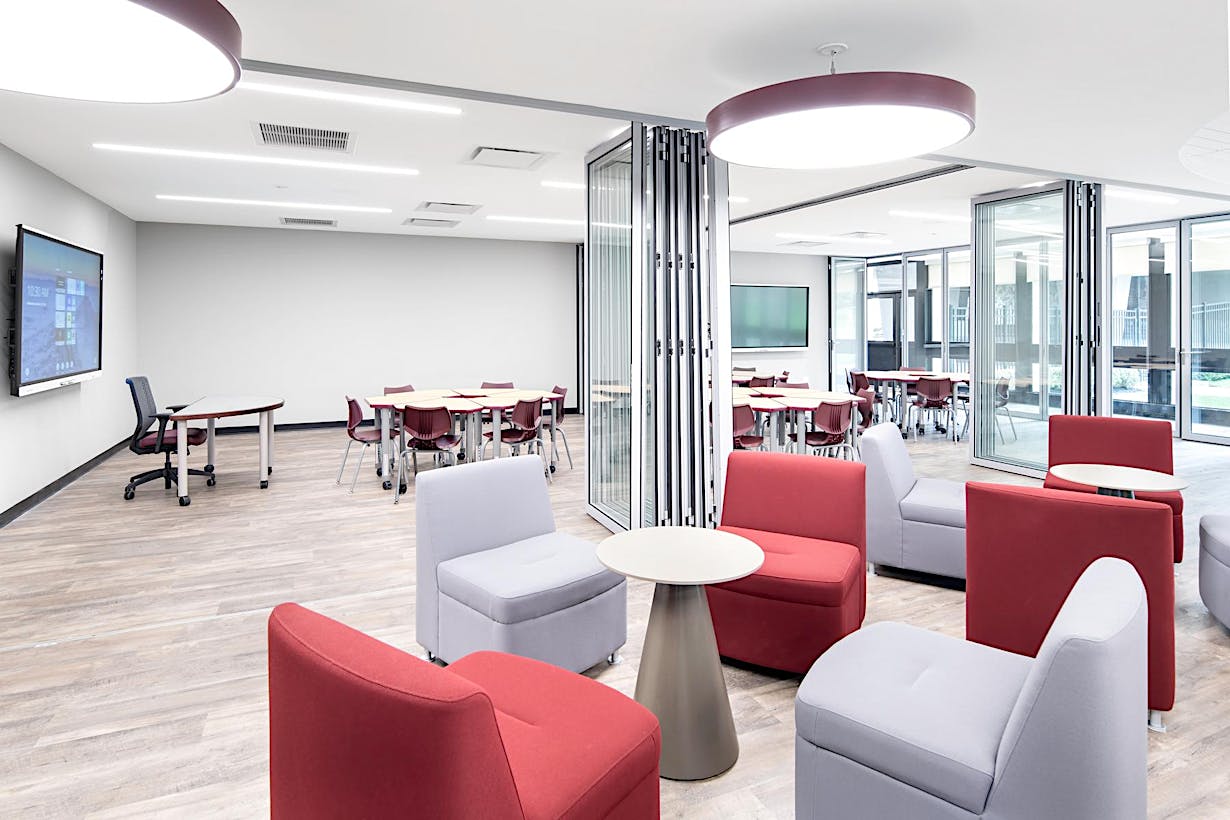

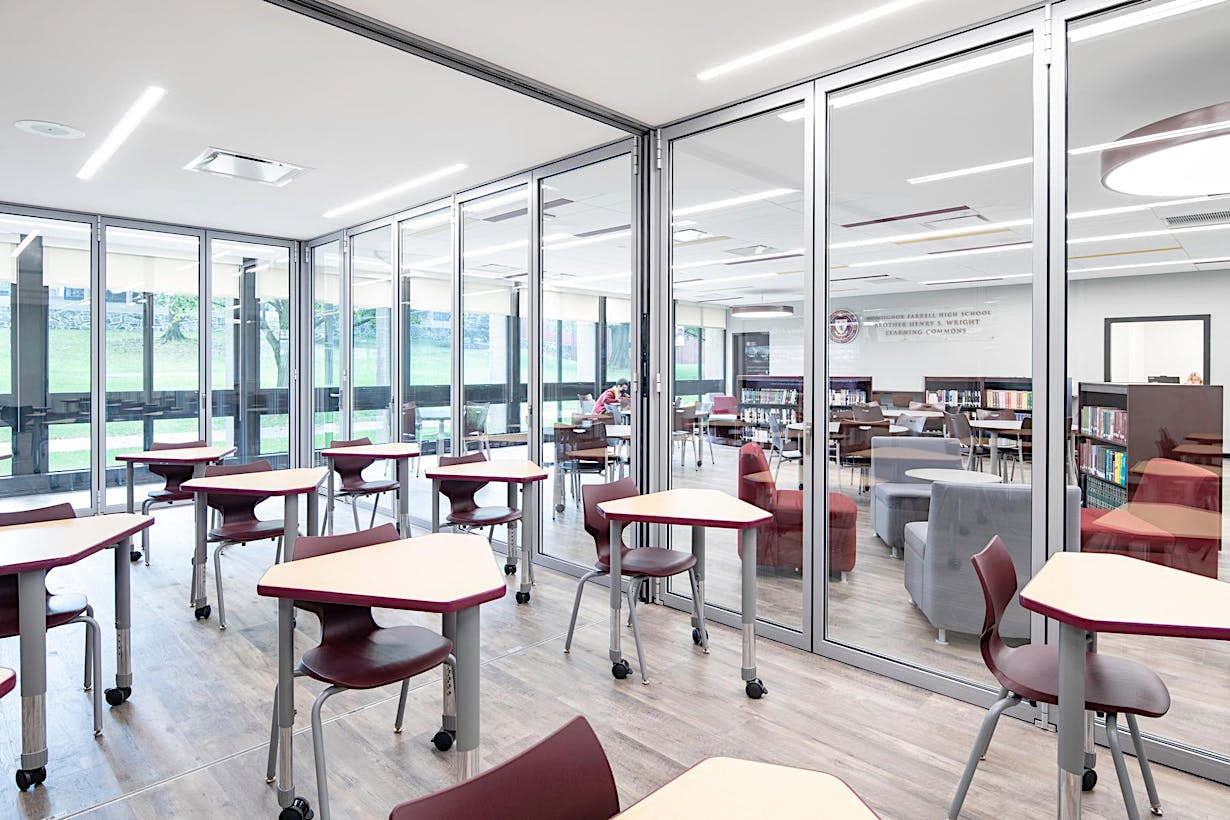

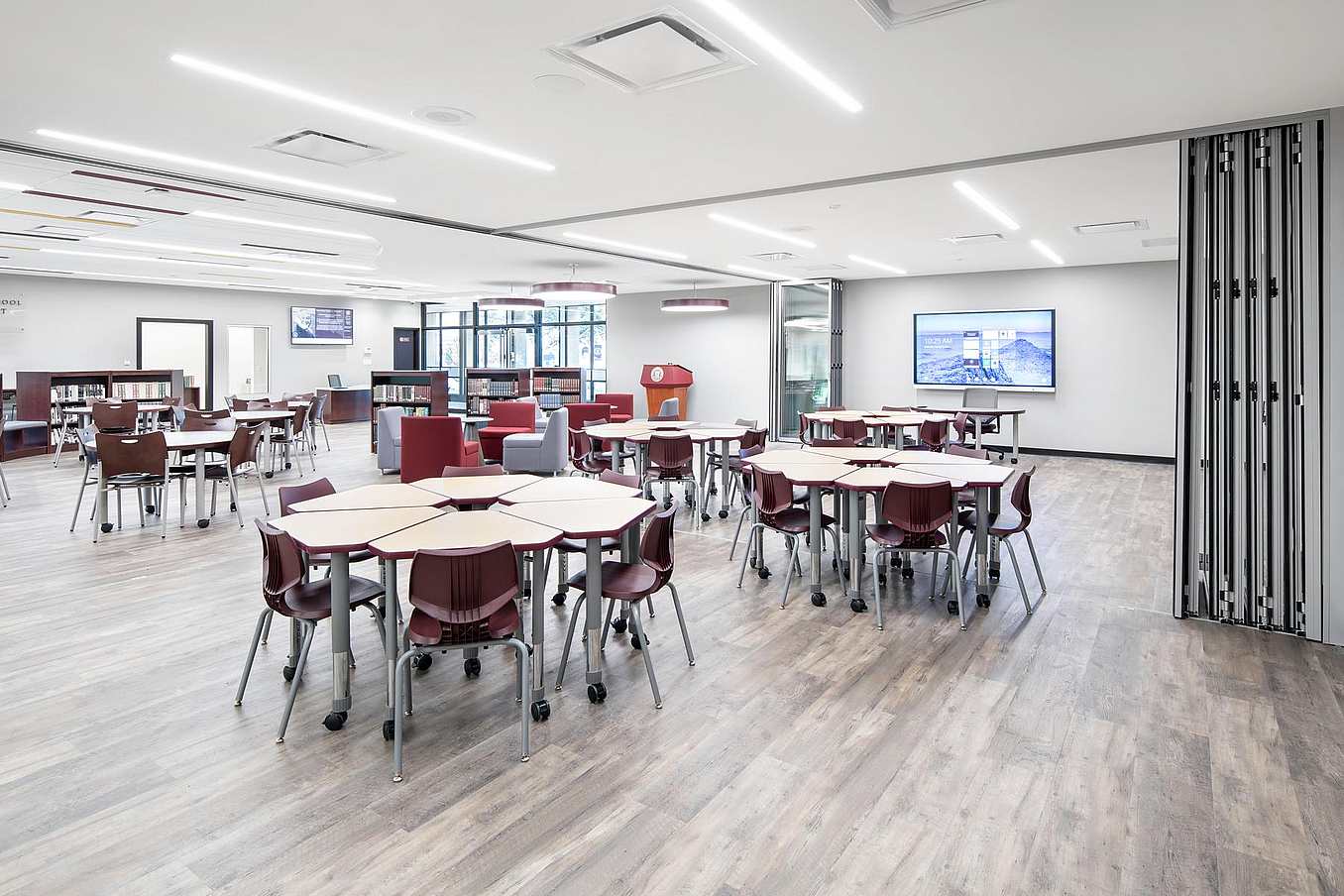

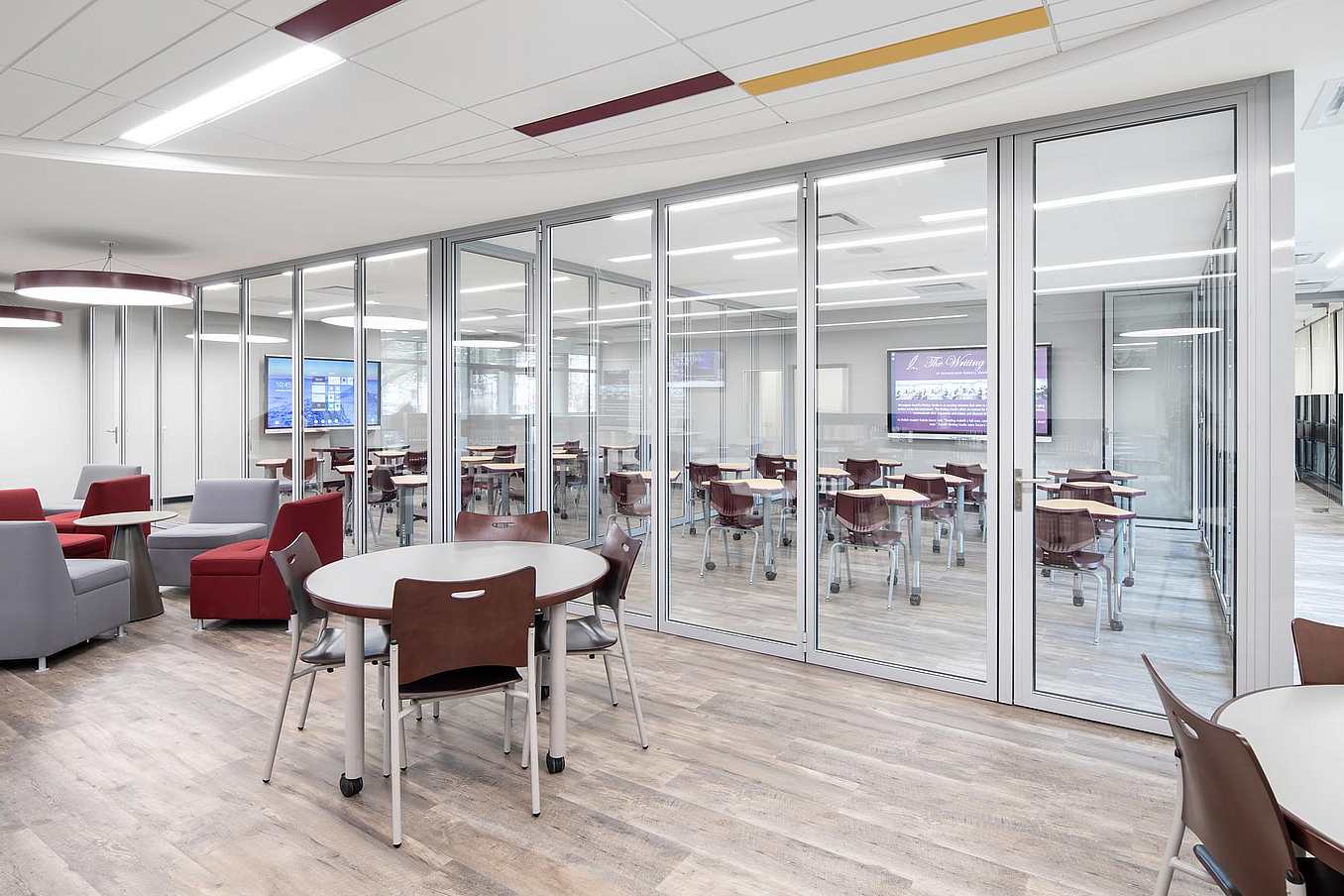

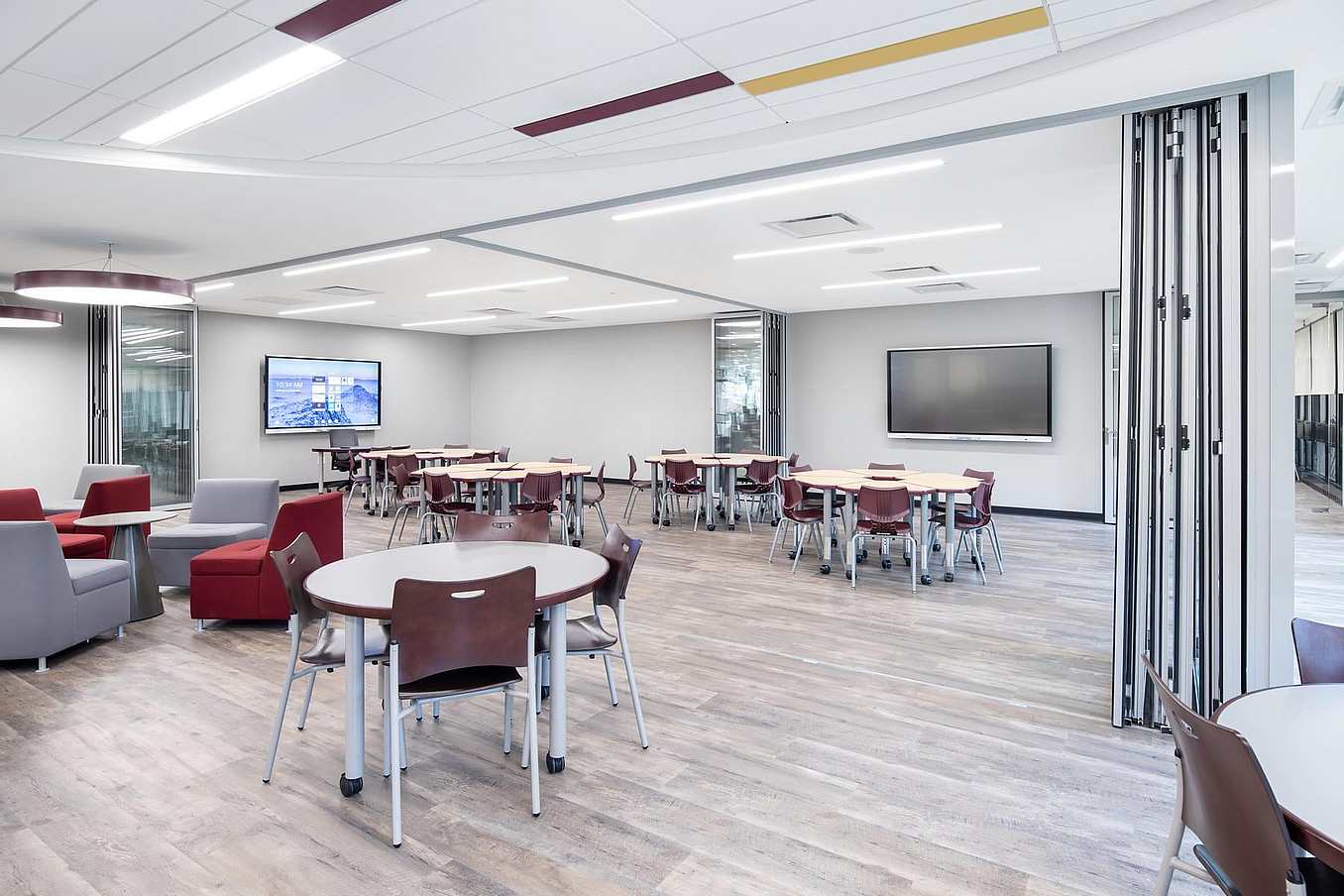

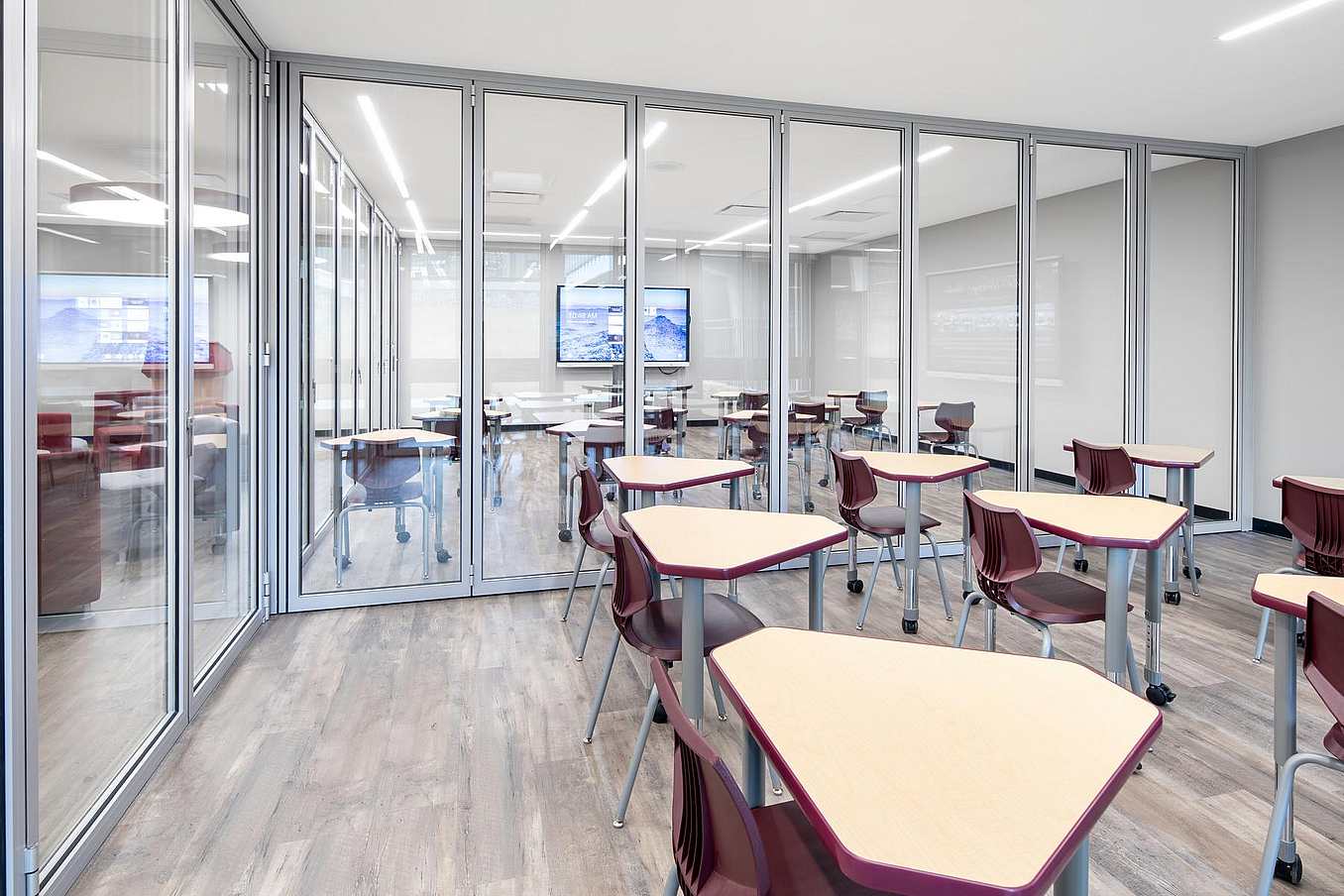

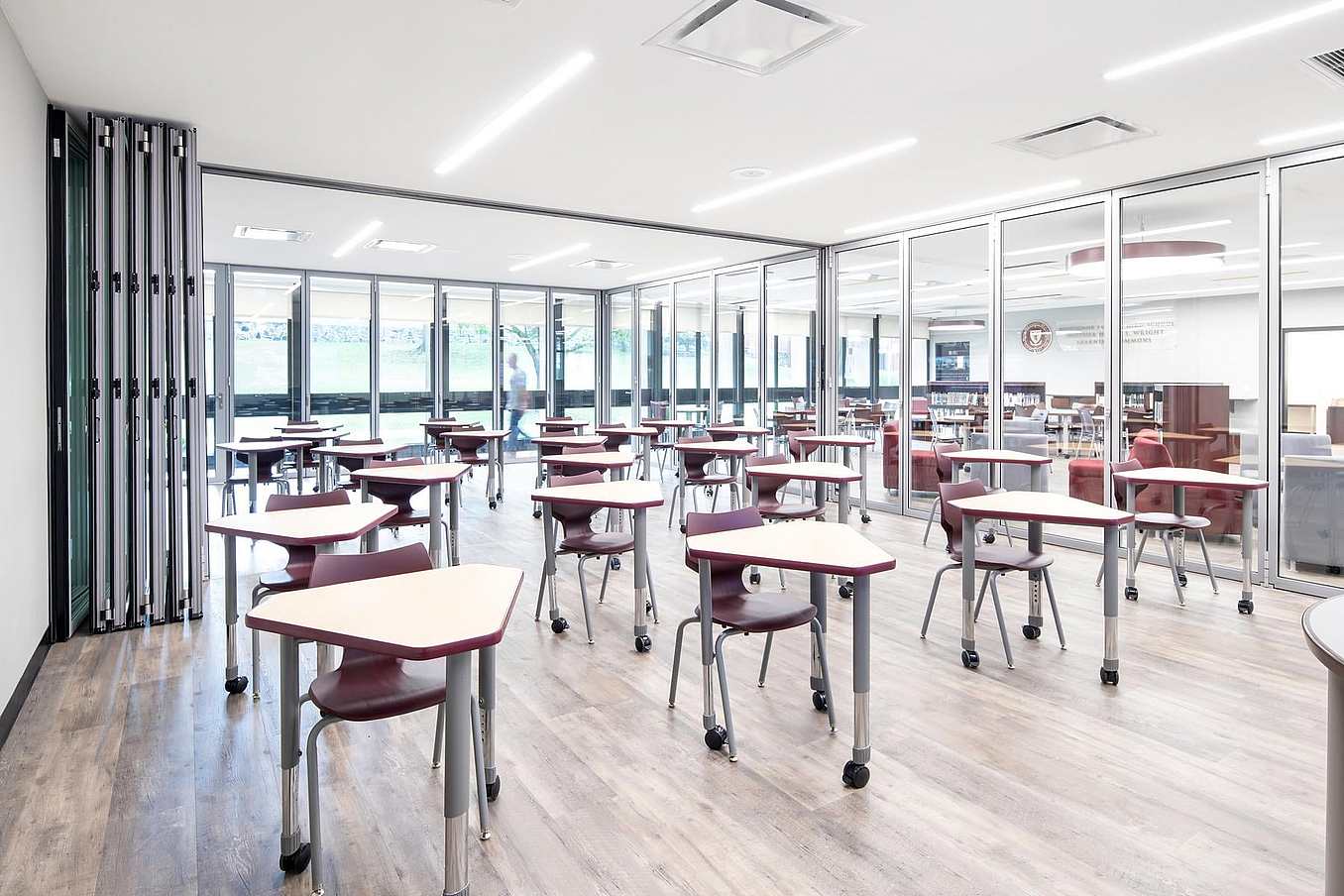

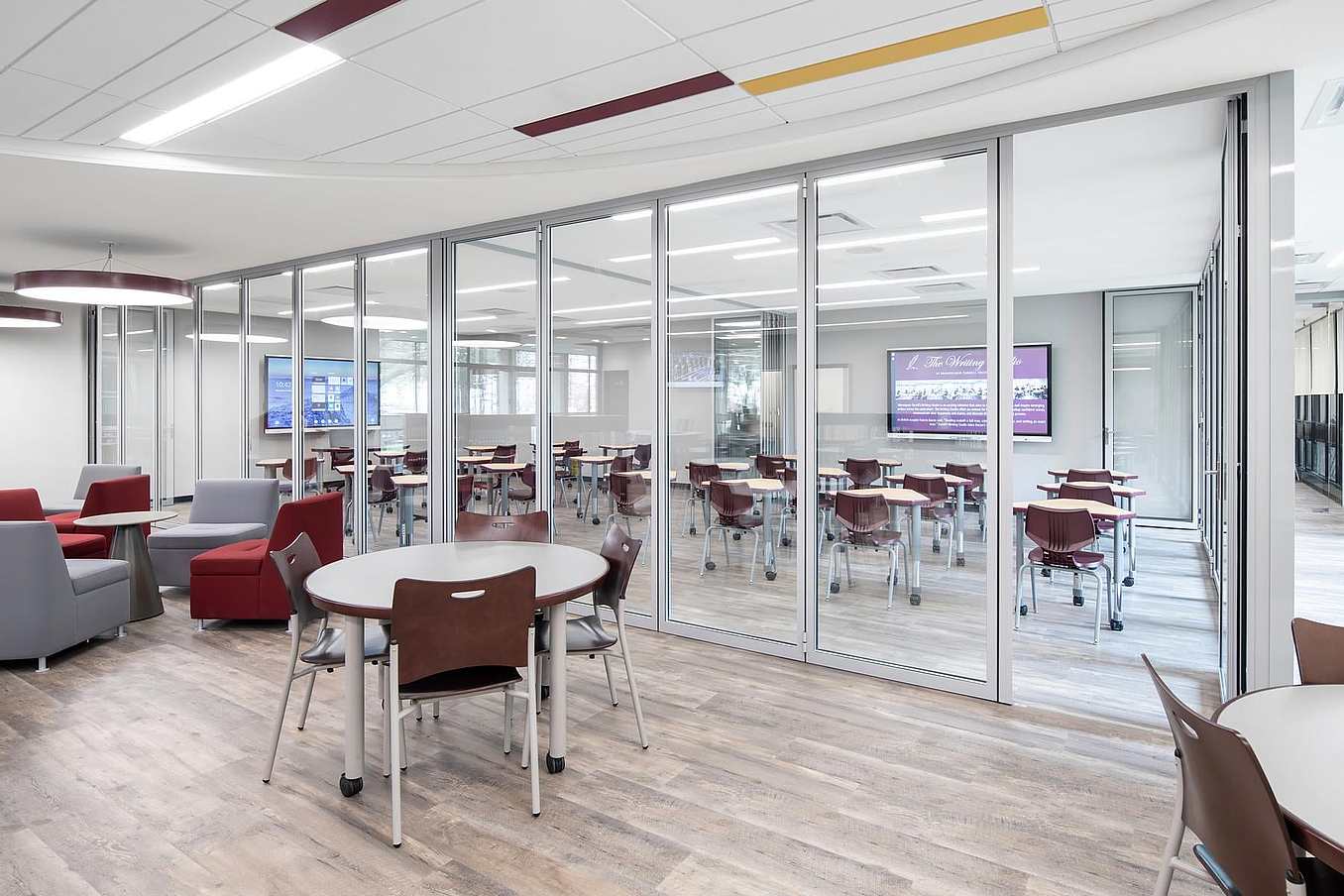

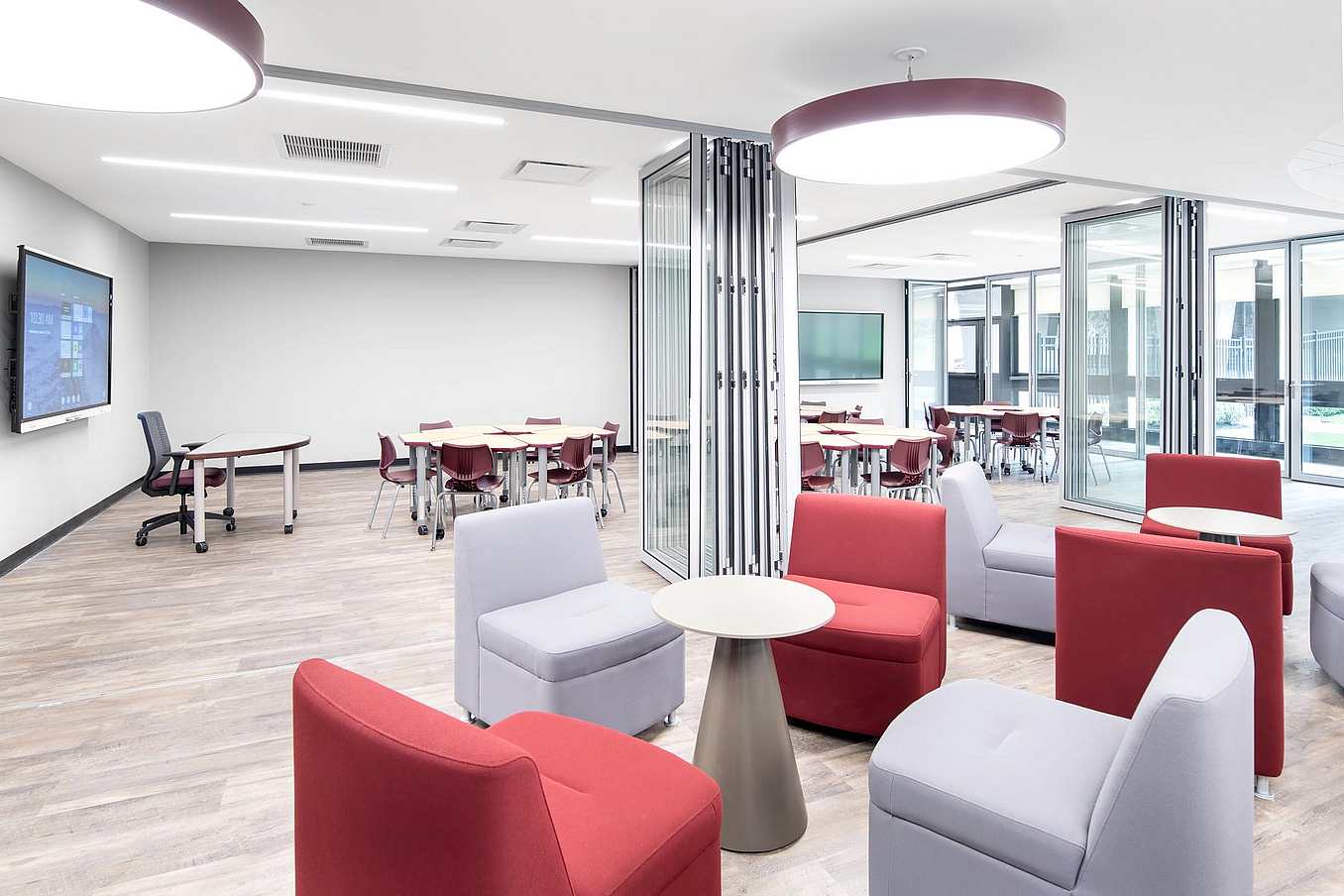

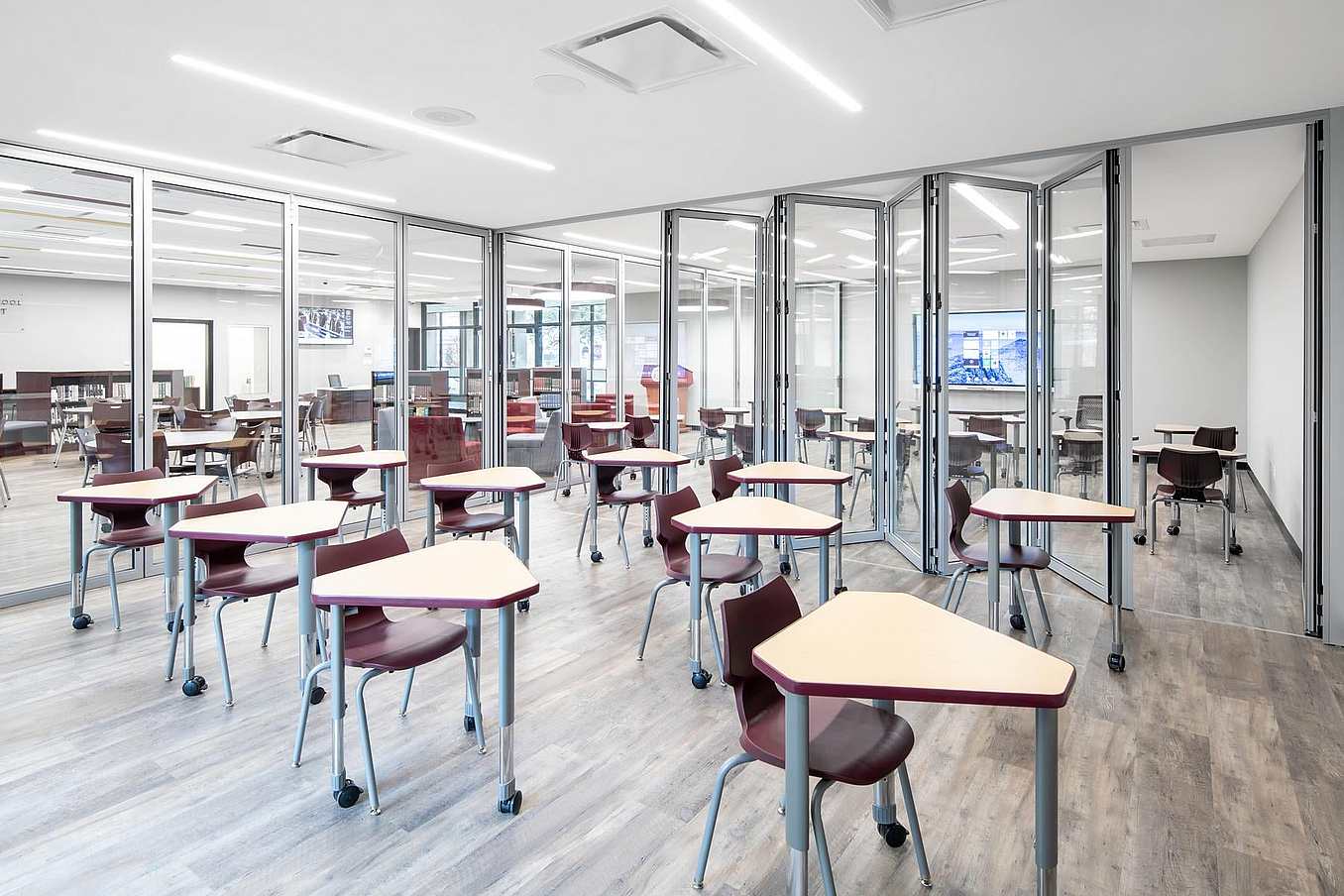

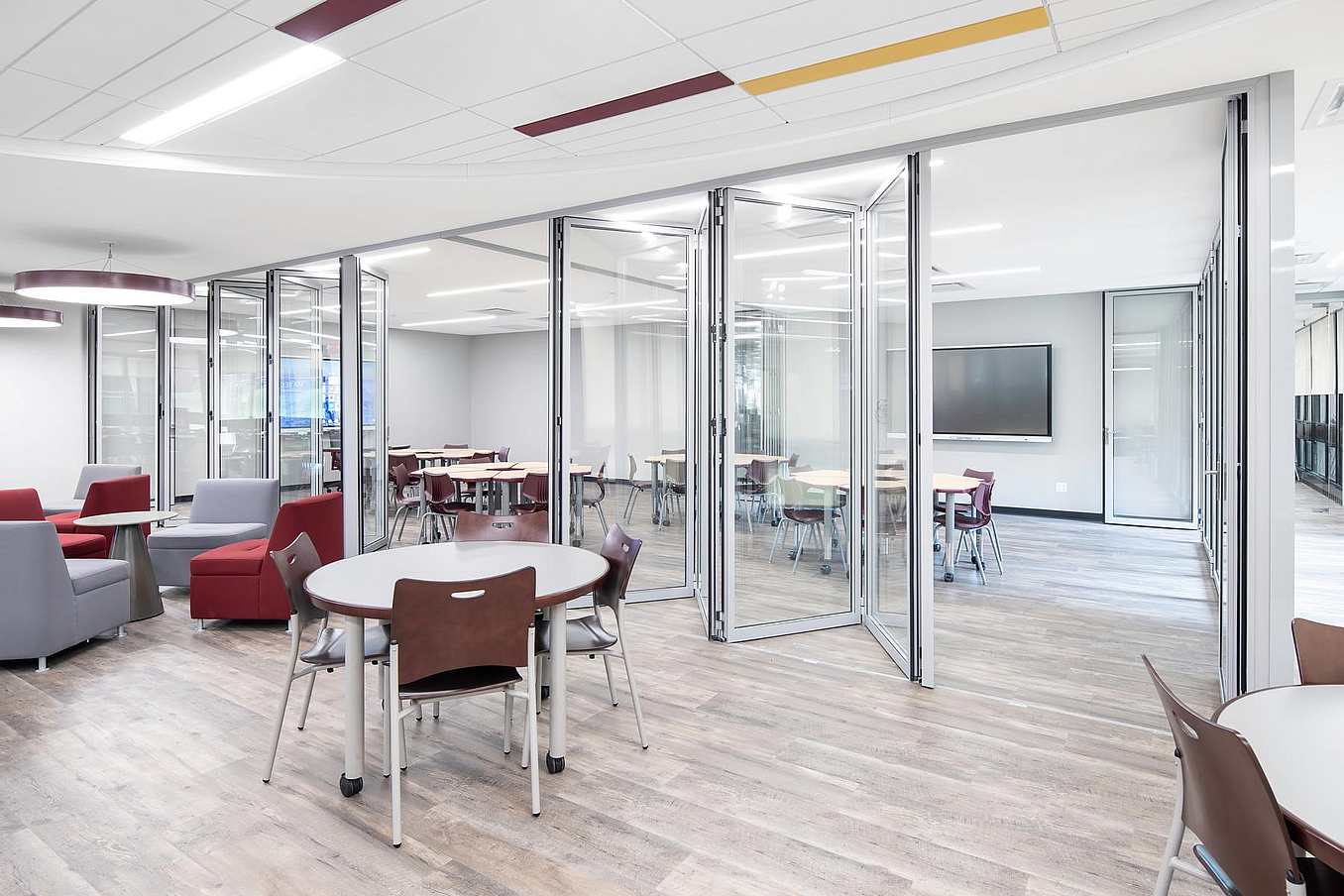

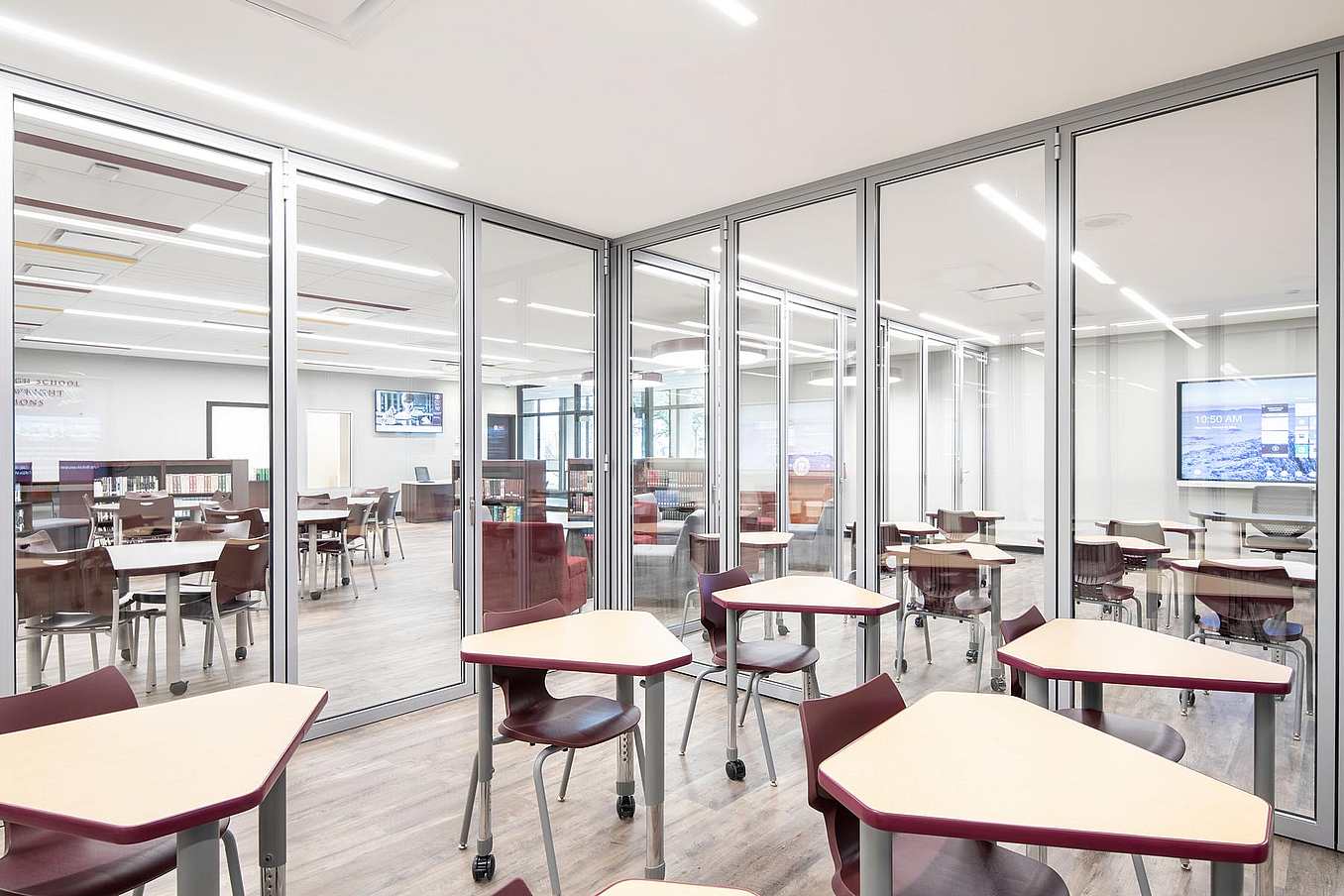

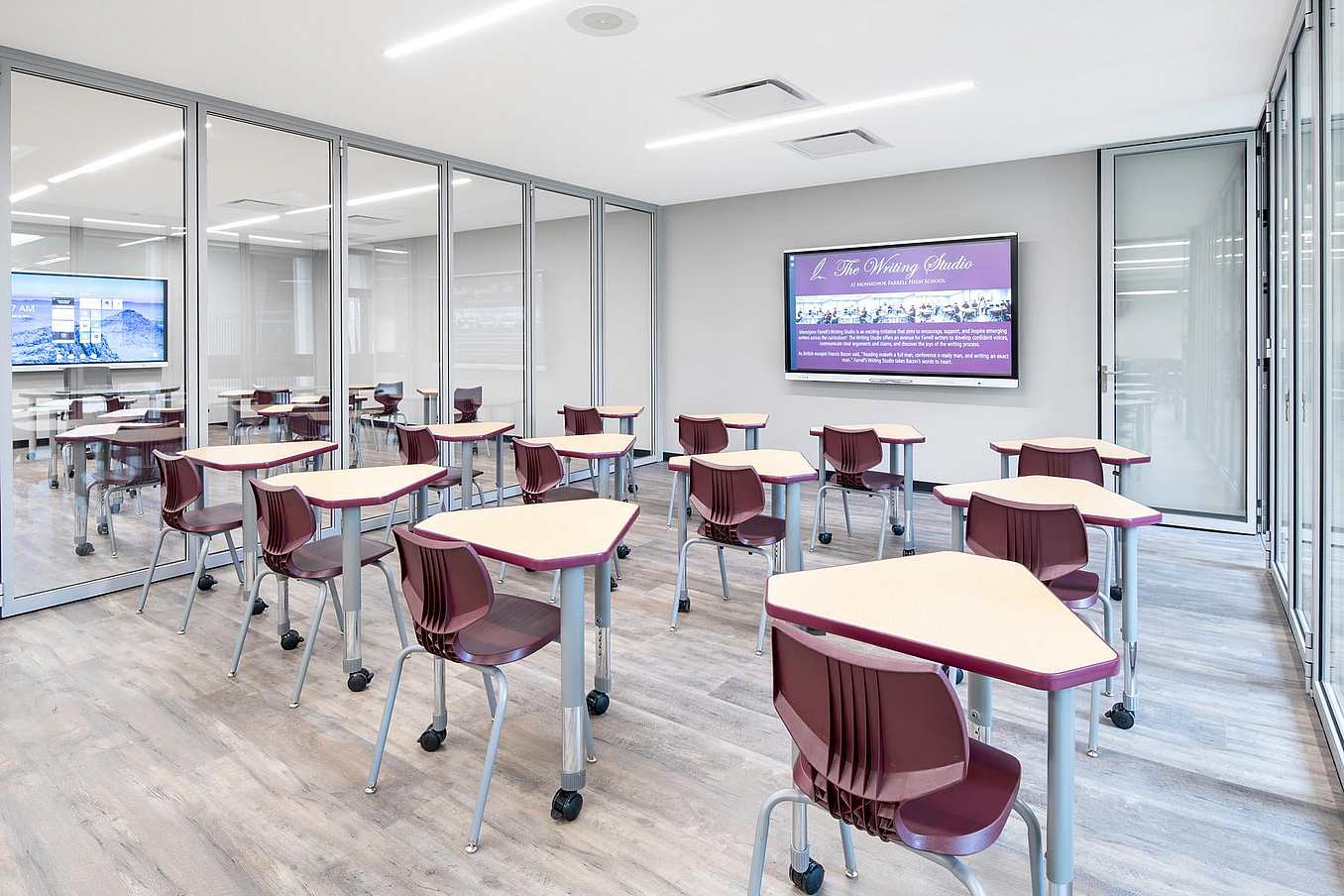

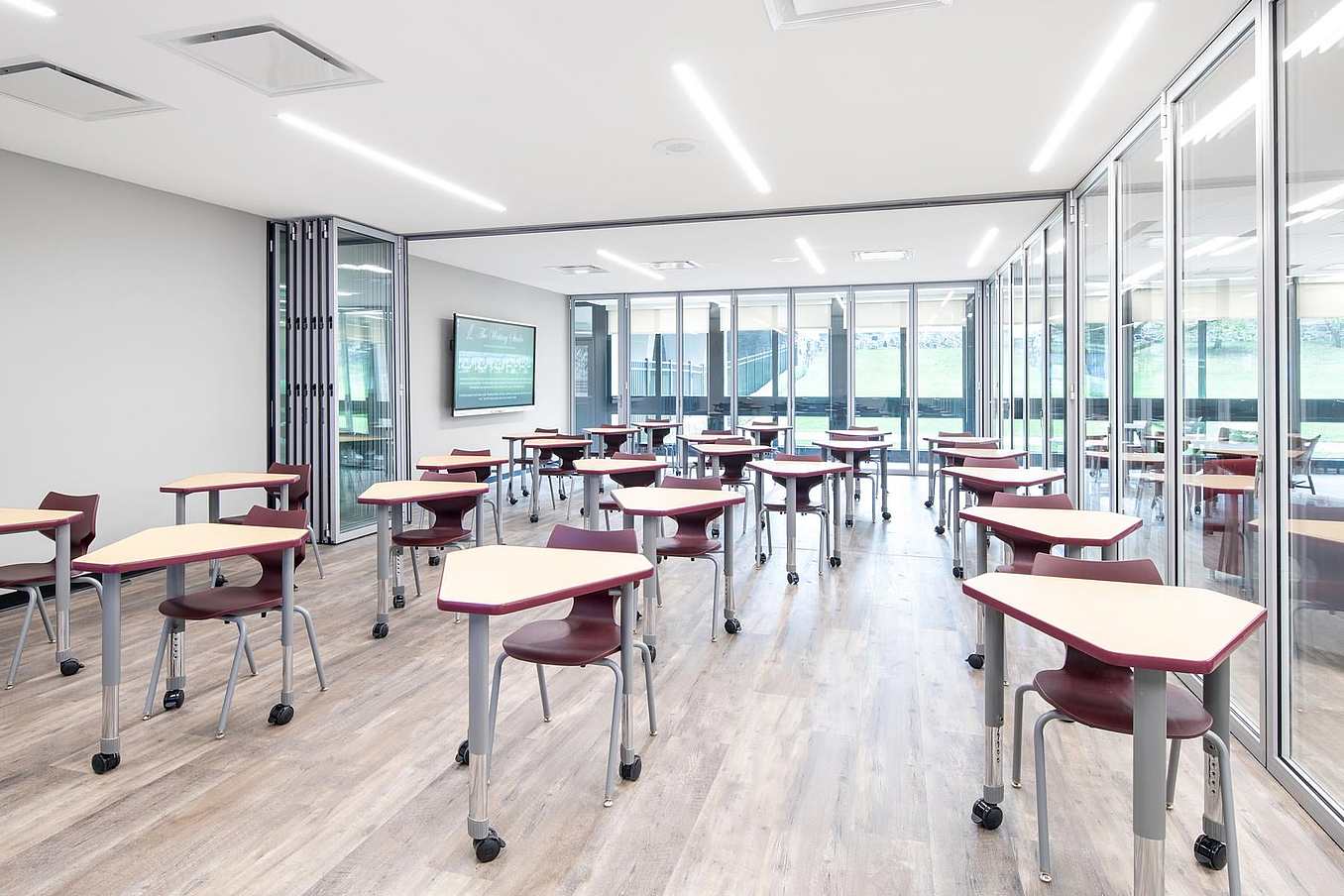

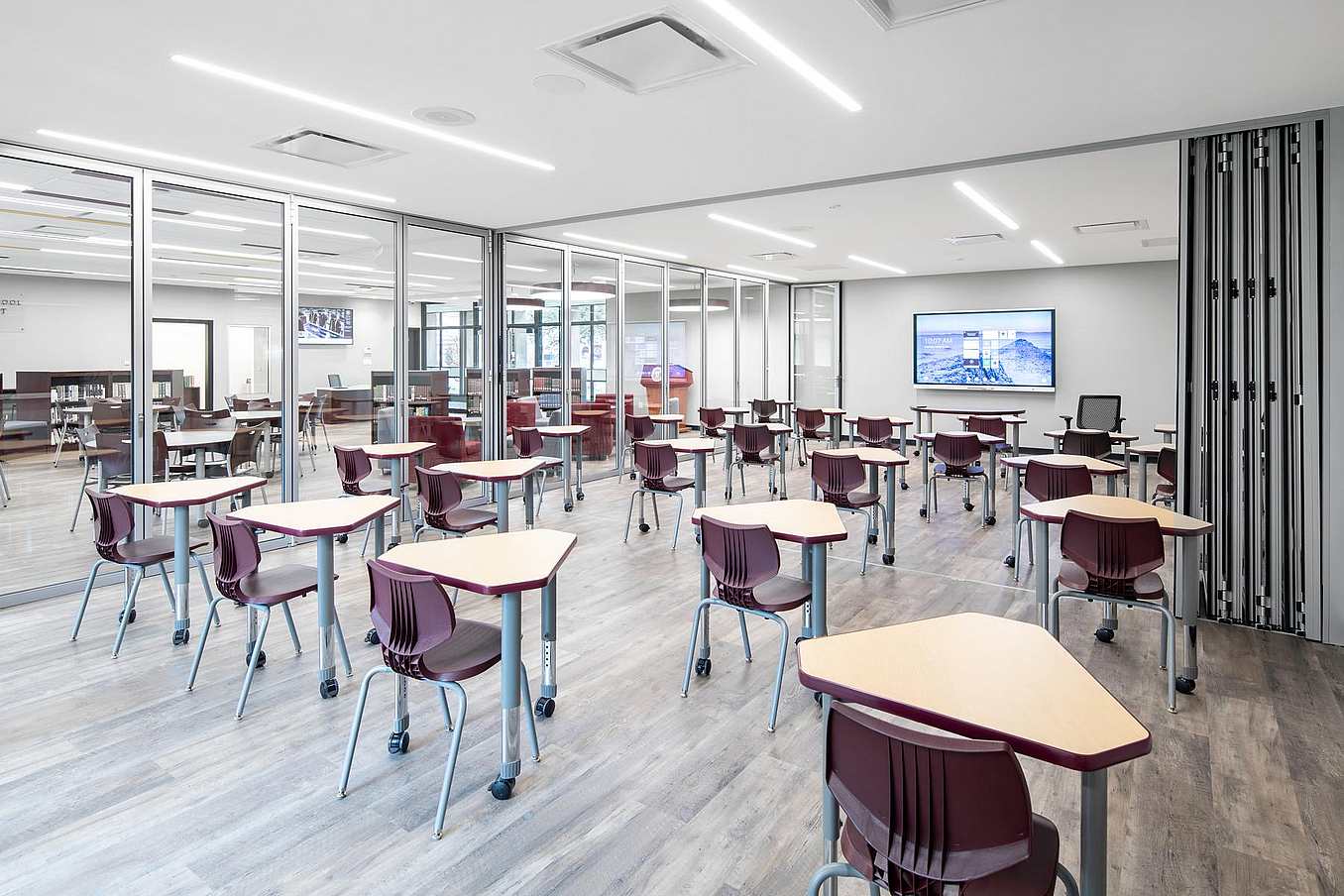

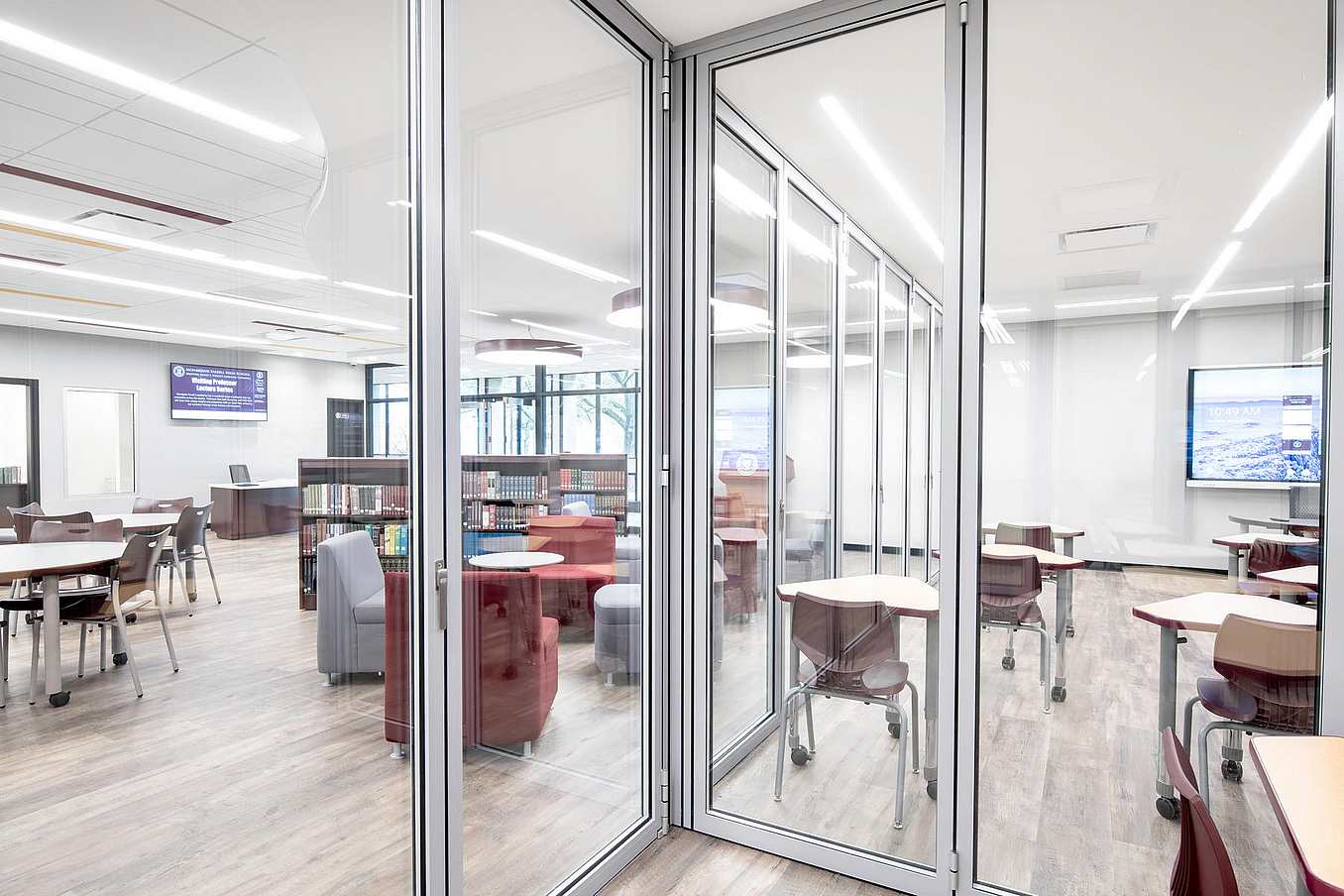

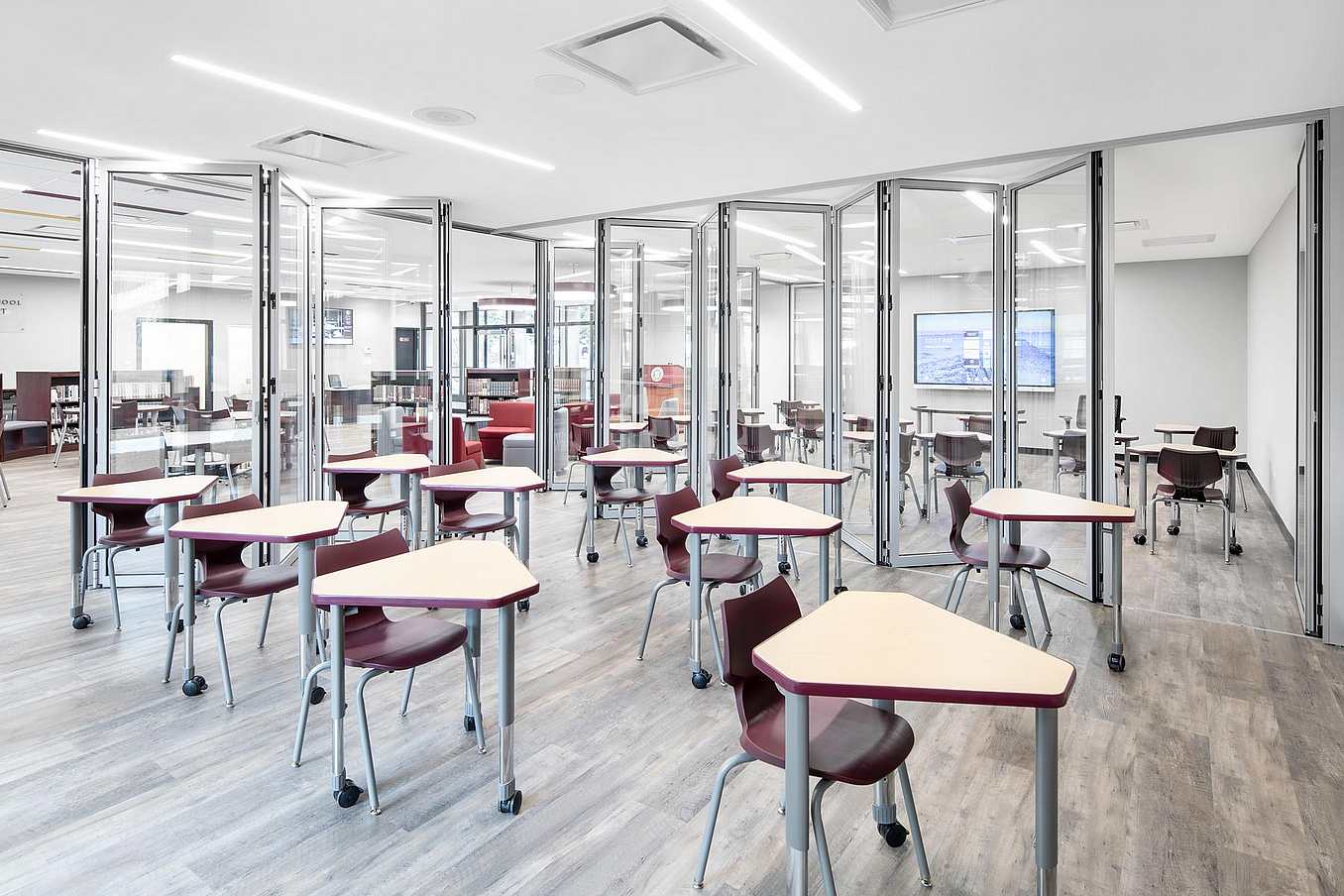

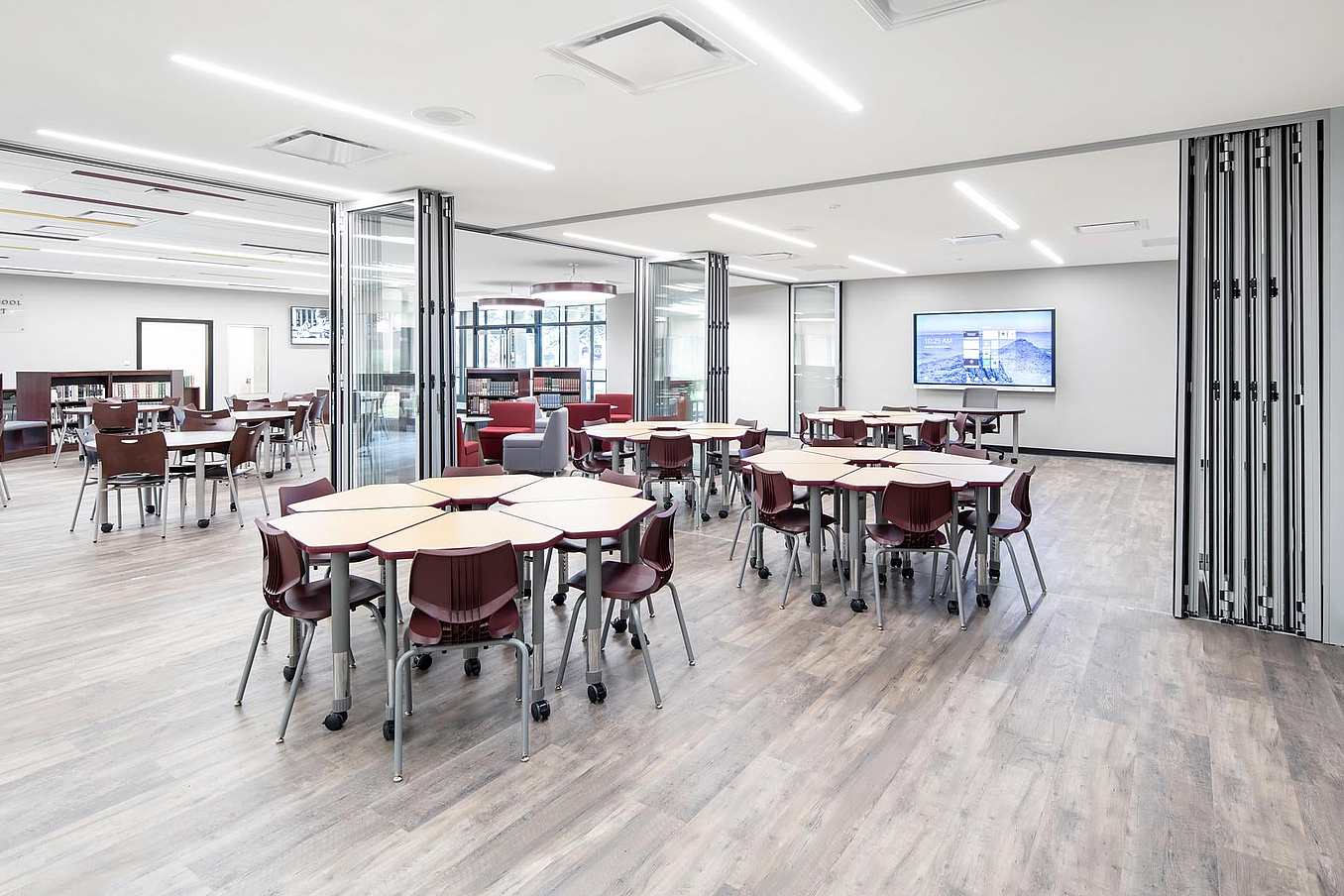

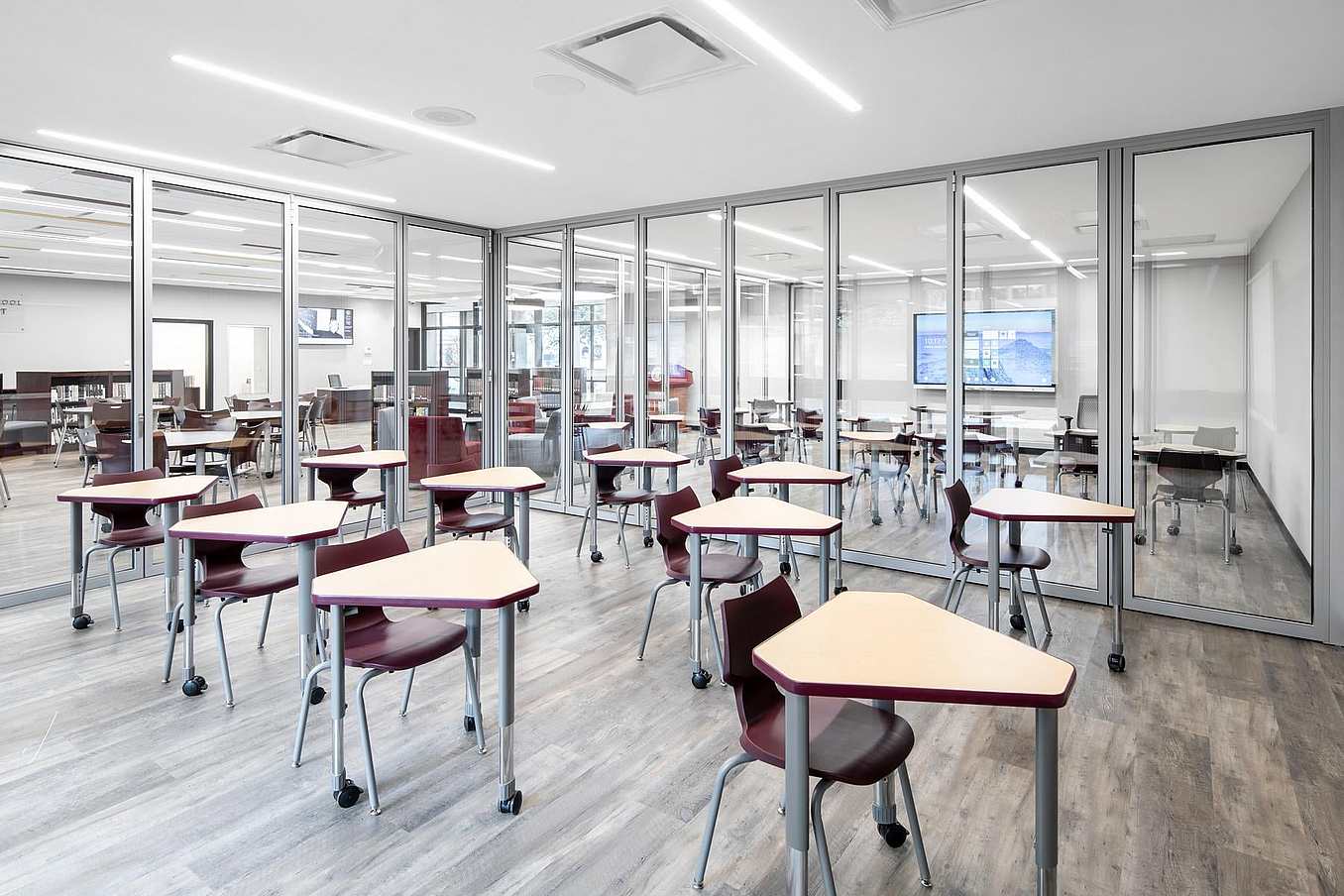

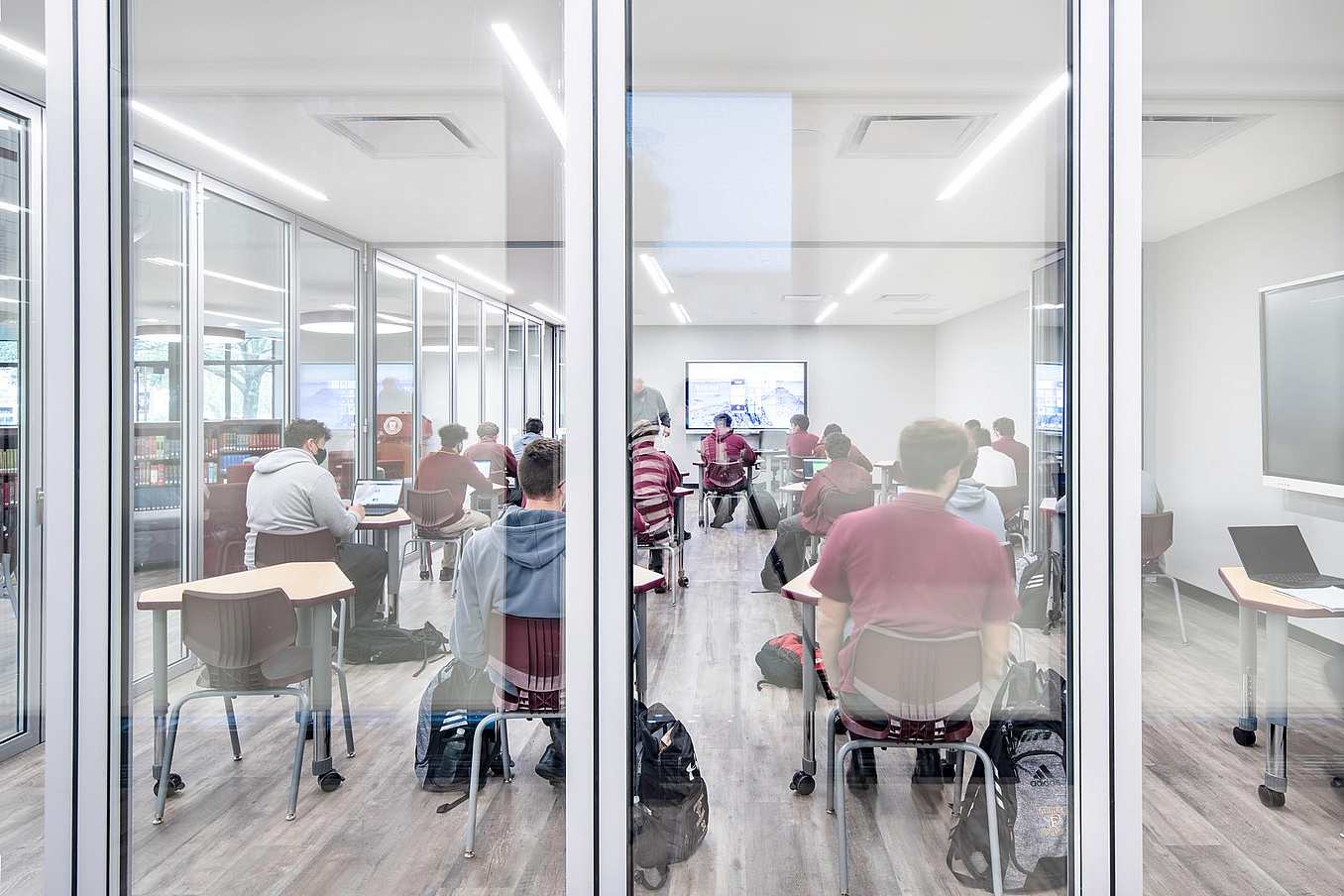

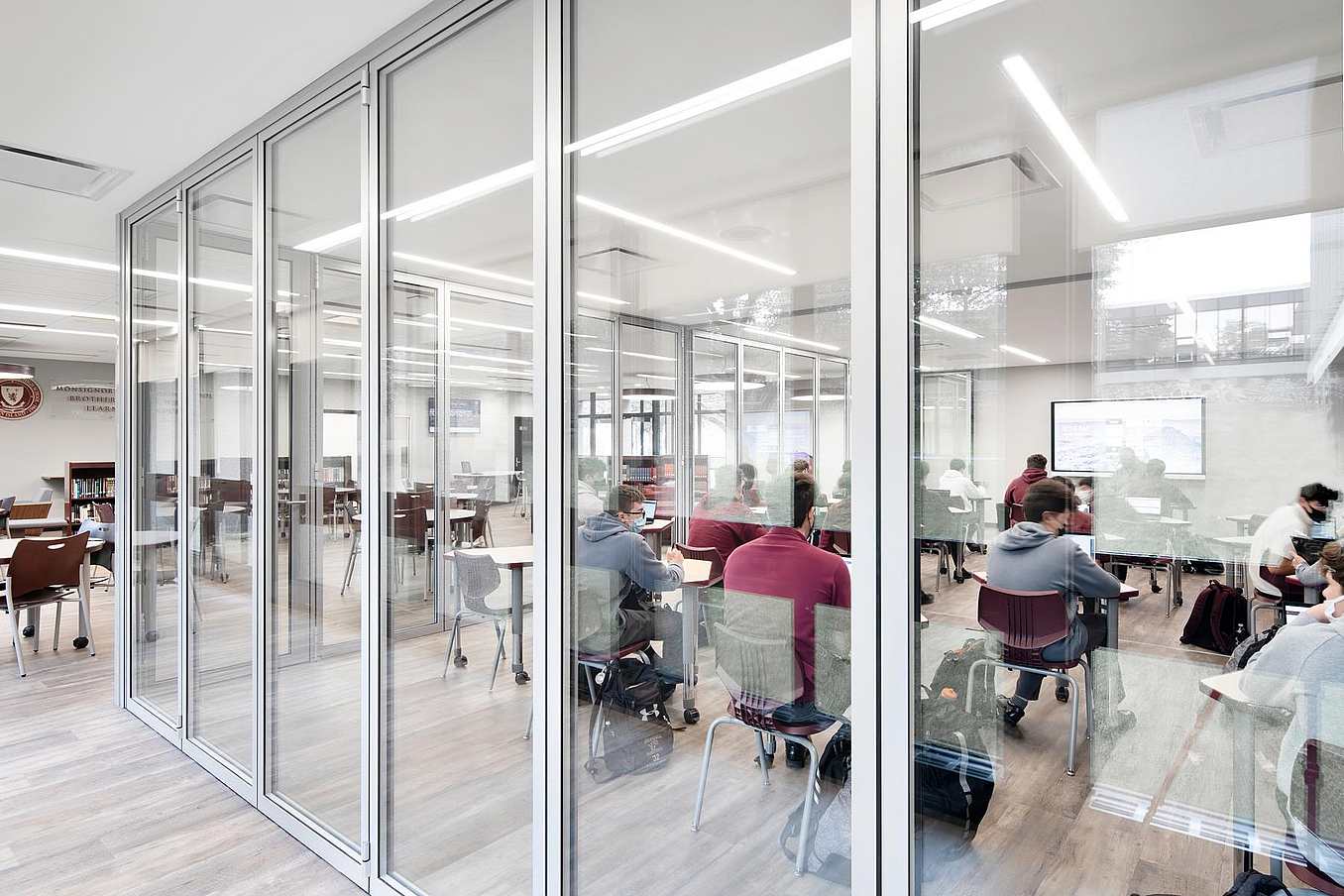

Monsignor Farrel High School
Although the school’s original vision included fixed metal and glass walls that would form two separate classrooms, the architect proposed a more dynamic design with acoustic glass wall systems to provide maximum flexibility of space.
“The NanaWall System provides superior acoustic control. It is an integral part of the sound attenuation system along with the LVT floor and the ceiling systems.”
— David Businelli, Architect
50 standard colors that come at no additional cost, with an additional 200+ colors to choose from.
See Finish Options
NW Acoustical 645 has two sill options: Minimal Surface Mounted Flush and Flush. These sills are designed specifically for interior applications and are ADA compliant.
See Sill Options
This system combines sleek acoustically separated aluminum framing and specialized gasketing with sound-enhanced glass to achieve optimal performance with the range of unit STC from STC 32 up to STC 45—all while allowing maximal transparency and natural daylight to flood interior spaces.
The glass pocket can accommodate glass from 1/4" (6 mm) monolithic to 1 3/4" (45 mm) double insulated glass.

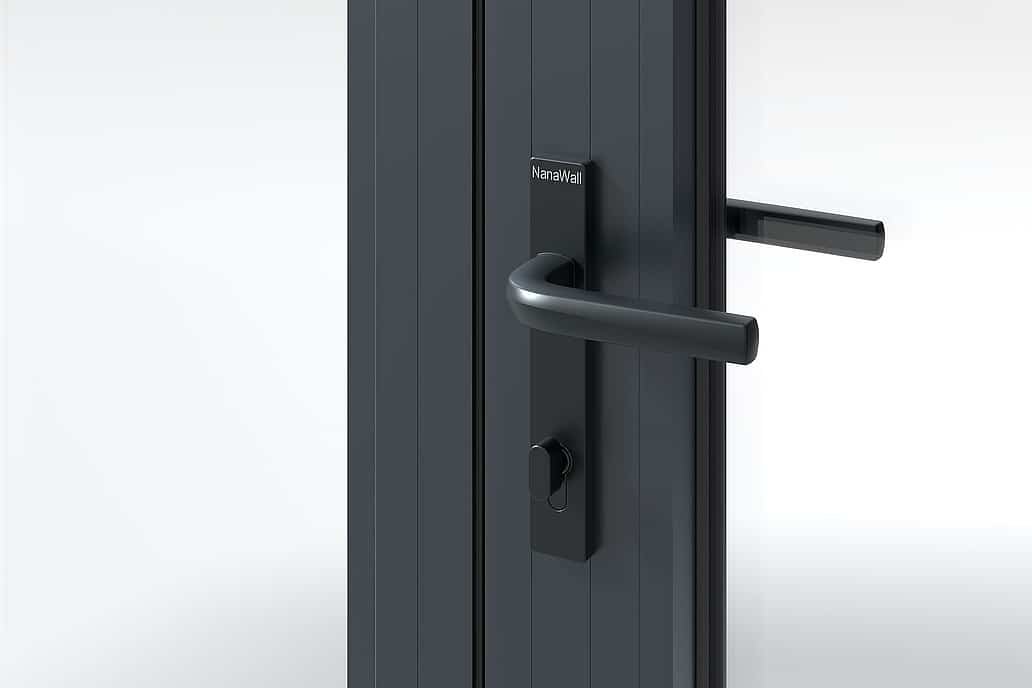

Stylish Handles in Multiple Finishes
Our handles are both functional and stylish and can be customized to accentuate your space and reflect your style.
See Handle Options

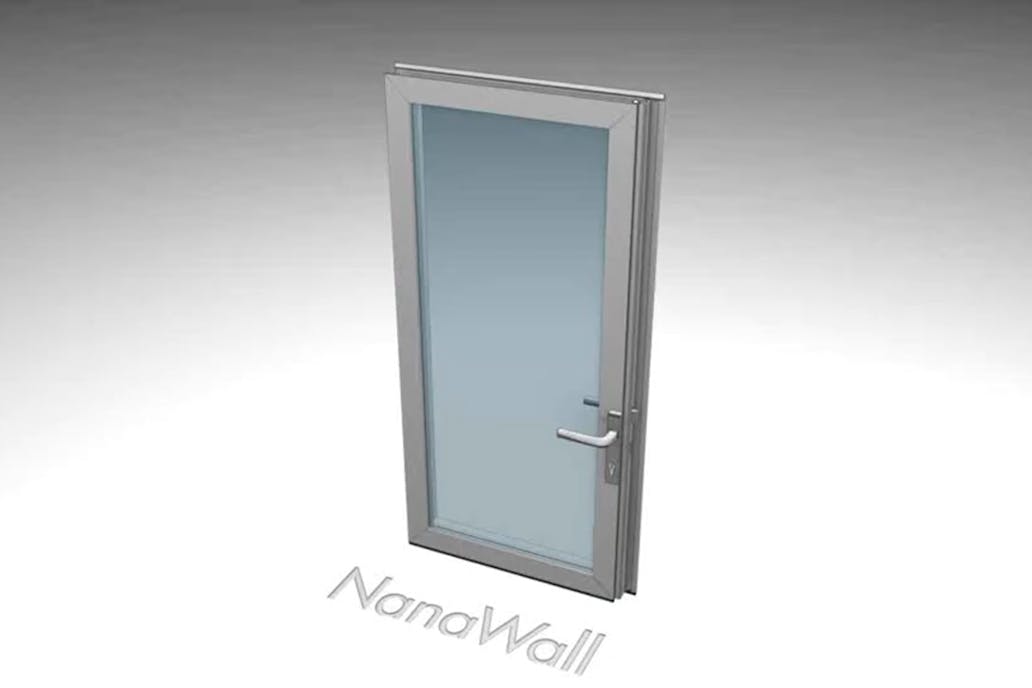

Locking for Maximum Security
Standard to the system is concealed locking between folding panels that operates with a 180° turn of a flat handle.
See Locking Options

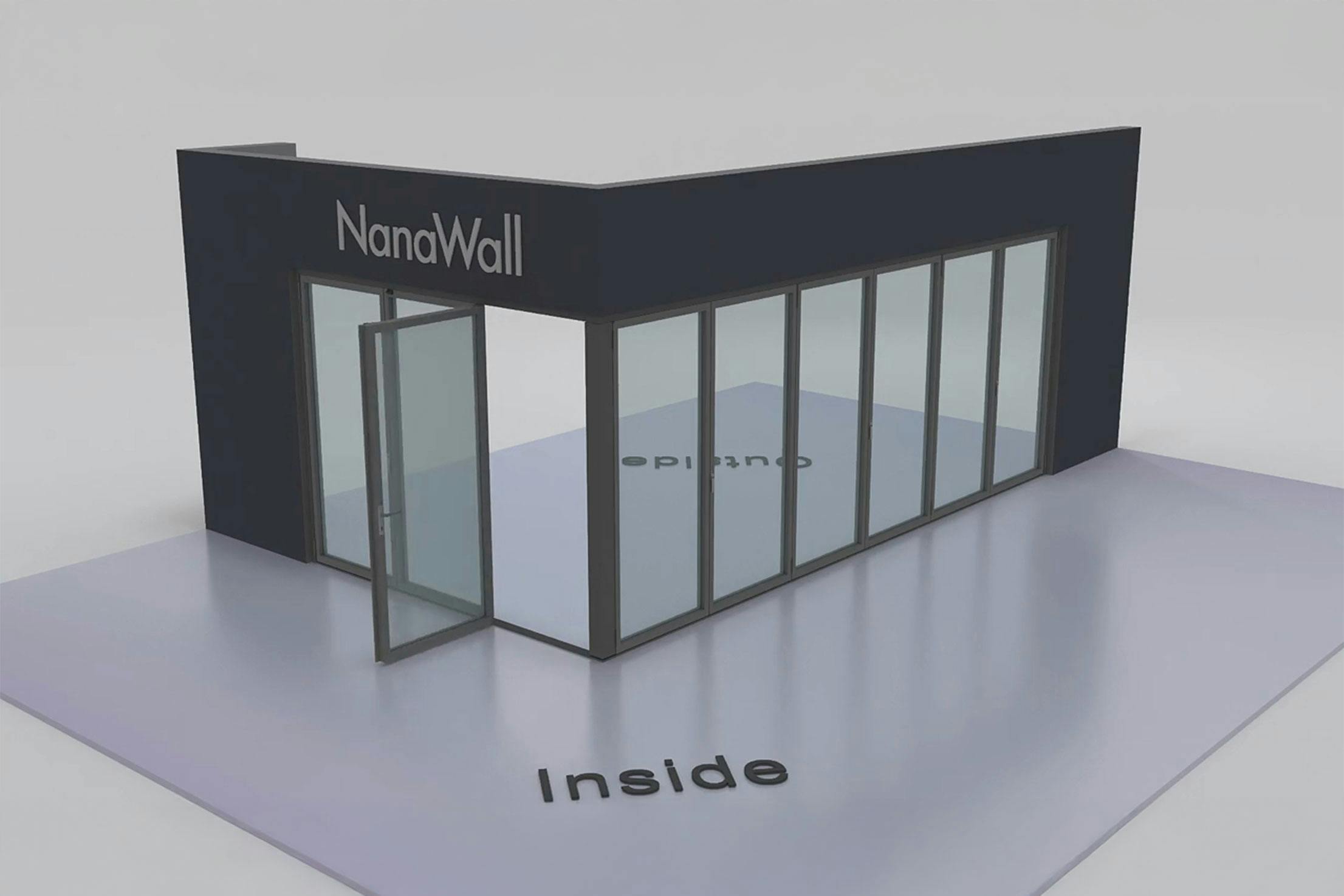

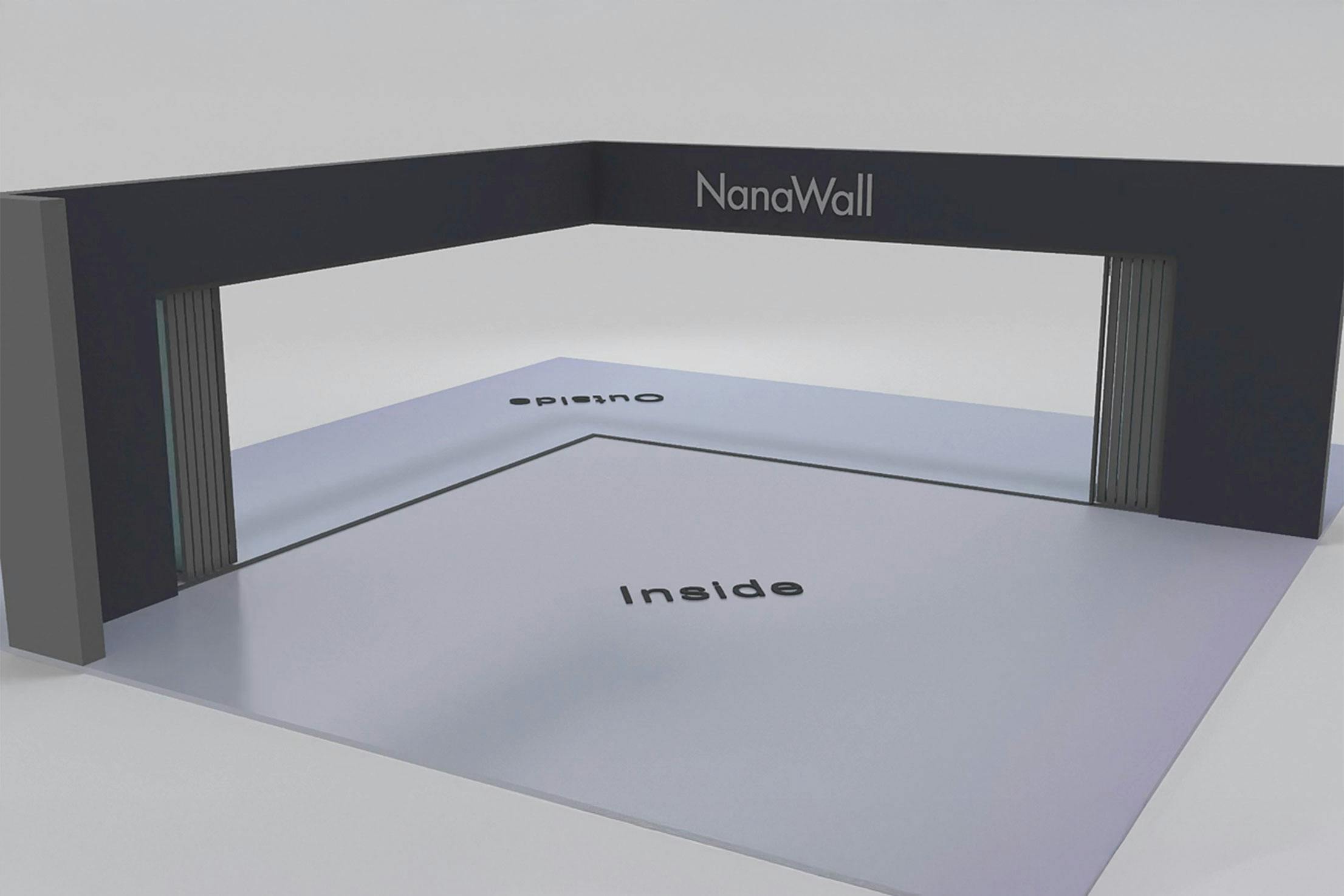

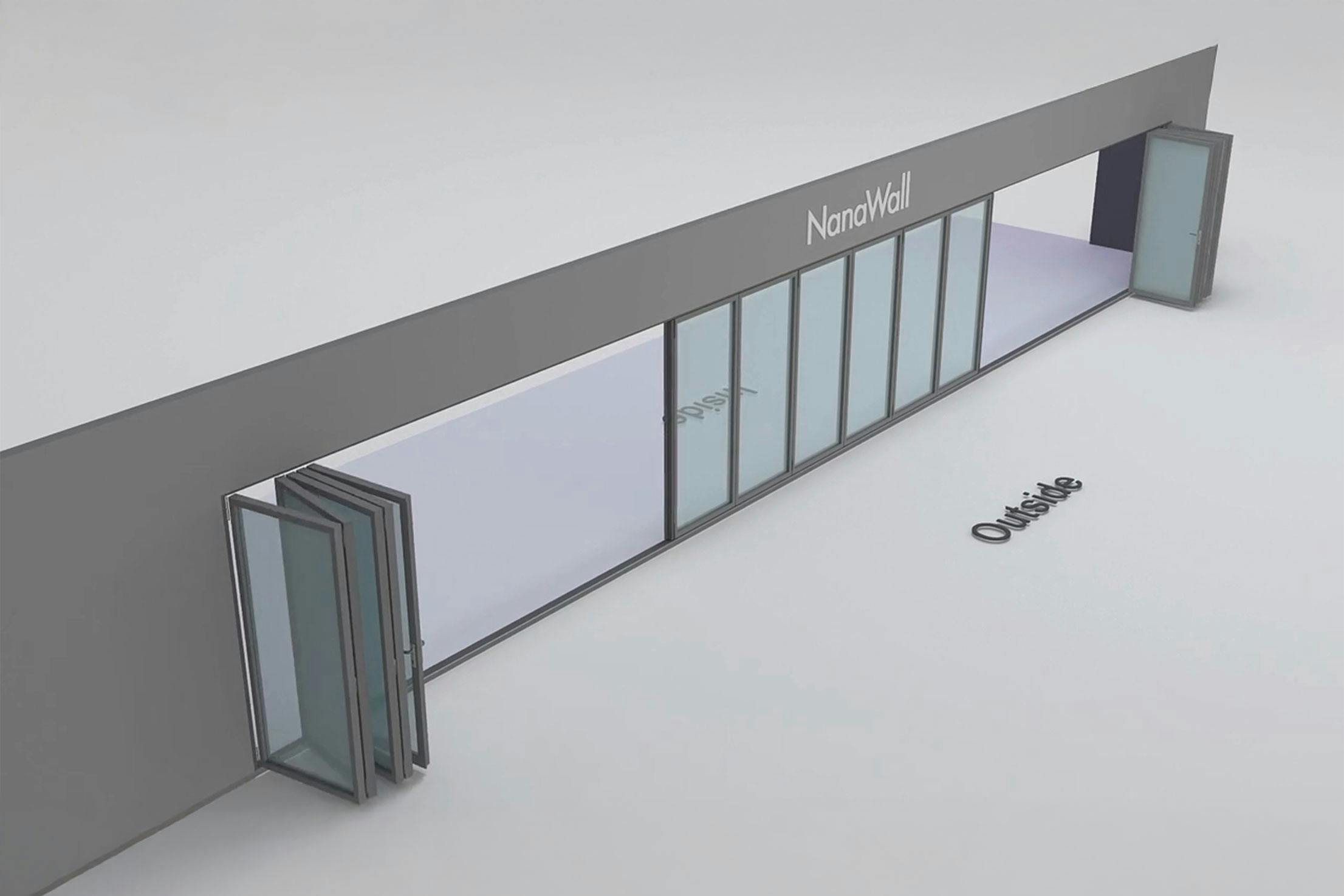

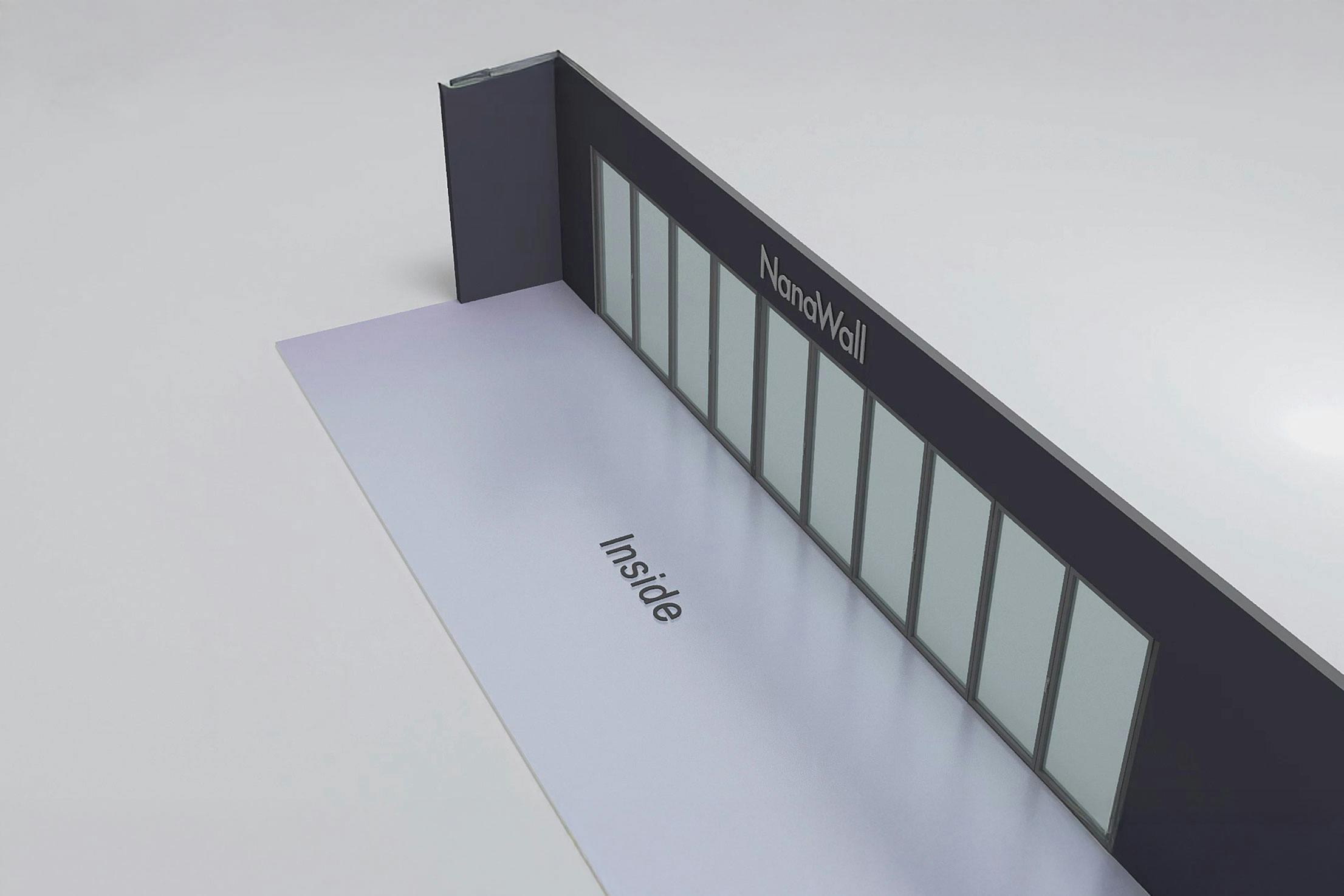

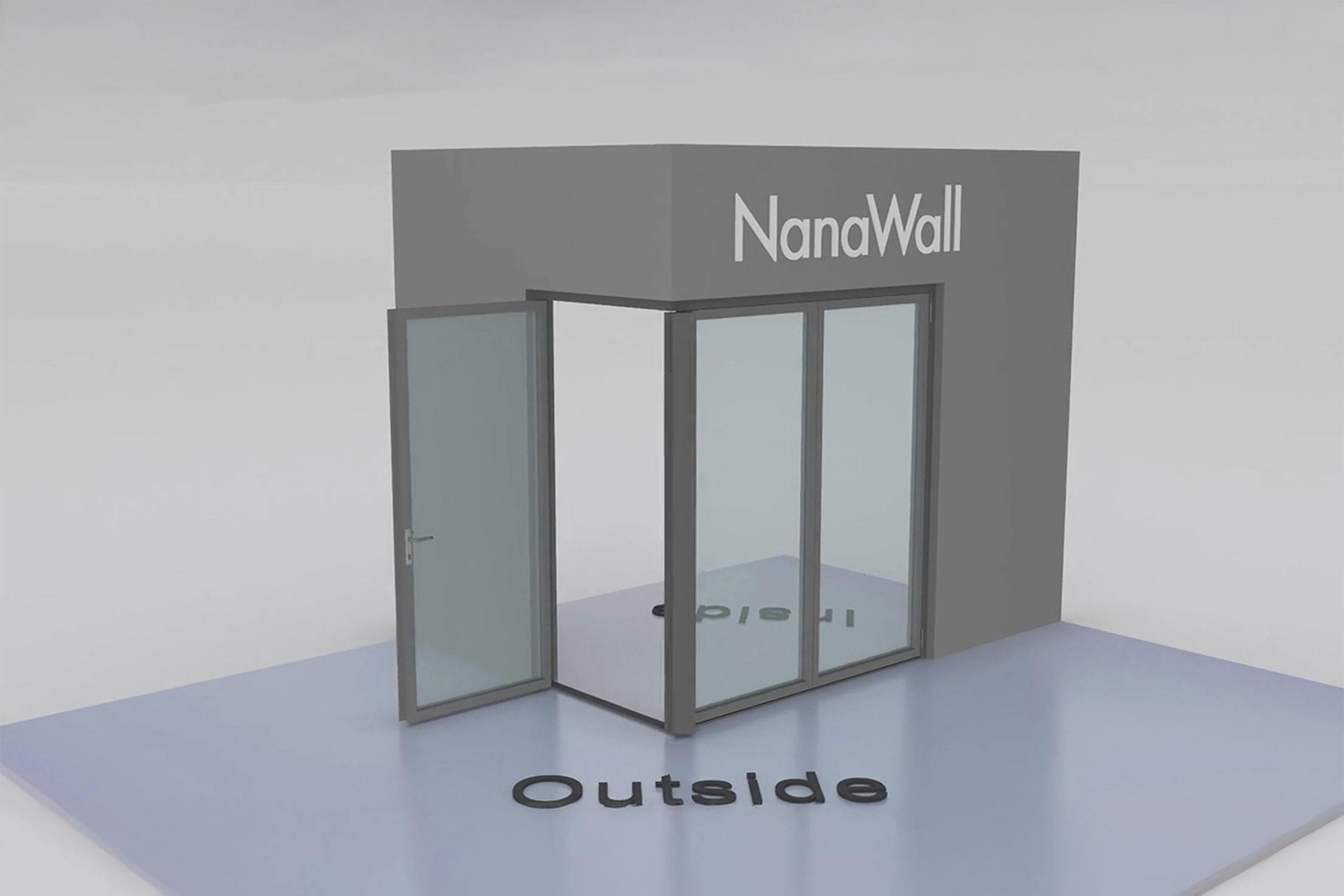

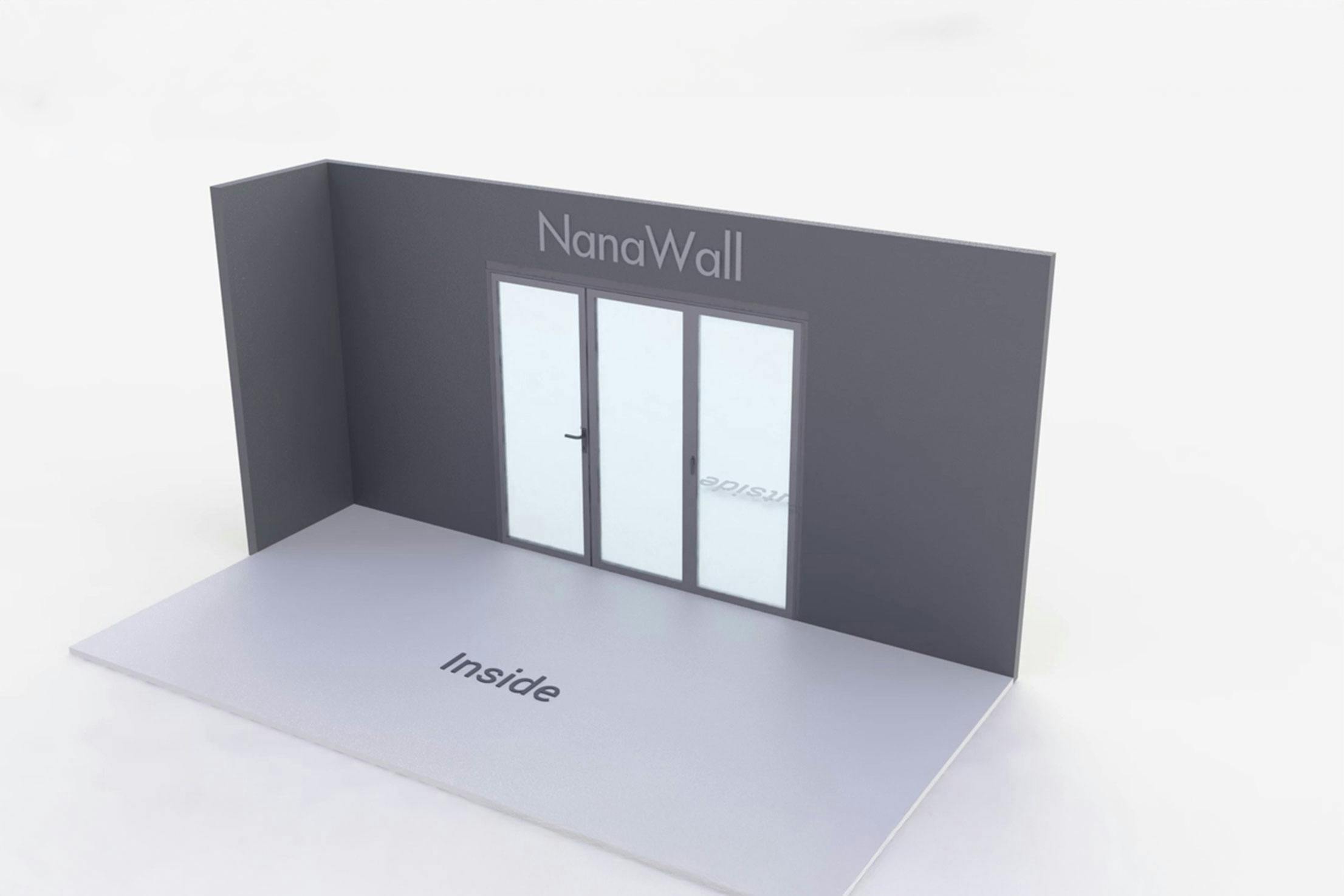

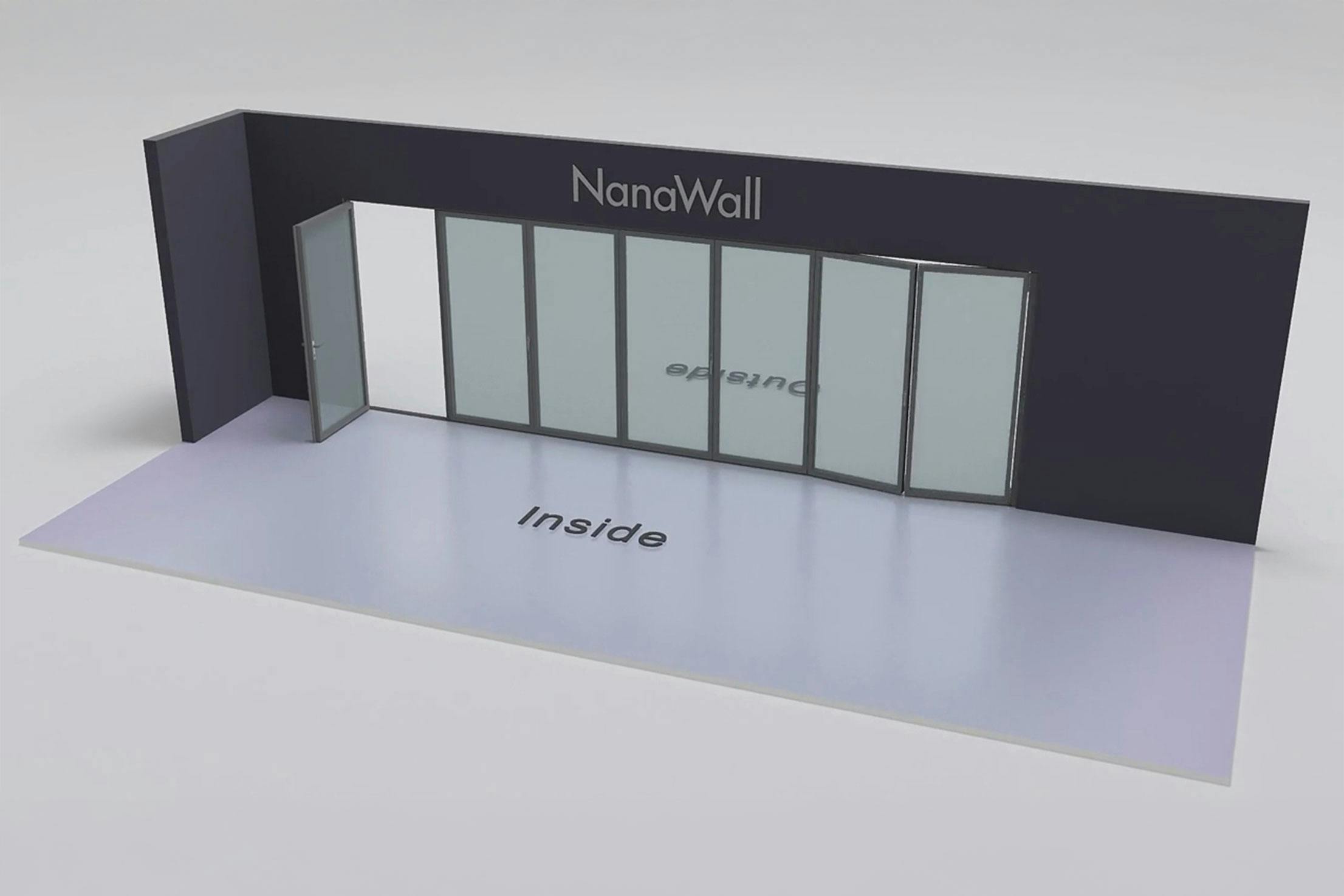

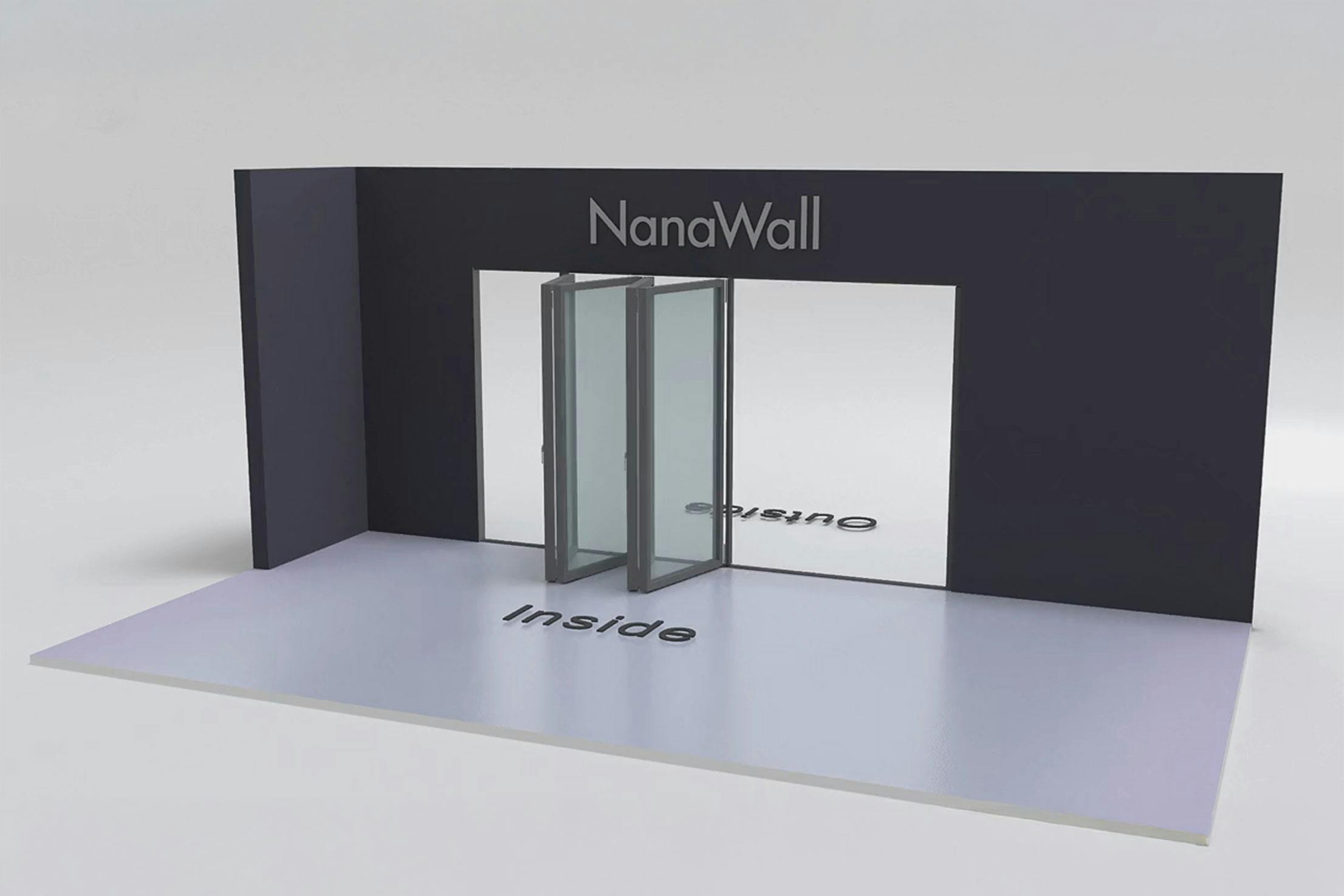

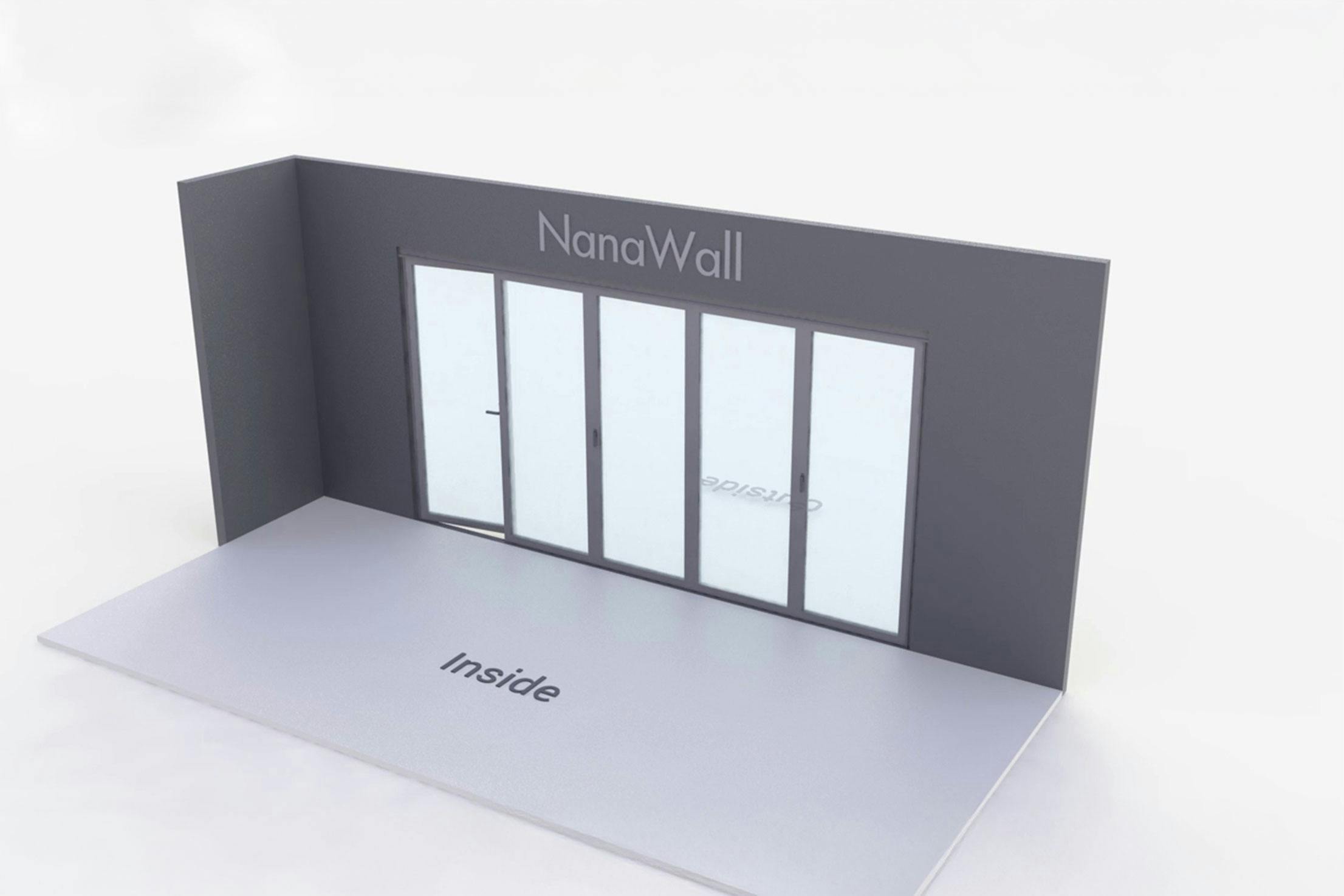

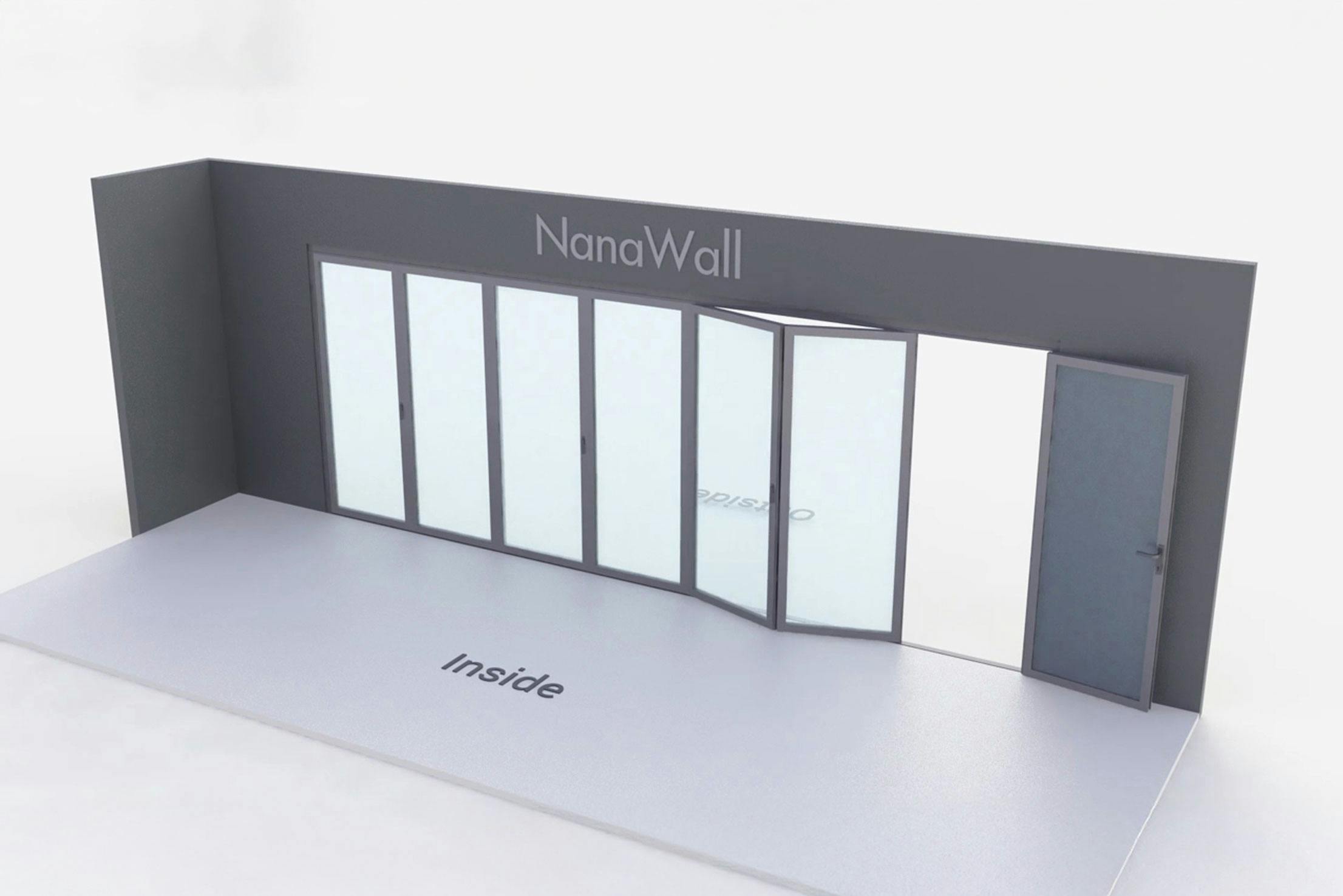

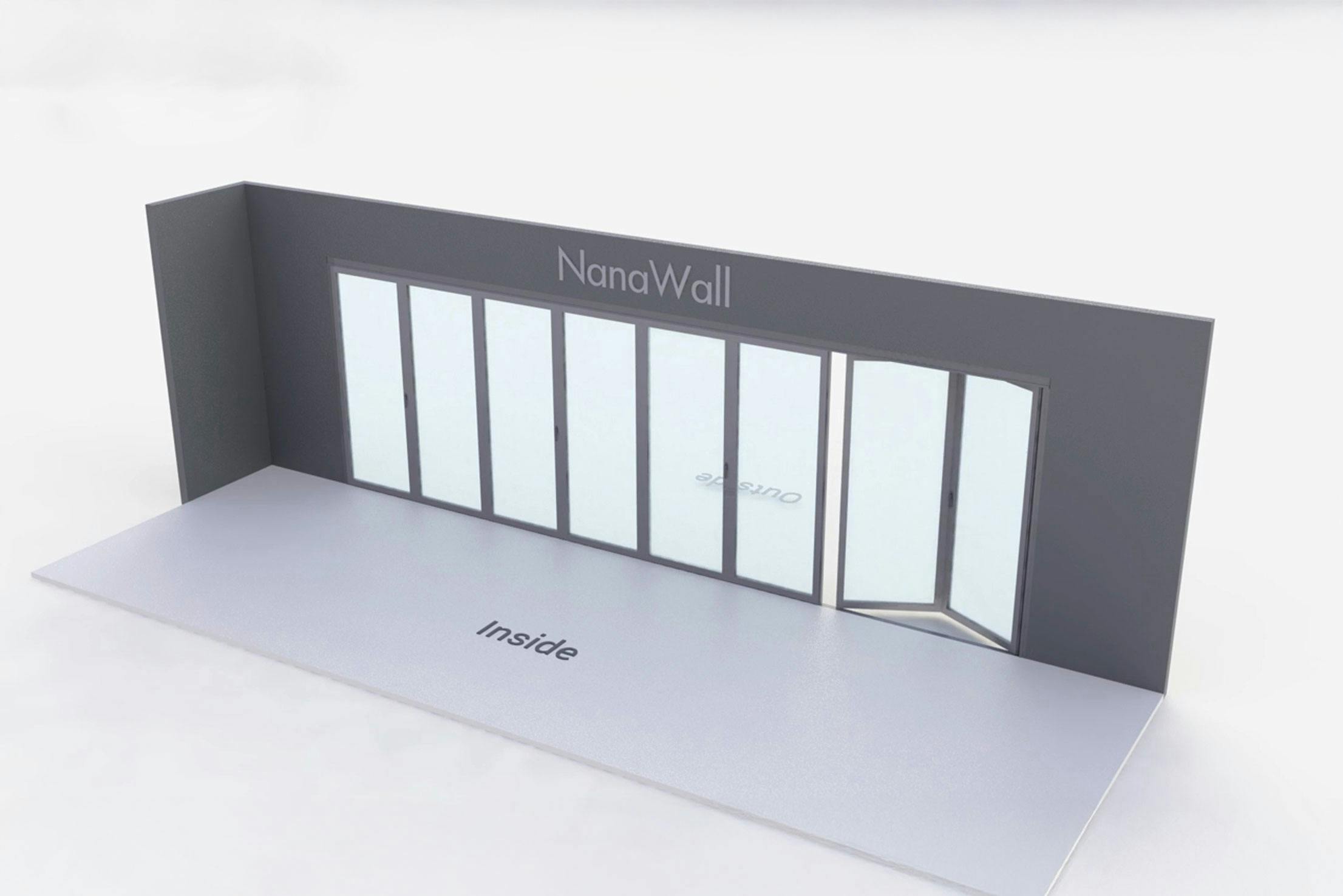

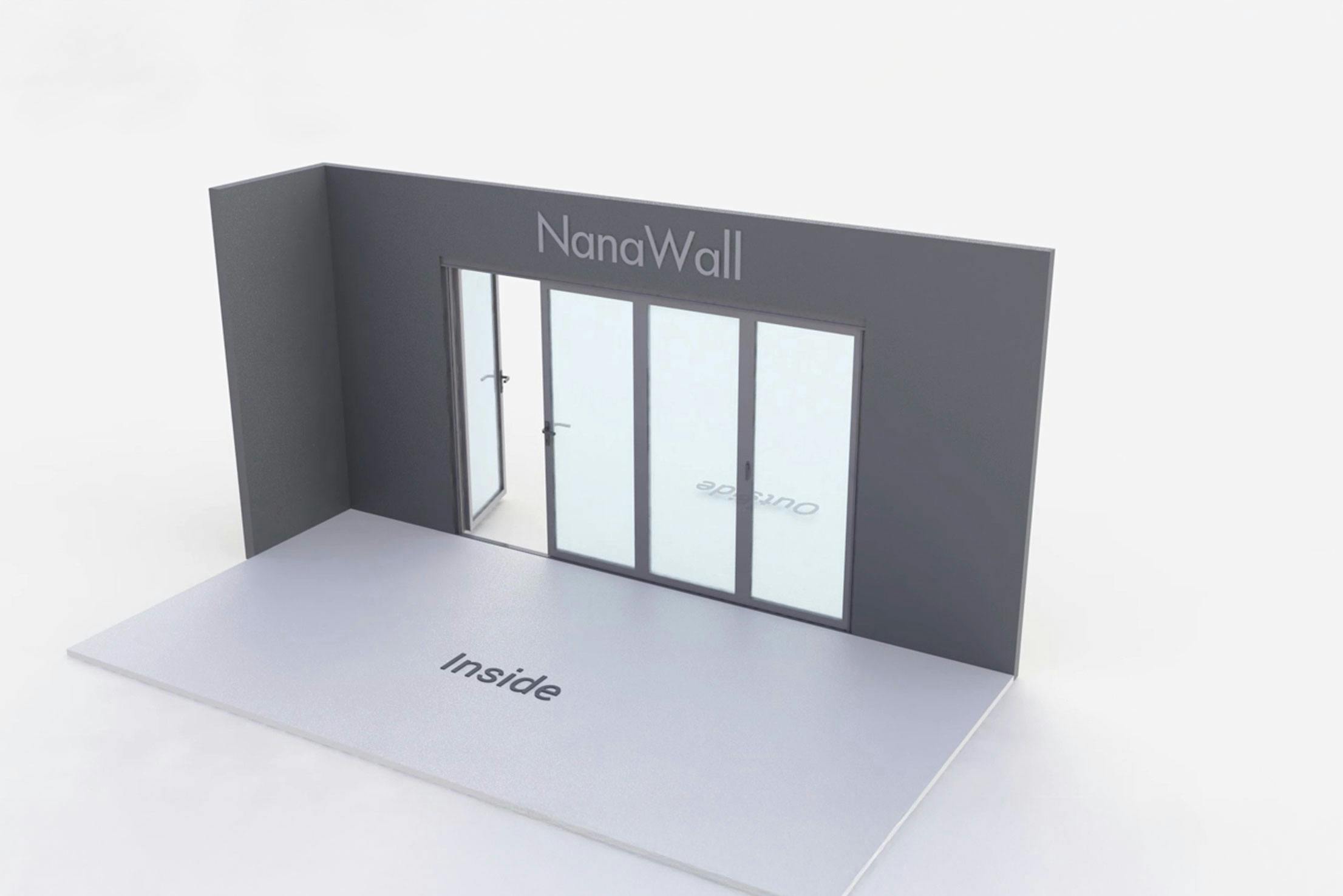

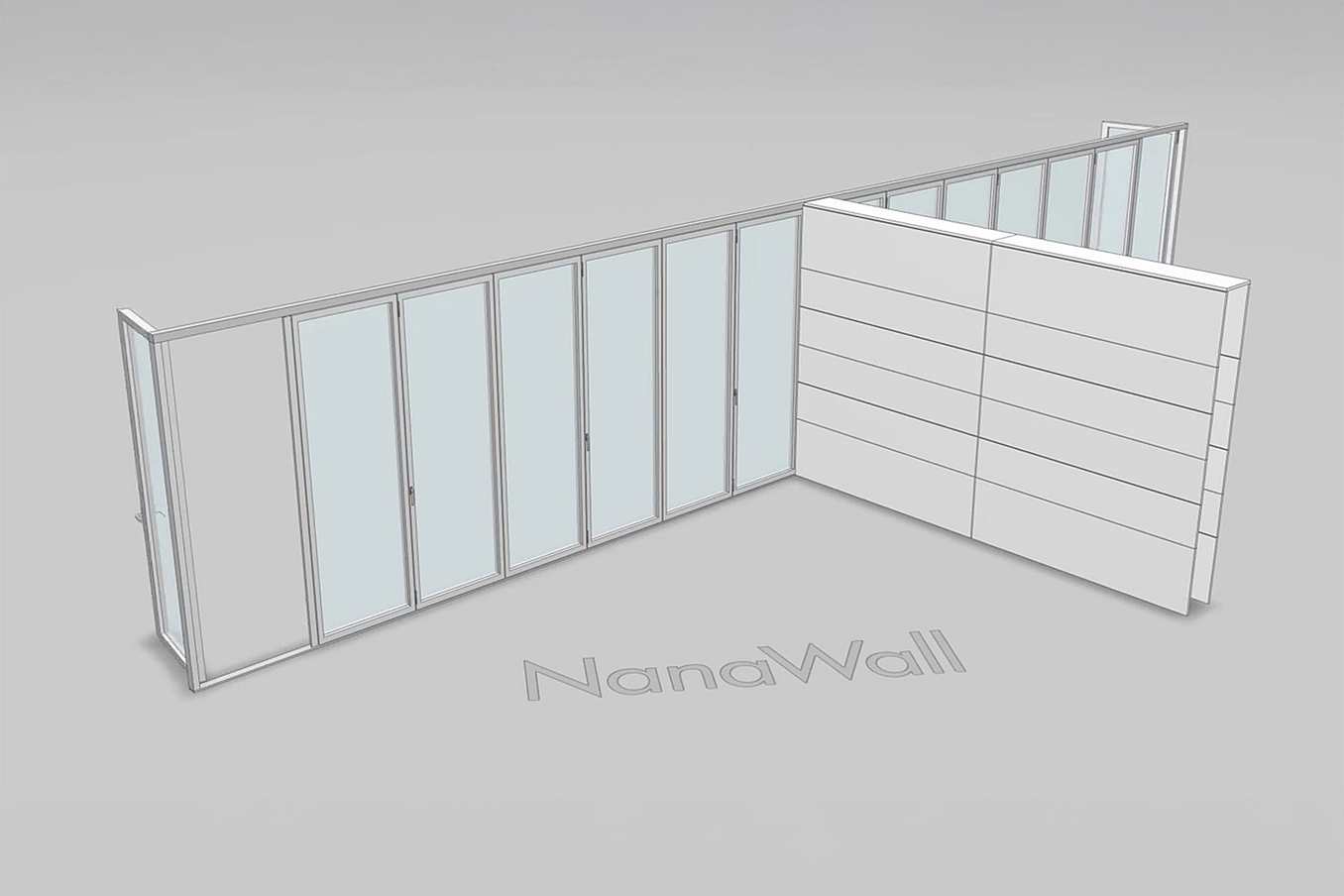

Over 90 standard configurations for straight forward folding systems
Explore limitless possibilities with our systems. Design and customize systems using our 3D CAD/Revit/Spec Configurators or contact our dedicated design team for more possibilities.
More Configurations

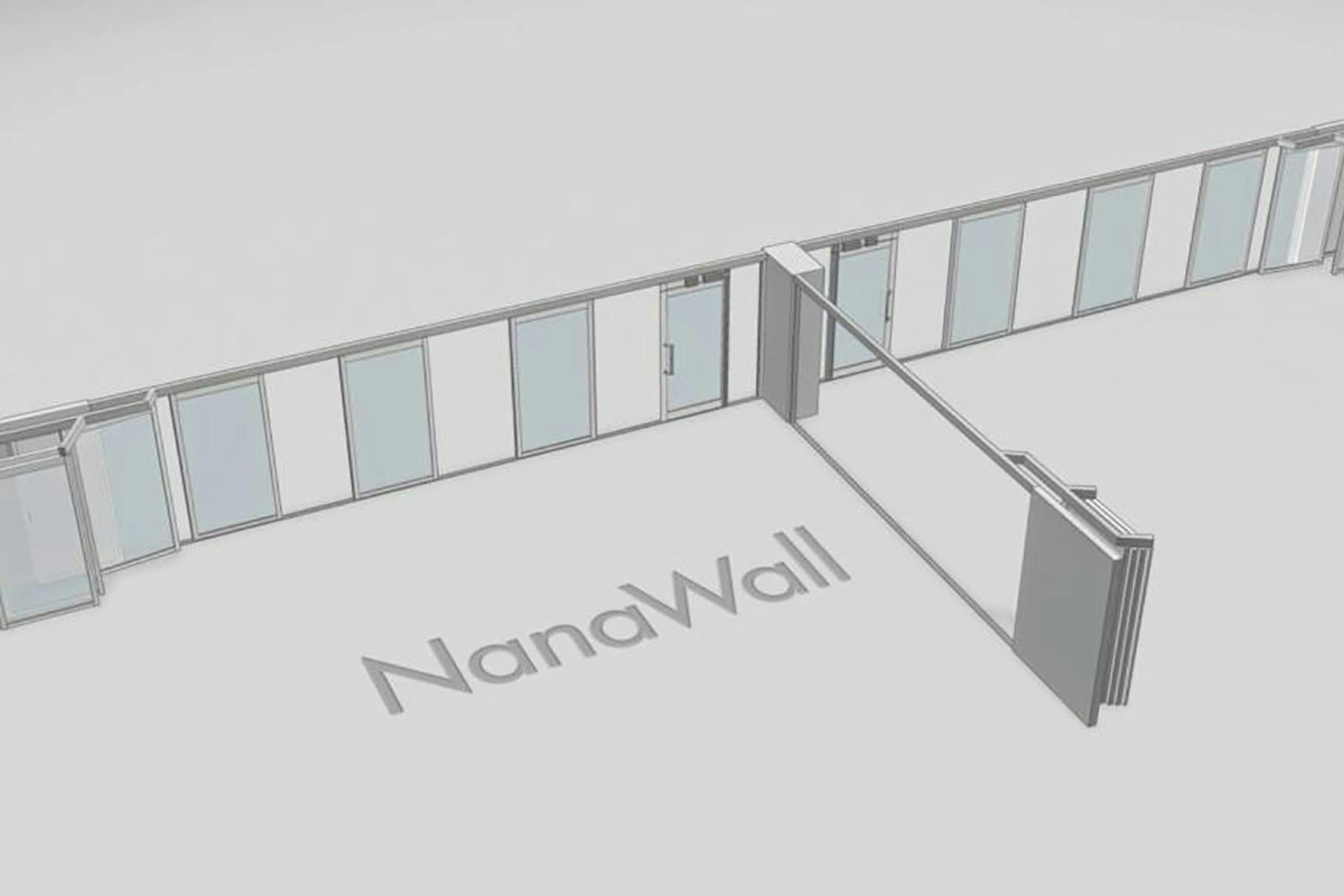

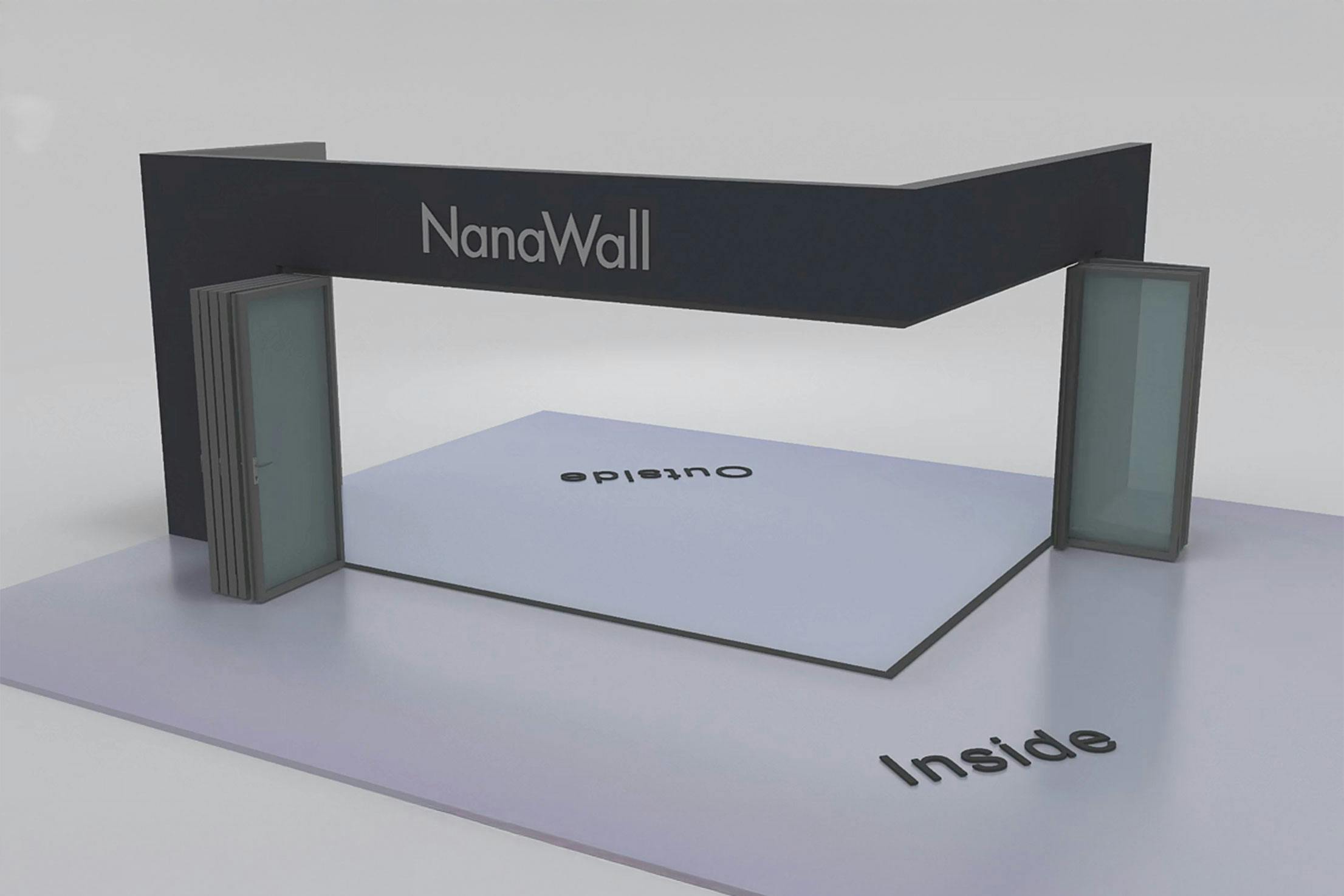

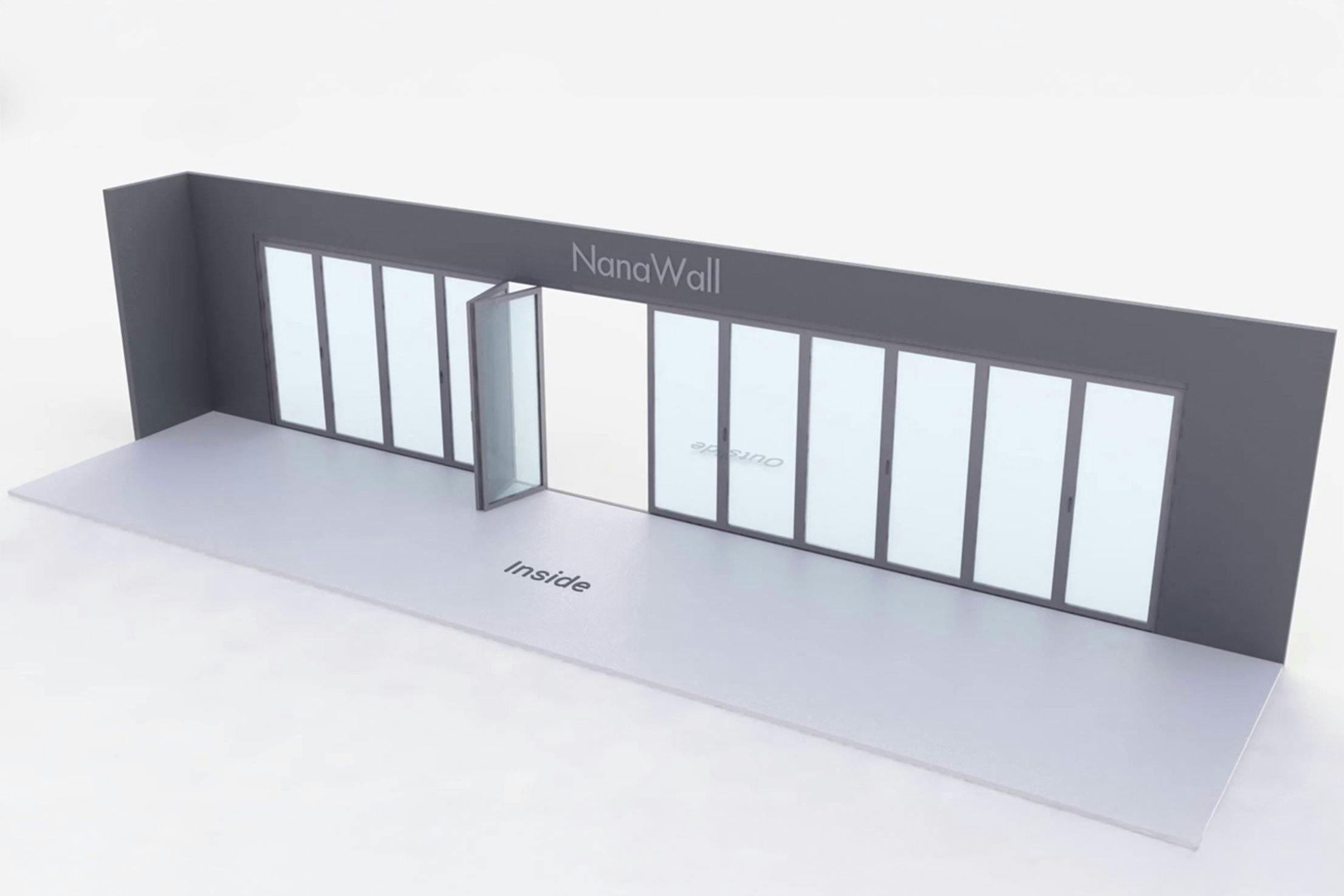

FourFold and SixFold Panel Sets are able to move and stack either to the right, left, or center within the same track allowing the panels to be stacked in the most convenient location as needed.
Explore limitless possibilities with our systems. Design and customize systems using our 3D CAD/Revit/Spec Configurators or contact our dedicated design team for more possibilities.
More Configurations

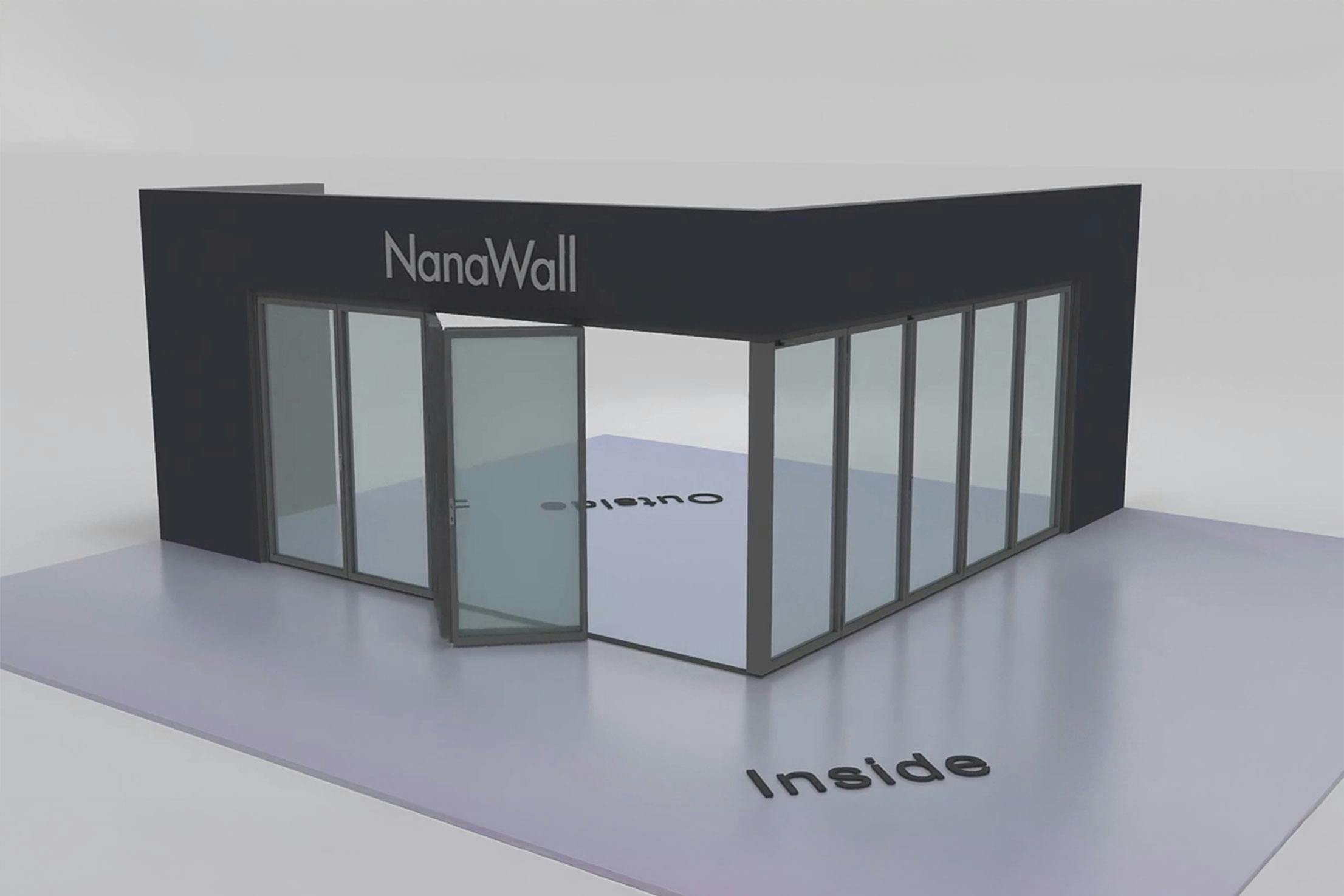

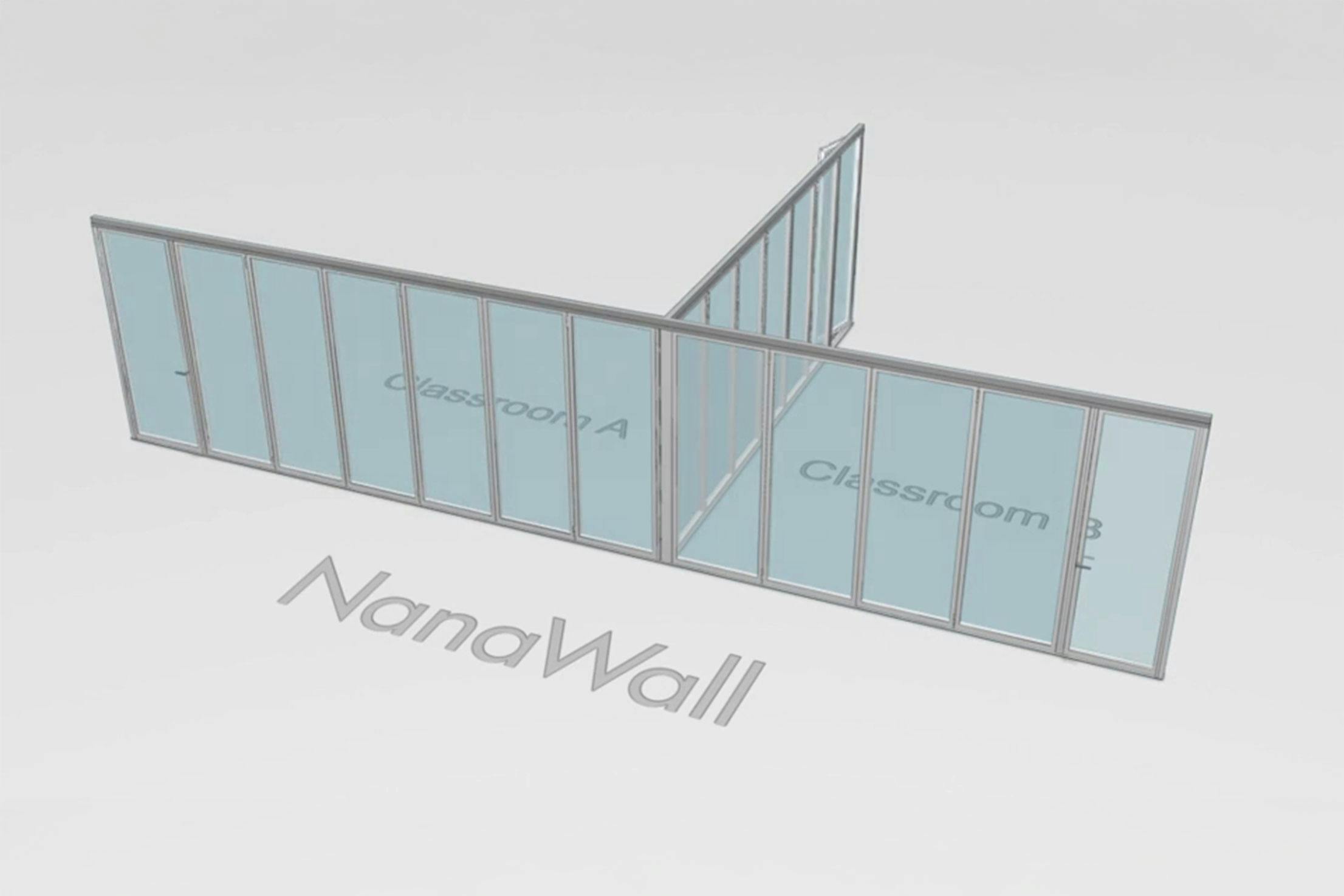

All standard configurations are available in cornerless options.
Explore limitless possibilities with our systems. Design and customize systems using our 3D CAD/Revit/Spec Configurators or contact our dedicated design team for more possibilities.
More Configurations

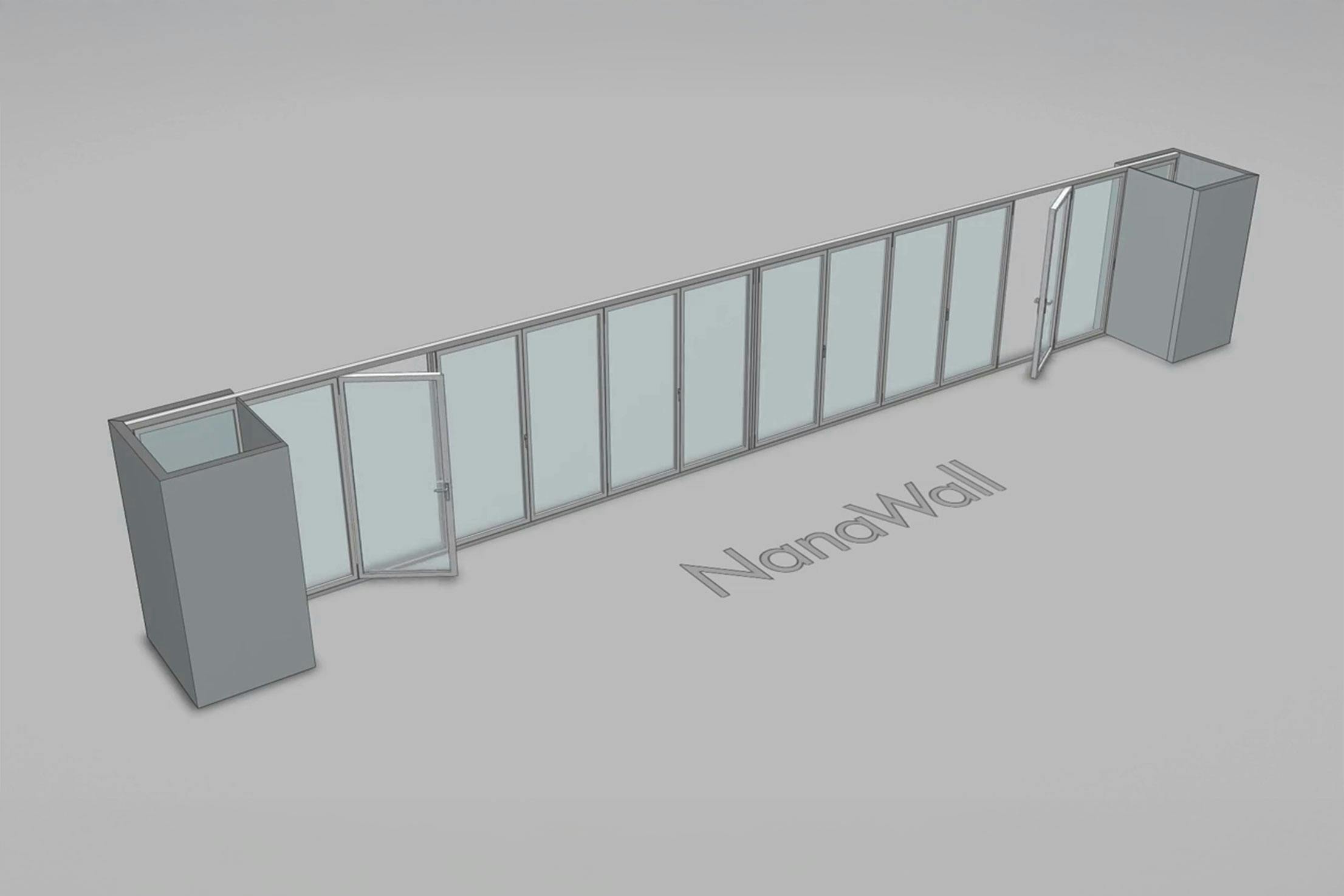

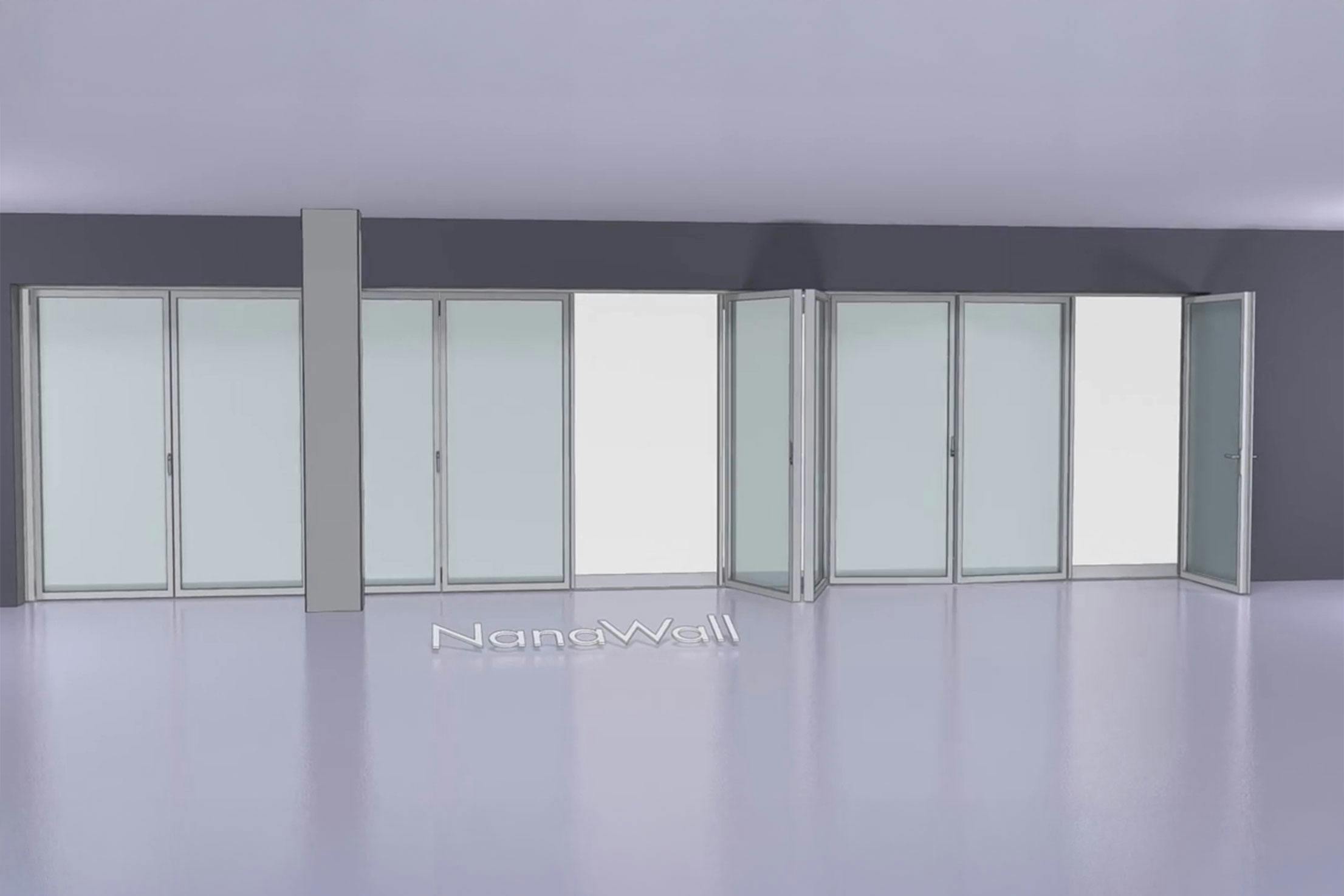

Explore limitless possibilities with our systems. Contact our dedicated design team for more possibilities.
More Configurations
Explore limitless possibilities with our systems. Contact our dedicated design team for more possibilities.
