HSW66
Wood Framed Single Track Sliding and Stacking System
- Unmatched design flexibility with the natural beauty of solid wood
- Enhanced horizontal roller and guide track design
- Stack panels virtually anywhere
Unlimited Spans
The NanaWall Single Track Stacking system can be designed with any number of panels. The system is a completely top-supported design therefore the number of panels is only limited by the supporting structure in your design.

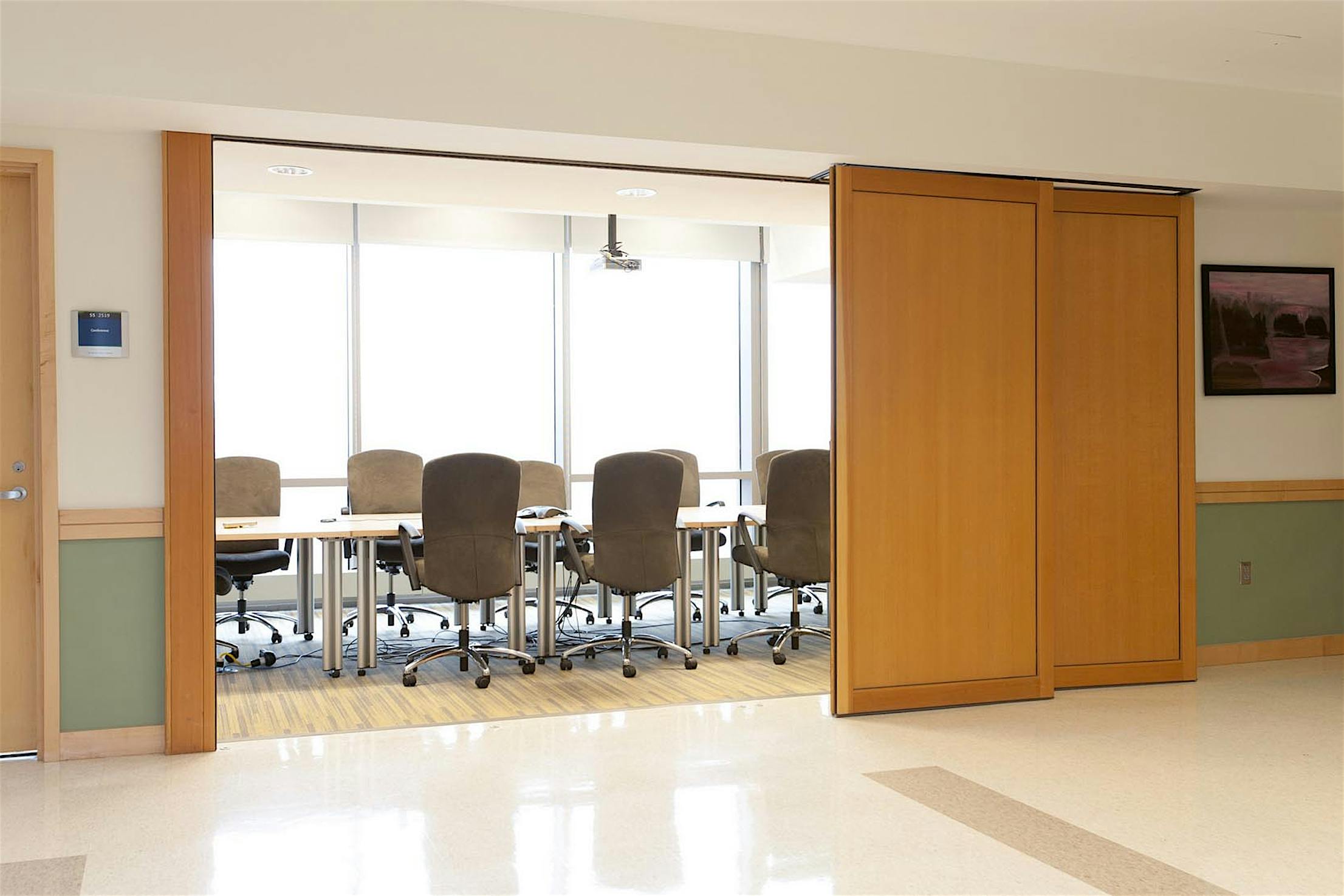

Panels Can Stack and Store Beyond The Opening
You have the design freedom to store panels outside the opening and can stack in a variety of ways.
See Configurations
Design Responsively

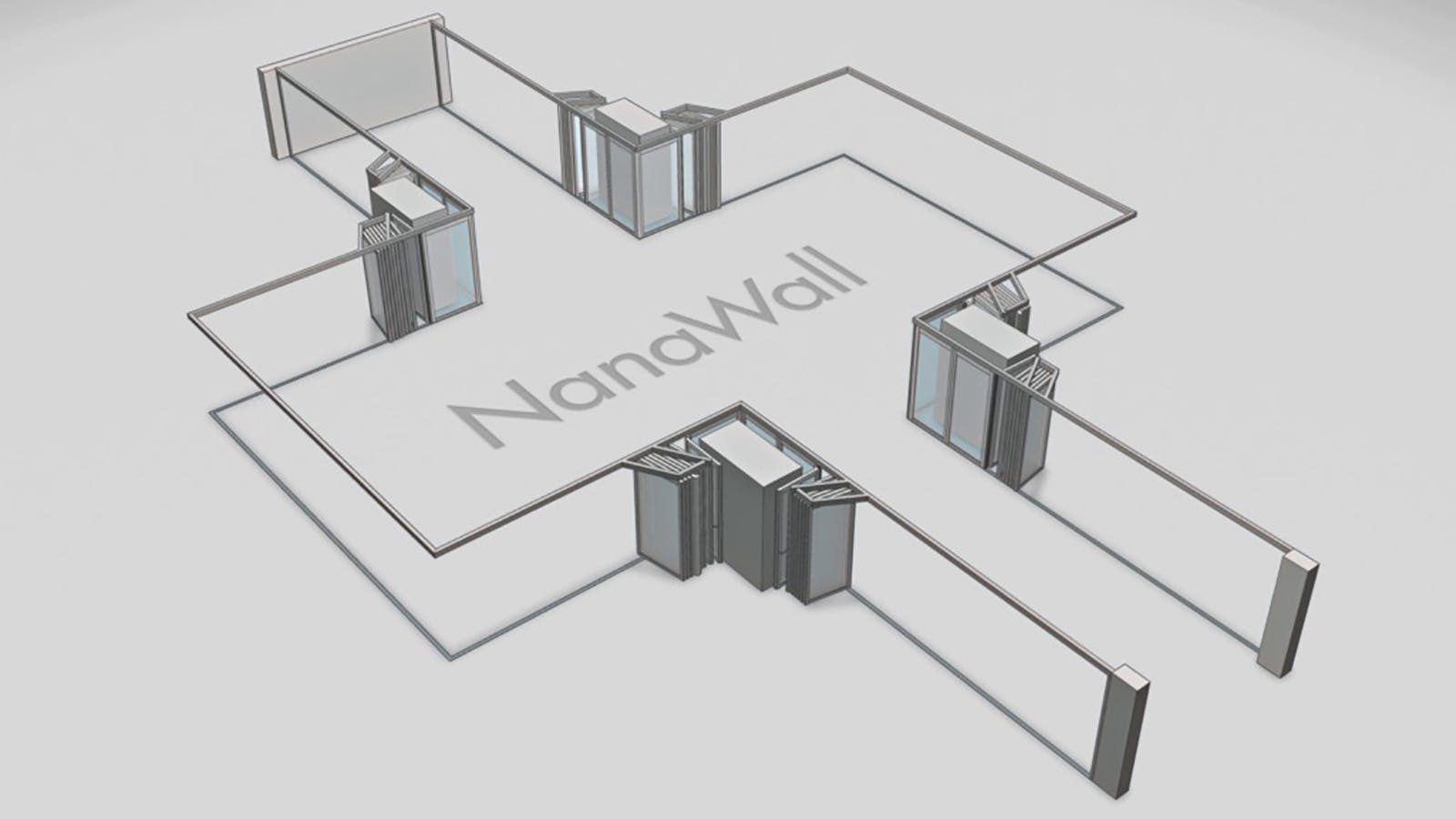

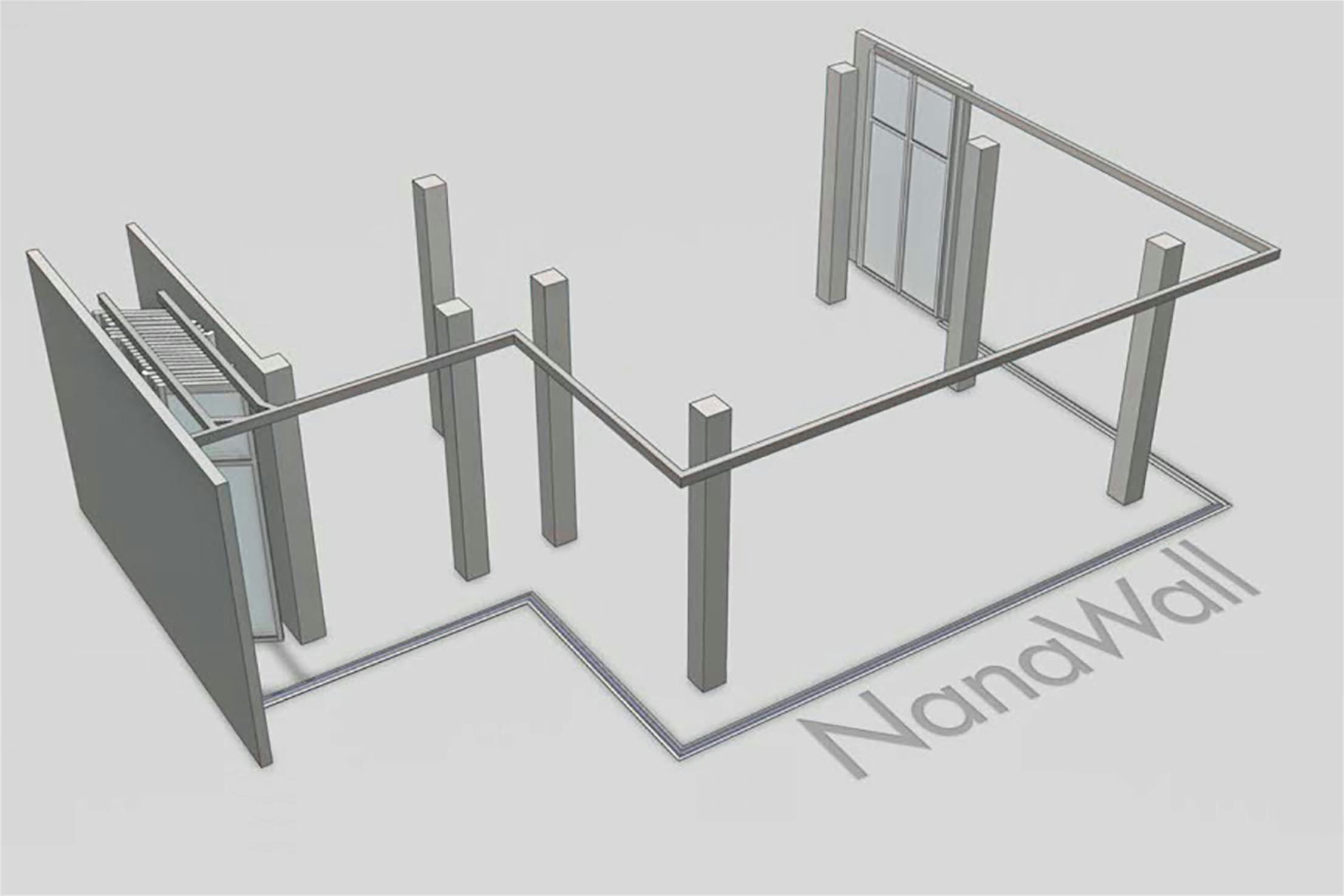

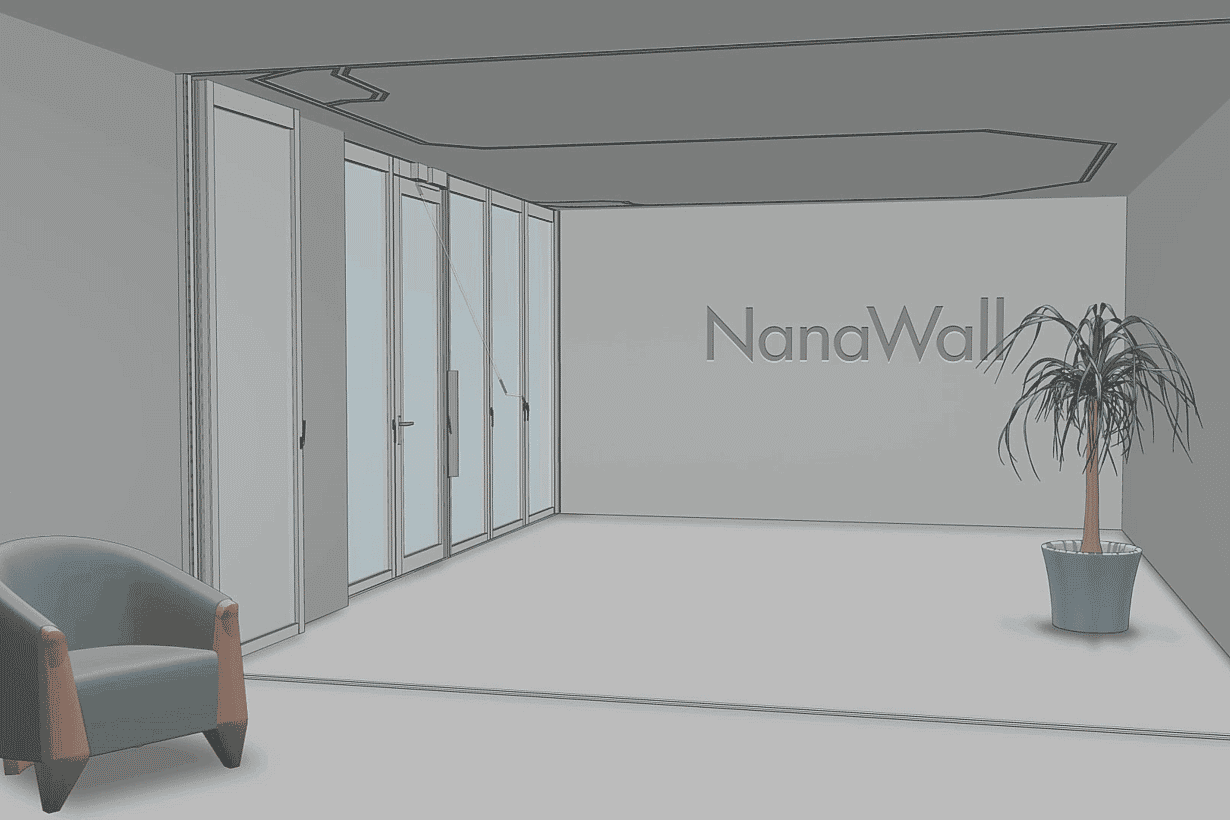

With NanaWall intelligently guided door panels, the user can adapt space by moving panels from one opening to other opening(s). Watch our video to learn more about NanaWall Responsive Design.

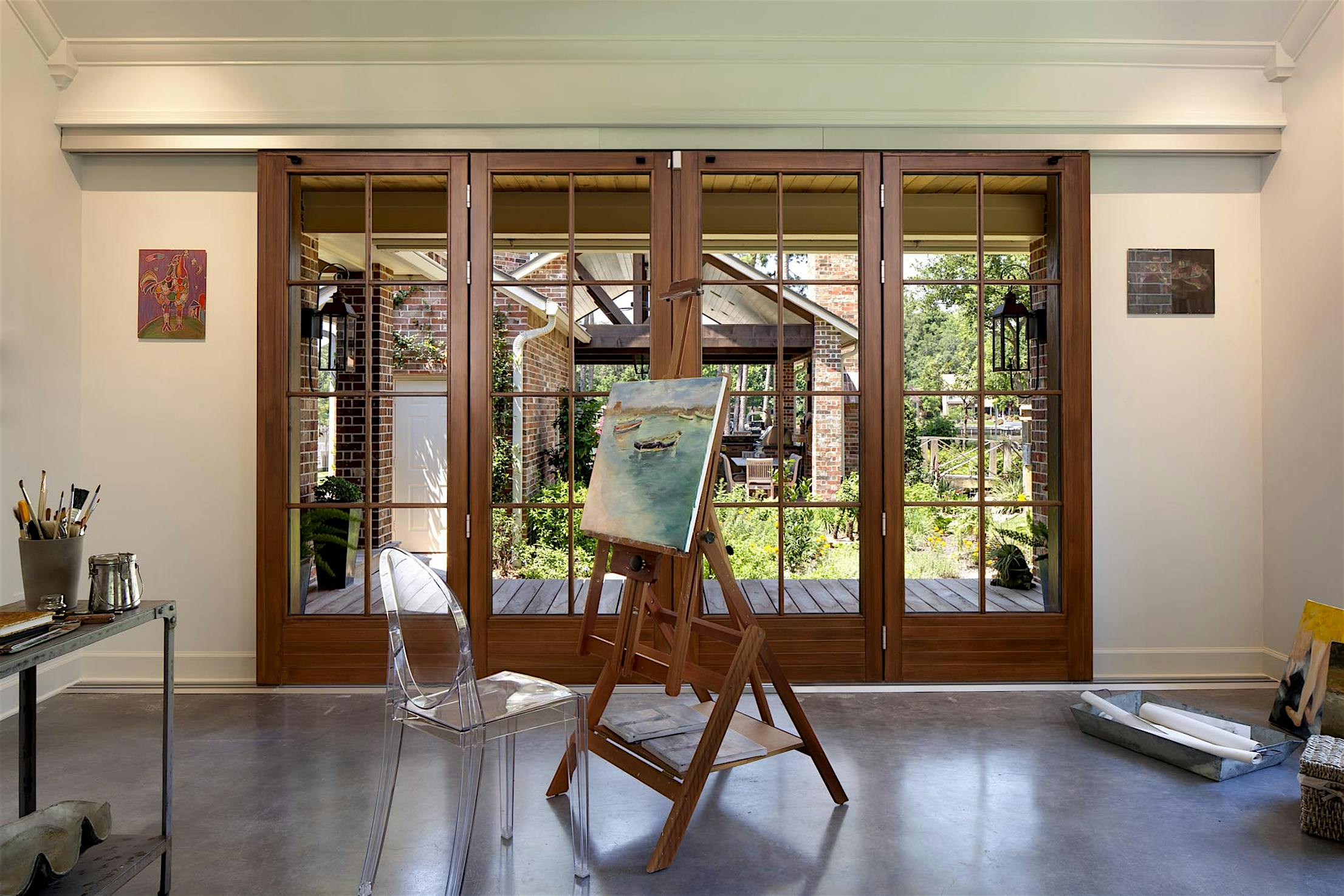

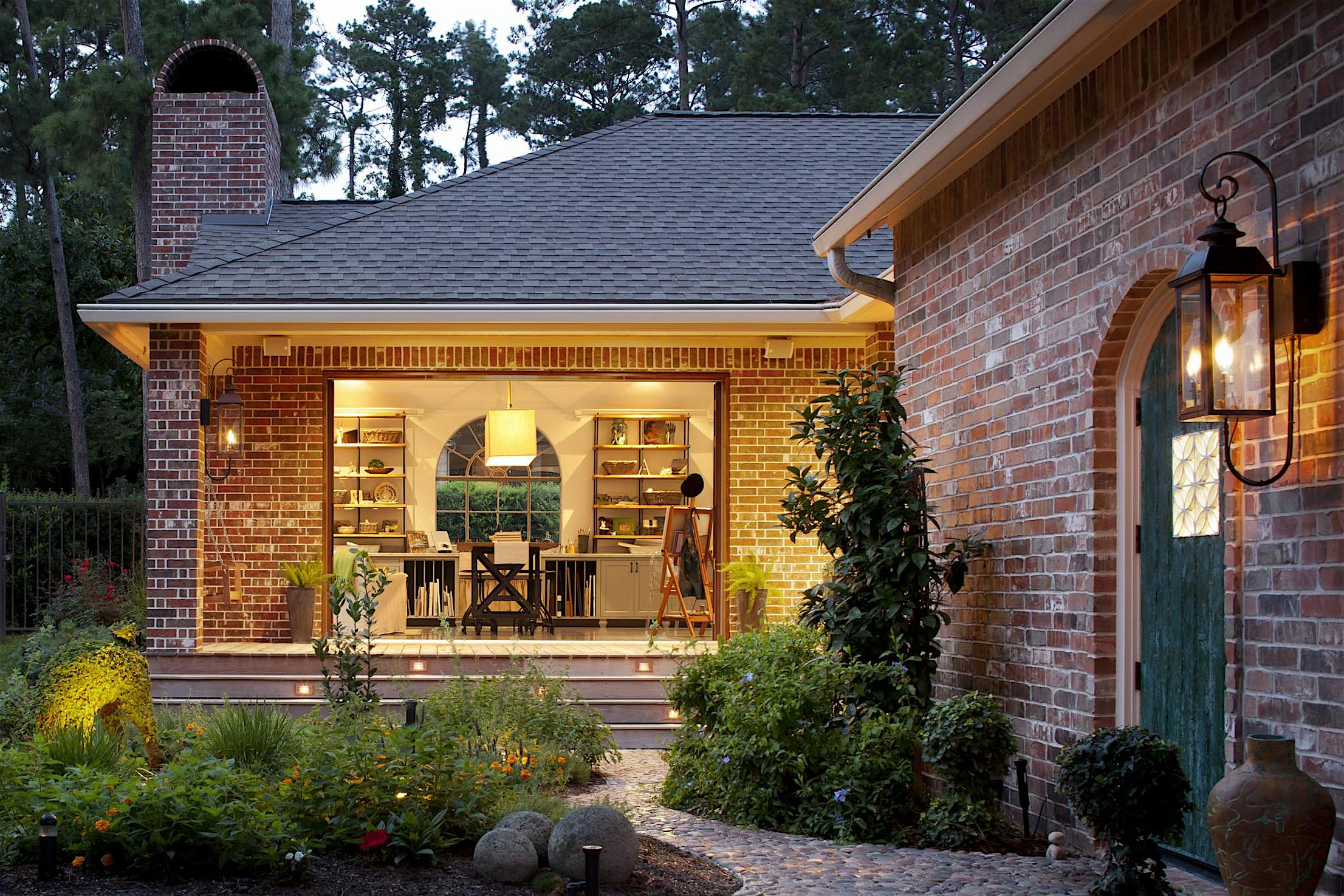

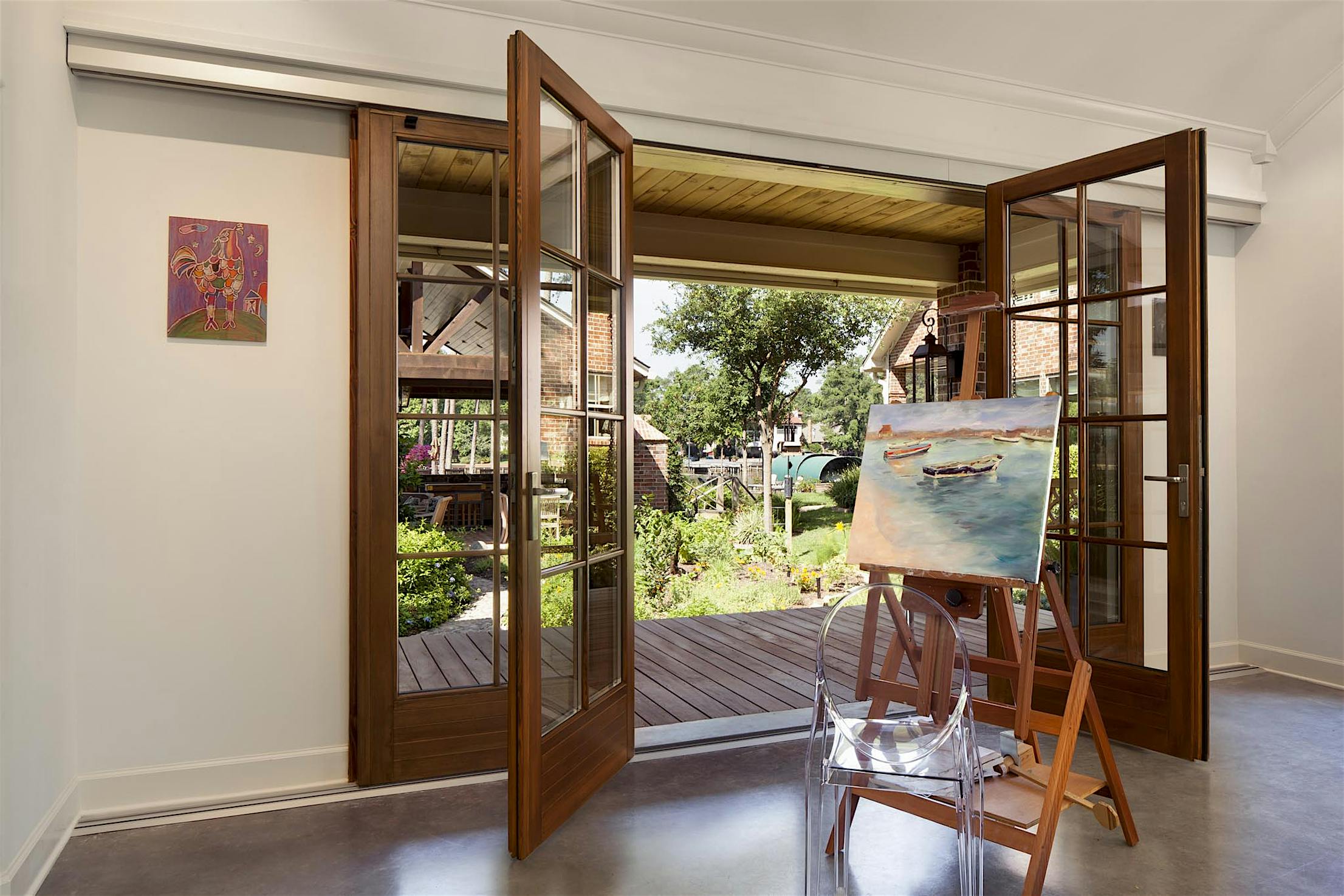

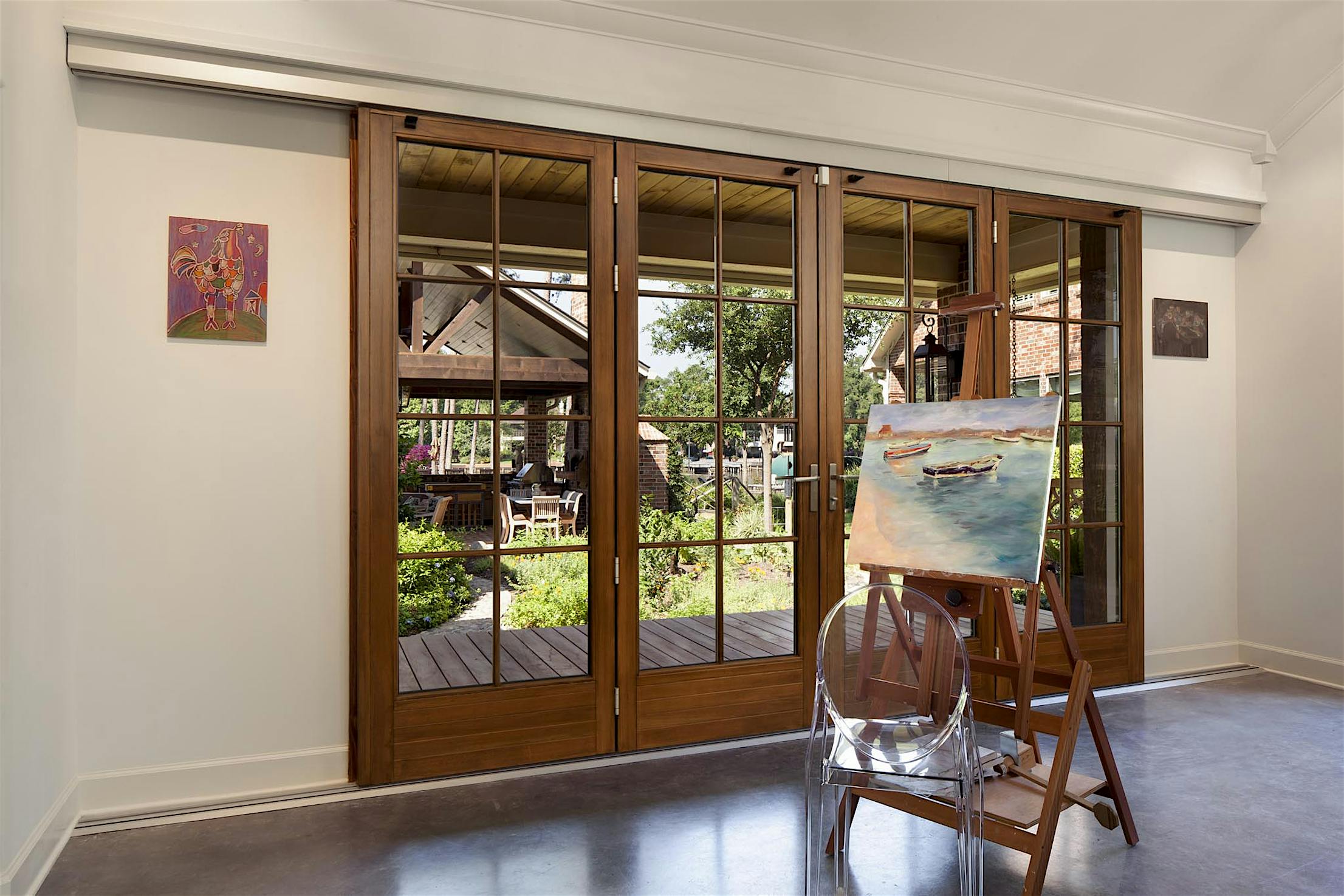

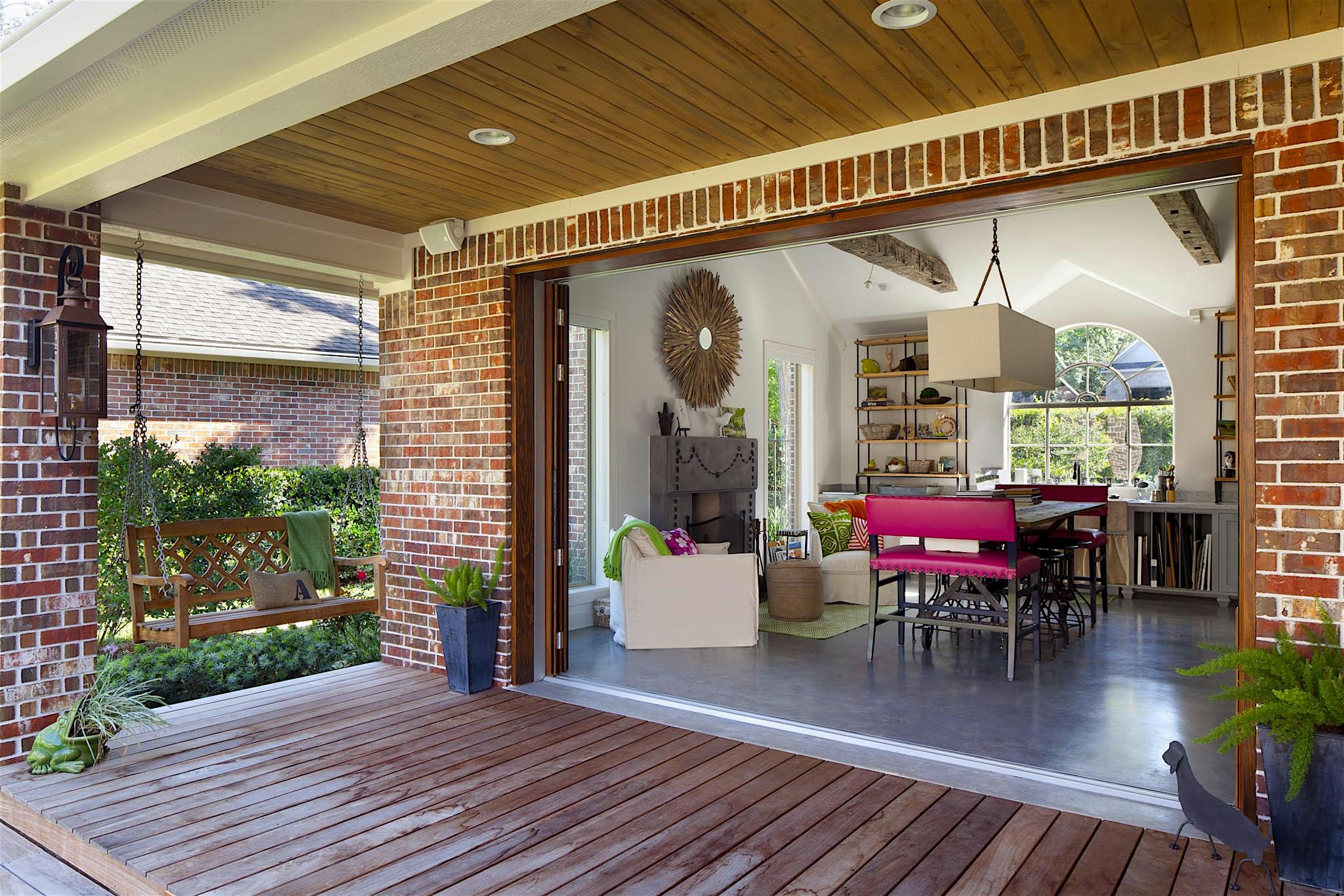

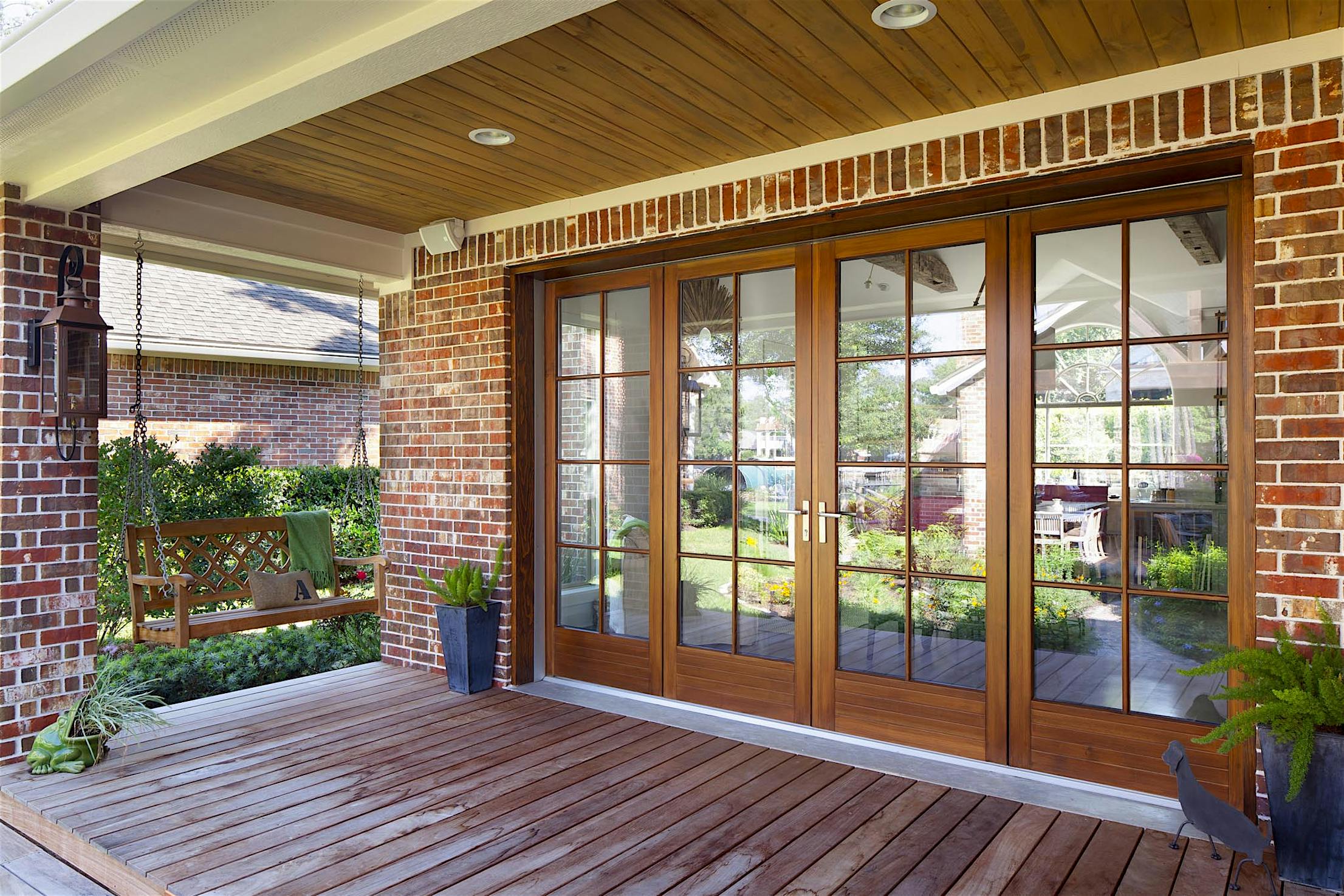

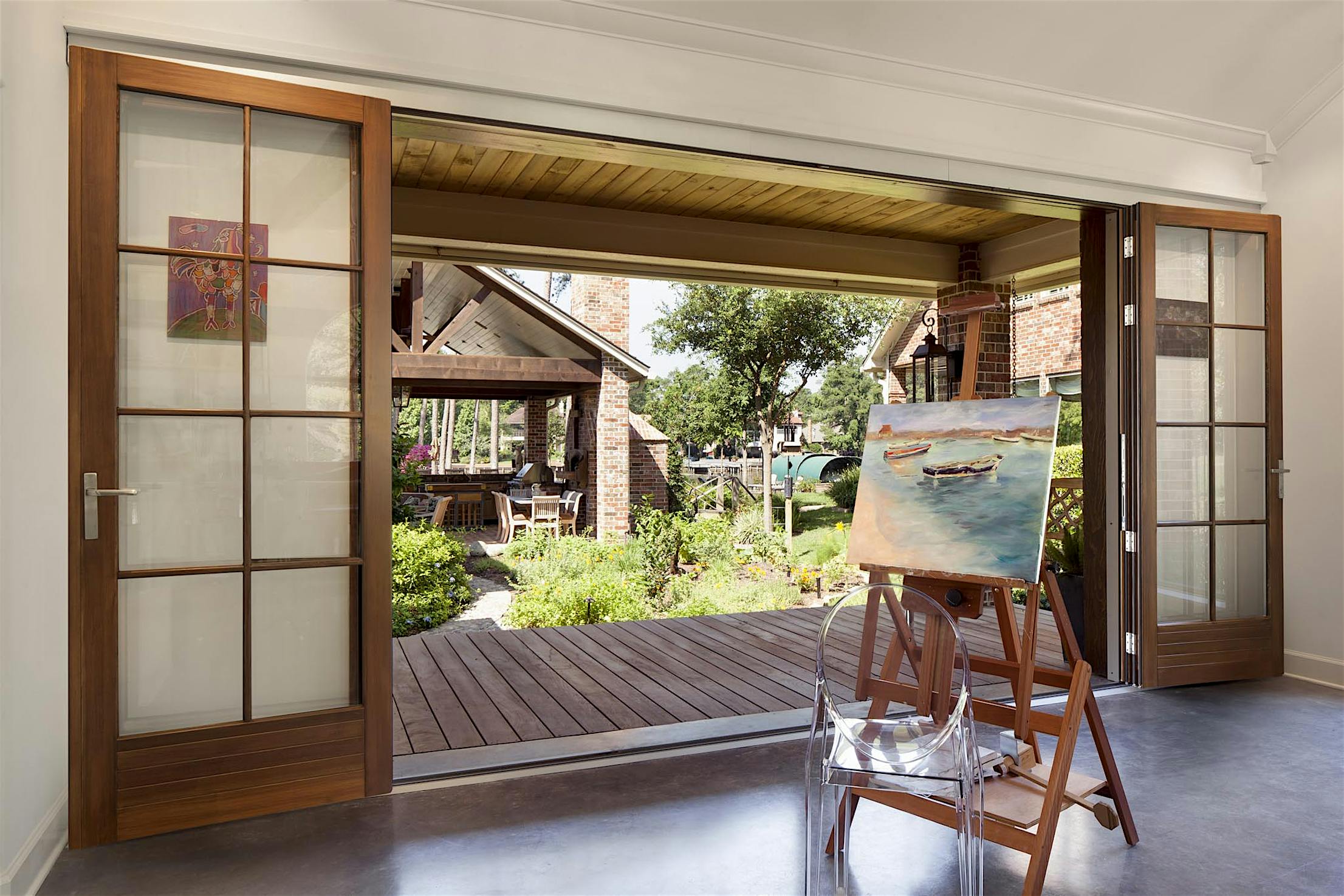

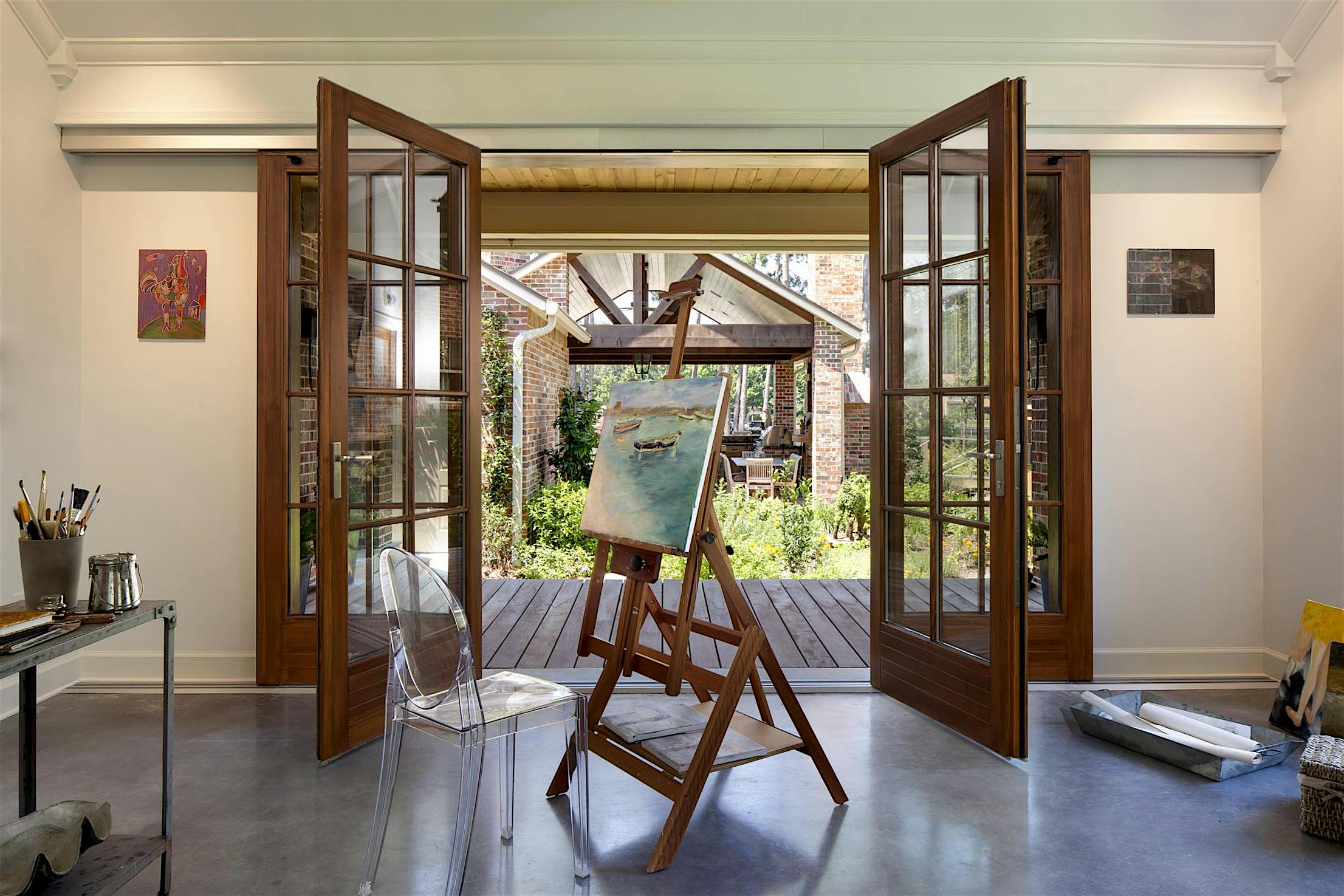

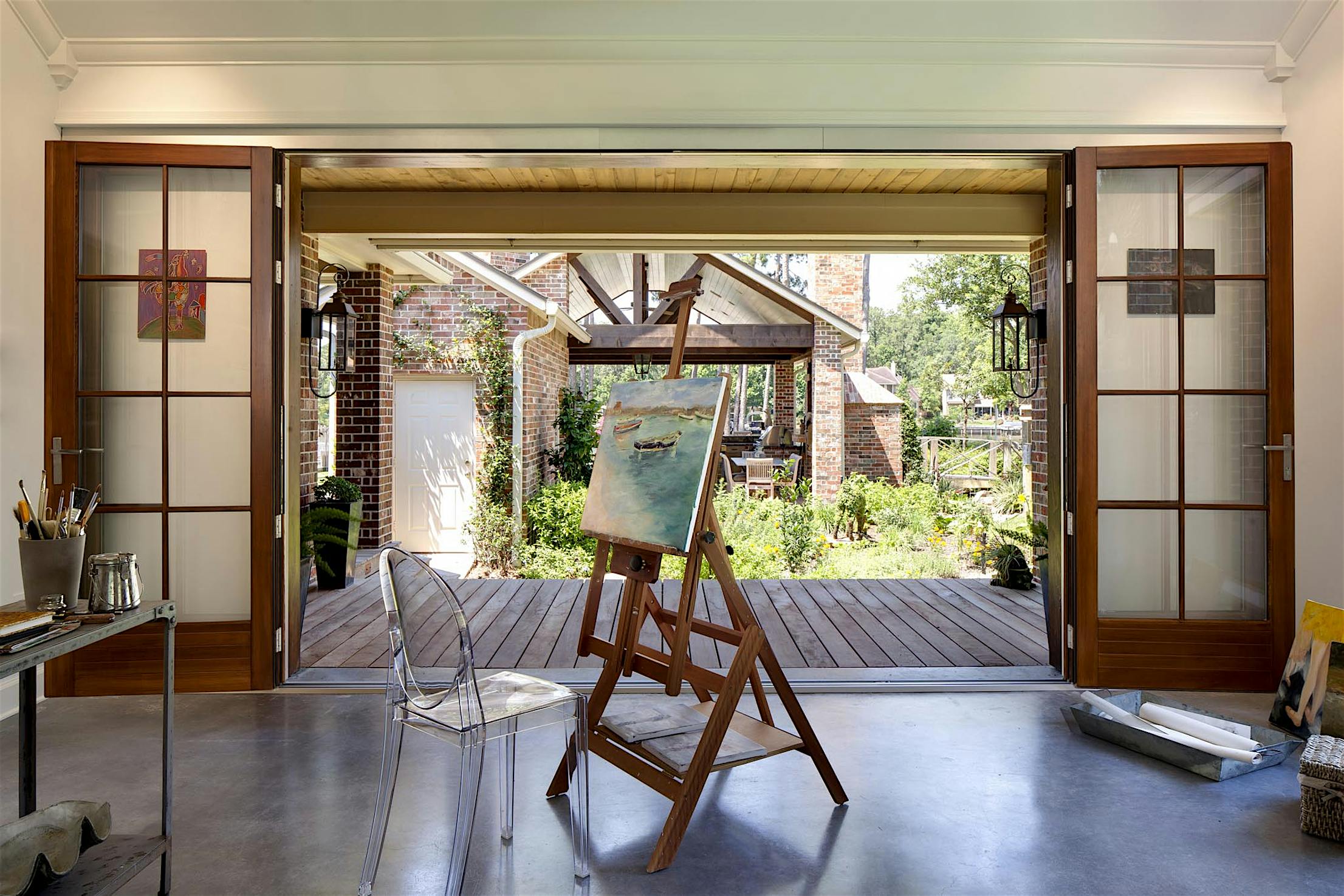

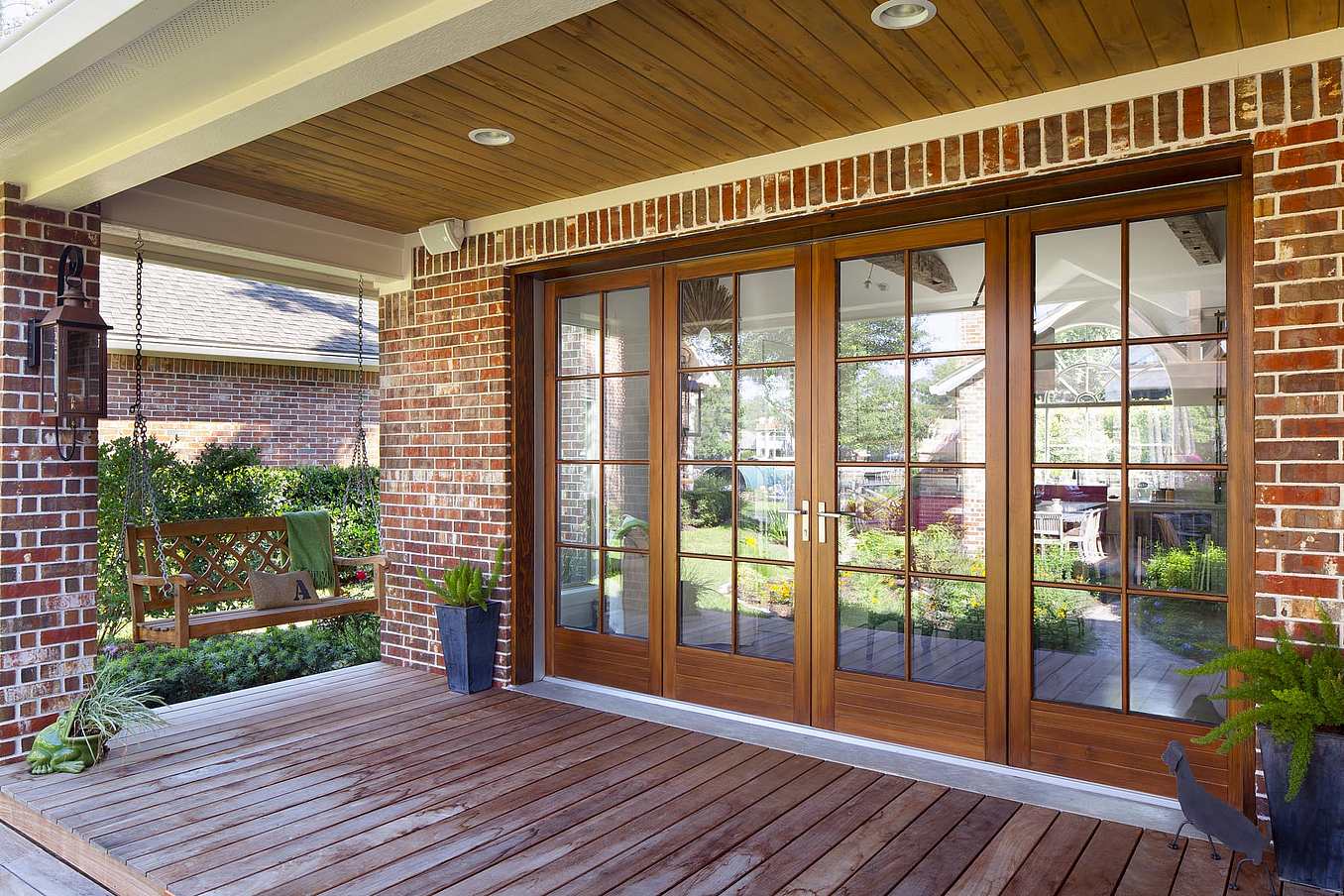

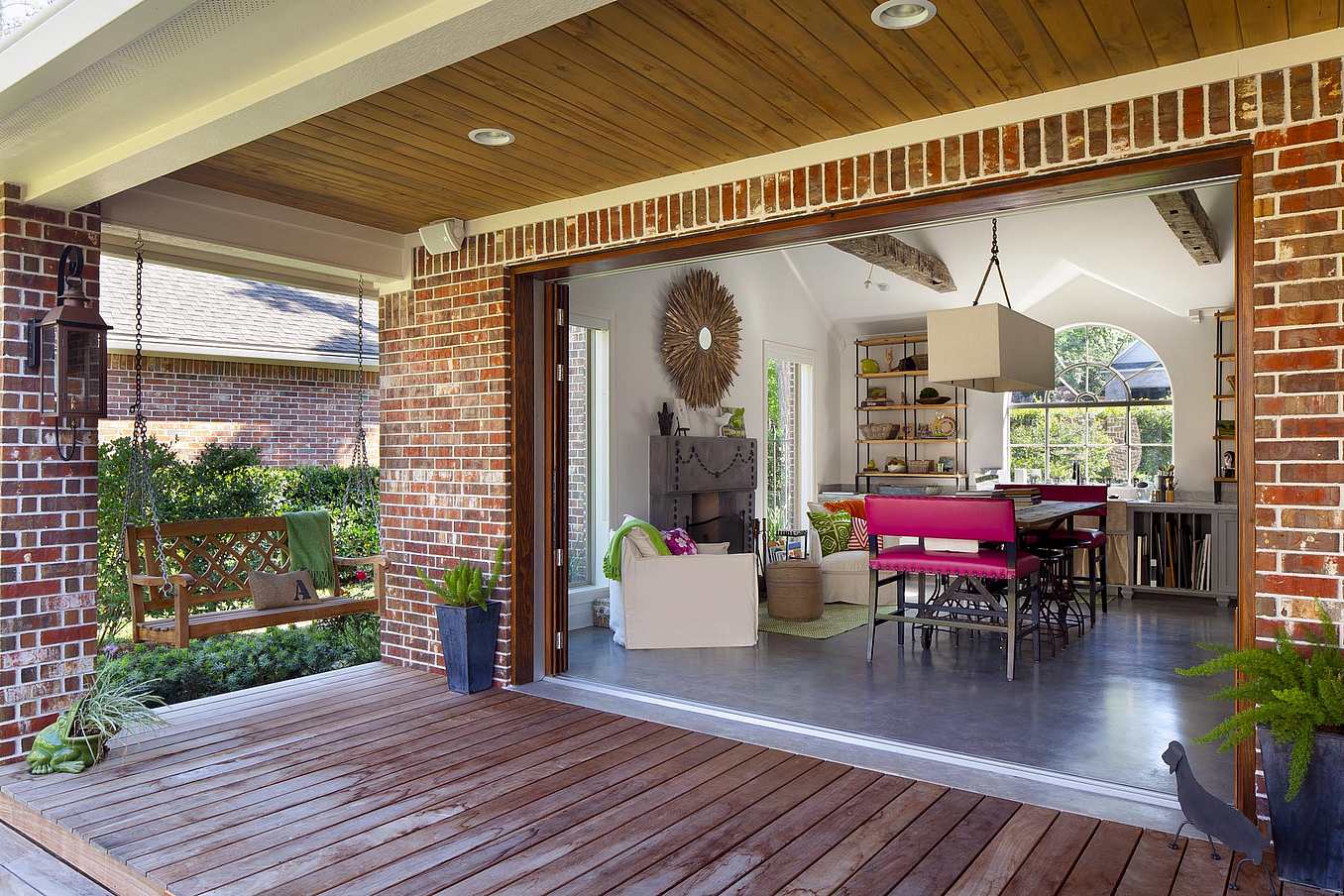

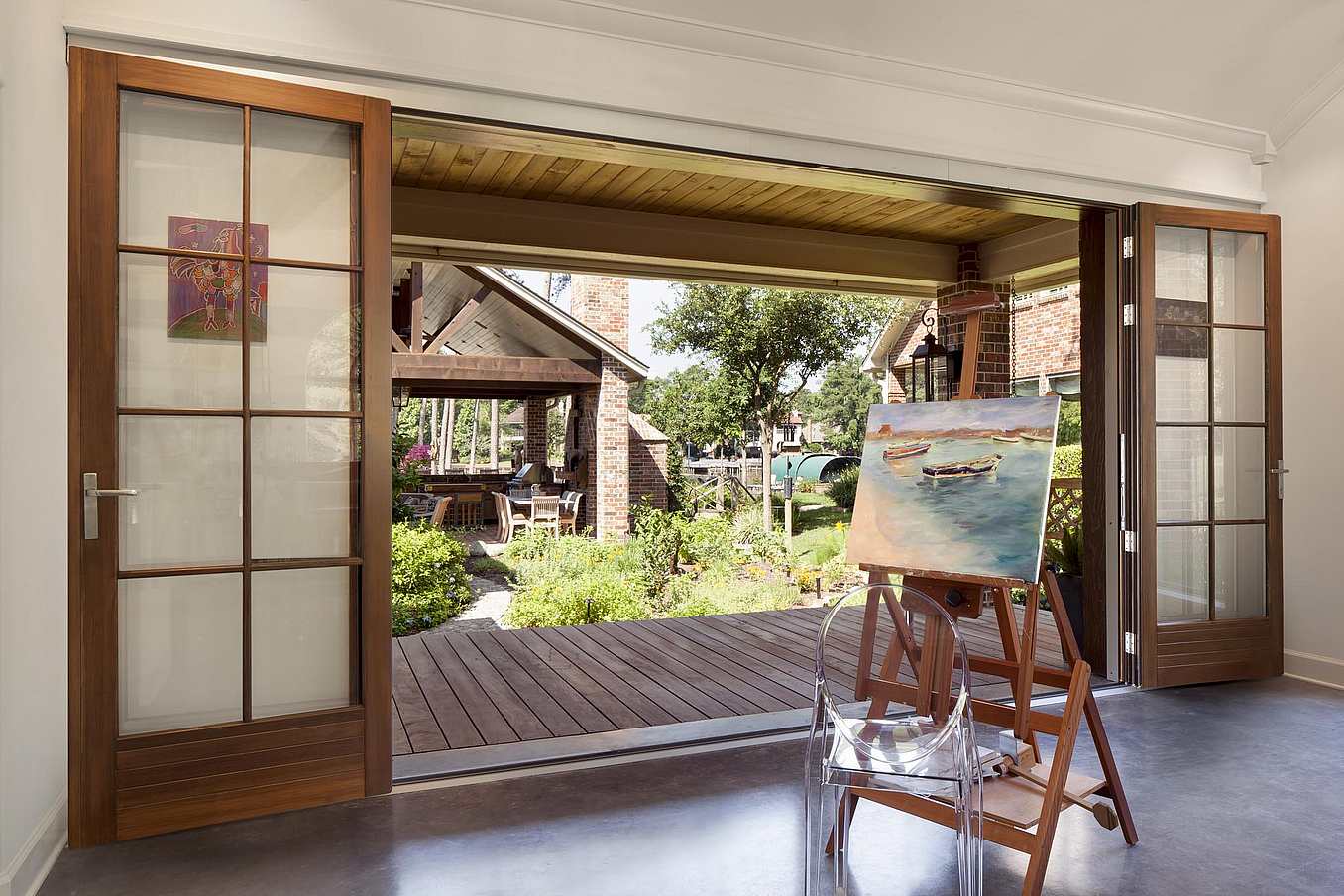

Our SwingSlide offers a better alternative to a traditional lift and slide door system. It is a multi-panel system of large glass walls, that easily glides open on a single track and stacks into a pocket or to the side to completely vanish. So, why lift and slide, if you can touch and glide?

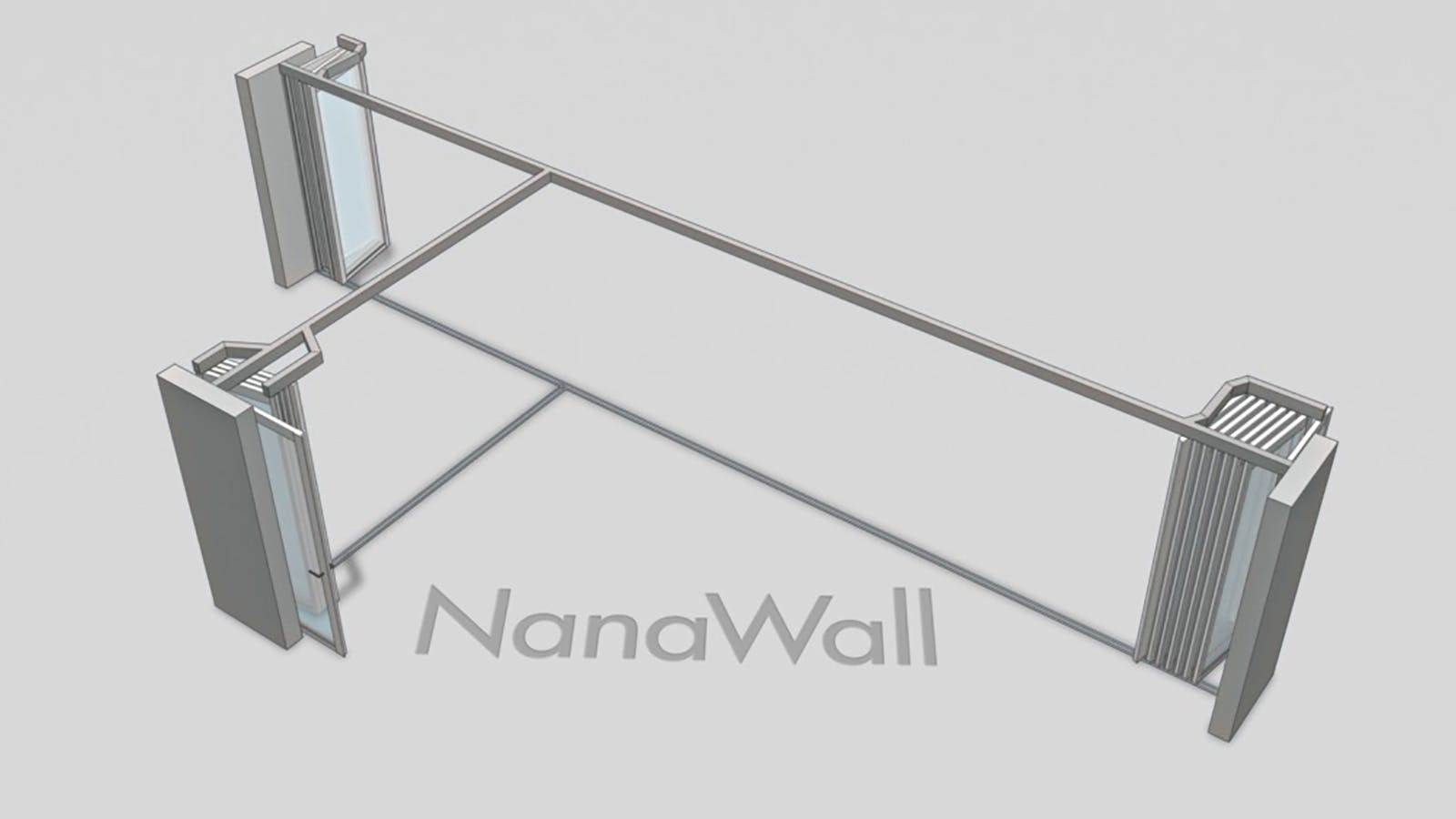

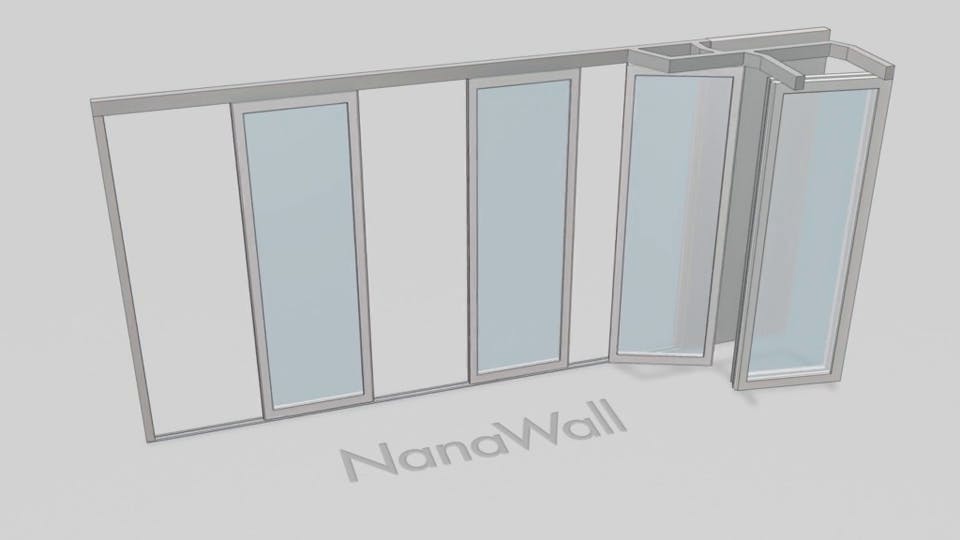

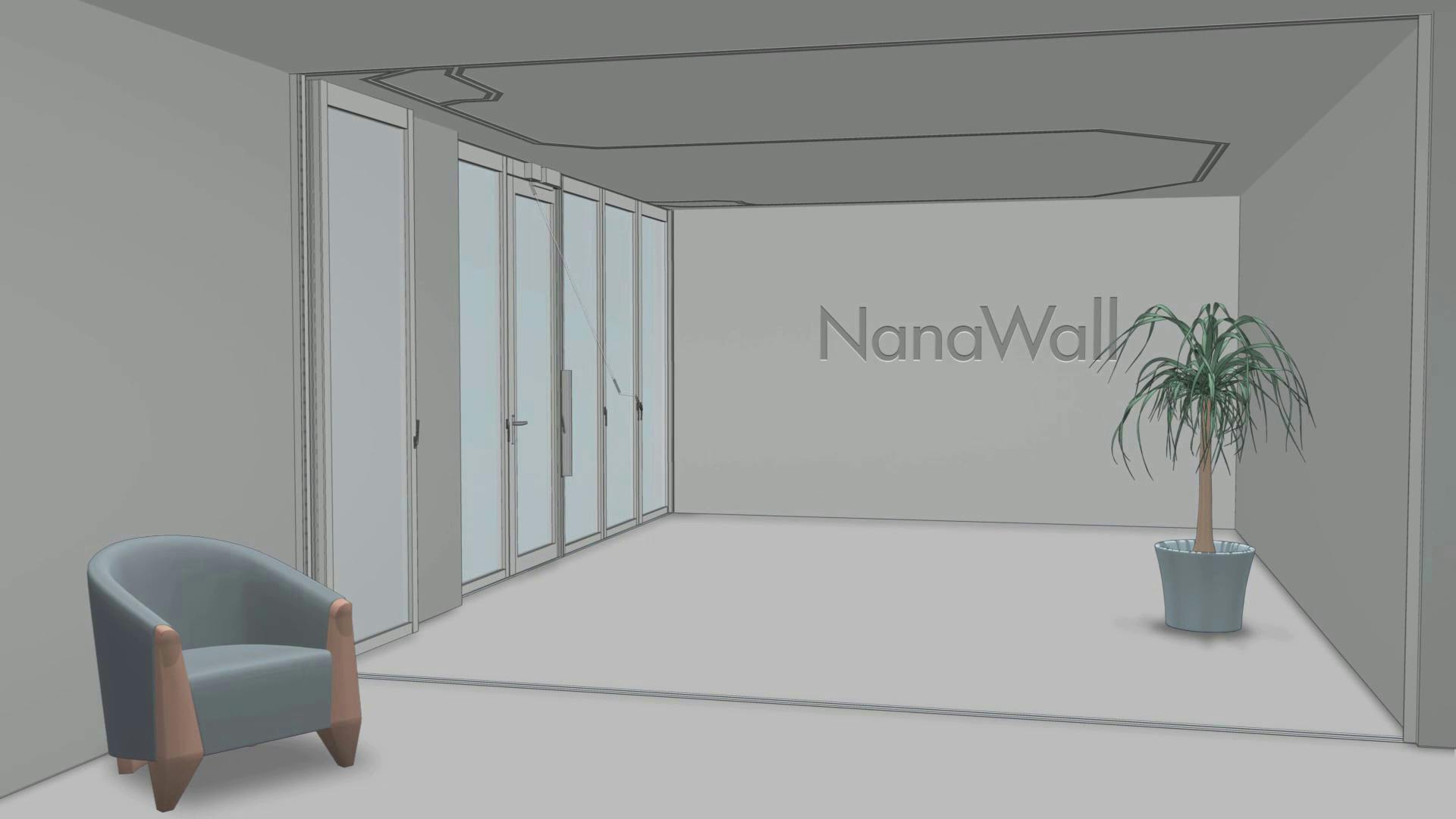

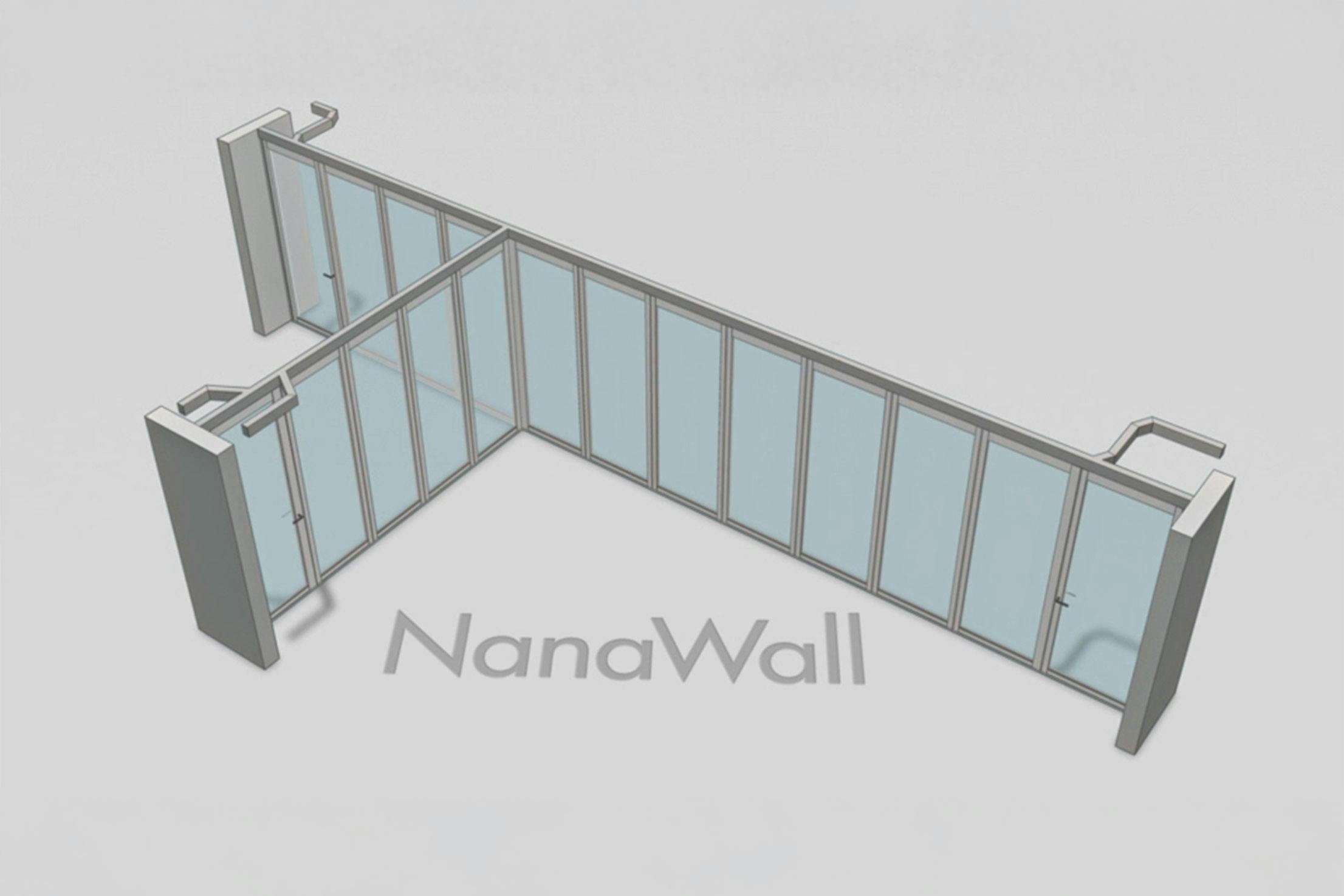

This animation shows a symmetrical six panel unit stacking into pockets on both sides. Any number of panels are possible in either direction, you can even stack panels in front of a fixed panel if desired.

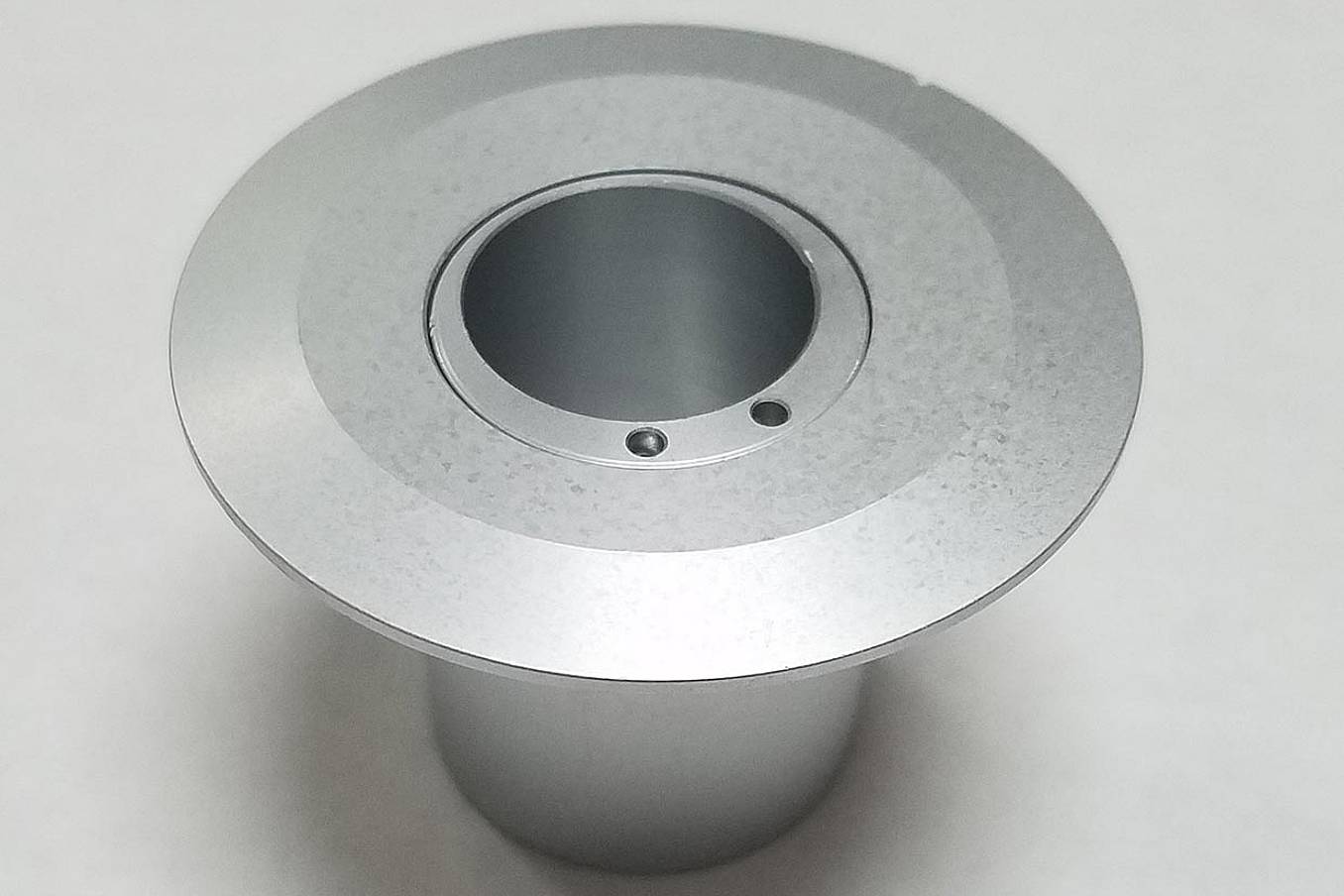

The NanaWall HSW66 can be designed using adjustable floor sockets instead of a floor track if desired. Choose from various sill options to fit your project needs.
Sill Options

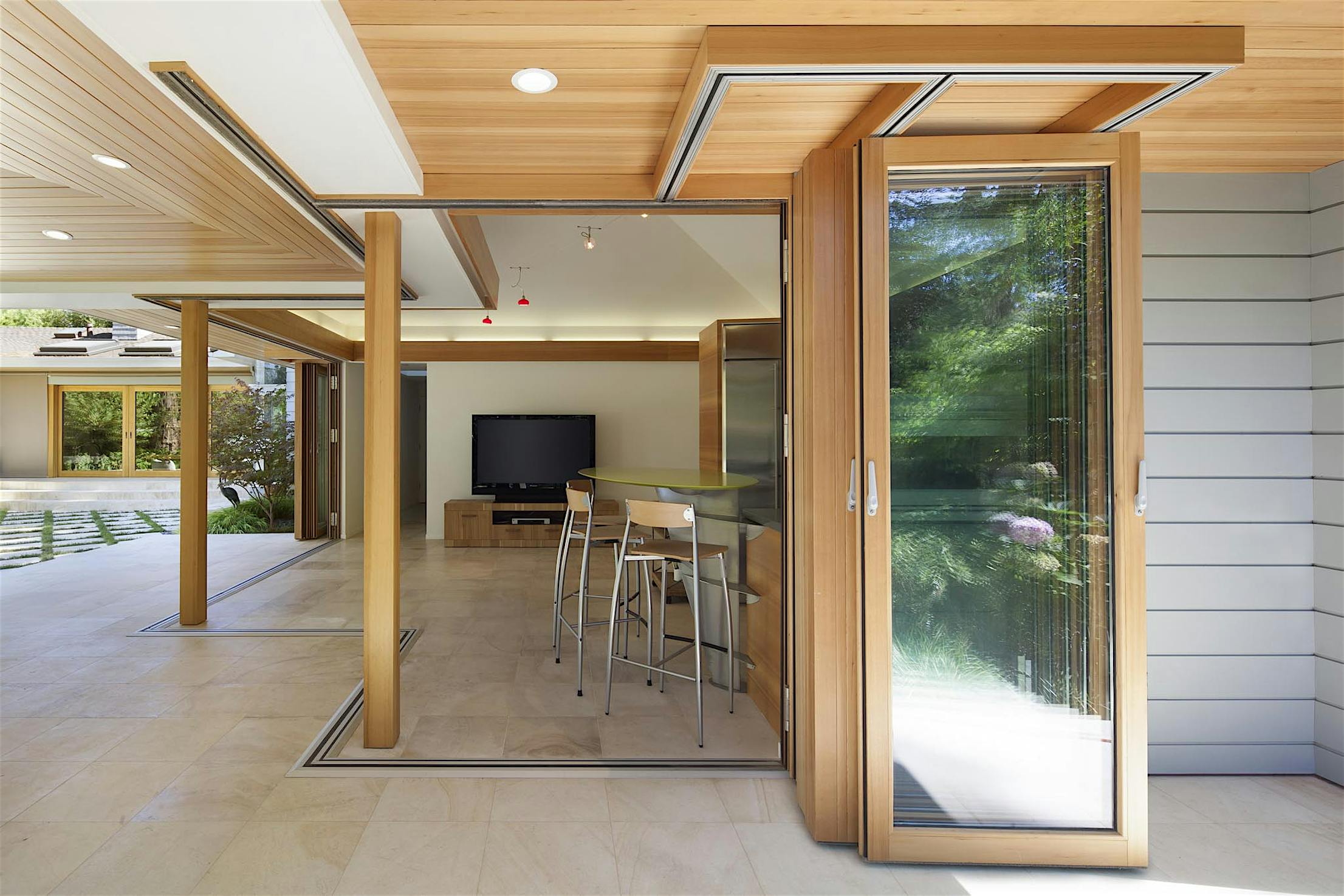

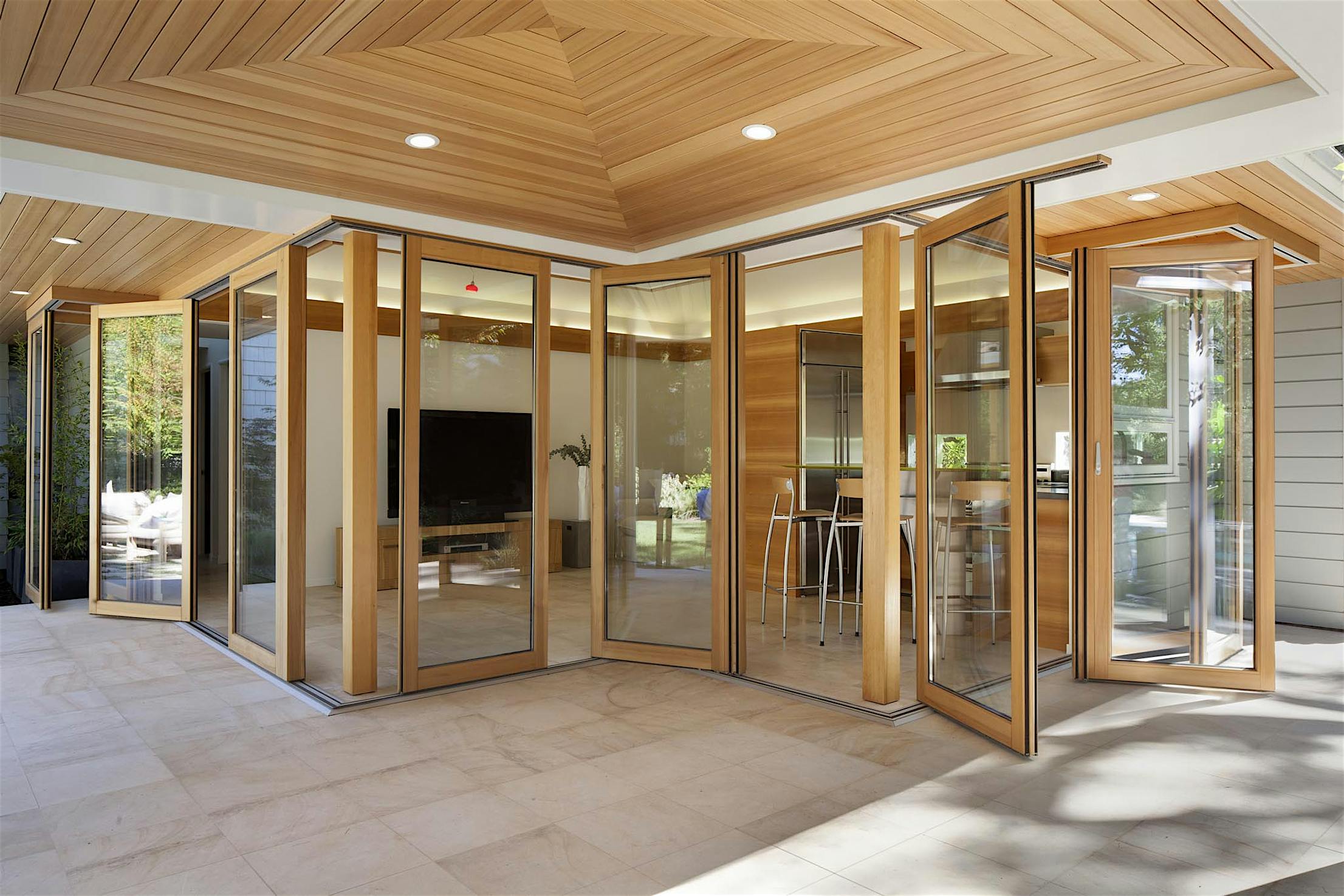

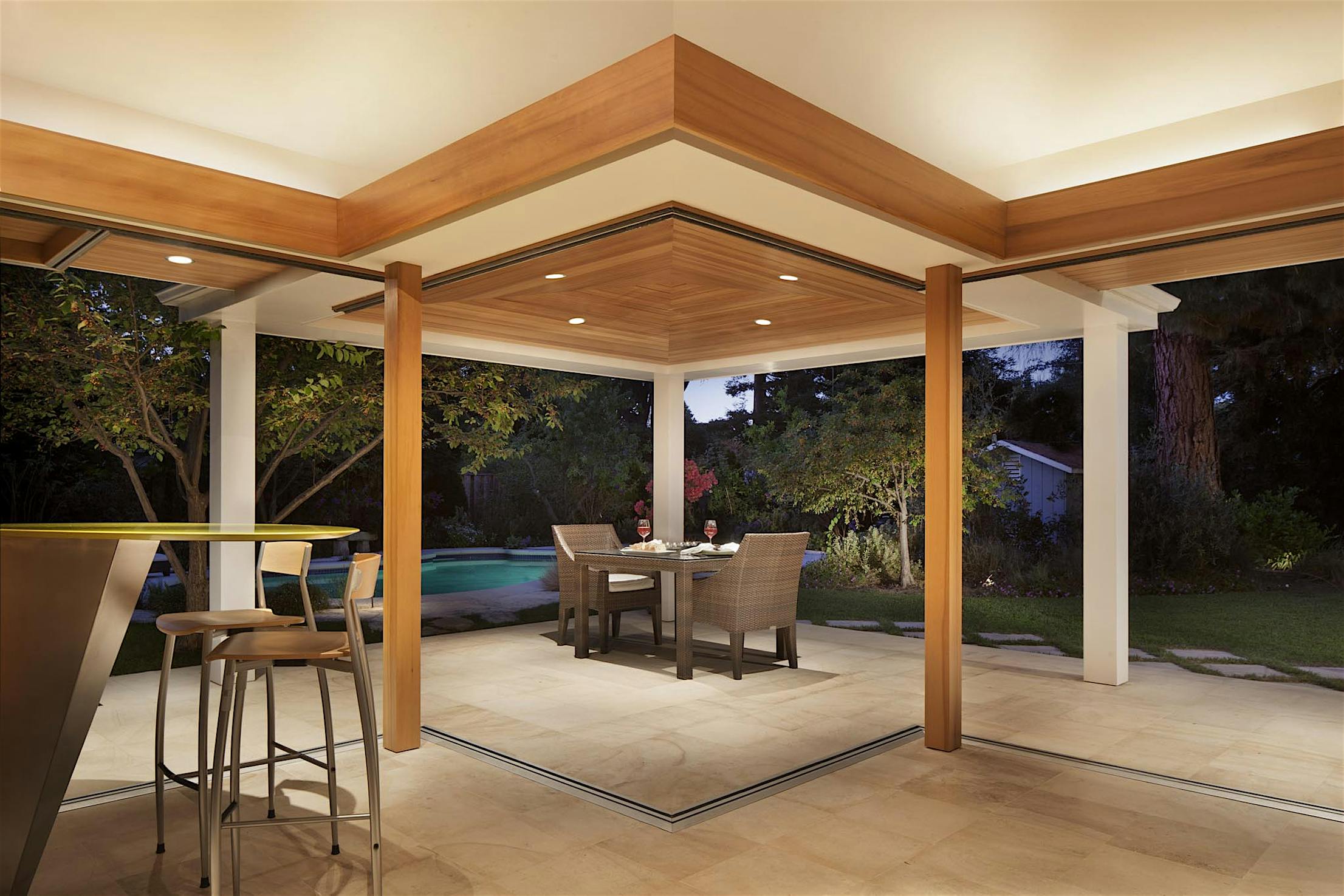

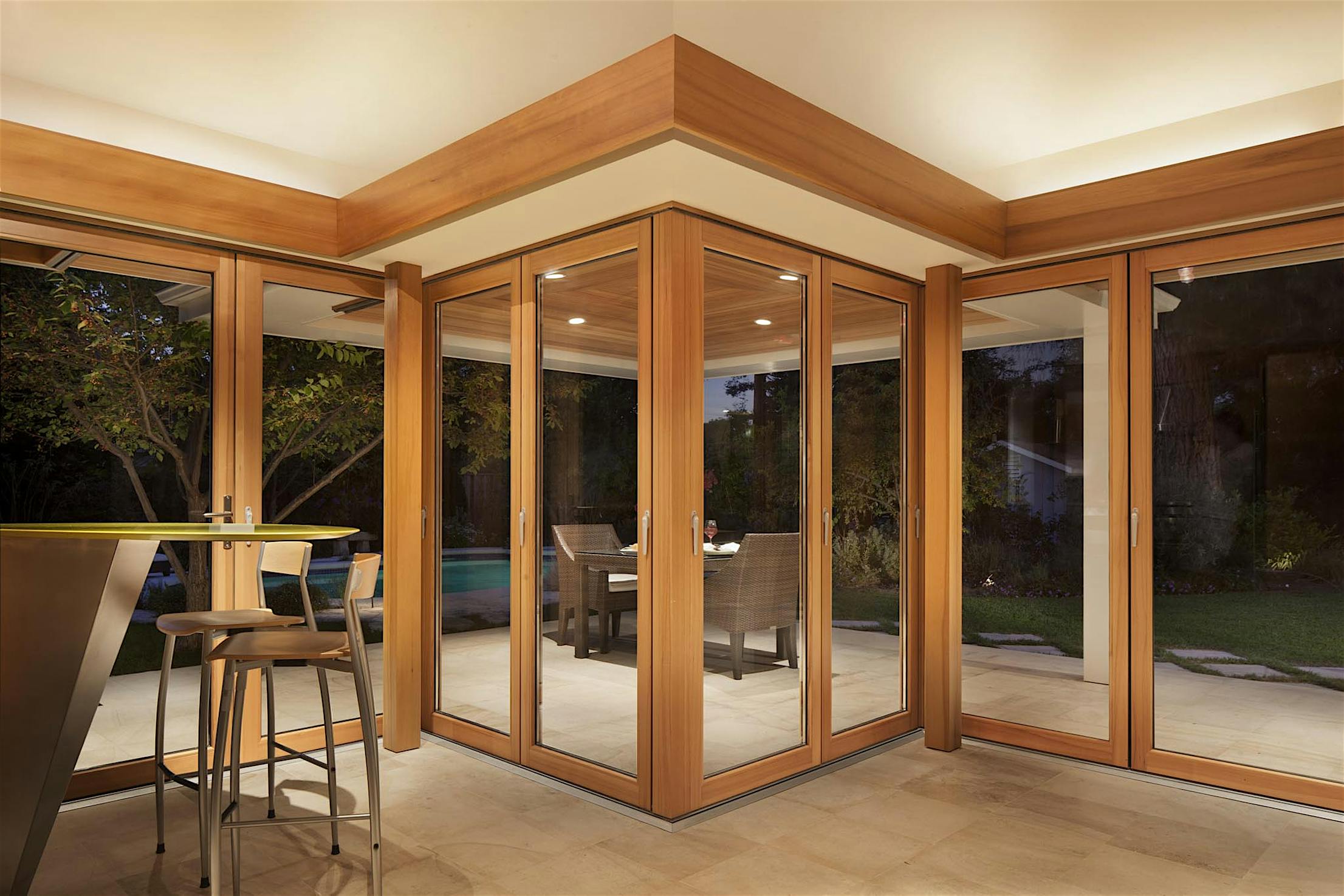

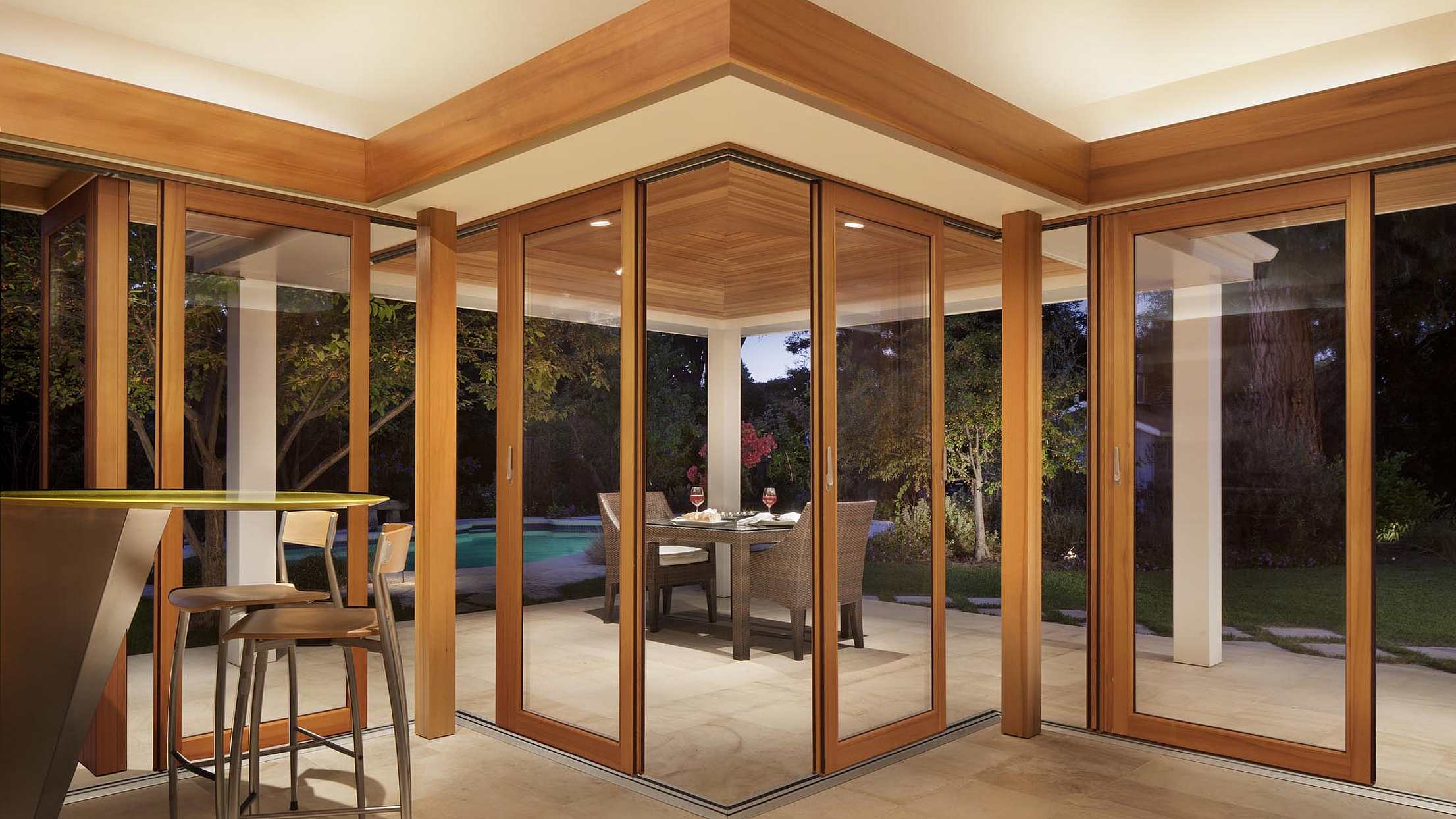

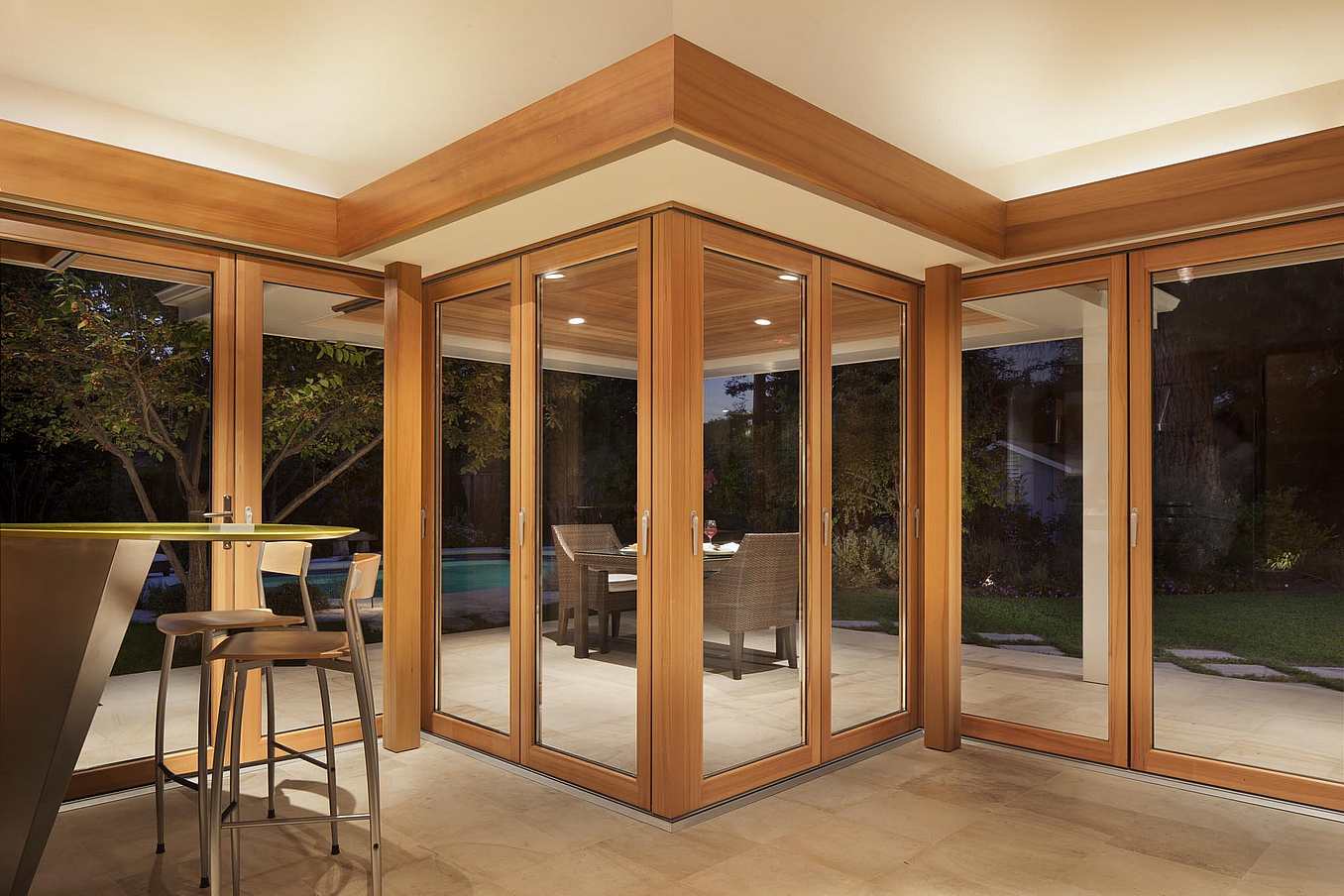

The single track design makes designing around posts or columns easy. Create open corner designs and stack the panels wherever best.

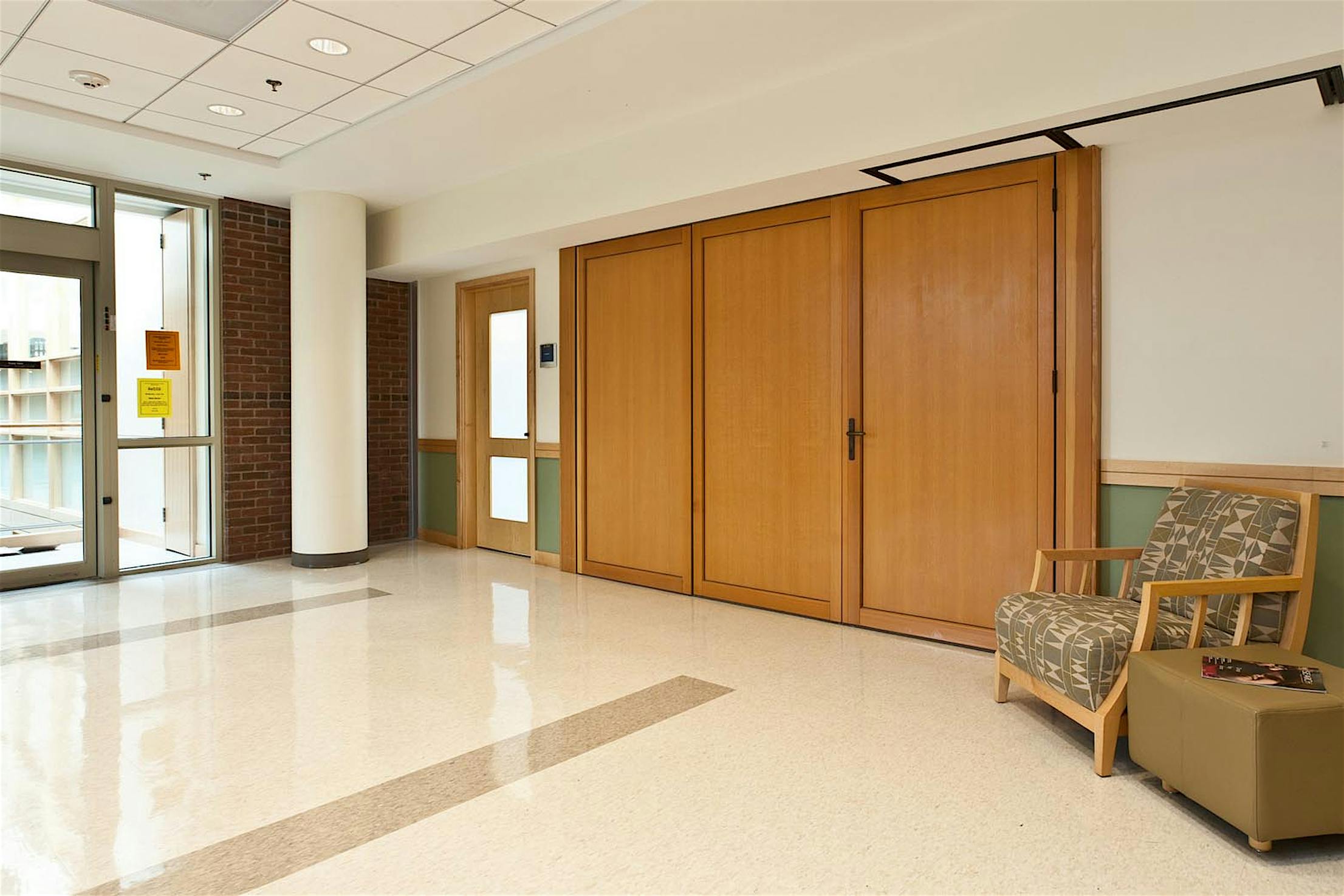

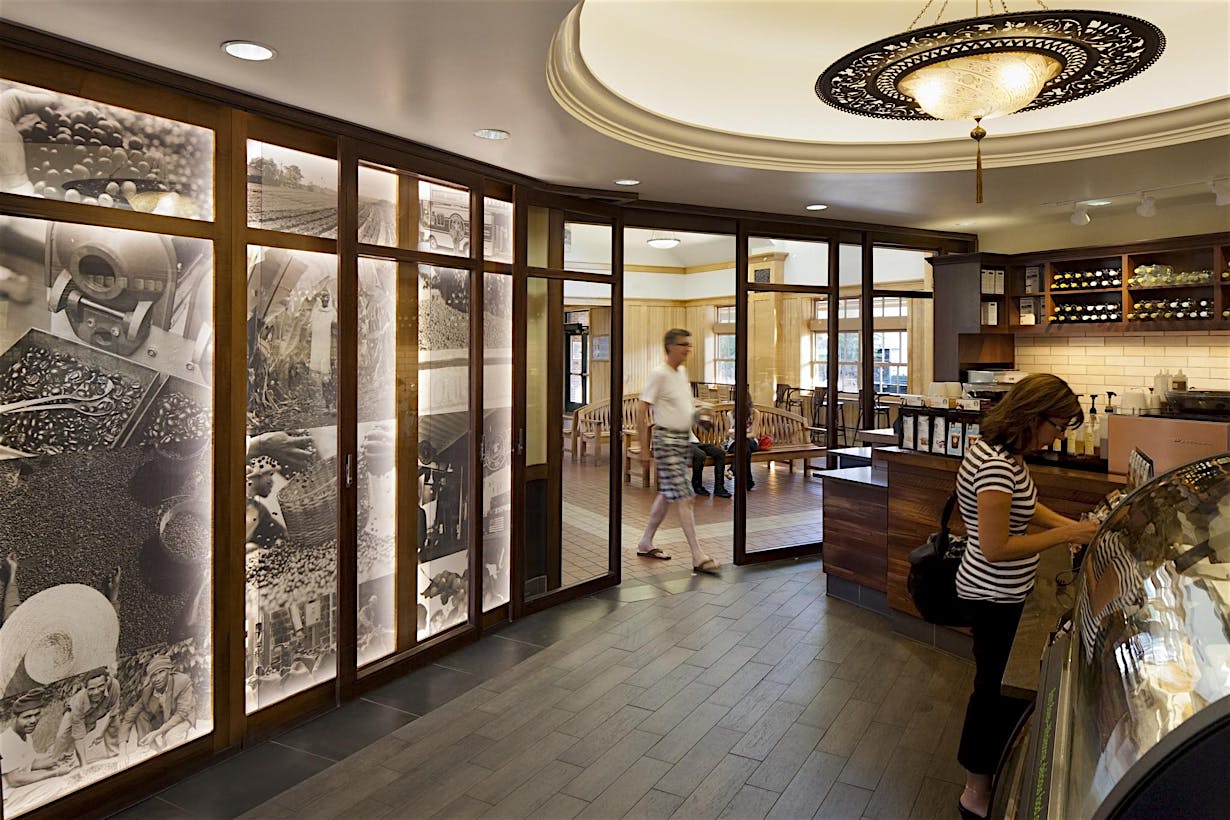

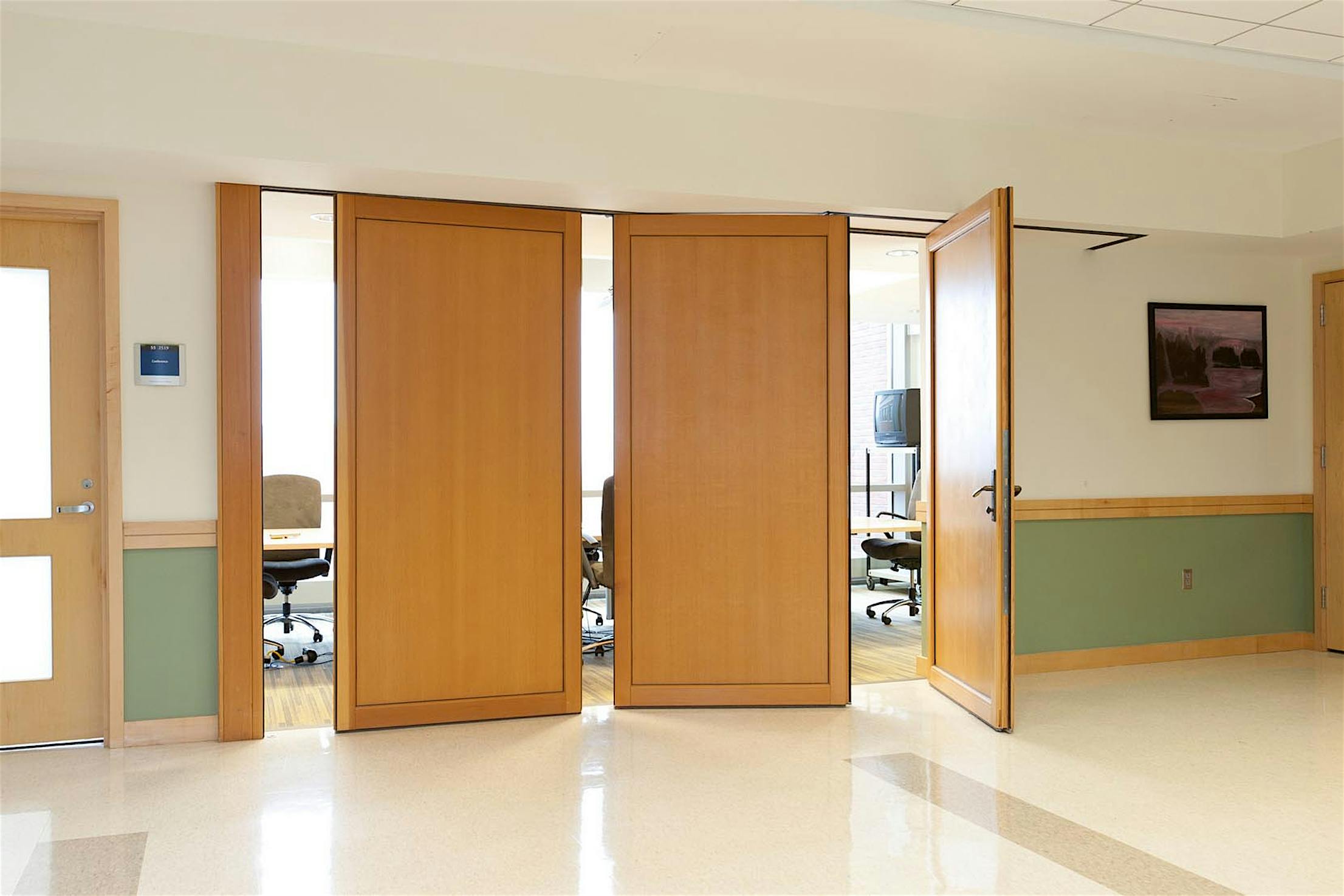

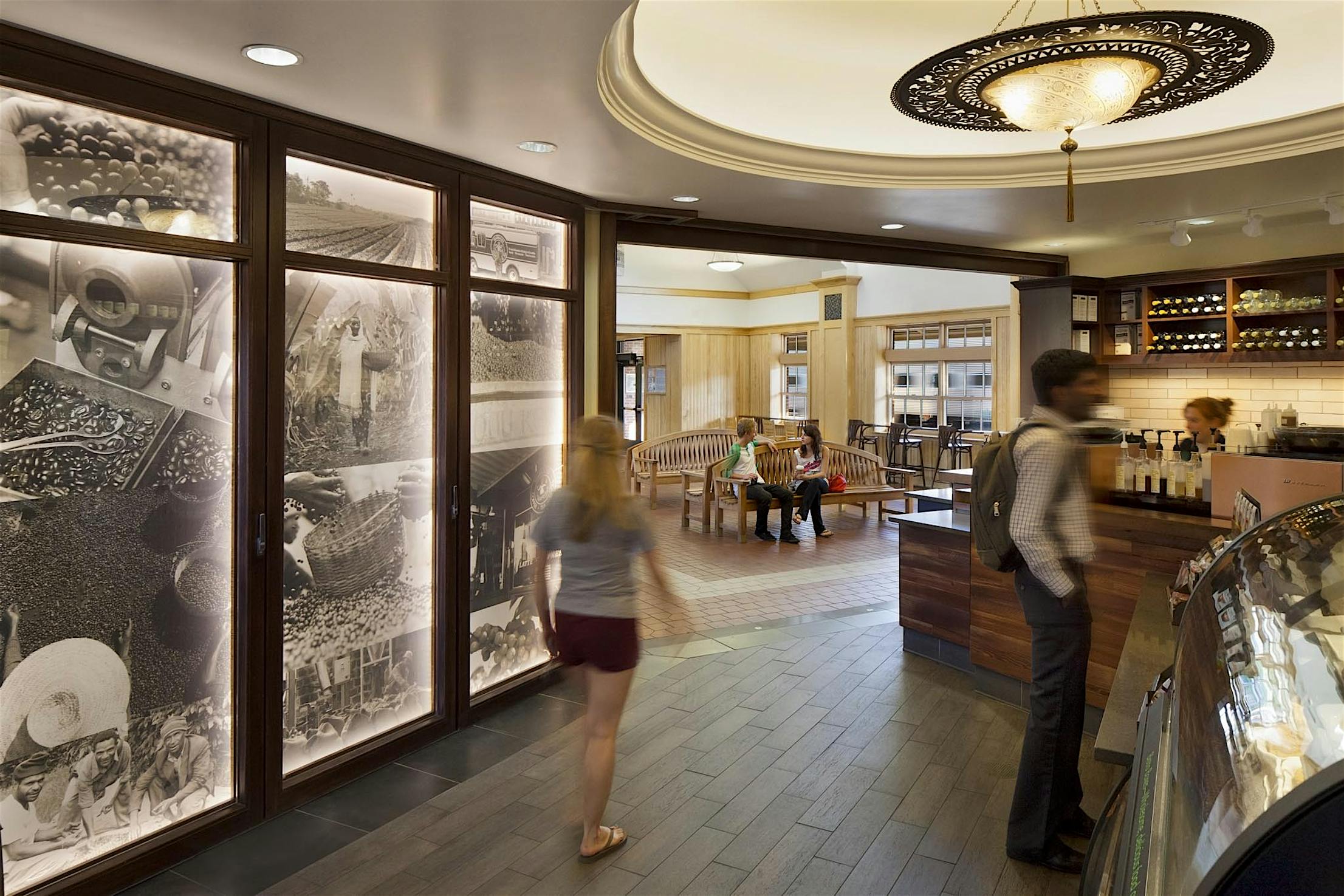

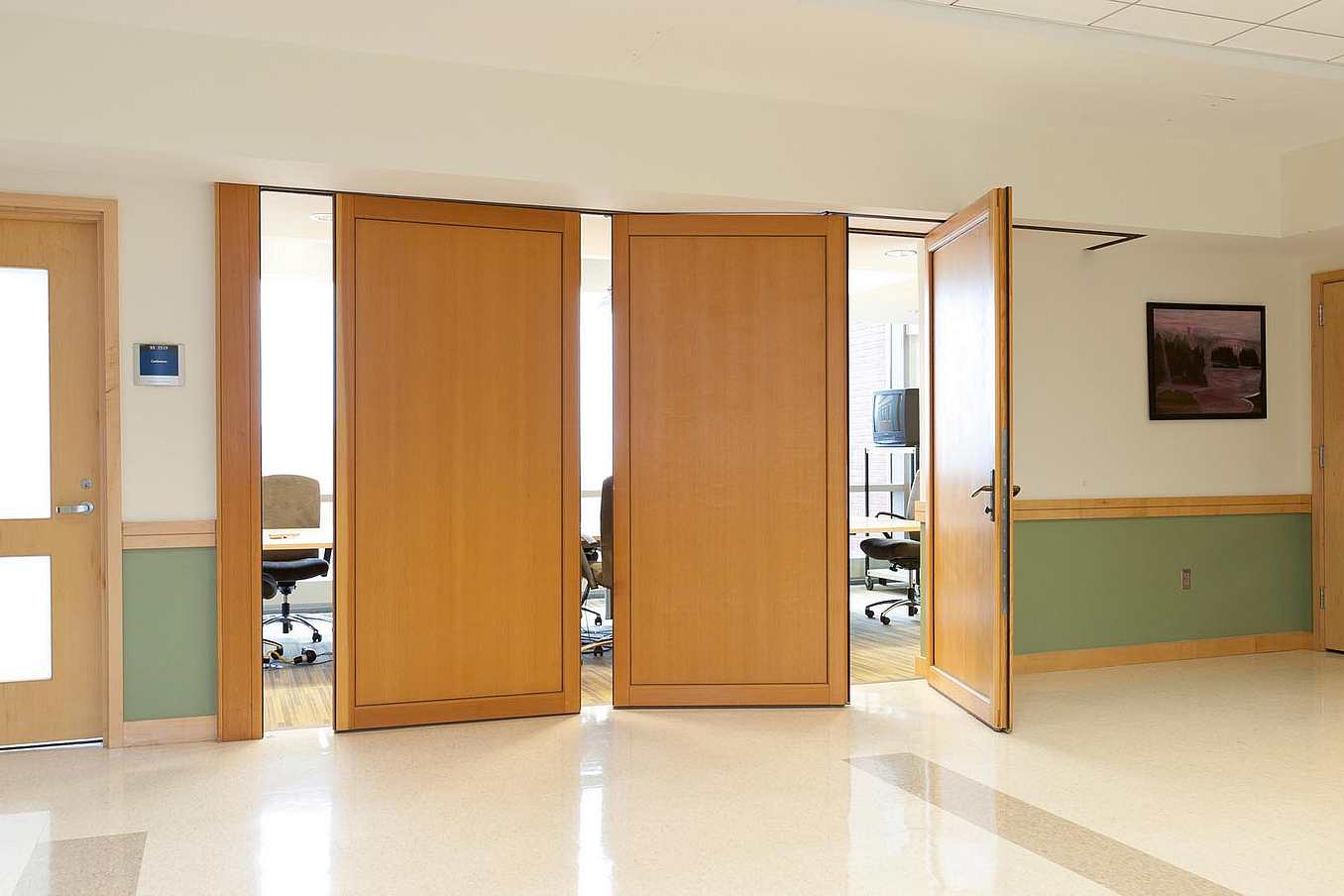

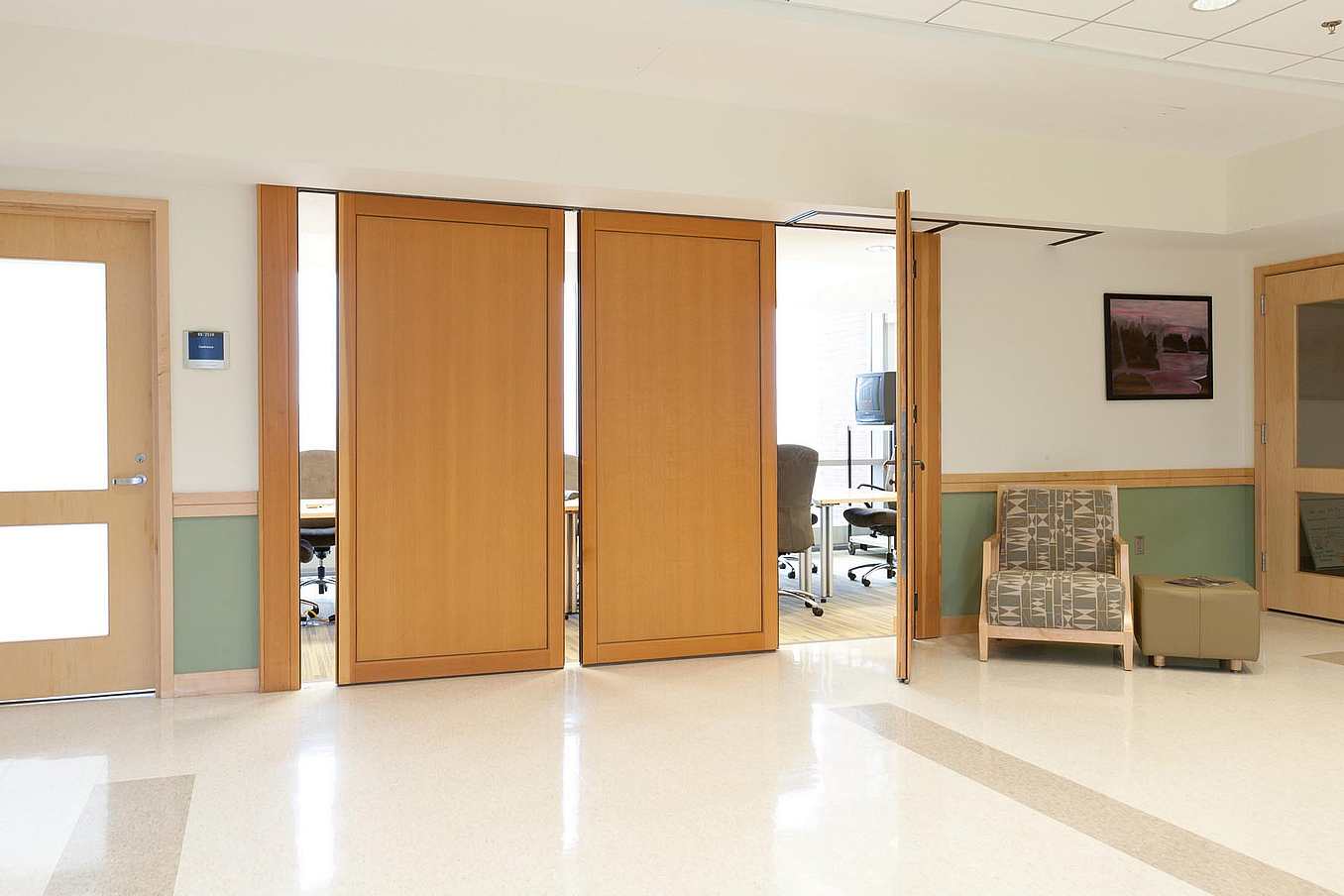

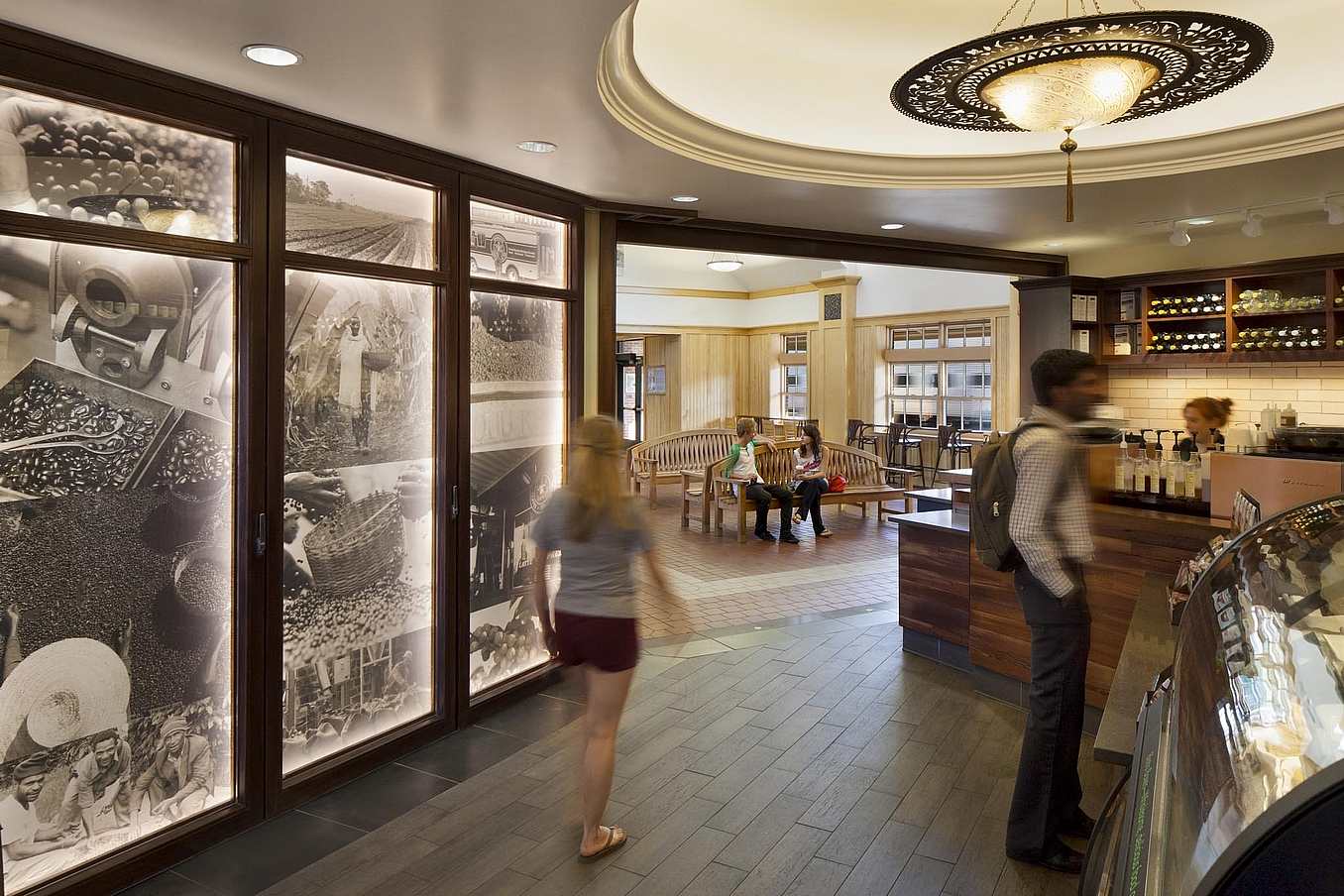

The NanaWall HSW66 can accommodate a variety of materials in addition to glass such as wood inserts, resin panels, or other decorative infill options your design requires. Choice of infill is only limited by total panel weight.

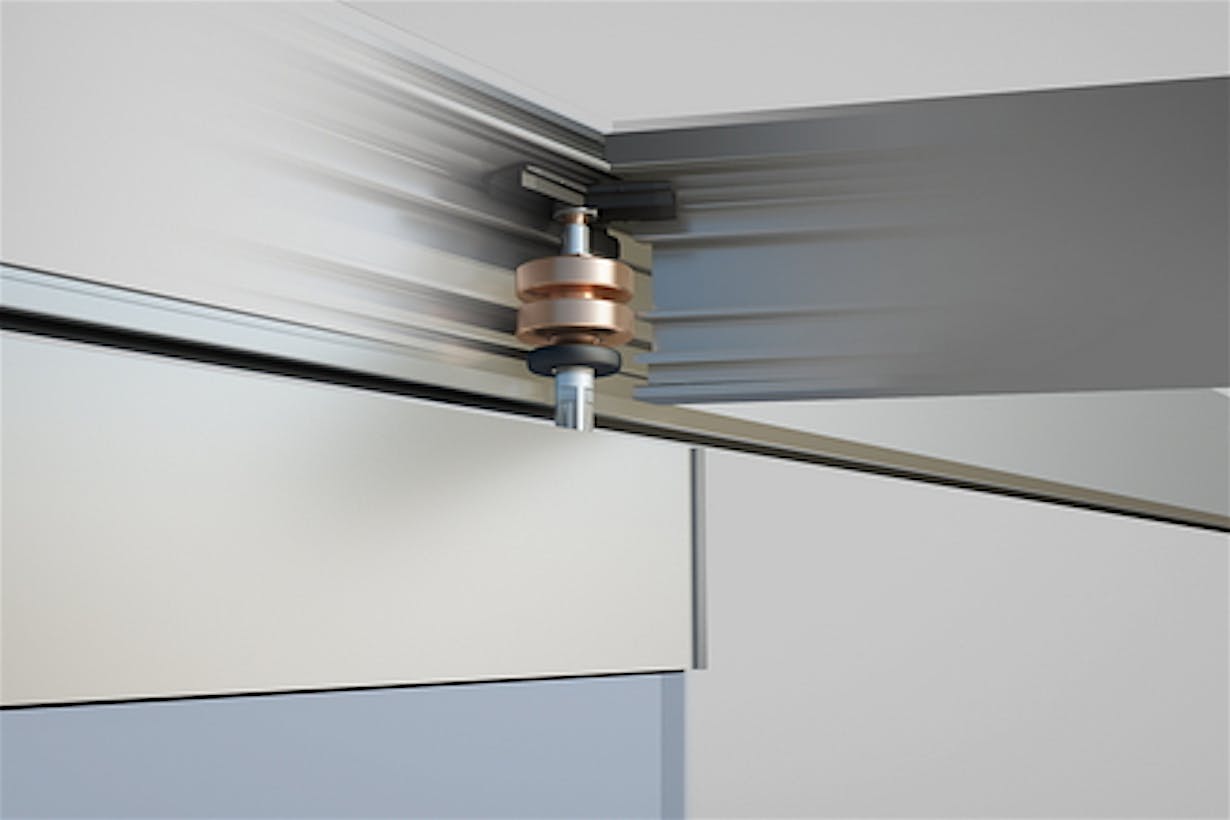

Intelligent Roller Track
The NanaWall HSW66 features an enhanced horizontal roller and guide track design that allows each individual panel to move effortlessly and intelligently around corners, posts, and anywhere else your design demands.
Smooth Detailing Narrow Sightlines

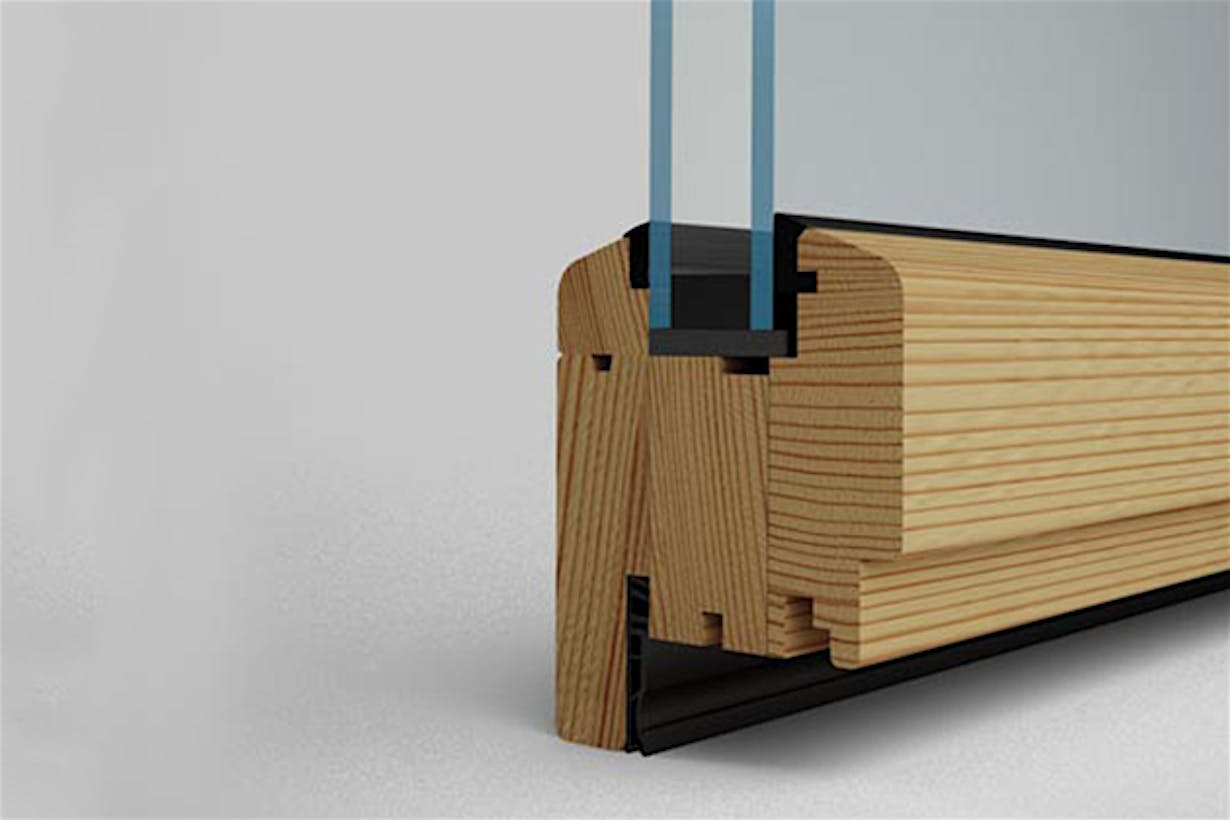

Beautifully sculpted all-wood design with eased edges and detailing around the frame and door panels accent the equal sightlines that form a picture frame like appearance.
Concealed Locking

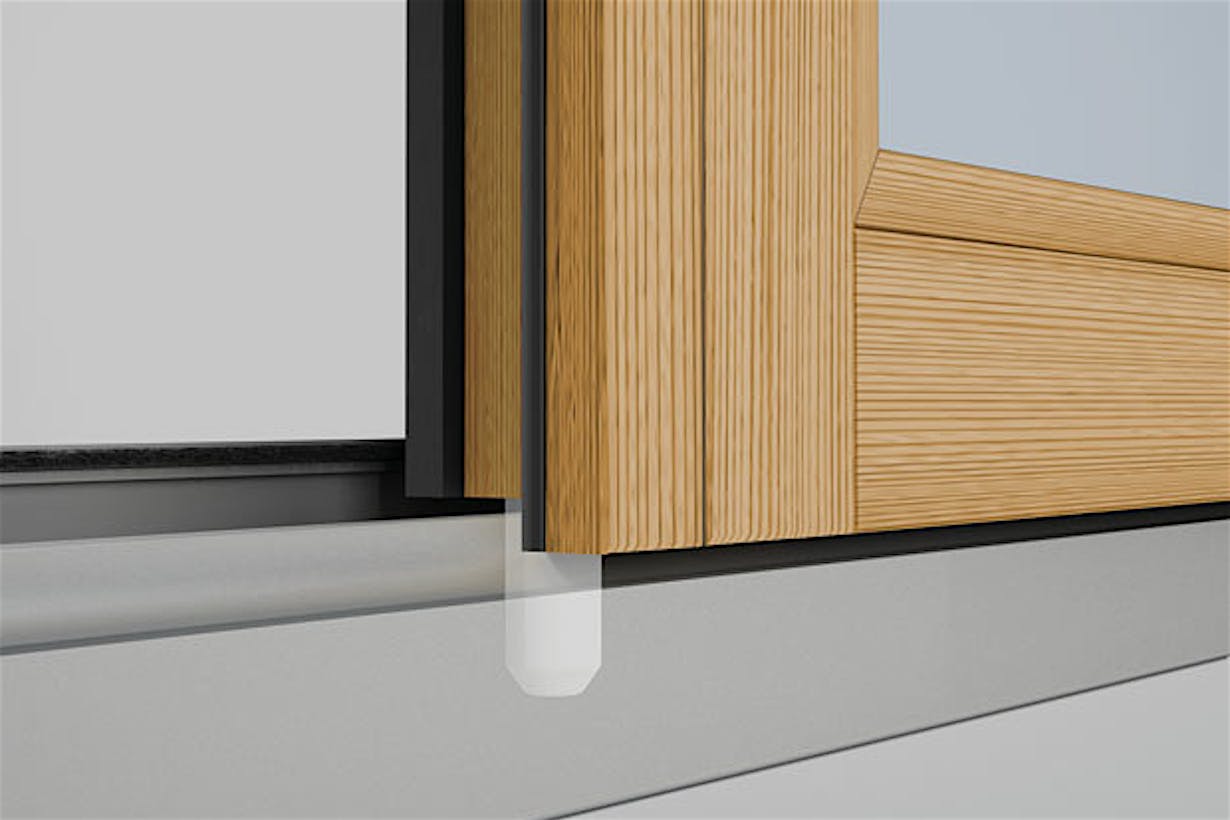

The NanaWall HSW66 features single-handed locking that is hidden inside the panel. No unsightly surface mounted locking. The locking rod engages both top and bottom for added security and is rated to protect from forced entry.
Extreme Weather Resistant
Energy-efficient by design, our glass walls keep the elements at bay, ensuring that even as seasons or temperatures change, your interior comfort will always remain the same.
Certified Testing Standards
NanaWall products endure the latest AAMA testing standards for air, water, structural, and forced entry.
Highly Energy-Efficient
Designed to keep the elements at bay, holding warmth inside while acting as a transparent barrier to the weather outside.
Materials Transparency
This product contributes to multiple LEED rating systems and has HPD certification.
Download Declaration Documents
Test Results
NanaWall systems meet or exceed air, water, structural, and forced entry tests for weather, durability, and security.
See Air, Water, Structural, Thermal, and Forced Entry Results
Performance When Closed Matters Most
Large openings are easy to design and there are many options to choose from. When deciding on a product that best for your project, performance when closed needs to be considered.
To ensure the longevity of our wood systems, we provide triple laminated cross-grains to accommodate the wood’s natural expansion and contraction.
See Wood Options

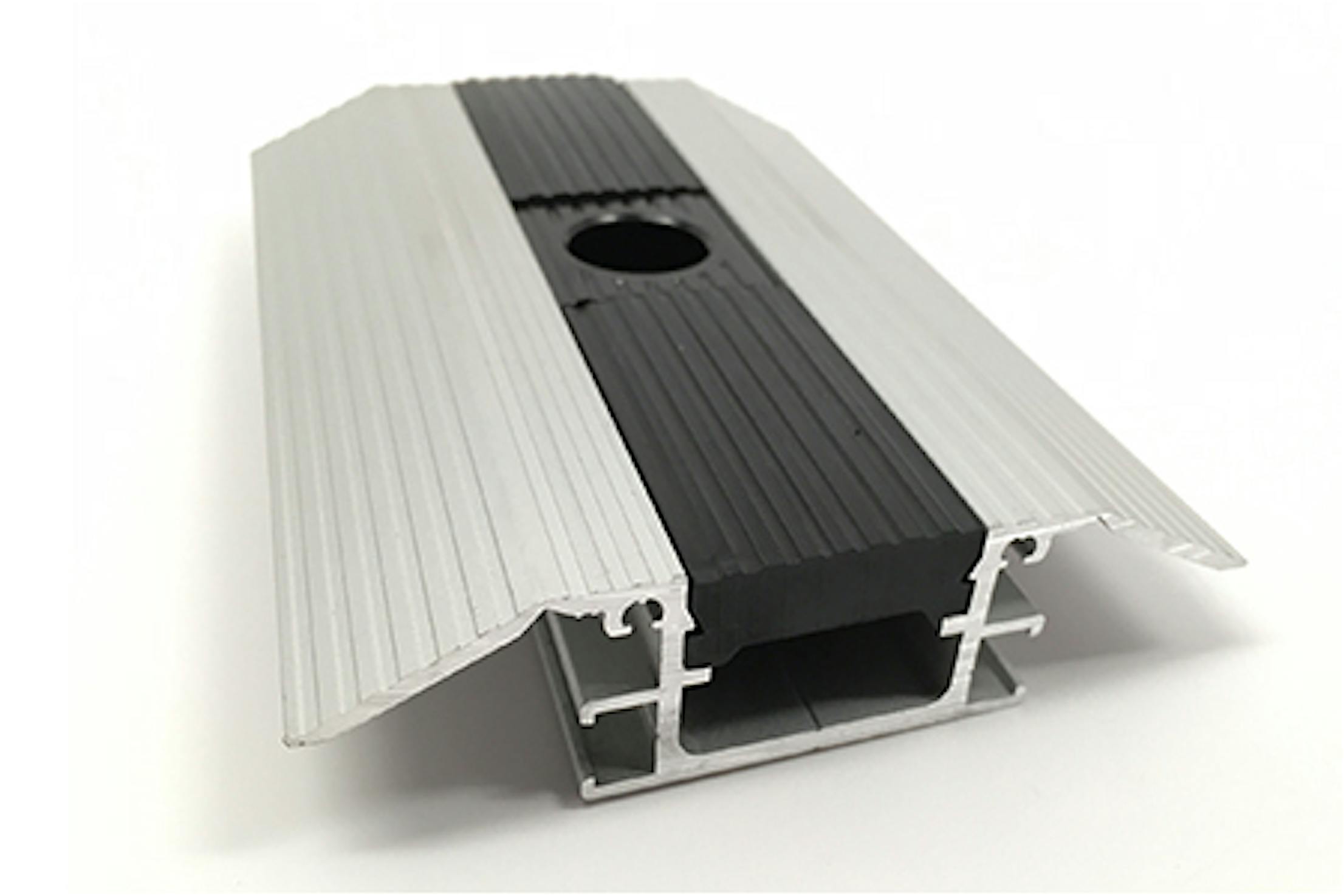

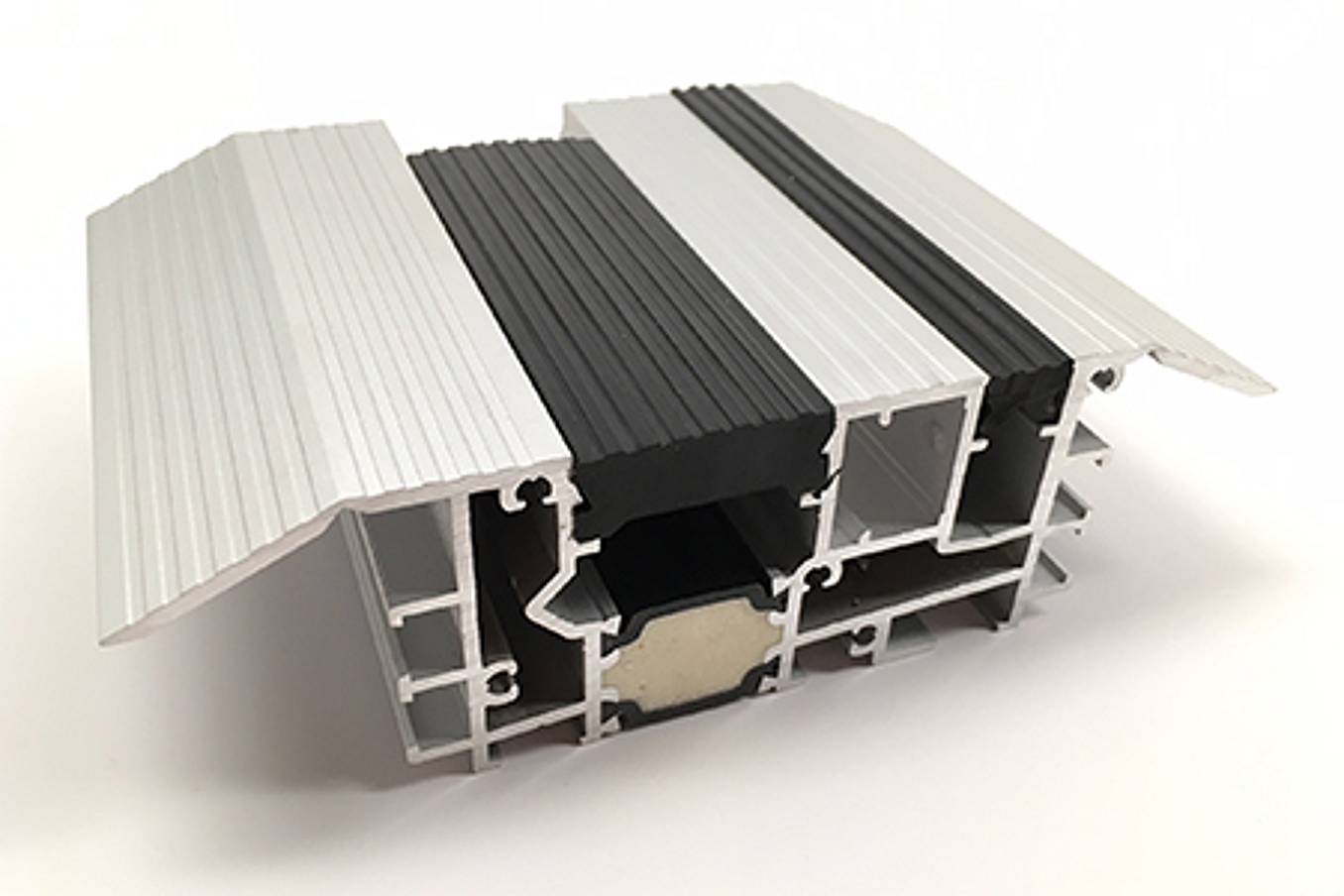

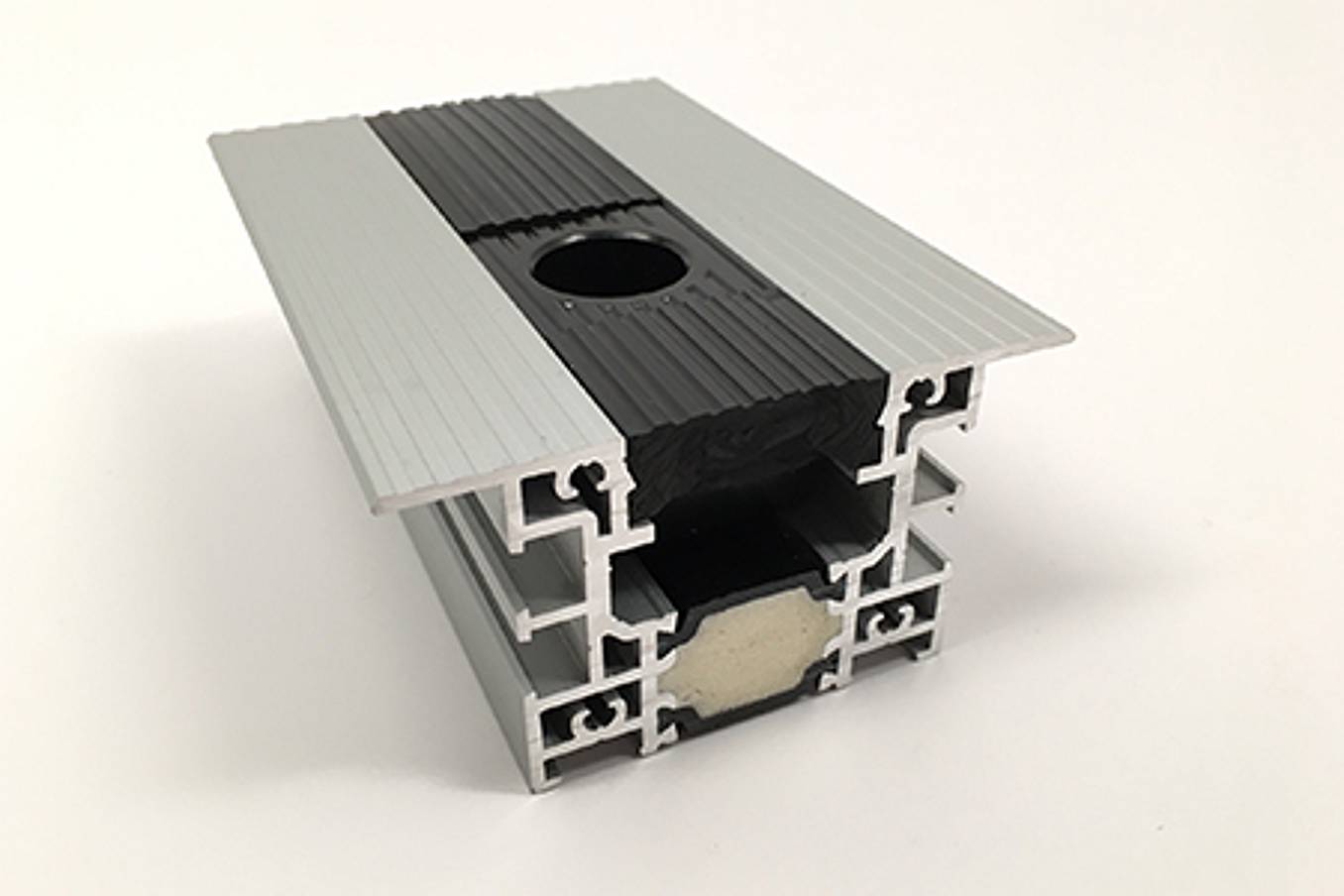

HSW66 comes with 4 sill options: Low Profile Saddle, Flush, Surface Mounted, and No Floor Track (Sockets).
See Sill Options
Units can be supplied glazed with 15/16" clear double insulating safety, 15/16" double insulating Low-E safety, 1 1/2" triple insulating glass, 1/4" single tempered, other high performing safety glass such as Heat Mirror, special tint, etc. or other glass on request. All glazing is reduced iron. Please contact NanaWall Systems for more details.
Glazing Options
Stylish Handles in Multiple Finishes
Our handles are both functional and stylish and can be customized to accentuate your space and reflect your style.
See Handle Options
Locking for Maximum Security
Standard to the system is concealed locking between folding panels that operates with a 180° turn of a flat handle.
See Locking Options
Retractable Screens by Others
A retractable screen add-on is perfect for blocking bugs while providing privacy and fresh air. Screens are not available through NanaWall Systems.
Retractable Screens by OthersDesign and customize systems using our 3D CAD/Revit/Spec Configurators or contact our dedicated design team for more possibilities.

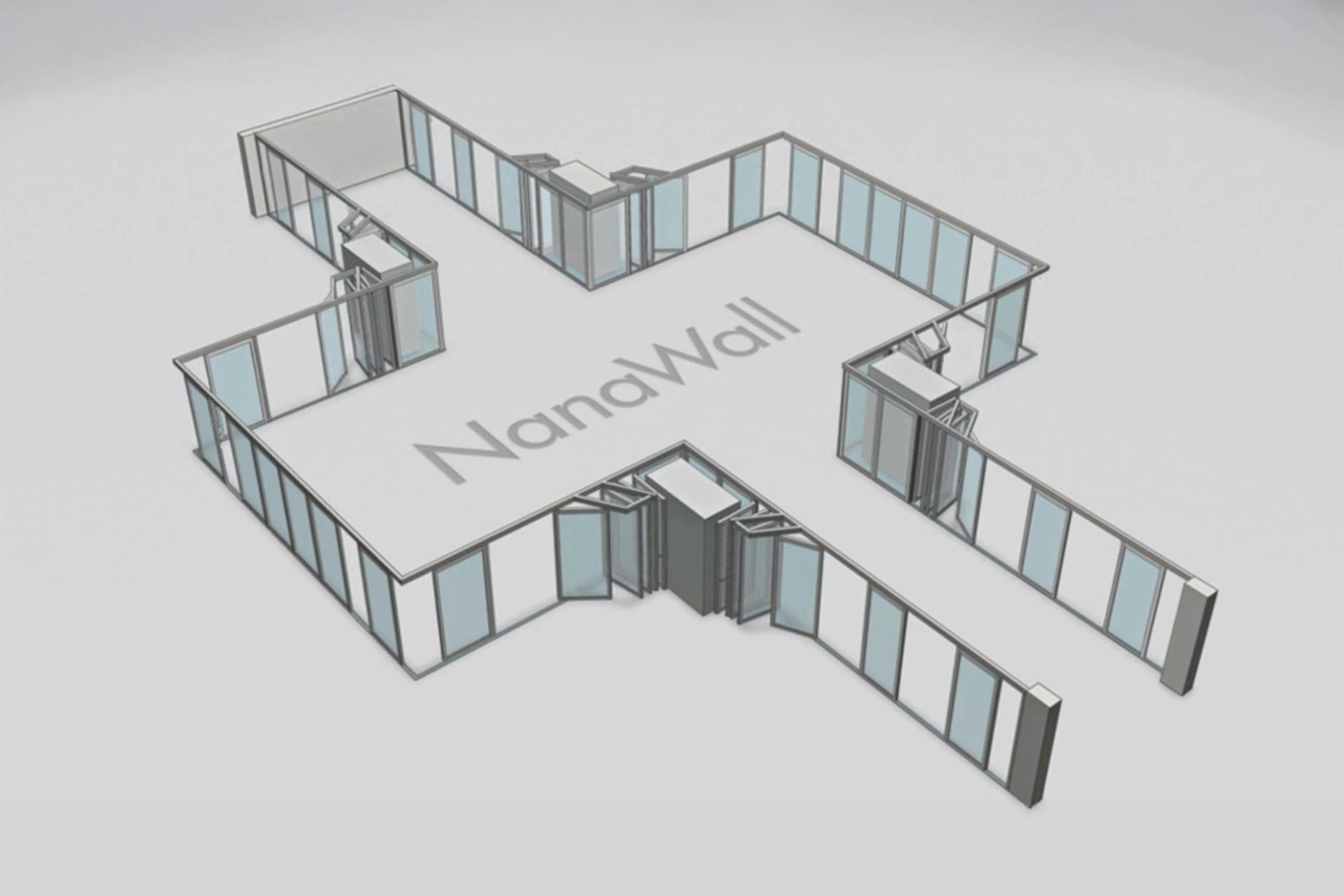

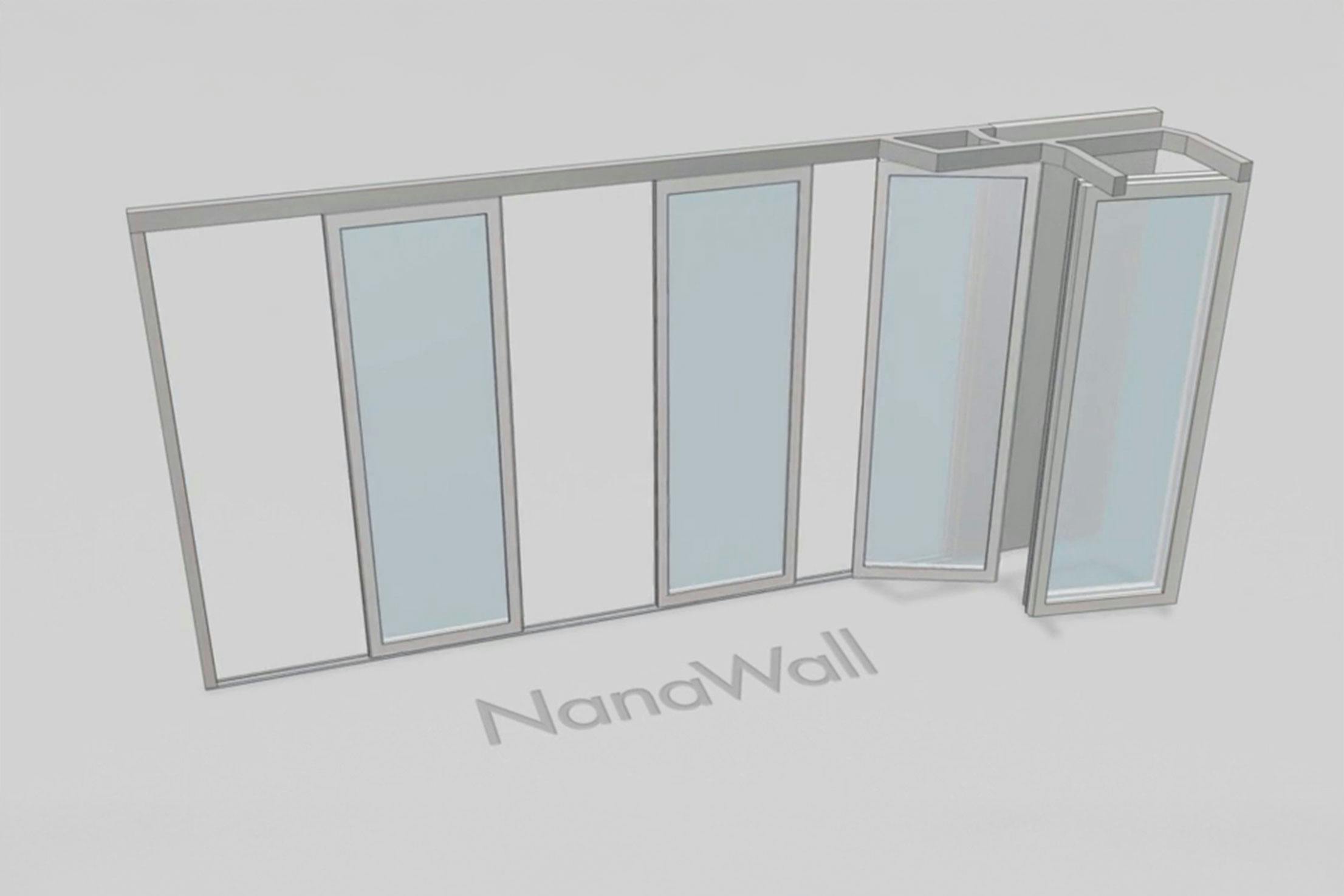

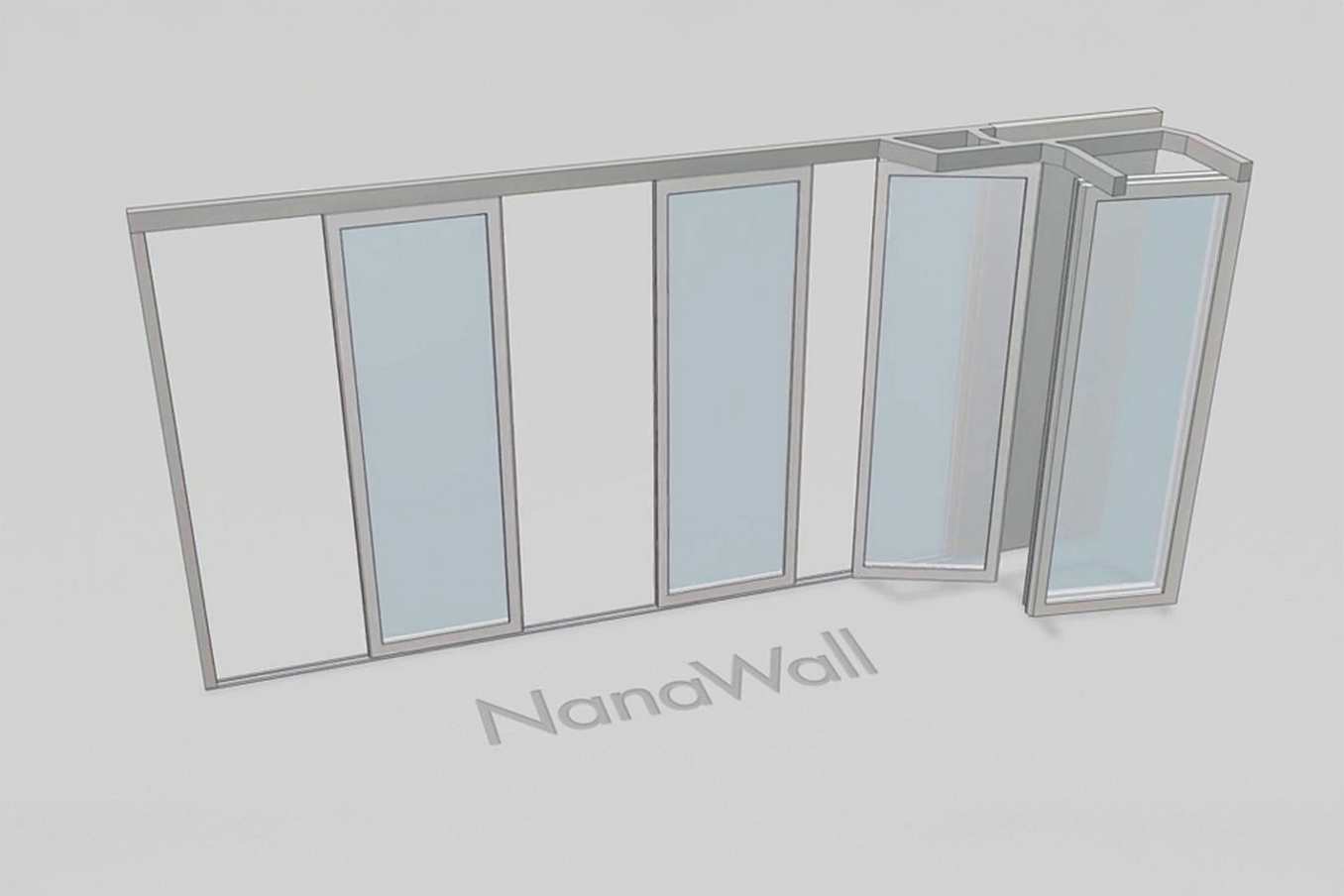

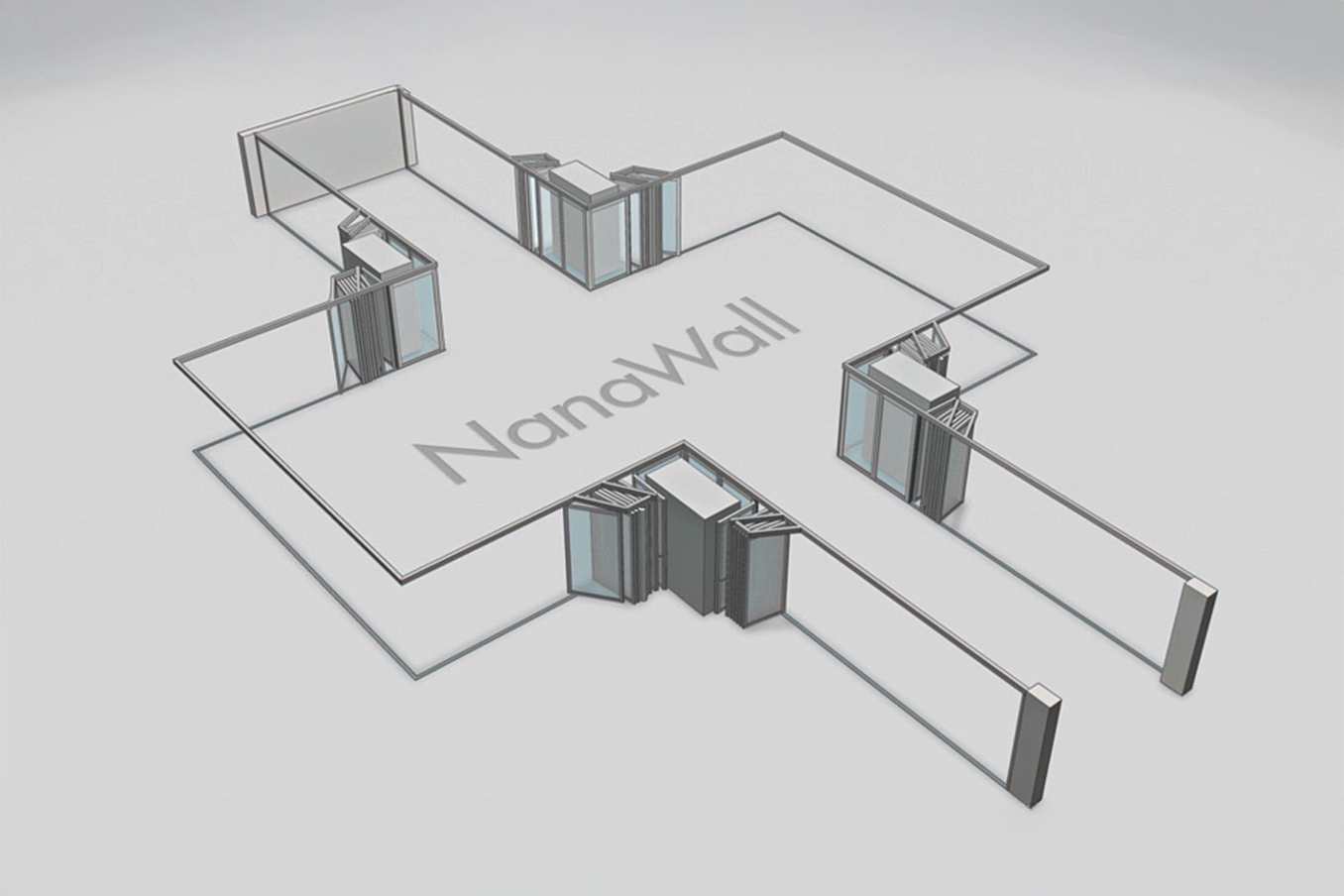

Parking bay configurations allow operable glass wall panels to turn and stack perpendicular to the main opening when fully open. Panels park at a 90° angle into a designated side bay, keeping the opening clear while organizing panels within a compact adjacent area.
View More Parking Bay Configurations View Product Applications

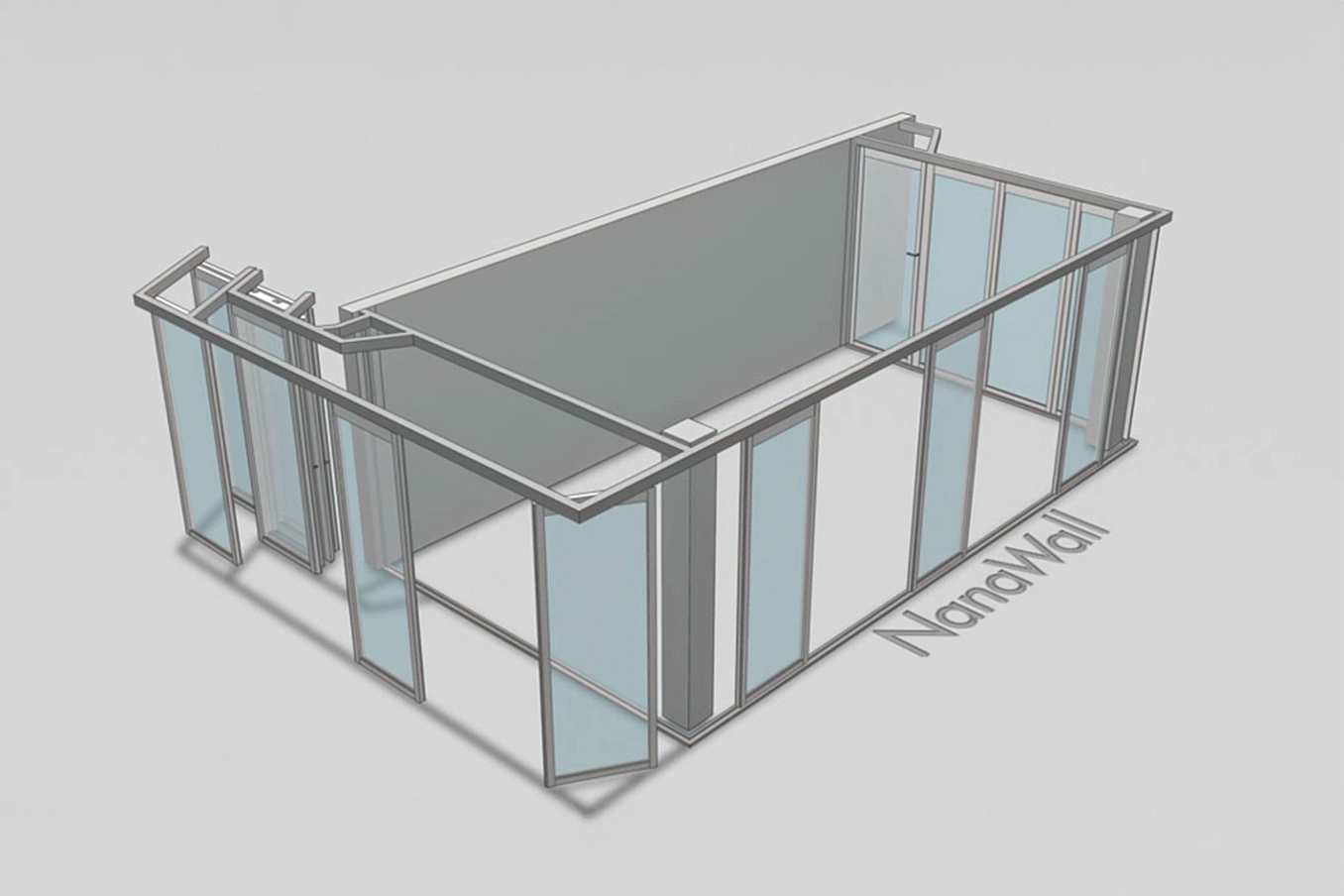

RemoteSTACK® configurations allow individual panels on a single track to slide and park well outside the main opening. Panels move along the track and park in a designated area away from the entrance, creating completely clear openings while giving designers greater flexibility to position parked panels based on layout, circulation, and spatial needs.
View More RemoteSTACK Configurations

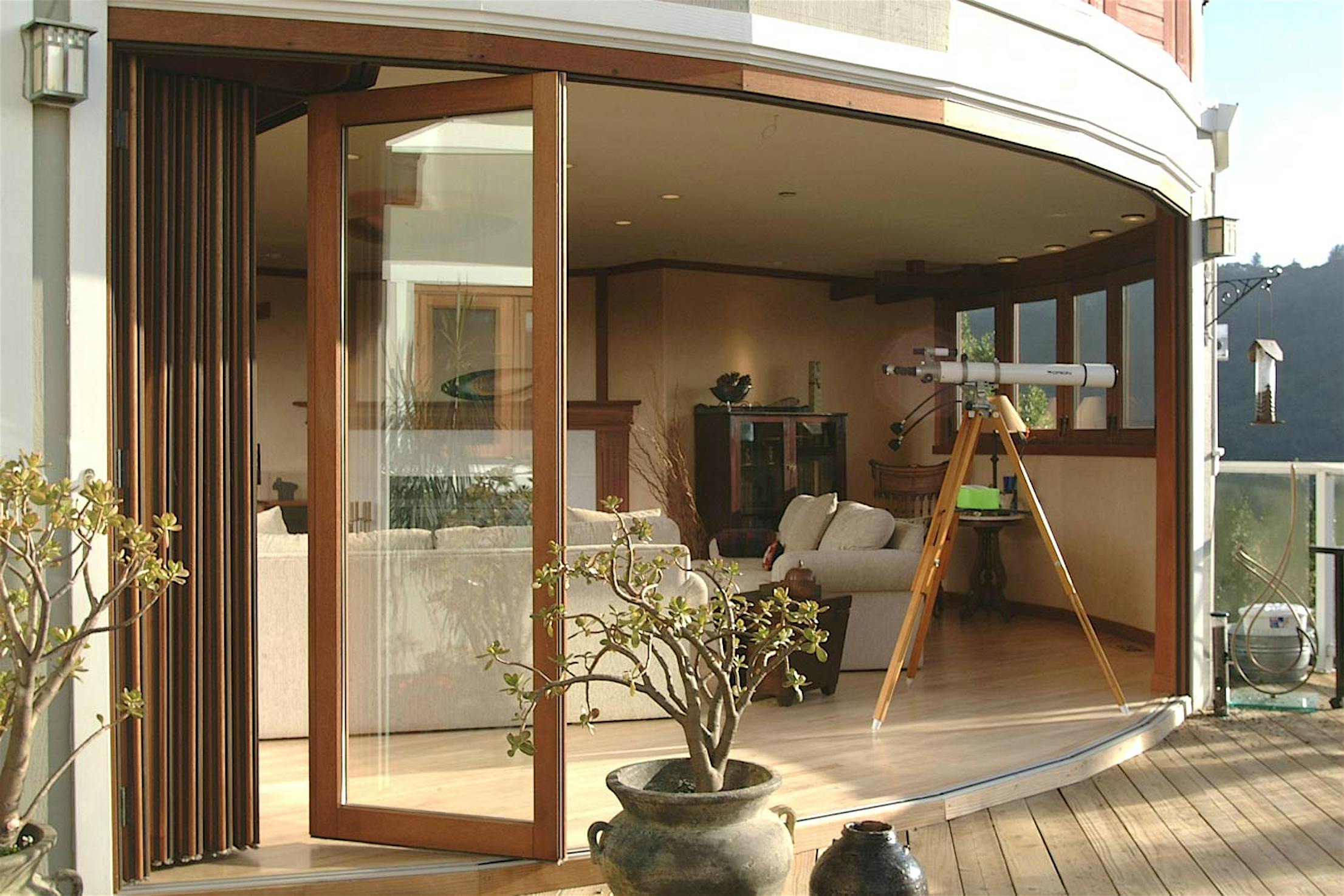

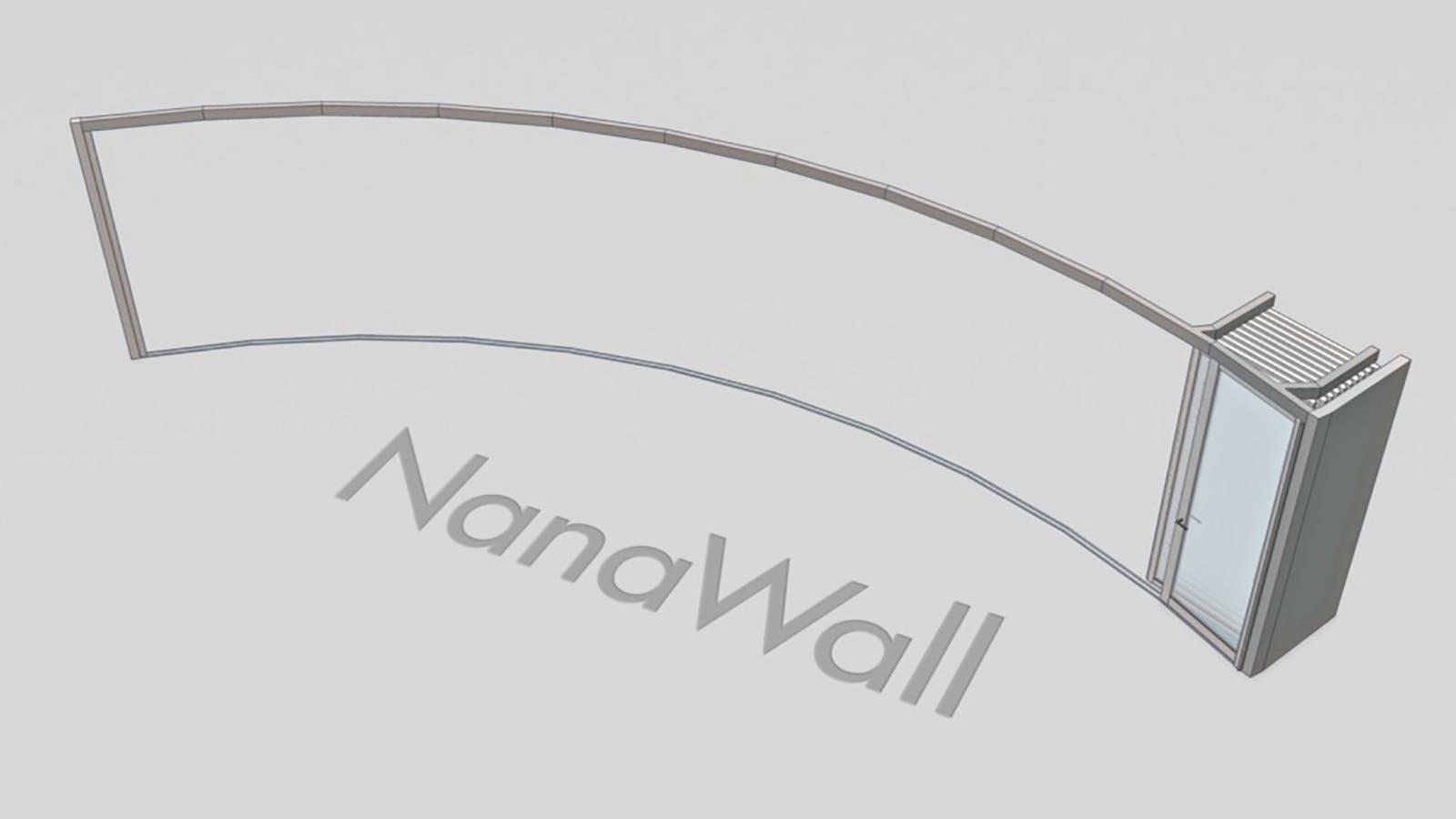

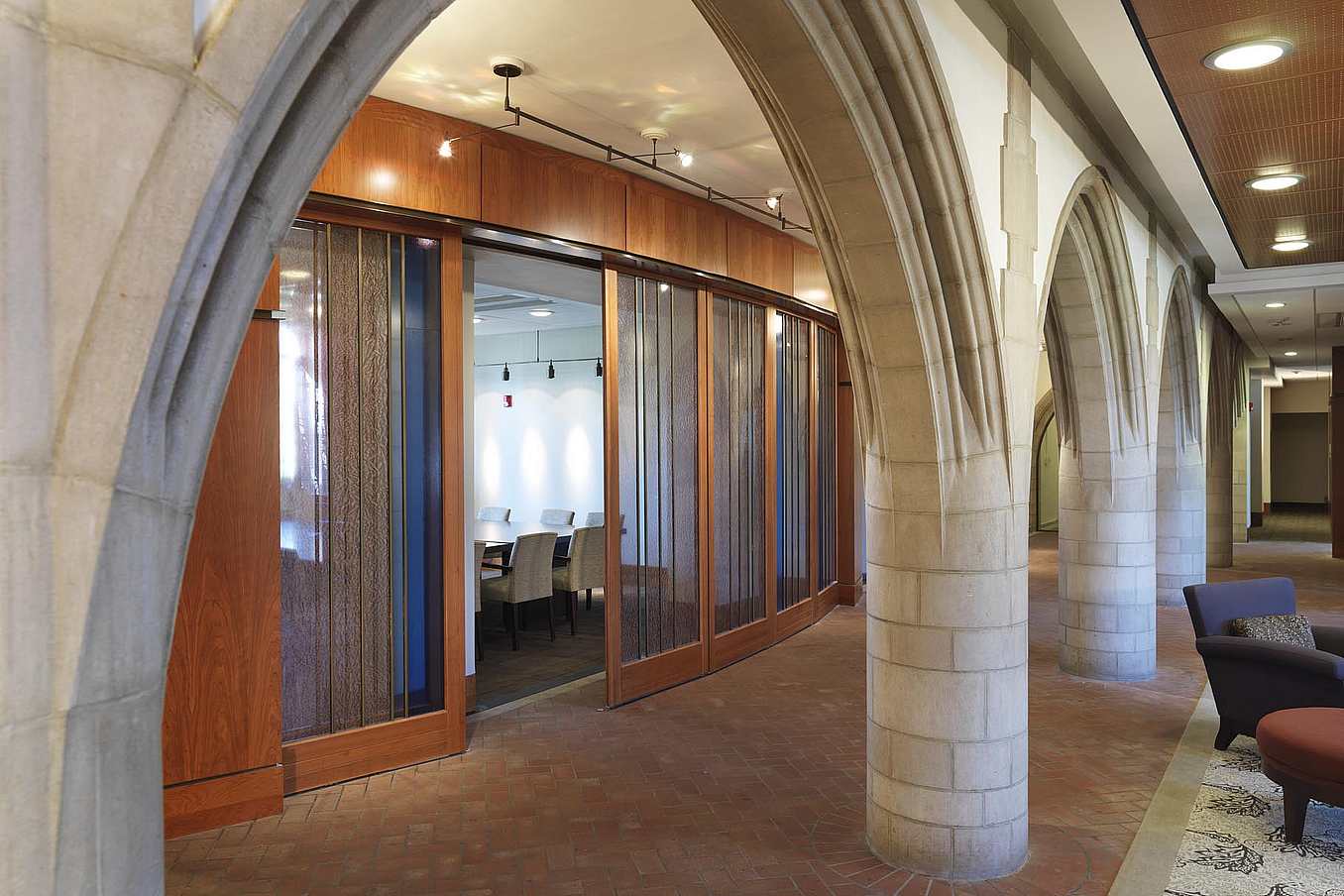

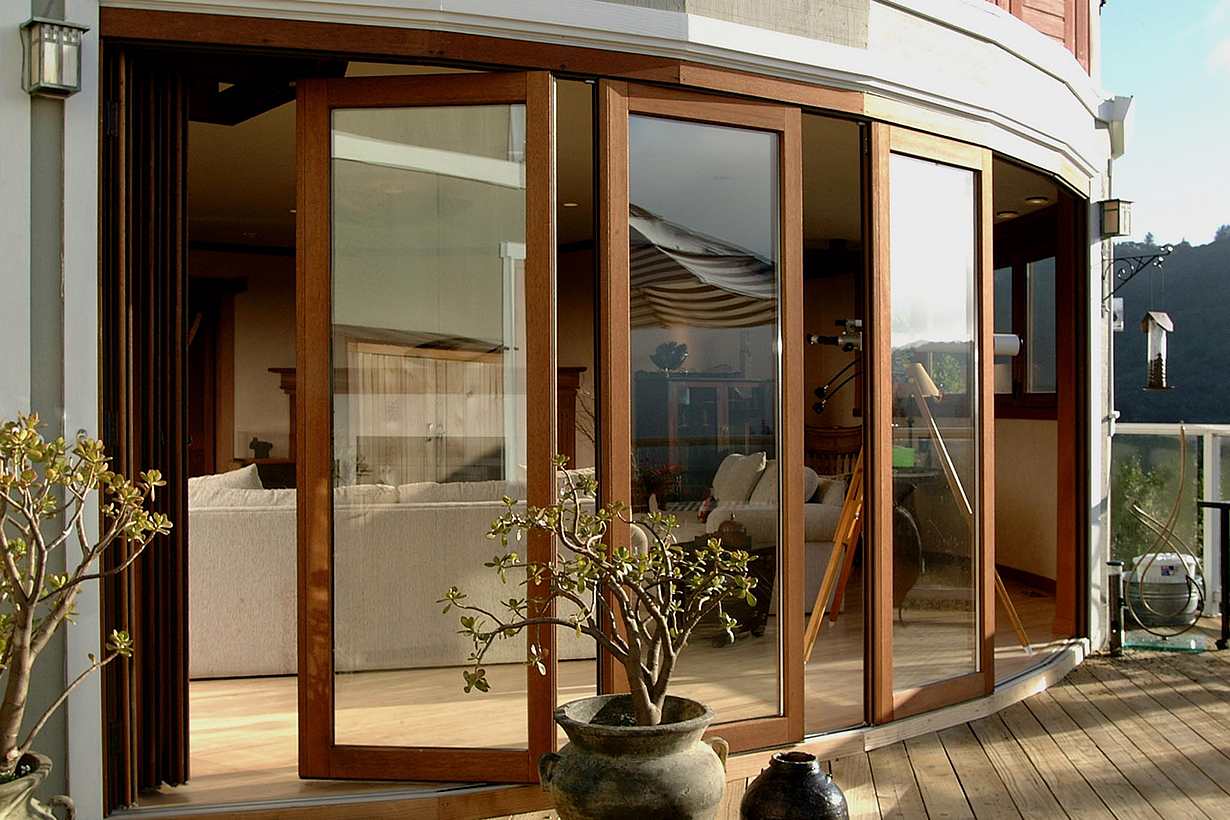

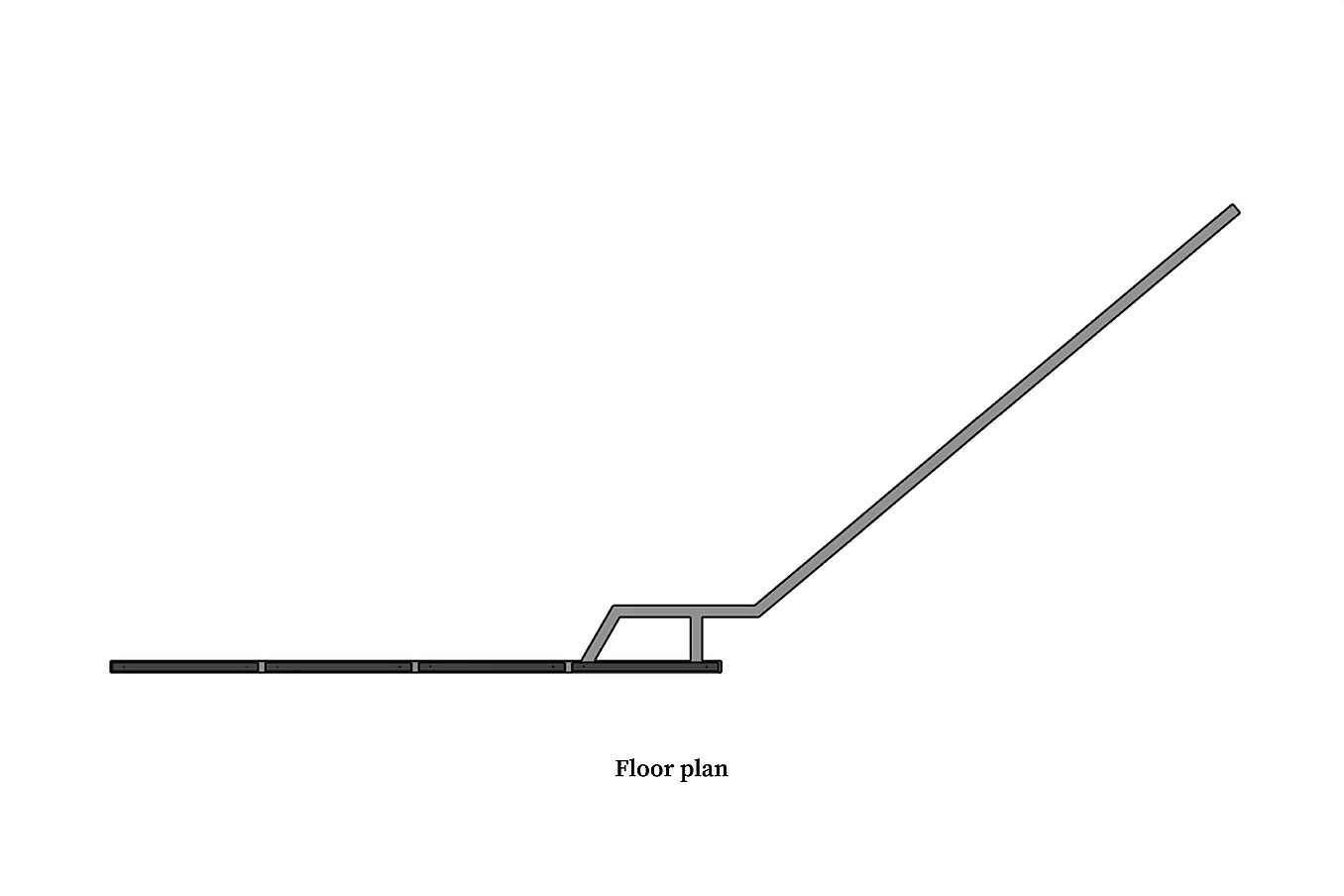

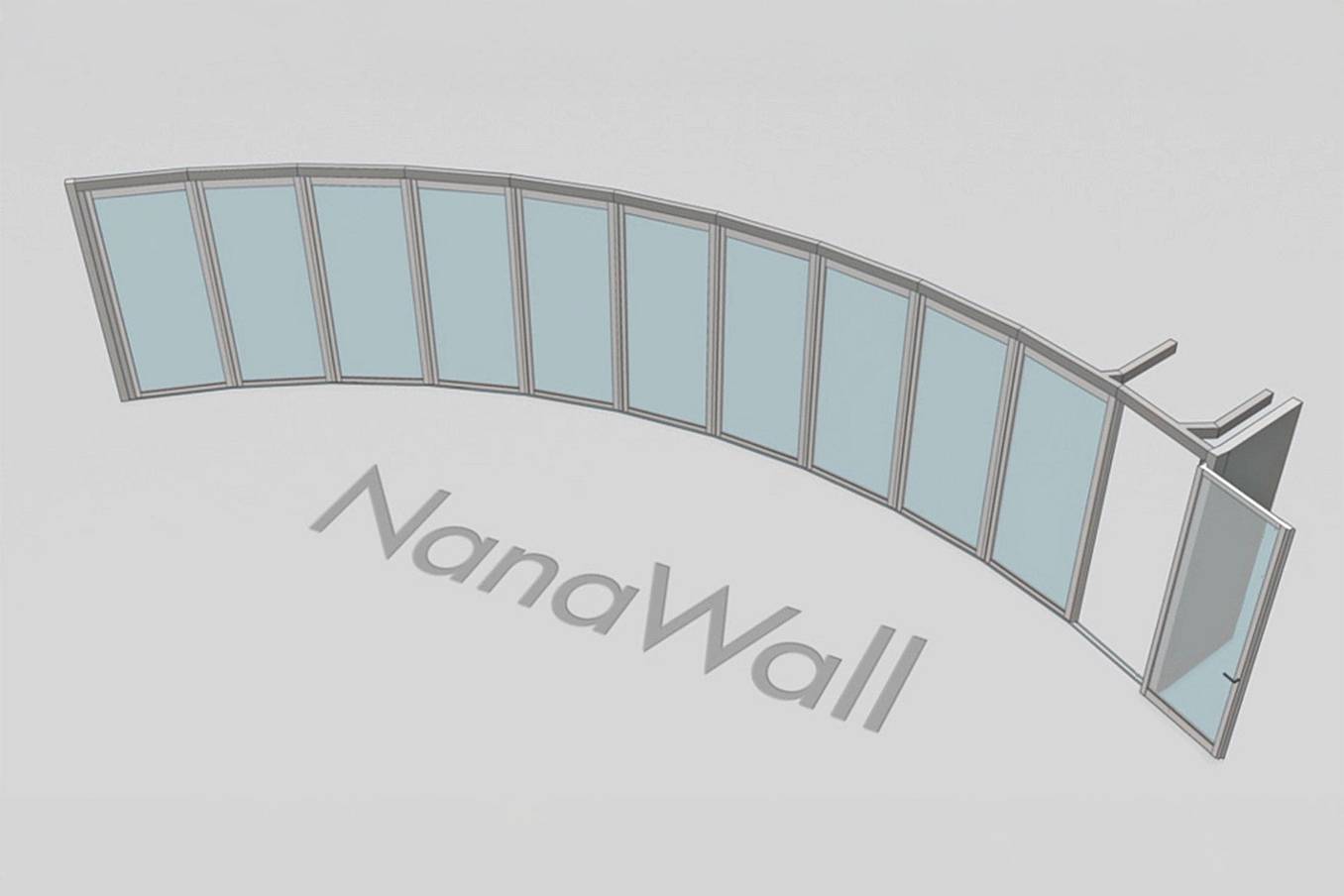

Segmented configurations arrange operable glass wall panels across multiple angled or curved segments, allowing the system to follow architectural geometry beyond a straight line. This layout supports faceted walls, gentle curves, and radius designs while maintaining operability and visual continuity across residential and commercial applications.
View More Segmented Configurations View Product Applications

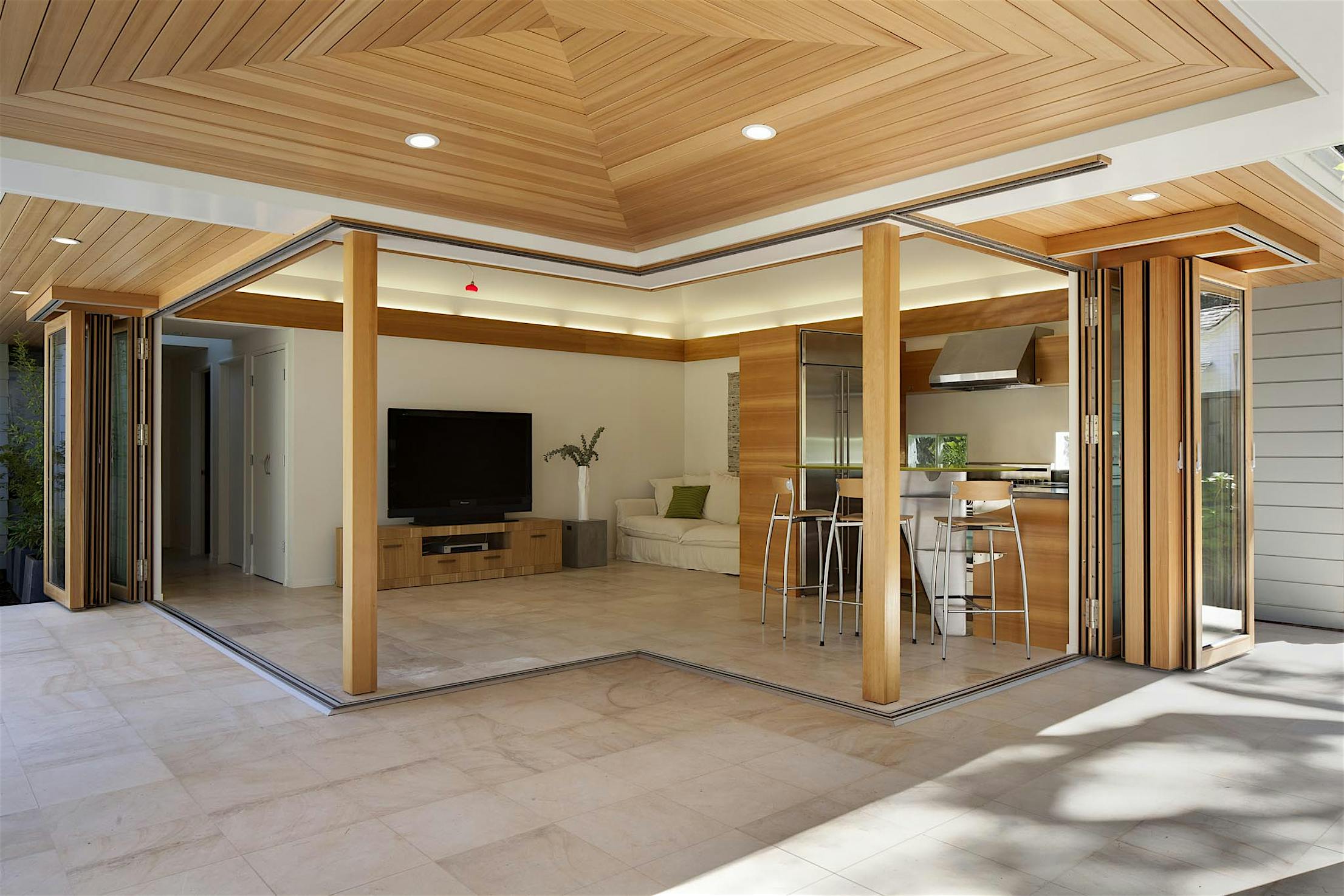

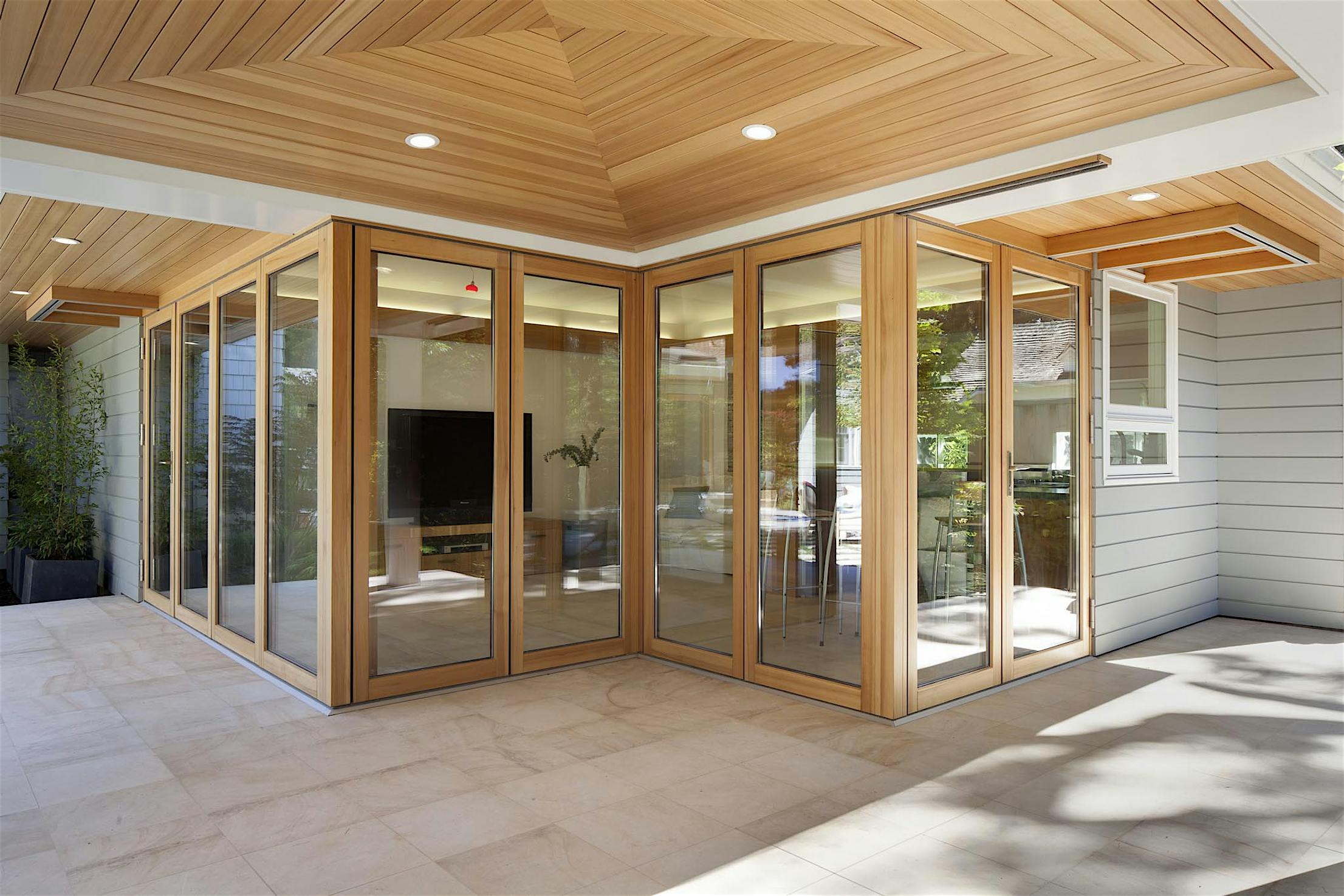

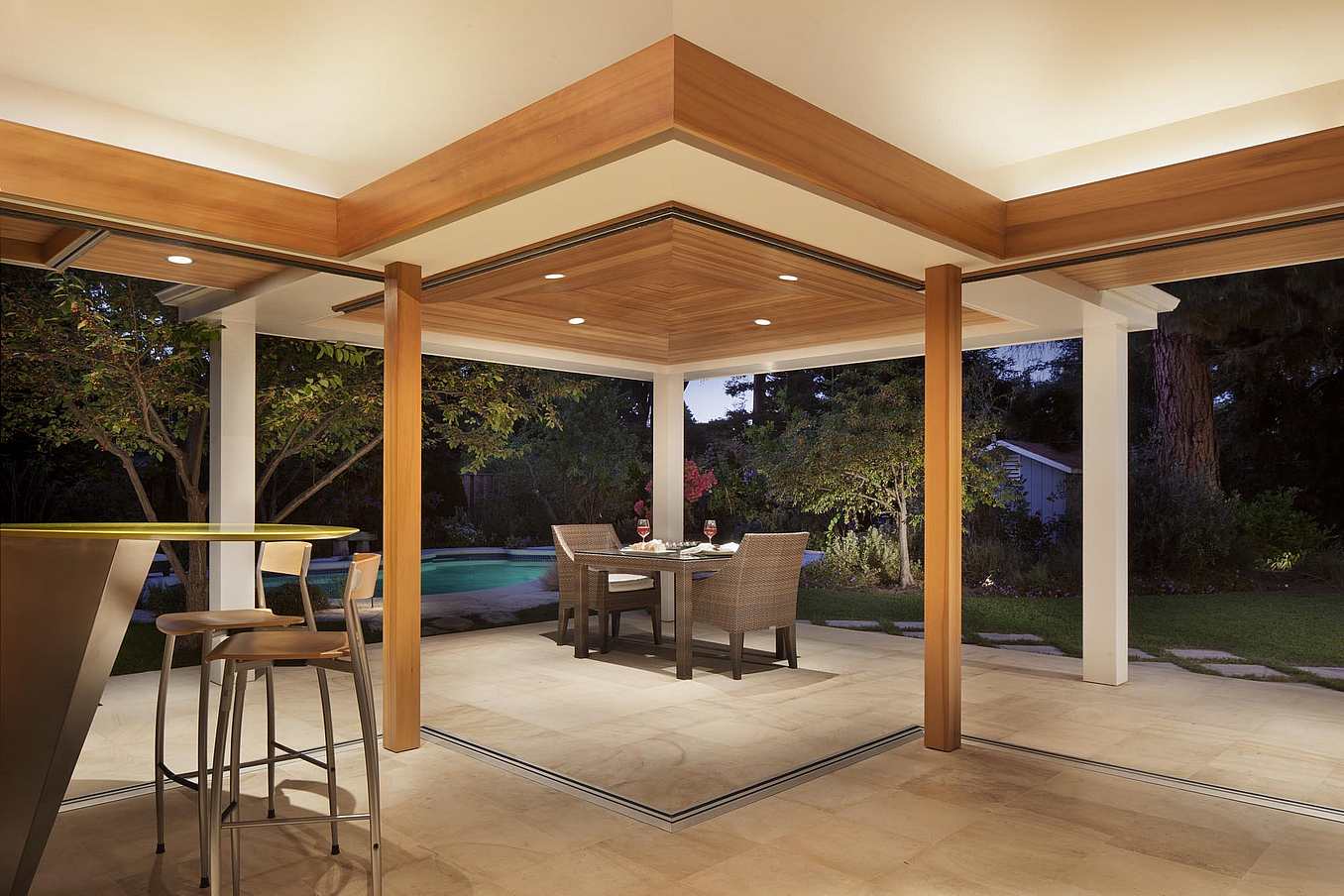

Cornerless (Open Corner) configurations remove the vertical corner post where two operable glass walls meet at 90°, allowing panels to open in multiple directions and create a fully unobstructed corner opening. This layout enhances visual openness, spatial flow, and flexible indoor-outdoor transitions.
View More Open Corner Configurations View Product Applications

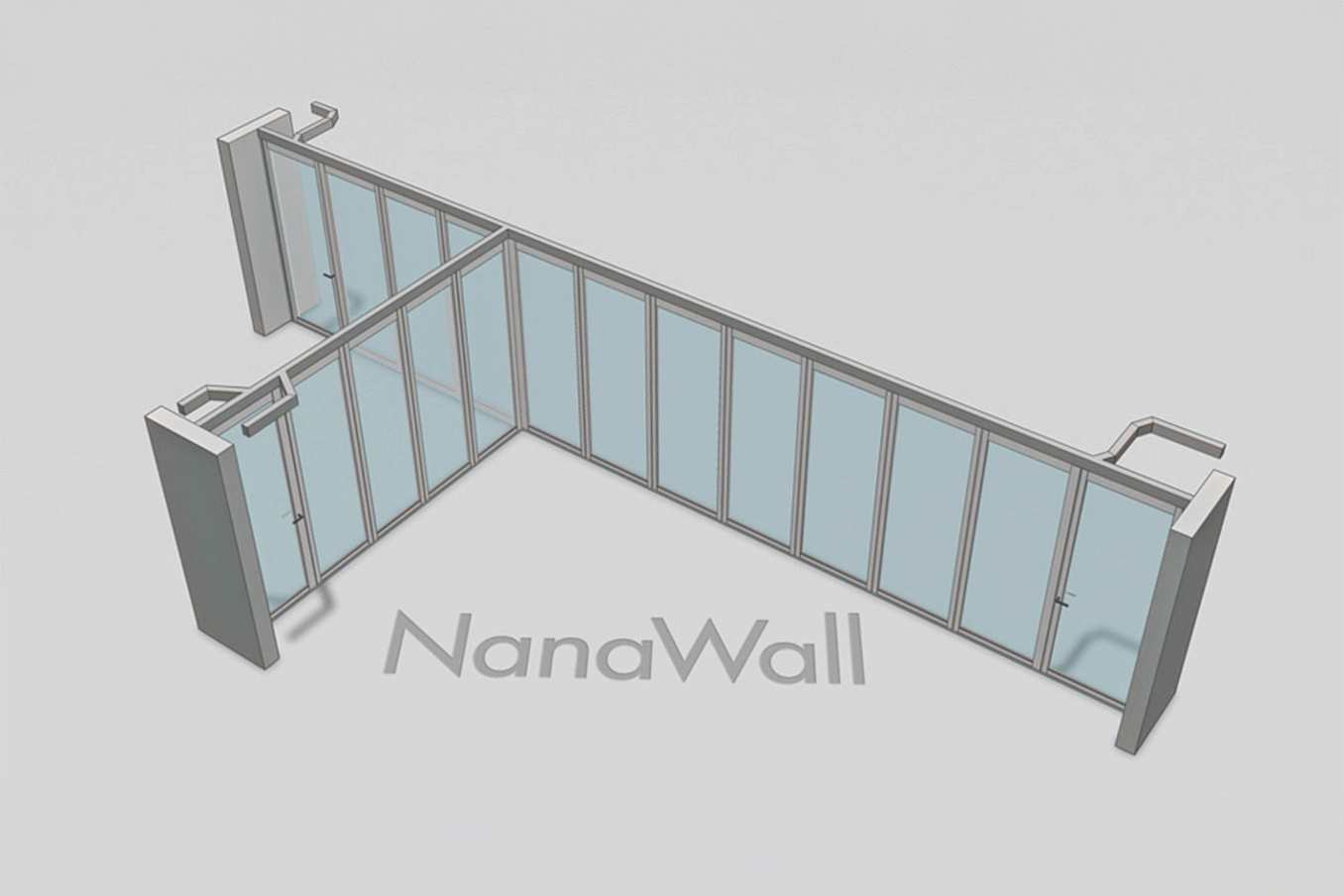

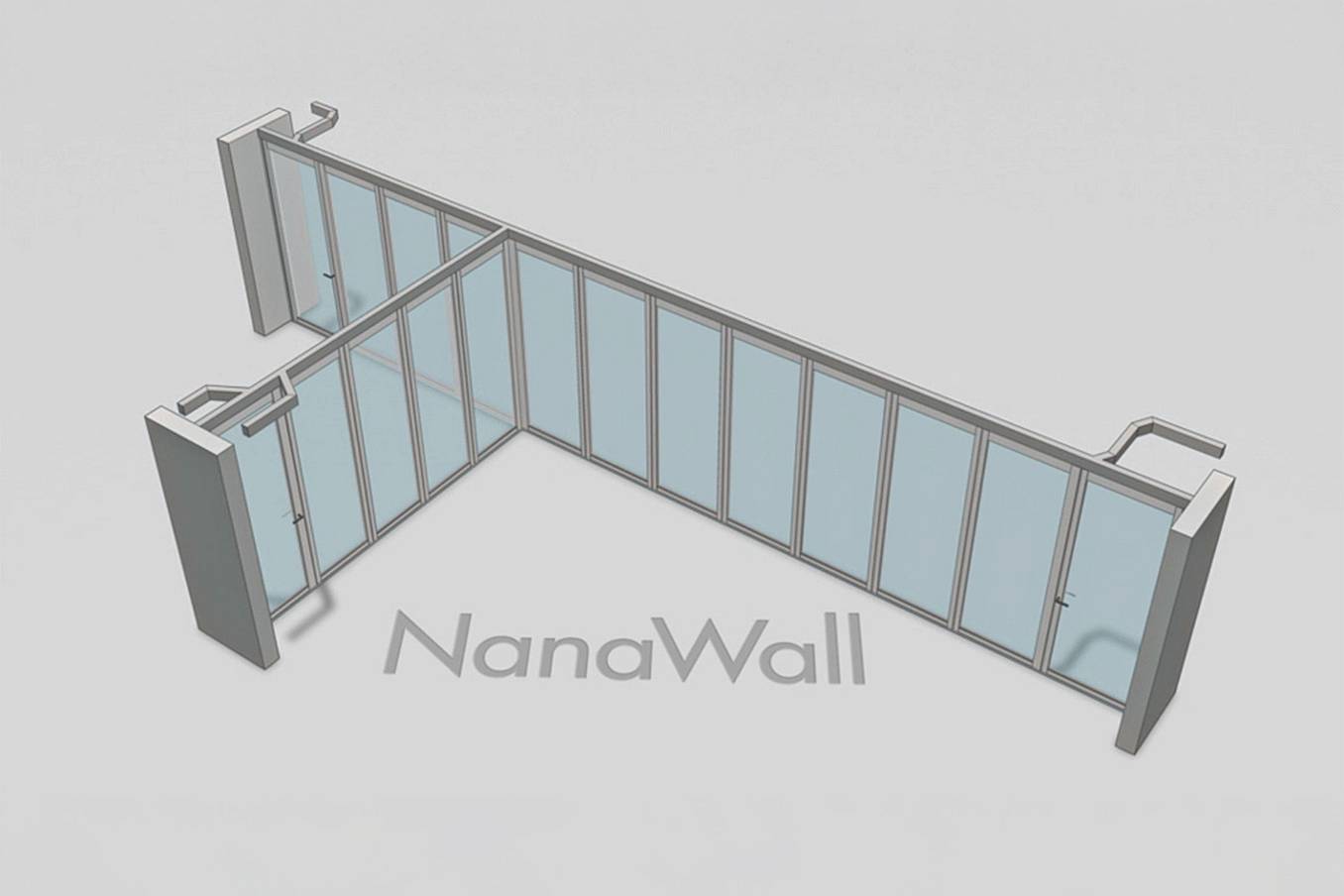

T-Intersection configurations connect two operable glass walls at a 90° junction, forming a T-shaped layout that enables multi-directional opening and flexible space planning. Common in classrooms, offices, libraries, and conference rooms, this configuration supports adaptable interior spaces.
View More T-Intersection Configurations

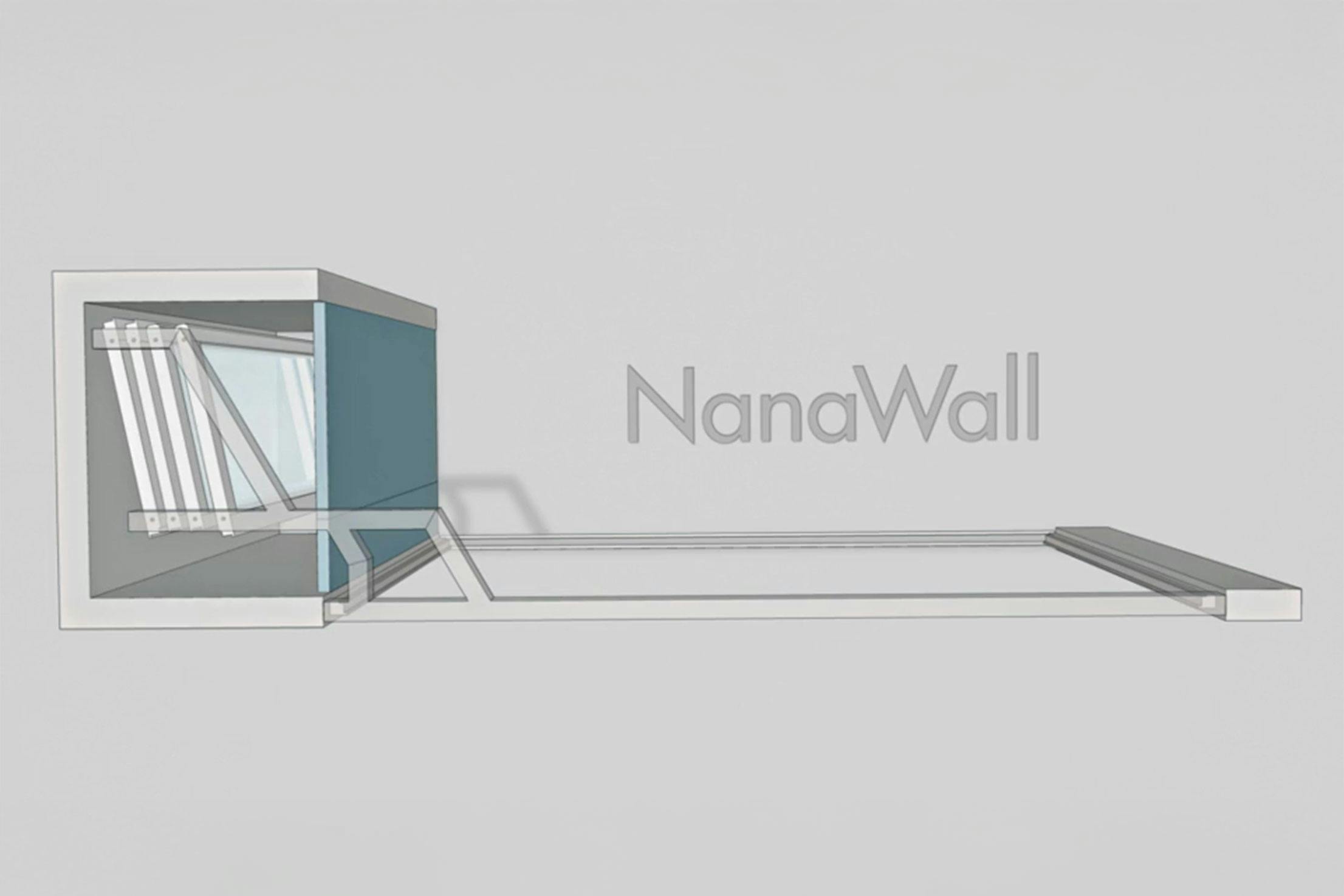

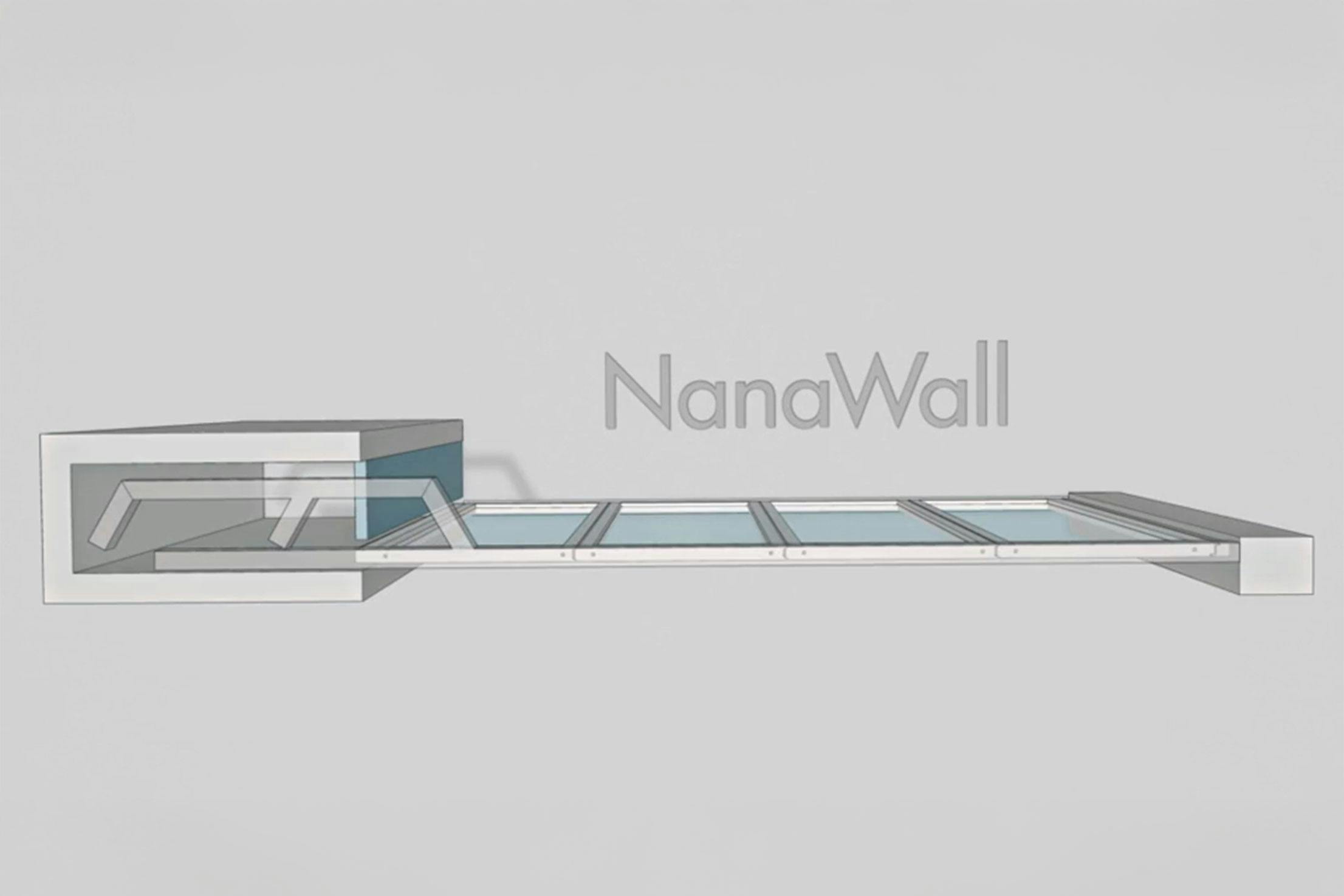

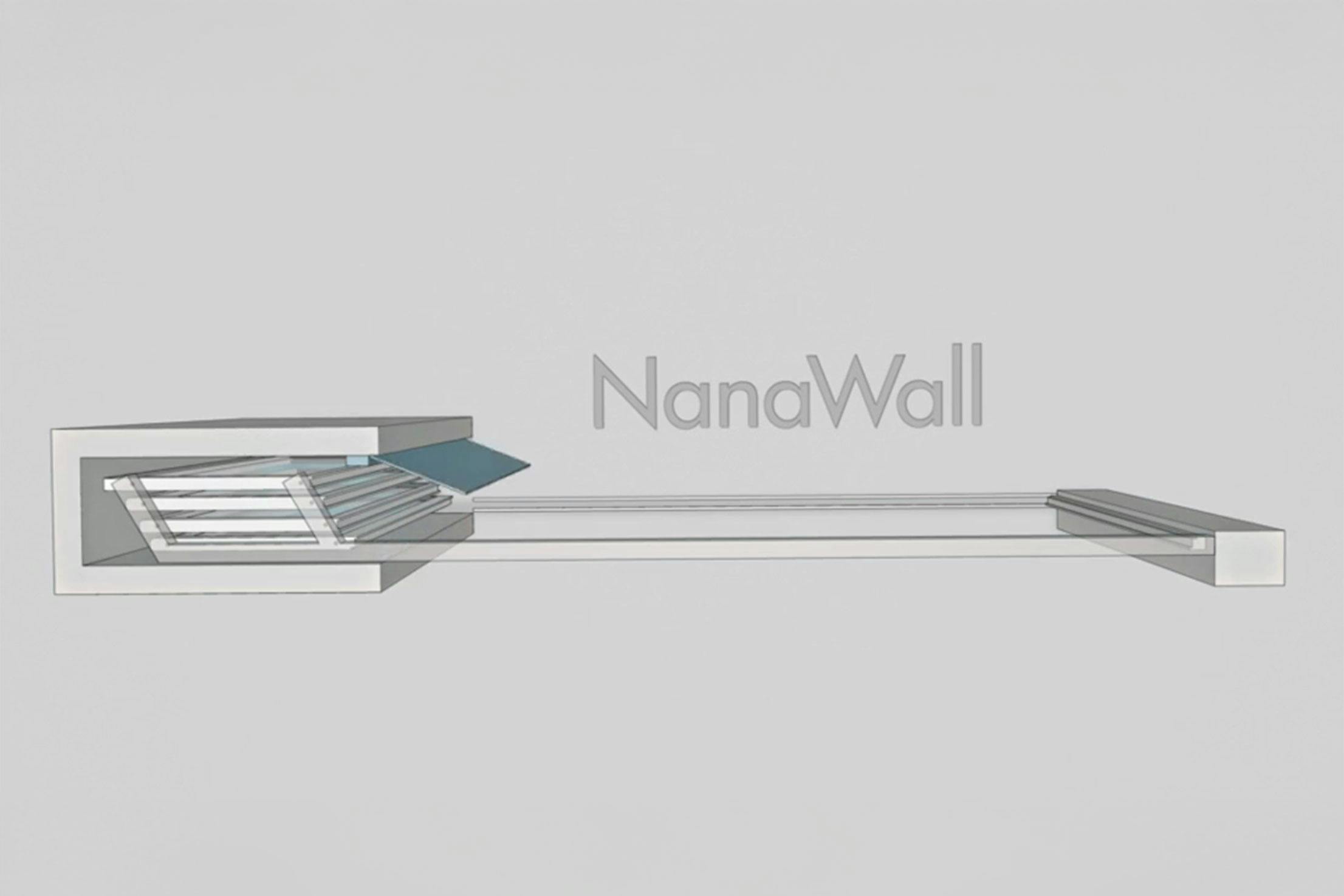

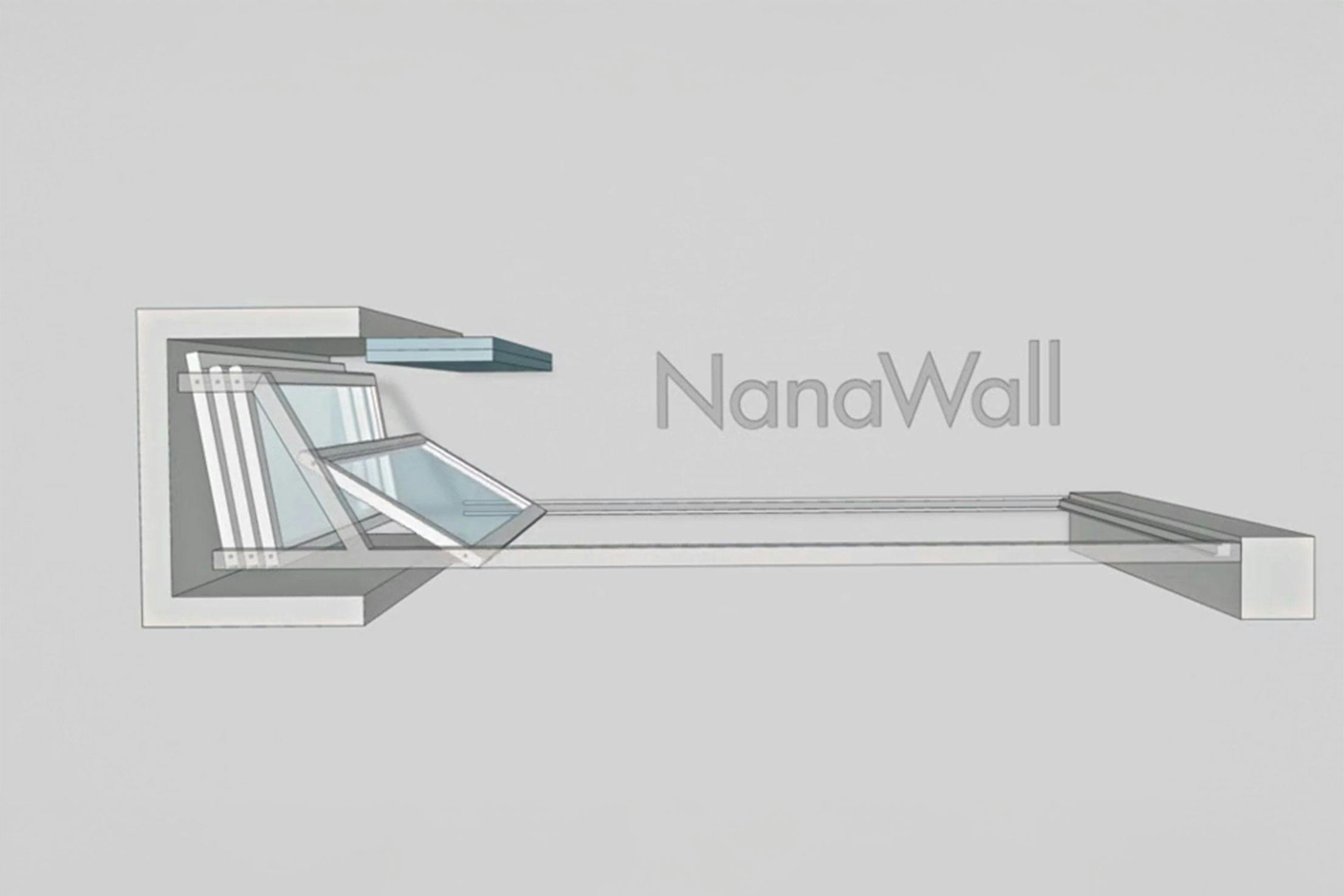

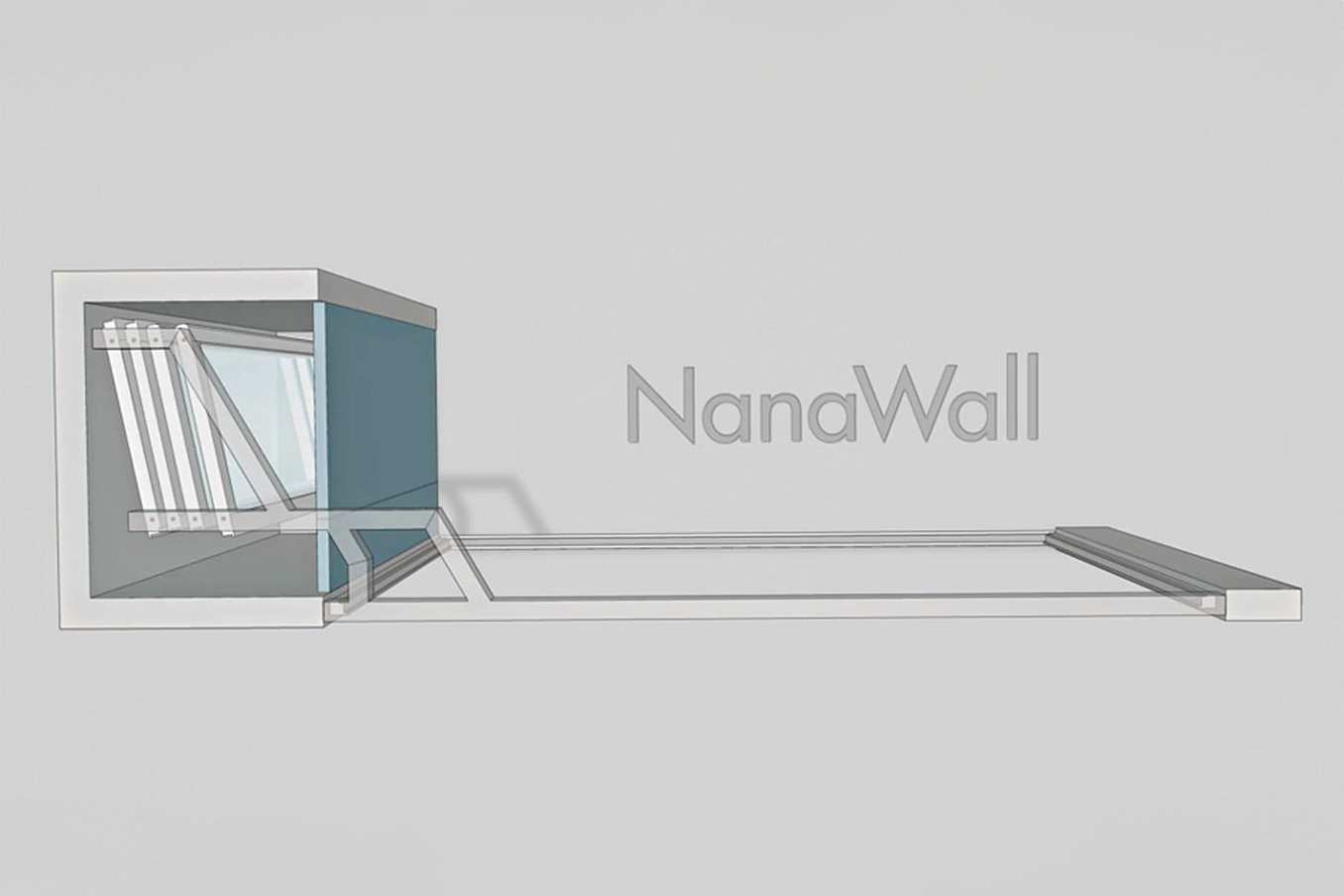

Enclosed stack area layouts allow glass wall panels to slide and stack into a dedicated enclosed bay adjacent to the opening. The panels remain concealed within the enclosure when open, keeping the primary opening clear while maintaining a clean, organized appearance and unobstructed circulation.
View More Enclosed Stack Configurations View Product ApplicationsWhat Our Customers Have to Say

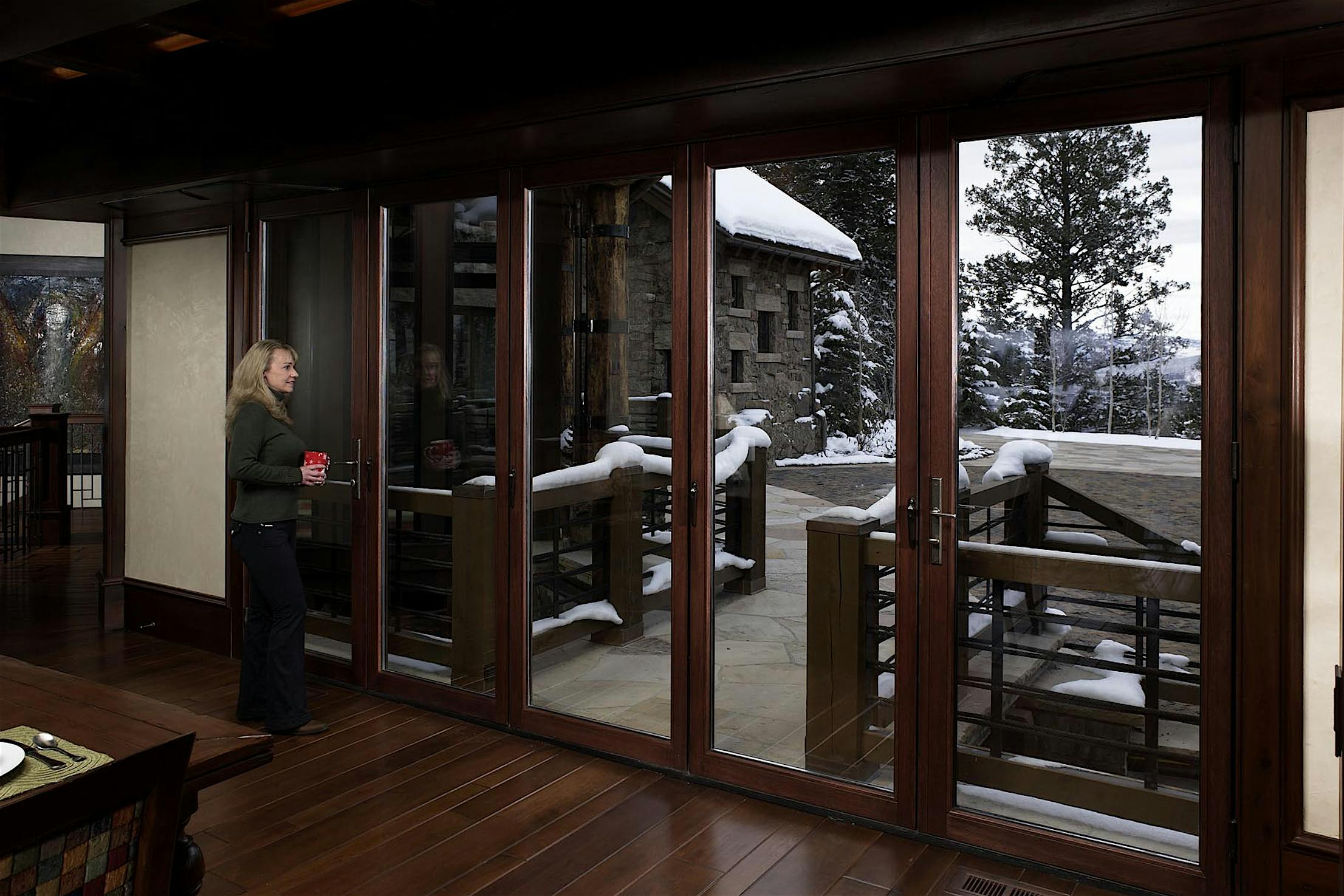

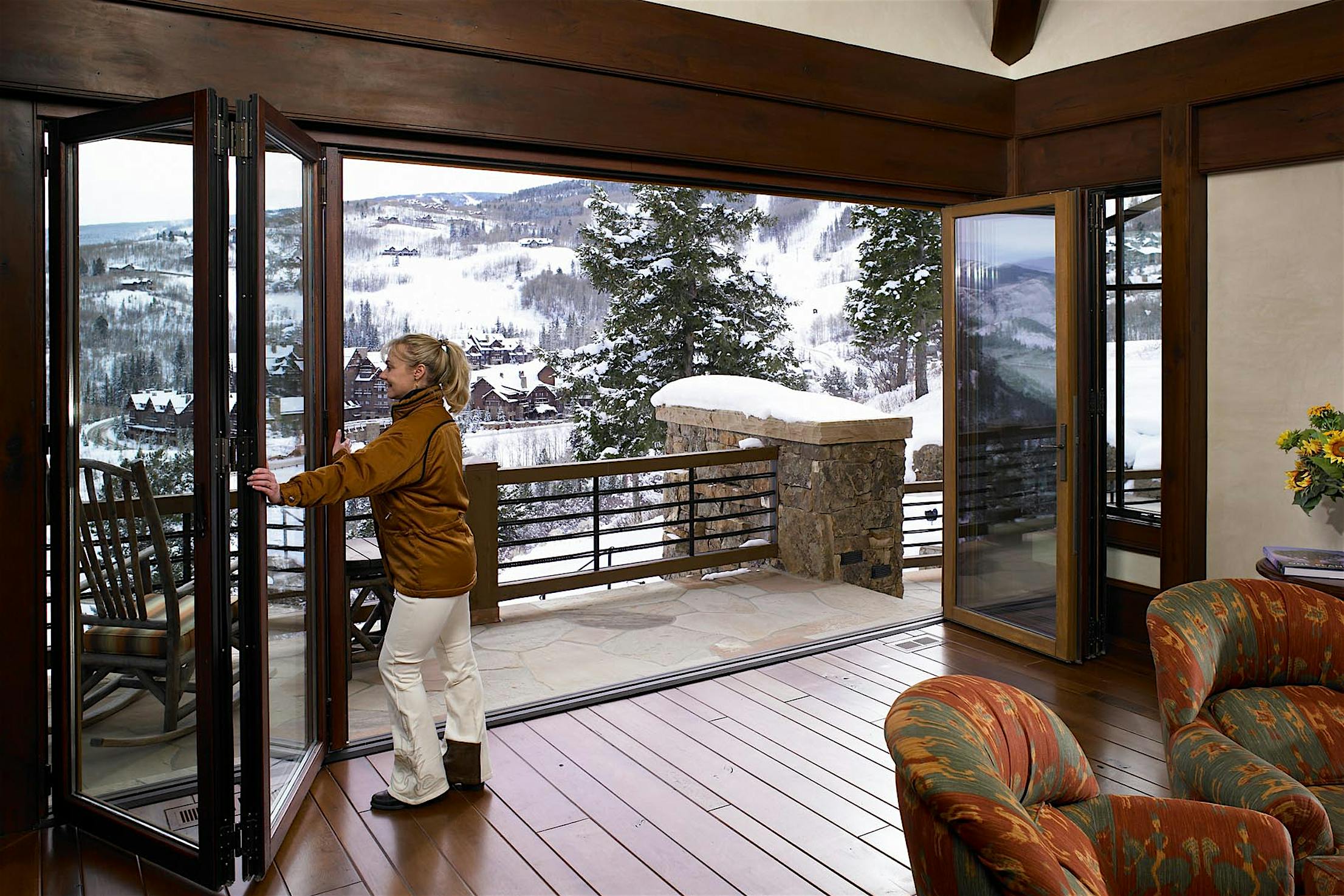

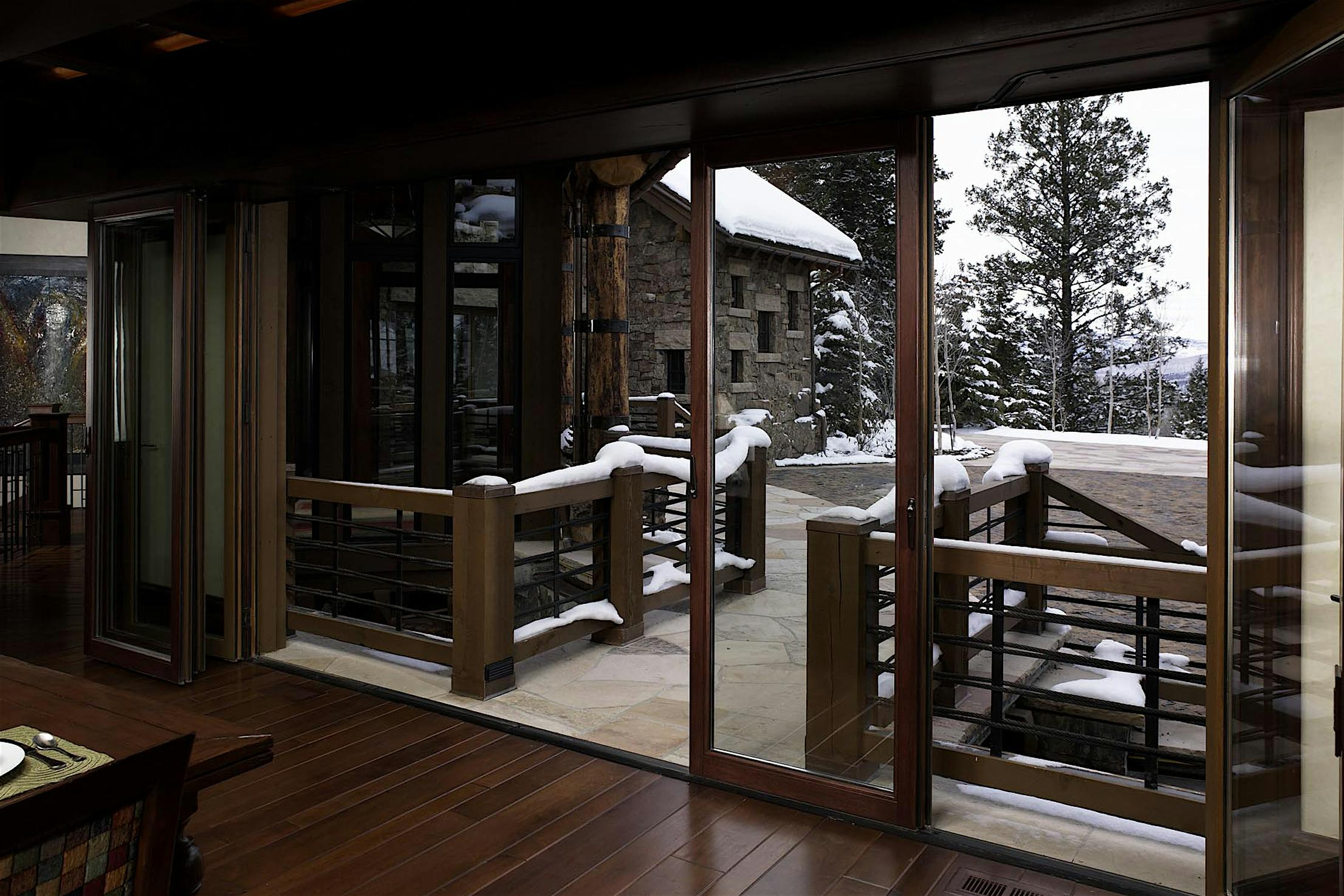

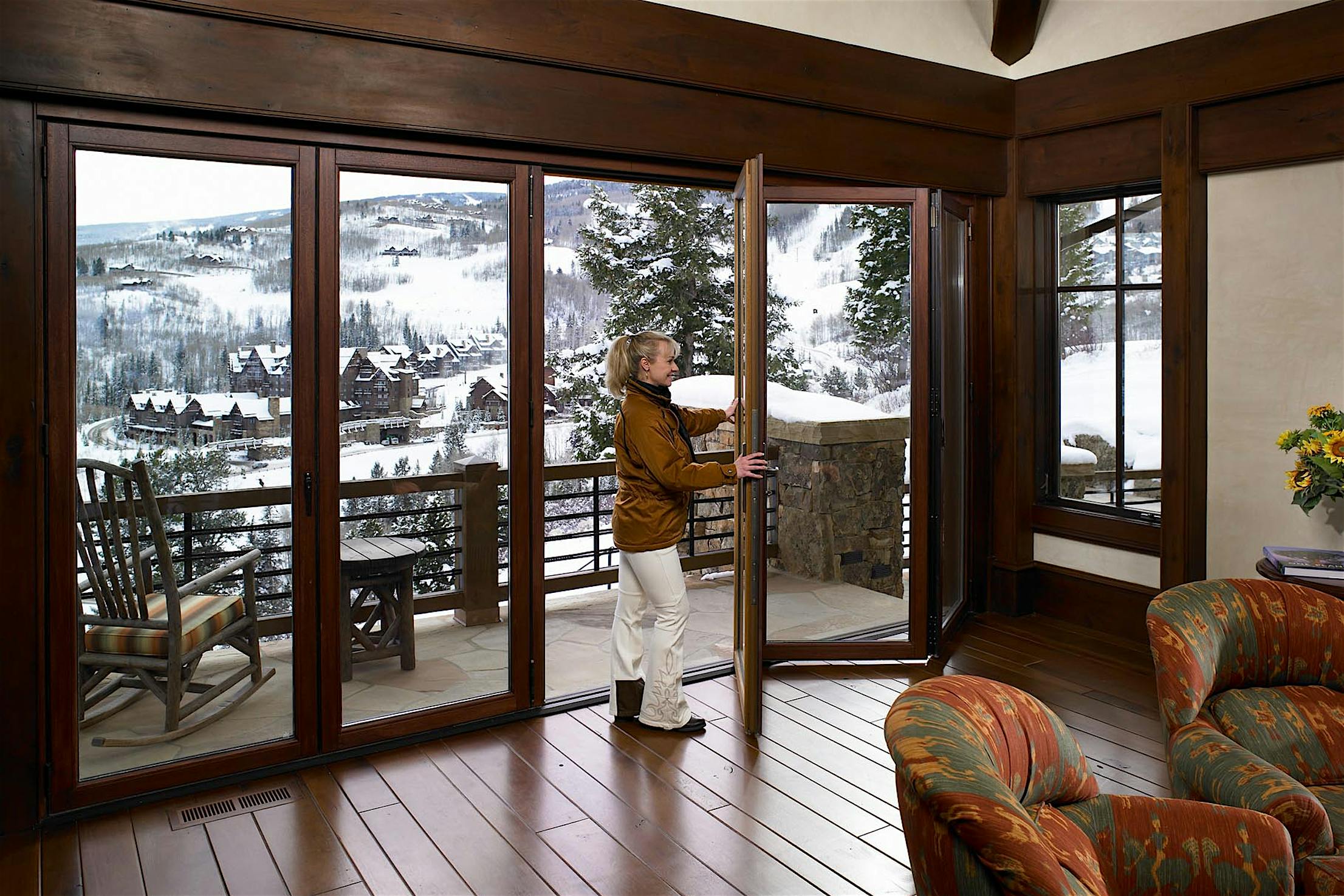

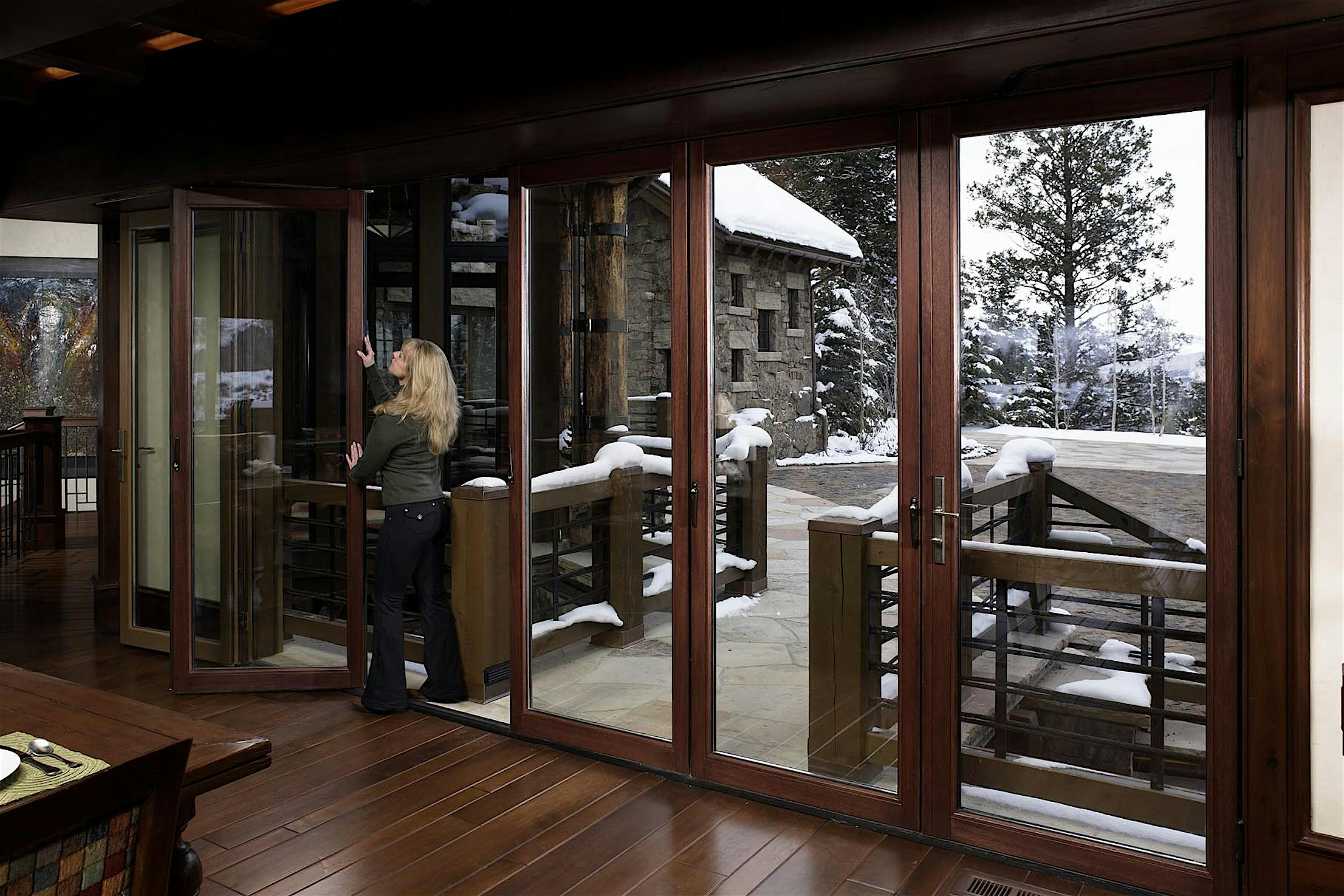

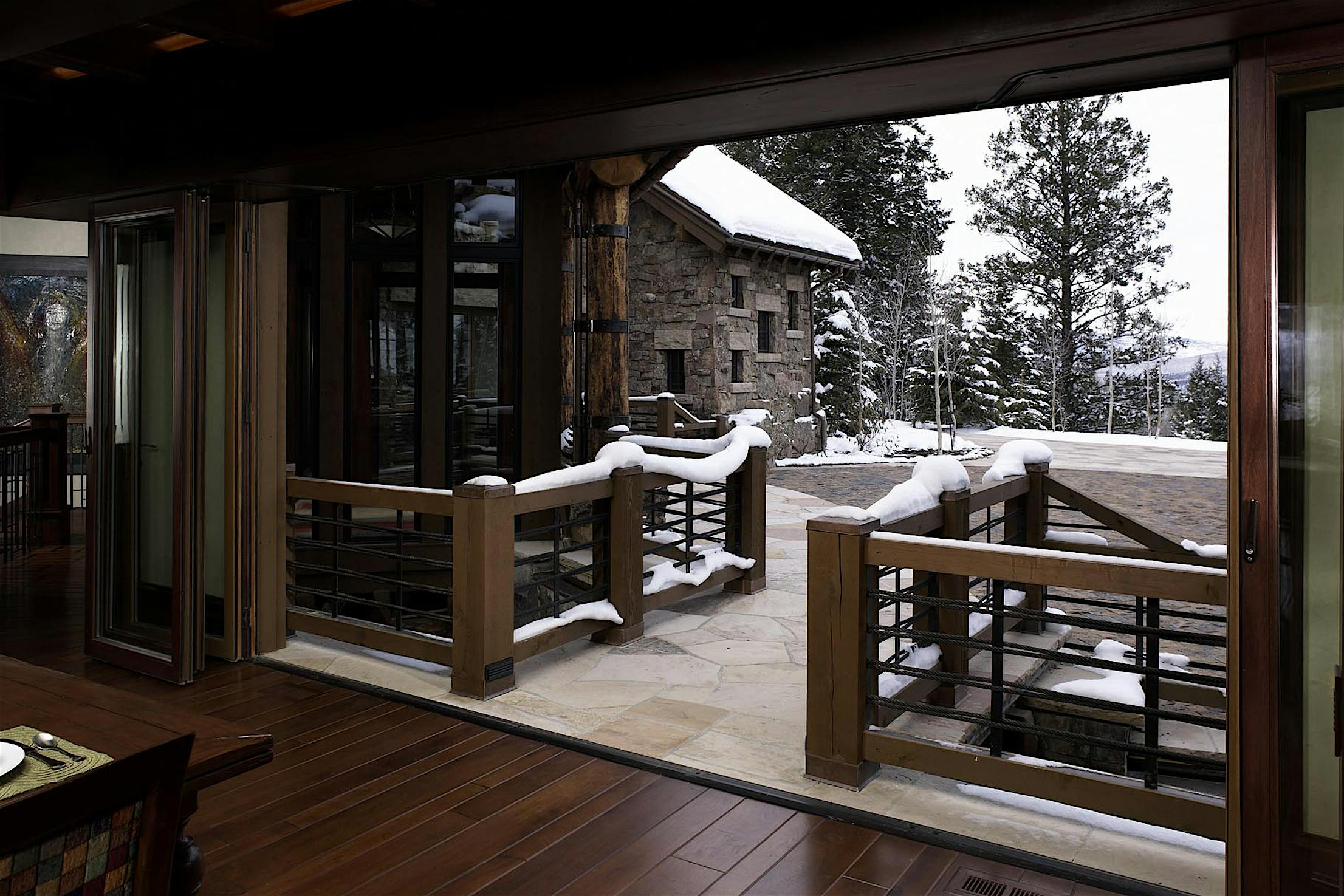

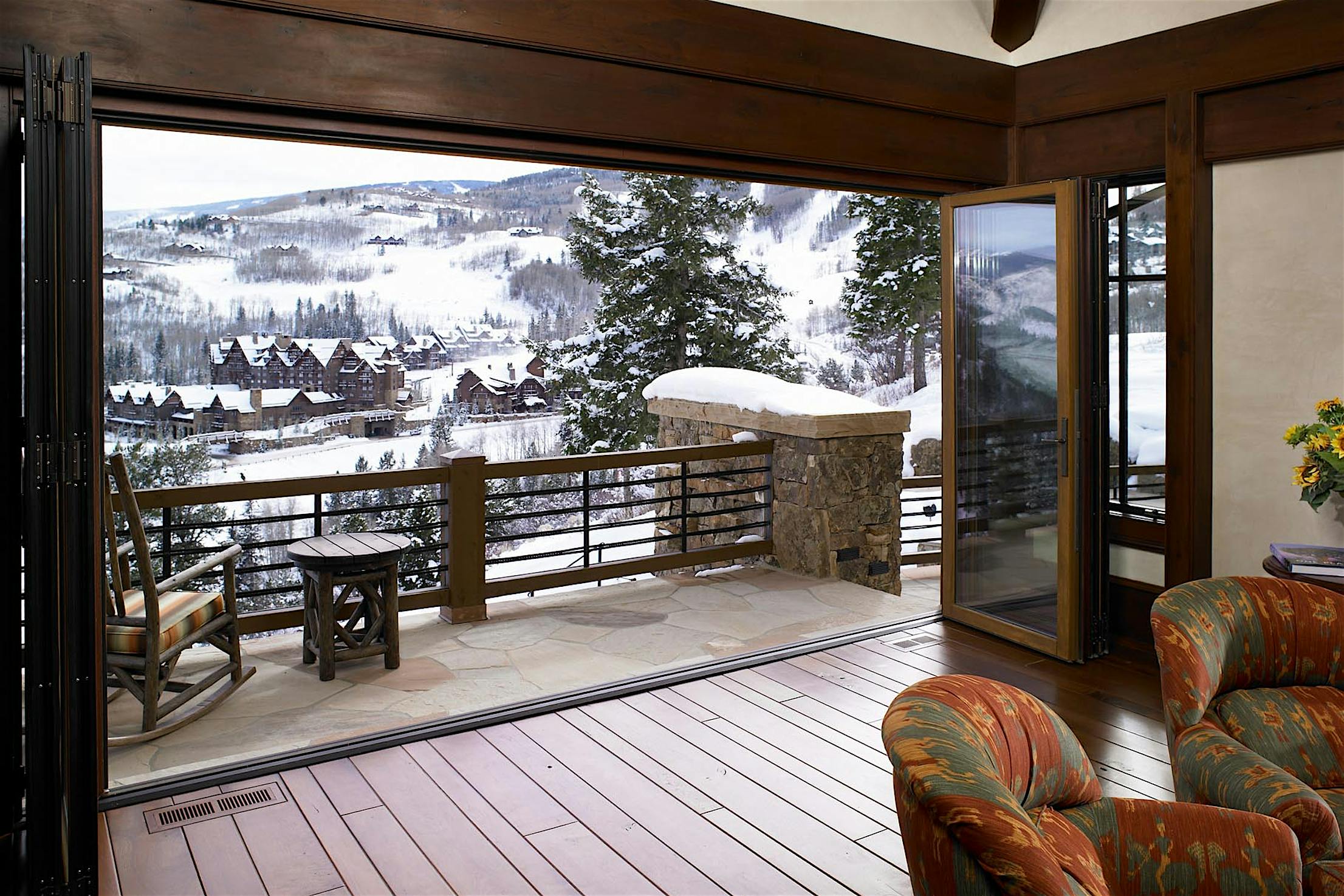

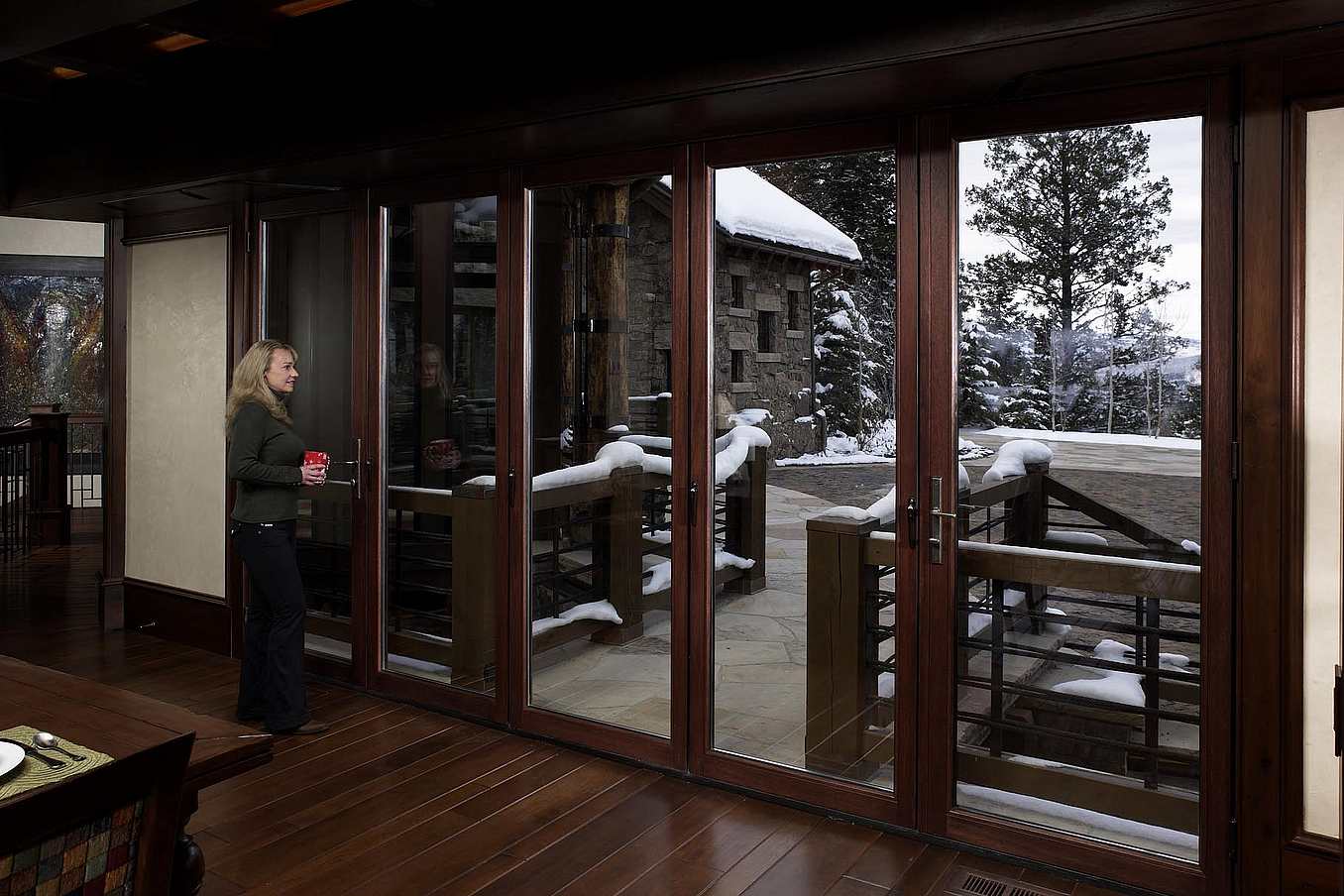

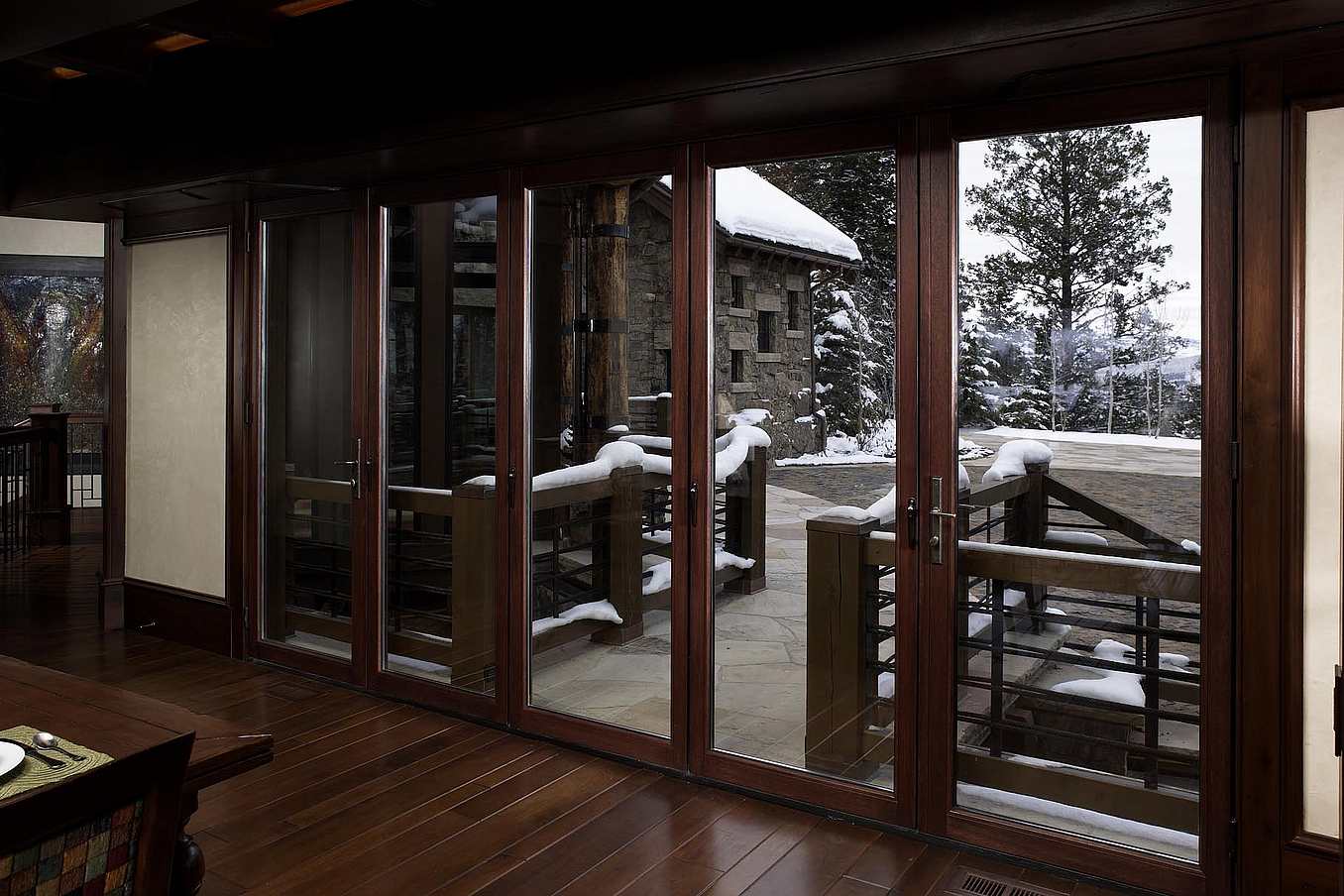

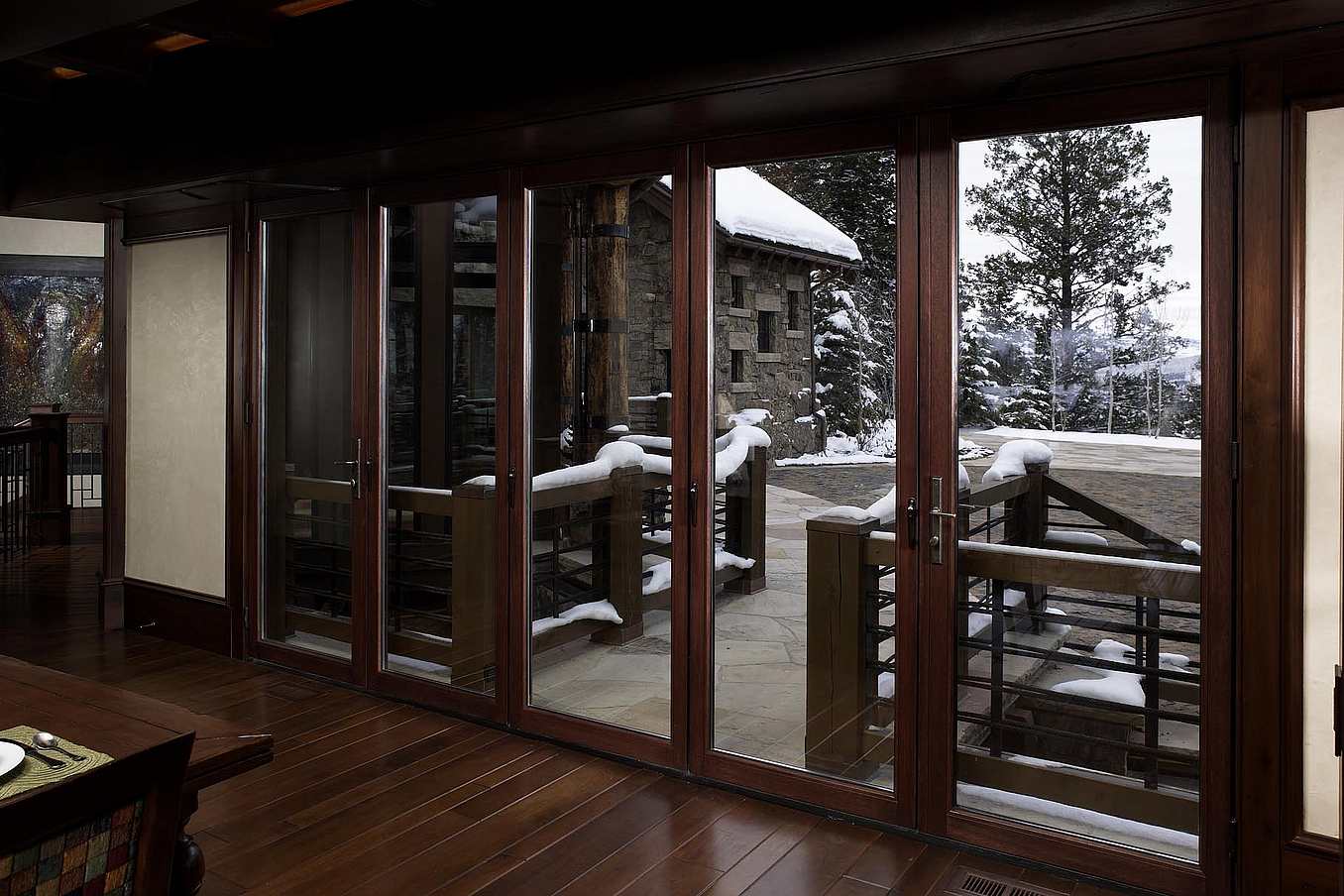

Bachelor Gulch Residence
This Bachelor Gulch, Colorado residence uses NanaWall wood-framed folding and stacking glass walls to open the living space to panoramic Rocky Mountain views while providing protection from the mountain climate.

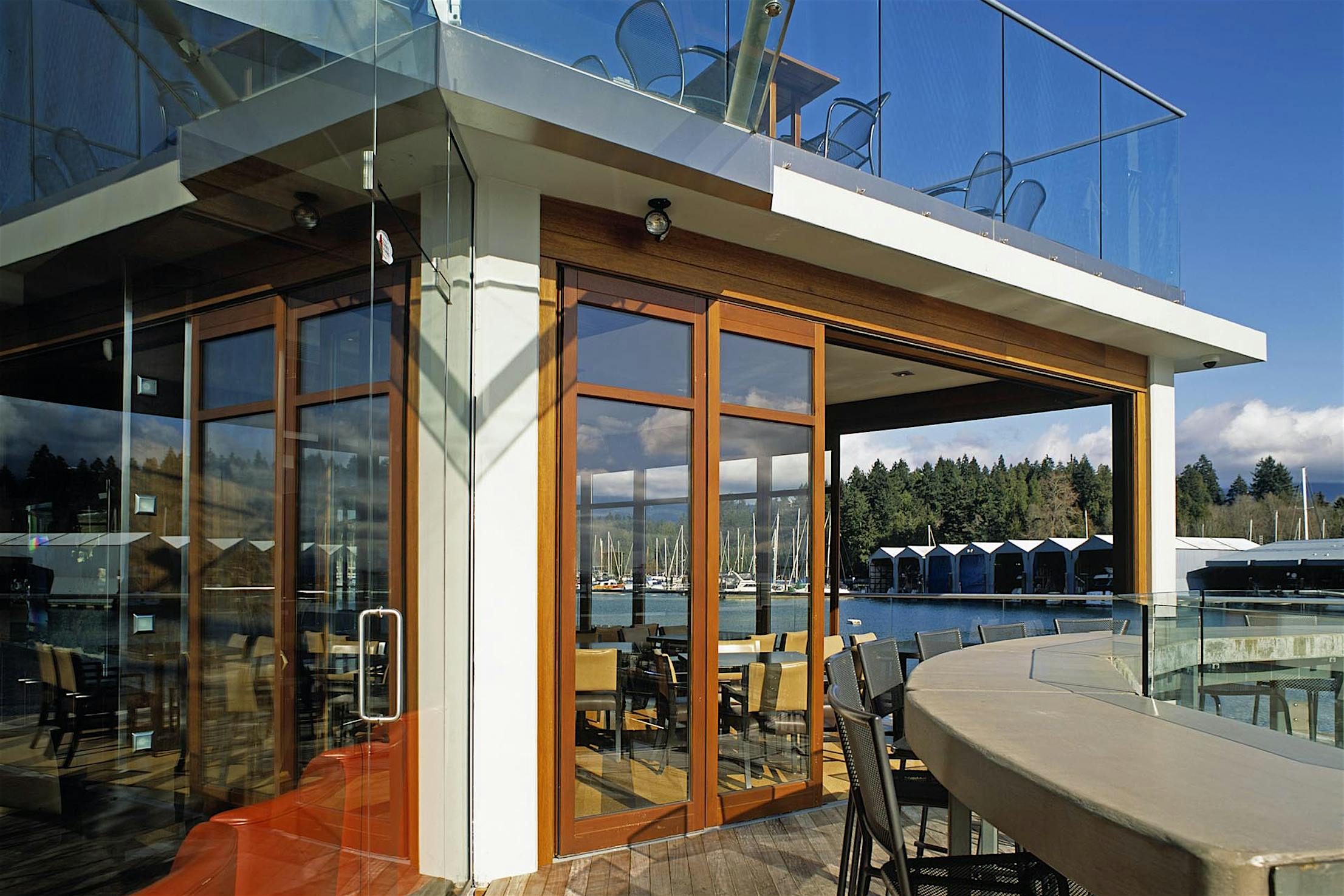

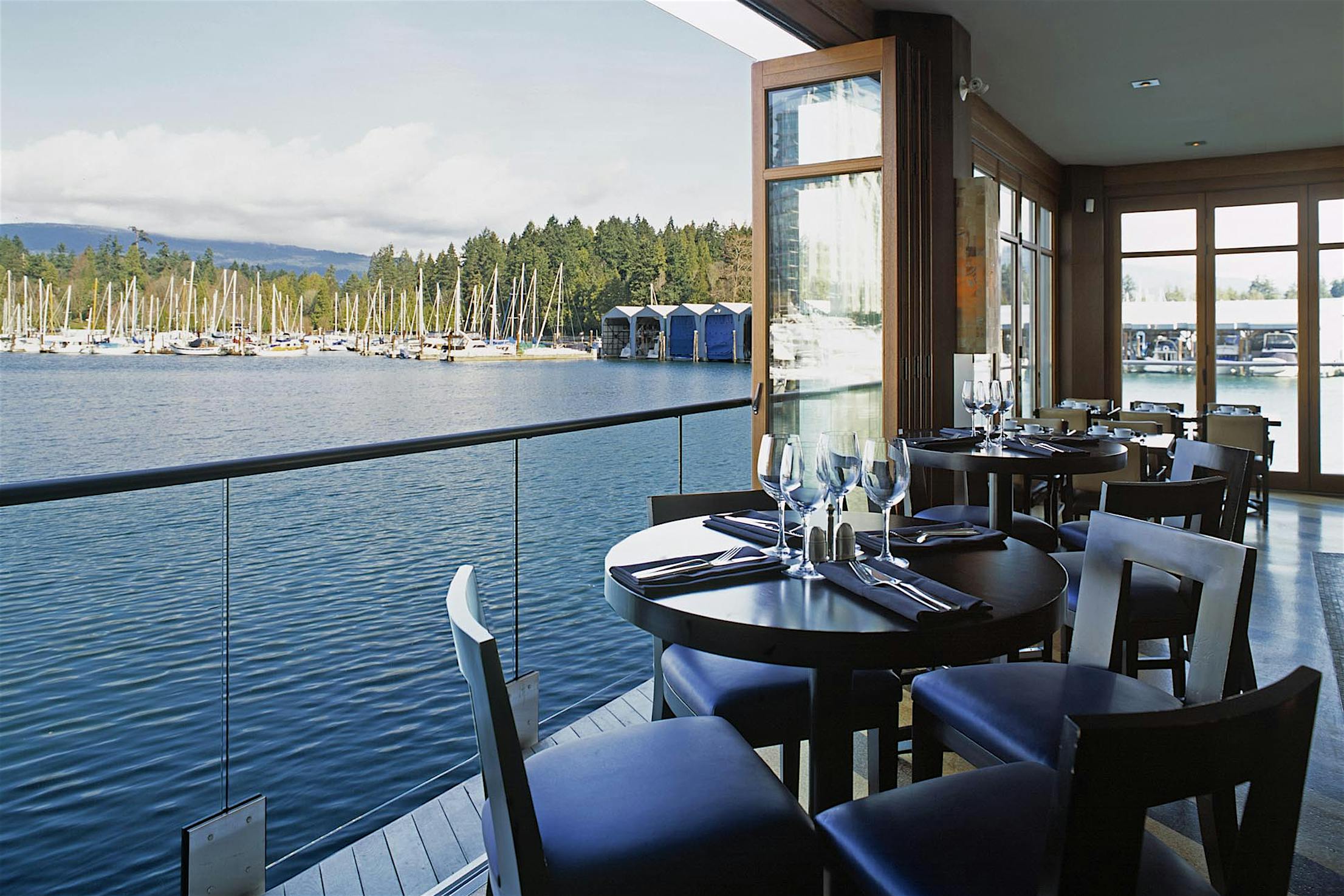

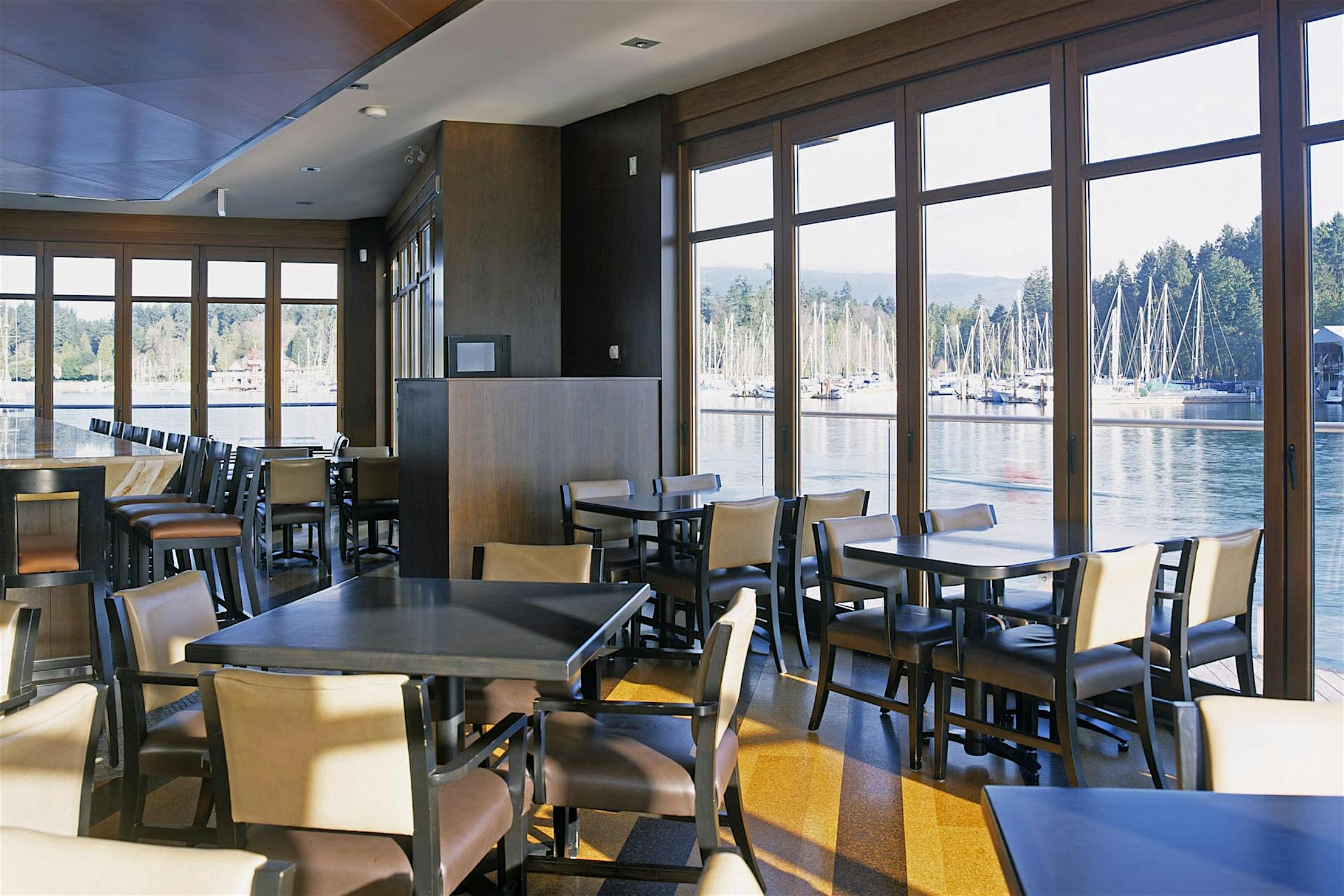

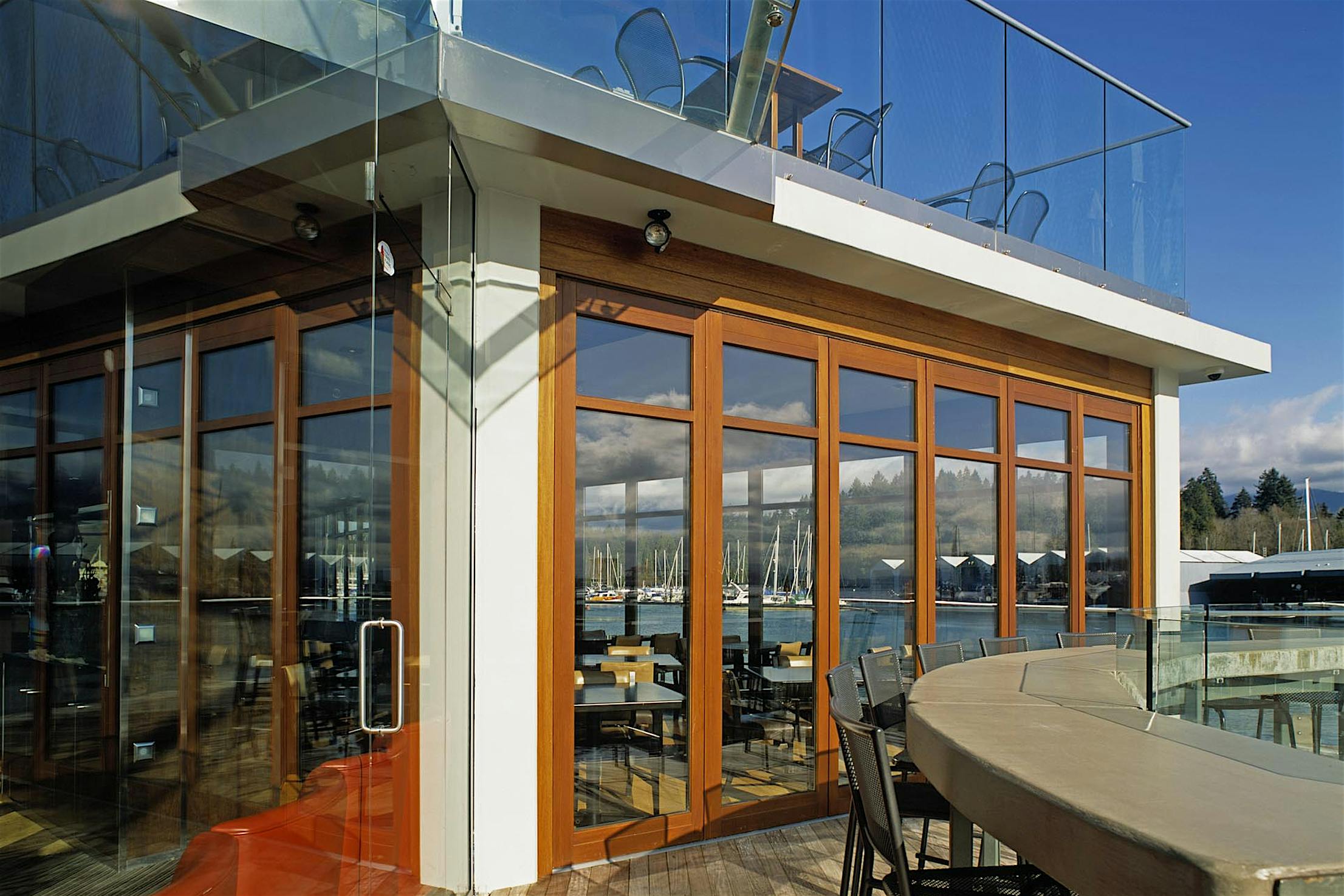

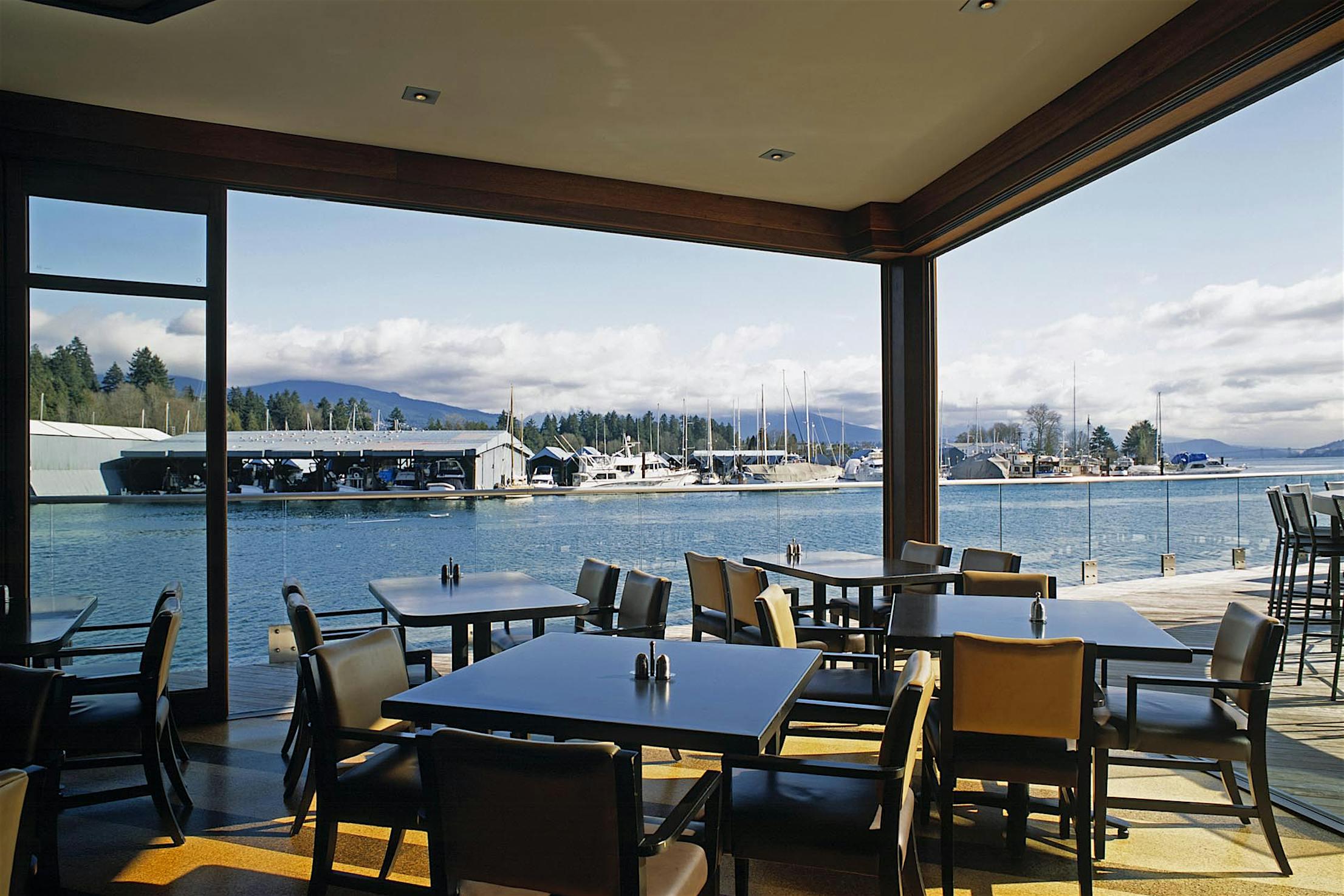

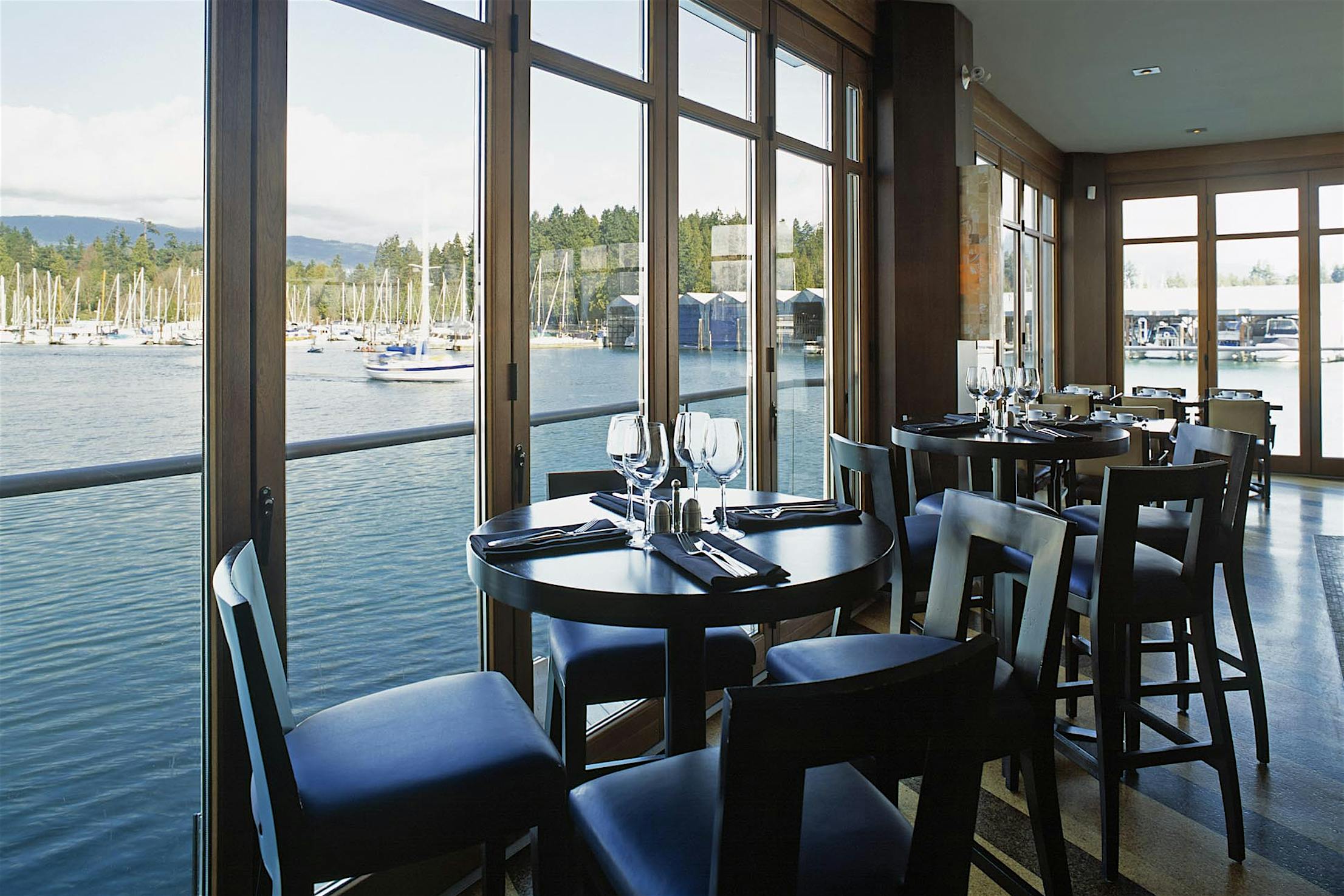

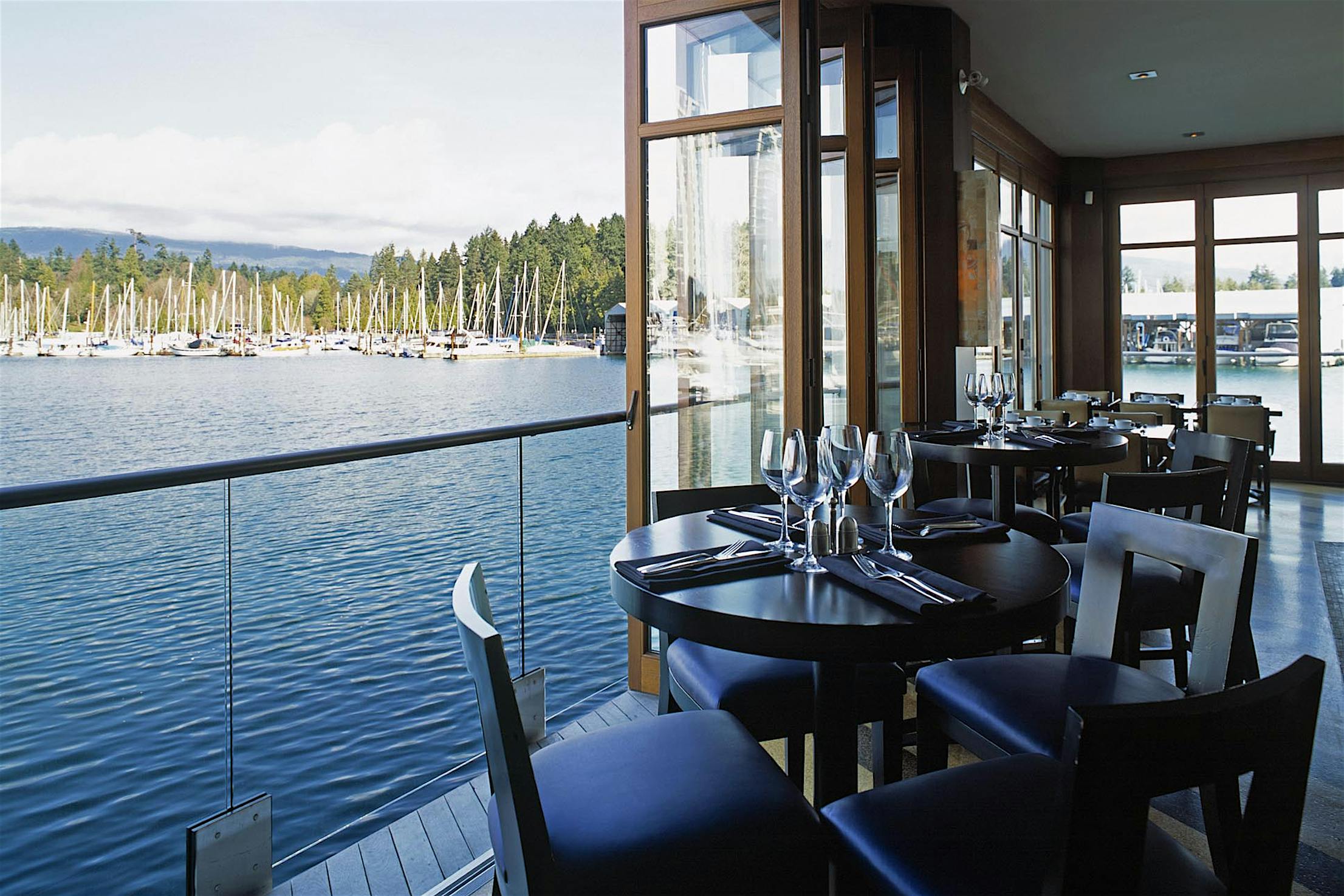

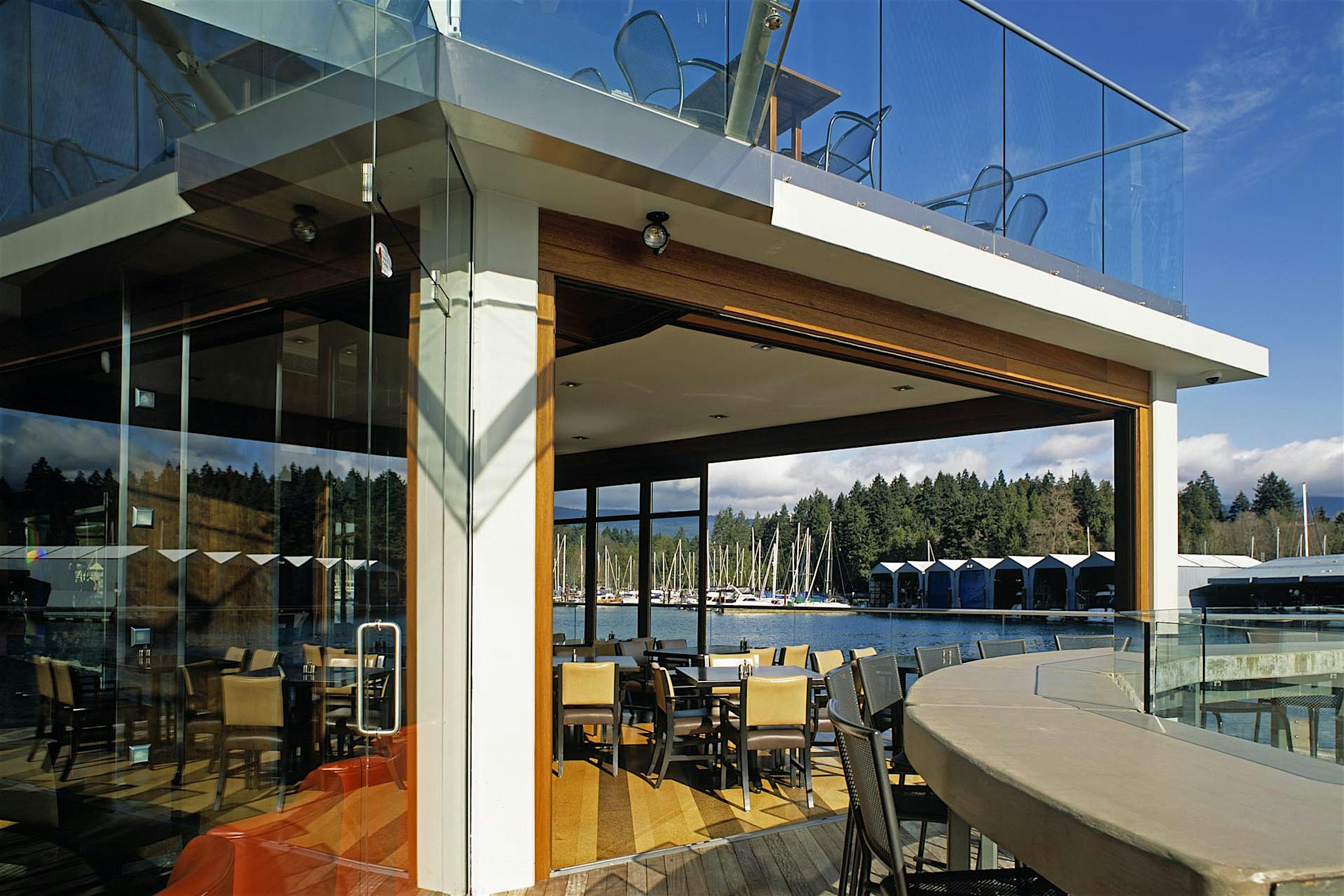

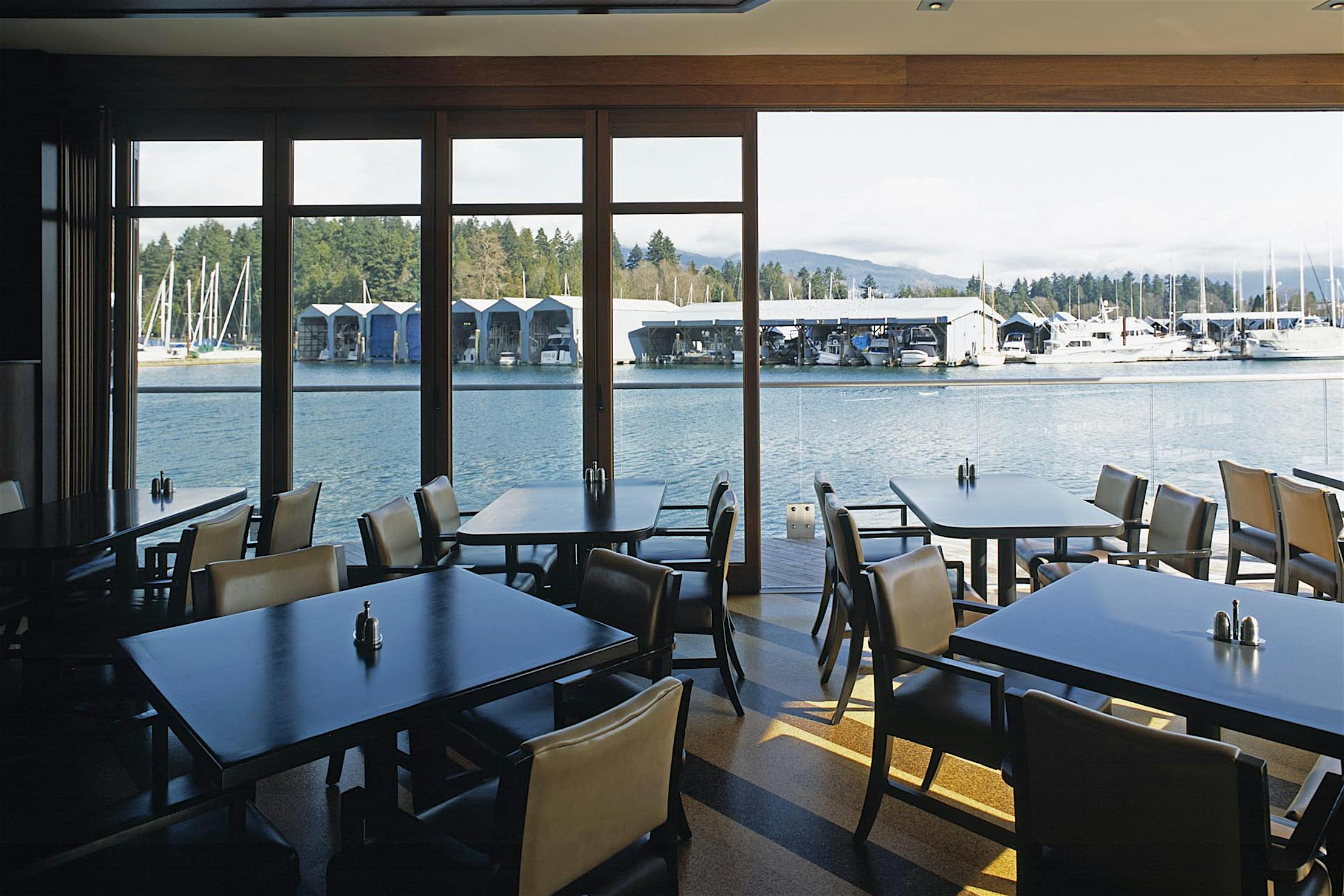

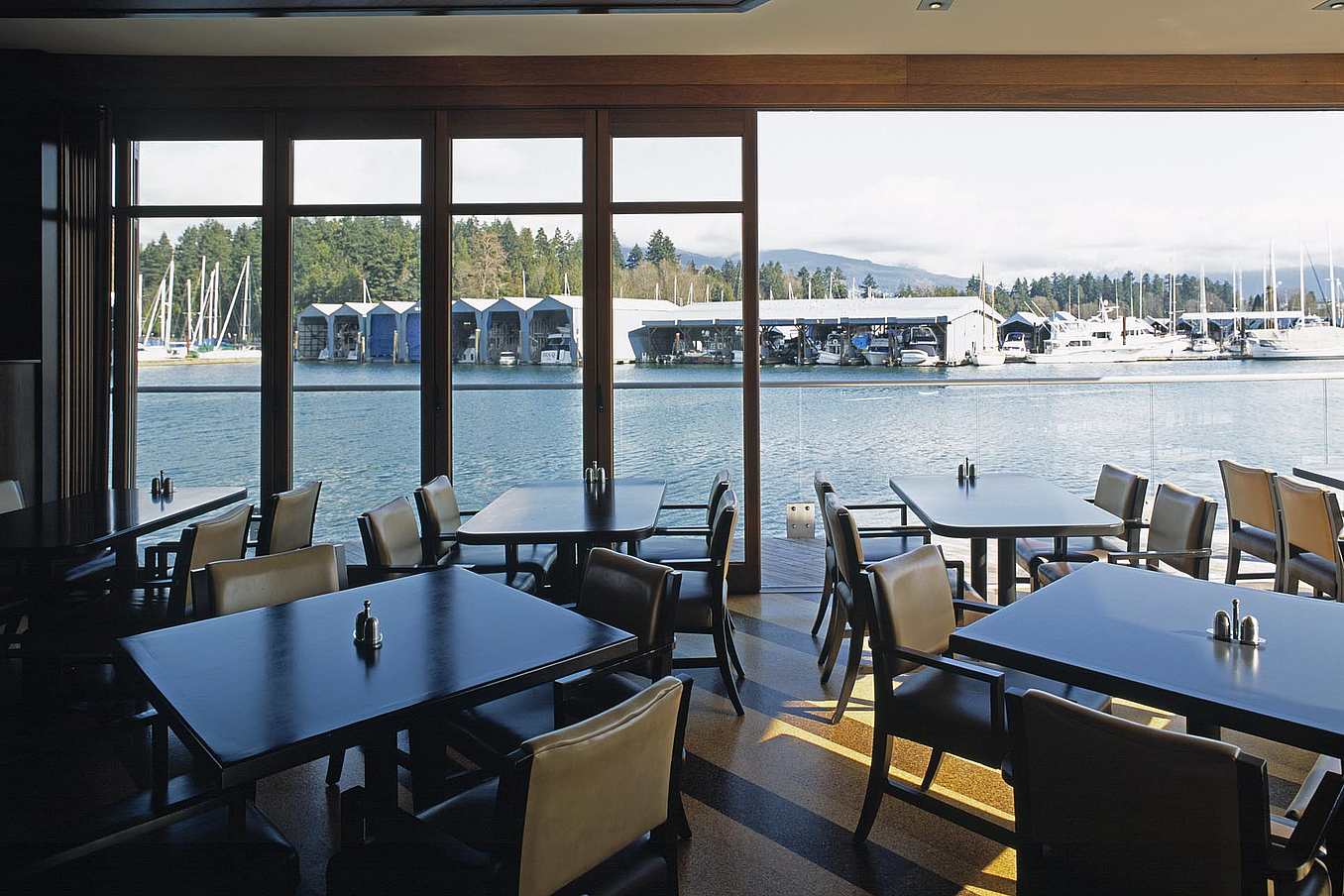

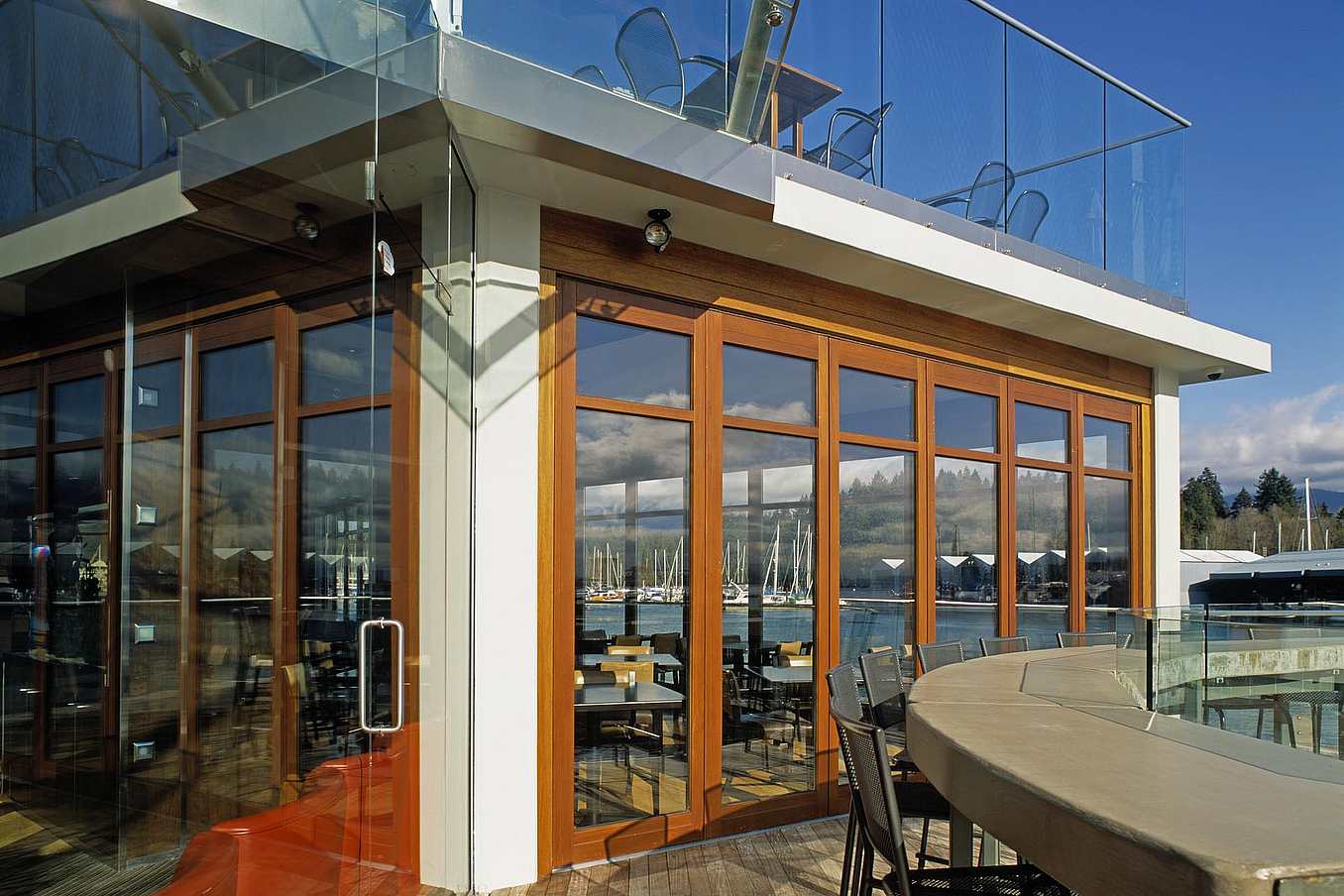

LIFT Bar Grill View
LIFT Bar Grill View uses NanaWall folding glass walls to connect its waterfront dining space with expansive ocean views. The operable systems create flexible indoor-outdoor seating while providing weather protection and warmth when closed.
“When the NanaWall is open, family and friends hear the calming waters over the glacier granite rocks while taking in panoramic views of the Rocky Mountains. When closed, the NanaWall system creates a weather resistant barrier to the outside mountain elements.”
— Christy D'Agostino, Senior Project Manager, VAg Inc.
The NanaWall HSW66 combines the natural beauty of solid wood with the design flexibility of a single track sliding and stacking system. Its intelligently guided panels move smoothly around corners, posts, and complex layouts, while allowing panels to stack virtually anywhere for maximum architectural freedom.
As a custom-built architectural solution, the HSW66 offers exceptional design flexibility, including:
- Unlimited panel counts and opening widths
- Panels that stack beyond the main opening
- Open corner configurations
- Parking bay and enclosed stack layouts
- RemoteSTACK® and segmented configurations
This flexibility allows architects and designers to create highly customized indoor-outdoor environments.
Yes. One of the defining advantages of the HSW66 is the ability to stack and store panels beyond the primary opening. Panels can be parked in side bays, pockets, or other designated locations, helping maximize clear opening space while maintaining clean sightlines.
The HSW66 is a completely top-hung system. This design enables unlimited spans and panel counts, subject only to the supporting structure, while maintaining smooth operation and providing greater freedom in architectural planning.
The HSW66 features concealed single-handed locking integrated within the panel design for a clean appearance. The locking mechanism engages at both the top and bottom of the panel and is tested for forced entry resistance, providing enhanced security without visible surface-mounted hardware.
The HSW66 is engineered to deliver outstanding performance when closed. It undergoes independent testing for air infiltration, water penetration, structural integrity, and forced entry resistance to meet or exceed industry standards. Its energy-efficient design helps maintain interior comfort while providing protection from changing weather conditions.
