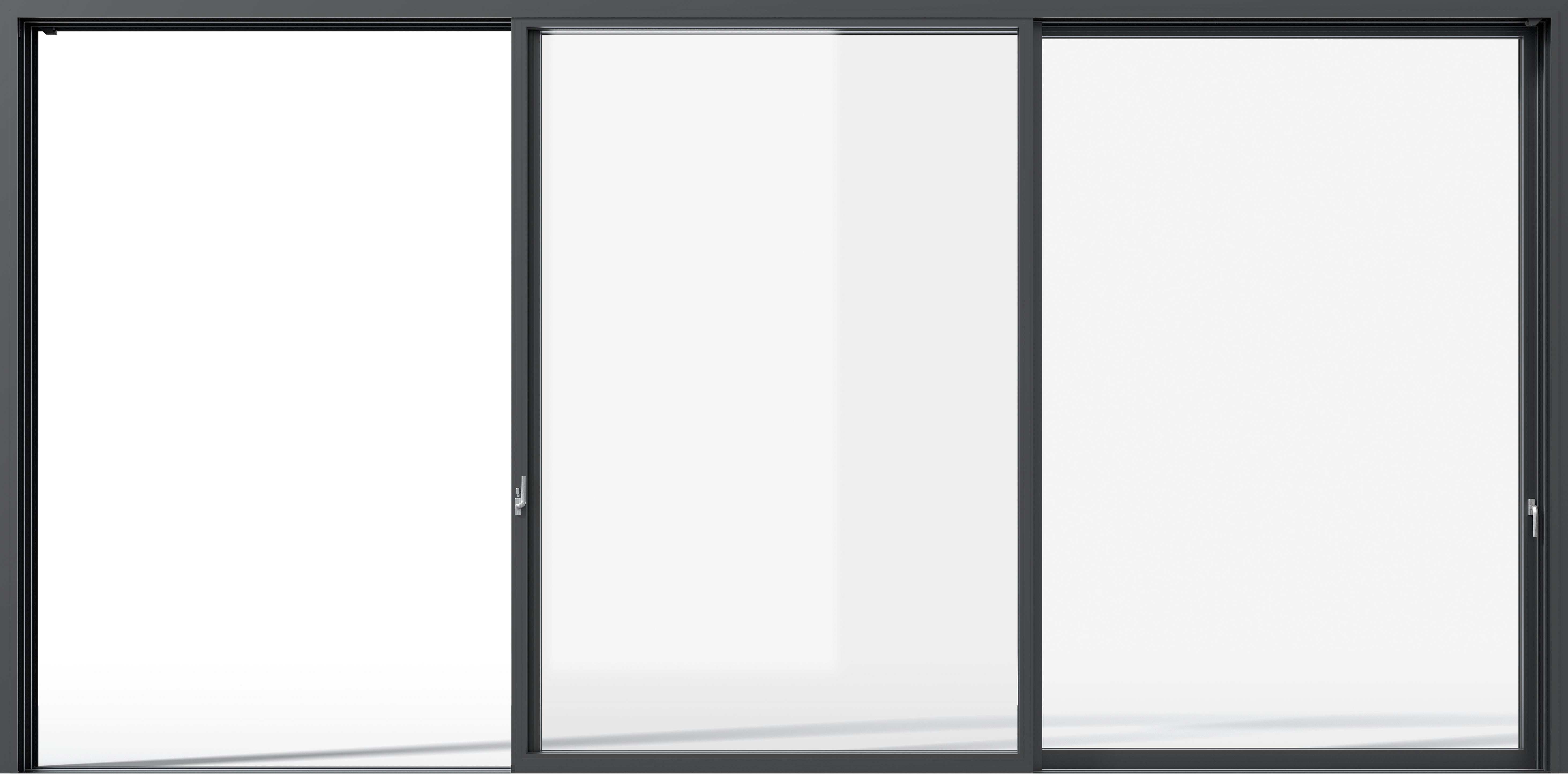

NW MultiSlide 630
Slim Aluminum Framed MultiSlide Glass Door
- Thermally broken system delivers exceptional energy efficiency, includes triple glazing
- Slim vertical stile measuring 2 1/8" (55 mm)
- Floor supported panels capable of heights up to 11’ (3350 mm) and widths up to 6' 6" (1980 mm)
Offering Consistent Generation 4 Glass Lines

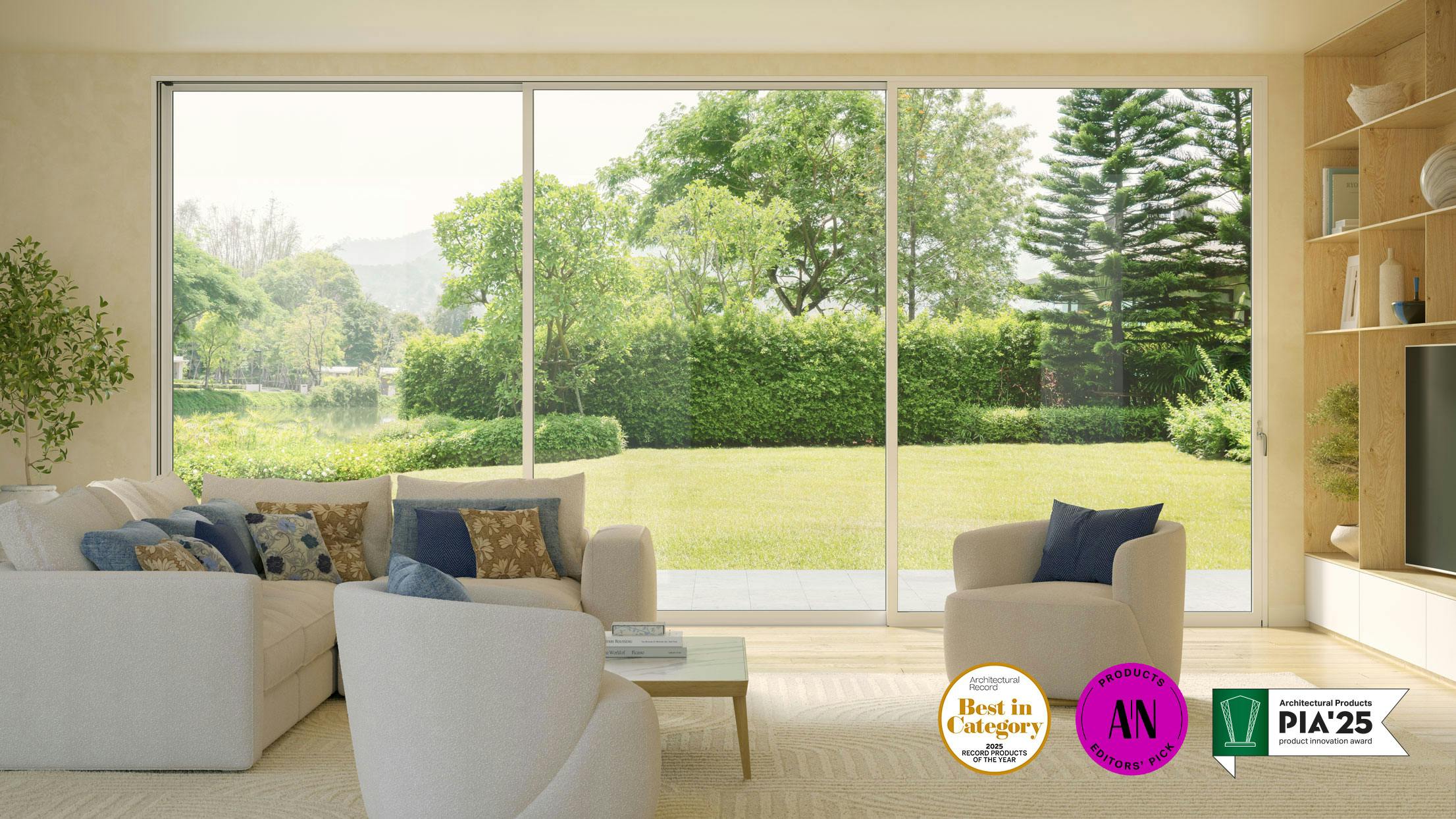

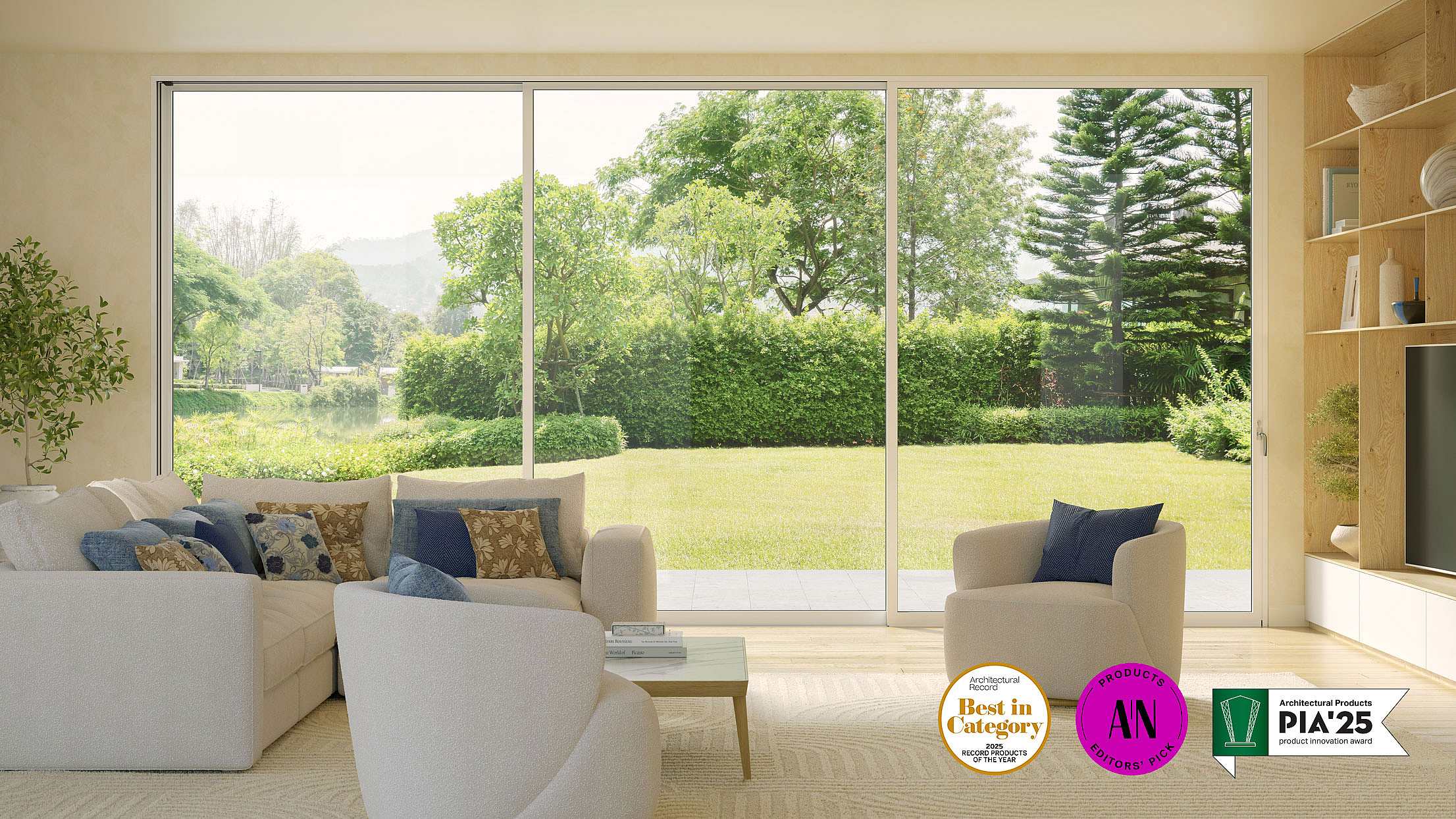

As a unique addition to the Generation 4 comprehensive product line, the award-winning NW MultiSlide 630 offers the same consistent horizontal frame lines found across all of the aluminum framed Generation 4 products. This allows architects, builders, and designers to design with uniform glass lines.
Slim Frame Lines with Minimal Aesthetics and More Glass

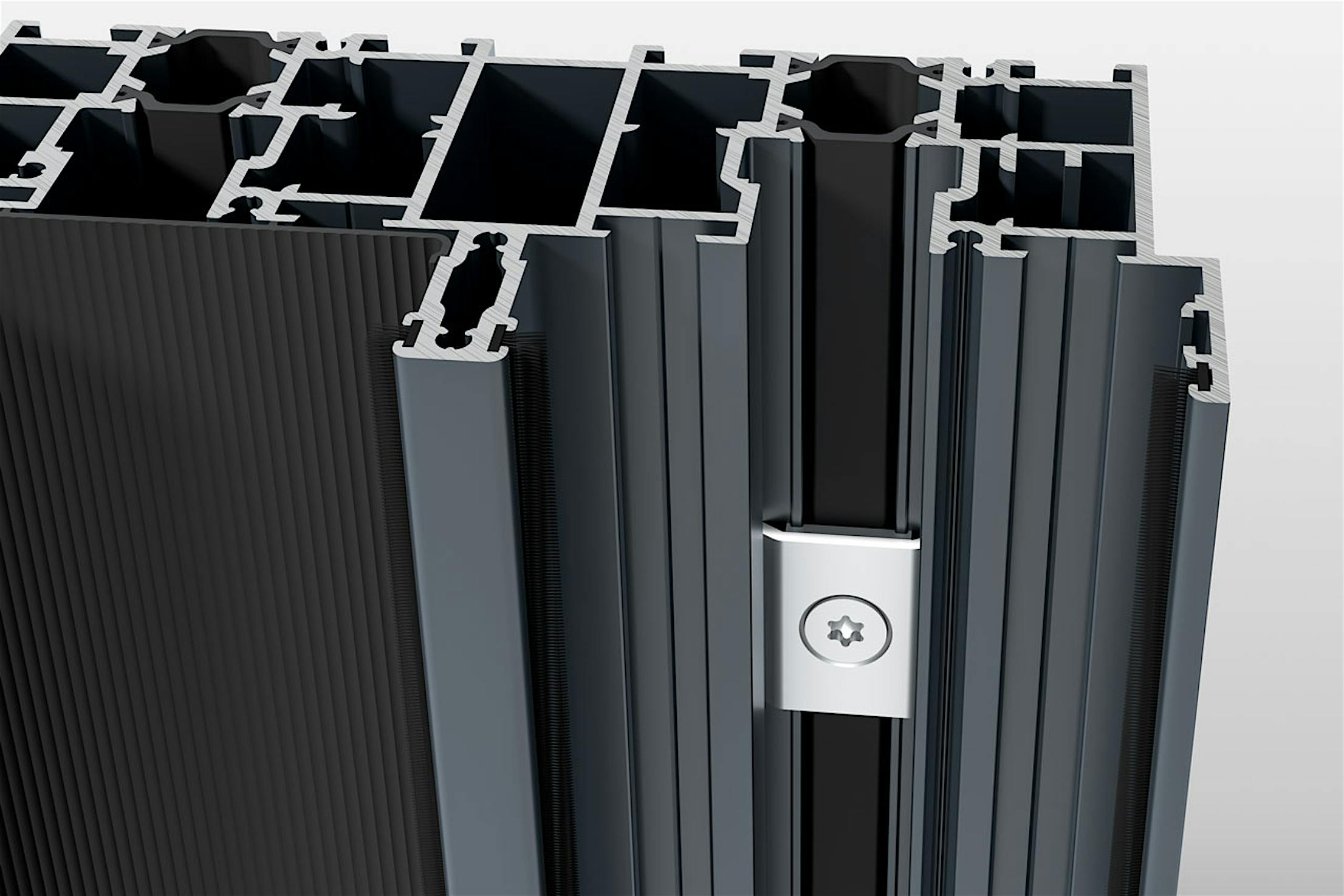

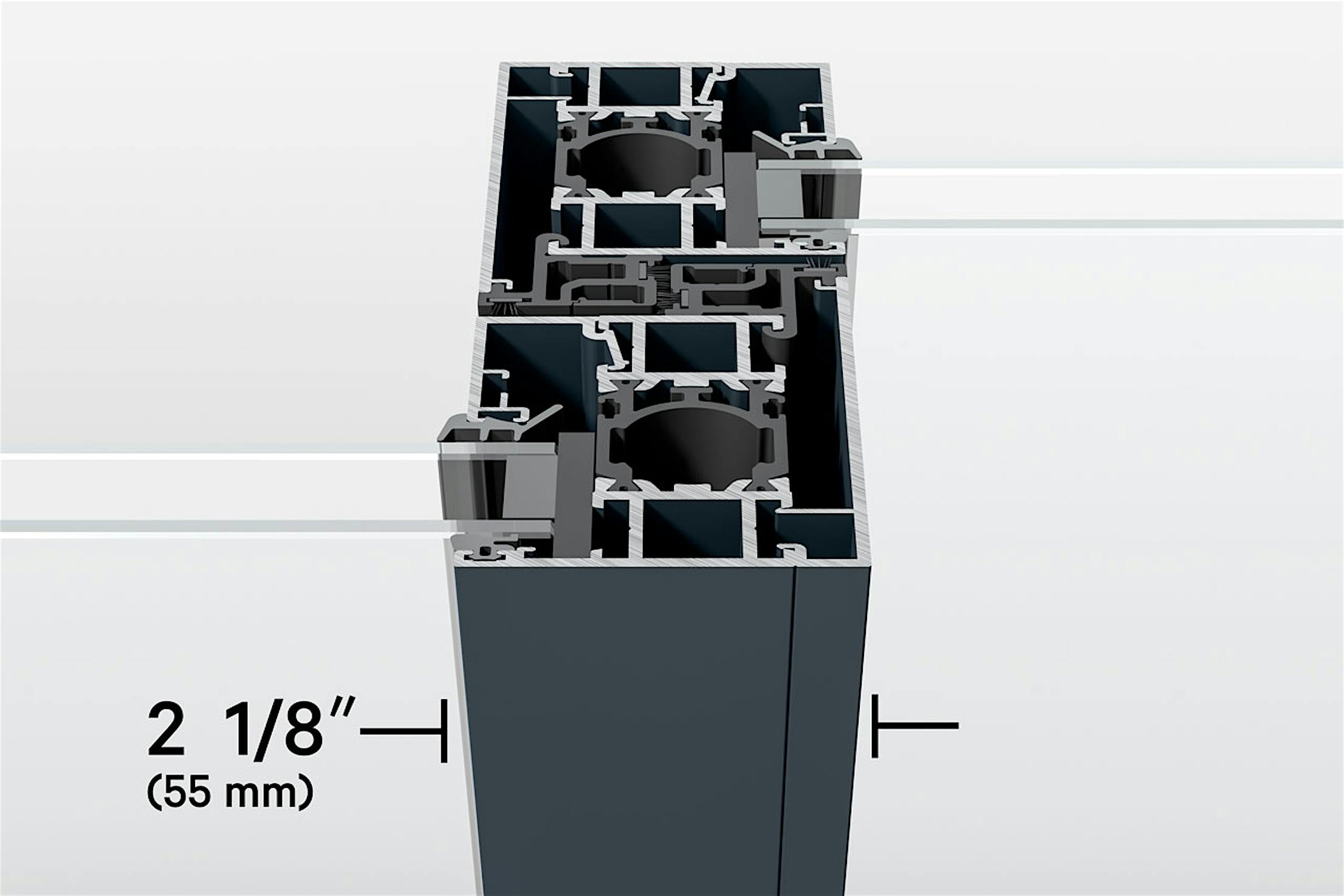

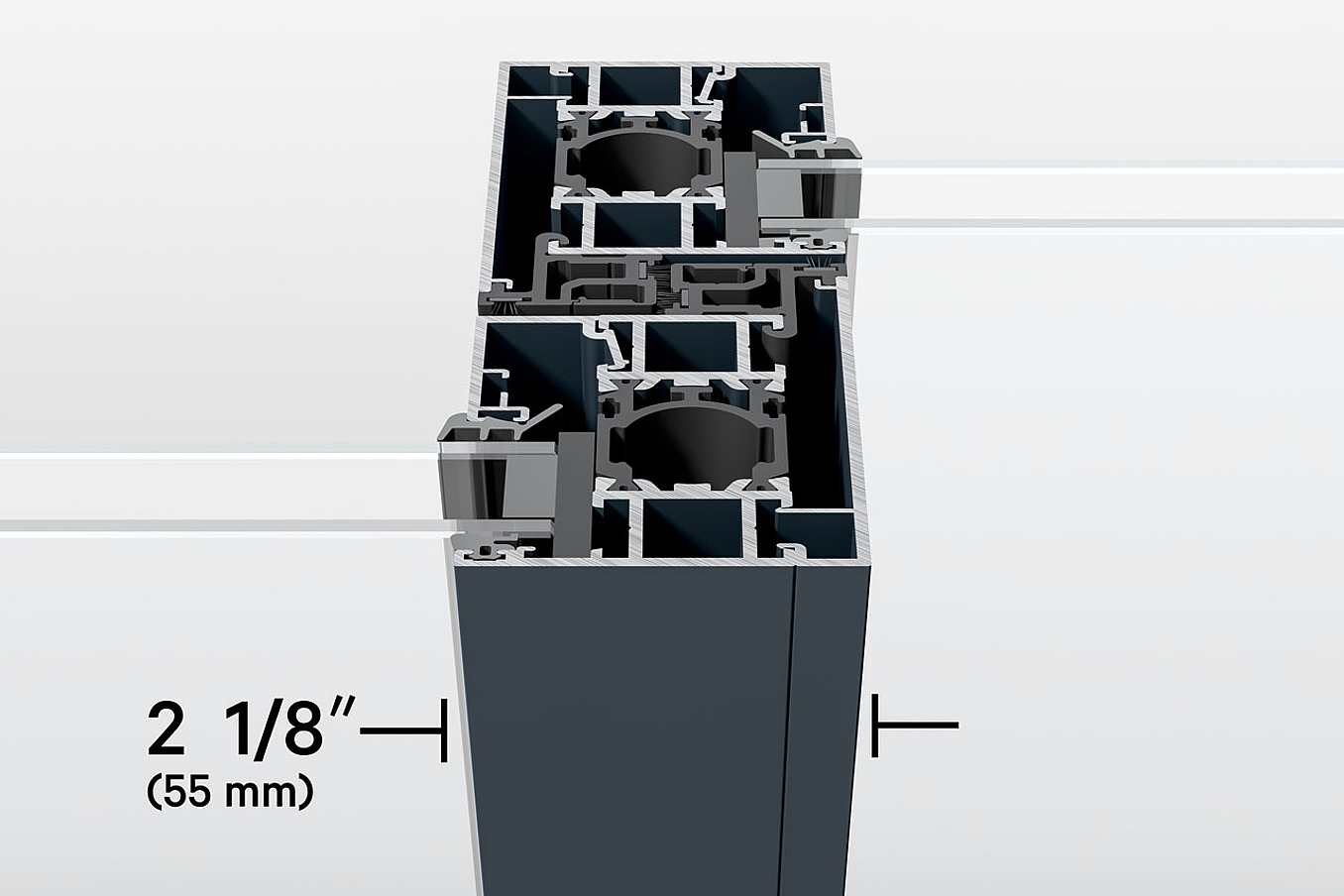

The NW MultiSlide 630 aluminum frame profile is styled in a crisp, angular design with the intersection of two sliding panels being a mere 2 1/8” (55 mm). Comprised of a host of proprietary and patented features, this Generation 4 MultiSlide Glass Wall offers an extremely streamlined appearance, creating a new level of aesthetics and performance.
Custom-Built Architectural Solution with Limitless Flexibility
As a custom-built architectural solution, NW MultiSlide 630 offers the unique flexibility option of multidirectional panels for those who seek ultimate versatility. This allows the user to open at the left or the right of the system based on daily needs.

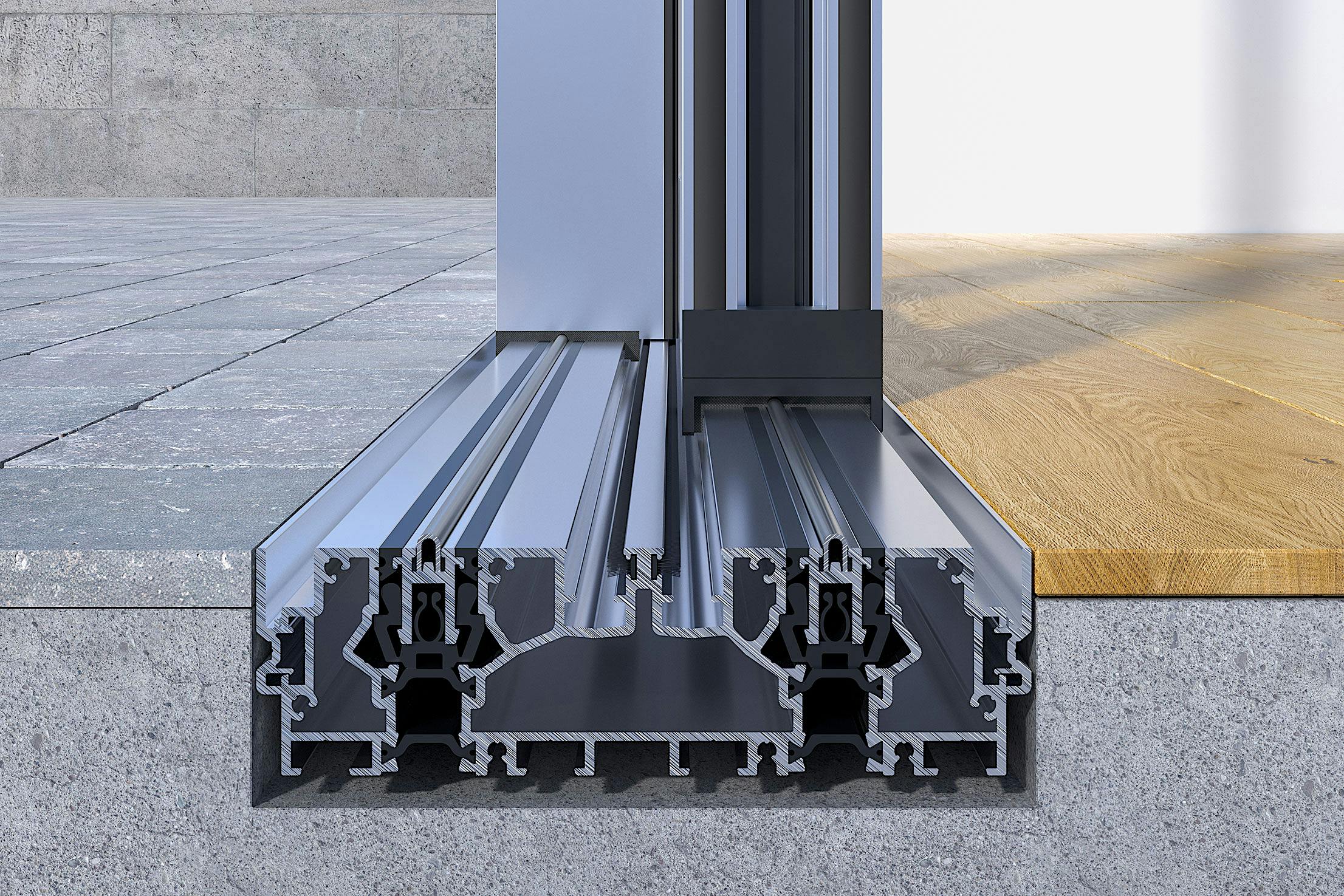

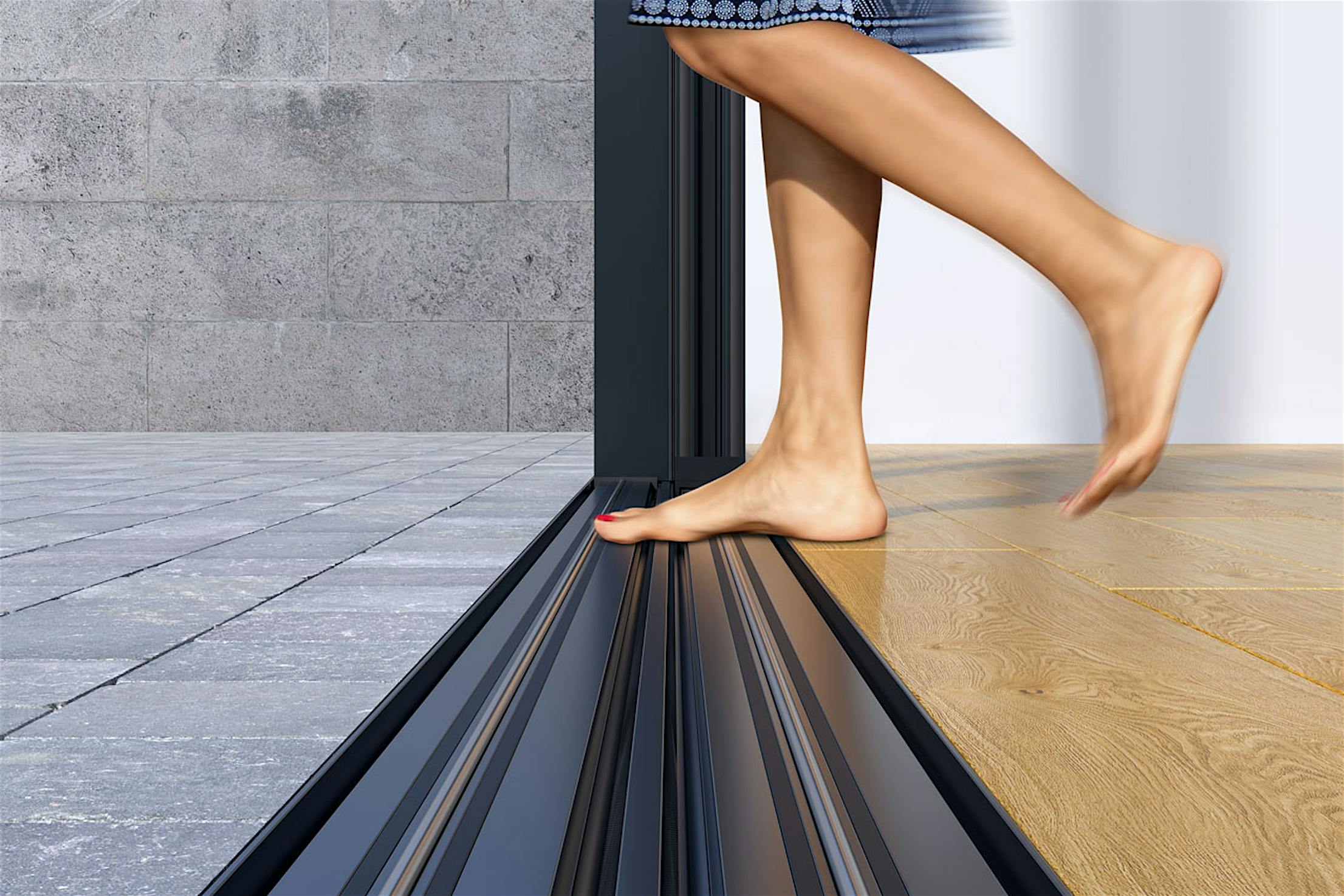

For seamless transitions, the barefoot-friendly design of the Flush sill visually disappears with a level installation of the finished flooring. Achieving an unprecedented 5.43 psf water rating, this sliding system provides enhanced weather protection against wind and rain.
Floor supported systems are ideal for applications where load-bearing capability of the header is a concern.
- Provides long-term durability and smooth operation.
- Control construction costs. Requires less header load and limits the need for extensive pre-cambering.
- Improves likelihood of keeping existing header when retrofitting/remodeling.

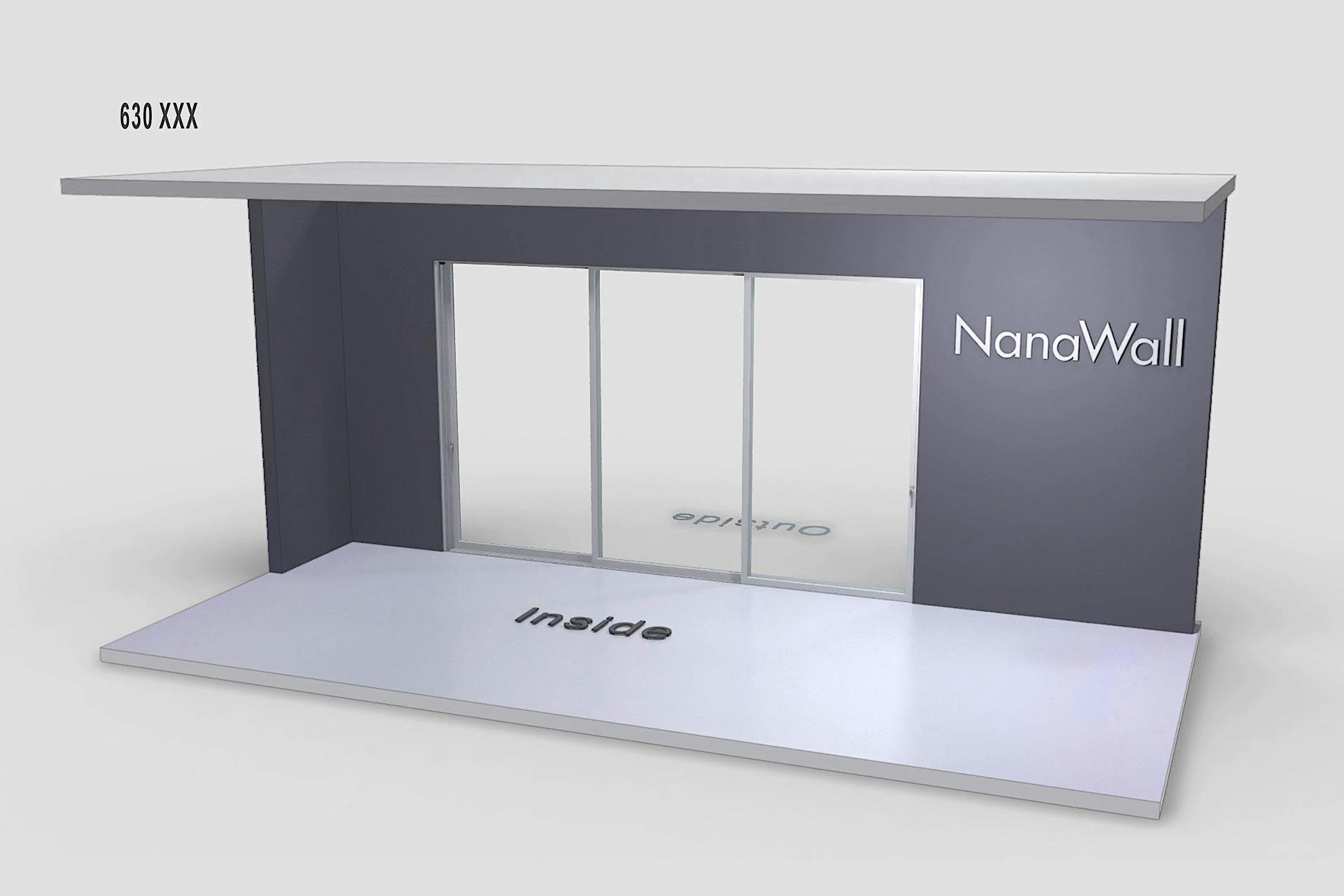

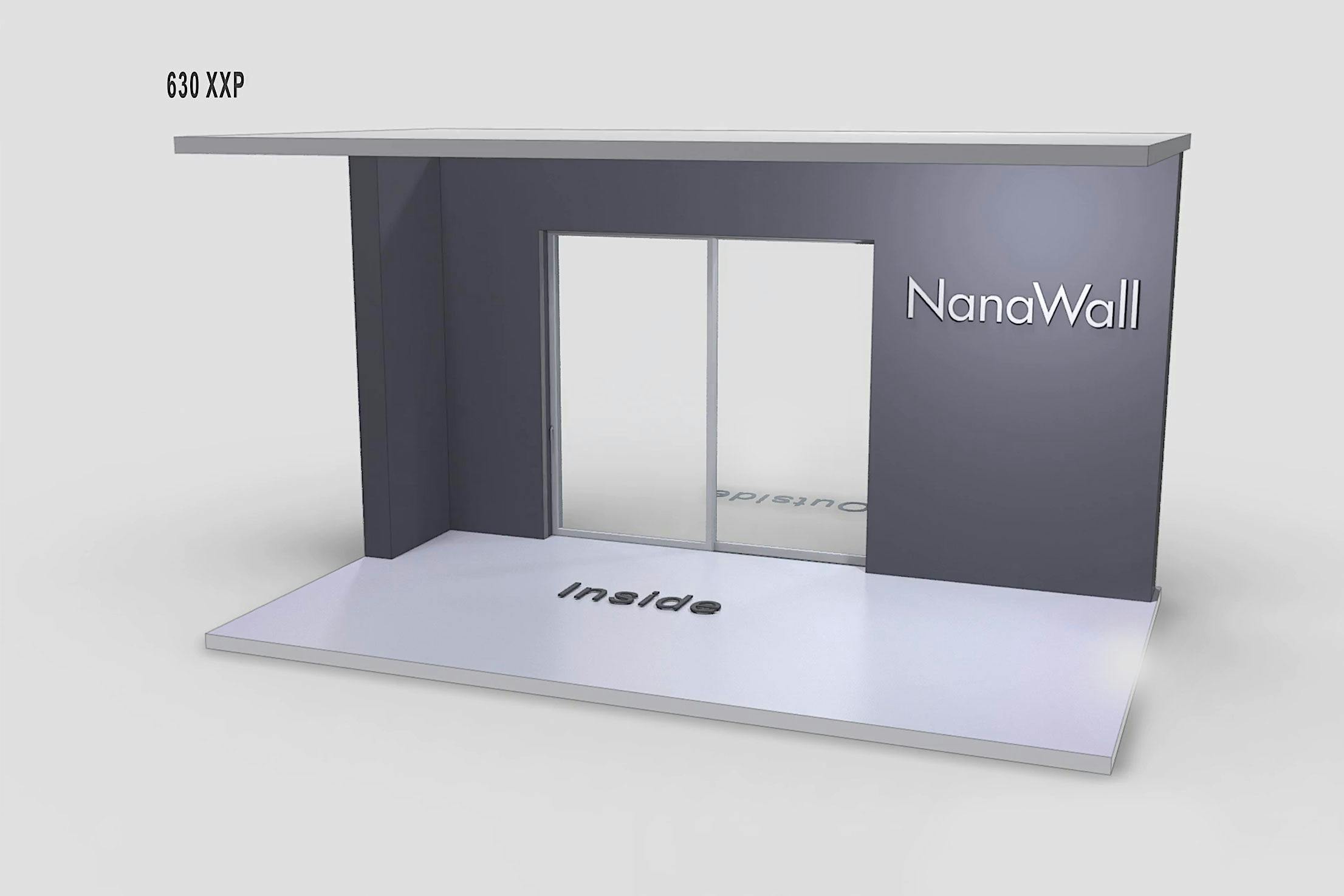

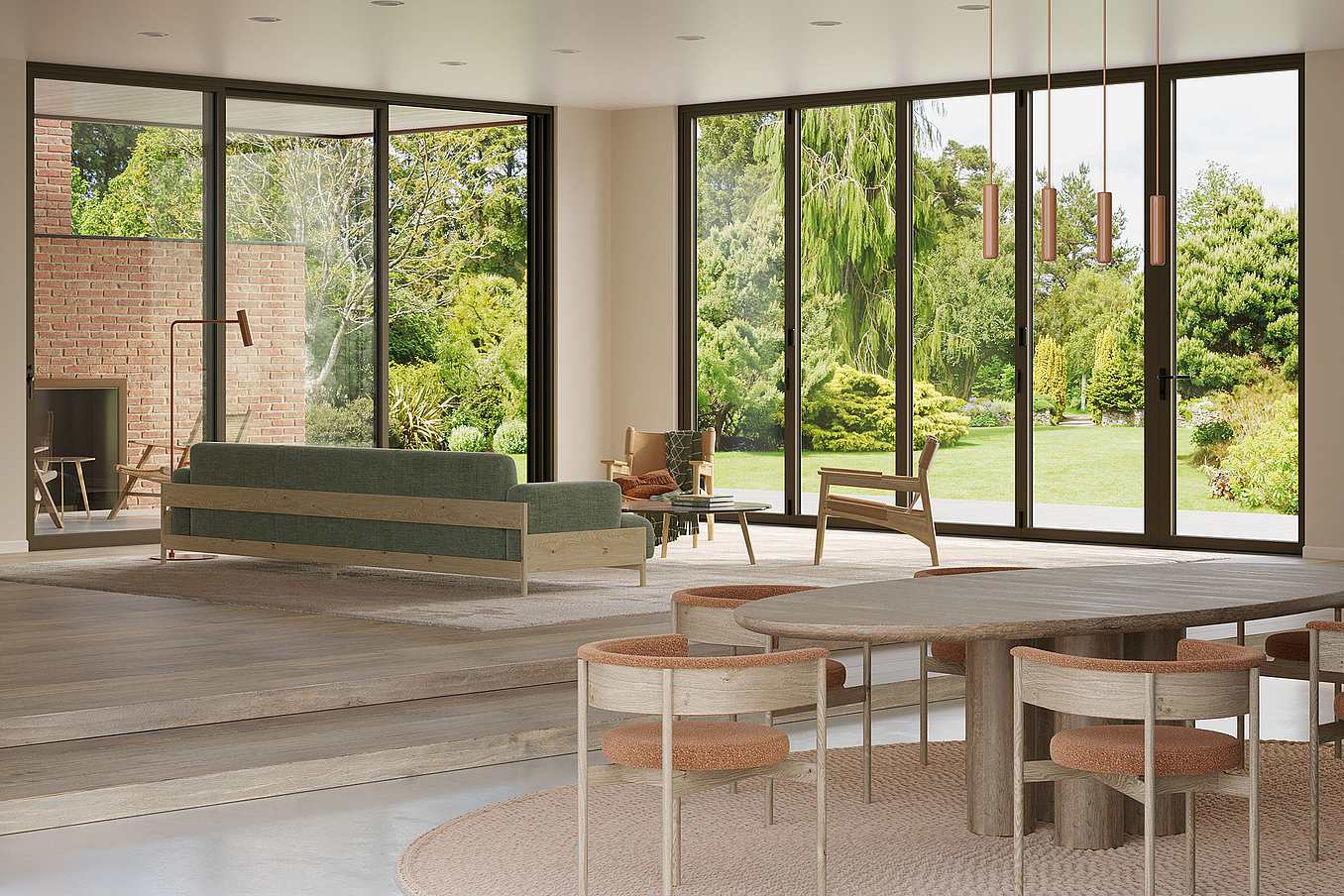

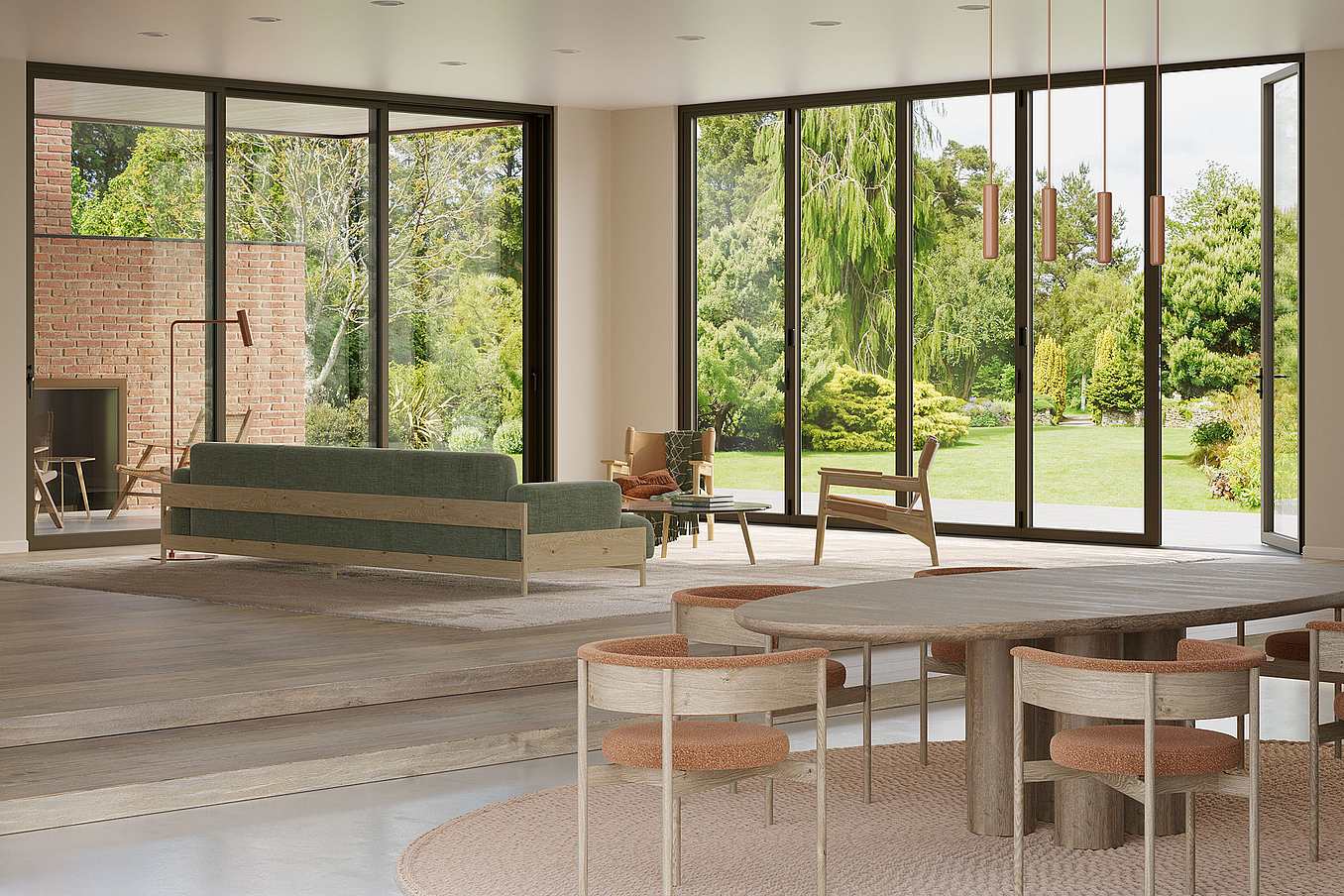

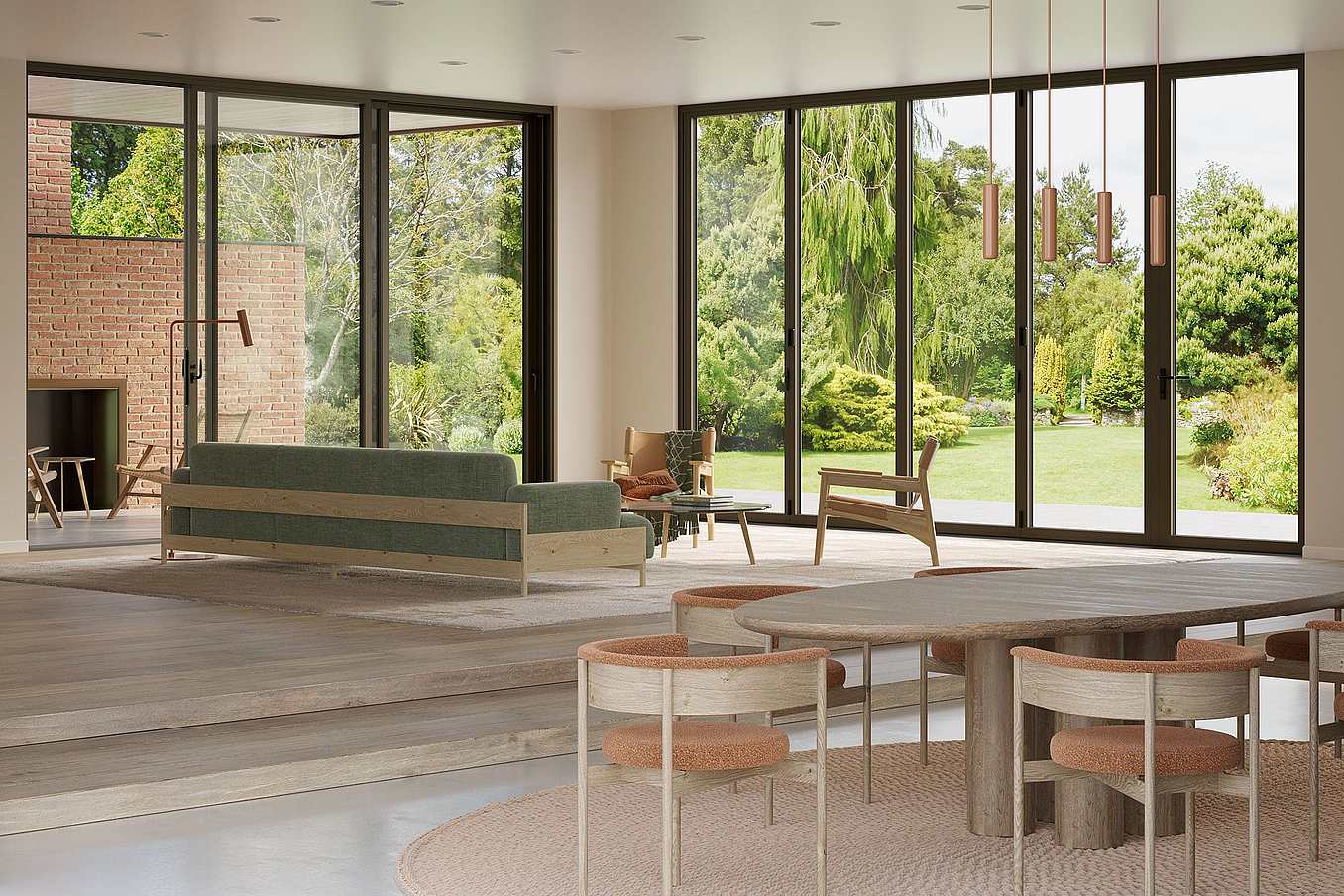

NW MultiSlide 630, like the Generation 4 folding systems, offers the ultimate in user flexibility with the optional configurations that allow for multidirectional panels. The panels in a XX or XXX configuration allow for the system to be opened at either end. This is a great option for open floor plan designs and conference rooms.

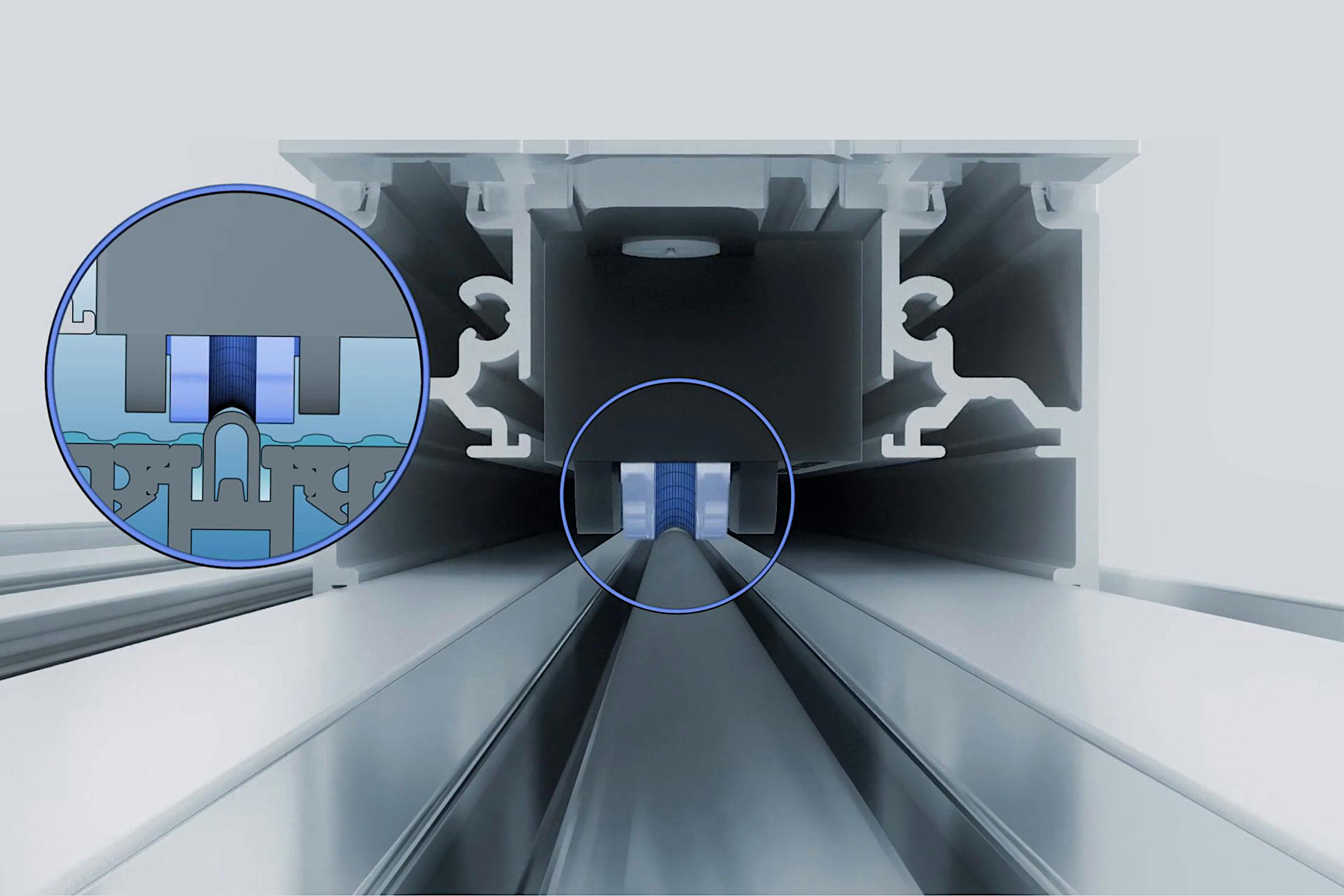

Unique to Generation 4 is the Gothic arch roller design. Recessed into the panel's bottom rail, the stainless steel wheels provide 2-point contact per wheel to the floor track. The result is a system that glides quietly and smoothly with less friction by providing an equal distribution of weight on the stainless steel track.

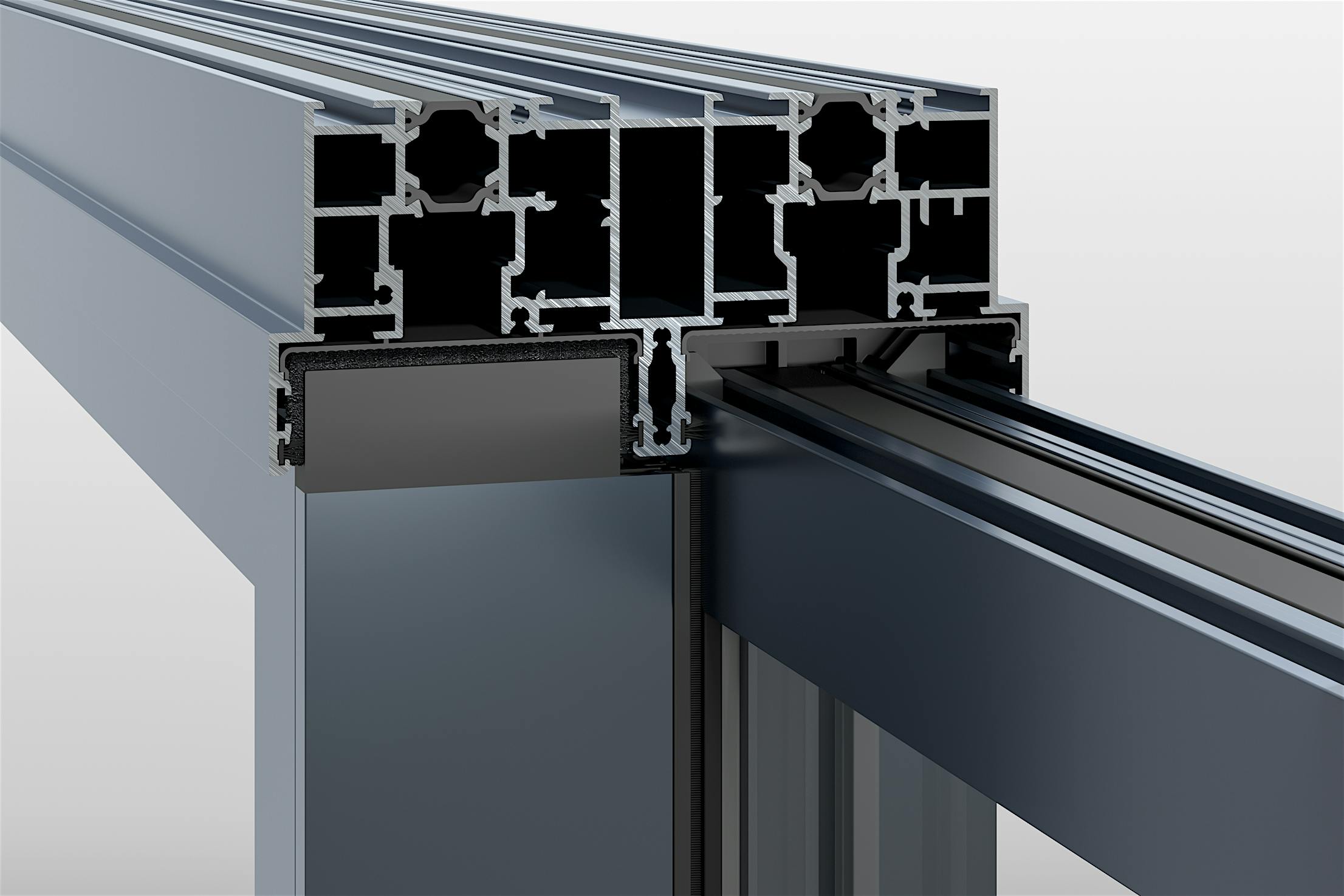

NW MultiSlide 630 is designed to be rattle-resistant, highly energy efficient, and have strong weather performance. A built-in rattle-resistant feature comes standard in the head track providing panels that remain quiet and secure within the frame. Additionally, have peace of mind knowing that this feature effectively eliminates the potential for vandals to lift or pry a panel out of the frame.
Weather Resistant Sill Options with ADA-Compliant and Barefoot-Friendly Feature

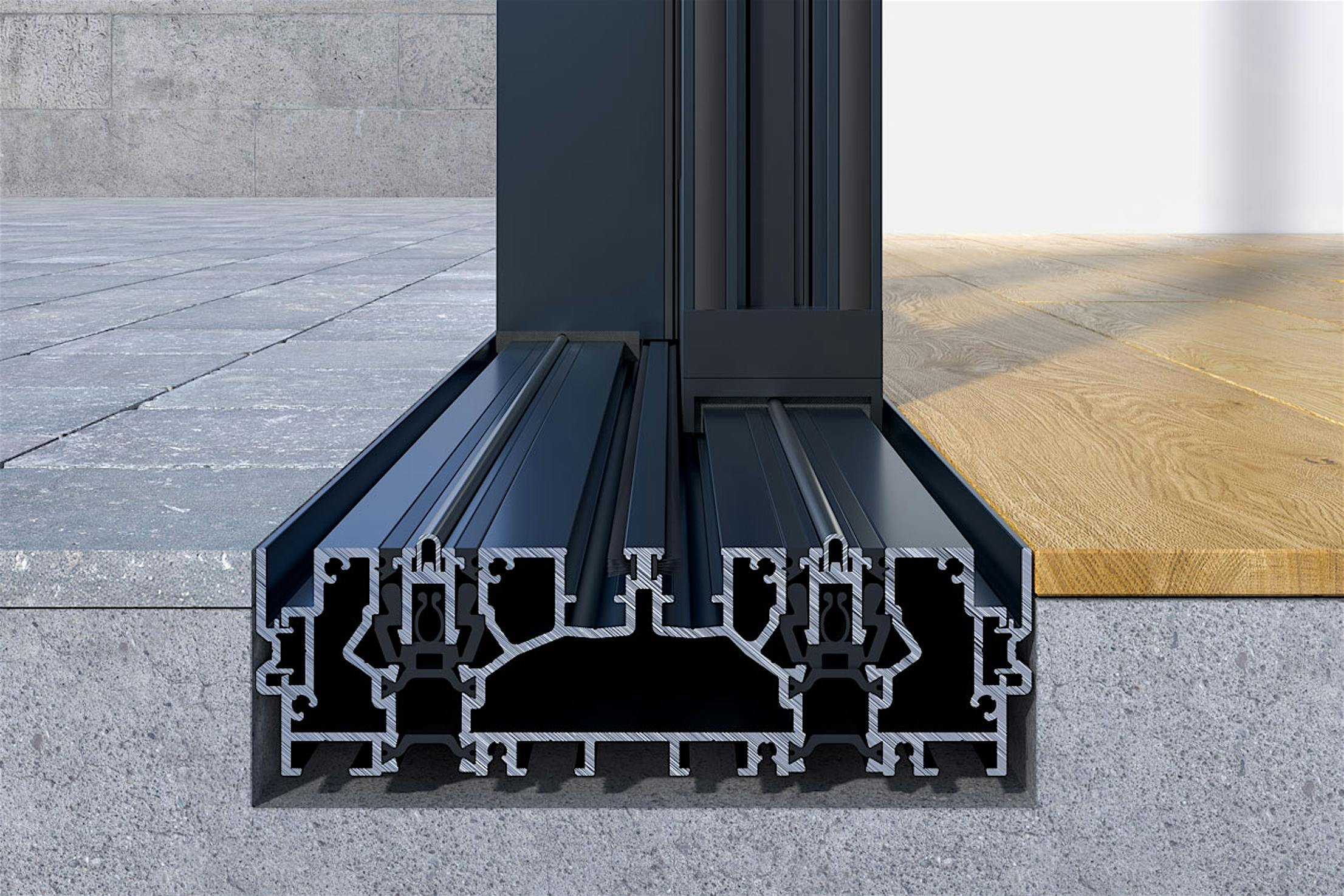

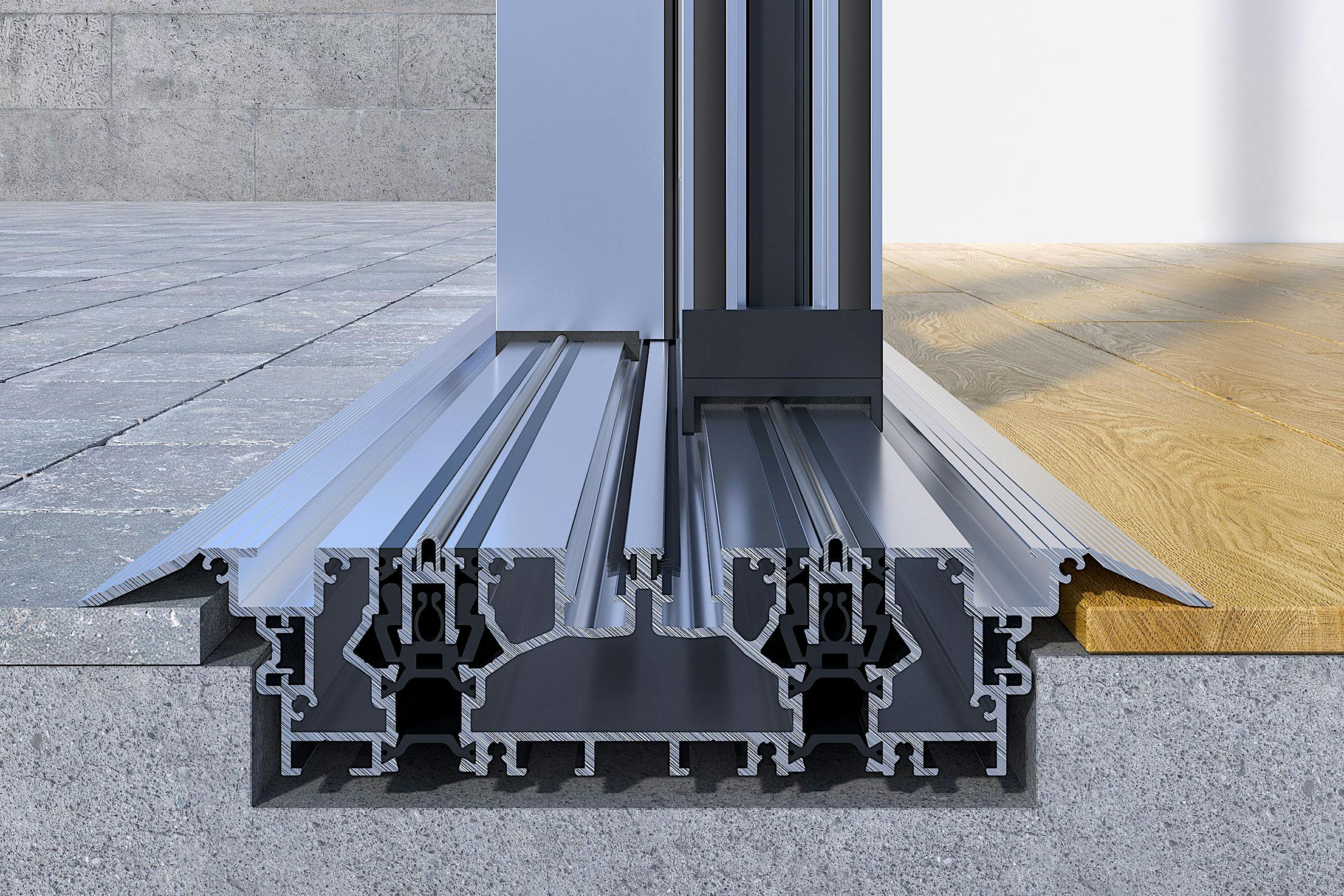

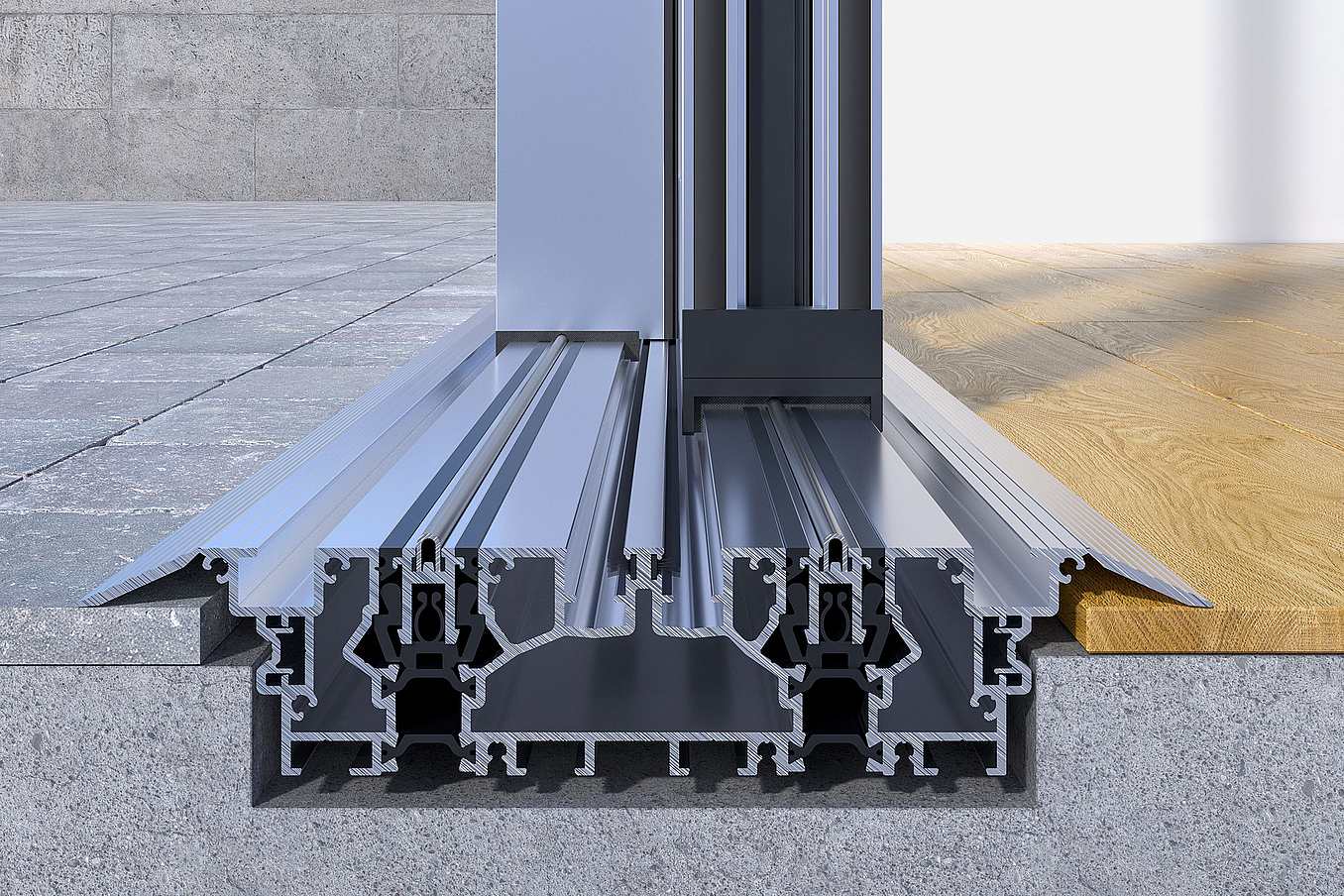

NW MultiSlide 630 floor supported panels glide on one of two sill options: Low Profile Saddle and Flush. The ADA-compliant Low Profile Saddle sill coordinates with the Low Profile Saddle sill of the NW Aluminum 640 folding system to create a unified and consistent glass sightline. The barefoot-friendly design of the Flush sill visually disappears with a level installation with the finished flooring.
Unique Roller Design for the Smooth, Frictionless Operation

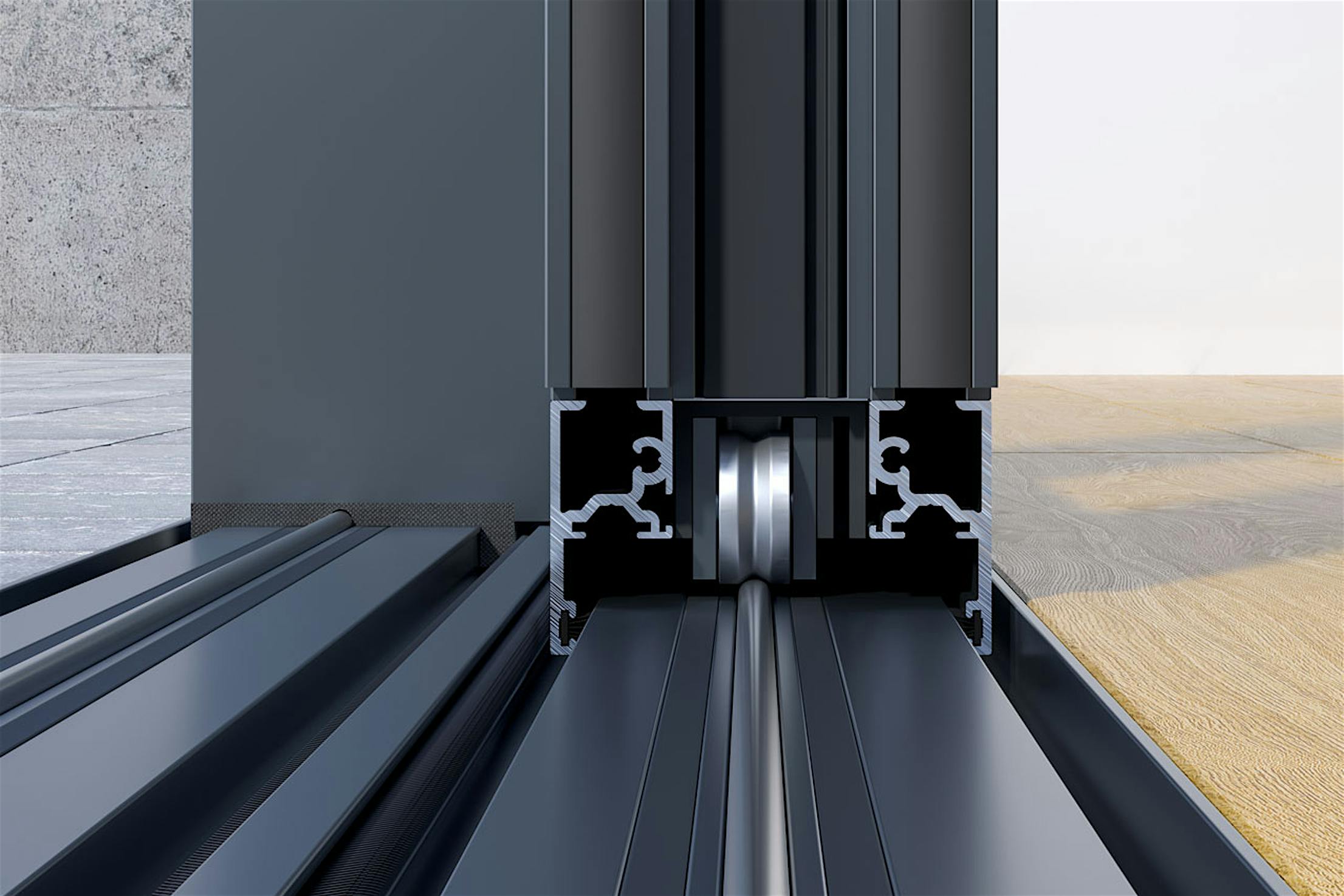

The bottom rollers run on two stainless steel wheels with a unique Gothic arch design supported by a double row of encapsulated and self-lubricating ball bearings. The 2-point contact of each wheel to the floor track provides an equal distribution of weight on the stainless steel track. Stainless steel rollers offer a smoother, more robust, and durable rolling experience over those made of plastic.
Explore the Features and Benefits of Generation 4
- Stainless steel with sealing cushion to avoid thermal conductivity
- Provides optimal load transfer so less connection points are required
- For enhanced aesthetics, all frame attachment points are hidden

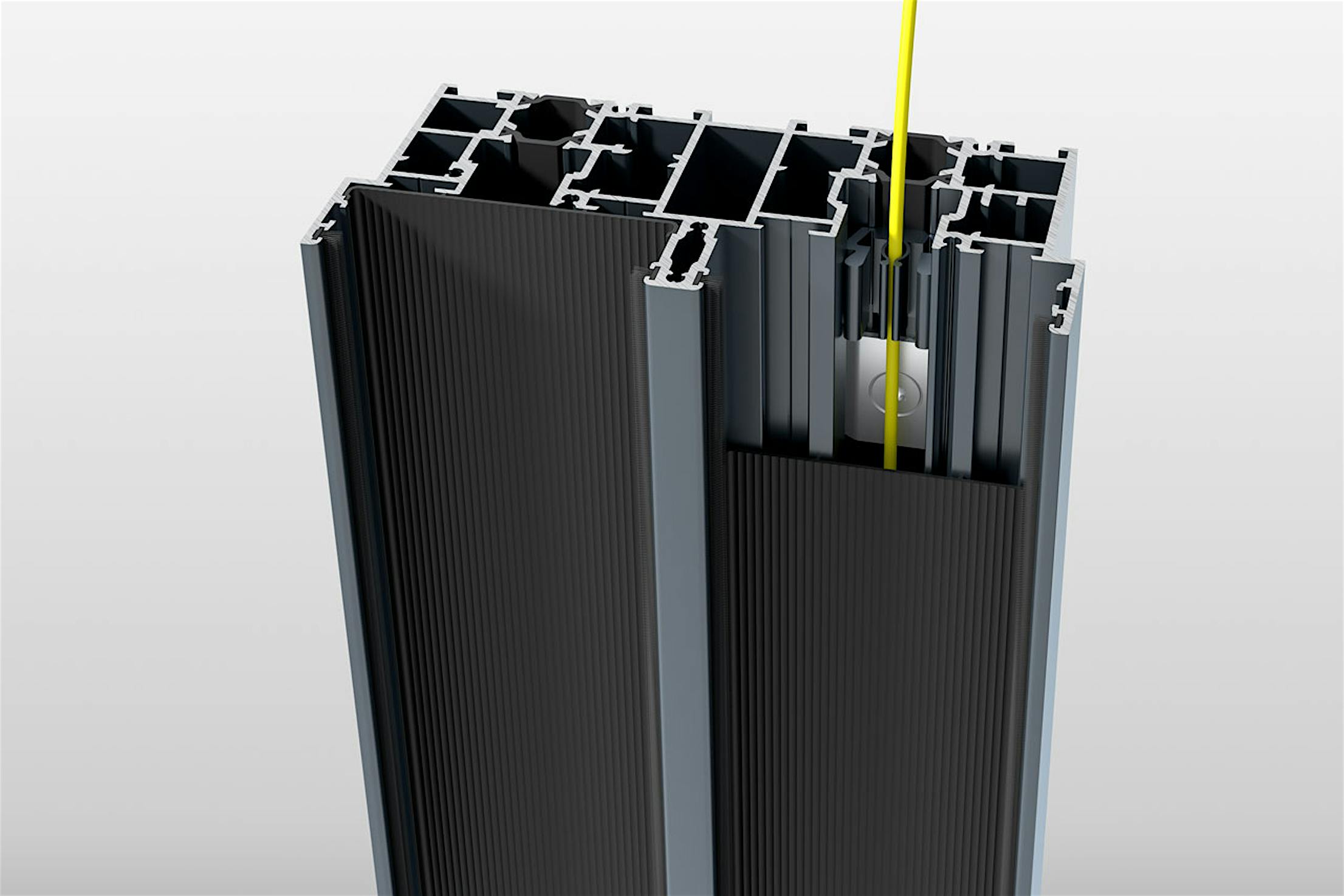

- Offers space for concealed cable routing for security systems by others
- 1″ ( 24 mm ) throw of the locking rods securely engage top and bottom

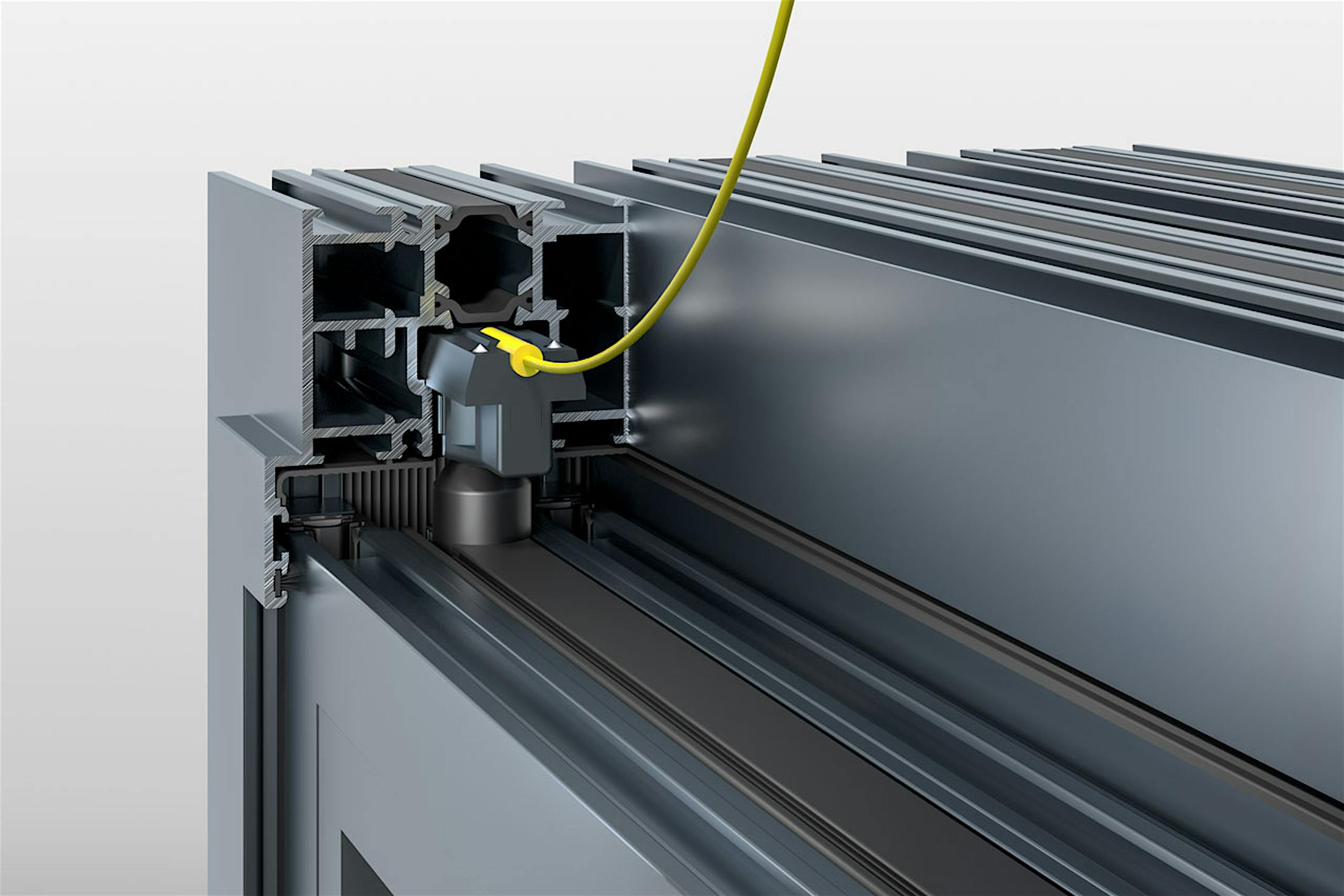

- For state-of-the-art security, lock monitoring available with Reed contact (by others) with specialized magnetic locking rod end cap to connect to home security systems
- Built-in additional security within the head track
- Eliminates the potential to lift or pry panels out of the frame
- Rattle resistance built within the head track
- Panels remain quiet and secure within the frame

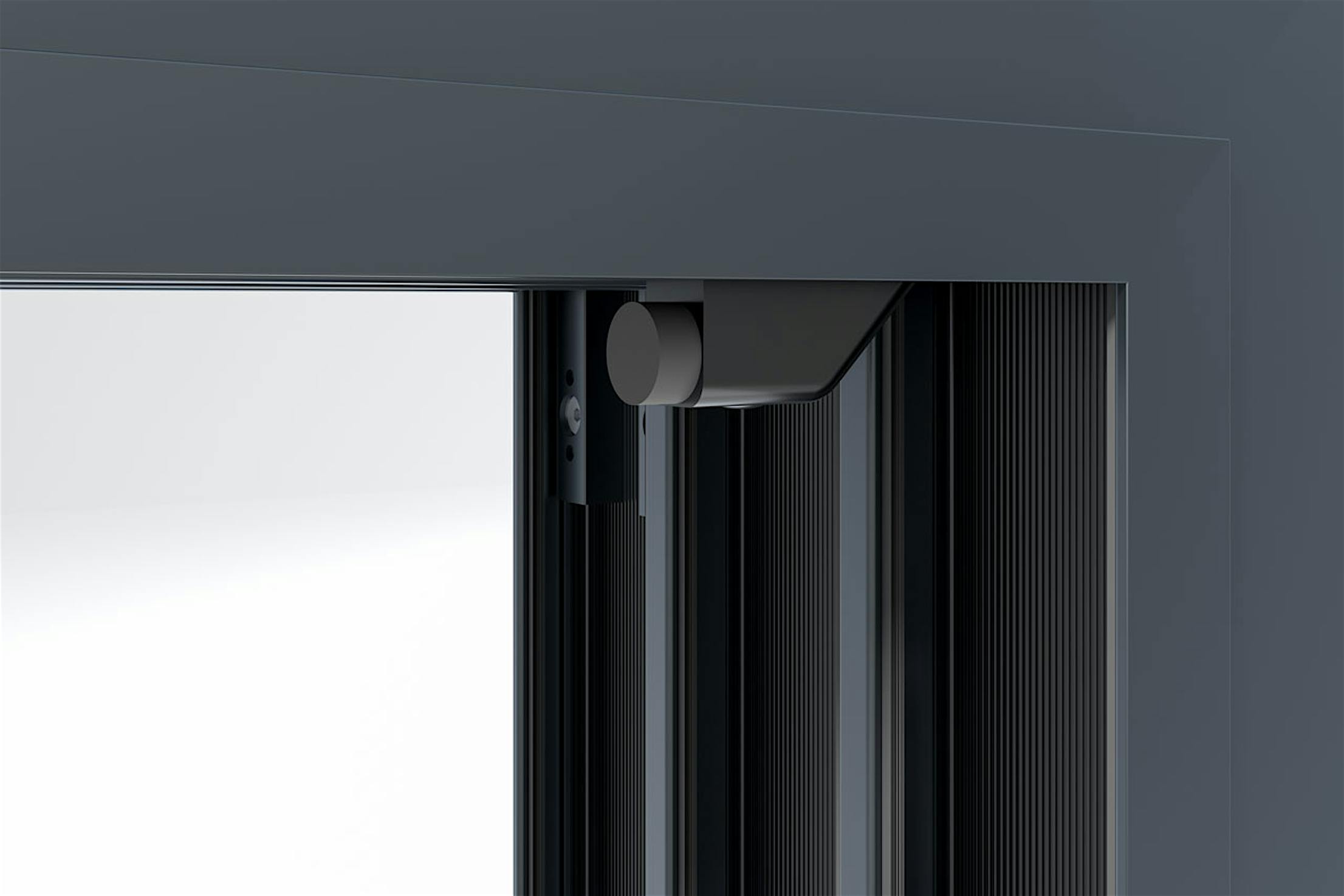

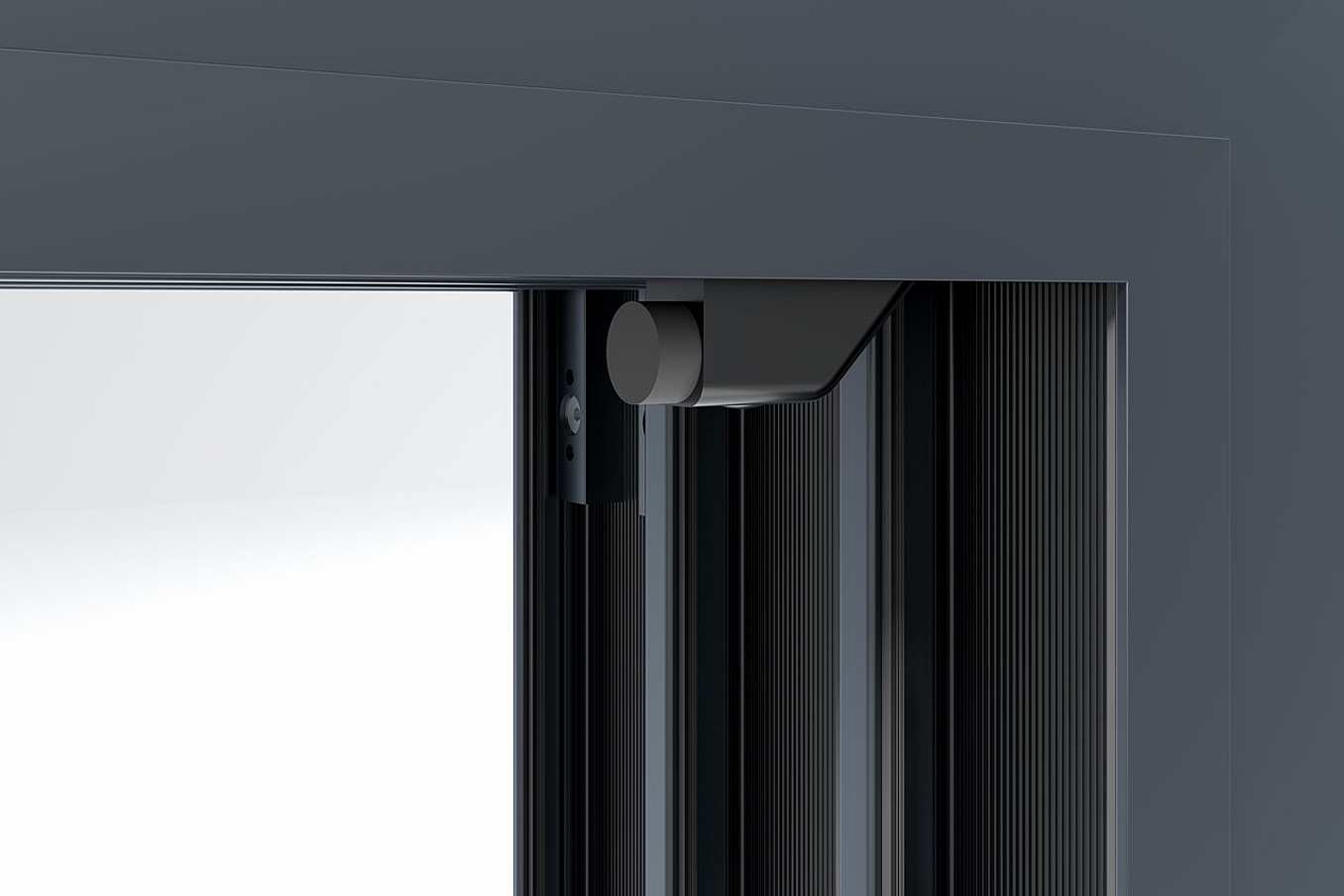

- Bumper design avoids metal touching metal
- Offers soft closing experience
- Available in brushed satin and black titanium
- Available in brushed satin and black titanium
- Available in brushed satin and black titanium
- Available in brushed satin and black titanium
- Intersection of two sliding panels is a mere 2 1/8″ (55 mm) for maximum sightlines
- Polyamide interlocking design
- Patented Bionic Turtle® single piece thermal break provides outstanding insulation within the frame profiles
- 1 ¾″ (45mm) glass pocket allows for double and triple glazing
- 2-point contact of each wheel creates less friction and smooth operation with an equal distribution of weight
- Bottom rollers with two stainless steel wheels run on a stainless steel track
- Rollers are concealed within the bottom rail and ride above the water table
- Sills are designed to be ADA-compliant and friendly on bare feet
- Aesthetically pleasing designs for seamless transitions
- Excellent performance ratings for enhanced weather protection
- Weather rated to 5.43 psf
- ADA-compliant and barefoot-friendly
- Weeps holes pre-drilled for a cascading water management system
- Coordinates with the Low Profile Saddle Sill of the NW Aluminum 640 for consistent glass lines
- Weather rated to 5.43 psf
- ADA-compliant and barefoot-friendly
- Weeps holes pre-drilled for a cascading water management system
- Visually disappears with flush installation in finished flooring
Extreme Weather Resistant
Energy-efficient by design, our glass walls keep the elements at bay, ensuring that even as seasons or temperatures change, your interior comfort will always remain the same.
Certified Testing Standards
NanaWall products endure the latest AAMA testing standards for air, water, structural, and forced entry.
Highly Energy-Efficient
Designed to keep the elements at bay, holding warmth inside while acting as a transparent barrier to the weather outside.
Sustainable Design
This product contributes to multiple LEED rating systems and has HPD and EPD certification.
Download Declaration Documents
Test Results
Inside Generation 4 systems are innovations designed to meet the challenges of wind, water, extreme temperatures, forced entry, and structural load. Besides housing the system’s secure locking rods, our Bionic Turtle®—a patented, single-piece insulbar design—provides an exceptional insulating thermal break between the frame profiles for energy efficiency and year-round comfort.
Florida Product Approval # FL47891
See Air, Water, Structural, Thermal, and Forced Entry Results
Performance When Closed Matters Most
Large openings are easy to design and there are many options to choose from. When selecting a product that best fits your project requirements, considering how it performs when closed is paramount.
50 standard colors that come at no additional cost, with an additional 200+ colors to choose from. Steel effect colors are also available.
Explore Finish Options

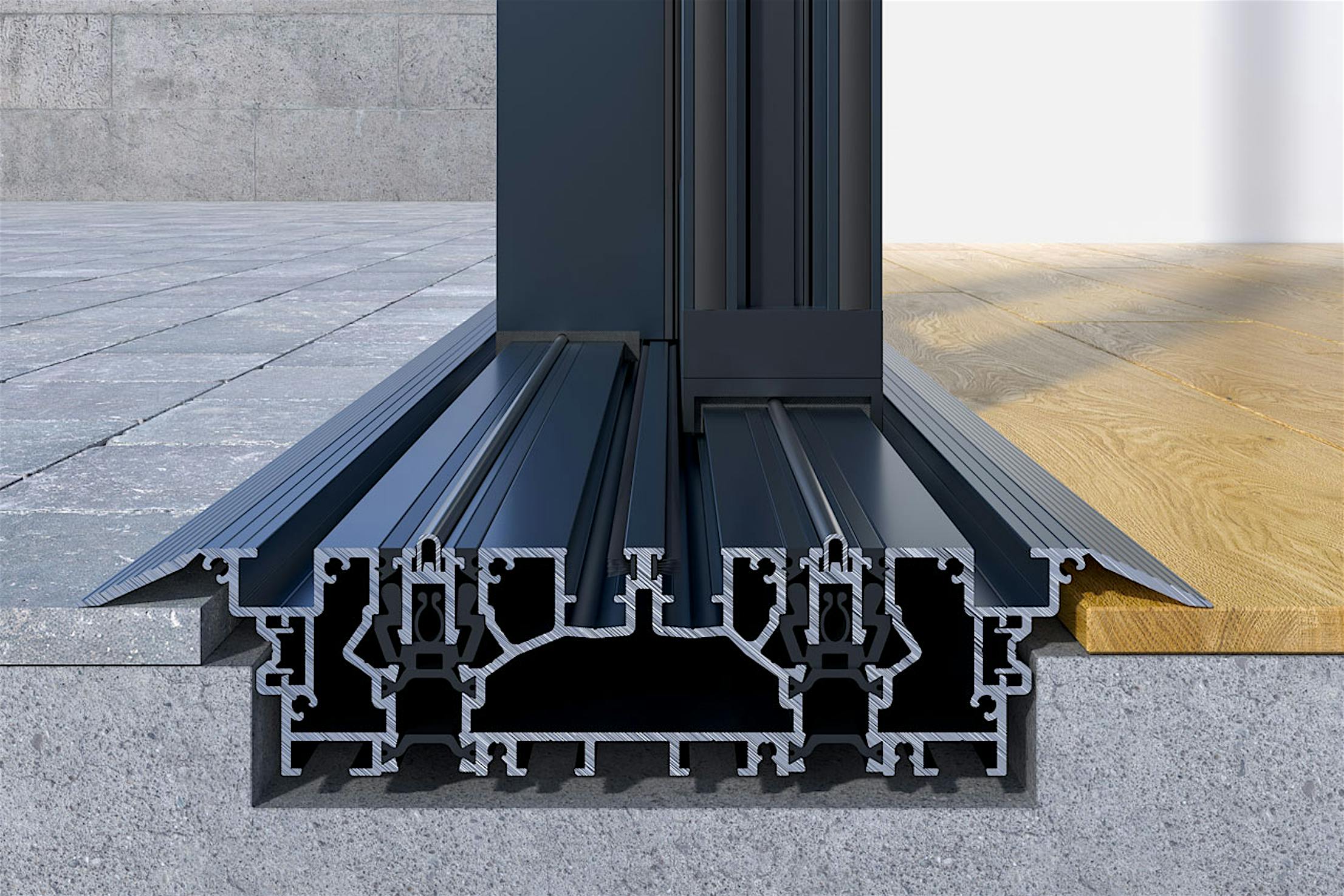

NW MultiSlide 630 has two sill options: Low Profile Saddle and Flush sills.
These ADA-compliant and barefoot-friendly sills achieve and unprecedented 5.43 psf water rating for enhanced weather protection, the bottom rail of each panel provides a profile drip edge that extends into the sill and creates an optimal seal with the sills to combat wind and rain.
Explore Sill Options

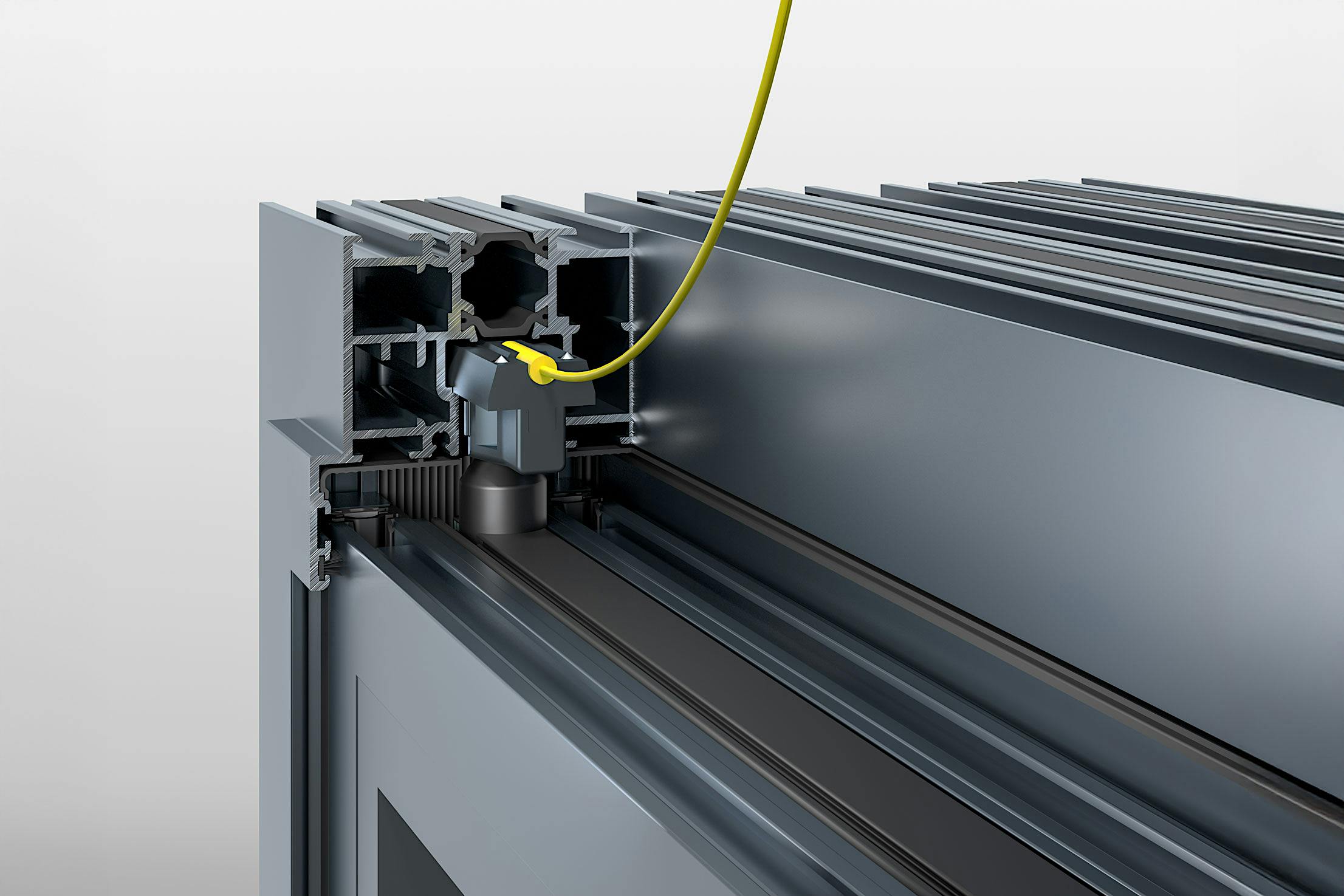

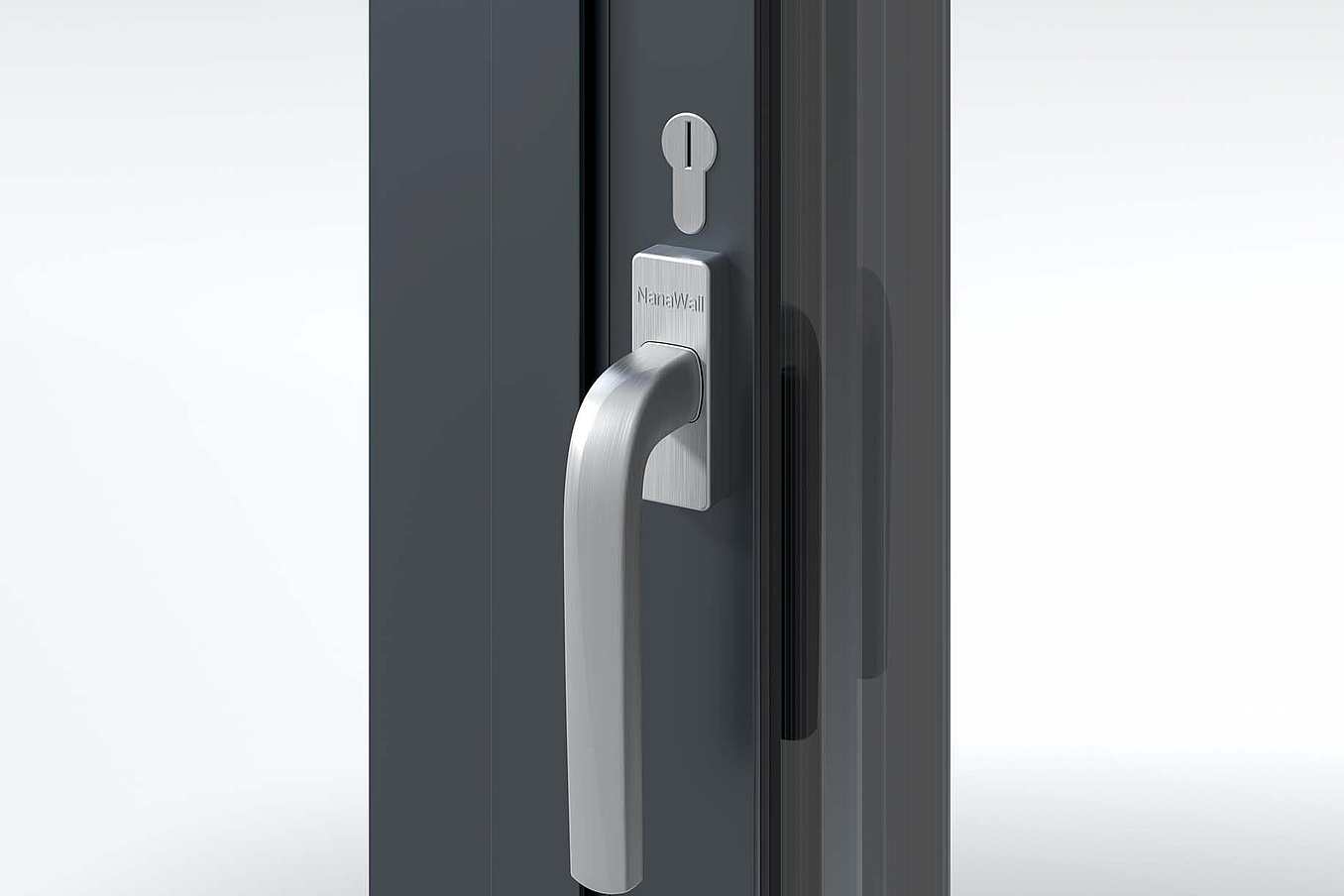

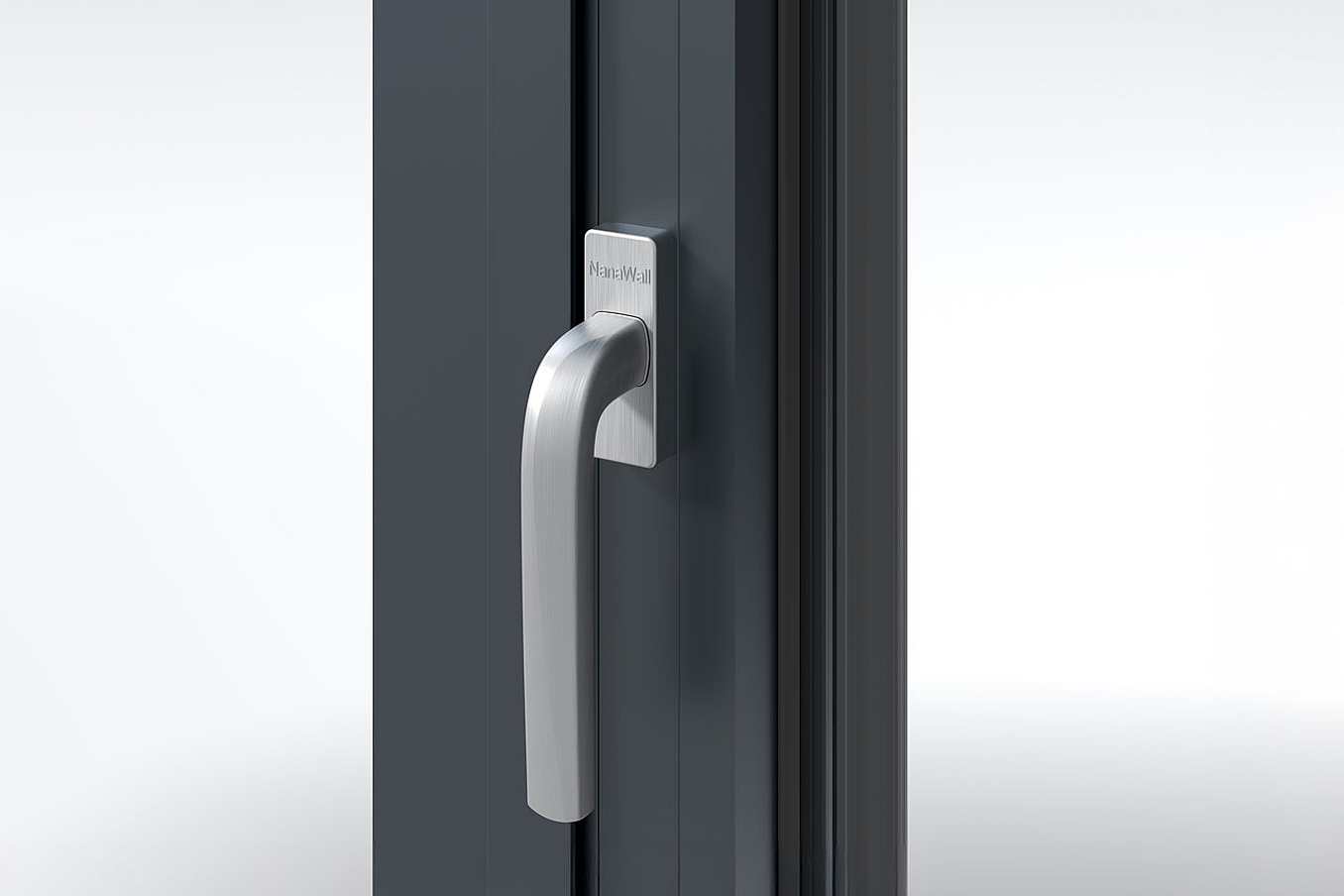

NW MultiSlide 630 comes with highly secure two-point locking. With a simple 180° turn of the handle, steel locking rods with a 1" (24 mm) throw drive into both the head track and the sill. These locking rods, along with an anti-lift feature in the head track, provide built-in additional security eliminating the potential for vandals to lift or pry a panel out of the frame.
For state-of-the-art security, lock monitoring is available with Reed contact (by others) with a specialized magnetic locking rod end cap to connect home security systems.
Explore Locking Options
A fundamental benefit of this Generation 4 multislide glass wall is energy efficiency. Depending on the glass type selected, NW MultiSlide 630 offers thermal performance values as low as “.26”. For optimal defense from heat and cold, the system comes standard with two levels of concealed seals that are incorporated into the design of the profiles.
The glass pocket can accommodate double and triple-paned glass from 1/4" (6 mm) to 1 3/4" (45 mm) insulated glass.
Explore Glazing Options

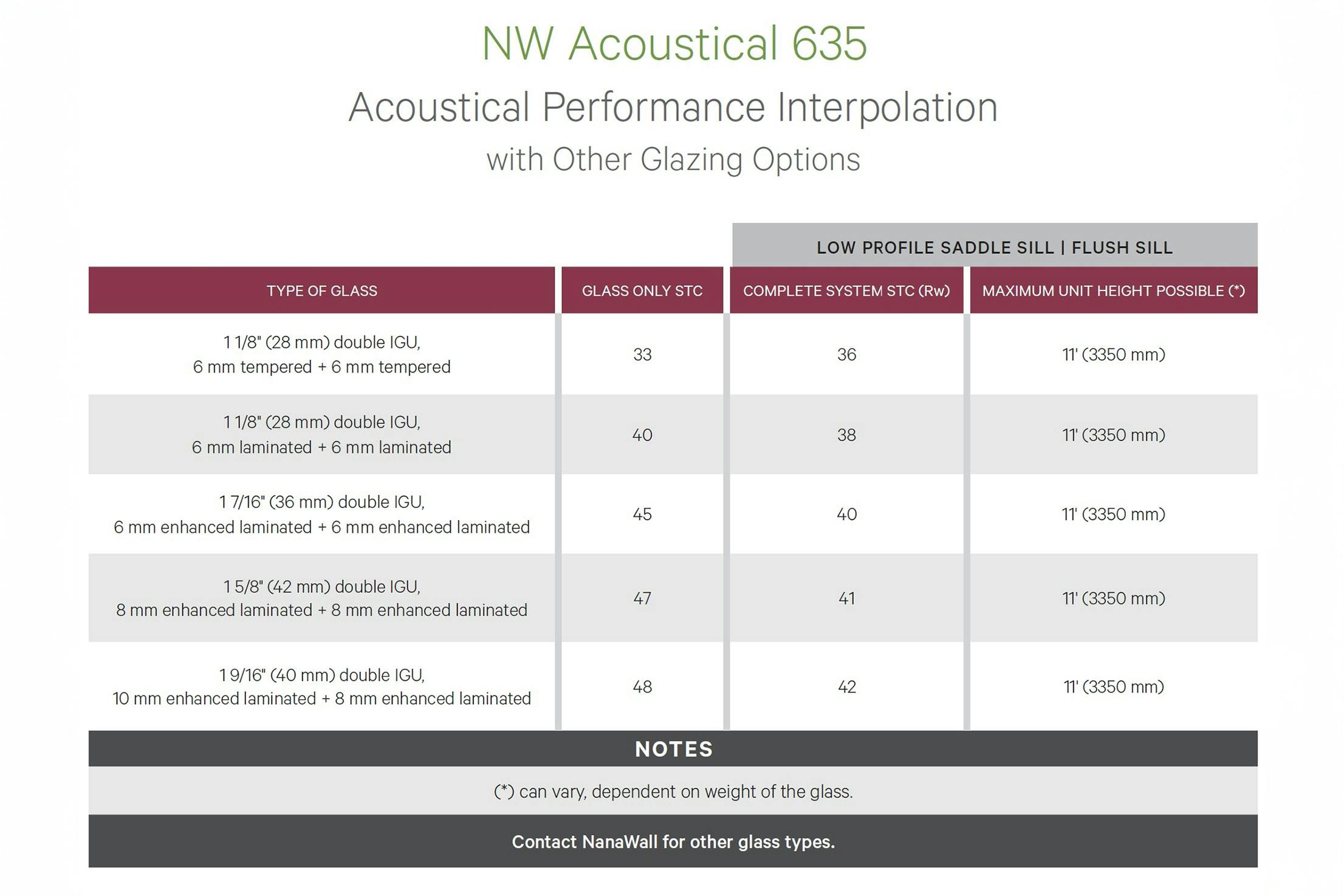

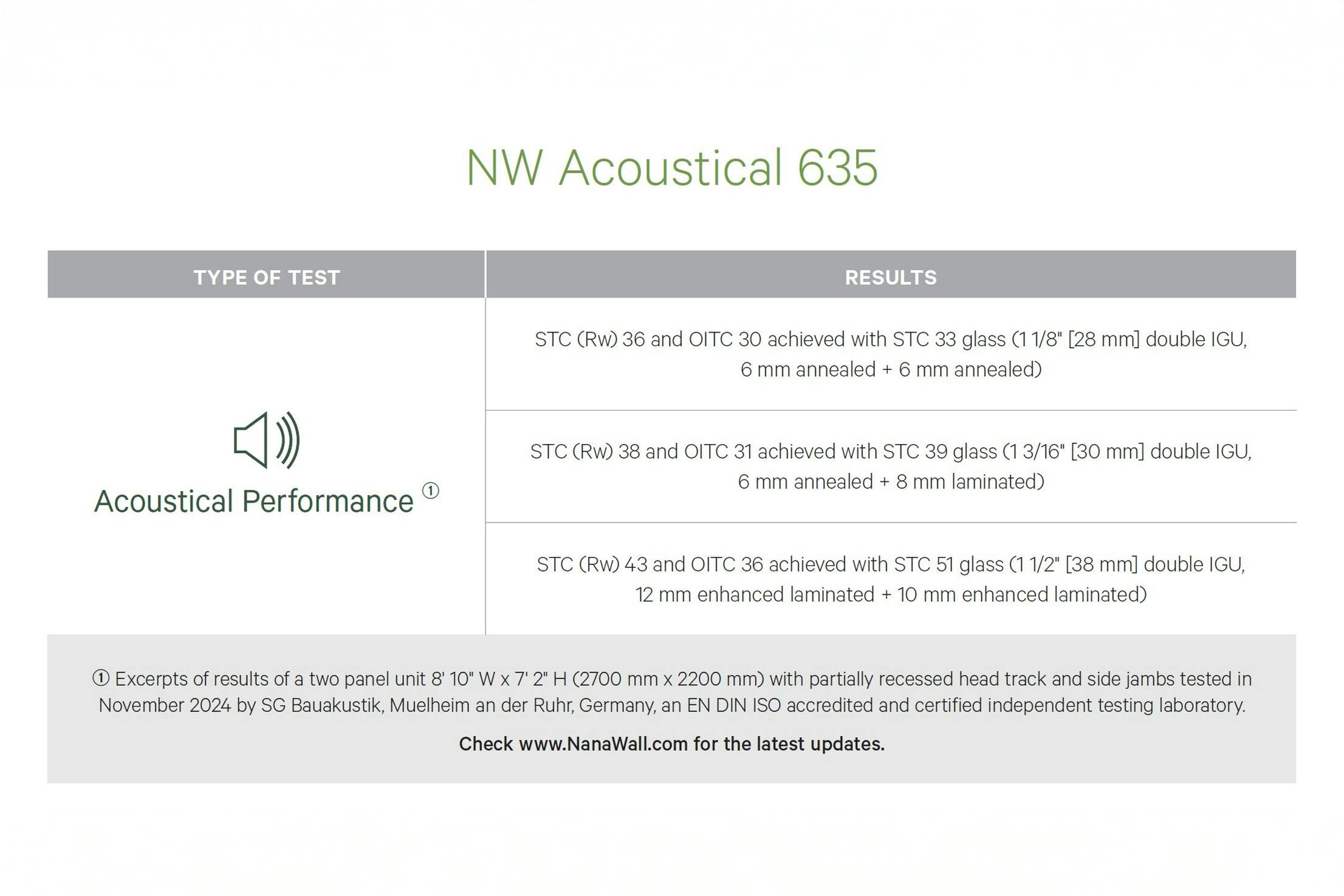

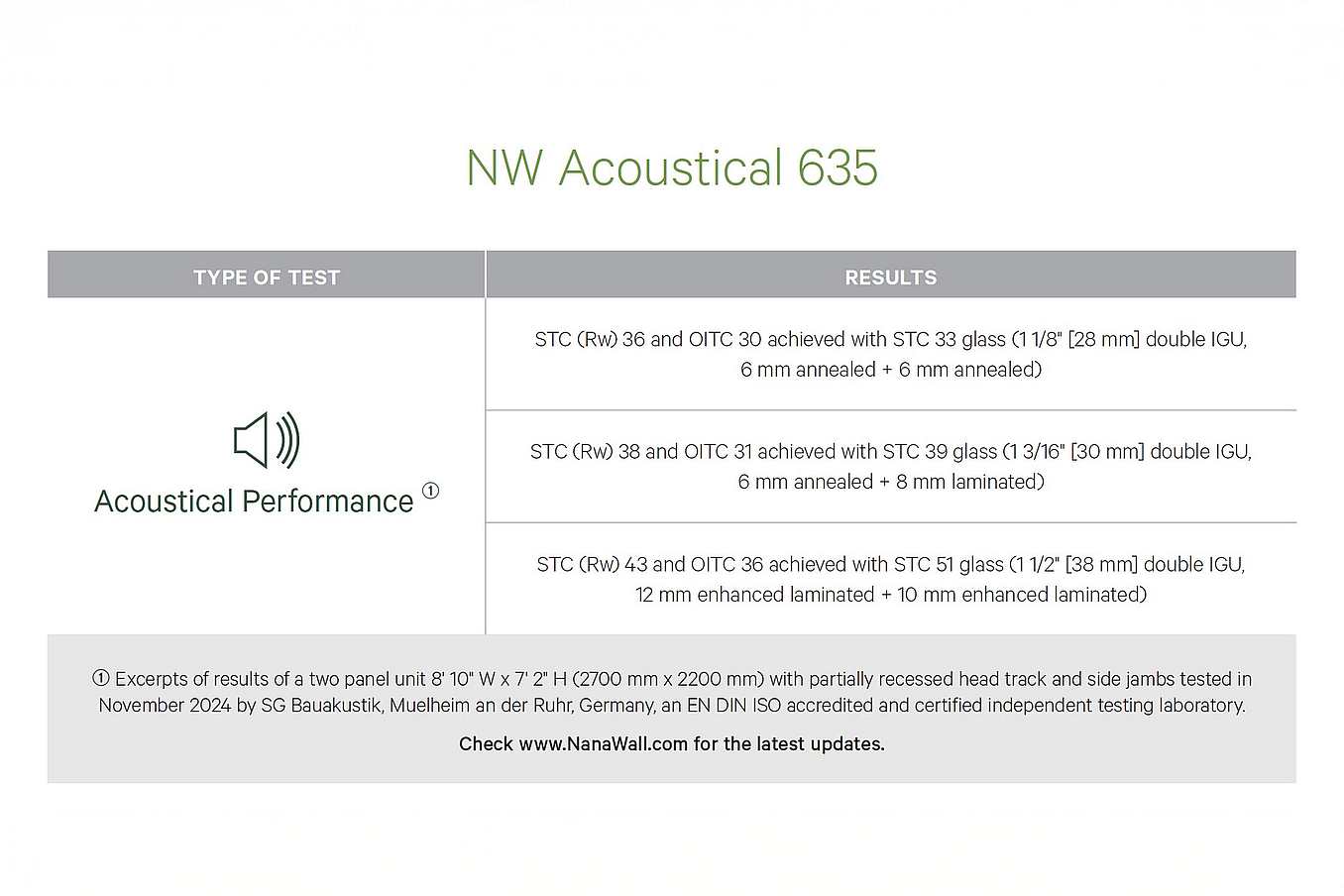

For interior applications such as office conference rooms and educational environments, our multislide glass wall, NW Acoustical 635, has been tested with exceptional acoustical results.

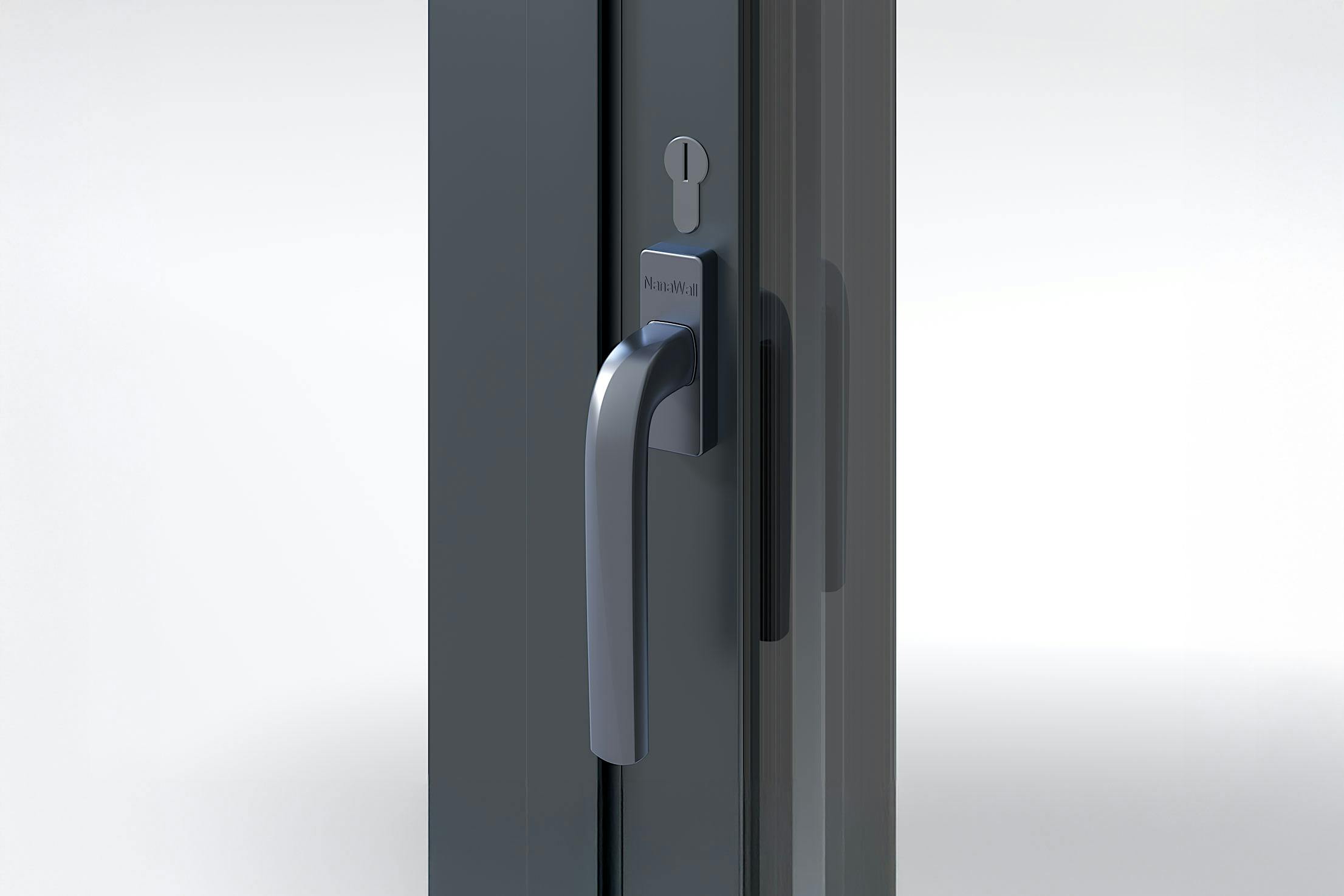

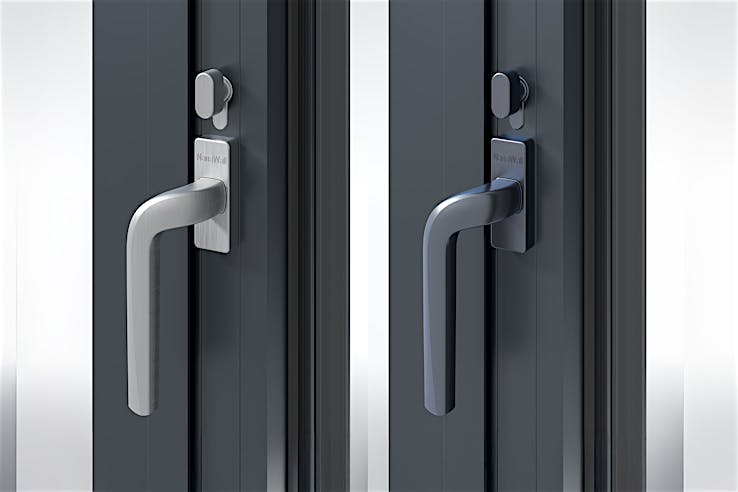

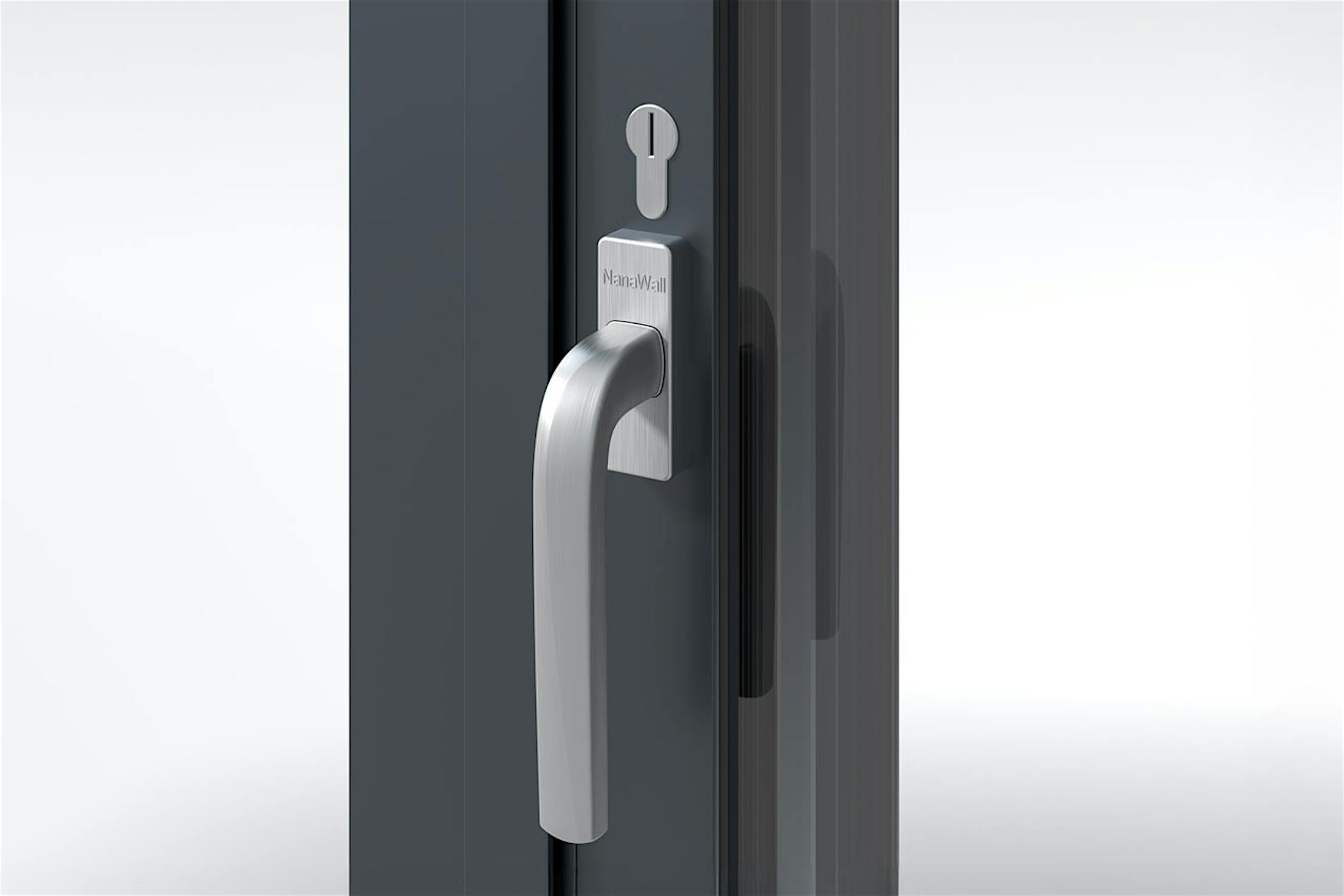

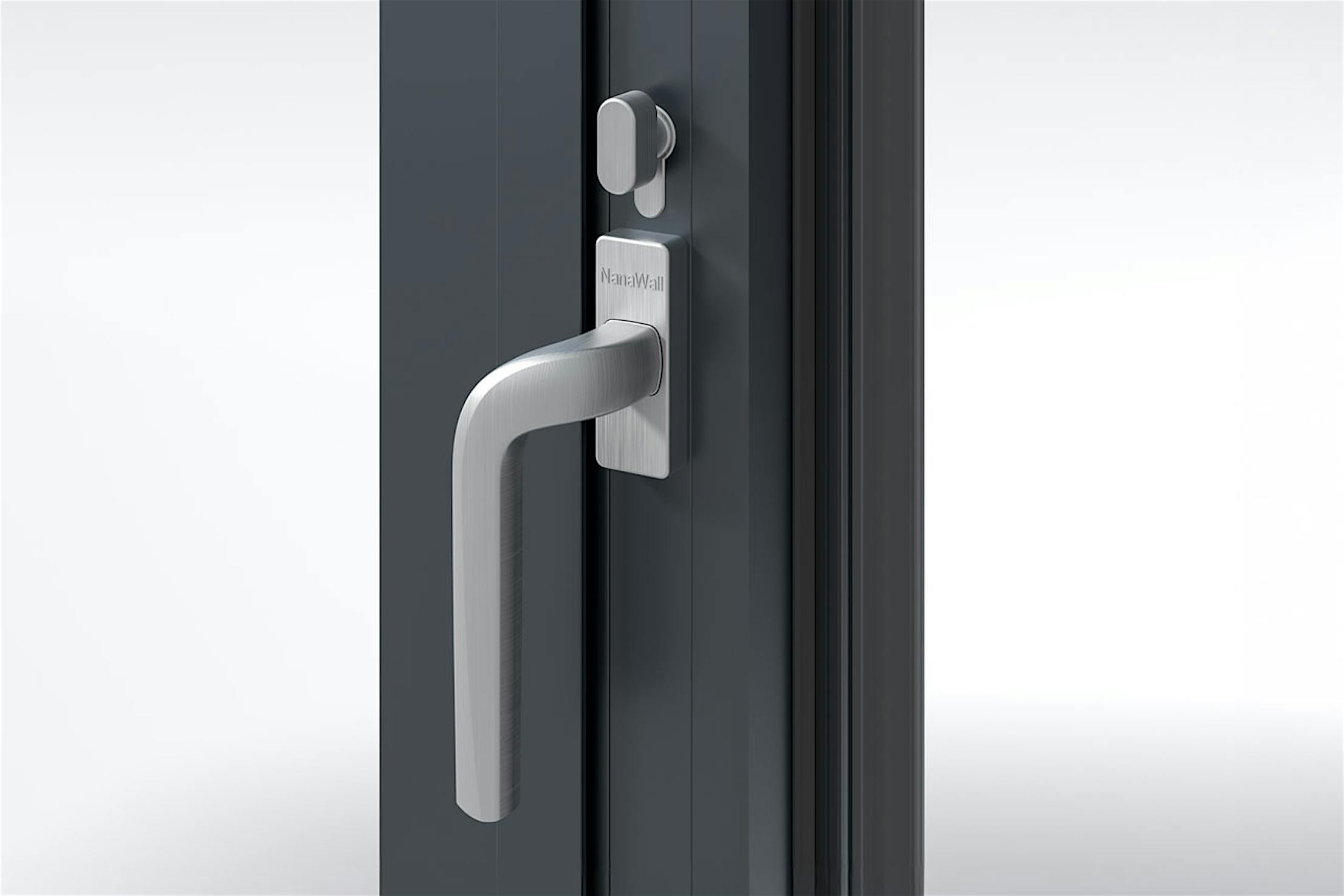

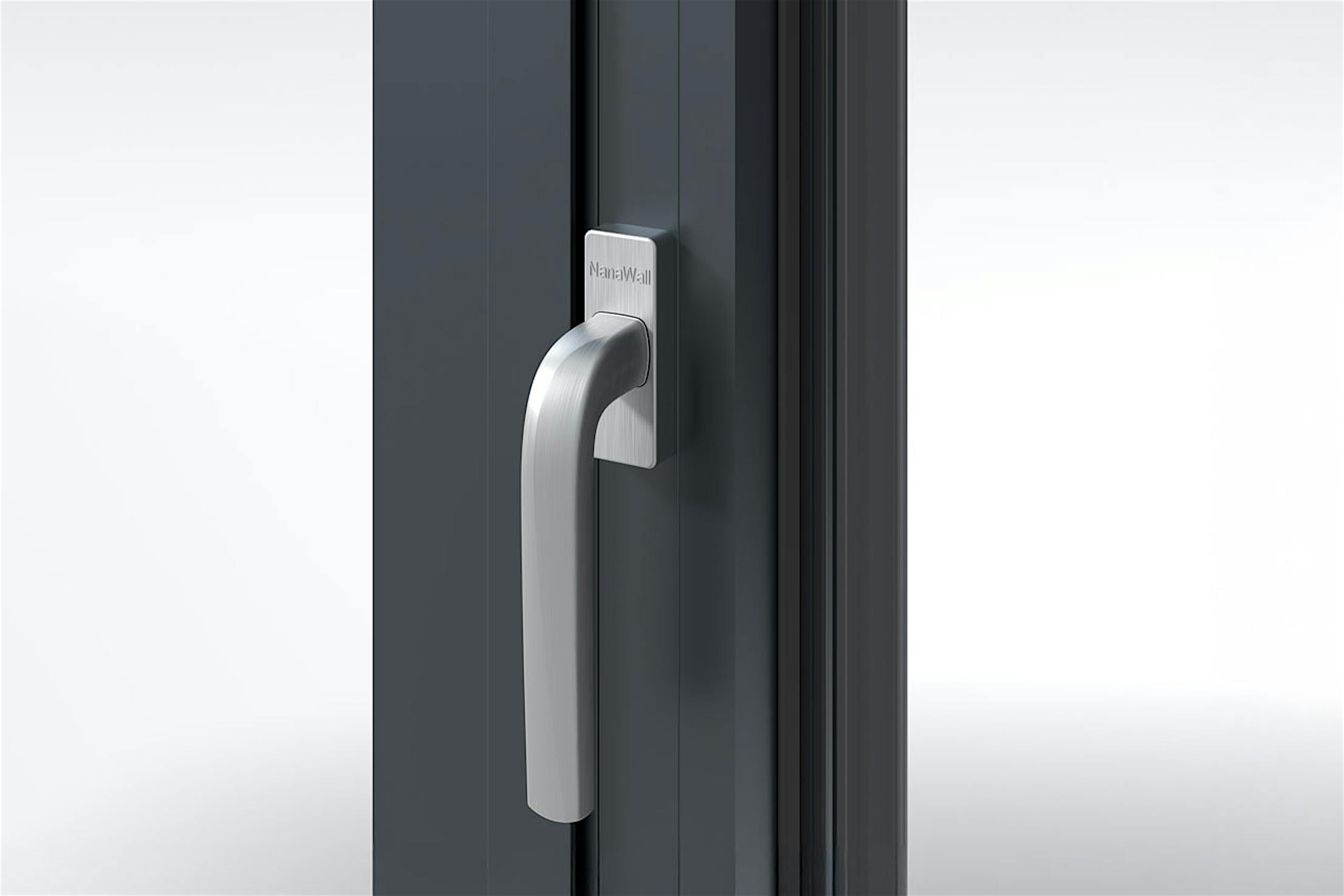

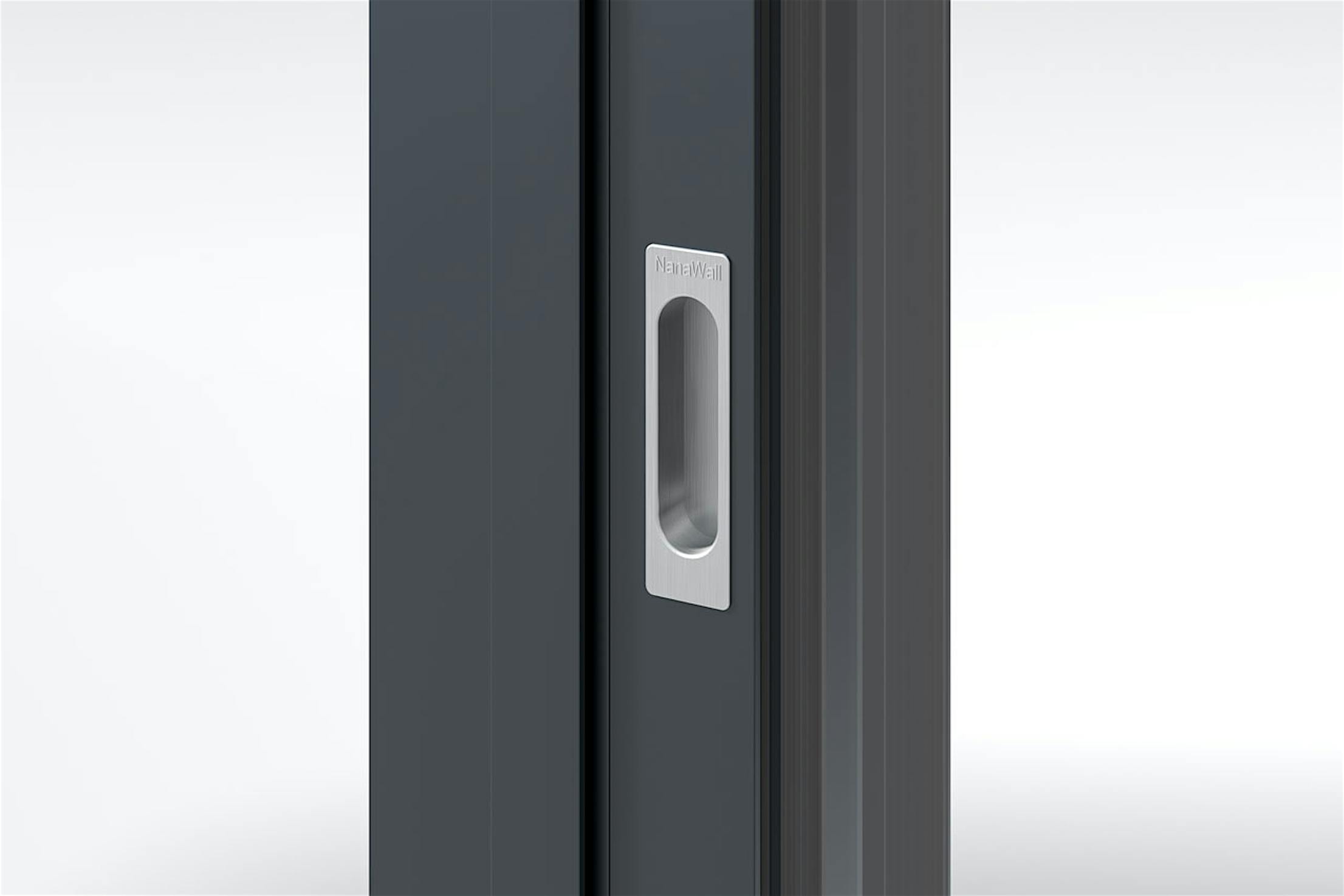

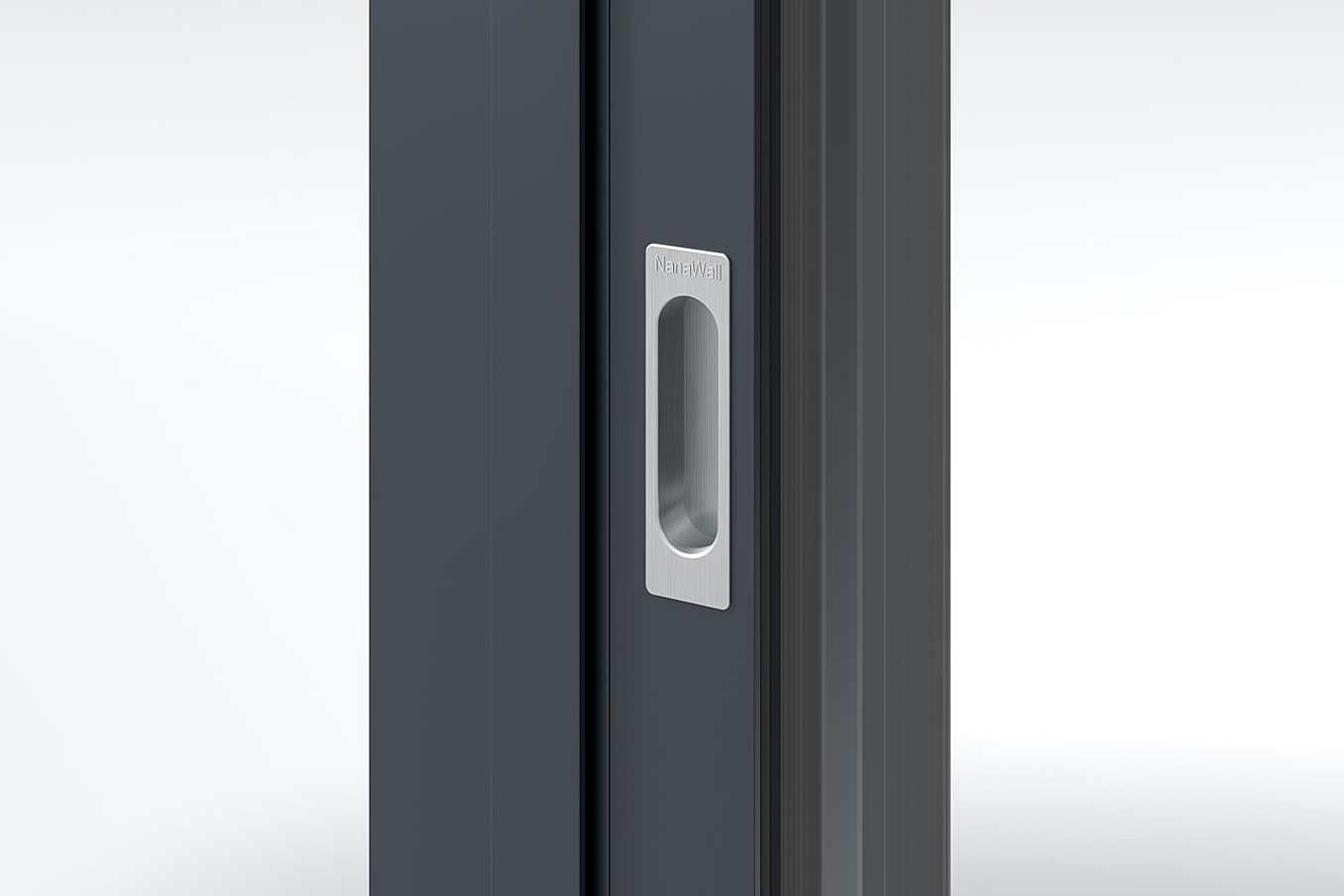

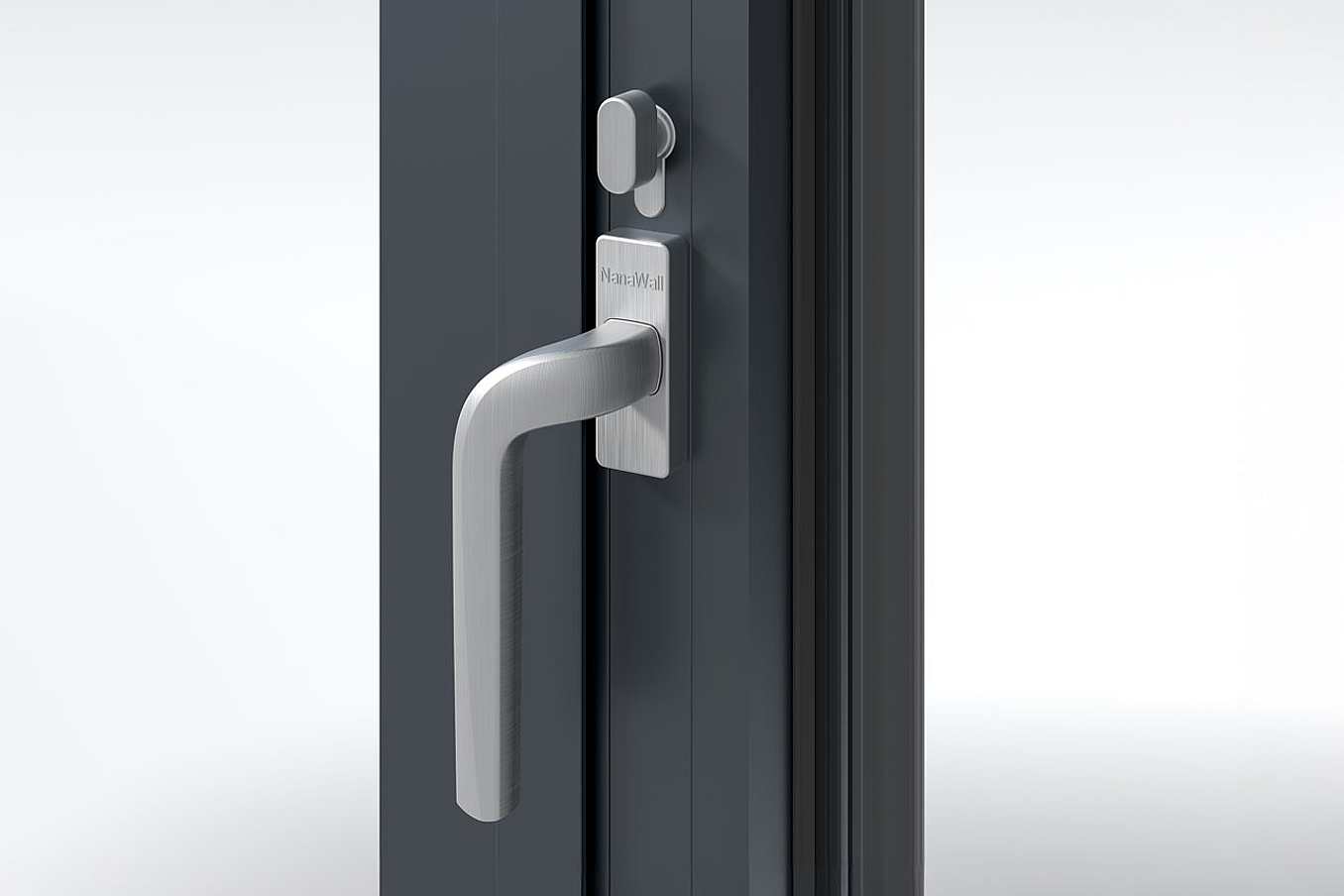

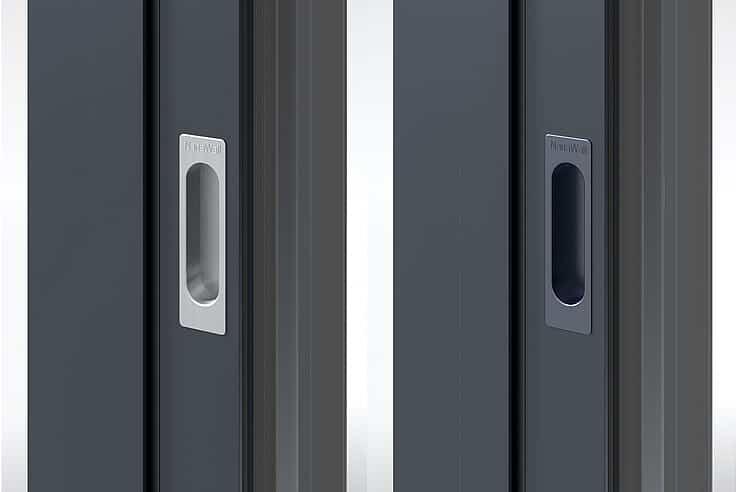

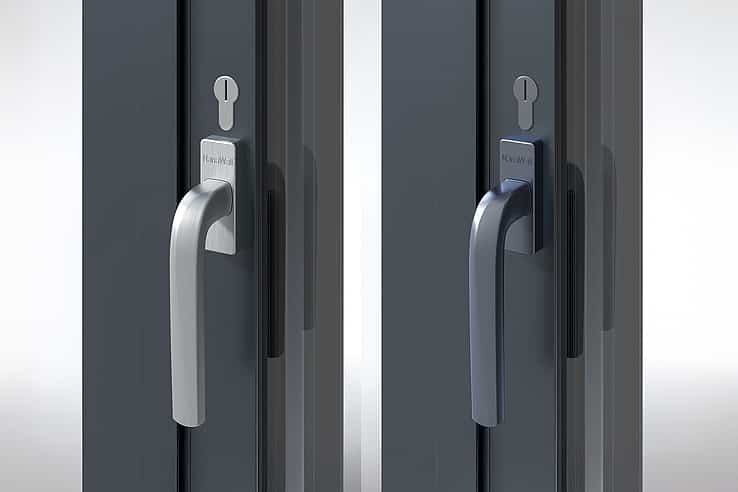

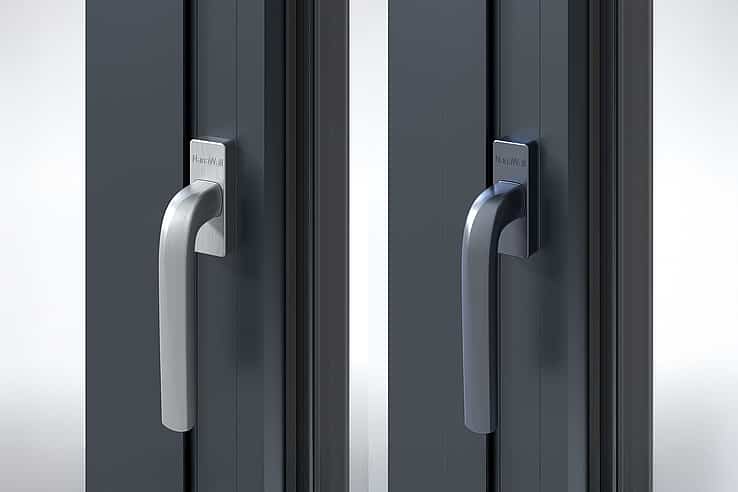

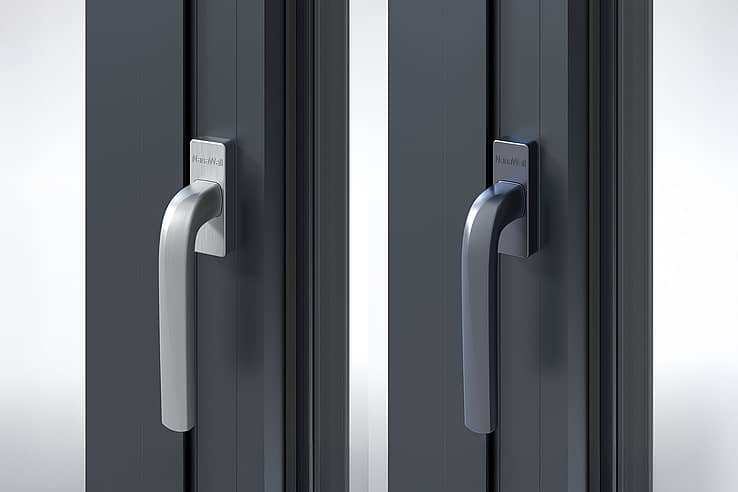

Stylish Handles in Multiple Finishes
Our handles are both functional and stylish and can be customized to accentuate your space and reflect your style.

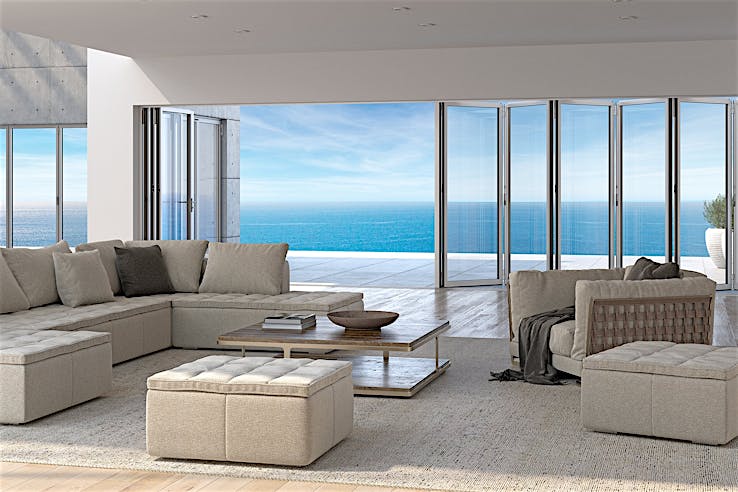

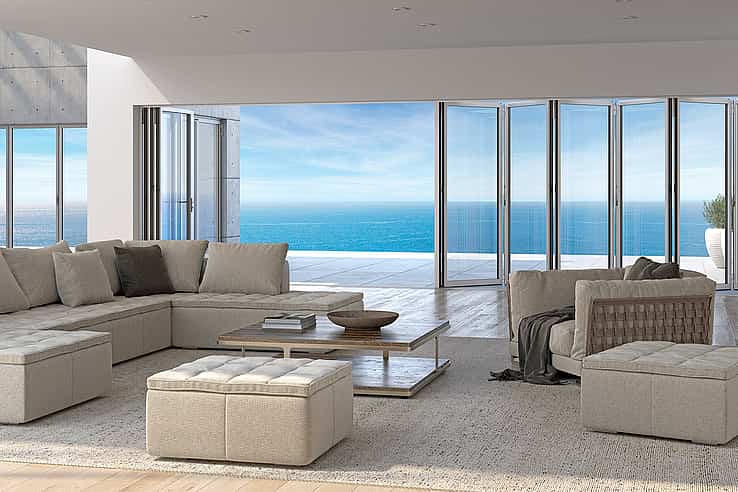

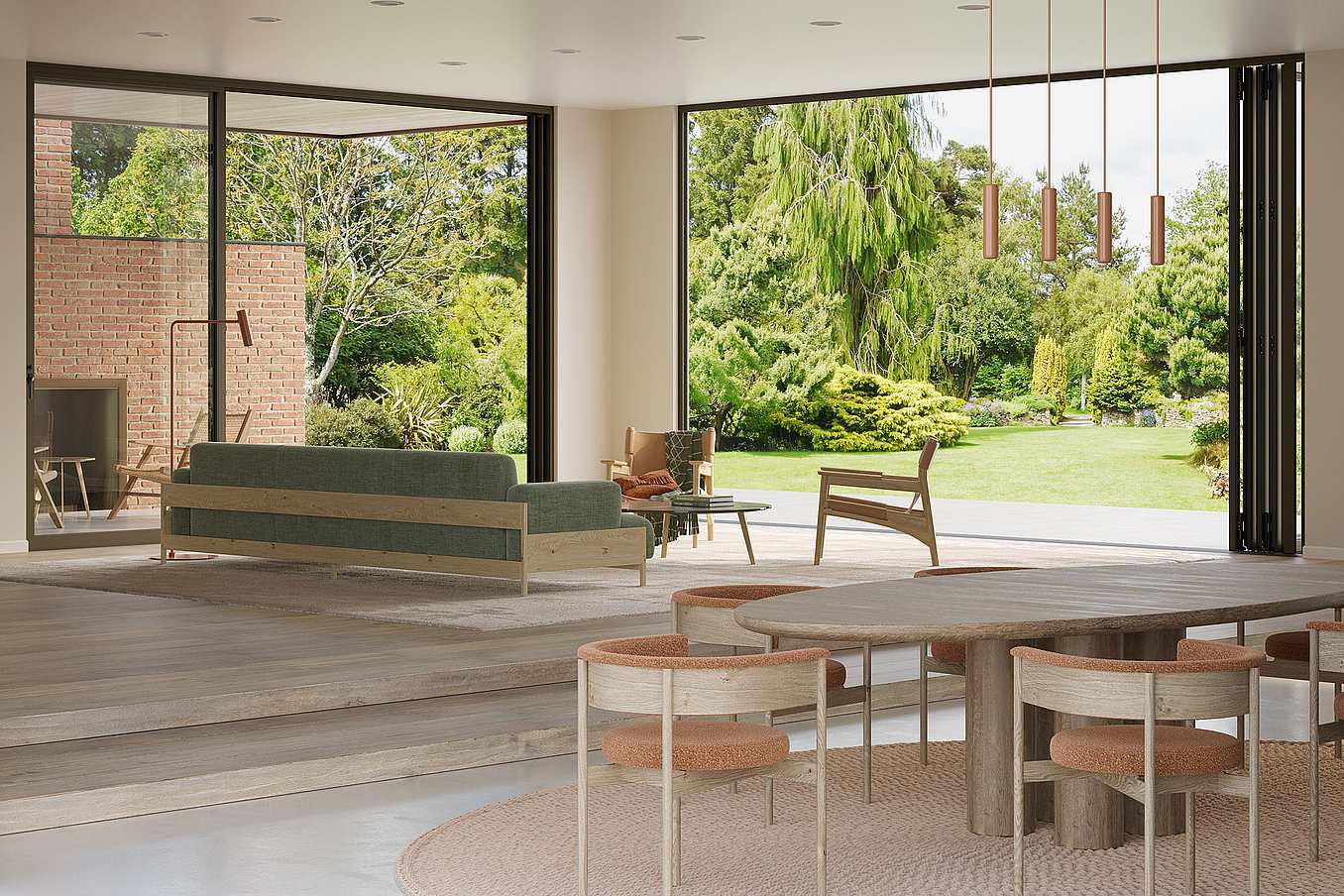

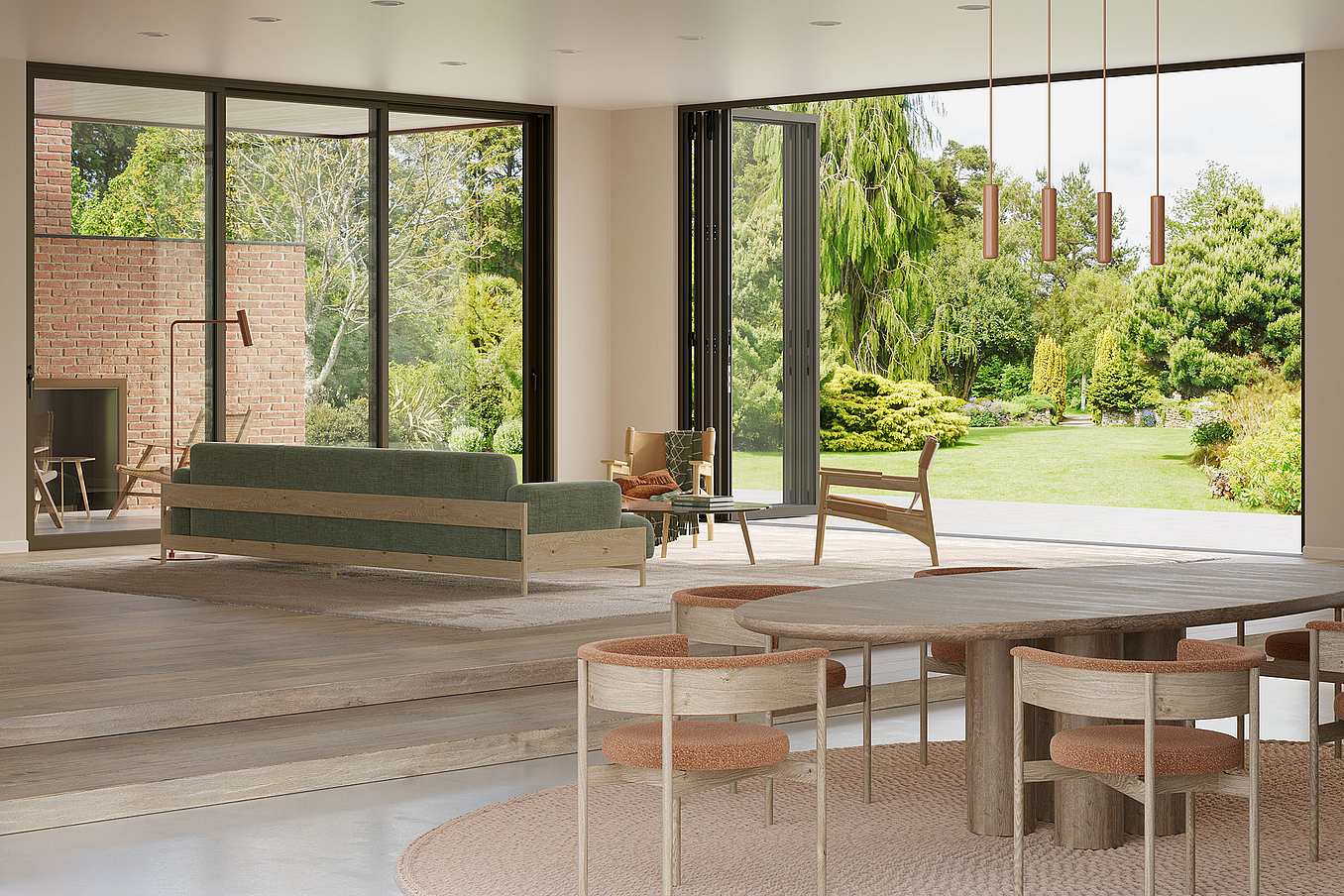

NW Aluminum 640

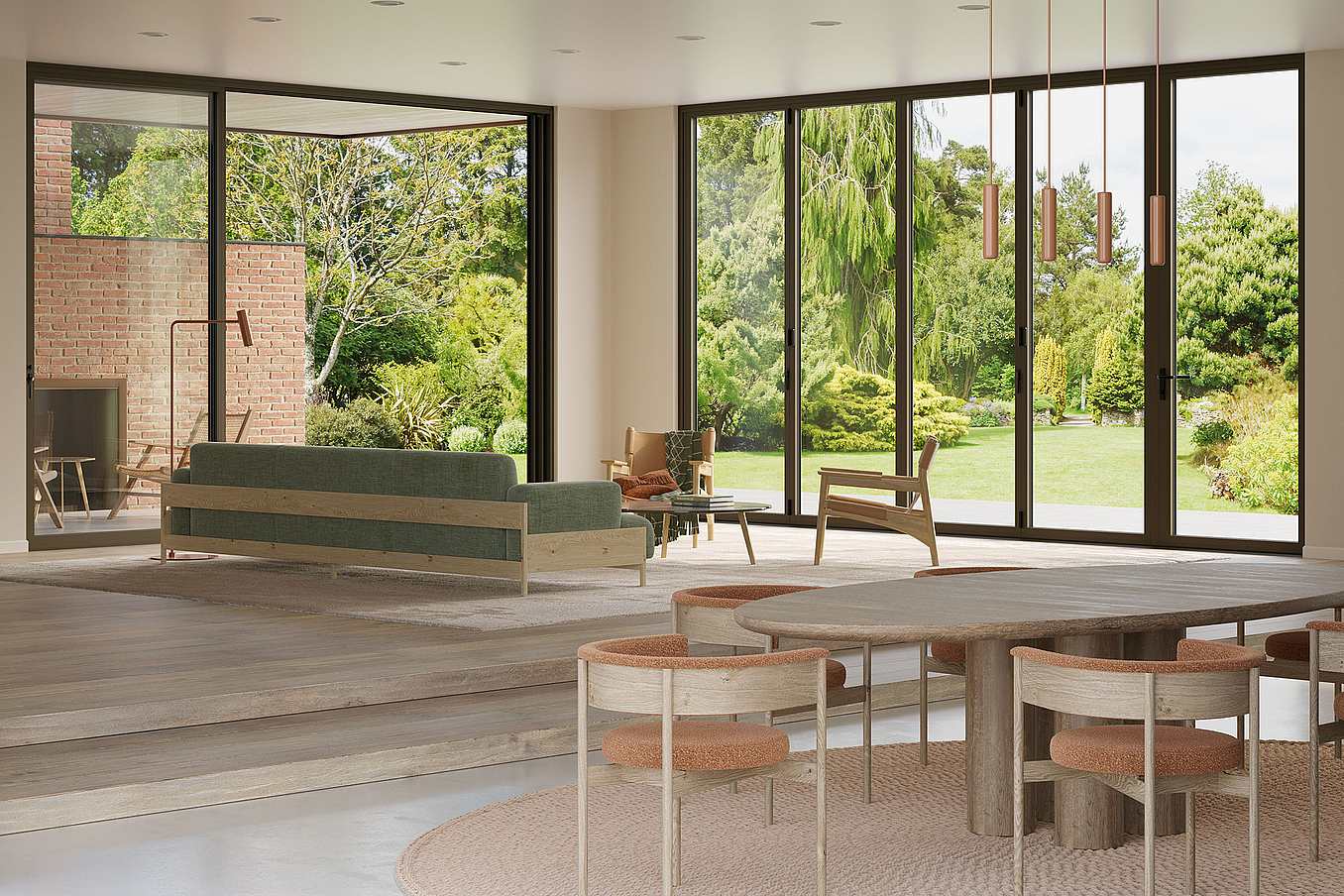

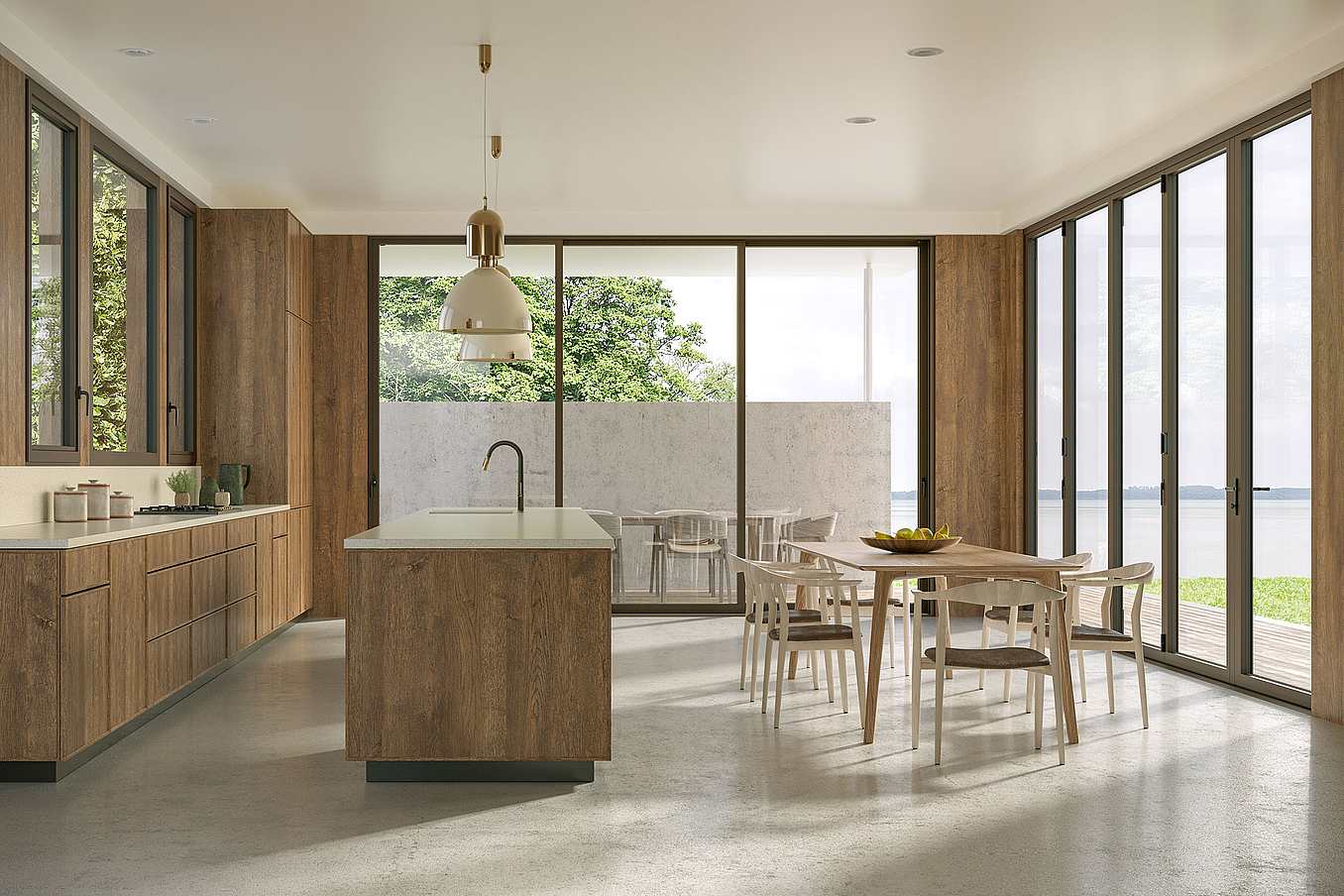

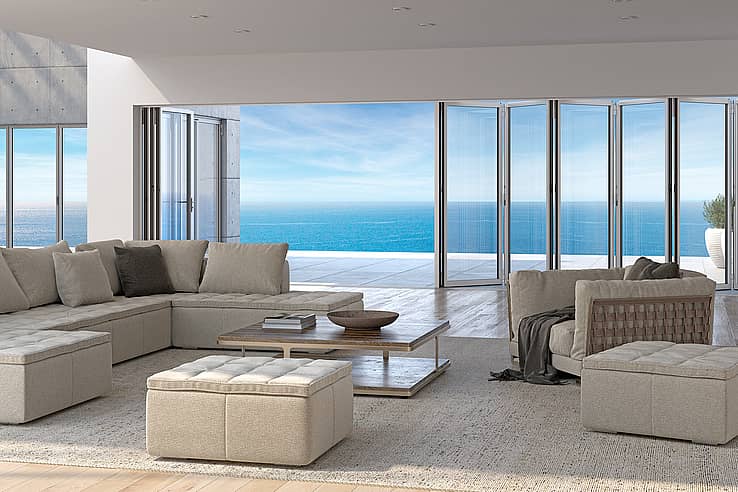

NW Aluminum 640 is a complementary folding glass wall that offers the same uniform glass lines as the NW MultiSlide 630.

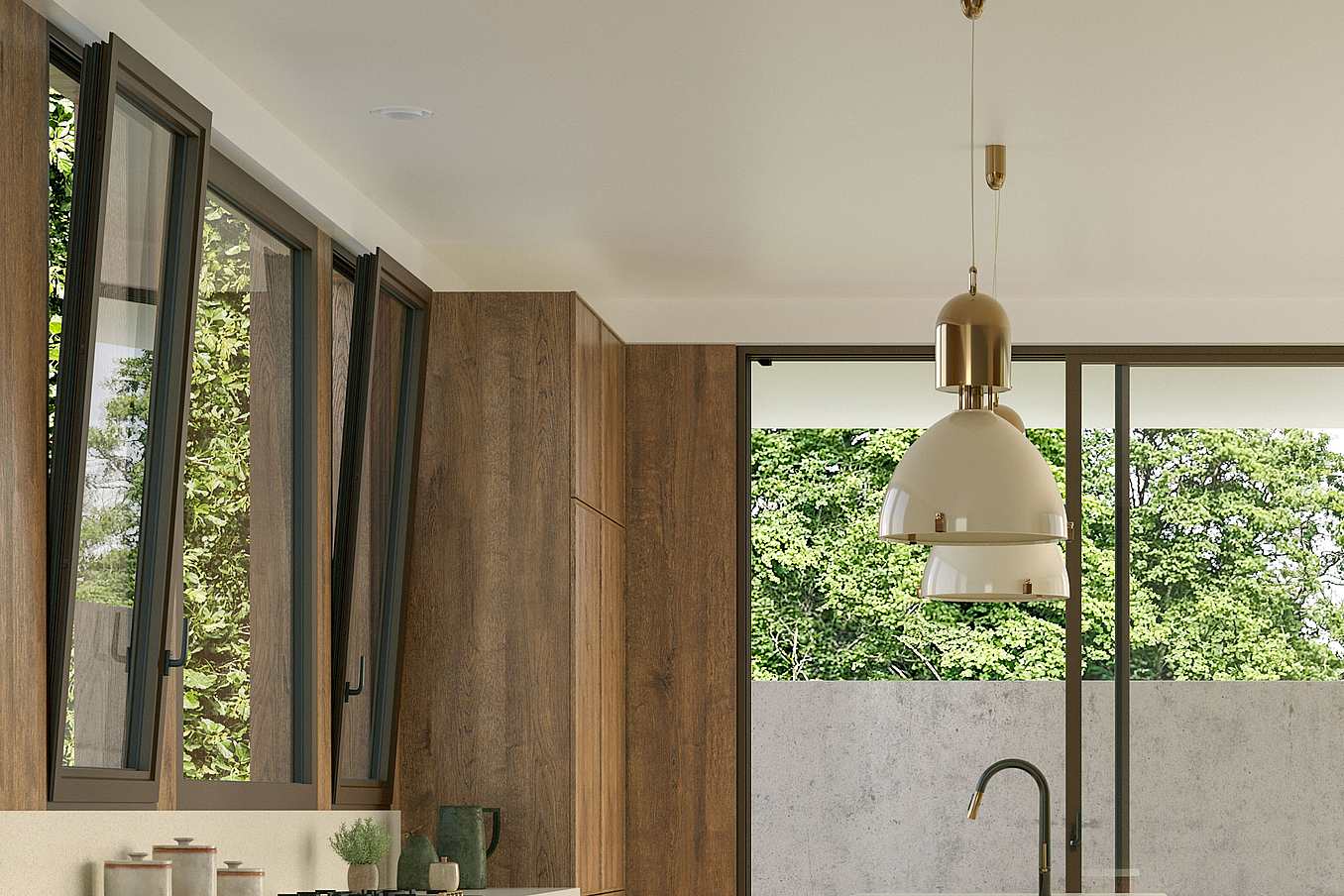

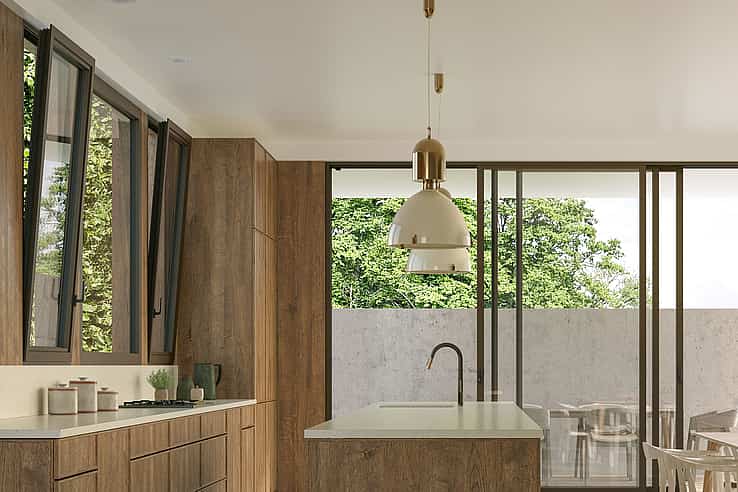

Generation 4 Tilt Turn and Fixed Windows

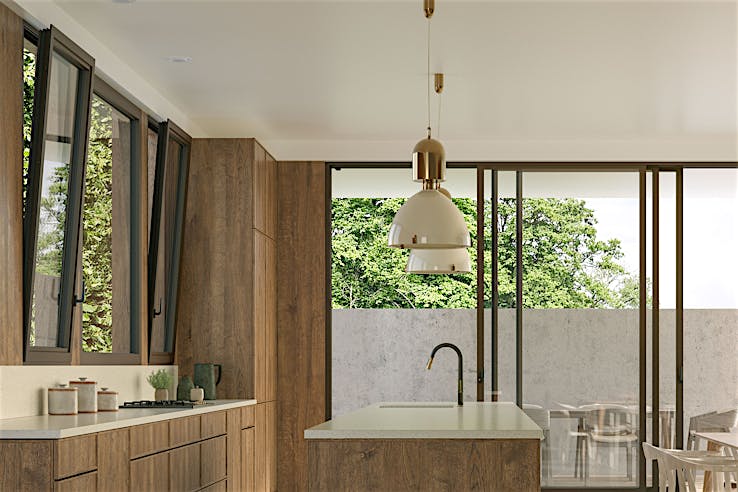

Generation 4 Tilt Turn and Fixed window systems offer concealed hinge hardware and the same clean lines as our folding and multislide glass doors.
Retractable Screens
A retractable screen add-on is perfect for blocking bugs while providing privacy and fresh air. Screens are not available through NanaWall Systems.

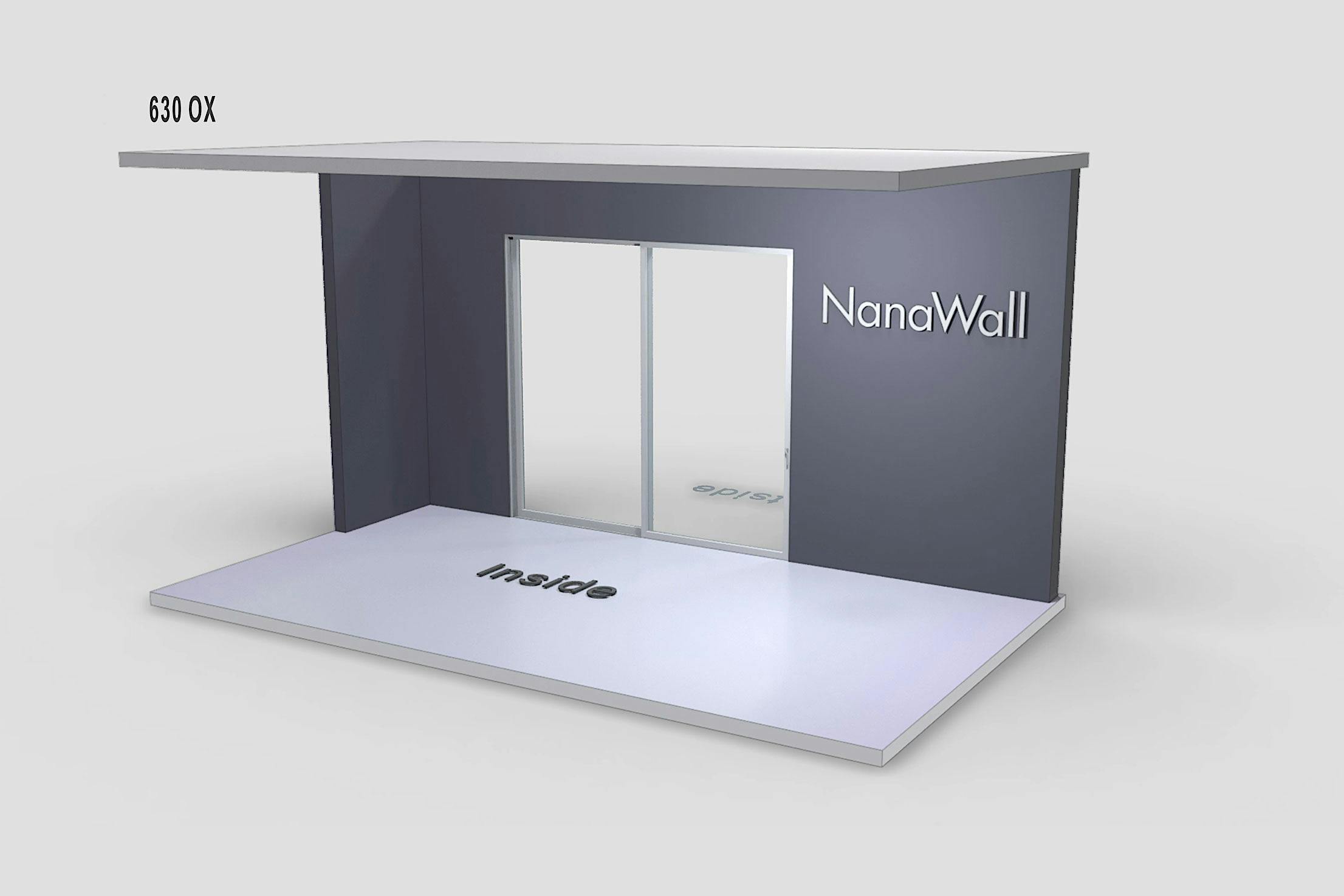

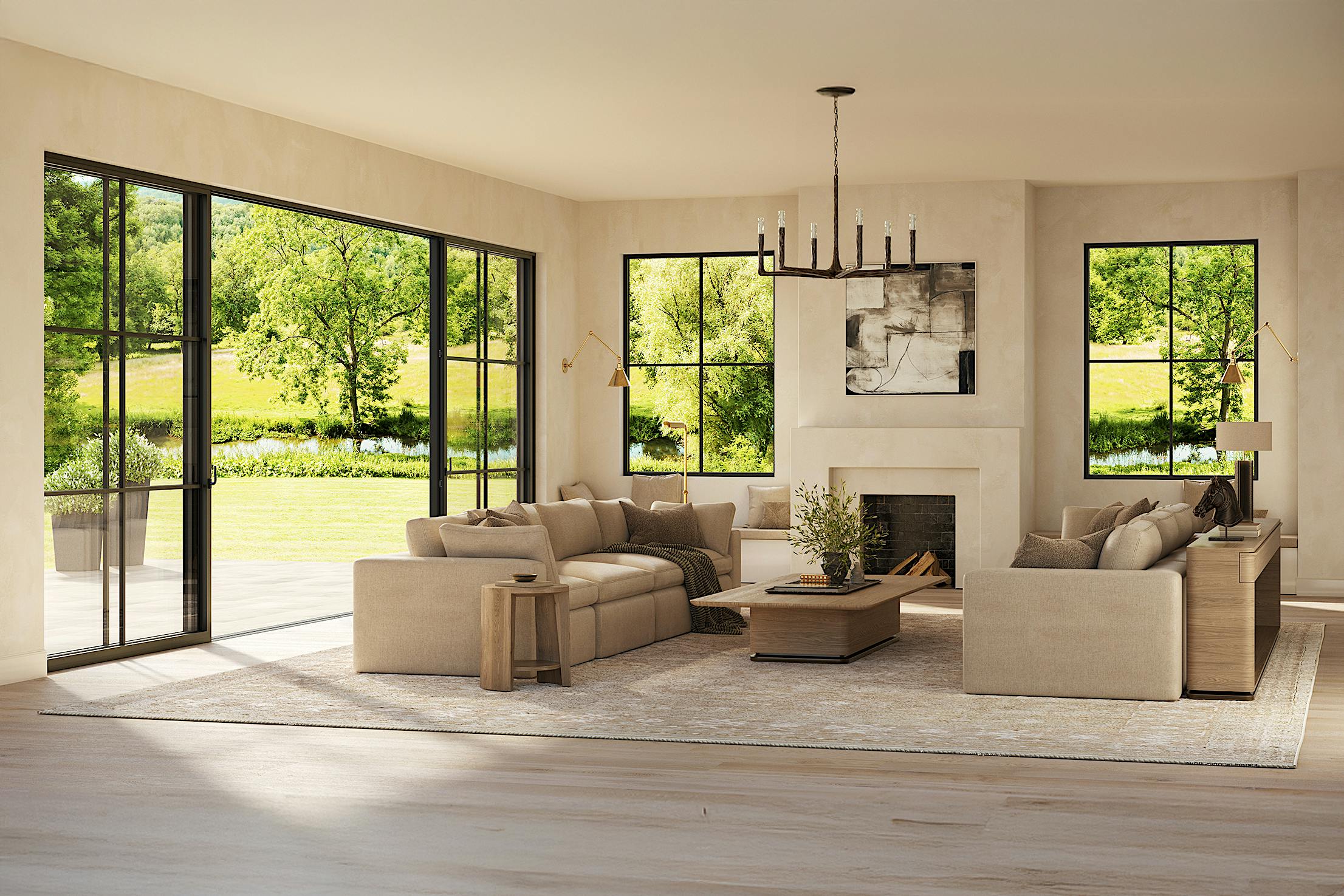

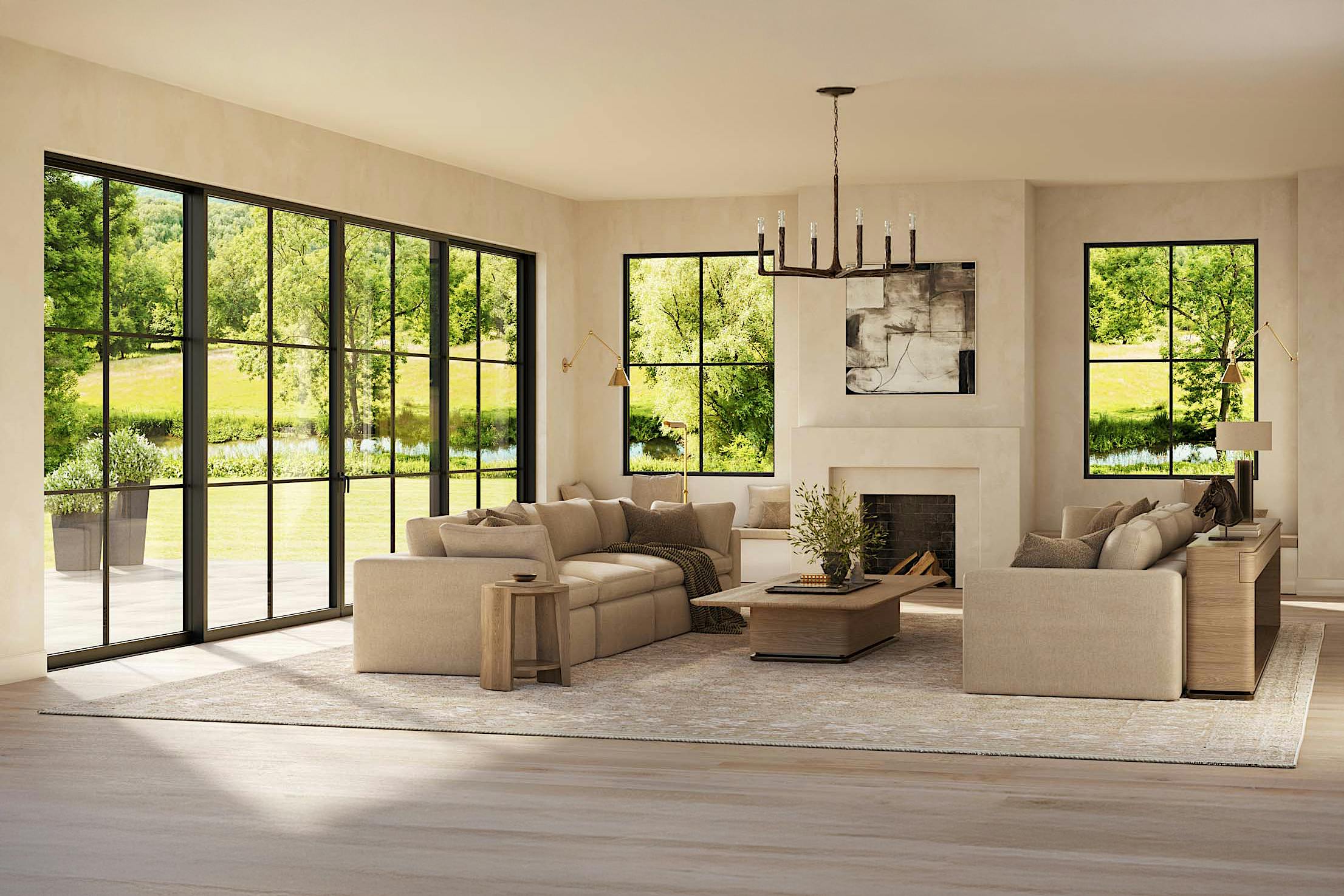

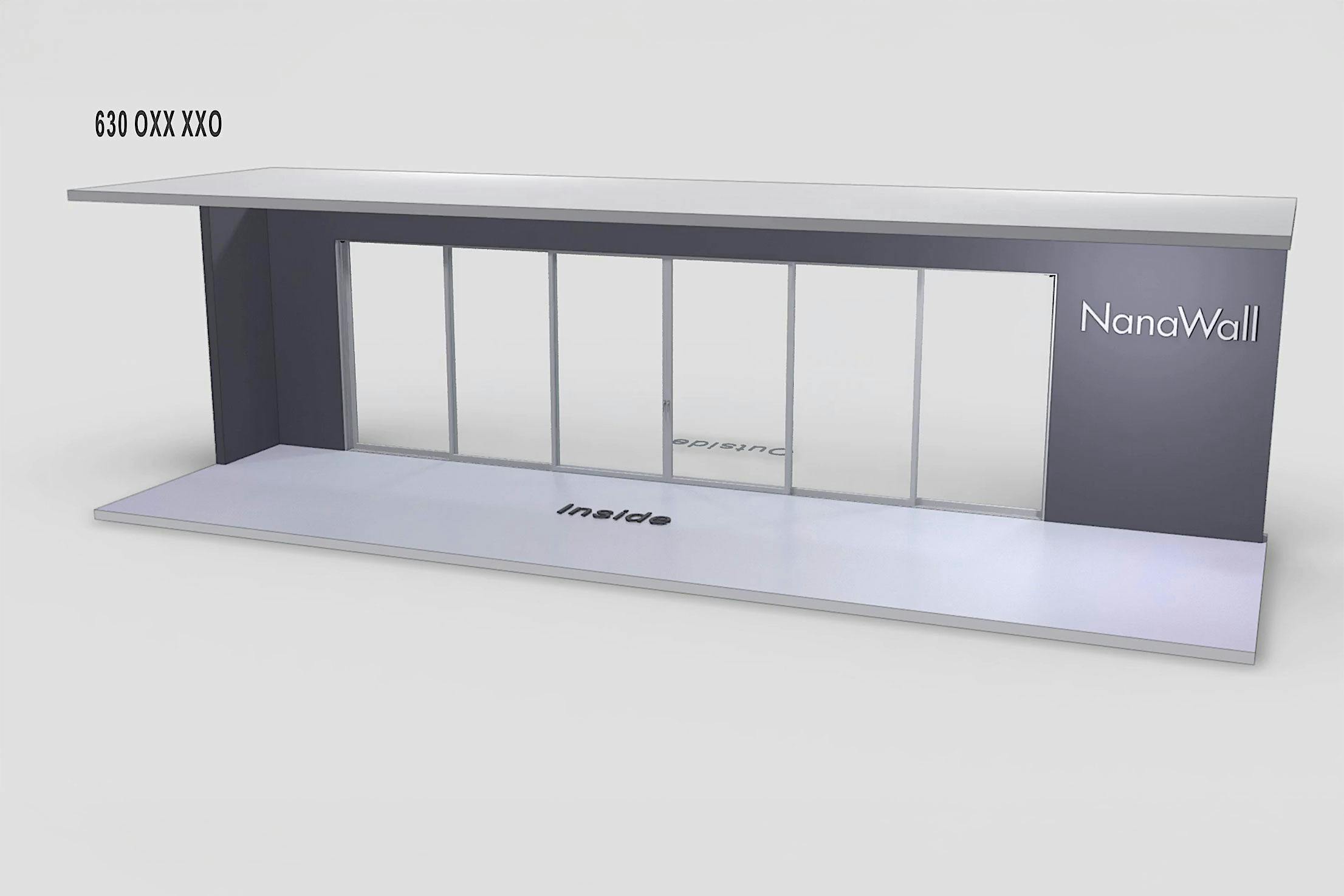

NW MultiSlide 630 is available in numerous configurations with combinations of sliding and fixed panels. Systems are available with up to six tracks.
Design and customize systems using our 3D CAD/Revit/Spec Configurators or contact our dedicated design team for more possibilities.

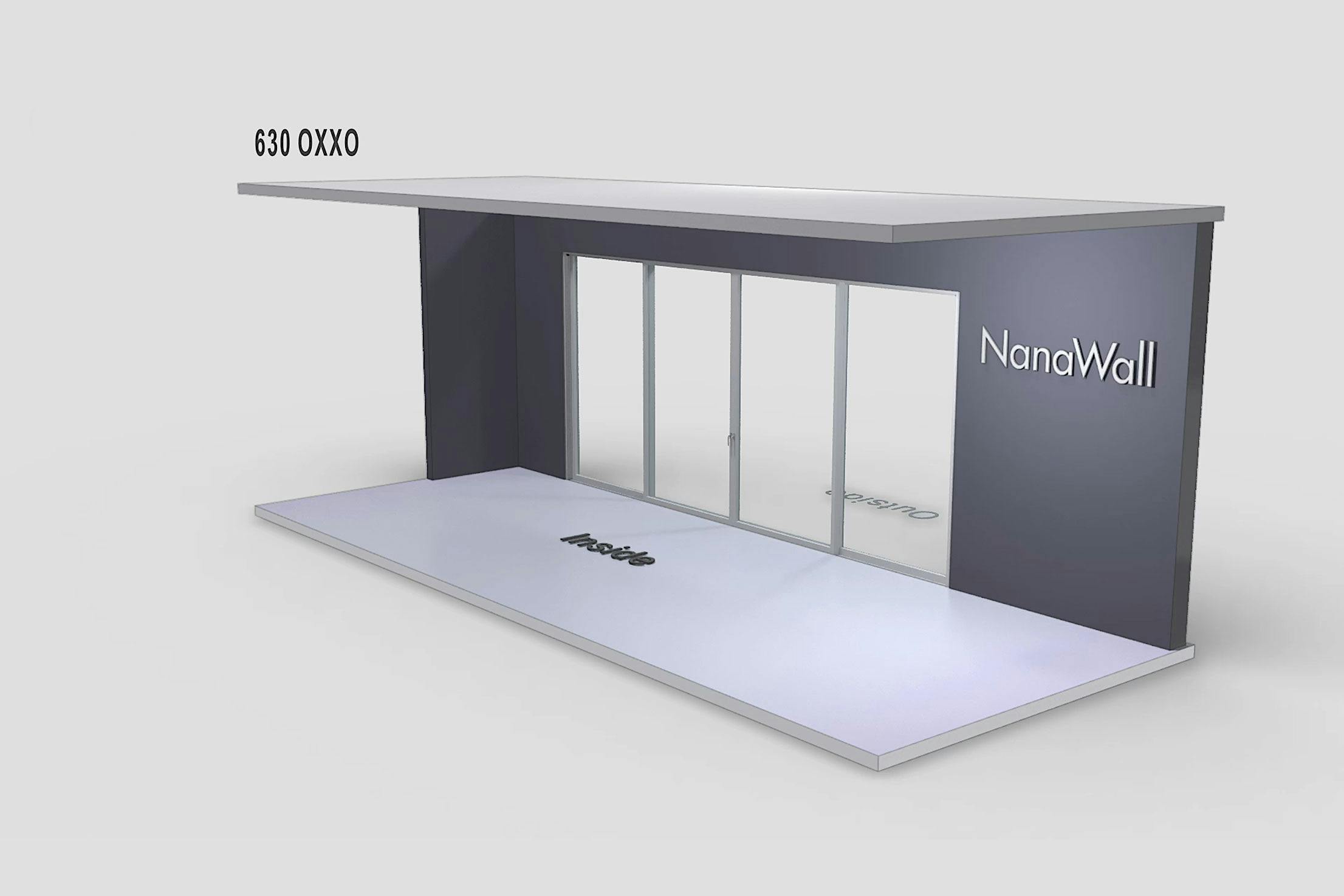

Non-pocketing configurations operate with glass panels that slide or stack along the wall without retracting into a concealed wall pocket. When open, panels remain visible and park at the side of the opening, creating a functional opening while avoiding the need for pocket wall construction.
View More Non-Pocketing Configurations View Product Applications

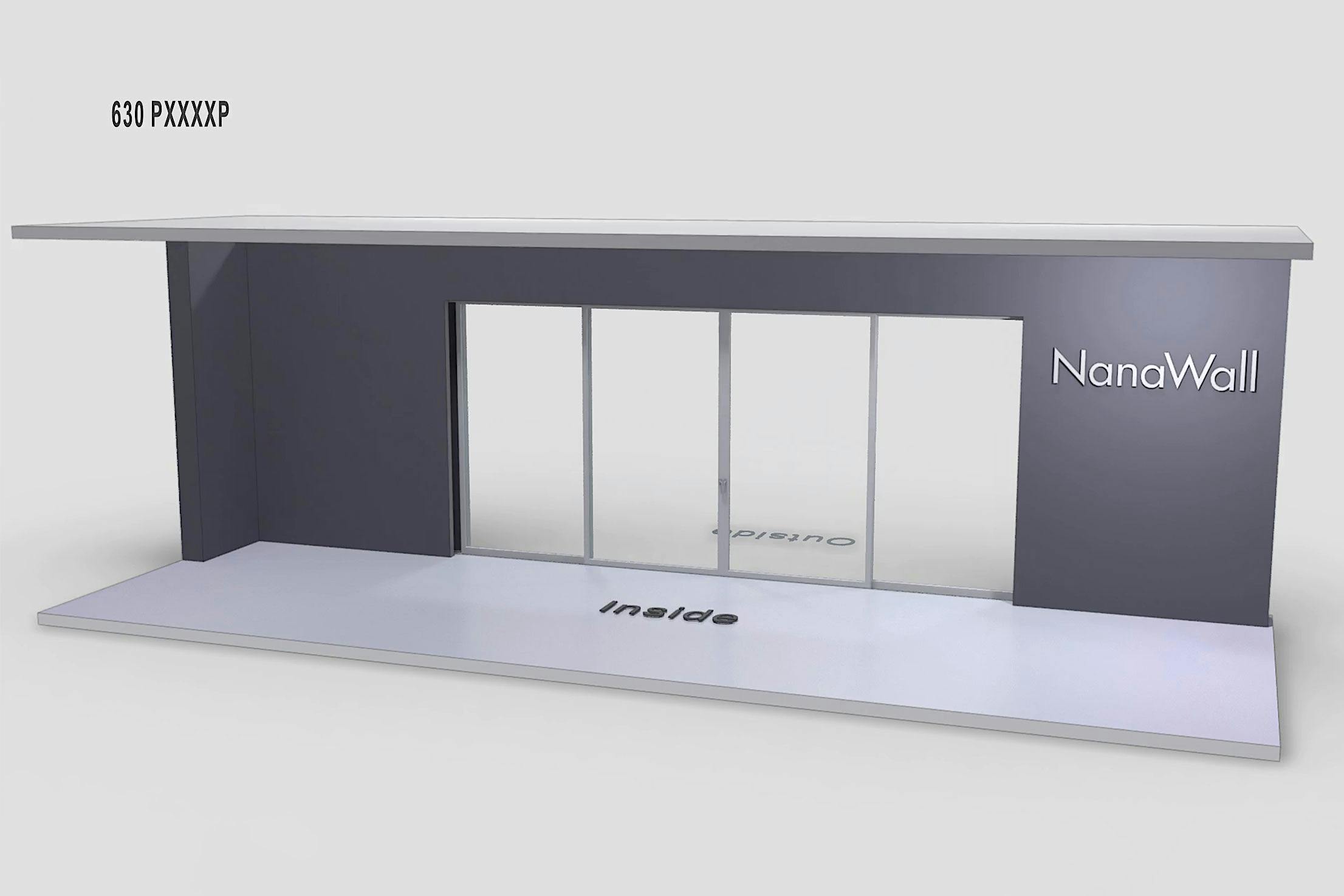

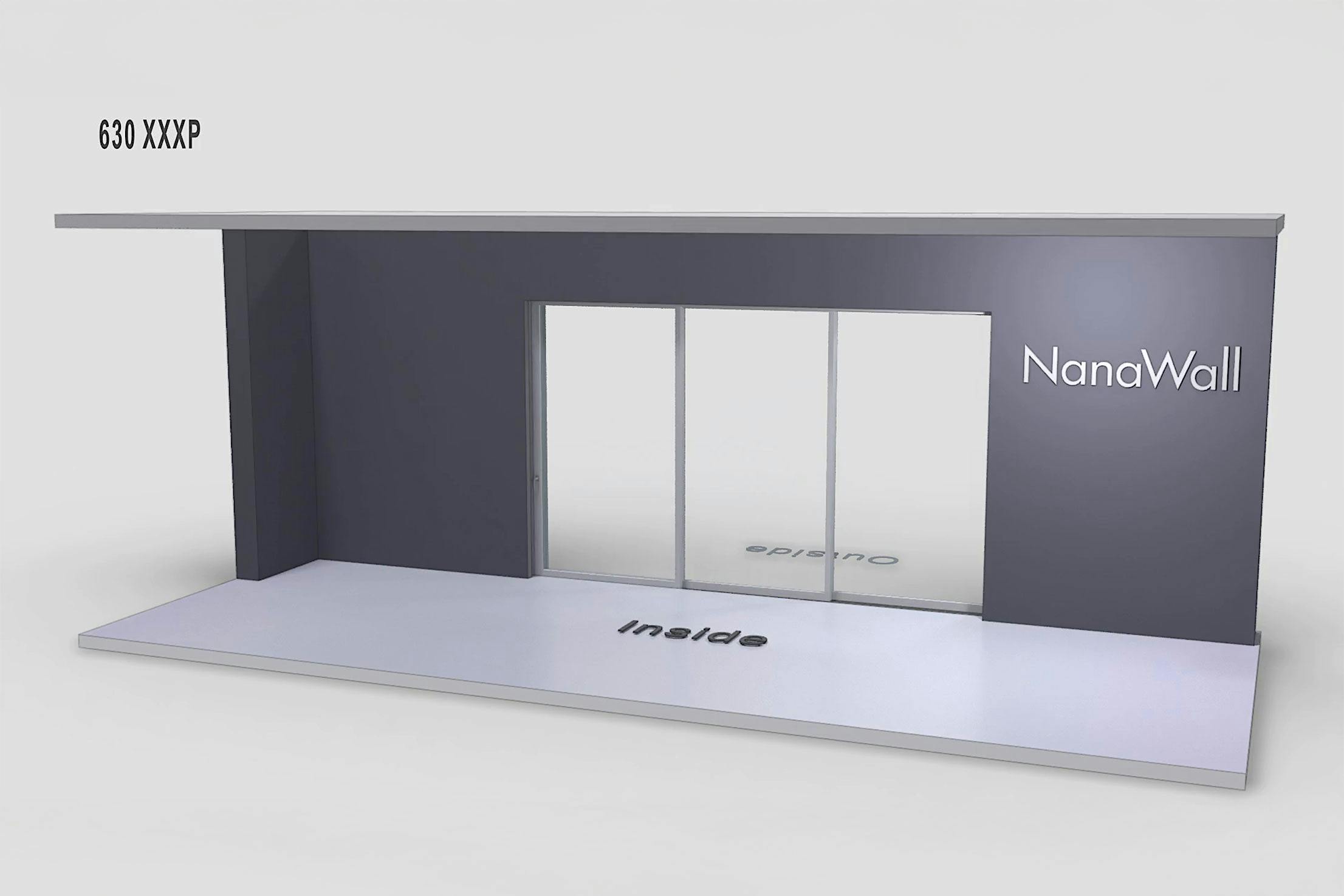

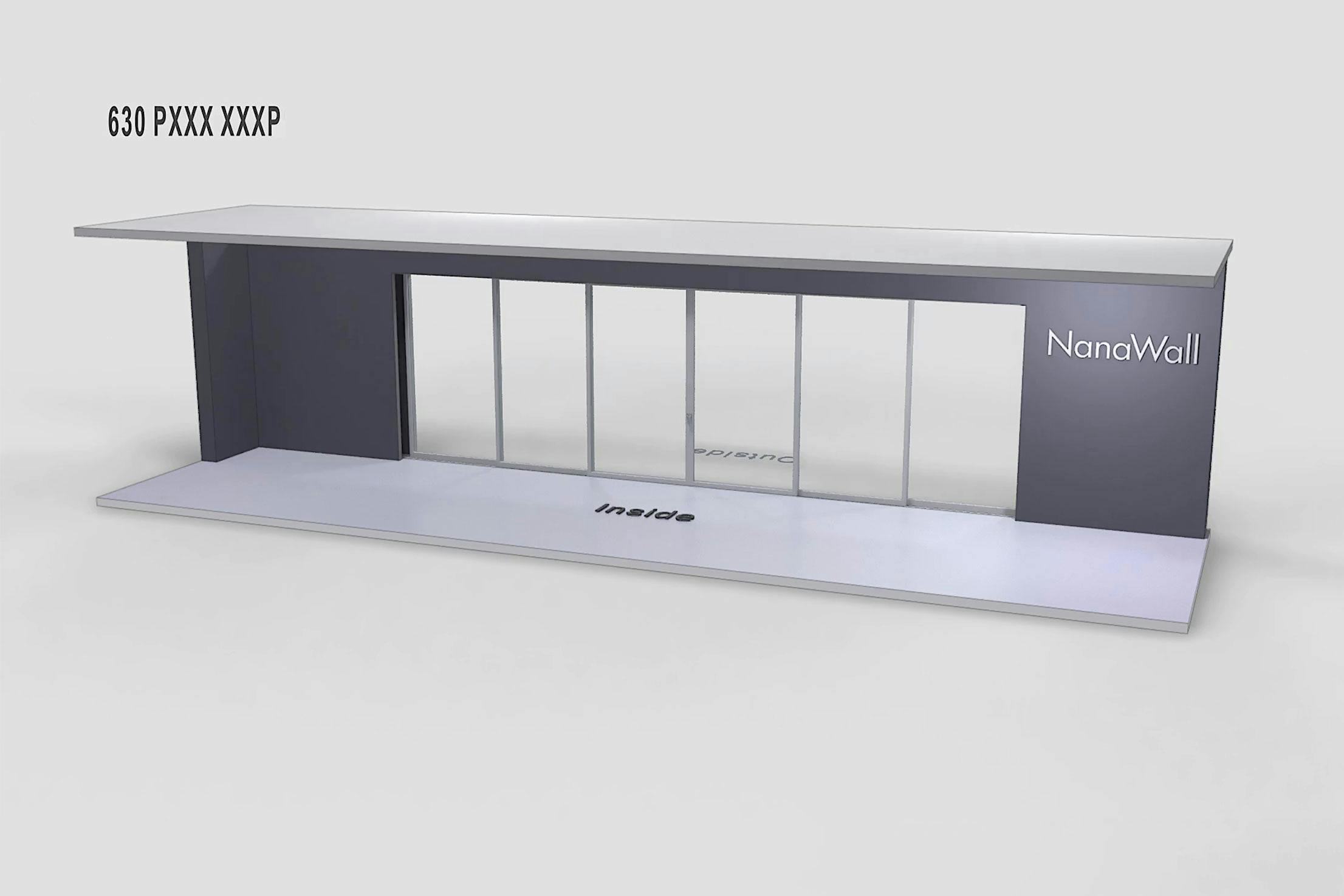

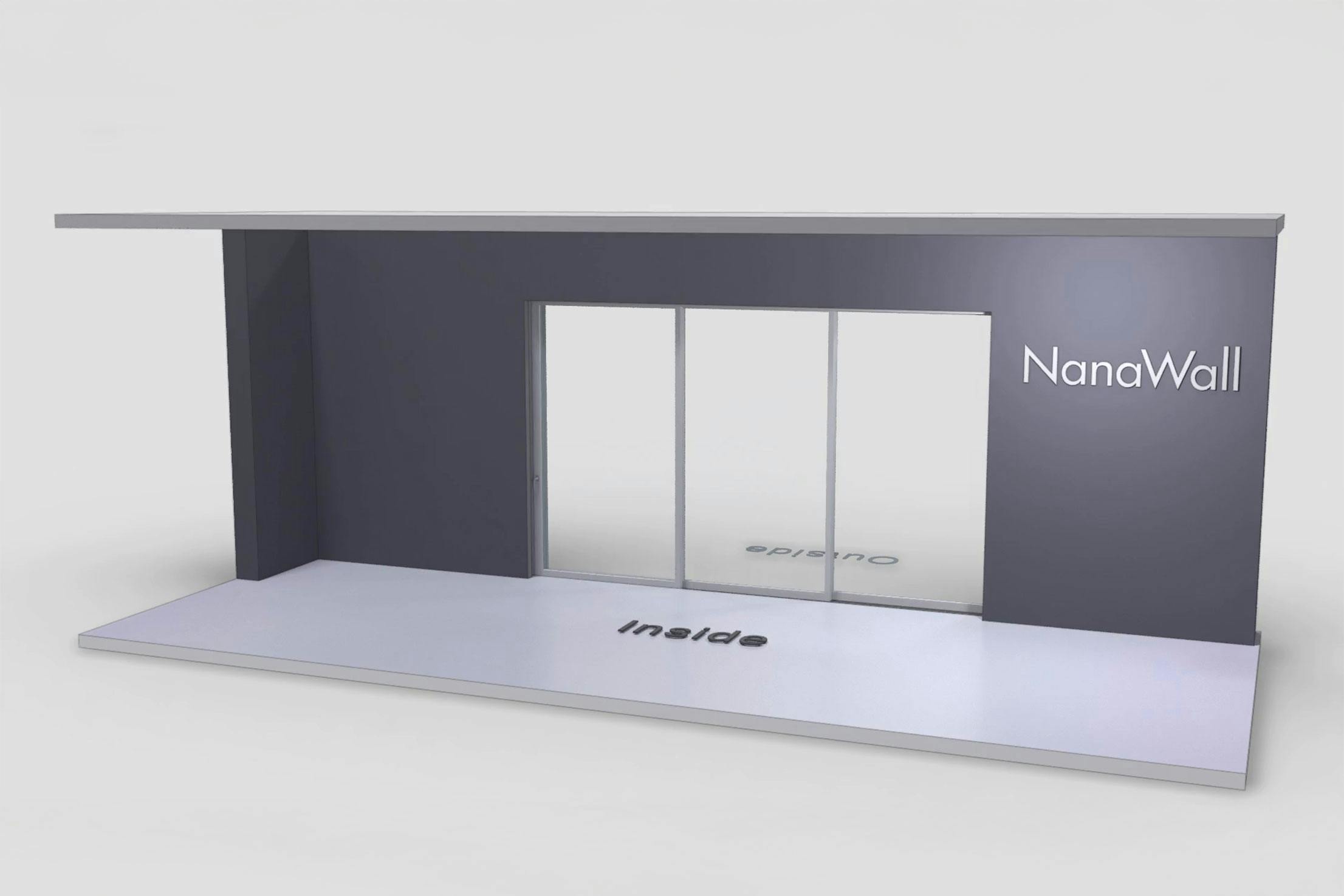

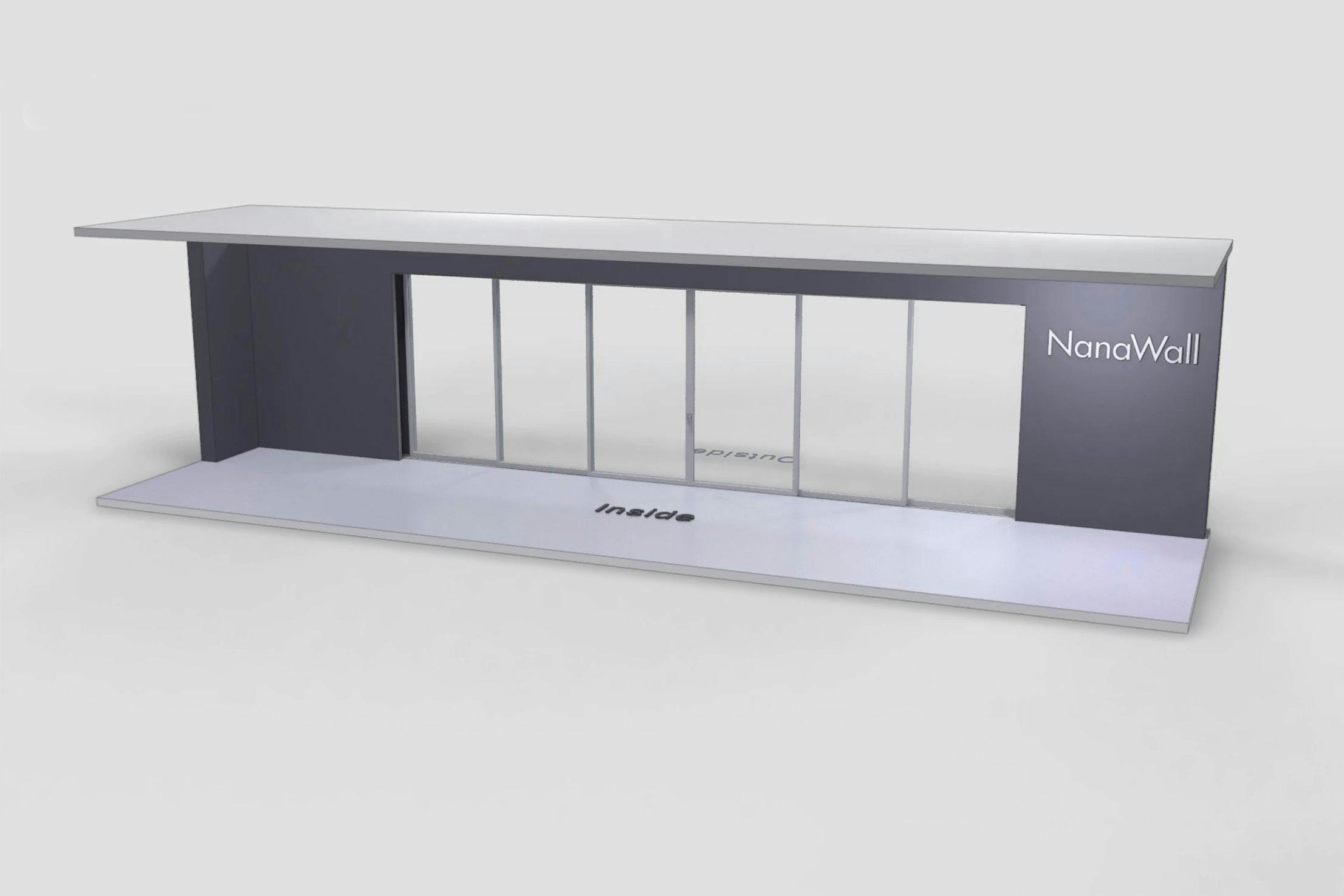

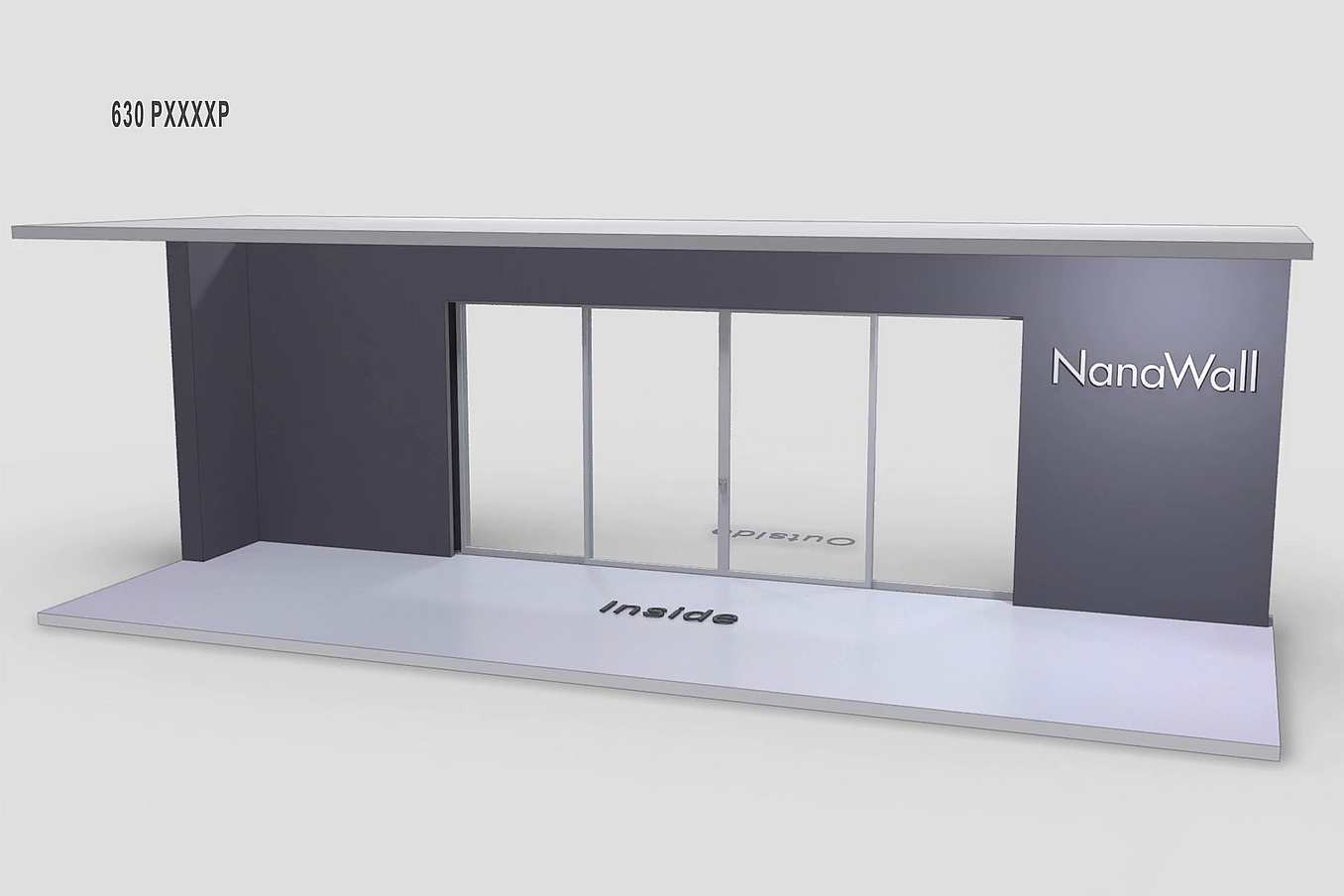

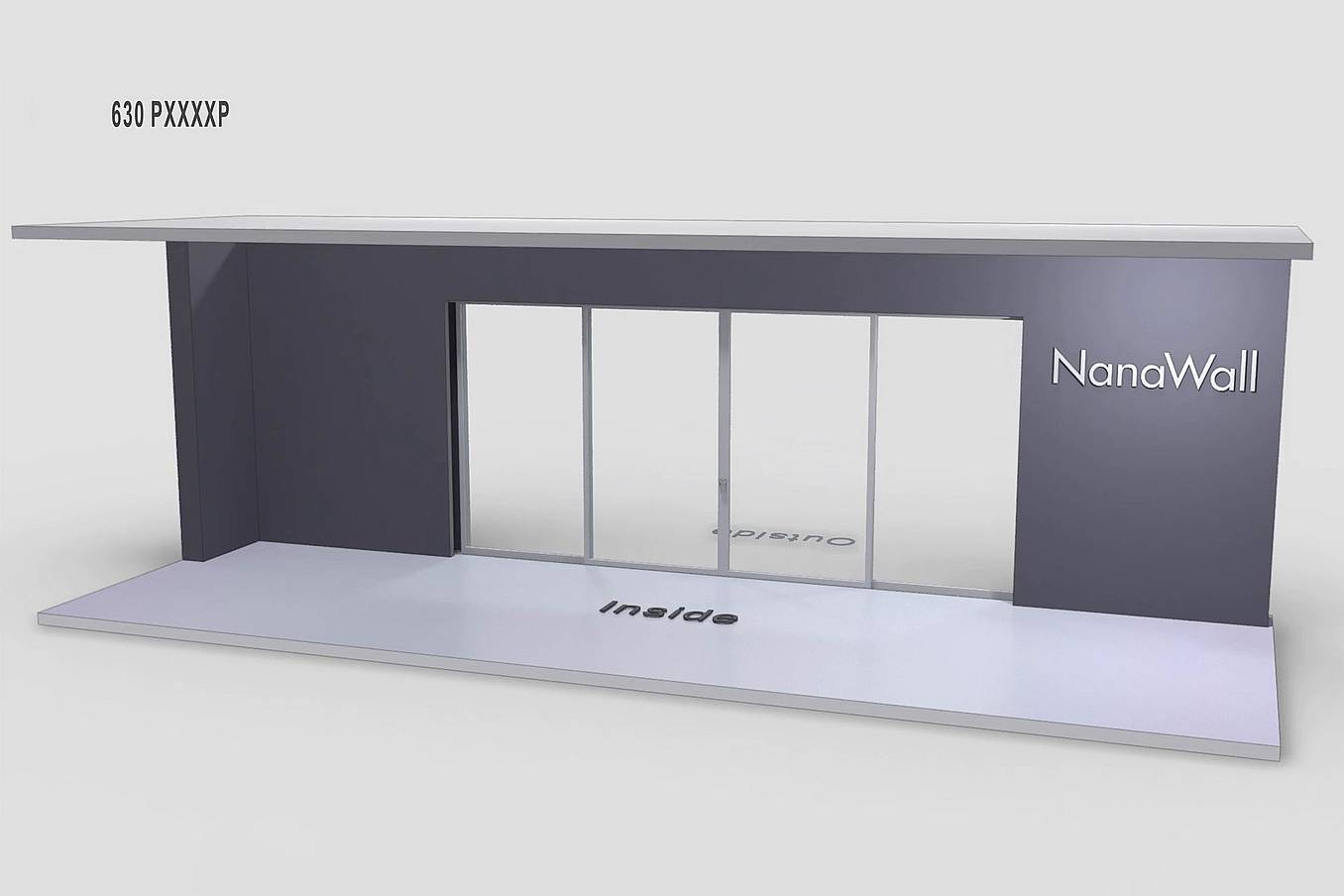

Pocketing configurations allow glass door panels to slide fully into a concealed wall pocket, creating a completely unobstructed opening and maximizing clear opening width. This layout supports clean sightlines and seamless indoor-outdoor transitions while integrating directly into the wall structure.
View More Pocketing Configurations View Product ApplicationsThe NW MultiSlide 630 is part of NanaWall’s Generation 4 product line, offering consistent horizontal glass lines across compatible folding, sliding, single swing door, and window systems. With slim 2 1/8" (55 mm) vertical sightlines, thermally broken aluminum frames, and proprietary Generation 4 innovations, it delivers a streamlined aesthetic, exceptional performance, and design continuity throughout a project.
The NW MultiSlide 630 is engineered for outstanding thermal performance with a thermally broken aluminum frame and triple glazing capability. Its patented Bionic Turtle® thermal break technology helps reduce heat transfer, improve indoor comfort, and enhance energy efficiency throughout the year.
As a custom-built architectural solution, the NW MultiSlide 630 offers extensive design flexibility, including:
- Pocketing and non-pocketing configurations
- Combinations of sliding and fixed panels
- Multidirectional panel operation
- Systems with up to six tracks
- System automation by others
- Integration with Generation 4 folding doors and windows
This versatility allows architects and designers to create tailored solutions for a wide range of residential and commercial applications.
The NW MultiSlide 630 offers an innovative multidirectional panel option that allows selected panels to slide the left and to the right. This provides greater flexibility in how the opening is used, enabling users to choose whether to access the system from the left or right side based on daily needs and traffic flow.
The NW MultiSlide 630 offers two weather-resistant, water-rated sill options:
- Low Profile Saddle Sill – ADA-compliant, barefoot-friendly, and designed for accessibility.
- Flush Sill – An ADA-compliant, barefoot-friendly design that visually disappears when installed level with the finished flooring.
Both sill options are designed to provide smooth operation, enhanced weather resistance, and seamless indoor-outdoor transitions.
The NW MultiSlide 630 utilizes floor supported technology and a proprietary Gothic arch roller system featuring stainless steel wheels and self-lubricating ball bearings. This advanced design promotes smooth, quiet operation, balanced weight distribution, and long-term durability while reducing wear over time.
