Air, Water, Structural, Thermal, Forced Entry & Acoustical Results
Standard Sill - SL25
| Type of Test | Reinforced locking at Turn Panel and top and bottom latches | Standard Locking at turn panel and top and bottom latches | ||||
|---|---|---|---|---|---|---|
|
Structural Load Deflection 1ASTM E-330: pass 1/2" (12 mm) glazing See design windload charts for other sized panels. Note that the structural test pressures were 50% higher than the design pressures. |
design pressure
|
design pressure
|
||||
|
Structural Load DeflectionASTM E-330: pass 5/16" (8 mm) glazing |
design pressure
|
design pressure
|
1 Excerpts of results of 10'6” W x 8’2” H four panel unit with standard sill and 1/2" (12 mm) tempered glazing tested by Architectural Testing, Inc., Fresno, CA, an independent testing laboratory in April 2010.
*** Excerpts of results of 10’7 1/2” W x 6’6” H four panel unit with standard will and 5/16" (8 mm) glass tested by Architectural Testing, Inc., Fresno, CA, an independent testing laboratory, in July 2005.
Special Water Test
Special Water Test with 2" W x 13/16" H aluminum tub under standard sill with L bracket that extends 1" W on the inside and 2 3/8" H. (See drawing below). Total Sq. footage of unit = 58/08 ft2; total water sprayed on unit during 15 min. of testing = 58.08 ft2 x 5 gal./ft2/hr x .25 hr. = 72.6 gallons (9293 fl.oz.)
Did not follow the standard test procedure of test failure upon water penetration as defined by test standards. In case of water penetration was allowed and instead the amount of water penetration was measured.
| Type of Test | Design Pressure | Amount of water penetration measured | ||
|---|---|---|---|---|
|
Water Penetration 1ASTM E-331 (water sprayed for 15 minutes at the rate of 5 gal./f2/h (3.4 L/m2/min.) |
@ 0 psf (0 Pa) |
.31 fluid oz. | .091 L | 0.03% of total water sprayed |
|
Water Penetration 1ASTM E-331 (water sprayed for 15 minutes at the rate of 5 gal./f2/h (3.4 L/m2/min.) |
@ 1.57 psf (75 Pa) |
14.6 fluid oz. | .43 L | 0.16% of total water sprayed |
|
Water Penetration 1ASTM E-331 (water sprayed for 15 minutes at the rate of 5 gal./f2/h (3.4 L/m2/min.) |
@ 6.24 psf (300 Pa) |
144 fluid oz. | 4.26 L | 1.55% of total water sprayed |
1 Excerpts of results of 3 panel unit width 7' 4 1/2" (2250 mm) tested by Architectural Testing, Inc., Fresno, CA, an independent testing laboratory in October 2010.
Special Water Test Detail
'
Note addition of a 1" x 2 3/8" tube with weep hole drains.

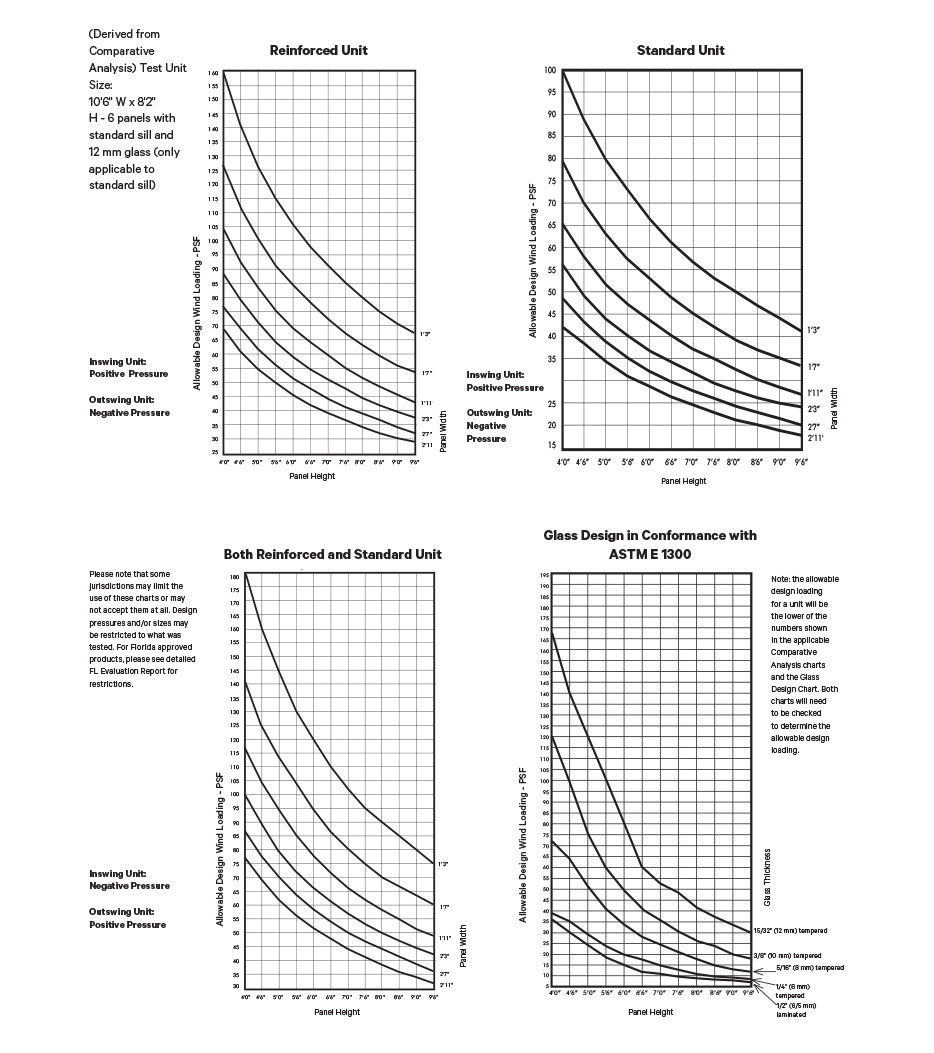

Design Windload Chart
