Explore some examples of customized solutions to visualize the versatility of our products. Let us know how we can help bring your design to life.
Use the 3D Configurator to customize layouts, glass, finishes, and sills tailored to your project. Once submitted, you’ll receive CAD/BIM files, an AR model, and a spec sheet.
For custom requirements outside the 3D Configurator such as segmented, T-intersections, more sophisticated parking bays, or more than twenty panels, our design team can help with drawings from sketch to final design. Schedule Design Assistance
Low Profile Saddle Sill with UniverSILL®
When increased seasonal weather performance is needed, this sill offers UniverSILL—an insert that easily snaps into place—creating a weather performance upgrade on demand. When the weather improves, UniverSILL is just as easily removed, returning the sill to a barefoot-friendly threshold.
When increased seasonal weather performance is needed, this sill offers UniverSILL—an insert that easily snaps into place—creating a weather performance upgrade on demand. When the weather improves, UniverSILL is just as easily removed, returning the sill to a barefoot-friendly threshold.

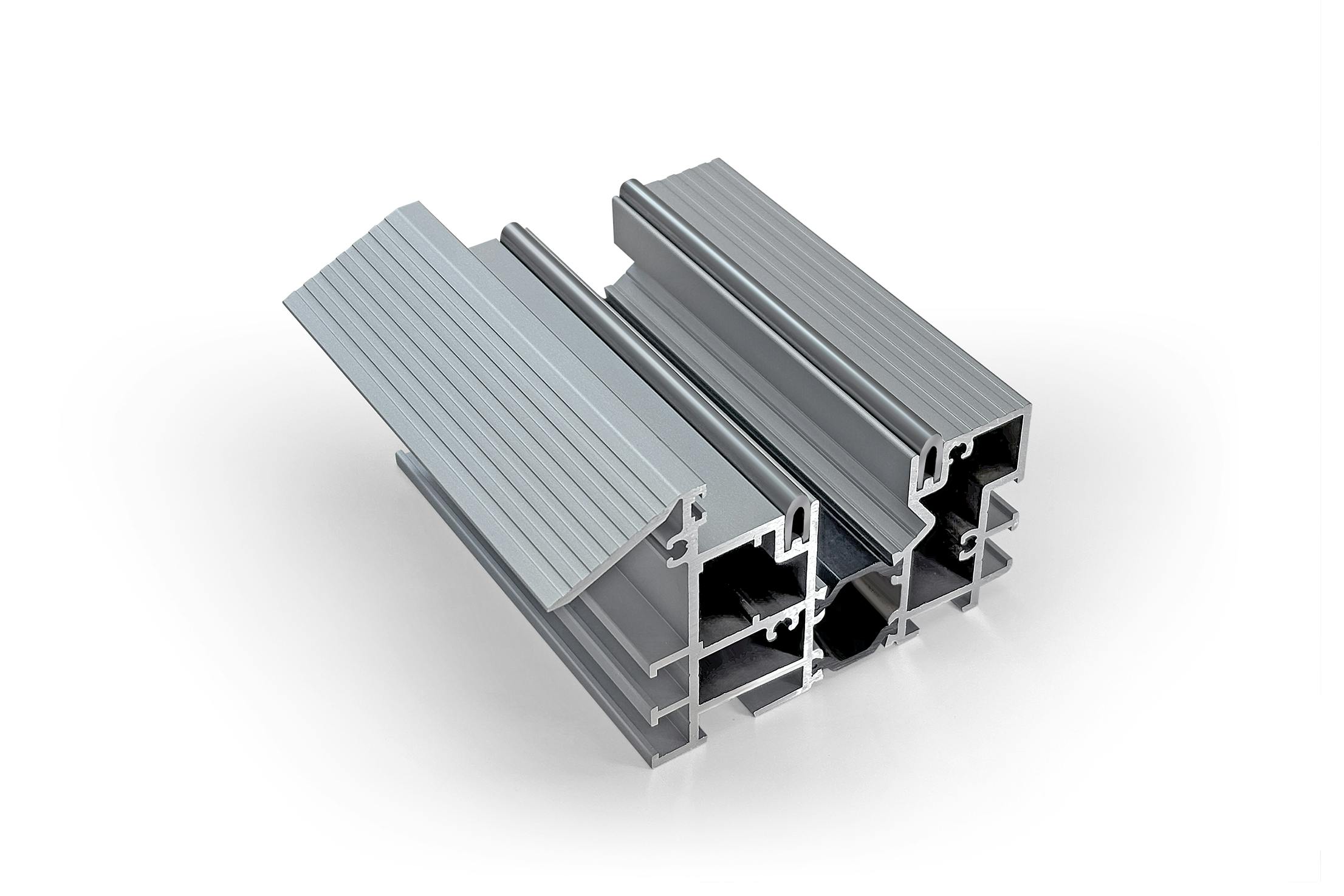

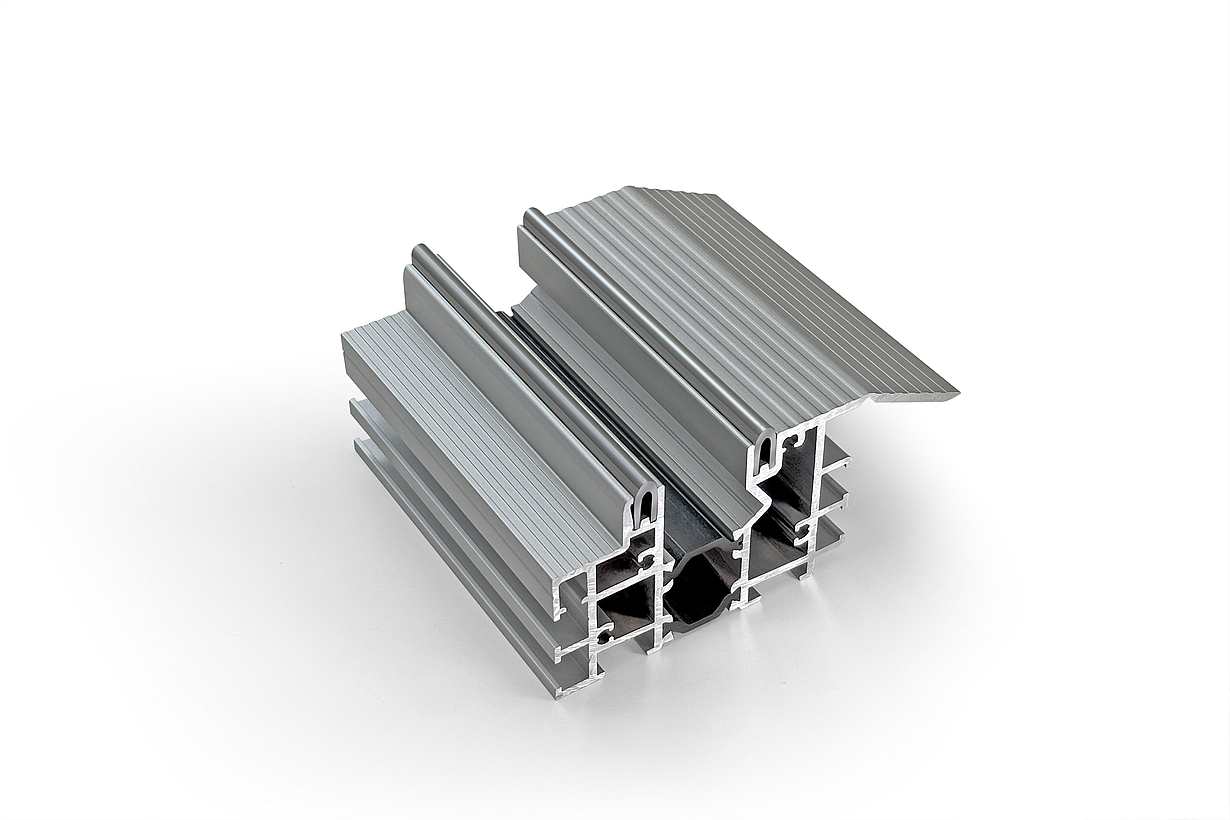

Hybrid Sill
- Performance level between Higher Performance and Low Profile Saddle sills
- Thermally broken for better insulation and energy efficiency
- Lower physical profile than the Higher Performance sill
- Suitable for mid-rise applications
- Performance level between Higher Performance and Low Profile Saddle sills
- Thermally broken for better insulation and energy efficiency
- Lower physical profile than the Higher Performance sill
- Suitable for mid-rise applications

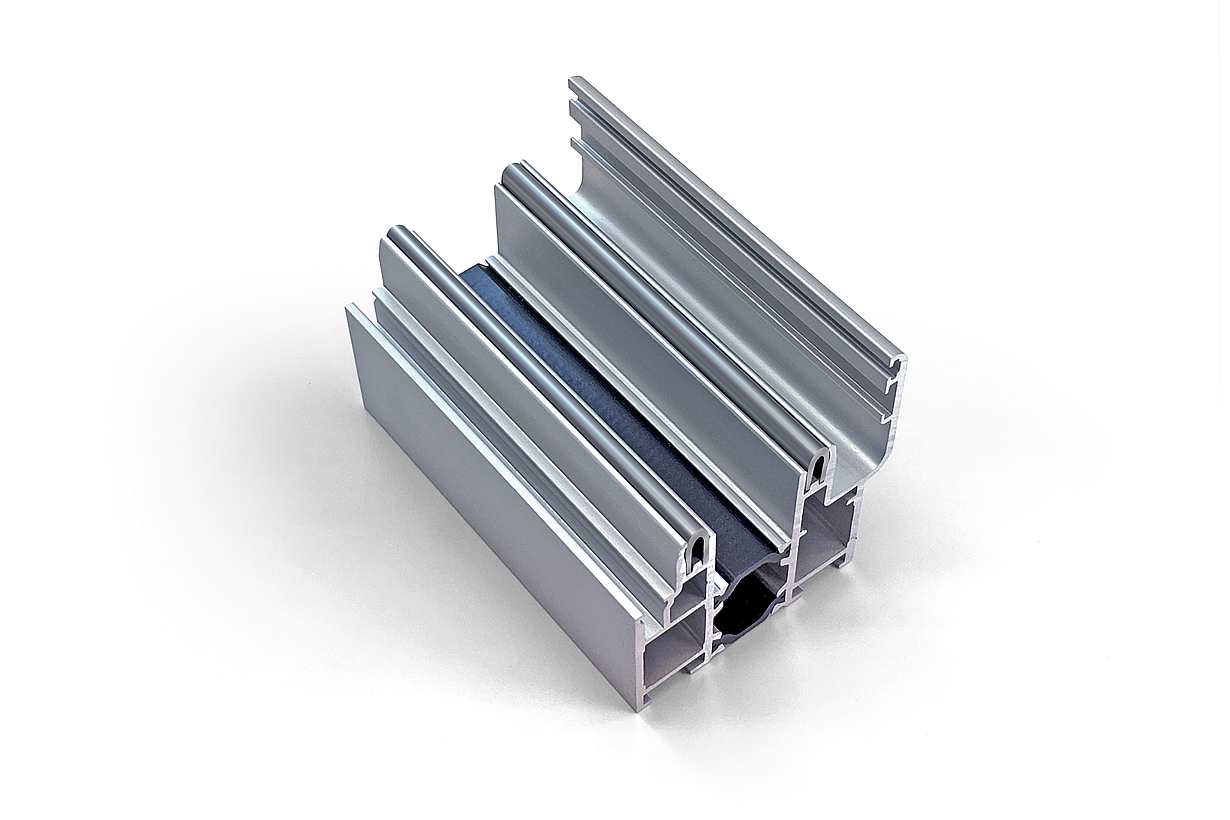

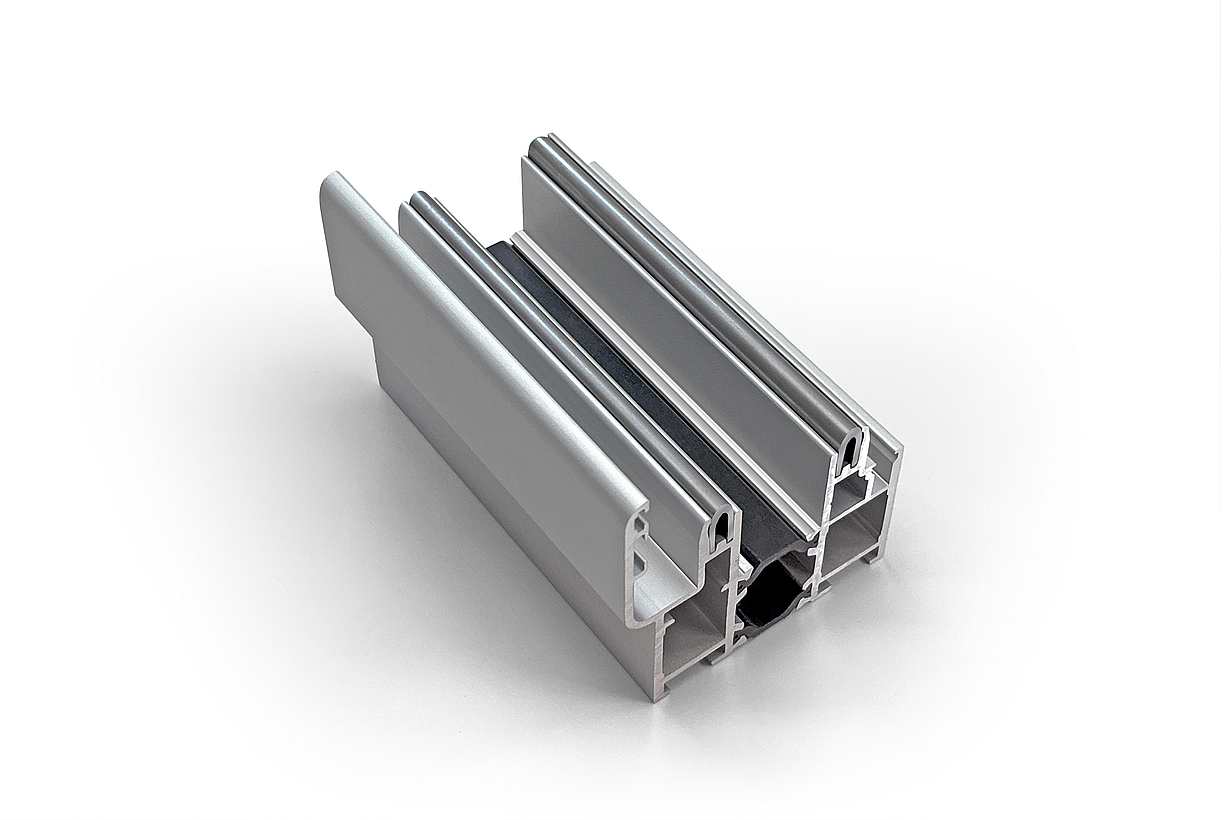

High Performance Sill
- Our most weather resistant sill
- May be installed flush at interior floor with outswing units
- Thermally broken for better insulation and energy efficiency
- Our most weather resistant sill
- May be installed flush at interior floor with outswing units
- Thermally broken for better insulation and energy efficiency
Solid Brass Lever Handle
Solid brass lever handles and escutcheon plates are available either in an Oil Rubbed Brass, Satin Nickel or a White finish.
Solid brass lever handles and escutcheon plates are available either in an Oil Rubbed Brass, Satin Nickel or a White finish.
Flat Handle
Flat handles are available in Dark Brown, White Aluminum, White or matching powder coat finish.
Flat handles are available in Dark Brown, White Aluminum, White or matching powder coat finish.
Two Point Locking
Standard between each pair of bi-fold panels and an option for swing panels. 180-degree turn of handle moves locking rods up or down. Uses 7 mm spindle.
Operable from inside only.
Standard between each pair of bi-fold panels and an option for swing panels. 180-degree turn of handle moves locking rods up or down. Uses 7 mm spindle.
Operable from inside only.
Multipoint Locking with Latch, Deadbolt and Top/Bottom Locking Rods
This option is possible only on primary swing door.
Includes top and bottom Polyamide capped locking rods, deadbolt, a compatible lock set with lockable latch and lever handles on the inside and outside. Depression of handles withdraws latch. Lifting of handles engages rods and turn of key or thumb turn engages deadbolt and operates lock.
Operable from inside and outside.
This option is possible only on primary swing door.
Includes top and bottom Polyamide capped locking rods, deadbolt, a compatible lock set with lockable latch and lever handles on the inside and outside. Depression of handles withdraws latch. Lifting of handles engages rods and turn of key or thumb turn engages deadbolt and operates lock.
Operable from inside and outside.
Deadbolt Lock
Possible only on primary or secondary swing panel.
Push Pull handles on both sides with deadbolt(s) operated by a lockset. Lockset option of having key operations on both sides. With a profile cylinder, panel is lockable with a thumbturn from the inside and a key from the outside. To keep the panel from being blown open, this option should be used with a door closer, but note that a door closer is not possible on a swing panel in a folding system that is not attached to a side jamb
Possible only on primary or secondary swing panel.
Push Pull handles on both sides with deadbolt(s) operated by a lockset. Lockset option of having key operations on both sides. With a profile cylinder, panel is lockable with a thumbturn from the inside and a key from the outside. To keep the panel from being blown open, this option should be used with a door closer, but note that a door closer is not possible on a swing panel in a folding system that is not attached to a side jamb
Single-point Single Motion Locking
GU Rondo lever handles on the inside and outside with single-point single motion locking, emergency egress, interconnected lock for interior application.
GU Rondo lever handles on the inside and outside with single-point single motion locking, emergency egress, interconnected lock for interior application.
Optional Commercial Locking on Primary Swing Panels Prepped for Supply by Others:
- Single point single motion locking operated by lever handles with locking with a US mortise cylinder that can accommodate standard 5 - 7 pin, SFIC, FSIC, or LFIC cores
- Schlage ND Series mechanical lock
- Panic hardware:
- Von Duprin 33/35A Series Narrow Stile Rim Exit Device
- Von Duprin 98/99 Series Rim Exit Device
- DORMA 9700 Series Narrow Stile Rim Exit Device
- Single point single motion locking operated by lever handles with locking with a US mortise cylinder that can accommodate standard 5 - 7 pin, SFIC, FSIC, or LFIC cores
- Schlage ND Series mechanical lock
- Panic hardware:
- Von Duprin 33/35A Series Narrow Stile Rim Exit Device
- Von Duprin 98/99 Series Rim Exit Device
- DORMA 9700 Series Narrow Stile Rim Exit Device
Our design team is here to help bring your project to life from sketch to finish. From answering your questions to planning, ordering and optimizing your options, we provide assistance to help you accomplish your goals.
Frequently Asked Questions
There are a number of factors that help us determine the best system for your application including:
- Is this a residential or commercial project?
- Is it an interior or exterior application?
- What city and state is your project located in?
- How big is the opening?
- Is it a ground floor application or a high-rise?
Each system has its own features and benefits engineered to solve specific design requirements. NanaWall provides only the appropriate system for a specific application need. We have four distinct product families: Folding, Sliding, Stacking, and Frameless.
NanaWall is a custom product tailored specifically for your project needs. Numerous features and options make up the price: type of system (we offer 20+), custom opening and panel size, glass type, door hardware, finish choice...to name a few. The best way to determine price is to consult with NanaWall and get a quote, directly from NanaWall, for the exact system that best meets your project requirements and budget. For more information, visit Pricing and Budget Guidelines
We manufacture in Richmond, California, and with our strategic German partner, Solarlux. Operating ISO9000-certified factories in both the US and Germany helps shorten lead times. When discussing your project with your local NanaWall representative, let them know you are interested in having your order expedited.
The lead times vary depending on system selection and design choices. To see our current delivery estimates, click here. To check the status of any order, call 1-(888) 411-NANA and dial extension 255 for Order & Delivery Status.
Watch the Delivery Process video
NanaWall deliver throughout North and Central America. Your local NanaWall representative will best be able to explain the process for obtaining and installing a NanaWall System in your area.
