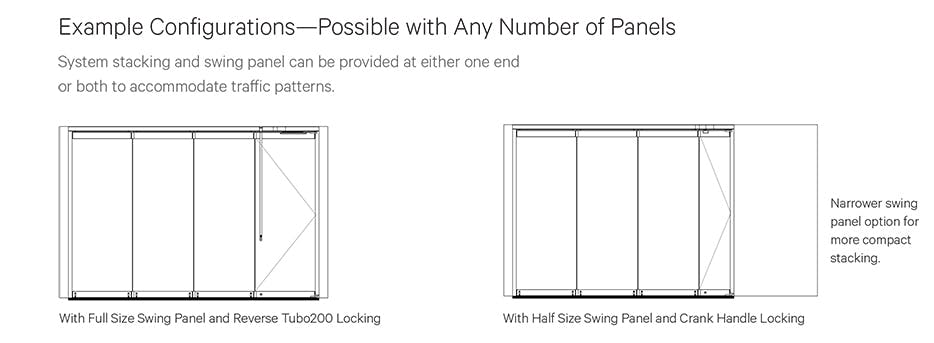

Shown below are animations of some basic stacking concepts. Please note the following:
- The number of panels in a system can be unlimited.
- Stacking can be on the left or right, inside or outside, only on one side or on both sides.
- The swing panel can be inswing or outswing.
- The stacking area can be wide or narrow and with additional track, can be located almost anywhere, near or far.
- Within certain limits, unequal panel widths may be possible.
- For units with a maximum of twenty panels, the concepts marked with an asterisk(*) can be quickly customized with the NanaWall Visual Studio or Schedule a Design Consultation
Stacking CONCEPT 1/A*
Perpendicular stacking in the opening with single action swing panel with top door closer and offset hinge.
Build this Concept
Stacking CONCEPT 2/I*
Perpendicular stacking outside the opening with single action swing panel with top door closer and offset hinge
Build this Concept
Stacking CONCEPT 3/I*
Perpendicular stacking outside the opening with single action non-entry swing panel with offset hinge.
Build this Concept
Stacking CONCEPT 4/E*
Parallel stacking outside the opening with single action swing panel with top door closer and offset hinge
Build this Concept
Stacking CONCEPT 5/E*
Parallel stacking outside the opening with single action non-entry swing panel with offset hinge.
Build this Concept
Stacking Concept 6/G*
Parallel stacking outside the opening with single action swing panel with top door closer and offset hinge
Build this Concept
Stacking CONCEPT 7/G*
Parallel stacking to one side of the opening with single action swing panel with top door closer and offset hinge to the other side
Build this Concept
Stacking Concept 8/A*
Perpendicular stacking in the opening with single action swing panel with top door closer and offset hinge at both ends
Build this Concept
Stacking concept 9
Parallel stacking within the opening with single action swing panel with top door closer and offset hinge to the opposite side
stacking concept 10/A*
Perpendicular stacking in the opening with single action swing panel with top door closer and offset hinge at the left and a non-entry swing panel at the right
Build this Concept
Stacking Concept 11
Perpendicular stacking outside the opening along the wall with single action swing panel with top door closer and offset hinge
* These concepts can be designed with NanaWall Visual Studio
Floor Tracks
Engineered Water Drainage System

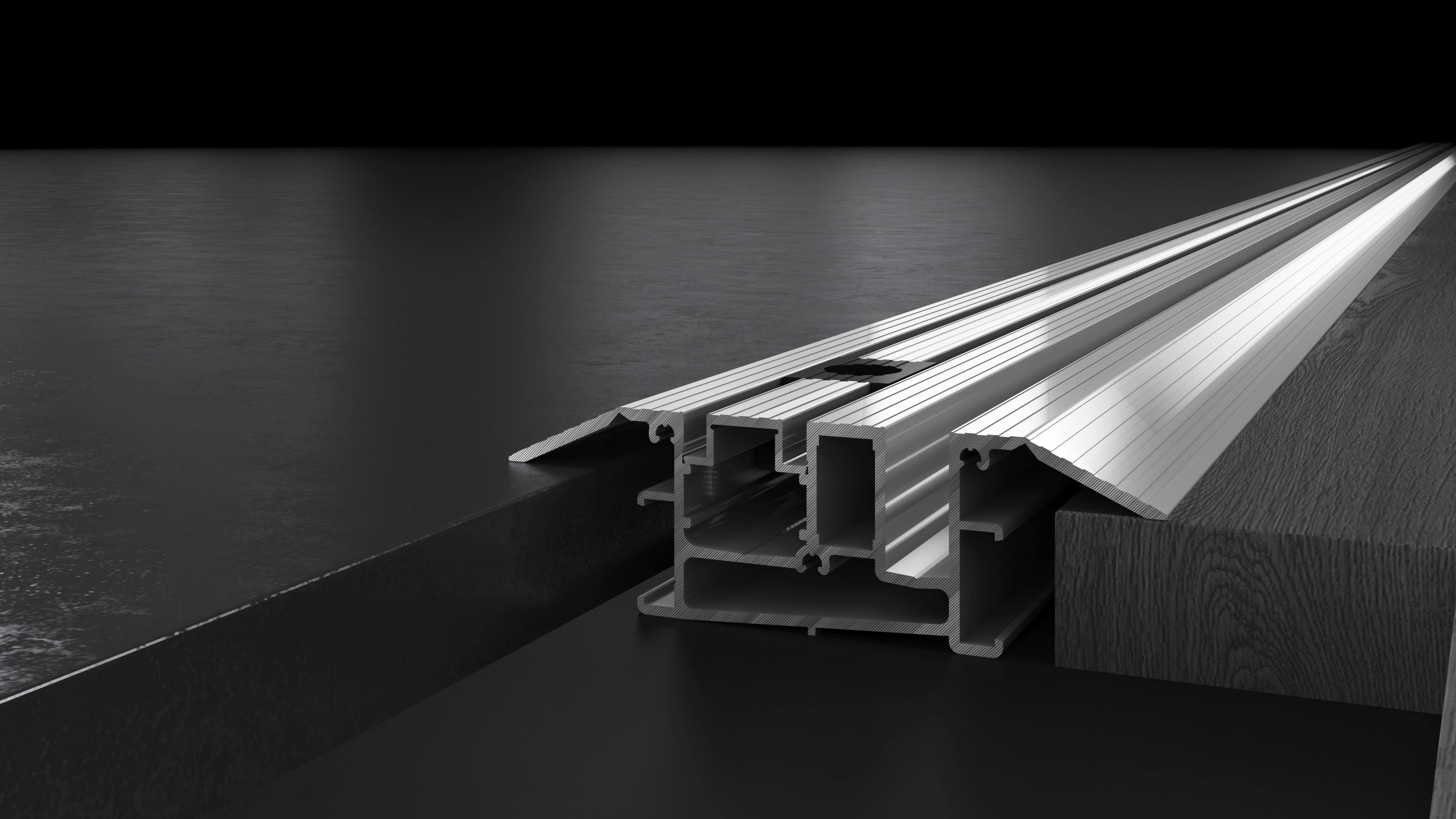

ClimaCLEAR comes standard with a recessed low profile saddle sill that provides an engineered water management system. Weep holes for drainage by others are needed to inhibit water intrusion. The sill, with adjustable floor sockets, is ADA compliant.
*Sills shown for illustrative purposes only. Weep holes by others necessary for water rating not shown.
*Depiction of surrounding conditions may not be accurate.
*No typical waterproofing, water drainage, flashing, shim space etc… is shown
Handles
Reverse locking ladder pull - Lockable from inside and outside
Standard to the swing panel is the reverse locking ladder pull, a brushed stainless steel finish handle/locking system with the handle starting at hand height and extending up to the top rail. There is an integrated locking mechanism with a full mortise cylinder lock, with thumb turn operation from inside and key operation from outside.
Push/Pull Handles
NanaWall offers custom made brushed stainless steel finish door pull options with built-in bumpers to protect against metal to glass contact. Other finish options are also available (please contact NanaWall Systems for details).
For swing panels with push/pull handles, a surface mounted lockig box with crank handle will be added at the top rail.
If requested, NanaWall Systems will also prep the glass to accept door pulls provided by others in order to match project specific designs.
Push Plate / Pull Handles Combination
For specialty applications, an optional push plate and pull handle accessory is available.
To be used with Quick Release Floor Bolt or Floor Bolt with Half Mortise Cylinder Lock.
Locking
Foot Activated Floor Bolt
Standard to sliding panels is the foot activated floor bolt. This floor bolt is easily controlled with the foot, eliminating the need to kneel down when locking the panel into place. Foot activated floor bolts have bumpers to avoid metal to metal contact.
Operation from inside only.
Reverse locking ladder pull - Lockable from Inside and Outside
Standard to the swing panel is the reverse locking ladder pull, a brushed stainless steel finish handle/locking system with the handle starting at hand height and extending up to the top rail. There is an integrated locking mechanism with a full mortise cylinder lock, with thumb turn operation from inside and key operation from outside.
Floor bolt with Mortise Cylinder for Single Action Swing Panel
For swing panels with the reverse locking ladder pull, a full mortise cylinder with key/key is provided at the bottom rail.
For swing panels with a push/pull or pushplate/pull handle options, the bottom rail is outfitted with a half mortise cylinder with key operation on the inside only.
Aluminum Colors
Clear Anodized - Standard
Optional Anodized Finishes
Brushed Anodized
Dark Bronze Anodized
Black Anodized
Please contact NanaWall for powder coat, custom color, and mix and match options.
Additional Powder Coating Finishes
NanaWall® offers over 200 RAL GLOSS powder coated and over 200 RAL MATTE powder coated colors for an additional upcharge.
Glass
Glazing Options
Standard glass supplied is 1/2" (12 mm) tempered. All vertical edges of the glass panels come polished. Also available is laminated glass for safety, security, acoustical separation, and/or UV protection in areas with lower structural requirements. Other options including low iron, frosted, tinted, and white glass are possible.
