Transparent Aesthetics Limitless Flexibility
Features
Design

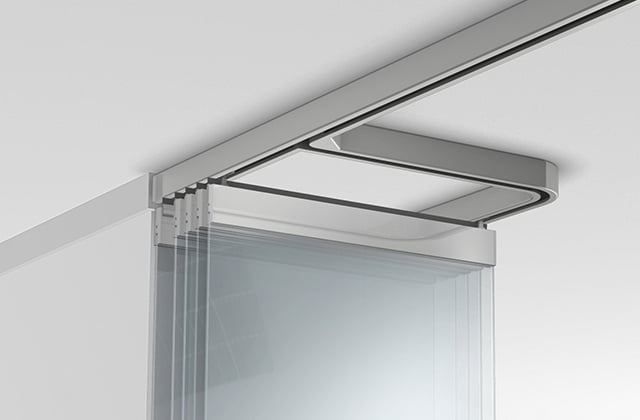

Single Track Offers Total Customization
Create an unlimited span of top-hung panels which are able to easily navigate with single handed operation through multiple angle changes from 90° to 180°. Optimize space management or to solve unique design challenges, stacking options and minimal parking bays can be designed with total customization.
Our Most Advanced Frameless Glass Wall System Ever
Unlimited Spans, Customizable Stacking
A unique combination of aesthetics, flexibility, and ingenuity make the HSW75 our most advanced frameless glass wall ever
Single/Double Action Panels That Can Slide Away:
The single track sliding all glass wall offers the option of selective panels that convert from sliding to pivoting for convenient swinging entrance/egress doors almost anywhere within the span of the opening in order to meet your traffic pattern requirements. Pivot panels are available as either single action or double action sliding panels. A pair of either single or double action swing panels can be added to function similarly to French doors.
End panels (non-sliding) can be single/double action panels with pivot points or single/double action panels with offset hinges that are capable of opening 180°.
Single/double action panels with pivot points have passed 500,000 cycle testing.
3 15/16" Continuous Rail for Outstanding Aesthetics:
The HSW75 system comes standard with a 3 15/16" (100 mm) continuous top and bottom horizontal rail –even on single action sliding panels– allowing for a beautiful aesthetic and maximum glass. Customized rail options are available in increments of 3/16" (5 mm) from 5 1/4" (133 mm) to 7 13/16" (198 mm). To meet ADA requirements, two options are offered: a 10" (254 mm) bottom rail or a 4 3/4" (120 mm) chamfer bottom rail.
Technology
Intelligent Rollers for Single HandED Operation
The unique "intelligent" rollers and guide technology ensure for easy, trouble-free, single-hand operation. The rollers are designed using hardened steel ball bearings with glass fiber reinforced polyamide wheels with memory effect and polyamide bumpers for quiet and smooth operation.
Patented Self-Activated Automatic Panel to Panel Interlock
For straight units, the automatic floor bolt is self-activated by simply moving the panels on to one another. Once the first panel is positioned, the following panel activates the wheel and ramp assembly to automatically release the floor bolt effectively locking the panel into place without the need to lock it manually. No kneeling is required.
Patented Release System Converting Single/Double Action Sliding Panels to Pivot and Vise Versa
The HSW75 has a patented release system which combines the fixing and locking mechanism for single/double action sliding doors. This patent improves the handling of turning the single/double action door into a sliding panel in a 2-step rather than a 3-step process.
Options
Taller Heights and Wider Widths:
Standard HSW75 comes in sizes up to 4' 1" (1250 mm) in width and 10' 6" (3200 mm) in height for sliding panels. For all single/double action sliding panels, sizes available are up to 3' 3" (1000 mm) in width and 10' 6" (3200 mm) in height. For single/double action end panels (non-sliding), sizes available are up to 3' 7" (1100 mm) in width and 10' 6" (3200 mm) in height.

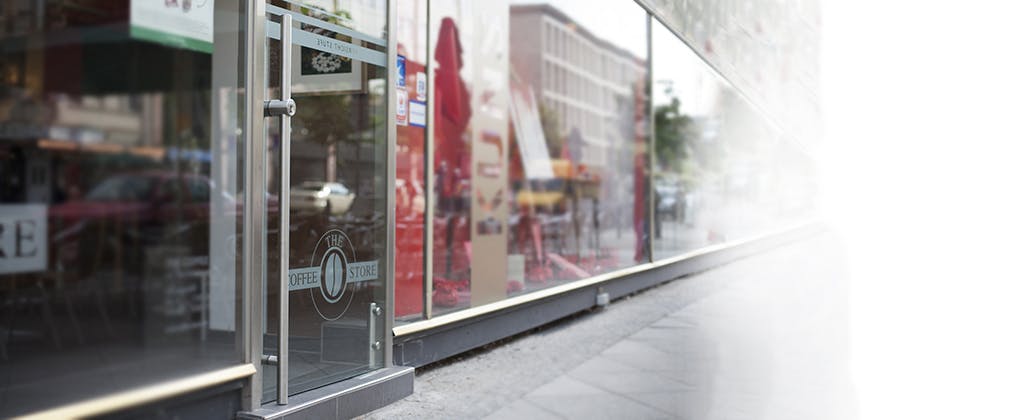

Convenient Handle Height Locking Option
A locking ladder pull integrates a locking mechanism with a profile cylinder at hand height into the tubular designed handle eliminating the need to kneel to lock the door at the bottom rail. The locking ladder pull comes in a brushed stainless steel finish.
More Options
Adjustable Floor Sockets
Standard to the HSW75 are eccentric floor sockets. The built-in adjustability helps to deal with tolerances and building settlements.
True Radius Track
With the HSW75, to meet the needs of specific designs and to improve smooth operation, a true curved radius track, composed of an engineered single piece of metal, is available for gentle angle changes and ease of installation.
Matching End Caps
For added aesthetic value, smooth end caps in coordinating colors are used. The encompassed design of the end caps eliminates any sharp edges of the horizontal rails. End caps come with bumpers on one end of the panel. For corner panels, the end caps can be mitered to match.
Matching System Options
FSW75

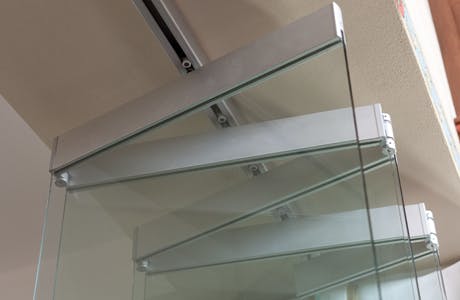

The FSW75 Frameless Folding System is a coordinating system to HSW75 and CSW75 for uniform sightlines.
CSW75
The CSW75 Frameless Center Pivot Folding System, a coordinating system to HSW75 and FSW75, requires no floor track and is a solution for flexible space management between structural supports or columns.
German Engineering
NanaWall systems are designed in Germany, providing world-class quality and long-term reliability
Unique to You
Each NanaWall system is custom made to order based on your project and your personal preferences
Wide Openings
NanaWall folding systems can replace walls or doors up to 39’ wide, select systems can go even wider if desired
Built to Perform
NanaWall systems meet or exceed air, water, structural, and forced entry tests for weather, durability, and security
Aesthetics
NanaWall systems offer a variety of material options and finishes to coordinate with any design
Ease of Operation
NanaWall systems offer single-handed operation and move smoothly with little effort
CE test is approval pending
A CE Marking is a European marking of conformity that indicates a product complies with the essential requirements of the applicable European laws or directives with respect to safety, health, environment and consumer protection.
Pivot panels have passed 500,000 cycle testing
Egress doors have been opened and closed over 100,000 times to demonstrate durability without failure.
HSW75 Performance Results
Stacking Concepts for HSW75
Shown below are animations of some basic stacking concepts. Please note the following:
- The number of panels in a system can be unlimited.
- Stacking can be on the left or right, inside or outside, only on one side or on both sides.
- Incorporated swing panels can be placed almost anywhere. The swing panel can be inswing or outswing. Pairs are possible.
- The stacking area can be wide or narrow and with additional track, can be located almost anywhere, near or far.
- Within certain limits, unequal panel widths may be possible.
- Depending on layout, different panel heights in the same opening are possible.
- Open corners, multi-angle and segmented units are possible.
-
For straight units with a maximum of twenty panels, the concepts marked with an asterisk, *, can be quickly customized with the NanaWall Visual Studio. Schedule a Design Consultation.
HSW75 Stacking CONCEPT A*
HSW75 Stacking CONCEPT E*
HSW75 Stacking CONCEPT M*
HSW75 Stacking CONCEPT N*
HSW75 Stacking CONCEPT G*
HSW75 Stacking CONCEPT B*
HSW75 Stacking CONCEPT C*
HSW75 Stacking CONCEPT D
HSW75 Stacking CONCEPT F
HSW75 Stacking CONCEPT H
HSW75 Stacking CONCEPT I
HSW75 Stacking CONCEPT J
HSW75 Stacking CONCEPT K
HSW75 Stacking CONCEPT L
Stacking concept q
Perpendicular stacking outside the opening along the wall with single action end panel with offset hinge and floor closer
Stacking concept G-CORNERLESS
Open corner configuration with parallel stacking outside the opening with single action end panel and offset hinge and floor closer
Stacking CONCEPT R
T-intersection configuration with both parallel and perpendicular stacking with single action end panels and offset hinge and floor closers
Examples of Enclosing Stack Area By Others
ENCLOSING STACK EXAMPLE 1
enclosing stack example 2
enclosing stack example 3
enclosing stack example 4
enclosing stack example 5
enclosing stack example 6
enclosing stack example 7
* These concepts can be designed with nanawall visual studio
Size Charts
The individual panels can also be of differing widths.
Please check with NanaWall for max. sizes for other glass thickness.
Please also check applicable codes for maximum allowed height for the relevant glass thickness.
Applicable codes may limit the maximum sizes possible to be less than what NanaWall allows.
Floor Tracks
Adjustable floor sockets
Standard to the HSW75 are eccentric floor sockets. The built-in adjustability helps to deal with tolerances and building settlements.
Dust proof socket
If required, a spring loaded, dust proof socket option is available.
Handles
Push/Pull Handles - Standard Height
NanaWall offers custom made brushed stainless steel finish door pull options. Other finish options are also available (please contact NanaWall Systems for details).
If requested, NanaWall Systems will also prep the glass to accept door pulls provided by others in order to match project specific designs.
Push/Pull Handles - Taller Height
NanaWall offers custom made brushed stainless steel finish door pull options. Other finish options are also available (please contact NanaWall Systems for details).
If requested, NanaWall Systems will also prep the glass to accept door pulls provided by others in order to match project specific designs.

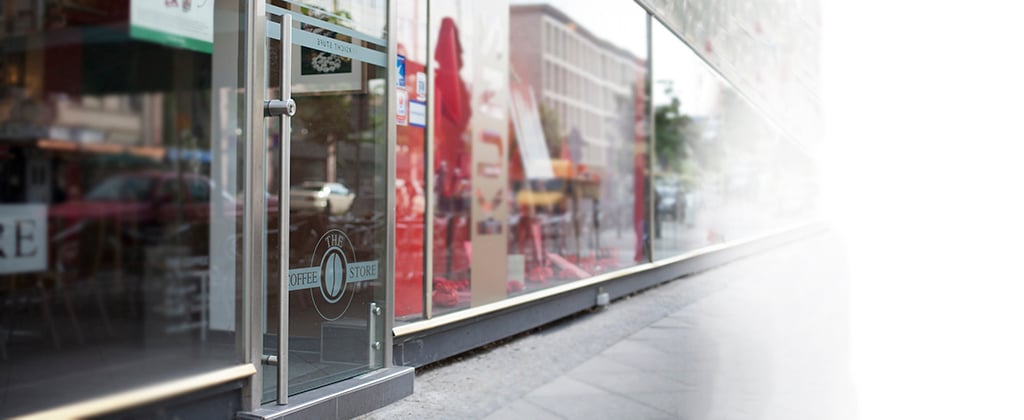

Convient Handle Height Locking Option
This locking ladder pull integrates a locking mechanism with a profile cylinder at hand height into the tubular designed handle eliminating the need to kneel to lock the door at the bottom rail. Locking ladder pulls come in a brushed stainless steel finish.
Locking
Patented Self-Activated Automatic Interlock
For straight units, the automatic floor bolt is self-activated by simply moving the panels on to one another. Once the first panel is positioned, the following panel activates the wheel and ramp assembly to automatically release the floor bolt effectively locking the panel into place without the need to lock it manually. No kneeling is required.
Concealed Panel to Panel Interlock
The concealed panel to panel interlock that is foot activated for straight units and for units with angle changes up to 12°. The panel to panel interlock provides additional security to the operator, assuring that the panels are locked firmly in place before they engage.
Quick Release Floor Bolt with Security Feature
For units requiring more than a 12° angle change, quick release floor bolts with spring loaded security feature are available. The security feature prevents access from the outside of the unit from attempts at prying the floor bolt mechanism. All single/double action sliding and end panels are equipped with a quick release floor bolt with spring loaded security feature at the pivot point in the lower rail and can be equipped with the same quick release floor bolt or a profile cylinder lock at the swing side.
Floor Bolt with Profile Cylinder or Half Cylinder
Keyed locking option located at the bottom rail, available in full or half cylinders.
Locking ladder pull
A locking ladder pull integrates a locking mechanism with a profile cylinder at hand height into the tubular designed handle eliminating the need to kneel to lock the door at the bottom rail.
Aluminum Colors
Available standard door rail finish is clear anodized. Options include: dark bronze anodized, stainless steel (polished or brushed), black anodized, polished brass, satin brass and simulated satin stainless steel. Custom colors and standard RAL colors are also an available option. For installations in need of greater corrosion resistance, the post assembly is available in clear anodized finish. The standard exterior surface finish for the normally recessed head track is clear anodized. However, it is also available in other anodized finishes, simulated brushed stainless steel, or powder coated.
Brushed Anodized
Stainless Steel
White
Polished Stainless Steel
Satin Brass
Clear Anodized
Black Anodized
Black Coated
Dark Bronze Anodized
Dark Bronze Coated
Glass
Standard glass thickness supplied is 1/2” (12 mm) tempered or laminated. Other glass options of up to 1” are available and include both laminated and tempered glass. The glass thickness is determined by customer need, panel size and local code requirements. The standard rail thickness of 1 7/16” (36 mm) for 1/2” (12 mm) glass will be adjusted accordingly for other glass thickness. All vertical edges of the glass panels come polished. To reduce glass stress, glass is clamp installed for equal distribution of weight. Additional options include low iron or decorative glass, acrylic, wooden, or stainless steel mesh inserts.
Accessories
Screening Accessories
Transforming walls and delivering a dream design can be achieved where weather or flying insects would normally prevent the practicality of creating an open space. A retractable screen add-on is perfect for blocking bugs while providing privacy and fresh air. The retractable screens are available in two options:
- Screen ONE
- Screen Classic
Matching Windows
European style dual-action windows, complement a NanaWall system. Offering tilt-in operation and large inswing openings. Choose from both operable and fixed matching windows types for your project.
Matching French Doors
NanaWall Matching French Doors are available as single doors or pairs. Very narrow stiles and rails are possible.
NanaWall French Doors use exactly the same profiles and hardware as the matching NanaWall Folding Glass Walls. Hence, the same size charts, glazing options, wood/finish options and finish hardware options as the matching NanaWall Folding Glass Walls are applicable.
The same testing performance results also apply (within a folding system, with an odd number of panels stacking to one side, the last panel is a swing door).
Photos
PNC Bank
Bagstage
Biba

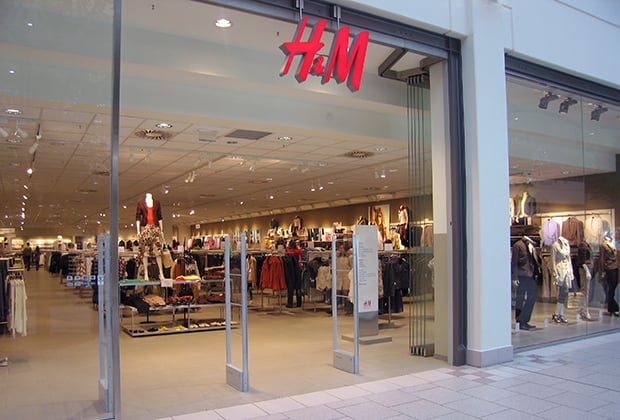

H&M

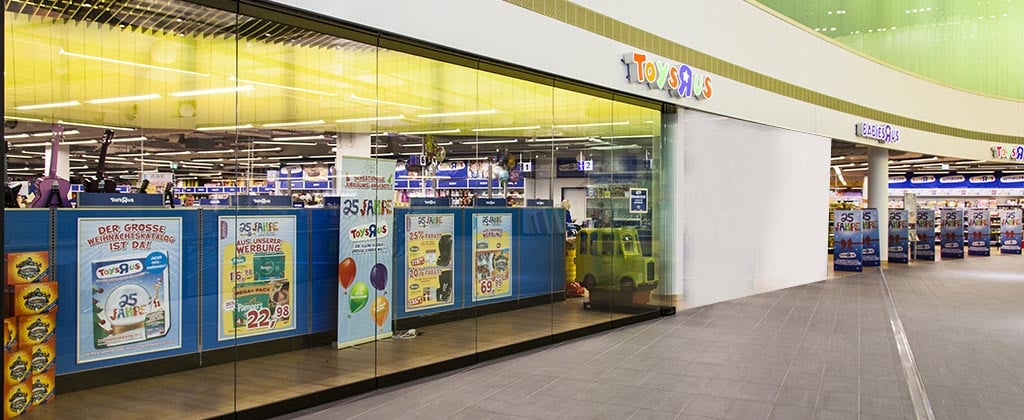

Toys R Us
St. Marien Kirche
Videos
Animations
Downloads
Technical Resources
architectural binder
specifications
installation manuals / owner's manuals
View our Brochures and Photo Ideabooks online by clicking on the images below. For mailed copies, please submit the form below.
NanaWall Brochures
NanaWall Product Brochures
NanaWall Vertical Market Brochures
Photo Ideabooks
3D Models, Revit & AutoCAD Details
Specifications
Installation
Certified Installers
All opening requirements and surrounding conditions must be ready and meet the NanaWall supplied drawings before the certified installer arrives. Installers can review the openings before installation to ensure accuracy and verify all opening requirements have been met. Upon completion, the certified installer will ask to have a sign-off sheet completed, this will ensure your satisfaction with the installation of your NanaWall system. The certified installer will be available for a complete operational demonstration at time of installation.
NanaWall helps certified installers through continuous education to make sure they are up to date on all of our 20+ different systems. Their training process includes extensive education for both folding and sliding systems. Our installation management team makes periodic site visits to ensure the high standard of quality installation is maintained. Due to the extensive training your certified installer receives, it will ensure your NanaWall System is installed right, on-time, and hassle-free.
A benefit using certified installers is increased warranty coverage (review for details) of your new NanaWall system. Many areas have both commercial and residential trained installers.
Preventative Maintenance and Repair Services Available
Certified installers are available for servicing, repairs, and routine maintenance of your system.
Please contact your local NanaWall Sales Representative to arrange certified installation services for your project.
Installation Considerations
The approximate weight of a panel is the following:
Tempered Single Glazing: 4 - 4.5* lbs/sqft
Insulated Tempered Glazing: 5.5 - 8* lbs/sqft
Tempered Triple Glazing: 6 - 8.5* lbs/sqft
* The higher values applies to taller units
Single Impact Glazing: 8 lbs/sqft
Insulated Impact Glazing: 11 lbs/sqft
For the HSW75, FSW75, CSW75, PrivaSEE, and ClimaCLEAR systems the weight of a panel with 1/2" glass is 8 lbs/sqft.
For cero II the approximate weight of a panel for double glazed is 10 lbs/sqft and for double glazed laminated is 12 lbs/sqft.
For cero III the approximate weight of a panel for triple glazed is 13 lbs/sqft and for triple glazed laminated is 15 lbs/sqft.
The vertical structural deflection of the header should be the lesser of L/720 of the span and 1/4" under full loads. Structural support for lateral loads (both windload and when the panels are stacked open) must also be provided.
For floor supported systems (SL70, SL73, SL82, SL60u, WA67u and WD66u, please note that there is no vertical load on the header).
It is recommended that all building loads be applied to the header prior to installing the NanaWall. If so and if a reasonable amount of time has been allowed for the effect of this dead load on the header, only then can the building's live can be used to meet the above requirements of L/720 or 1/4". If not, both the dead and live loads needs to be considered.
Installation Information
Please see the Installation Instructions / Owner's Manual for each system.
NanaWall Systems, Inc. has independent, factory trained installers throughout North America, including Mexico, Canada, Caribbean and Central America. Choosing a trained installer ensures the best possible installation of your new NanaWall. Having folding or sliding walls installed has never been easier.
Installation Videos
Pricing
The Question of Pricing
NanaWall is a custom product tailored specifically for your project needs. Numerous features and options make up the price: type of system (we offer 20+), custom opening and panel size, glass type, door hardware, finish choice…to name a few. The best way to determine price is to consult with your local area NanaWall architectural representative and get a quote, directly from NanaWall, for the exact system that best meets your project requirements and budget. Or, better yet, experience our products firsthand by making an appointment to visit by one of our 25 showrooms to learn why NanaWall is your best choice.
Typical Residential Pricing Example
An example pricing guideline for our more versatile residential folding thermally broken aluminum system SL60 with 50 standard color options, choice of standard inswing or outswing, top-hung or floor supported, starts from $700 linear foot. This German engineered and American produced folding glass wall has a lead time of 7 – 9 weeks from order sign off to curbside delivery at your jobsite.
Project Tips For Budgeting
Optimize By Size
Every NanaWall system is customized based on your design requirements. Budgeting starts with overall size of the opening and is dependent on the total number of panels required.
General Pricing Guidelines:
- Total # of panels directly affect pricing
- Larger overall panels affect pricing
- Optimized size and panels offer best pricing
Product Family Matters
There are 3 NanaWall product families each with a specific design specialty, select the best fit based on your project needs.
General Pricing Guidelines:
- Folding products for most common applications and weather performance
- Sliding products for more complex design requirements are priced higher than folding
- Frameless products for interior are priced similarly to sliding products while outdoor rooms or balconies are priced lower than folding
There's Only One NanaWall System
Every NanaWall system is custom produced based on your design. Choose from included options to optimize pricing, all specialty options affect pricing.
General Pricing Guidelines:
- Custom color matching affects pricing
- Specialty glass affects pricing
- Decorative SDL's affect pricing
