HSW75 Performance

Transparent Aesthetics Limitless Flexibility

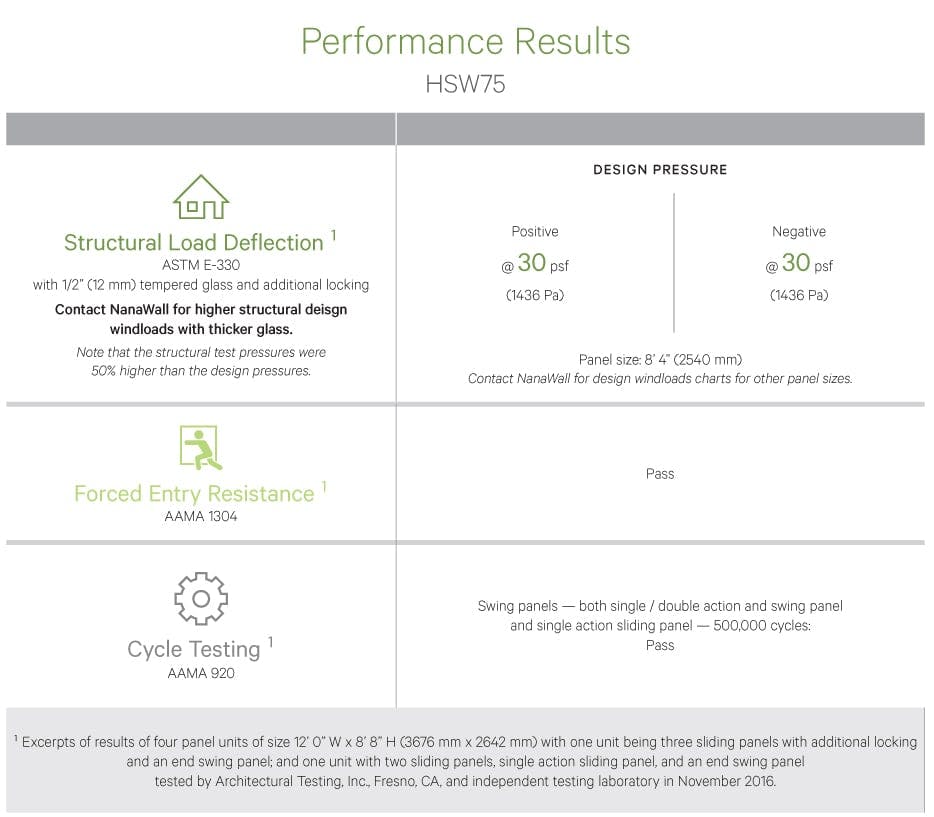

Type of Test Results

Structural Load Deflection 1

ASTM E-330

with 1/2" (12 mm) tempered glass and additional locking

Contact NanaWall for higher structural design windloads with thicker glass.

Note that the structural test pressures were 50% higher than the design pressures.

design pressure

Positive
@ 30 psf
(1436 Pa)

Negative
@ 30 psf
(1436 Pa)

Panel size: 8'4" (2540 mm)

Contact NanaWall for design windloads charts and other panel sizes.

Forced Entry Resistance 1

AAMA 1304

Pass

Cycle Testing 1

AAMA 920

Swing panels - both single / double action and swing panel and single action sliding panel - 500,000 cycles: Pass

1 Excerpts of results of four panel unit of size 12' 0" W x 8'8" H (3676 mm x 2642 mm) with one unit being three sliding panels with additional locking and an end swing panel; and one unit with two sliding panels, single action sliding panel, and an end swing panel tested by Architectural Testing, Inc., Fresno, CA, an independent testing laboratory in November 2016.

CE test is approval pending

A CE Marking is a European marking of conformity that indicates a product complies with the essential requirements of the applicable European laws or directives with respect to safety, health, environment and consumer protection.

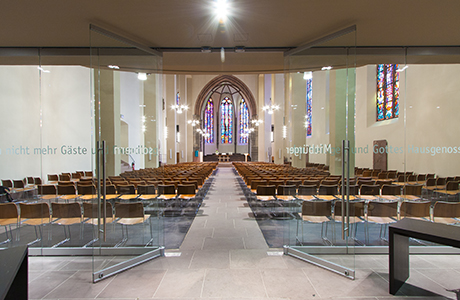

Pivot panels have passed 500,000 cycle testing

Egress doors have been opened and closed over 100,000 times to demonstrate durability without failure.
