Stacking Concepts for PrivaSEE
Shown below are animations of some basic stacking concepts. Please note the following:
- The number of panels in a system can be unlimited.
- Stacking can be on the left or right, inside or outside, only on one side or on both sides.
- The swing panel can be inswing or outswing.
- The stacking area can be wide or narrow and with additional track, can be located almost anywhere, near or far.
- Within certain limits, unequal panel widths may be possible.
- Open corners units are possible.
- For straight units with a maximum of twenty panels, the concepts marked with an asterisk(*) can be quickly customized with the NanaWall Visual Studio or Schedule a Design Consultation
Perpendicular to Wall*
Remote Perpendicular to Wall
Stacking Concept 1/A*
Perpendicular stacking in the opening with single end panel with offset hinge and floor closer
Build this Concept
Stacking Concept 2/I*
Perpendicular stacking outside the opening with single action end panel with offset hinge and floor closer
Build this Concept
Stacking concept 3/I*
Perpendicular stacking outside the opening with single action non-entry end panel offset hinge
Build this Concept
Stacking concept 4/E*
Parallel stacking outside the opening with single action end panel with offset hinge and floor closer
Build this Concept
Stacking concept 5/E*
Parallel stacking outside the opening with single action non-entry end panel with offset hinge
Build this Concept
Stacking concept 6/G*
Parallel stacking outside the opening with single action end panel with offset hinge and floor closer
Build this Concept
Stacking concept 7/G*
Parallel stacking to one side of the opening with single action end panel with offset hinge and floor closer to the other side
Build this Concept
Stacking concept 8/A*
Perpendicular stacking in the opening with single action end panel and offset hinge and floor closer at both ends
Build this Concept
Stacking Concept 9
Parallel stacking within the opening with single action end panel with offset hinge and floor closer to the opposite side
Stacking Concept 10/A*
Perpendicular stacking in the opening with single action end panel with offset hinge and floor closer at the left and a non-entry swing panel at the right
Build this Concept
Stacking CONCEPT 11
Open corner configuration with parallel stacking outside the opening with single action end panel and offset hinge and floor closer
Stacking Concept 12
T-intersection configuration with both parallel and perpendicular stacking with single action end panels and offset hinge and floor closers
Stacking Concept 13
Perpendicular stacking outside the opening along the wall with single action end panel with offset hinge and floor closer
*these concepts can be designed with nanawall visual studio
Size Charts
Floor Tracks
Adjustable floor sockets
Standard to the PrivaSEE are eccentric floor sockets. The built-in adjustability helps to deal with tolerances and building settlements.
Dustproof socket
If required, a spring loaded, dustproof socket option is available.
Handle Options on Single Action End Panel

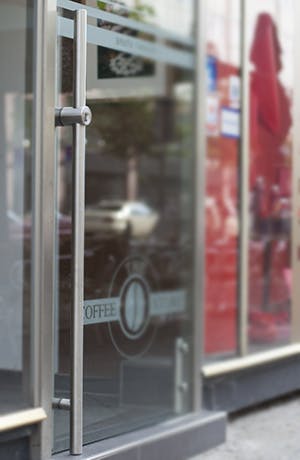

Locking ladder pull - Lockable from inside and outside
A locking ladder pull integrates a locking mechanism with a profile cylinder at hand height into the tubular designed handle eliminating the need to kneel to lock the door at the bottom rail. Locking ladder pulls come in a brushed stainless steel finish.
Thumb turn operation from inside and key operation from outside.
Push/Pull Handles - Standard length
NanaWall offers custom made brushed stainless steel finish door pull options. Other finish options are also available (please contact NanaWall Systems for details).
If requested, NanaWall Systems will also prep the glass to accept door pulls provided by others in order to match project specific designs.
To be used with Quick Release Floor Bolt or Floor Bolt with Half Mortise Cylinder Lock.
Push/Pull Handles - longer lengths
NanaWall offers custom made brushed stainless steel finish door pull options.
Other finish options are also available (please contact NanaWall Systems for details).
If requested, NanaWall Systems will also prep the glass to accept door pulls provided by others in order to match project specific designs.
To be used with Quick Release Floor Bolt or Floor Bolt with Half Mortise Cylinder Lock.
Push Plate / Pull Handles Combination
For specialty applications, an optional push plate and pull handle accessory is available.
To be used with Quick Release Floor Bolt or Floor Bolt with Half Mortise Cylinder Lock.
Locking
Between Sliding Panels, Self-Activated Interlock and Horizontal Compression Seals
The automatic floor bolt and horizontal compression seals are self-activated by simply moving the panels to one another. The unique wheel and ramp assembly automatically locks the panel into place without the need to kneel and lock it manually.
Foot activated Floor Bolt
Standard to panels not equipped with the self-activated interlock, is the foot activated floor bolt. This floor bolt is easily controlled with the foot, eliminating the need to kneel when locking the panel into place.
Operation from inside only.
Locking Ladder Pull for Single Action End Panel
The optional locking ladder pull is also available for convenient hand height locking from either side. This pull handle integrates a locking mechanism with a full mortise cylinder at hand height into the tubular designed handle eliminating the need to kneel to lock the door at the bottom rail.
Thumb turn operation from inside and key operation from outside.
Floor Bolt with Half Mortise Cylinder for single action end panel
Keyed locking option located at the bottom rail. When desired, the single action end panel can be accessed controlled.
Key operation from inside only.
Details of Other Components
Door Closer — View or Download
Socket View or Download
Panic hardware (Customer to supply drill pattern for NanaWall to drill holes in glass. Hardware supplied and installed by others.)
Aluminum Colors
Clear Anodized - Standard
Optional Anodized Finishes

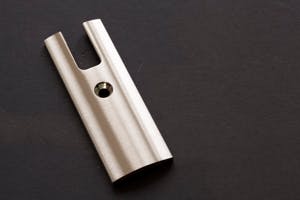

Brushed Anodized

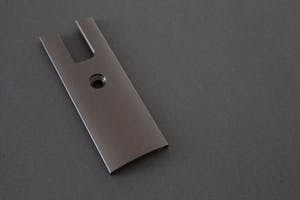

Dark Bronze Anodized

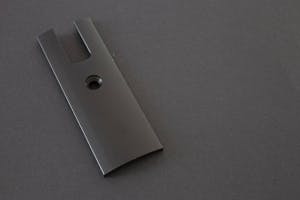

Black Anodized
Please contact NanaWall for powder coat, custom color, and mix and match options.
Additional Powder Coating Finishes
NanaWall® offers over 200 RAL GLOSS powder coated and over 200 RAL MATTE powder coated colors for an additional upcharge.
Glass
Sound Enhanced Laminated Glass
Standard to PrivaSEE is 1/2” (13 mm) laminated glass with a sound enhanced interlayer providing reduced sound transmission. All vertical edges are polished.
