All-Aluminum Aesthetics Enhanced For Colder Climates And Rain
Features
Designed for energy efficiency and strong weather performance
The NanaWall SL60 delivers superior weather performance, beautiful aesthetic design, and offers an optional floor supported movement when installation conditions require it
INSULATING ALUMINUM CORE
The NanaWall SL60 features an all aluminum design that incorporates an insulation barrier built-in. With an overall depth of 60mm, this provides exceptional protection from exterior elements and delivers a comfortable indoor experience when closed
Energy Efficiency
Triple-Paned Glass Optional
The NanaWall SL60 can accommodate triple-paned glass for additional thermal performance in more extreme conditions
NFRC RATED & CERTIFIED
Contribute to projects seeking LEED designation & can meet the latest energy standards
Quiet and Comfortable
The NanaWall SL60 has been tested for sound control and has a remarkable resistance to wind driven rain.
Technology
Minimal Sightlines
The NanaWall SL60 maintains the European styling of narrow and equal sightlines around each door panel creating an attractive display of glass and light

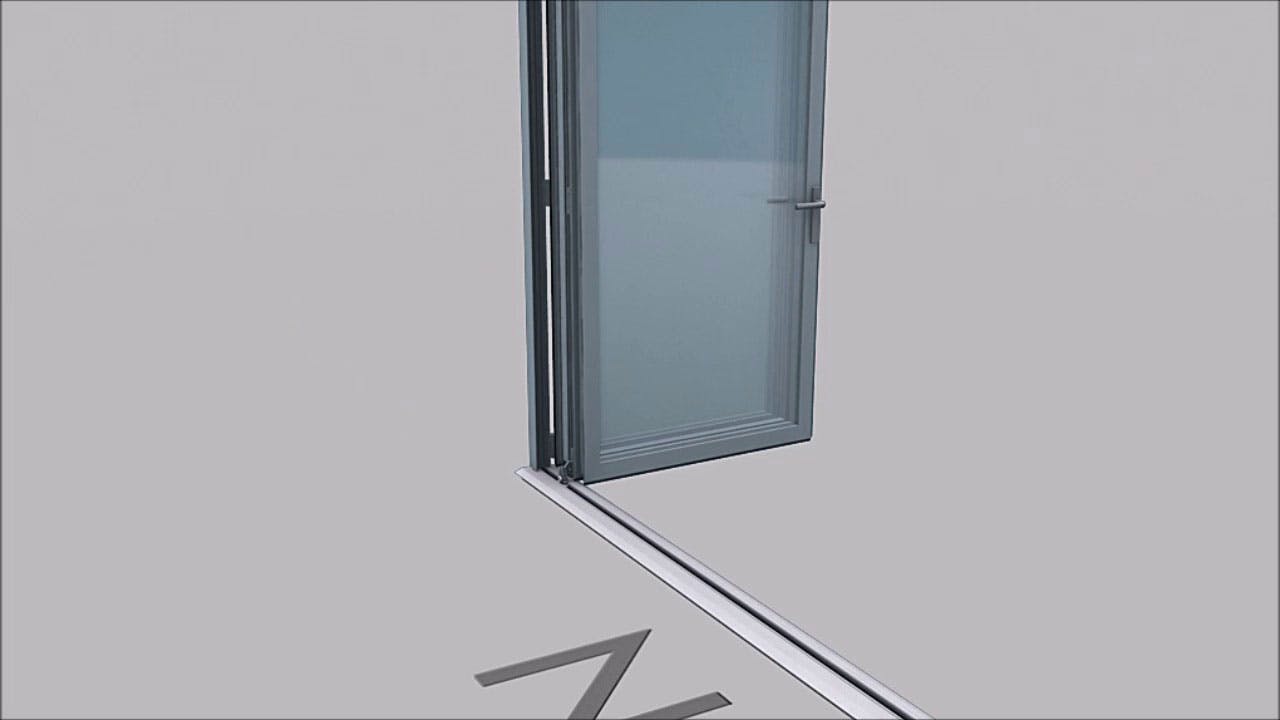

Floor Supported option roller design - Watch it in action
This animation demonstrates our NanaWall SL60 floor supported system roller option. To deal with building movement, the NanaWall floor supported option offers stainless steel wheels on a stainless steel track for continual smooth operation, even with up to 3/8" of debris in the track.
Swing Doors for Everyday Use are Possible
Choose from various configuration options that include a daily access door without needing to open the entire system.
Life Cycle Performance Tested
The NanaWall SL60 meets the German “DIN EN 1191/12400 Classification” where a unit is tested after 20,000 opening and closing cycles and is still functional.

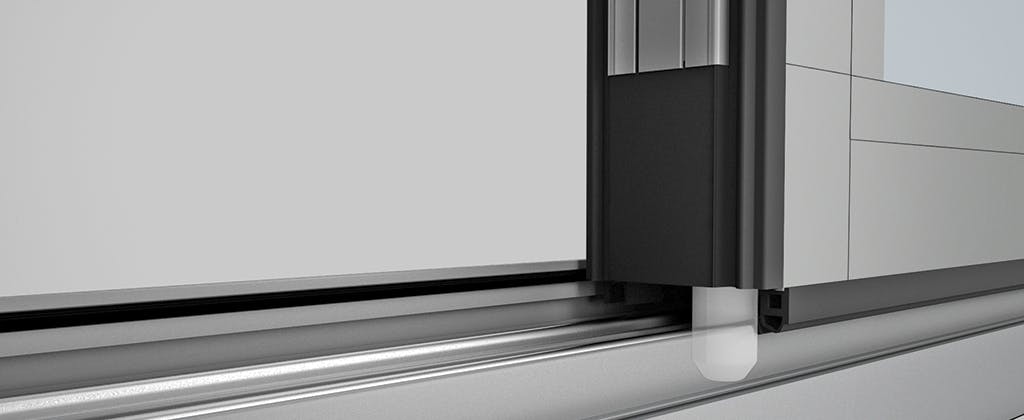

Concealed Locking and Forced Entry Protection
The NanaWall SL60 features a concealed locking rod and locks into both the head track and sill. The locking hardware has passed forced entry testing.
German Engineering
NanaWall systems are designed in Germany, providing world-class quality and long-term reliability
Unique to You
Each NanaWall system is custom made to order based on your project and your personal preferences
Wide Openings
NanaWall folding systems can replace walls or doors up to 39’ wide, select systems can go even wider if desired
Built to Perform
NanaWall systems meet or exceed air, water, structural, and forced entry tests for weather, durability, and security
Aesthetics
NanaWall systems offer a variety of material options and finishes to coordinate with any design
Ease of Operation
NanaWall systems offer single-handed operation and move smoothly with little effort
Performance When Closed Matters Most
Large openings are easy to design and there are many options to choose from. When selecting a product that best fits your project, how it performs when closed is important.
All Climate Performance
NanaWall products are NFRC rated and certified for true energy efficiency in all climates.
Certified Testing Standards
NanaWall products endure the latest AAMA testing standards for air, water, structural, and forced entry.
Sustainable Design
NanaWall products contribute to multiple LEED rating systems and potentially several credit categories.
Air, Water, Structural, Thermal, Forced Entry & Acoustical Results
Florida Product Approval #24434.1
Please select a Sill from the following Options:
High Performance Sill

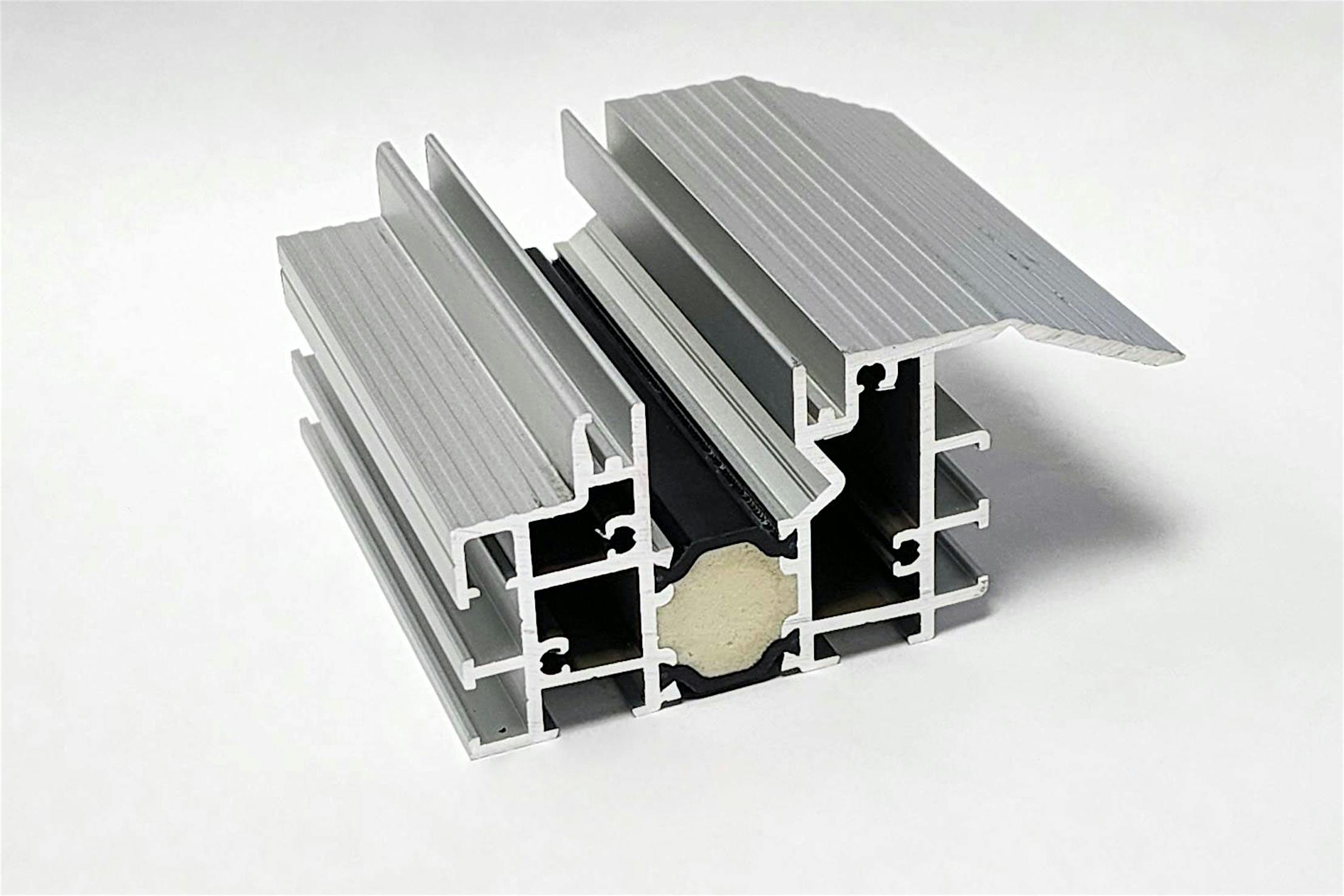

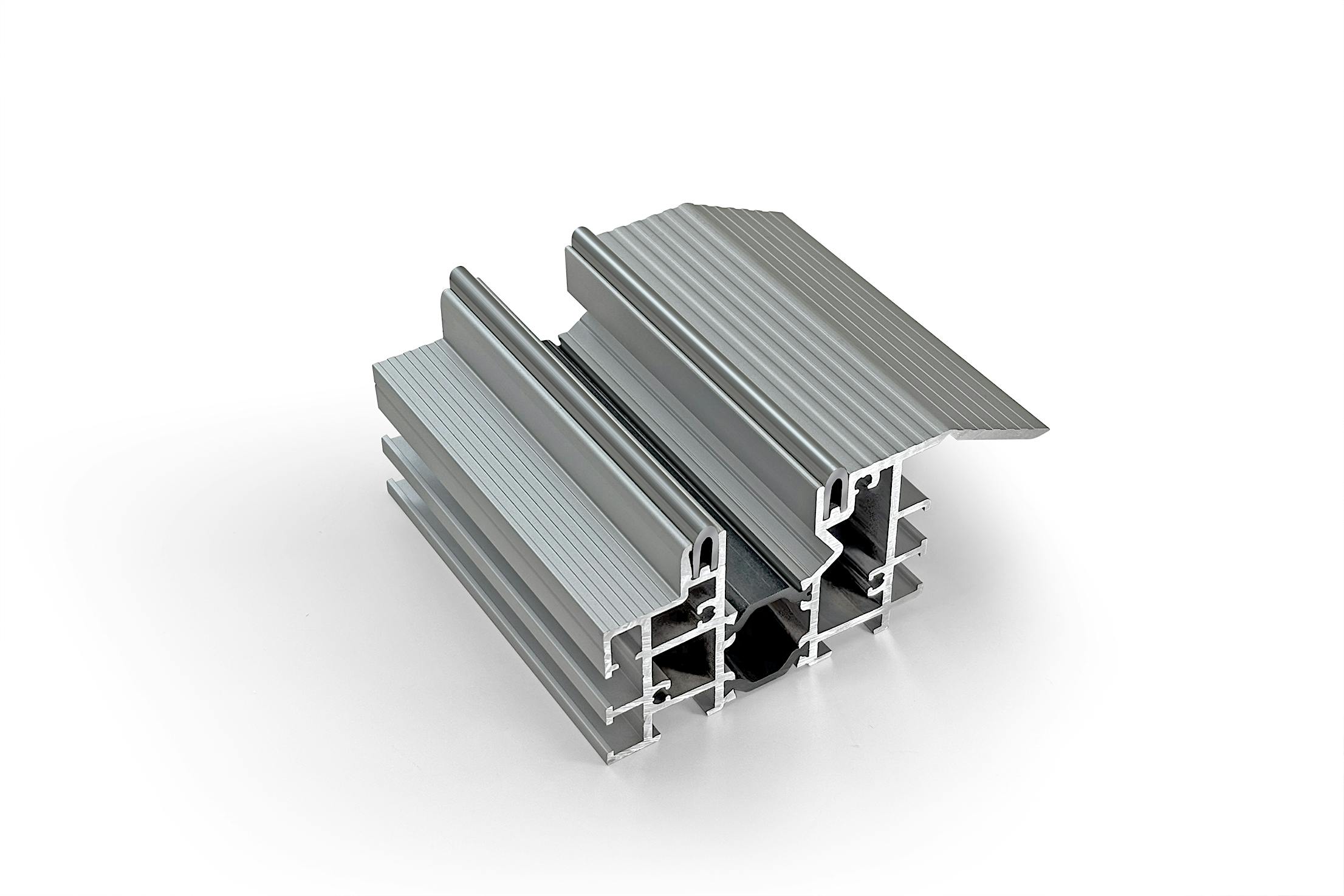

Hybrid Sill
Low Profile Sill
Flush Sill
Design Windload Chart
(Derived From Comparative Analysis) Test Unit Size: 9'5" W x 8'2 1/2" H (3 panels)
Please note that some jurisdictions may limit the use of these charts or may not accept them at all. Design pressures and/or sizes may be restricted to what was tested. For Florida approved products, please see detailed FL Evaluation Report for restrictions.
Please also note that chart is only applicable for units with referenced Nana Wall supplied locking.
Positive and negative design pressures for both inward and outward opening units.
Configurations
Size Charts
Residential
Commercial
Up to twelve panels are possible in a unit. Any custom panel size is possible up to the maximum size shown.
The total overall unit width is the number of panels multiplied by the individual panel width. As a guide, the table below shows some examples with the number of panels multiplied by selected panel widths.
Floor Tracks

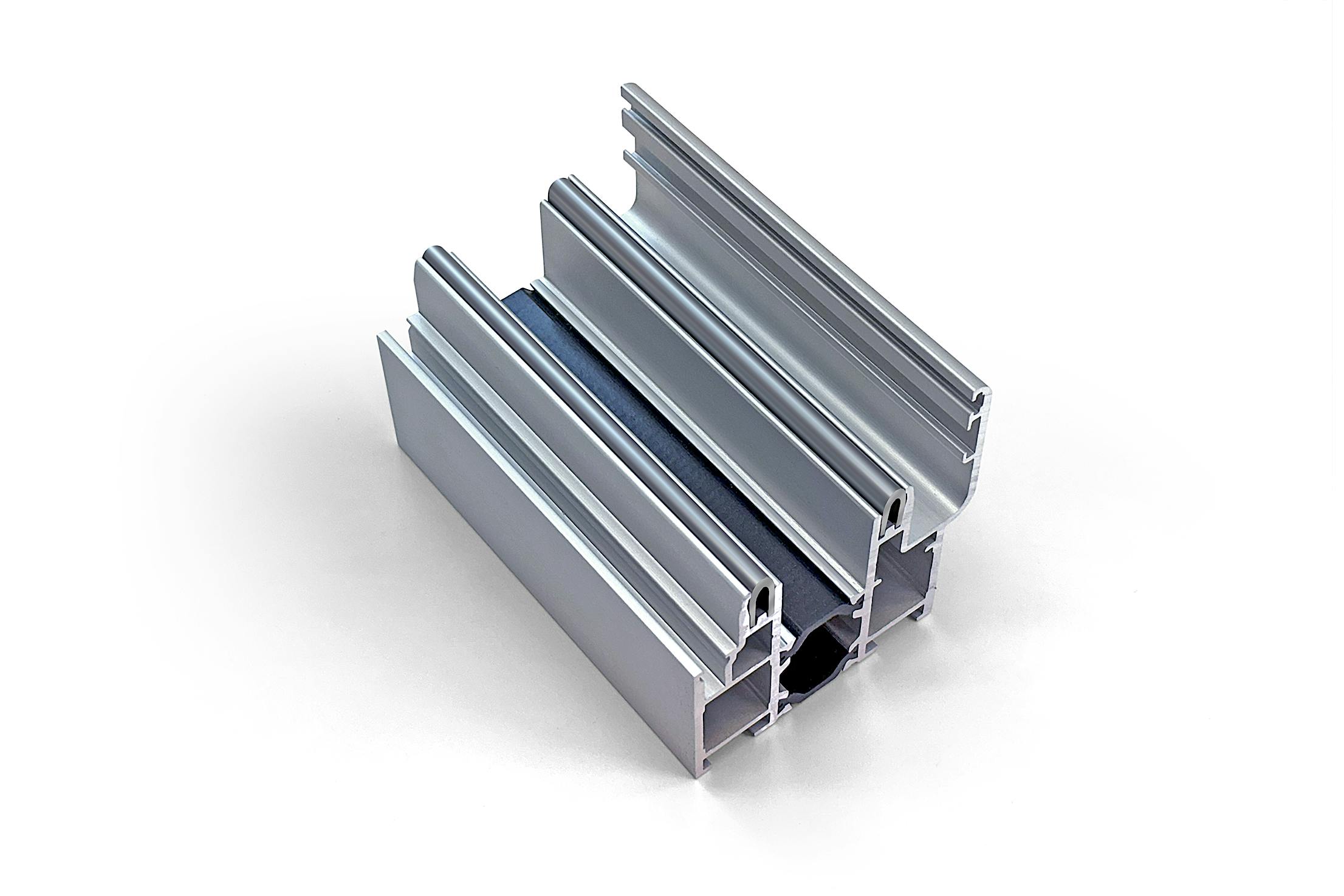

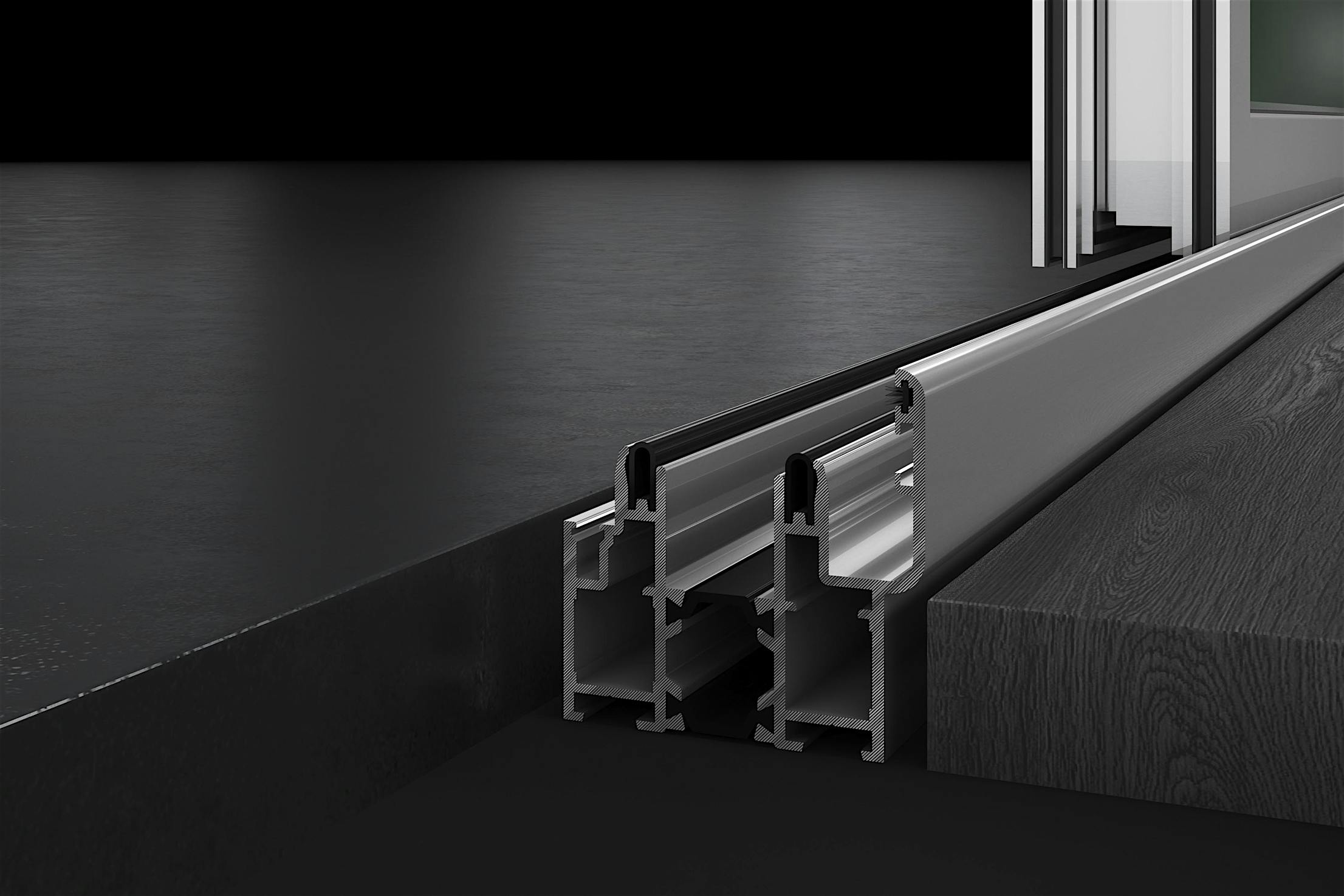

High Performance Sill
- Our most weather resistant sill
- May be installed flush at interior floor with outswing units
- Thermallly broken for better insulation and energy efficiency
- Click here for performance testing results
*Photo shown is for an inswing system. The outswing system sill is a mirror.
Intermediate Sill - Inswing
Low-Profile Saddle Sill
- Our most popular sill
- Thermally broken for better insulation and energy efficiency
- Partial or full insert available for ADA compliance
- Click here for performance testing results
Flush Sill
- For interiors or protected exteriors
- Where water performance is not needed
- Insert available for ADA compliance
Surface Mounted Interior Sill
- For interiors
- Sill rests above the subfloor for easier installation
- Adjustable flanges and available insert for ADA compliance
Handles
Stainless Steel Lever Handles
Stainless steel lever handles and escutcheon plates are available either in a brushed satin or black titanium finish.
Stainless Steel Flat Handles
Stainless steel flat handles are available either in a brushed satin or black titanium finish.
Solid Brass Lever Handles
Solid brass lever handles and escutcheon plates are available either in a Oil Rubbed Brass, Satin Nickel or a White finish.
Other Flat Handle Options
Flat handles are available in Dark Brown, Dark Grey, Silver Grey (Not Shown) and White.
Custodial Hardware
Custodial hardware is available to protect from unauthorized access or movement of panels.
Compatible Hardware by Other Manufacturers
Locking
Multipoint locking with latch, deadbolt and top/bottom locking rods
This option is possible only on primary swing door.
Includes top and bottom Polyamide capped locking rods, deadbolt, a Schlage compatible lock set with lockable latch and lever handles on the inside and outside. Depression of handles withdraws latch. Lifting of handles engages rods and turn of key or thumb turn engages deadbolt and operates lock.
Operable from inside and outside.
Two Point Locking
Standard between each pair of bi-fold panels and an option for swing panels. 180 degree turn of handle moves locking rods up or down. Uses 7 mm spindle.
Operable from inside only.
Deadbolt Lock
Possible only on primary or secondary swing panel.
Pull handles on both sides with deadbolt(s) operated by a lockset. Lockset option of having key operations on both sides. With a profile cylinder, panel is lockable with a thumbturn from the inside and a key from the outside. To keep the panel from being blown open, this option should be used with a door closer, but note that a door closer is not possible on a swing panel in a folding system that is not attached to a side jamb
Aluminum Colors
Shown are a selection of colors available.Contact NanaWall for other possible finishes. The samples shown here are representative only. Please consult with your sales representative for actual samples.
Standard Anodized Finish
Other anodized finishes are available on request.
NanaWall Standard Powder Coating Finishes
Additional Powder Coating Finishes
NanaWall® offers over 200 RAL GLOSS powder coated and over 200 RAL MATTE powder coated colors for an additional upcharge.
Glass
Units can be supplied either glazed with 15/16 (24 mm) clear insulating tempered or insulating Low-E tempered glass or other high performing safety glass such as Heat Mirror, Triple Glazed, acoustic, special tint, etc., or other glass on request.
See "Glazing" in the General Introduction for other glass thickness possible.
Glazing Area Options
Most commercially available glazing such as insulated Low-E glass can be used with a NanaWall. Custom layouts with horizontal mullions, simulated divided lites, inserts and high bottom rails are available
Accessories
Screening Accessories
Transforming walls and delivering a dream design can be achieved where weather or flying insects would normally prevent the practicality of creating an open space. A retractable screen add-on is perfect for blocking bugs while providing privacy and fresh air. The retractable screens are available in two options:
- Screen ONE
- Screen Classic
Matching Windows
European style dual-action windows, complement a NanaWall system. Offering tilt-in operation and large inswing openings. Choose from both operable and fixed matching windows types for your project.
Matching Tilt Turn Windows
European style dual-action windows, complement a NanaWall system. Offering tilt-in operation and large inswing openings. Choose from both operable and fixed matching windows types for your project.
Matching French Doors
NanaWall Matching French Doors are available as single doors or pairs. Very narrow stiles and rails are possible.
NanaWall French Doors use exactly the same profiles and hardware as the matching NanaWall Folding Glass Walls. Hence, the same size charts, glazing options, wood/finish options and finish hardware options as the matching NanaWall Folding Glass Walls are applicable.
The same testing performance results also apply (within a folding system, with an odd number of panels stacking to one side, the last panel is a swing door).

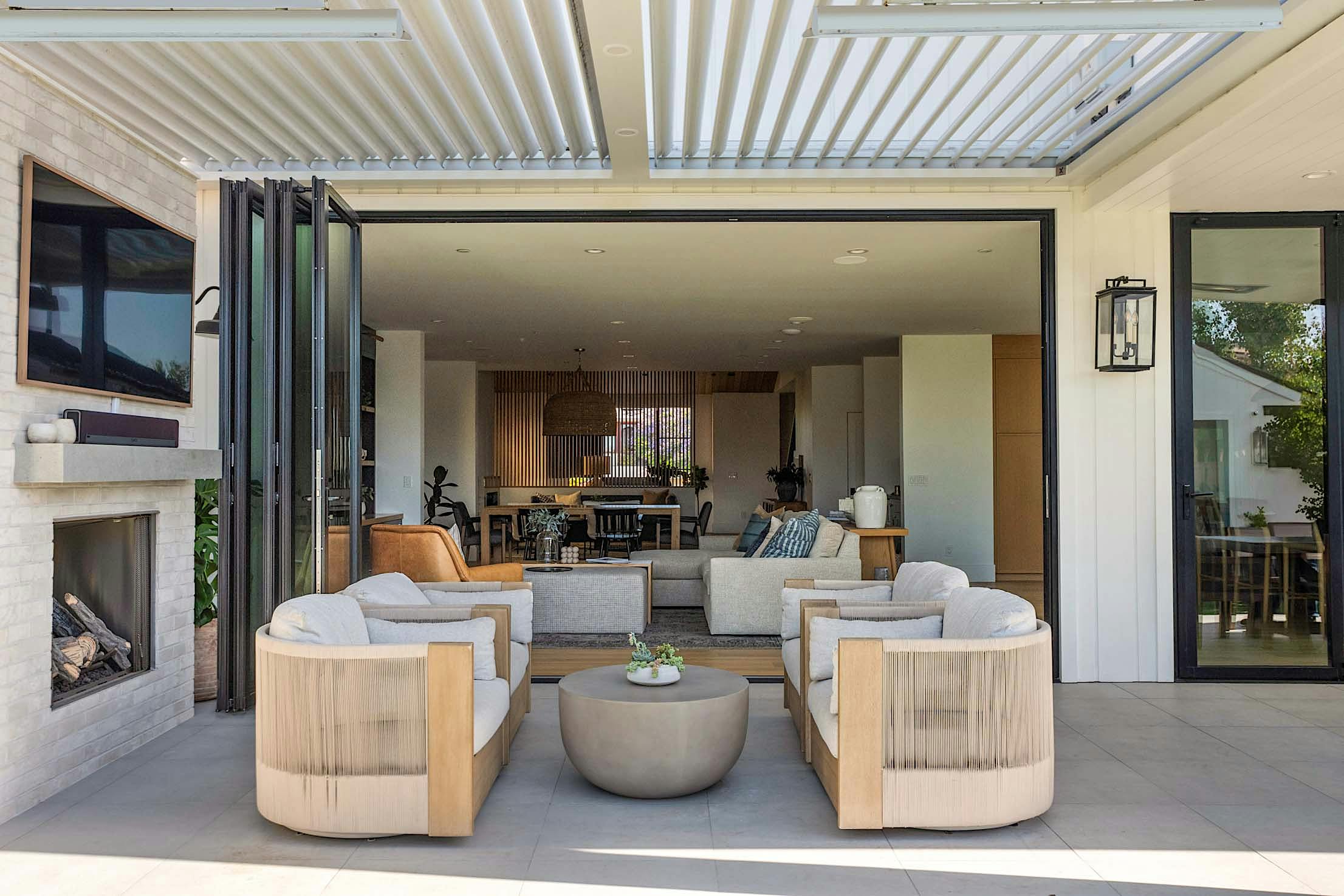

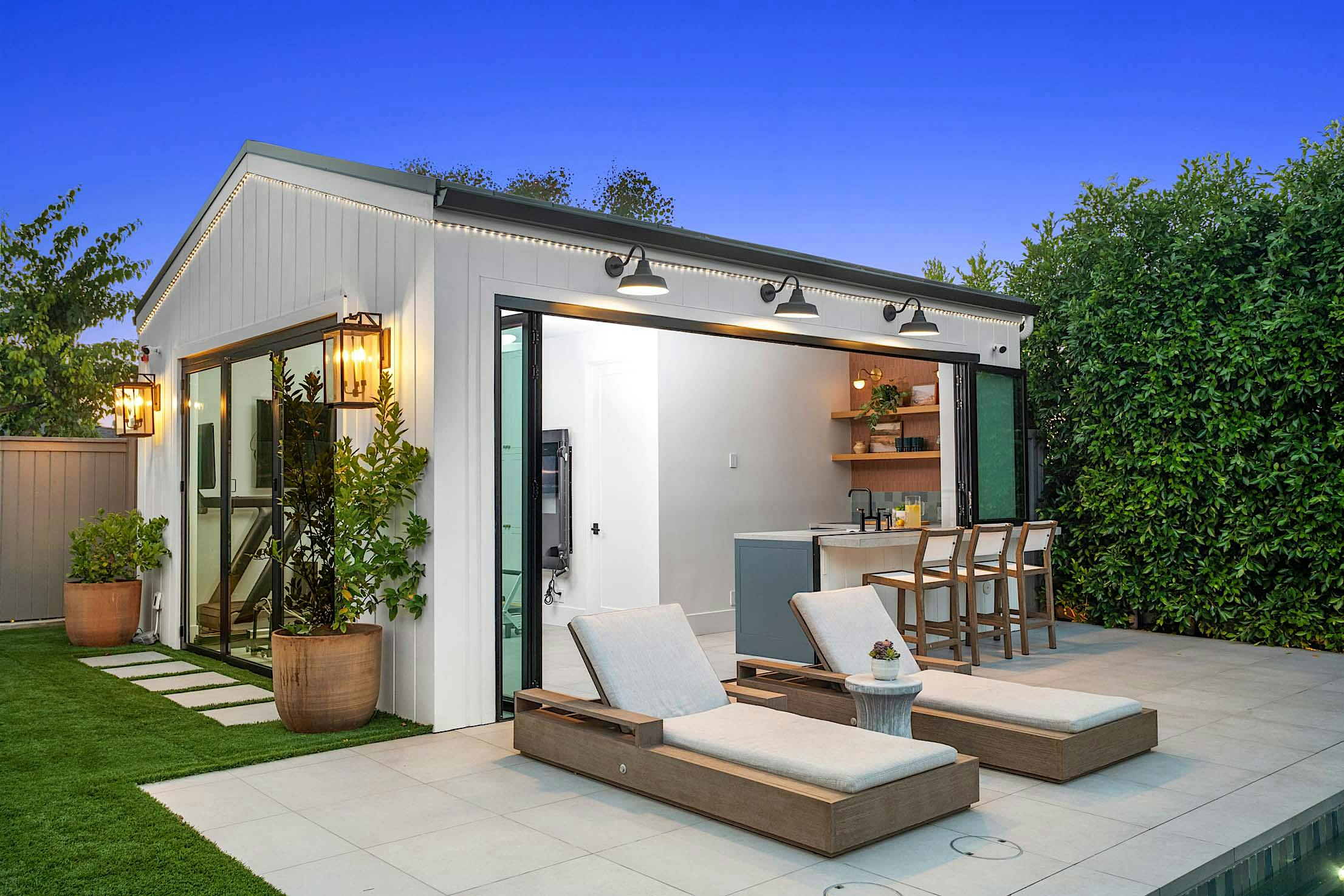

Photos
Jamestown Residence
Phoenix Penthouse
Daily Telegraph ECO Build Award
Fairfield Kitchen
Winchester
Laguna Beach Home
Videos
Animations
View our Brochures and Photo Ideabooks online by clicking on the images below. For mailed copies, please submit the form below.
NanaWall Brochures
NanaWall Product Brochures
NanaWall Vertical Market Brochures
Photo Ideabooks
3D Models, Revit & AutoCAD Details
Specifications
Installation
Certified Installers
All opening requirements and surrounding conditions must be ready and meet the NanaWall supplied drawings before the certified installer arrives. Installers can review the openings before installation to ensure accuracy and verify all opening requirements have been met. Upon completion, the certified installer will ask to have a sign-off sheet completed, this will ensure your satisfaction with the installation of your NanaWall system. The certified installer will be available for a complete operational demonstration at time of installation.
NanaWall helps certified installers through continuous education to make sure they are up to date on all of our 20+ different systems. Their training process includes extensive education for both folding and sliding systems. Our installation management team makes periodic site visits to ensure the high standard of quality installation is maintained. Due to the extensive training your certified installer receives, it will ensure your NanaWall System is installed right, on-time, and hassle-free.
A benefit using certified installers is increased warranty coverage (review for details) of your new NanaWall system. Many areas have both commercial and residential trained installers.
Preventative Maintenance and Repair Services Available
Certified installers are available for servicing, repairs, and routine maintenance of your system.
Please contact your local NanaWall Sales Representative to arrange certified installation services for your project.
Installation Considerations
The approximate weight of a panel is the following:
Tempered Single Glazing: 4 - 4.5* lbs/sqft
Insulated Tempered Glazing: 5.5 - 8* lbs/sqft
Tempered Triple Glazing: 6 - 8.5* lbs/sqft
* The higher values applies to taller units
Single Impact Glazing: 8 lbs/sqft
Insulated Impact Glazing: 11 lbs/sqft
For the HSW75, FSW75, CSW75, PrivaSEE, and ClimaCLEAR systems the weight of a panel with 1/2" glass is 8 lbs/sqft.
For cero II the approximate weight of a panel for double glazed is 10 lbs/sqft and for double glazed laminated is 12 lbs/sqft.
For cero III the approximate weight of a panel for triple glazed is 13 lbs/sqft and for triple glazed laminated is 15 lbs/sqft.
The vertical structural deflection of the header should be the lesser of L/720 of the span and 1/4" under full loads. Structural support for lateral loads (both windload and when the panels are stacked open) must also be provided.
For floor supported systems (SL70, SL73, SL82, SL60u, WA67u and WD66u, please note that there is no vertical load on the header).
It is recommended that all building loads be applied to the header prior to installing the NanaWall. If so and if a reasonable amount of time has been allowed for the effect of this dead load on the header, only then can the building's live can be used to meet the above requirements of L/720 or 1/4". If not, both the dead and live loads needs to be considered.
Installation Information
Please see the Installation Instructions / Owner's Manual for each system.
NanaWall Systems, Inc. has independent, factory trained installers throughout North America, including Mexico, Canada, Caribbean and Central America. Choosing a trained installer ensures the best possible installation of your new NanaWall. Having folding or sliding walls installed has never been easier.
Installation Videos
Pricing
The Question of Pricing
NanaWall is a custom product tailored specifically for your project needs. Numerous features and options make up the price: type of system (we offer 20+), custom opening and panel size, glass type, door hardware, finish choice…to name a few. The best way to determine price is to consult with your local area NanaWall architectural representative and get a quote, directly from NanaWall, for the exact system that best meets your project requirements and budget. Or, better yet, experience our products firsthand by making an appointment to visit by one of our 25 showrooms to learn why NanaWall is your best choice.
Typical Residential Pricing Example
An example pricing guideline for our more versatile residential folding thermally broken aluminum system SL60 with 50 standard color options, choice of standard inswing or outswing, top-hung or floor supported, starts from $700 linear foot. This German engineered and American produced folding glass wall has a lead time of 7 – 9 weeks from order sign off to curbside delivery at your jobsite.
Project Tips For Budgeting
Optimize By Size
Every NanaWall system is customized based on your design requirements. Budgeting starts with overall size of the opening and is dependent on the total number of panels required.
General Pricing Guidelines:
- Total # of panels directly affect pricing
- Larger overall panels affect pricing
- Optimized size and panels offer best pricing
Product Family Matters
There are 3 NanaWall product families each with a specific design specialty, select the best fit based on your project needs.
General Pricing Guidelines:
- Folding products for most common applications and weather performance
- Sliding products for more complex design requirements are priced higher than folding
- Frameless products for interior are priced similarly to sliding products while outdoor rooms or balconies are priced lower than folding
There's Only One NanaWall System
Every NanaWall system is custom produced based on your design. Choose from included options to optimize pricing, all specialty options affect pricing.
General Pricing Guidelines:
- Custom color matching affects pricing
- Specialty glass affects pricing
- Decorative SDL's affect pricing
