Transparent Aesthetics Limitless Flexibility
- Only STC 36 Rated Operable All Glass System
- Unit heights up to 10′ 6″ (3200 mm) are possible.
- Sliding panels are available up to 4′ 1″ (1250 mm) in width
Specifically for Sound all Glass Aesthetic
NanaWall PrivaSEE is the only all glass single track sliding system specifically engineered for enhanced acoustical separation. PrivaSEE provides better sound buffering than many fixed all glass partitions.
STC 36 Sound Rated
Patented (US 10,590,694) PrivaSEE has been independently tested and rated to an accomplished STC of 36 and OITC of 30Acoustical Performance Chart See Test Results
Sound Enhanced Laminated Glass
Standard to PrivaSEE is 1/2″ (13 mm) laminated glass with a sound enhanced interlayer providing reduced sound transmission. Additional options are available such as clear laminated (unit STC of 34) and clear tempered (unit STC of 32). Please contact NanaWall for more options.
PrivaSEE uses adjustable eccentric floor sockets rather than a floor track keeping a clean aesthetic.

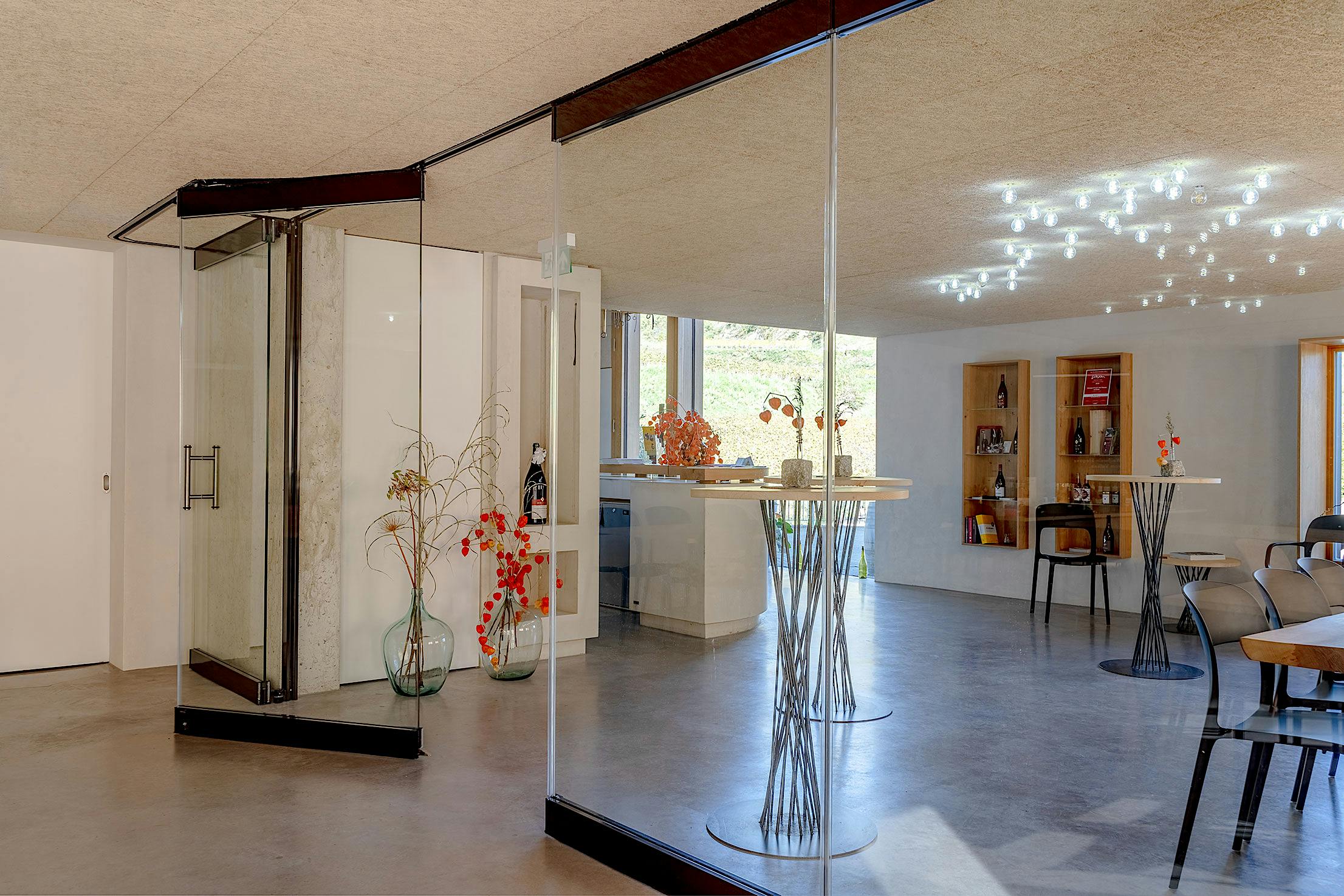

For easy access, PrivaSEE configurations come standard with a single action swing panel equipped with a floor closer at the side jamb. The swing panel with offset hinge allows for a maximum 180° swing plane. System stacking and swing panel can be provided at either one end or both to accommodate traffic patterns.

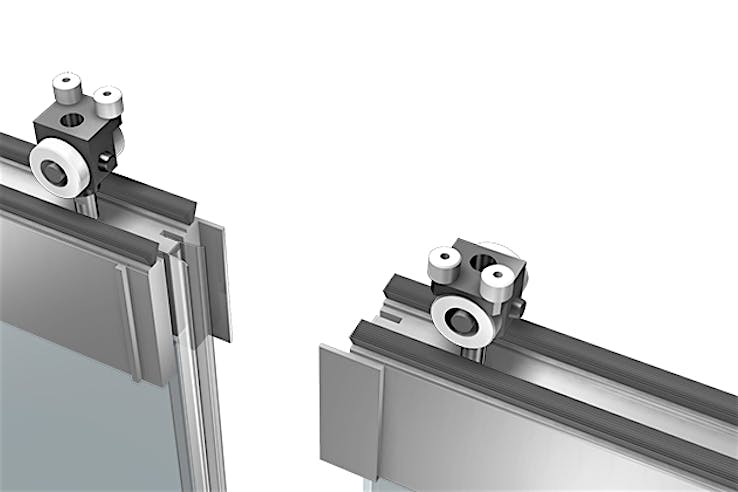

German engineered roller system ensures quiet, smooth, and trouble free single hand operation by using an “intelligent” guiding system.
Each closed panel of PrivaSEE can be securely locked in place. When desired, the single action swing panel can be secured from outside access with either an optional spring activated quick release floor bolt or a profile cylinder in the bottom rail. An optional locking ladder pull is also available for convenient hand height locking.
Transparent Vertical Acoustical Seals
Super clear edge seals are used between panels for enhanced acoustical separation, which furthermore eliminates glass to glass and metal to metal contact. Seals virtually disappear from sight. The light transmittance (LT) of the sound seals has been independently tested and rated for 75% clarity and luminosity.

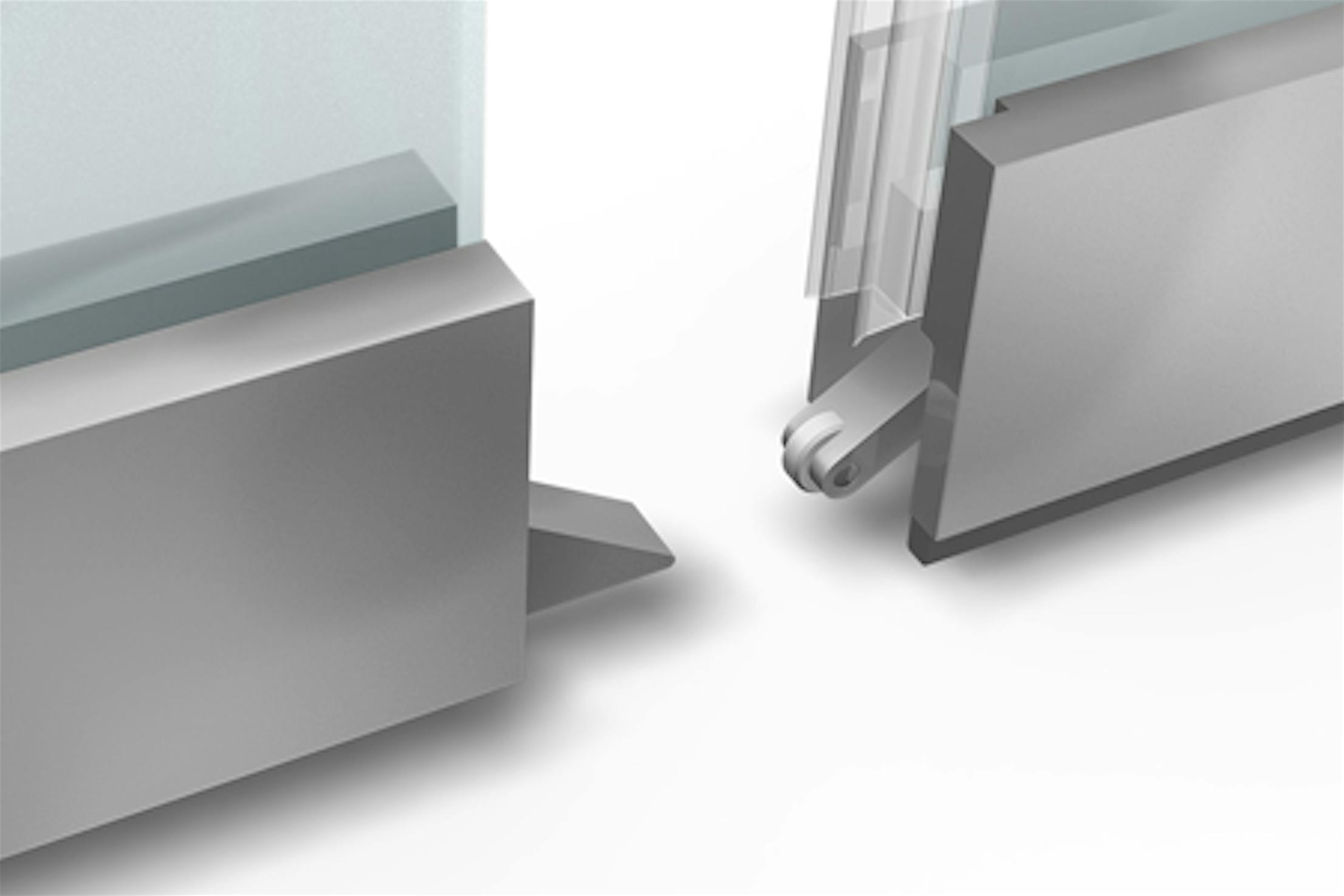

Self-activated Interlock and Horizontal Compression Seals

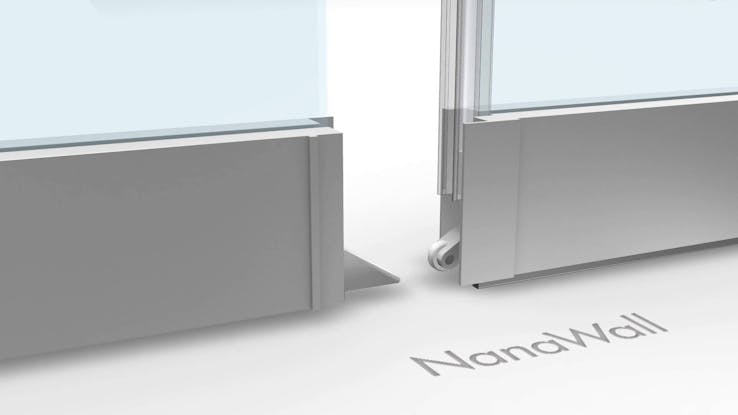

The automatic floor bolt and horizontal compression drop seals are self-activated by simply moving the panels to one another. The unique wheel and ramp assembly automatically locks the panel into place without the need to kneel and lock it manually.
Engineered for Heavy Traffic
The single action swing panel is commercially tested to 500,000 opening and closing cycles. ADA compliant options available
Parking Bay and Stacking Design Flexibility
To optimize space management, customizable stacking and parking bay options are possible.
Extreme Sound Control
NanaWall systems meet or exceed air, water, structural, and forced entry tests for weather, durability, and security
Ease of Operation
NanaWall systems offer single-handed operation and move smoothly with little effort
Sill options designed specifically for interior applications.
NanaWall products contribute to multiple LEED rating systems and potentially several credit categories.
Third Party U.S. Sound Testing
Patented (US 10,590,694) PrivaSEE has been independently tested and rated to an accomplished STC of 36 and OITC of 30.Acoustic Test Results Acoustical Performance Results
Commercially Testing Swing Panels

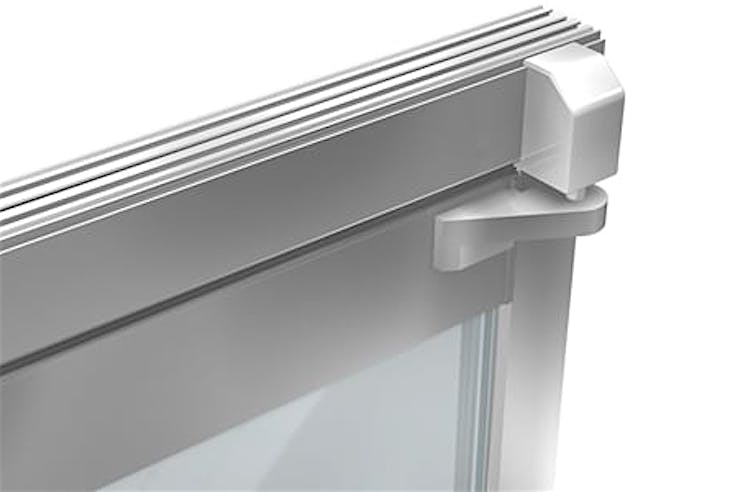

The swing panel with offset hinge allows for a maximum 170° swing and has been commercially tested to 500,000 opening and closing cycles.
What Our Customers Have to Say

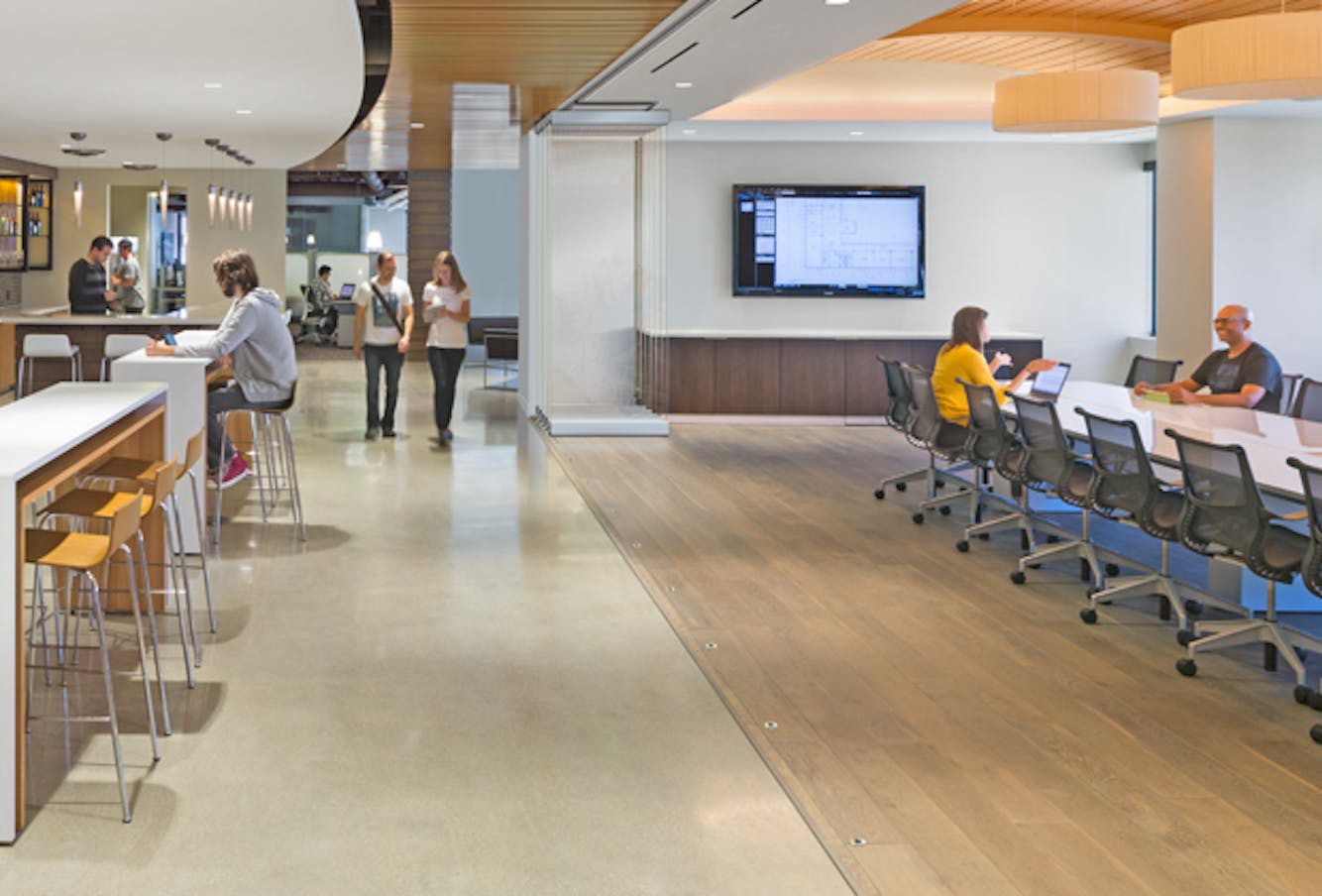

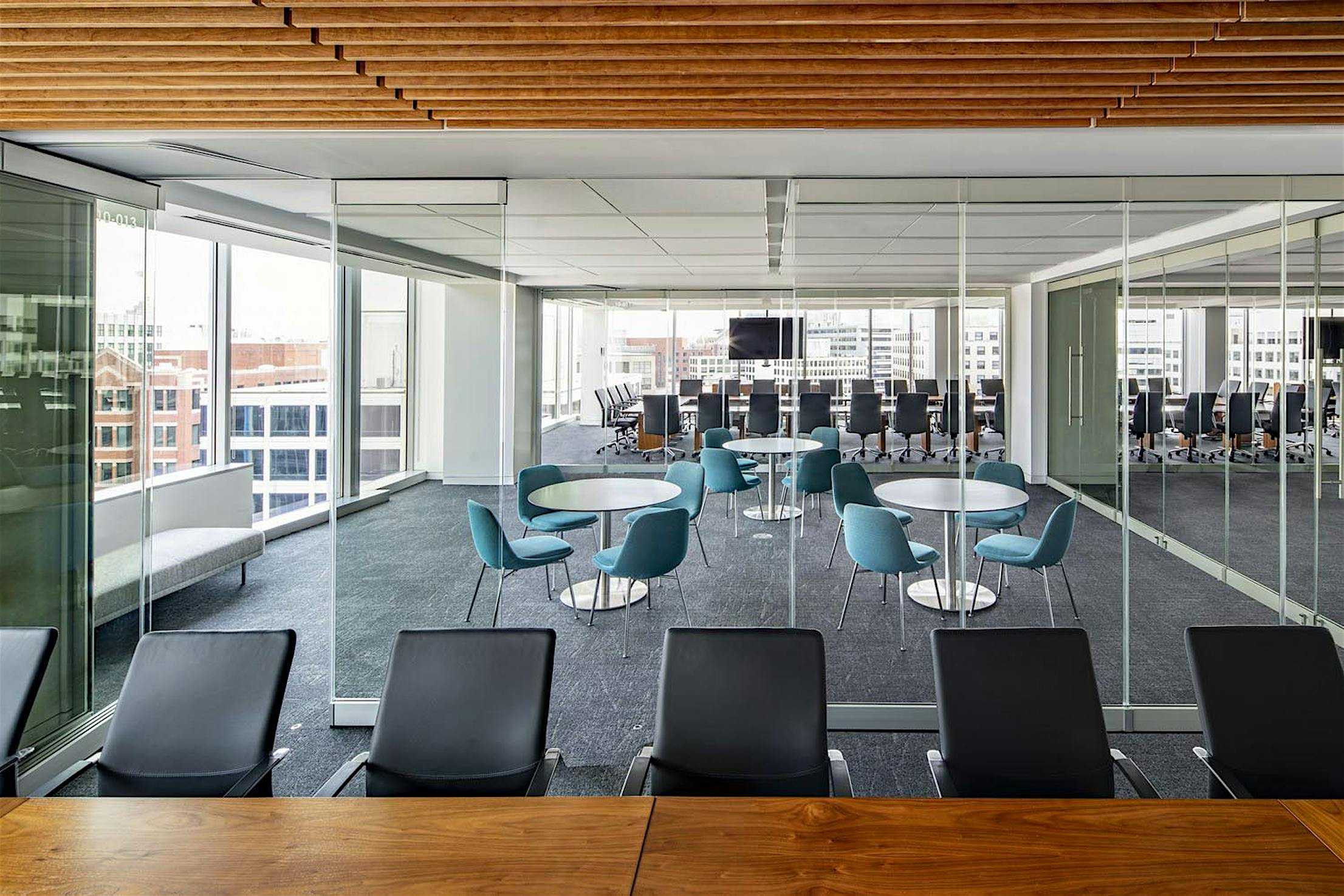

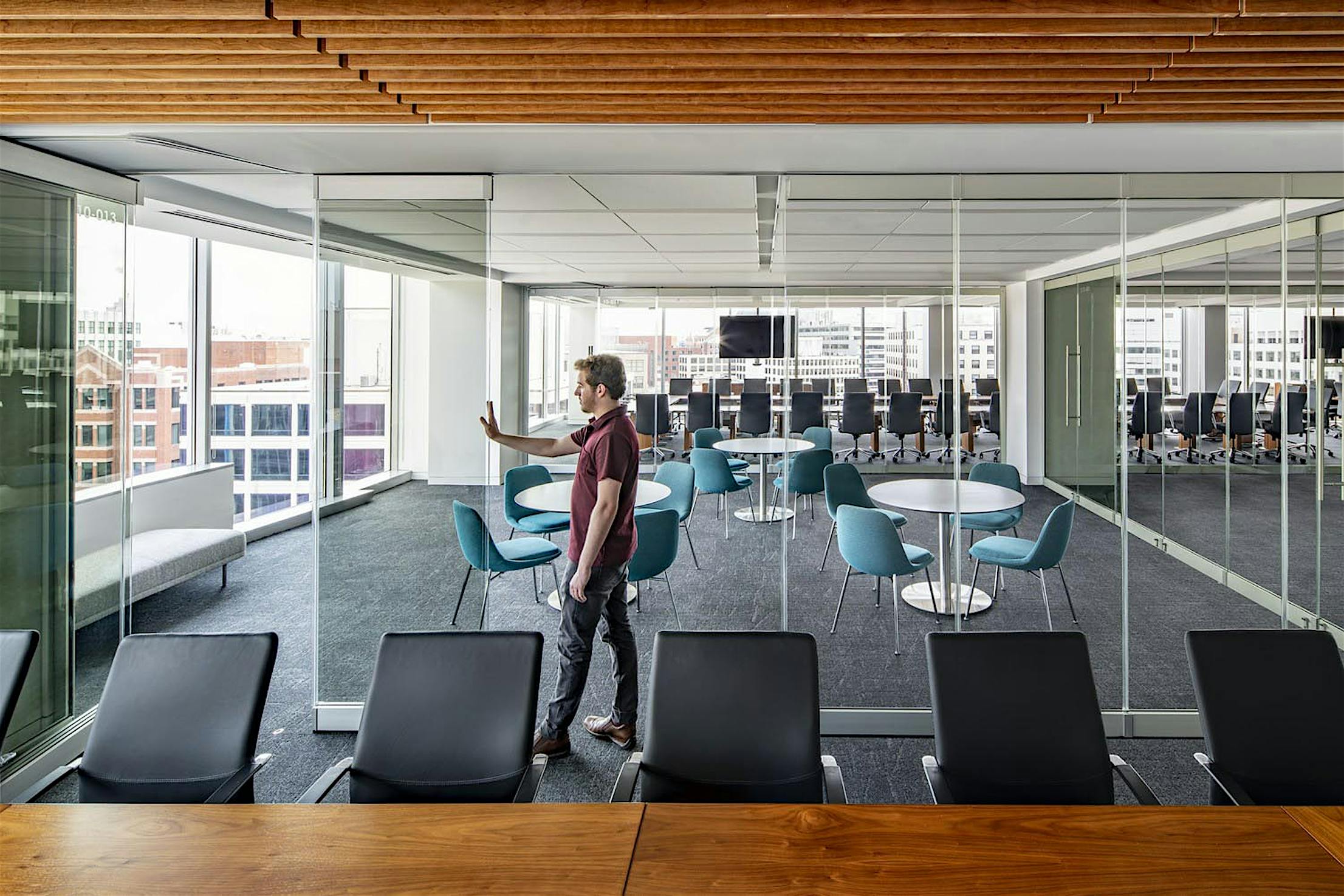

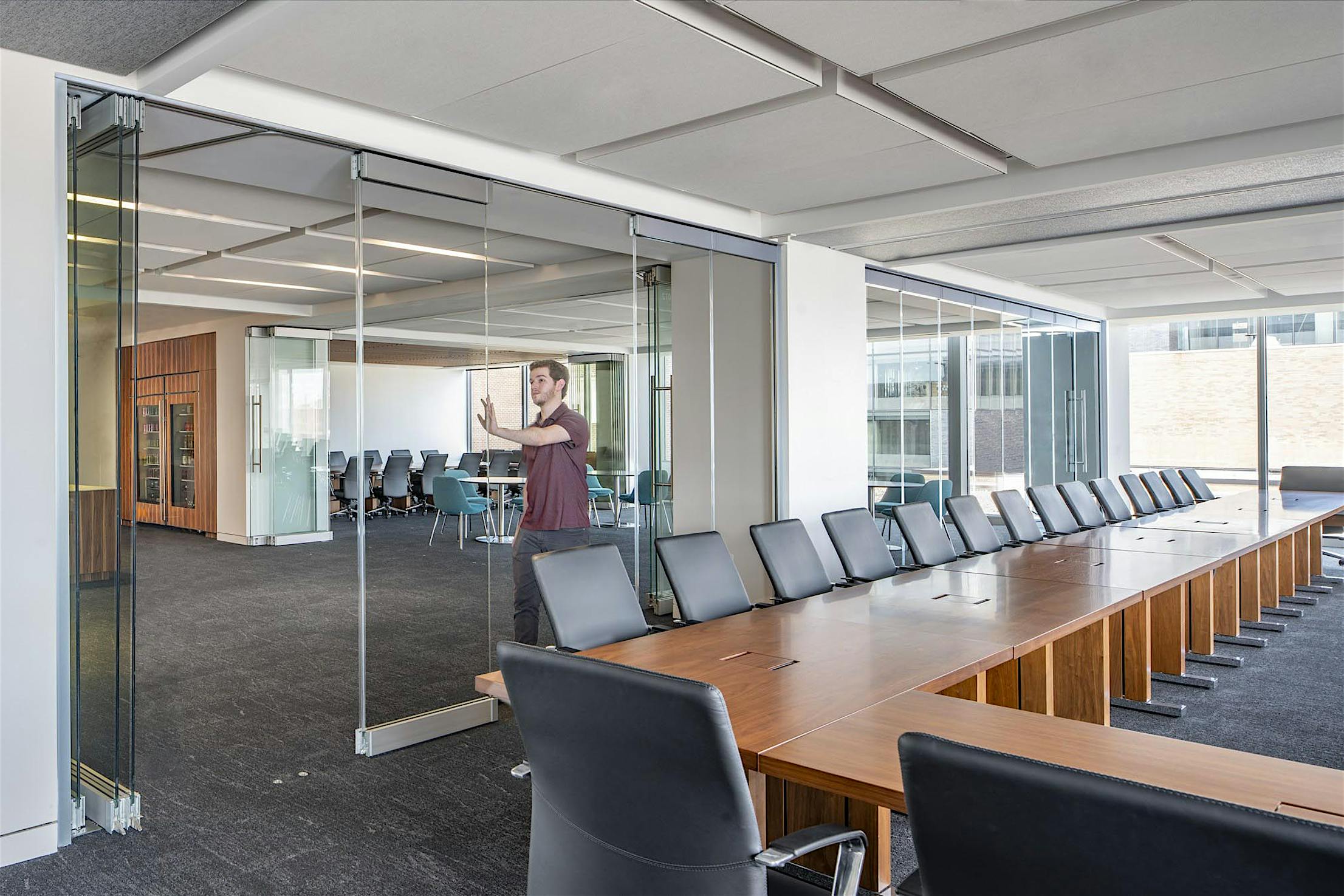

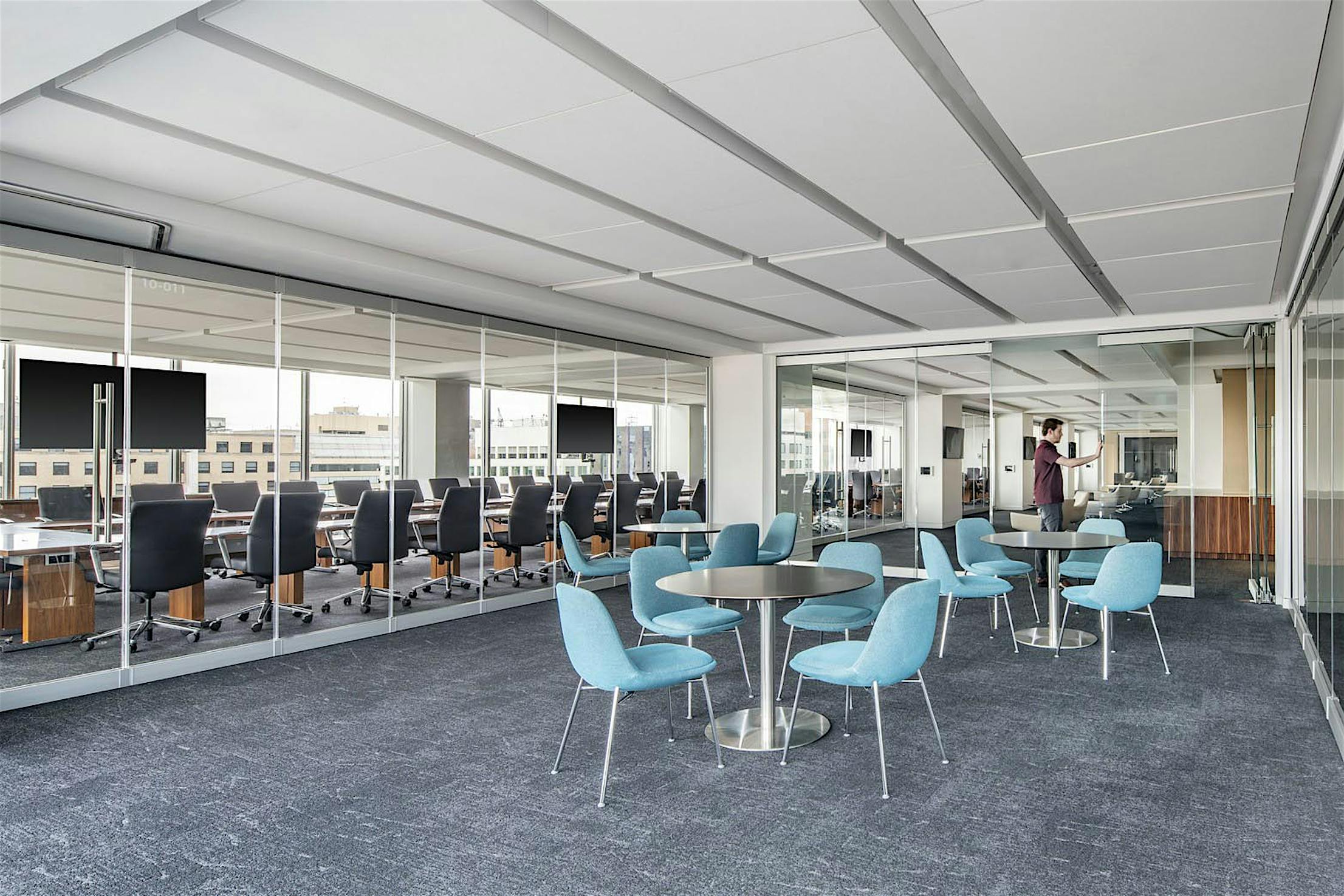

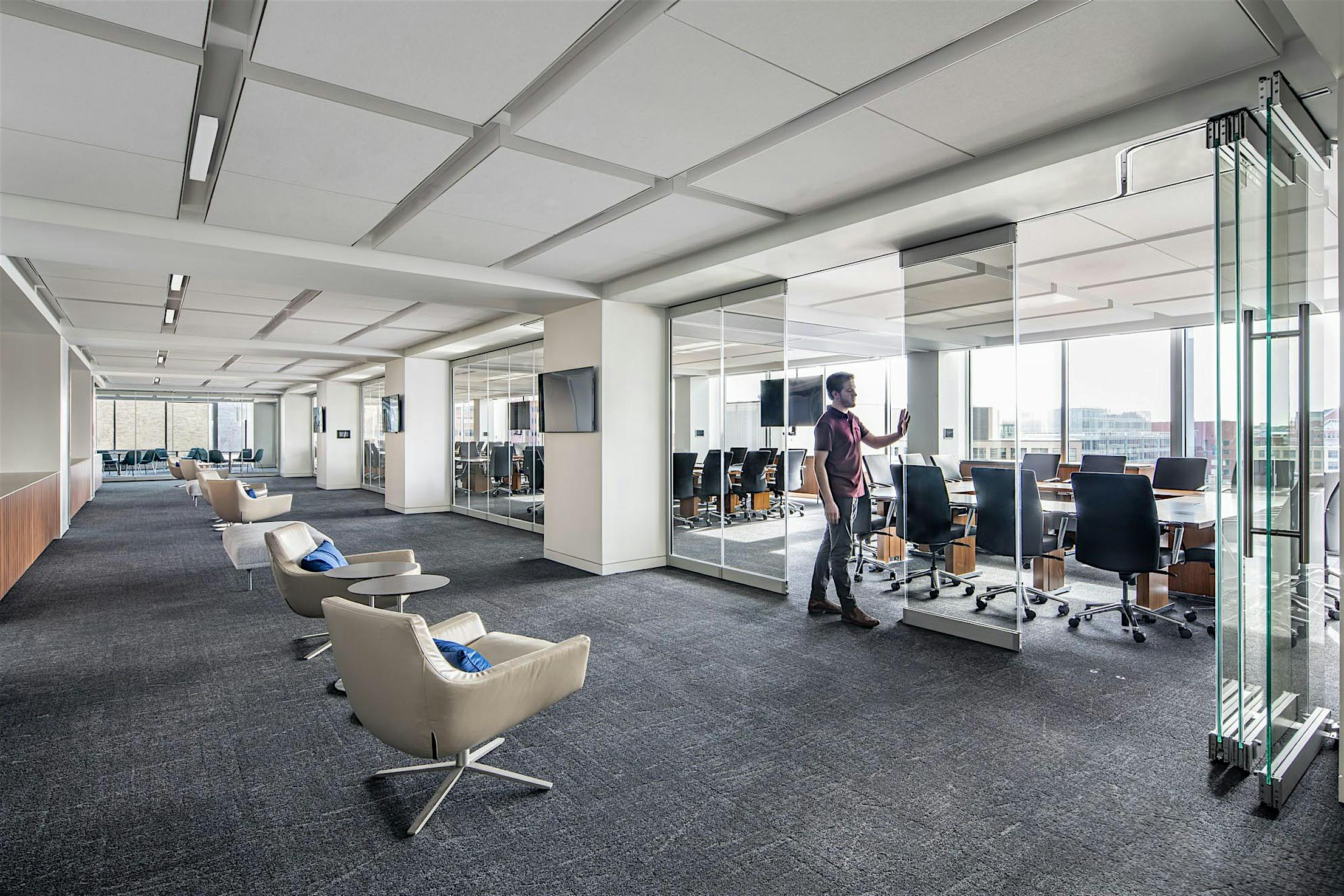

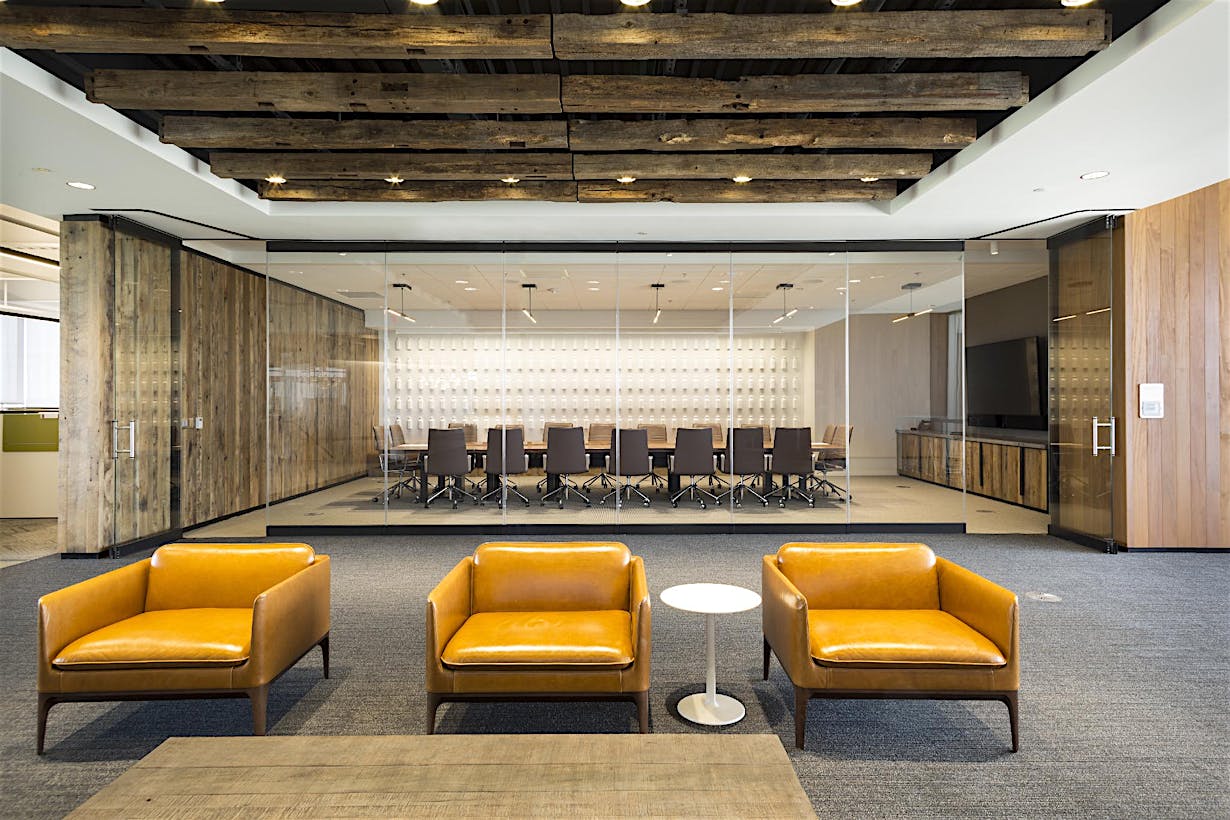

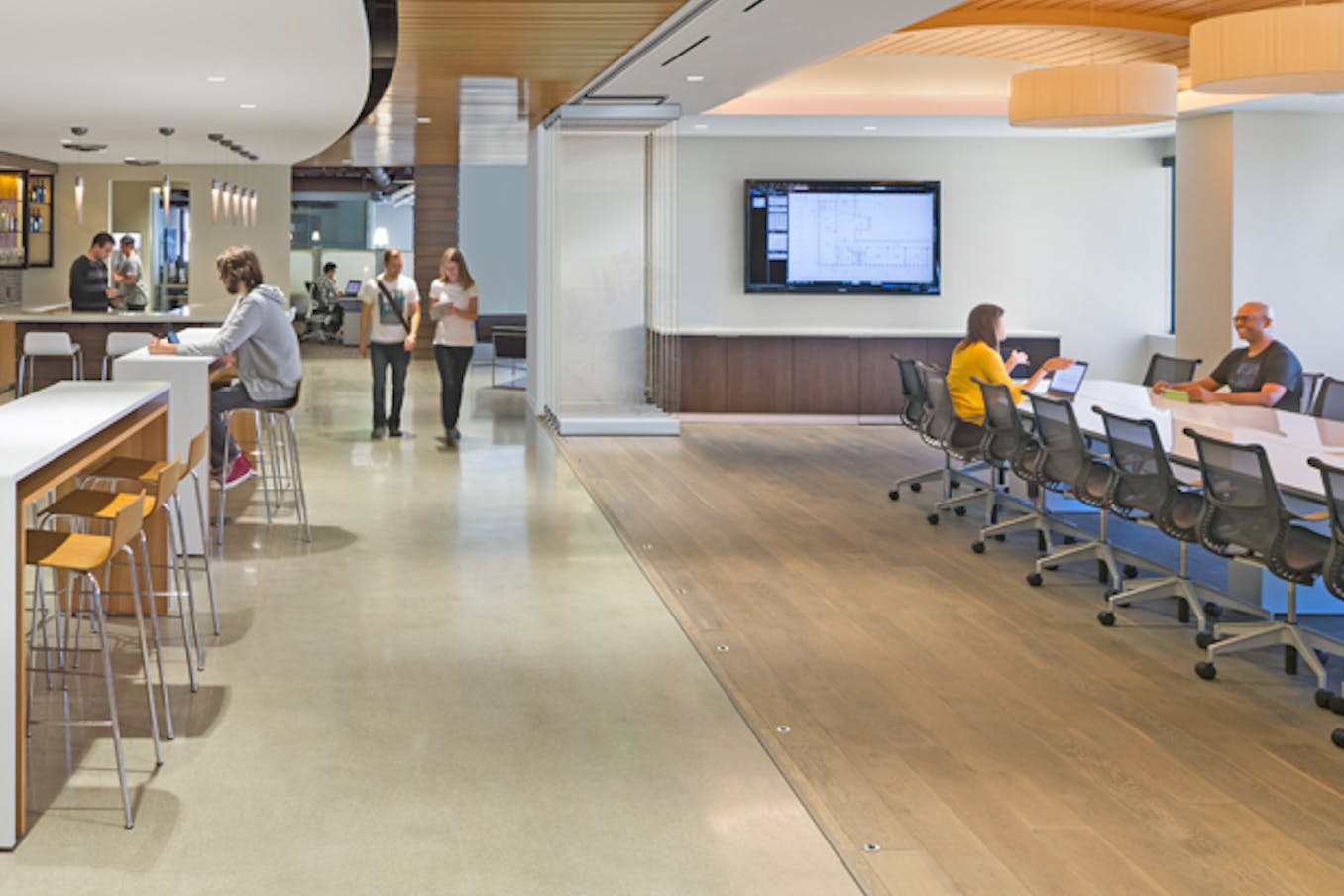

This office leveraged existing elevator lobby space to create a flexible, versatile public-facing conference room using a frameless opening glass wall.

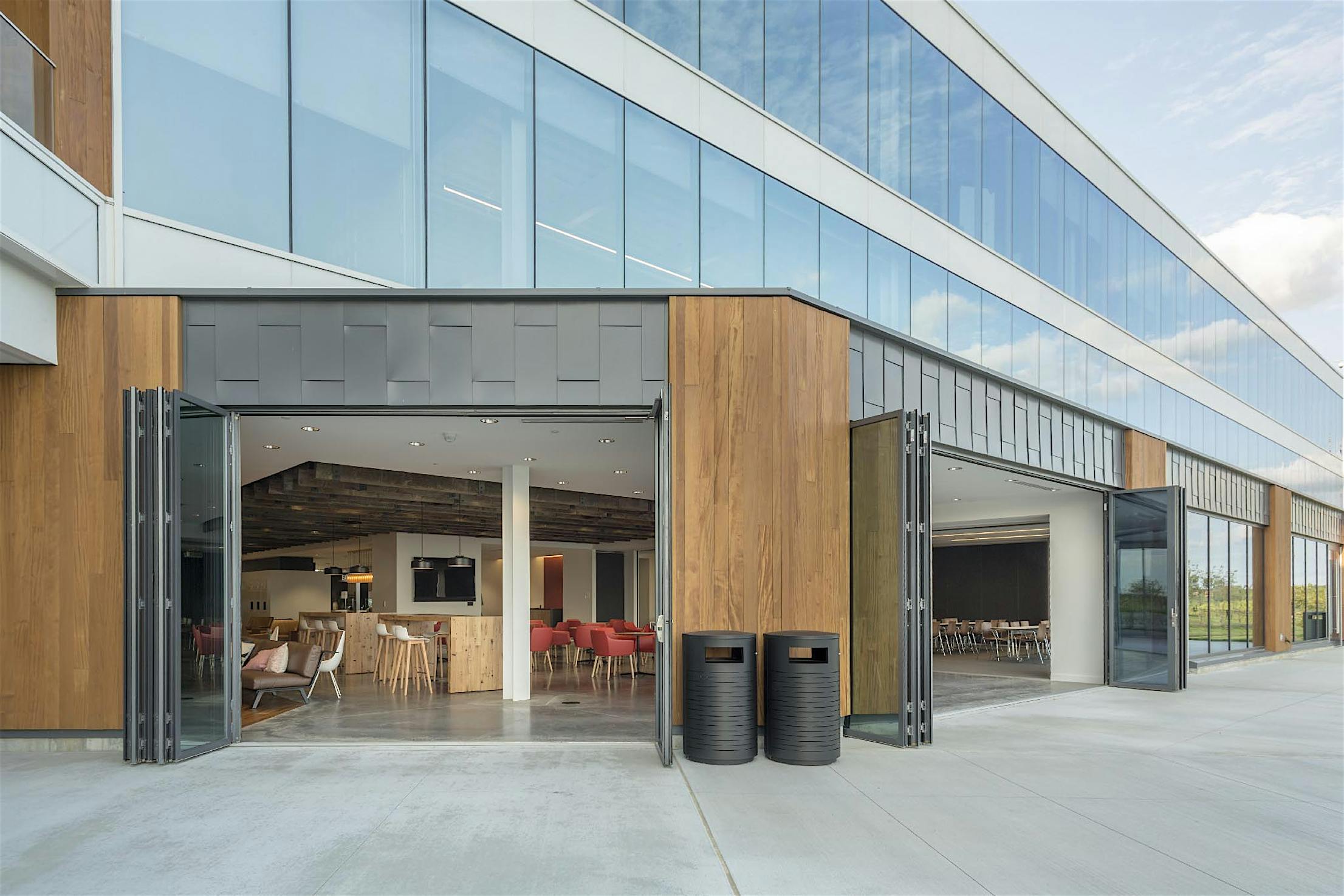

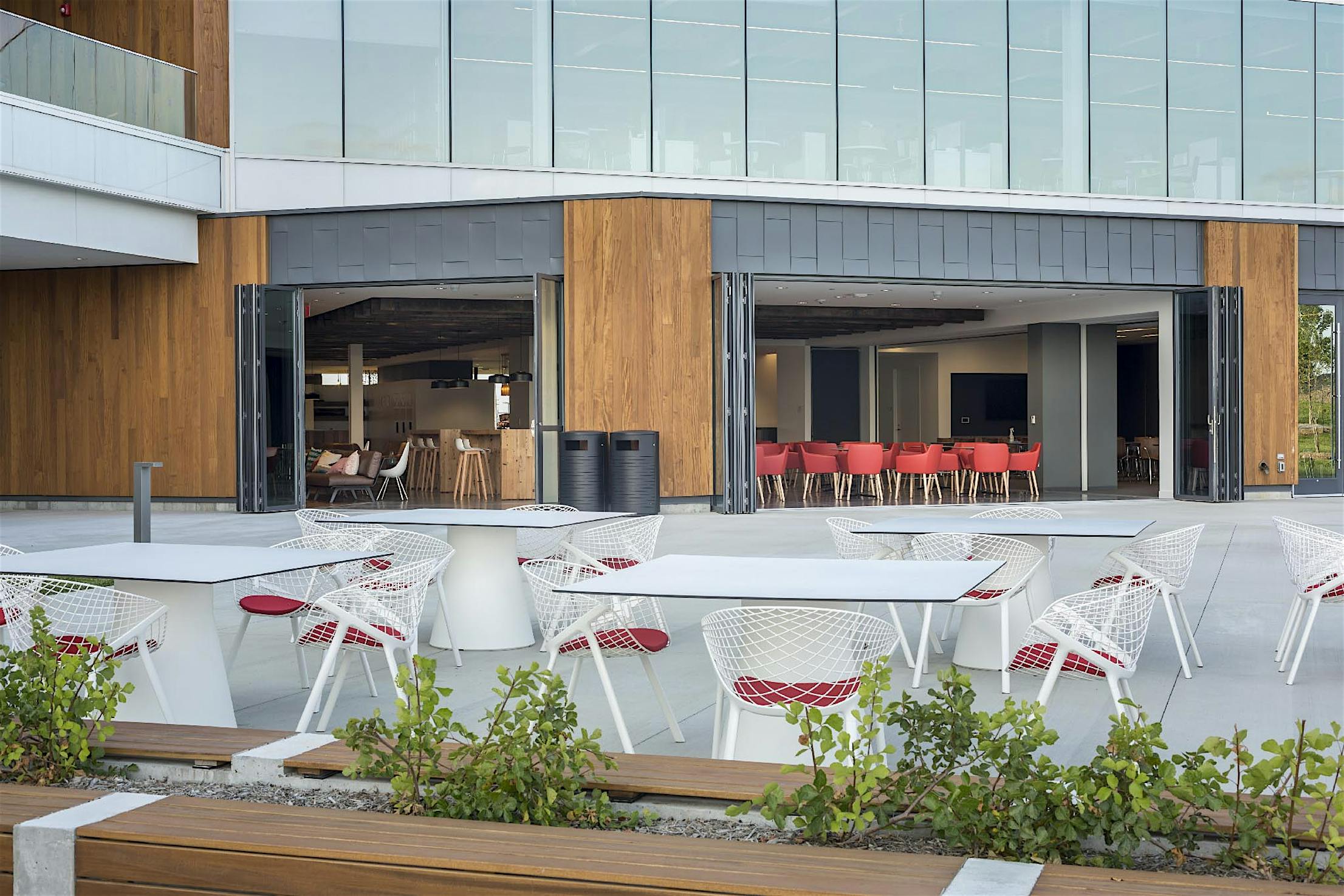

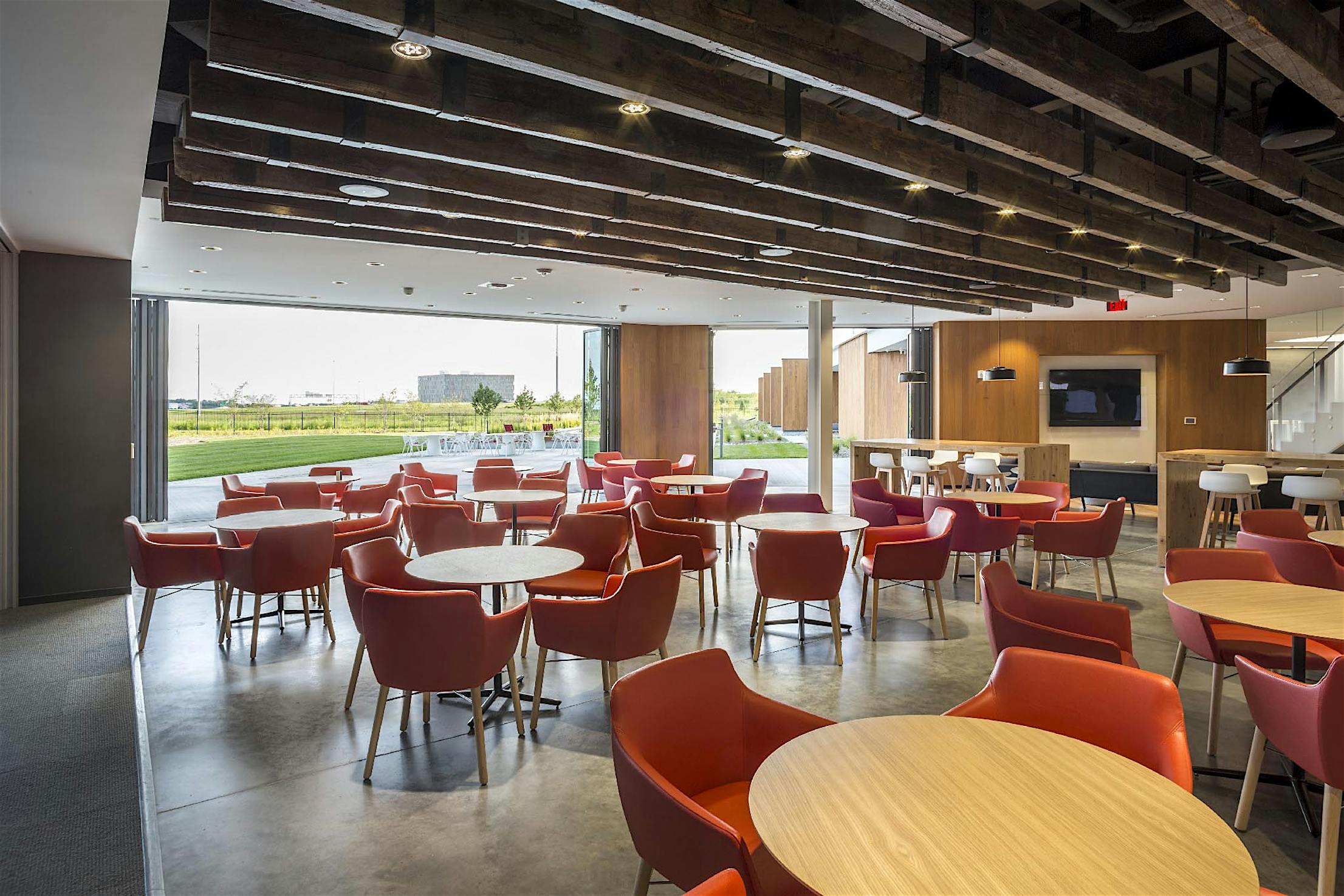

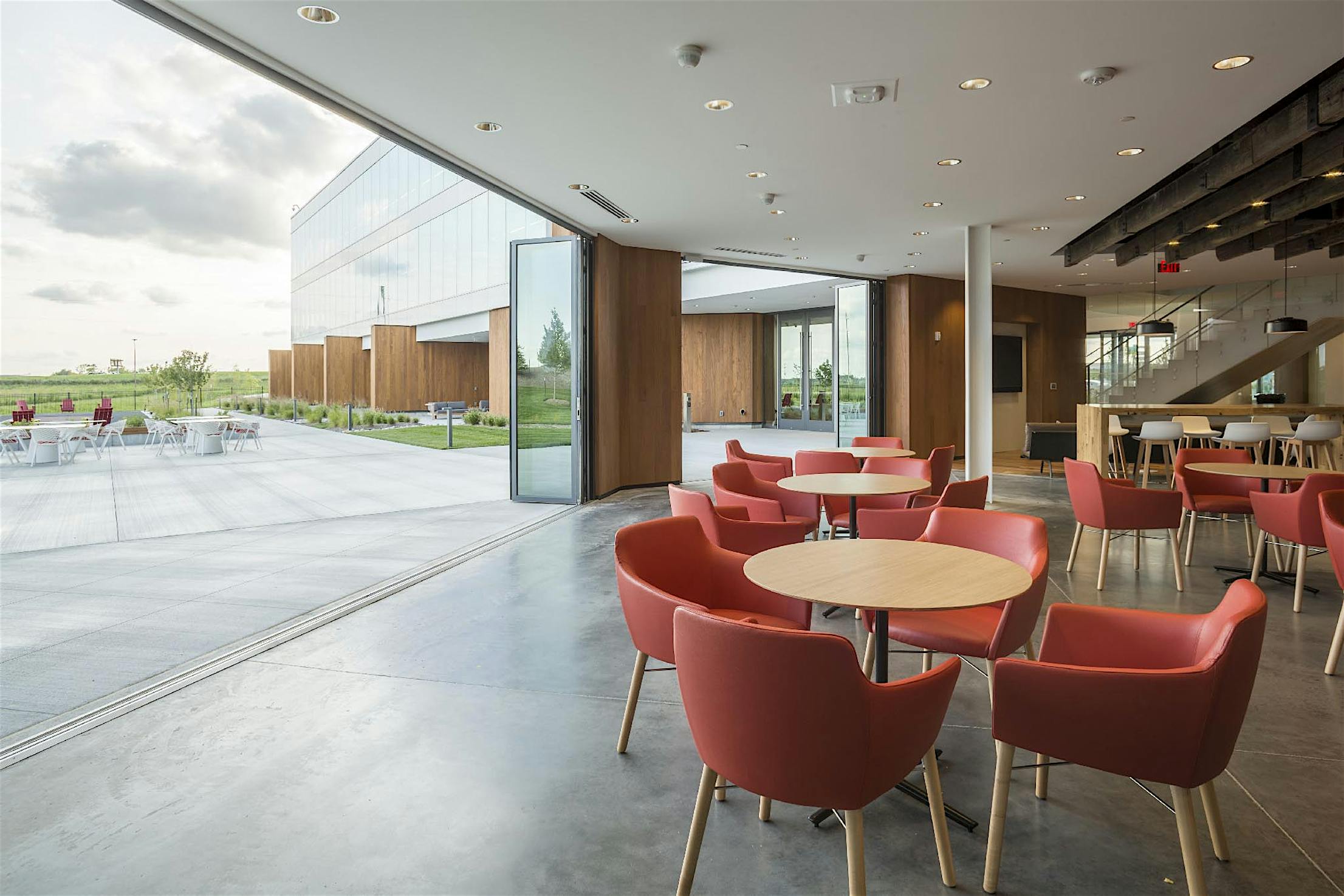

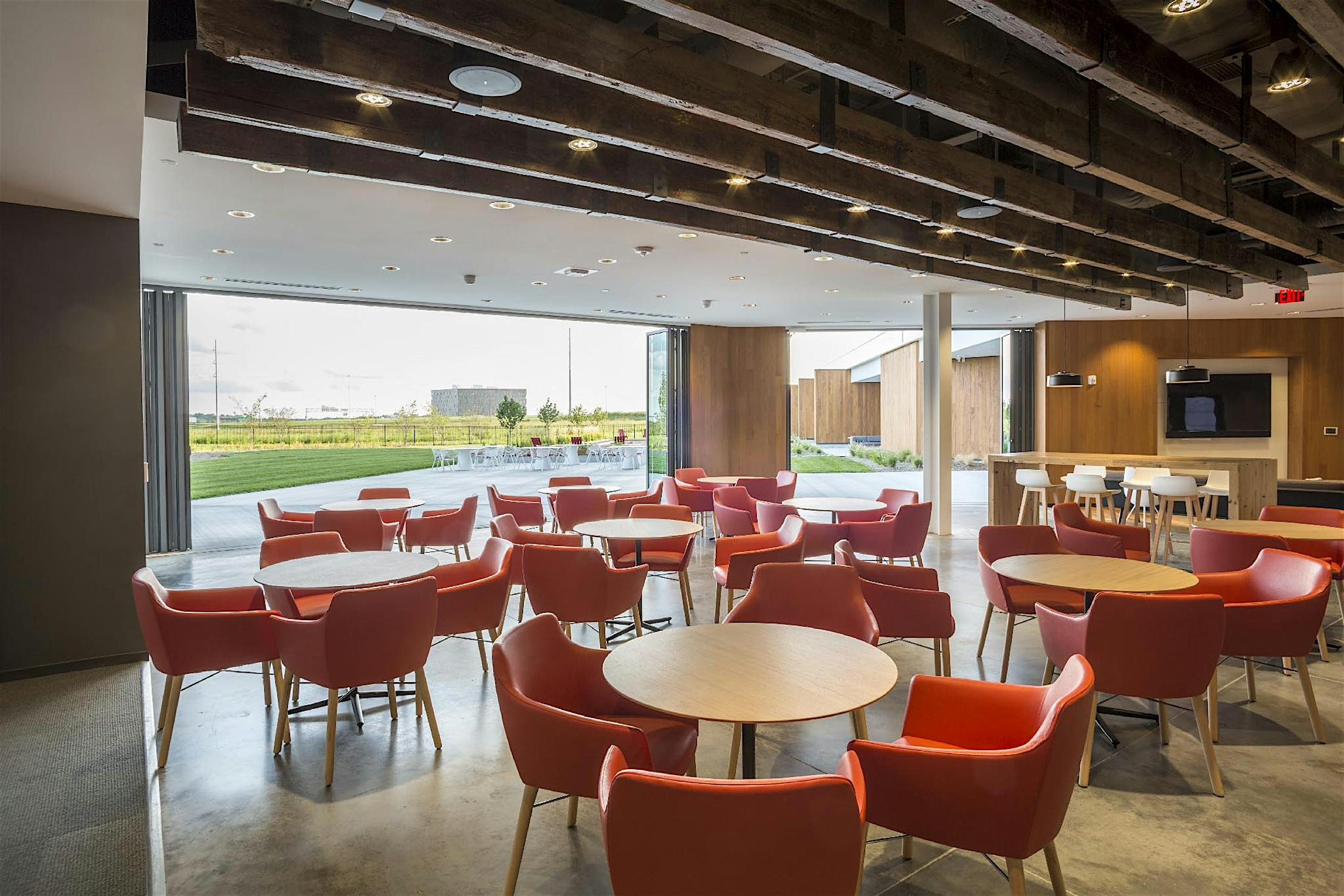

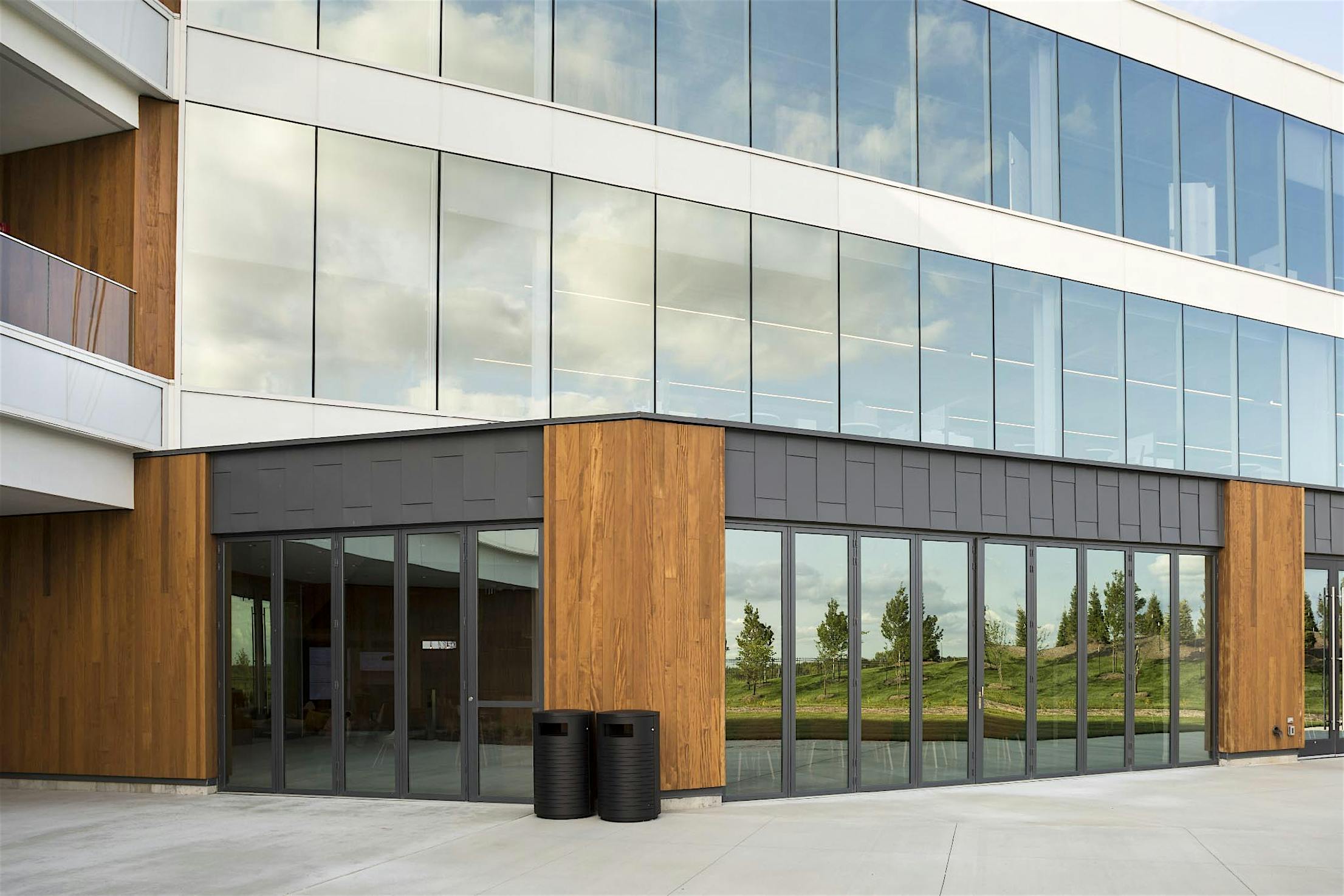

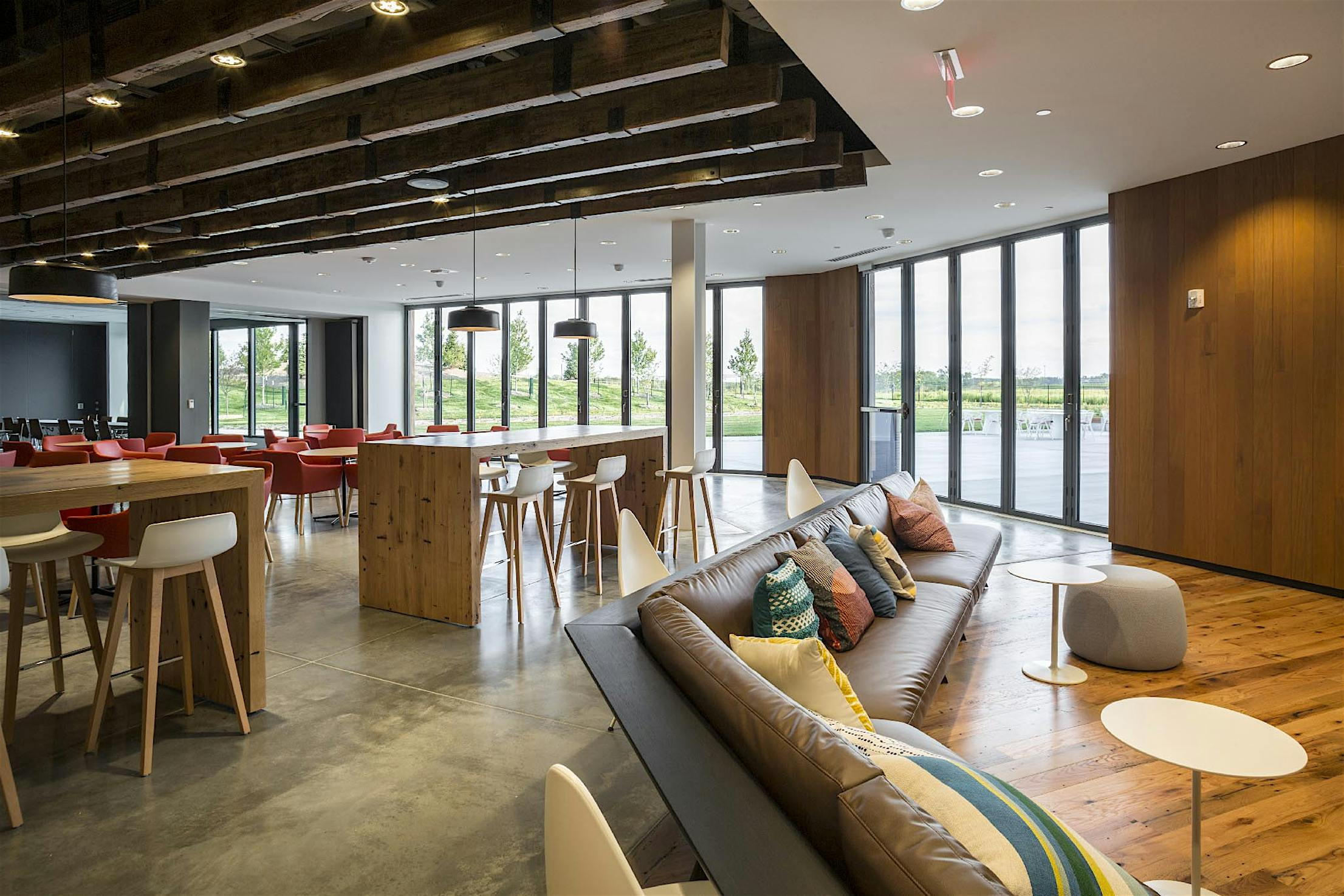

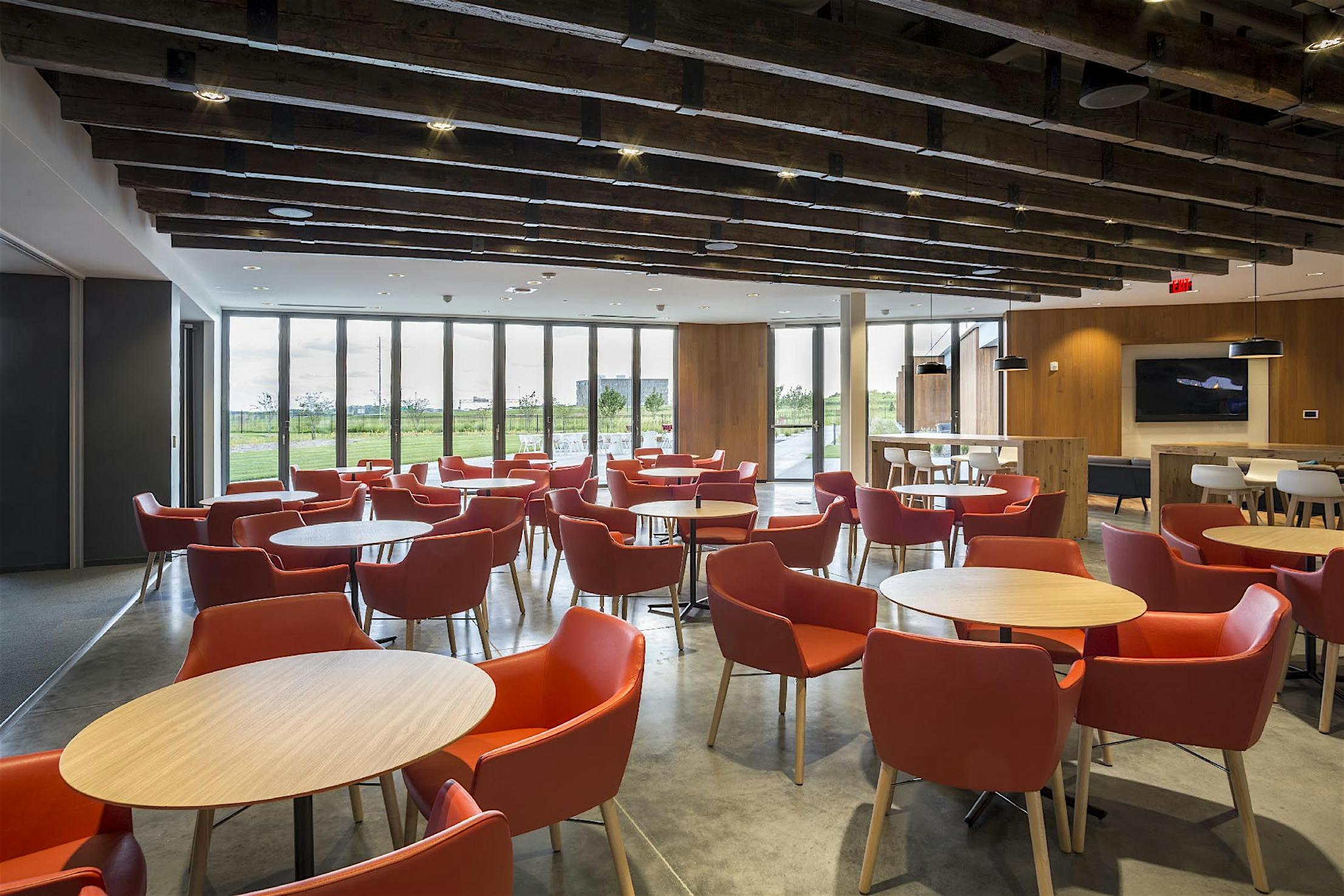

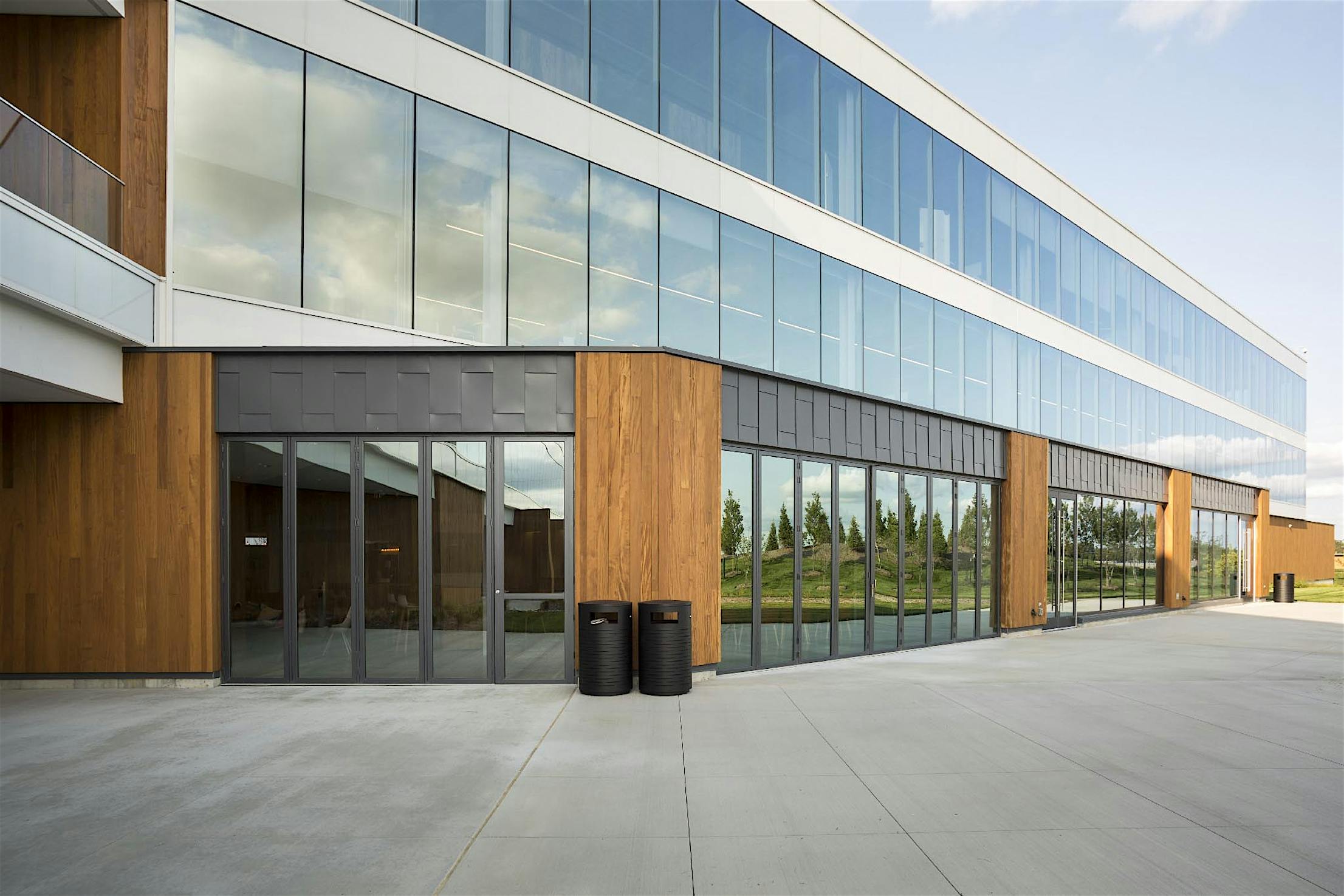

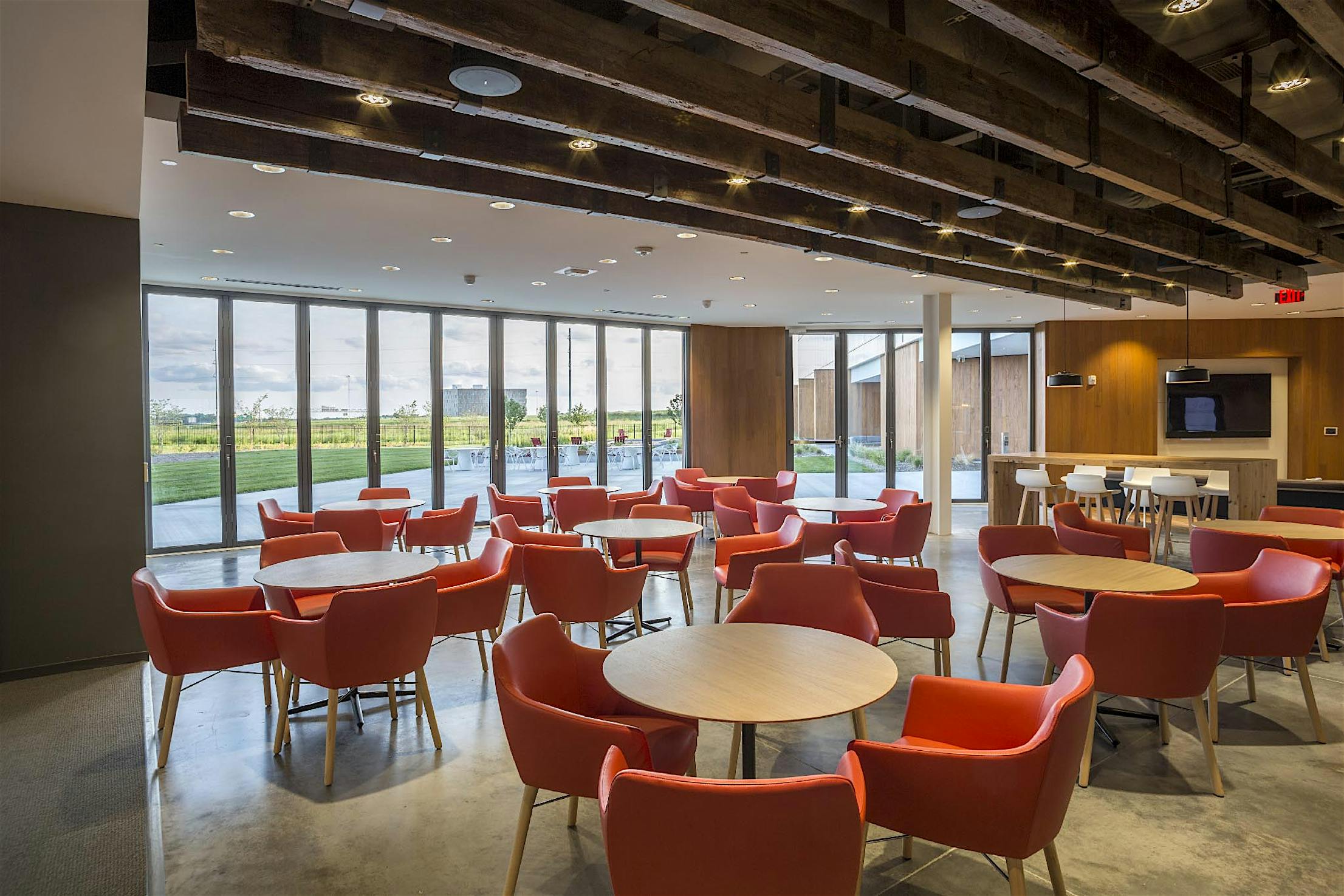

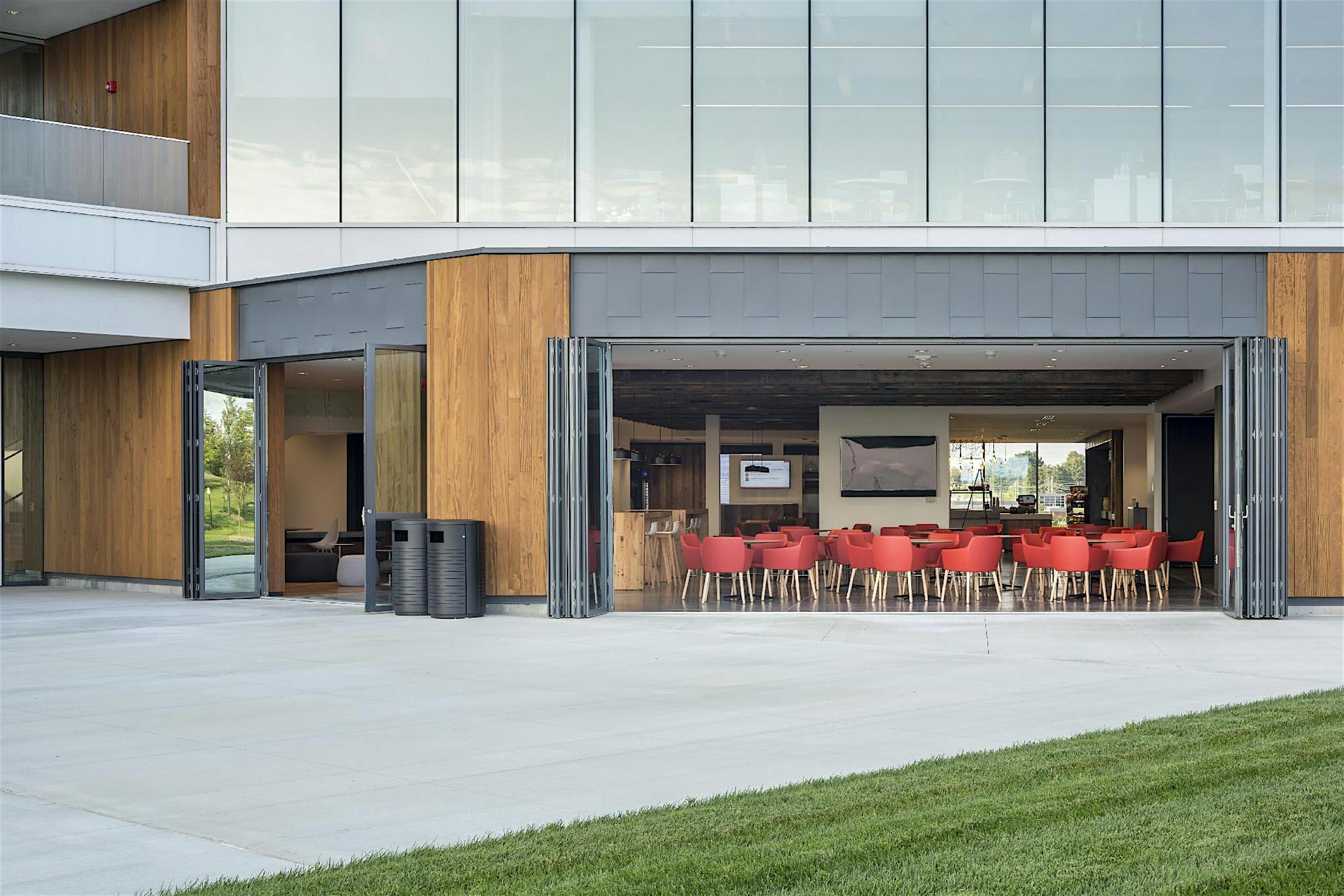

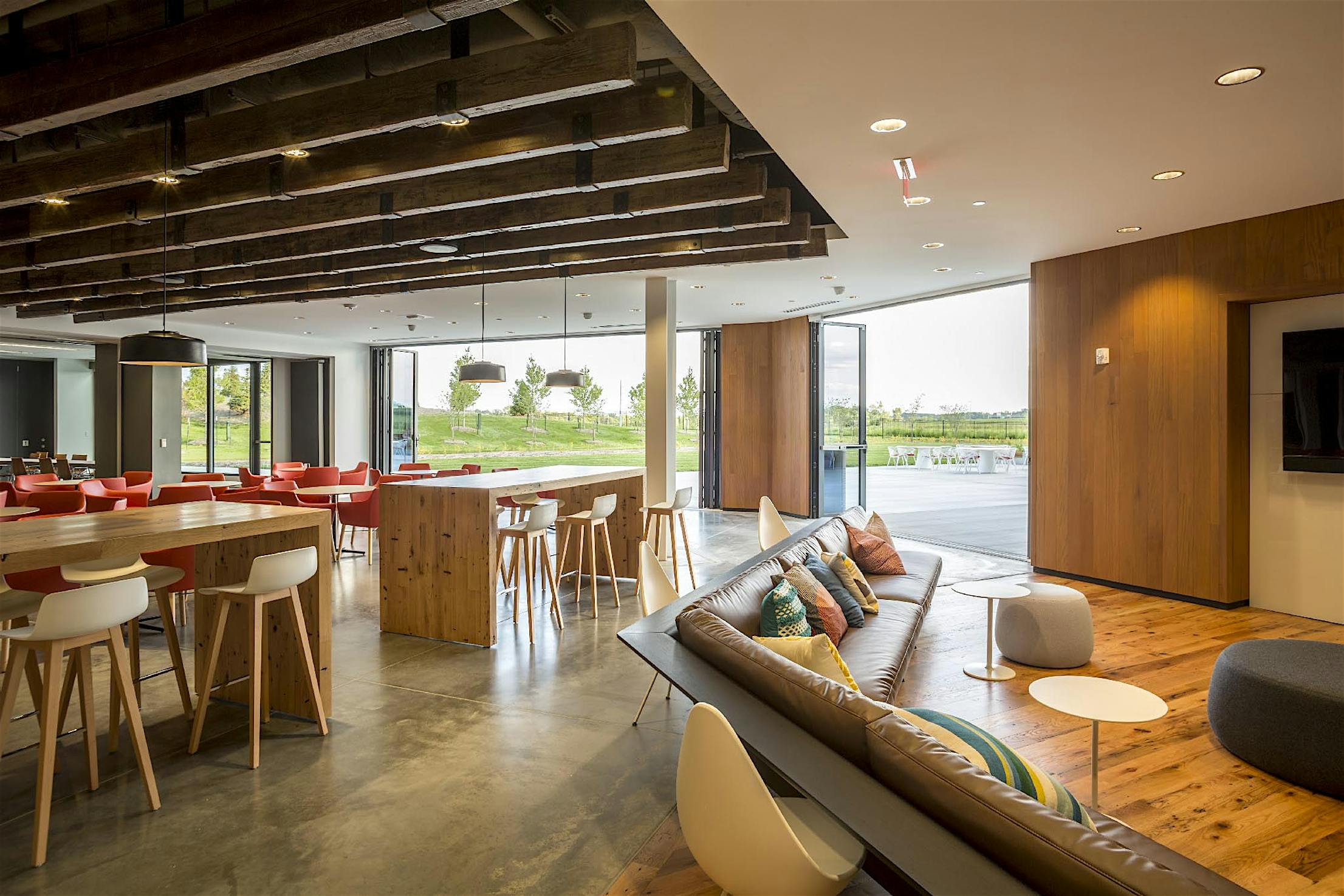

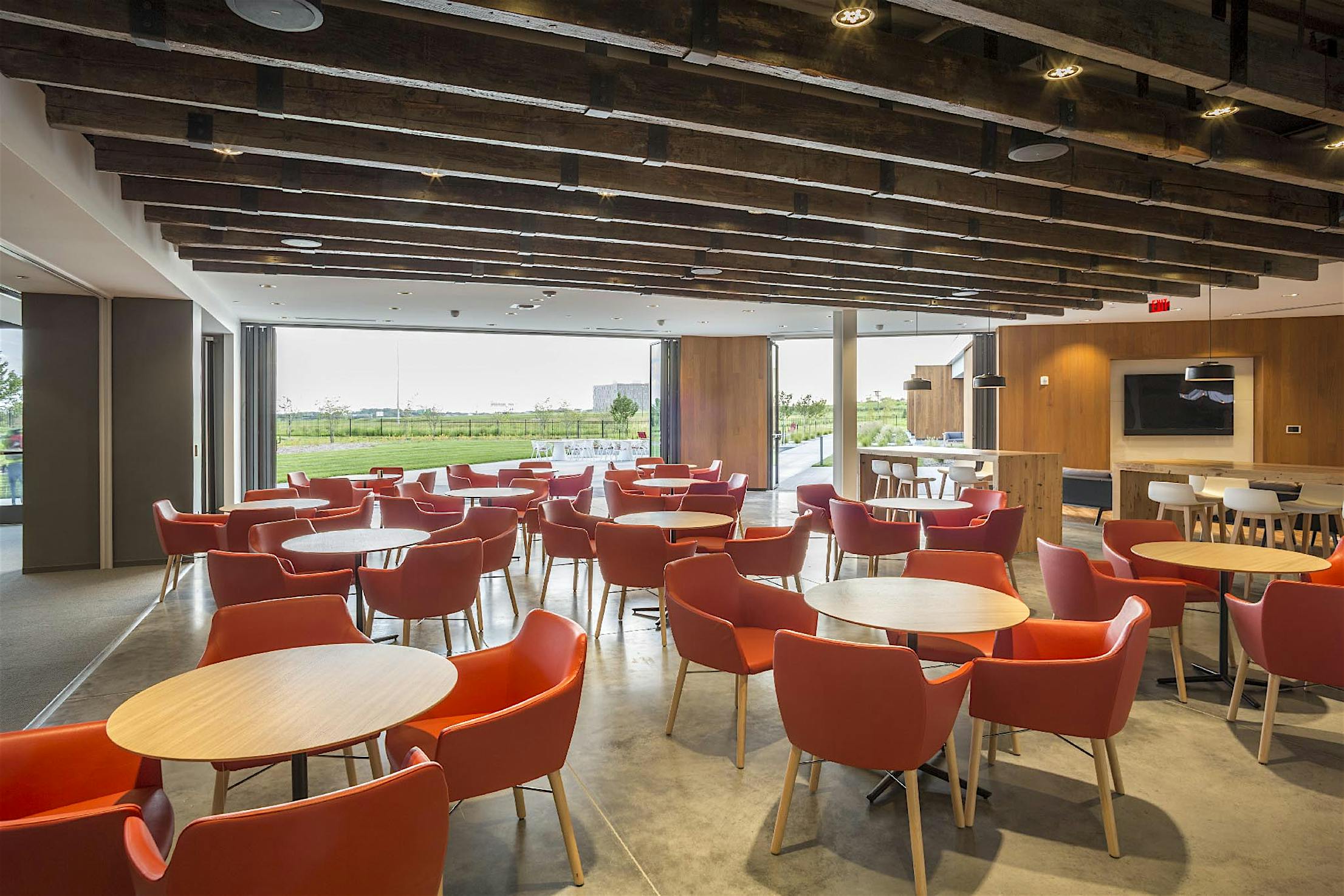

Dairy Farmers of America

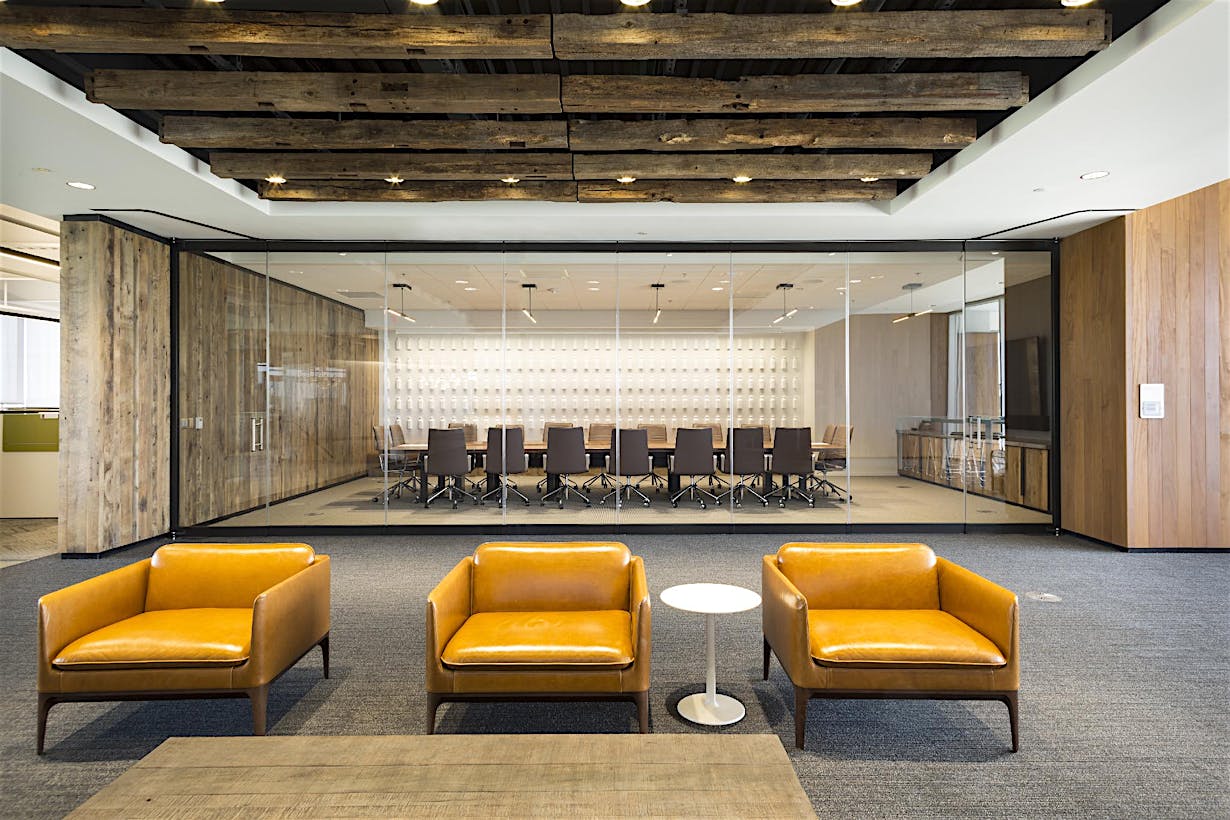

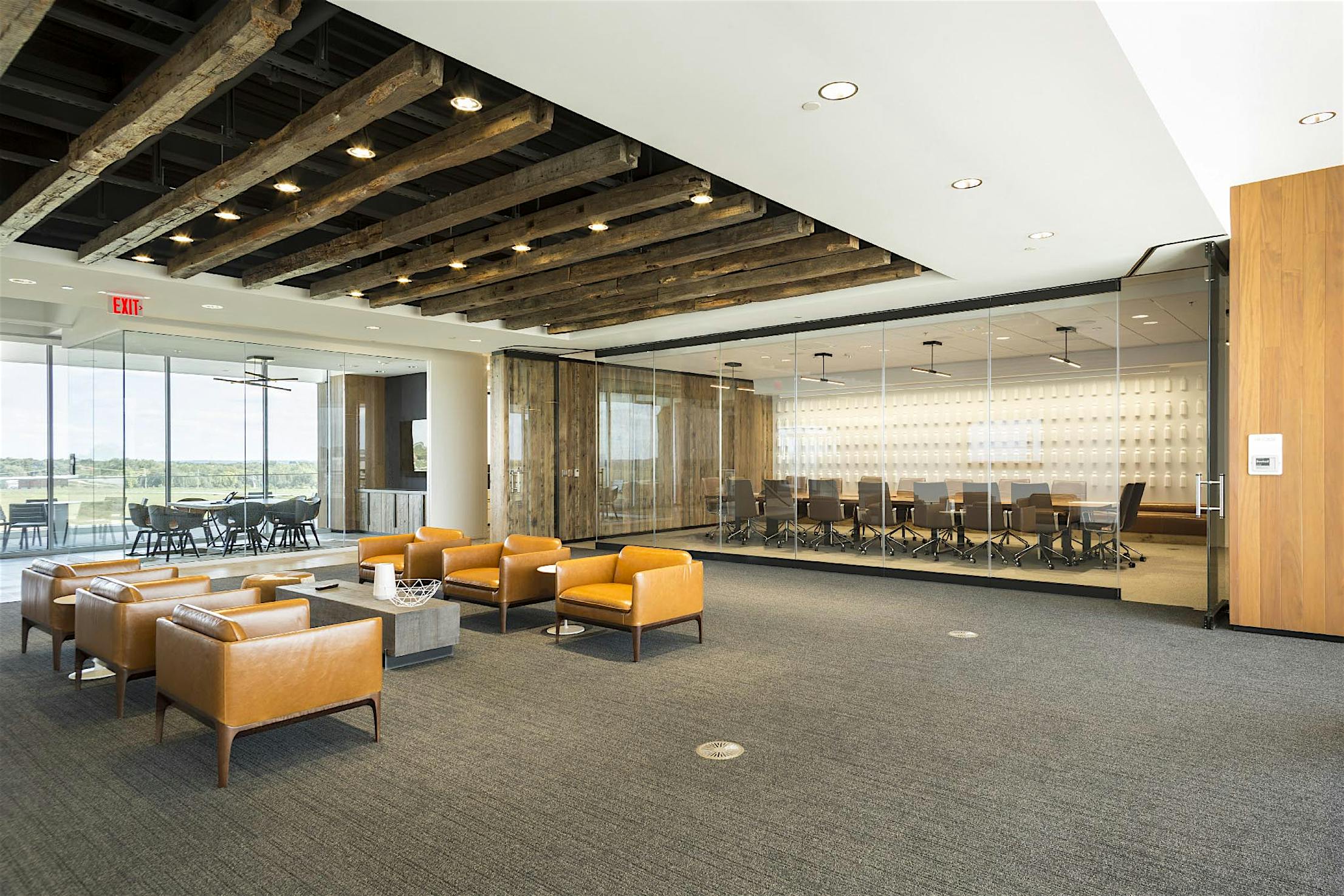

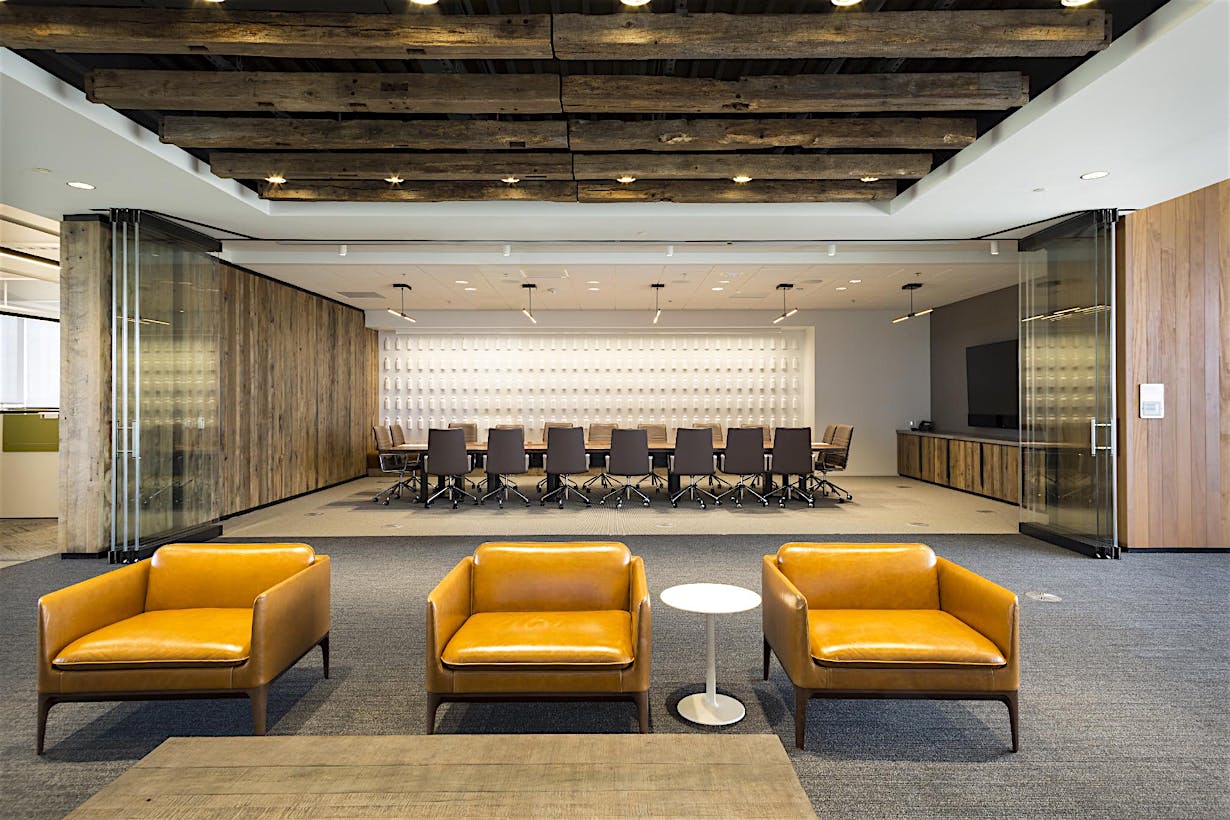

By designing the conference room with PrivaSEE, this office achieved a space with a high degree of acoustic privacy, while maintaining a sense of openness.
"The nicest meeting room we have in this building is the [PrivaSEE] boardroom."
Anodized and powder coat options available.Aluminum Colors Additional Powder Coating Finishes

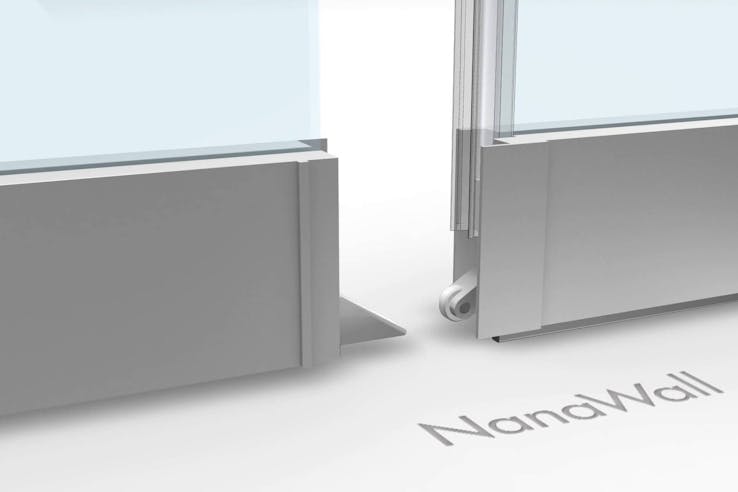

The automatic floor bolt and horizontal compression seals are self-activated by simply moving the panels to one another. The unique wheel and ramp assembly automatically locks the panel into place without the need to kneel and lock it manually.See Locking Options
Our handles are both functional and stylish and can be customized to accentuate your space and reflect your style.See Handle Options
Standard to PrivaSEE is 1/2″ (13 mm) laminated glass with a sound enhanced interlayer providing reduced sound transmission. All vertical edges are polished.See Glazing Options
PrivaSEE Floor Tracks Options:
Adjustable Floor Sockets: Standard to the PrivaSEE are eccentric floor sockets. The built-in adjustability helps to deal with tolerances and building settlements.

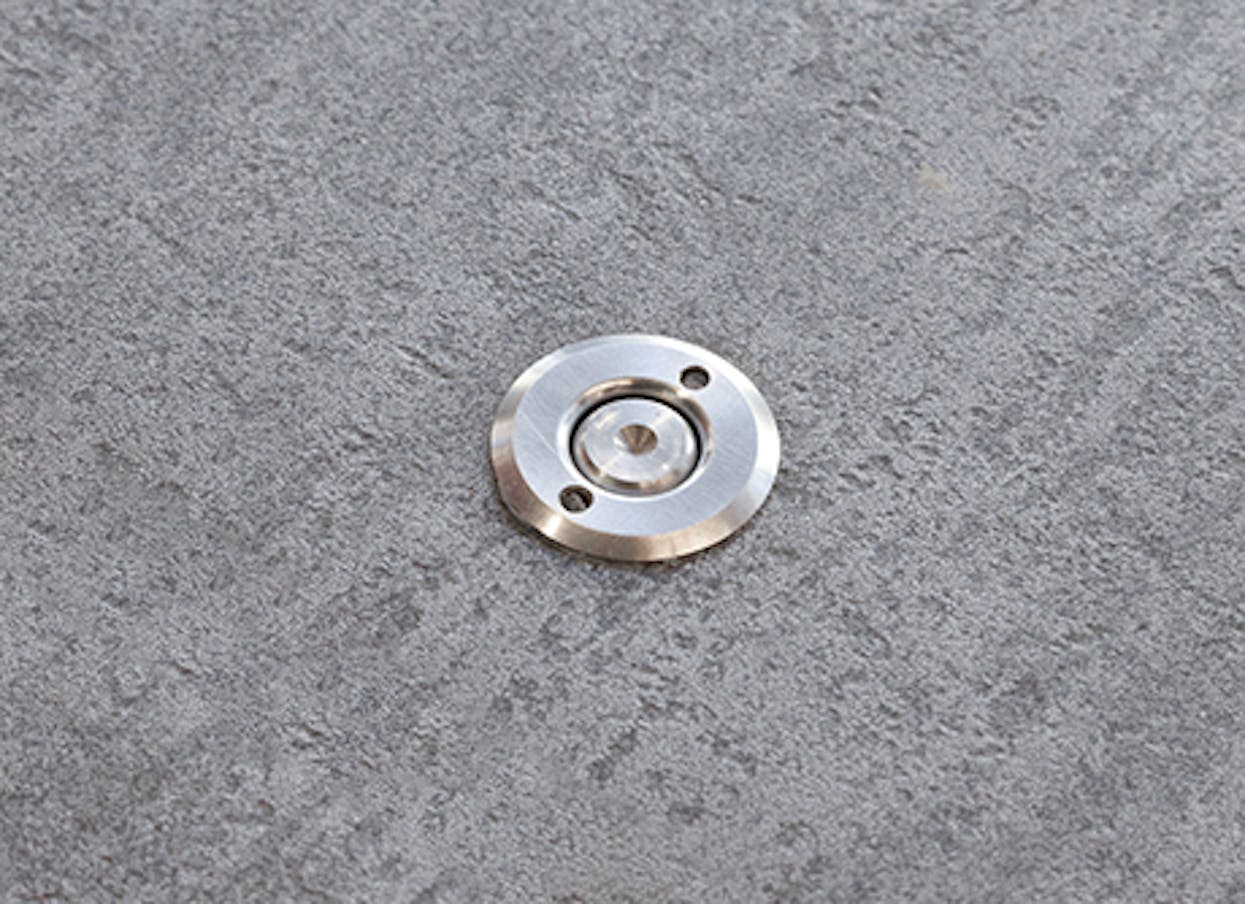

DustProof Socket: If required, a spring loaded, dustproof socket option is available.See Sill Options

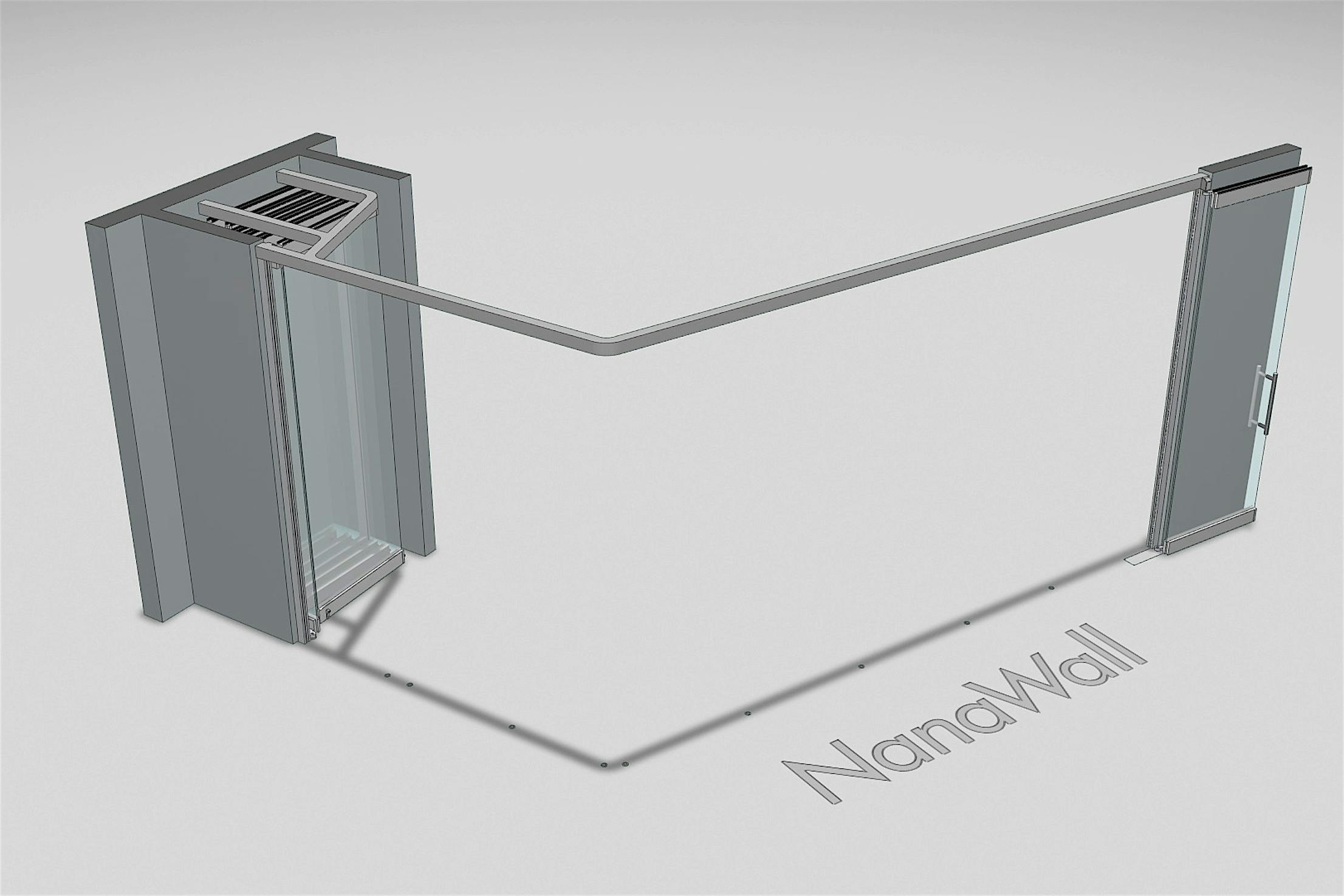

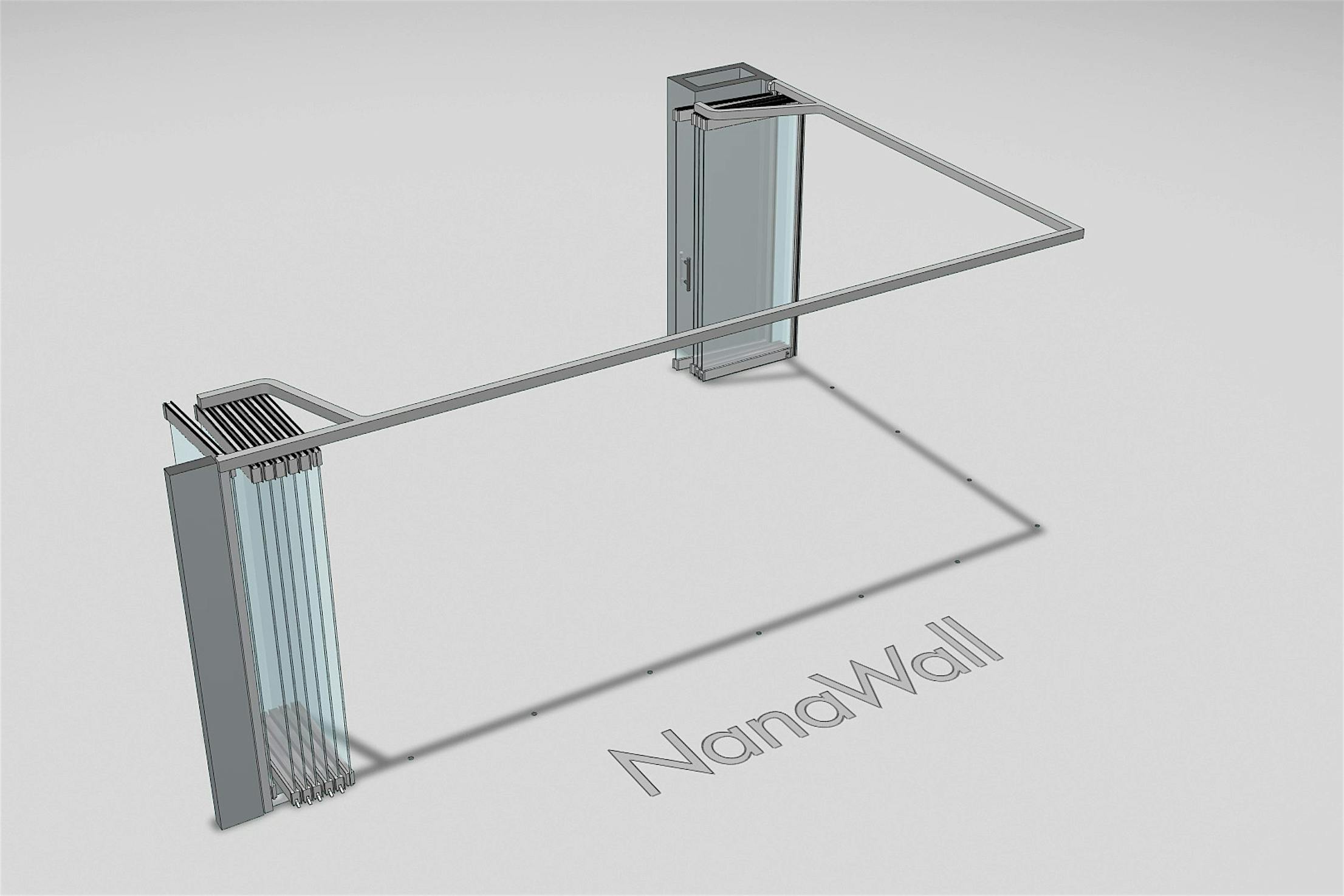

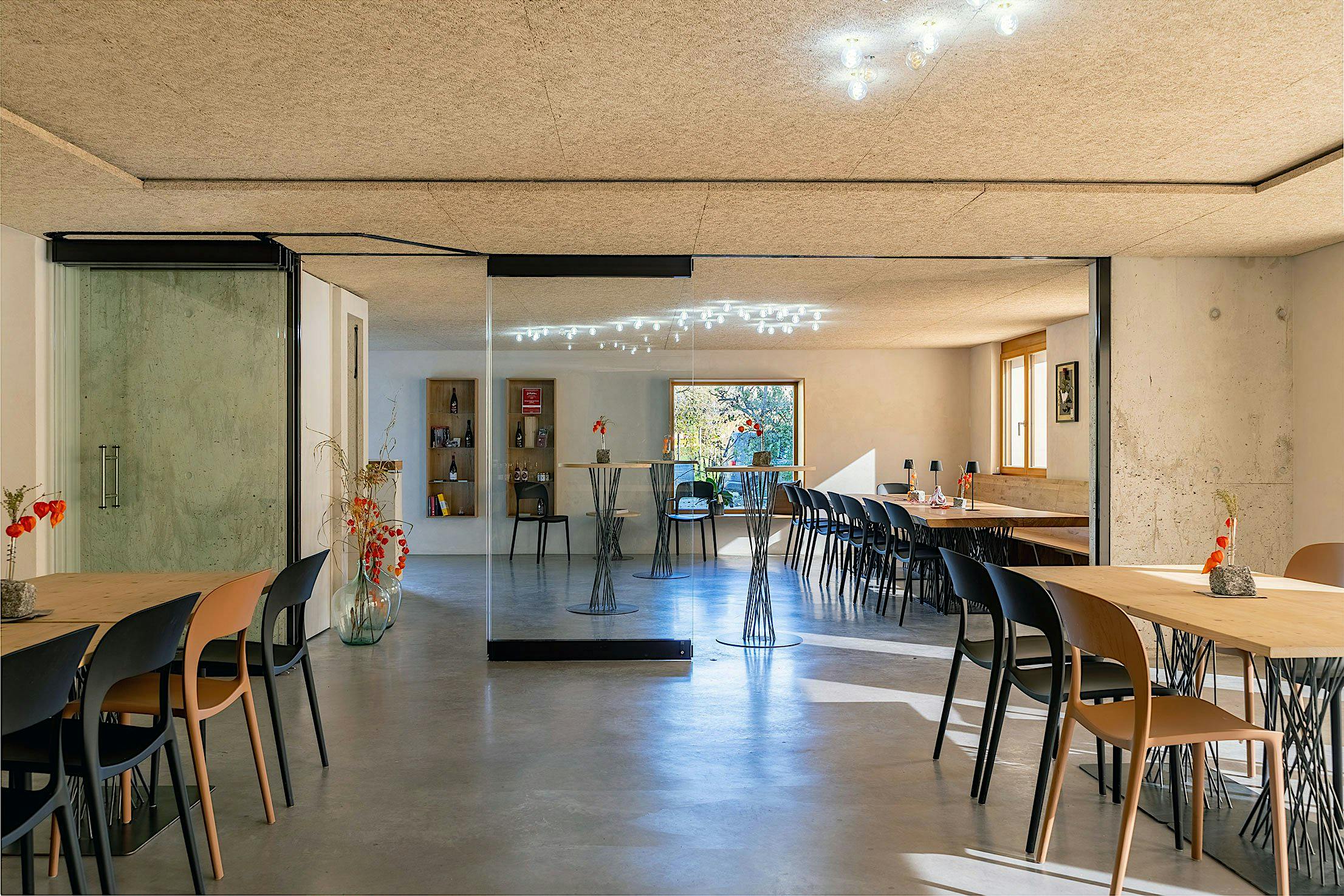

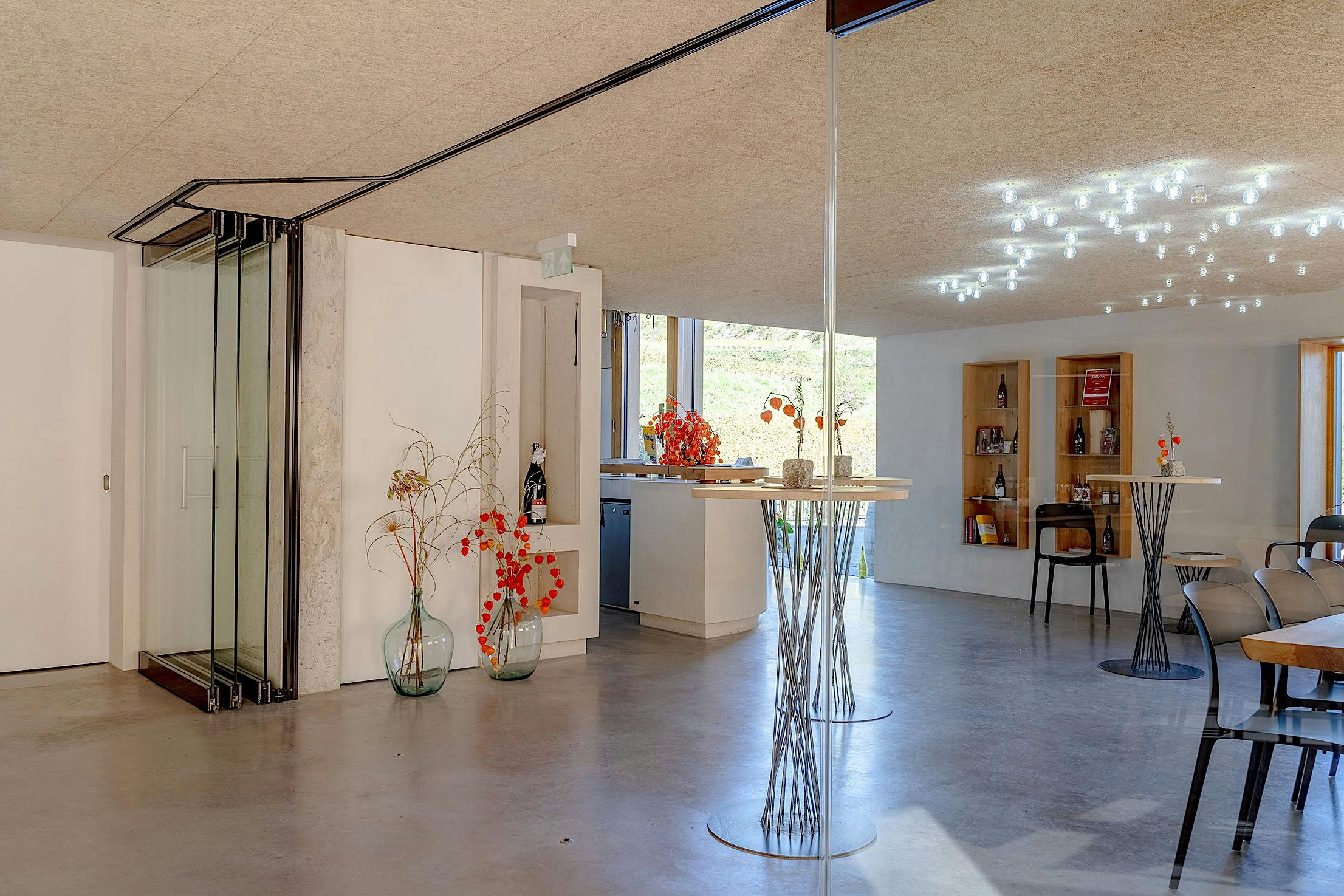

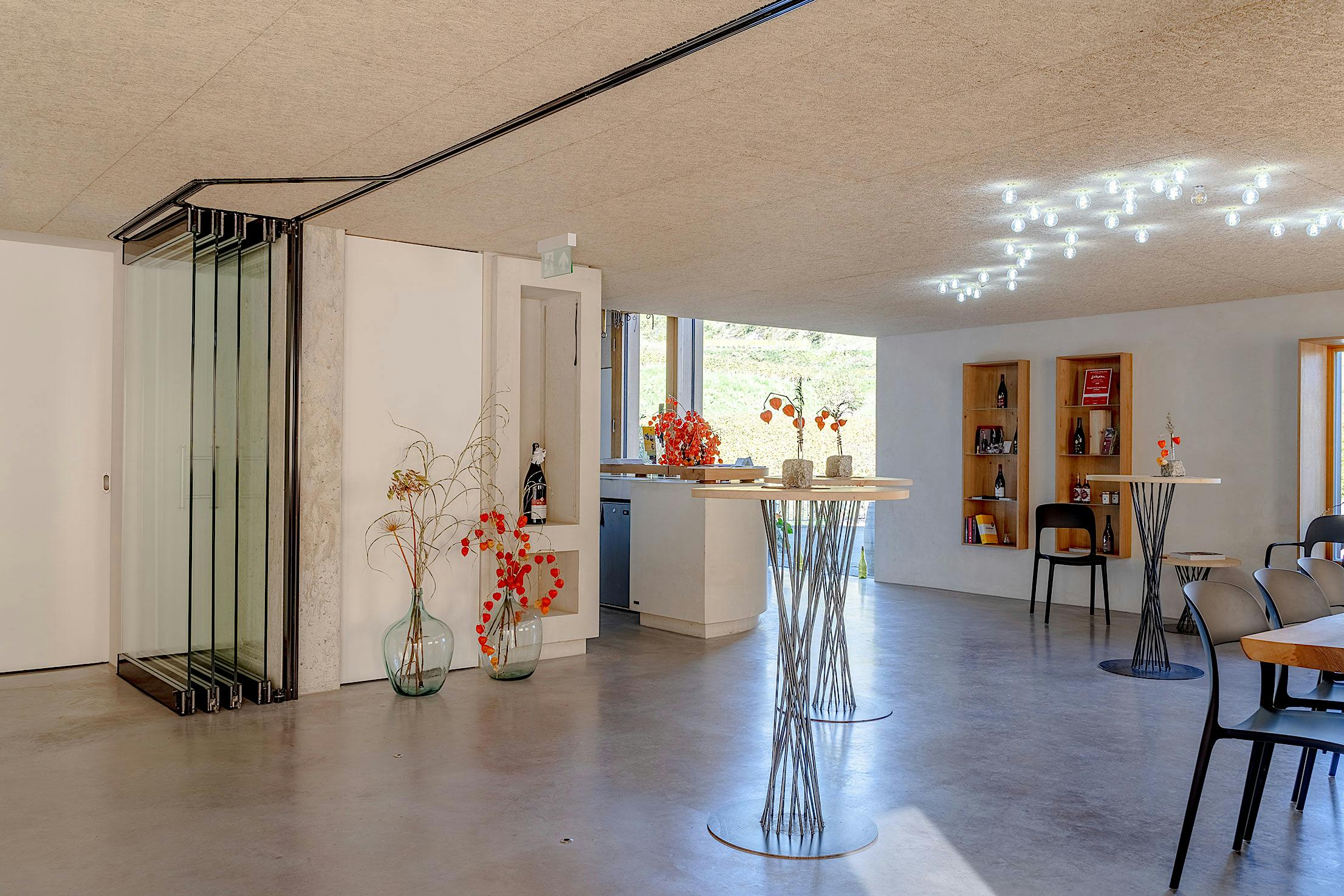

Stacking Concepts for PrivaSEE
Please note the following:
- The number of panels in a system can be unlimited.
- Stacking can be on the left or right, inside or outside, only on one side or on both sides.
- The swing panel can be inswing or outswing.
- The stacking area can be wide or narrow and with additional track, can be located almost anywhere, near or far.
- Within certain limits, unequal panel widths may be possible.

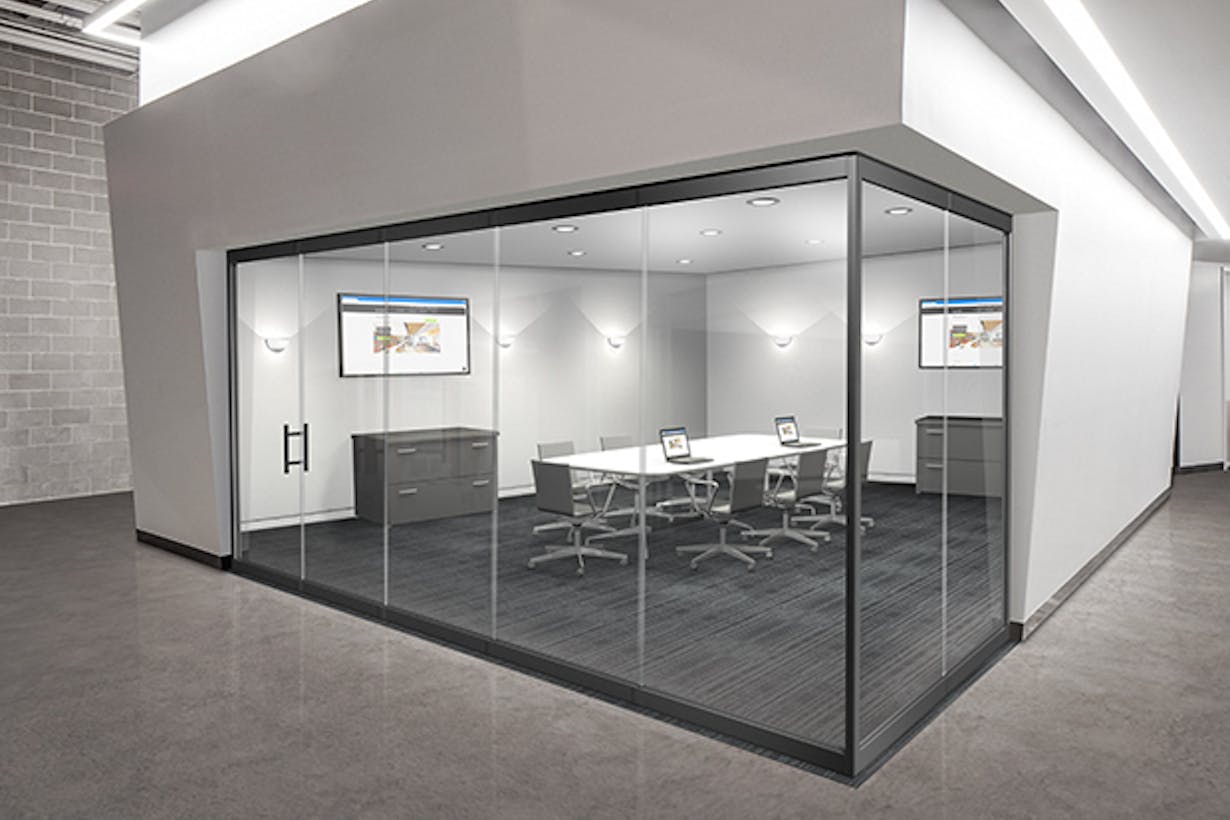

- Open corners units are possible
