Features
Design
Creative Design Freedom
cero® -absolute architectural minimalism at its best-questions conventional boundaries. With cero, architectural design can be stripped down to its most essential elements allowing for light, form, material, space, and nature to speak for itself. Outside and inside become one.
ce•ro (ˈsirō)
noun
The minimal framed large panel sliding glass wall by NanaWall Systems. Simple in form yet engineered to perfection. Producing clean, uniform, and ultra-thin lines for maximum light filled spaces that connect the interior to the exterior.
A Floor to Ceiling Lens to the Outside
The award-winning cero offers full floor to ceiling sliding glass panels with recessed top and bottom tracks. Produced through time-tested premium German engineering, cero allows for maximum transparency with the largest panes of glass and the most minimal frames offered by NanaWall.
Symmetrical Picture Frame Effect
Narrow Stiles and Rails
With cero, the panel's rail and stiles are uniform with a consistent 1 5/16" (34 mm) top to bottom, achieving a symmetrical and minimal design.
Minimalist Beauty-Maximal Benefit
NanaWall's intelligent approach and innovative use of materials reflects a creative integration of design and technology. Within each system component is the NanaWall DNA-components designed by NanaWall and crafted with exceptional quality that perform effortlessly while standing the test of time.
Operation
Uncompromised Roller System equals smooth sliding
Engineered Features of the Roller System:
- cero II panels with double insulated glass have 2 carriers per panel and cero III panels with triple insulated glass have 4 carriers per panel.
- Floor supported cero panels are operated by carriers containing a pair of wheels with encapsulated and self-lubricating ball bearings.
- Unique to cero is a Gothic arch wheel bearing design. With a 2 point contact of each wheel to the bottom track, the system glides with less friction.
- cero's stainless steel wheels slide with ease on a stainless steel track.
- To maintain the sleek minimal look, each carrier is concealed within the bottom panel profile.
Elevated above Water Table
NanaWall Floor Supported Technology assures that the rollers run above the water table and the design allows for continued long term smooth operation.
cero has been tested to 40,000 opening and closing cycles.
Brushes for Continuous Smooth Operation
Double sided brushes, located in front of each roller, remove debris from the track to contribute to a smooth running system.
Soft Opening and Closing
No Metal to Metal Contact
The system interlock design of 4 layers of soft gaskets allows for a soft closing of the panels. Transparent bumpers on the top and bottom vertical stile allow for a soft opening process.

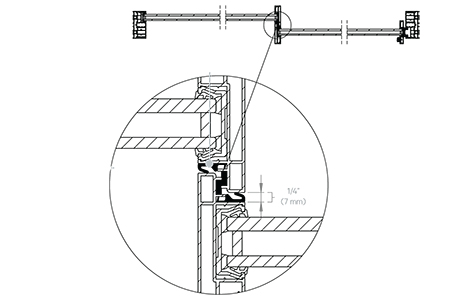

Sophisticated Design Allows for Panel Deflection
cero's panel and interlock design is engineered to accommodate panel and glass deflection with a built-in tolerance of up to 1/4" (7 mm). This design also eliminates the concern of the metal vertical stiles touching the adjacent glass sliding panel during the opening and closing process.
HIGHLY SECURE LOCKING
Multipoint Tamper-Resistant System
With cero, security is provided with multipoint locking and a flat handle that is integrated into the 1 5/16" (34 mm) vertical profile stile to maintain the clean, minimal appearance. A full 1" (25 mm) throw securely locks the panel into a top and bottom adjustable locking receiver.
For those with higher security concerns, the system is able to meet the optional European security standards of either RC2 or RC3.

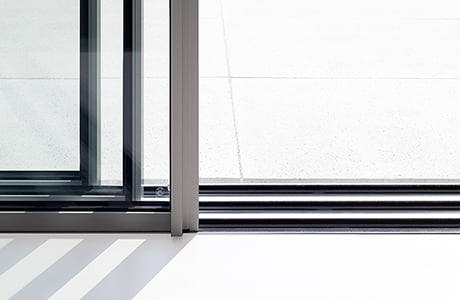

Higher Weather Performance Sill
Floor Track Adjustability
To compensate for potential future building movement, cero's thermally broken Higher Weather Performance Sill offers height adjustability of up to 1/8" (3 mm).
cero's Higher Weather Performance Sill is fully recessed into the floor creating a clean uninterrupted transition from interior to exterior.
An optional track insert is available to meet ADA requirements.
Track drainage provided by an engineered, cascading water management system. For installations requiring even greater drainage due to exposure, a matching French drain system is available.
cero's Higher Weather Performance Sill is thermally broken.

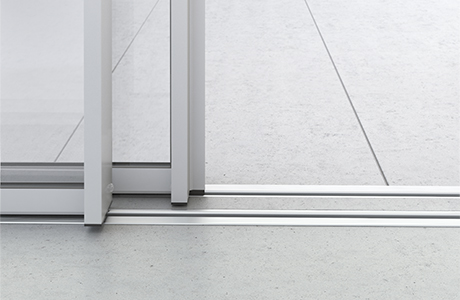

Flush Sill for cero II
Aesthetically Disappearing Floor Track
The Flush Sill option for cero II is available for sheltered or interior environments creating aesthetically seamless transitions between spaces.
The minimal Flush Sill is fully recessed at a shallow 7/8" (23 mm) into the floor.
Finished flooring inserts can be easily installed in between the tracks making these sills virtually disappear. Sill design also makes for easy cleaning and maintenance.
For commercial environments, such as retail, hotels, and auto dealerships, the Flush Sill meets ADA requirements.
cero II's Flush Sill is non-thermally broken.
PERFORMANCE WHEN CLOSED MATTERS MOST
Large openings are easy to design and there are many options to choose from. When deciding on a product that's best for your project, performance when closed needs to be considered.
Configurations
Shown below are 1, 2, and 3 track configurations.
For more than 3 tracks with the Higher Weather Performance Sill, please contact NanaWall for information.
Size Charts

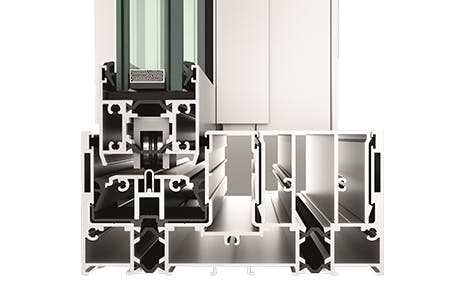

Floor Tracks
Full recessable floor track
Depending on configuration, cero has one, two, or three tracks. For addition track options, please contact NanaWall. Open and fixed corners possible.
cero II panels with double insulated glass have 2 carriers per panel and cero III panels with triple insulated glass have 4 carriers per panel. Floor supported cero panels are operated by carriers containing a pair of wheels with encapsulated and self-lubricating ball bearings. cero's stainless steel wheels slide effortlessly on a stainless steel track. To maintain the sleek minimal look, each carrier is concealed within the bottom panel profile.
ELEVATED ABOVE WATER TABLE
NanaWall Floor Supported Technology assures that the rollers run above the water table and the design allows for continued long term smooth operation.
CERO III - Higher weather performance sill
Floor Track Ajustability
To compensate for potential future building movement, cero's thermally broken Higher Weather Perfomance Sill offers height adjustability of up to 1/8" (3 mm).
Thermal Breaks in Alignment
cero's panel and floor track thermal breaks are in alignment for optimal energy efficient.
cero II - Higher weather performance Sill
- cero's Higher Weather Performance Sill is fully recessed into the floor creating a clean uninterrupted transaction from interior to exterior.
- Optional track insert in a coordinating finish is available to meet ADA requirements.
- Track drainage provided by an engineered cascading water management system. For installations requiring even greater drainage due to exposure, a matching French drain system by others is available.
- The Higher Weather Performance Sill is thermally broken.
cero II - Flush Sill
- Aesthetically Disappearing Floor Track: cero’s Flush Sill option is available for sheltered or interior environments creating aesthetically seamless transitions between spaces.
- The minimal Flush Sill is fully recessed at a shallow 7/8” (23 mm) into the floor.
- Finished flooring inserts can be easily installed in between the tracks making these sills virtually disappear. Sill designs also make for easy cleaning and maintenance.
- cero II's Flush Sill is non-thermally broken.
cero II - Low Profile Saddle Sill and Flush Saddle Hybrid Sill (shown at right)
- The Low Profile Saddle Sill is recessed at an even shallower 7/16” (11 mm) for surface mounted installations, while the Flush Saddle Hybrid Sill is designed to work with varying interior and exterior finish floor heights.
- The Low Profile Saddle Sill and the Flush Saddle Hybrid Sill reduces sheeting rain from entering the interior.
- For commercial environments, such as retail, hotels, and auto dealerships, the Flush, Low Profile Saddle and Flush Saddle Hybrid sills all meet ADA requirements.
- cero II's Saddle Sill and Flush Saddle Hybrid sills are non-thermally broken.
Handles
Two Point Locking Handles

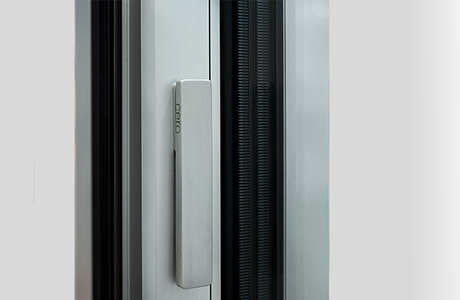

Minimalist Stainless Steel Handle
Stainless steel flat handles are available in a brushed satin finish.
Stainless Steel Flat Handles
Stainless steel flat handles are available either in a brushed satin or black titanium finish.
Locking
TWO POINT LOCKING
With cero, security is provided with two point locking and a flat handle that is integrated into the 1 5/16" (34 mm) vertical profile stile to maintain the clean, minimal appearance. A full 1" (25 mm) throw securely locks the panel into a top and bottom adjustable locking receiver.
For those with higher security concerns, the system is able to meet the optional European security standards of either RC2 or RC3. Please contact NanaWall for details.
Aluminum Colors
Shown are a selection of colors available.Contact NanaWall for other possible finishes. The samples shown here are representative only. Please consult with your sales representative for actual samples.
Standard Anodized Finish
Other anodized finishes are available on request.
NanaWall Standard Powder Coating Finishes
Additional Powder Coating Finishes
NanaWall® offers over 200 RAL GLOSS powder coated and over 200 RAL MATTE powder coated colors for an additional upcharge.
Glass
Dry Glazed for seal durability
Panels are dry glazed providing 360° ventilation of the glass. Dry glazing provides air circulation to keep the pocket cavity dry and allows any potential water to fully weep out of the panels.
Dry glazing with gaskets delivers a more aesthetic presenation between glass and frame.
cero is available in two options depending on thermal performance needs—triple glazed cero III and double glazed cero II.
Select a thickness between 1 7/8" and 2 1/8" (48 and 54 mm) for Triple Glazed cero III or between 1 3/16" and 1 7/16" (30 and 36 mm) for Double Glazed cero II.
Various IGU thicknesses are available with the ranges of thicknesses for each IGU type accommodated within each cero frame type.
Glass Lite Thicknesses in IGU:
- 1/4 inch (6 mm)
- 5/16 inch (8 mm)
- 3/8 inch (10 mm)
Standard to cero is reduced iron tempered glass with a VLT of 90%
Glass Options Include:
- Low iron
- Laminated
- Solar bronze
- Solar gray
- Ornilux bird safe
- Contact NanaWall for availability of other glass options
Accessories
CERO BY NANAWALL SYSTEM AUTOMATION
With cero's optional automation accessory by others, the large panels can be operated and securely locked with a simple touch of a button. The automation feature provides effortless and quiet operation. Key pads can be located on the interior and/or exterior for convenience and peace of mind. Please contact NanaWall for details.
CERO AUTOMATION FEATURE HIGHLIGHTS:
- Two Step Safety Feature - Motion sensor and pressure sensitivity provides worry free operation if people or pets walk through the opening while closing
- Magnetic Clutch - Allows for manual operation override
- Magnetic Brake - Brake engagement safely secures the opening
- System Auto-lock - If cero is closed manually, the system locks automatically after one hour
- Manual Lock Detection - System knows when cero is manually locked ensuring no damage to motor or door unit
- Smart Switch - Choose between wired or wireless wall switch with phone/tablet App for ease of use
- Battery Backup - Provides 36 hour battery backup when the power is out
Screening Accessories
Transforming walls and delivering a dream design can be achieved where weather or flying insects would normally prevent the practicality of creating an open space. A retractable screen add-on is perfect for blocking bugs while providing privacy and fresh air. The retractable screens are available in two options:
- Screen ONE
- Screen Classic
Matching Windows
European style dual-action windows, complement a NanaWall system. Offering tilt-in operation and large inswing openings. Choose from both operable and fixed matching windows types for your project.
Matching French Doors
NanaWall Matching French Doors are available as single doors or pairs. Very narrow stiles and rails are possible.
NanaWall French Doors use exactly the same profiles and hardware as the matching NanaWall Folding Glass Walls. Hence, the same size charts, glazing options, wood/finish options and finish hardware options as the matching NanaWall Folding Glass Walls are applicable.
The same testing performance results also apply (within a folding system, with an odd number of panels stacking to one side, the last panel is a swing door).
Photos
cero Auto Dealership
cero Frienburg

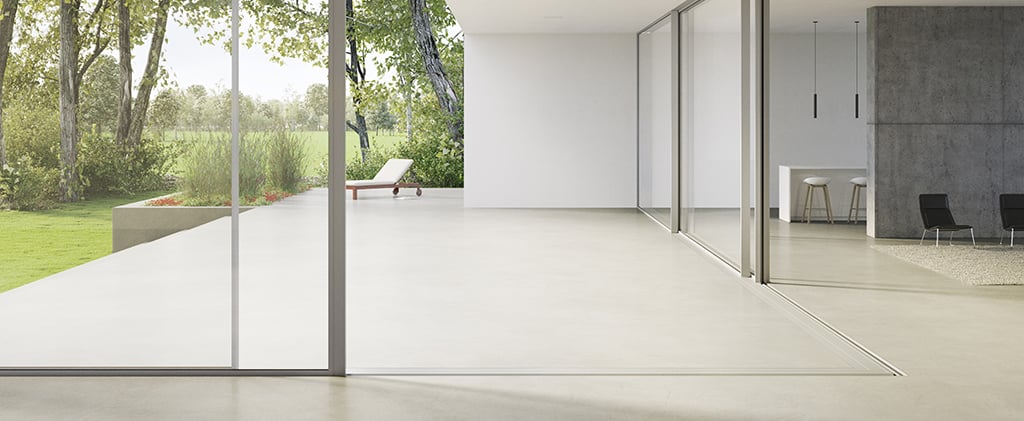

Cero 4
cero Bodensee
Cero in the City
Cero Award Winning Project
Videos
Downloads
Technical Resources
architectural binder
specifications
Cero Specifications Division 8
Cero Specifications Division 8
Cero Specifications Division 10
Cero Specifications Division 10
owner's Manual
View our Brochures and Photo Ideabooks online by clicking on the images below. For mailed copies, please submit the form below.
NanaWall Brochures
NanaWall Product Brochures
NanaWall Vertical Market Brochures
Photo Ideabooks
3D Models, Revit & AutoCAD Details
Specifications
Installation
Certified Installers
All opening requirements and surrounding conditions must be ready and meet the NanaWall supplied drawings before the certified installer arrives. Installers can review the openings before installation to ensure accuracy and verify all opening requirements have been met. Upon completion, the certified installer will ask to have a sign-off sheet completed, this will ensure your satisfaction with the installation of your NanaWall system. The certified installer will be available for a complete operational demonstration at time of installation.
NanaWall helps certified installers through continuous education to make sure they are up to date on all of our 20+ different systems. Their training process includes extensive education for both folding and sliding systems. Our installation management team makes periodic site visits to ensure the high standard of quality installation is maintained. Due to the extensive training your certified installer receives, it will ensure your NanaWall System is installed right, on-time, and hassle-free.
A benefit using certified installers is increased warranty coverage (review for details) of your new NanaWall system. Many areas have both commercial and residential trained installers.
Preventative Maintenance and Repair Services Available
Certified installers are available for servicing, repairs, and routine maintenance of your system.
Please contact your local NanaWall Sales Representative to arrange certified installation services for your project.
Installation Considerations
The approximate weight of a panel is the following:
Tempered Single Glazing: 4 - 4.5* lbs/sqft
Insulated Tempered Glazing: 5.5 - 8* lbs/sqft
Tempered Triple Glazing: 6 - 8.5* lbs/sqft
* The higher values applies to taller units
Single Impact Glazing: 8 lbs/sqft
Insulated Impact Glazing: 11 lbs/sqft
For the HSW75, FSW75, CSW75, PrivaSEE, and ClimaCLEAR systems the weight of a panel with 1/2" glass is 8 lbs/sqft.
For cero II the approximate weight of a panel for double glazed is 10 lbs/sqft and for double glazed laminated is 12 lbs/sqft.
For cero III the approximate weight of a panel for triple glazed is 13 lbs/sqft and for triple glazed laminated is 15 lbs/sqft.
The vertical structural deflection of the header should be the lesser of L/720 of the span and 1/4" under full loads. Structural support for lateral loads (both windload and when the panels are stacked open) must also be provided.
For floor supported systems (SL70, SL73, SL82, SL60u, WA67u and WD66u, please note that there is no vertical load on the header).
It is recommended that all building loads be applied to the header prior to installing the NanaWall. If so and if a reasonable amount of time has been allowed for the effect of this dead load on the header, only then can the building's live can be used to meet the above requirements of L/720 or 1/4". If not, both the dead and live loads needs to be considered.
Installation Information
Please see the Installation Instructions / Owner's Manual for each system.
NanaWall Systems, Inc. has independent, factory trained installers throughout North America, including Mexico, Canada, Caribbean and Central America. Choosing a trained installer ensures the best possible installation of your new NanaWall. Having folding or sliding walls installed has never been easier.
Installation Videos
Pricing
The Question of Pricing
NanaWall is a custom product tailored specifically for your project needs. Numerous features and options make up the price: type of system (we offer 20+), custom opening and panel size, glass type, door hardware, finish choice…to name a few. The best way to determine price is to consult with your local area NanaWall architectural representative and get a quote, directly from NanaWall, for the exact system that best meets your project requirements and budget. Or, better yet, experience our products firsthand by making an appointment to visit by one of our 25 showrooms to learn why NanaWall is your best choice.
Typical Residential Pricing Example
An example pricing guideline for our more versatile residential folding thermally broken aluminum system SL60 with 50 standard color options, choice of standard inswing or outswing, top-hung or floor supported, starts from $700 linear foot. This German engineered and American produced folding glass wall has a lead time of 7 – 9 weeks from order sign off to curbside delivery at your jobsite.
Project Tips For Budgeting
Optimize By Size
Every NanaWall system is customized based on your design requirements. Budgeting starts with overall size of the opening and is dependent on the total number of panels required.
General Pricing Guidelines:
- Total # of panels directly affect pricing
- Larger overall panels affect pricing
- Optimized size and panels offer best pricing
Product Family Matters
There are 3 NanaWall product families each with a specific design specialty, select the best fit based on your project needs.
General Pricing Guidelines:
- Folding products for most common applications and weather performance
- Sliding products for more complex design requirements are priced higher than folding
- Frameless products for interior are priced similarly to sliding products while outdoor rooms or balconies are priced lower than folding
There's Only One NanaWall System
Every NanaWall system is custom produced based on your design. Choose from included options to optimize pricing, all specialty options affect pricing.
General Pricing Guidelines:
- Custom color matching affects pricing
- Specialty glass affects pricing
- Decorative SDL's affect pricing
