Transparent Aesthetics Limitless Flexibility
- Customizable Stacking
- Unlimited Spans
- Standard sizes up to 4' 1" (1250 mm) in width and 10' 6" (3200 mm) in height for sliding panels
Single Track Offers Total Customization
Create an unlimited span of top-hung panels which are able to easily navigate with single handed operation through multiple angle changes from 90° to 180°. Optimize space management or to solve unique design challenges, stacking options and minimal parking bays can be designed with total customization.
Unlimited Spans, Customizable Stacking
A unique combination of aesthetics, flexibility, and ingenuity make the HSW75 our most advanced frameless glass wall ever
3 15/16" continuous rail for outstanding aesthetics
The HSW75 system comes standard with a 3 15/16" (100 mm) continuous top and bottom horizontal rail –even on single action sliding panels– allowing for a beautiful aesthetic and maximum glass. Customized rail options are available in increments of 3/16" (5 mm) from 5 1/4" (133 mm) to 7 13/16" (198 mm). To meet ADA requirements, two options are offered: a 10" (254 mm) bottom rail or a 4 3/4" (120 mm) chamfer bottom rail.
Standard HSW75 comes in sizes up to 4' 1" (1250 mm) in width and 10' 6" (3200 mm) in height for sliding panels. For all single/double action sliding panels, sizes available are up to 3' 3" (1000 mm) in width and 10' 6" (3200 mm) in height. For single/double action end panels (non-sliding), sizes available are up to 3' 7" (1100 mm) in width and 10' 6" (3200 mm) in height.View Panel Sizing Chart
A locking ladder pull integrates a locking mechanism with a profile cylinder at hand height into the tubular designed handle eliminating the need to kneel to lock the door at the bottom rail. The locking ladder pull comes in a brushed stainless steel finish.
The single track sliding all glass wall offers the option of selective panels that convert from sliding to pivoting for convenient swinging entrance/egress doors almost anywhere within the span of the opening in order to meet your traffic pattern requirements. Pivot panels are available as either single action or double action sliding panels. A pair of either single or double action swing panels can be added to function similarly to French doors.
End panels (non-sliding) can be single/double action panels with pivot points or single/double action panels with offset hinges that are capable of opening 180°.
Intelligent Roller For Single Handed Operation
The unique "intelligent" rollers and guide technology ensure for easy, trouble-free, single-hand operation. The rollers are designed using hardened steel ball bearings with glass fiber reinforced polyamide wheels with memory effect and polyamide bumpers for quiet and smooth operation.
Patented Self-activated Automatic Panel to Panel Interlock
For straight units, the automatic floor bolt is self-activated by simply moving the panels on to one another. Once the first panel is positioned, the following panel activates the wheel and ramp assembly to automatically release the floor bolt effectively locking the panel into place without the need to lock it manually. No kneeling is required.
Patented Release System Converting Single/double Action Sliding Panels to Pivot and Vice Versa
The HSW75 has a patented release system which combines the fixing and locking mechanism for single/double action sliding doors. This patent improves the handling of turning the single/double action door into a sliding panel in a 2-step rather than a 3-step process.

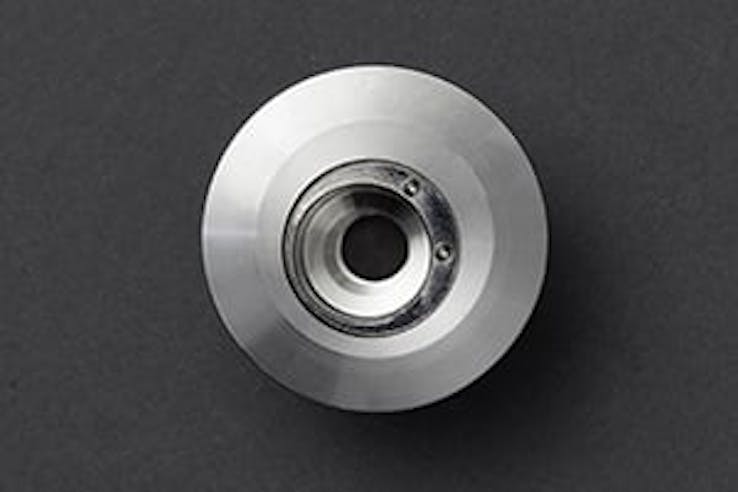

Adjustable Floor Sockets
Standard to the HSW75 are eccentric floor sockets. The built-in adjustability helps to deal with tolerances and building settlements.
Ease of Operation
NanaWall systems offer single-handed operation and move smoothly with little effort
Design with no limits – our glass walls can be tailored to your imagination.
Sill options designed specifically for interior applications.
NanaWall products contribute to multiple LEED rating systems and potentially several credit categories.
Continued Long-Term Satisfactory Operation
Smooth sliding and folding operations are assured even when dirt or debris might collect in the bottom track. State-of the-art hardware is used with patented, sealed, ball bearing running carriages. Compensation and adjustment features provide long-term ease of operation.
Single/double action panels with pivot points have passed 500,000 cycle testing.See Air, Water, Structural, Thermal, and Forced Entry Results
What Our Customers Have to Say

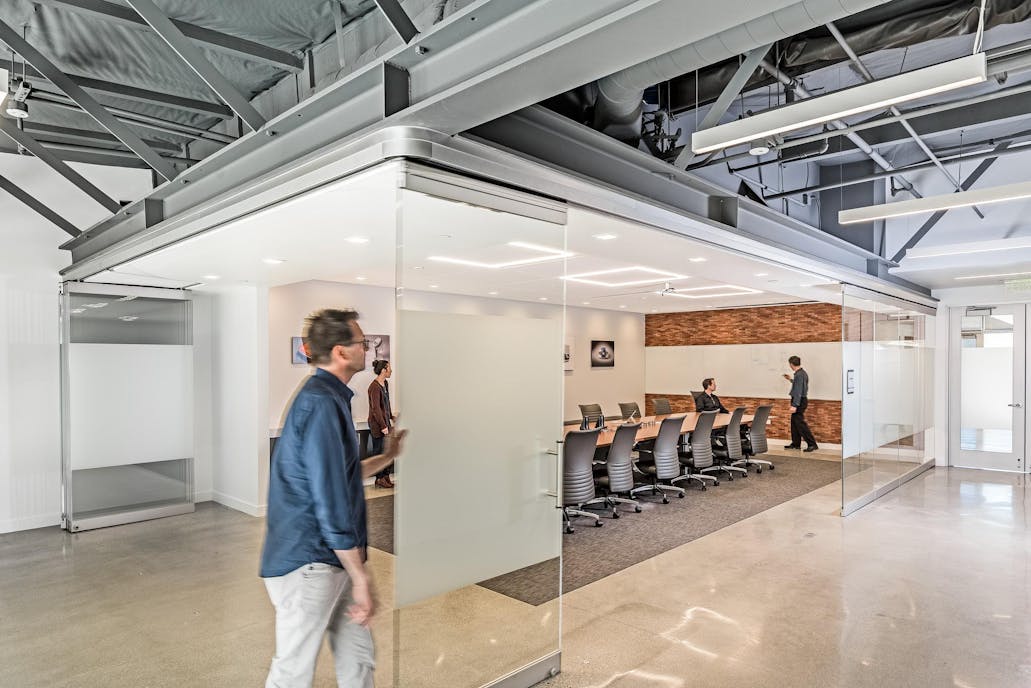

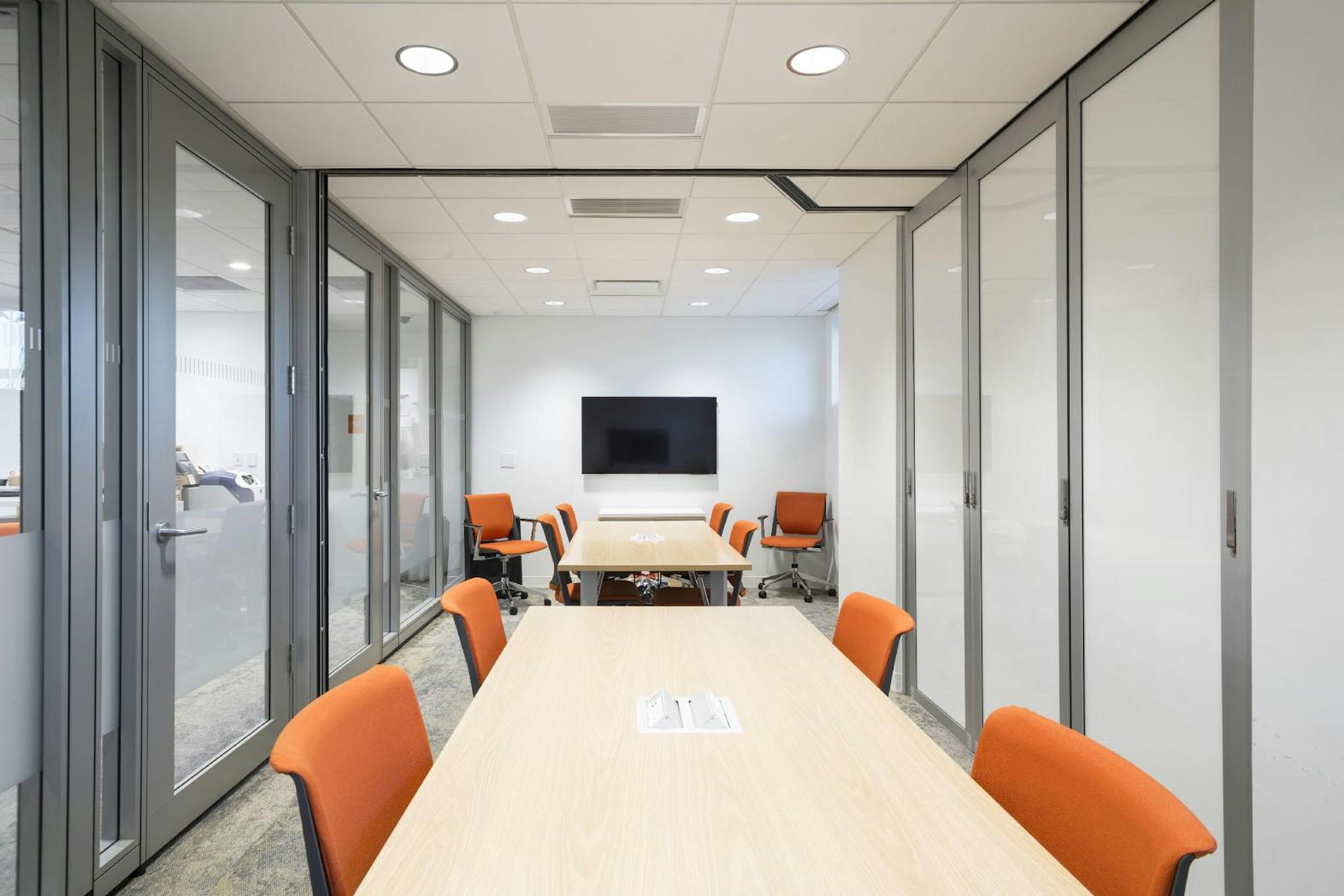

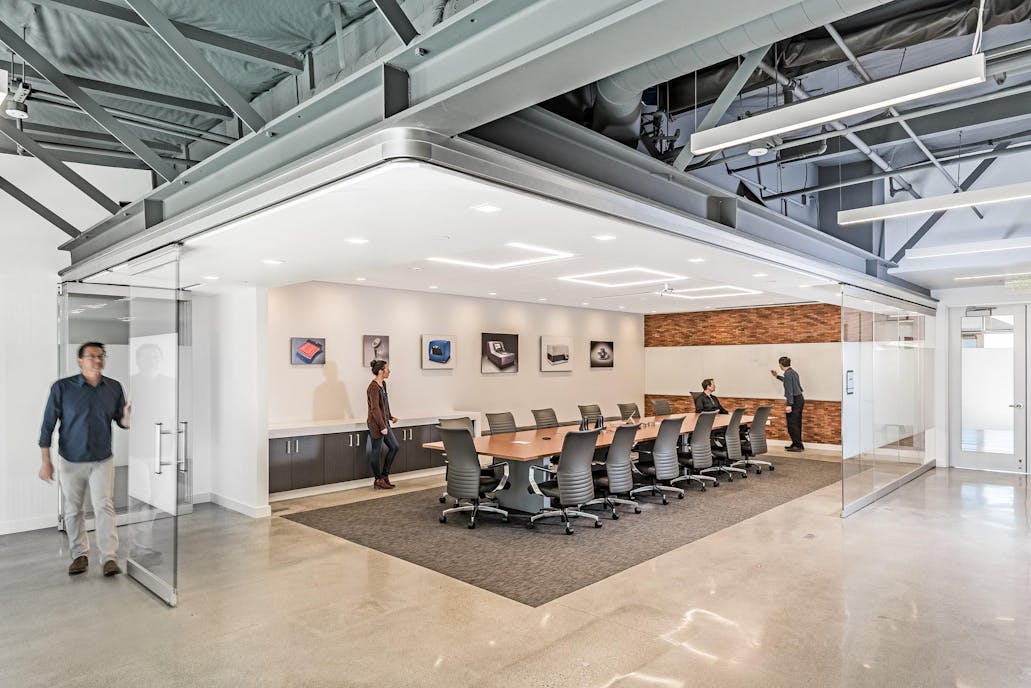

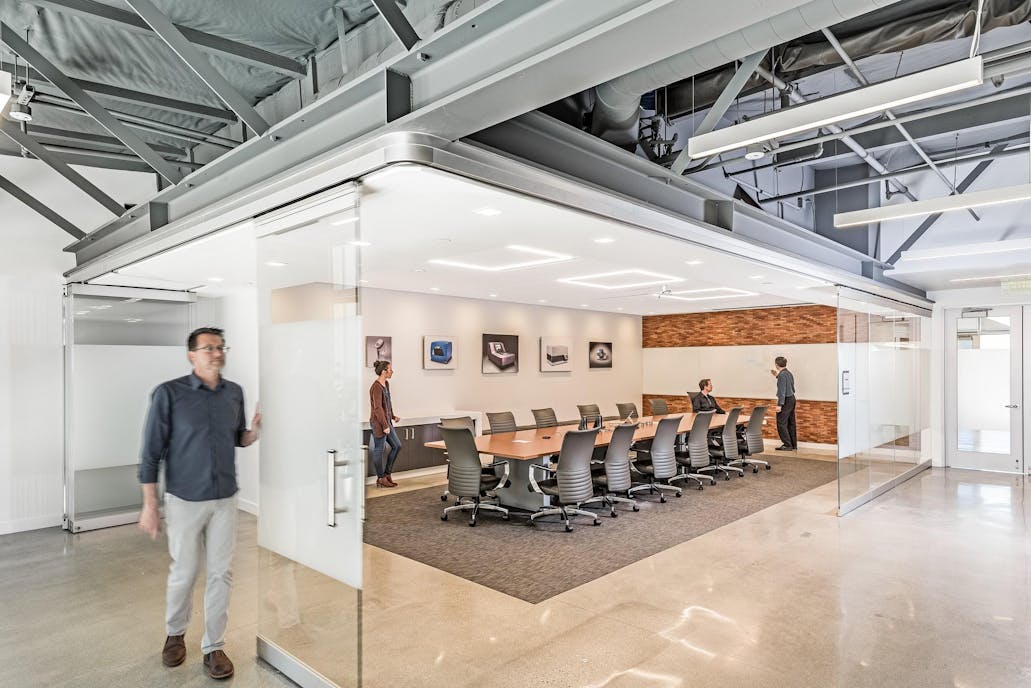

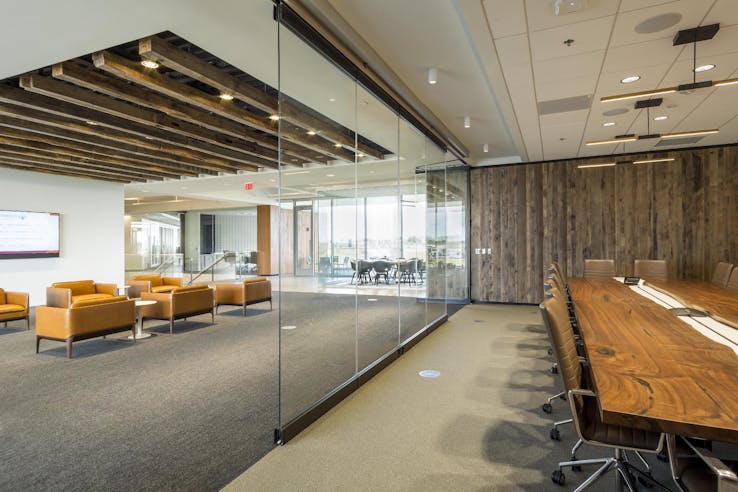

This office leveraged existing elevator lobby space to create a flexible, versatile public-facing conference room using a frameless opening glass wall.

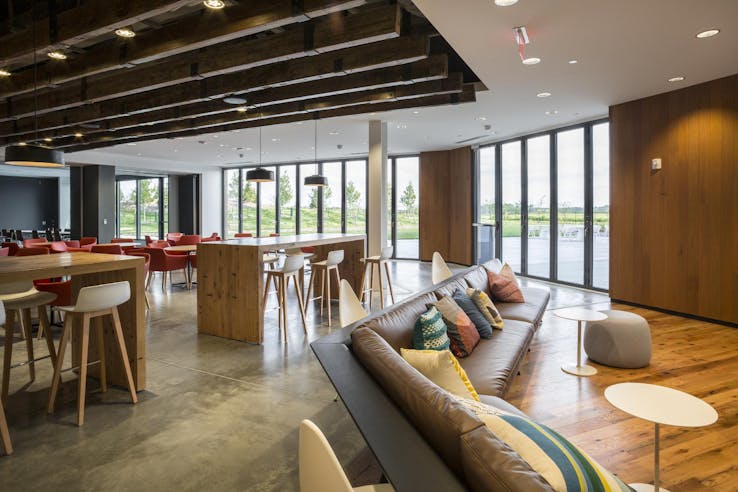

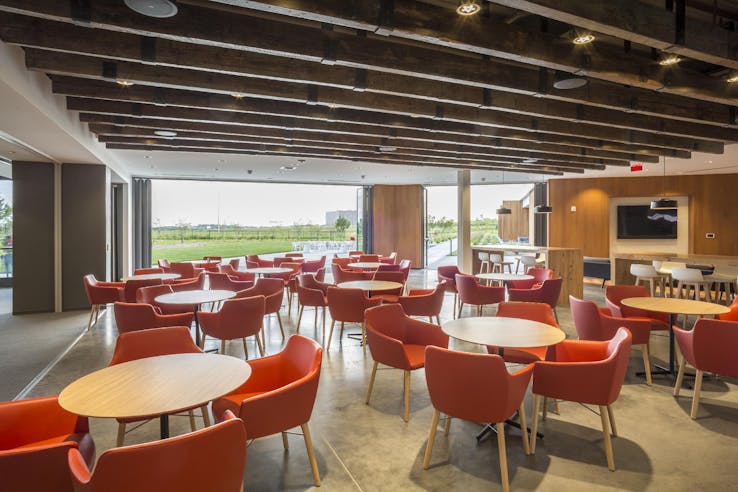

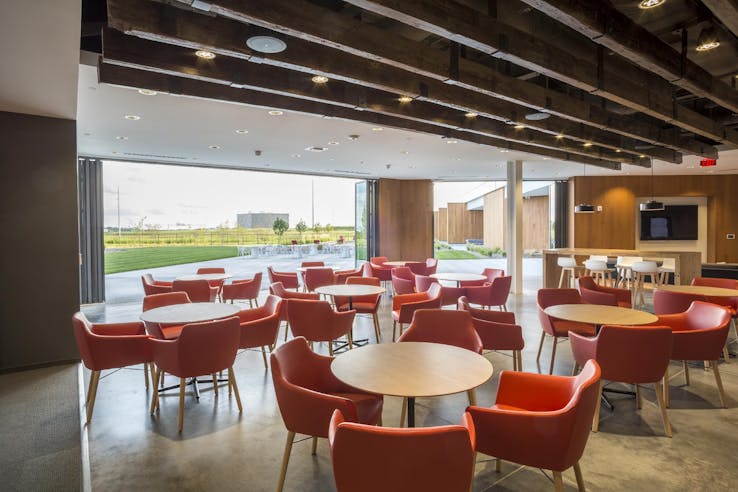

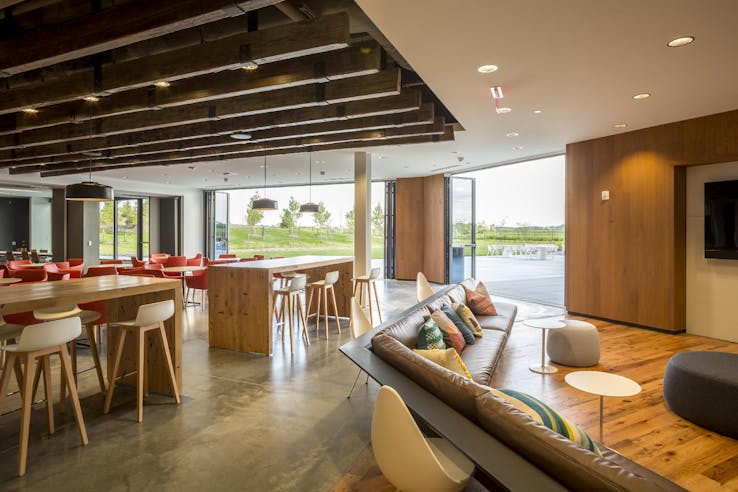

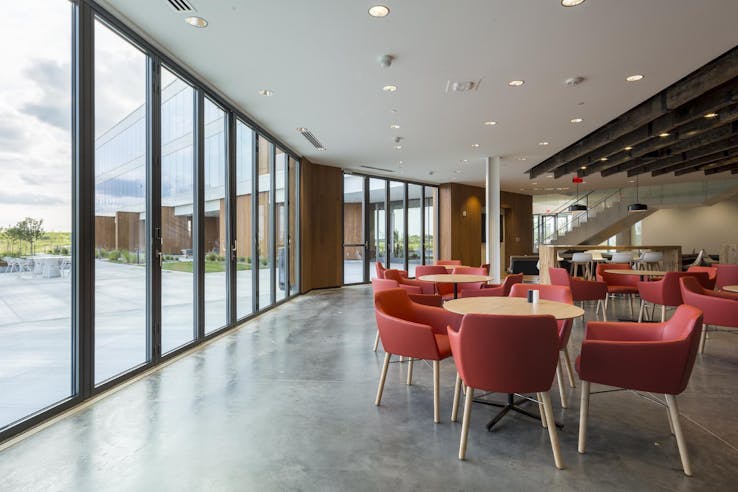

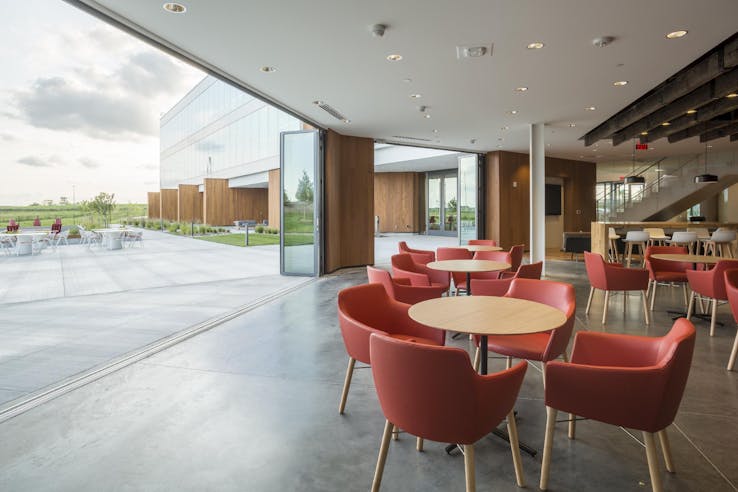

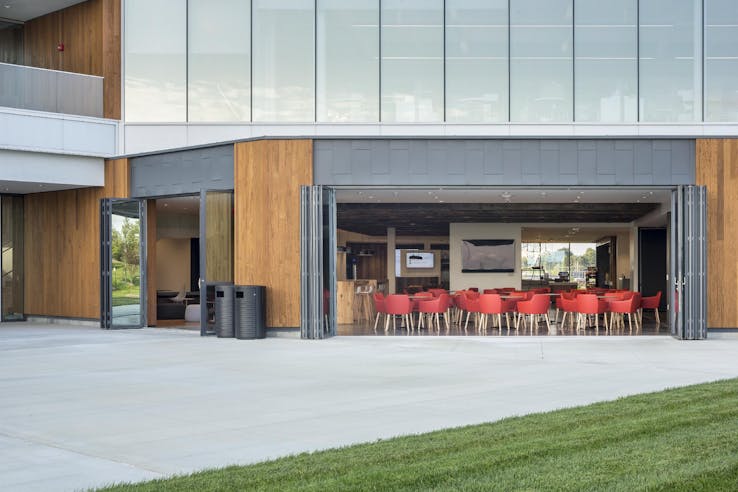

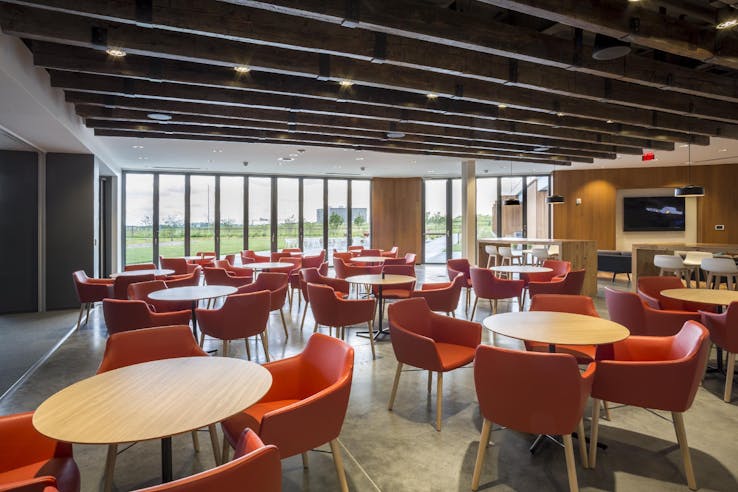

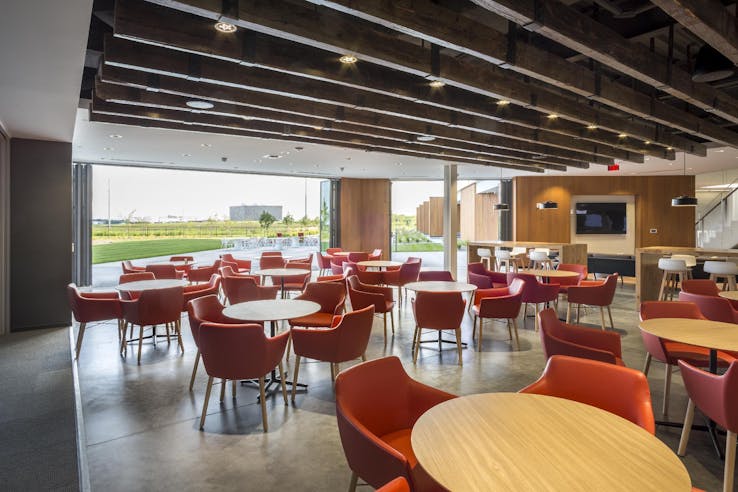

Dairy Farmers of America

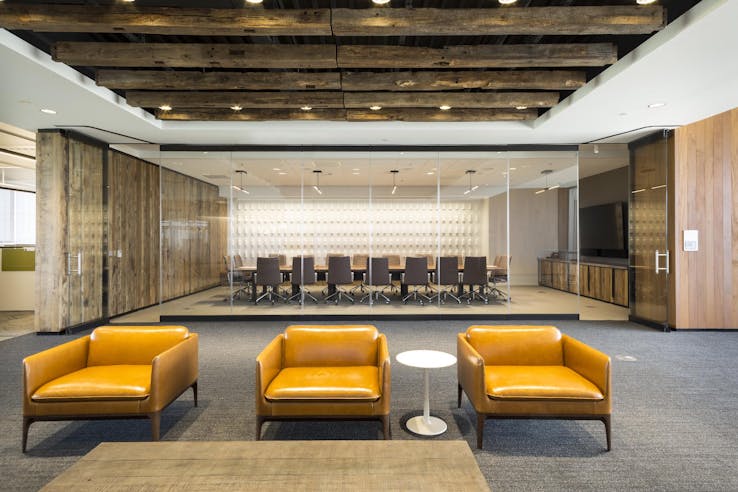

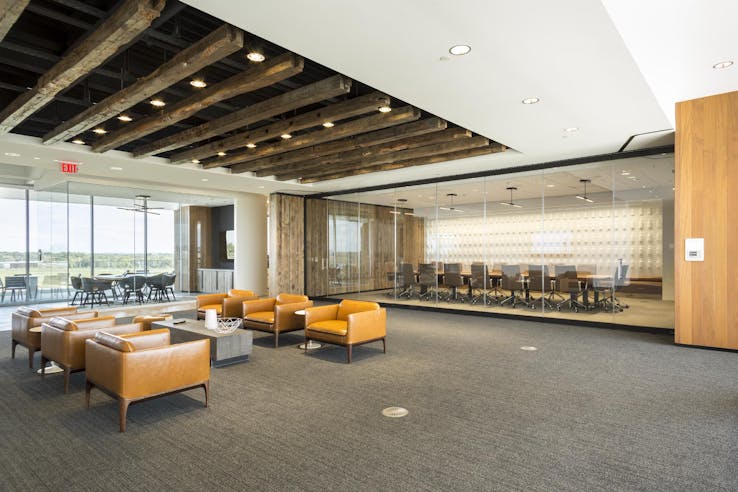

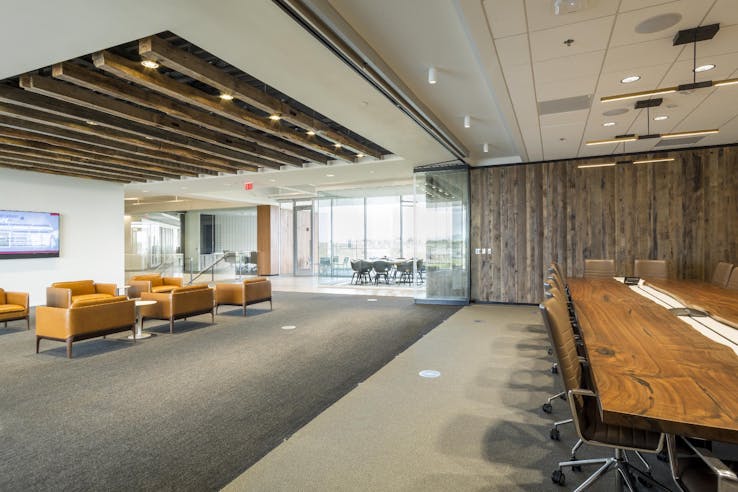

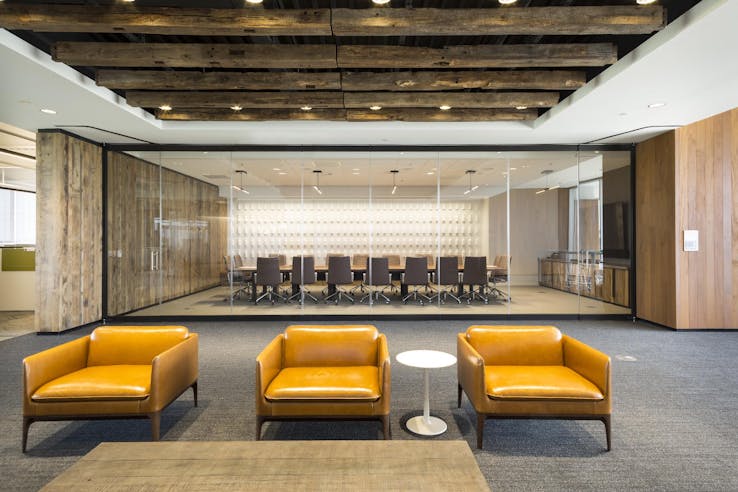

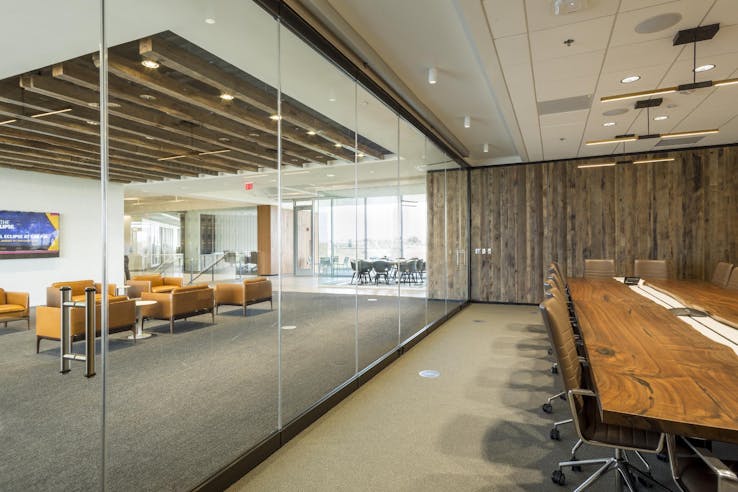

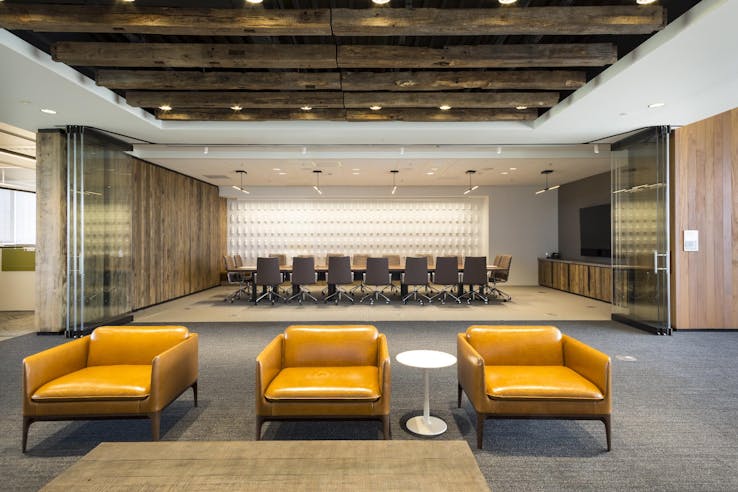

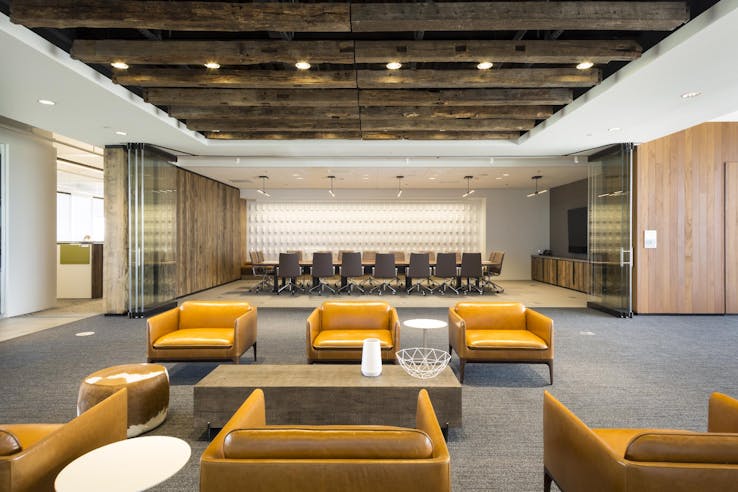

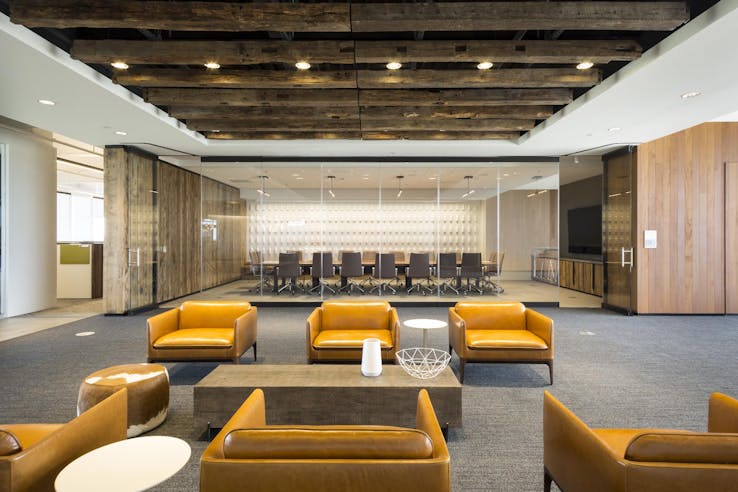

By designing the conference room with PrivaSEE, this office achieved a space with a high degree of acoustic privacy, while maintaining a sense of openness.
"The nicest meeting room we have in this building is the [PrivaSEE] boardroom."
Anodized and powder coat options available.Aluminum Colors Additional Powder Coating Finishes
Quick release floor bolt with spring loaded security feature, floor bolt with profile cylinder, TUBO 100See Locking Options
Our handles are both functional and stylish and can be customized to accentuate your space and reflect your style.See Handles Options
Standard glass thickness supplied is 1/2" (12 mm) tempered or (12.52 mm) laminated. To reduce glass stress, glass is clamp installed for equal distribution of weight.

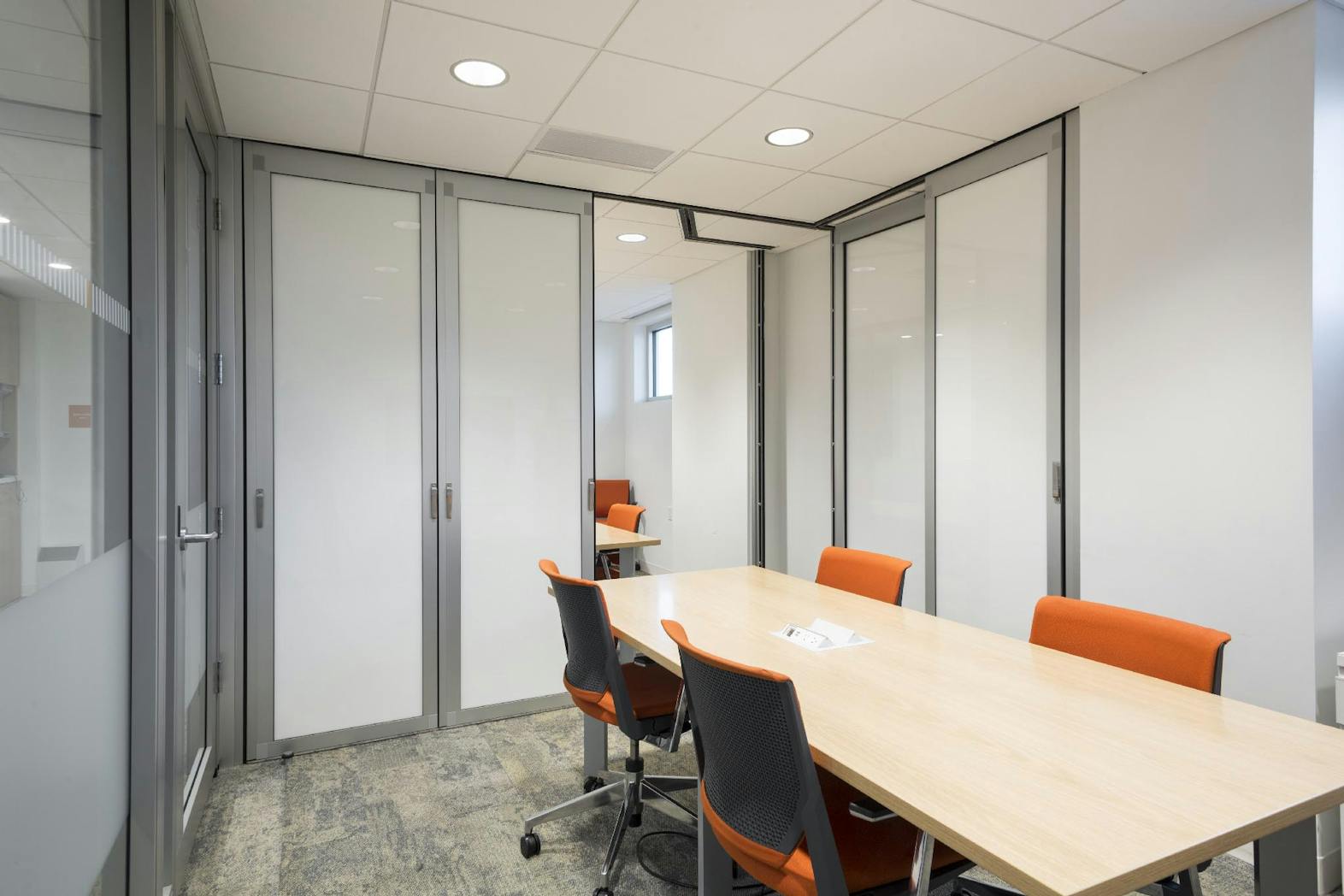

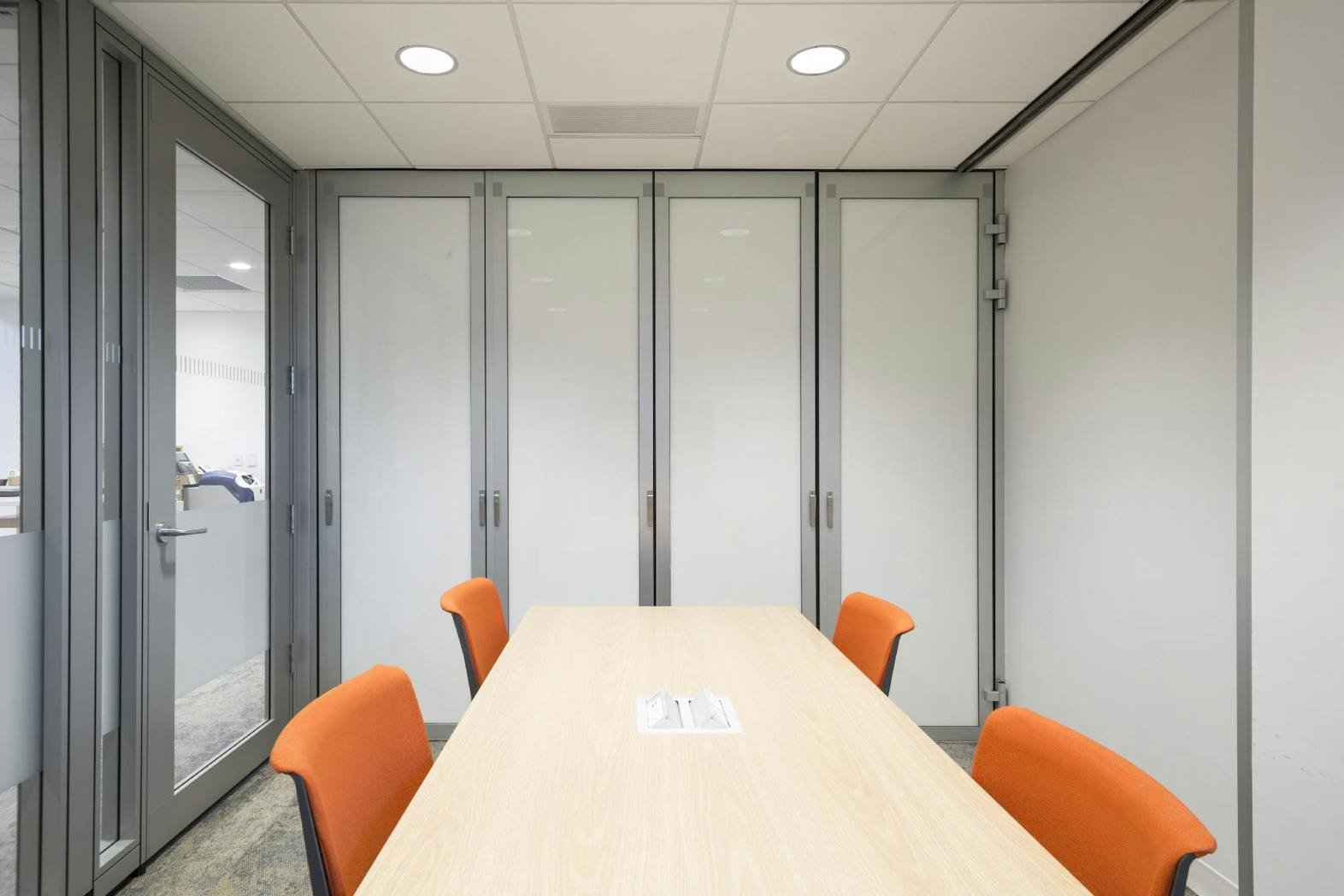

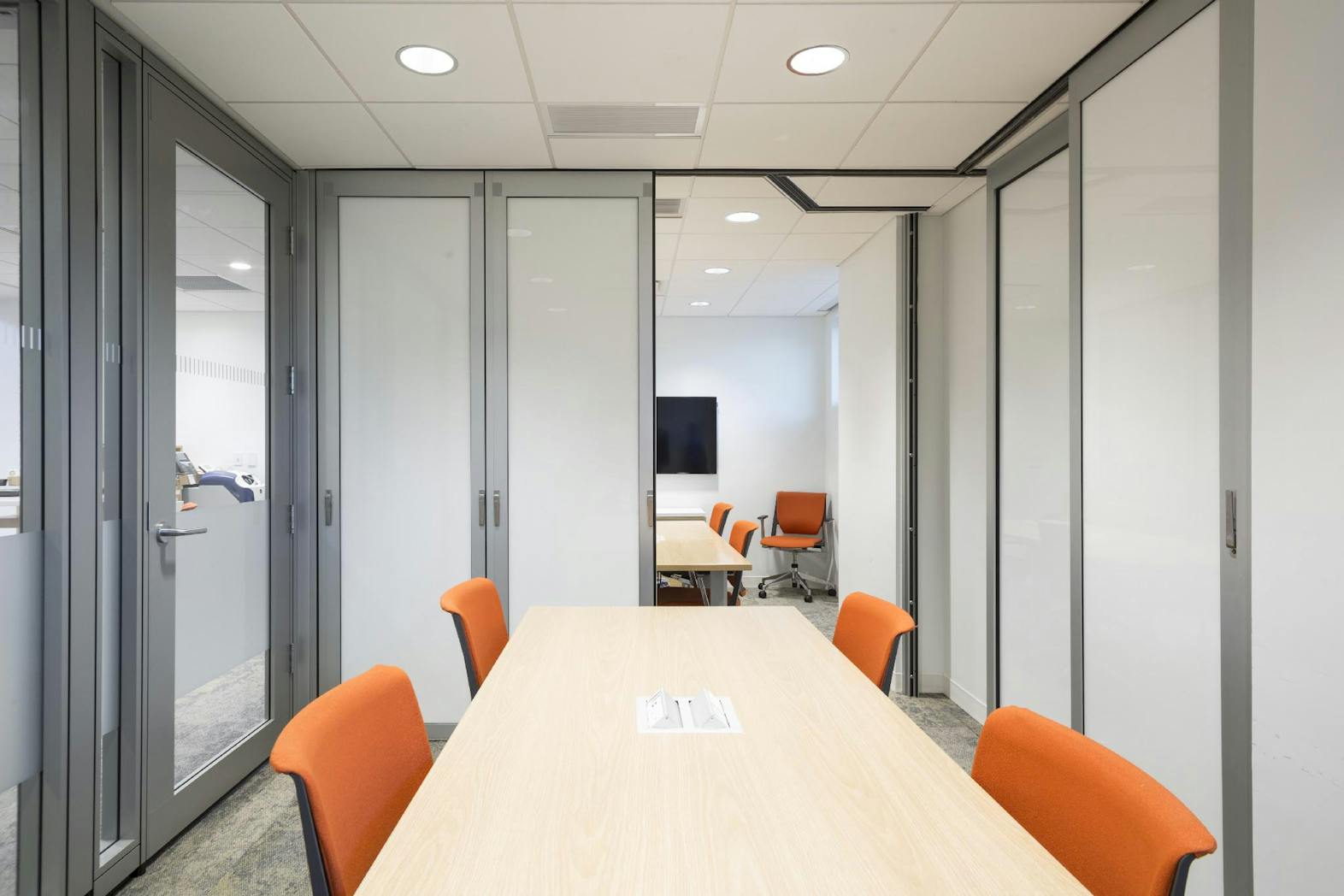

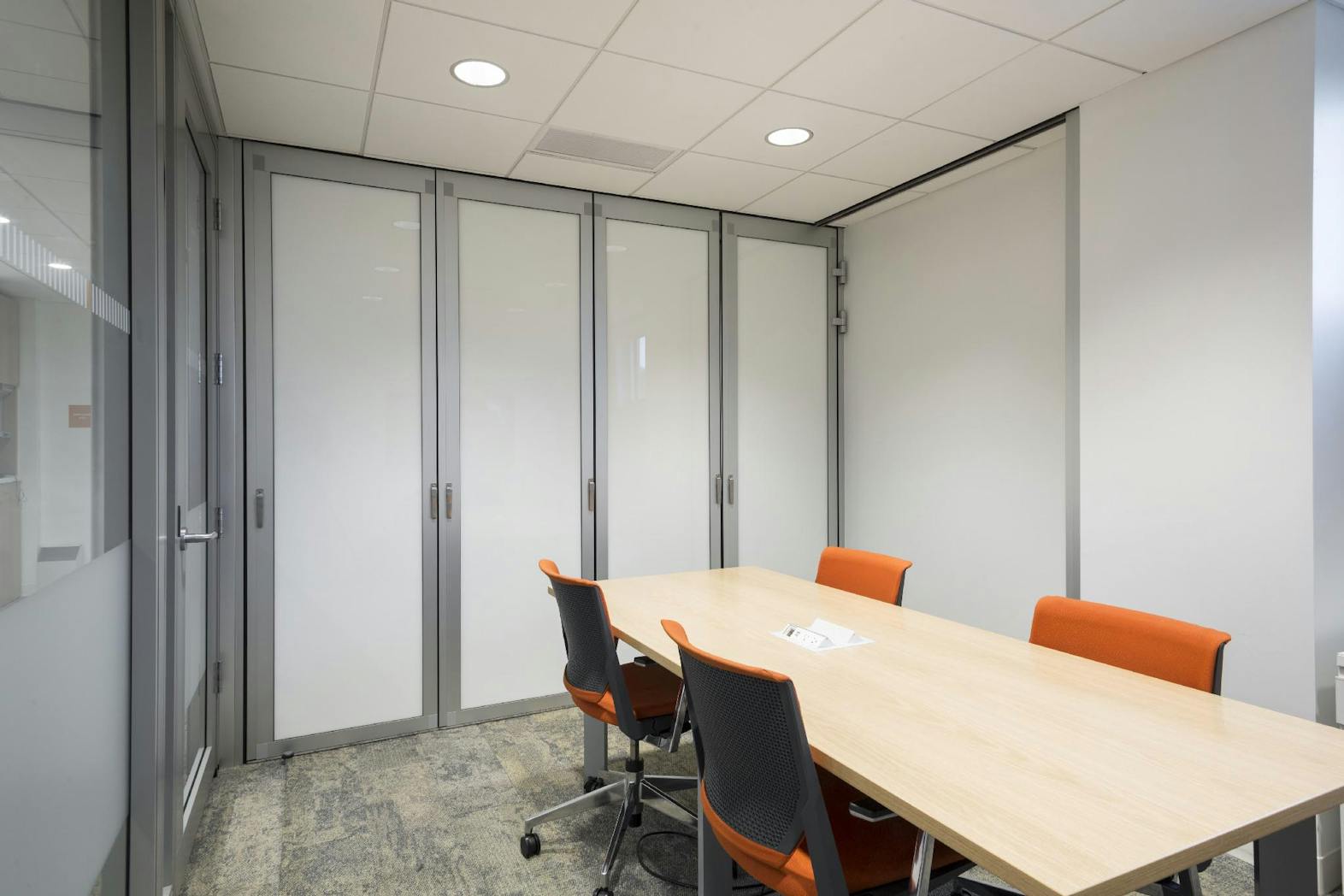

An optional white interlayer can be added for the closed panels to be used similarly to a white board. Additional glazing options include low iron or decorative glass. Please contact NanaWall Systems to verify.See Glazing Options
HSW75 options : Adjustable Floor Sockets, Dust Proof Socket.See Sill Options
Basic stacking concepts.More Configurations
Stack panels out of site, example of enclosed stacking area by othersMore Configurations

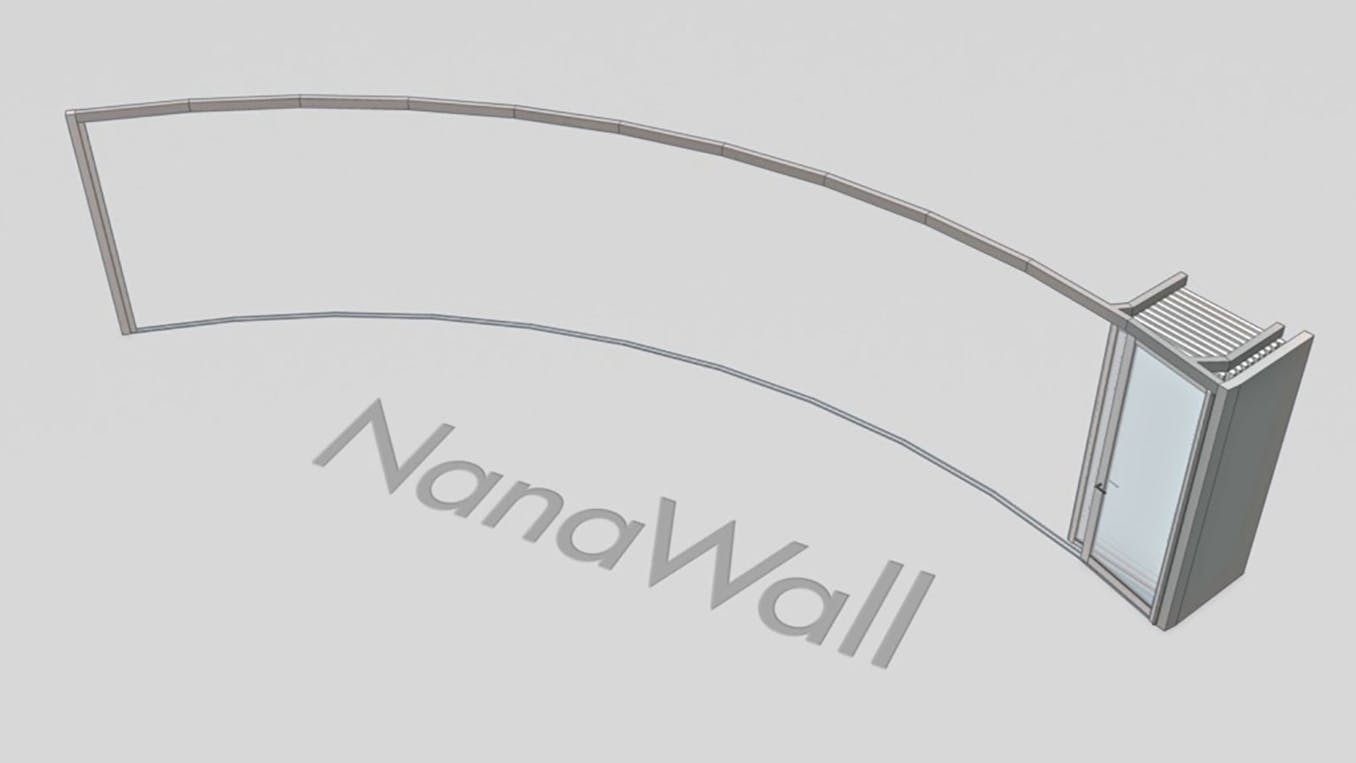

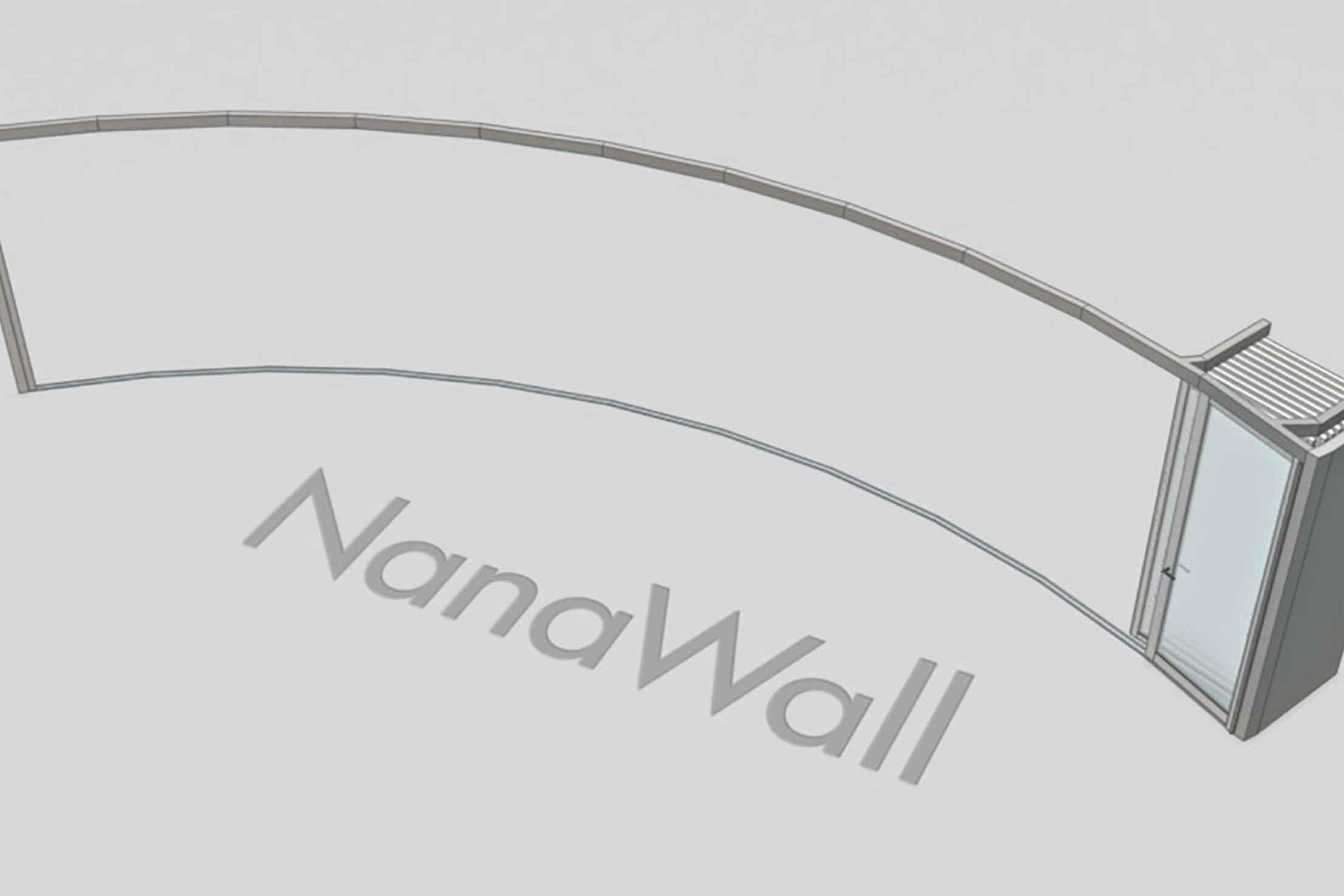

A true curved radius track, composed of an engineered single piece of meta
