High Velocity Hurricane Zone Approved
Floor Tracks

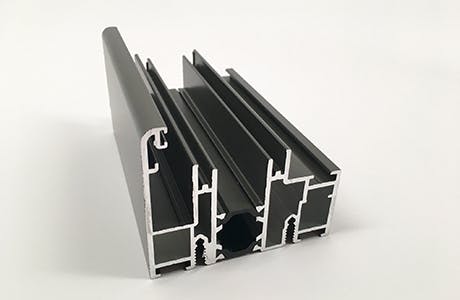

High Performance Sill (Raised)
- Our most weather resistant sill
- May be installed flush at interior floor with outswing units
- Thermally broken for better insulation and energy efficiency
- Click here for performance testing results
Low Profile Saddle Sill at Folding Panel
- Our most popular sill
- Thermally broken for better insulation and energy efficiency
- Partial or full insert available for ADA compliance
- Click here for performance testing results
- Generic Weep hole Installation Detail LPSS
Low Profile Saddle Sill at Swing Panel
- Our most popular sill
- Thermally broken for better insulation and energy efficiency
- Partial or full insert available for ADA compliance
- Click here for performance testing results
- Generic Weep hole Installation Detail LPSS
- Note:For ADA compliance in commercial projects, a gasket to cover the channel is provided
Low Profile Saddle Sill with UniverSILL® - Outswing
The UniverSILL is a patented gasket for the outswing Low Profile Saddle Sill. It can be added on when higher weather performance is needed or it can be removed for ADA compliance or barefoot freedom.
Handles
Stainless Steel Lever Handles
Stainless steel lever handles and escutcheon plates are available either in a brushed satin, black titanium or anti-viral/anti-microbial copper-nickel finish.
Brushed Satin
Black Titanium
Anti-Viral/Anti-microbial Copper-Nickel Finish
Solid Brass Lever Handles
Solid brass lever handles and escutcheon plates are available either in an Oil Rubbed Brass, Satin Nickel or a White finish.
Oil Rubbed Brass
Satin Nickel
White finish
STAINLESS STEEL STANDARD HANDLES
Stainless steel standard handles are available either in a brushed satin or black titanium finish.
View Stainless Steel Standard Handles Data Sheet
Brushed Satin
Black Titanium Finish
Stainless Steel Lever Handles with Return
Custodial Hardware
Custodial hardware is available to protect from unauthorized access or movement of panels.
Compatible Hardware by Other Manufacturers
Locking
Standard to the system is concealed locking between folding panels that operates with the 180° turn of a two-point locking standard handle. The top and bottom locking bolts have approximately a 1″ (24 mm) throw for maximum security engagement into the head and floor track.
Standard and Tested Locking Option on Primary Swing Panels:
1) Multi-point locking with deadbolt and latch and top and bottom locking bolts with approximately a 1″ (24 mm) throw into the head and floor track operated by lever handles and locked with a European profile cylinder or an adapter to accommodate a 7 pin SFIC core (SFIC core supplied by others).
Non-standard and Tested Commercial Locking Option on Primary Swing Panels:
1) Push/pull handles on both sides with deadbolt and one-point locking at the top and another one-point locking at the bottom of the panel with approximately a 1″ (24 mm) throw into the head and floor track. The deadbolt is locked with a European profile cylinder or an adapter to accommodate a 7 pin SFIC core (SFIC core supplied by others). One-point locking operated by 180° turn of flat handles located near the top and bottom of the panel on the inside only. Suitable for end swing panel only with door closer by others.
Standard and Tested Locking Option for Secondary Swing Panels:
1) Concealed two-point locking with top and bottom locking bolts have approximately a 1’’ (24 mm) throw for maximum security engagement into the head and floor track that operates with a 180° turn of a standard handle.
Non-standard and Tested Locking Options for Secondary Swing Panels:
1) Concealed two-point locking with top and bottom locking bolts have approximately a 1″ (24 mm) throw into the head and floor track that operates with a concealed flush bolt.
2) Concealed two-point locking with top and bottom locking bolts have approximately a 1’’ (24 mm) throw into the head and floor track that operates with a concealed flush bolt. Dummy lever handles on both sides.
For more hardware options, contact NanaWall.
Multipoint locking with latch, deadbolt and top/bottom locking rods
This option is possible only on primary swing door.
Includes top and bottom Polyamide capped locking rods, deadbolt, a compatible lock set with lockable latch and lever handles on the inside and outside. Depression of handles withdraws latch. Lifting of handles engages rods and turn of key or thumb turn engages deadbolt and operates lock.
Operable from inside and outside.
Deadbolt Lock
Possible only on primary or secondary swing panel.
Push Pull handles on both sides with deadbolt(s) operated by a lockset. Lockset option of having key operations on both sides. With a profile cylinder, panel is lockable with a thumbturn from the inside and a key from the outside. To keep the panel from being blown open, this option should be used with a door closer, but note that a door closer is not possible on a swing panel in a folding system that is not attached to a side jamb
Aluminum Colors
Shown are a selection of colors available Contact NanaWall for other possible finishes. The samples shown here are representative only. Please consult with your sales representative for actual samples.
Standard Anodized Finish
Other anodized finishes are available on request.
NanaWall Standard Powder Coating Finishes
Additional Powder Coating Finishes
NanaWall® offers over 200 RAL GLOSS powder coated and over 200 RAL MATTE powder coated colors for an additional upcharge.
Glass
Units can be supplied glazed with either annealed or heat strengthened 7/16" single impact glass or 1 1/8" insulated impact glass. According to the Dade County approval and engineering analysis, heat strengthened glass needs to be used for larger sized panels and/or higher design windloads; see product approval details. Please contact NanaWall for many other types of glazing that are available.
Glazing Area Options
Most commercially available tints can be used with the impact glazing used with NanaWall SL73. Custom layouts with simulated divided lites and high bottom rails are available.
