Combining Aluminum And Wood For Performance And Beauty
Features
Design
Durable Beauty
The NanaWall WA67 features a unique rain-screen cladding that protects the solid wood interior from exposure to weather, ensuring lasting beauty inside and out
Bringing out the best of both wood and aluminum
Low maintenance extruded aluminum cladding available in 50 standard color choices, along with a solid wood interior available in Pine, Spruce, Meranti, and Sapeli Mahogany. Custom color matching and other wood species are also available.
Perfect Clad, Solid Wood
Designed and produced in Germany, our aluminum-clad system is engineered to perform in heavy wind and rain environments. Featuring a 2 5/8" thick door panel with a rain-screen clad exterior and a solid wood interior. Add unlimited widths with the top-hung paired panel option, the concealed adjustable hinges, and heavy duty seals, we're confident this is the best clad system available today.
Operation

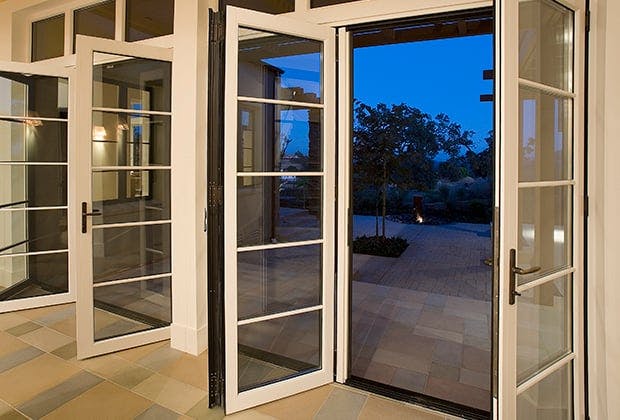

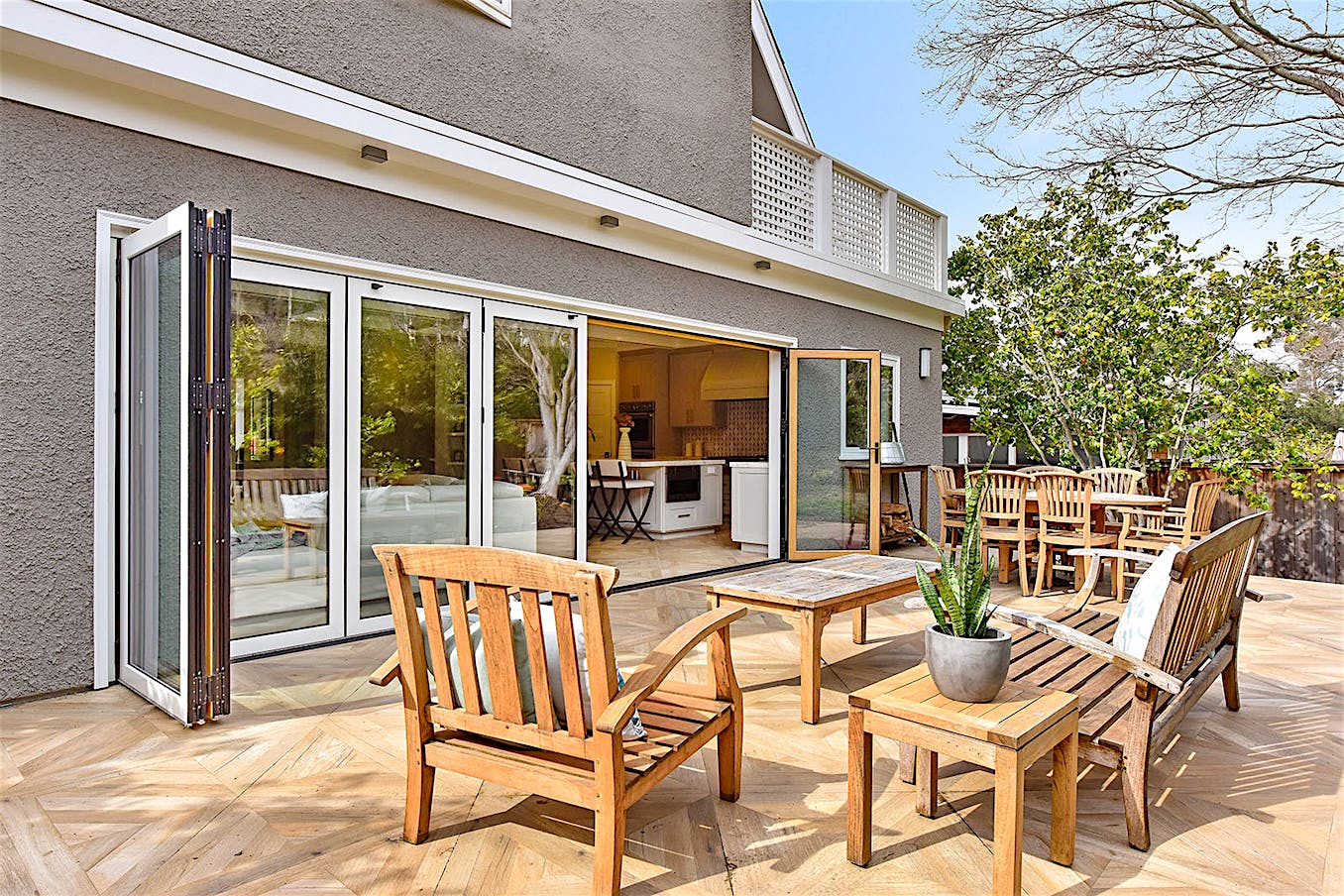

Swing Doors For Daily Use Inward Or Outward
You can add more flexibility by choosing a system configuration that includes a swing door for easy access. When you don't need to fully open the system, a swing door comes in handy. Select either inward or outward opening door panels, whichever best fits your design.
Hardware
Quiet And Smooth Top To Bottom

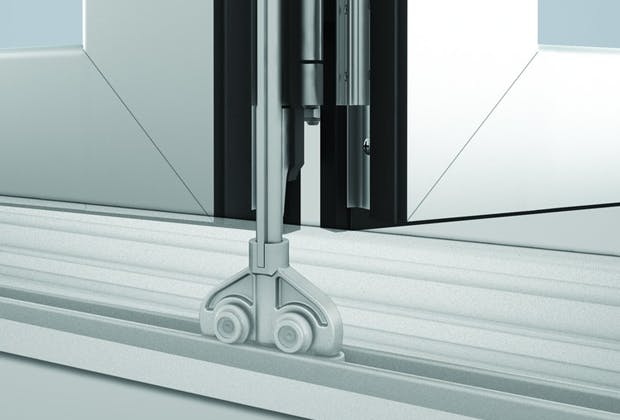

Roller hardware comes either top-hung or floor supported, whichever is preferred. Our sound-free roller material remains smooth and round even when stationary for long periods of time, resists extreme temperatures.
The entire system is life-cycle tested to open and close over 20,000 times without failure.
Concealed Locking Forced Entry Rated

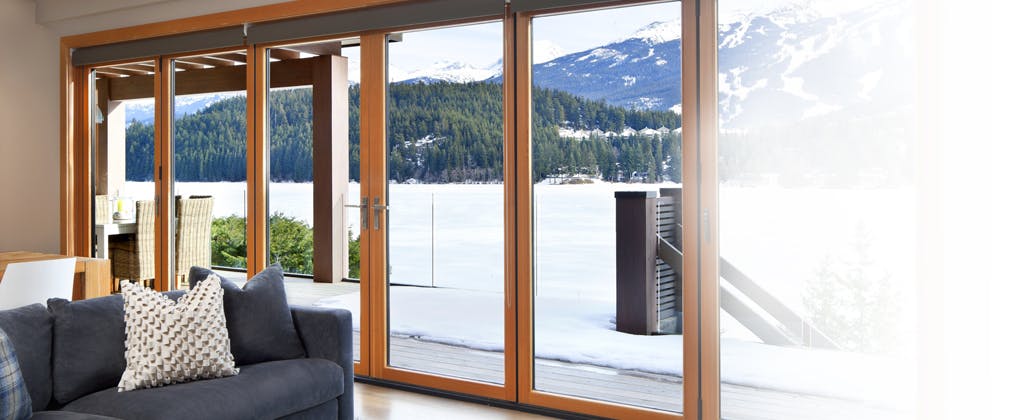

No unsightly exposed locking hardware, just an easy to operate, single-handed locking handle. No reaching or bending needed. All NanaWall systems have passed forced entry tests for security.
Options
Triple Seal Performance

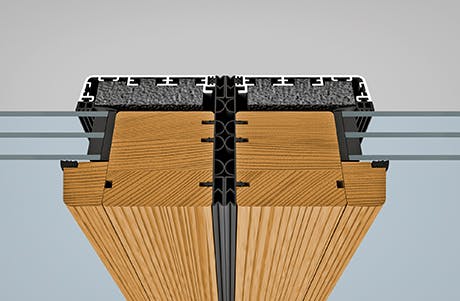

An enhanced option is available featuring triple-seals, triple-paned glass, and deeper door panels for even higher weather performance.
Certified Wood

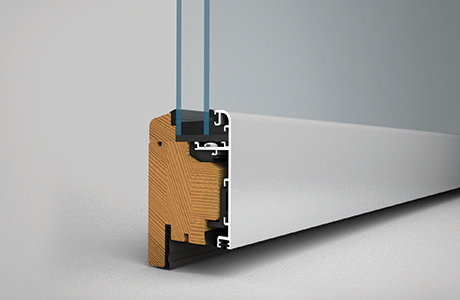

The WA67 is available in FSC certified wood species meeting responsible forestry standards
Floor Track Choices

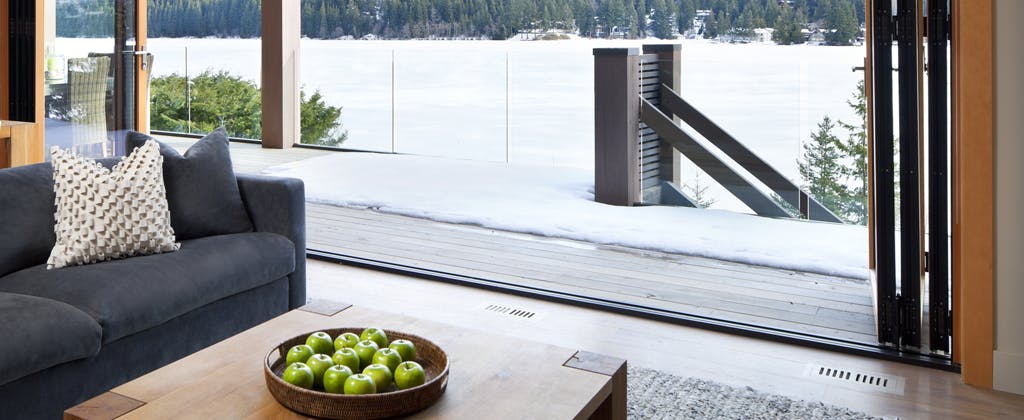

The NanaWall WA67 features floor tracks that are designed for various applications and weather exposure.
German Engineering
NanaWall systems are designed in Germany, providing world-class quality and long-term reliability
Unique to You
Each NanaWall system is custom made to order based on your project and your personal preferences
Wide Openings
NanaWall folding systems can replace walls or doors up to 39’ wide, select systems can go even wider if desired
Built to Perform
NanaWall systems meet or exceed air, water, structural, and forced entry tests for weather, durability, and security
Aesthetics
NanaWall systems offer a variety of material options and finishes to coordinate with any design
Ease of Operation
NanaWall systems offer single-handed operation and move smoothly with little effort
PERFORMANCE WHEN CLOSED MATTERS MOST
Large openings are easy to design and there are many options to choose from. When deciding on a product that best for your project, performance when closed needs to be considered.
All Climate Performance
NanaWall products are NFRC rated and certified for true energy efficiency in all climates.
Certified Testing Standards
NanaWall products endure the latest AAMA testing standards for air, water, structural, and forced entry.
Sustainable Design
NanaWall products contribute to multiple LEED rating systems and potentially several credit categories.
Air, Water, Structural, Thermal, Forced Entry & Acoustical Results
Florida Product Approval #26458.1
Please select a Sill from the following Options:
High Performance Sill
Low Profile Sill
Flush Sill
High Performance Sill with 97mm Profile
Design Windload Chart
Configurations
Size Charts
Floor Tracks
High Performance Sill (Top Hung)
- Our most weather resistant sill
- May be installed flush at interior finished floor with outswing units
- Thermally broken for better insulation and energy efficency
- Available in Clear or Bronze Anodized finishes
- Click here for performance testing results
* Photo shown is for an inswing system. The outswing system sill is a mirror.
Low Profile Saddle Sill (Top Hung)
- Our most popular sill
- Partial or full insert available for ADA compliance
- Available in Clear or Bronze Anodized finishes
- Click here for performance testing results
Flush Sill (Top Hung - Exterior)
- For protected exteriors
- Where water performance is not needed
- Insert available for ADA compliance
- Click here to view alternate flush sill (top hung) option
Flush Sill (Top Hung - Interior)
- For interiors or protected exteriors
- Where water performance is not needed
- Insert available for ADA compliance
- Click here to view alternate flush sill (top hung) option
Low Profile Saddle Sill (Floor Supported)
- Sill rests above the subfloor for easier installation
- Adjustable flanges and available insert for ADA compliance
- For interiors
- Available in Clear or Bronze Anodized finishes
FLUSH Sill (Floor Supported)
- For protected exteriors
- Where water performance is not needed
- Insert avaliable for ADA compliance
- Click here to view alternative flush sill(top hung) option
Handles
Stainless Steel Lever Handles
Stainless steel lever handles and escutcheon plates are available either in a brushed satin or black titanium finish.
Stainless Steel Flat Handles
Stainless steel flat handles are available either in a brushed satin or black titanium finish.
Solid Brass Lever Handles
Solid brass lever handles and escutcheon plates are available either in a Oil Rubbed Brass, Satin Nickel or a White finish.
Other Flat Handle Options
Flat handles are available in Dark Brown, Dark Grey, Silver Grey (Not Shown) and White.
Custodial Hardware
Custodial hardware is available to protect from unauthorized access or movement of panels.
Compatible Hardware by Other Manufacturers
Locking
Multipoint locking with latch, deadbolt and top/bottom locking rods
This option is possible only on primary swing door.
Includes top and bottom Polyamide capped locking rods, deadbolt, a Schlage compatible lock set with lockable latch and lever handles on the inside and outside. Depression of handles withdraws latch. Lifting of handles engages rods and turn of key or thumb turn engages deadbolt and operates lock.
Operable from inside and outside.
Two Point Locking
Standard between each pair of bi-fold panels and an option for swing panels. 180 degree turn of handle moves locking rods up or down. Uses 7 mm spindle.
Operable from inside only.
Deadbolt Lock
Possible only on primary or secondary swing panel.
Pull handles on both sides with deadbolt(s) operated by a lockset. Lockset option of having key operations on both sides. With a profile cylinder, panel is lockable with a thumbturn from the inside and a key from the outside. To keep the panel from being blown open, this option should be used with a door closer, but note that a door closer is not possible on a swing panel in a folding system that is not attached to a side jamb
Wood Finish
Eco Friendly Water Based Pre-treatment on Wood
CLEAR SANDING SEALER (FIELD APPLIED FINAL FINISH BY OTHERS)
Standard Wood Species
Pine
Spruce
Meranti
Sapeli Mahogany (FSC Certified)
OPTIONAL WOOD SPECIES - AVAILABLE WITH UPCHARGE
Douglas Fir
Oak
Cherry
Maple
Pine 410
Pine 510
Douglas Fir 410
Douglas Fir 510
Please note that wood have naturally occurring differences in grain patterns. The samples may vary from the wood received for your project.
Before installation in the project, your NanaWall® must be finished with at least two coats for a final protected finish.
All factory-applied wood care products are water based and environmentally friendly. They are manufactured by Sikkens and specially designed for NanaWall®.
Aluminum Colors
Shown are a selection of colors available.Contact NanaWall for other possible finishes. The samples shown here are representative only. Please consult with your sales representative for actual samples.
Standard Anodized Finish
Other anodized finishes are available on request.
NanaWall Standard Powder Coating Finishes
Additional Powder Coating Finishes
NanaWall® offers over 200 RAL GLOSS powder coated and over 200 RAL MATTE powder coated colors for an additional upcharge.
Glass
Units are supplied glazed with 1" (26 mm) double clear insulating safety or insulating Low-E safety glass or 1 1/2" (3 mm) triple insulating Low-E safety or other high performing safety glass such as Heat Mirror, special tint, etc., or other glass on request.
Glazing Area Options
Most commercially available glazing such as insulated Low-E glass can be used with a NanaWall. Custom layouts with horizontal mullions, simulated divided
Accessories
Screening Accessories
Transforming walls and delivering a dream design can be achieved where weather or flying insects would normally prevent the practicality of creating an open space. A retractable screen add-on is perfect for blocking bugs while providing privacy and fresh air. The retractable screens are available in two options:
- Screen ONE
- Screen Classic
Matching Windows
European style dual-action windows, complement a NanaWall system. Offering tilt-in operation and large inswing openings. Choose from both operable and fixed matching windows types for your project.
Matching French Doors
NanaWall Matching French Doors are available as single doors or pairs. Very narrow stiles and rails are possible.
NanaWall French Doors use exactly the same profiles and hardware as the matching NanaWall Folding Glass Walls. Hence, the same size charts, glazing options, wood/finish options and finish hardware options as the matching NanaWall Folding Glass Walls are applicable.
The same testing performance results also apply (within a folding system, with an odd number of panels stacking to one side, the last panel is a swing door).
Photos
Ohio Homearama 2006 Showhouse
Aspen Residence
Aspen Vision House
Brooklyn Residence
Chappaqua Kitchen
Chautauqua Institution School of Music
Videos
Animations
Downloads
Technical Resources
architectural binder
Specifications
installation manuals/ owner's manuals
View our Brochures and Photo Ideabooks online by clicking on the images below. For mailed copies, please submit the form below.
NanaWall Brochures
NanaWall Product Brochures
NanaWall Vertical Market Brochures
Photo Ideabooks
3D Models, Revit & AutoCAD Details
Specifications
Installation
Certified Installers
All opening requirements and surrounding conditions must be ready and meet the NanaWall supplied drawings before the certified installer arrives. Installers can review the openings before installation to ensure accuracy and verify all opening requirements have been met. Upon completion, the certified installer will ask to have a sign-off sheet completed, this will ensure your satisfaction with the installation of your NanaWall system. The certified installer will be available for a complete operational demonstration at time of installation.
NanaWall helps certified installers through continuous education to make sure they are up to date on all of our 20+ different systems. Their training process includes extensive education for both folding and sliding systems. Our installation management team makes periodic site visits to ensure the high standard of quality installation is maintained. Due to the extensive training your certified installer receives, it will ensure your NanaWall System is installed right, on-time, and hassle-free.
A benefit using certified installers is increased warranty coverage (review for details) of your new NanaWall system. Many areas have both commercial and residential trained installers.
Preventative Maintenance and Repair Services Available
Certified installers are available for servicing, repairs, and routine maintenance of your system.
Please contact your local NanaWall Sales Representative to arrange certified installation services for your project.
Installation Considerations
The approximate weight of a panel is the following:
Tempered Single Glazing: 4 - 4.5* lbs/sqft
Insulated Tempered Glazing: 5.5 - 8* lbs/sqft
Tempered Triple Glazing: 6 - 8.5* lbs/sqft
* The higher values applies to taller units
Single Impact Glazing: 8 lbs/sqft
Insulated Impact Glazing: 11 lbs/sqft
For the HSW75, FSW75, CSW75, PrivaSEE, and ClimaCLEAR systems the weight of a panel with 1/2" glass is 8 lbs/sqft.
For cero II the approximate weight of a panel for double glazed is 10 lbs/sqft and for double glazed laminated is 12 lbs/sqft.
For cero III the approximate weight of a panel for triple glazed is 13 lbs/sqft and for triple glazed laminated is 15 lbs/sqft.
The vertical structural deflection of the header should be the lesser of L/720 of the span and 1/4" under full loads. Structural support for lateral loads (both windload and when the panels are stacked open) must also be provided.
For floor supported systems (SL70, SL73, SL82, SL60u, WA67u and WD66u, please note that there is no vertical load on the header).
It is recommended that all building loads be applied to the header prior to installing the NanaWall. If so and if a reasonable amount of time has been allowed for the effect of this dead load on the header, only then can the building's live can be used to meet the above requirements of L/720 or 1/4". If not, both the dead and live loads needs to be considered.
Installation Information
Please see the Installation Instructions / Owner's Manual for each system.
NanaWall Systems, Inc. has independent, factory trained installers throughout North America, including Mexico, Canada, Caribbean and Central America. Choosing a trained installer ensures the best possible installation of your new NanaWall. Having folding or sliding walls installed has never been easier.
Installation Videos
Pricing
The Question of Pricing
NanaWall is a custom product tailored specifically for your project needs. Numerous features and options make up the price: type of system (we offer 20+), custom opening and panel size, glass type, door hardware, finish choice…to name a few. The best way to determine price is to consult with your local area NanaWall architectural representative and get a quote, directly from NanaWall, for the exact system that best meets your project requirements and budget. Or, better yet, experience our products firsthand by making an appointment to visit by one of our 25 showrooms to learn why NanaWall is your best choice.
Typical Residential Pricing Example
An example pricing guideline for our more versatile residential folding thermally broken aluminum system SL60 with 50 standard color options, choice of standard inswing or outswing, top-hung or floor supported, starts from $700 linear foot. This German engineered and American produced folding glass wall has a lead time of 7 – 9 weeks from order sign off to curbside delivery at your jobsite.
Project Tips For Budgeting
Optimize By Size
Every NanaWall system is customized based on your design requirements. Budgeting starts with overall size of the opening and is dependent on the total number of panels required.
General Pricing Guidelines:
- Total # of panels directly affect pricing
- Larger overall panels affect pricing
- Optimized size and panels offer best pricing
Product Family Matters
There are 3 NanaWall product families each with a specific design specialty, select the best fit based on your project needs.
General Pricing Guidelines:
- Folding products for most common applications and weather performance
- Sliding products for more complex design requirements are priced higher than folding
- Frameless products for interior are priced similarly to sliding products while outdoor rooms or balconies are priced lower than folding
There's Only One NanaWall System
Every NanaWall system is custom produced based on your design. Choose from included options to optimize pricing, all specialty options affect pricing.
General Pricing Guidelines:
- Custom color matching affects pricing
- Specialty glass affects pricing
- Decorative SDL's affect pricing
