Clean Lines Design Flexibility for Special Applications in Solid Wood
Standard Configurations
Cornerless Folding Configurations for SL45, WD65,
Below are a sample of possible configurations. Please contact NanaWall for many other possibilities.
Shown below are some typical variations:
- Odd number of panels meeting odd number of panels
- Odd number of panels meeting even number of panels
- Even number of panels meeting even number of panels
All standard configurations are available in cornerless options.
Please contact NanaWall if CAD is needed for other configurations.
Paired Panels
Below are a sample of possible configurations. Contact NanaWall for many other possibilities.
In any standard folding configuration, between folding panels stacking to the left and folding panels stacking to the right, additional floating left/right paired panels, fourfold or sixfold panel sets can be added. Shown are some typical examples.
Please contact NanaWall if CAD is needed for other configurations.
Center Pivot
Below are a sample of possible configurations. Contact NanaWall for many other possibilities.
Inward / Outward Combination Opening
Below are a sample of possible configurations. Contact NanaWall for many other possibilities.
Shown below are some typical variations. All standard configurations are available in inward/outward options.
In any configuration, panels folding to one side can be stacked in the opposite direction to the panels folding to the other side.
In other words, panels folding to the left can stack to the inside and the panels folding to the right can stack to the outside and vice versa.
Please contact NanaWall if CAD is needed for other configurations.
FoldFlat® Configurations
Below is a sample of possible FoldFlat® Configurations. For larger opening requirements, an up to three panel FoldFlat® system on one side can be combined with a standard chain of bi-fold doors of the same system
Segmented Paired Panels for SL45 and WD65
Below are a sample of possible configurations. Please contact NanaWall for many other possibilities.
Window Door Combinations
Below are a sample of possible configurations. Please contact NanaWall for many other possibilities.
Floor Tracks

Standard Sill
- Ideal for most applications
- Available in Clear or Bronze Anodized finishes
- Click Here for Performance Testing Results

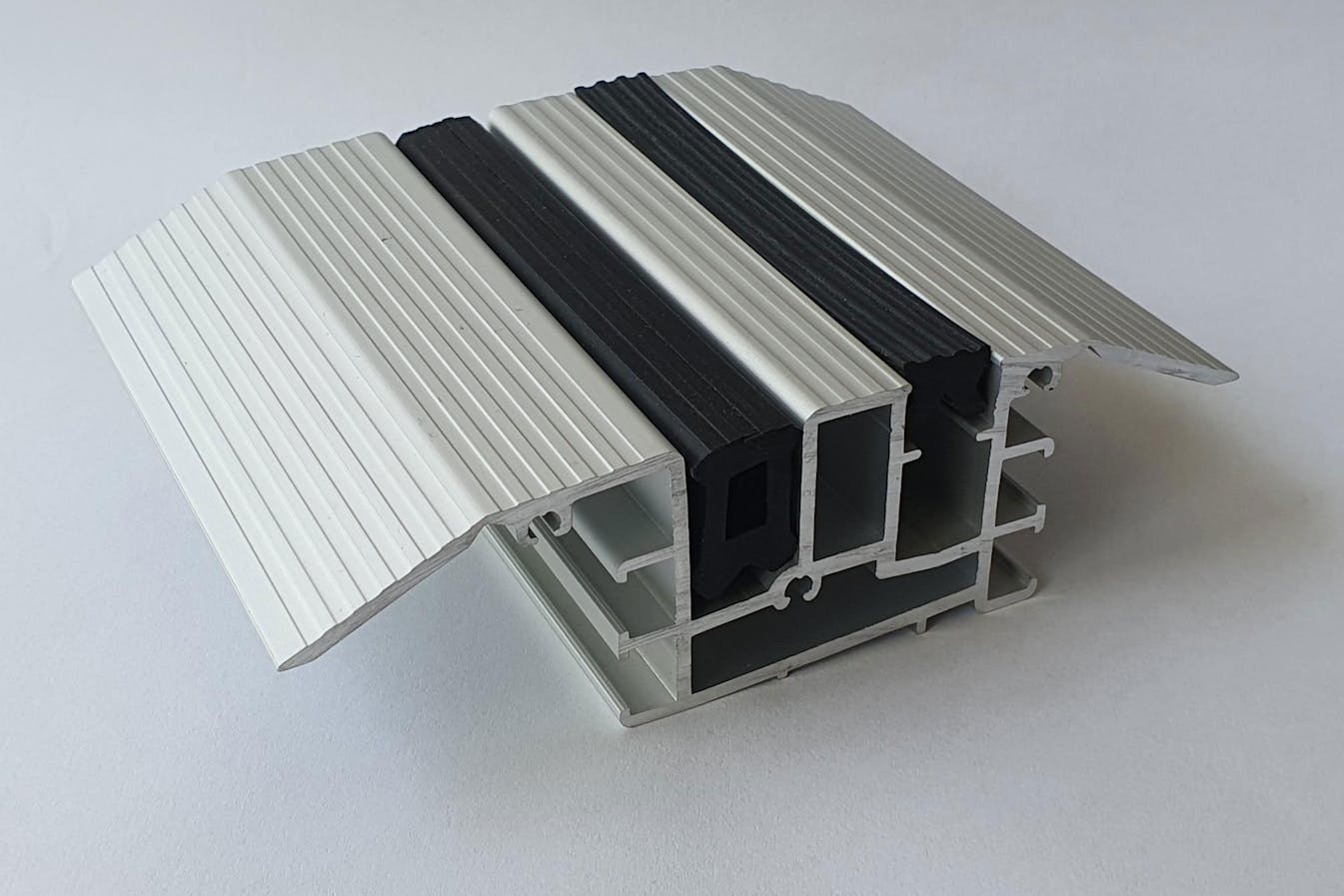

Low profile Saddle Sill
- Our most popular sill
- Available in Clear or Bronze Anodized finishes

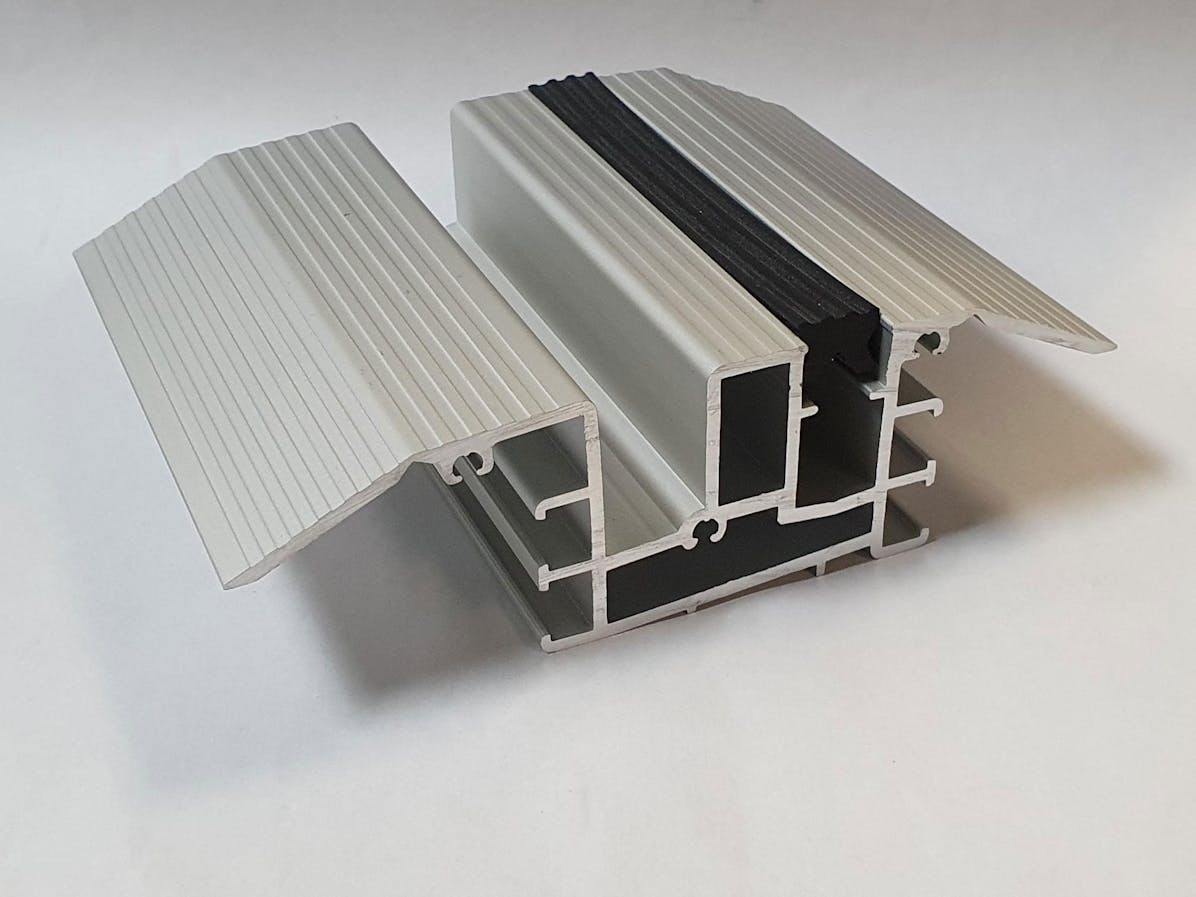

- Partial or full insert available for ADA compliance
- Click here for performance testing results

Low profile Saddle Sill at Swing Panel
- Our most popular sill
- Available in Clear or Bronze Anodized finishes
- Partial or full insert available for ADA compliance
- Click here for performance testing results
- Generic Weep hole Installation Detail LPSS
Flush Sill
- For interiors or protected exteriors
- ADA Compliant with insert
- Available in Clear or Bronze Anodized finishes
- Click Here for Performance Testing Results
Flush Sill at swing panel
Surface Mounted Interior Sill
- Sill rests above the subfloor for easier installation
- Adjustable flanges and available insert for ADA compliance
- For interiors only
- Available in Clear or Bronze Anodized finishes
SURFACE MOUNTED SILL AT SWING PANEL
*Sills shown for illustrative purposes only. Weep holes by others necessary for water rating not shown.
*Depiction of surrounding conditions may not be accurate.
*No typical waterproofing, water drainage, flashing, shim space etc… is shown
Handles
Stainless Steel Lever Handles
Stainless steel lever handles and escutcheon plates are available either in a brushed satin, black titanium or anti-viral/anti-microbial copper-nickel finish.
Brushed Satin
Black Titanium
Anti-Viral/Anti-microbial Copper-Nickel Finish
CONTEMPORARY STAINLESS STEEL HANDLE
Stainless steel flat handles are available either in a brushed satin, black titanium or anti-viral/anti-microbial copper-nickel finish.
Brushed Satin
Black Titanium
Anti-Viral/Anti-Microbial Copper-Nickel Finish
Solid Brass Lever Handles
Solid brass lever handles and escutcheon plates are available either in an Oil Rubbed Brass, Satin Nickel or a White finish.
Oil Rubbed Brass
Satin Nickel
White finish
Other Flat Handle Options
Flat handles are available in Dark Brown, White Aluminum, White or matching powder coat finish.
Dark Brown
White Aluminum
White or Matching Powder Coat Finish
Stainless Steel Lever Handles with Return
Custodial Hardware
Custodial hardware is available to protect from unauthorized access or movement of panels.
Compatible Hardware by Other Manufacturers
Locking
Standard to the system is concealed locking between folding panels that operates with a 180° turn of a flat handle. The top and bottom locking bolts have approximately a 1′′ (24 mm) throw for maximum security engagement into the head and floor track.
Standard and Tested Locking Options on Primary Swing Panels:
1) Multi-point locking operated by lever handles with European profile cylinder or an adapter to accommodate a 5-7 pin SFIC core (SFIC core supplied by others). Locking is independently tested for acoustics, structural, air, water and forced entry.
Non-standard Commercial Locking Options on Primary Swing Panels:
1) Push/pull handle on both sides with deadbolt and lockset with key operation. Secured with European profile cylinder or an adapter to accommodate a 5-7 pin SFIC core (SFIC core supplied by others). Suitable for end swing panel only with door closer by others.
2) Panic hardware (prepped, supplied and installed by others):
a) Von Duprin 33/35A Series Narrow Stile Rim Exit Device
Standard and Tested Locking Option for Secondary Swing Panels:
1) Concealed two-point locking with top and bottom locking bolts have approximately a 1′′ (24 mm) throw for maximum security engagement into the head and floor track. Locking is independently tested for structural, air, water, and forced entry.
Non-standard Locking Option for Secondary Swing Panels:
1) Dummy lever handles on both sides with concealed flush bolts that operates the rods at the top and bottom.
For more hardware options, contact NanaWall.
Multipoint locking with latch, deadbolt and top/bottom locking rods
This option is possible only on primary swing door.
Includes top and bottom Polyamide capped locking rods, deadbolt, a compatible lock set with lockable latch and lever handles on the inside and outside. Depression of handles withdraws latch. Lifting of handles engages rods and turn of key or thumb turn engages deadbolt and operates lock.
Operable from inside and outside.
Two Point Locking
Standard between each pair of bi-fold panels and an option for swing panels. 180-degree turn of handle moves locking rods up or down. Uses 7 mm spindle.
Operable from inside only.
Deadbolt Lock
Possible only on primary or secondary swing panel.
Push Pull handles on both sides with deadbolt(s) operated by a lockset. Lockset option of having key operations on both sides. With a profile cylinder, panel is lockable with a thumbturn from the inside and a key from the outside. To keep the panel from being blown open, this option should be used with a door closer, but note that a door closer is not possible on a swing panel in a folding system that is not attached to a side jamb
Wood Finishes
Eco Friendly Water Based Pre-treatment on Wood
CLEAR SANDING SEALER (FIELD APPLIED FINAL FINISH BY OTHERS)
Standard Wood Species
Standard Wood Species
Pine
Spruce
Meranti
Sapeli Mahogany
(FSC Certified)
Western Hemlock
(PEFC Certified)
OPTIONAL WOOD SPECIES - AVAILABLE WITH UPCHARGE
Oak
Cherry
Maple
Pine 410
Pine 510
Additional Wood Species Available Upon Request - Please Contact NanaWall
Please note that wood has naturally occurring differences in grain patterns. The samples may vary from the wood received for your project.
Before installation in the project, your NanaWall® must be finished with at least two coats for a final protected finish.
All factory-applied wood care products are water based and environmentally friendly. They are manufactured by Sikkens and specially designed for NanaWall®.
Glass
Units can be supplied glazed with, 15/16" (24 mm) double insulating Low-E safety glass, clear double insulating safety, 1 1/2" (38 mm) triple insulating Low-E safety, 1/4" (6 mm) single tempered or laminated, other high performing safety glass such as Heat Mirror, acoustic, special tint, etc. or other glass on request.
Glazing Area Options
Most commercially available glazing such as insulated Low-E glass can be used with a NanaWall. Custom layouts with horizontal mullions, simulated divided lites, inserts and high bottom rails are available
