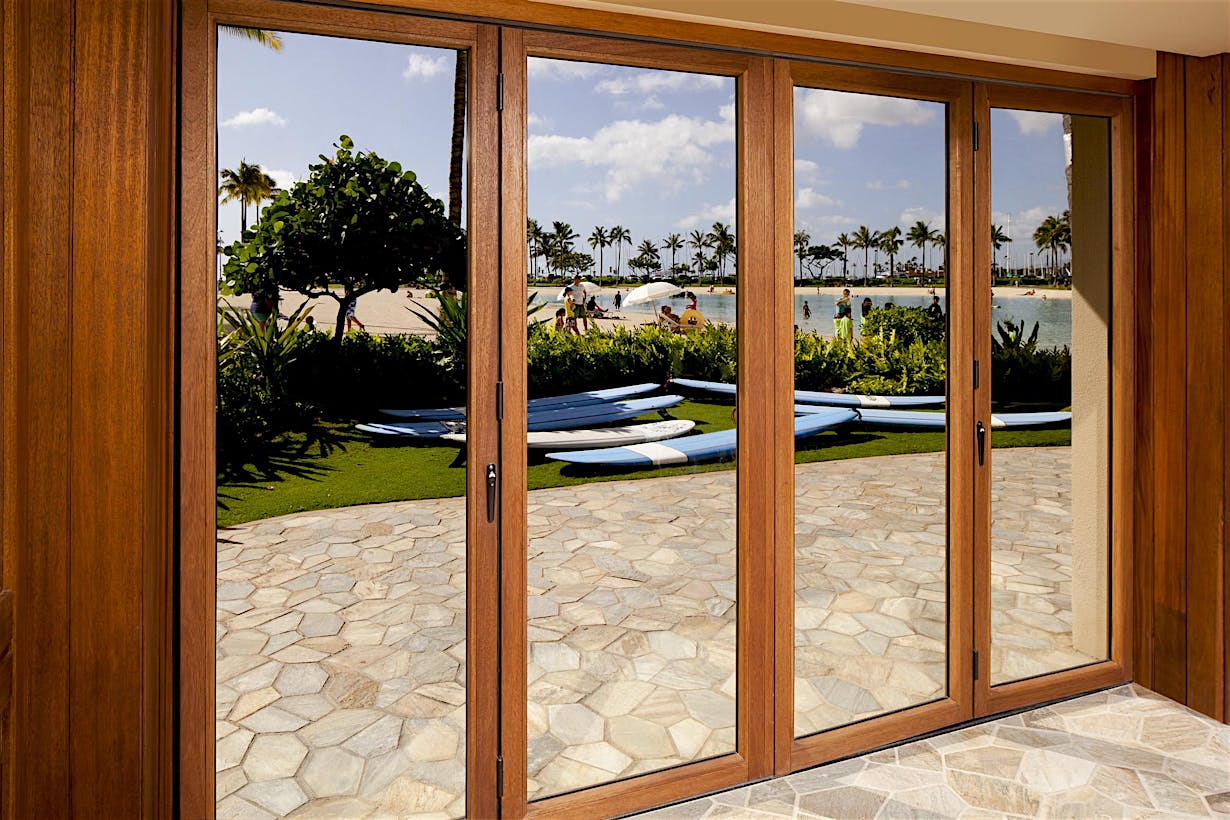

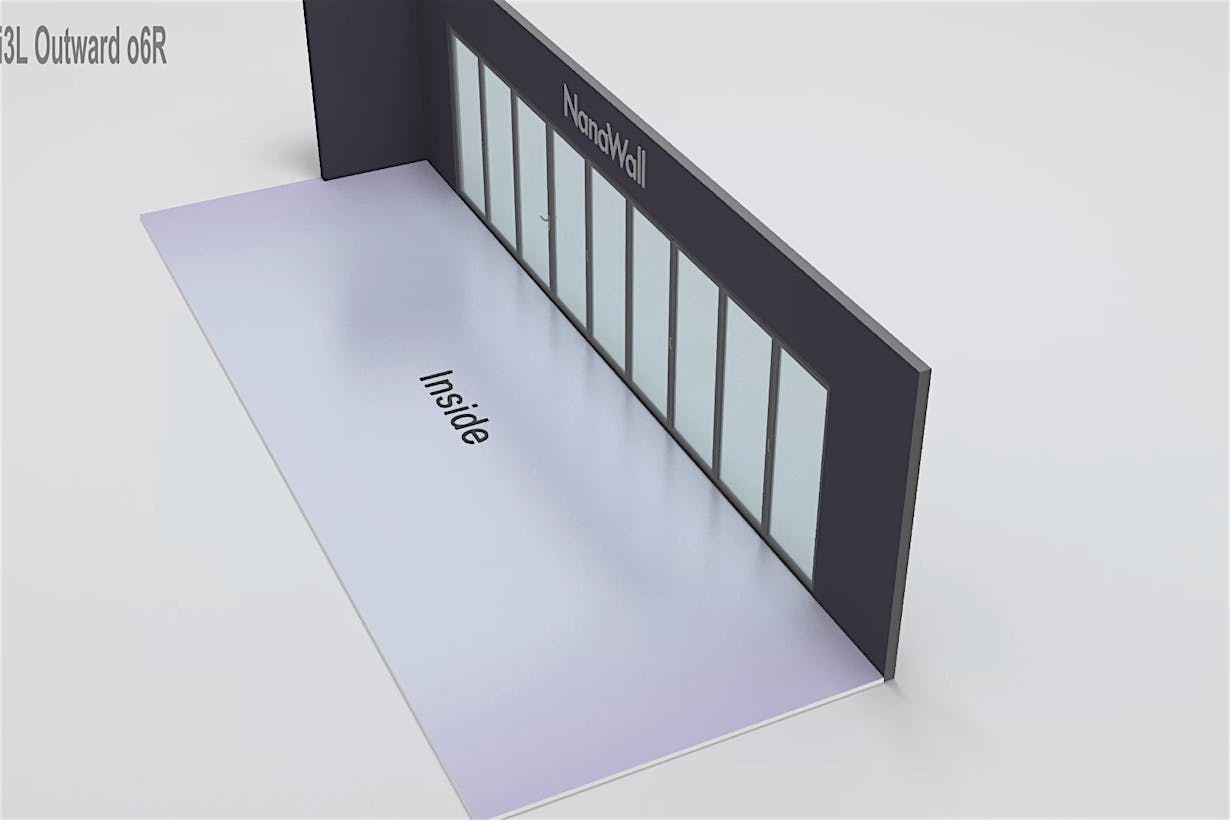

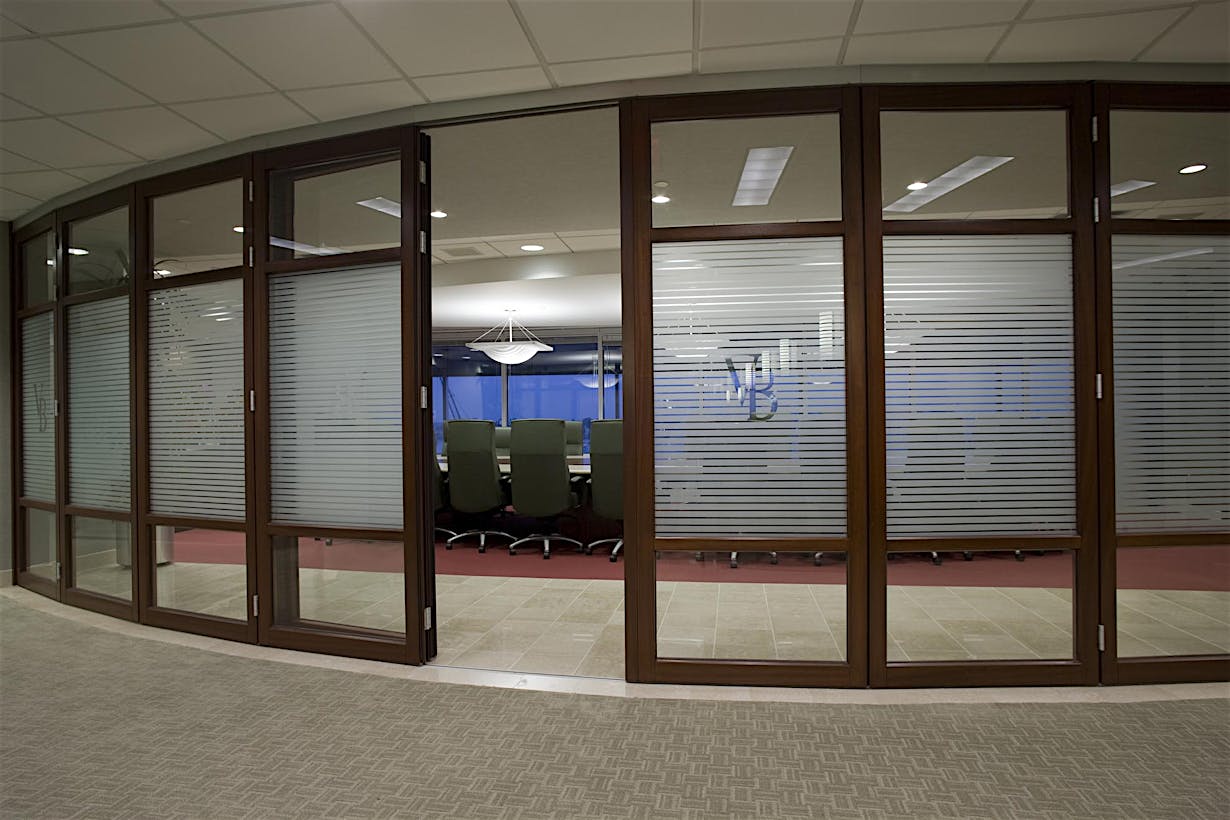

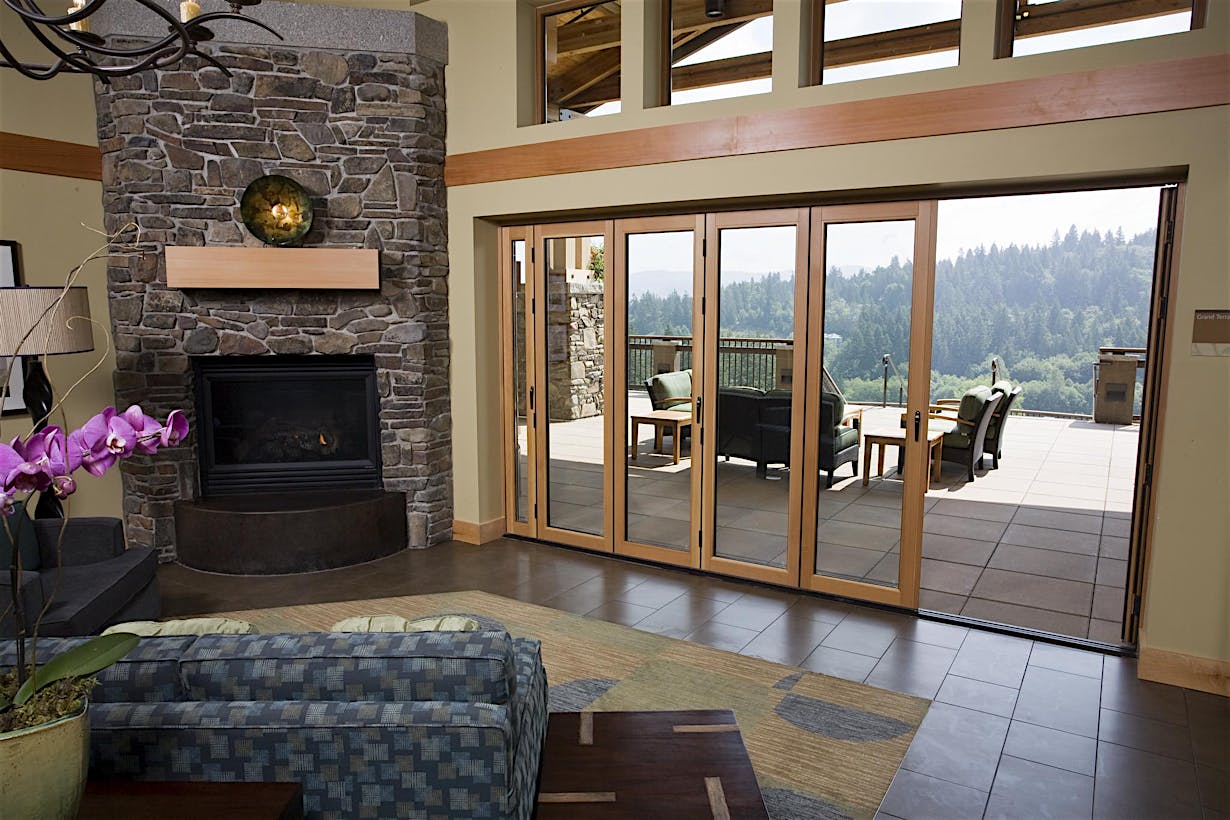

Clean Lines Design Flexibility for Special Applications in Solid Wood

Performance when closed matters most

Large openings are easy to design and there are many options to choose from. When deciding on a product that best for your project, performance when closed needs to be considered.

All Climate Performance

NanaWall products are NFRC rated and certified for true energy efficiency in all climates.

Certified Testing Standards

NanaWall products endure the latest AAMA testing standards for air, water, structural, and forced entry.

Sustainable Design

NanaWall products contribute to multiple LEED rating systems and potentially several credit categories.

Air, Water, Structural, Thermal, Forced Entry & Acoustical Results

Standard Sill - WD65

Type of Test

Inward Opening Units

Outward Opening Units

Air Infiltration ¹

ASTM E-283,cfm/ft.²

@ 1.57 psf (75 Pa): 0.15

@ 1.57 psf (75 Pa): 0.12

@ 6.24 psf (300 Pa): 0.23

@ 6.24 psf (300 Pa): 0.38

Water Penetration ²

ASTM E-547

Pending

Pending

Structural Load Deflection

ASTM E-330: pass

See design windload charts for other sized panels.

Note that the structural test pressures were 50% higher than the design pressures.

design pressure

Positive
@ 25 psf
(1200 Pa)

Negative
@ 25 psf
(1200 Pa)

design pressure

Positive
@ 25 psf
(1200 Pa)

Negative
@ 25 psf
(1200 Pa)

Forced Entry Resistance ¹

In accordance with CAWM 300 requirements

Acoustical Performance ²

The WD65 with STC 38 laminated glass achieved STC and Rw values of 36.

1 Excerpts of results of 10’9” W x 8'2” H three panel with Standard sill tested by Architectural Testing, Inc., Fresno, CA, an independent testing laboratory in February 2000 per AAMA/NWDA 101/I.S.2 standards.

2 Excerpts of results of a unit tested by Nusing Mobile Trennwandtechnile, Munster, Germany, an independent testing laboratory, in November 2003.

Thermal Performance			Rated, certified and labeled in accordance with NFRC 100 + 200
Thermal Performance			Inward or Outward opening units
Type of Glass (1 lite)³	Center of Glass U-Factor	IG Glass Thickness	Unit U-Factor	SHGC ⁴	VT ⁵	2015 Energy Star
Double IG Clear (air filled)	.48	15/16” (24 mm)	.43	.46	.49	-
Double IG Standard Low E (argon filled)	.26	15/16” (24 mm)	.28	.21	.42	*
Double IG Standard Low E (air filled)	.30	15/16” (24 mm)	.31	.21	.42	-
Triple IG Low E x 2 (argon filled)	.12	1 1/8” (28 mm)	.23	.18	.33	*
Triple IG Low E x 2 (air filled)	.15	1 1/8” (28 mm)	.26	.18	.33	*
Triple IG Low E x 2 (krypton filled)	.10	1 1/8” (28 mm)	.20	.18	.33	*

Notes

3 U-factors Results with one Horizontal mullion will be .01 to .02 higher than the above results.

4 SHGC = Solar Heat Gain Coefficient

5 VT = Visible Transmittance

* 2015 Energy Star Qualification Criteria: U-Factor for doors in all climate zones ≤30, SHGC ≤25 in South/South Central zones and ≤40 in North/North Central zones. (For guidance only. NanaWall is not a participant of the Energy Star program.)

Call NanaWall (800.873.5673 | 415.383.3148) for U-Factor & SHGC for other glass types.

Low Profile Sill - WD65

Type of Test

Inward Opening Units

Outward Opening Units

Air Infiltration ¹

ASTM E-283 and NFRC 400, cfm/ft²

@ 1.57 psf (75 Pa): 0.10
(0.10 exfiltration)

A3 ²

@ 1.57 psf (75 Pa): 0.10
(0.10 exfiltration)

A3 ²

Air Infiltration ¹

ASTM E-283 and NFRC 400, cfm/ft²

@ 1.57 psf (75 Pa): 0.10
(0.10 exfiltration)

A3 ²

@ 6.24 psf (300 Pa):

0.25

Water Penetration ¹

ASTM E-547 and E-331

#1 Unit with weep holes from middle channel

No uncontrolled water entry
@ 2.1 psf (100 Pa)

Subject to the following adaptions of the sill in the field by others;

Remove the gaskets covering the middle channel.
Drill weep holes through the outer bottom wall in middle channel (3/8" weep hole per panel).
Drill weep holes through the lower front face of sill (3/8" weep hole per panel).

#2 Unit with weep holes from inner channel

No uncontrolled water entry
@ 4.2 psf (200 Pa)

Subject to the following adaptions of the sill in the field by others;

Remove the gaskets covering the inner channel.
Drill weep holes through the bottom of this channel (about one 3/8" weep hole per panel).
Drill weep holes through the lower front face of sill to the inner channel (about 3/8" weep hole per panel).

Please note that due to the varying site requirements and conditions, these sills will not be prepared for drainage by Nana Wall Systems, Inc. If this drainage system is desired, we recommend that qualified professionals construct this system on the project site strictly in accordance with NanaWall instructions with good waterproofing techniques, if drain connections are not made or are not possible, unit may leak with wind driven rain.

Structural Load Deflection^¹

ASTM E-330: pass

See design windload charts for other sized panels

Note that the structural test pressures were 50% higher that the design pressures.

design pressure

Positive
@ 25 psf
(1200 Pa)

Negative
@ 25 psf
(1200 Pa)

For saddle sill specimen #2 above, Class SP-PG25, Panel size - 950 mm x 2482 mm ²

(weep holes by others)

design pressure

Positive
@ 25 psf
(1200 Pa)

Negative
@ 25 psf
(1200 Pa)

For saddle sill specimen #2 above, Class SP-PG25, Panel size - 950 mm x 2482 mm ^²

(weep holes by others)

Forced Entry Resistance ¹

In accordance with AAMA -1304 requirements

Acoustical Performance ²

The WD65 with STC 38 laminated glass achieved STC and Rw values of 36.

1 Excerpts of results of 13’1” W x 8’6” H (4000 mm x 2600 mm) four panel units with Low Profile Saddle sill tested by Architectural Testing Inc., an independent testing laboratory in October 2015 per AAMA/WDMA/CSA 101/I.S.2/A440, NAFS - North American Fenestration Standard.

2 For Canada, tested to NAFS-08 or equivalent and CSA A44051-09 (with weep holes installed by others).

3 Excerpts of results with raised sill tested by Nusing Mobile Trennwandtechnile, Munster, Germany, an independent testing laboratory in November 2003.

Thermal Performance			Rated, certified and labeled in accordance with NFRC 100 + 200
Thermal Performance			inward or Outward opening units
Type of Glass (1 lite) ⁴	Center of Glass U-Factor	IG Glass Thickness	Unit U-Factor	SHGC ⁵	VT ⁶	2015 Energy Star
Double IG Clear (air filled)	.48	15/16” (24 mm)	.44	.46	.49	-
Double IG Standard Low E (argon filled)	.26	15/16” (24 mm)	.29	.21	.43	*
Double IG Standard Low E (air filled)	.30	15/16” (24 mm)	.32	.21	.43	-
Triple IG Low E x 2 (argon filled)	.12	1 1/8” (28 mm)	.24	.18	.33	*
Triple IG Low E x 2 (air filled)	.15	1 1/8” (28 mm)	.27	.18	.33	*
Triple IG Low E x 2 (krypton filled)	.10	1 1/8” (28 mm)	.20	.18	.33	*

Notes

4 U-factors Results with one horizontal mullion will be .01 to .02 higher than the above results.

5 SHGC = Solar Heat Gain Coefficient

6 VT = Visible Transmittance

* 2015 Energy Star Qualification Criteria: U-Factor for doors in all climate zones ≤30, SHGC ≤25 in South/South Central zones and ≤40 in North/North Central zones. (For guidance only. NanaWall is not a participant of the Energy Star program.)

Call NanaWall (800.873.5673 | 415.383.3148) for U-Factor & SHGC for other glass types.

Flush Sill - WD65

Type of Test

Inward Opening Units

Outward Opening Units

Air Infiltration ¹

ASTM E-283, cfm/ft²

@ 1.57 psf (75 Pa): 0.10
(0.10 exfiltration)
A3^²

@ 1.57 psf (75 Pa): 0.10
(0.10 exfiltration)

A3^²

@ 6.24 psf (300 Pa):

0.25

Structural Load Deflection^¹

ASTM E-330: pass

See design windload charts for other sized panels

Note that the structural test pressures were 50% higher that the design pressures.

design pressure

Positive
@ 25 psf
(1200 Pa)

Negative
@ 25 psf
(1200 Pa)

design pressure

Positive
@ 25 psf
(1200 Pa)

Negative
@ 25 psf
(1200 Pa)

Forced Entry Resistance ¹

In accordance with AAMA -1304 requirements

Acoustical Performance ²

The WD65 with STC 38 laminated glass achieved STC and Rw values of 36.

1 Excerpts of results of 13’1” W x 8’6” H (4000 mm x 2600 mm) four panel units with Low Profile Saddle sill tested by Architectural Testing Inc., an independent testing laboratory in October 2015 per AAMA/WDMA/CSA 101/I.S.2/A440, NAFS - North American Fenestration Standard.

2 Excerpts of results with raised sill tested by Nusing Mobile Trennwandtechnile, Munster, Germany, an independent testing laboratory in November 2003.

Thermal Performance			Rated, certified and labeled in accordance with NFRC 100 + 200
Thermal Performance			inward or Outward opening units
Type of Glass (1 lite) ⁴	Center of Glass U-Factor	IG Glass Thickness	Unit U-Factor	SHGC ⁵	VT ⁶	2015 Energy Star
Double IG Clear (air filled)	.48	15/16” (24 mm)	.43	.46	.49	-
Double IG Standard Low E (argon filled)	.26	15/16” (24 mm)	.28	.21	.43	*
Double IG Standard Low E (air filled)	.30	15/16” (24 mm)	.31	.21	.43	-
Triple IG Low E x 2 (argon filled)	.12	1 1/8” (28 mm)	.23	.18	.34	*
Triple IG Low E x 2 (air filled)	.15	1 1/8” (28 mm)	.26	.18	.34	*
Triple IG Low E x 2 (krypton filled)	.10	1 1/8” (28 mm)	.19	.18	.34	*

Notes

4 U-factors Results with one horizontal mullion will be .01 to .02 higher than the above results.

5 SHGC = Solar Heat Gain Coefficient

6 VT = Visible Transmittance

* 2015 Energy Star Qualification Criteria: U-Factor for doors in all climate zones ≤30, SHGC ≤25 in South/South Central zones and ≤40 in North/North Central zones. (For guidance only. NanaWall is not a participant of the Energy Star program.)

Call NanaWall (800.873.5673 | 415.383.3148) for U-Factor & SHGC for other glass types.

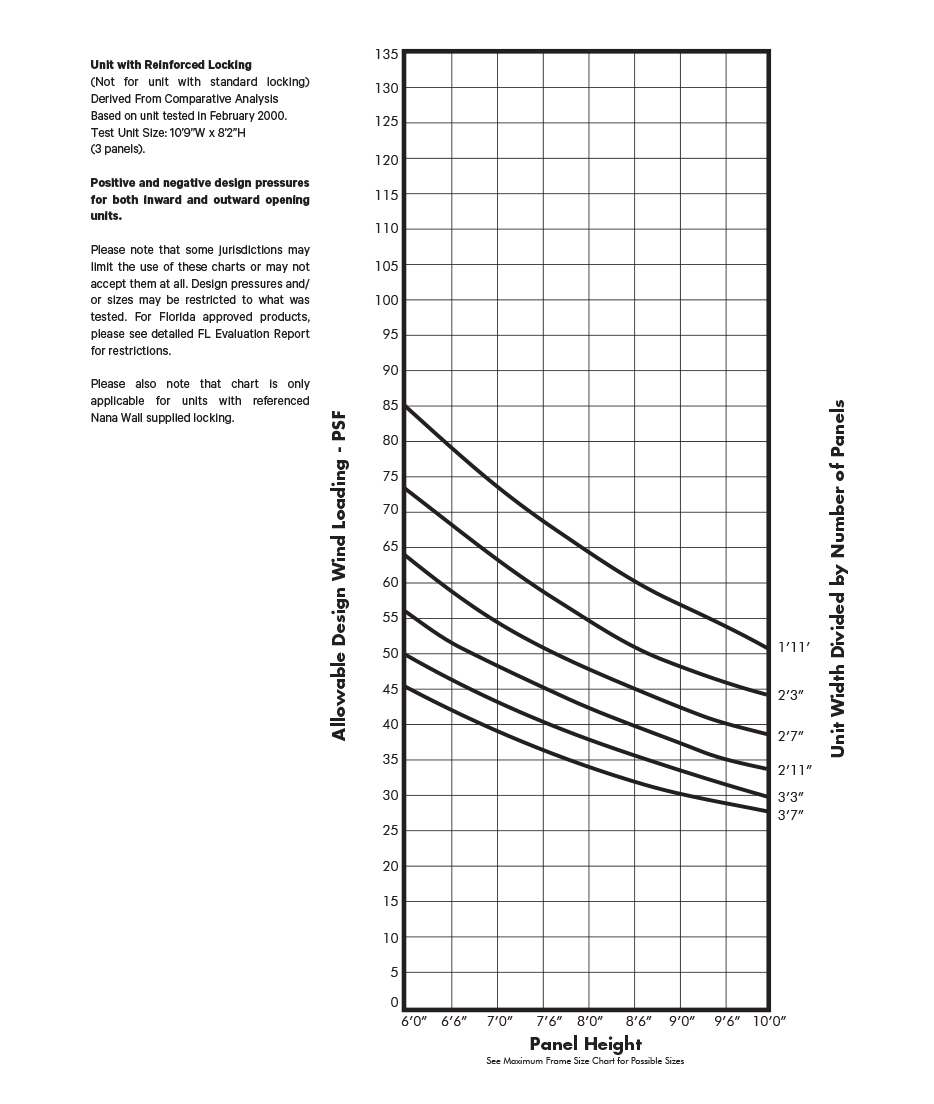

Design Windload Chart
