NW Acoustical 645

Product Brochure

Features



Unprecedented Sound Control

NW Acoustical 645—Up to Unit STC 45 Possible

NW Acoustical 645 is the first floor supported folding glass wall able to achieve unprecedented sound control up to an impressive unit STC 45.

This system combines sleek acoustically separated aluminum framing and specialized gasketing with sound-enhanced glass to achieve optimal performance with the range of unit STC from STC 32 up to STC 45—all while allowing maximal transparency and natural daylight to flood interior spaces.

Minimal Sightline Equals Increased Transparency

With an ultra-thin frame profile, NW Acoustical 645 is specifically engineered for educational applications and for interior spaces where acoustical privacy, ease of use, and transparency are of utmost concern.

NW Acoustical 645 is an award-winning product.

TM

Explore NW Acoustical 645:

Comprised of a host of proprietary and patented features, click on the numbers below to learn more about all the benefits this system has to offer.

1
2
3
4
5
6
7
8
9
10
1

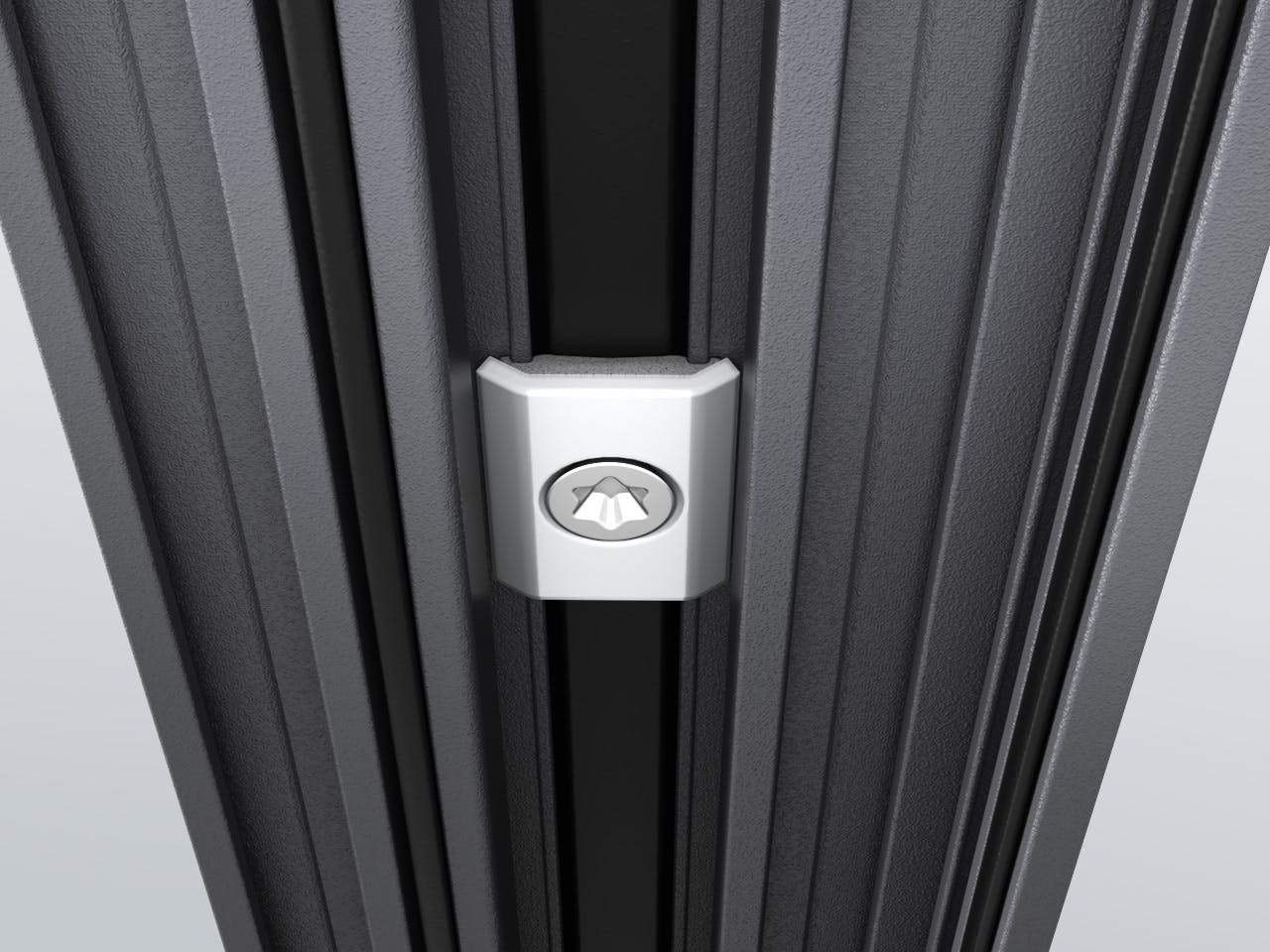

Installation Mounting Plate for Ease of Installation

  • Stainless steel for clean appearance with sealing cushion to avoid thermal conductivity
  • Provides optimal load transfer so less connection points required
X
2

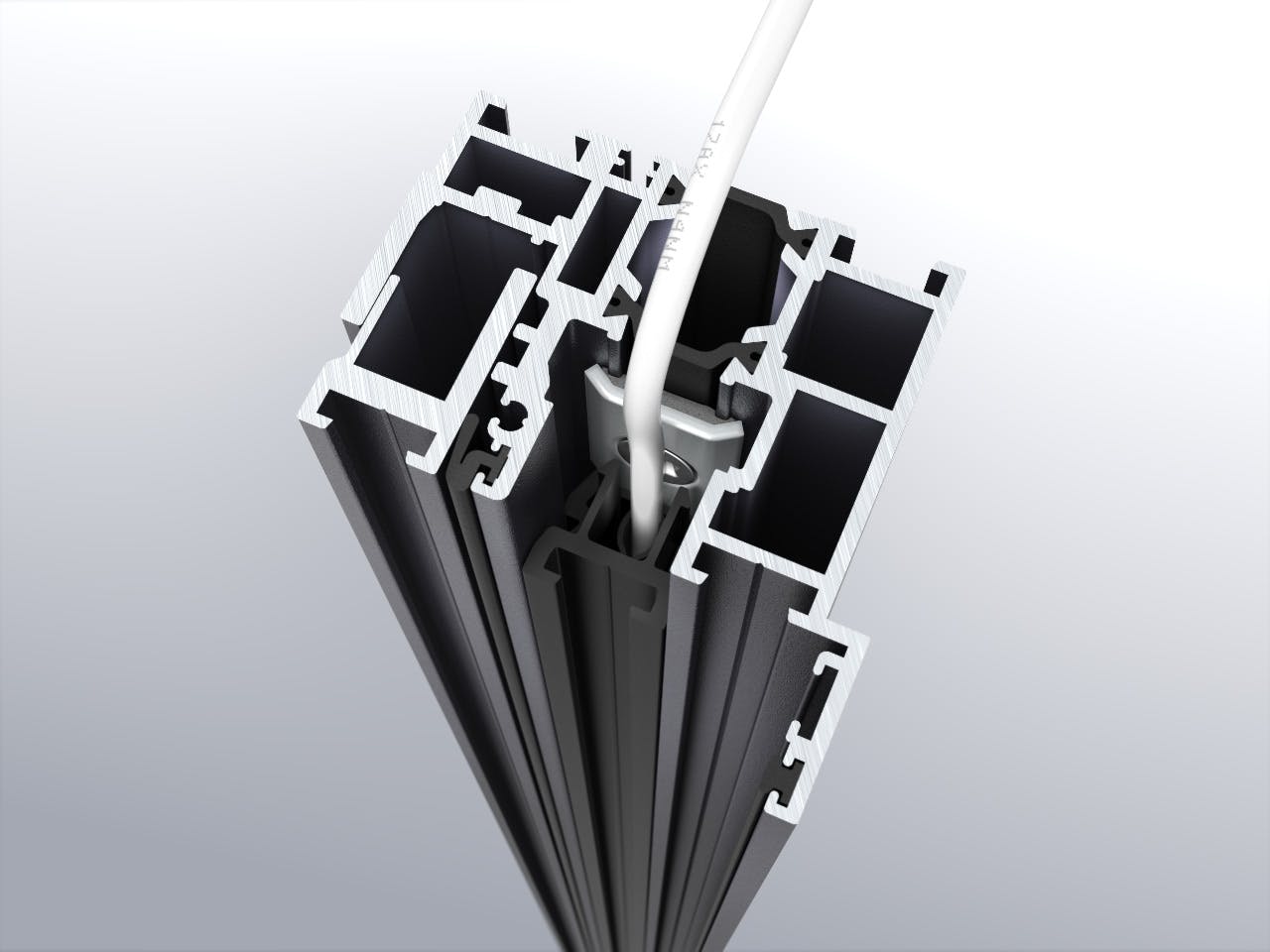

Multipurpose Frame Insert for a Streamlined Look

  • For enhanced aesthetics, all frame attachment points are hidden
  • Provides an extra boost to acoustical performance
  • Offers space for concealed cable routing for security systems by others
X
3

System Width Adjustment Feature for Consistent Seal Compression

  • Patented lateral adjustment of +/- 3/16″ (5 mm) to allow for construction tolerance
  • Adjusts easily should extreme panel expansion/contraction occur
X
4

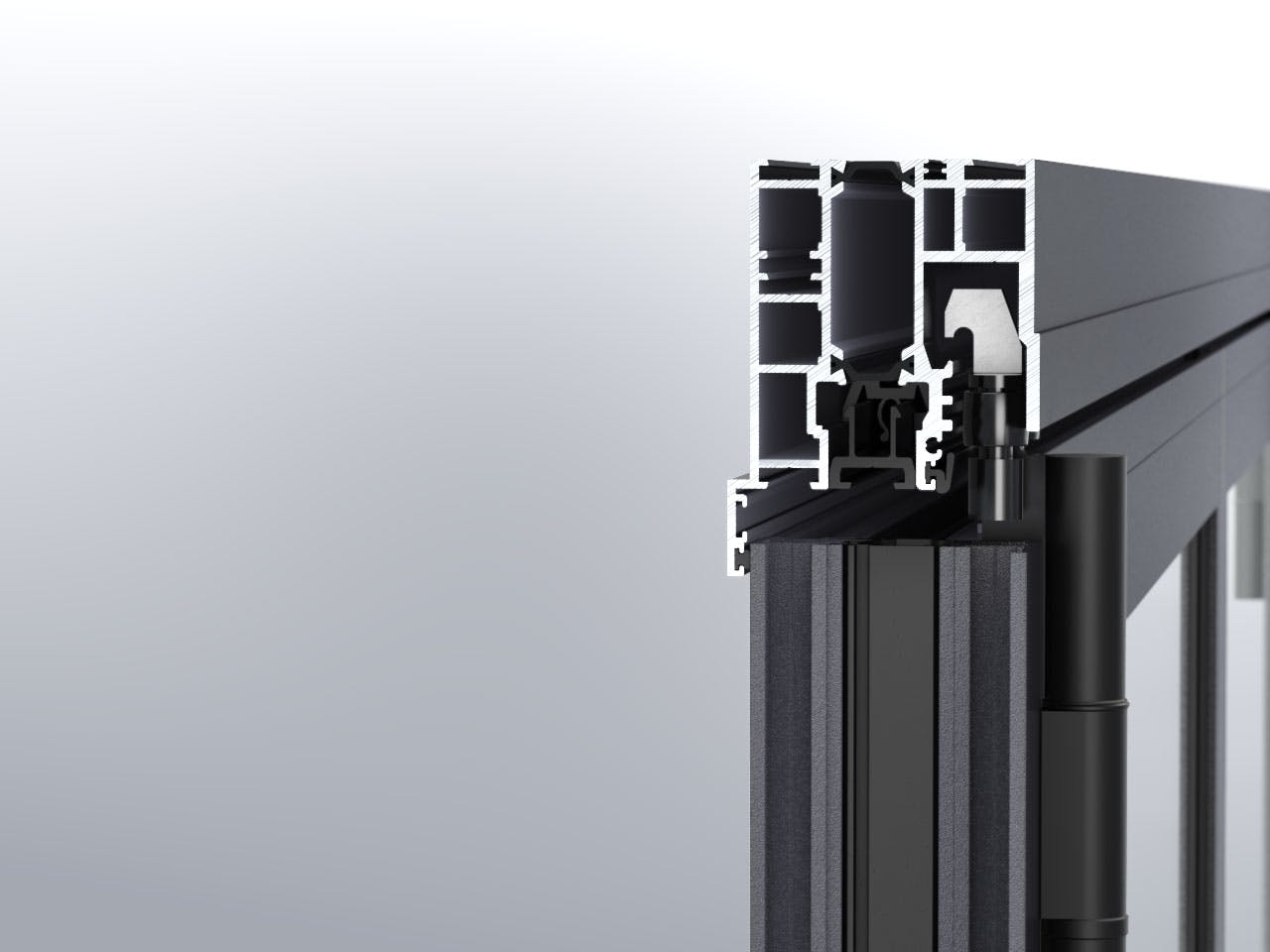

Anti-tilt Feature for Floating Panel Sets in Head Track

  • Proprietary engineered component stacks FourFold and SixFold panel sets neatly and securely when in open position
  • Allows for dynamic stacking of panels at the left, right, or center of opening
X
5

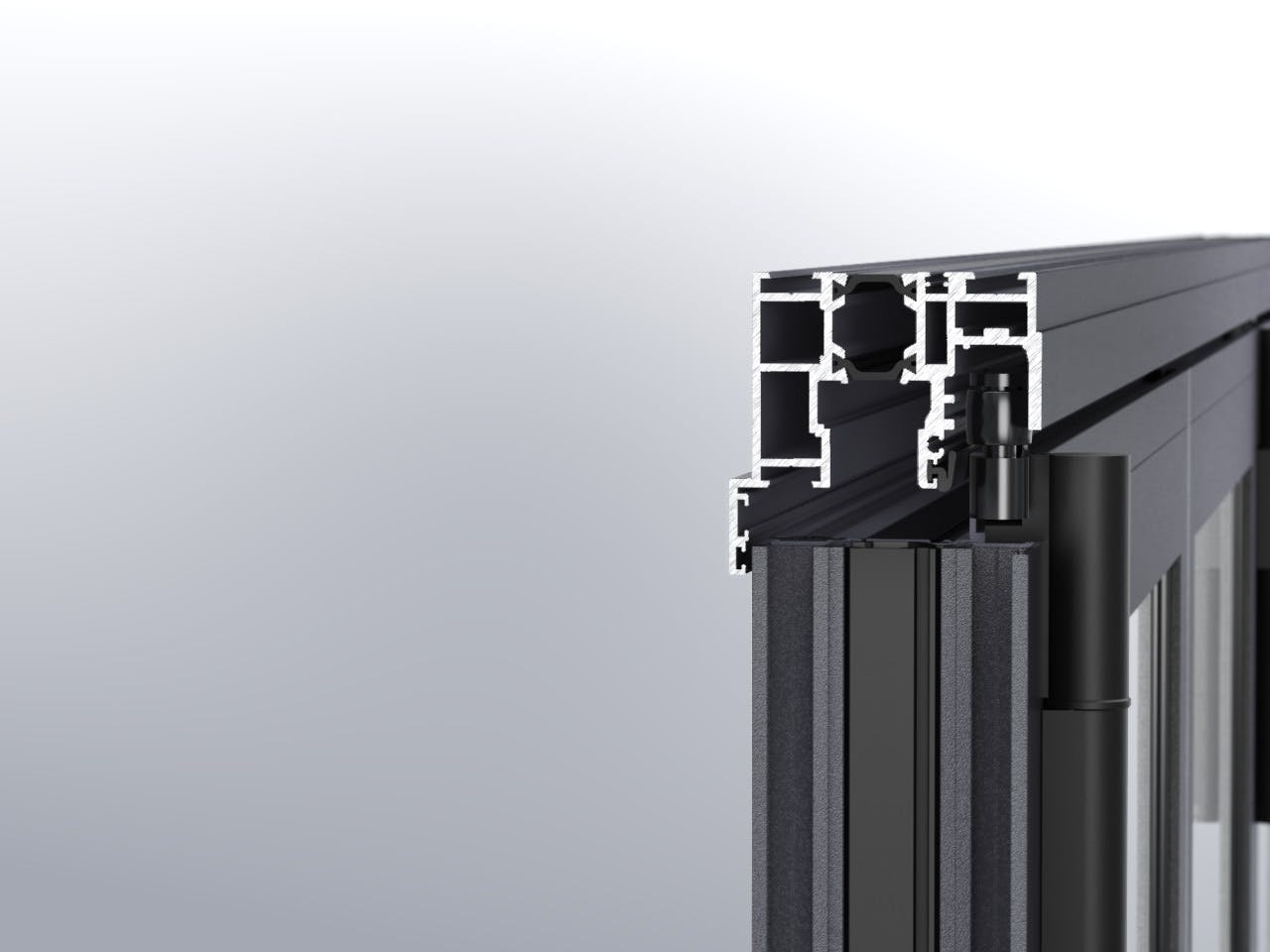

Panel Guide in Head Track

  • Panel guide helps system glide through head track with smooth operation
  • System operated on floor supported technology for ease of movement
X
6

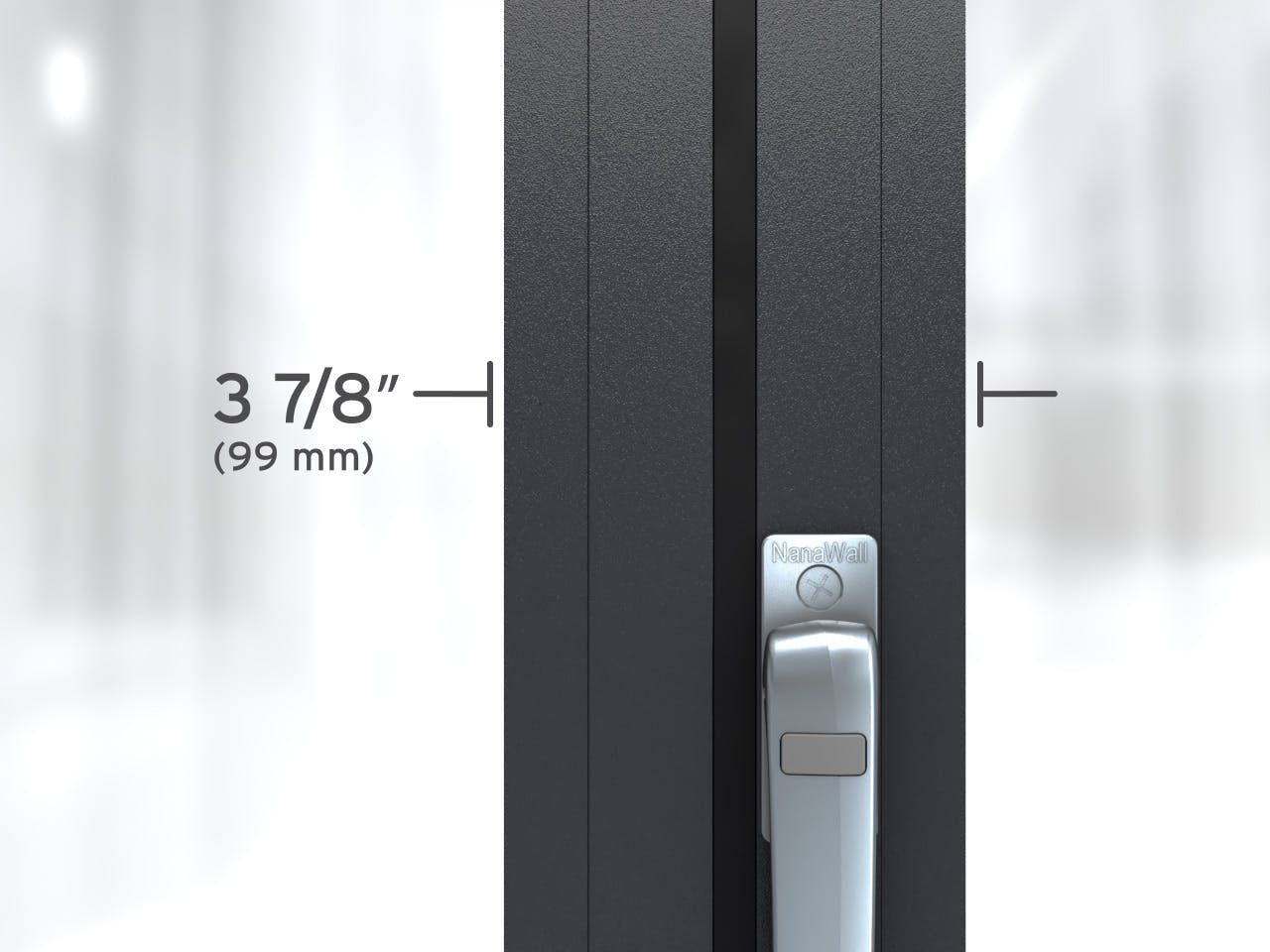

Slimmest Aluminum Panel Profiles Available

  • Crisp, angular profile design for a modern aesthetic

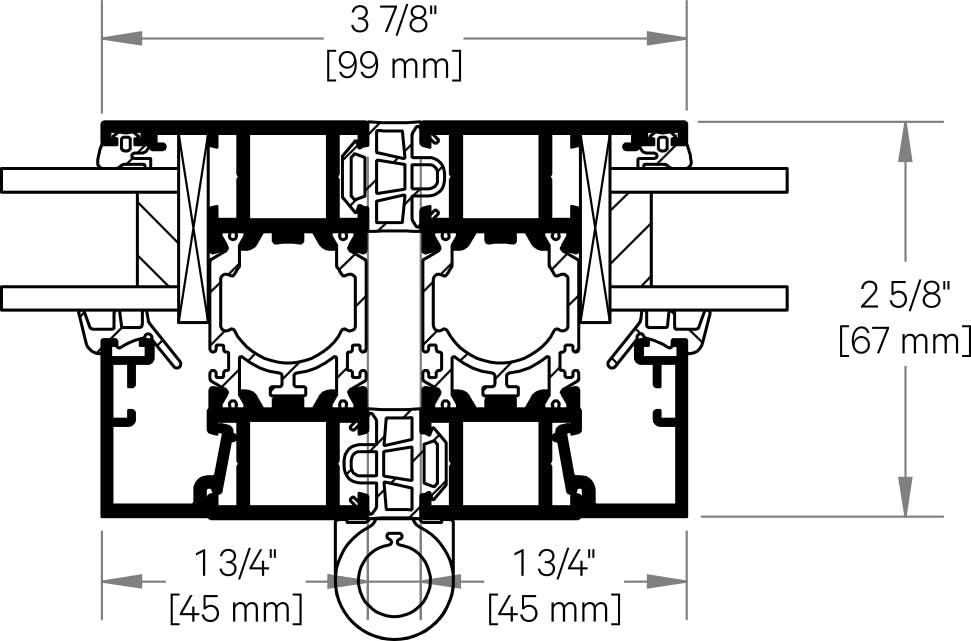

  • Intersection of two folding panels is a mere 3 7/8″ (99 mm) for minimal sightlines

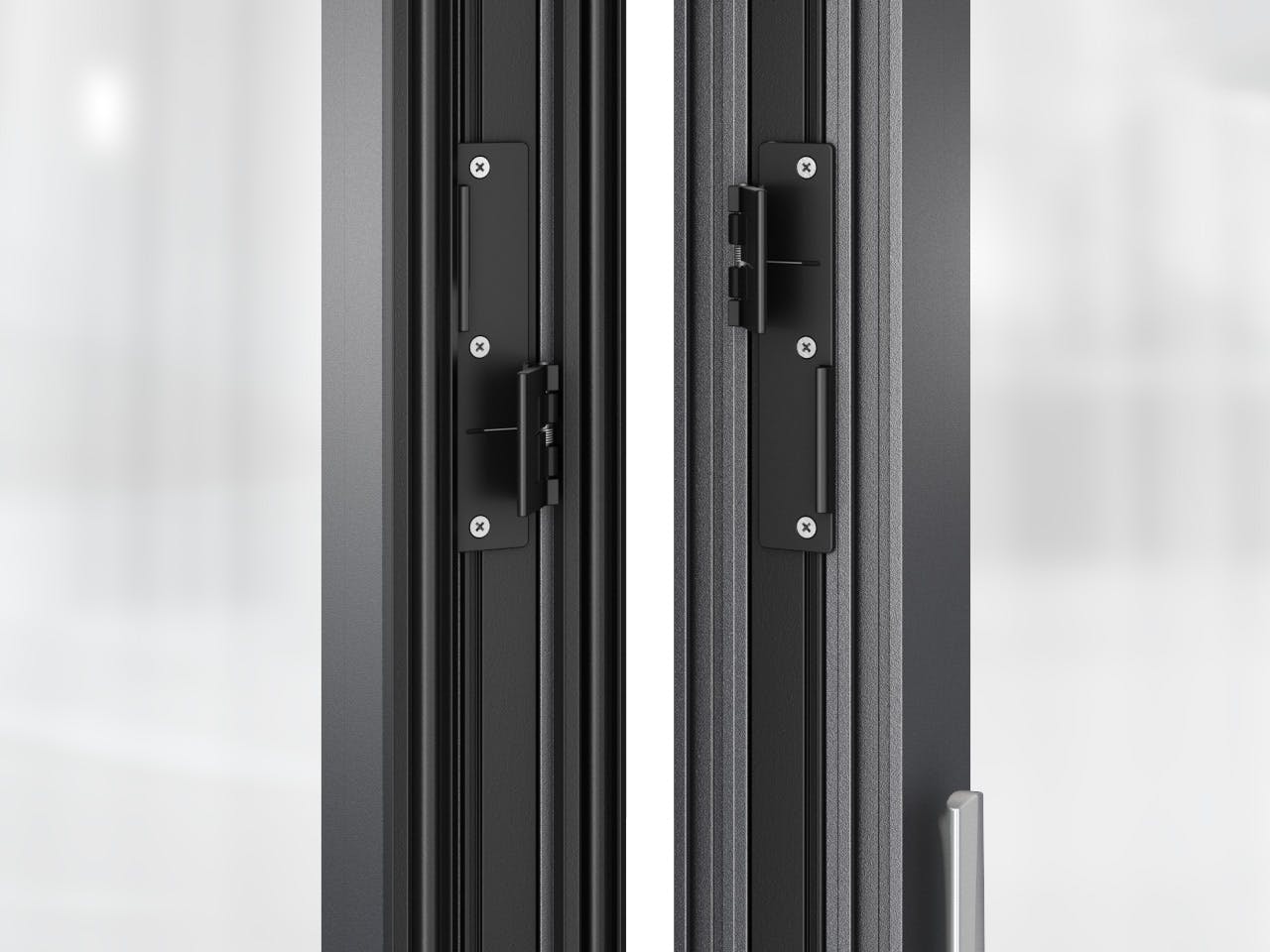

  • Flat handle multi-point secure locking with 1″ (24 mm) throw bolt top and bottom
X
7

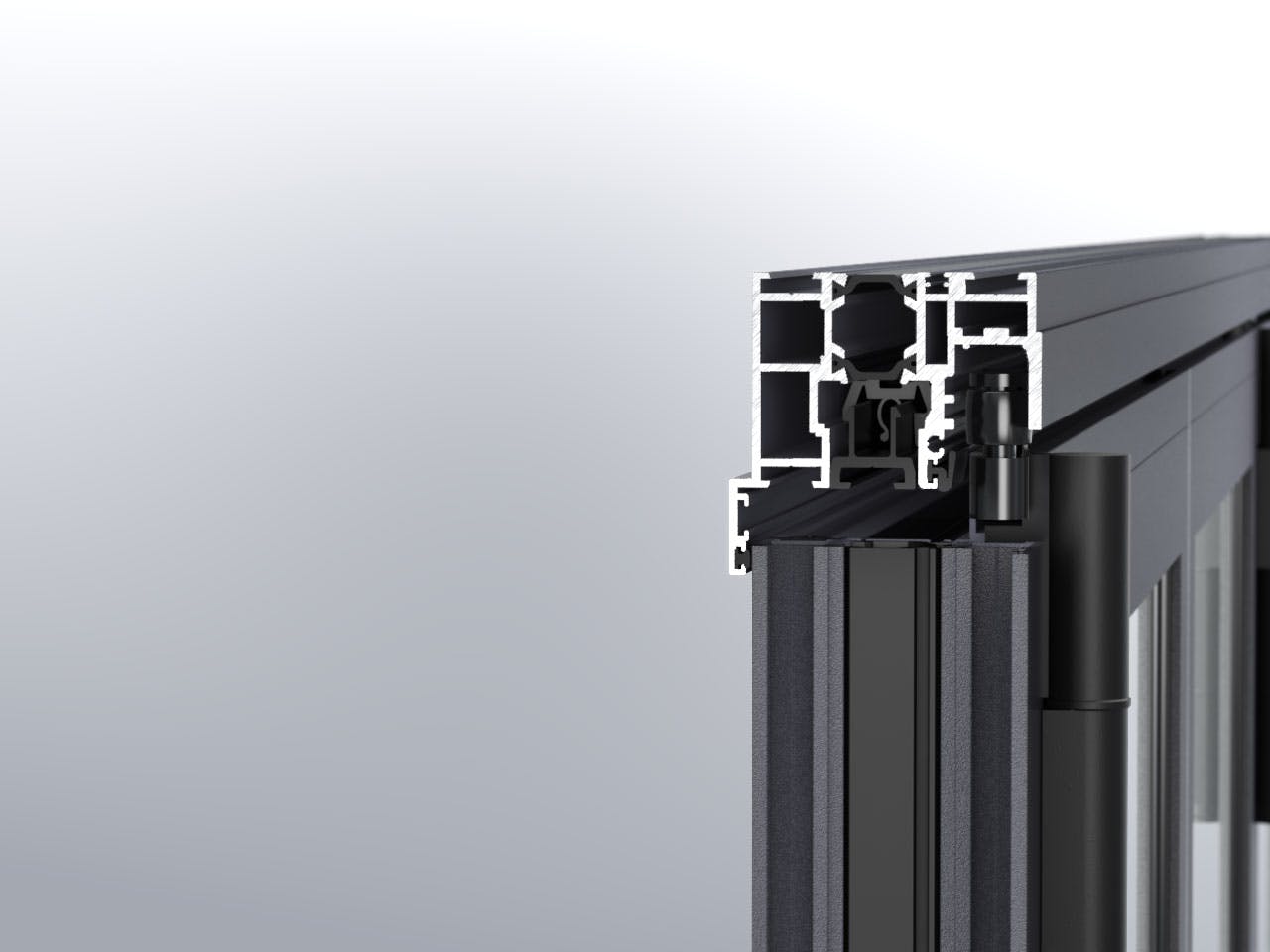

Multifunctional Thermal Break for Maximum Energy Performance

  • The Bionic Turtle® single piece thermal break provides outstanding acoustical separation within frame profiles
  • Unique patented design houses the system’s locking rods to afford the extremely slim profile appearance
X
8

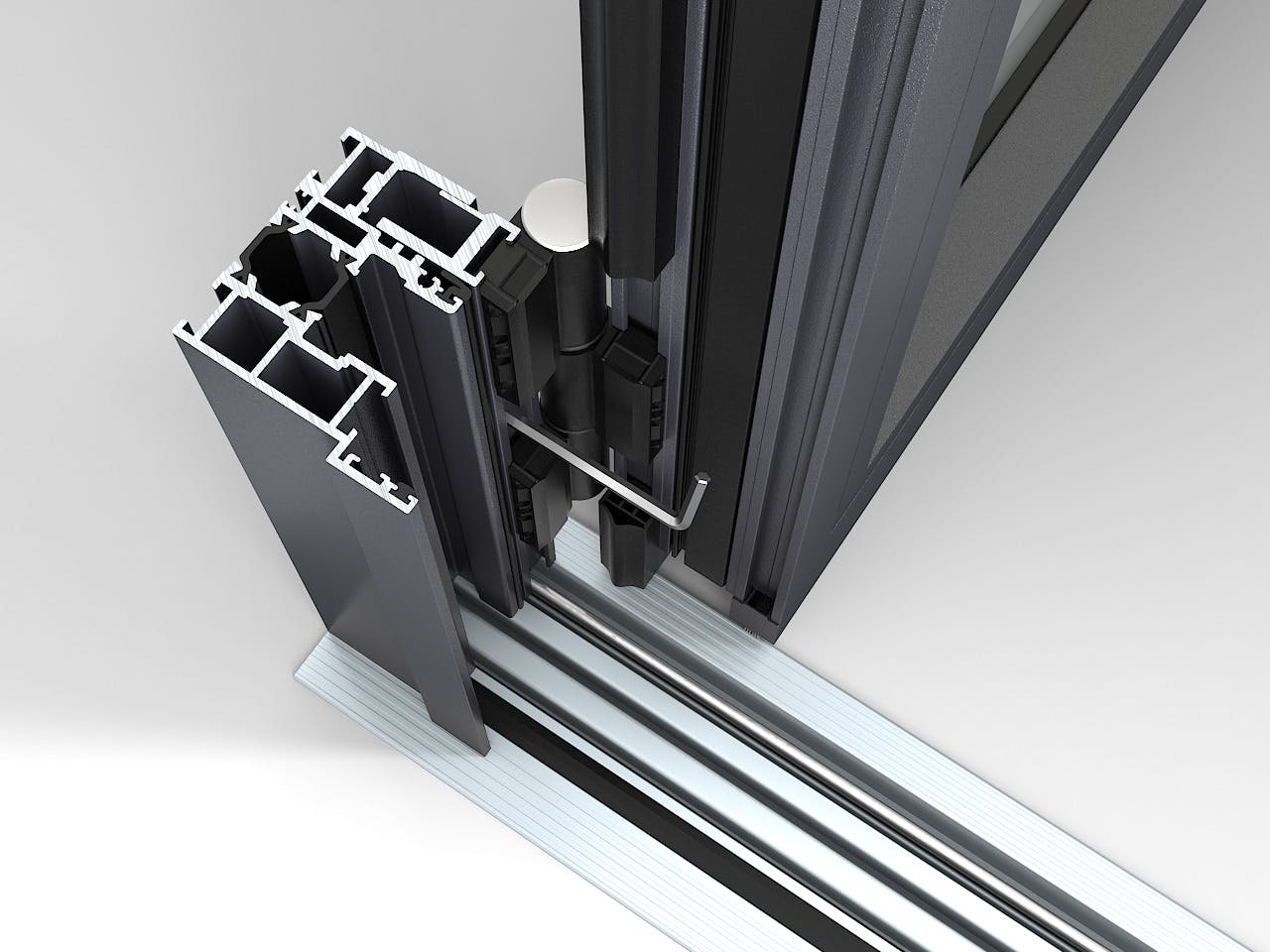

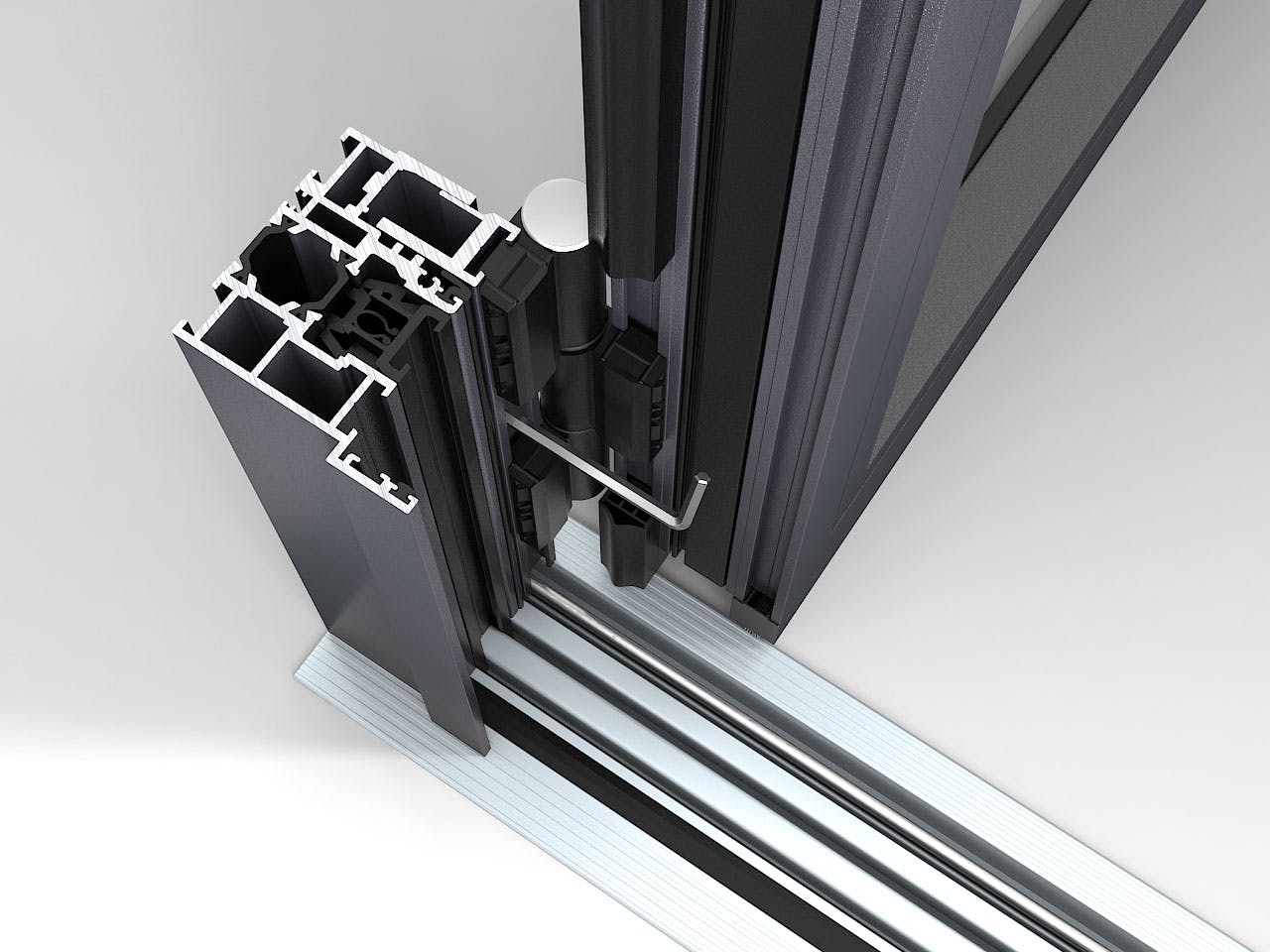

Concealed Panel Alignment Reduces Visible Hardware

  • Hidden spring-loaded TwinX mechanism aligns panels over 7’ (2150 mm)
  • Patented TwinX interlocks panels and provides structural reinforcement to eliminate exposed hinges in the middle of the system
X
9

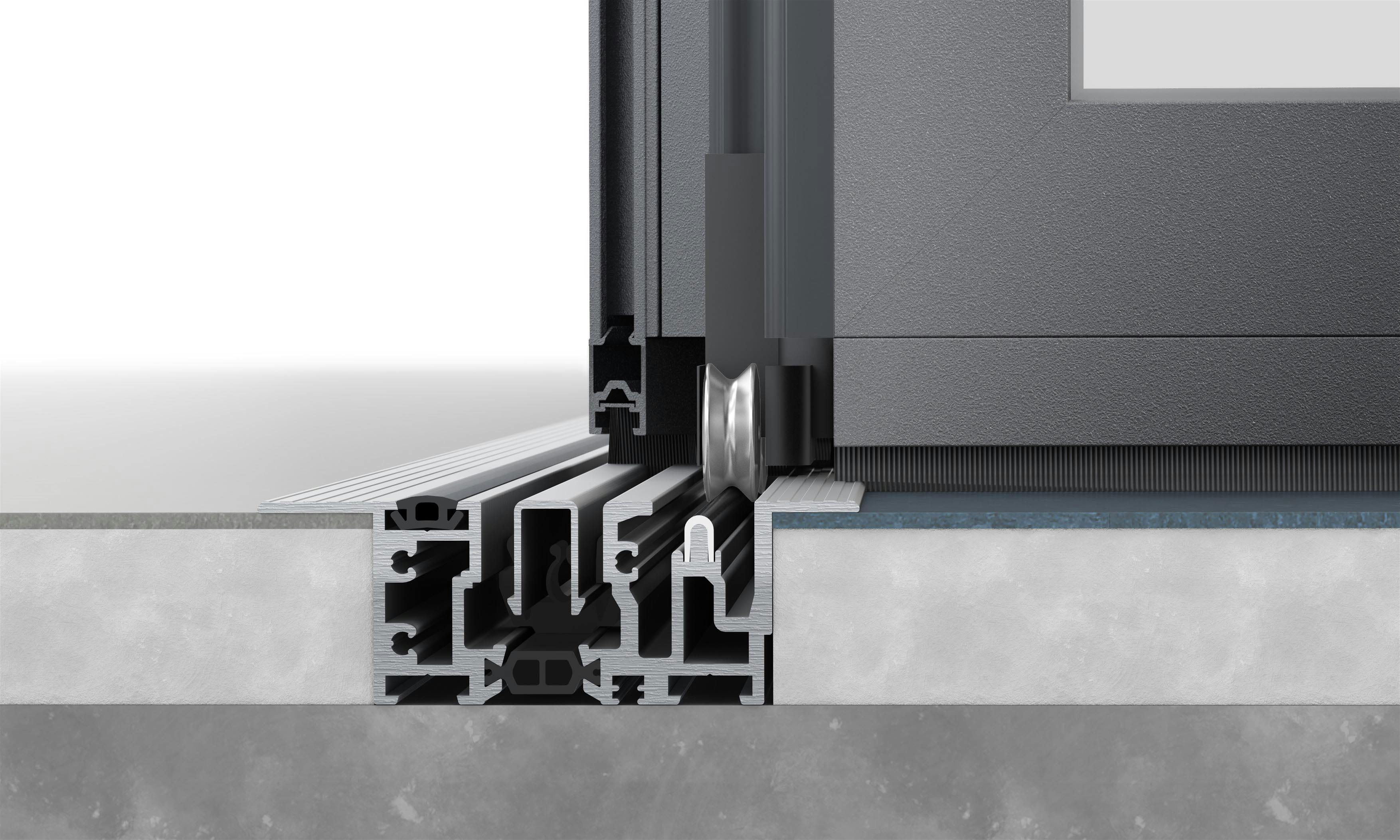

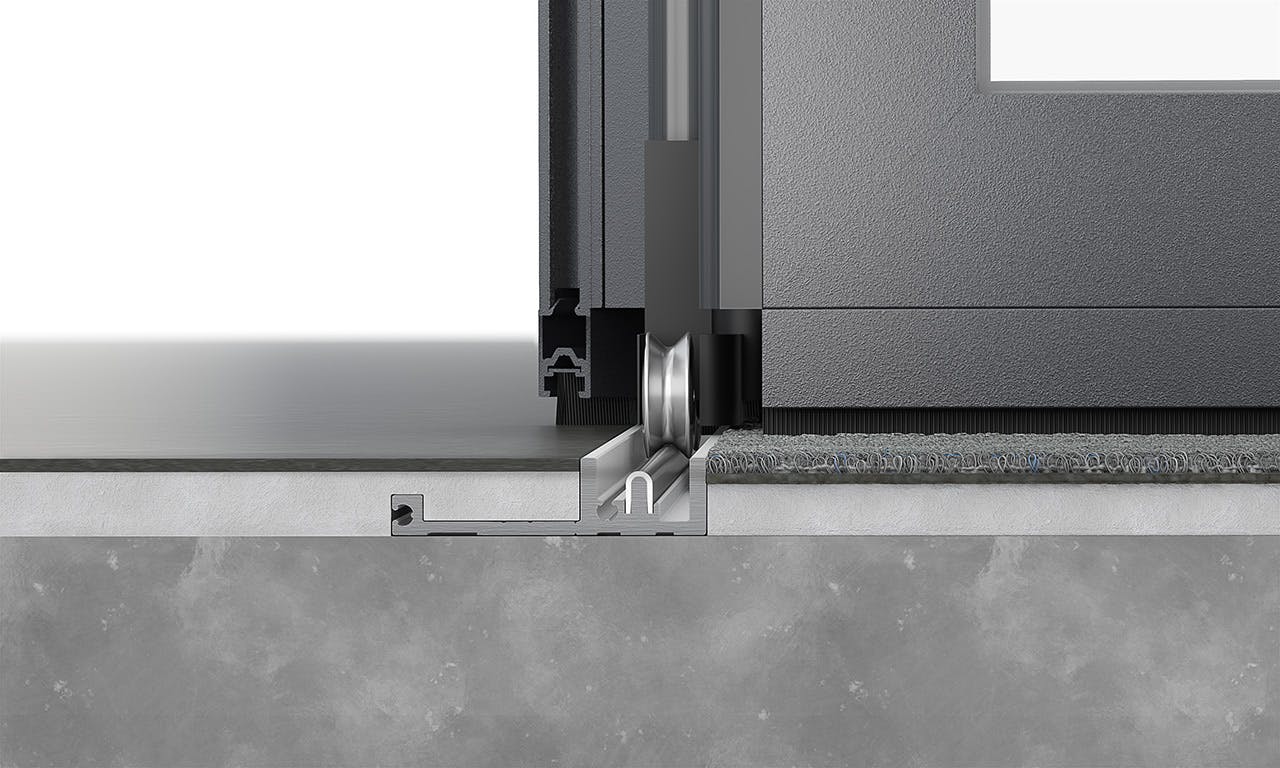

Flush Sill

  • Inswing shown, outswing also available
  • Thermally broken, ADA compliant, high heel and barefoot friendly
  • Unique Gothic arch roller design for effortless operation
X
10

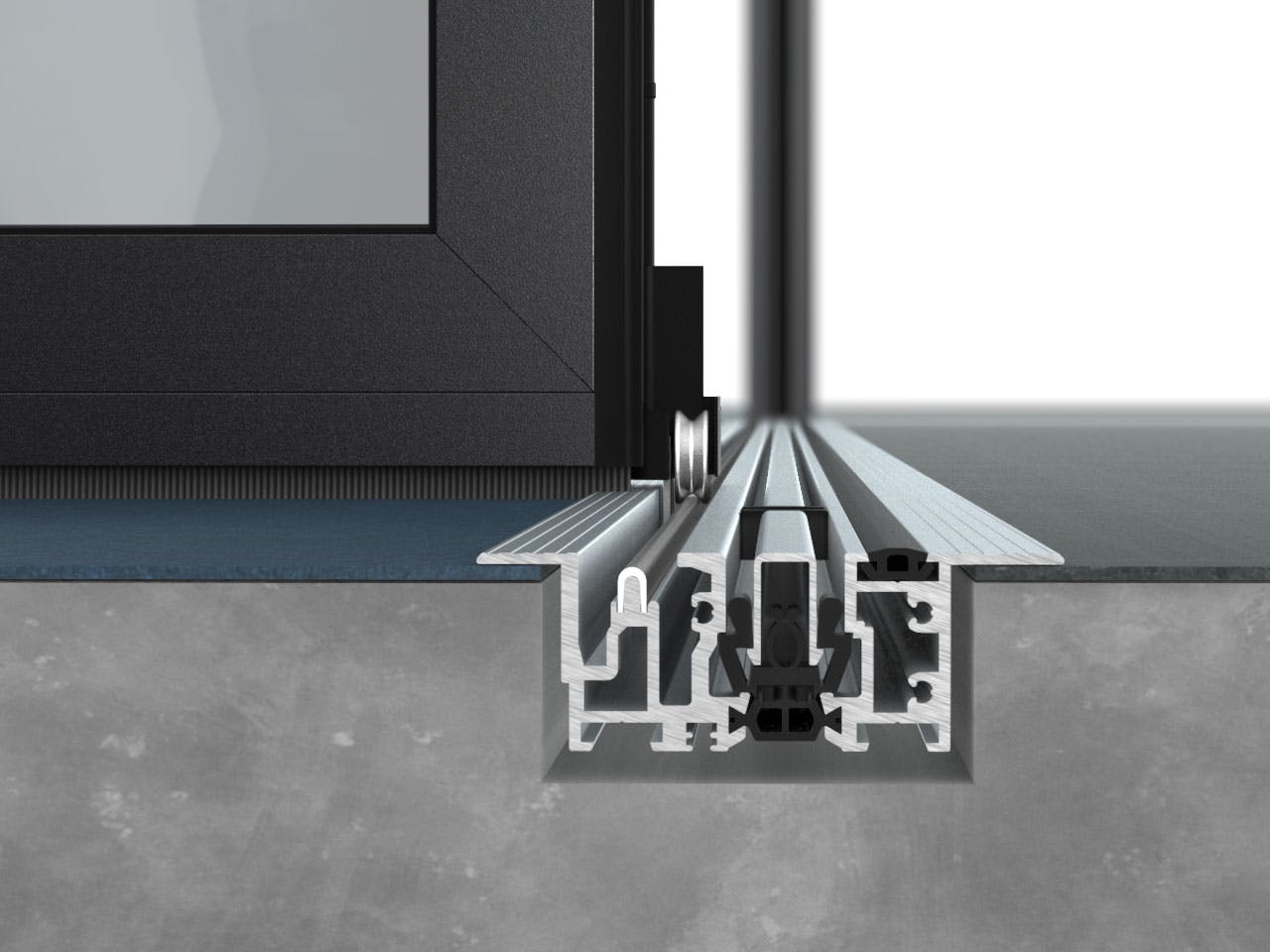

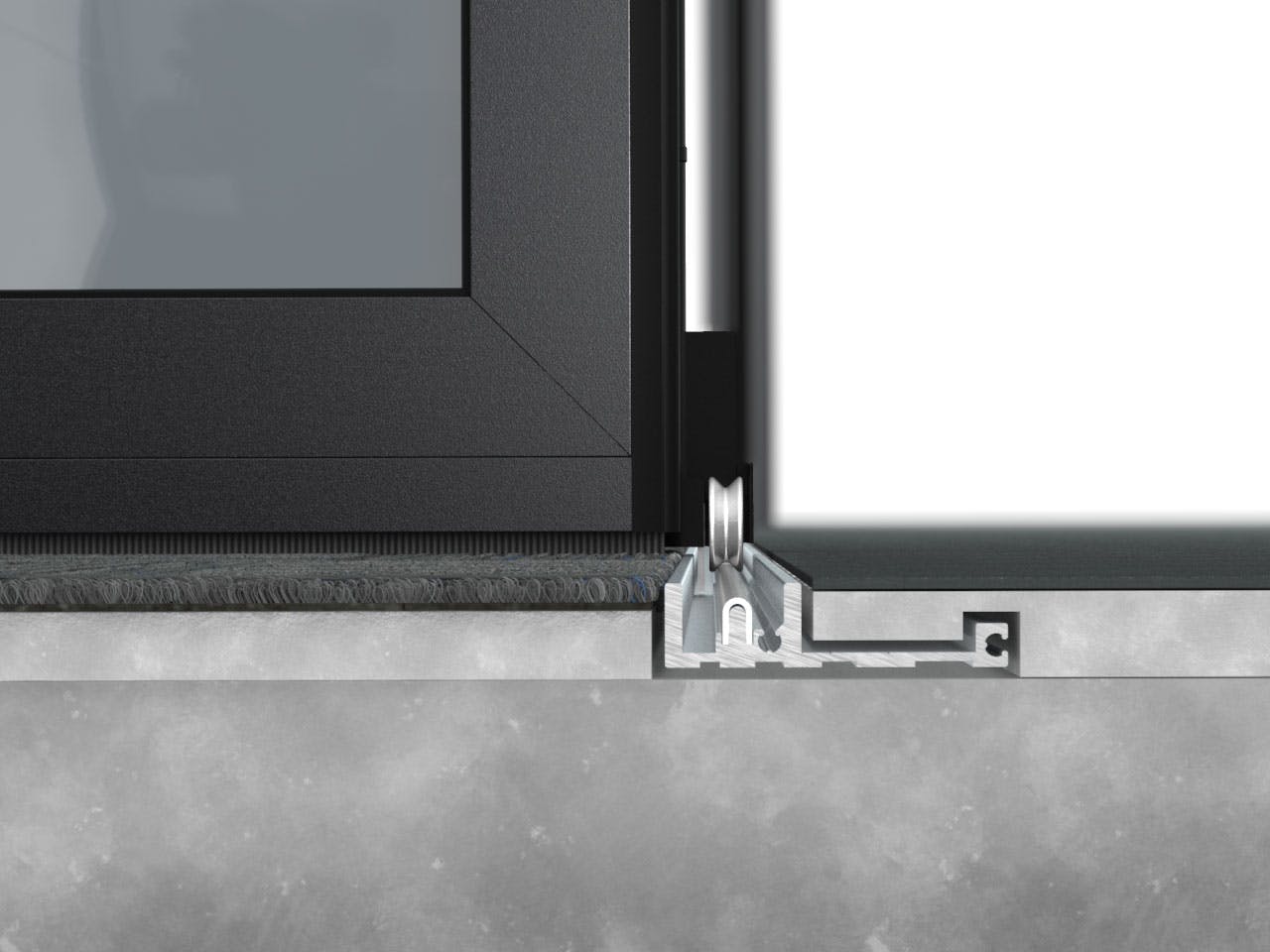

Minimal Surface Mounted Flush Sill

  • Inswing shown, outswing also available
  • ADA compliant, high heel and barefoot friendly
  • Shallow design for easy installation
  • Unique Gothic arch roller design for effortless operation
X

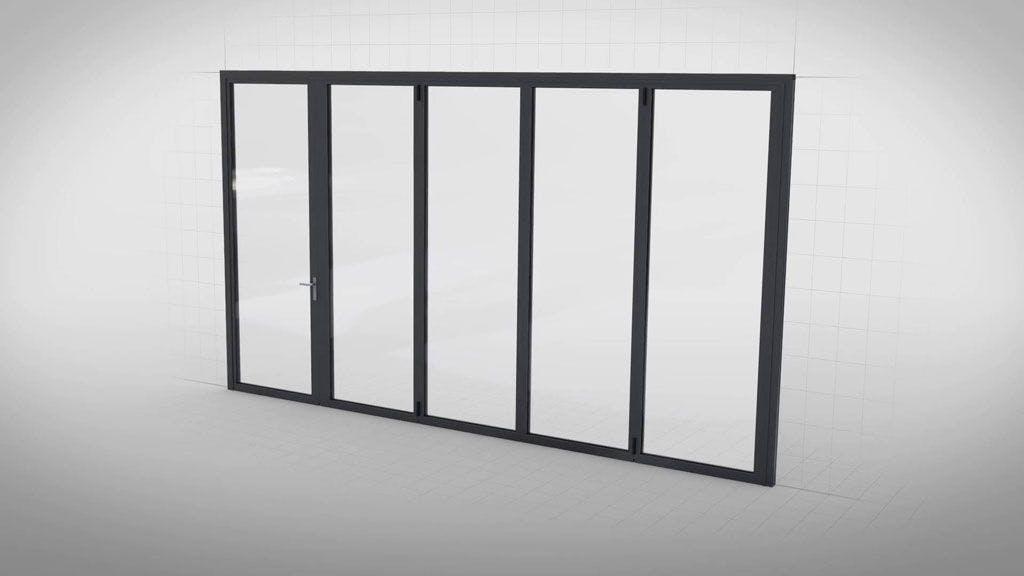

play video

Unique Gothic Arch Roller Design for Ease of Operation

NW Acoustical 645 is engineered for ease of use. Hinged panels are intuitive and quick to operate allowing staff to easily open or close the system on demand.

The running carriage rolls on a Gothic arch stainless steel wheel design supported by a double row of ball bearings. With a 2-point contact of each wheel to the floor track, the system glides quietly and smoothly with less friction by providing an equal distribution of weight on the stainless steel track.

Floor Supported Folding Glass Wall Technology

NW Acoustical 645 is the only floor supported folding opening glass wall to achieve unit STC 45. With floor supported systems, the main weight of the unit is carried by the lower stainless steel wheel assembly gliding on top of the stainless steel floor track. The top track is used merely as a guide. Floor supported systems are ideal for applications where load-bearing capability of the header is a concern.

SL64 acoustical LG used for School Design for the 21st Century-stainless steel roller on  flush-sill



ADA Compliant Flush Sill for School Design

The Flush sill option is ADA compliant with an aluminum floor track insert that provides high heel protection. This sill can be installed directly over finished flooring creating clean transitions between interior spaces.

Minimal Surface Mounted Flush Sill for Seamless Integration

Designed specifically for interior applications, the Minimal Surface Mounted Flush sill is ADA compliant and when installed with finished flooring, has only a mere 15/16" (23.5 mm) visible groove.

The shallow surface mounted sill allows for easy installation. This sill can be installed on the foundation or sub-floor and finished flooring can butt up to the floor track creating a seamless integration between interior spaces.

Left/Right FourFold and SixFold Panel Sets for Larger Openings and Flexible Stacking

This folding system allows for larger opening sizes and flexible space management with the integration of FourFold or SixFold panel sets. These panels are able to move and stack to the right, left, or center within the same track allowing the panels to be stacked in the most convenient location. The system may be either inswing or outswing, and open corner and T-intersection configurations are possible.

Swing Doors for Traffic Management

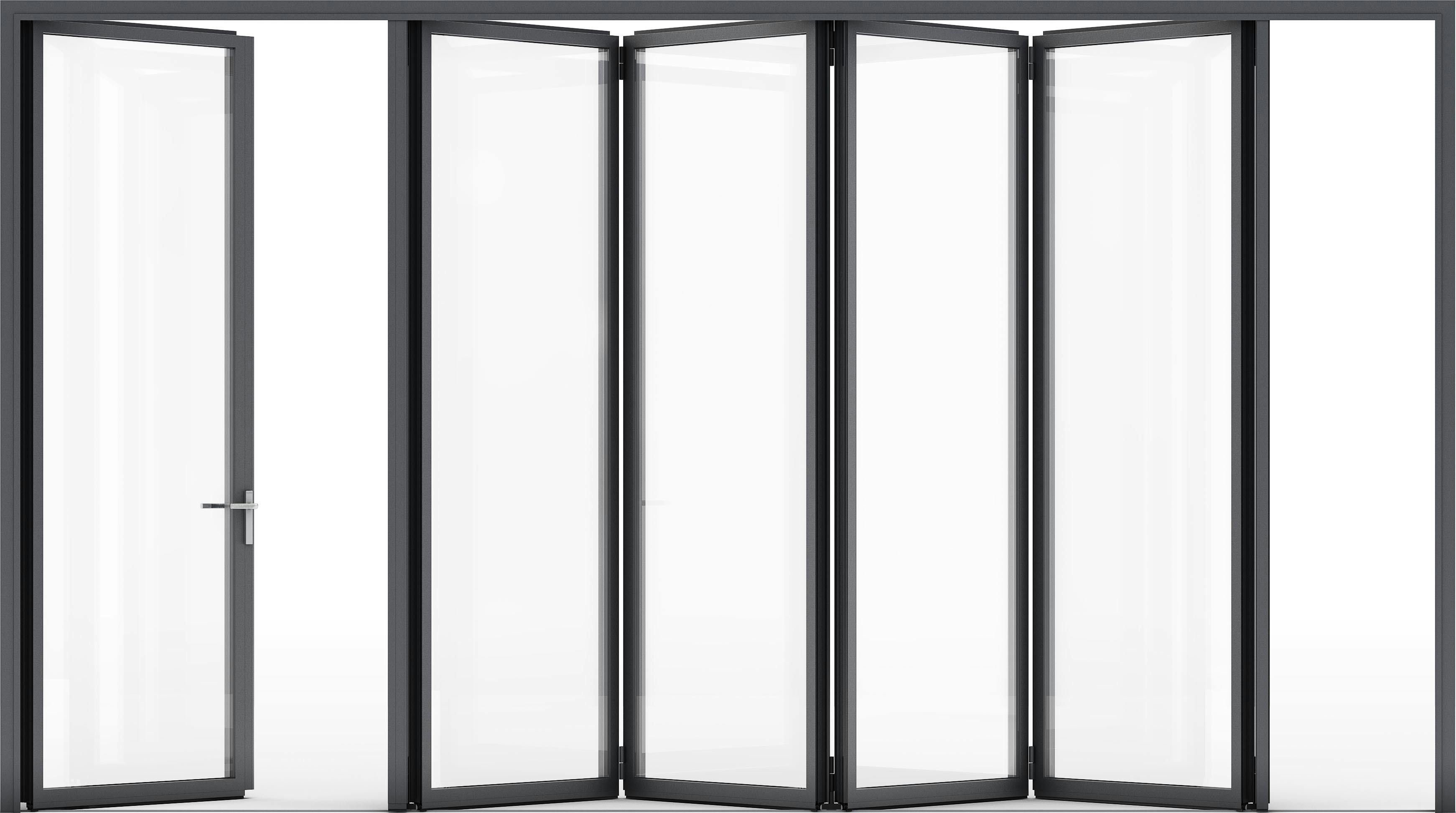

To accommodate traffic flow, NW Acoustical 645 configuration options allow for an up to 3' 3" (1000 mm) swing door at the side jamb at one end or both. For requirements of STC 42 or less, swing doors can be added to an odd number of panels hinged to the jamb. Optional higher kickplates, panic hardware, and top door closers are available.

German Engineering

NanaWall systems are designed in Germany, providing world-class quality and long-term reliability

Unique to You

Each NanaWall system is custom made to order based on your project and your personal preferences

Wide Openings

NanaWall folding systems can replace walls or doors up to 39’ wide, select systems can go even wider if desired

Built to Perform

NanaWall systems meet or exceed air, water, structural, and forced entry tests for weather, durability, and security

Aesthetics

NanaWall systems offer a variety of material options and finishes to coordinate with any design

Ease of Operation

NanaWall systems offer single-handed operation and move smoothly with little effort
