Standard Configurations
FourFold Panel Sets
Below are a sample of possible configurations. These animations are for operational illustration only. Please contact NanaWall for many other possibilities.
In any standard folding configuration, between folding panels stacking to the left and folding panels stacking to the right,
additional floating left/right FourFold or SixFold panel sets can be added. Shown are some typical examples.
Please contact NanaWall if CAD is needed for other configurations.
Cornerless Folding Configurations
Below are a sample of possible configurations. These animations are for operational illustration only. Please contact NanaWall for many other possibilities.
Shown below are some typical variations:
- Odd number of panels meeting odd number of panels
- Odd number of panels meeting even number of panels
- Even number of panels meeting even number of panels
All standard configurations are available in cornerless options.
Please contact NanaWall if CAD is needed for other configurations.
Window Door Combinations
Below are a sample of possible configurations. Please contact NanaWall for many other possibilities.
Floor Tracks
Four Sill Options—All with High Heel Resistant Insert
NW Clad 740 has four sill options: Hybrid, Low Profile Saddle, Low Profile Saddle with UniverSILL®, and Flush.
Standard to all sills is removable aluminum high heal resistant sill inserts. These inserts provide ADA compliance for the Low Profile Saddle and Flush sills. Furthermore, the inserts offer protection from dirt and debris collecting in the bottom track.
A lighted option is possible; LED rope lights by others may be run under the sill insert to illuminate the way. The example shown at right is a Low Profile Saddle Sill on a NW Aluminum 840 unit.

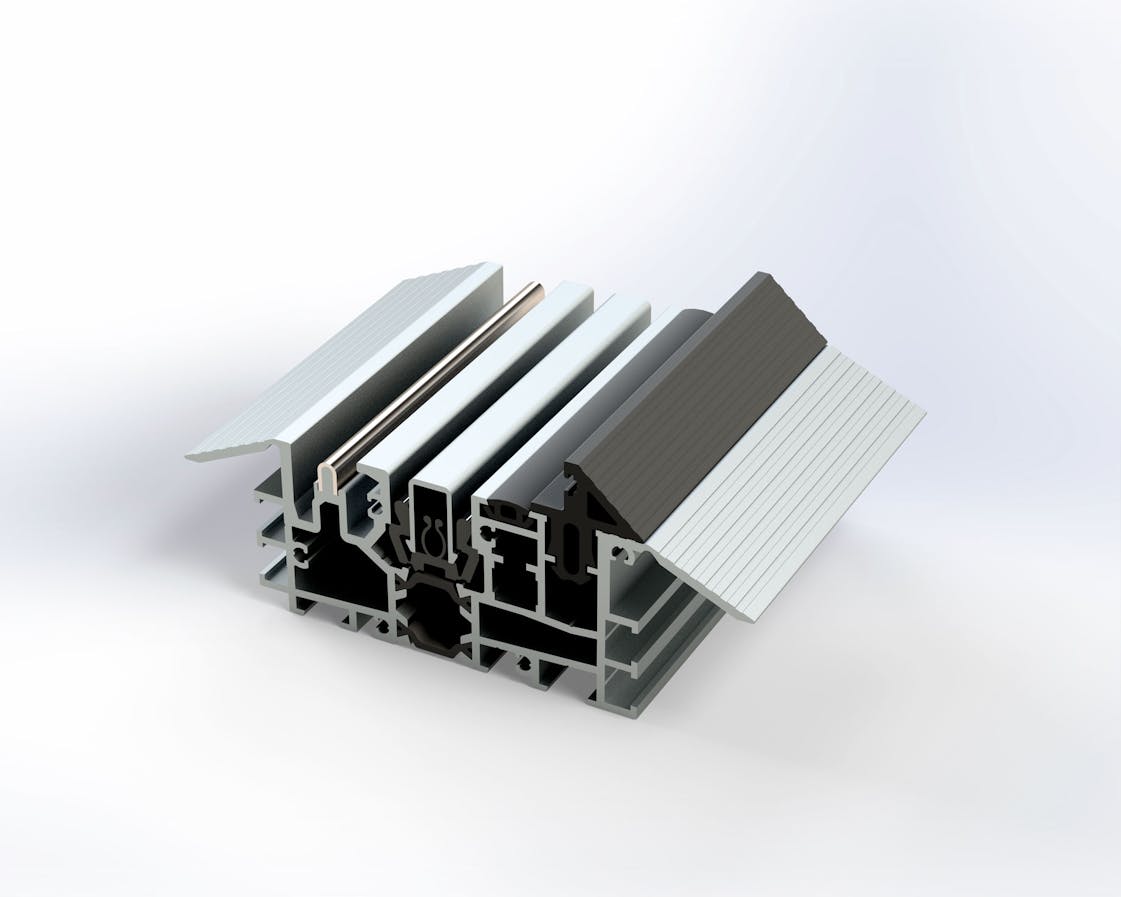

Low Profile Saddle Sill with UniverSILL® - Outswing
The UniverSILL is a patented gasket for the outswing Low Profile Saddle Sill. It can be added on when higher weather performance is needed or it can be removed for ADA compliance or barefoot freedom.
Handles
Stainless Steel Lever Handles
Stainless steel lever handles and escutcheon plates are available either in a brushed satin, black titanium or anti-viral/anti-microbial copper-nickel finish.
Brushed Satin
Black Titanium
Anti-Viral/Anti-microbial Copper-Nickel Finish
CONTEMPORARY STAINLESS STEEL HANDLE
Stainless steel flat handles are available either in a brushed satin, black titanium or anti-viral/anti-microbial copper-nickel finish.
Brushed Satin
Black Titanium
Anti-Viral/Anti-Microbial Copper-Nickel Finish
Spring-Loaded Pull Handle
Black Titanium
Silver
For outswing units with larger panel sizes, a spring-loaded pull handle is supplied for ease of closing the system. The pull handle is located above the flat handle. When not in use, the handle lays flat against the adjacent panel and is supplied with bumpers to avoid metal-to-metal contact. Handles are either silver or black titanium stainless steel with the attachment to coordinate with the hinge hardware of the system.
Stainless Steel Lever Handles with Return
Compatible Hardware by Other Manufacturers
Locking
Standard to the system is concealed locking between folding panels that operates with a 180° turn of a flat handle. The top and bottom locking bolts have approximately a 1" (24 mm) throw for maximum security engagement into the head and floor track.
Standard and Tested Locking Option on Primary Swing Panels:
1) Multi-point locking operated by lever handles and with European profile cylinder. Locking is independently tested for acoustics, structural, air, water, and forced entry.
Standard and Tested Locking Option for Secondary Swing Panels:
1) Concealed edge lock with top and bottom locking bolts have approximately a 1" (24 mm) throw for maximum security engagement into the head and floor track. Locking is independently tested for acoustics, structural, air, water, and forced entry.
For additional hardware options, contact NanaWall.
Multipoint locking with latch, deadbolt and top/bottom locking rods
This option is possible only on primary swing door.
Includes top and bottom Polyamide capped locking rods, deadbolt, a compatible lock set with lockable latch and lever handles on the inside and outside. Depression of handles withdraws latch. Lifting of handles engages rods and turn of key or thumb turn engages deadbolt and operates lock.
Operable from inside and outside.
Two Point Locking
Standard between each pair of bi-fold panels and an option for swing panels. 180-degree turn of handle moves locking rods up or down. Uses 7 mm spindle.
Operable from inside only.
Glass
Thermal Efficiency and Glazing Options
A fundamental benefit of this next generation folding
glass wall is energy efficiency. The solid wood frames
also offer the additional insulative and thermal advantage
provided by natural wood. Depending on glass type selection,
NW Clad 740 offers exceptional thermal performance values
as low as “.21”. The system comes standard with continuous
seals along the face of each panel frame.
The glass pocket can accommodate glass from 1 1/8"
(28 mm) to 1 7/8" (48 mm) insulated glass.
Wood Finishes
Eco-friendly Water-based Pre-treatment on Wood
CLEAR SANDING SEALER (FIELD APPLIED FINAL FINISH BY OTHERS)
Standard Quadruple Laminated Wood Species
(Market availability of quadruple laminated cross-grained wood may differ by wood species.)
Sapeli Mahogany
(FSC Certified)
Pine
(PEFC Certified)
Spruce
(PEFC Certified)
Meranti
(PEFC Certified)
Western Hemlock
(PEFC Certified)
Additional Wood Species Available Upon Request - Please Contact NanaWall
Please note that wood have naturally occurring differences in grain patterns. The samples may vary from the wood received for your project.
Before installation in the project, your NanaWall system must be finished with at least two coats for a final protected finish.
All factory-applied wood care products are water based and environmentally friendly. They are manufactured by Sikkens and specially designed for NanaWall Systems.
Aluminum Colors
Shown are a selection of colors available Contact NanaWall for other possible finishes. The samples shown here are representative only. Please consult with your sales representative for actual samples.
Standard Anodized Finish
Other finishes like black anodized and steel-effect DB mica finishes are available on request.
NanaWall Standard Powder Coating Finishes
Additional Powder Coating Finishes
NanaWall® offers over 200 RAL GLOSS powder coated and over 200 RAL MATTE powder coated colors for an additional upcharge.
