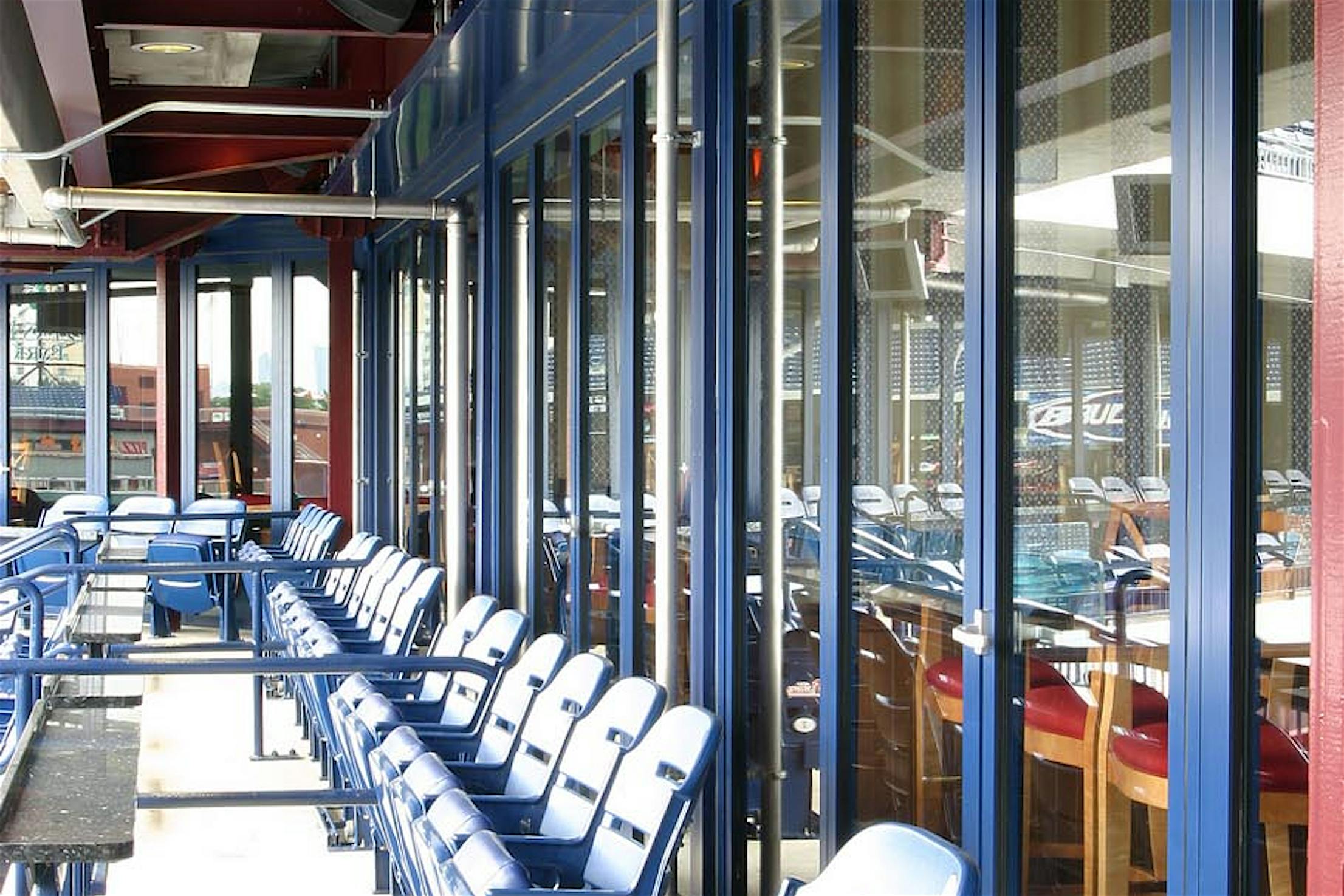

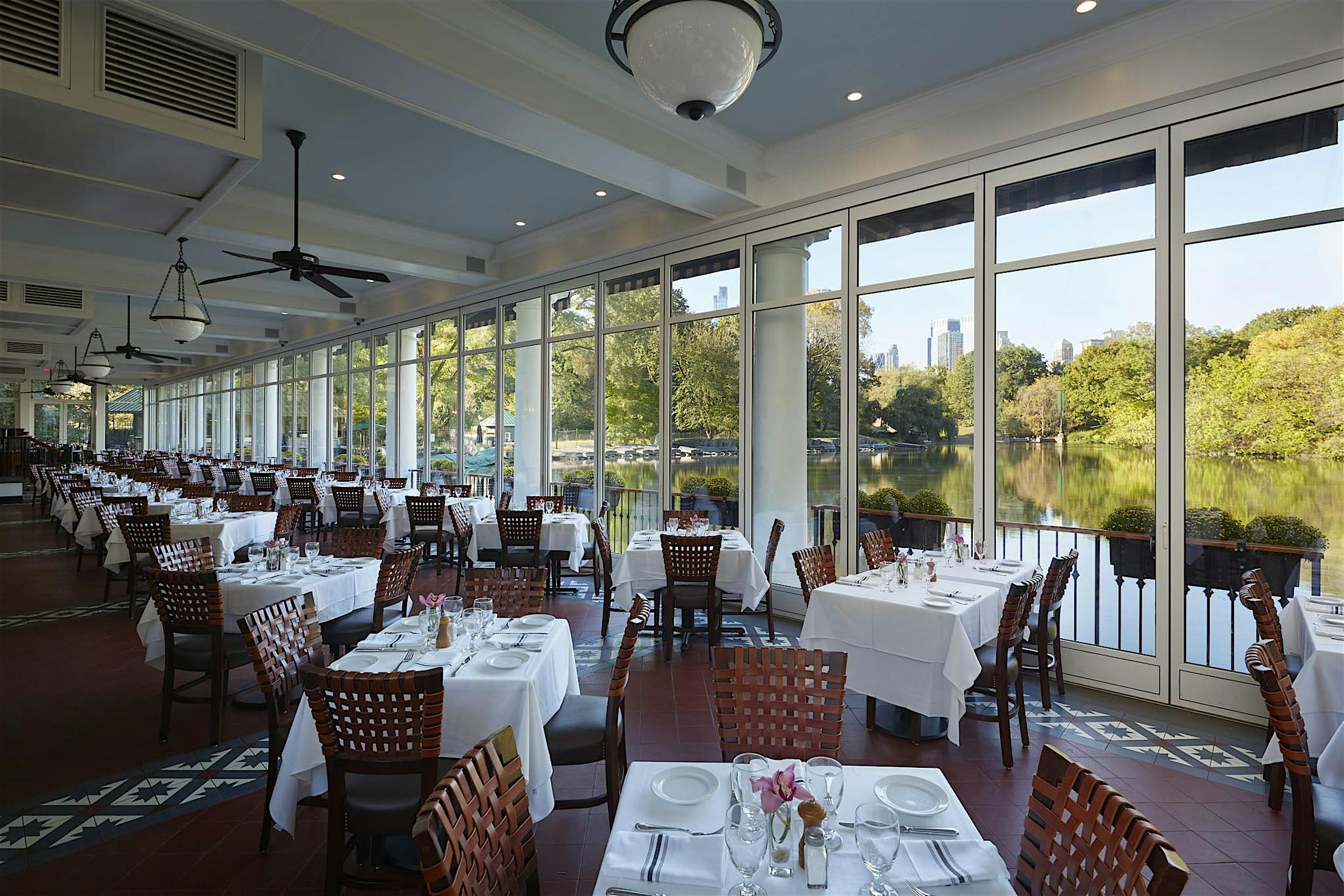

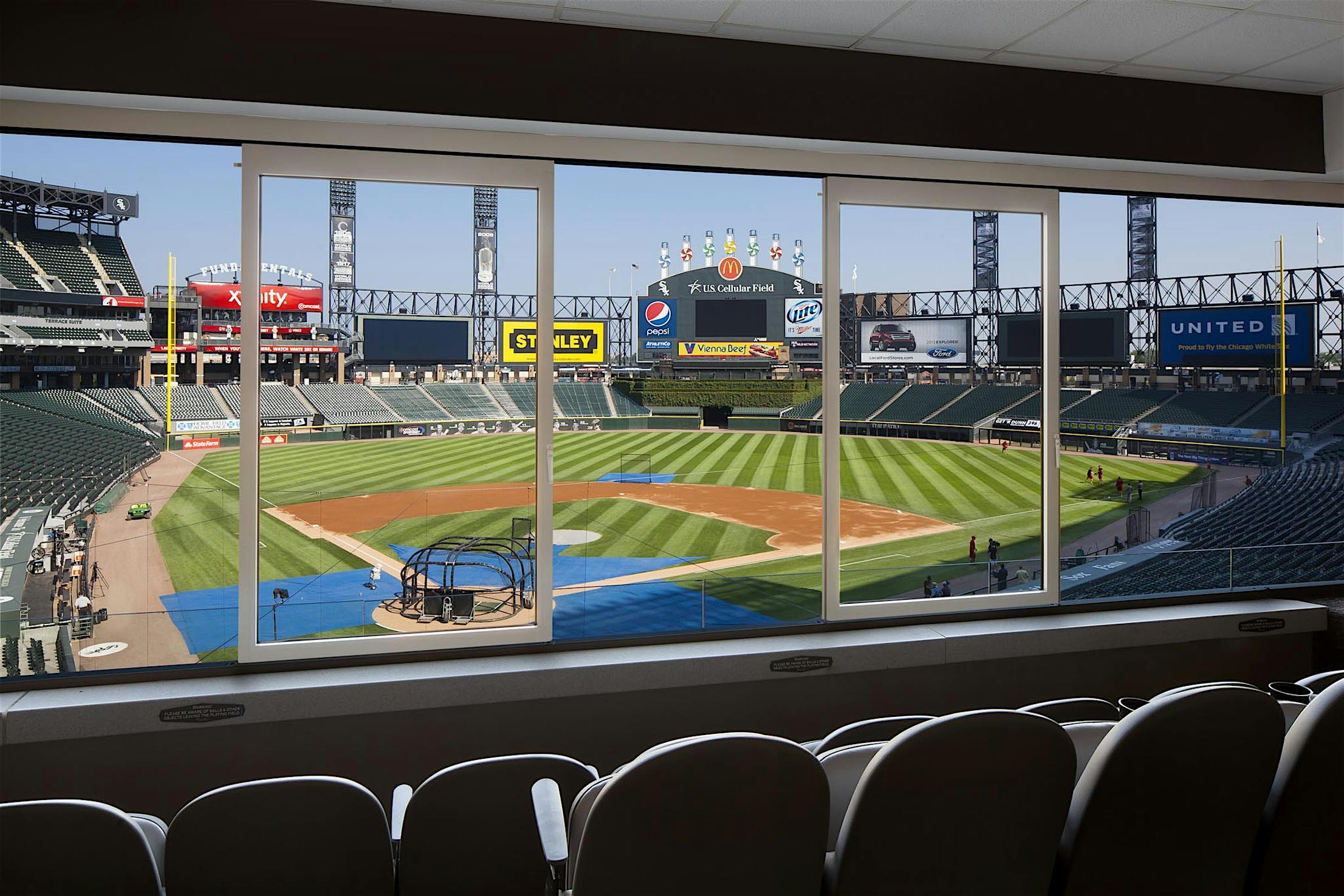

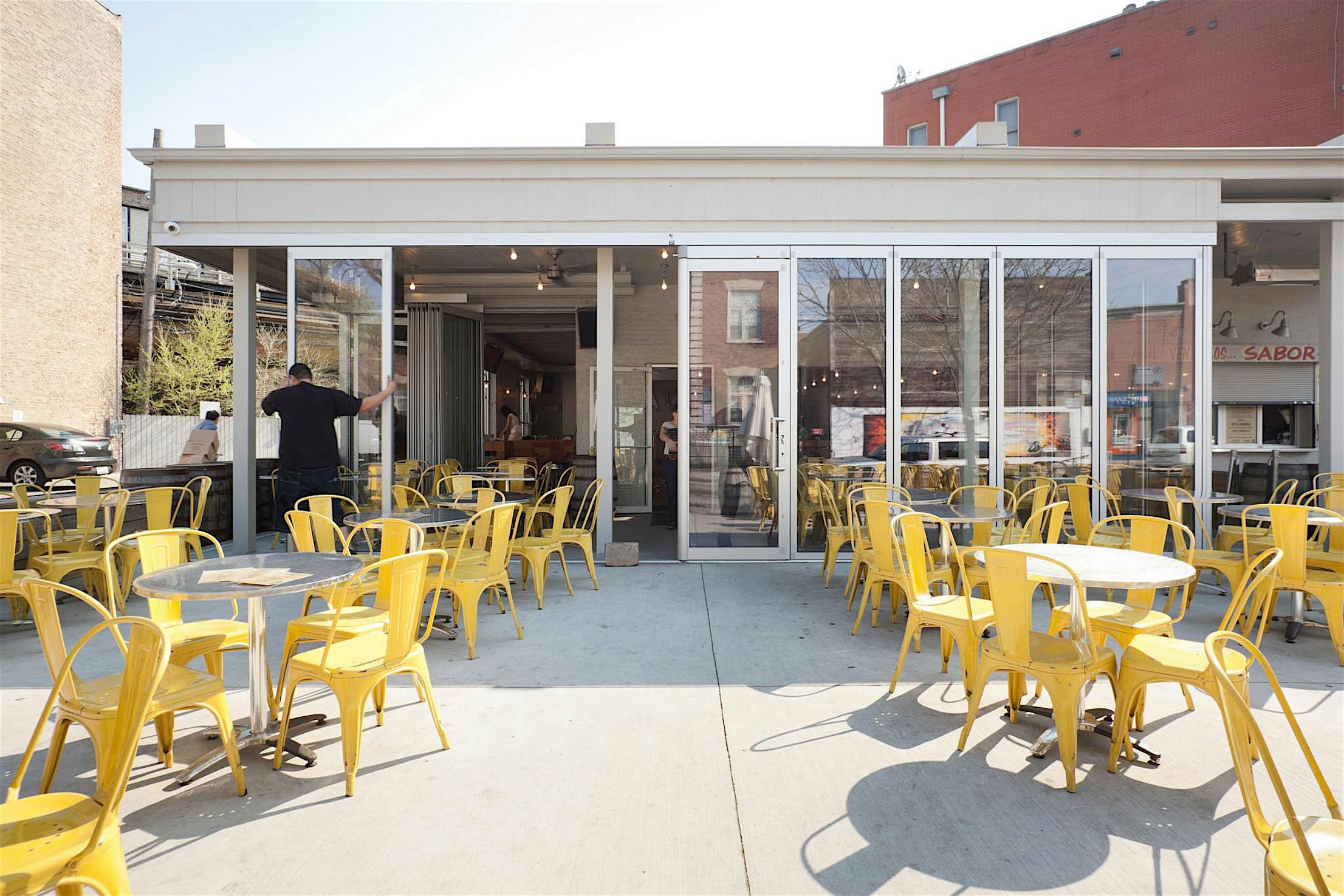

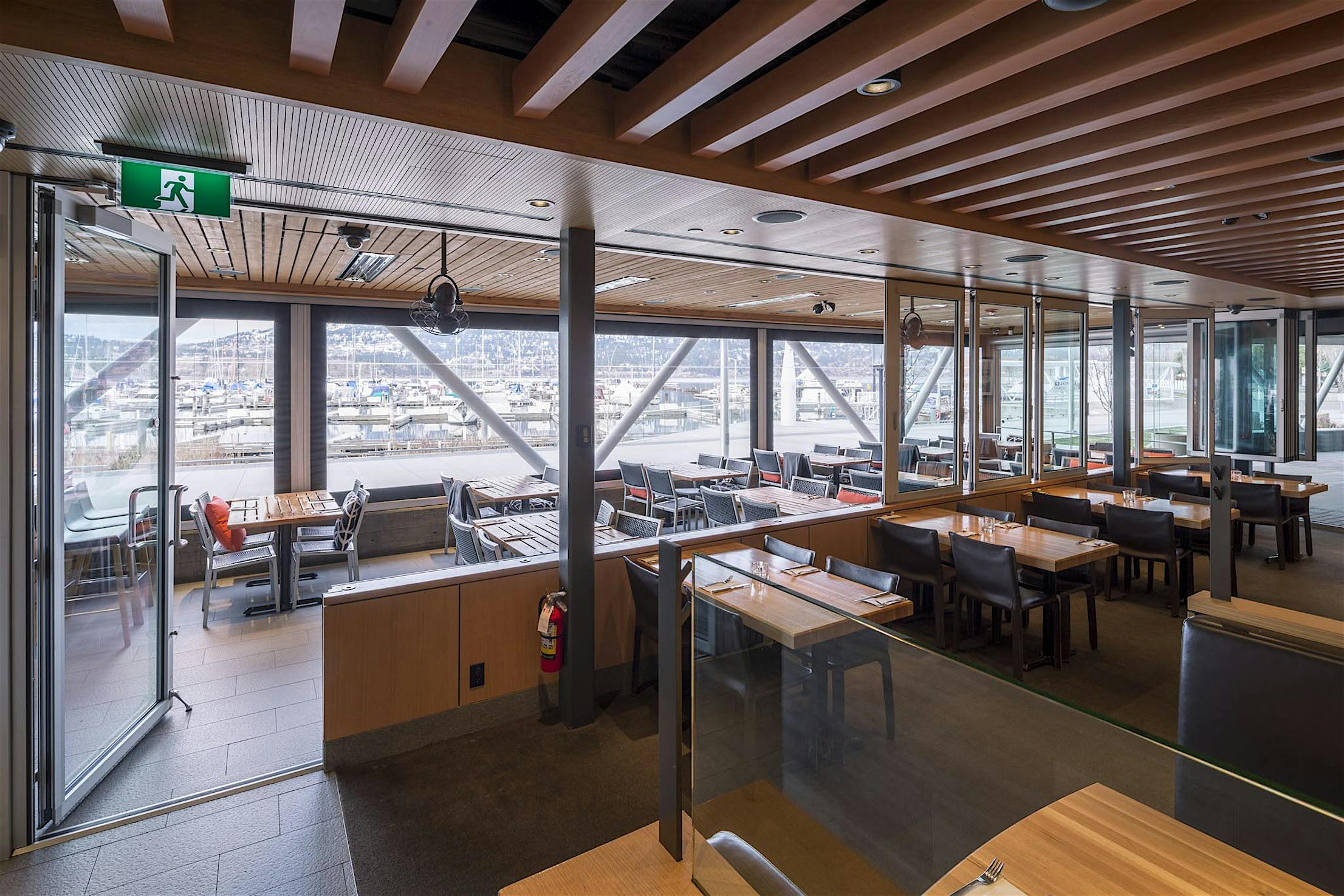

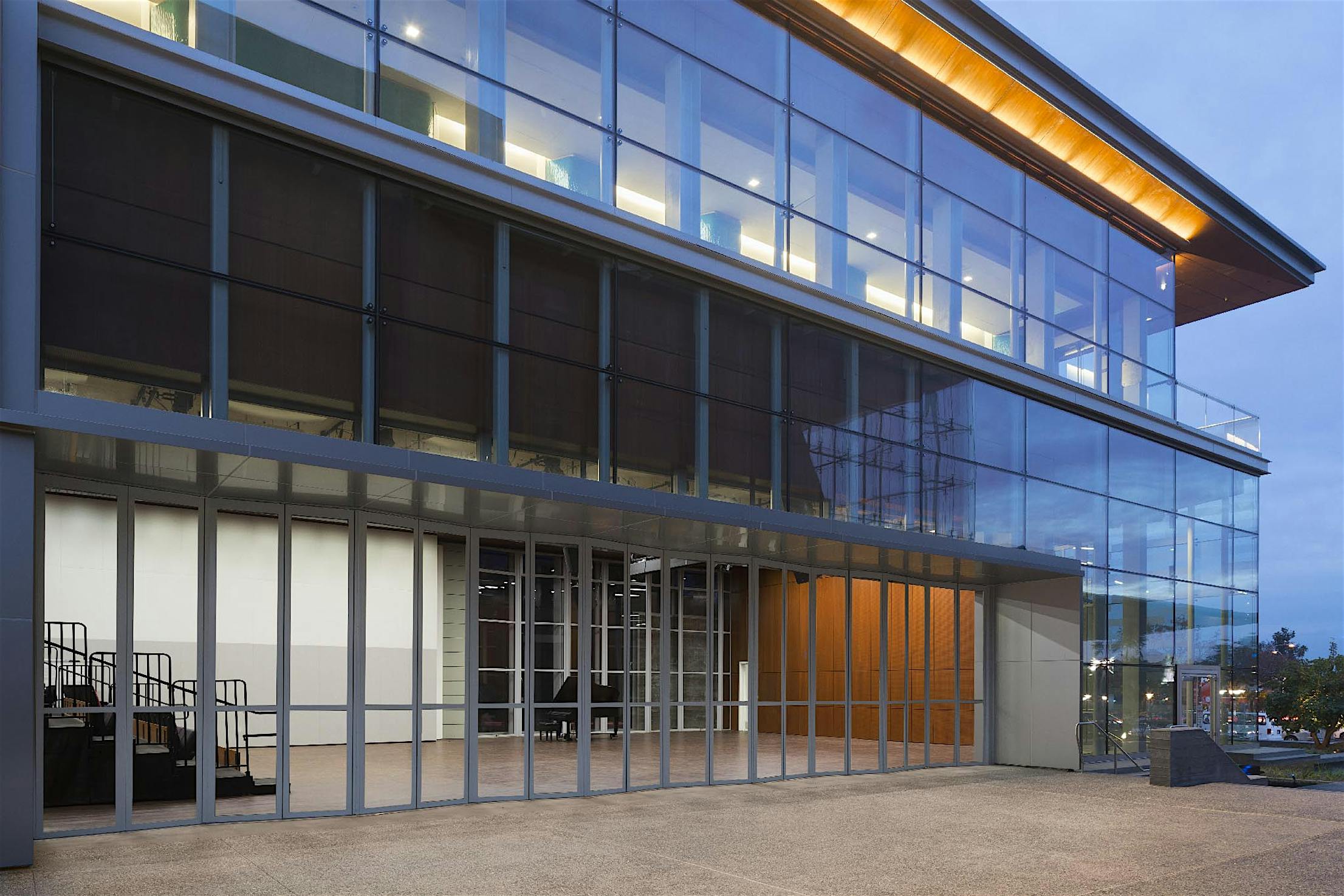

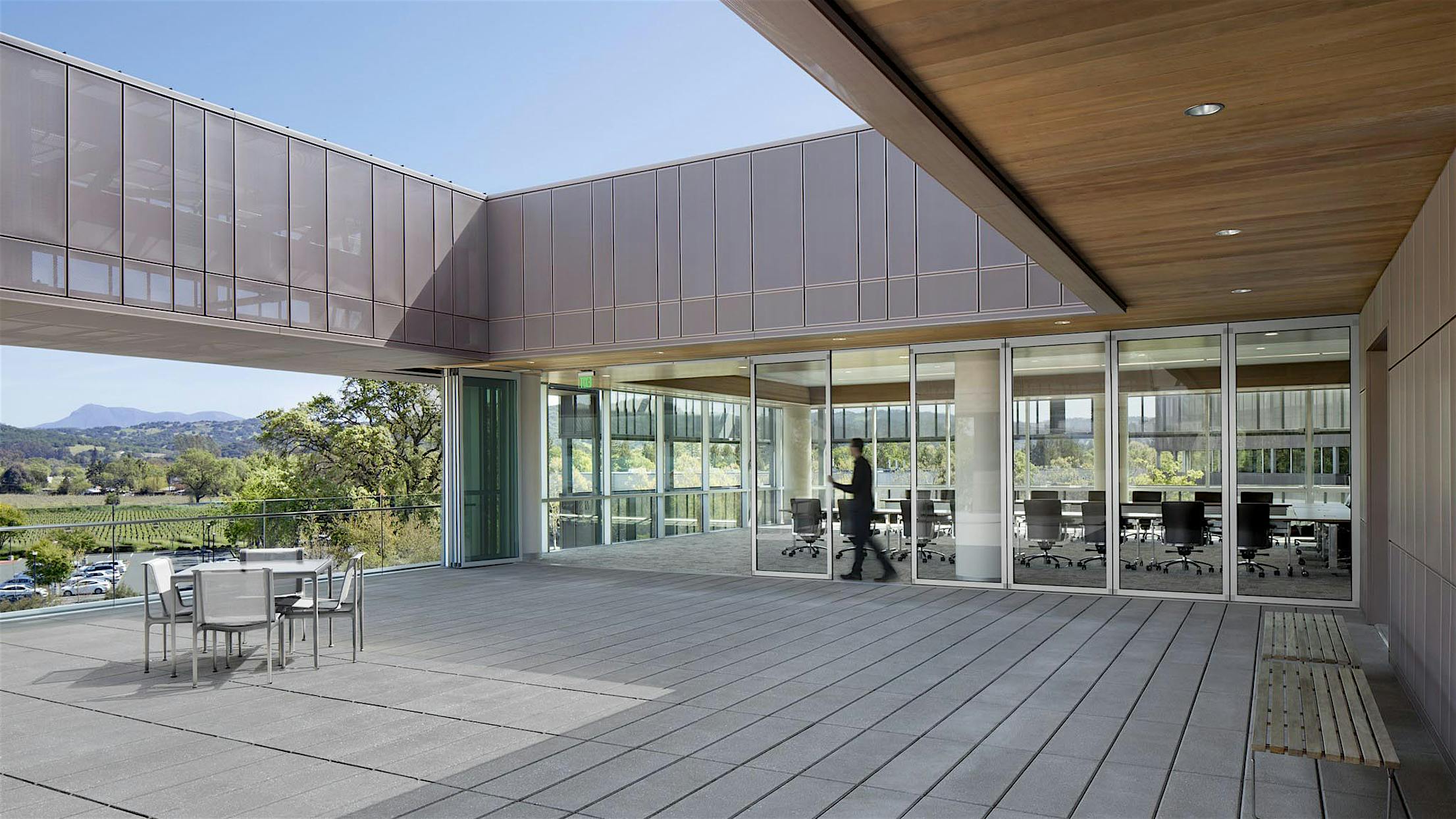

Our Most Advanced Single Track SystemEver
Features

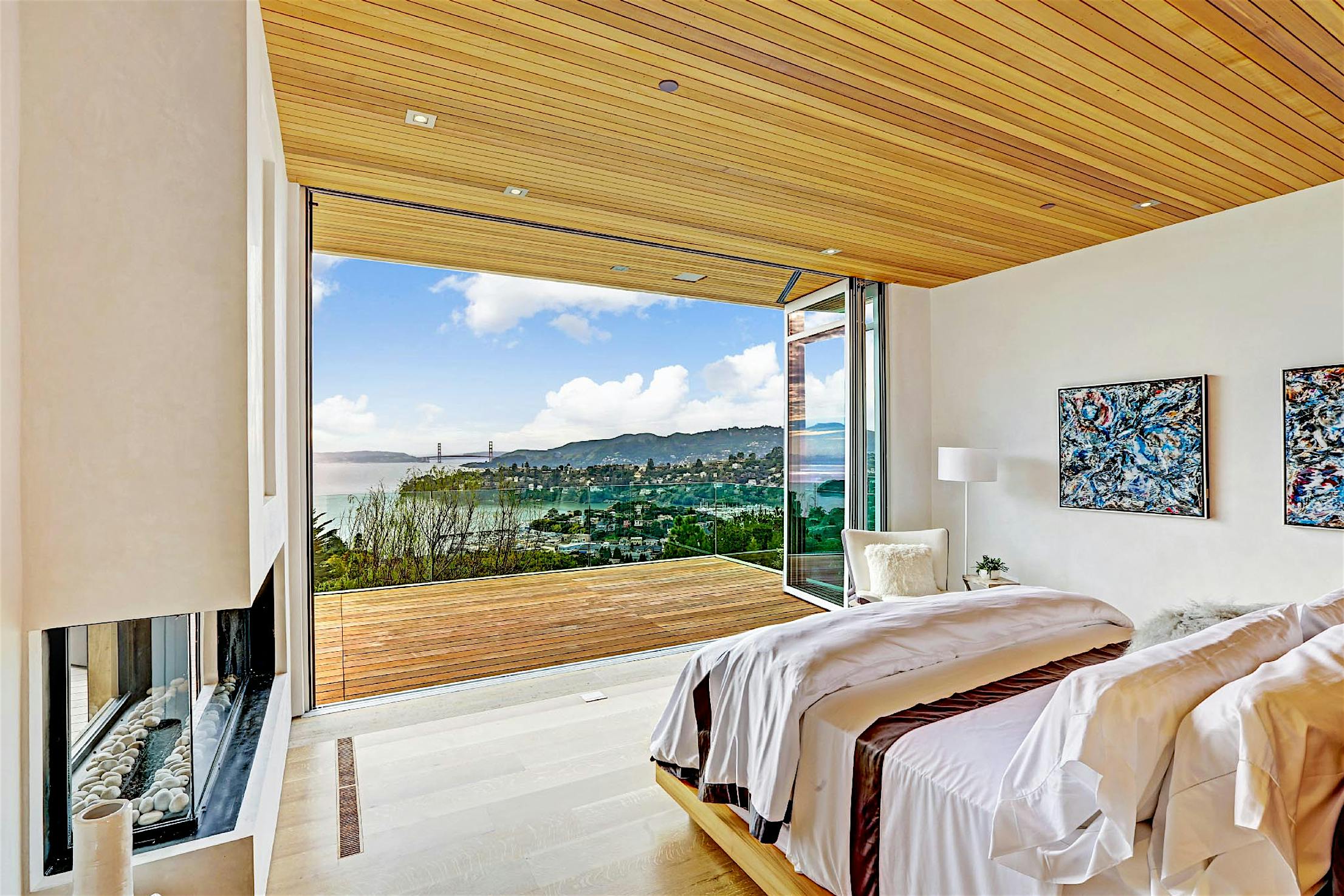

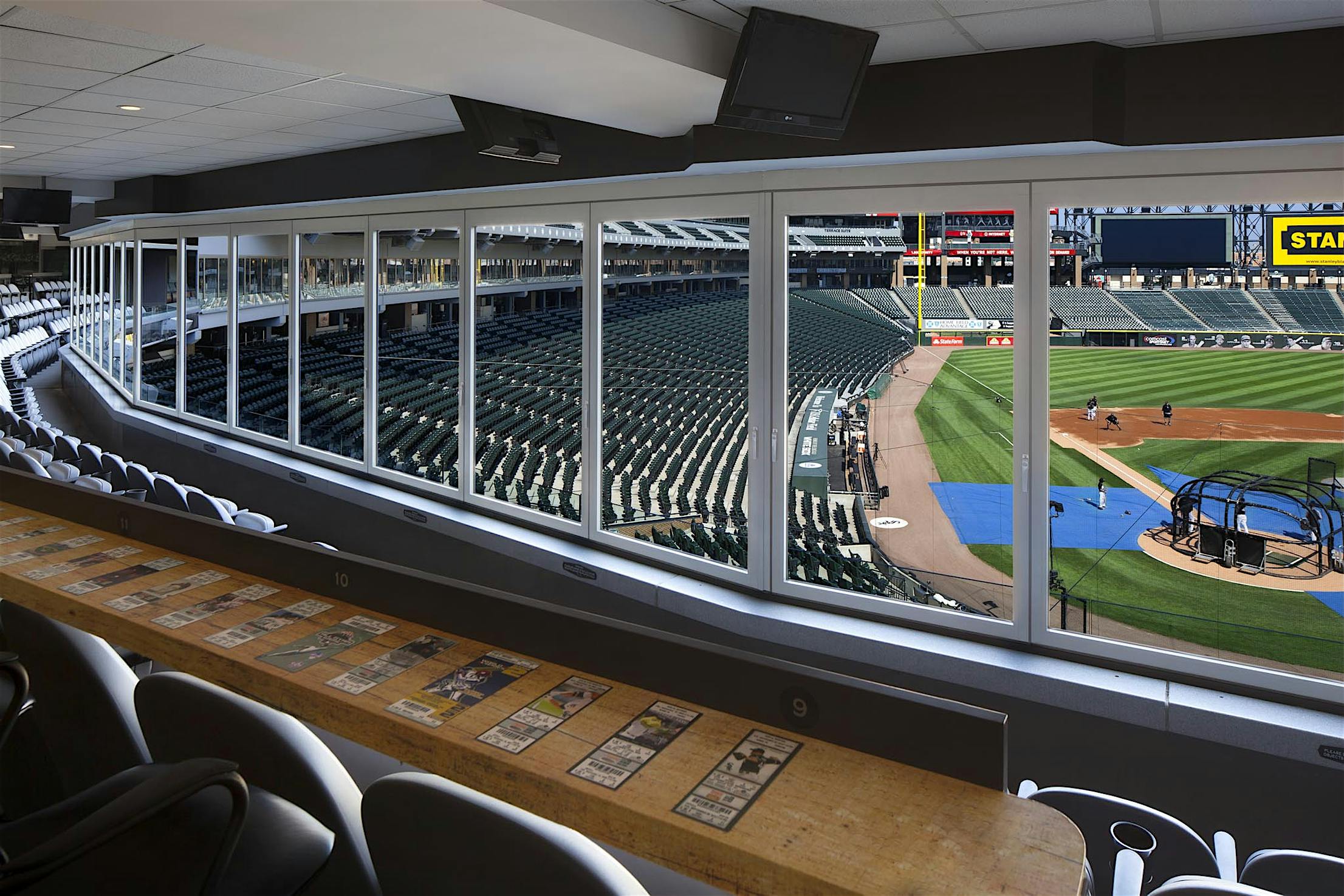

Single Track Flexibility To Solve Virtually Any Design Challenge
Our single track system provides all of the tools required to solve the most complex design requirements. Unlimited door panels, commercially rated swing doors, and parking bay layouts customized to your surrounding conditions are just a few of the design features.

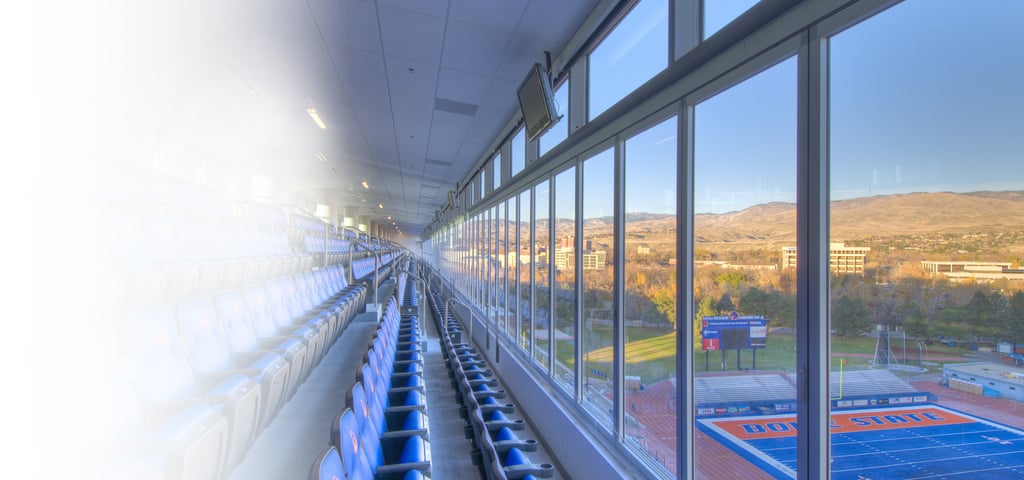

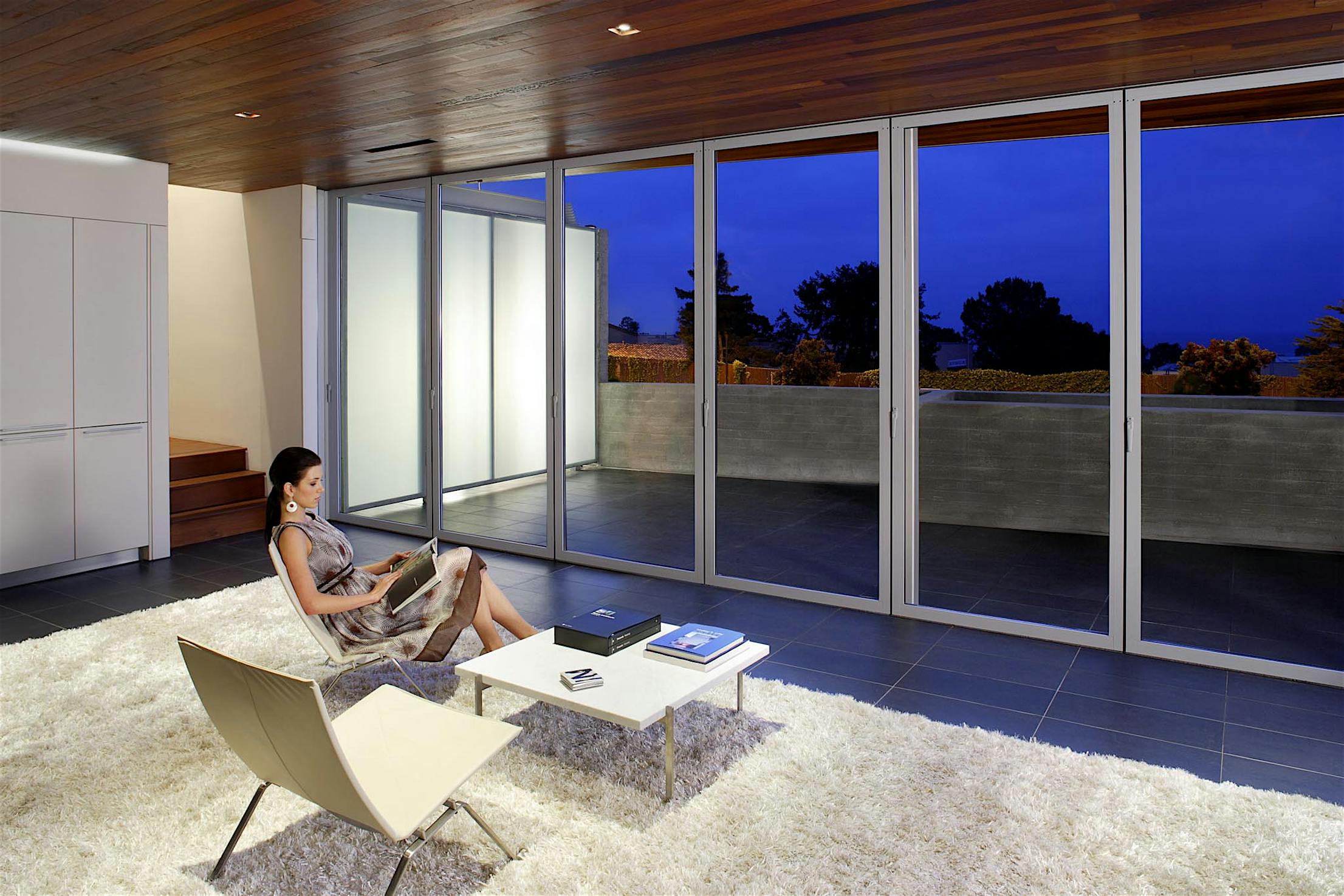

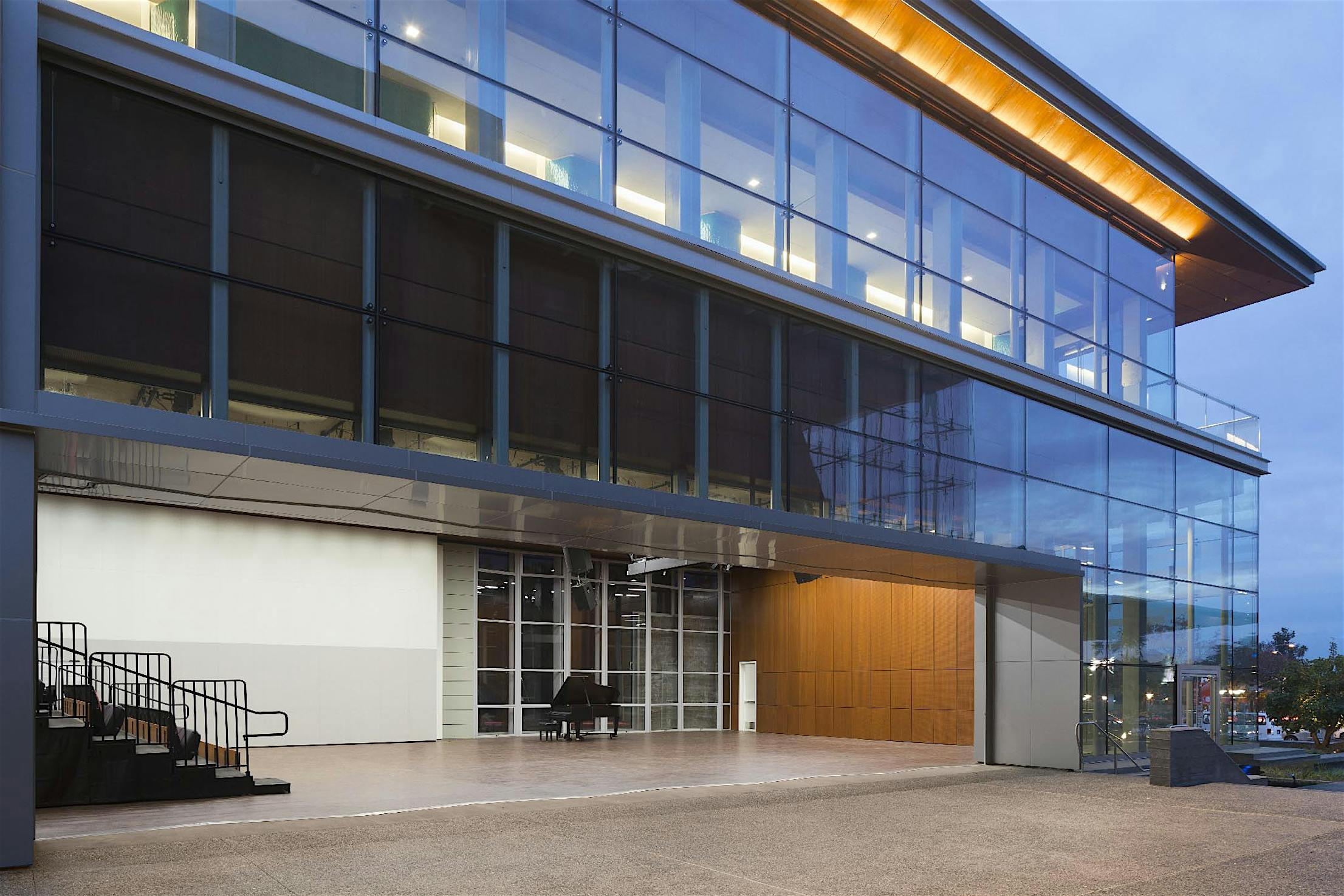

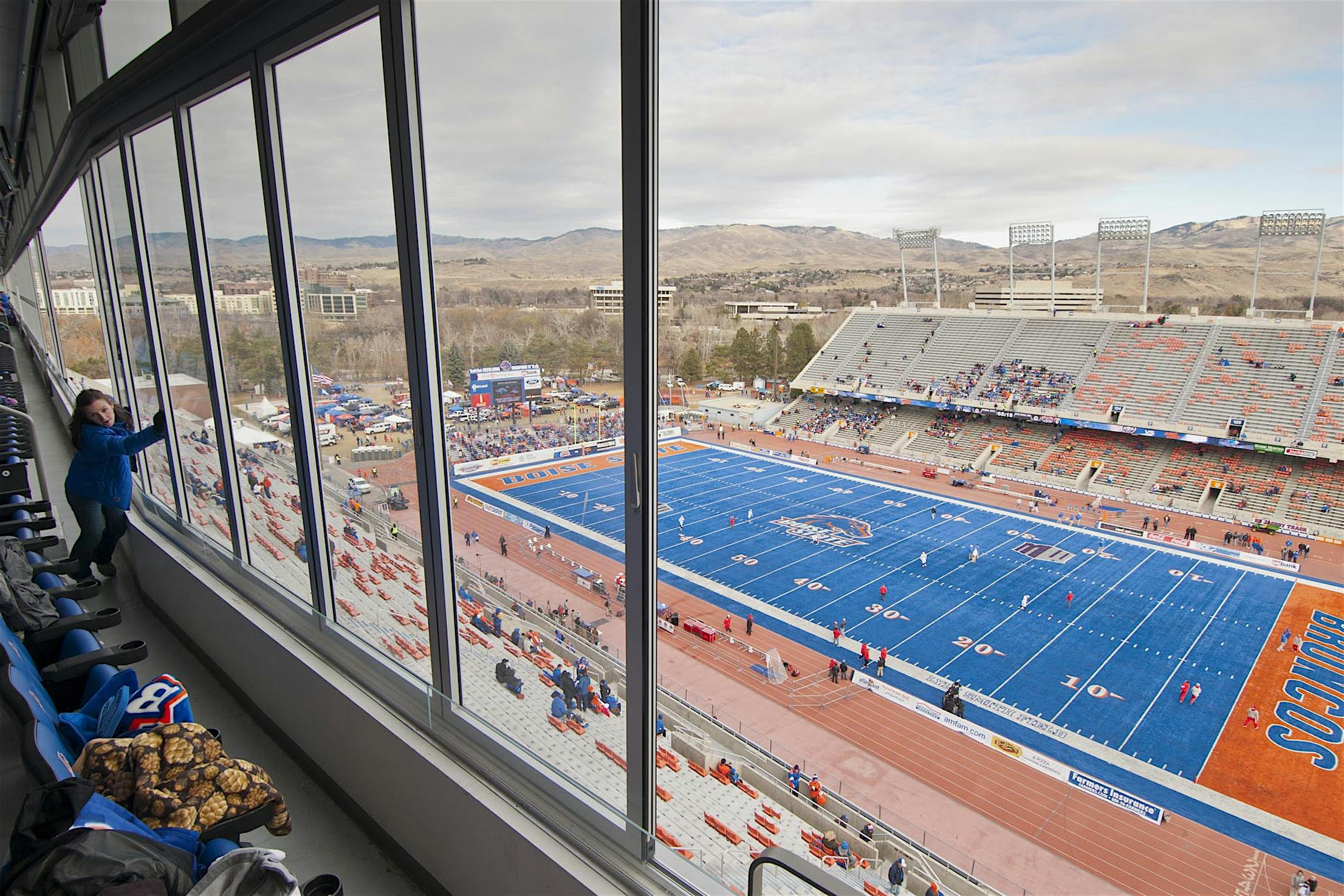

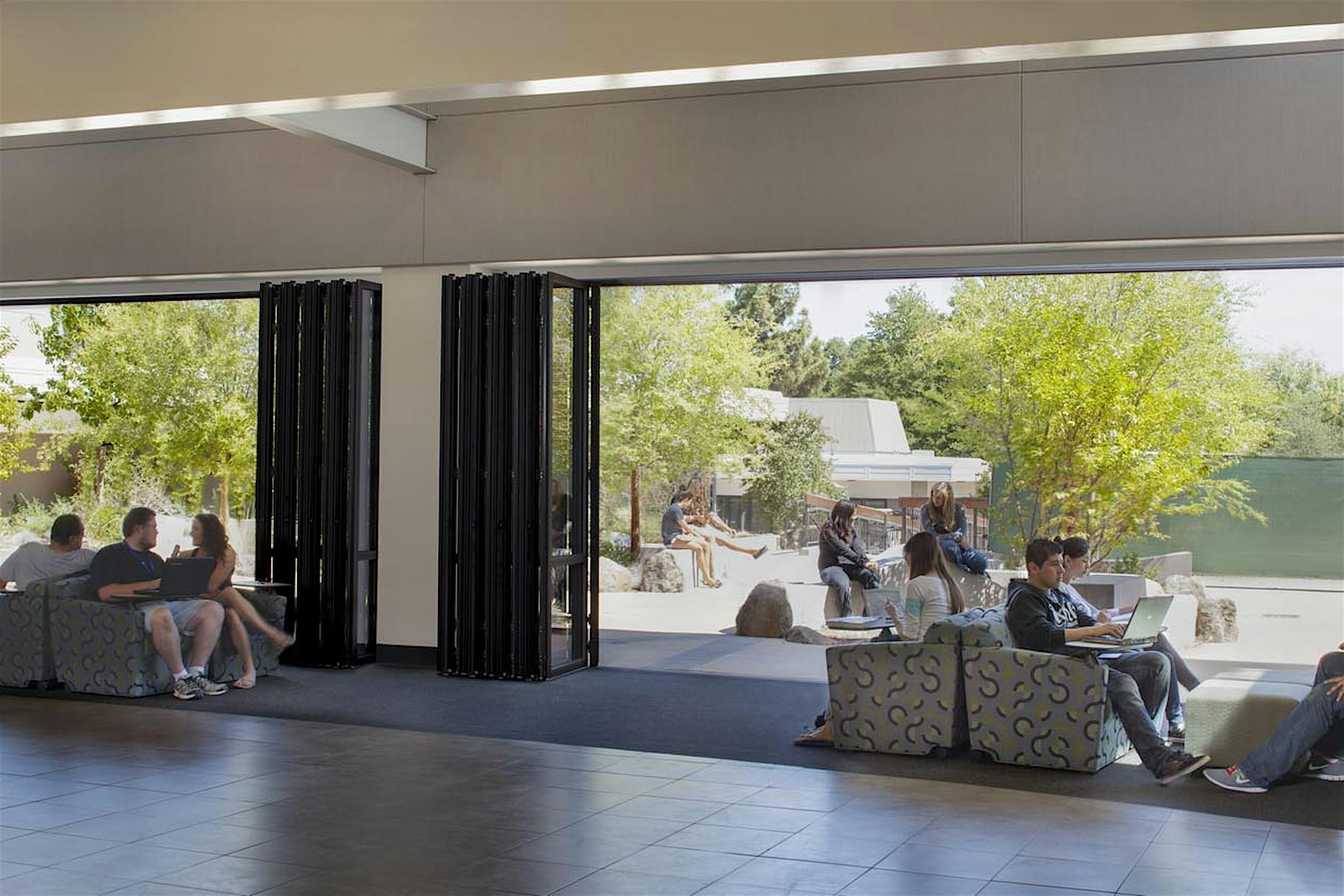

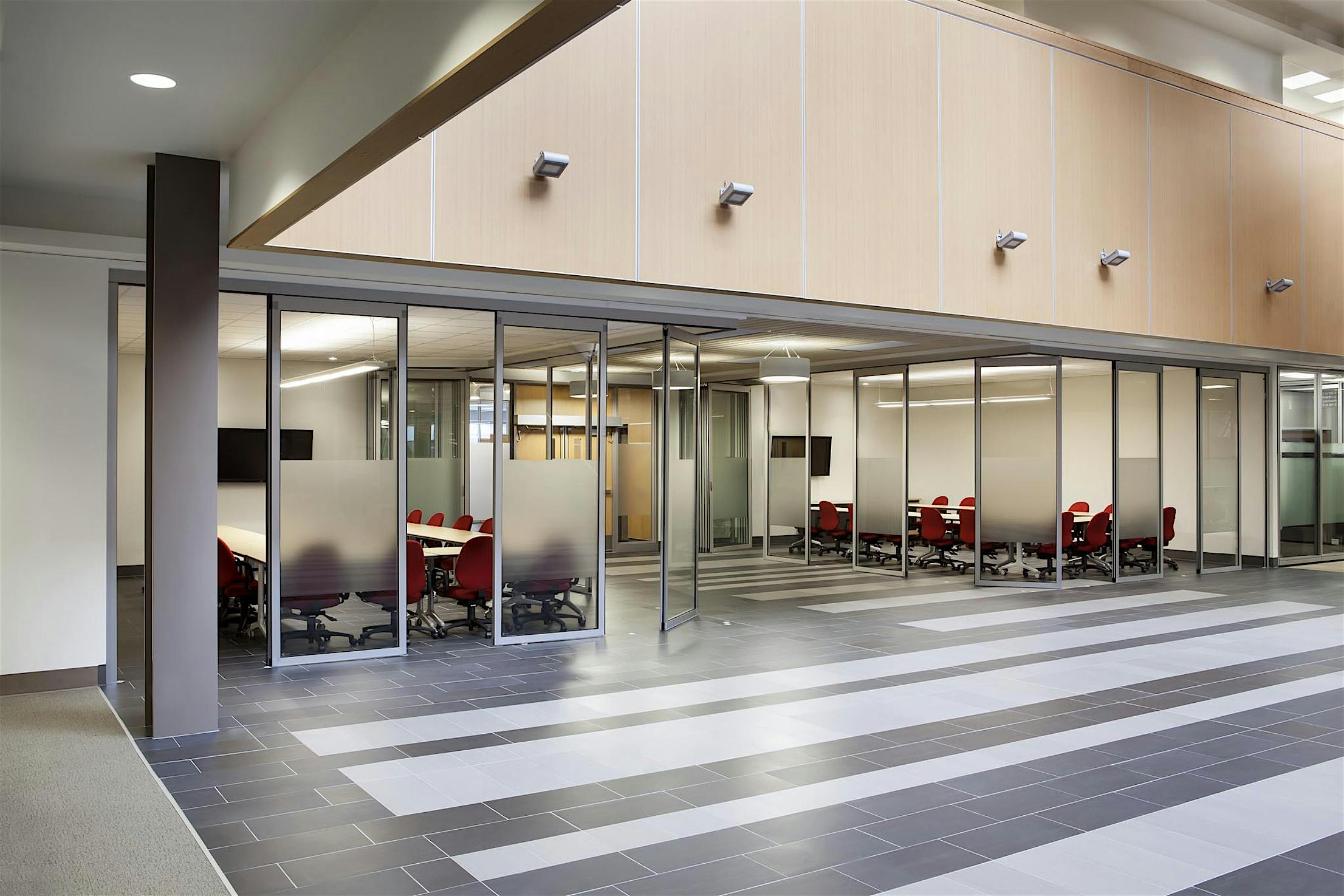

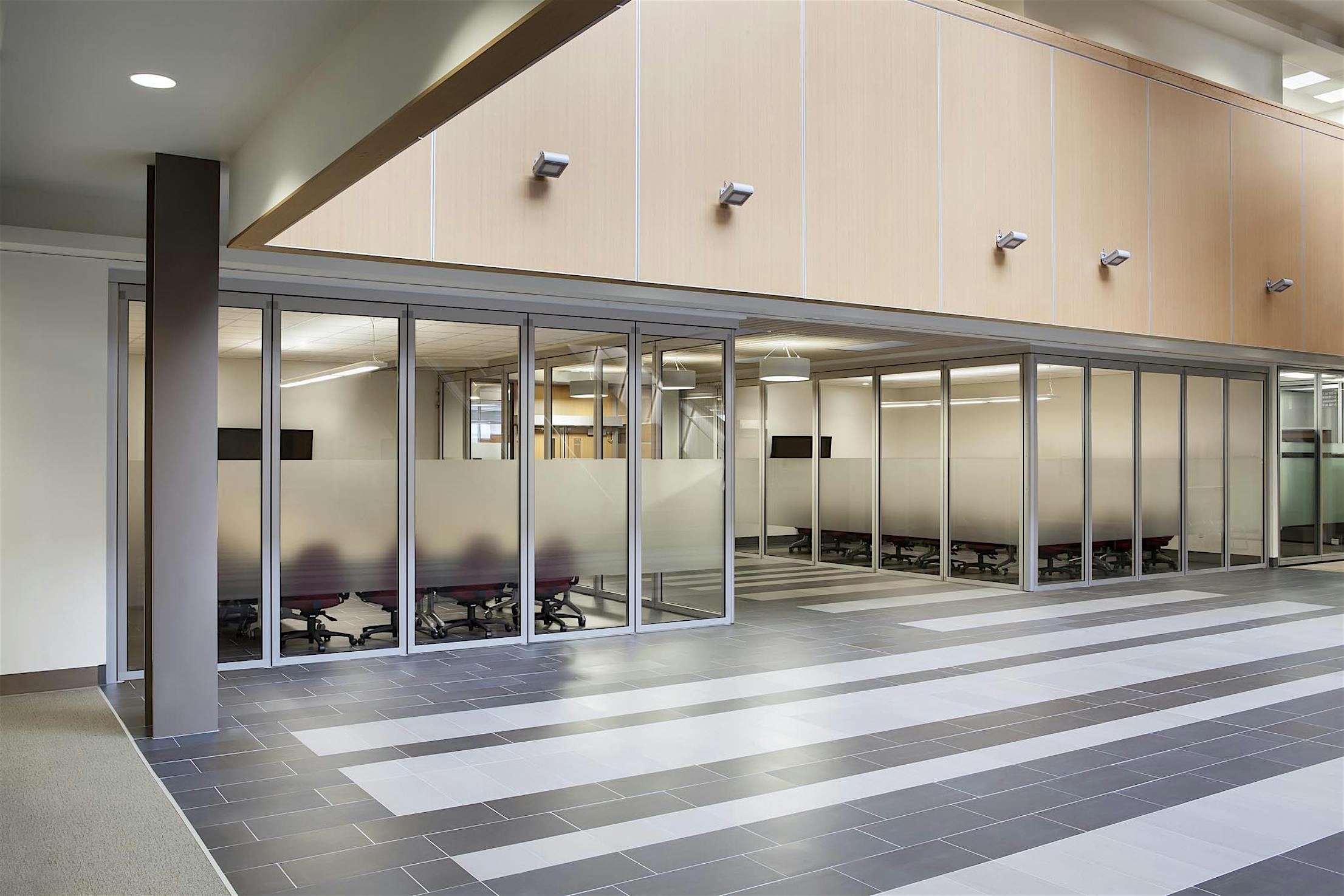

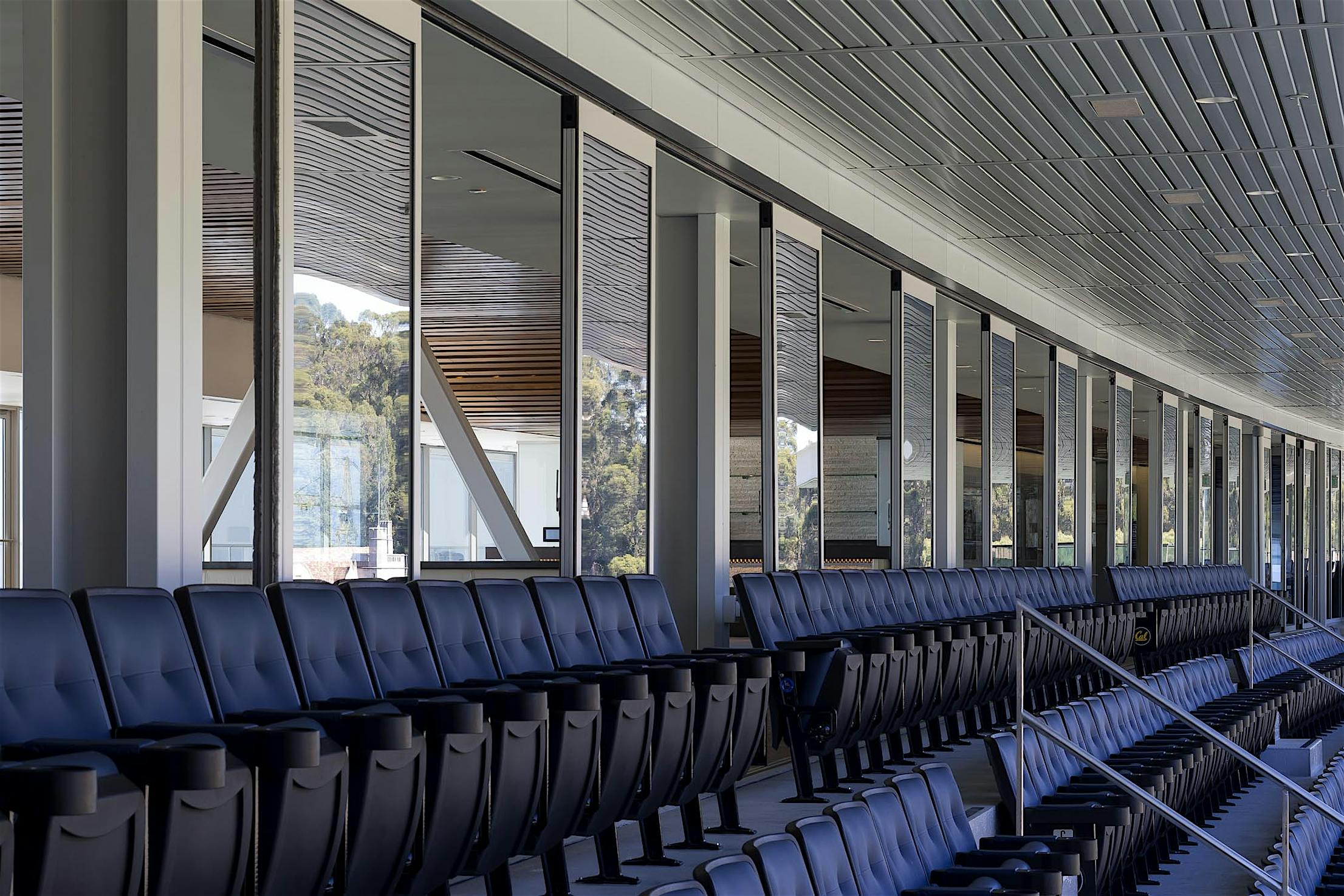

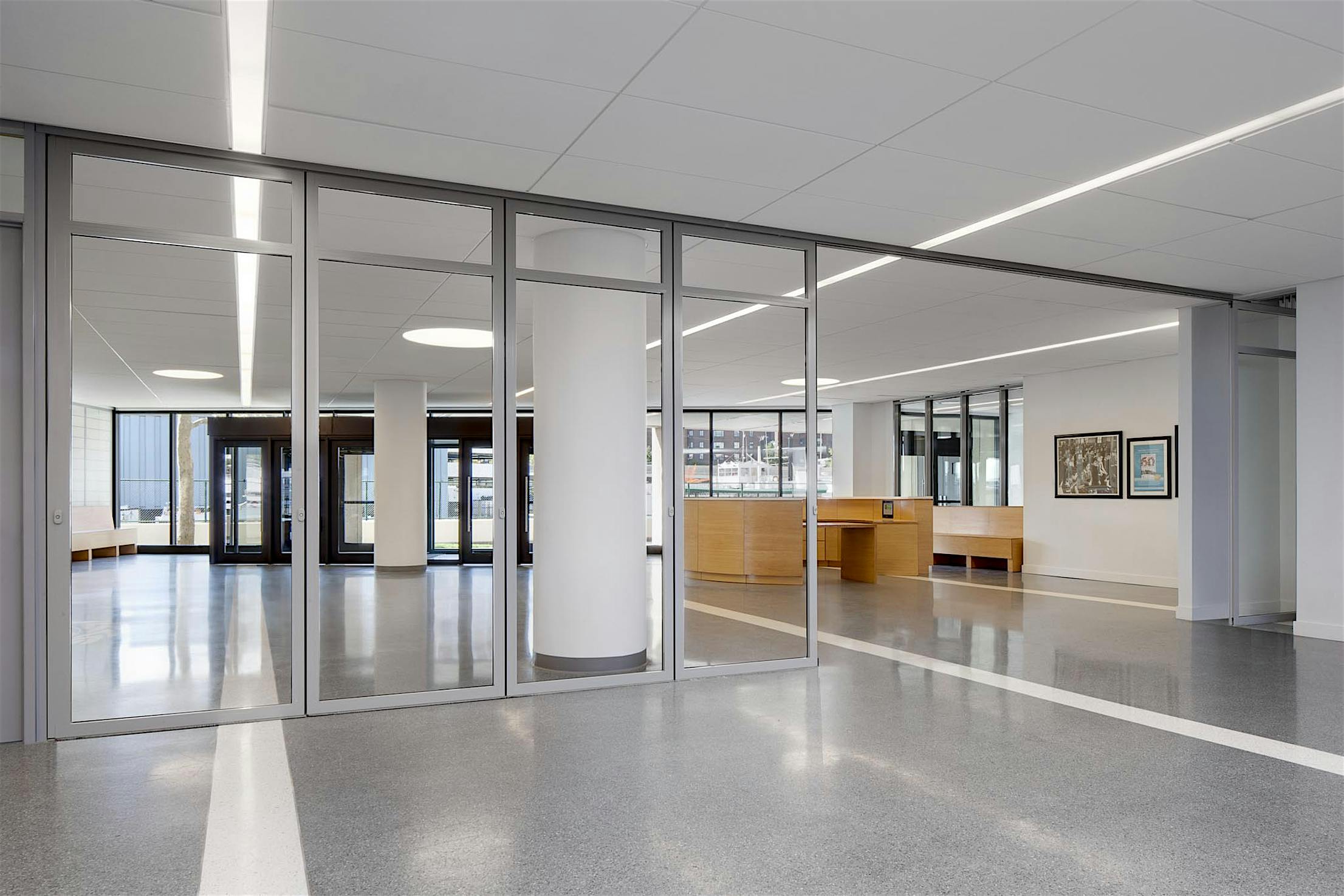

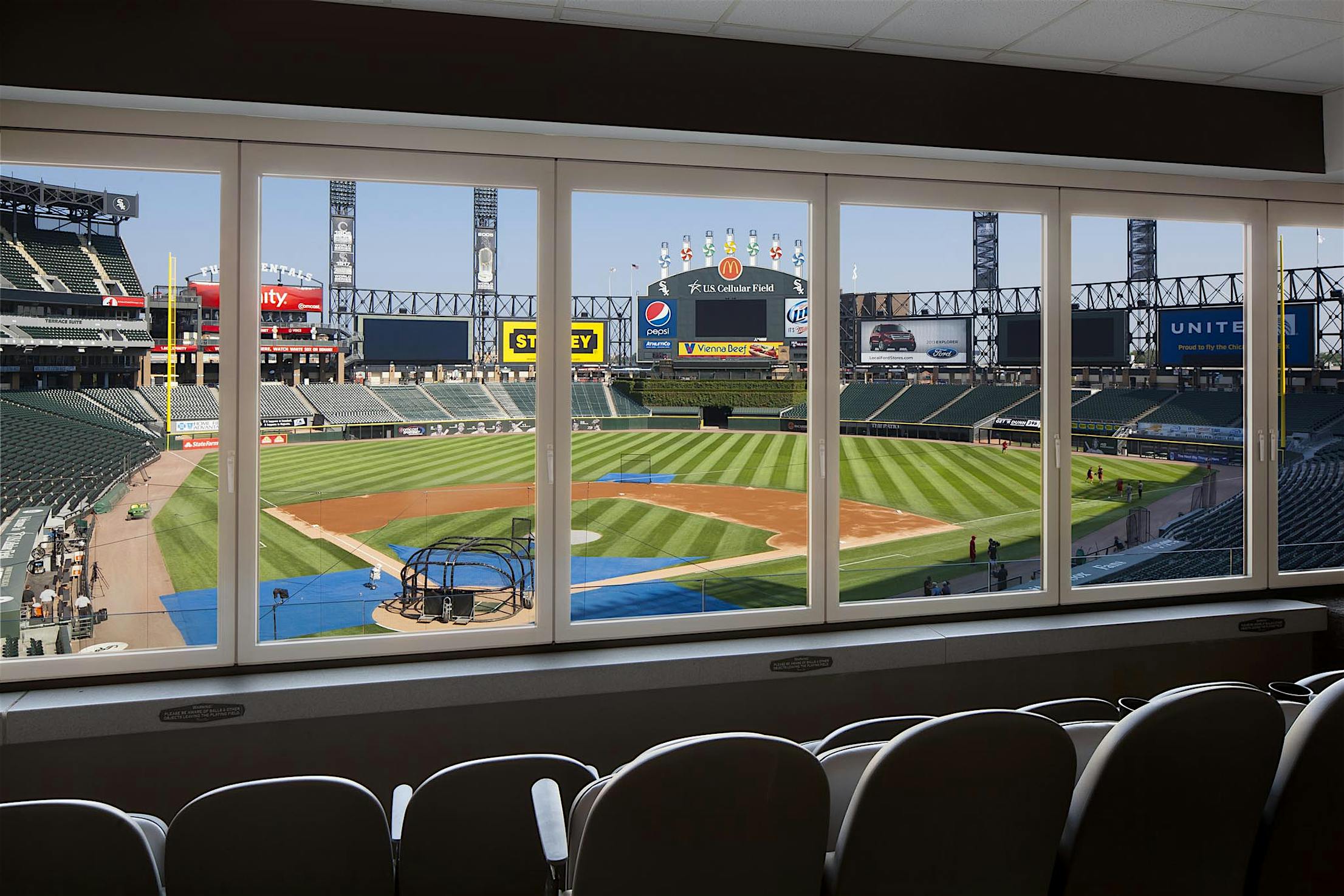

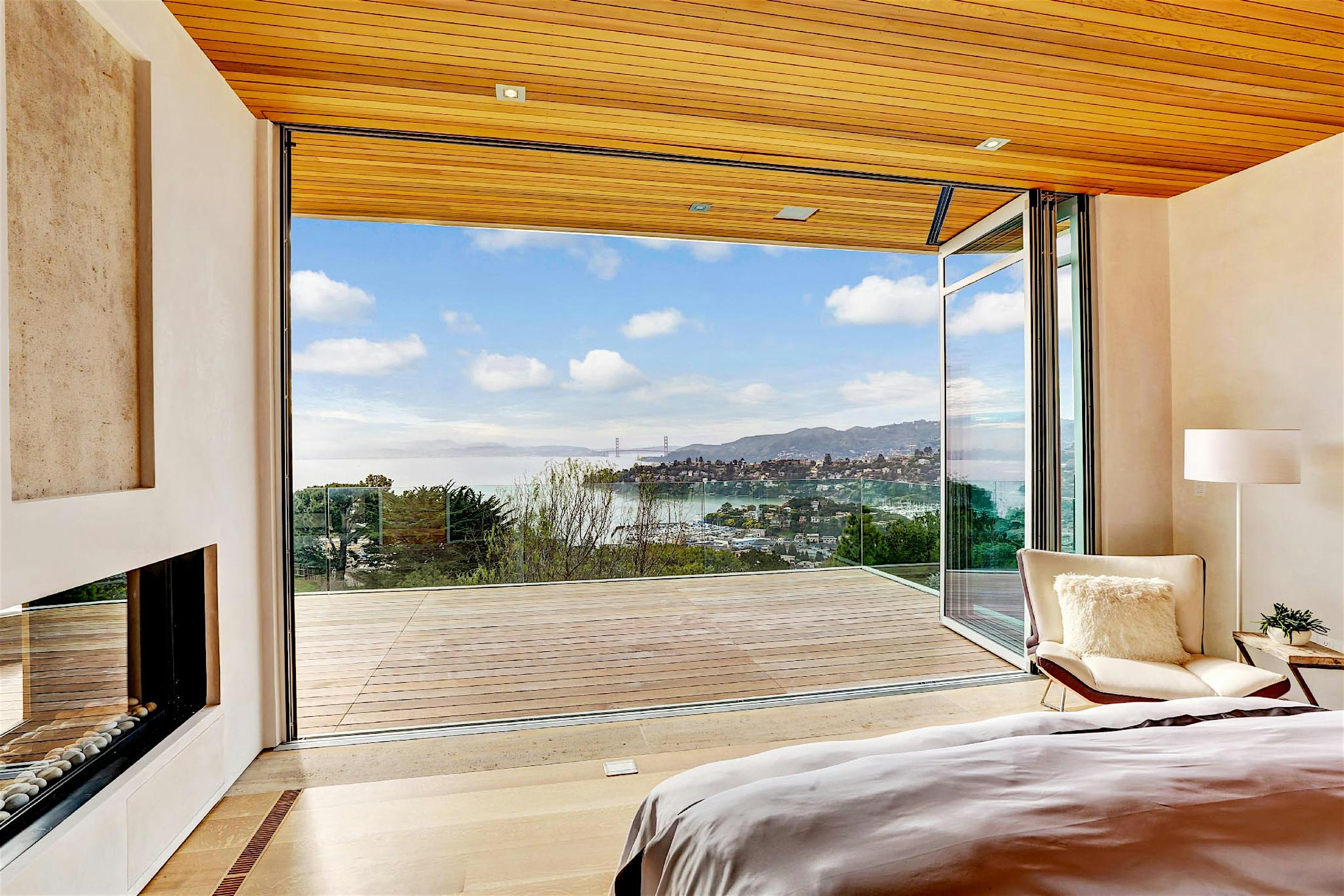

Unlimited Spans
The NanaWall Single Track Sliding system can be designed with any number of panels. The system is a completely top-supported design therefore the number of panels is only limited by the supporting structure in your design.

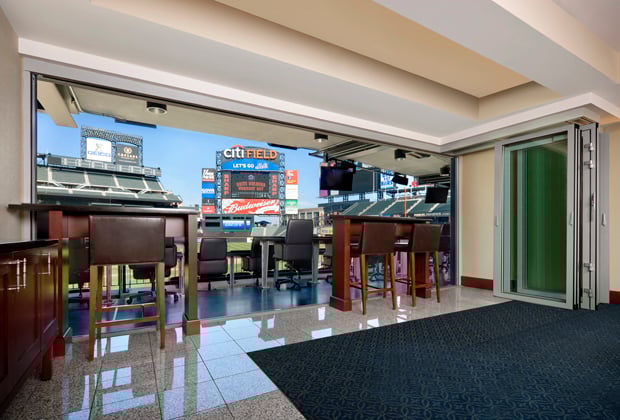

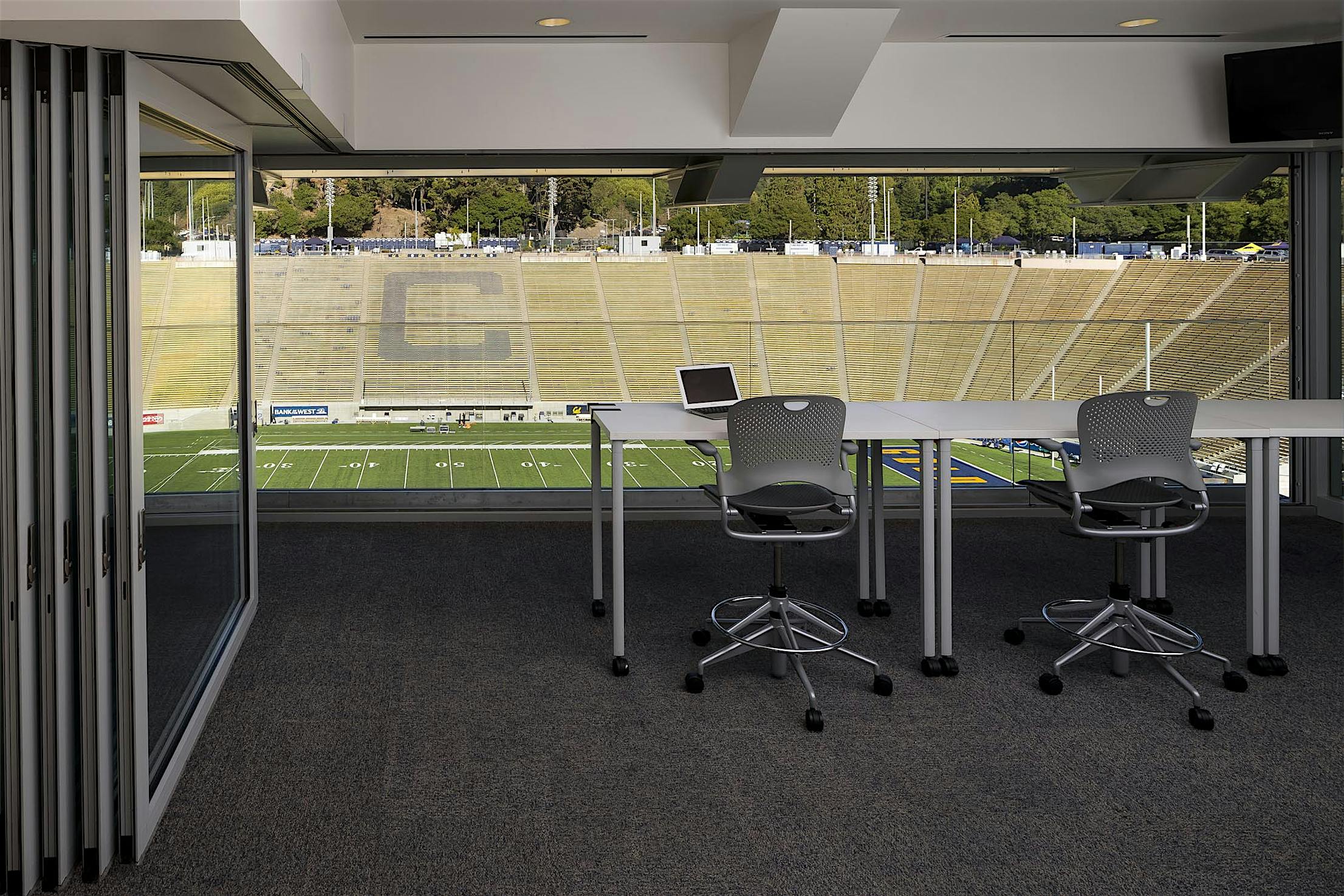

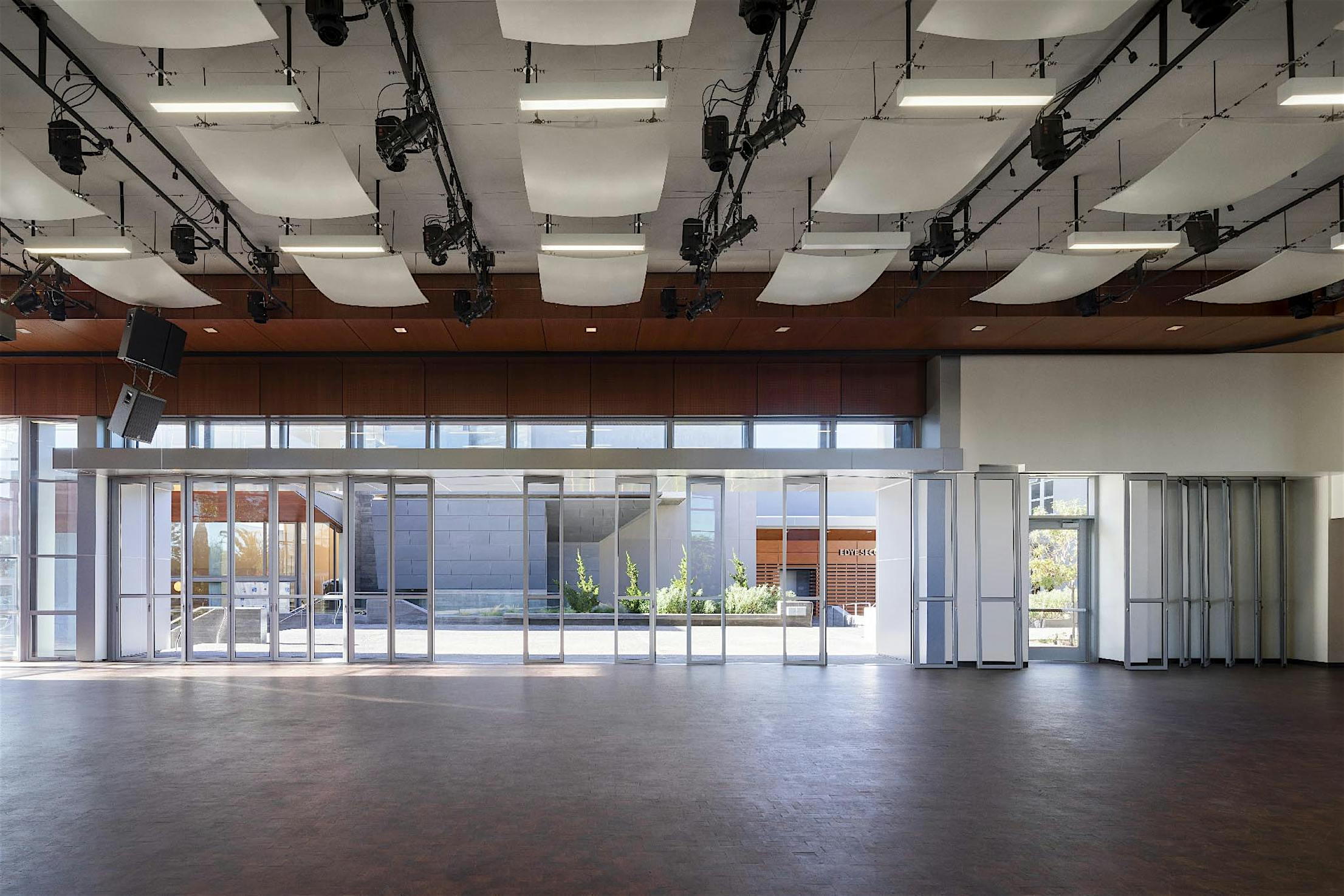

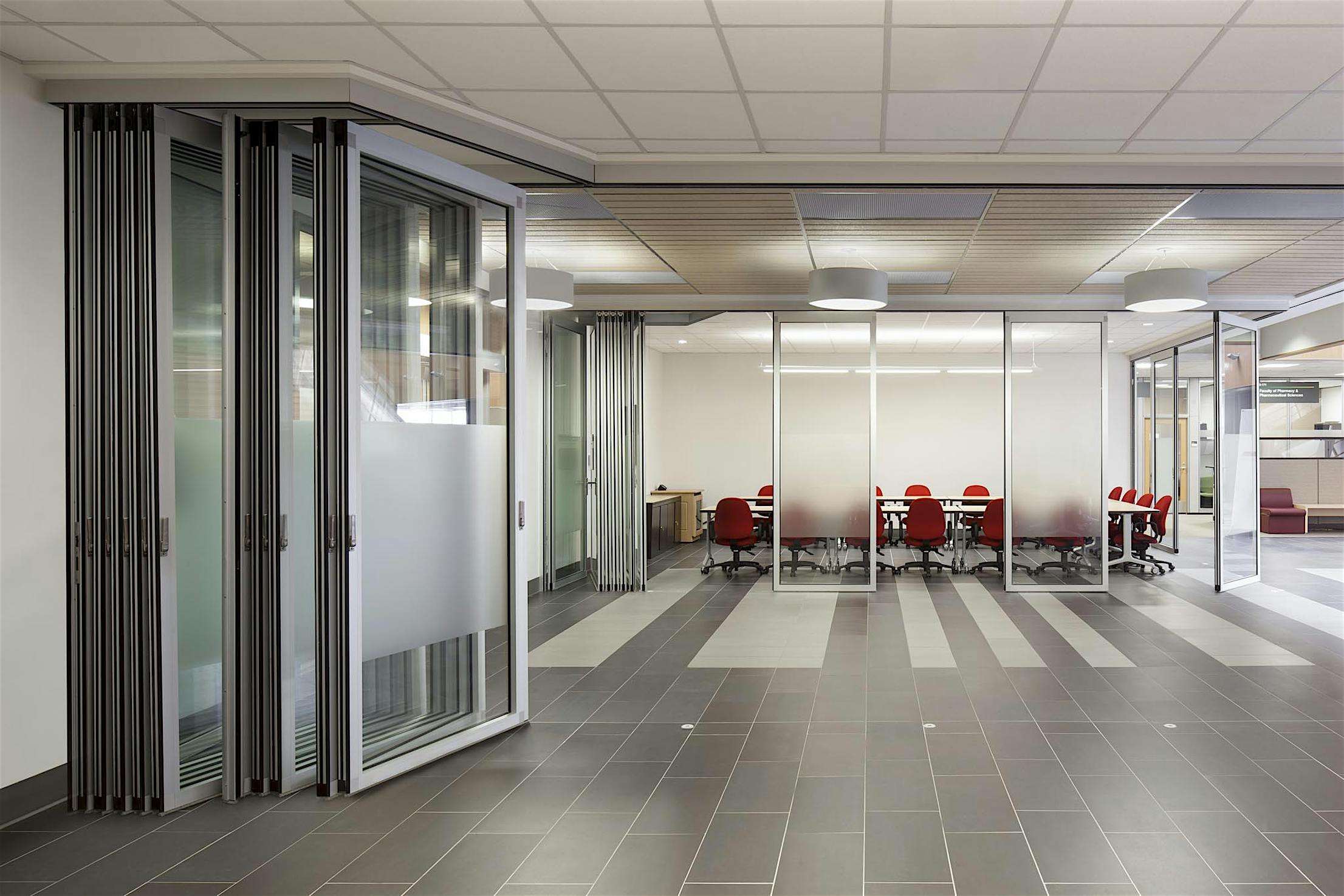

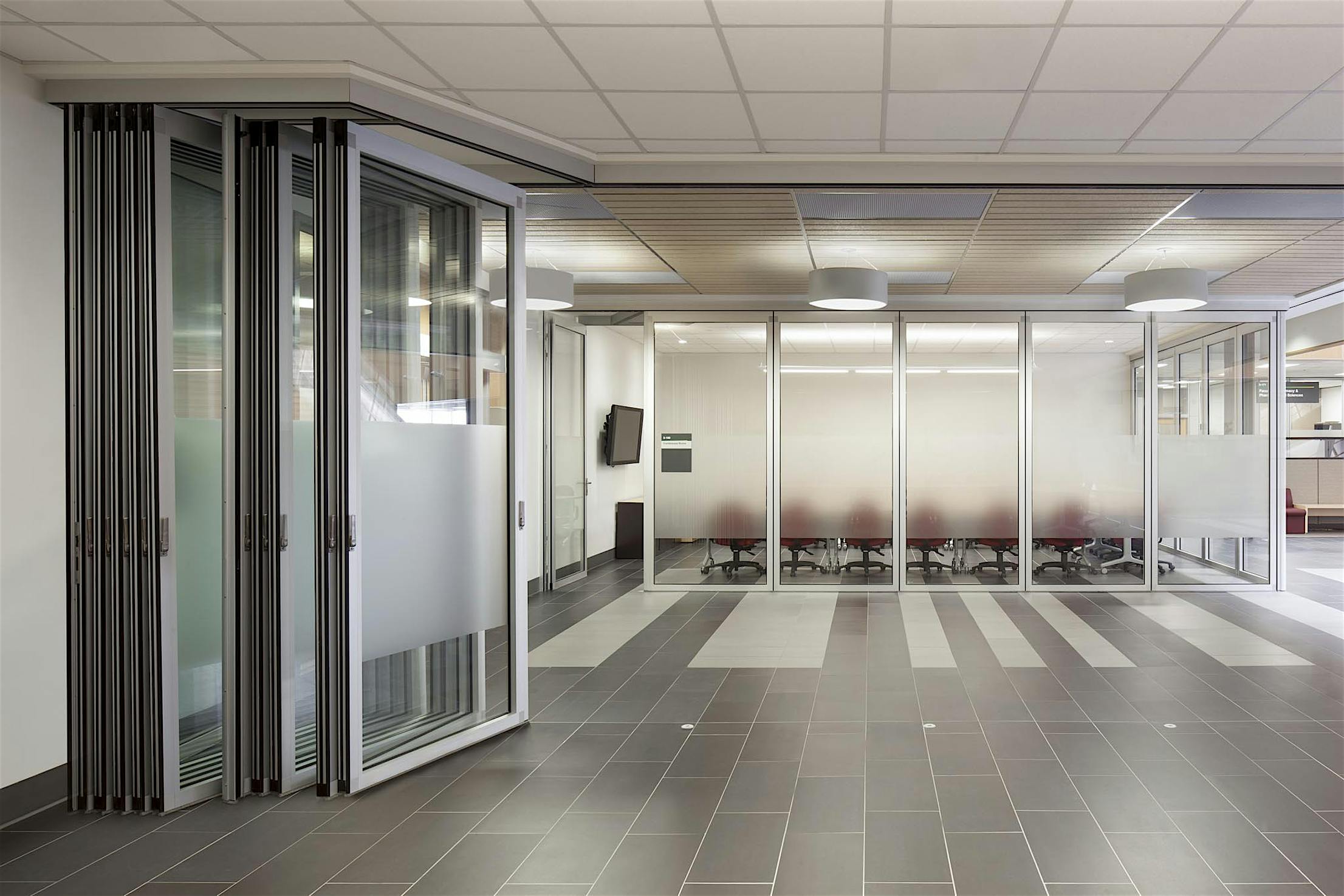

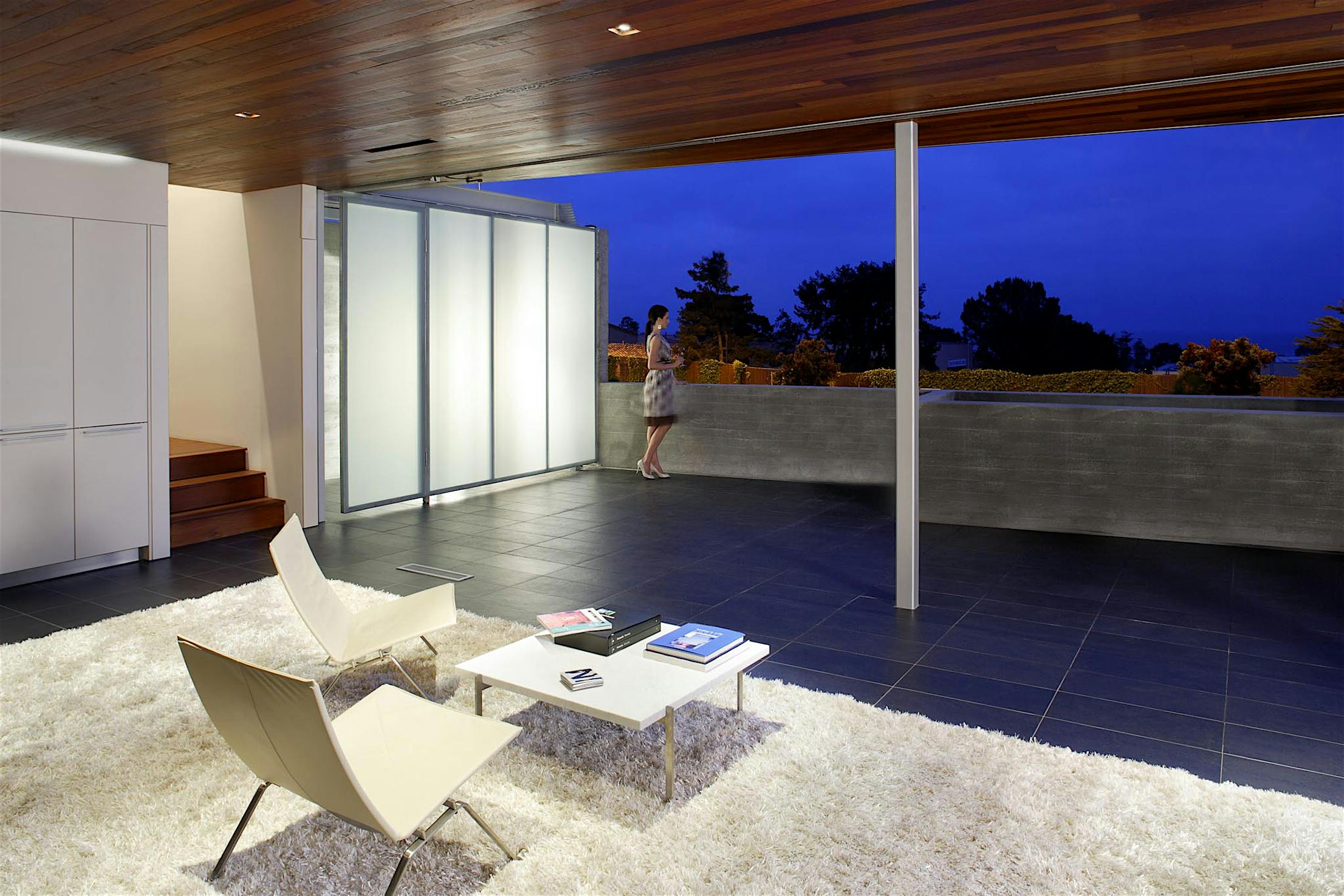

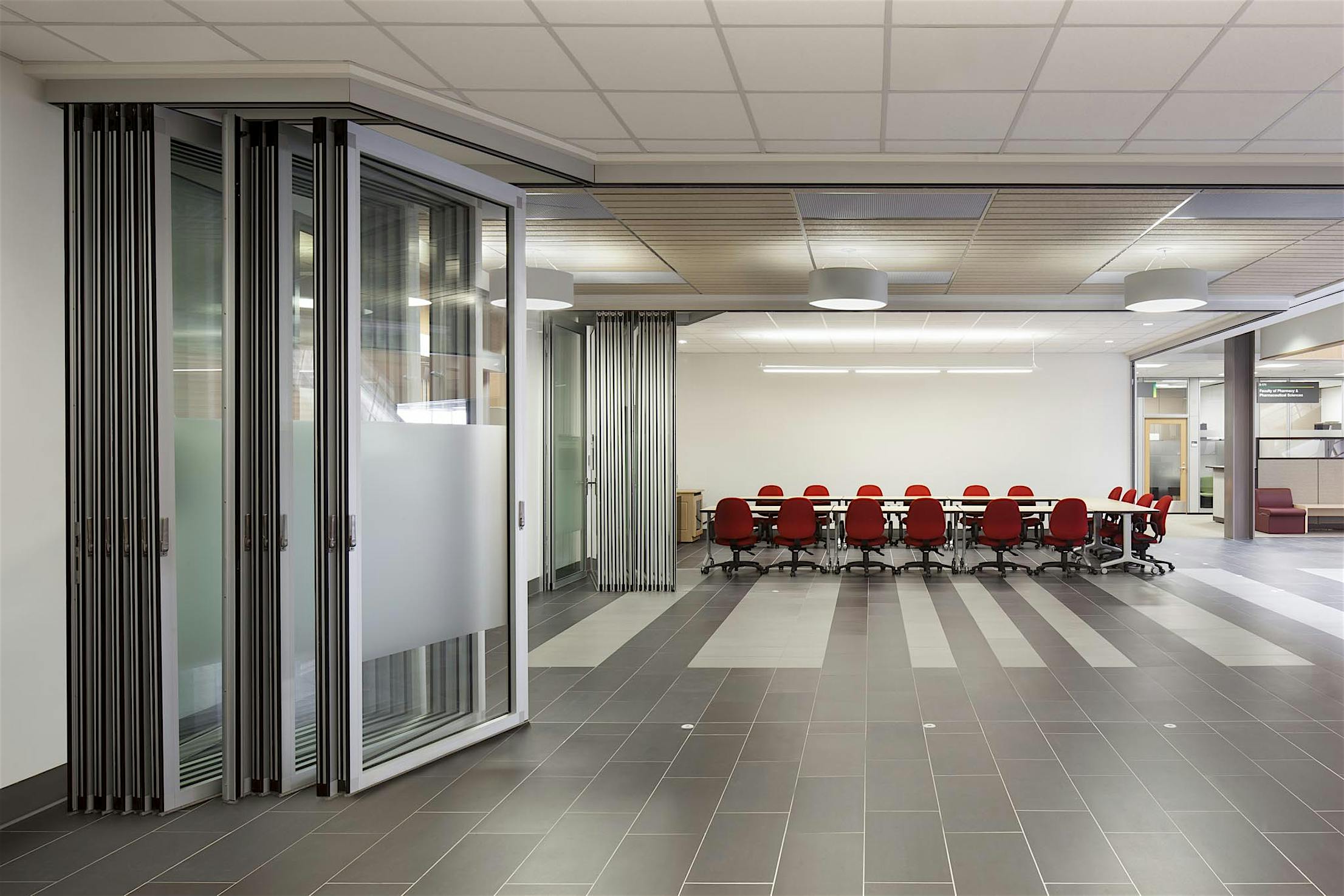

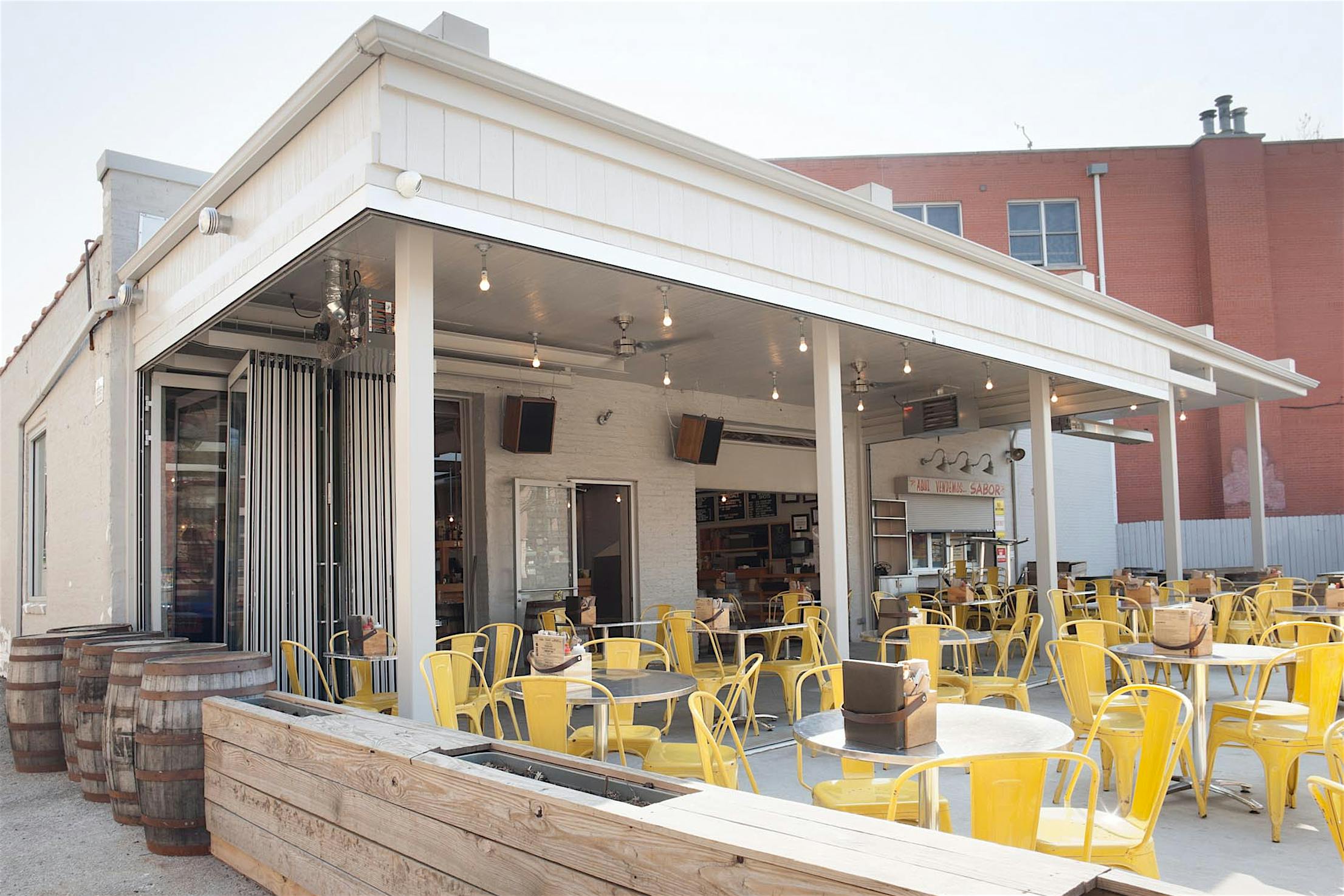

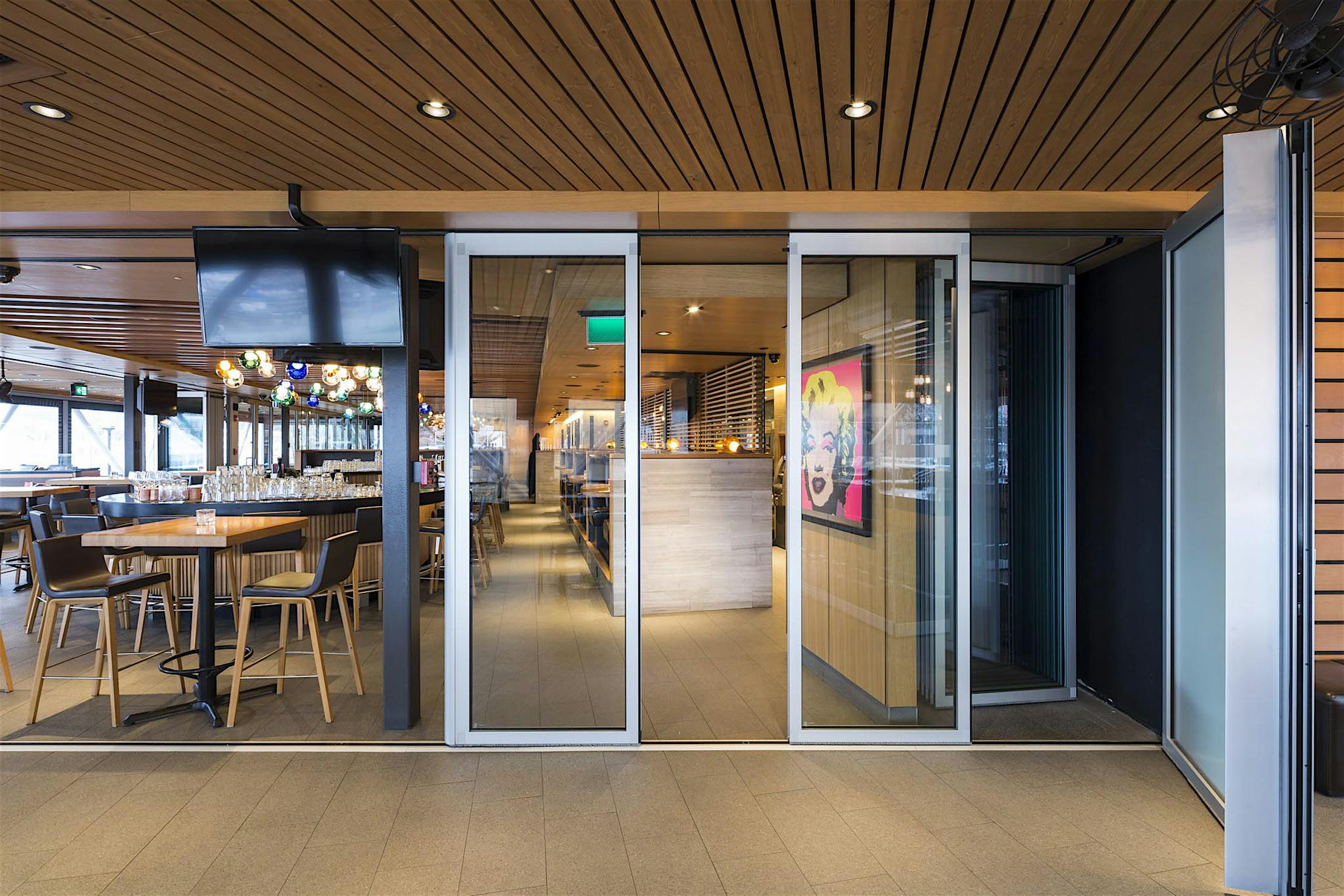

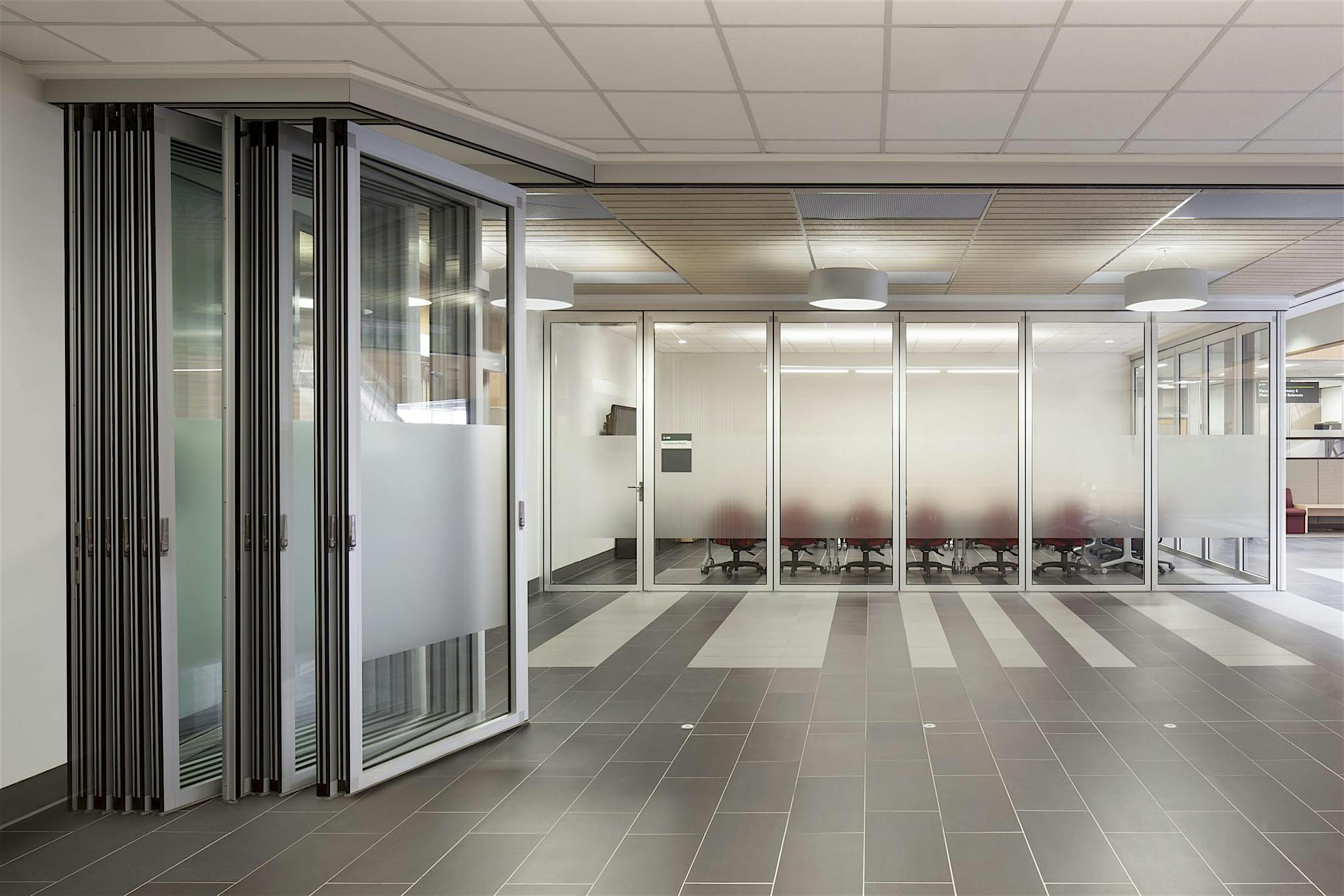

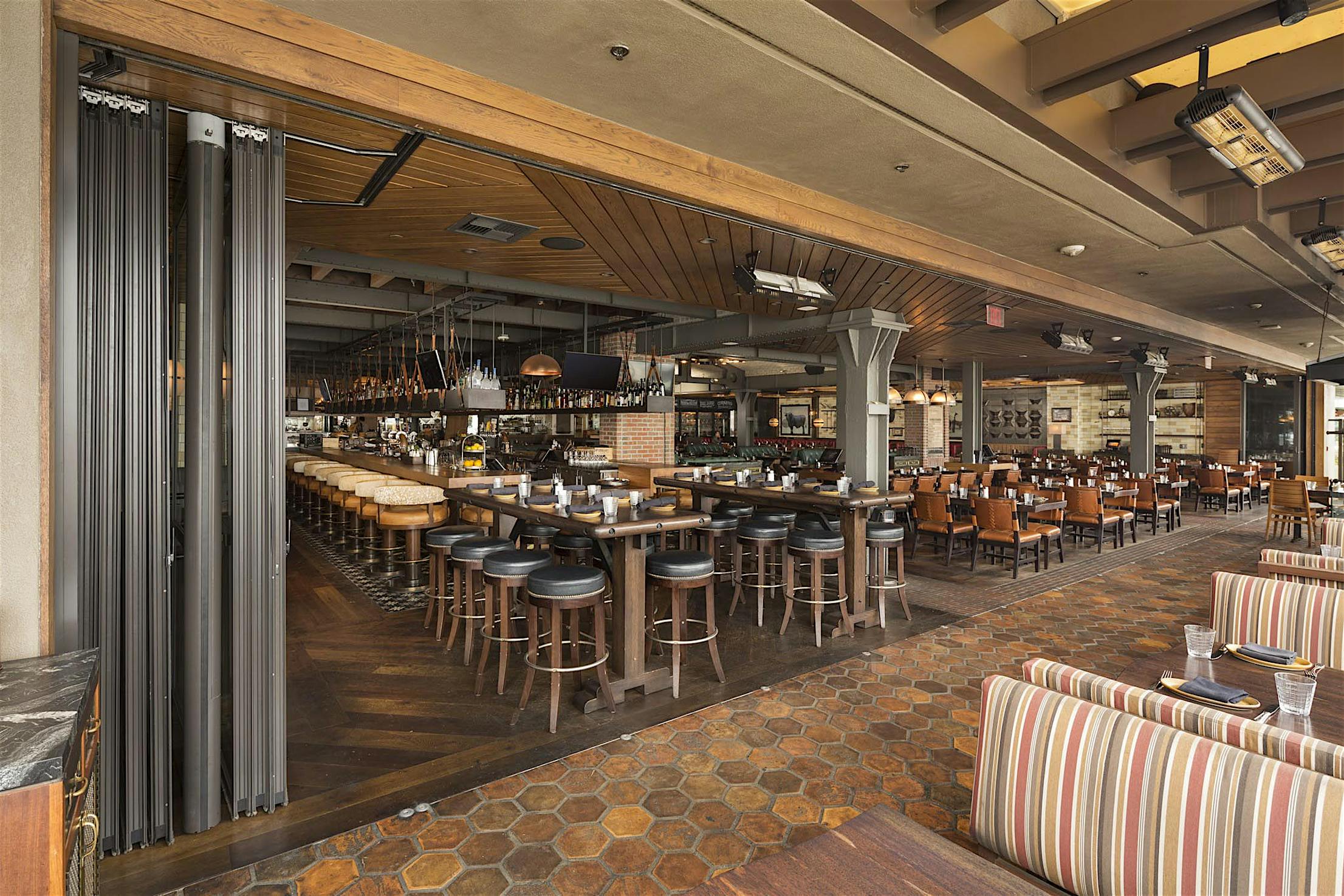

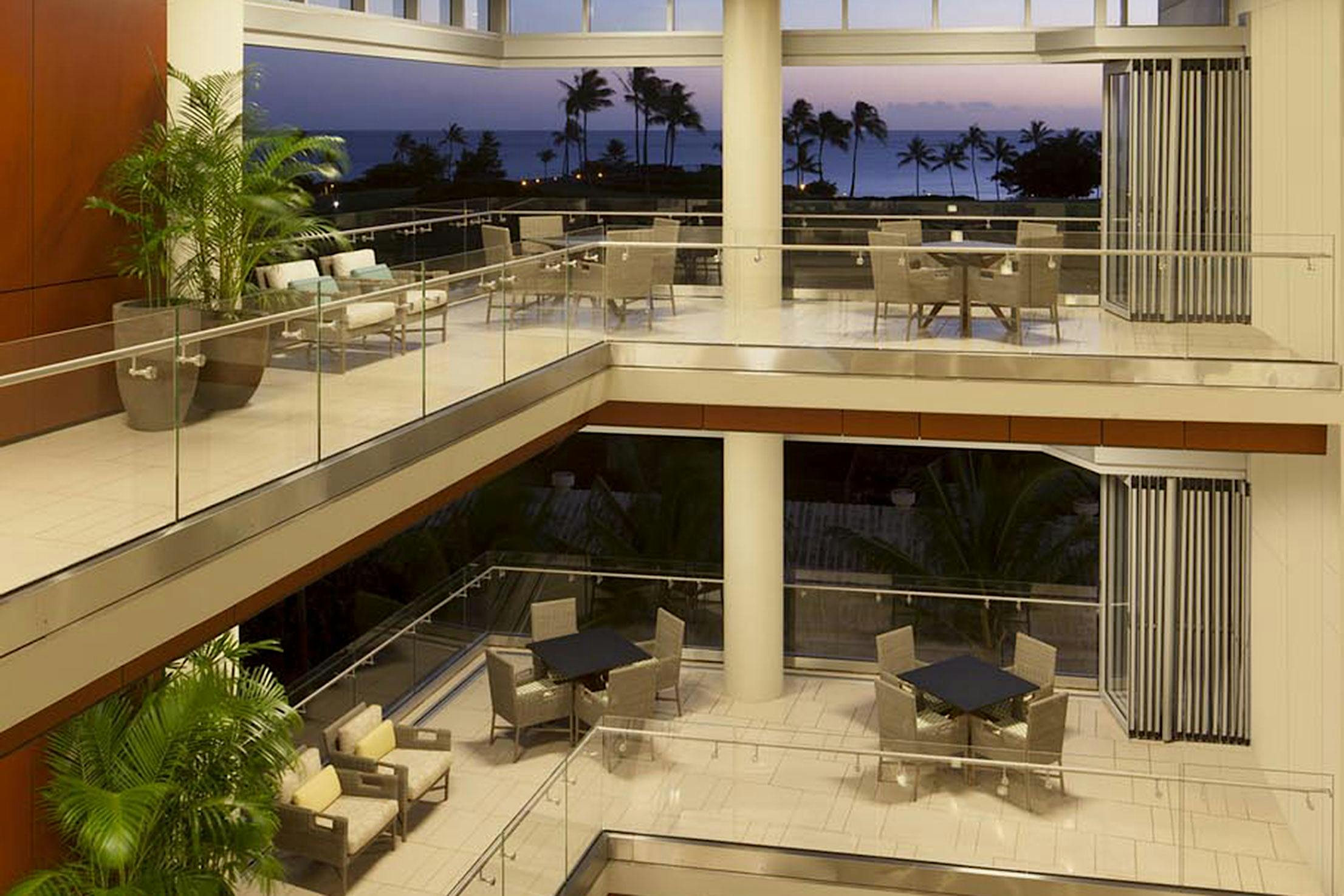

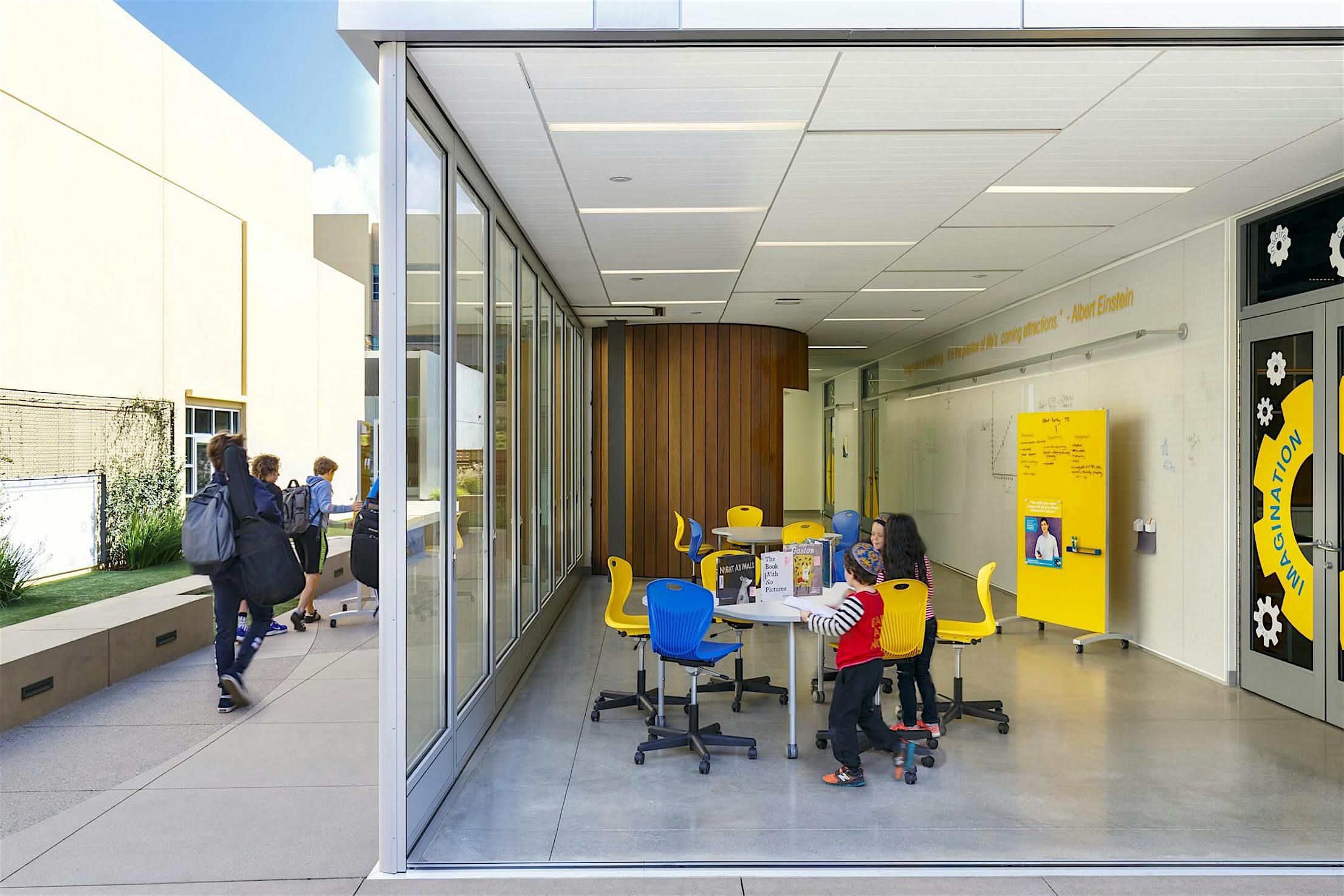

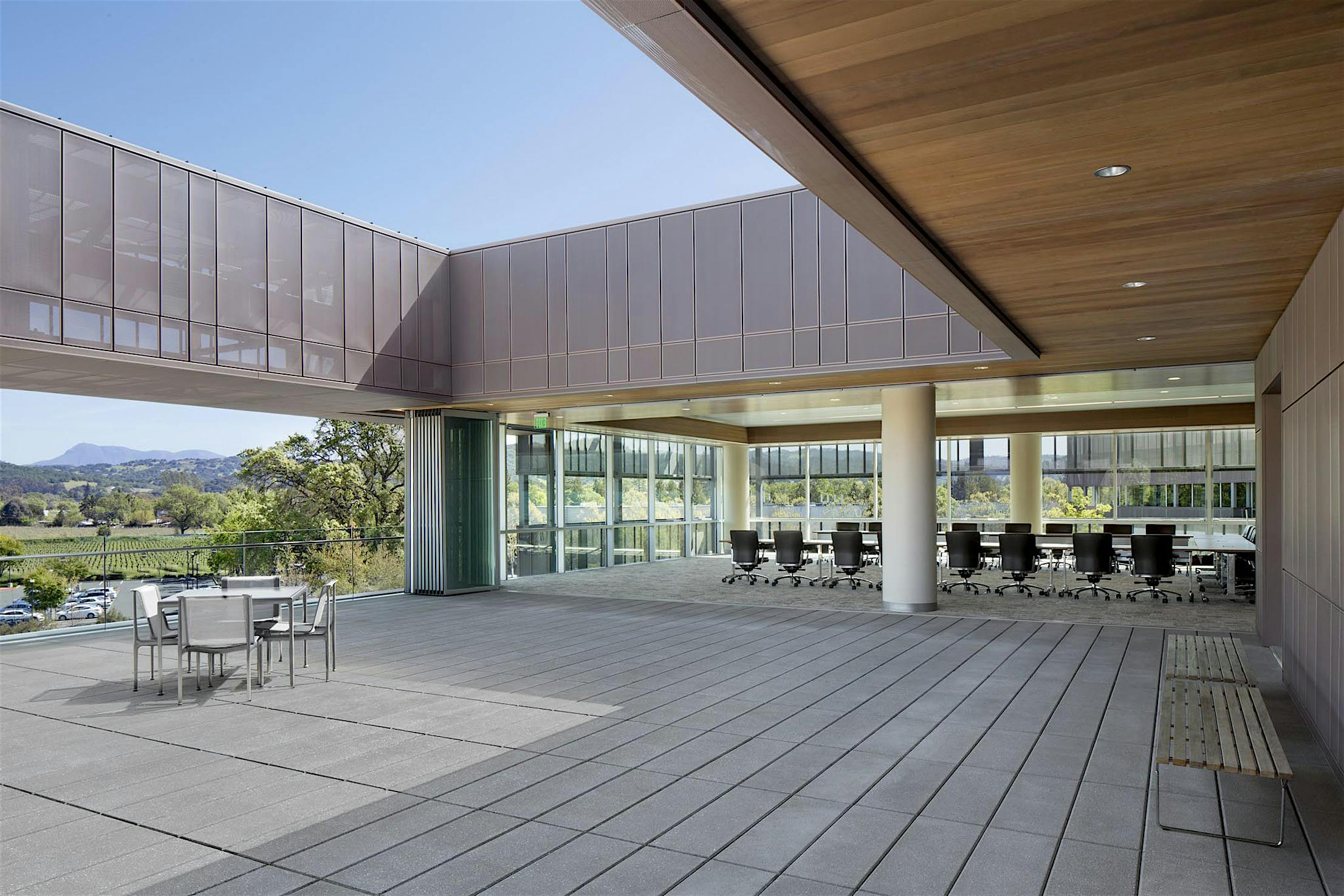

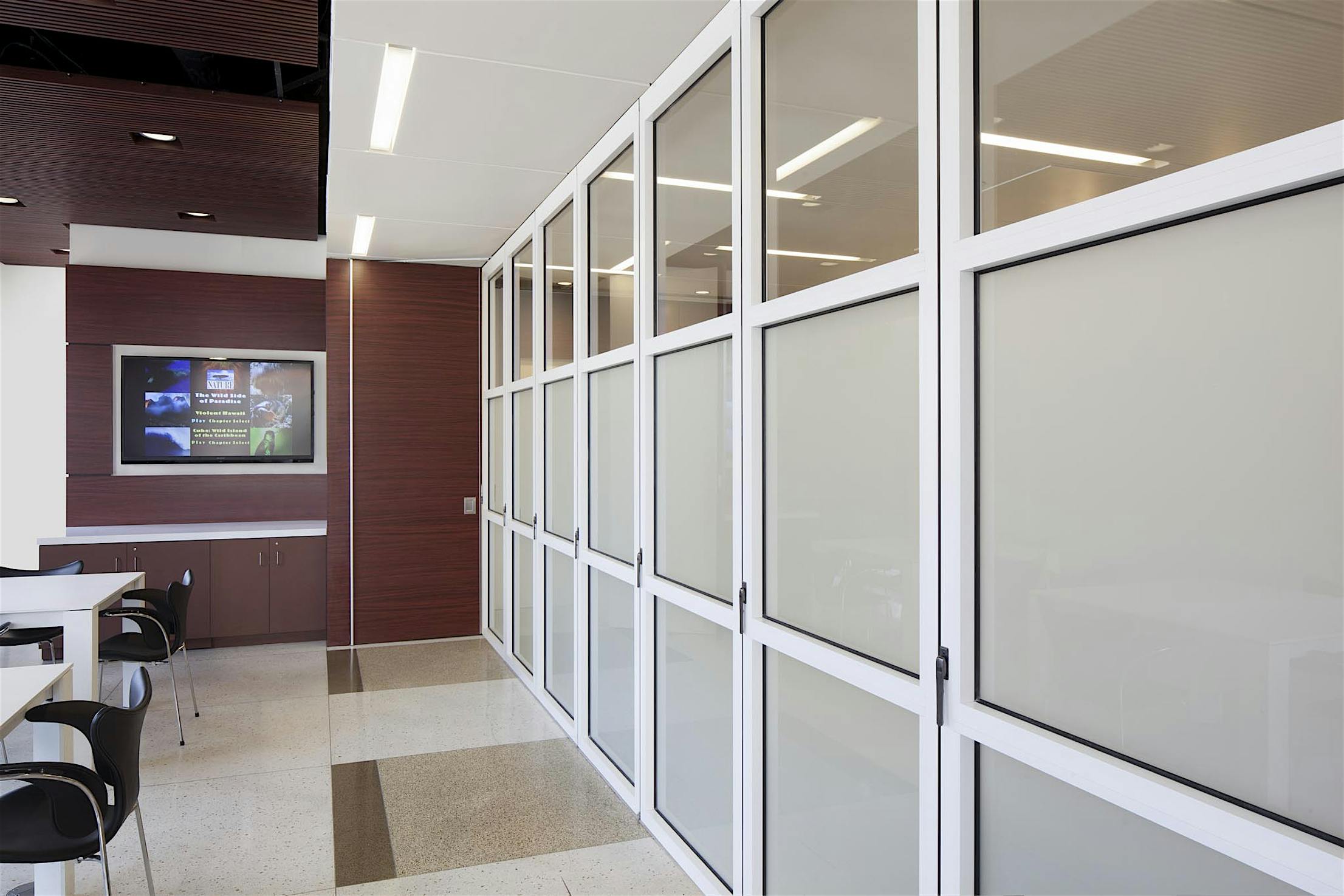

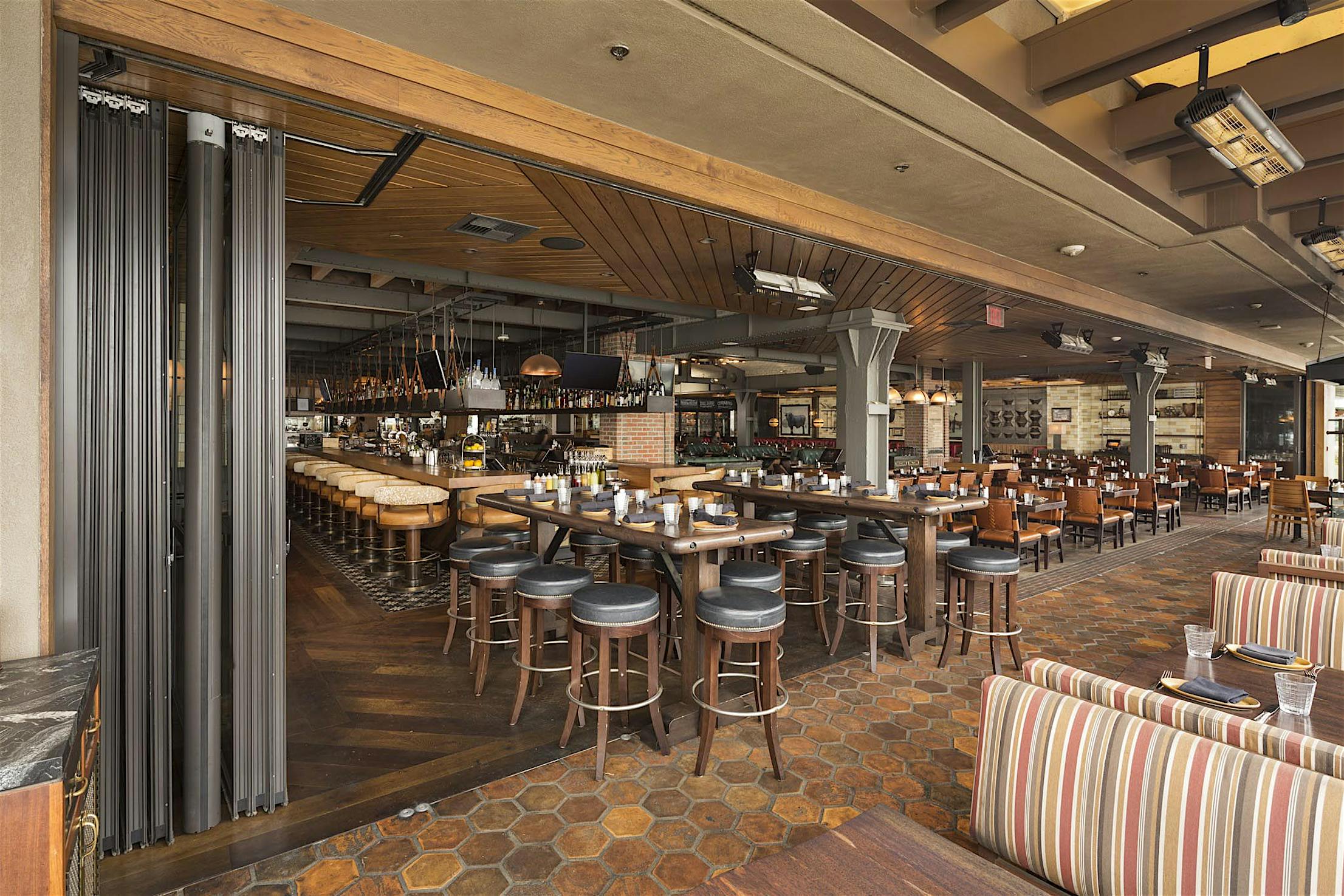

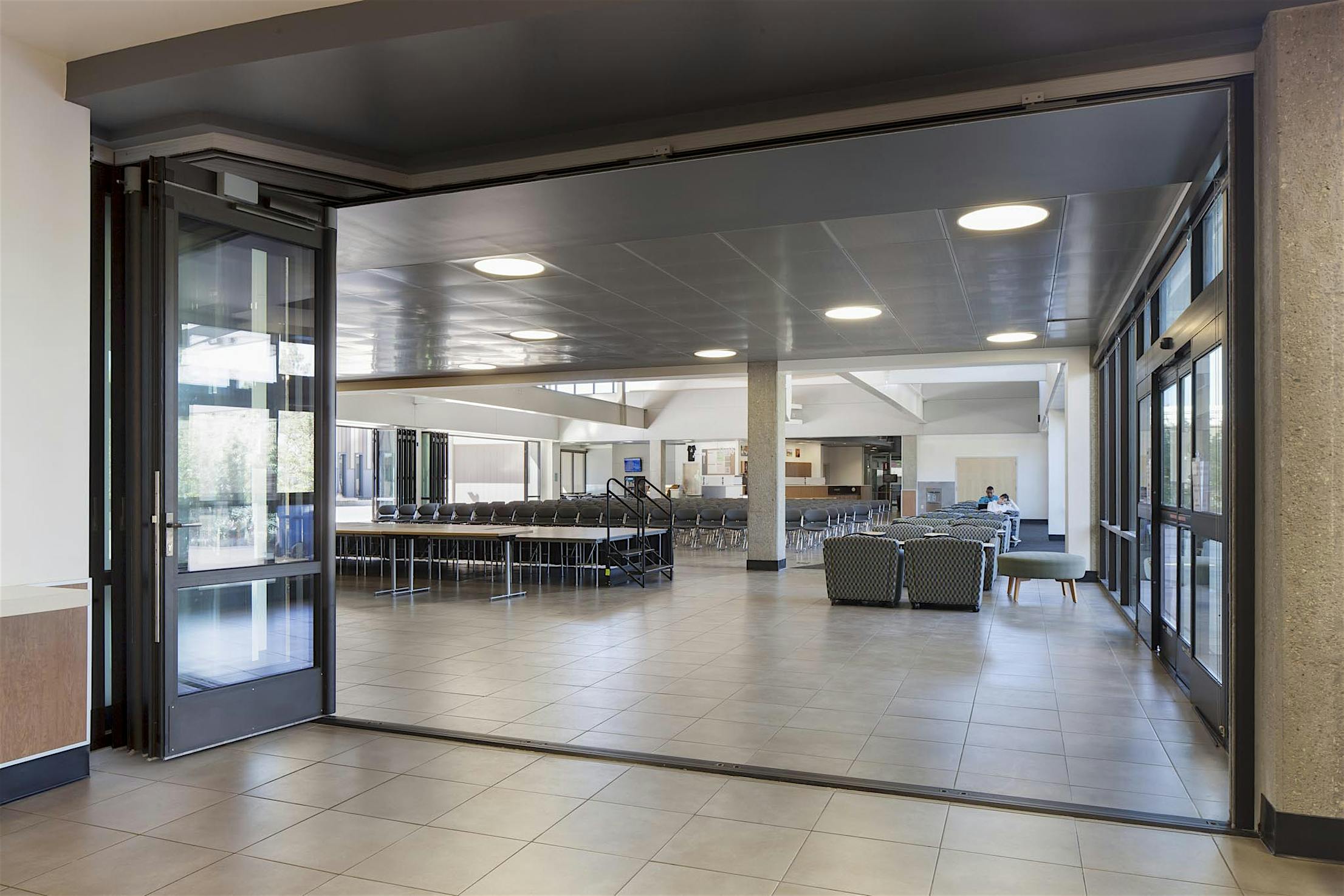

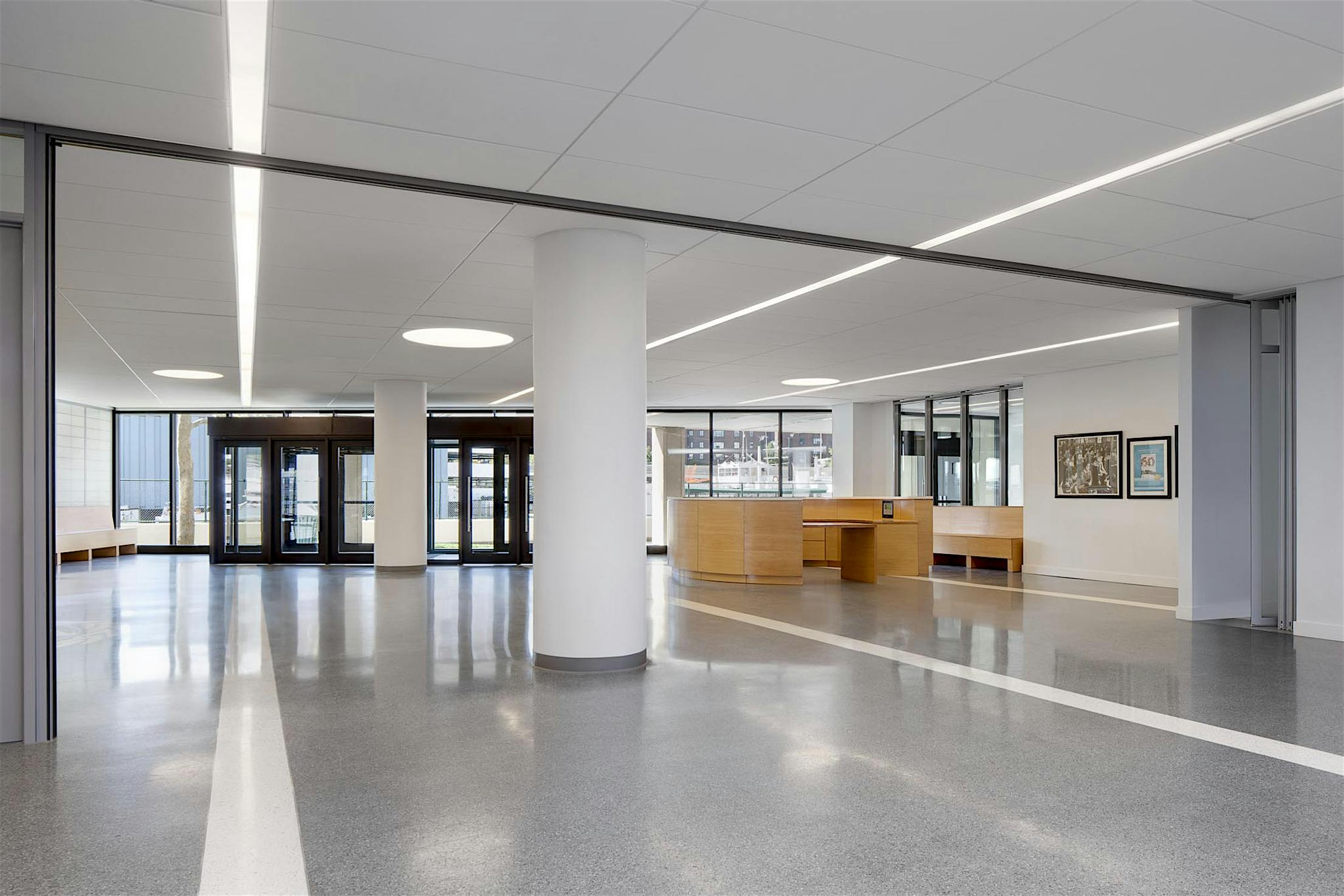

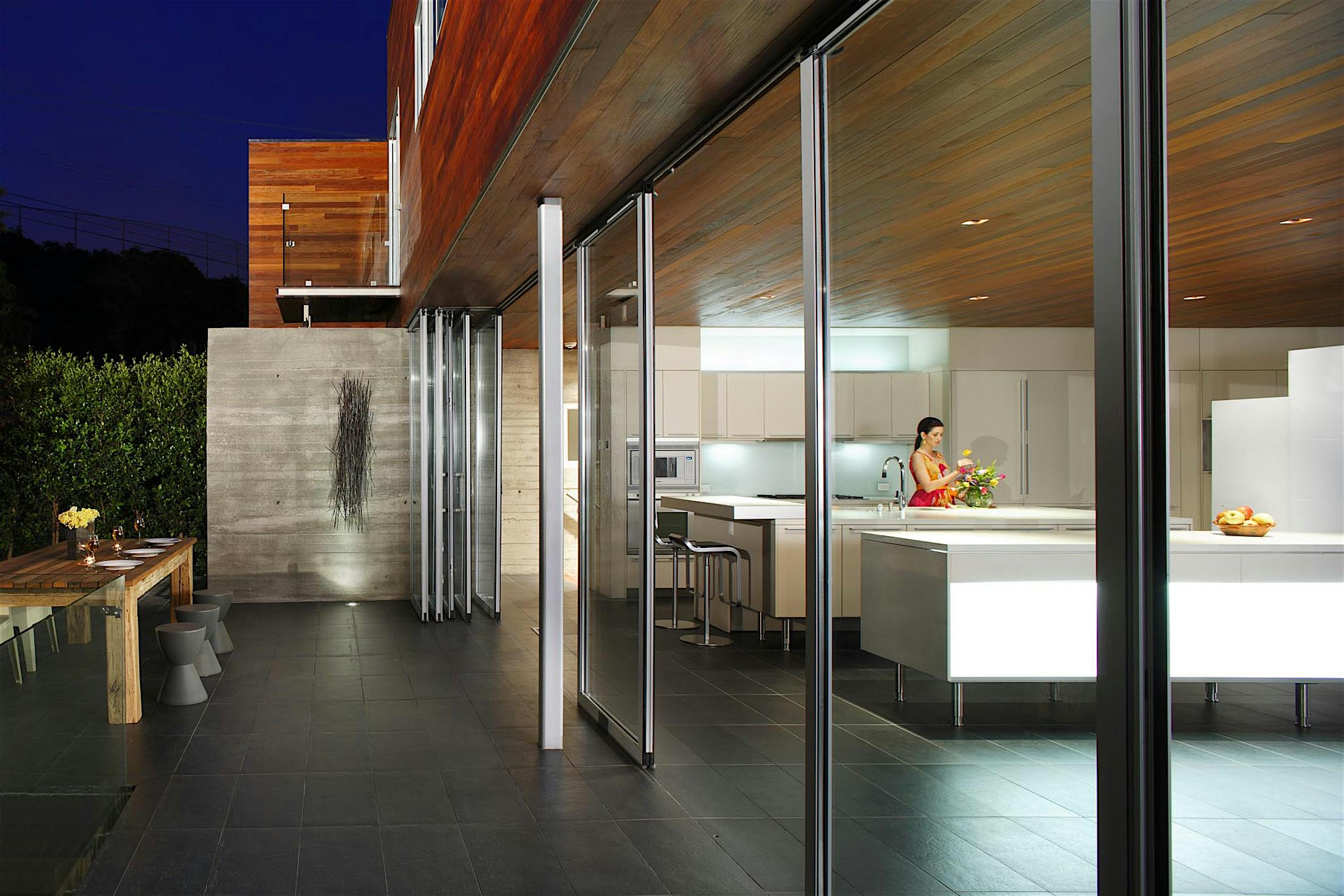

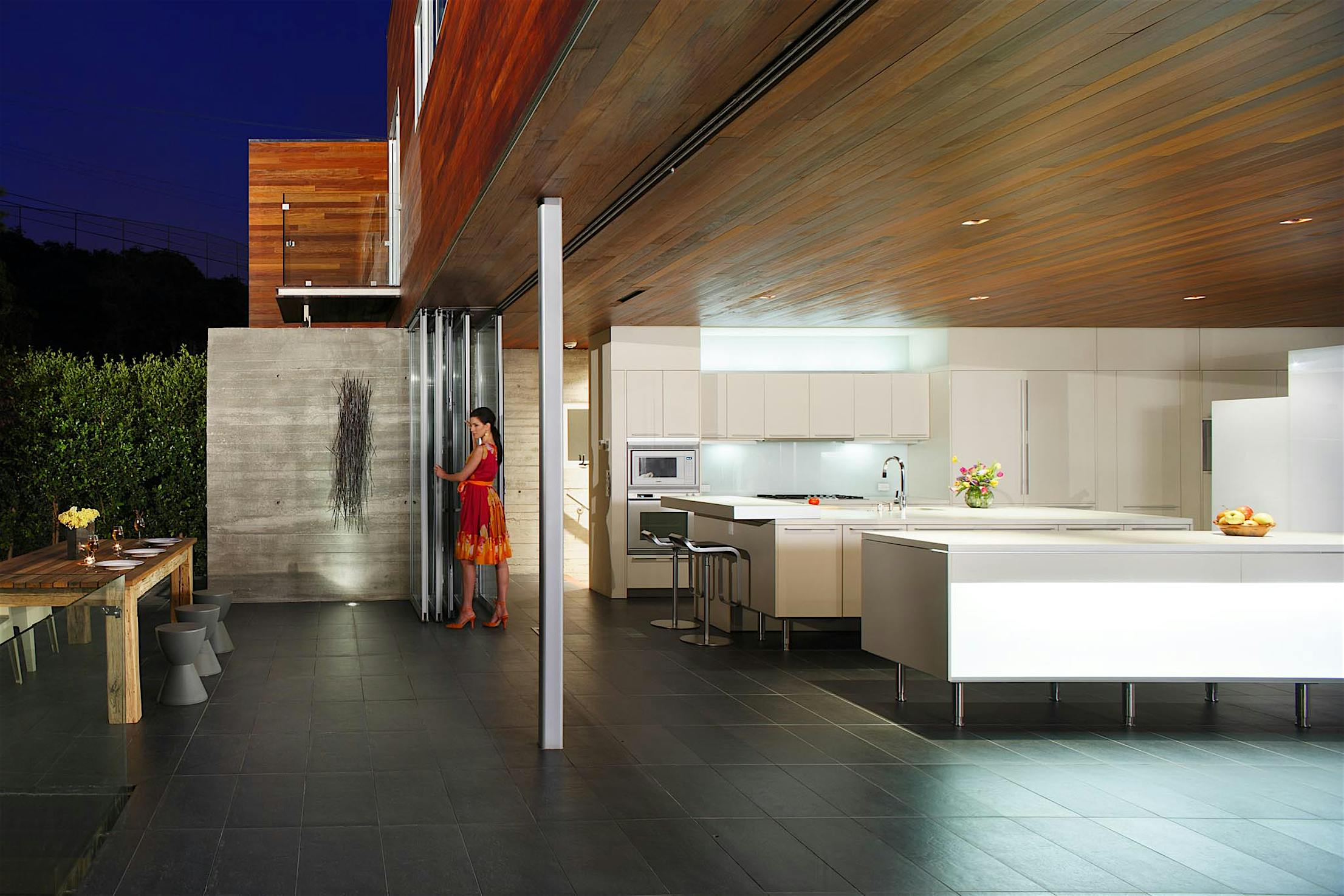

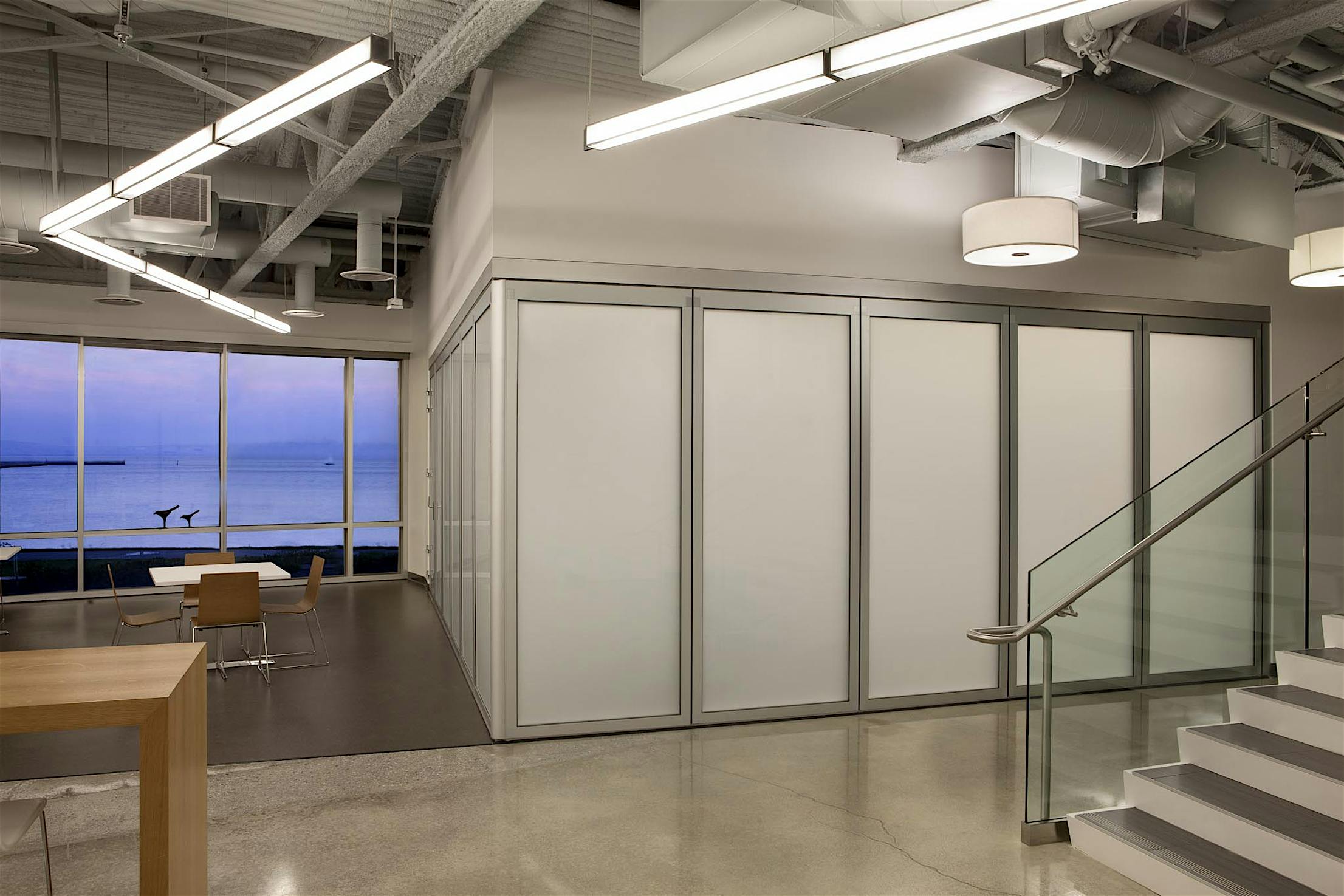

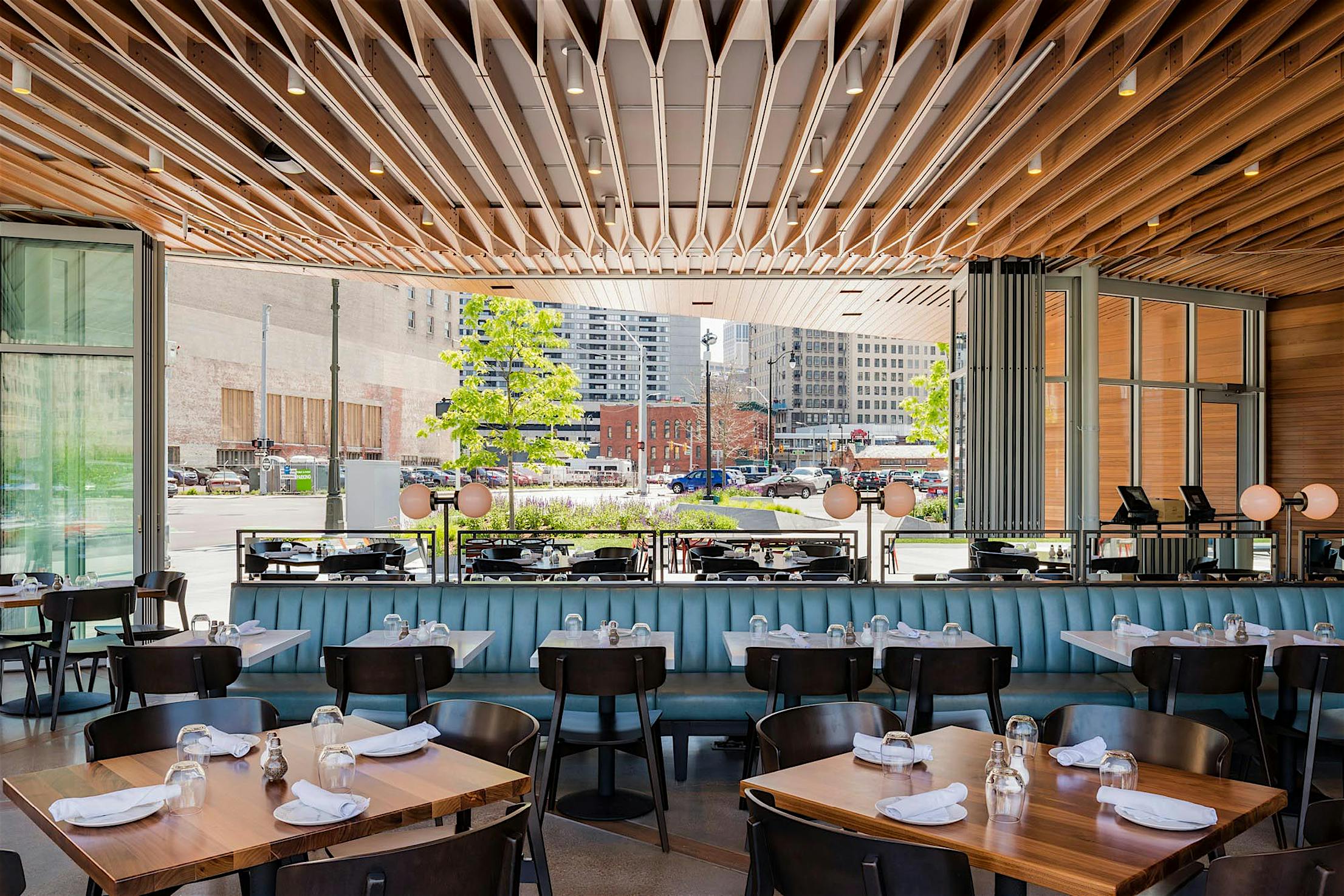

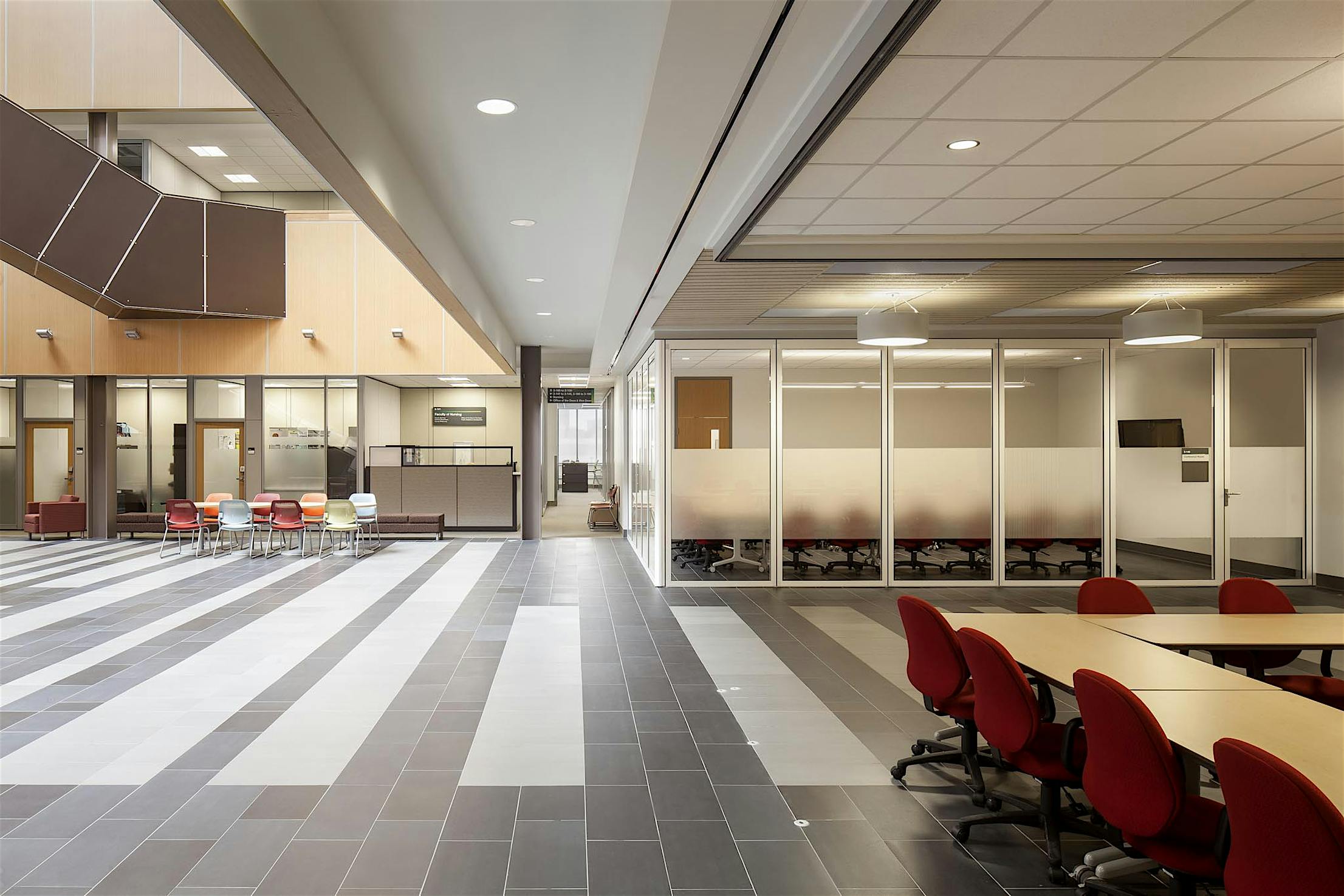

Stack Panels Anywhere

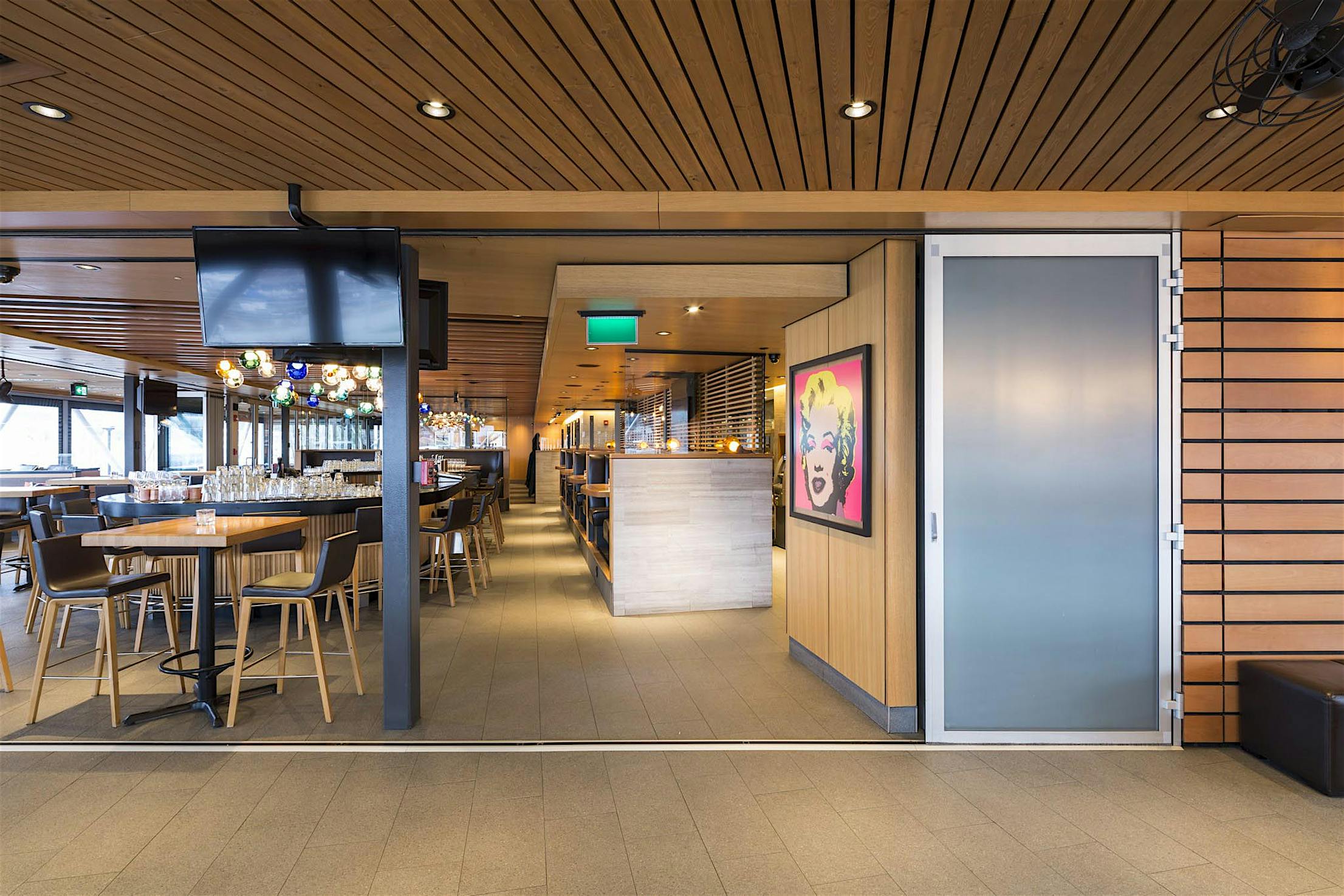

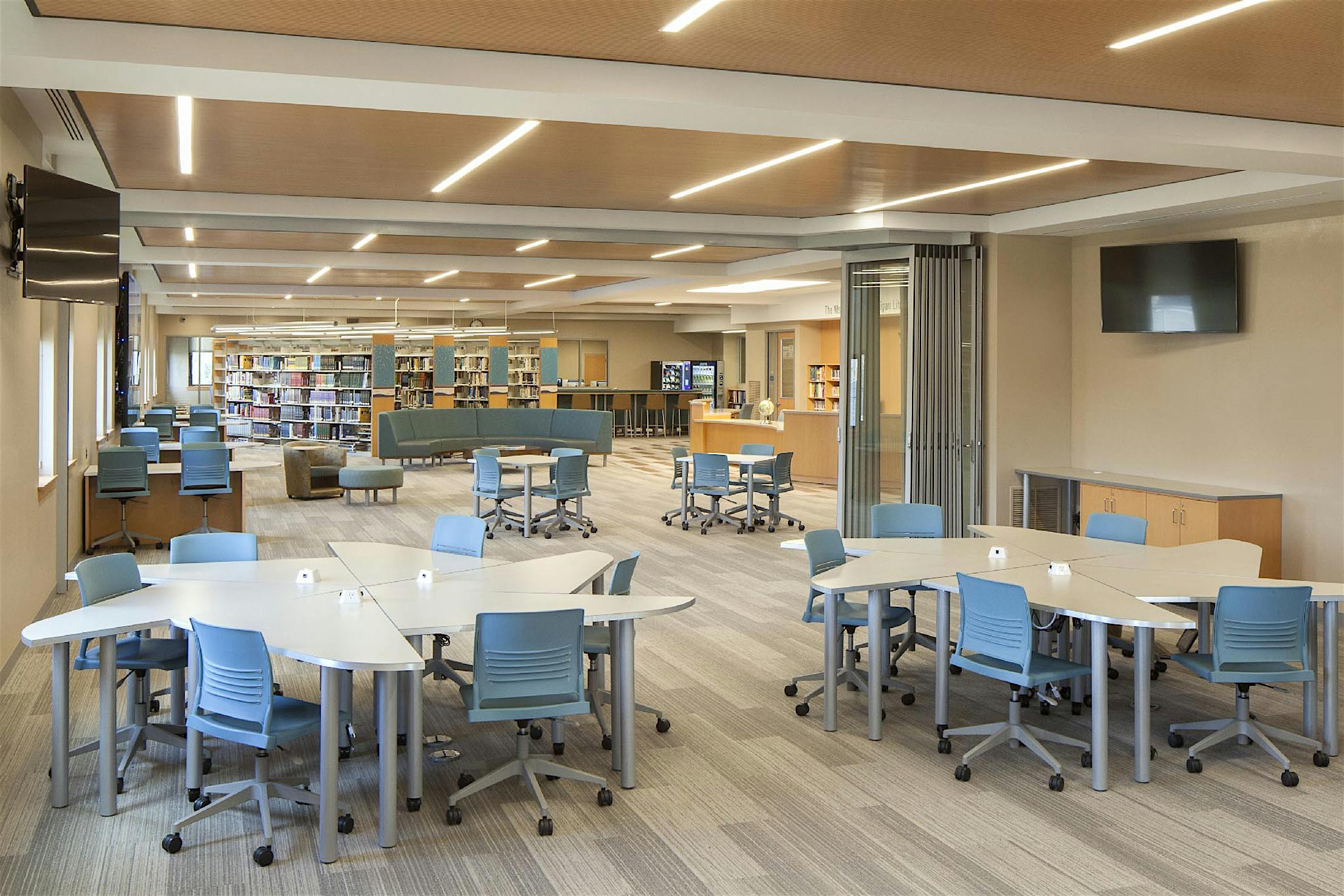

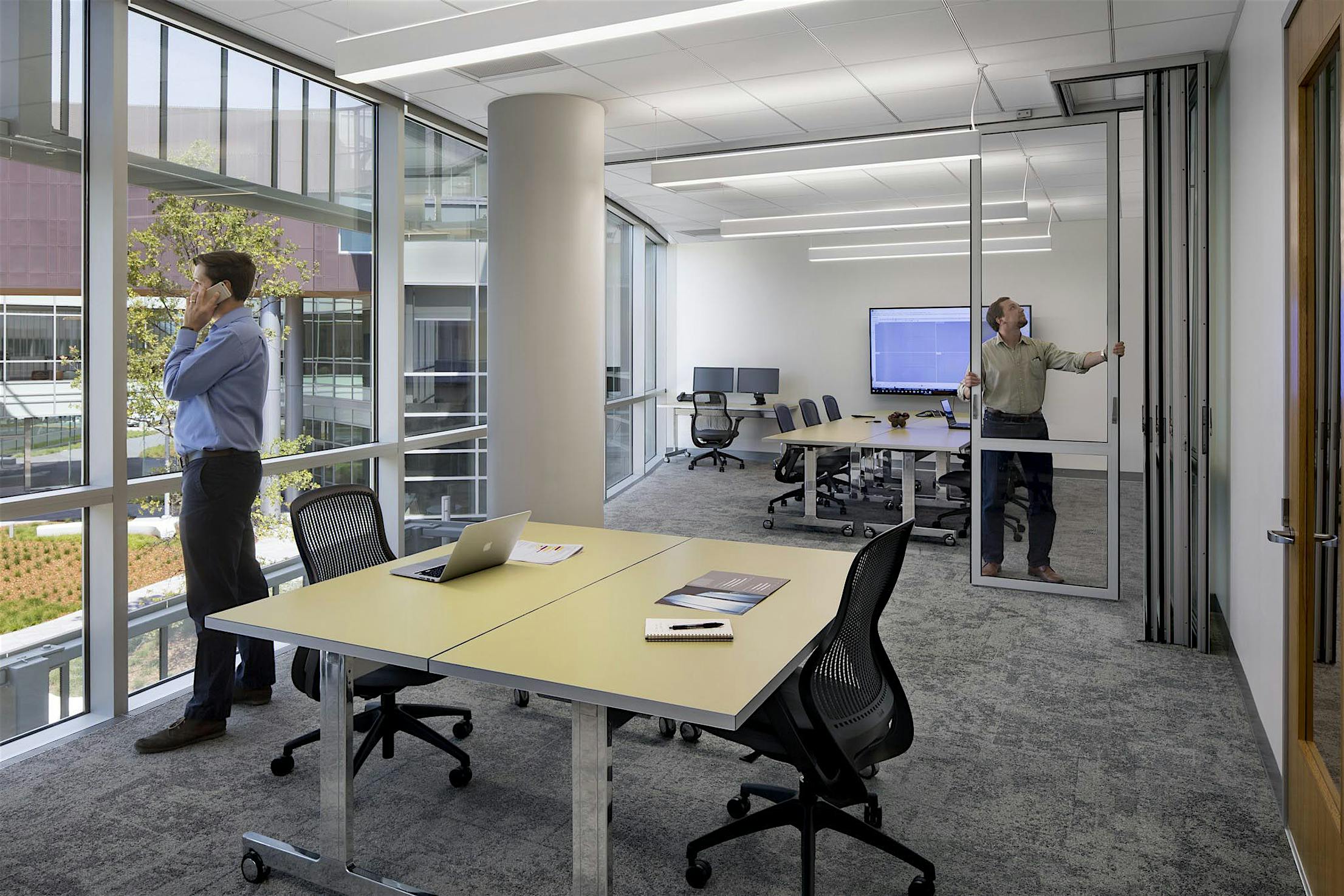

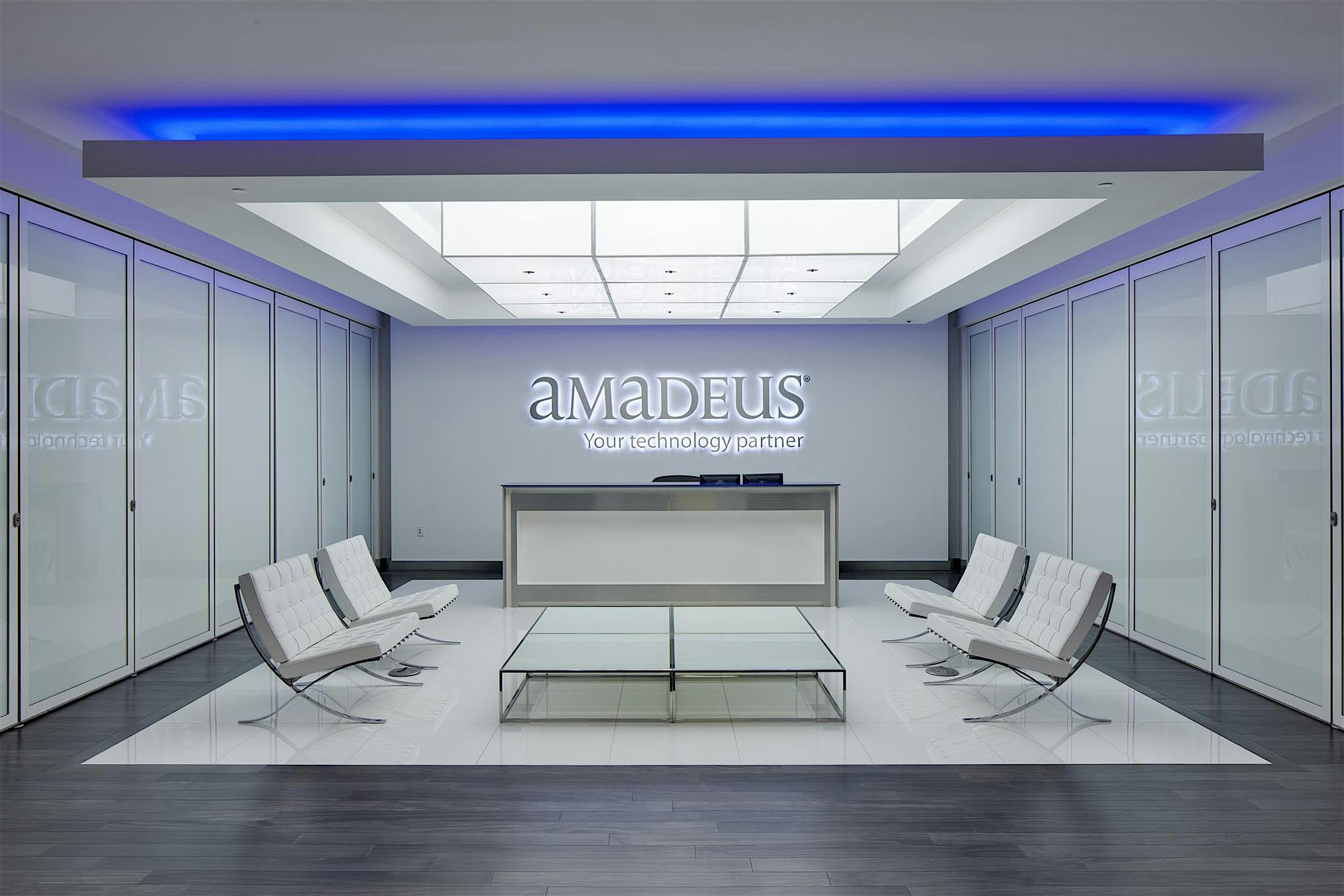

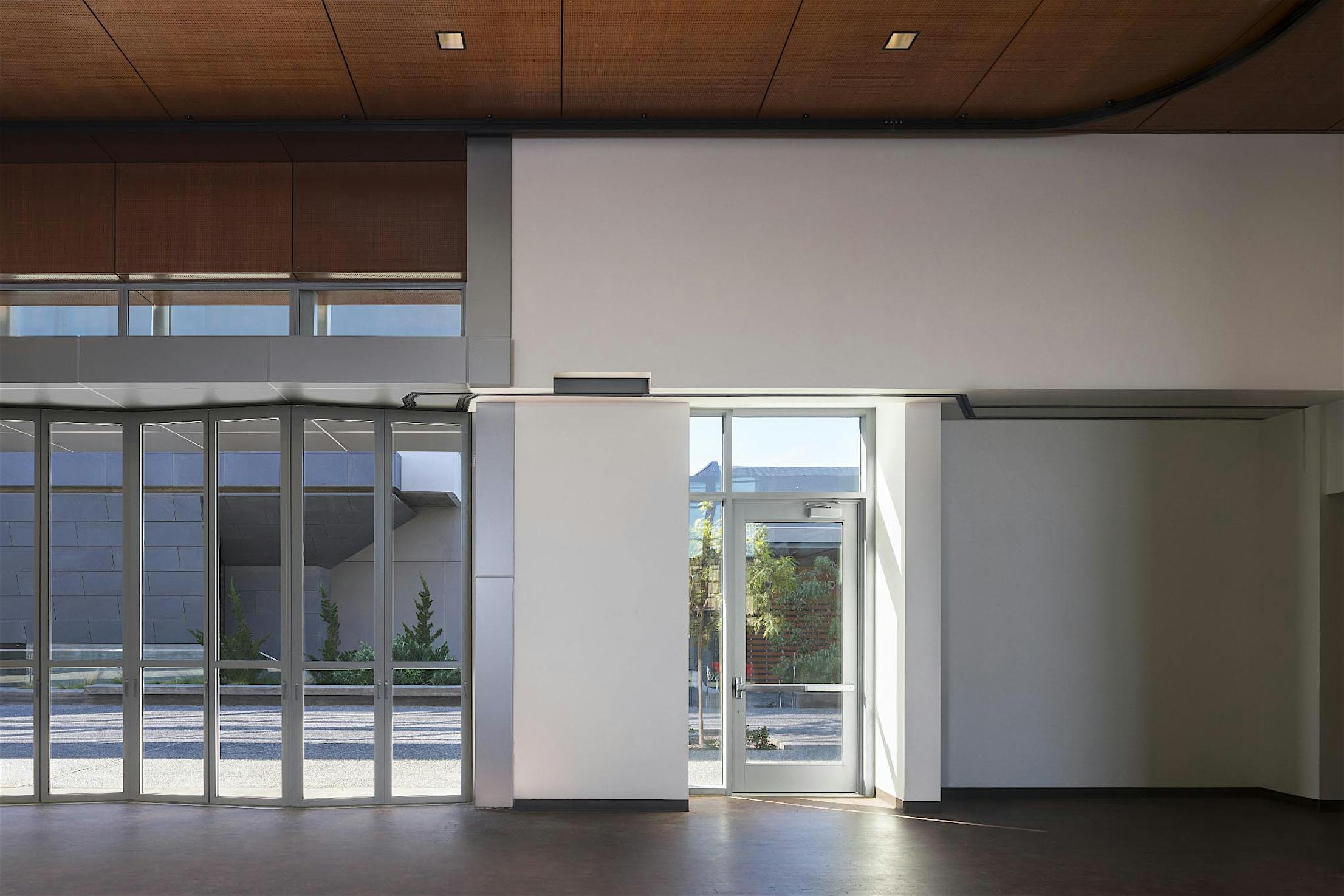

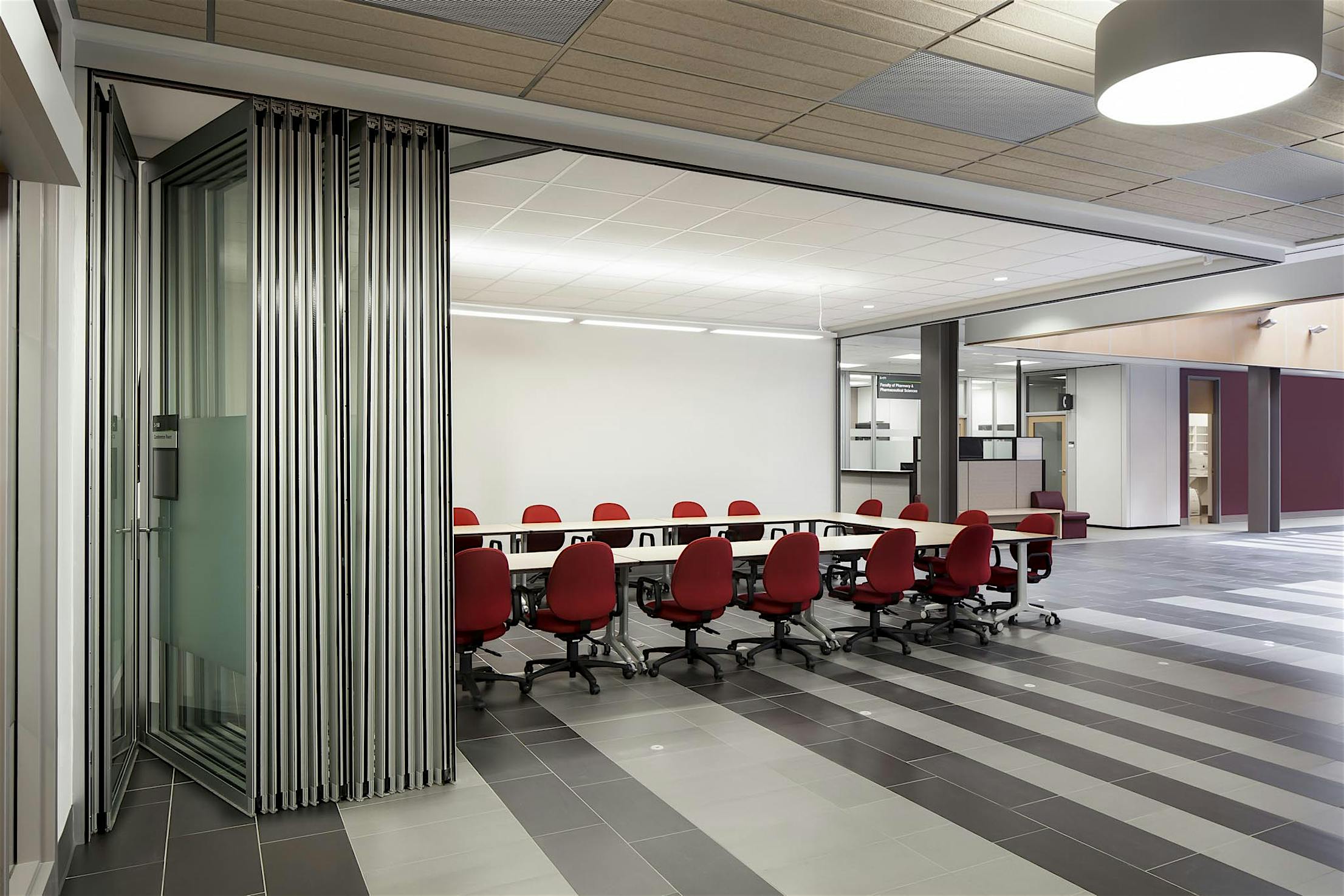

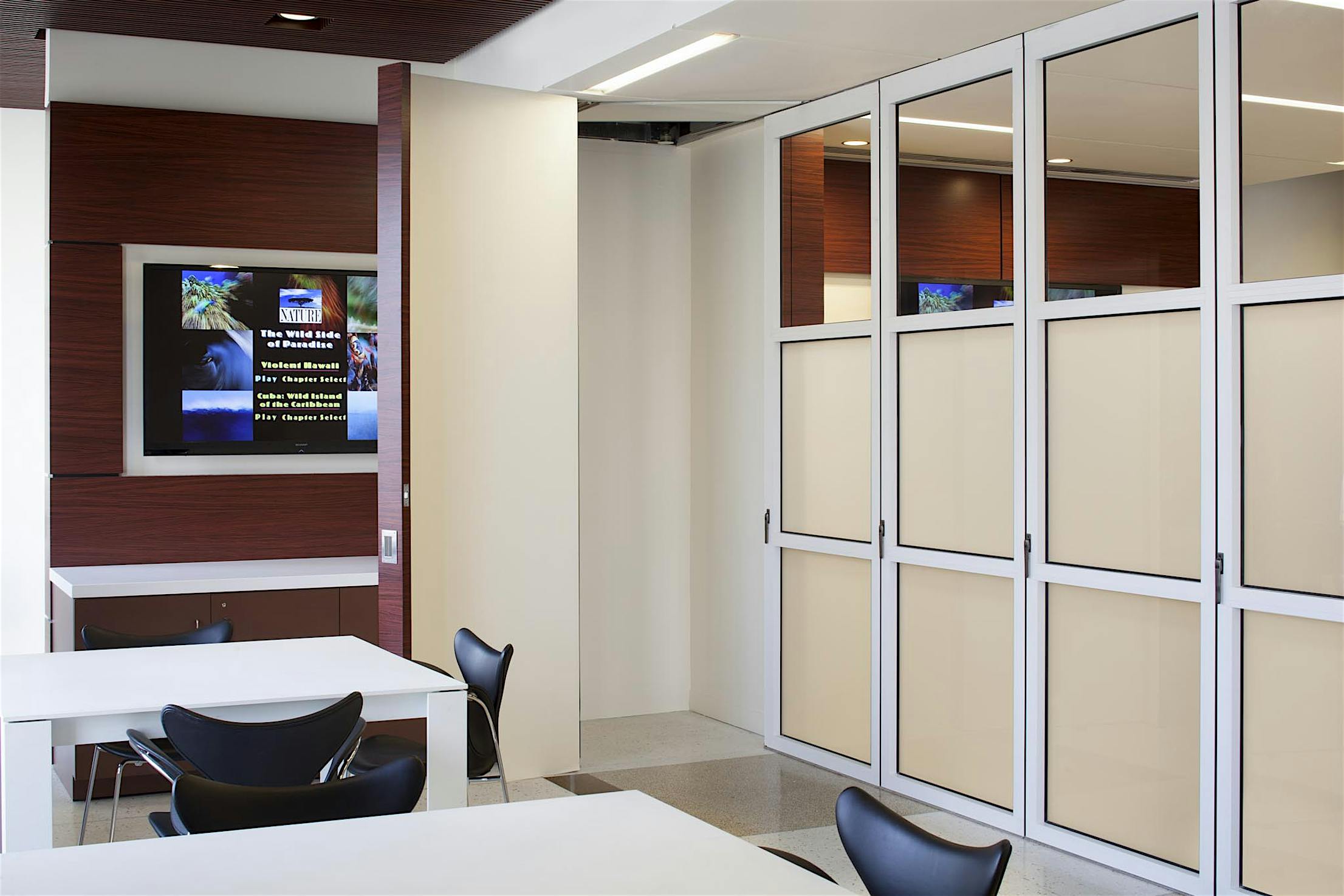

Panels Can Store Out of Sight
You have the design freedom to store panels in a closet hidden from view when opened

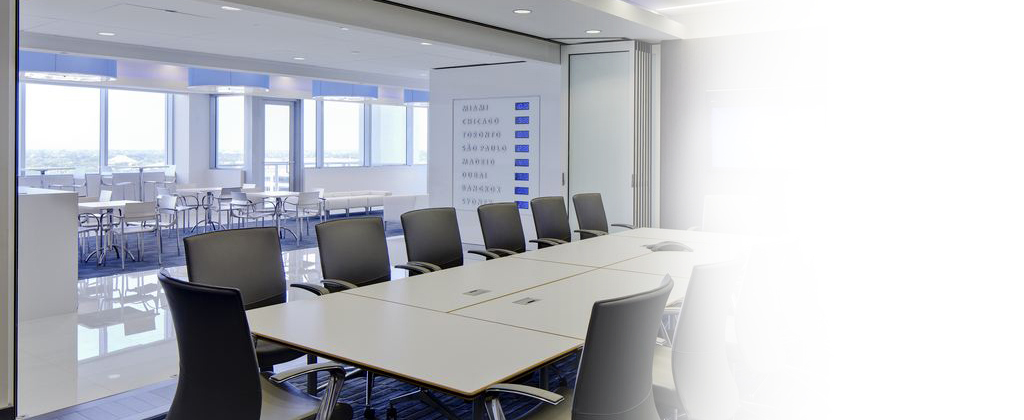

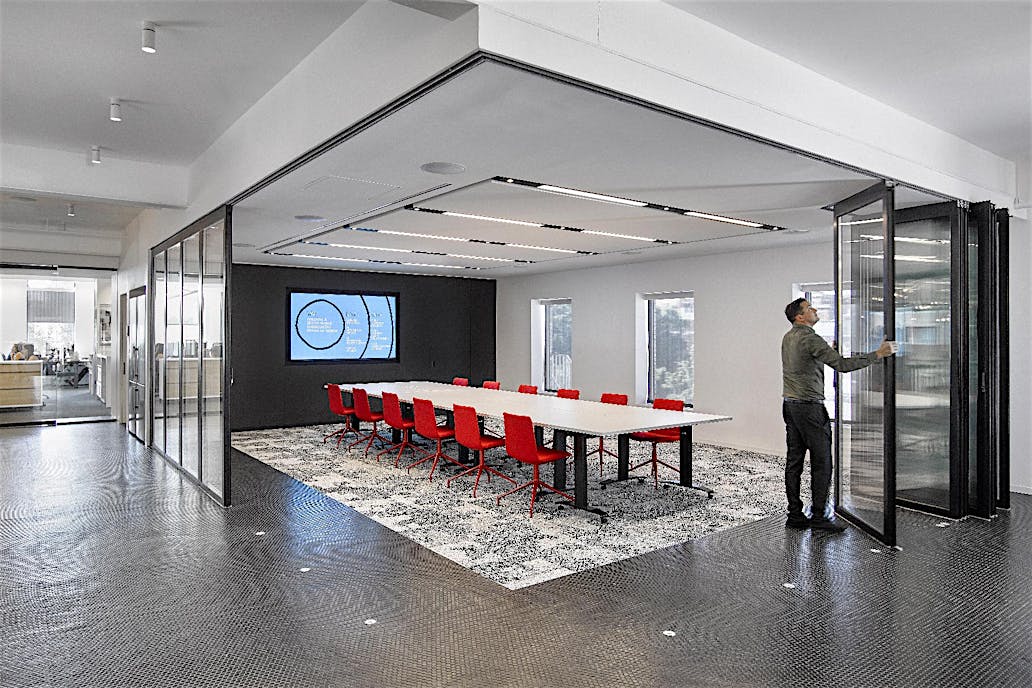

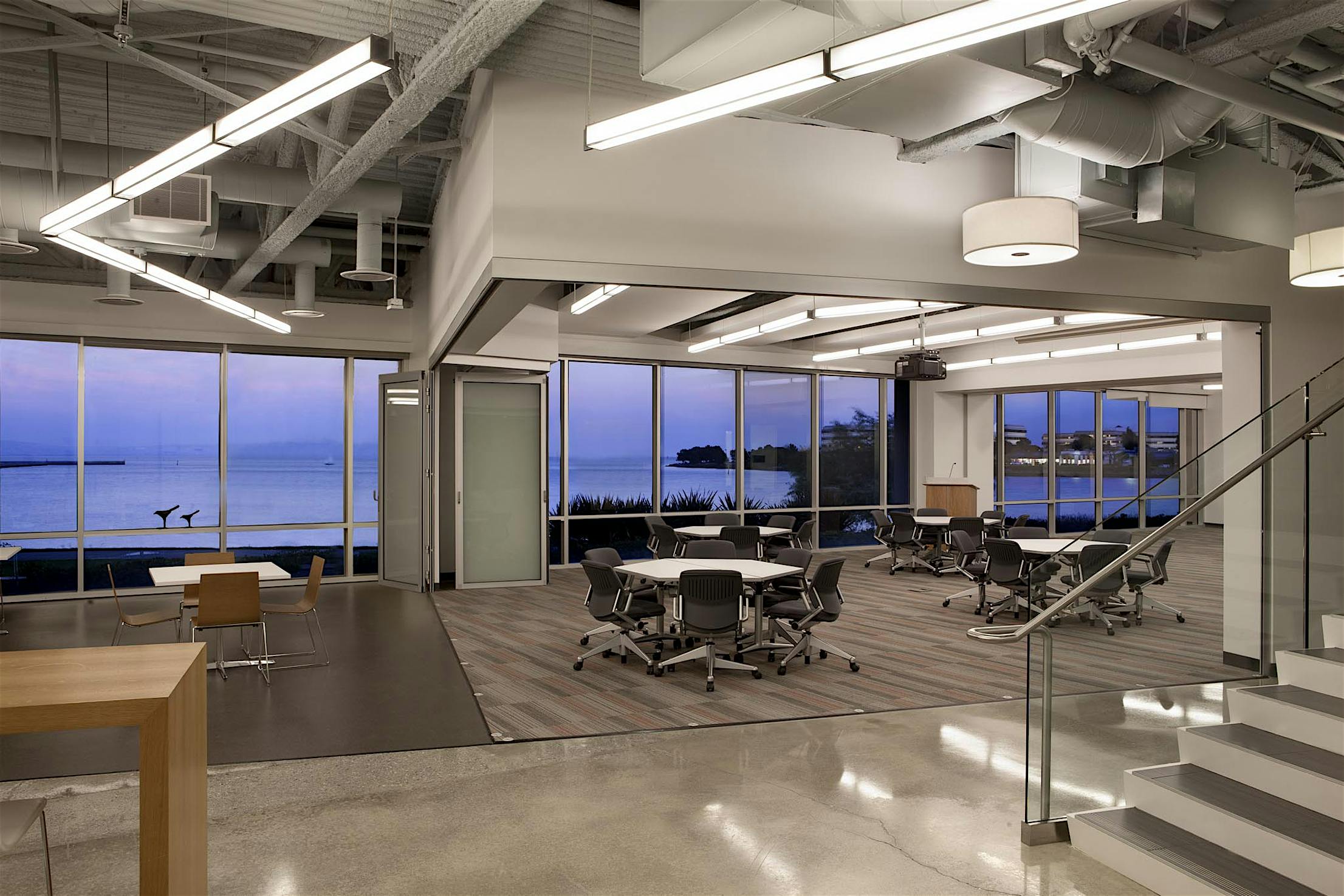

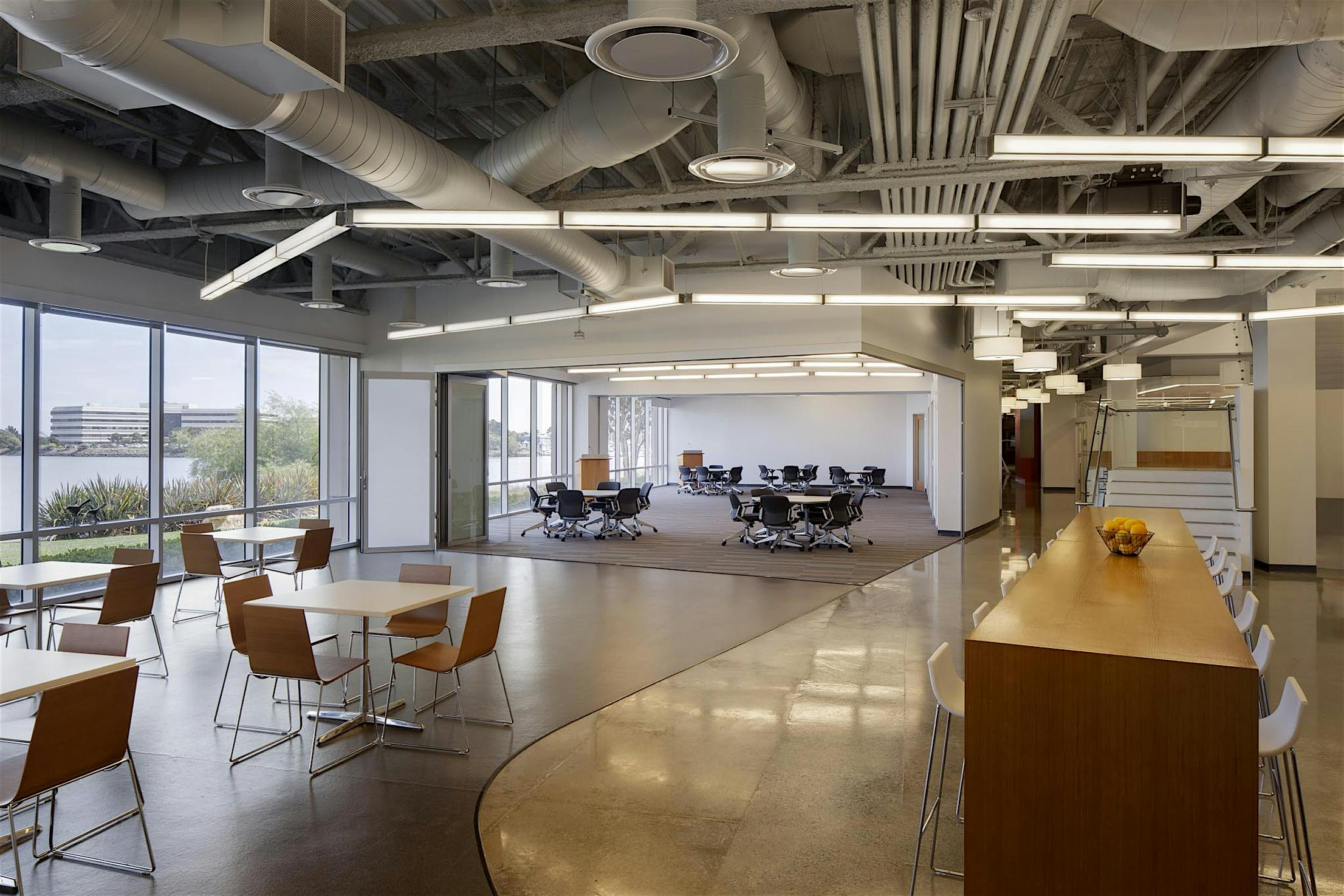

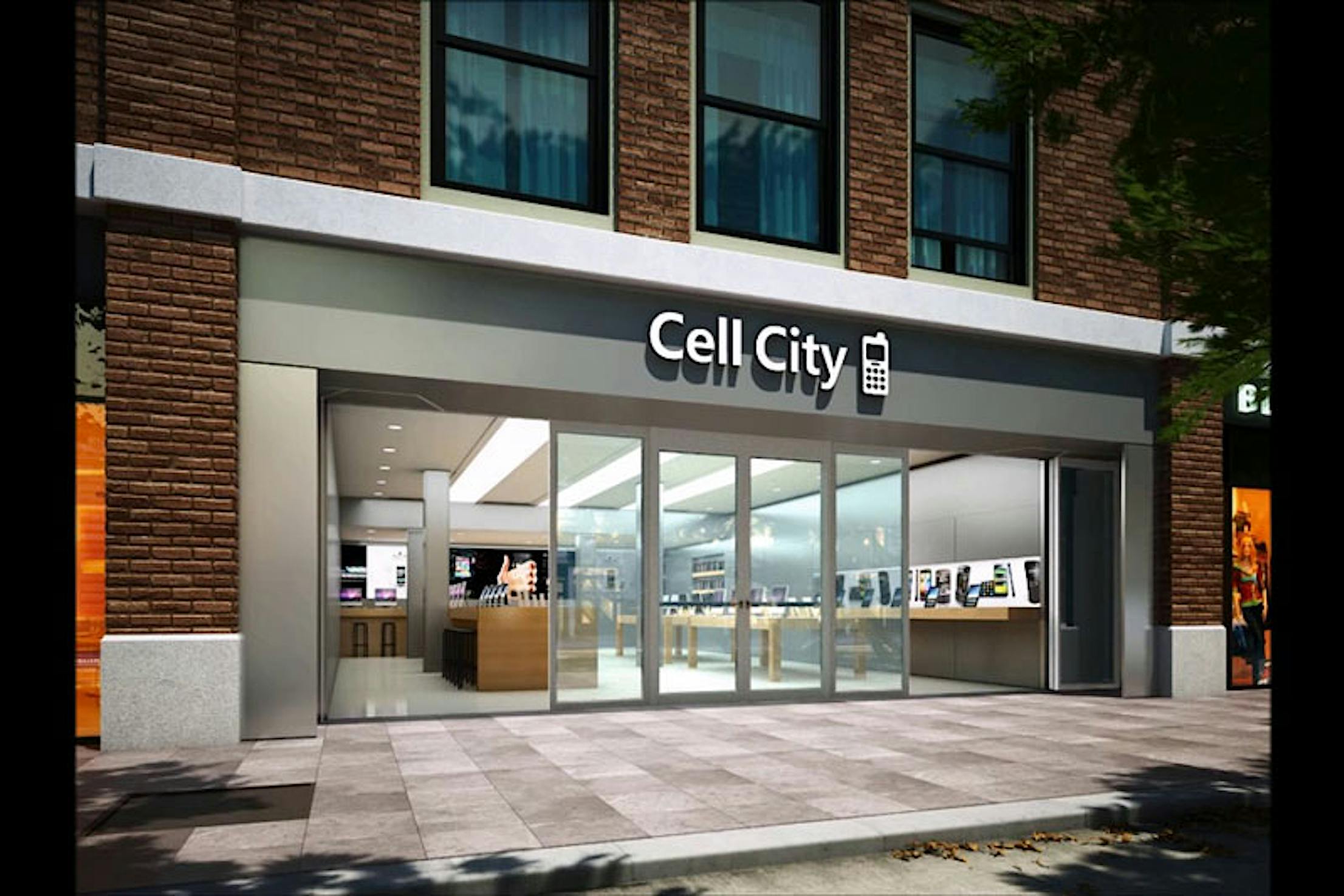

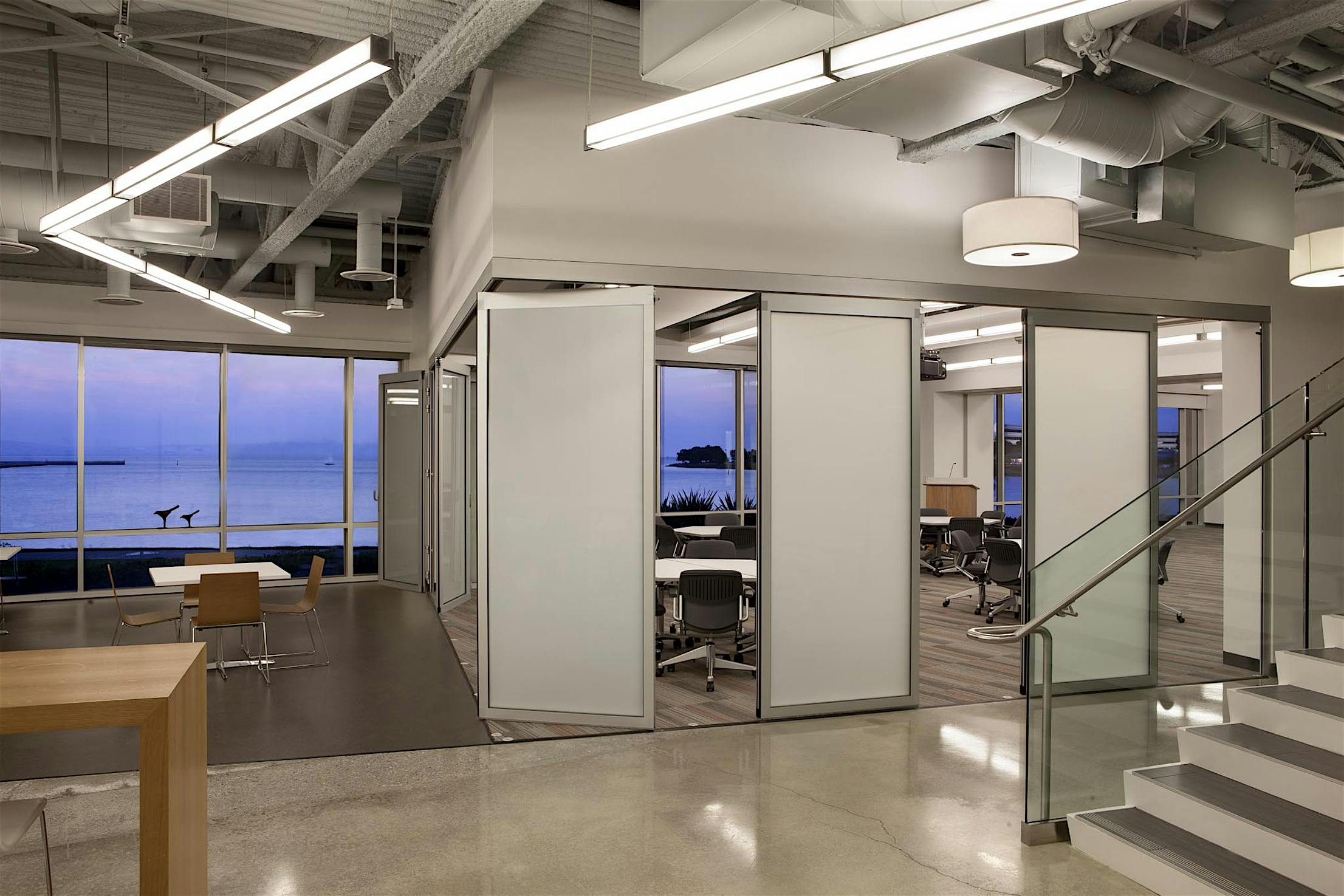

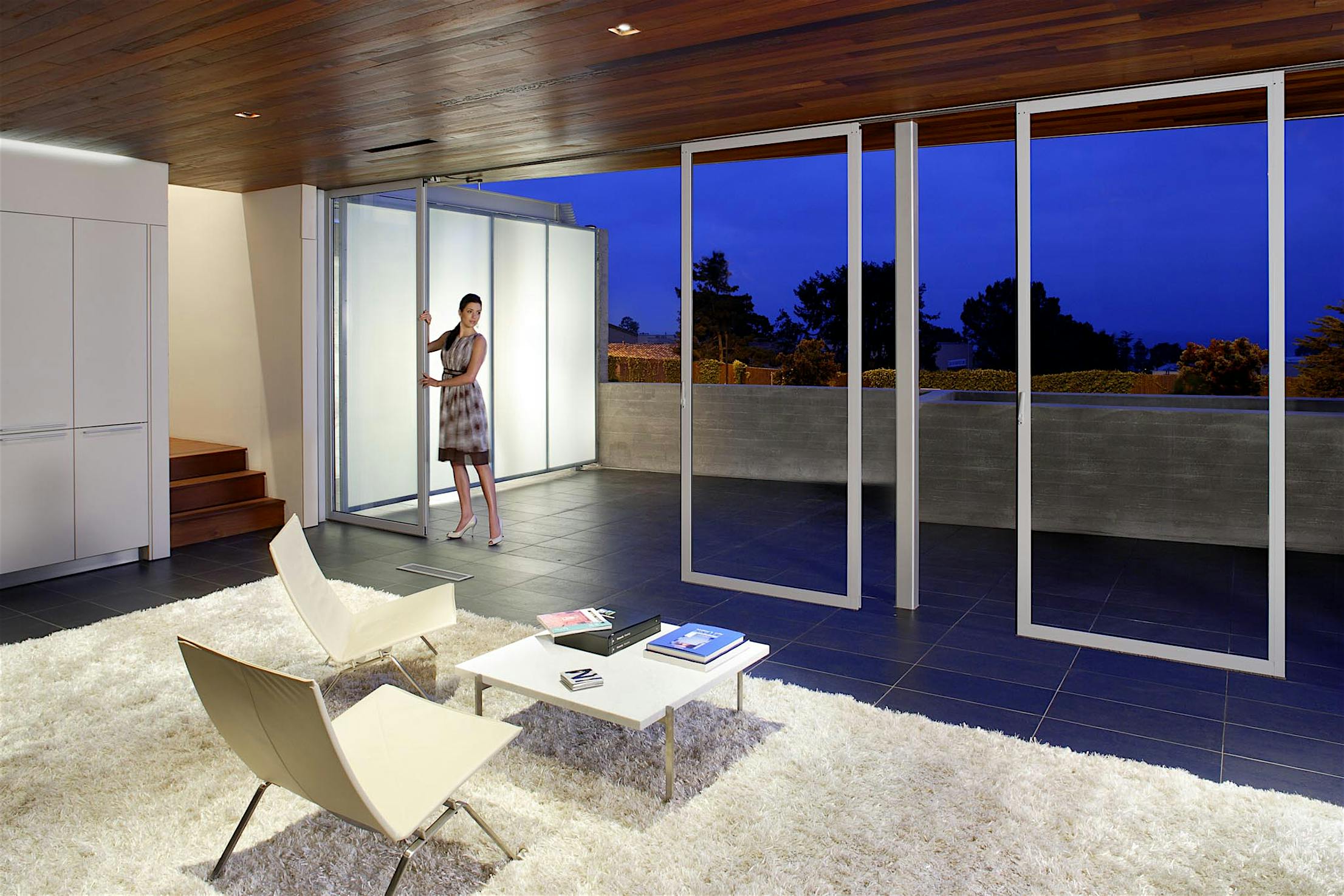

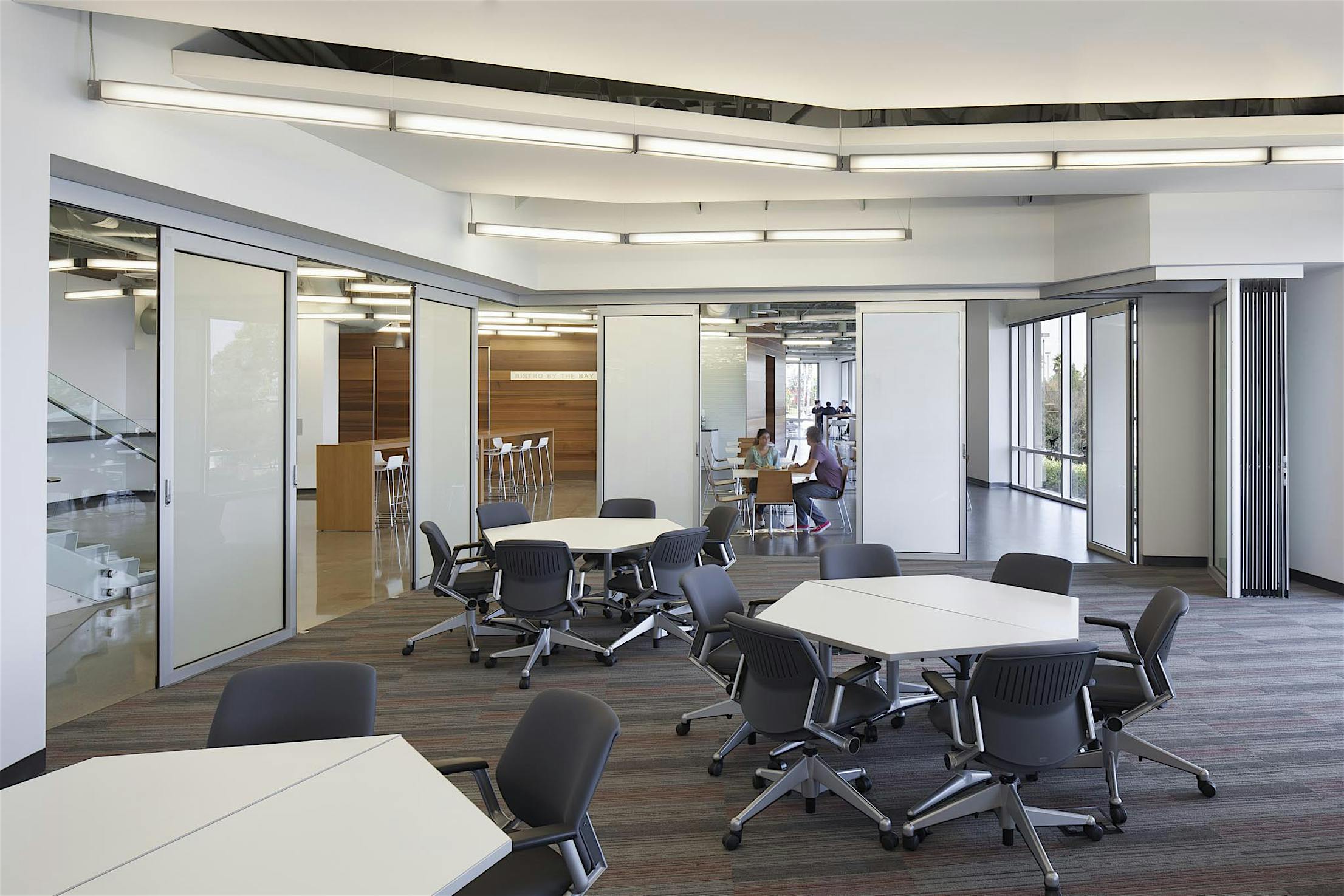

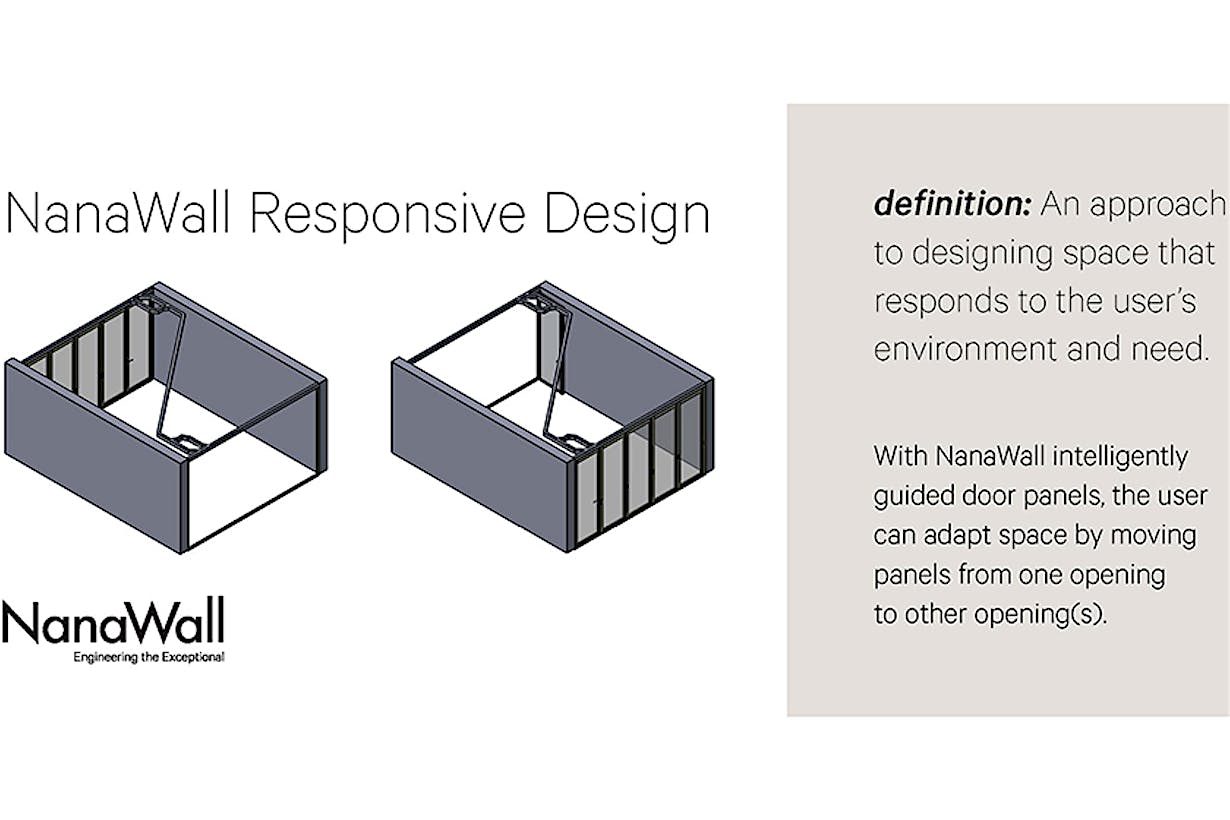

DESIGN RESPONSIVELY
With NanaWall intelligently guided door panels, the user can adapt space by moving panels from one opening to other opening(s). Watch our video to learn more about NanaWall Responsive Design.

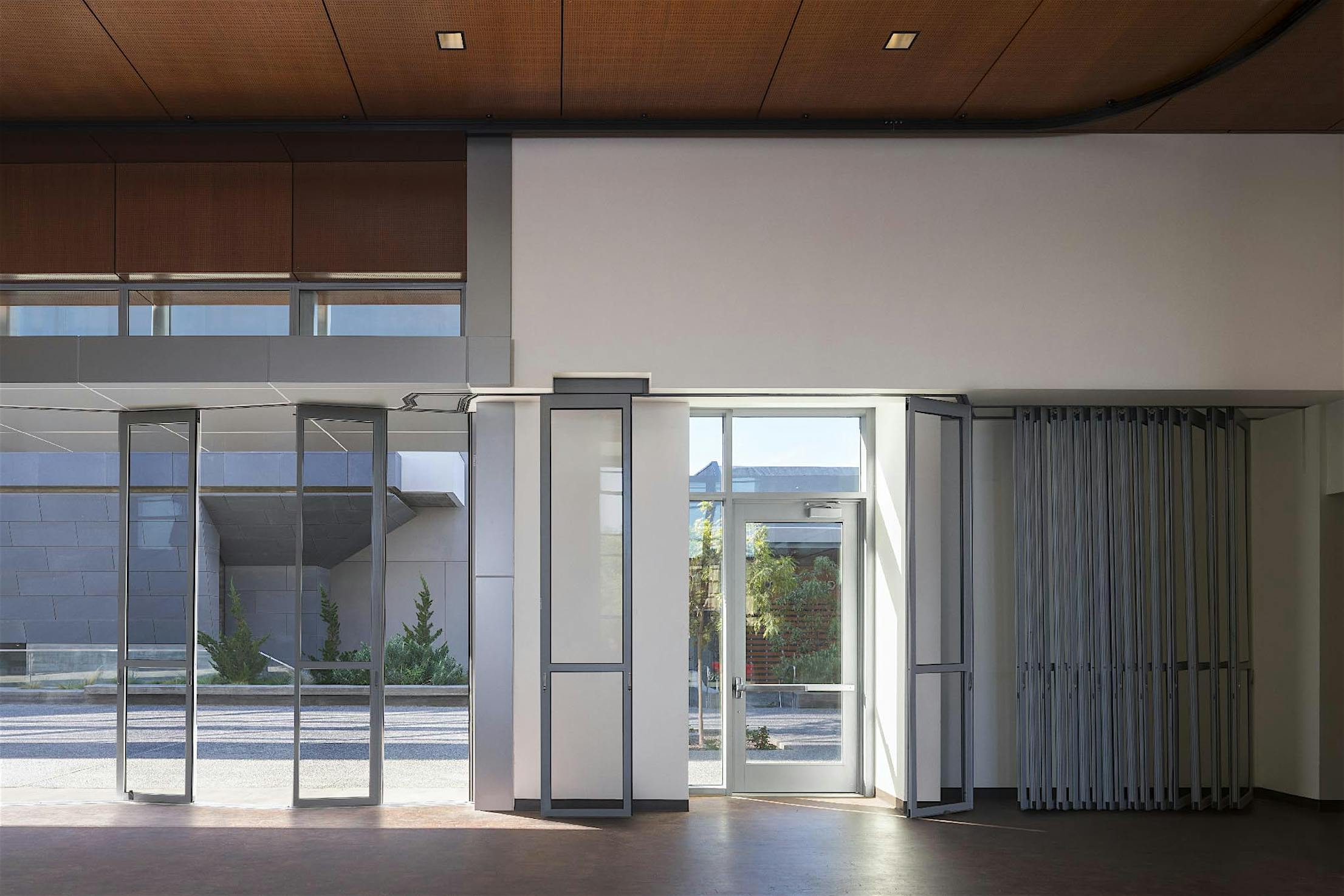

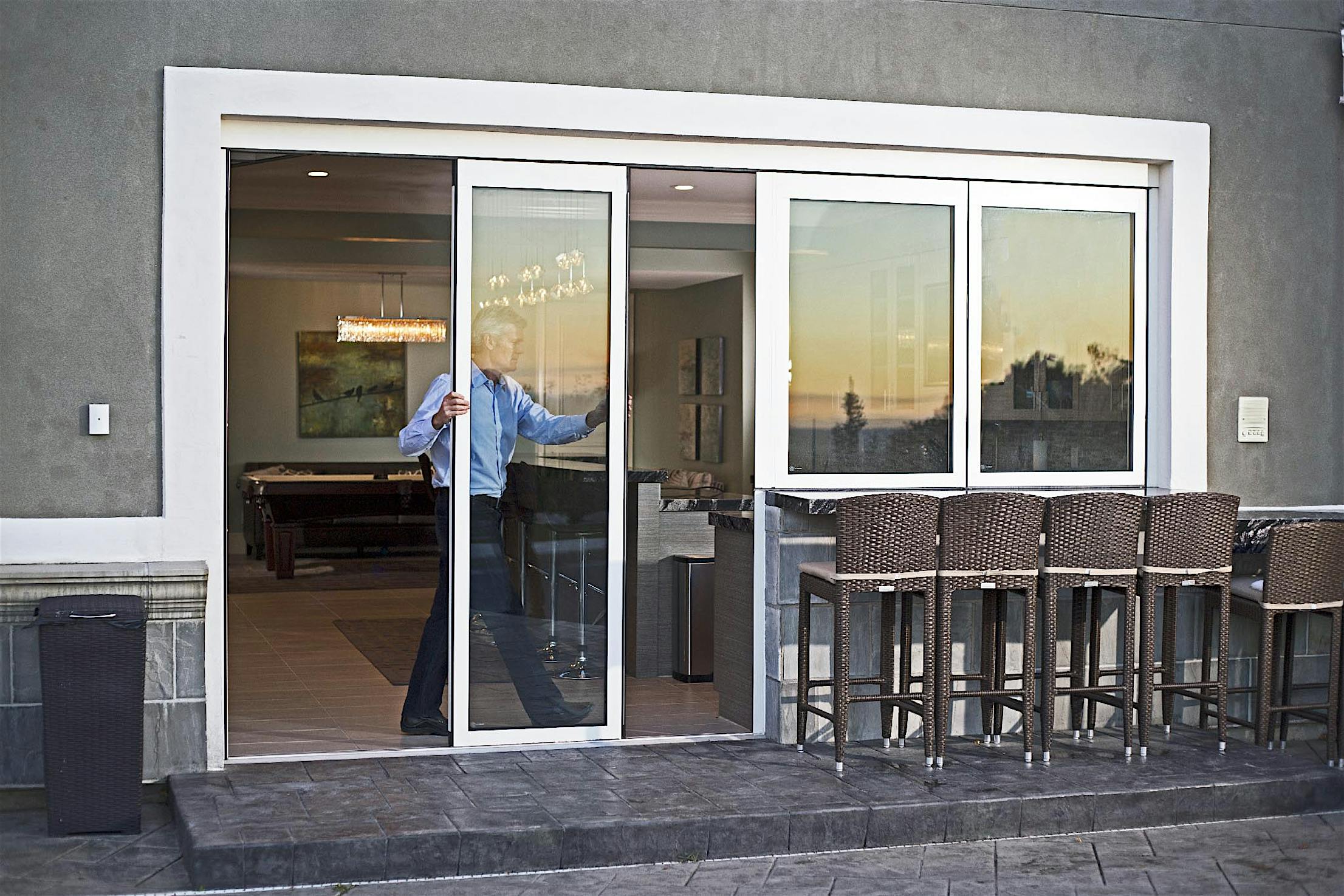

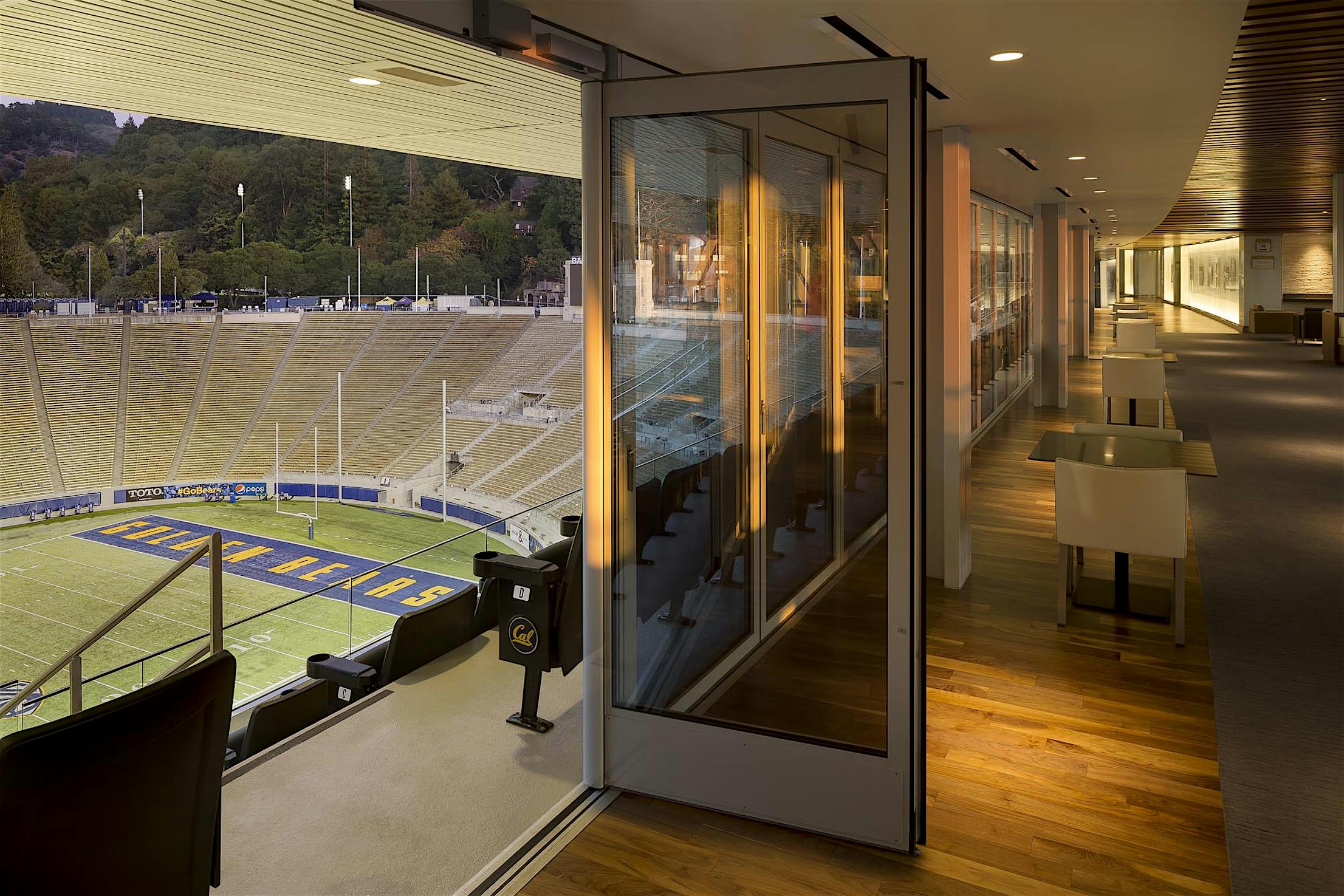

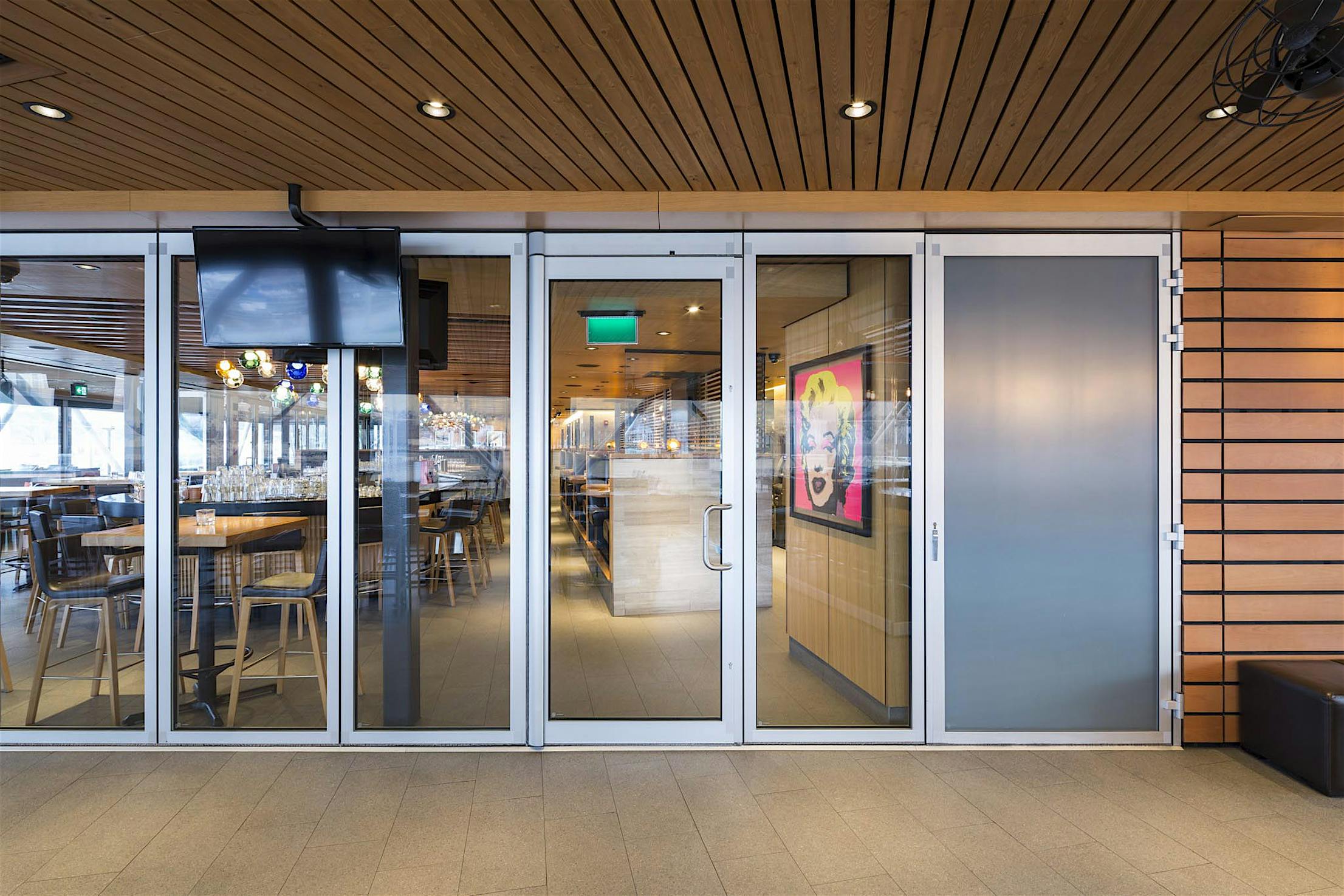

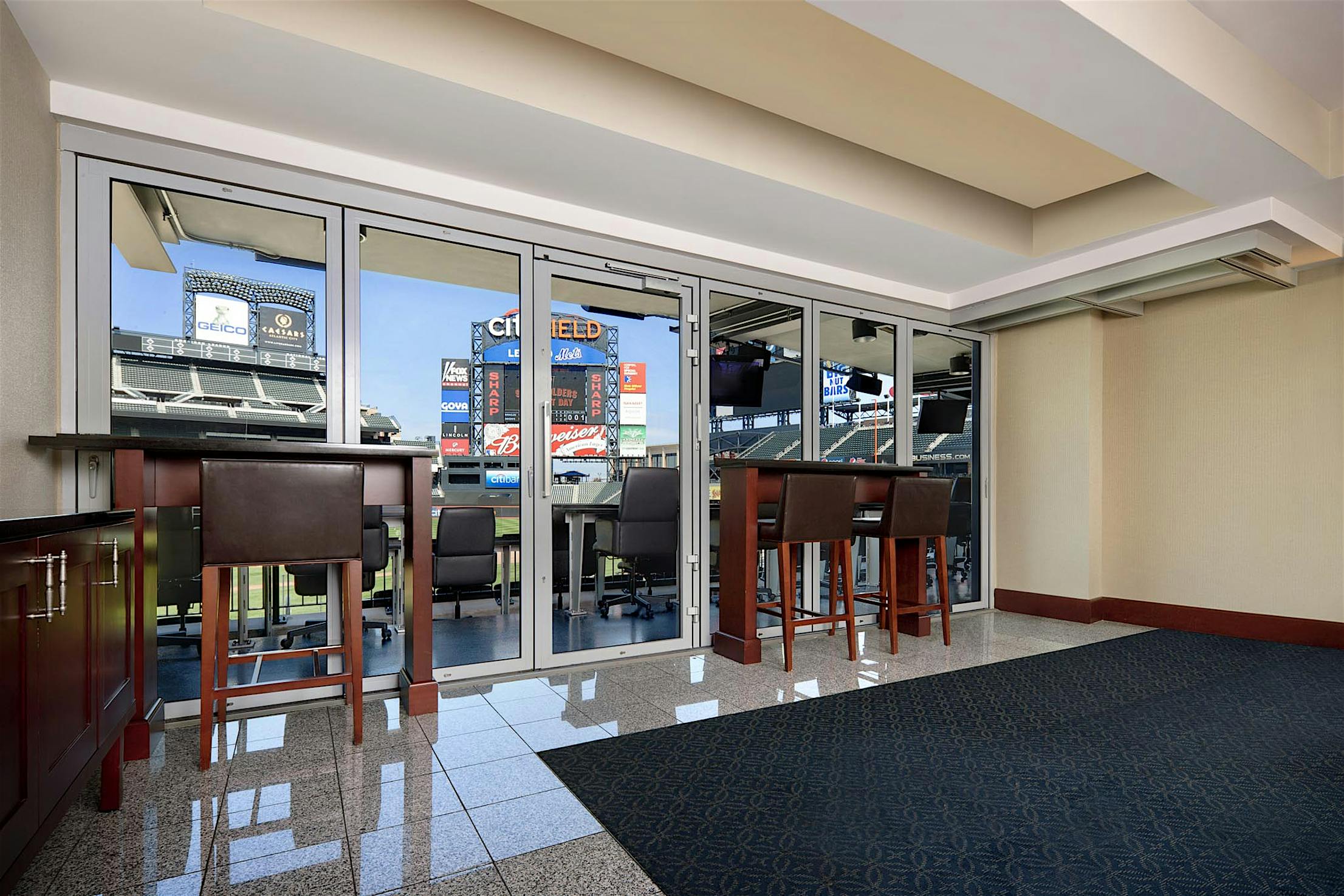

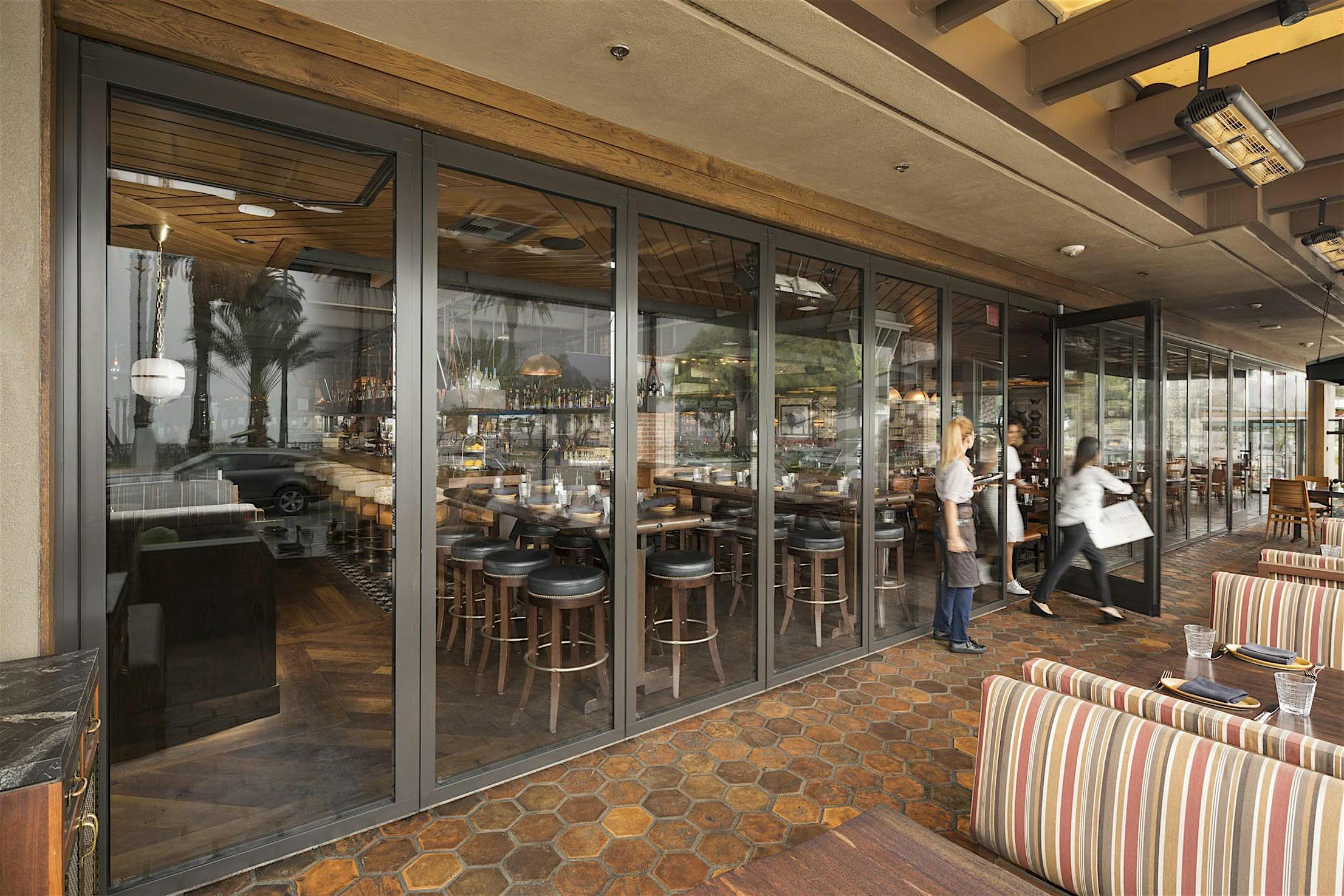

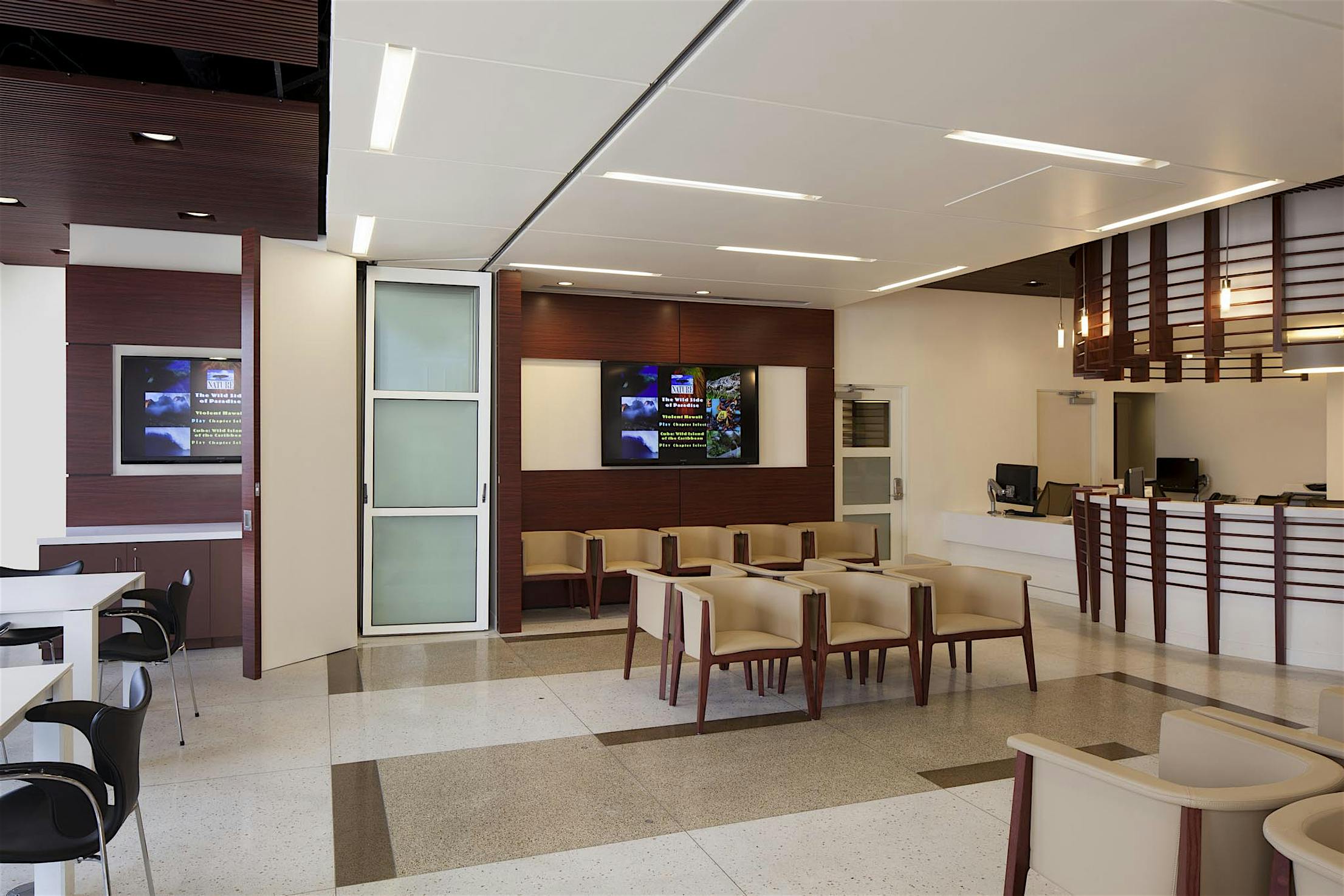

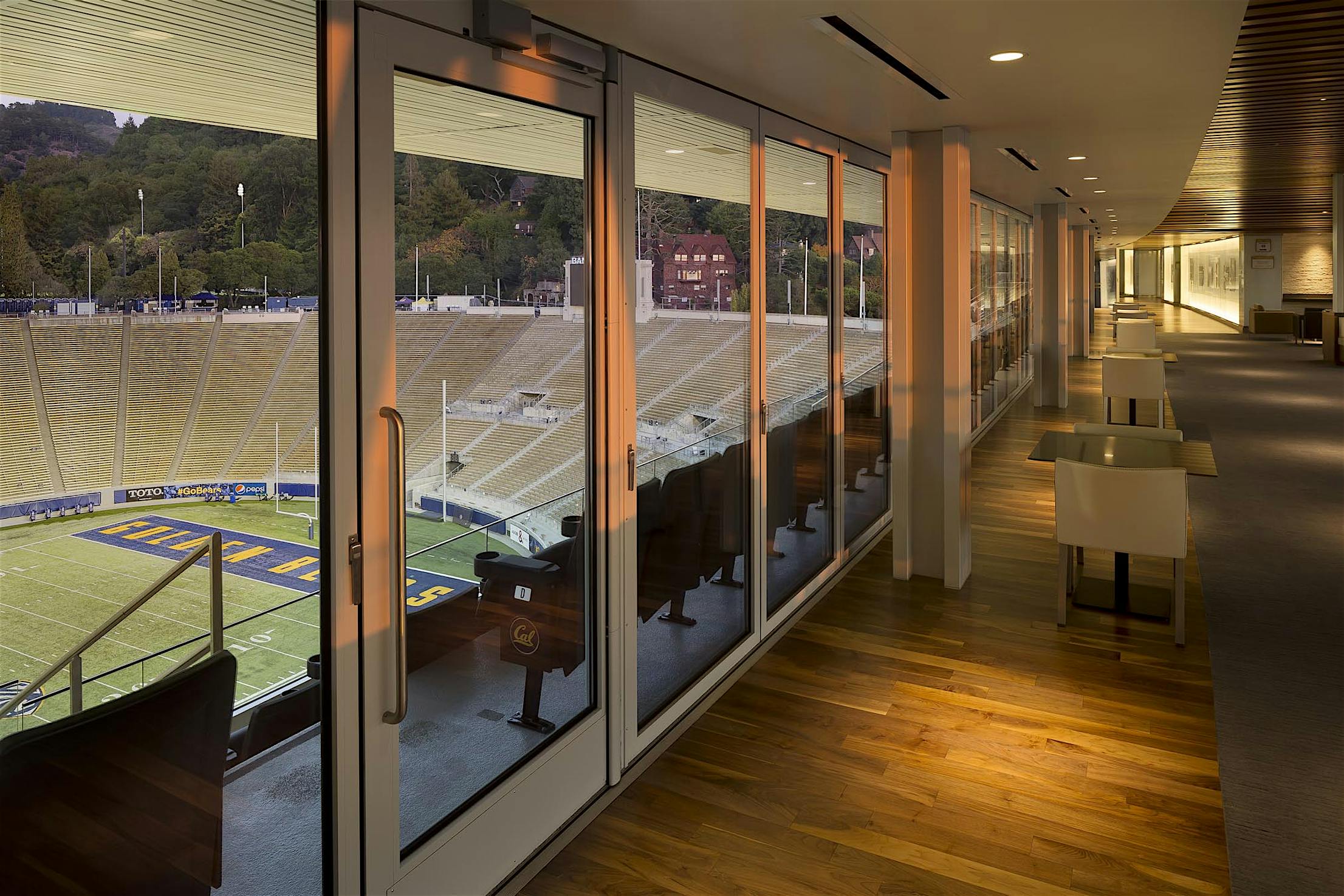

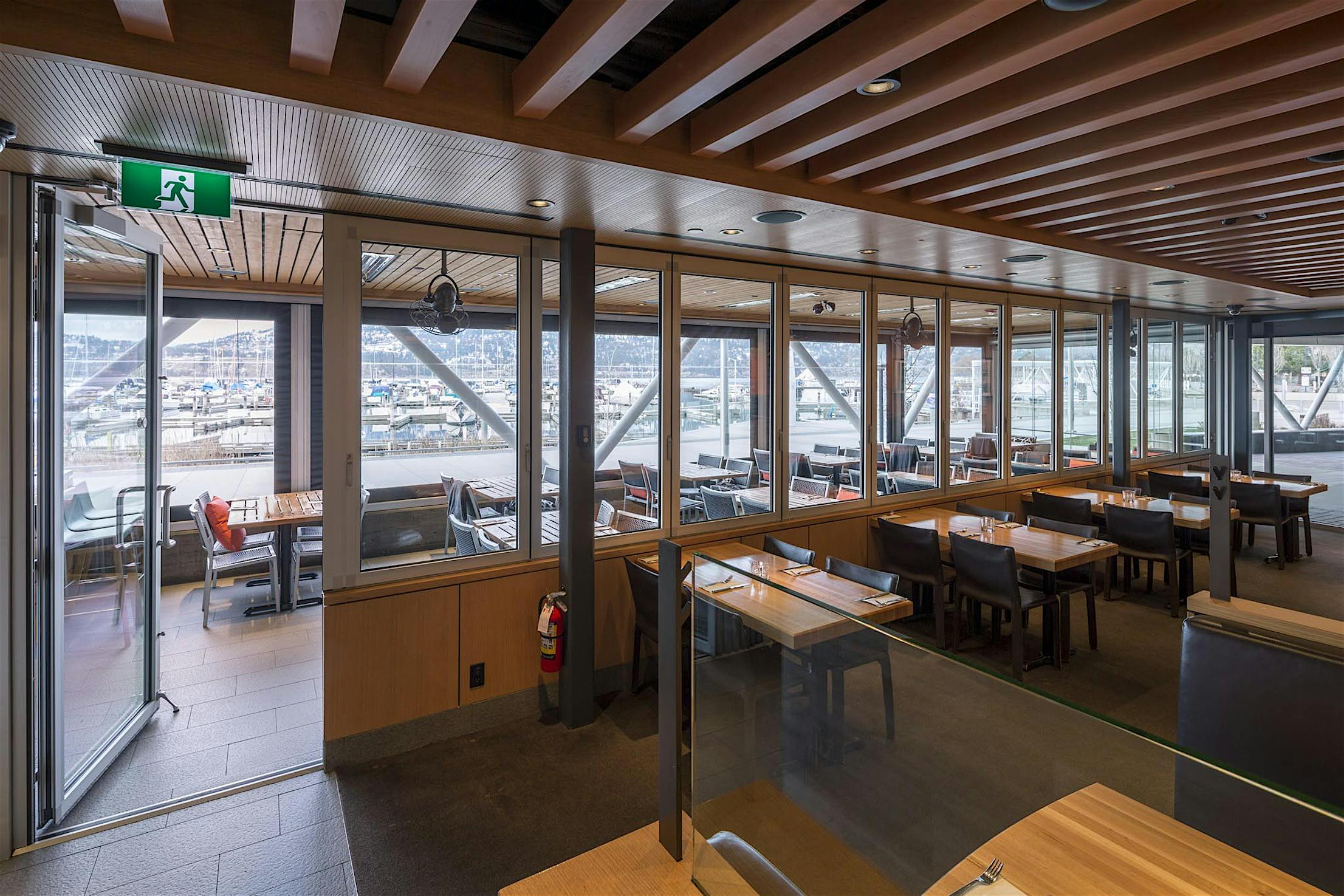

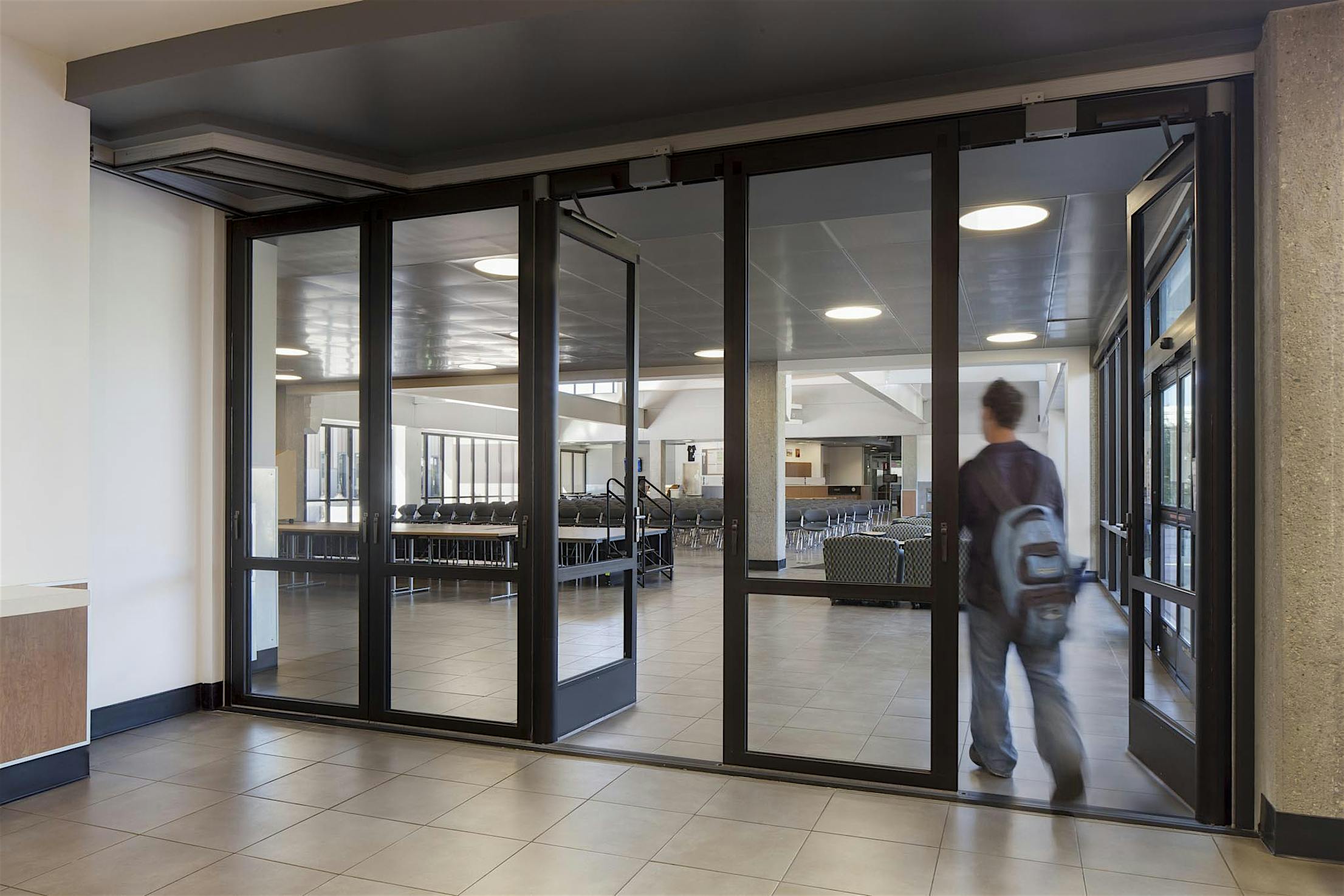

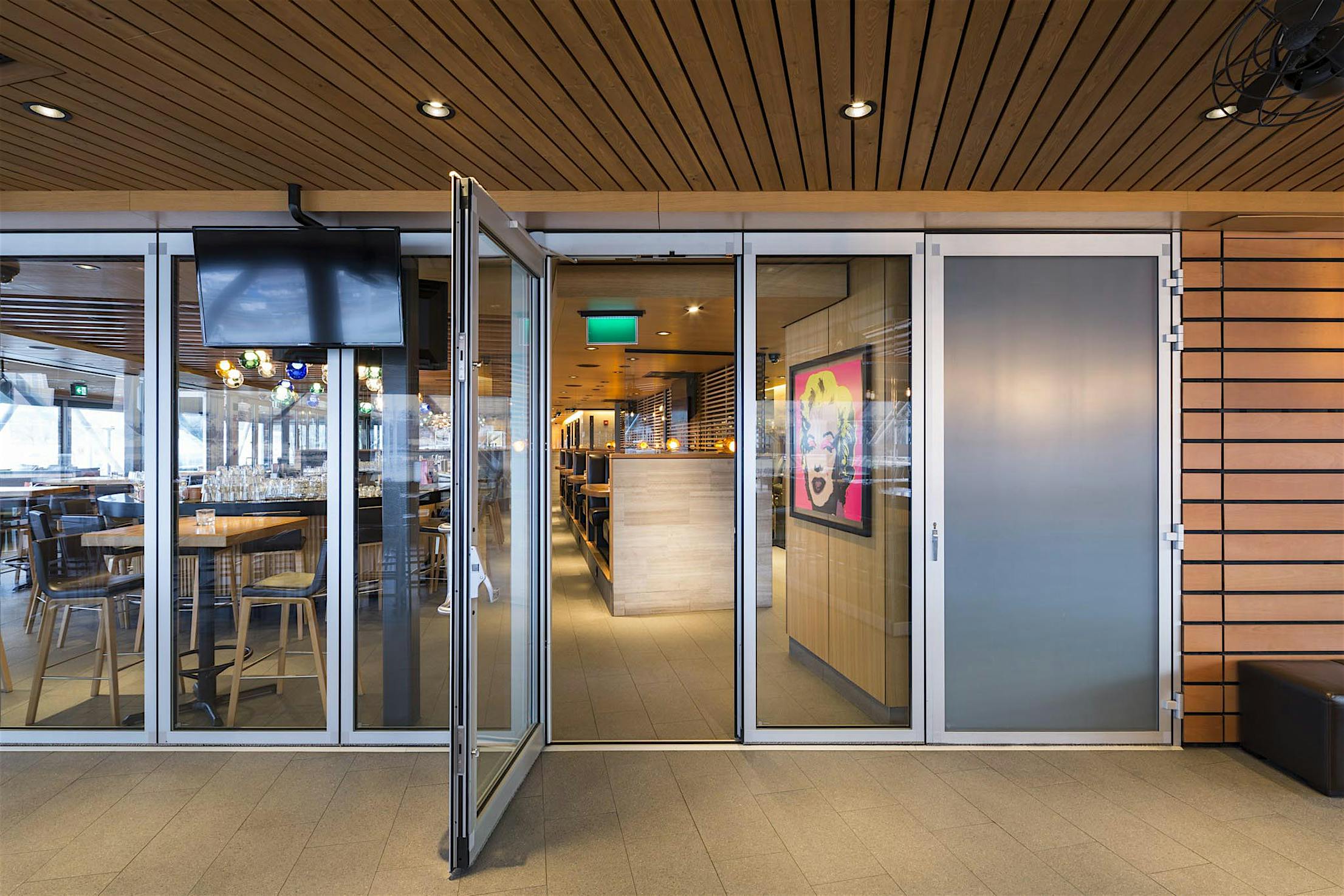

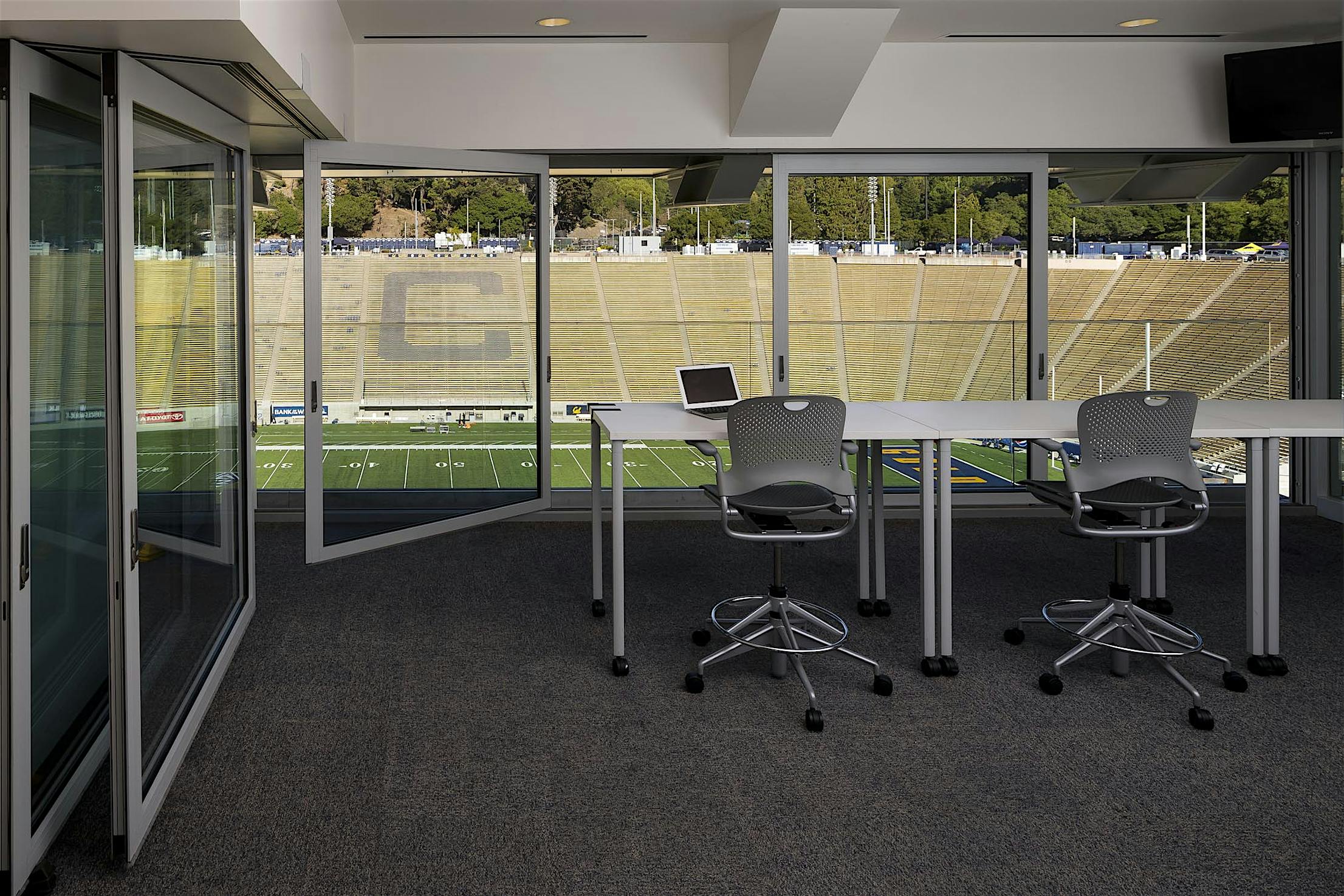

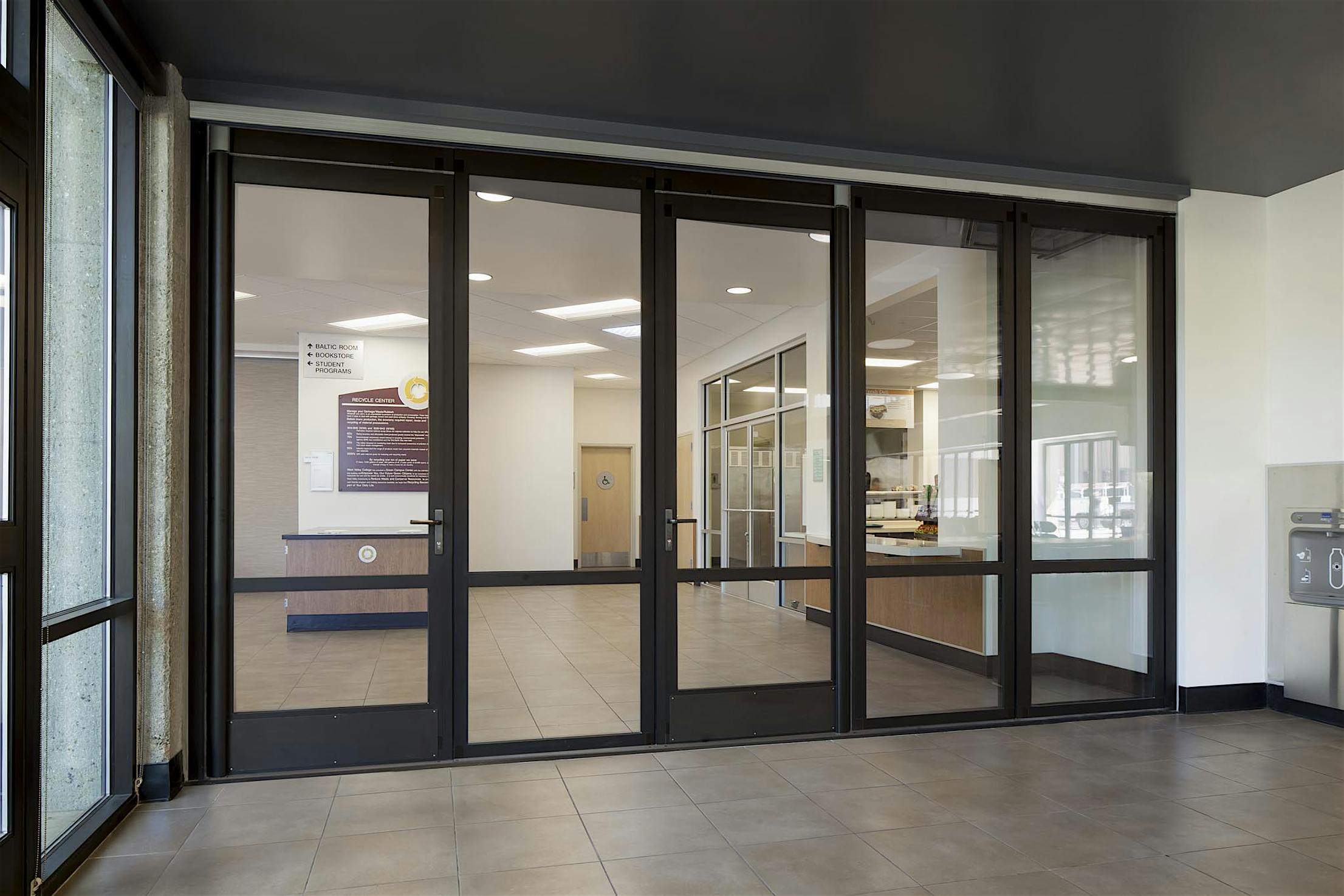

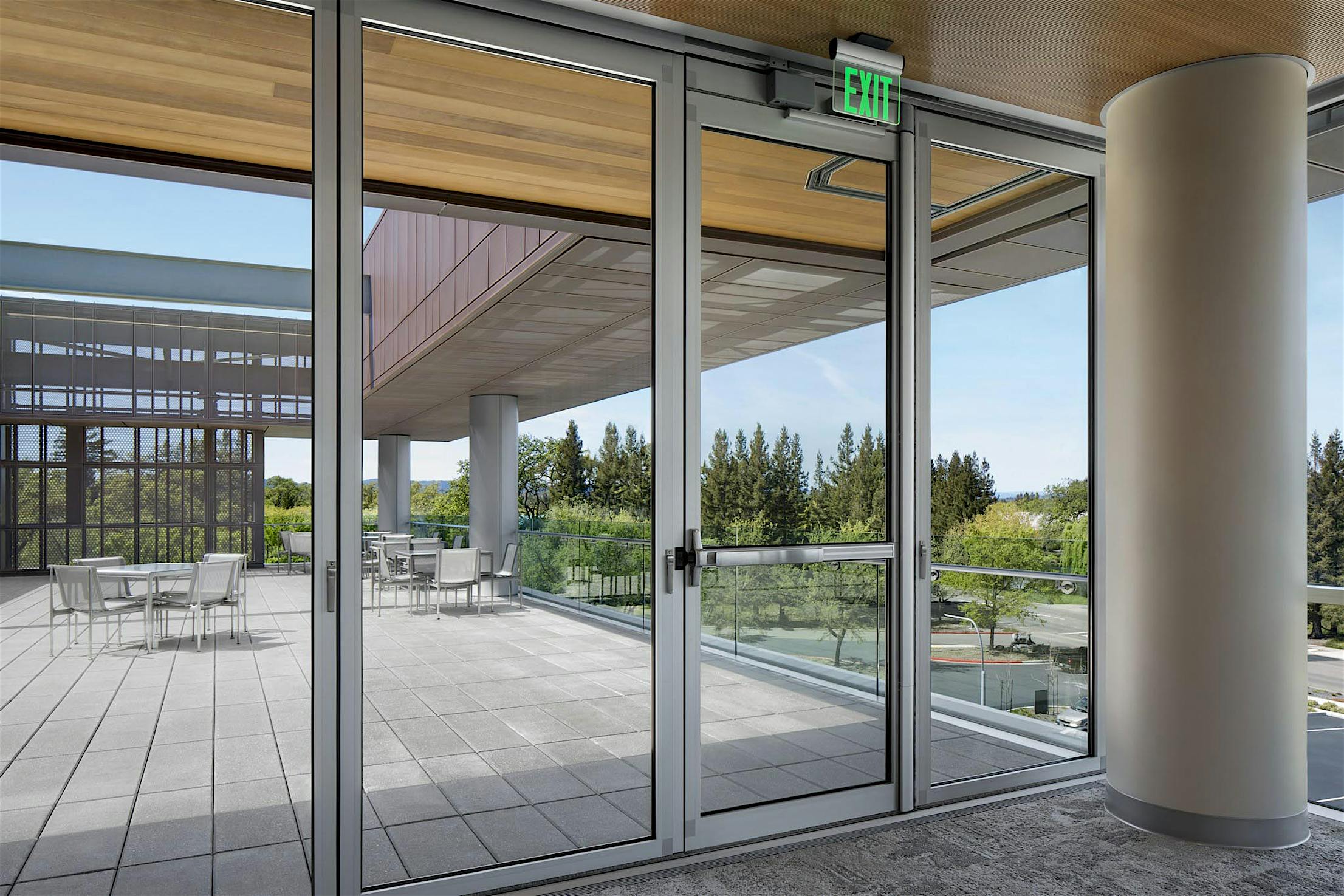

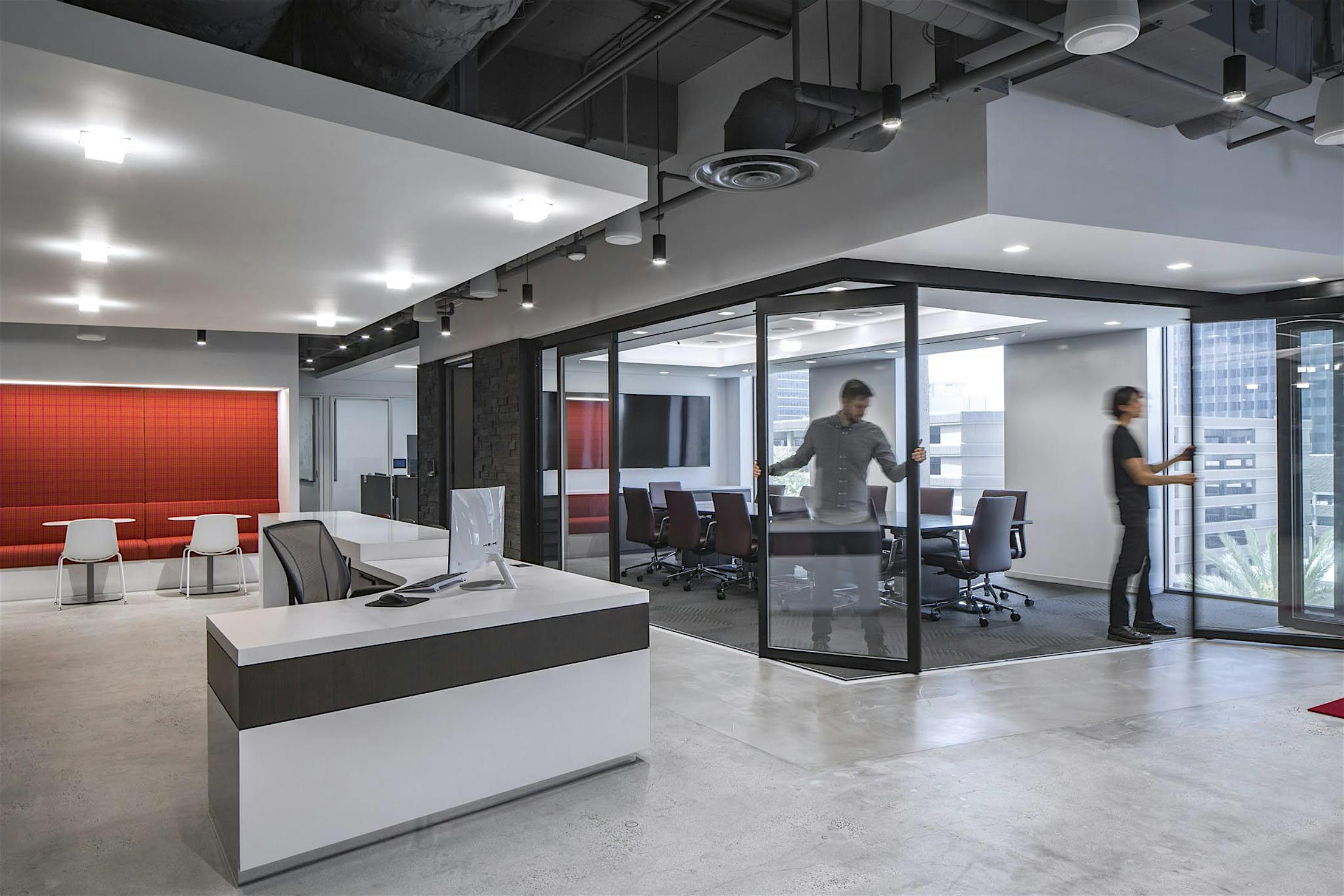

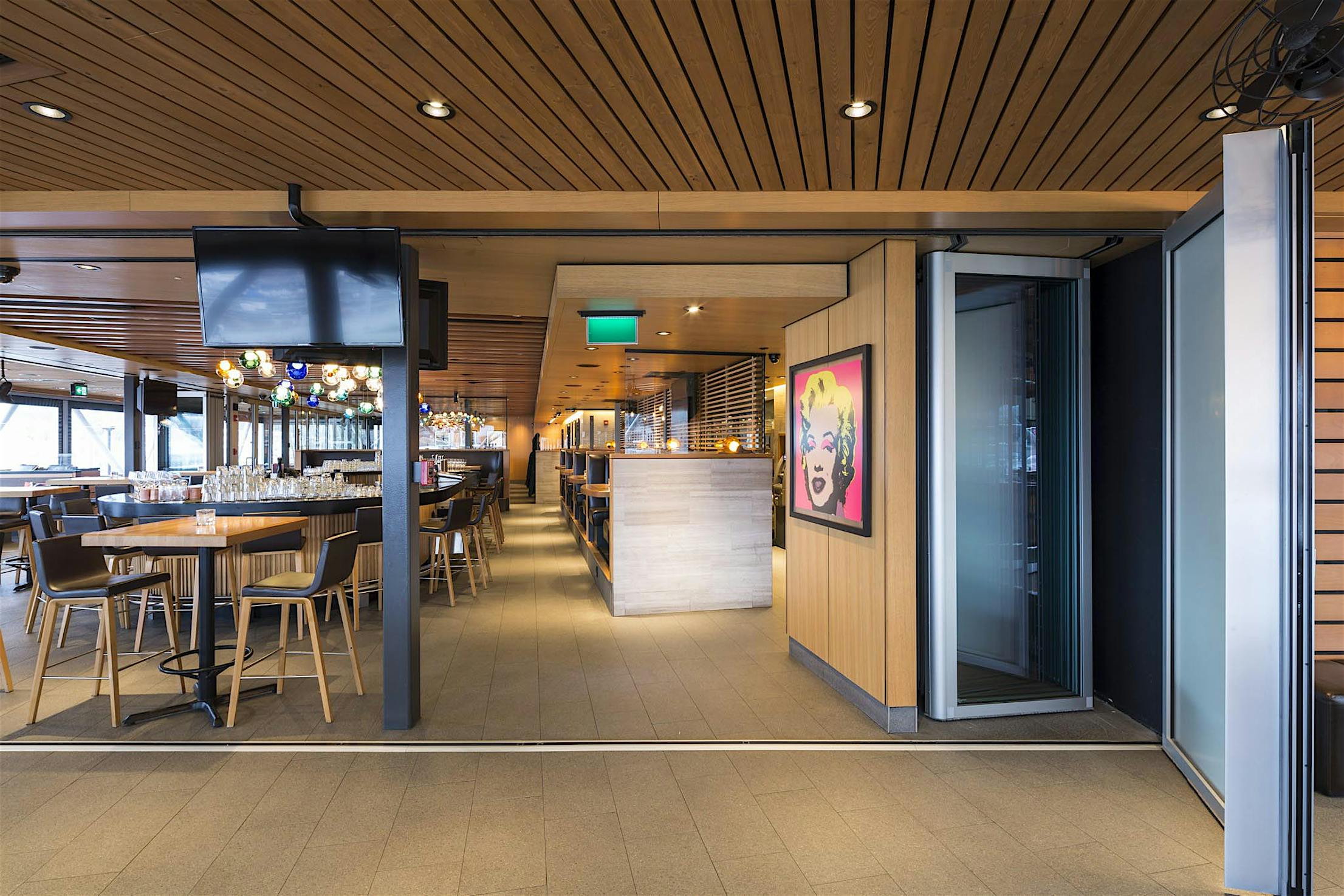

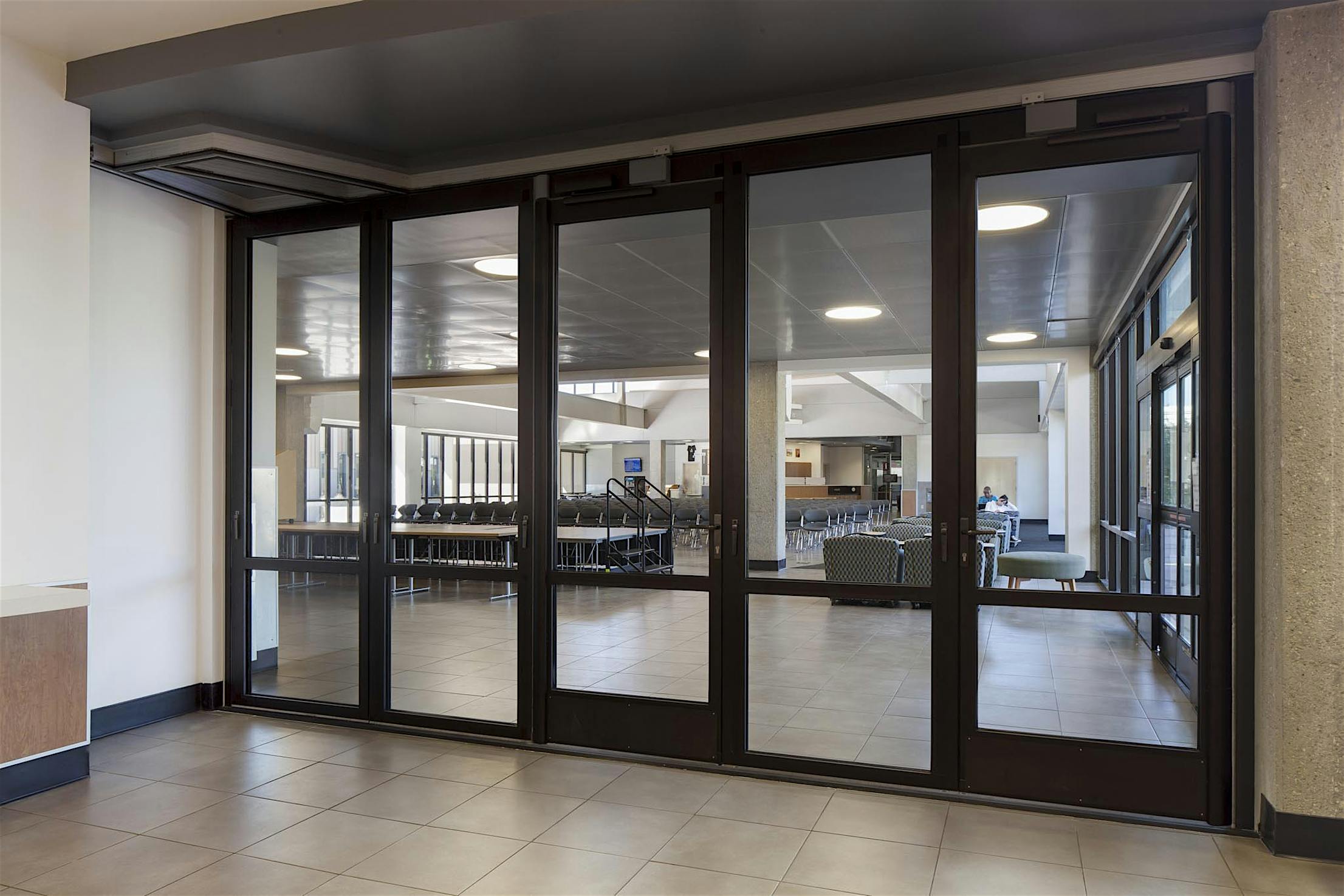

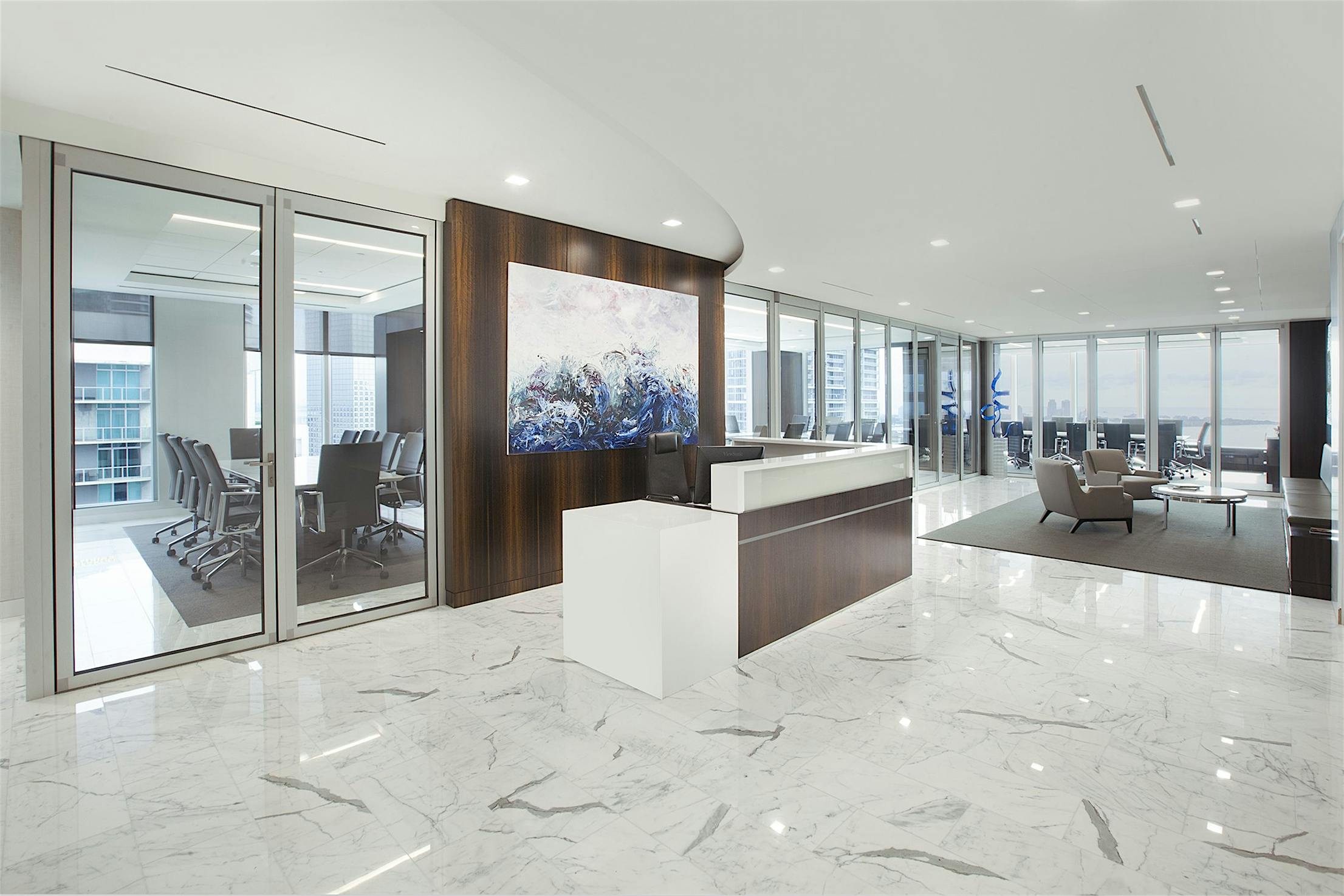

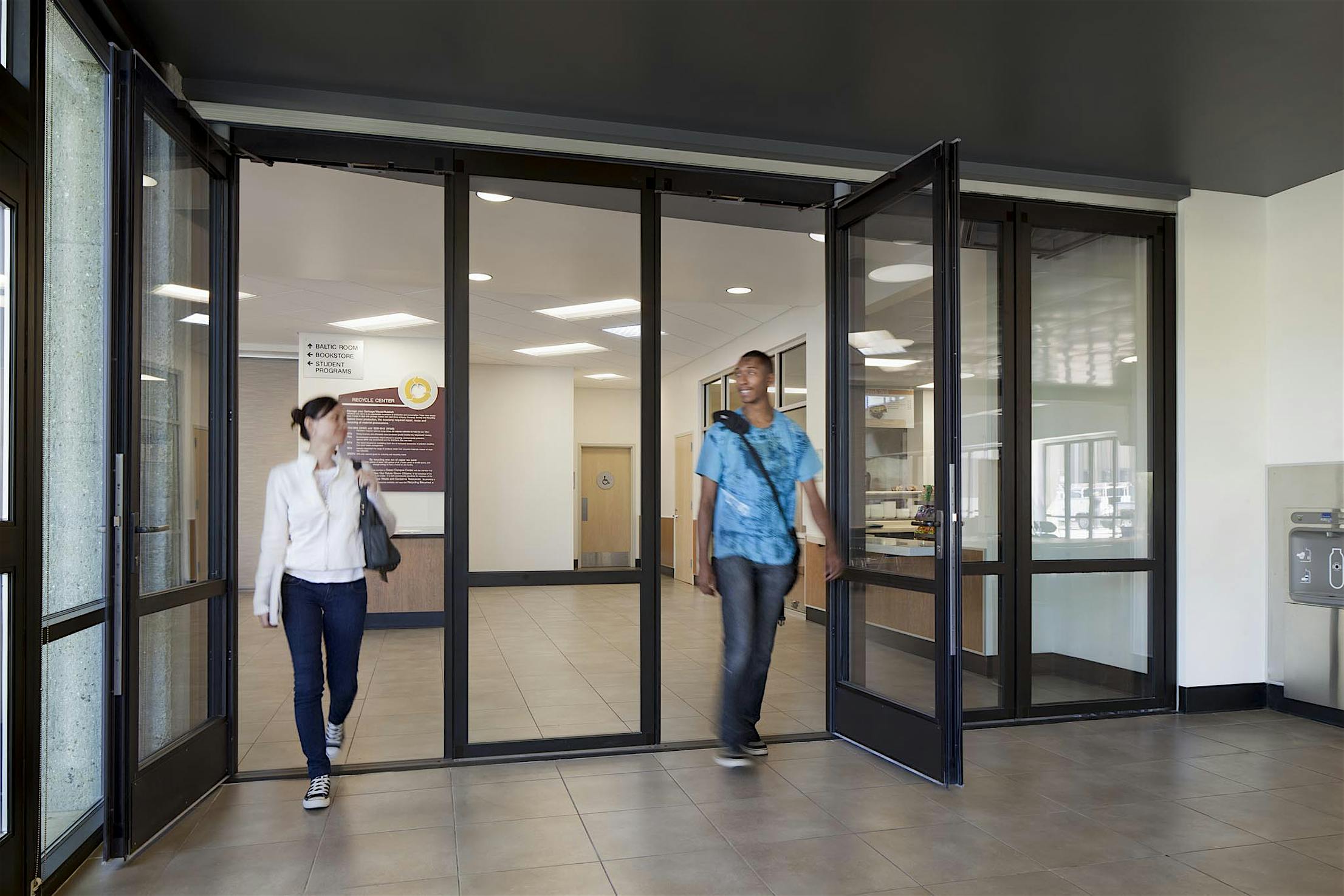

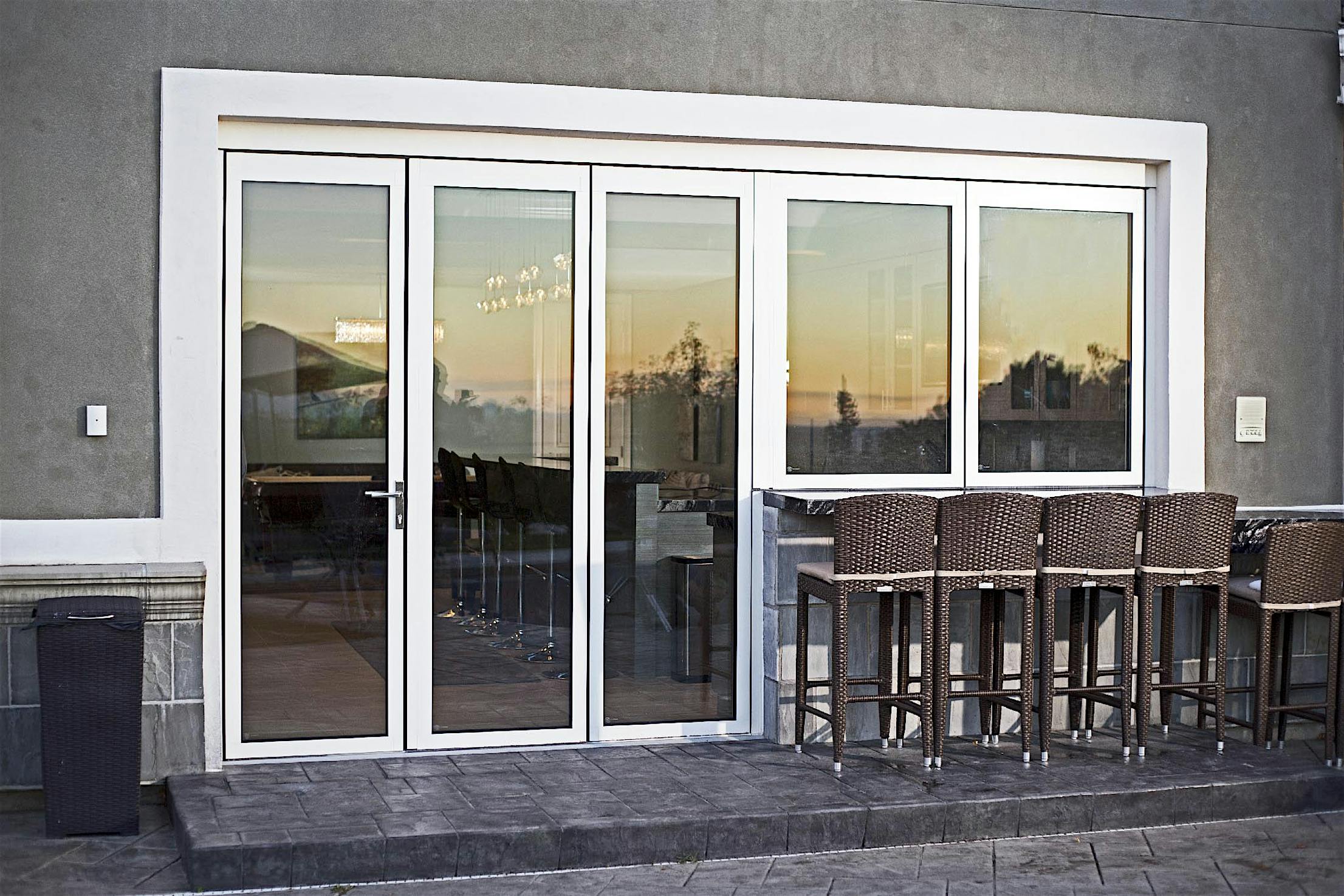

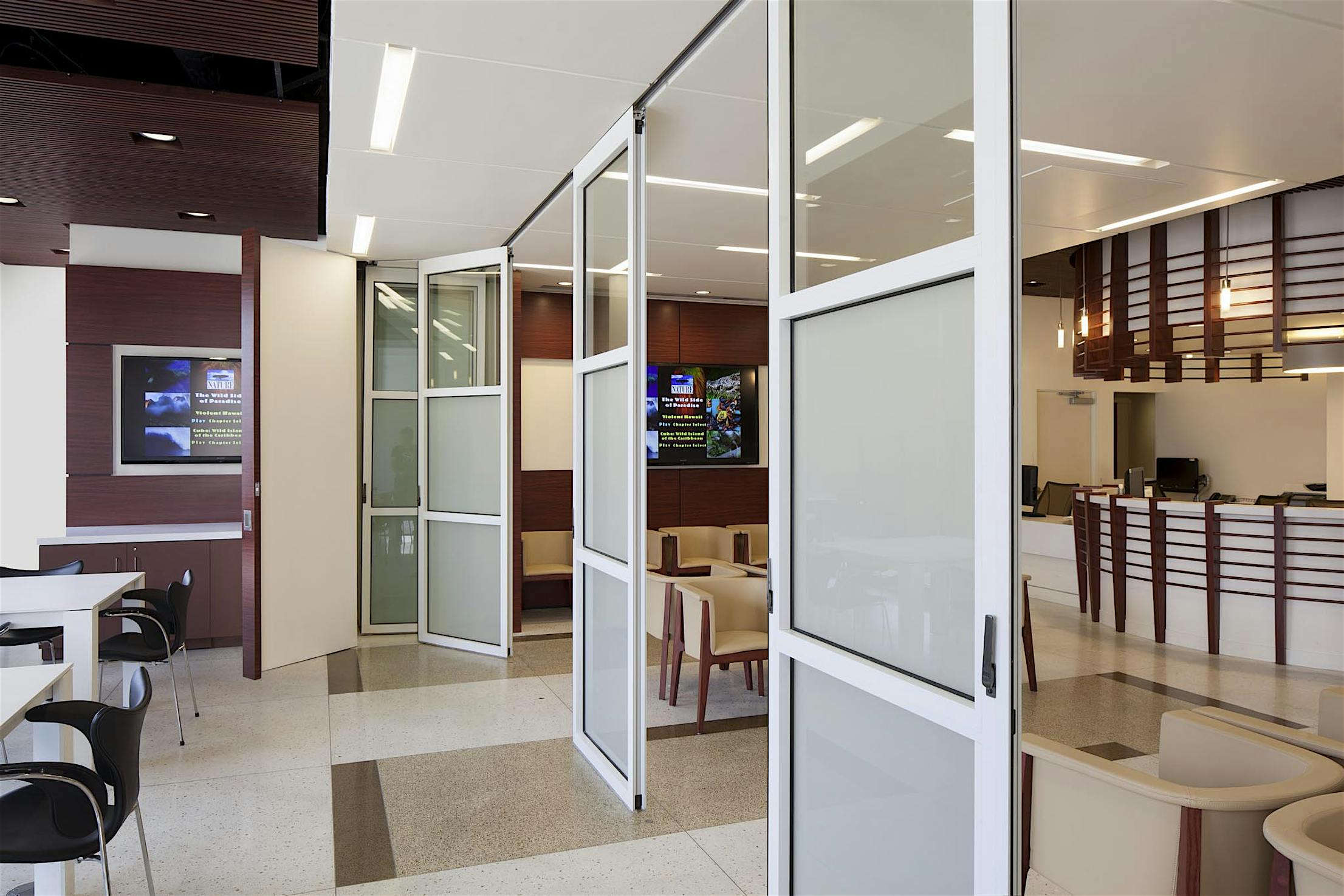

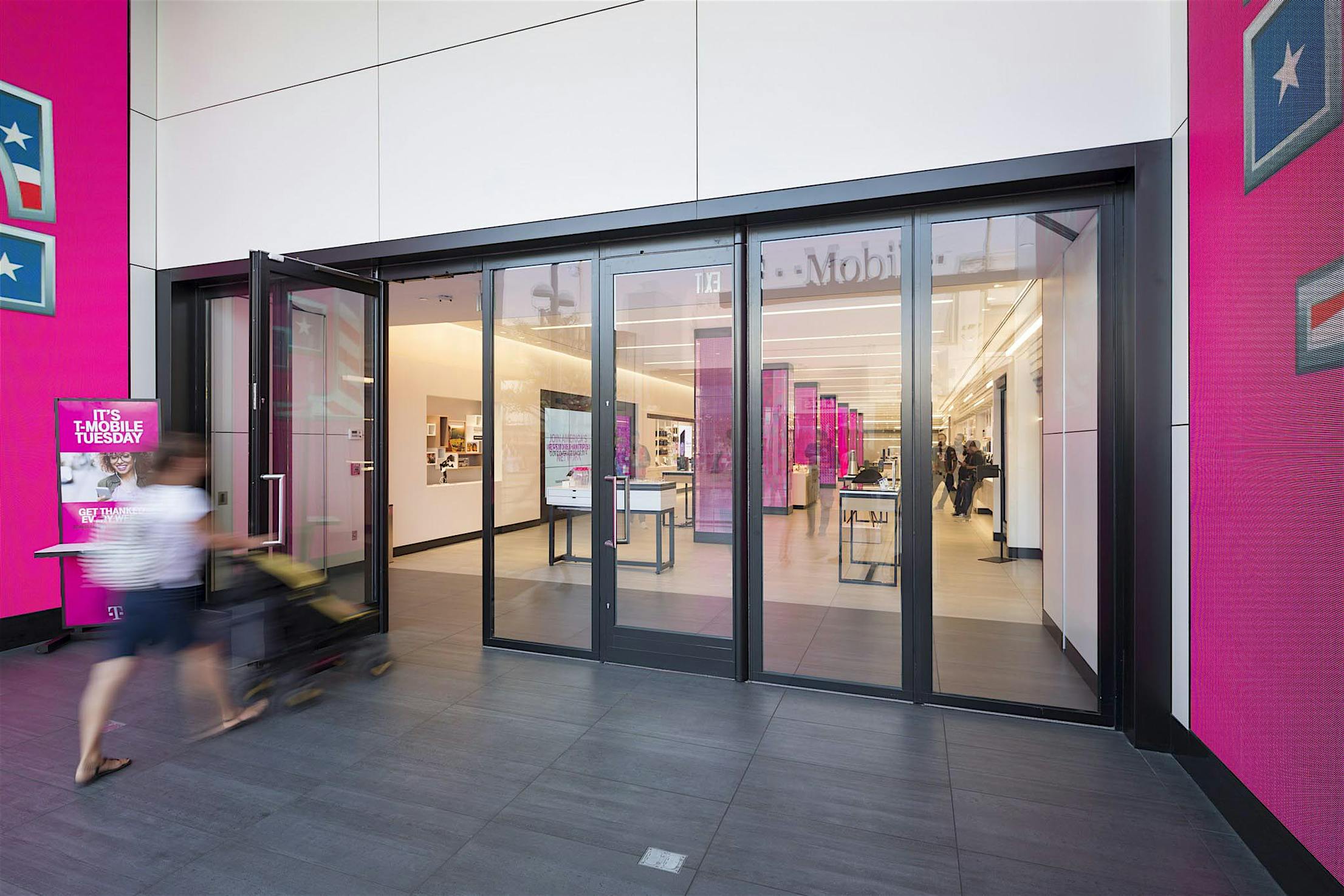

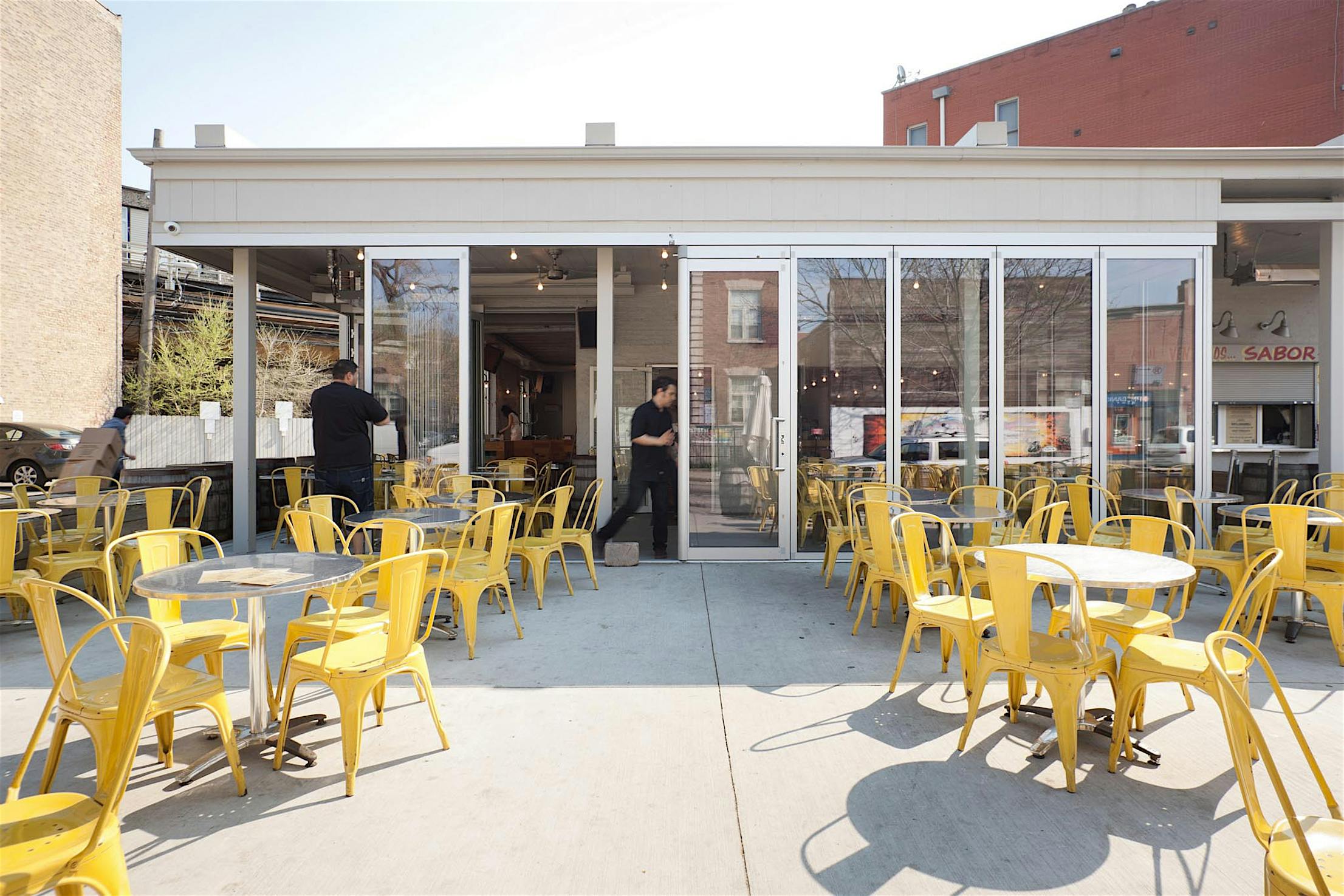

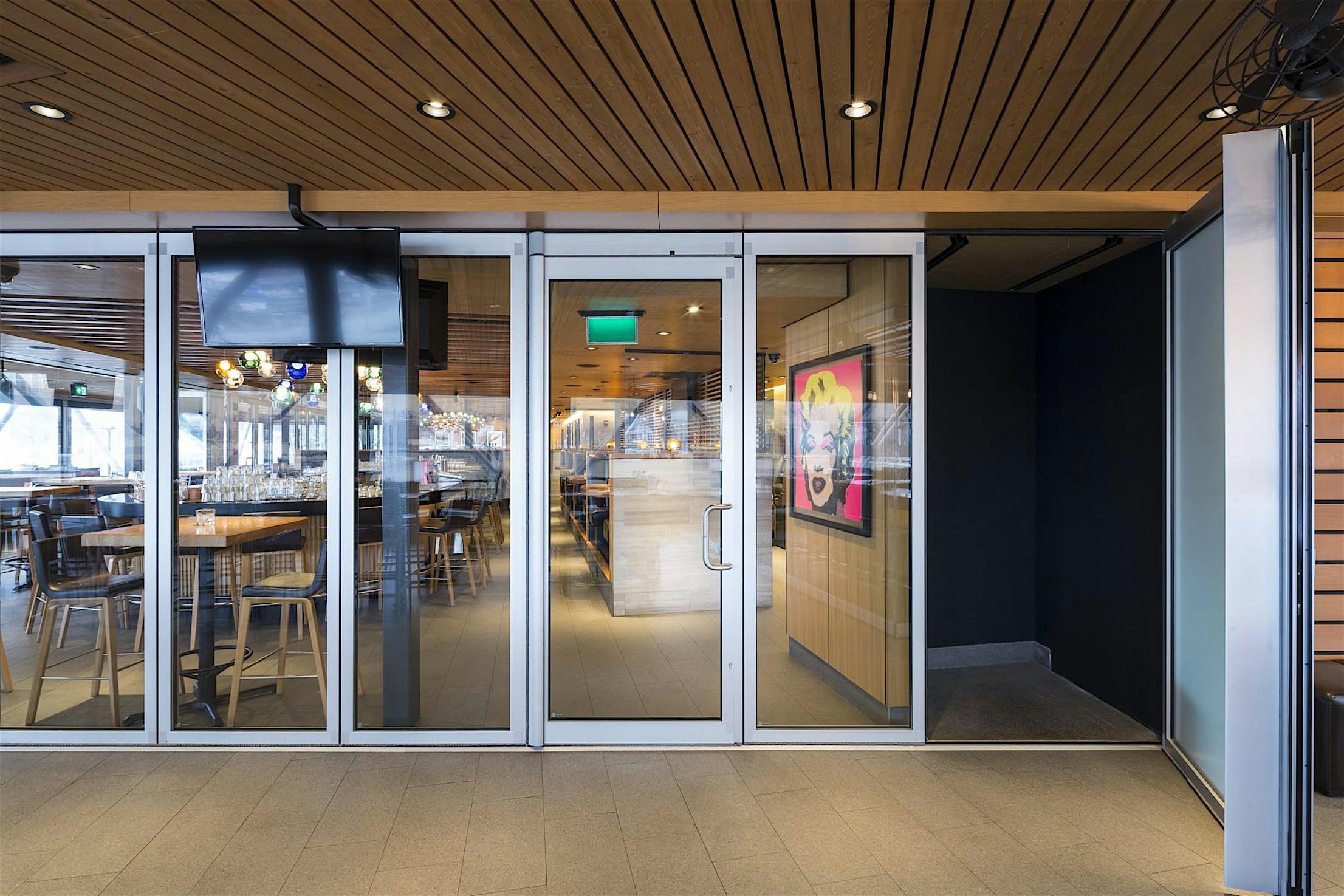

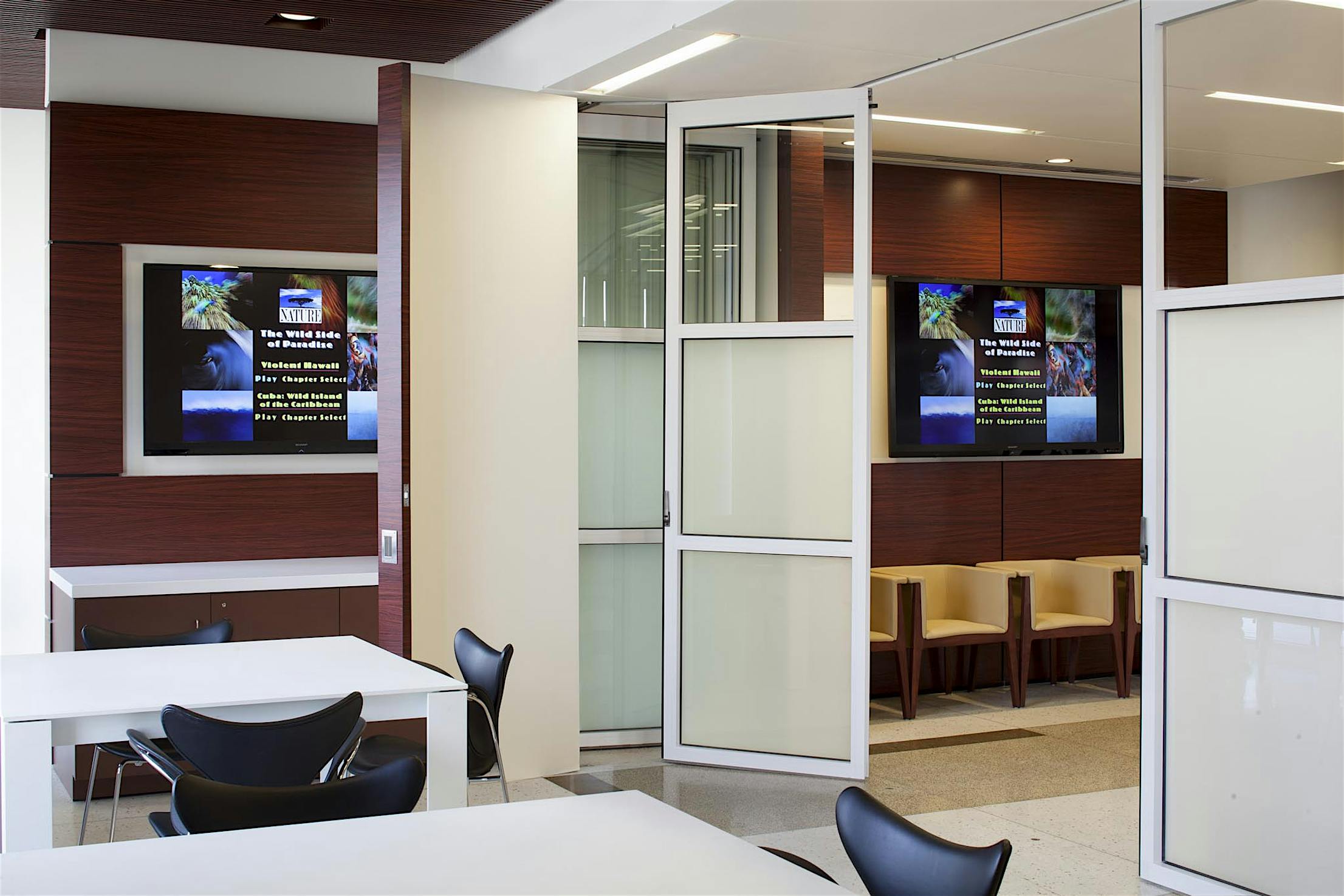

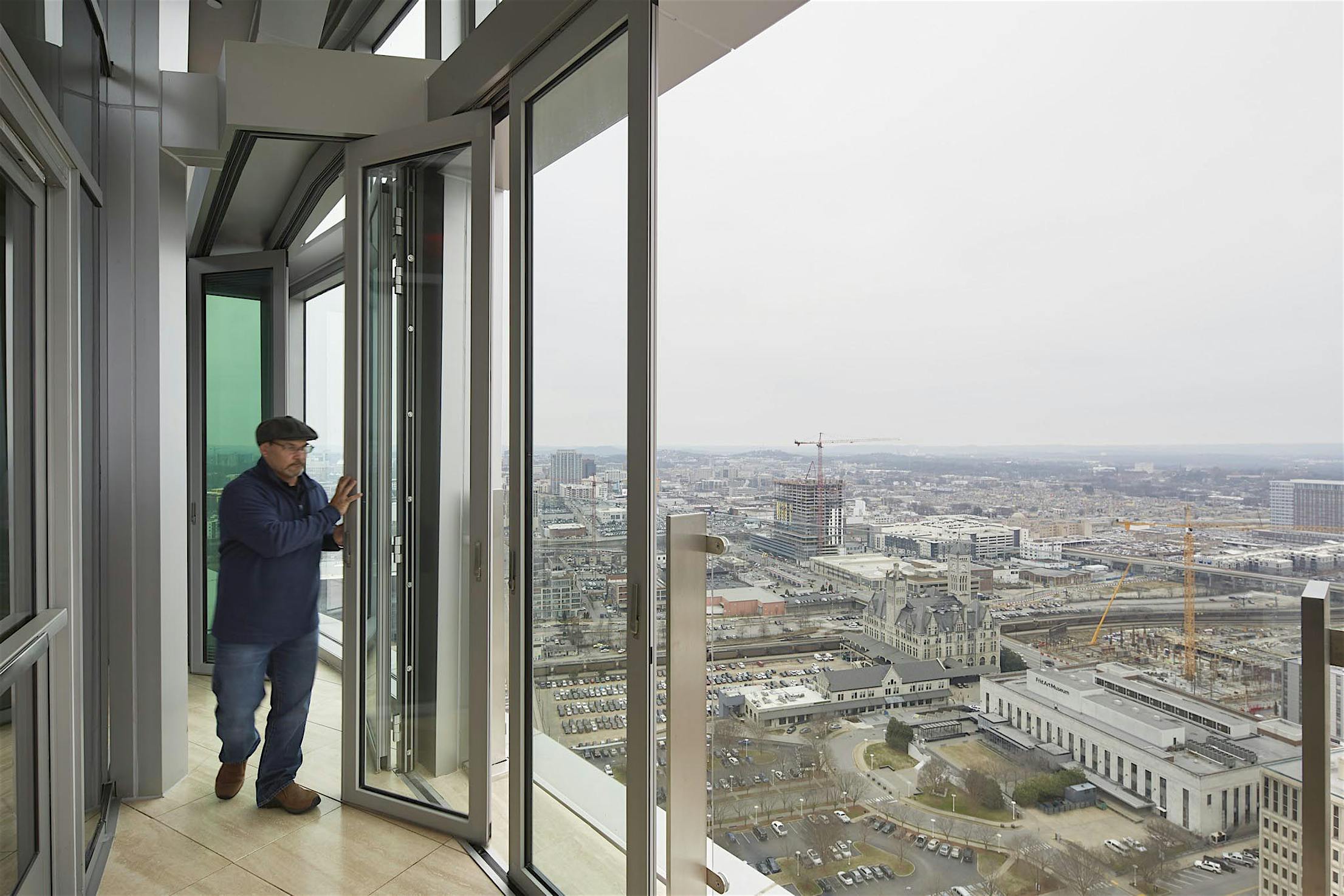

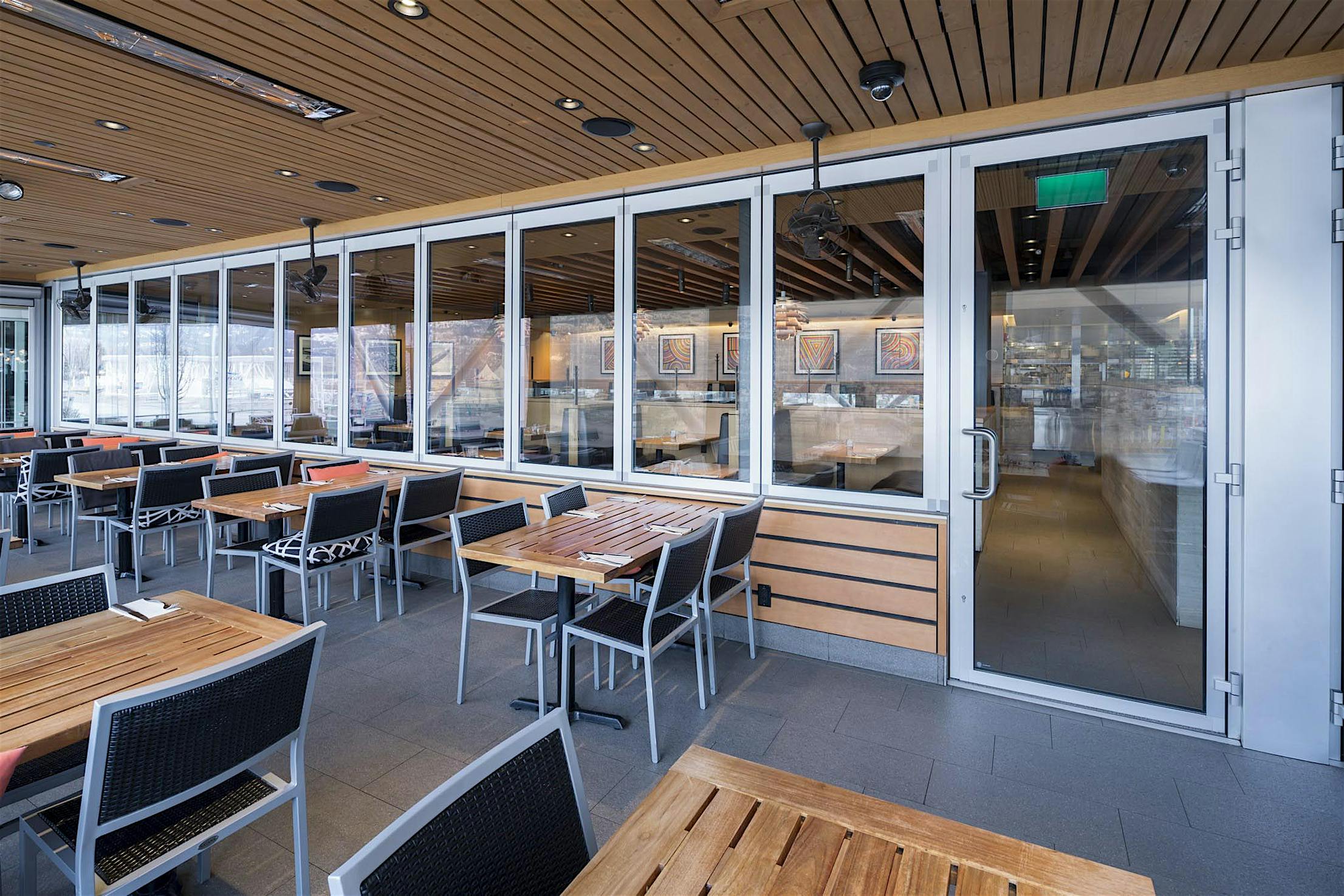

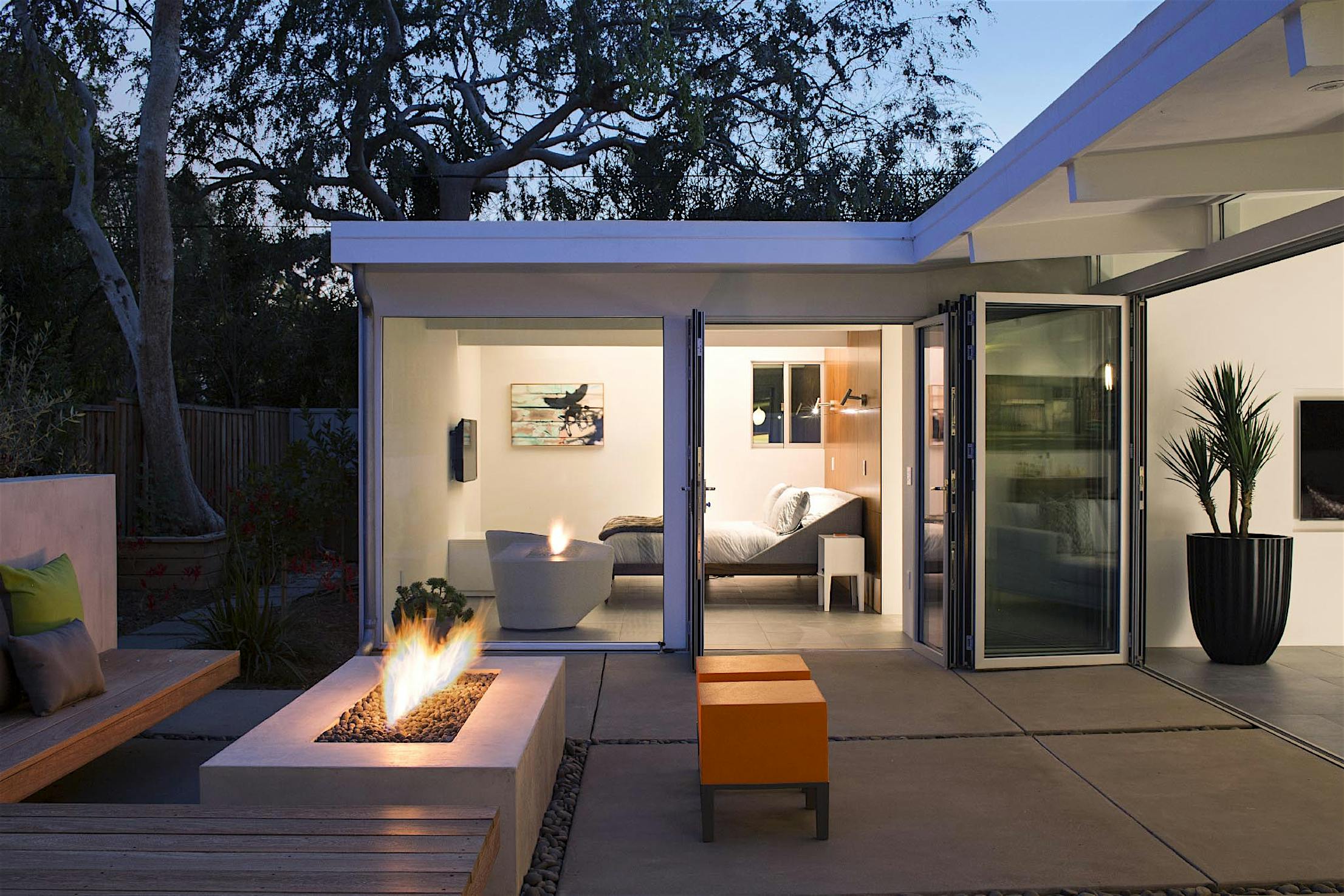

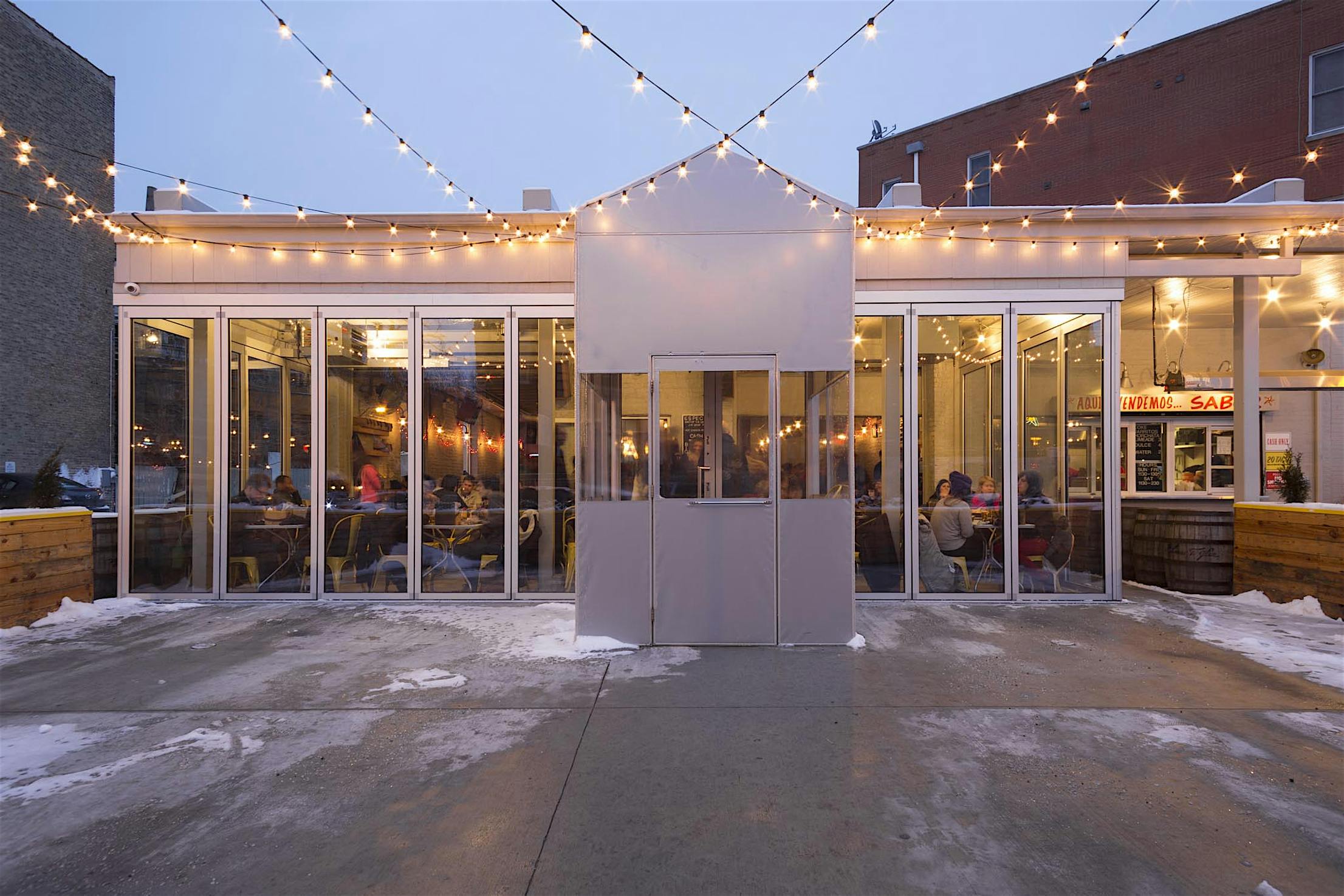

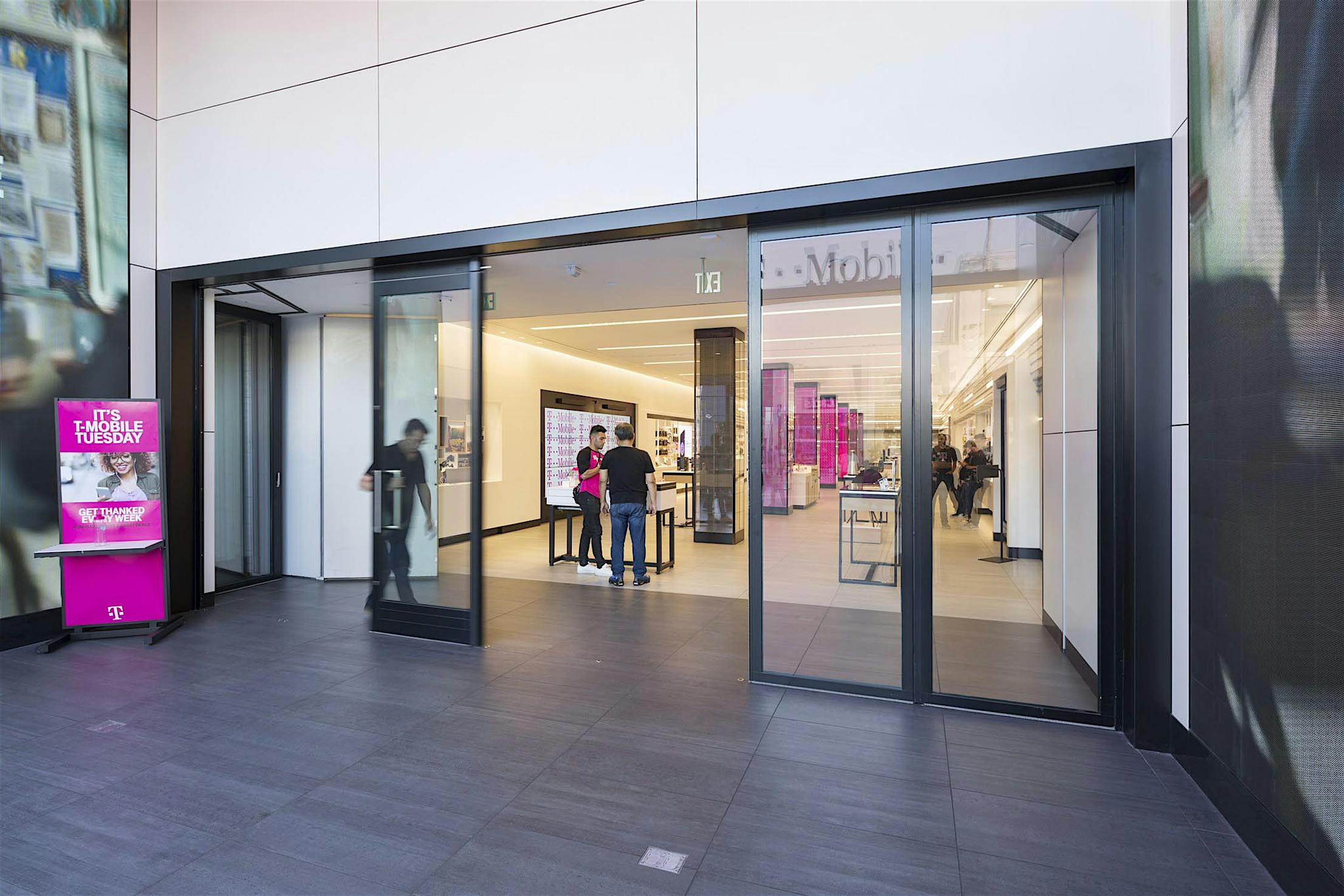

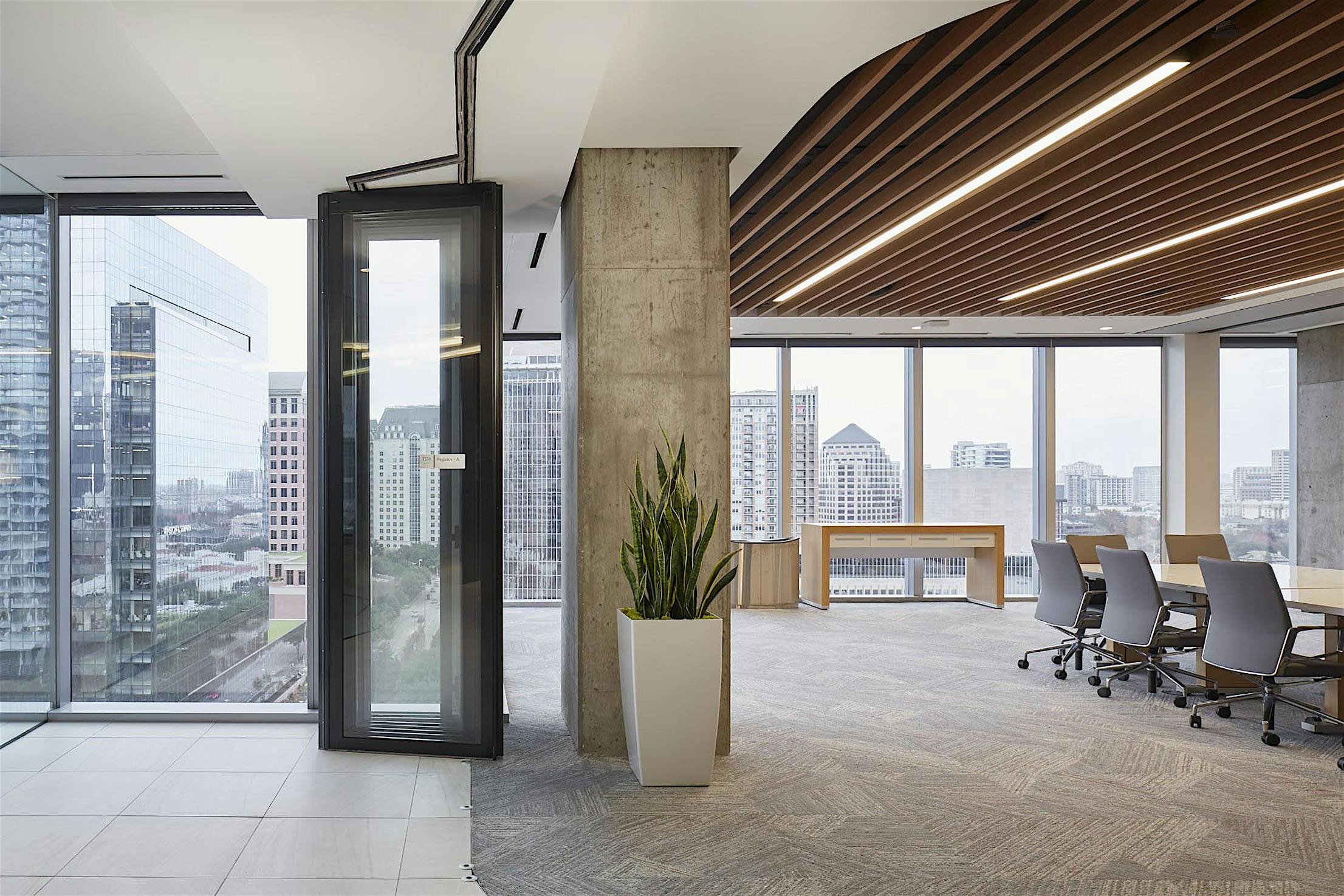

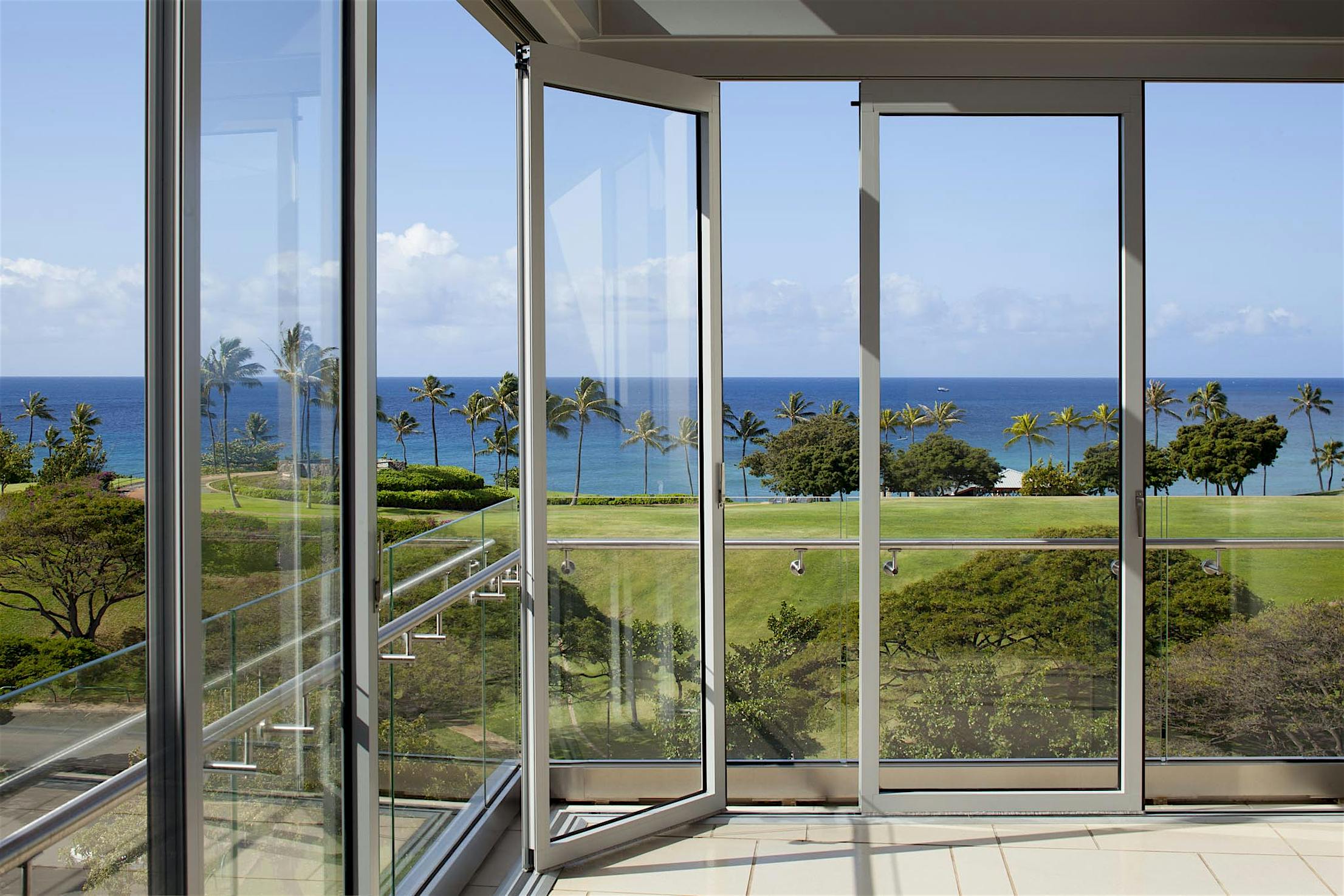

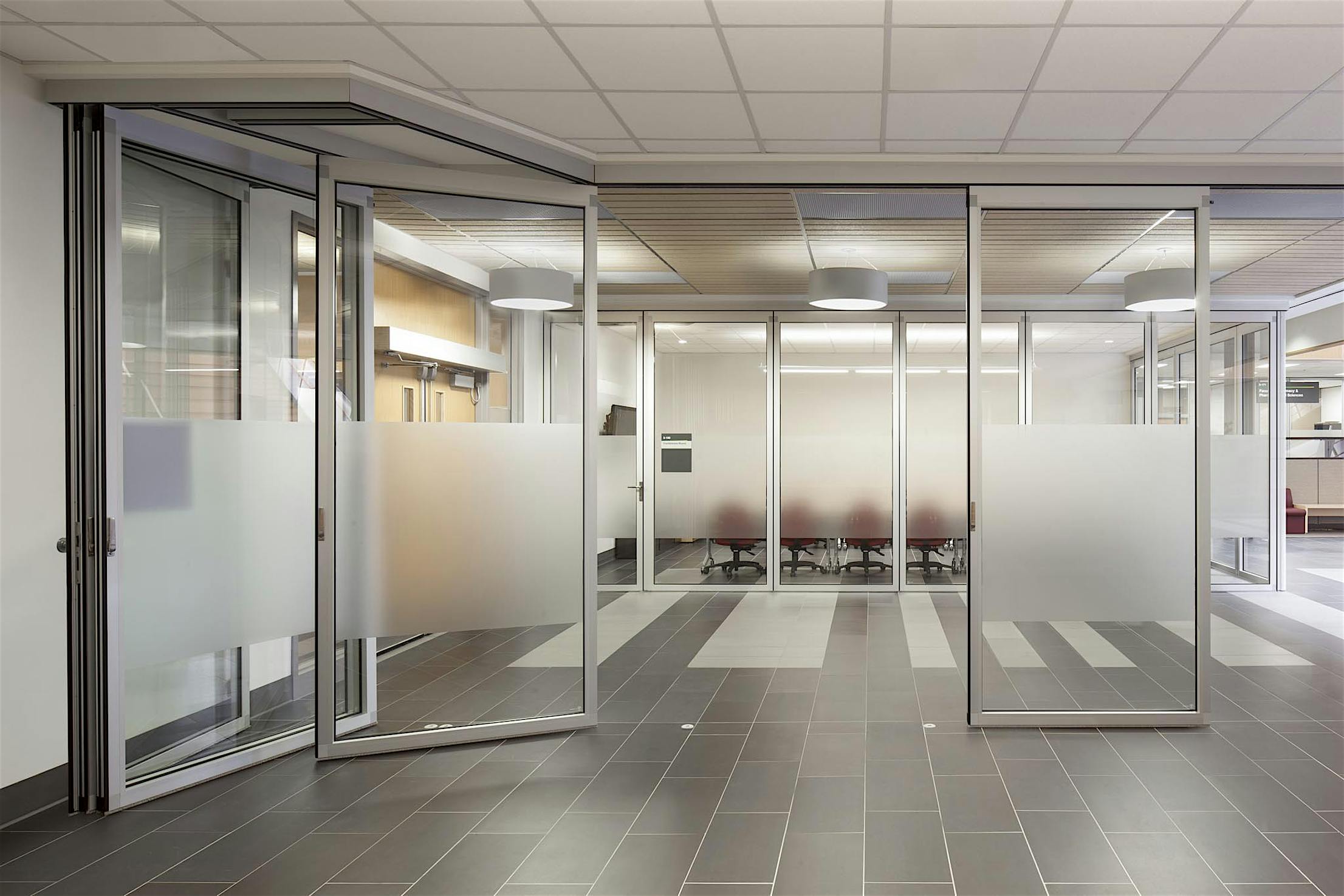

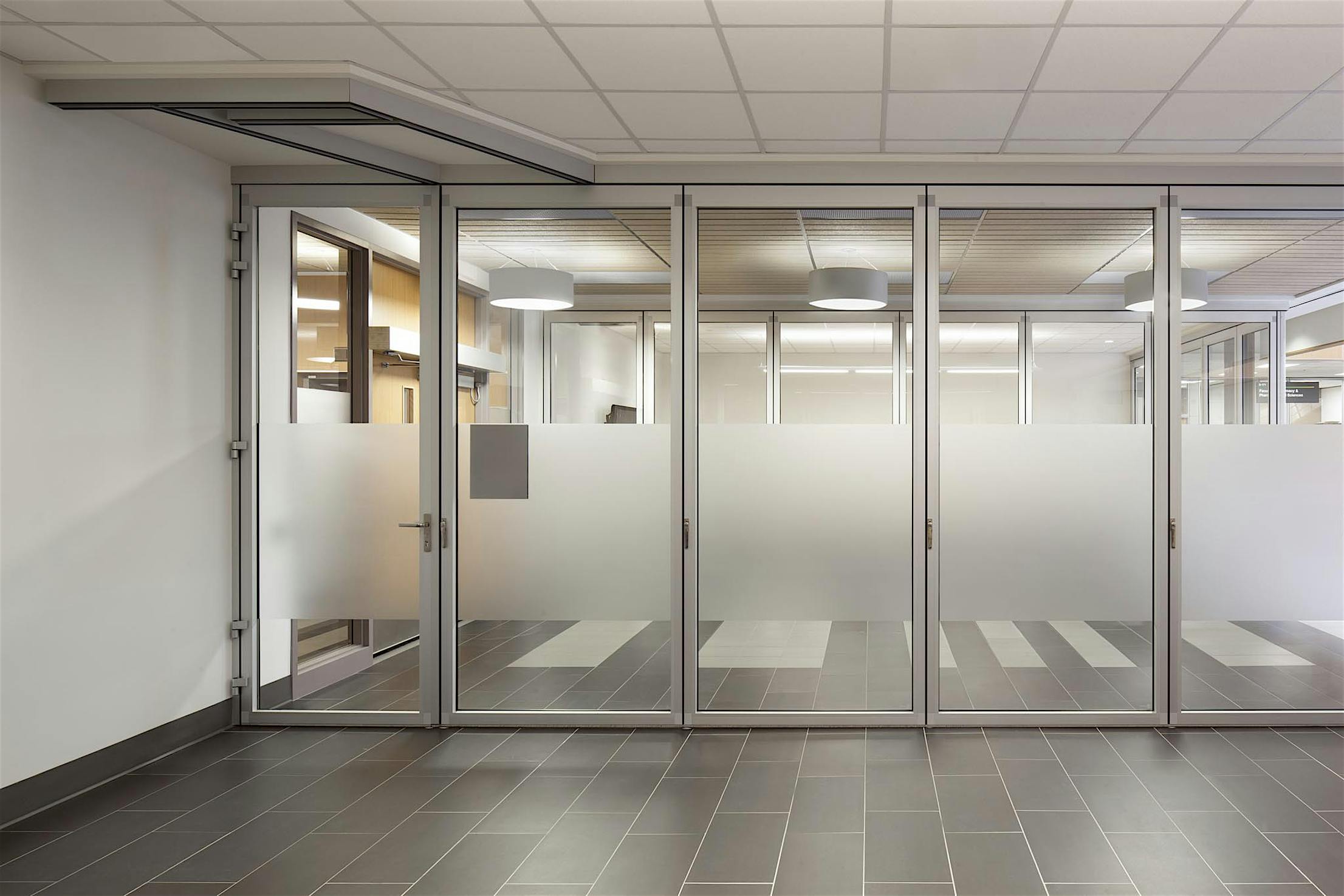

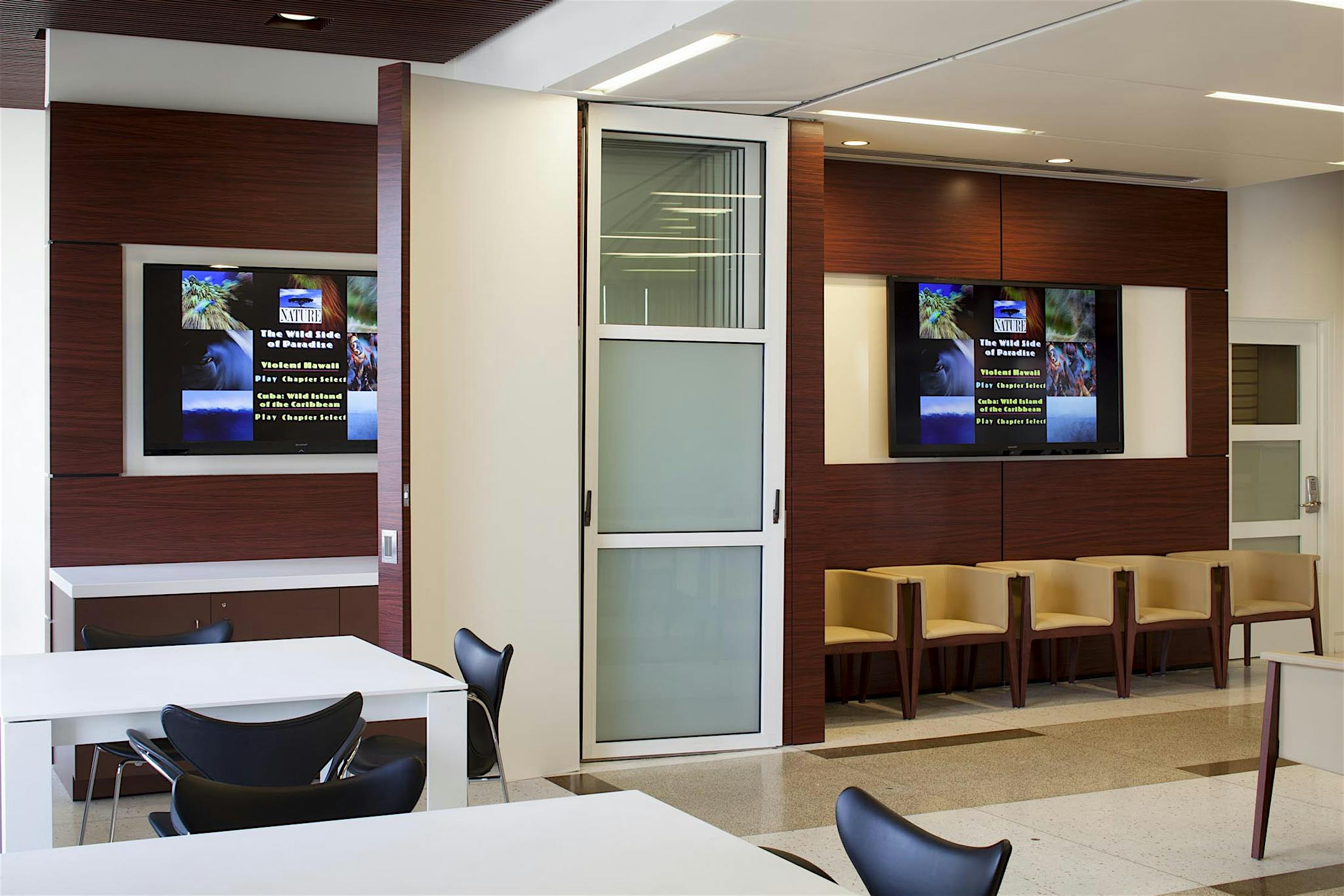

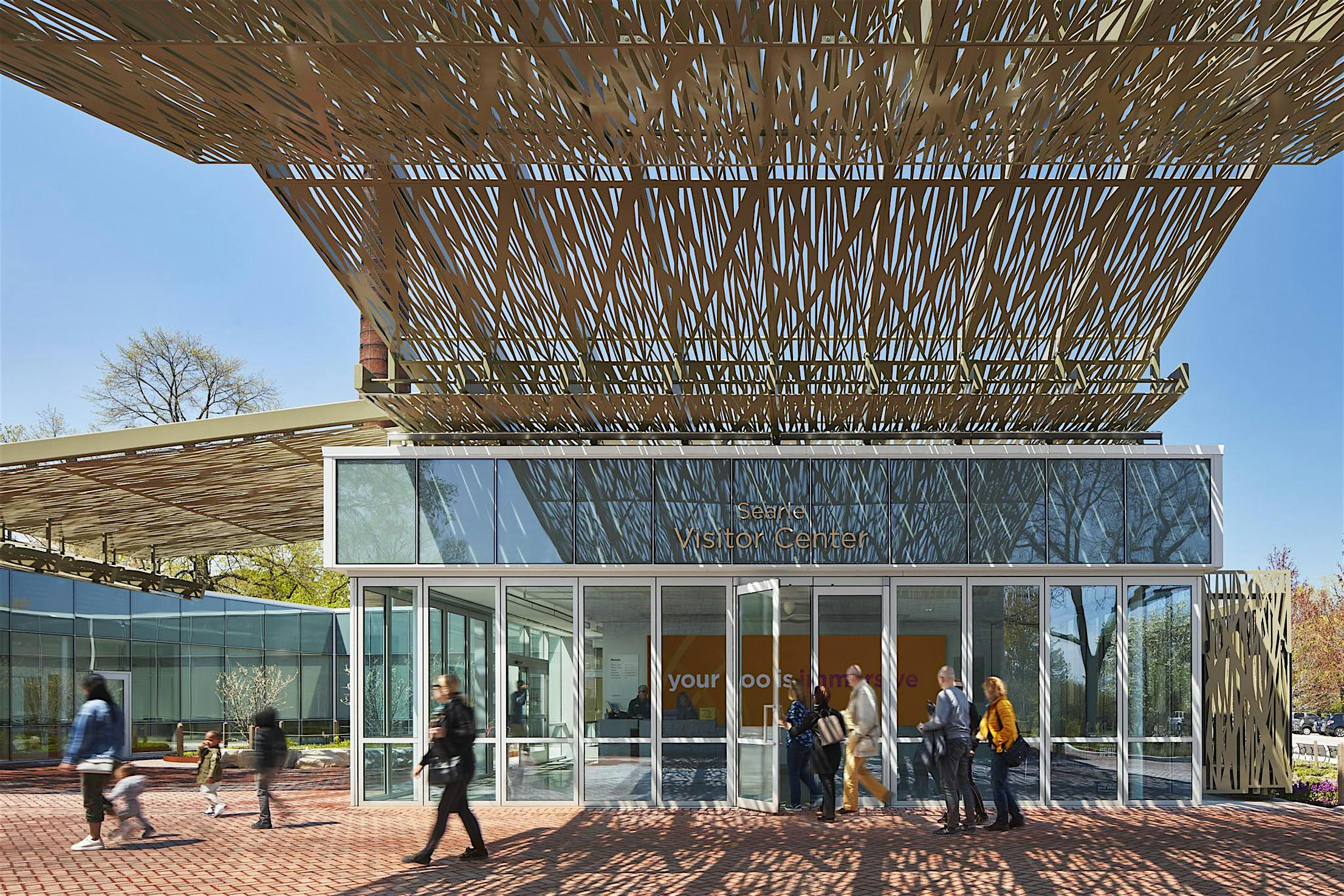

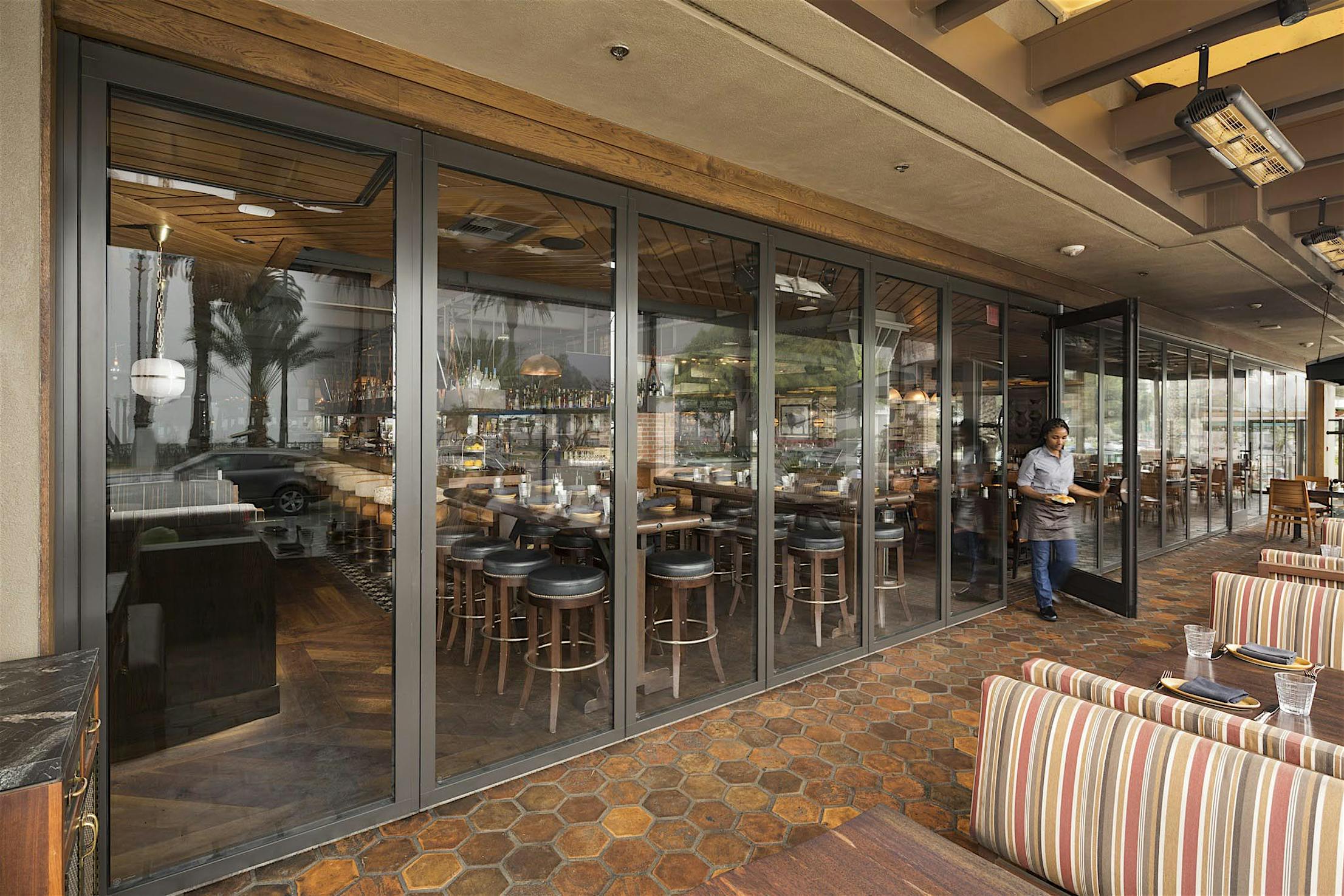

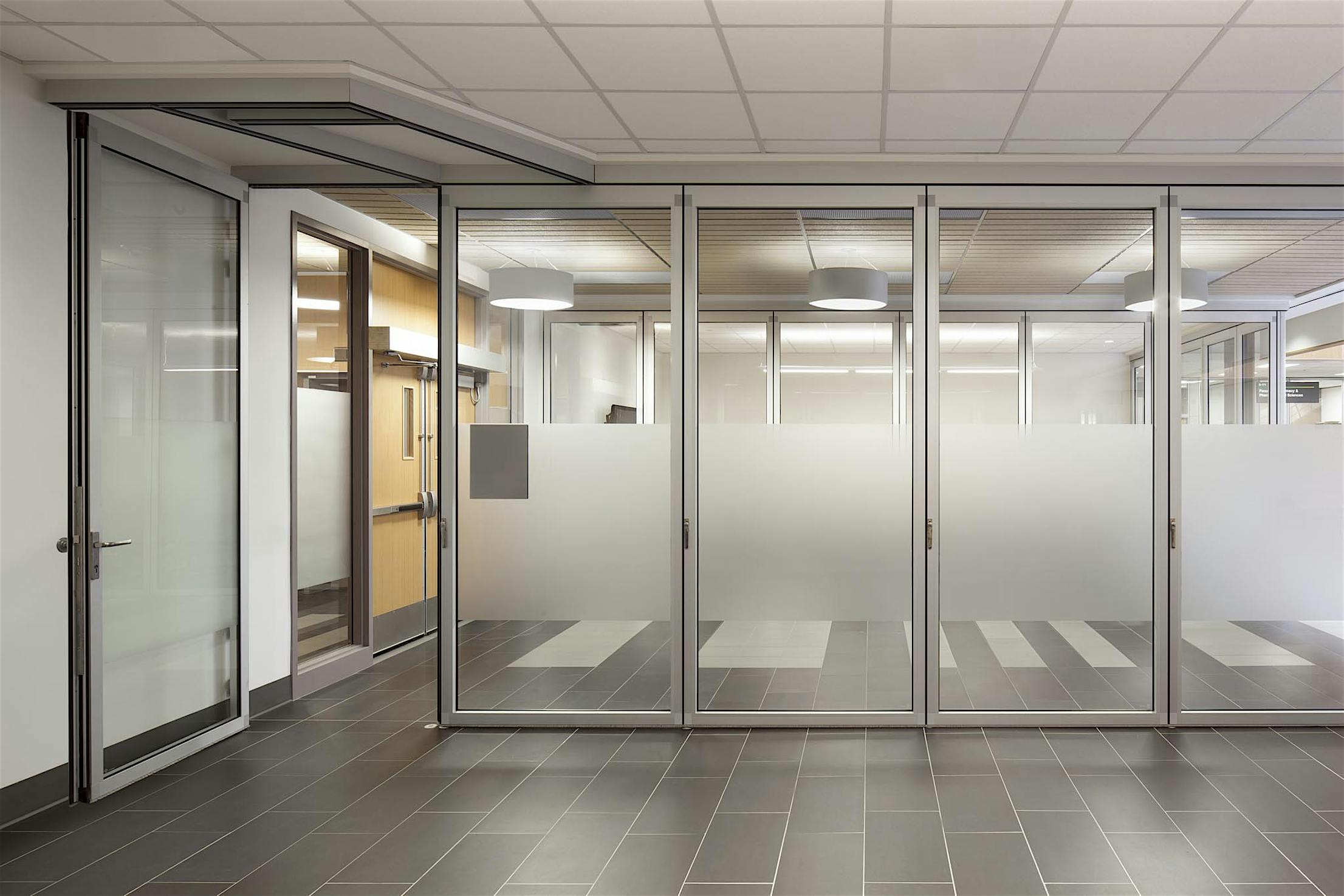

Incorporated Swing Door that Slides Away
The NanaWall HSW60 offers commercially rated swing doors in multiple locations, wherever needed. Unlike other solutions, the swing doors can convert to sliding panels and are easily stored away. The swing door has been tested to 500,000 opening and closing cycles per the AAMA920 test standard and can accommodate self-closers, panic hardware, and a selection of push/pull handles.

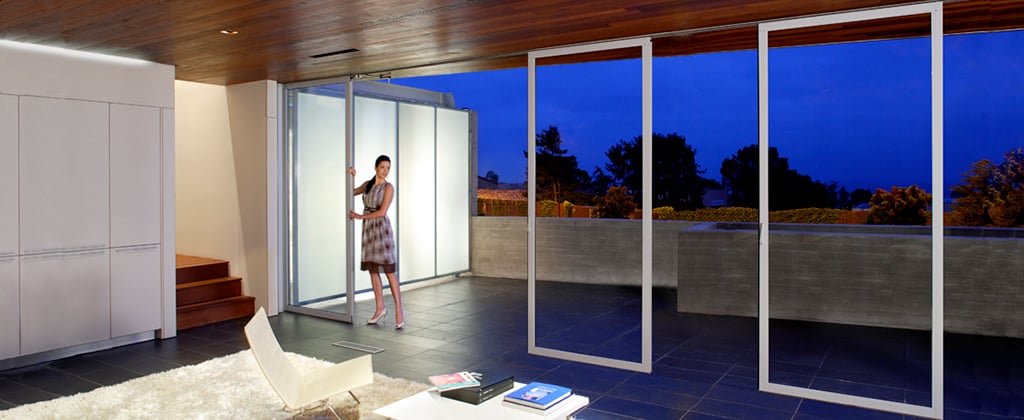

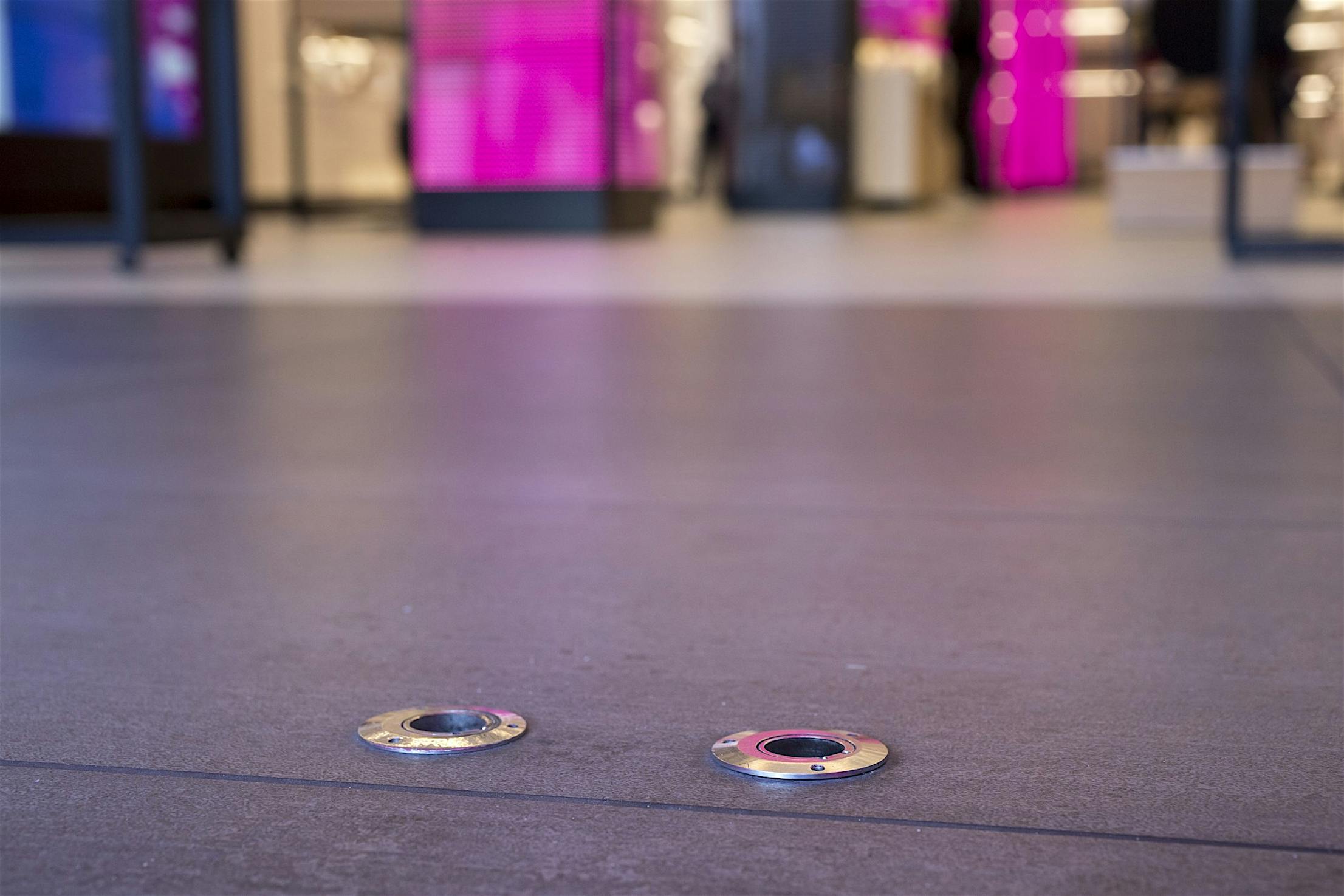

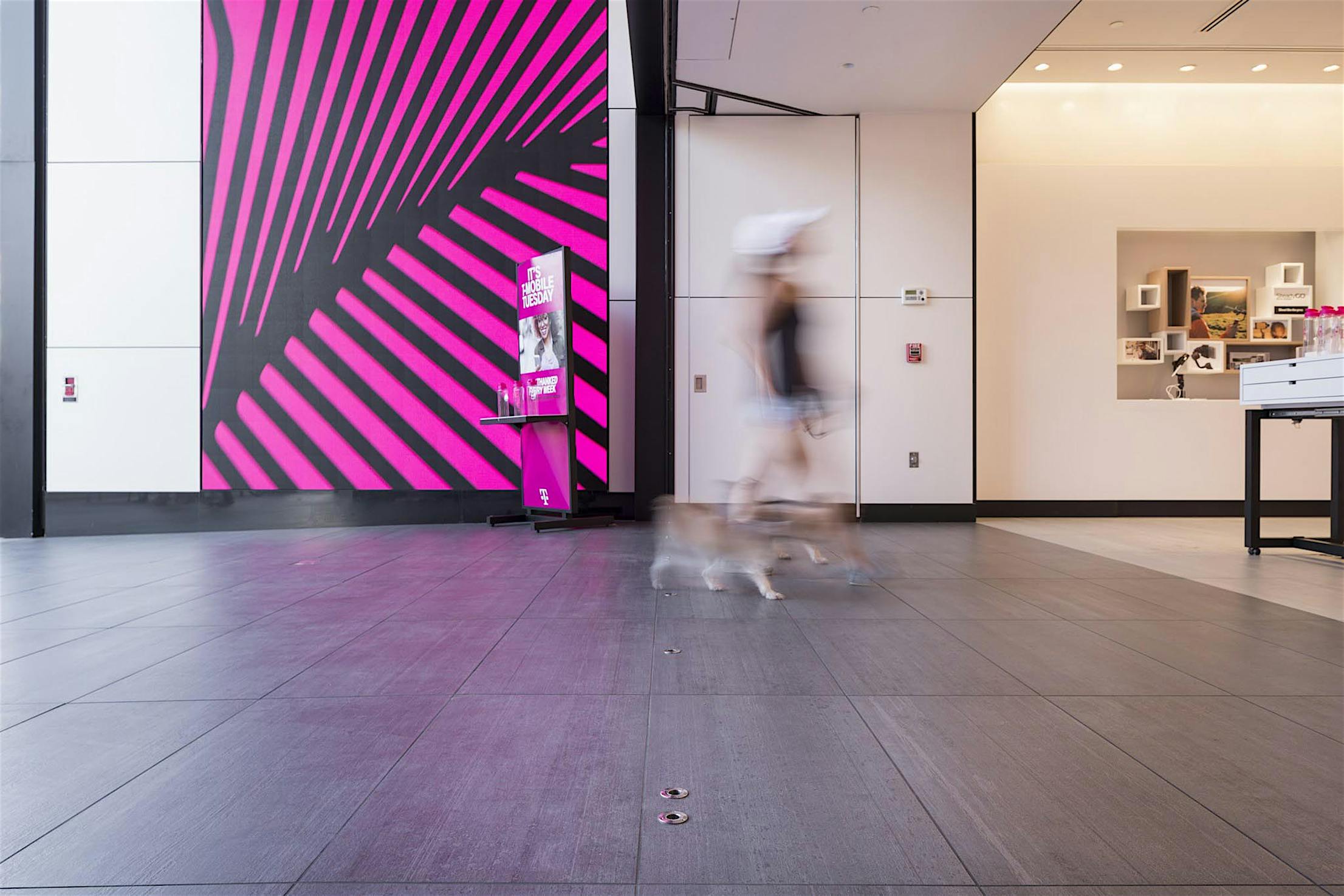

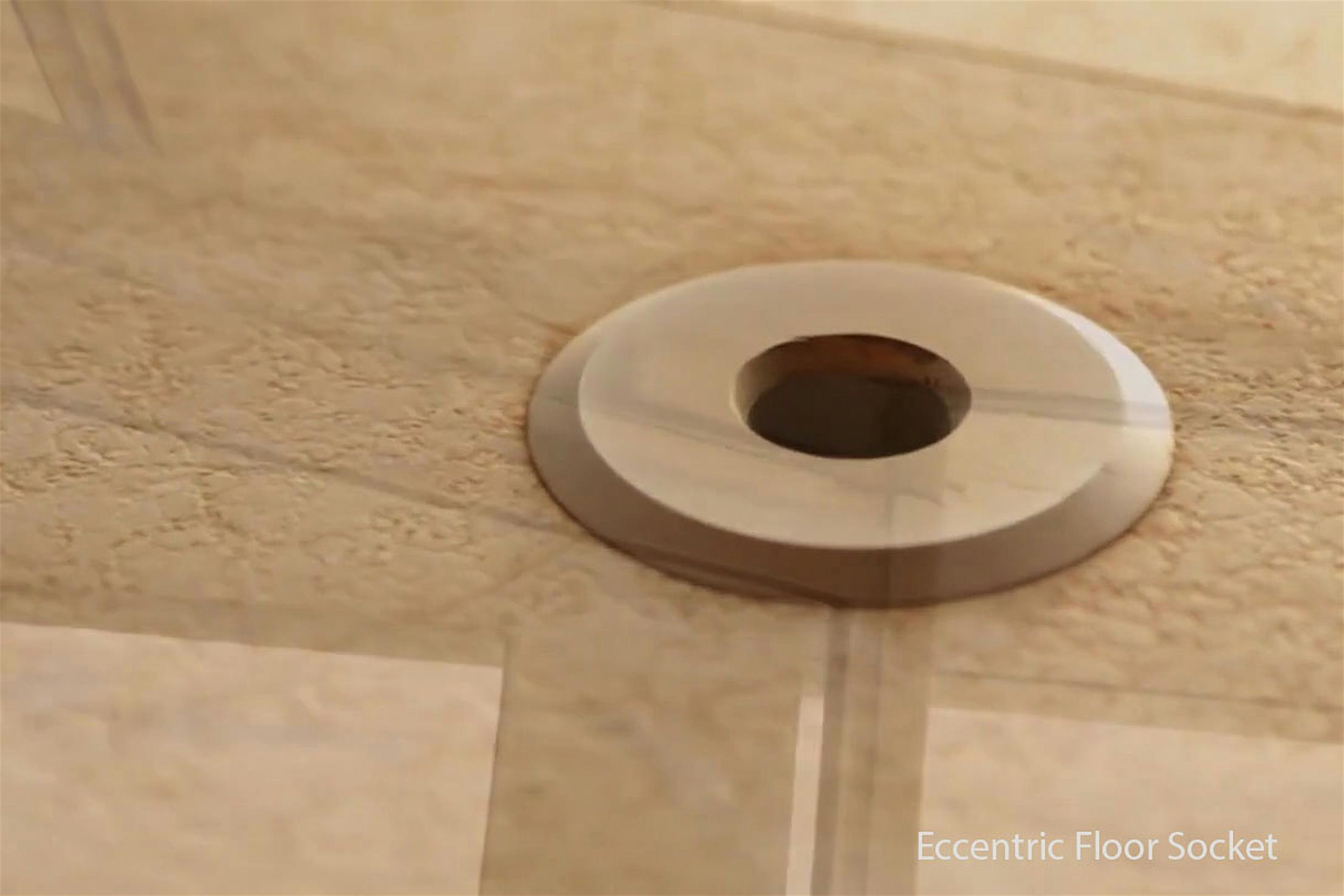

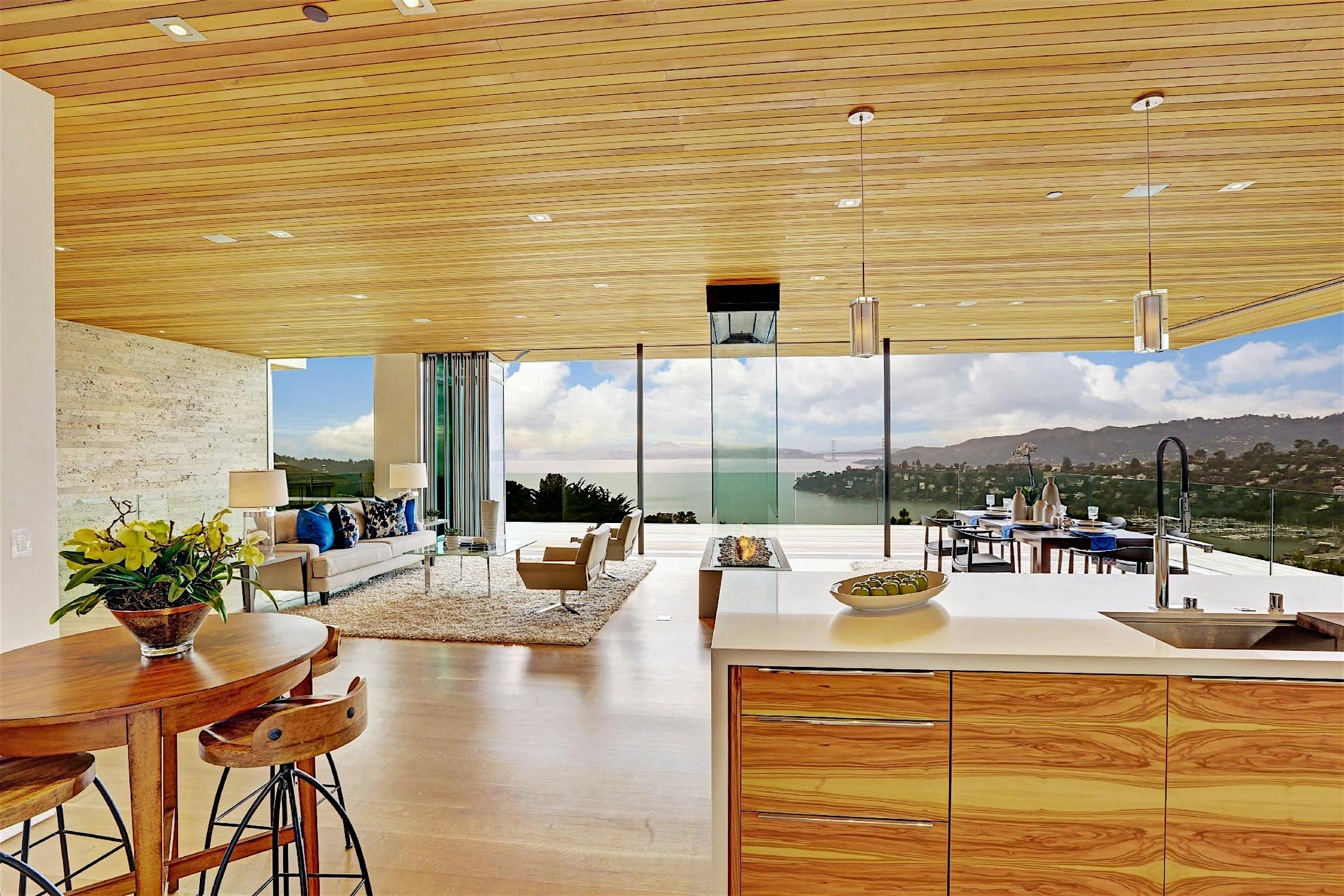

No Floor Track Option

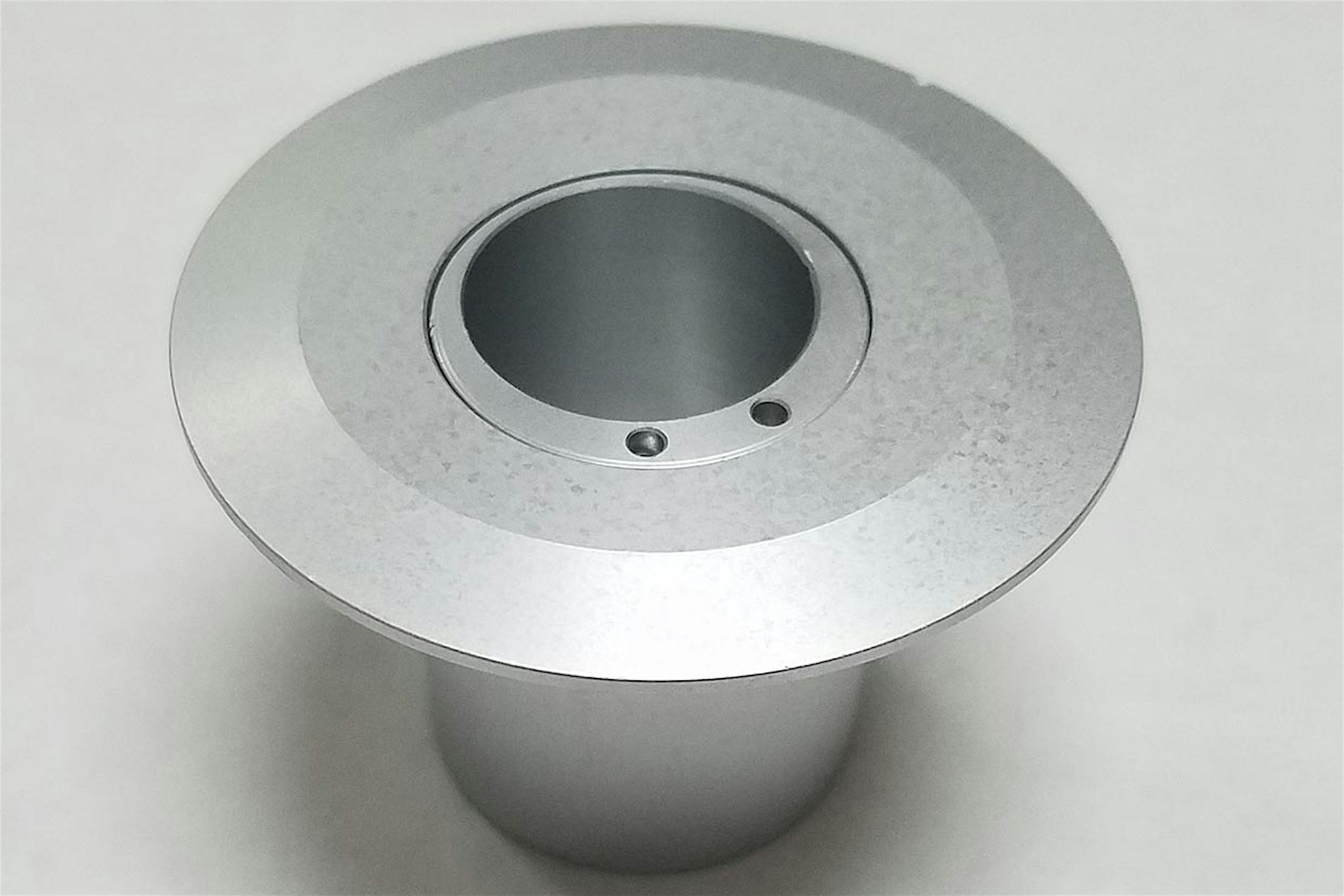

The NanaWall HSW60 can be designed using adjustable floor sockets instead of a floor track if desired. Choose from various sill options to fit your project needs.

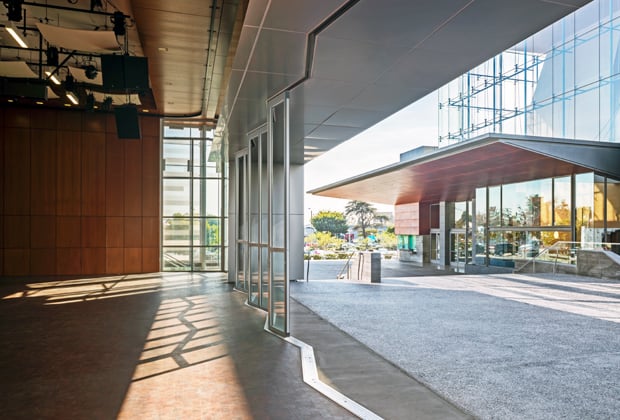

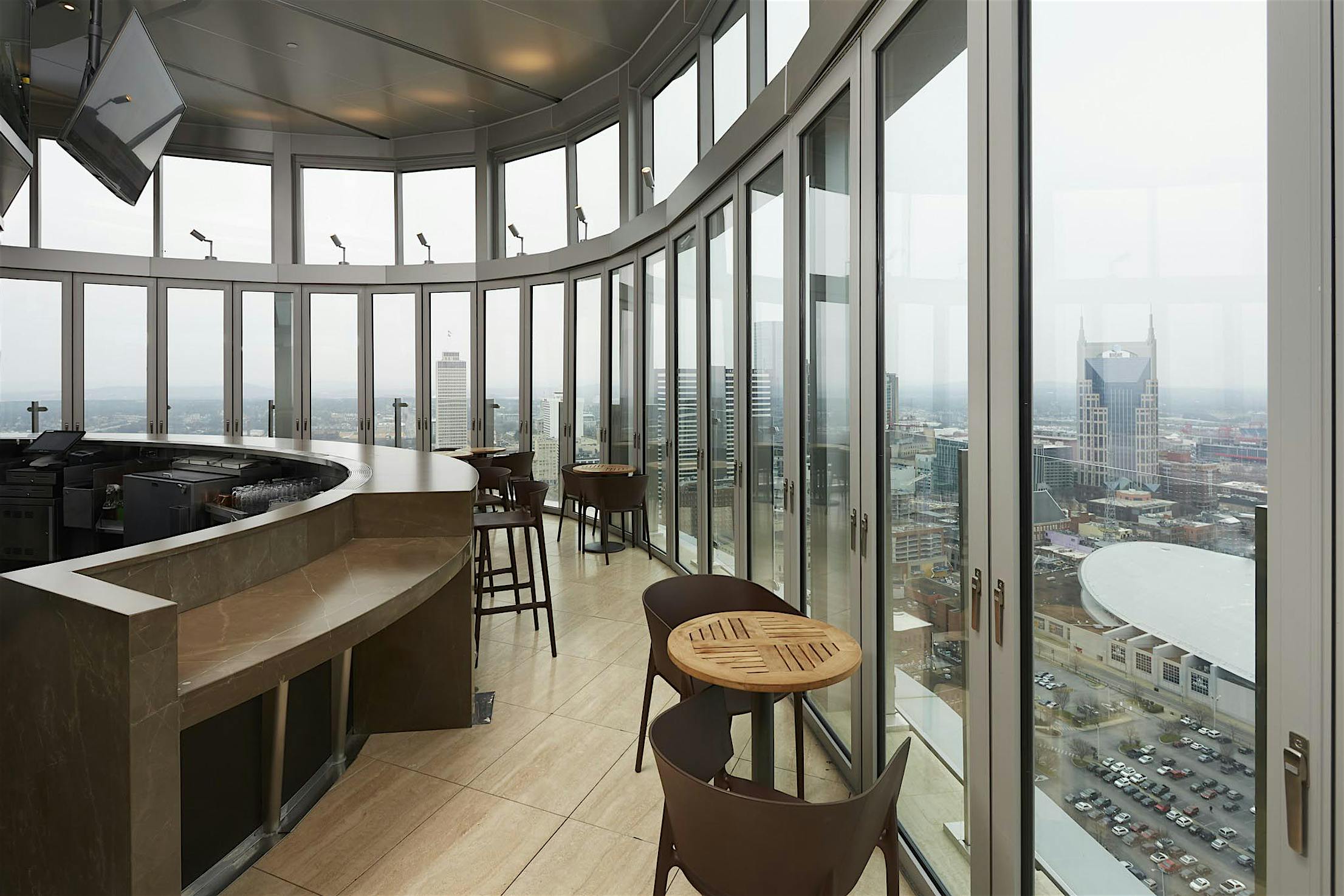

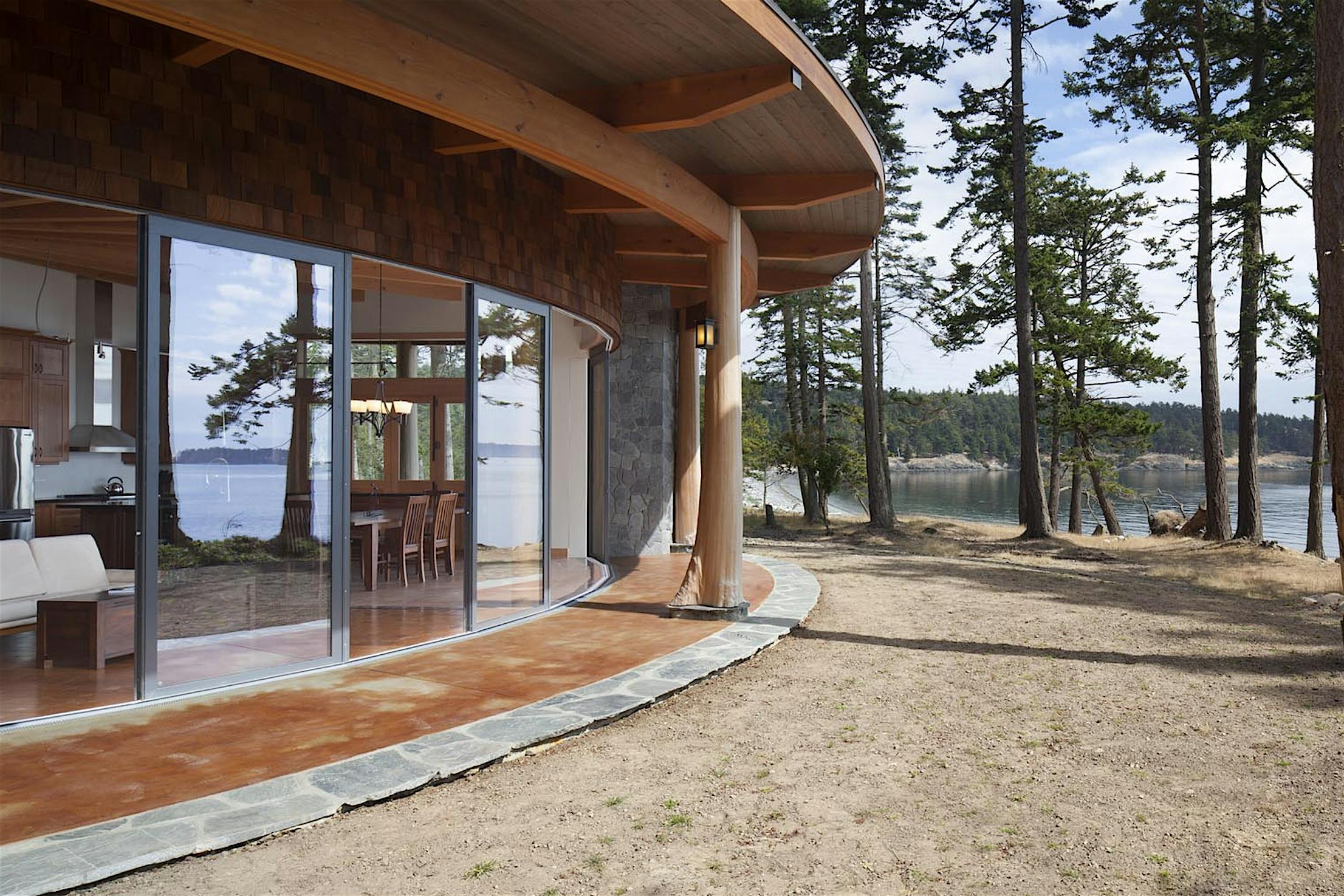

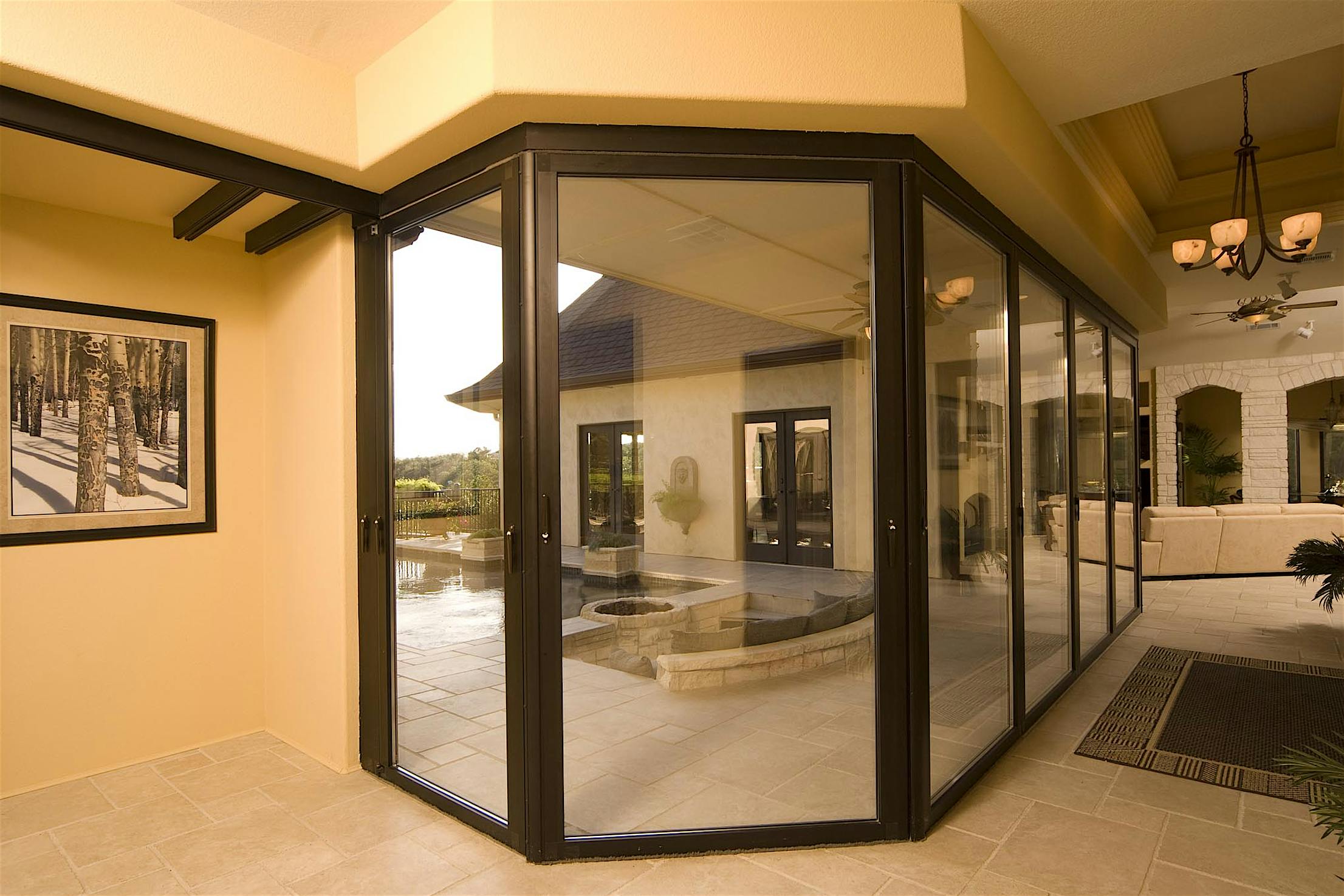

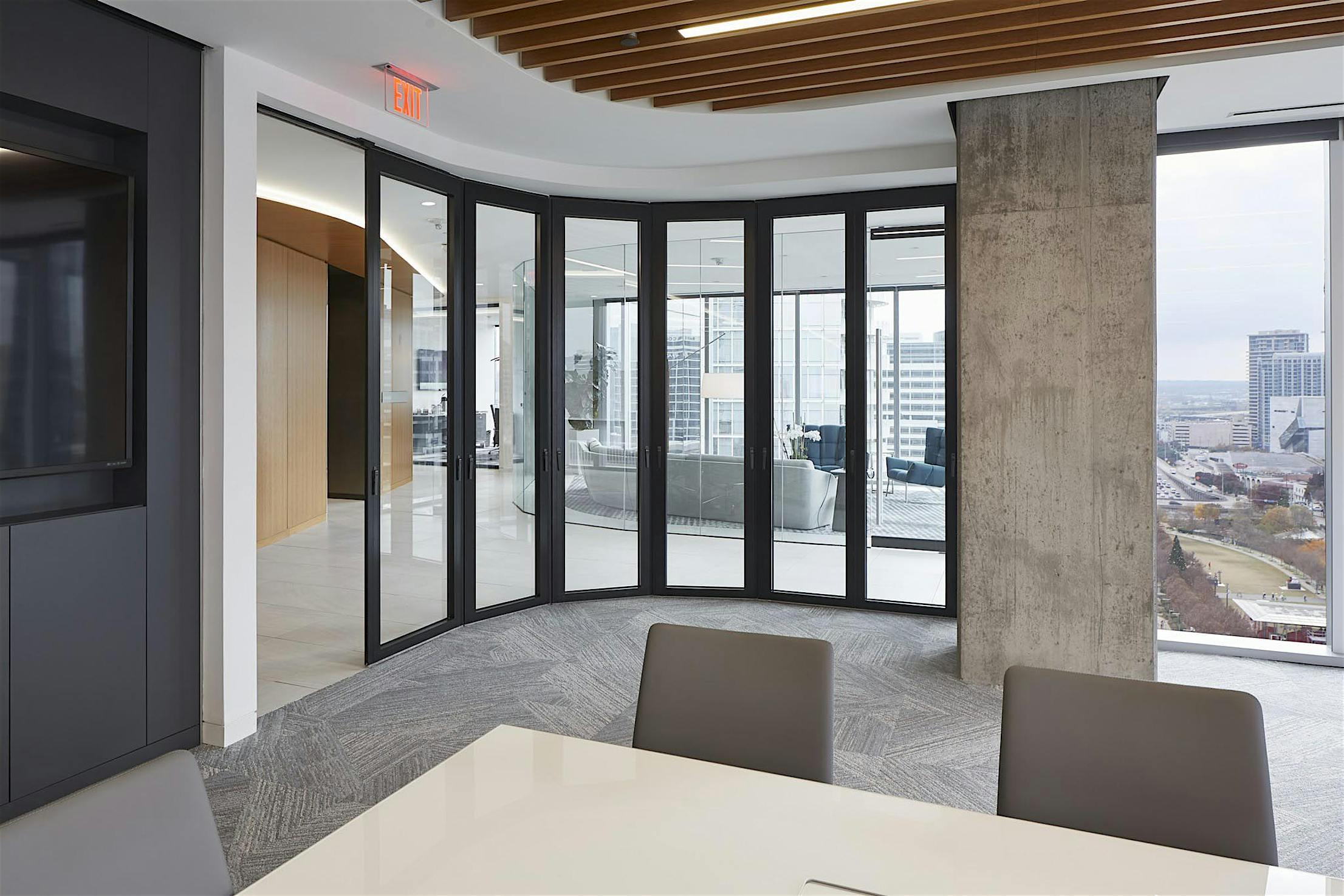

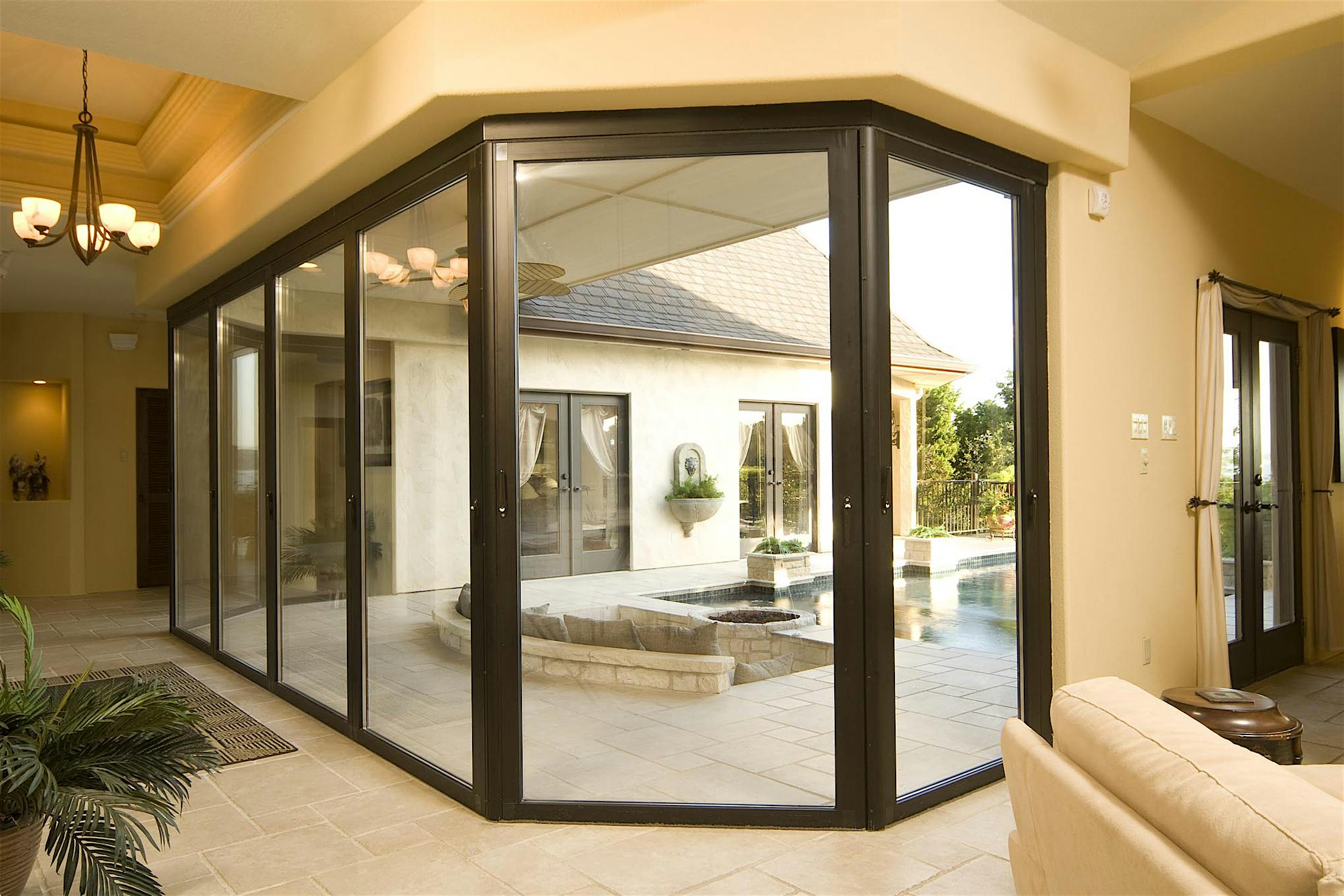

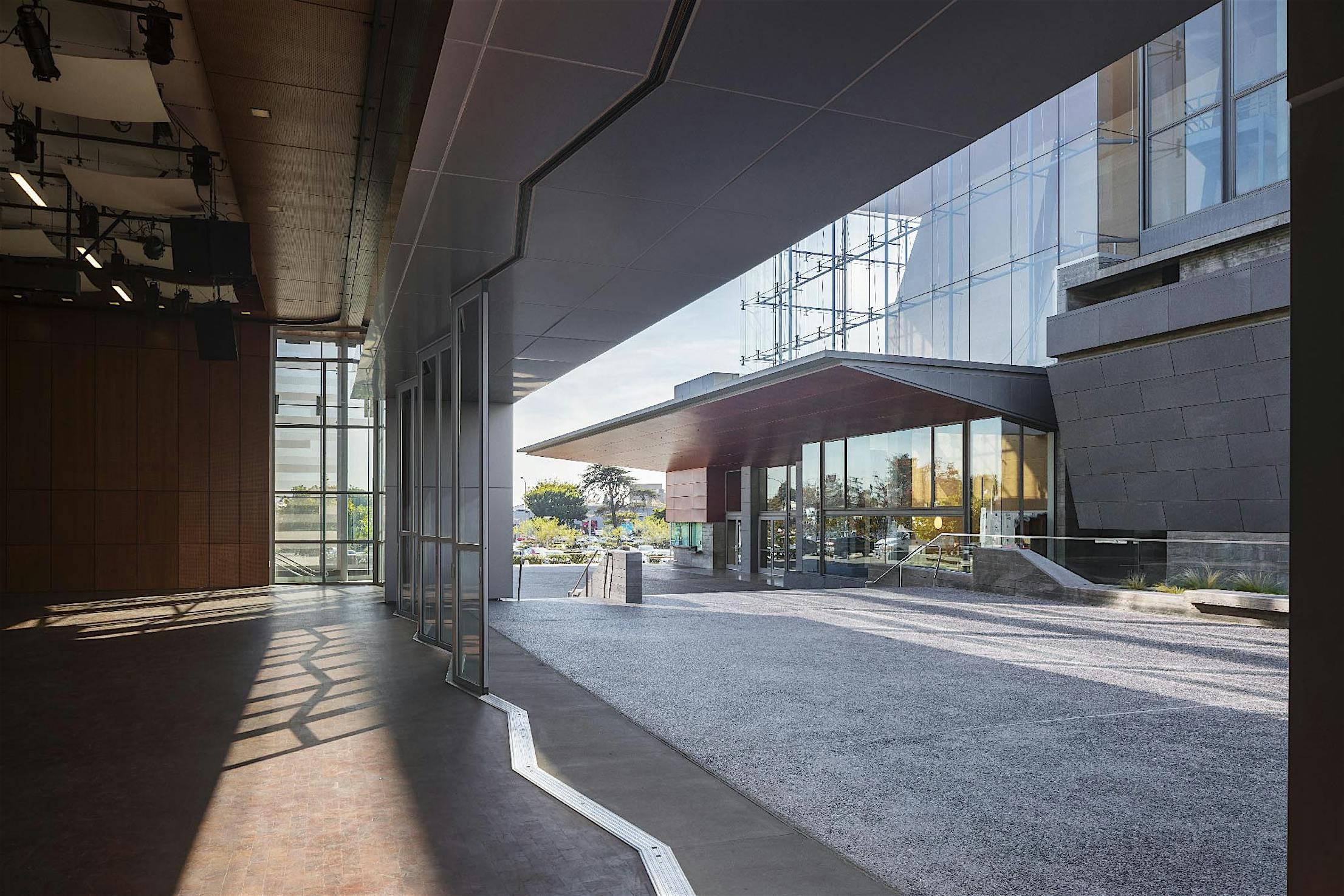

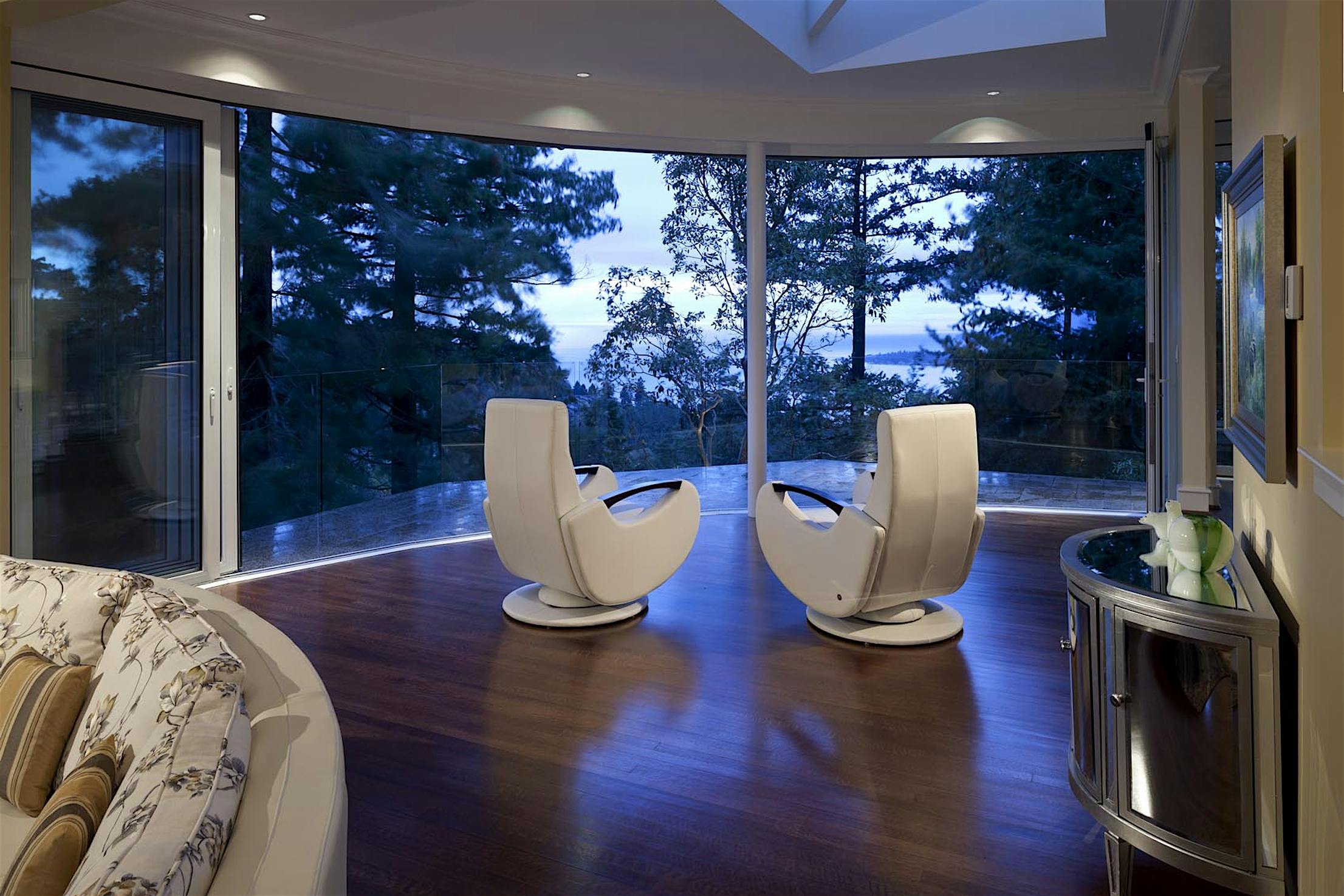

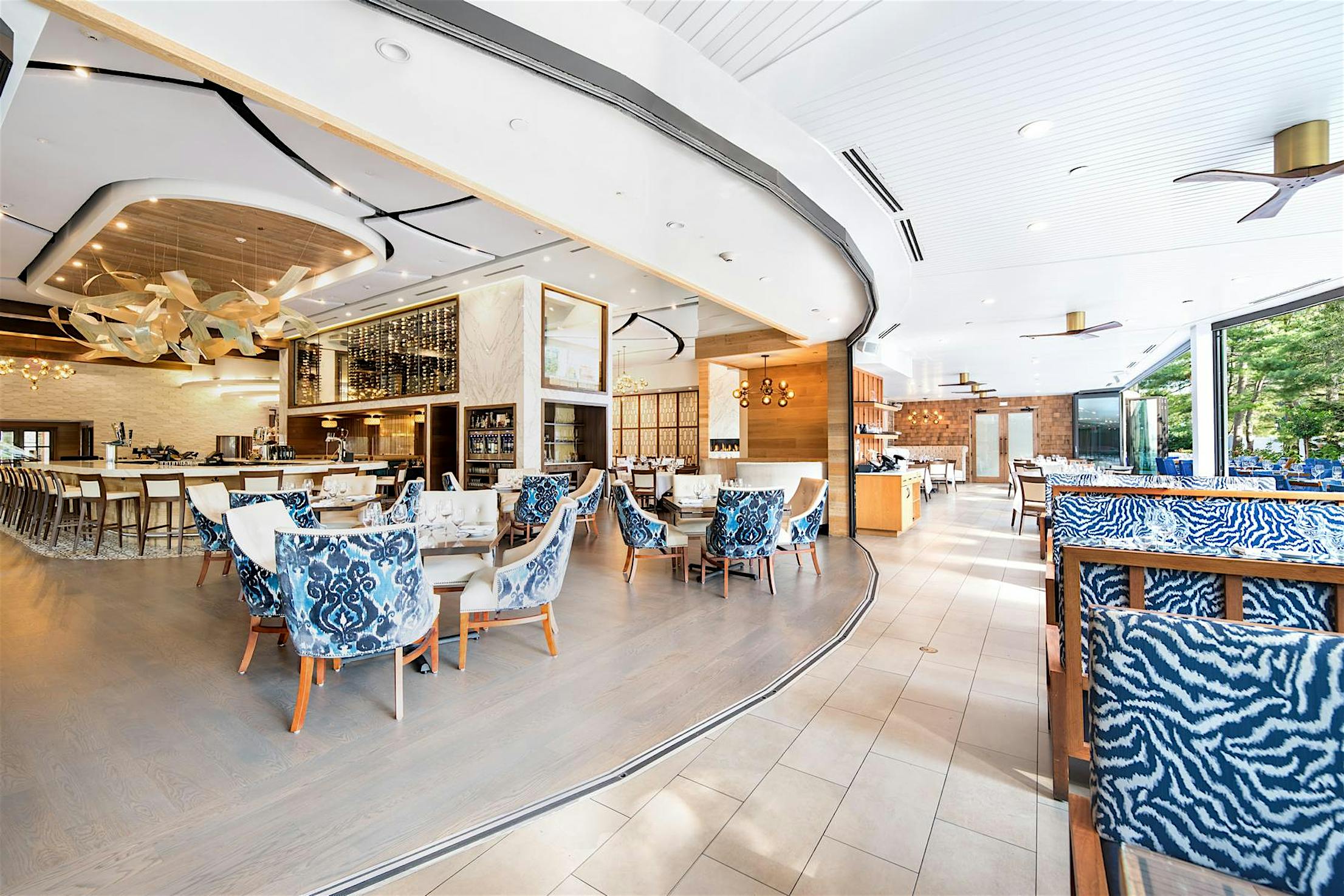

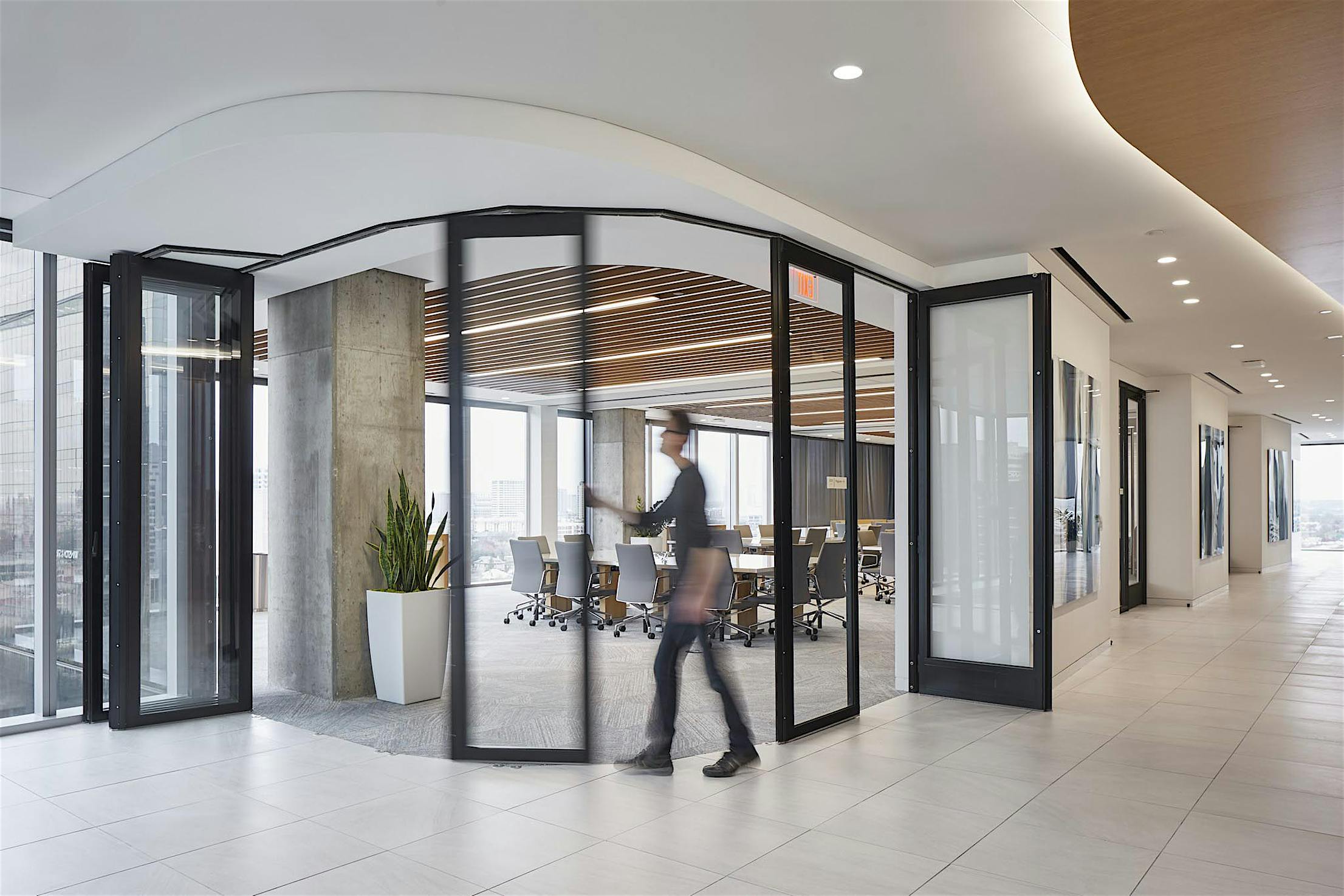

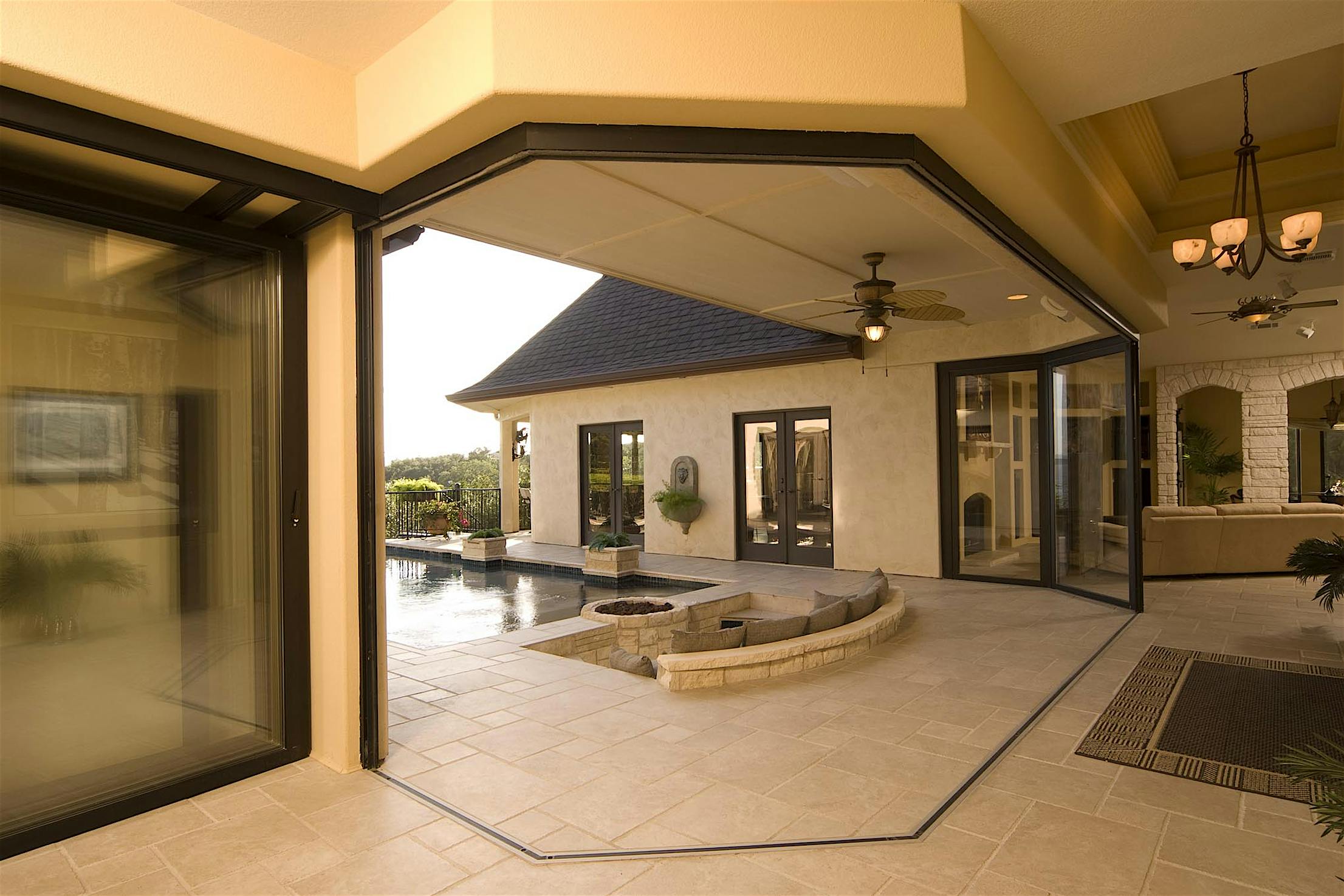

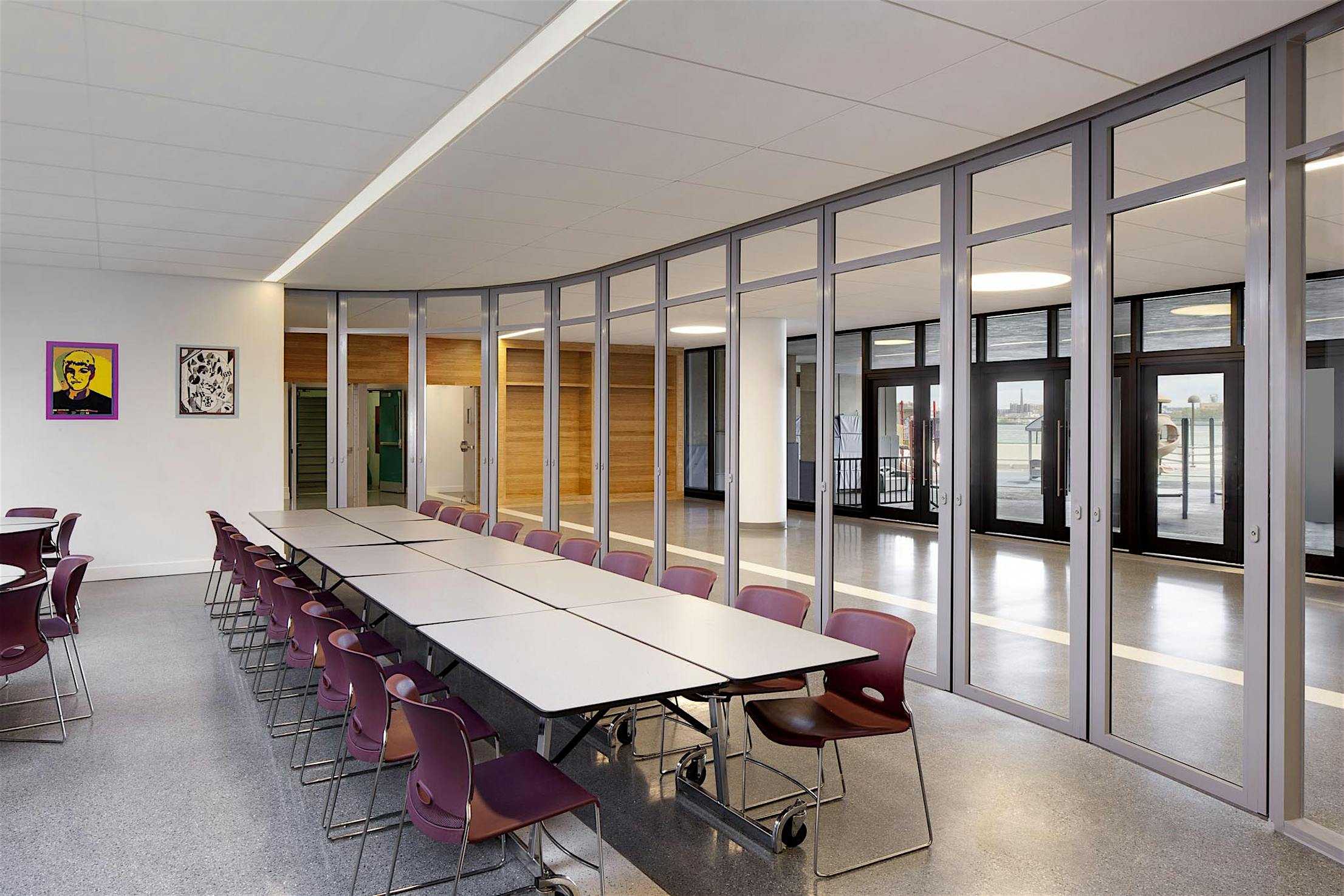

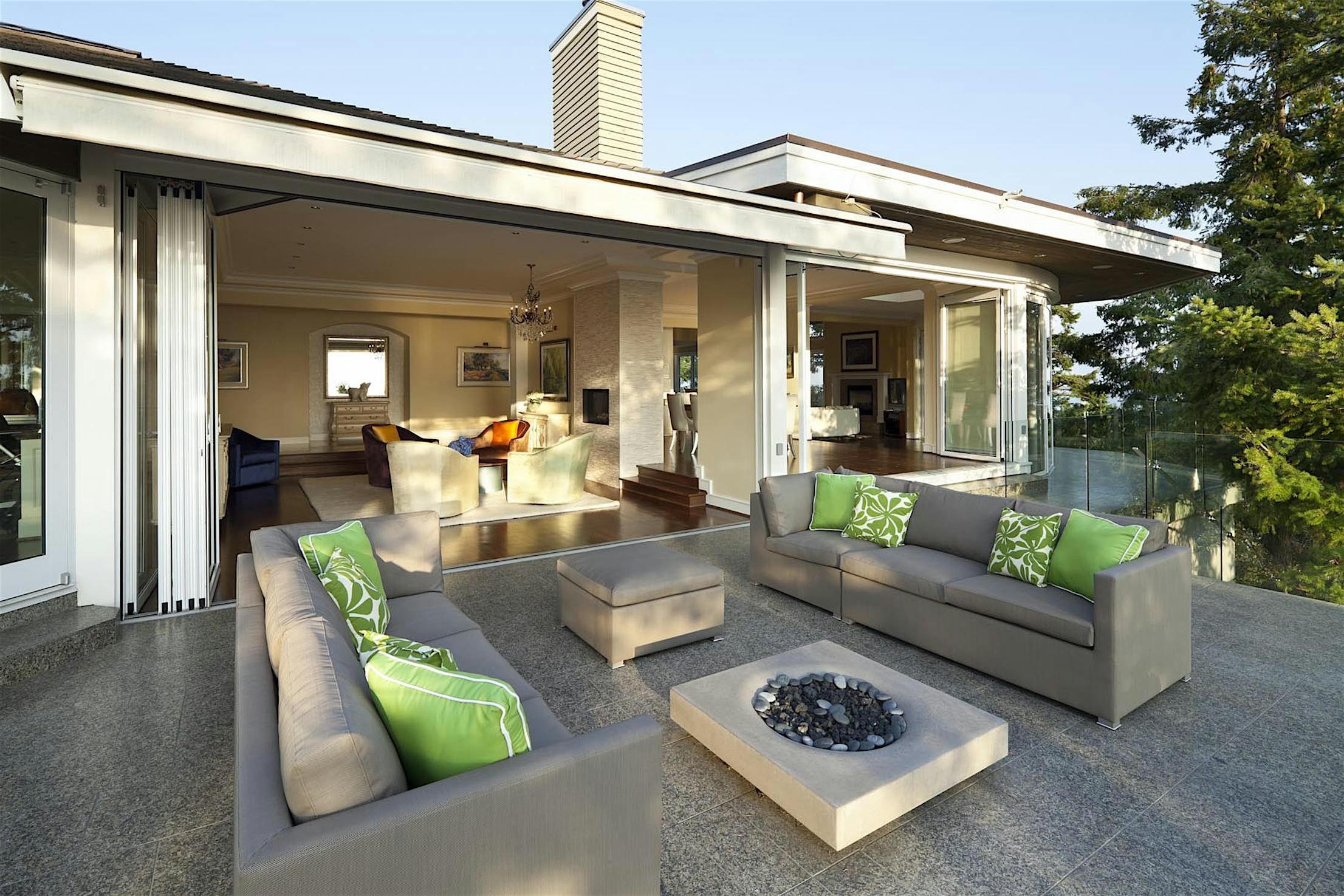

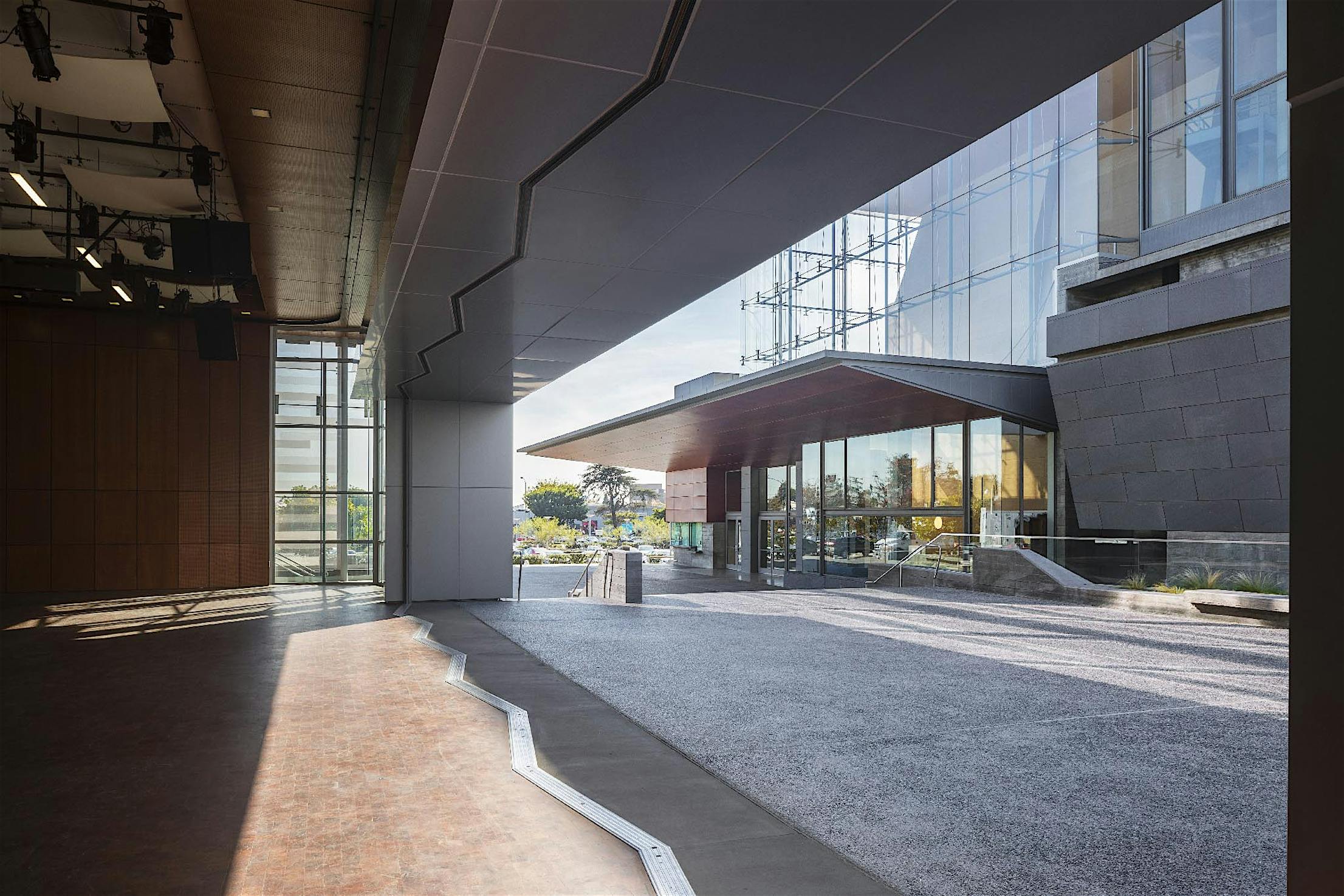

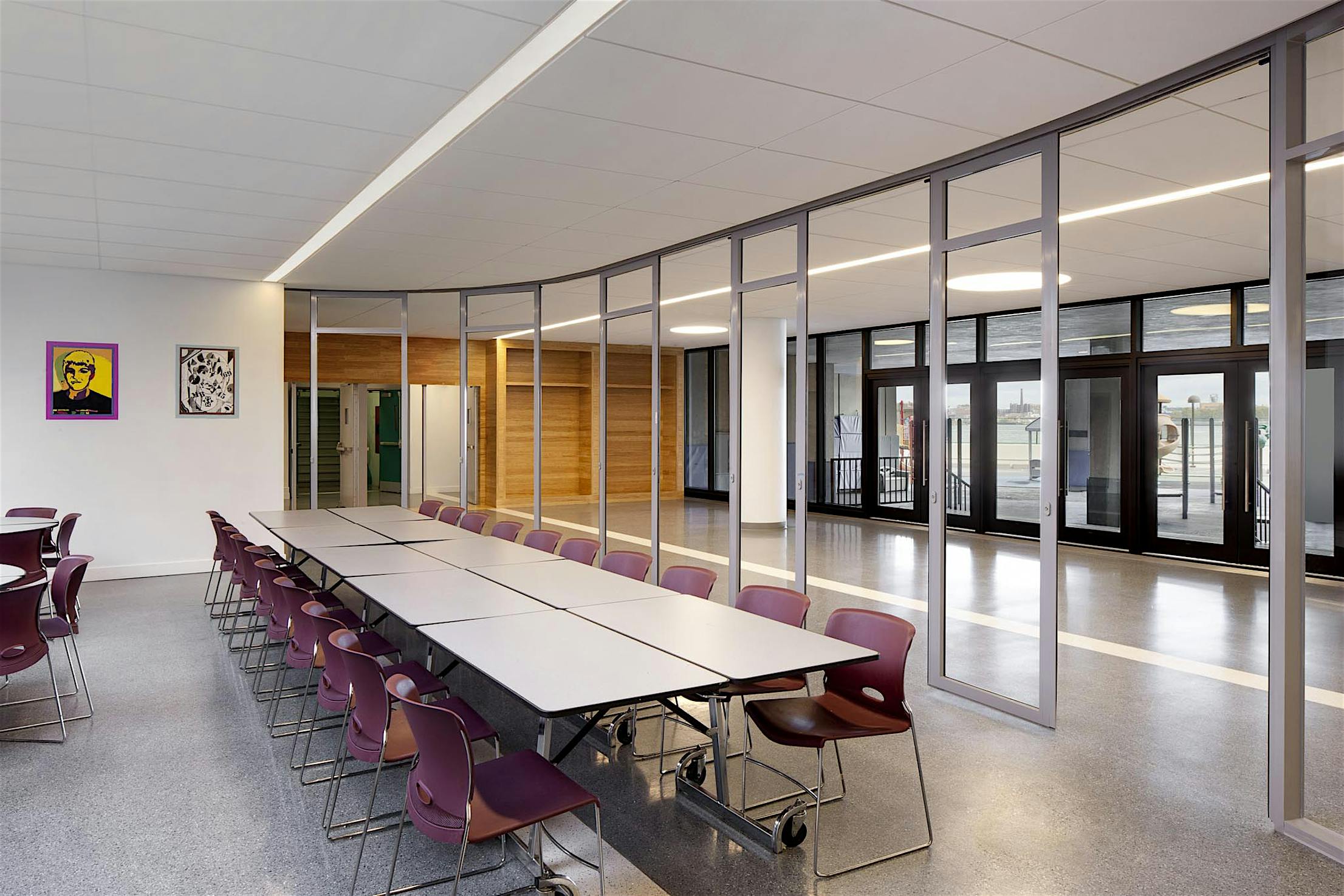

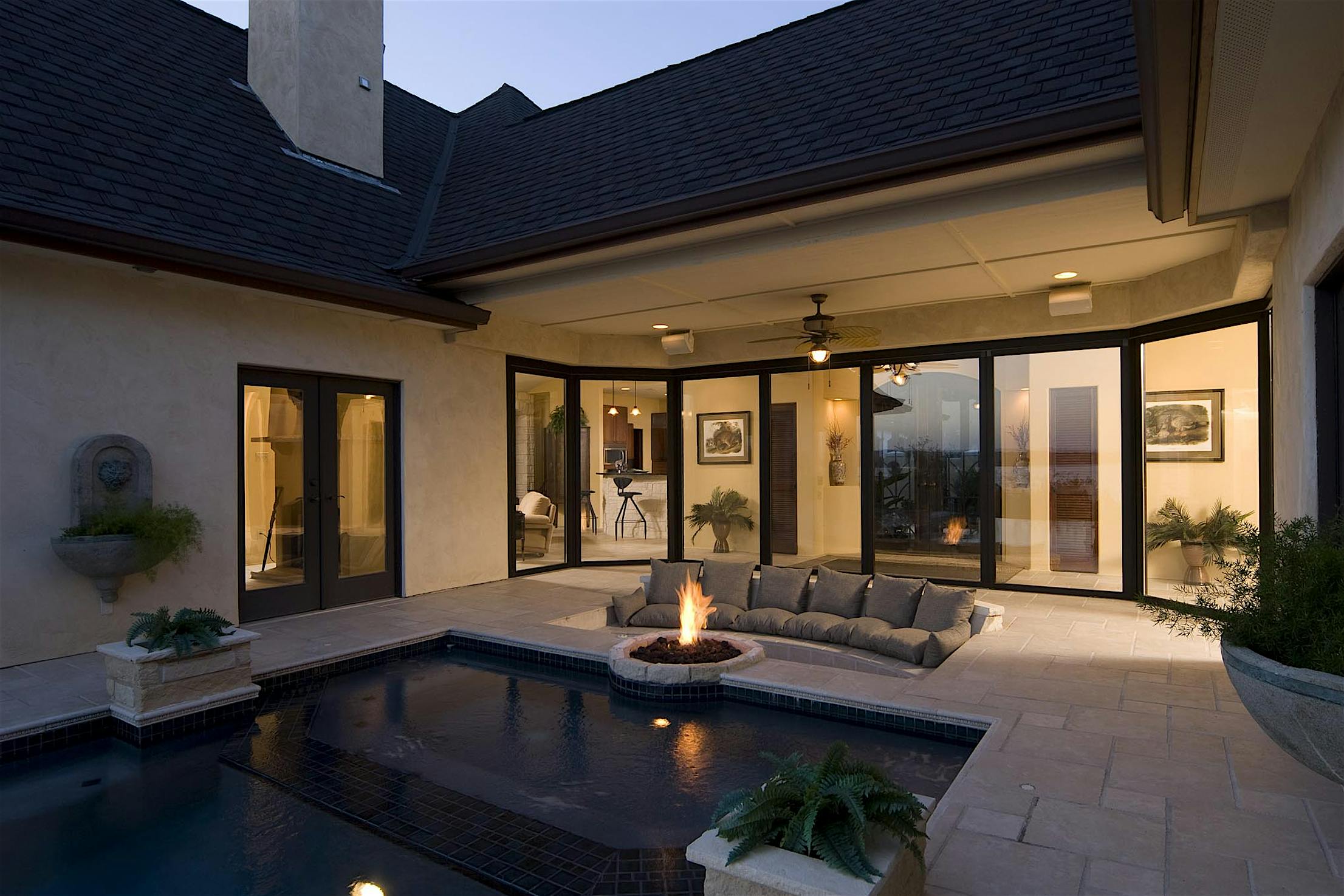

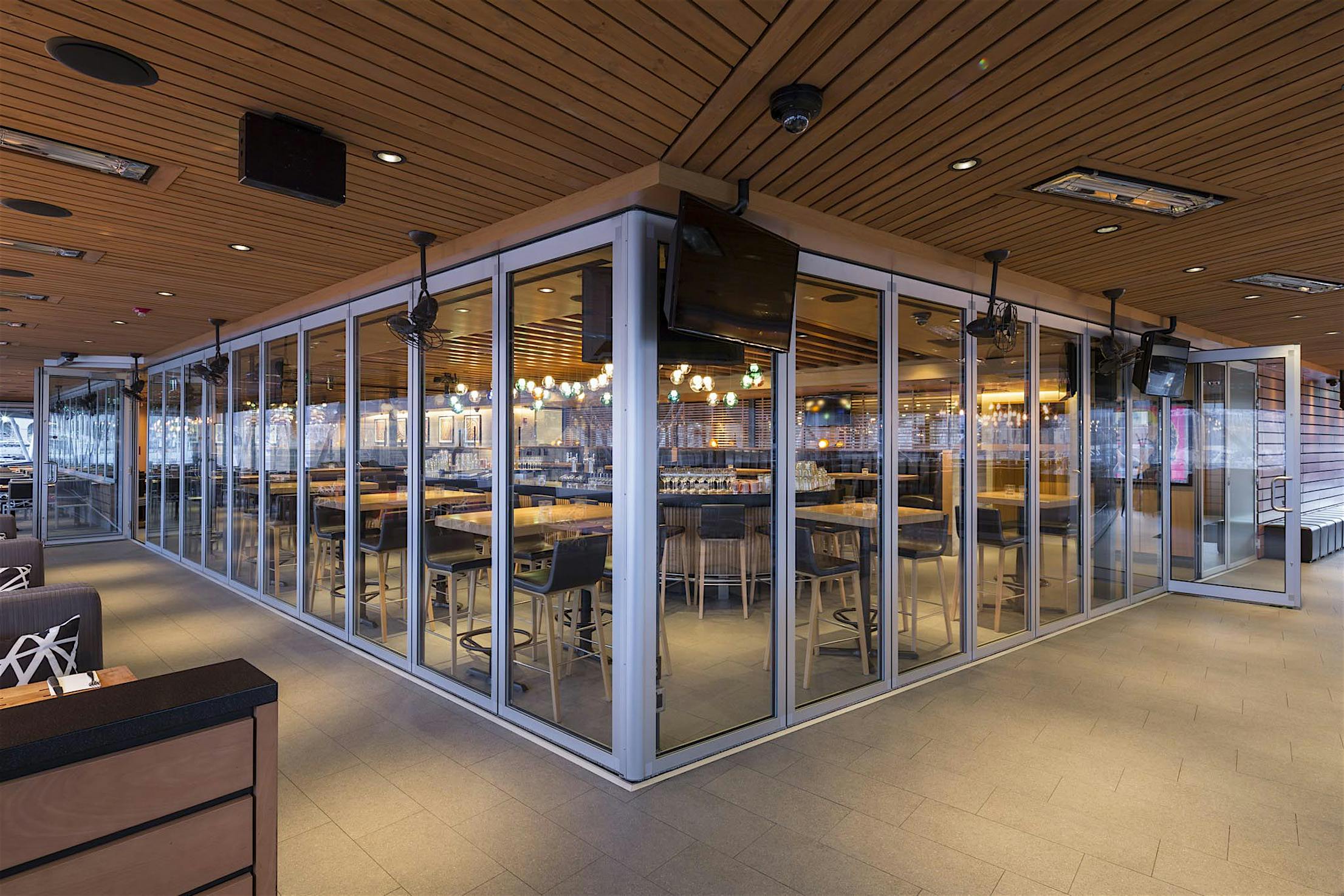

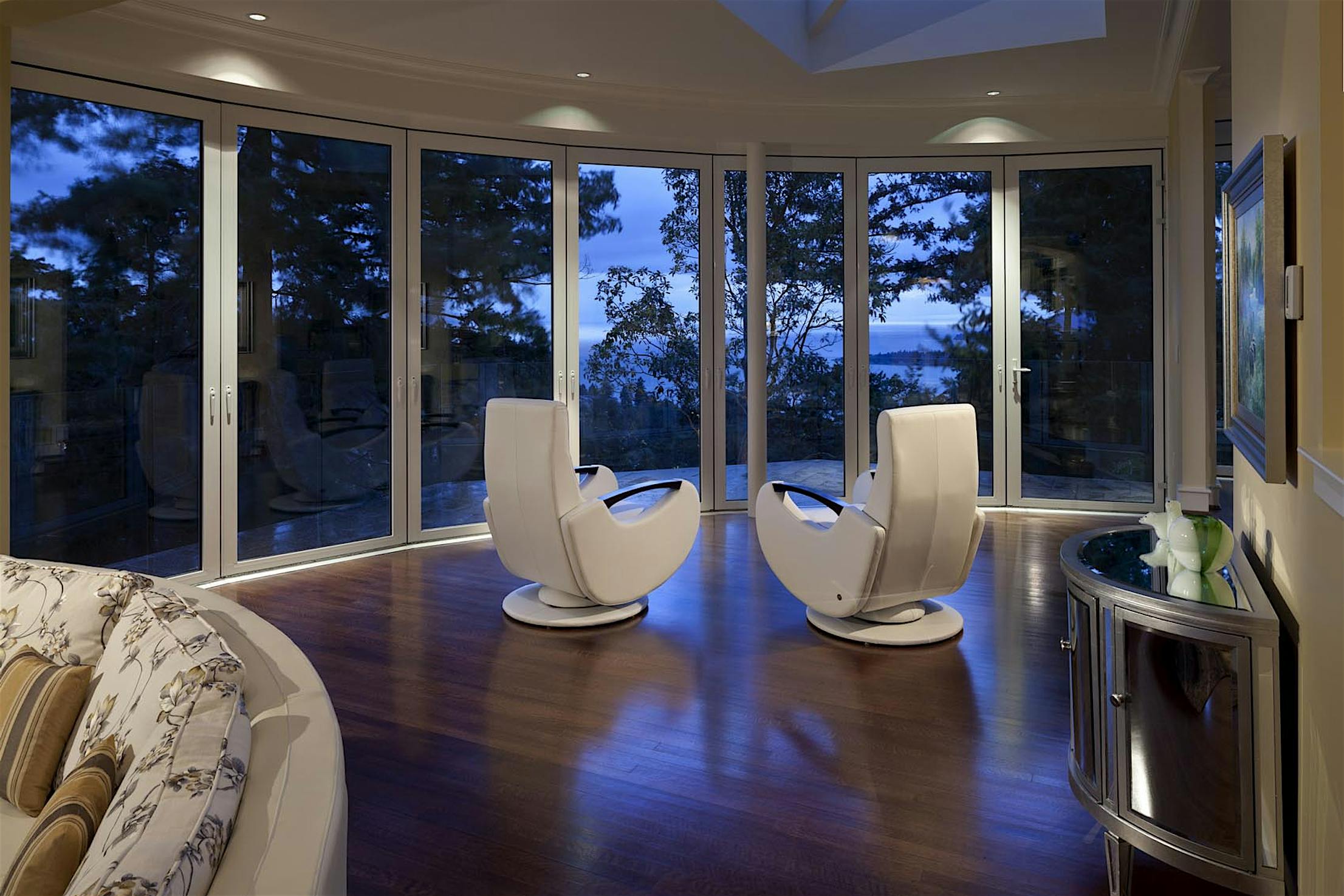

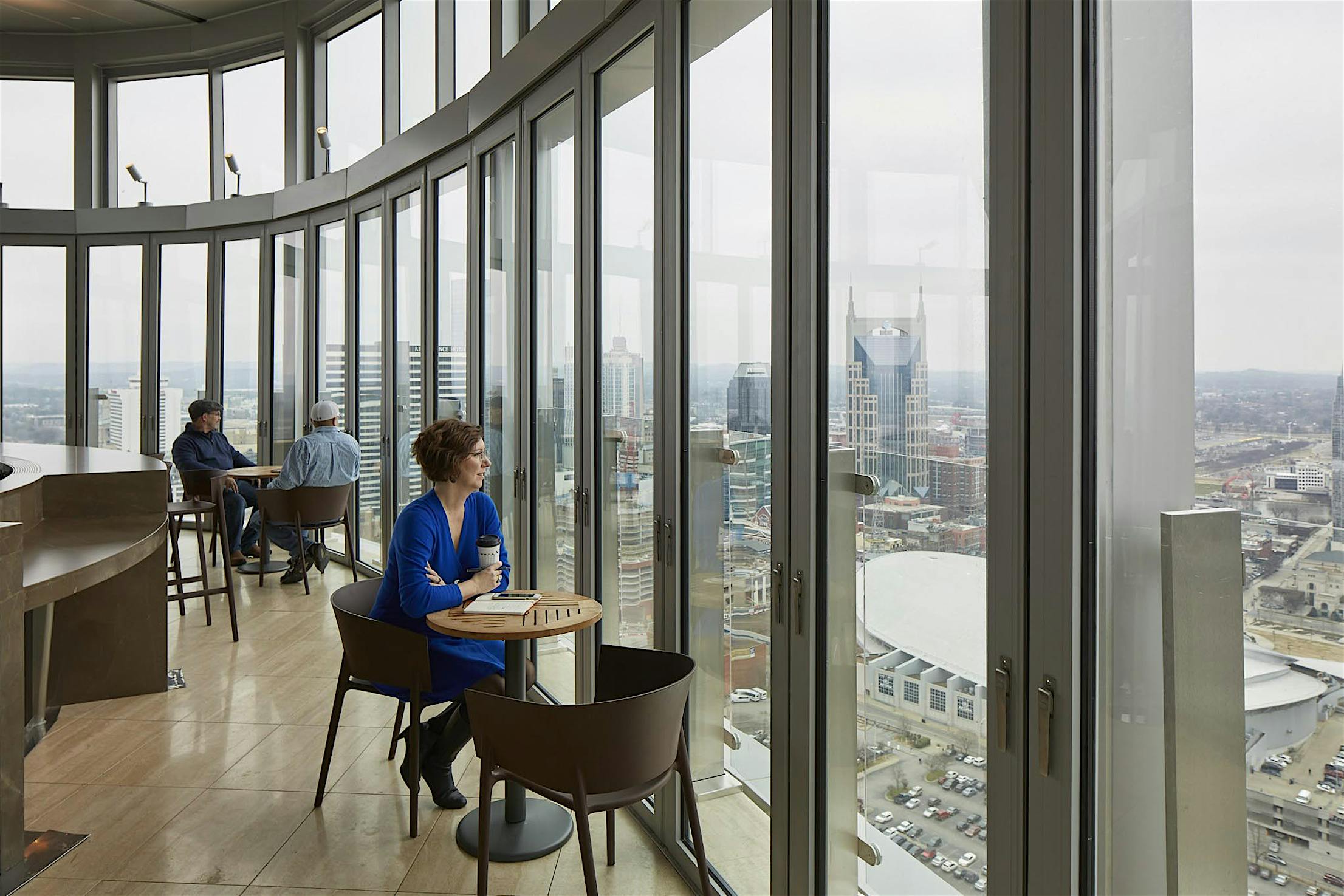

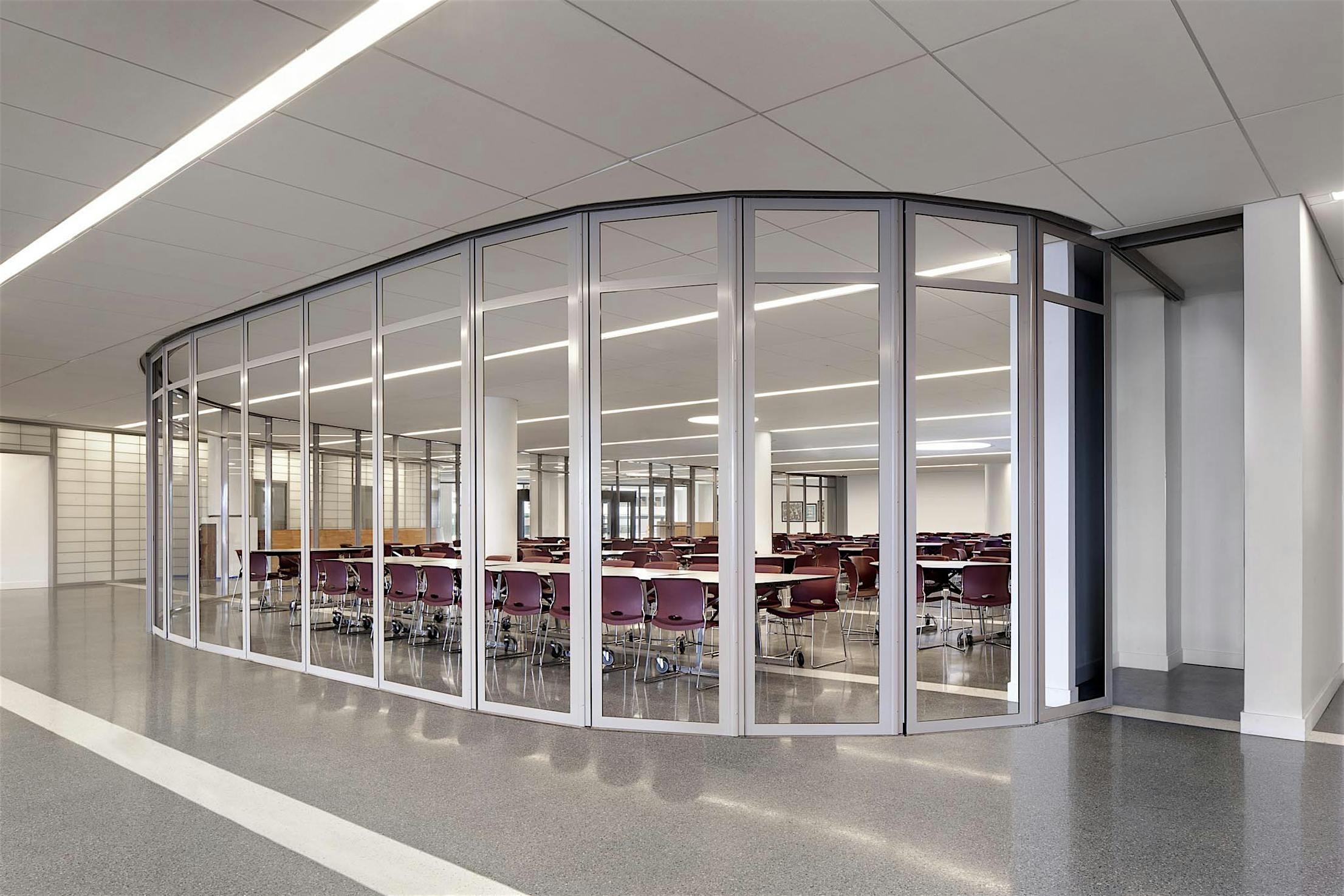

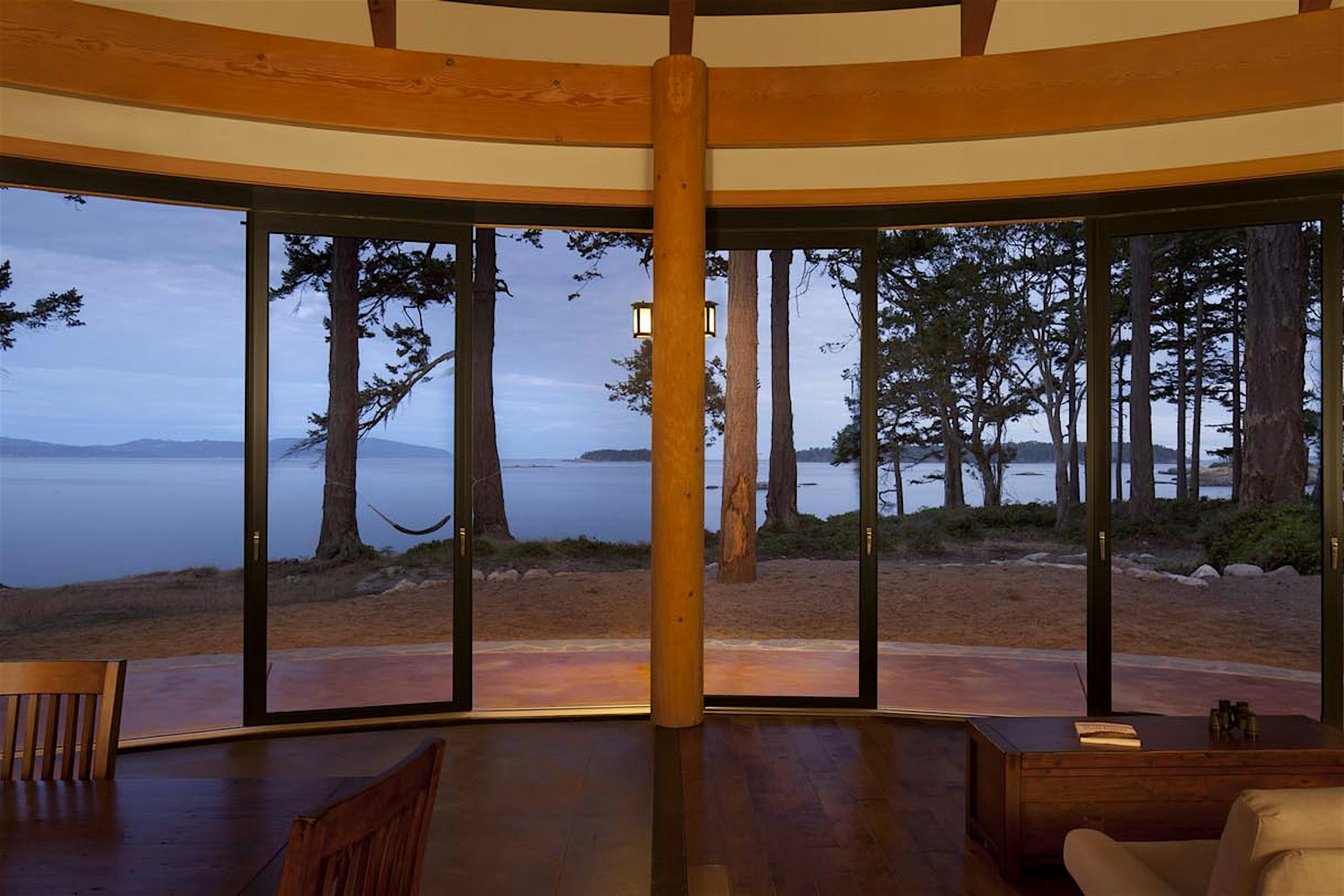

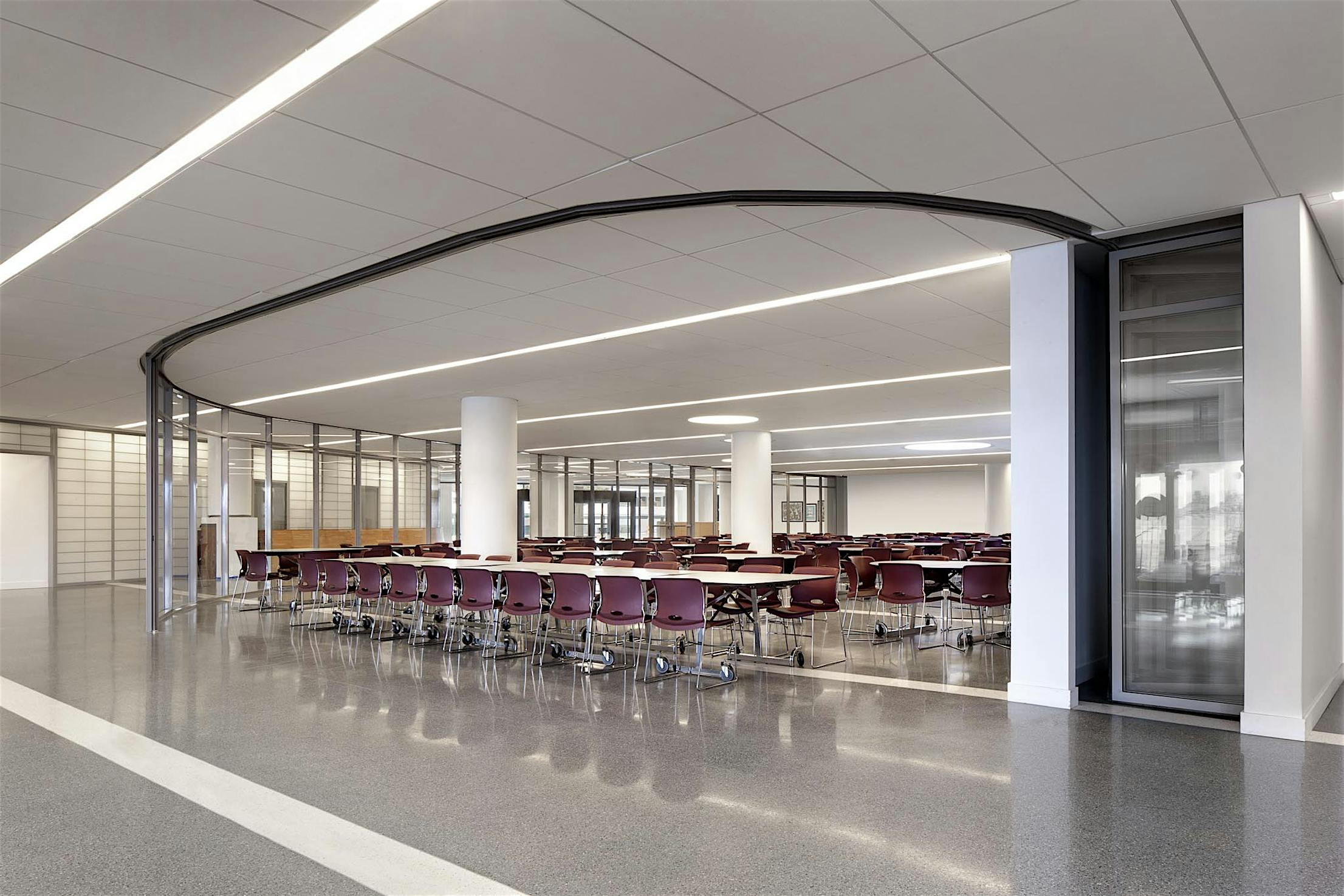

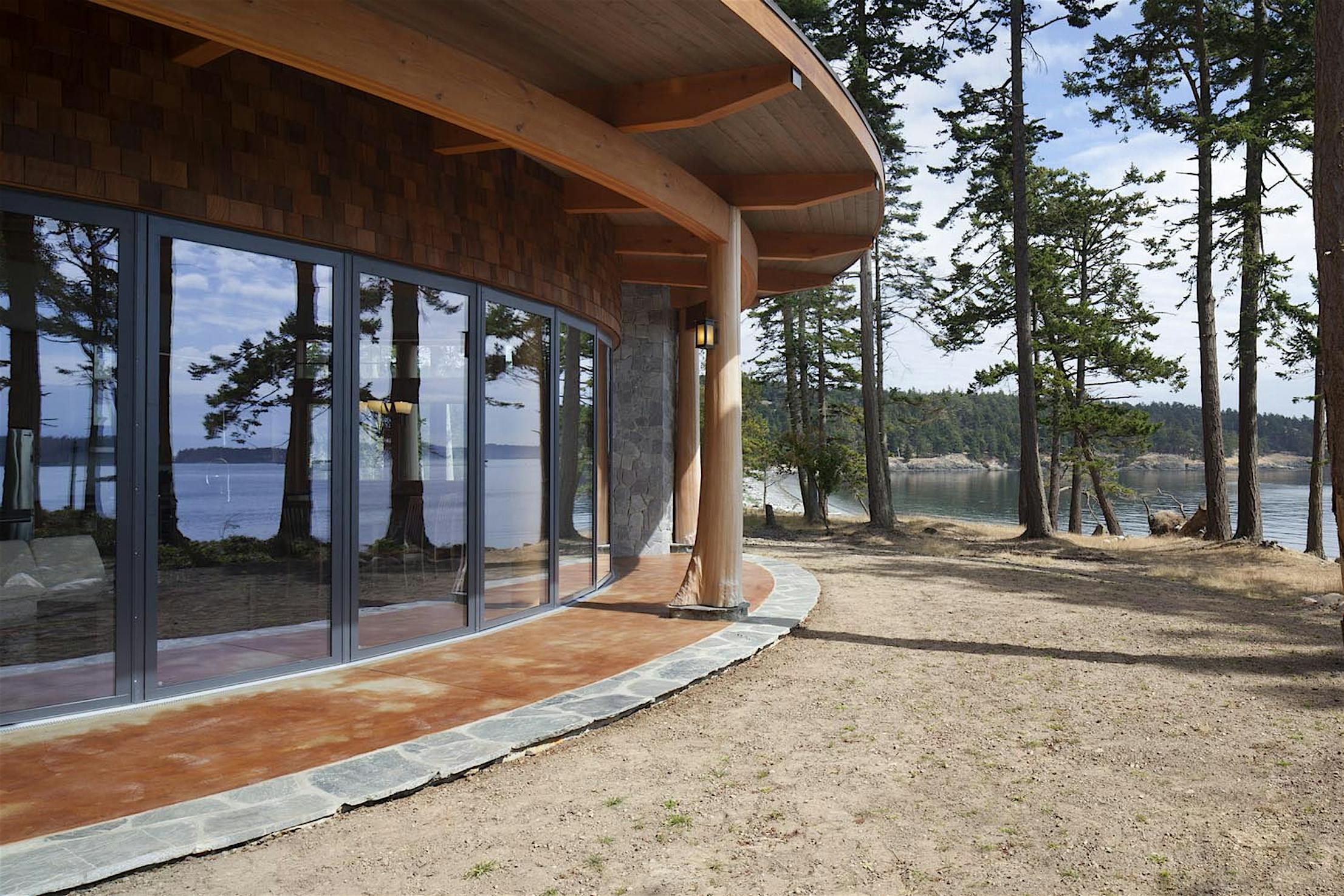

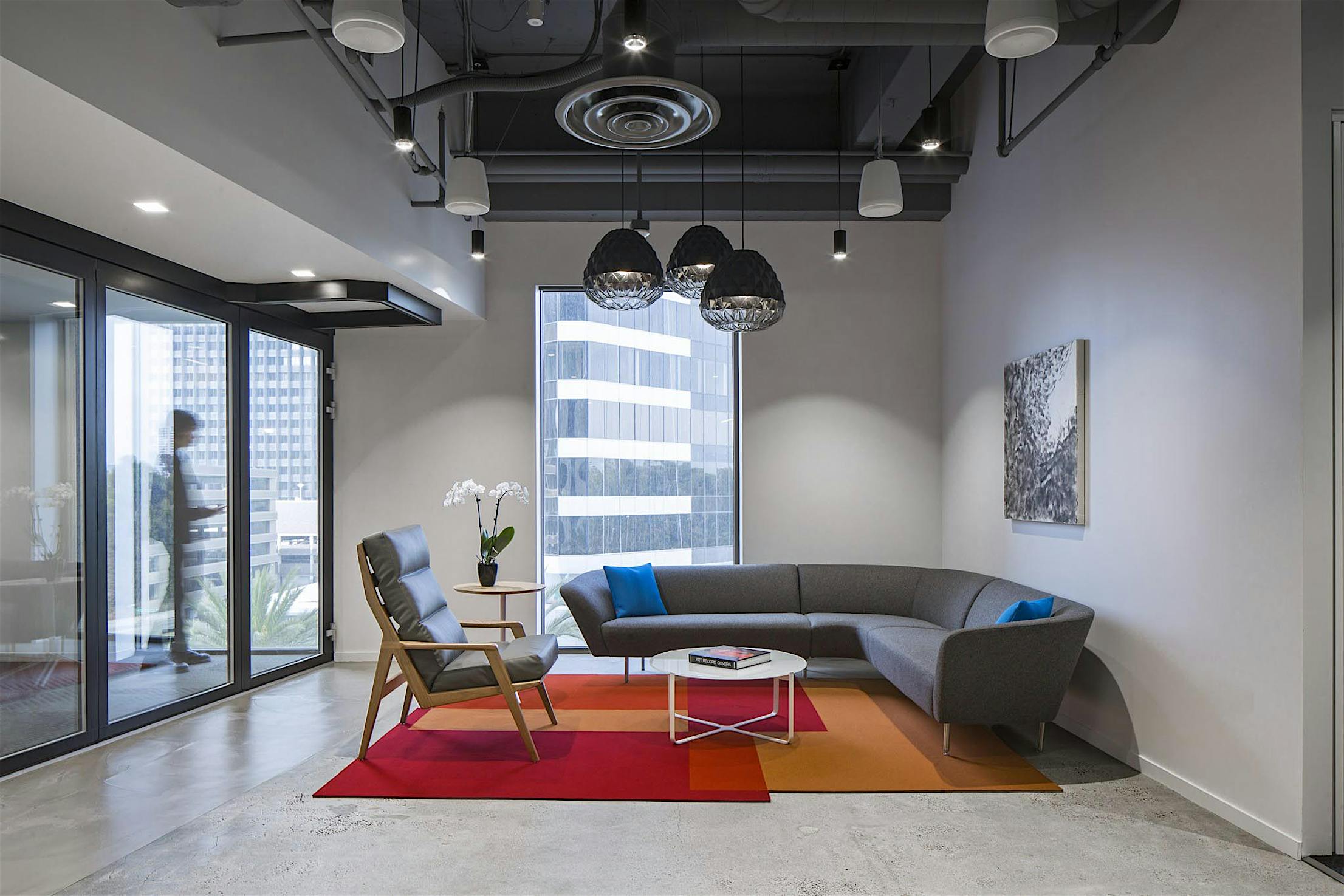

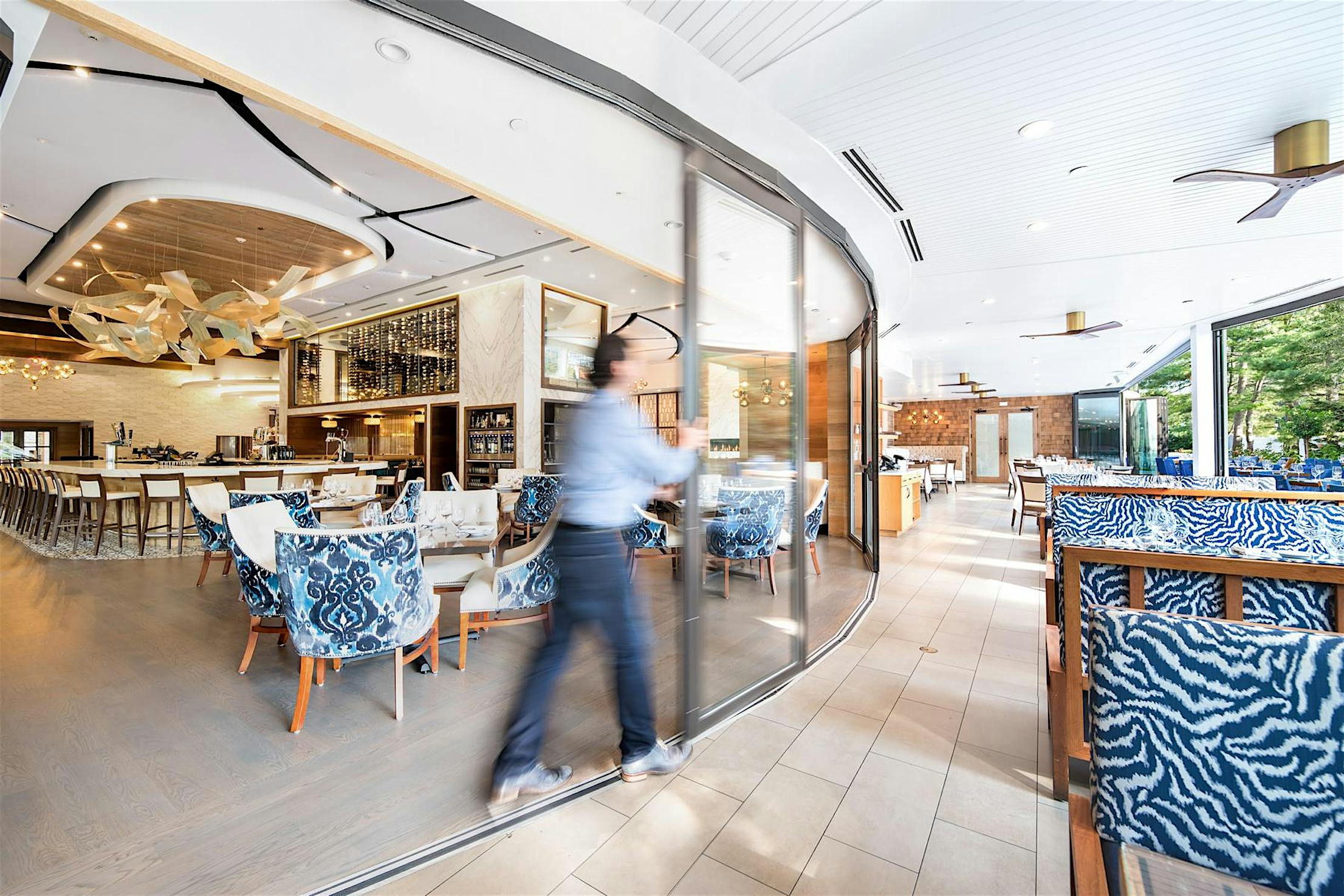

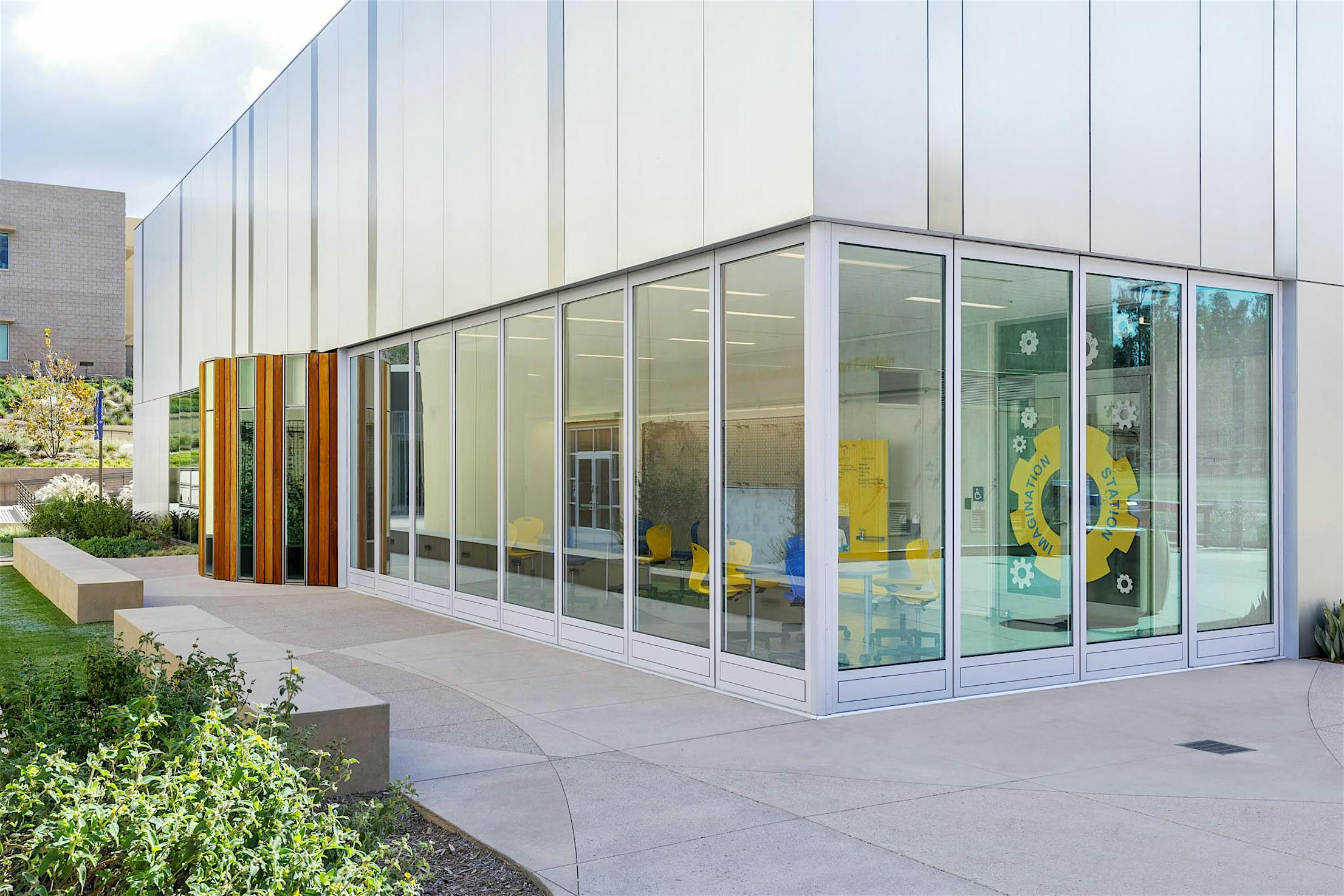

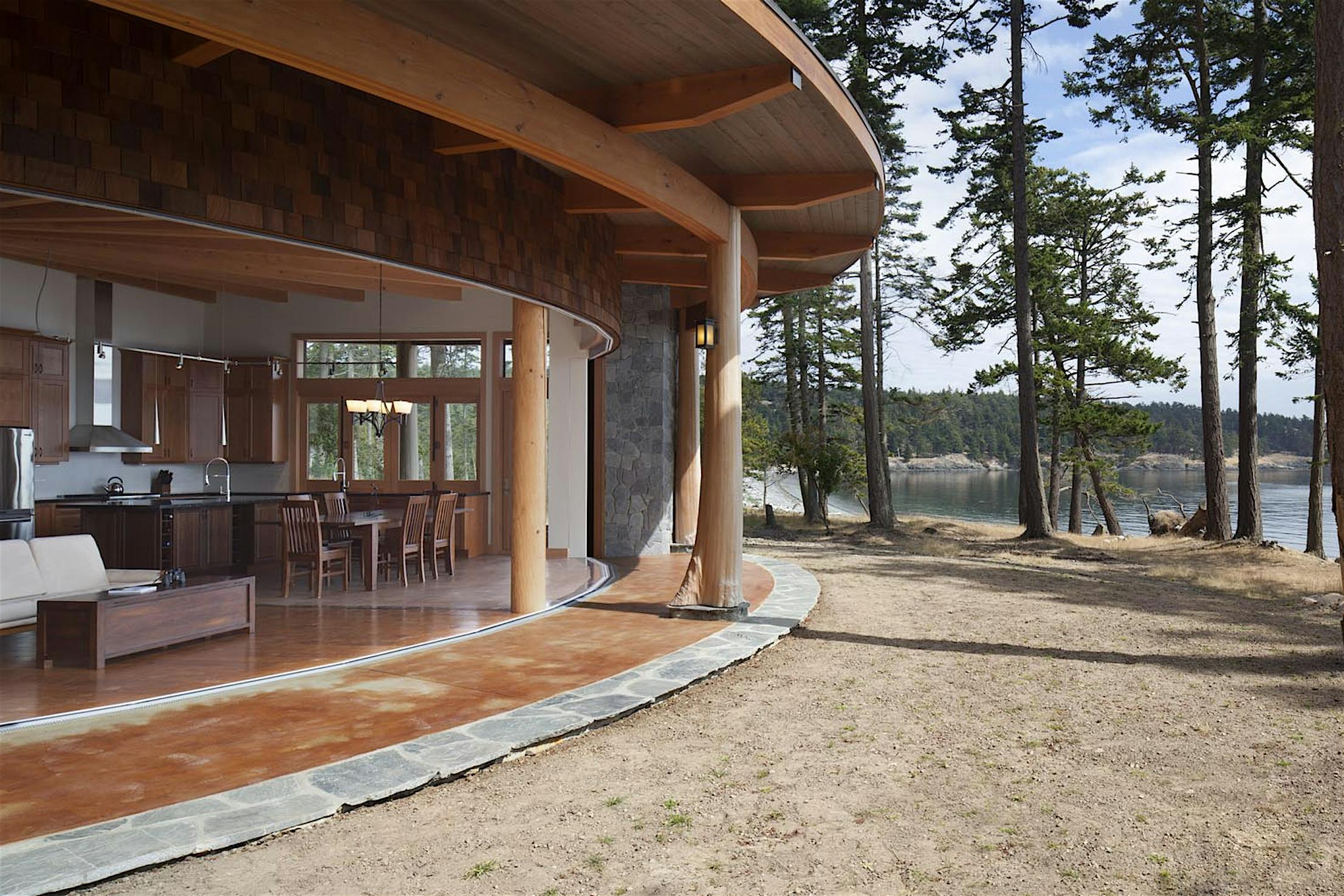

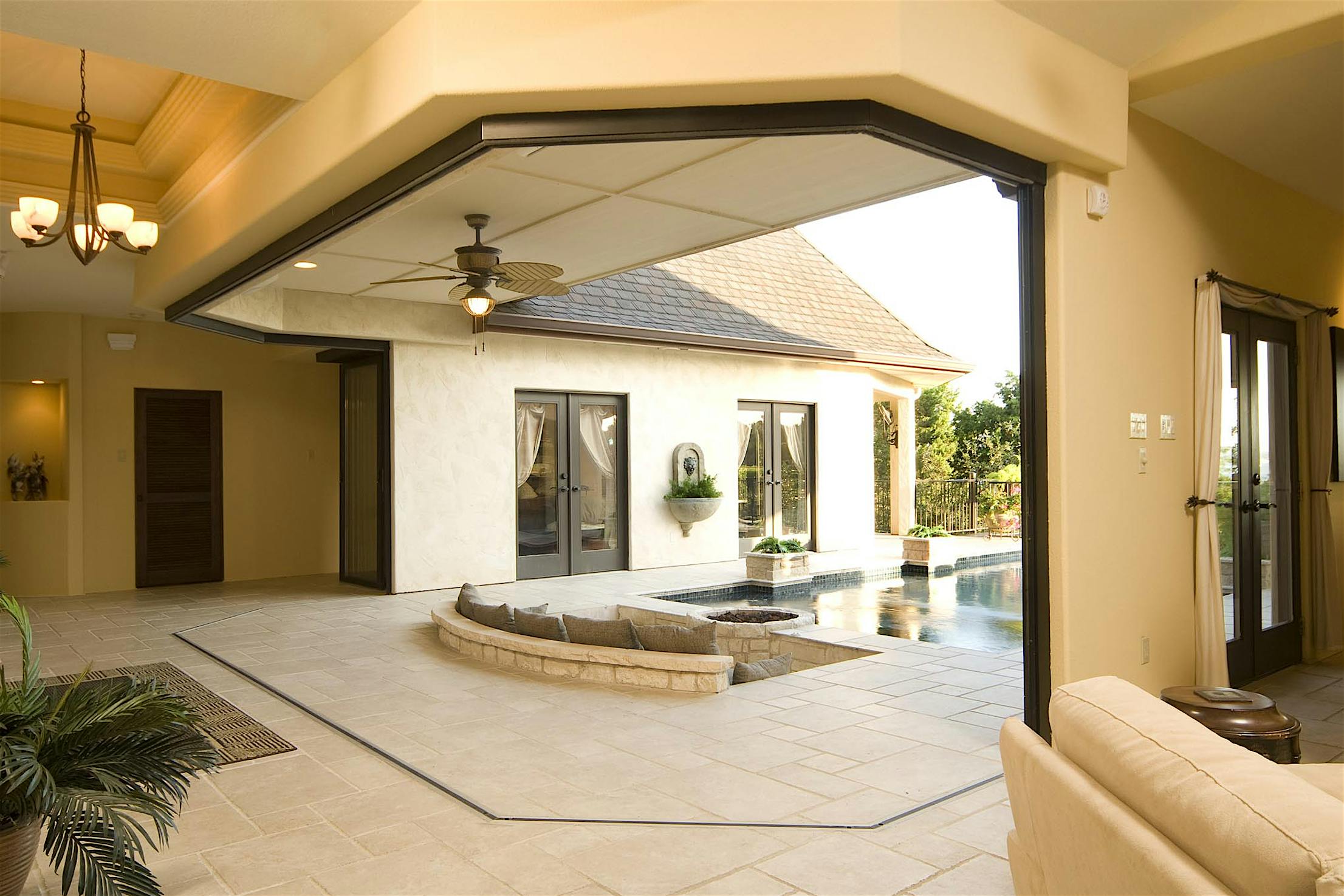

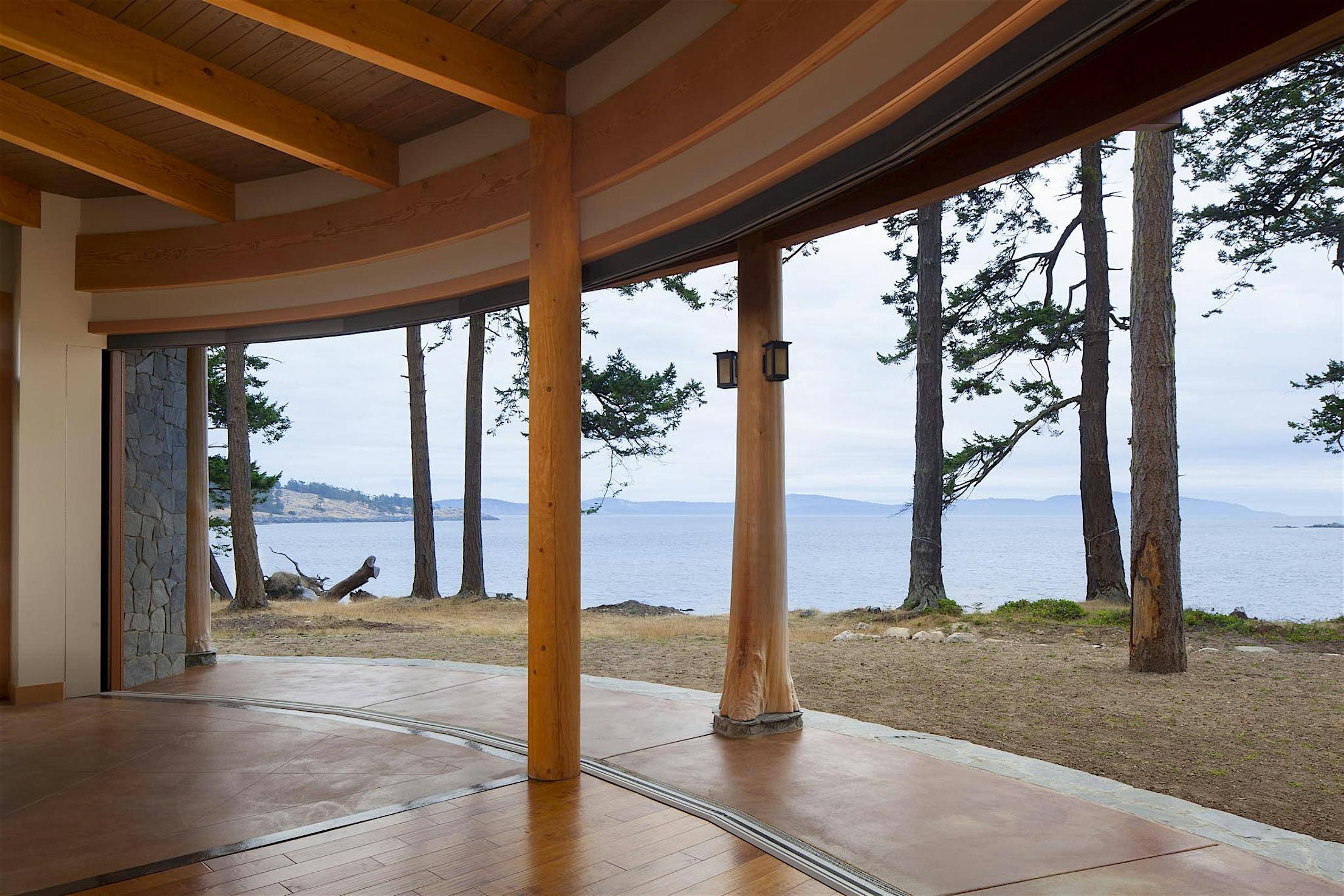

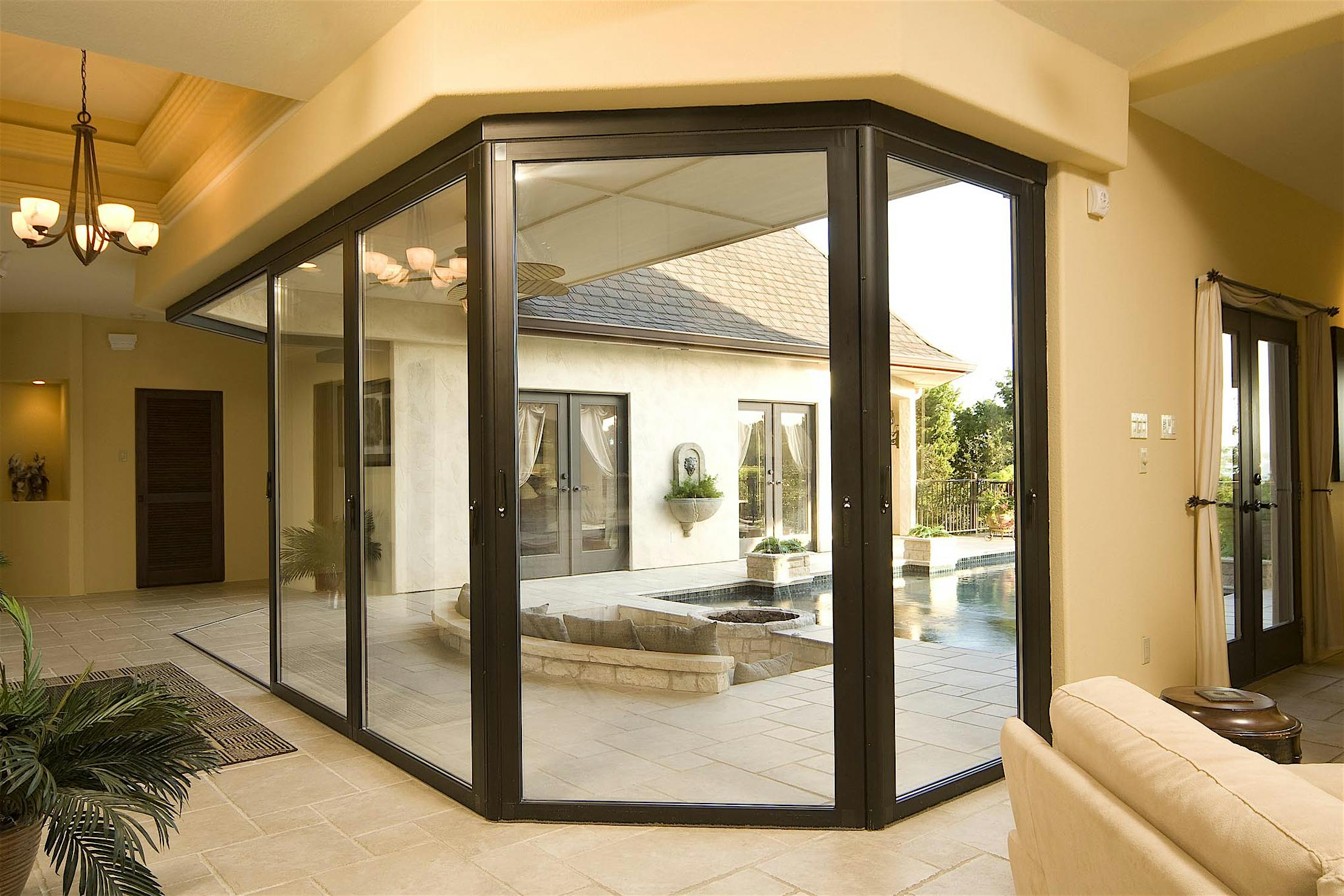

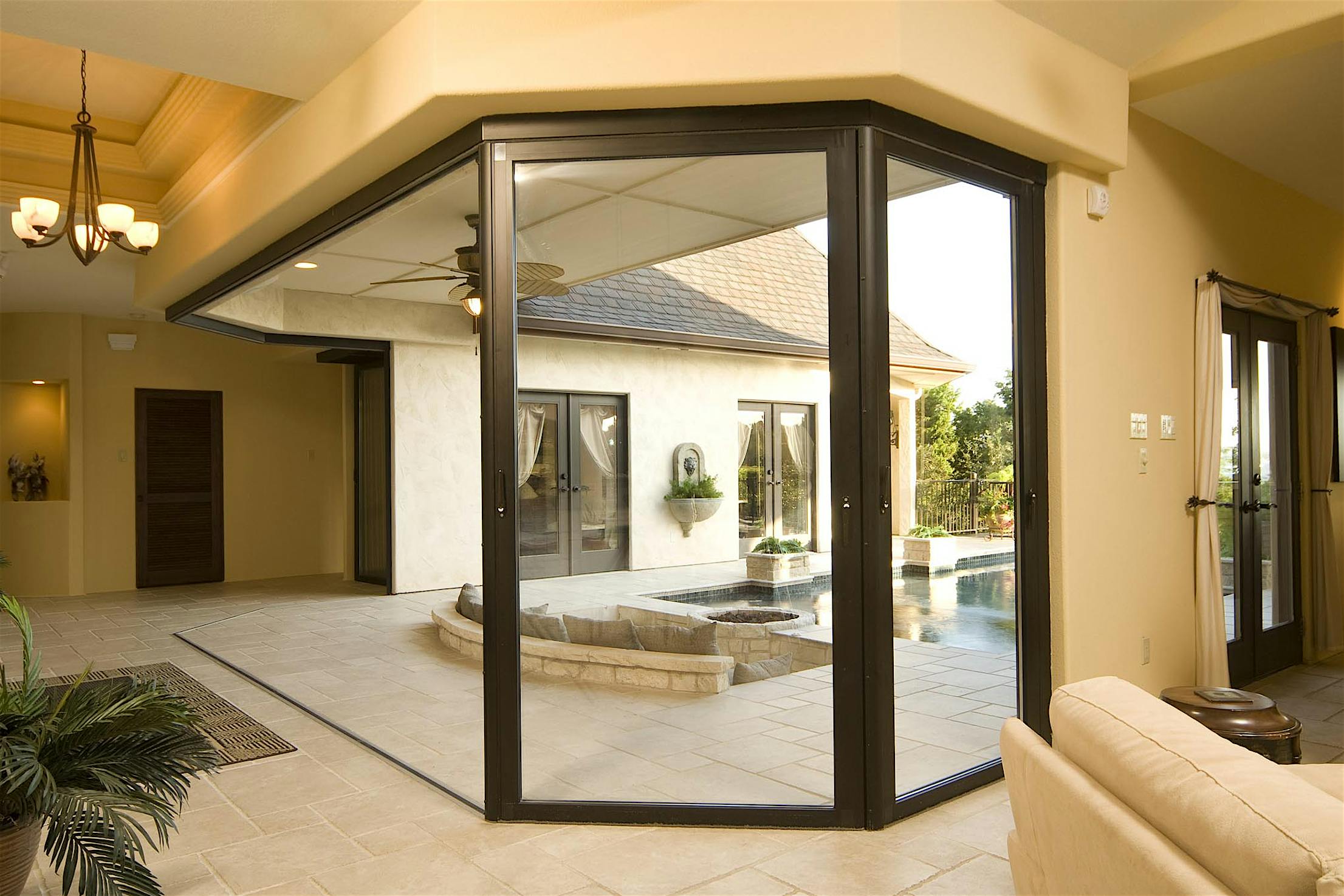

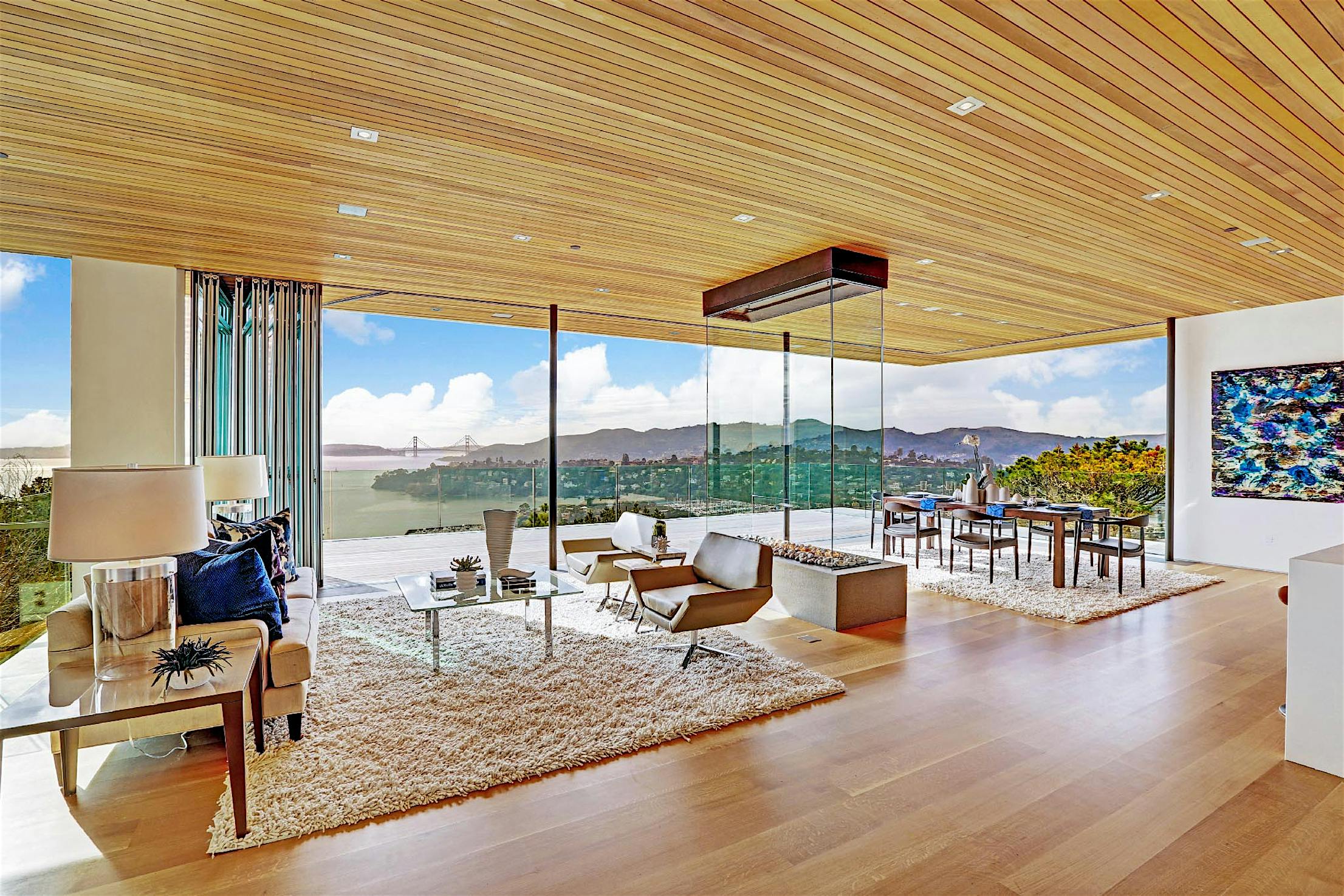

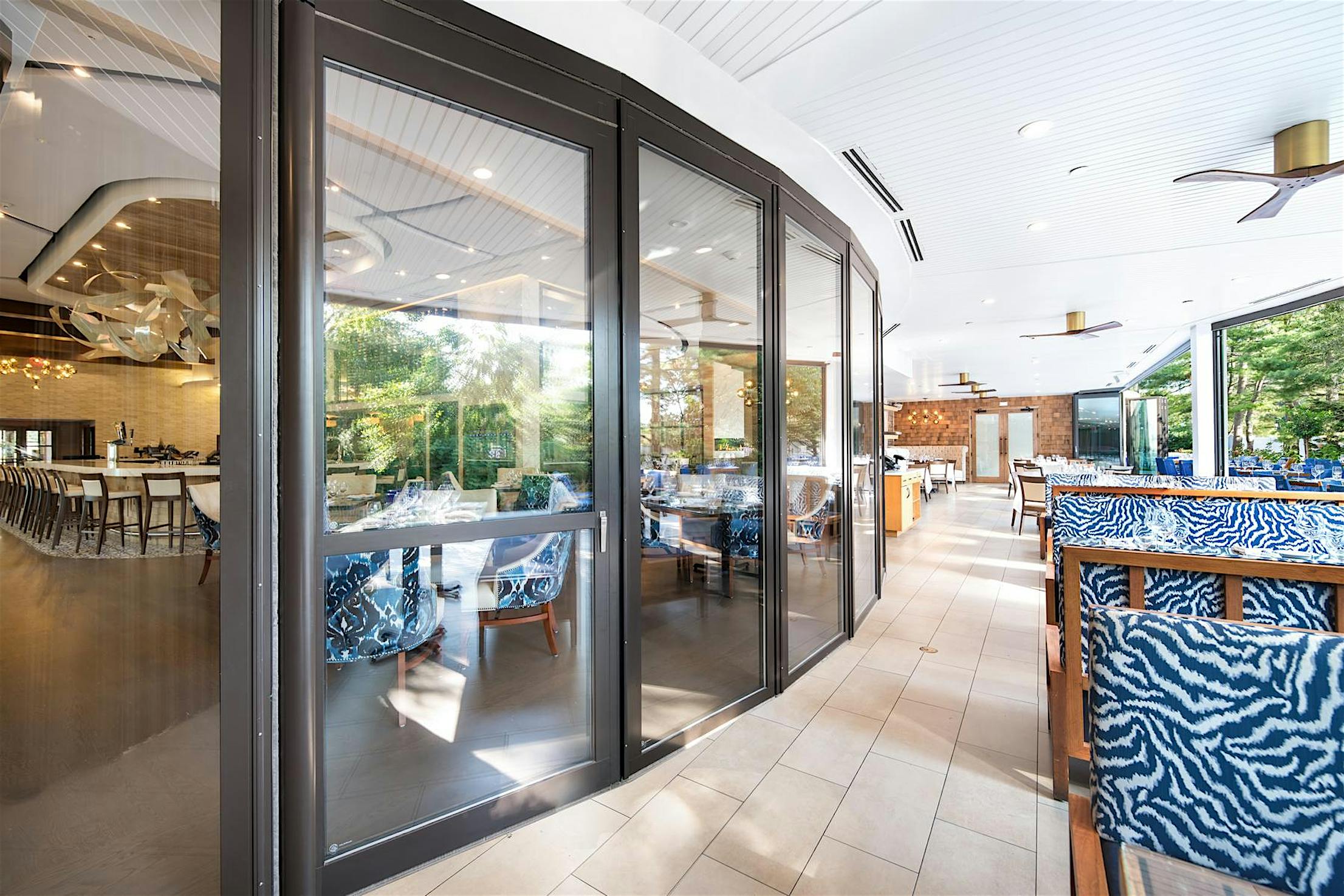

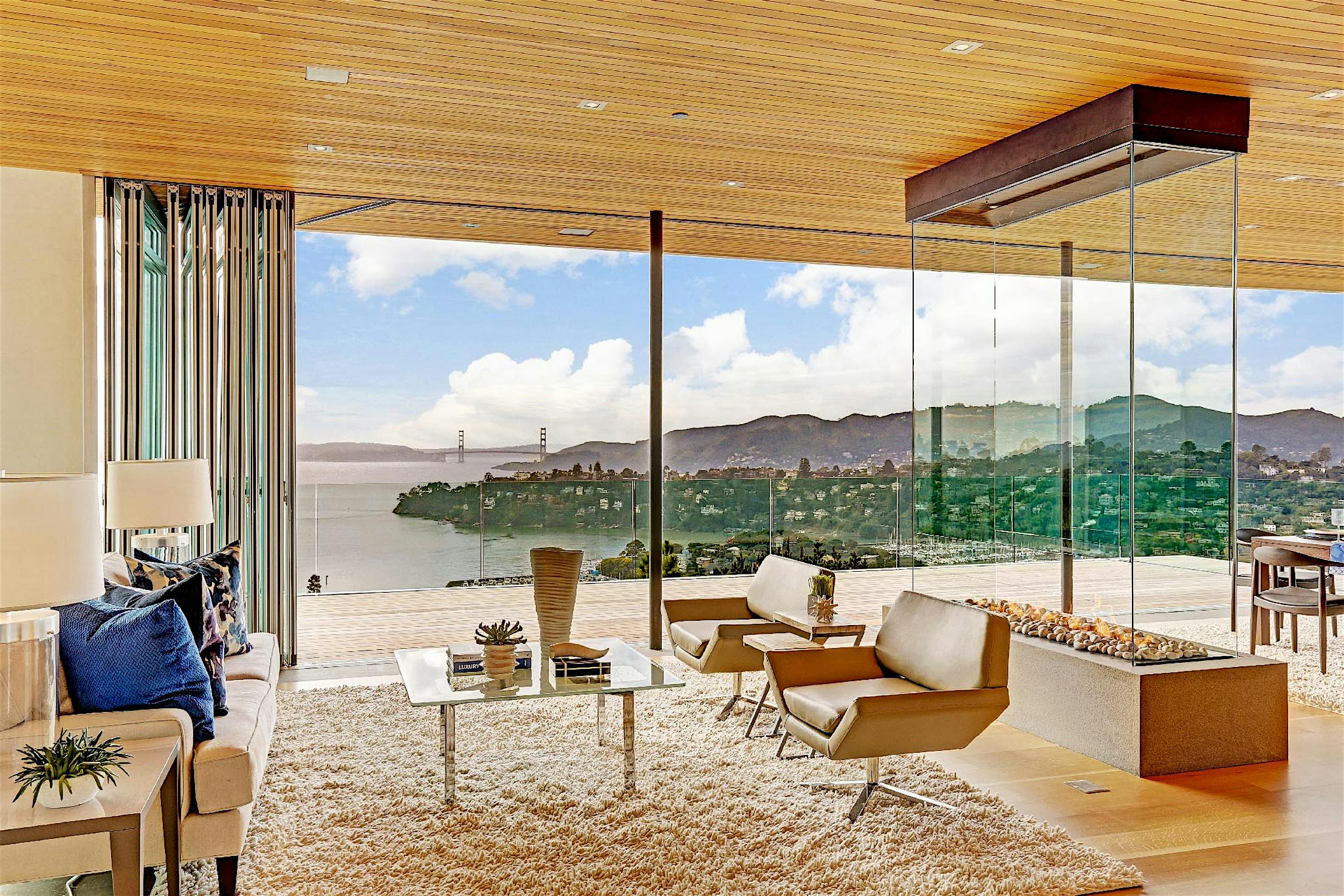

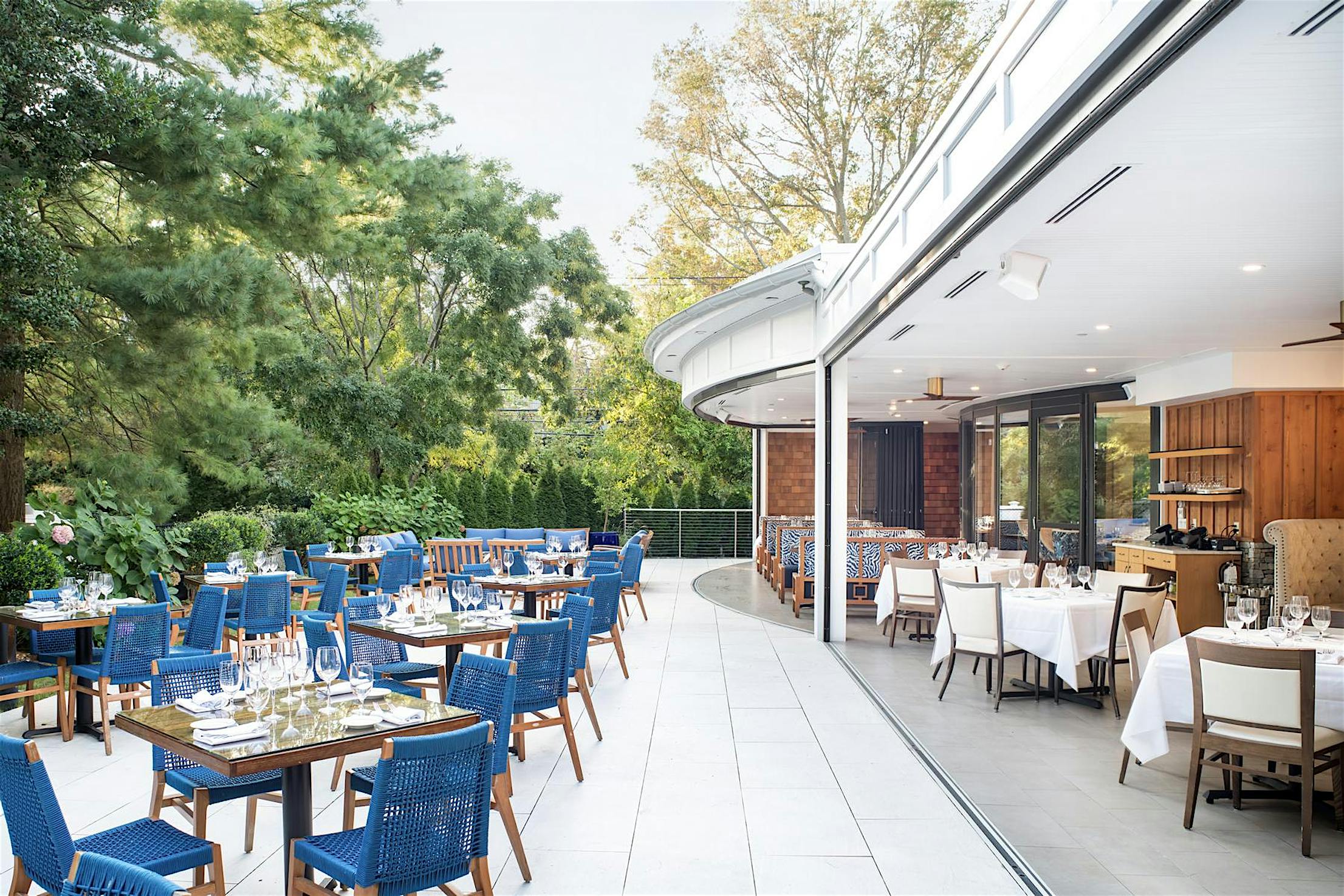

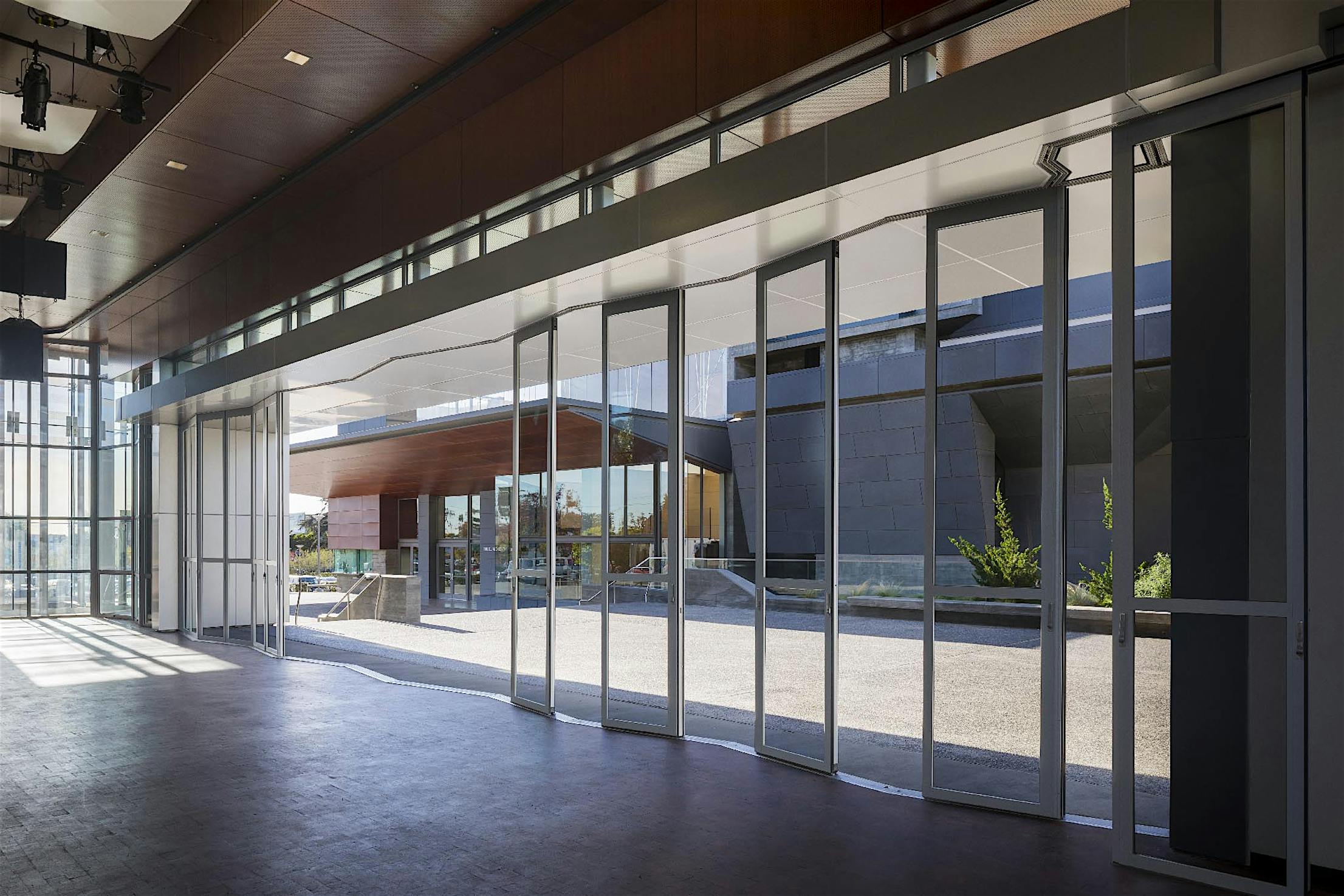

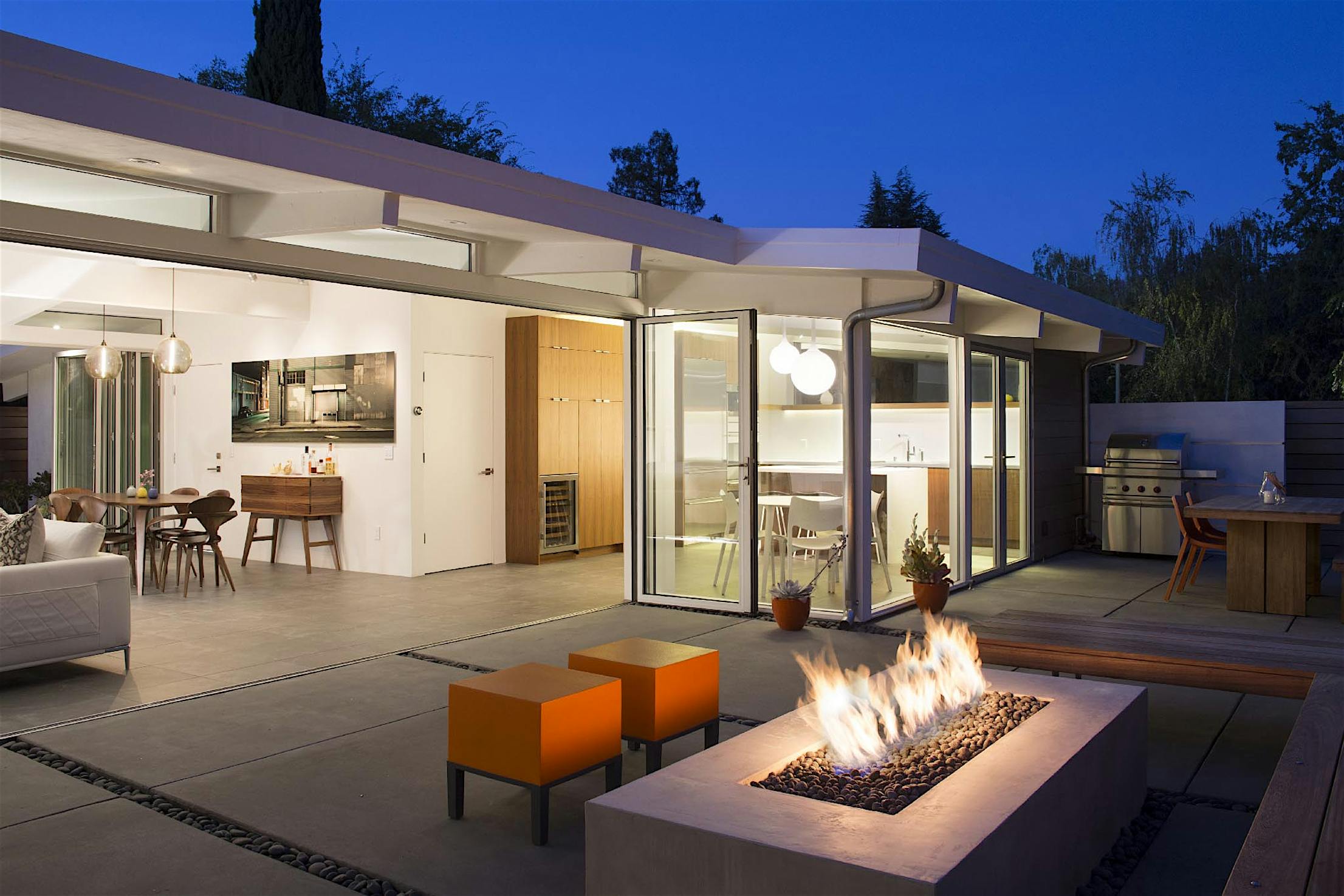

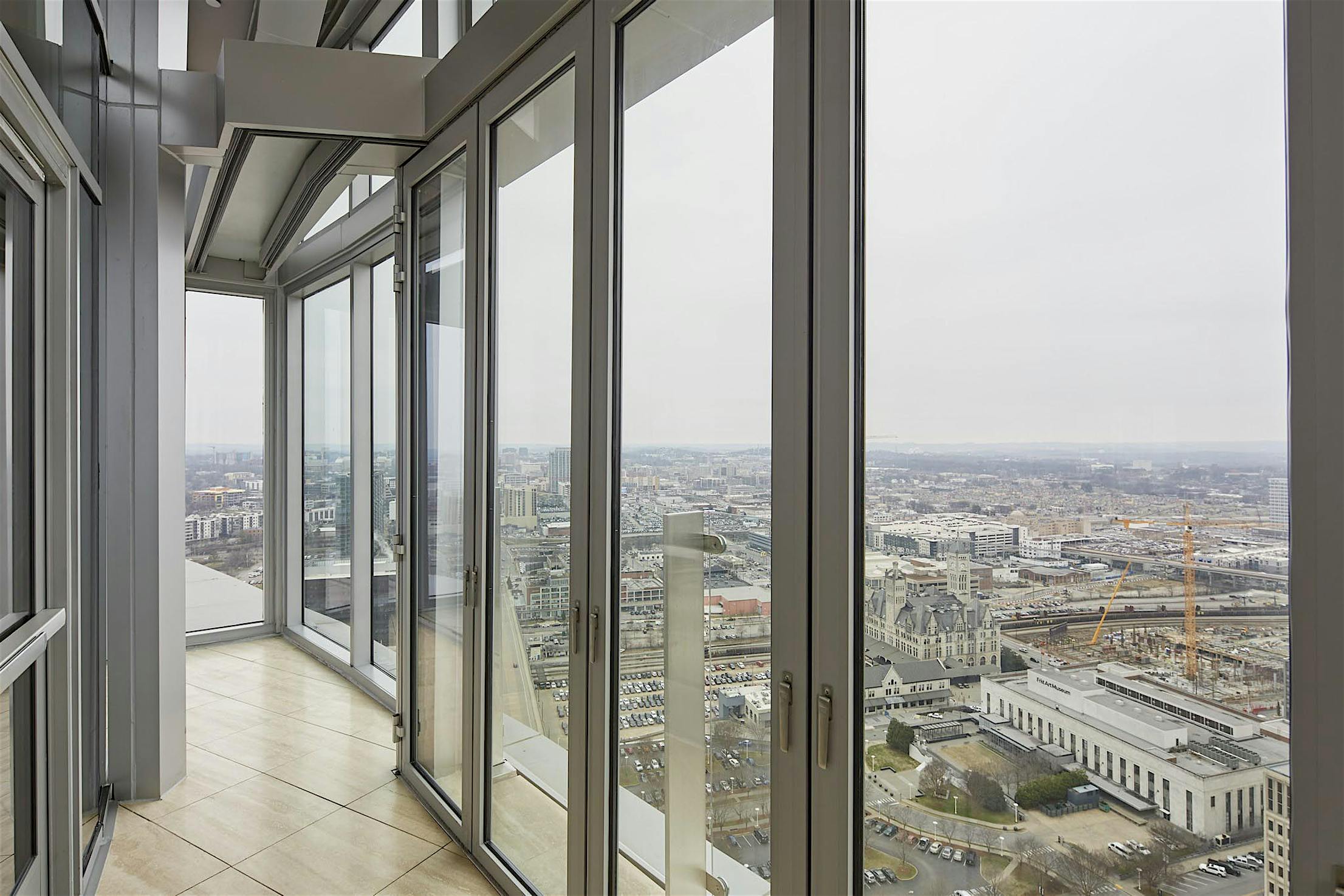

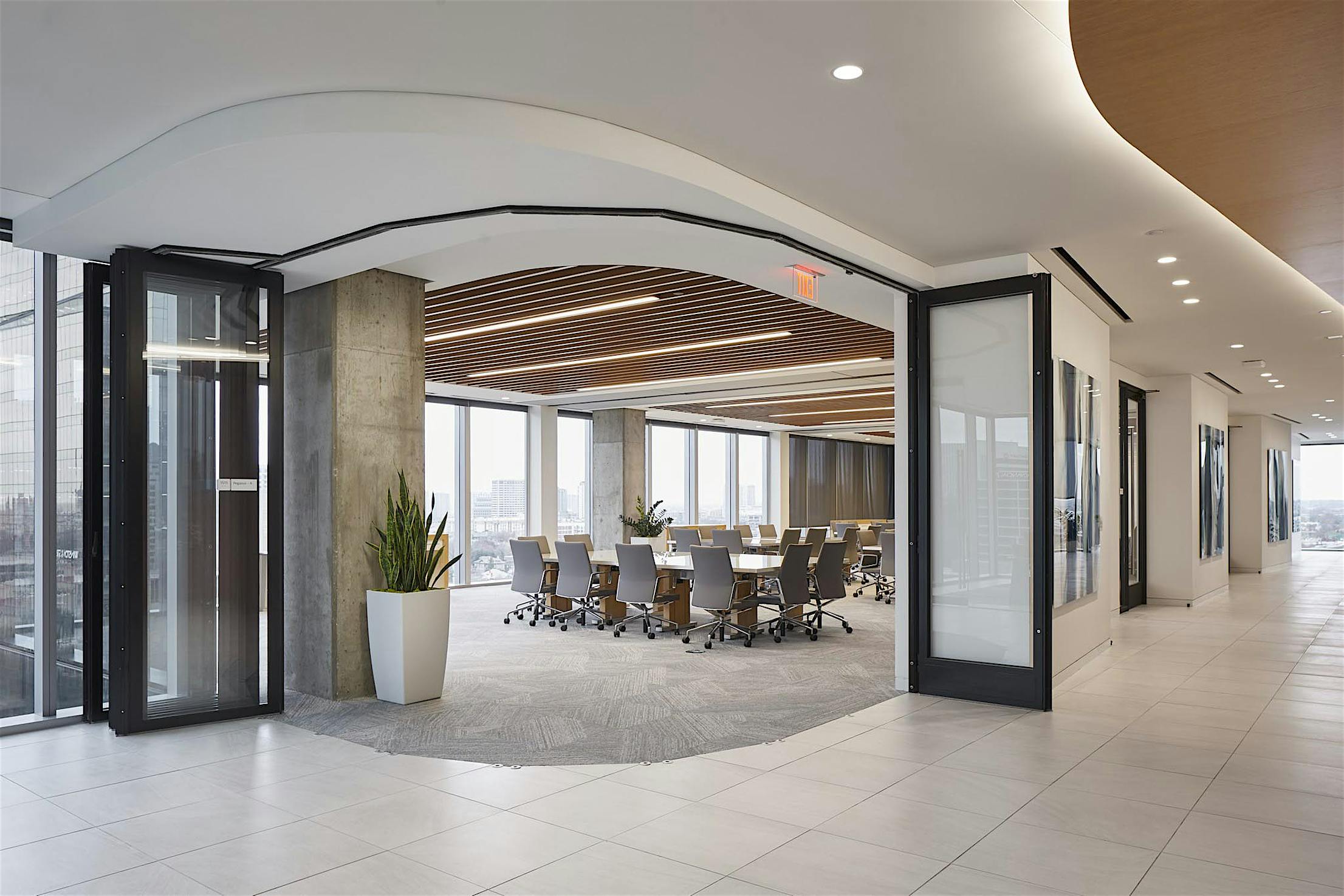

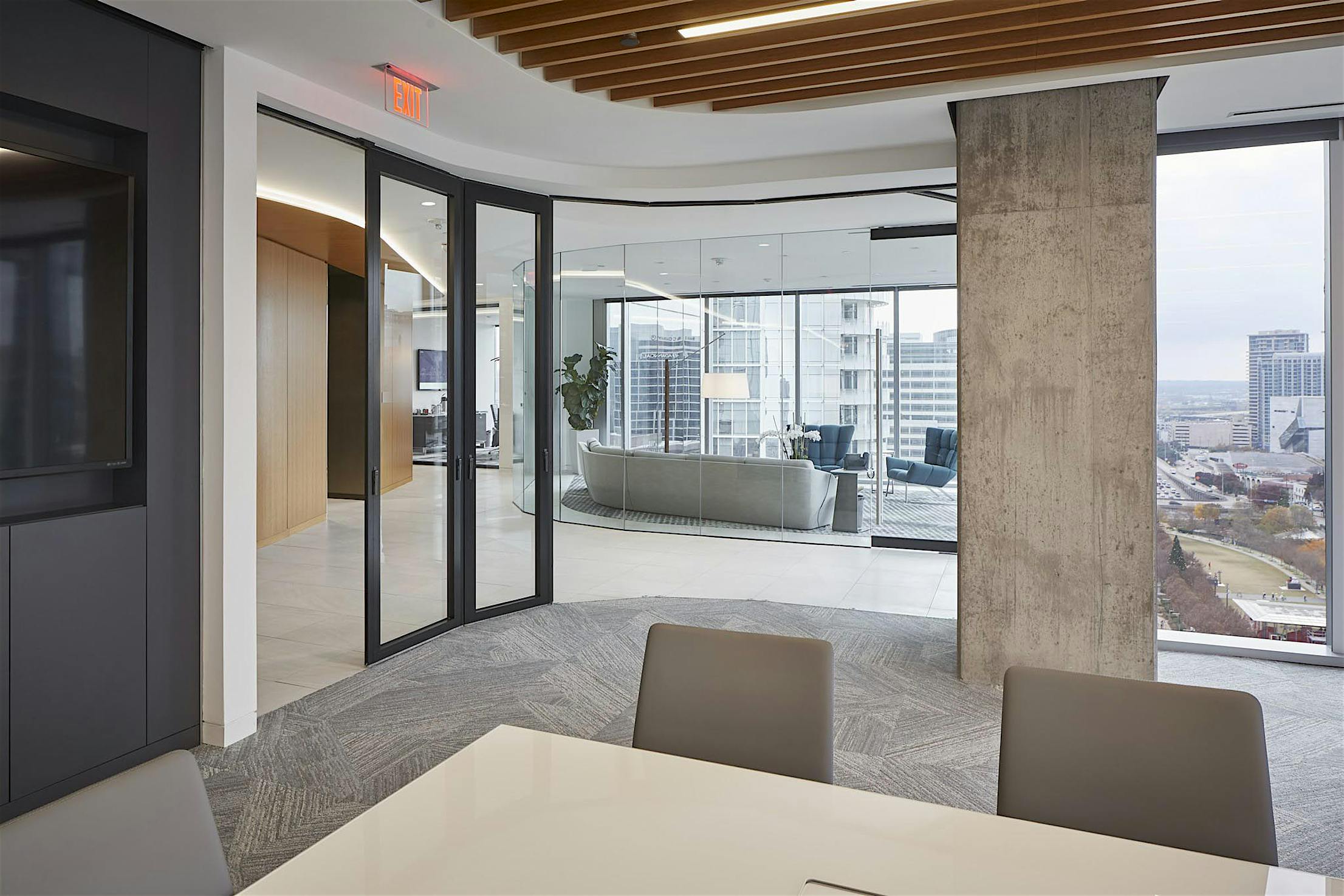

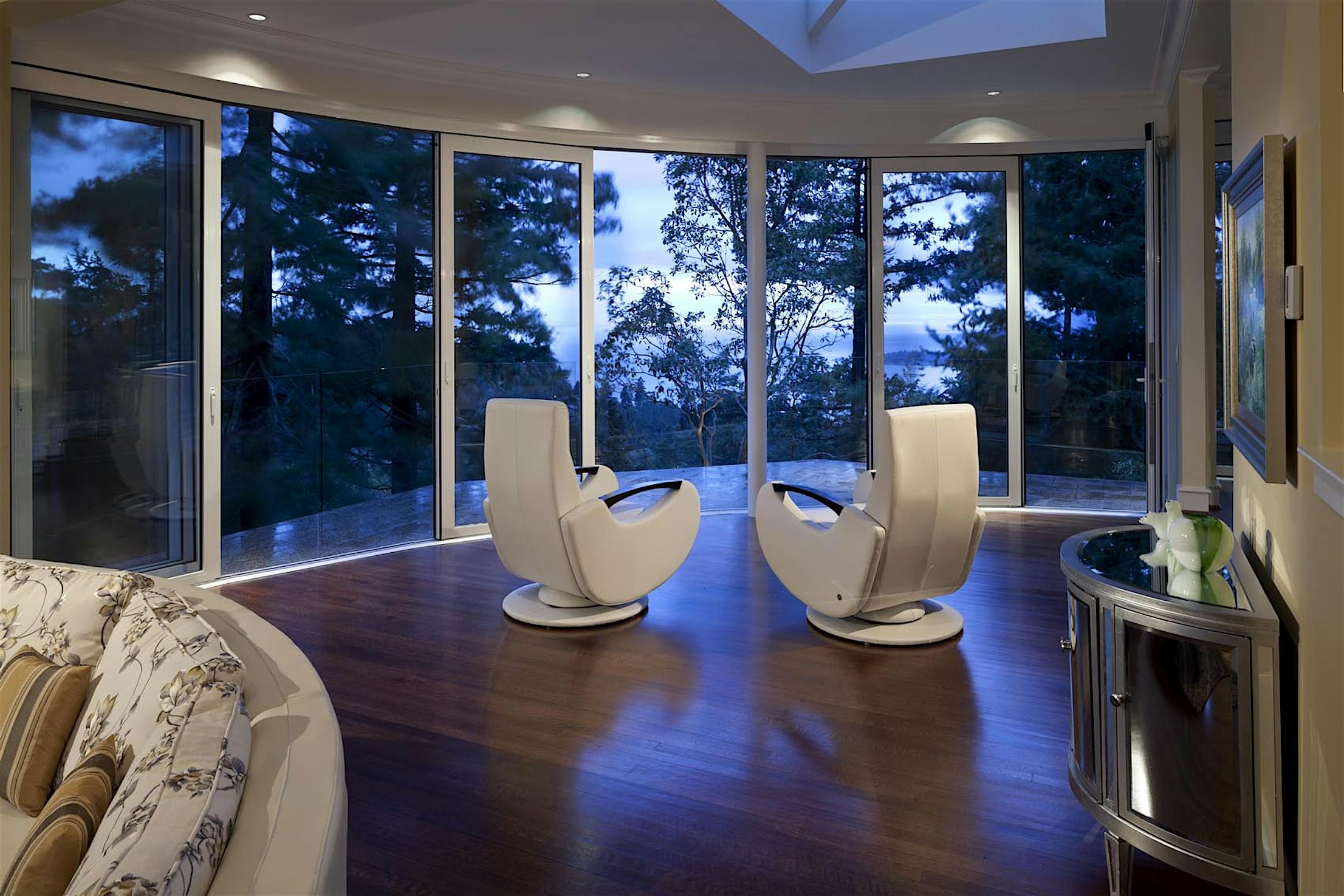

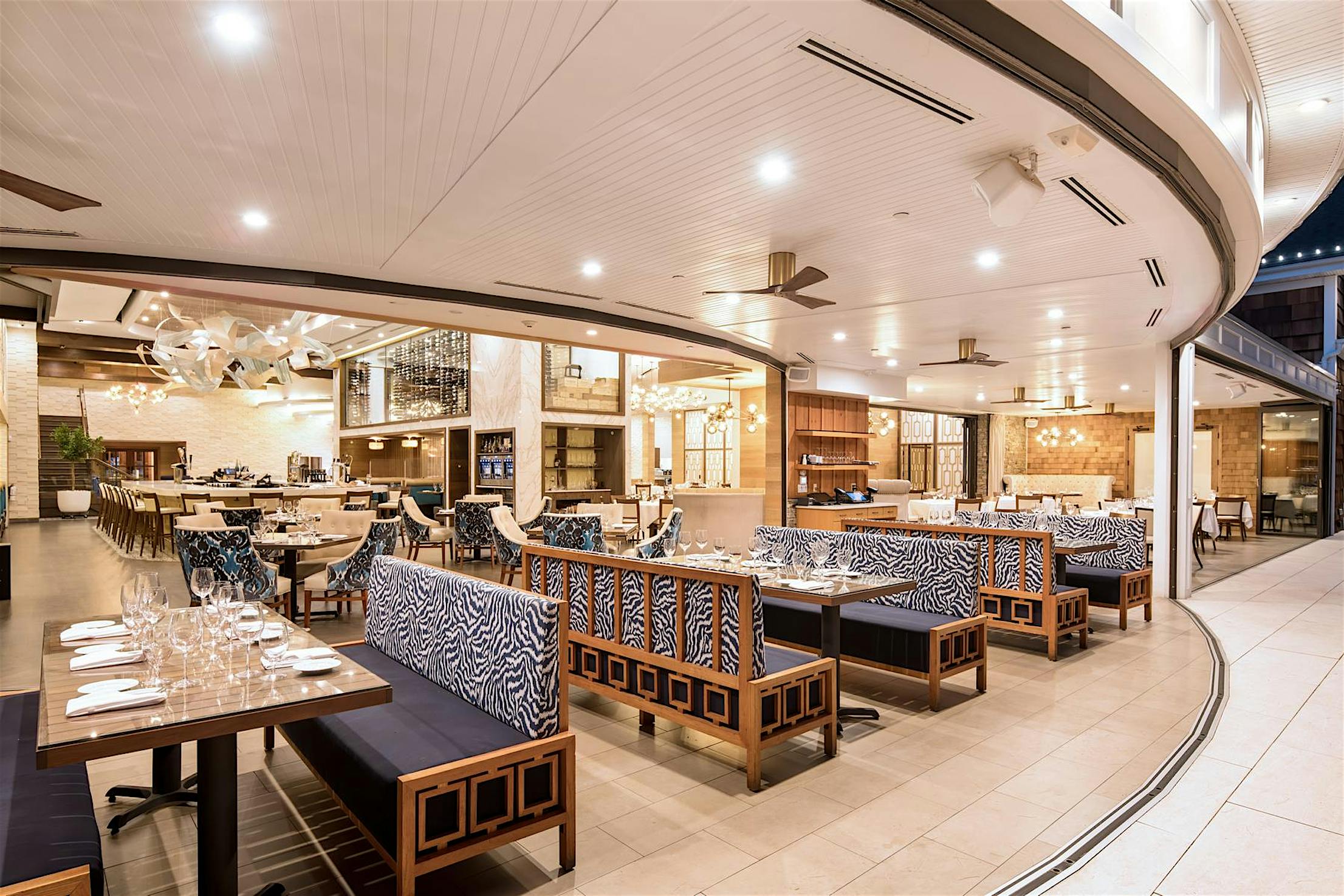

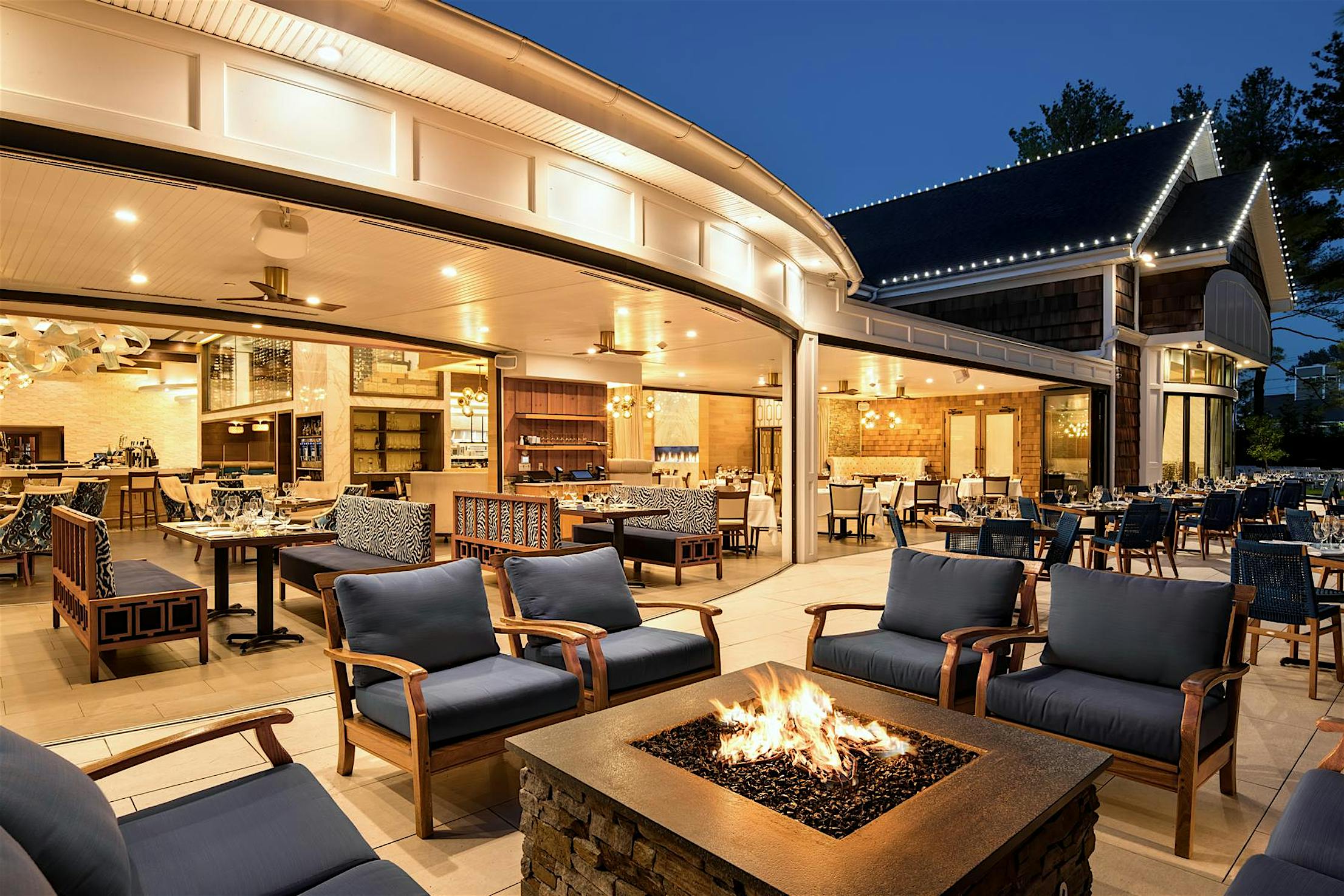

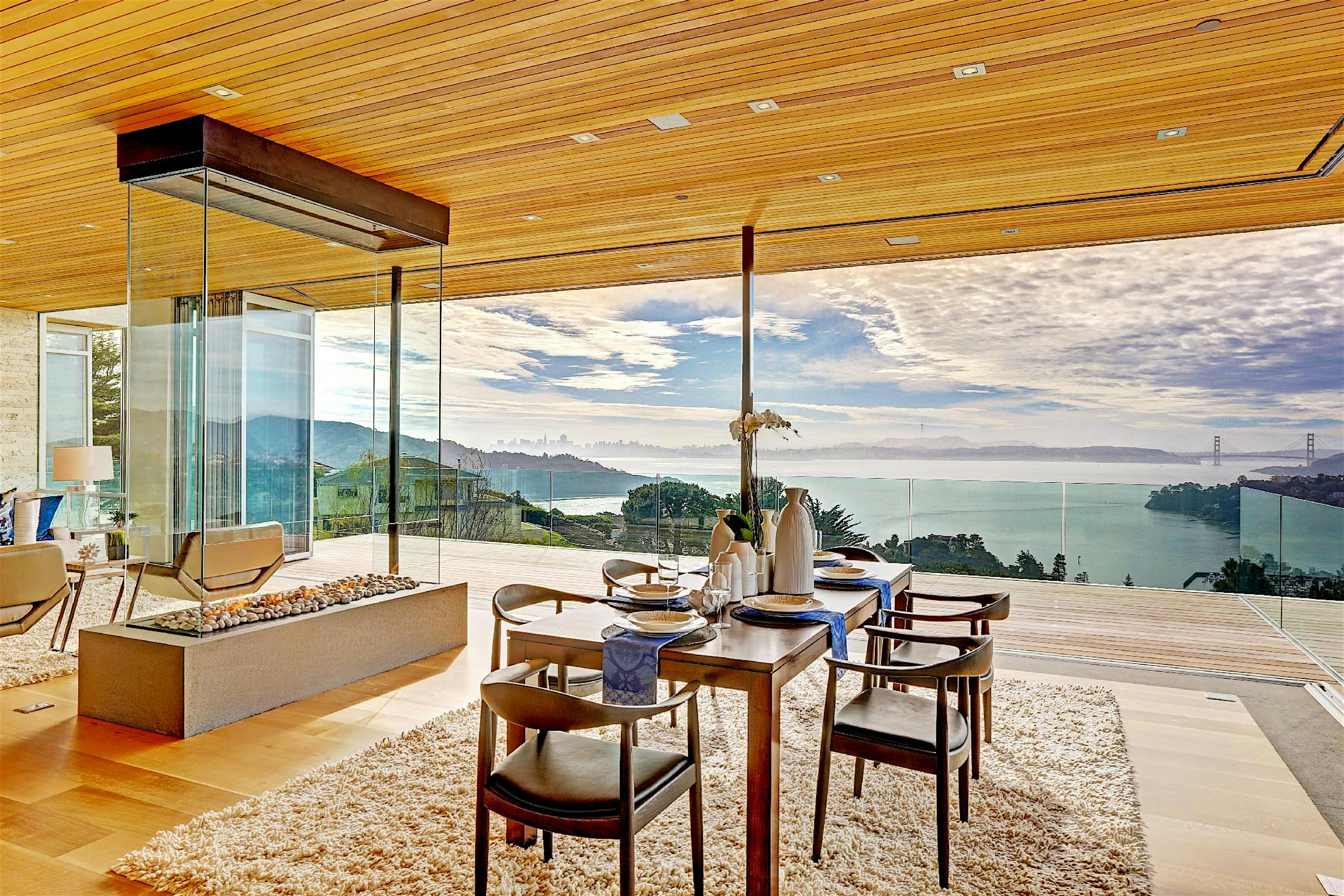

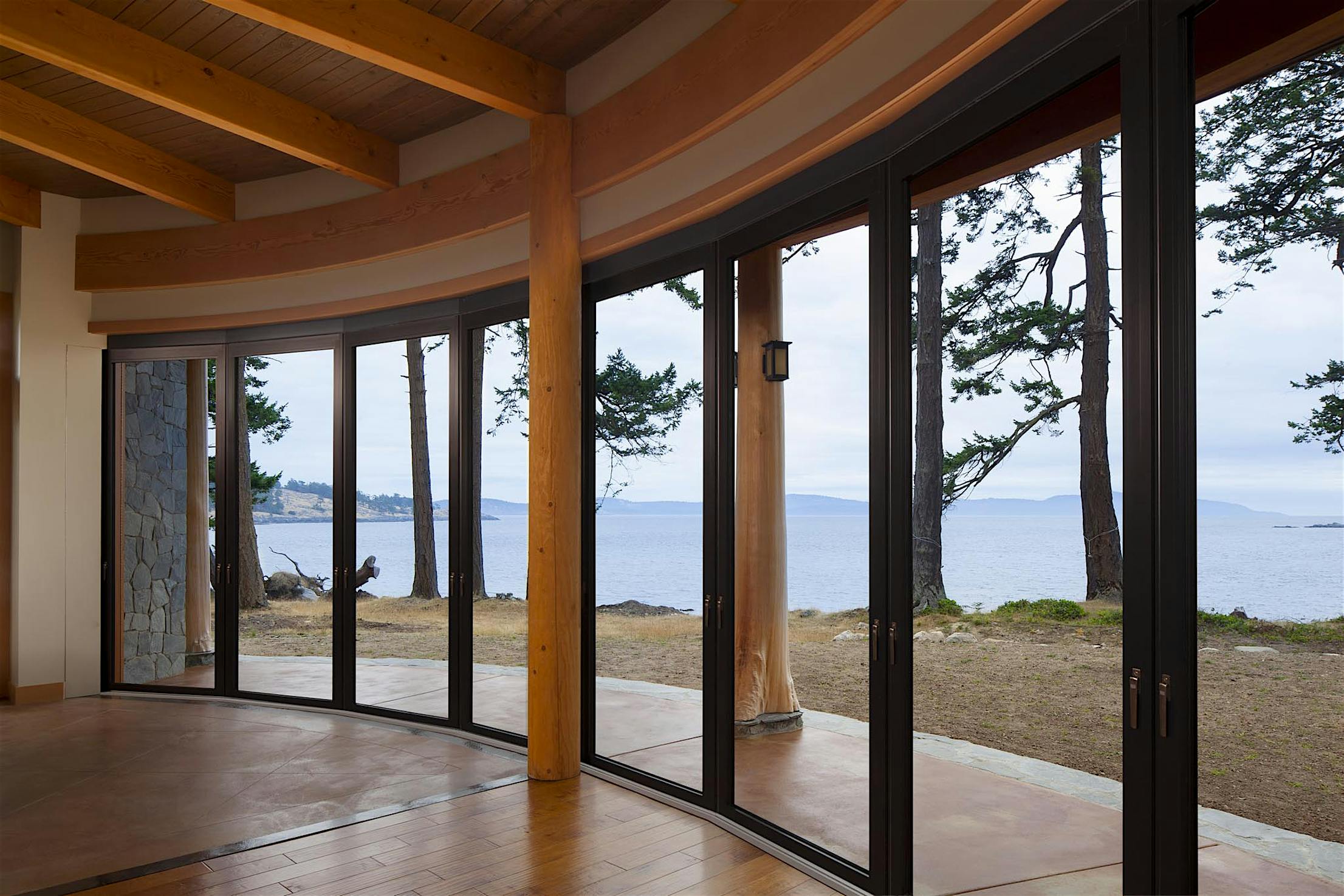

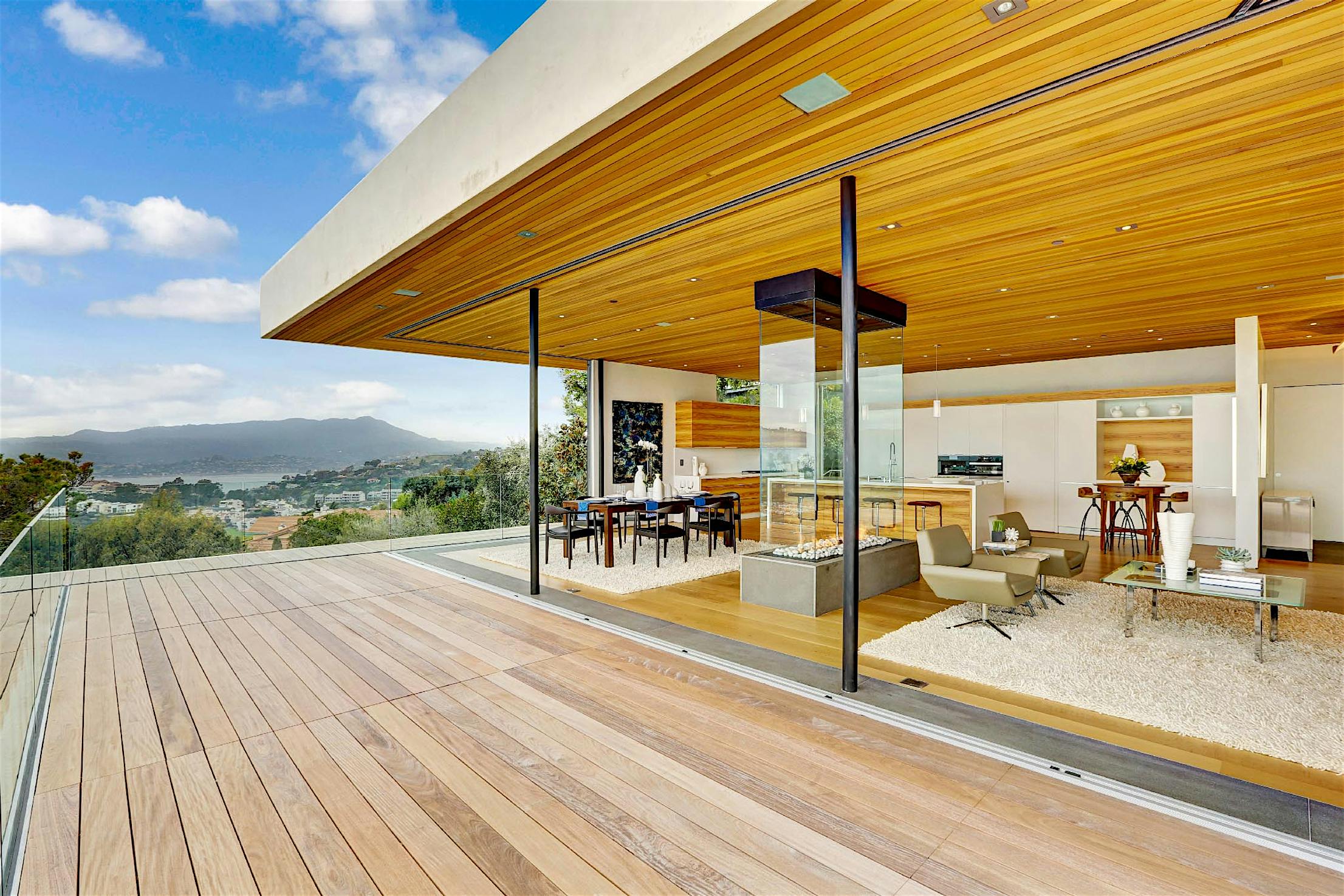

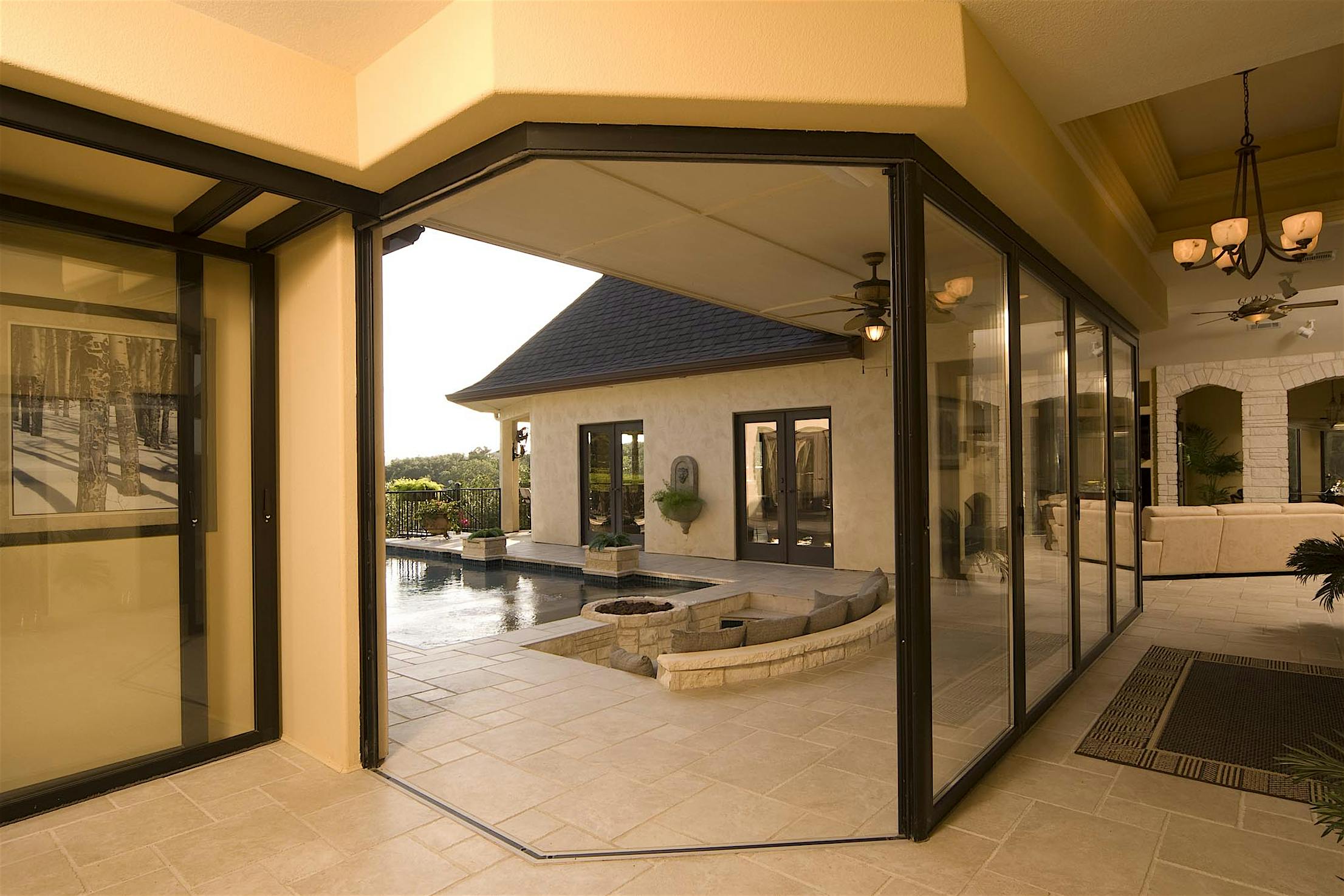

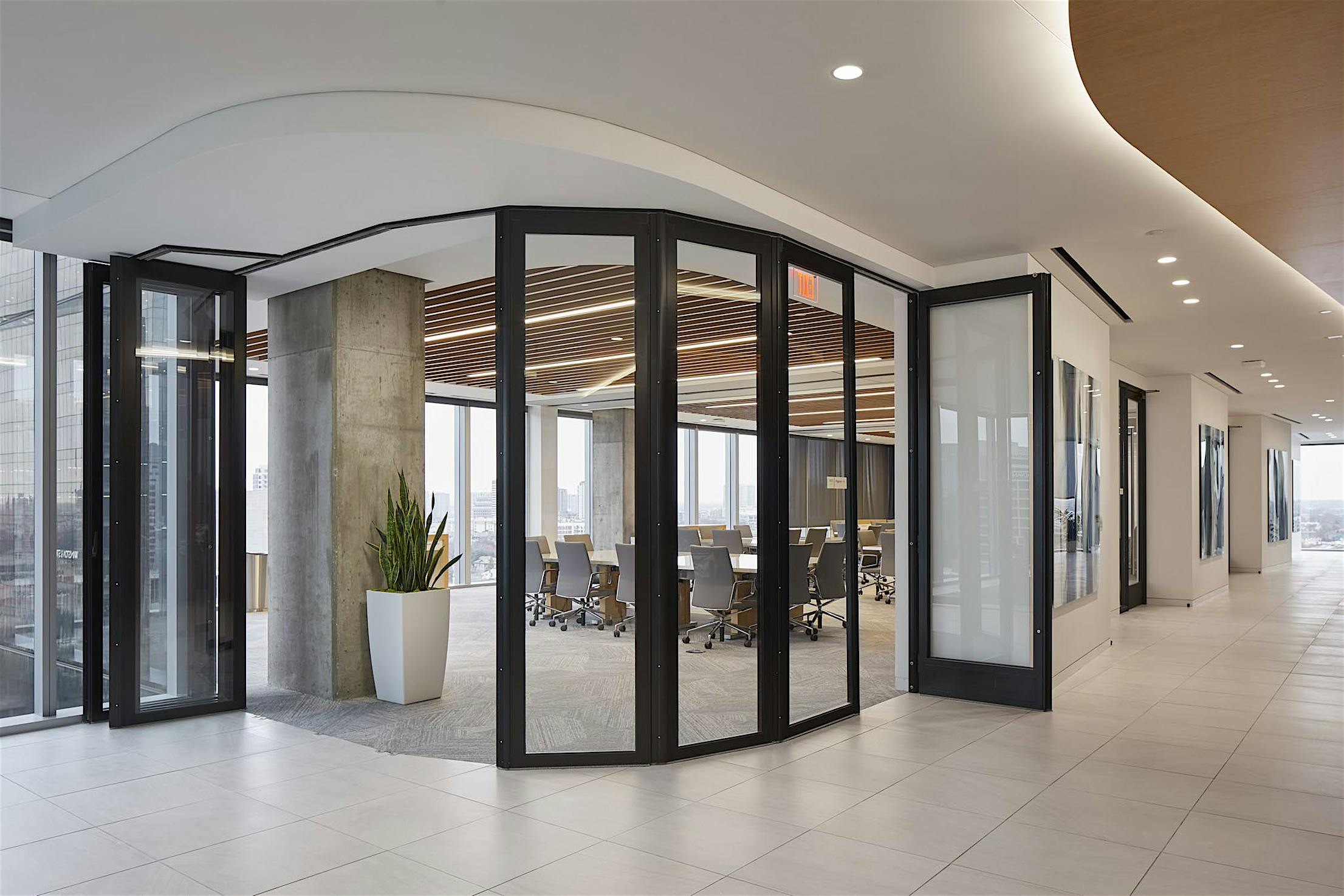

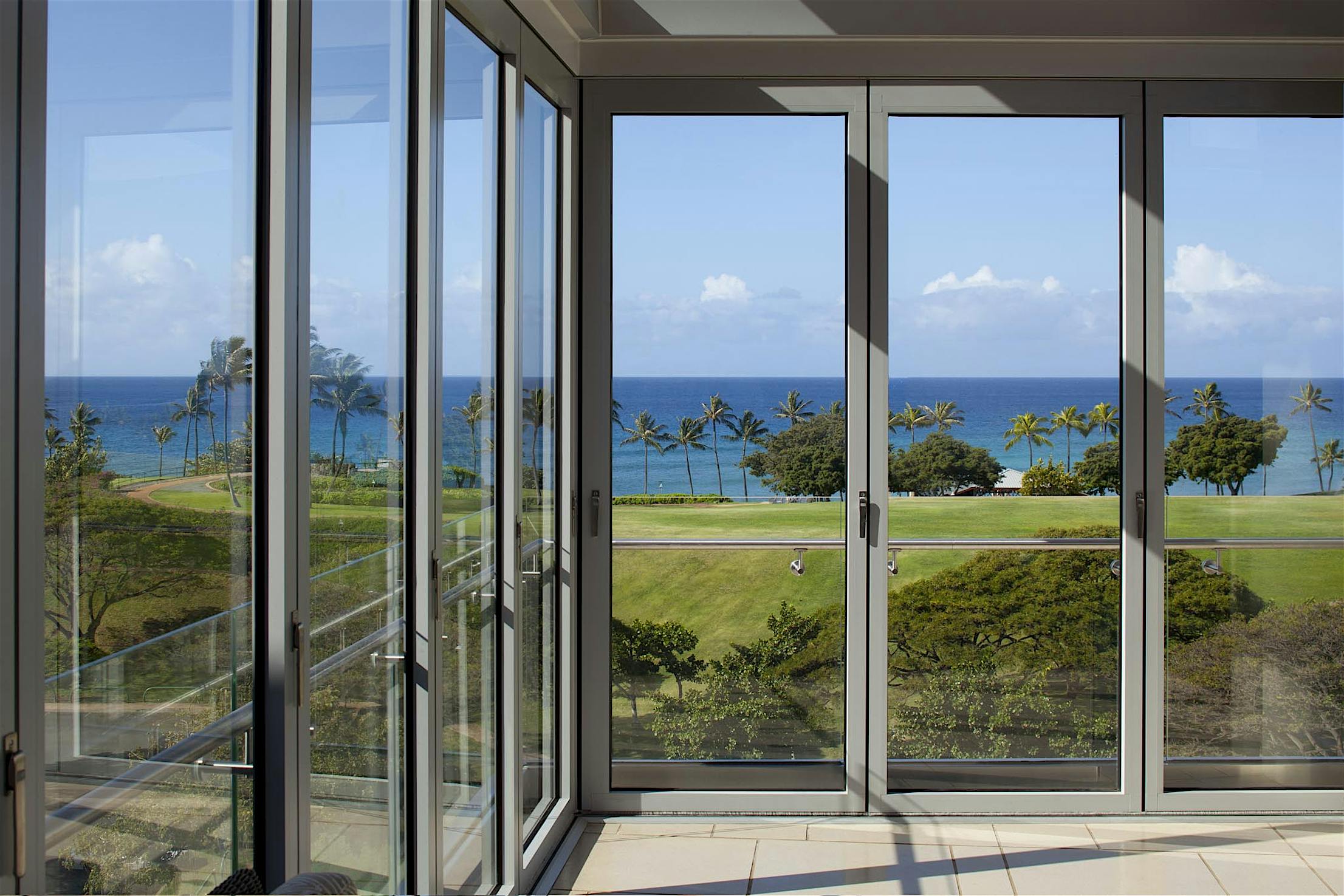

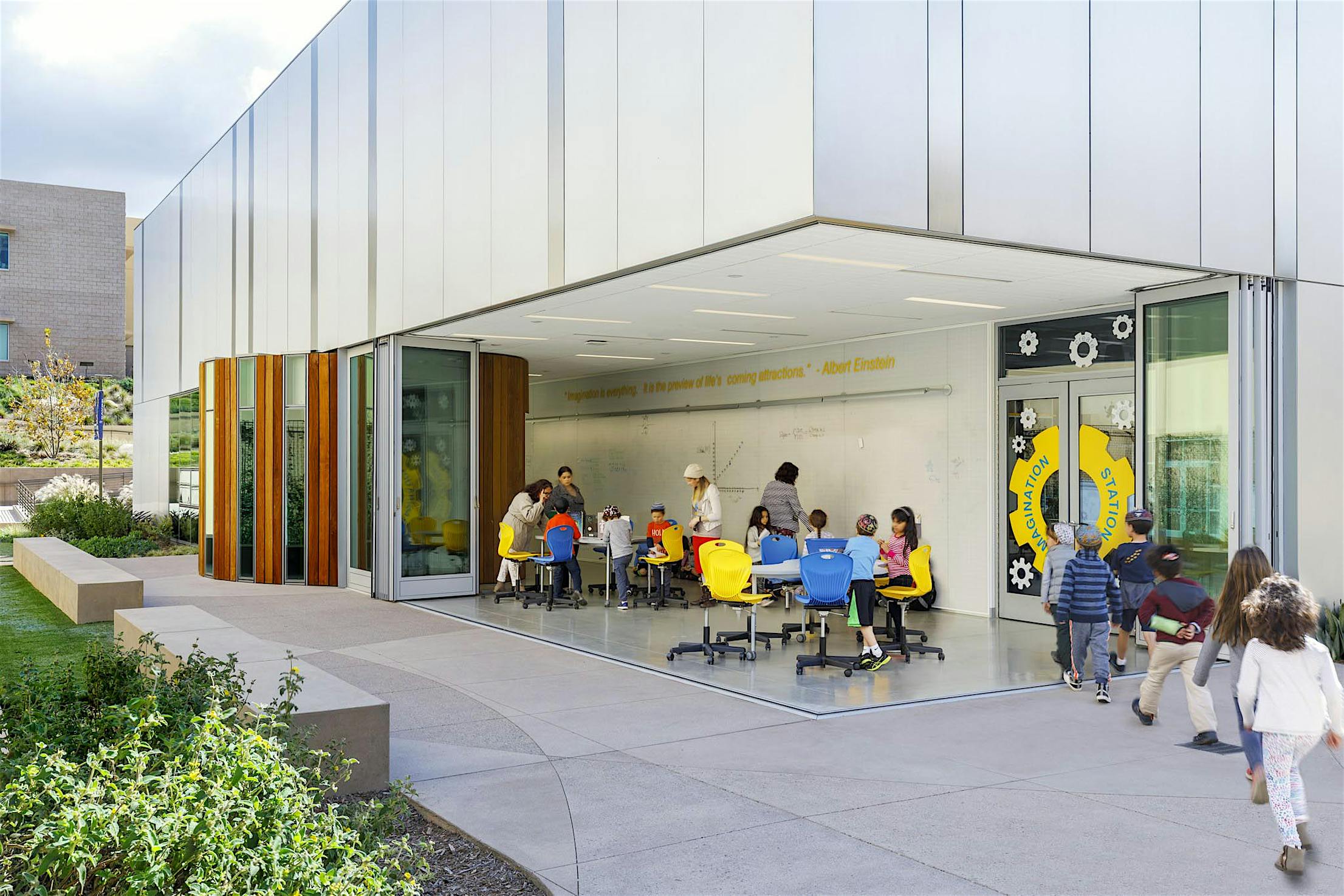

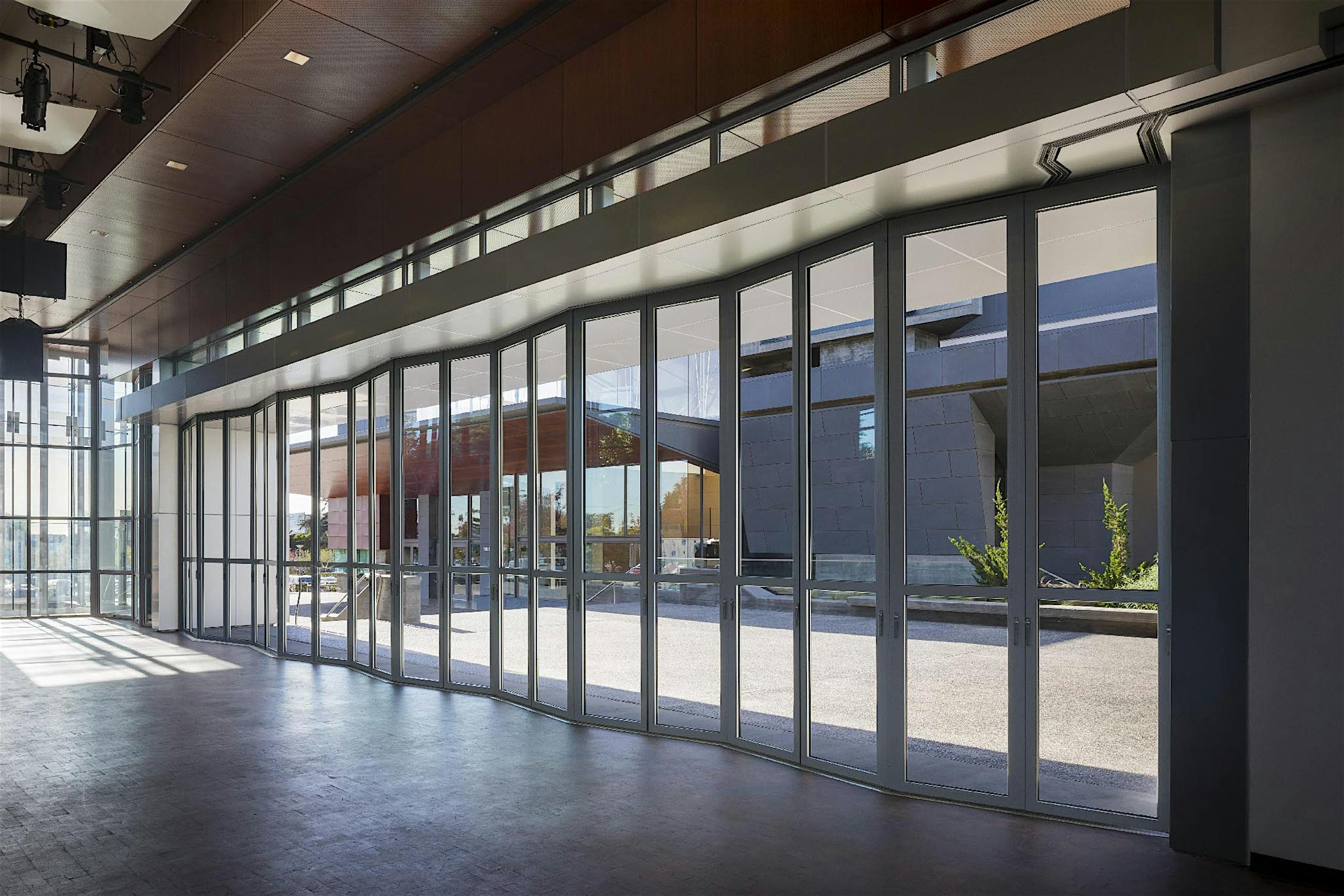

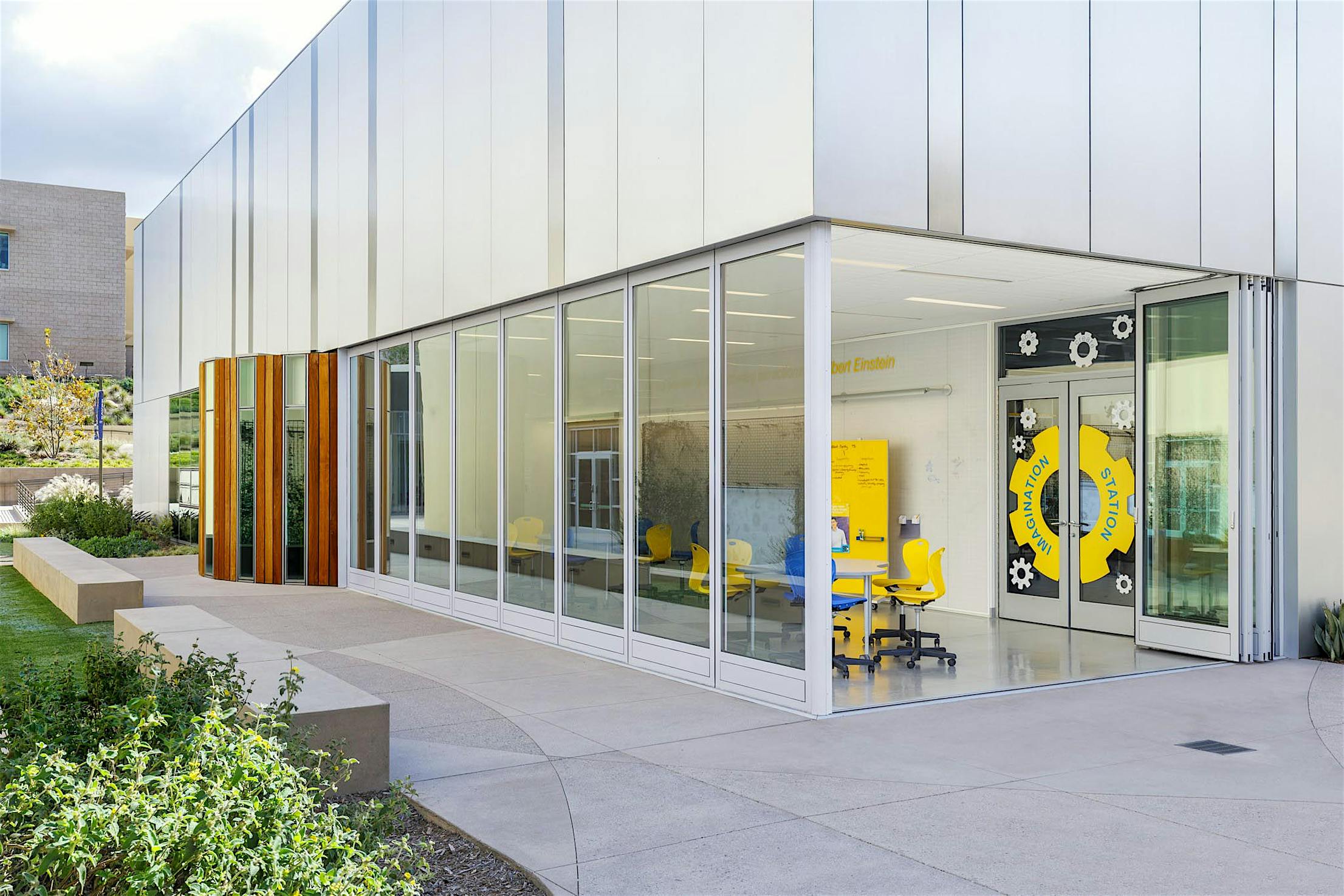

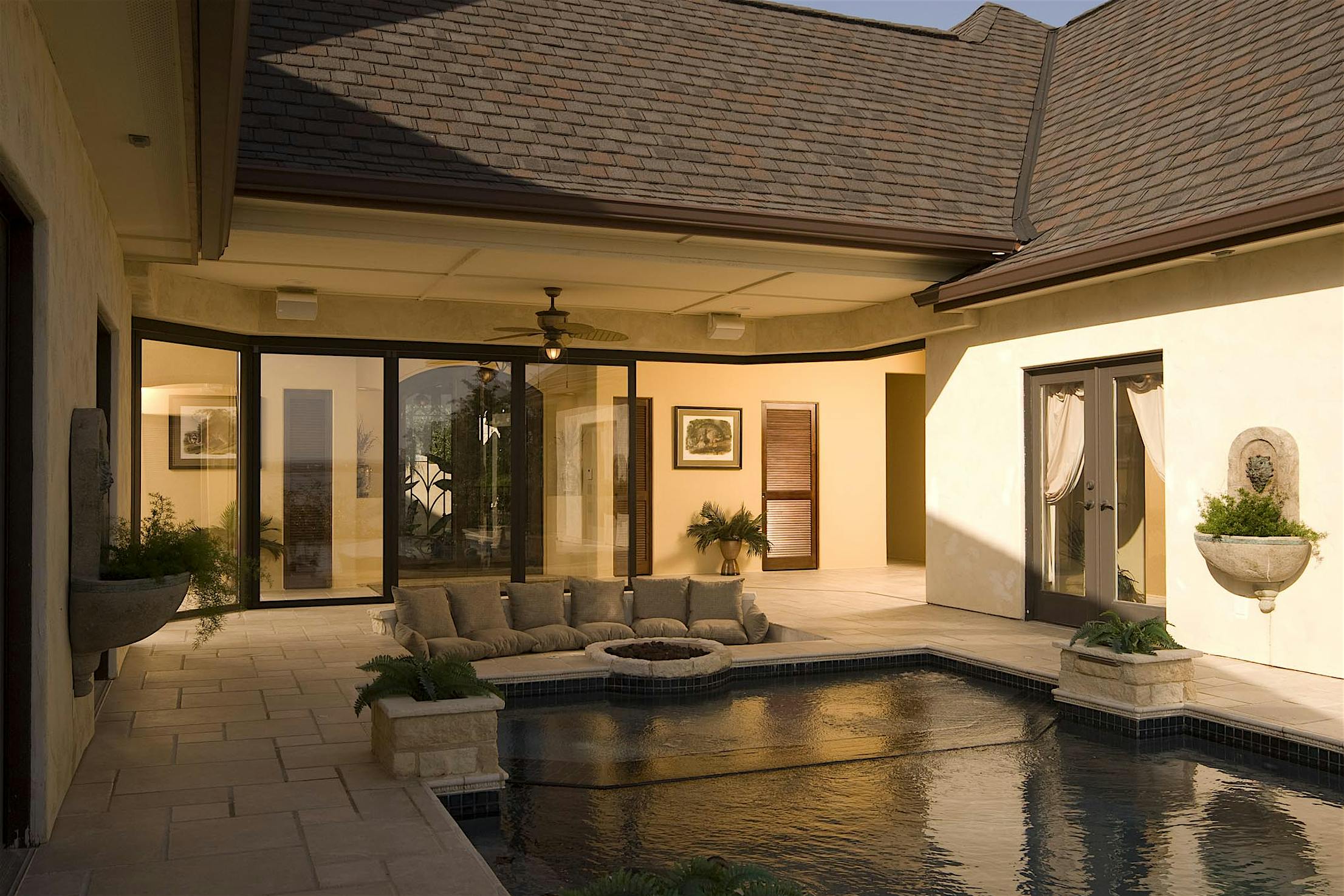

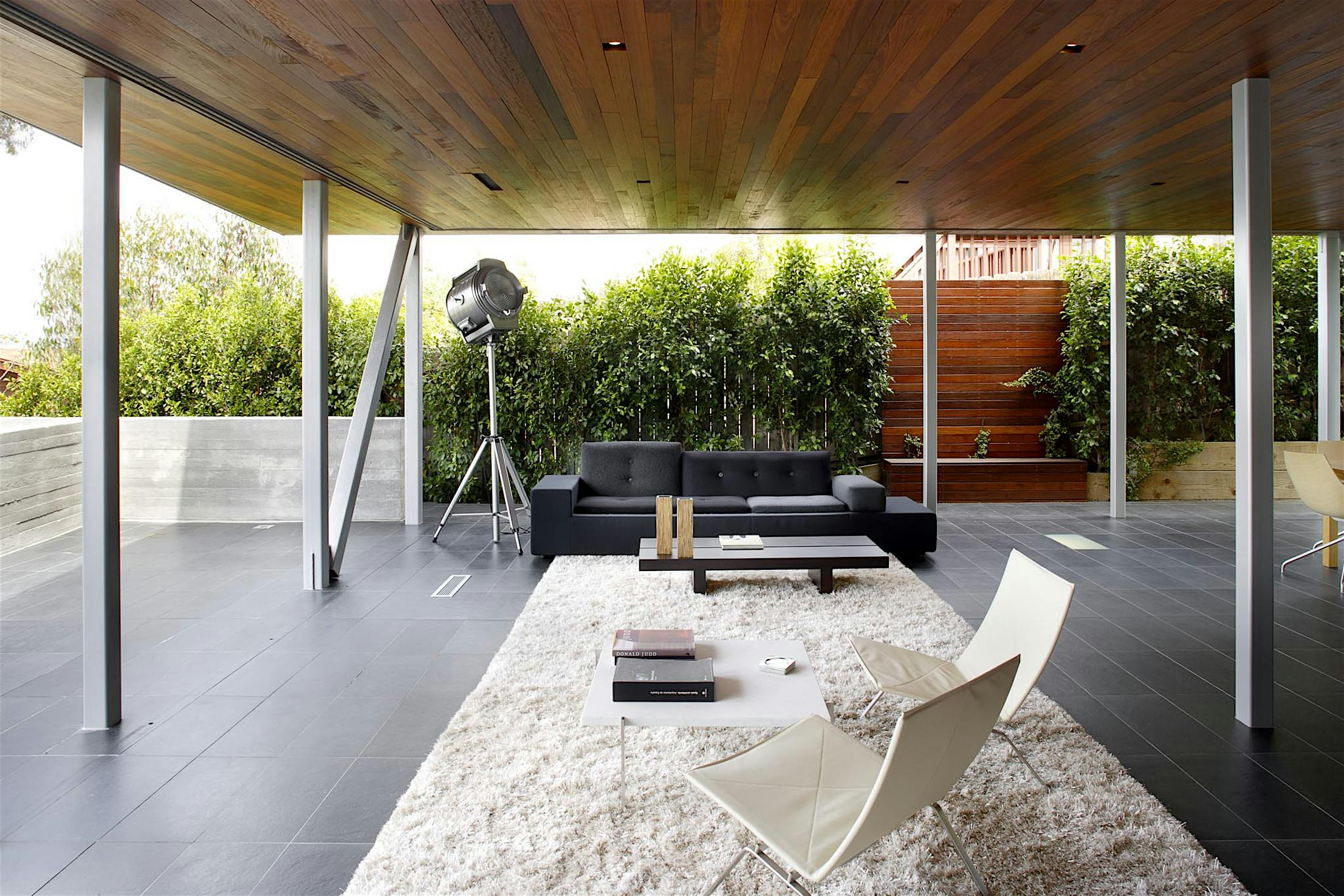

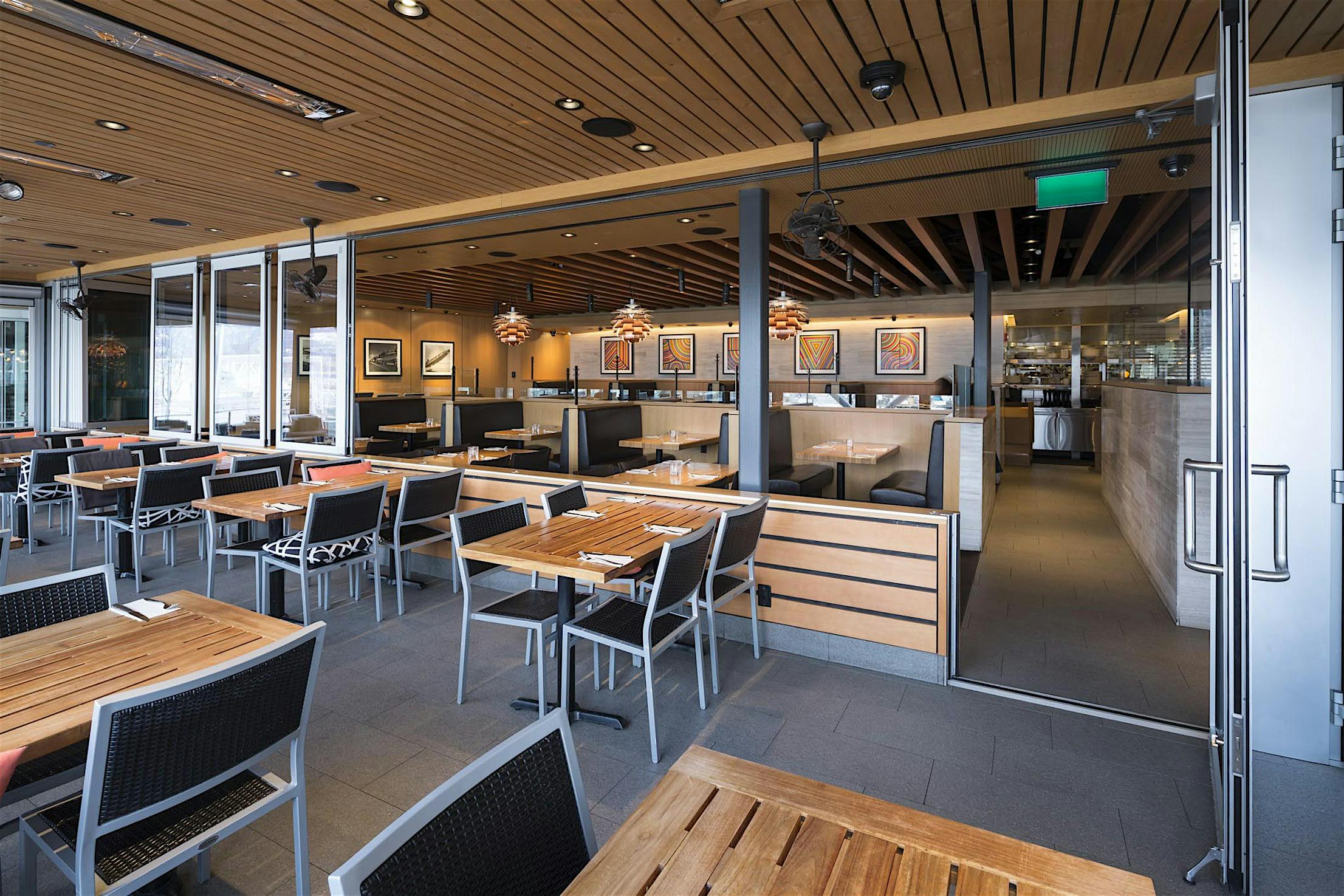

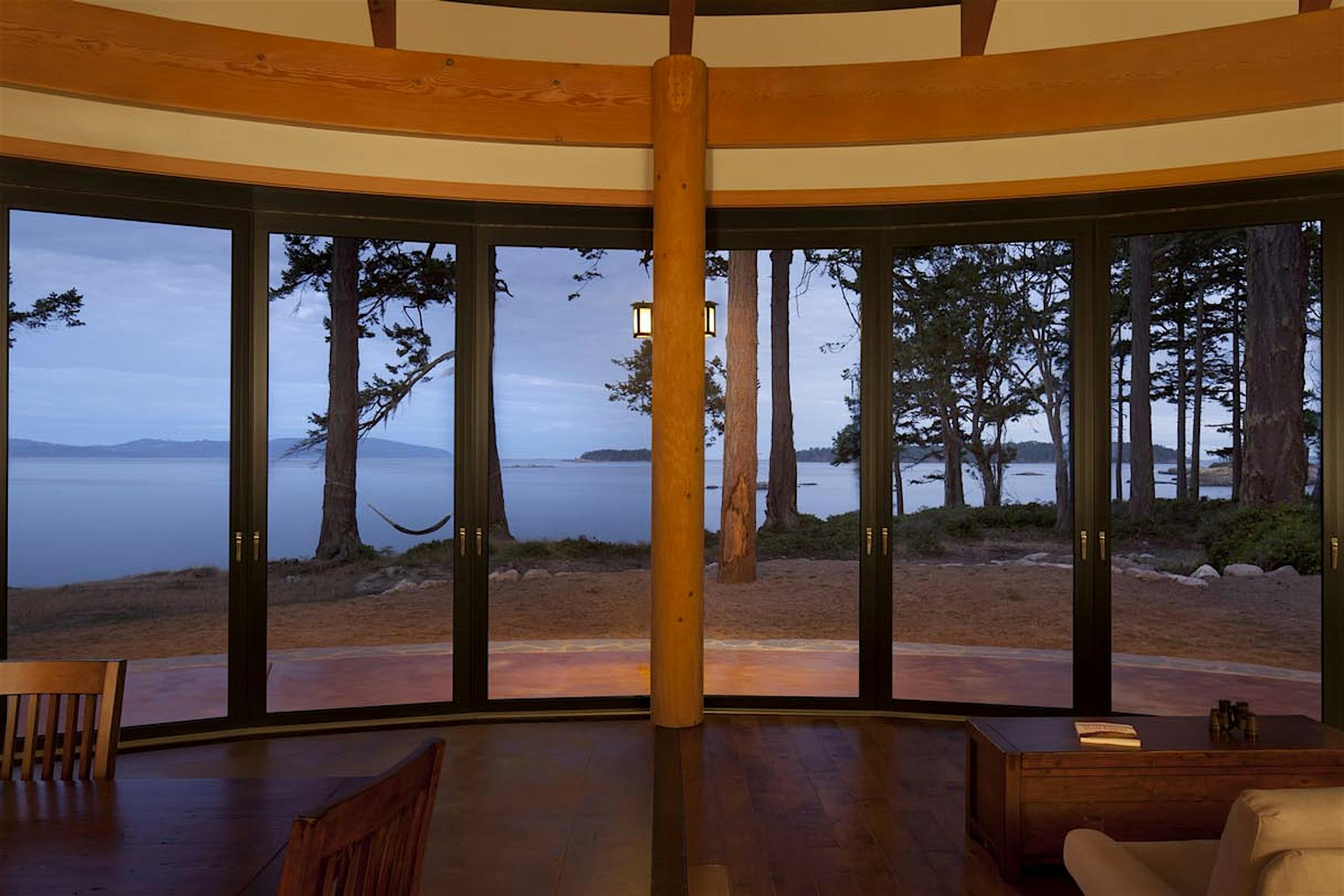

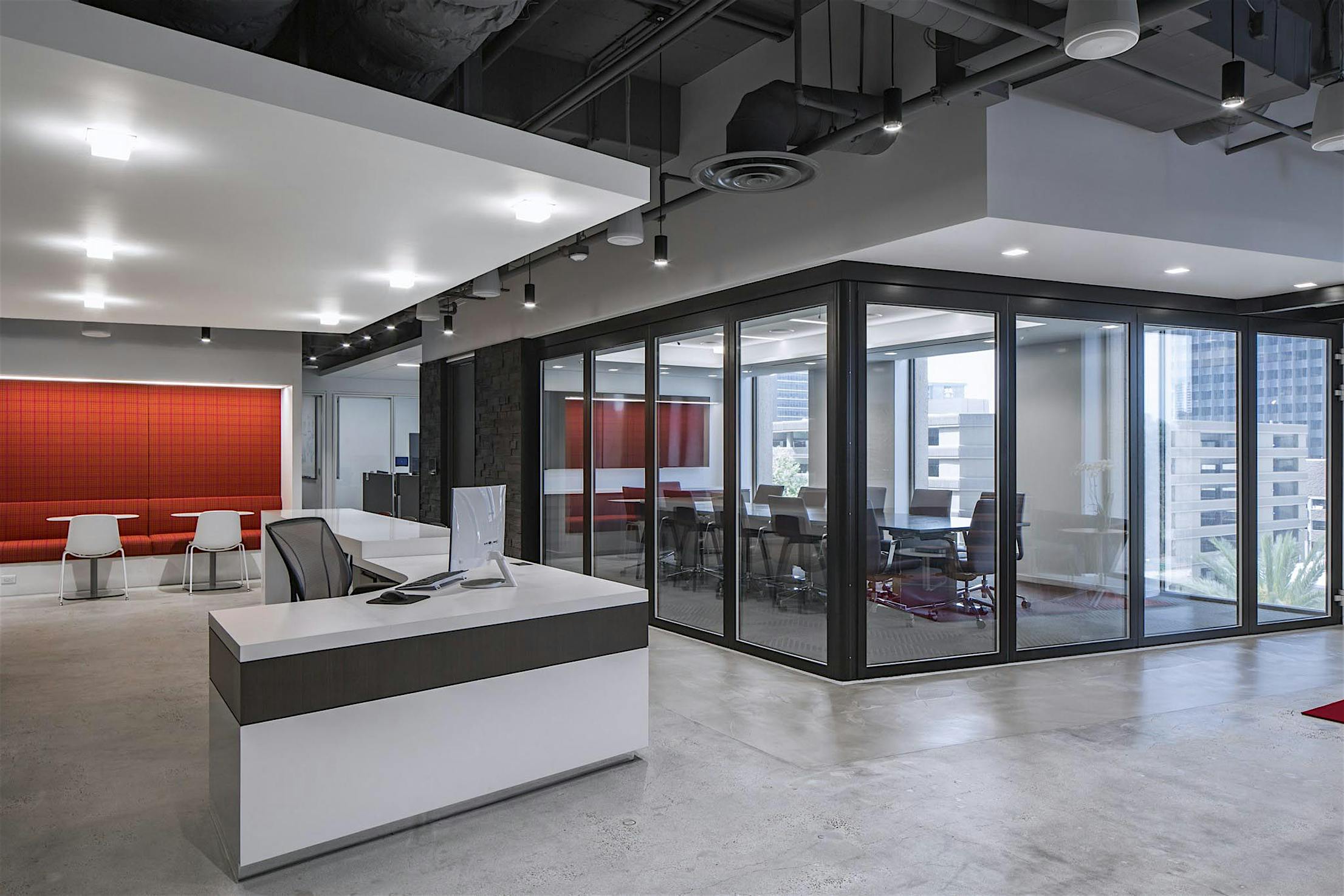

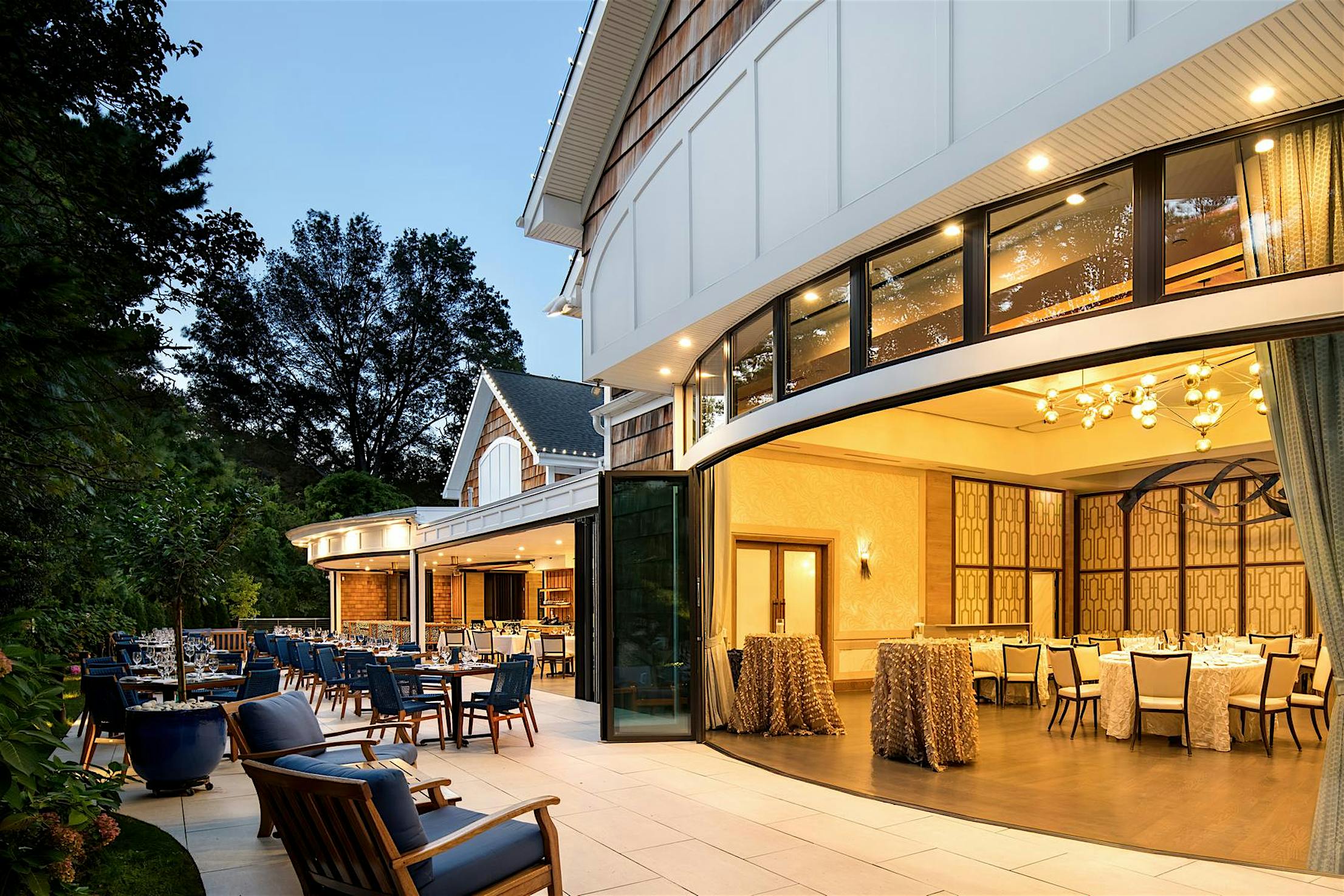

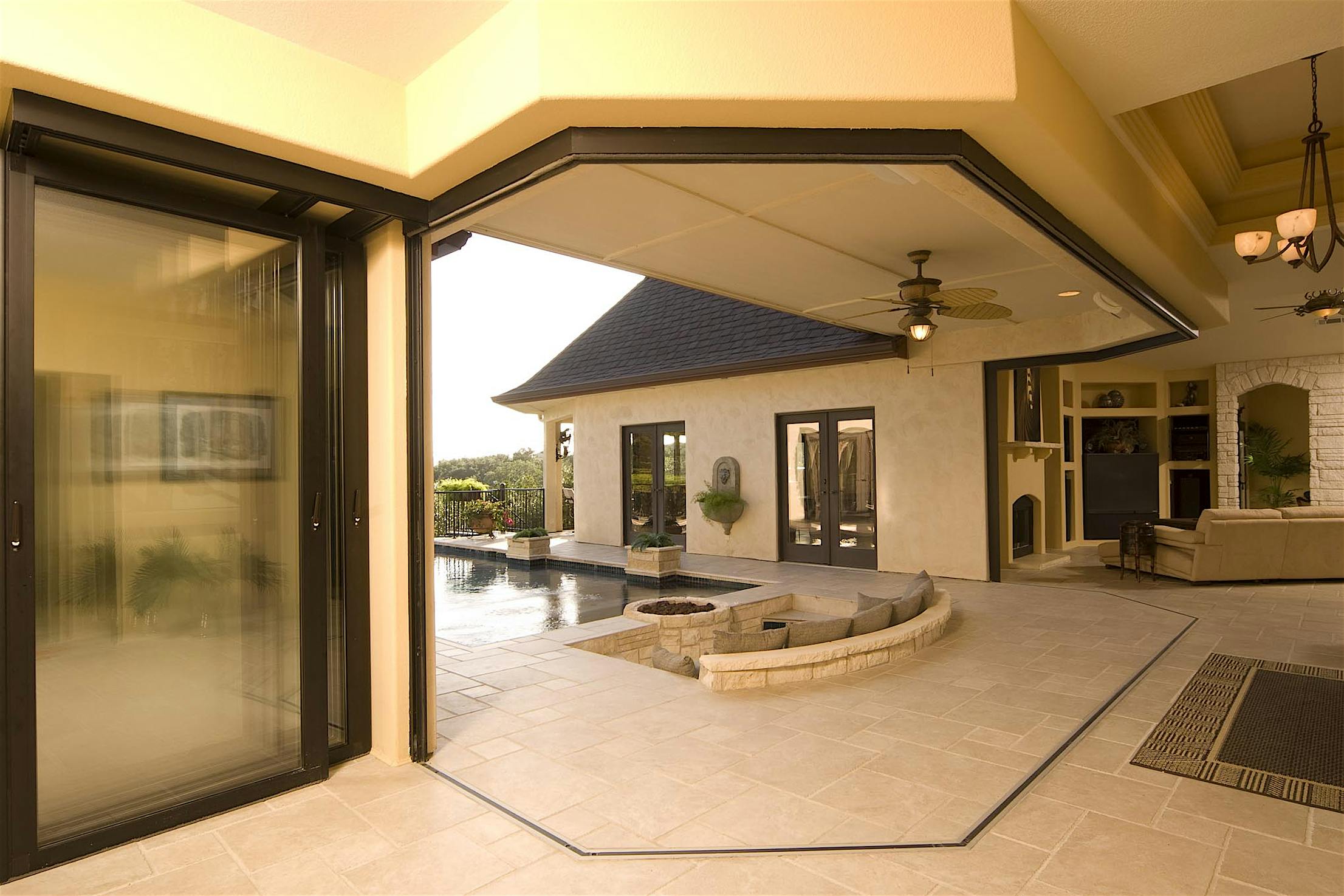

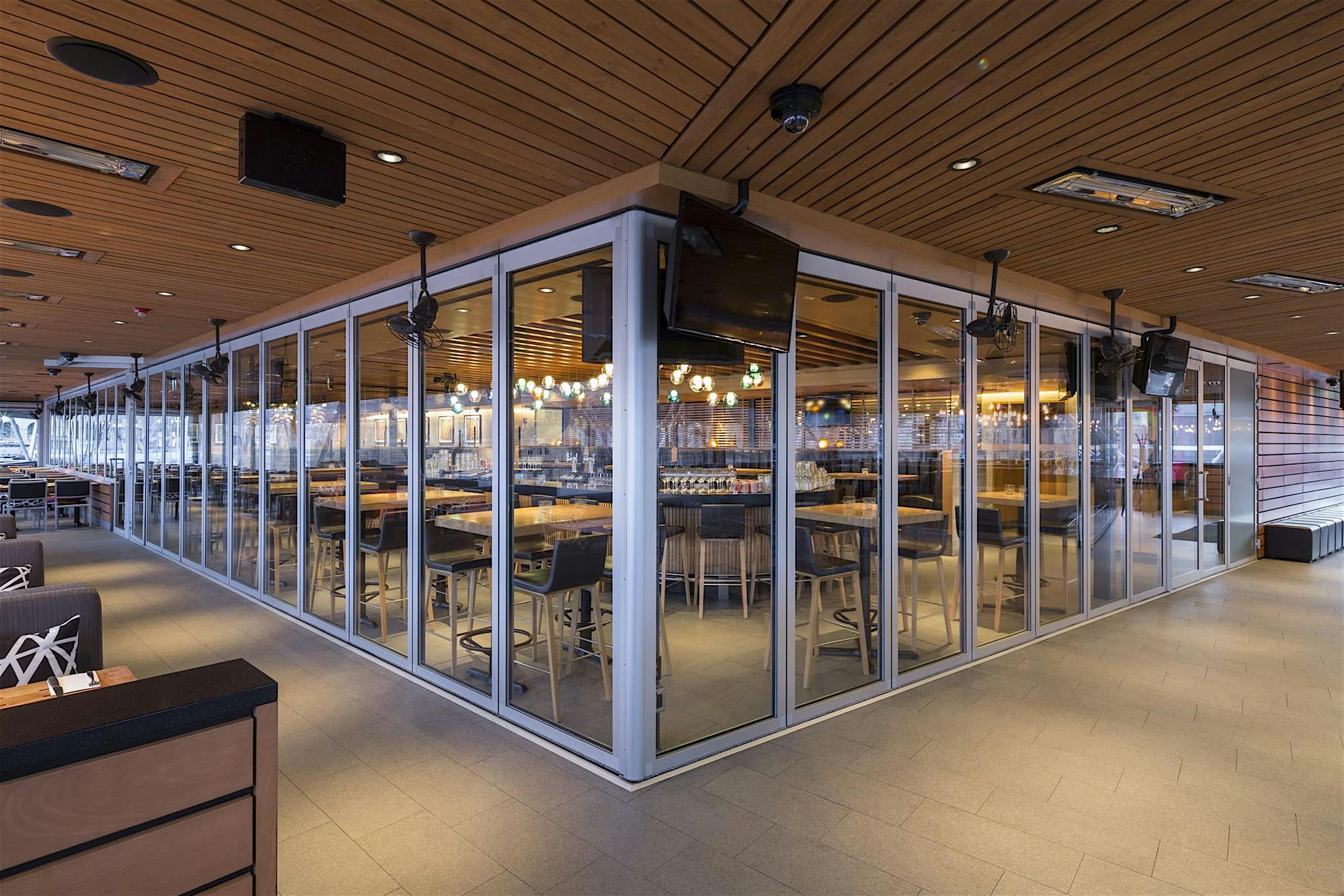

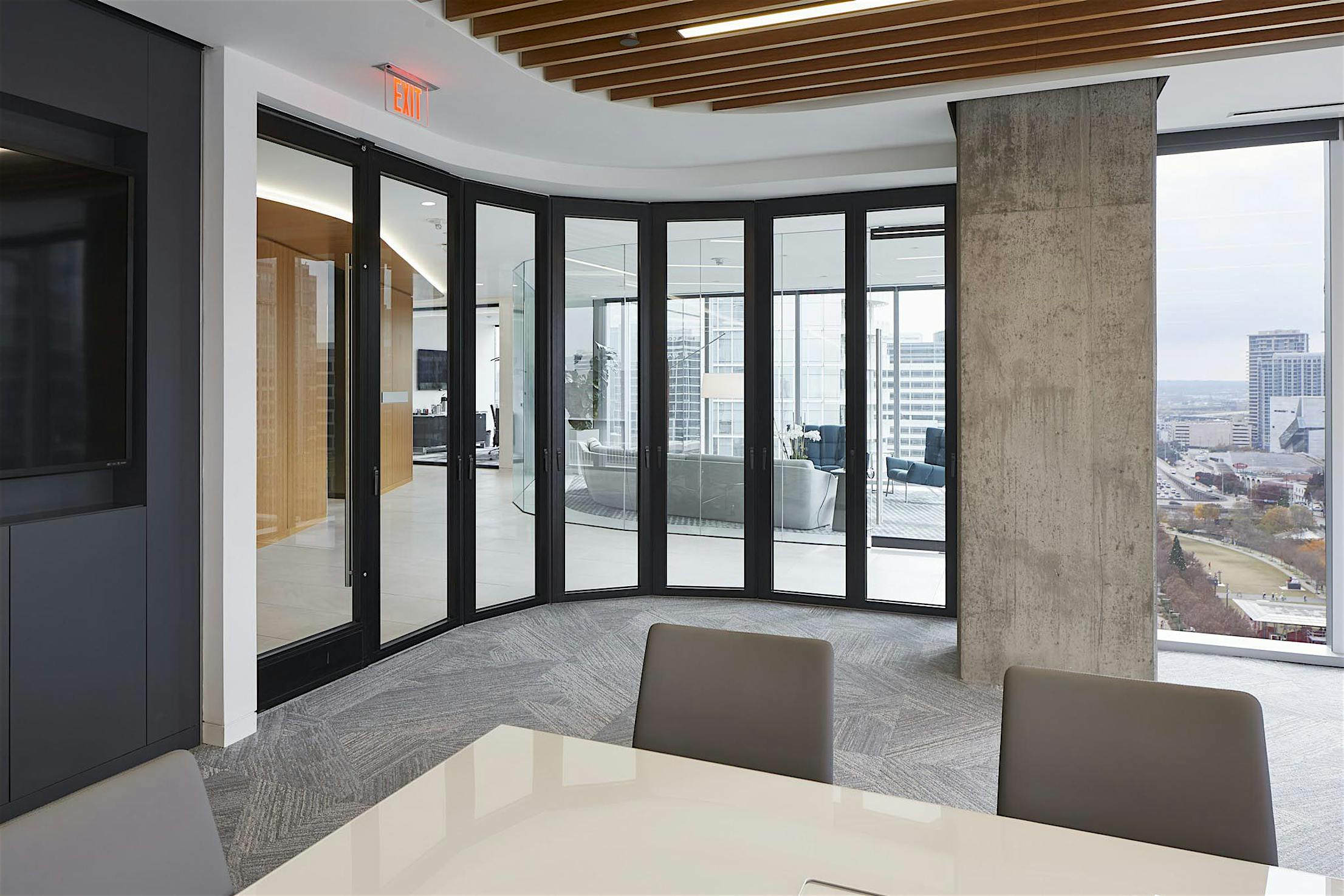

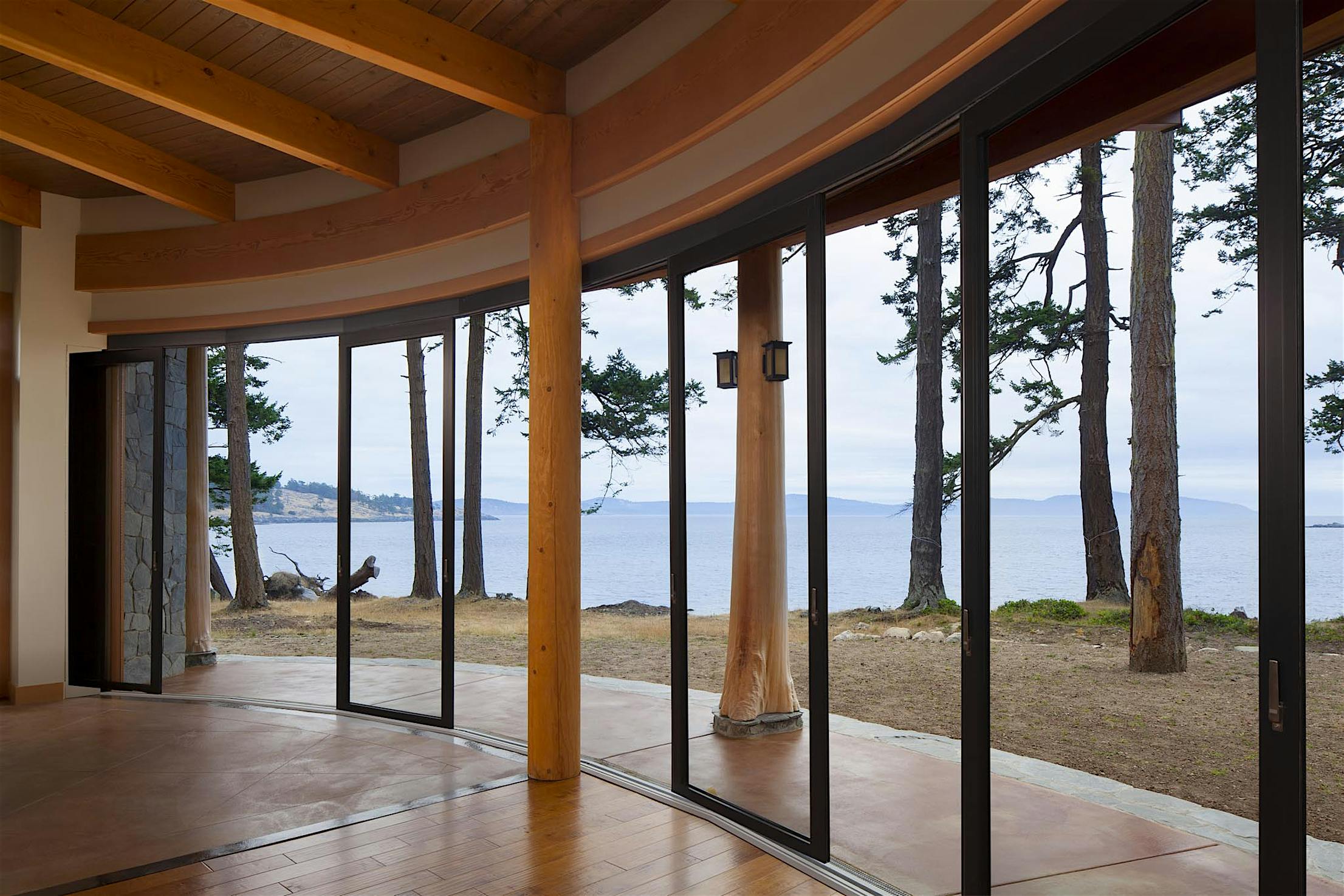

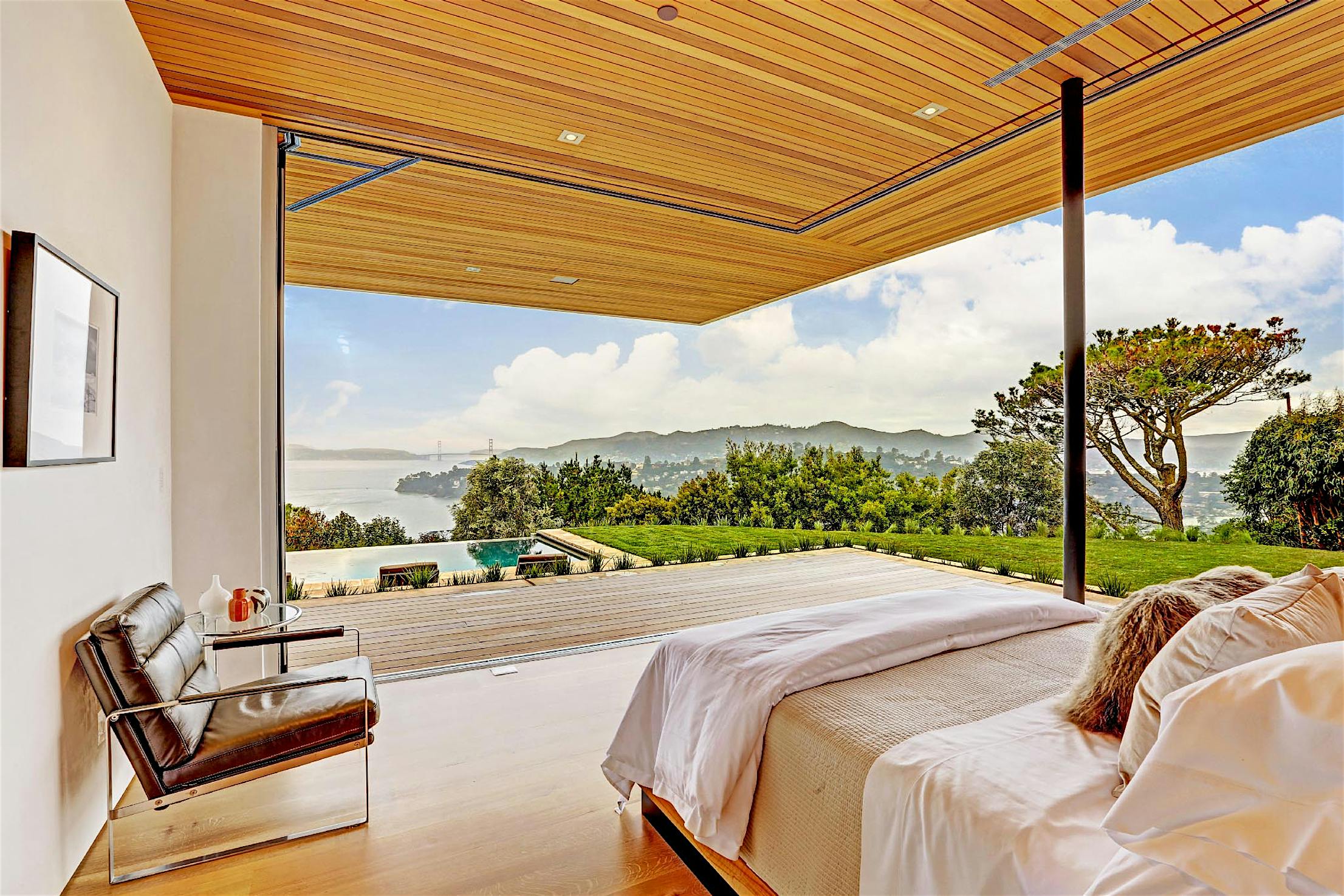

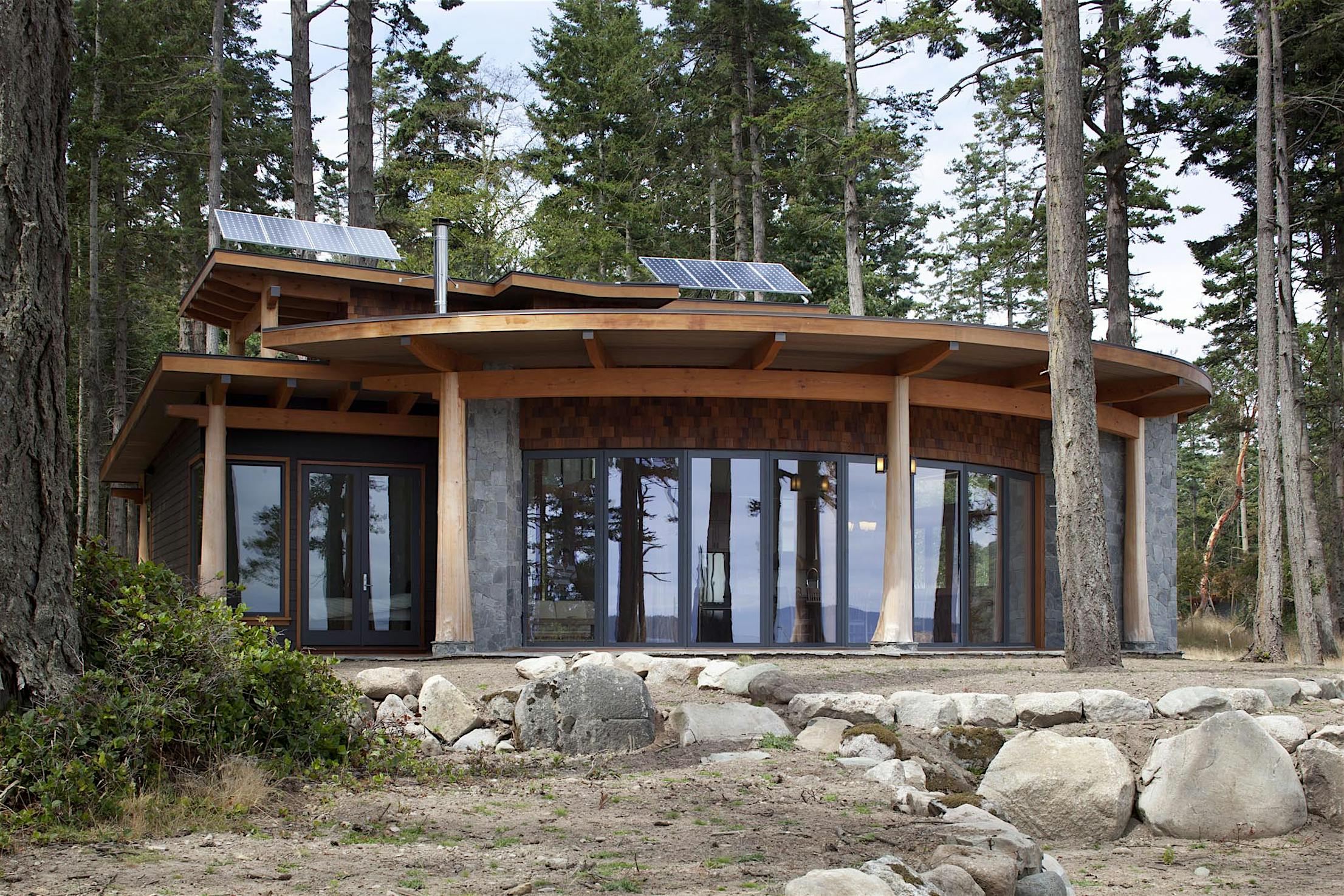

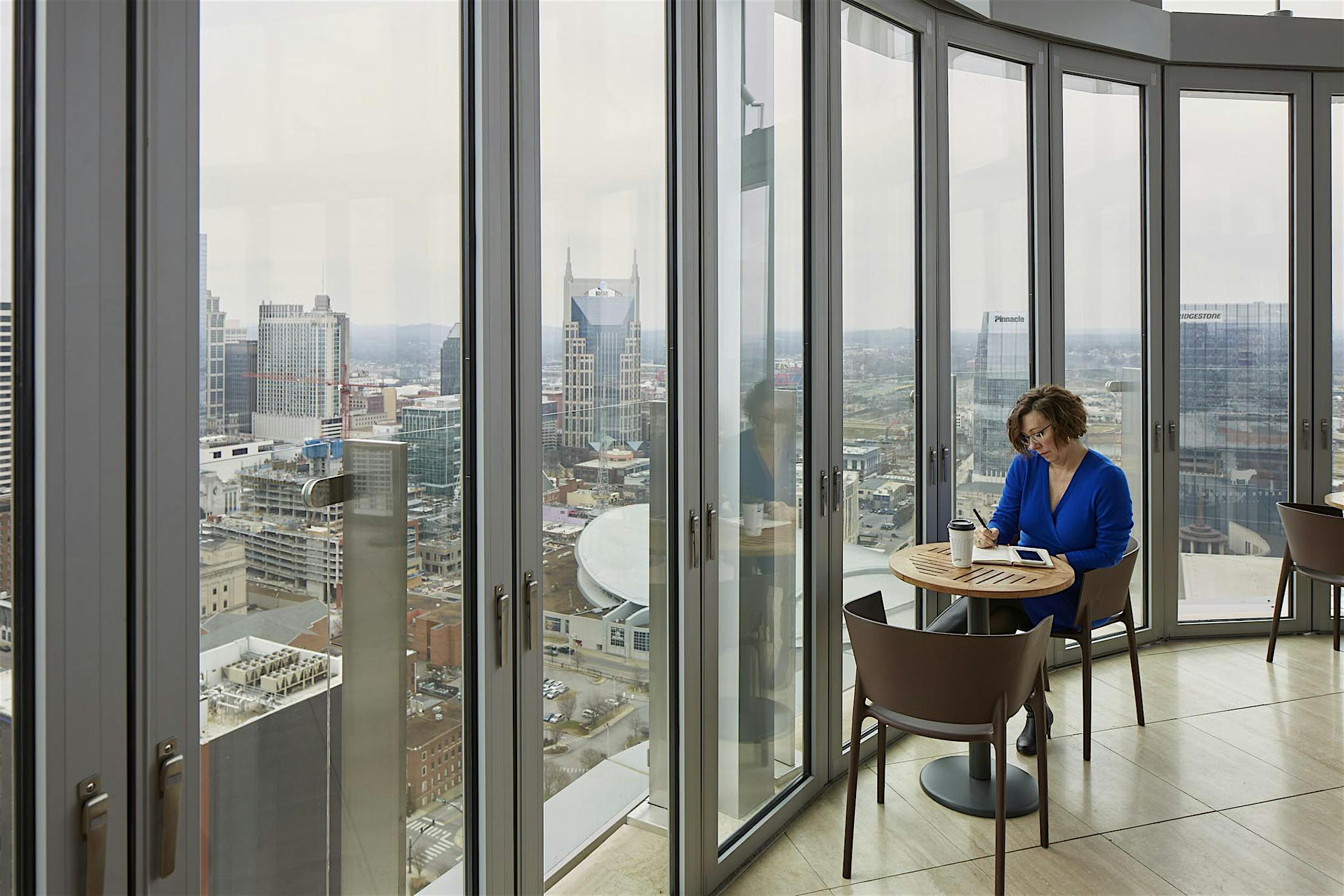

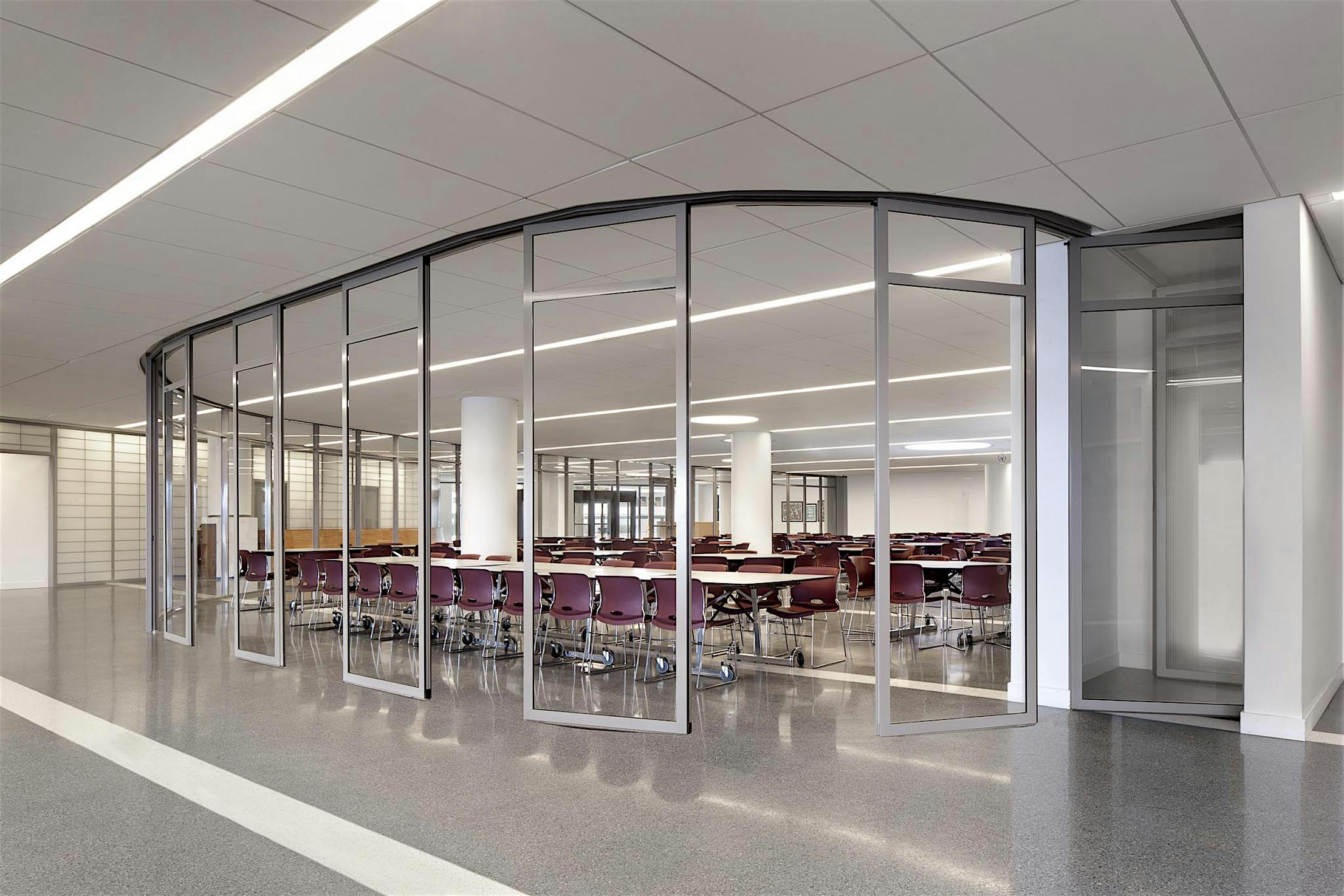

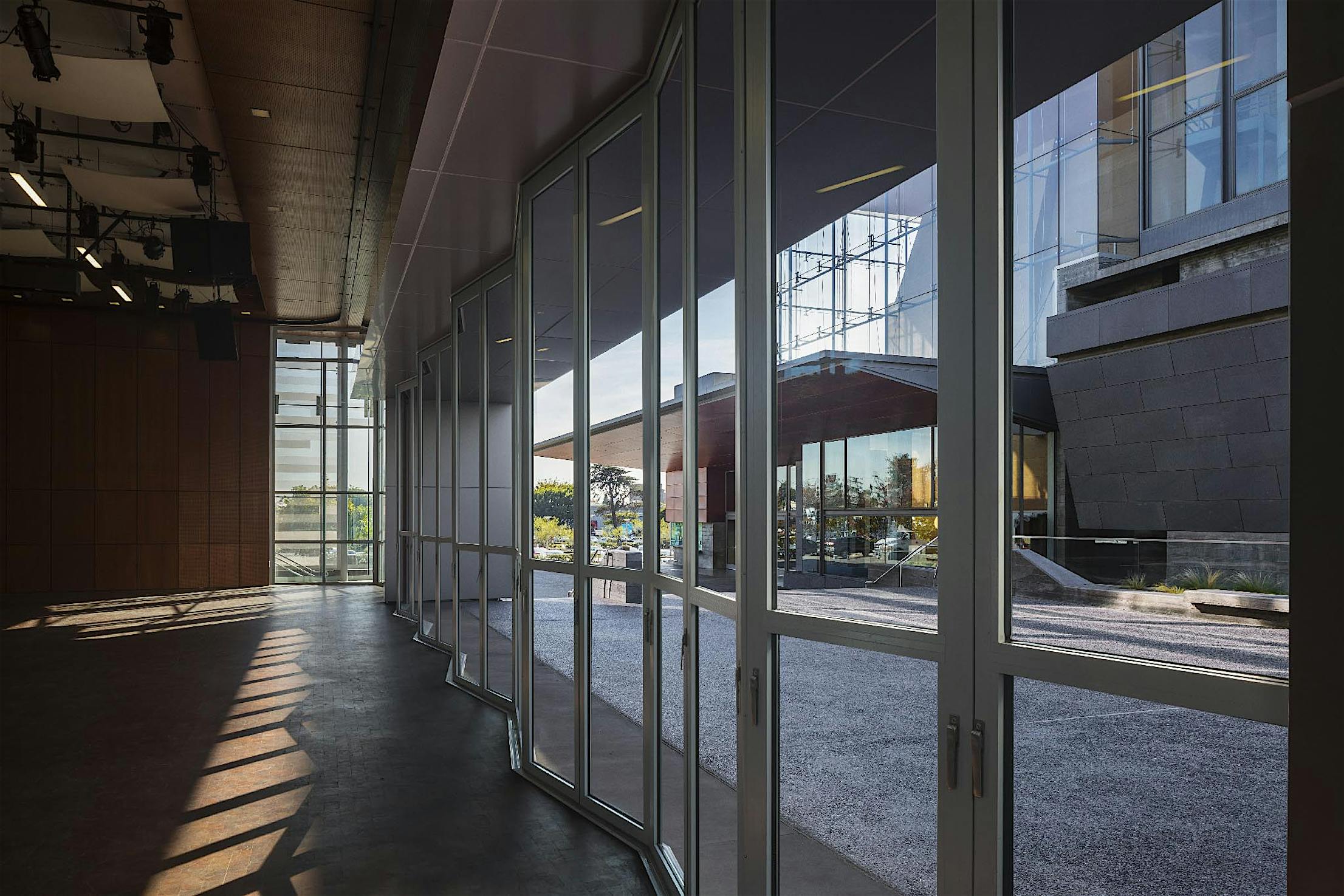

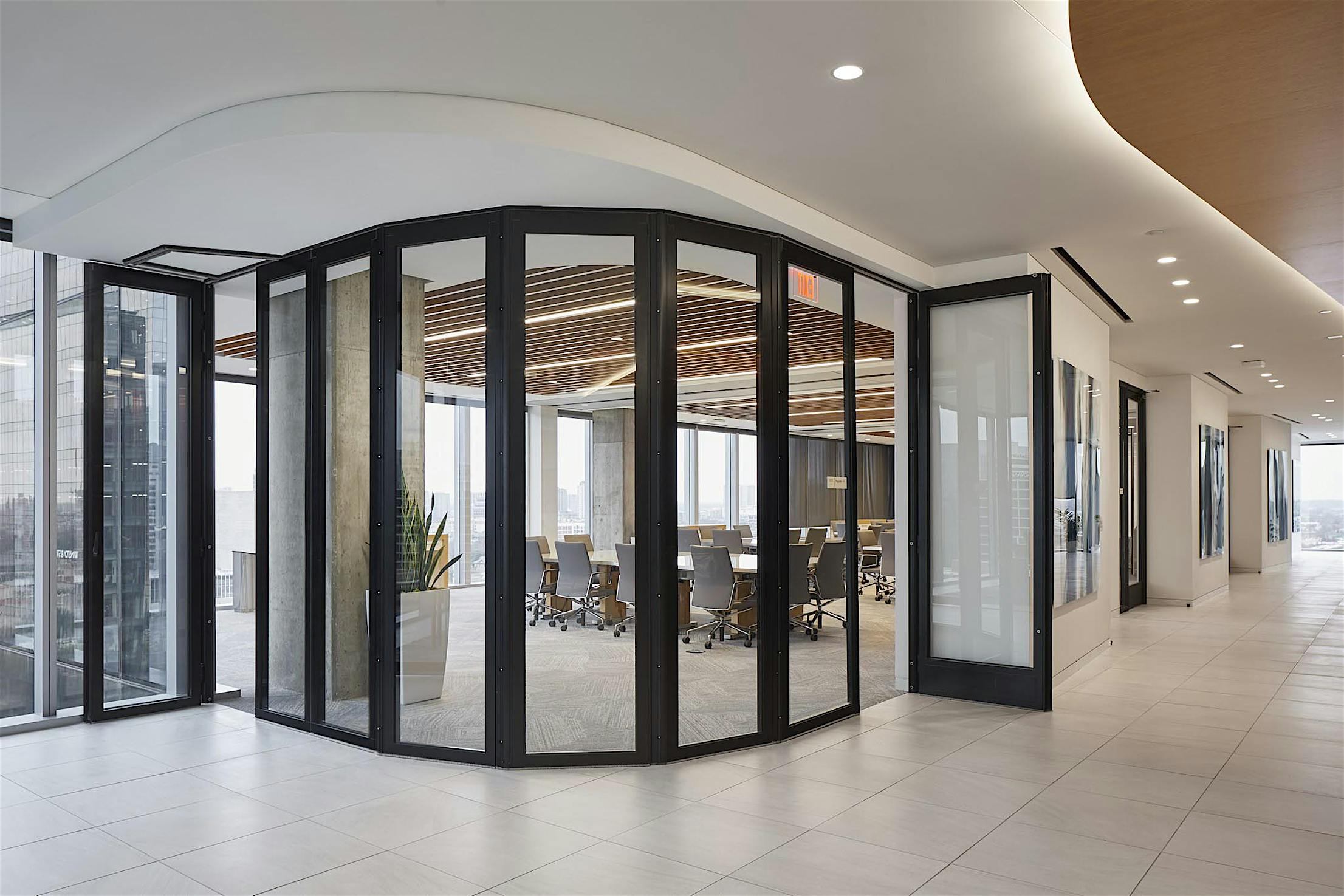

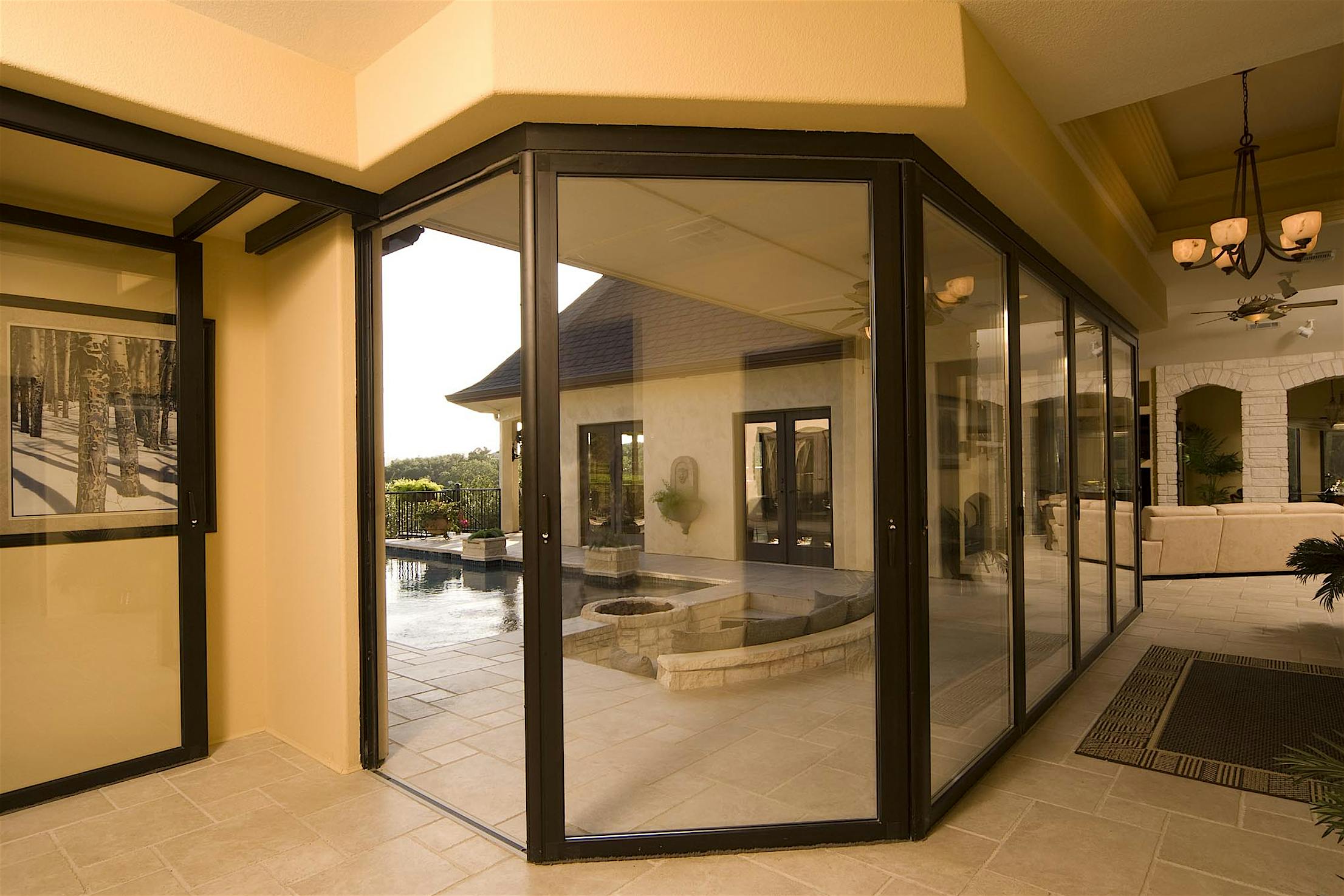

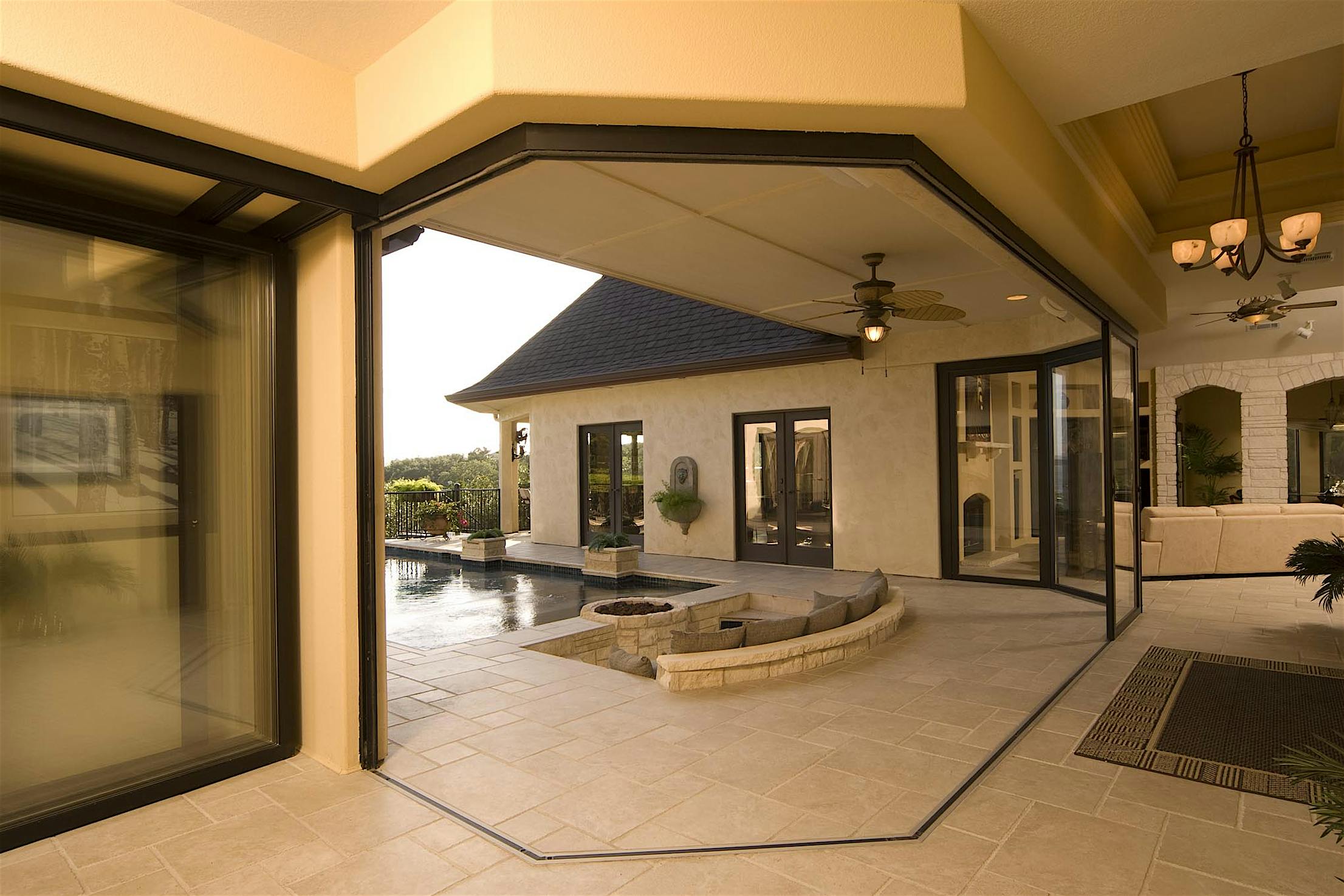

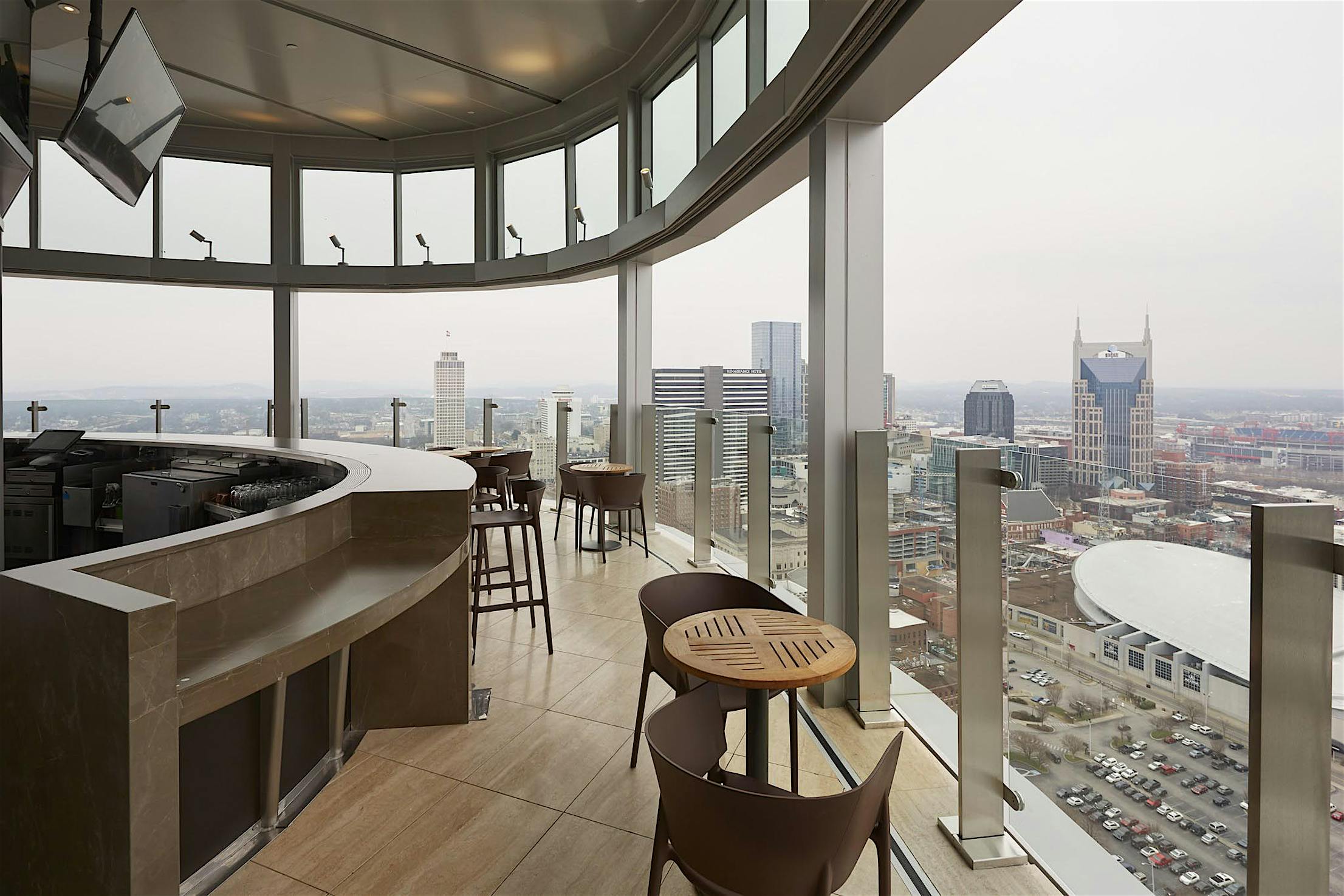

practically Any Wall Shape Possible

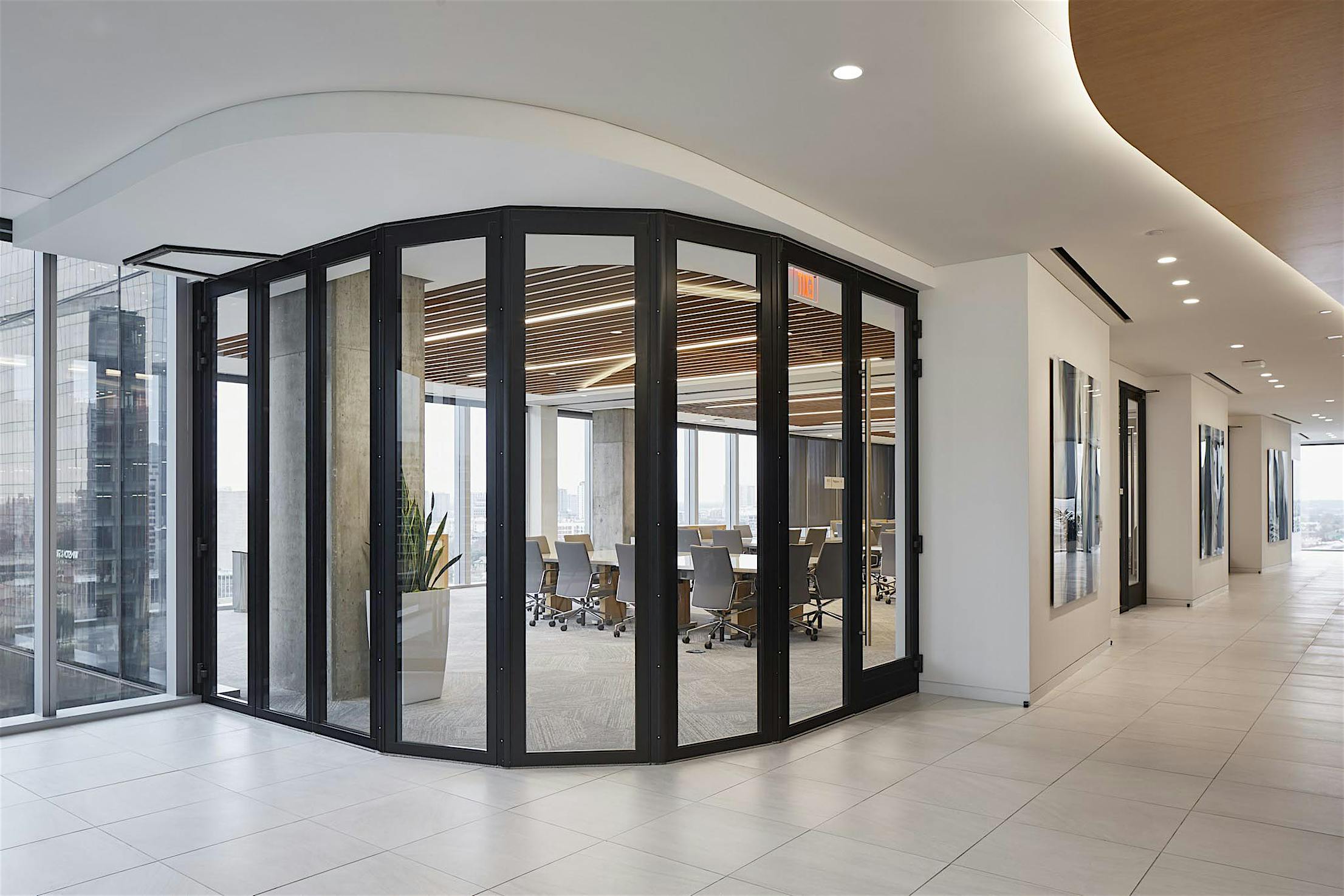

The NanaWall HSW60 can be designed as cornerless, multi-angled, t-section or segmented.
Technology

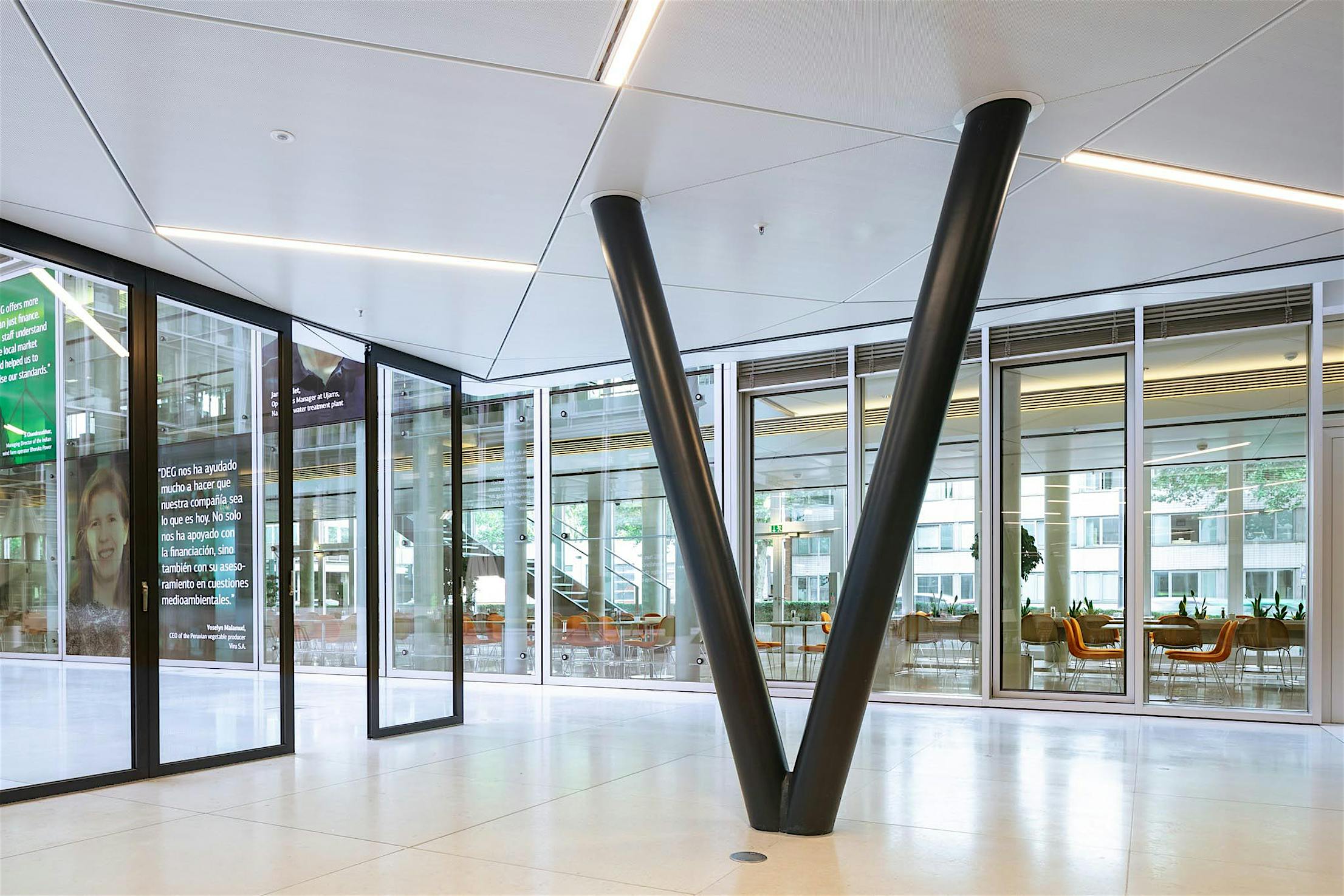

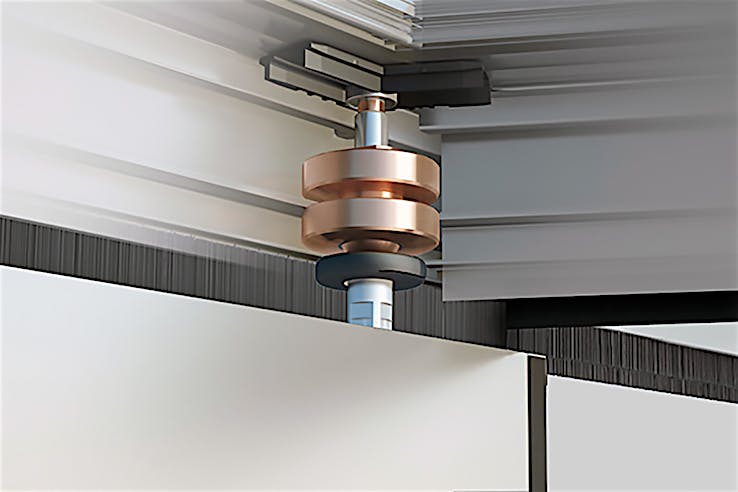

Intelligent Roller & Track
The NanaWall HSW60 features an enhanced horizontal roller and guide track design that allows each individual panel to move effortlessly and intelligently around corners, posts, and anywhere else your design demands.

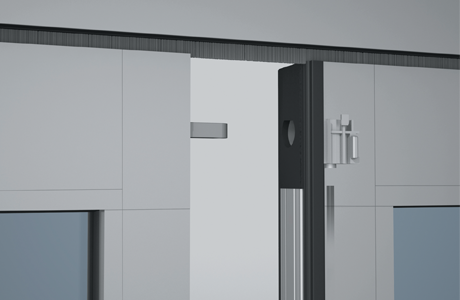

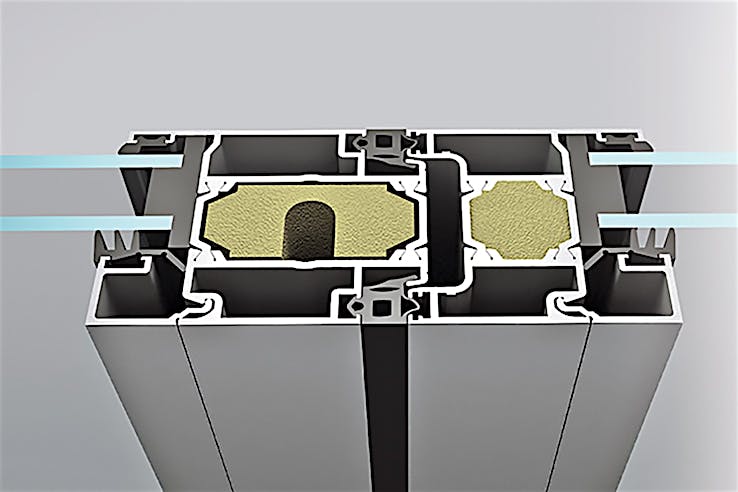

Interlocking Panels
When locking panels together, an additional interlock mechanism engages to create a strong seal and improve performance

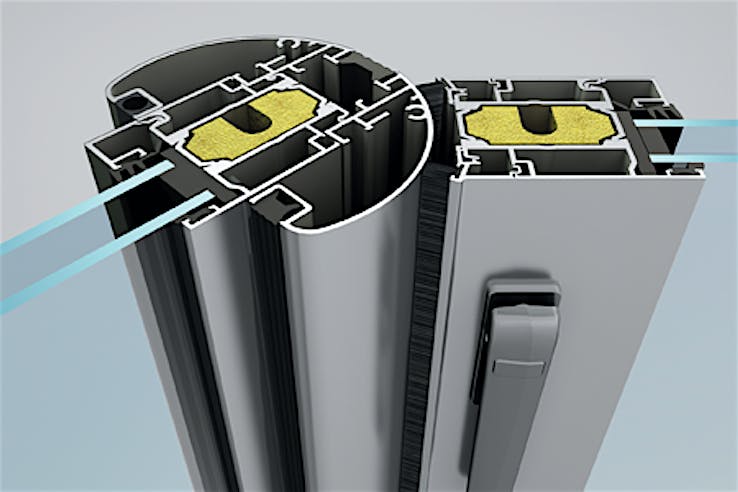

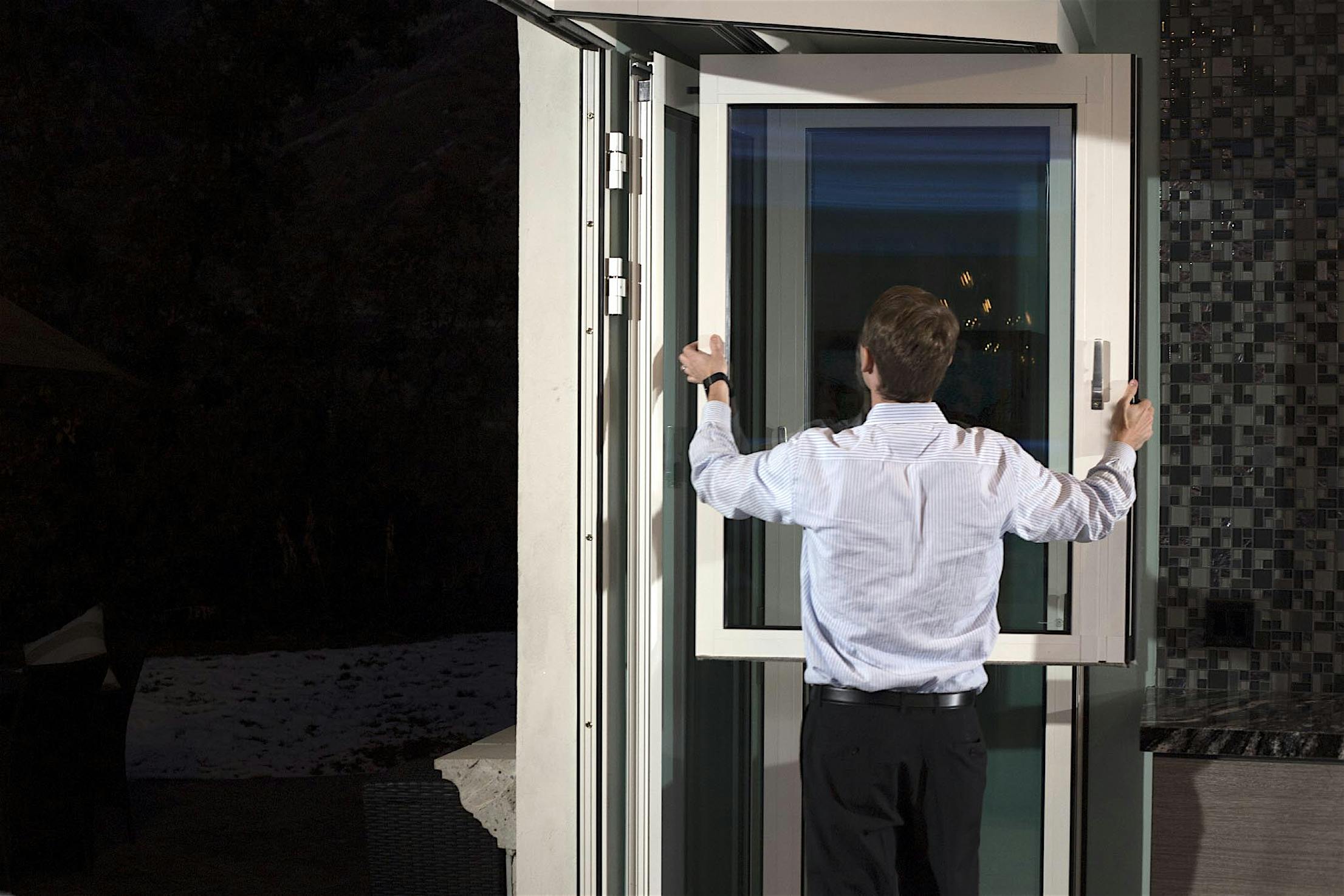

Patented Pinchproof Design
The incorporated swing door uses a pivoting rounded door panel to prevent accidental pinching in commercial environments

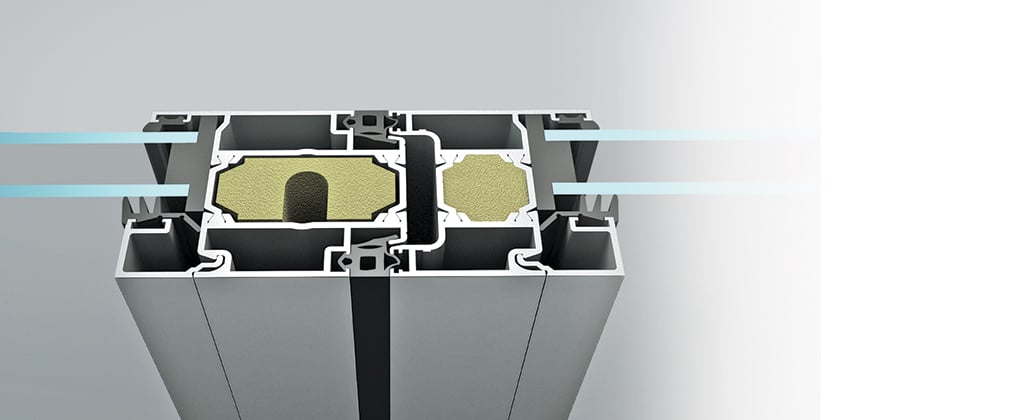

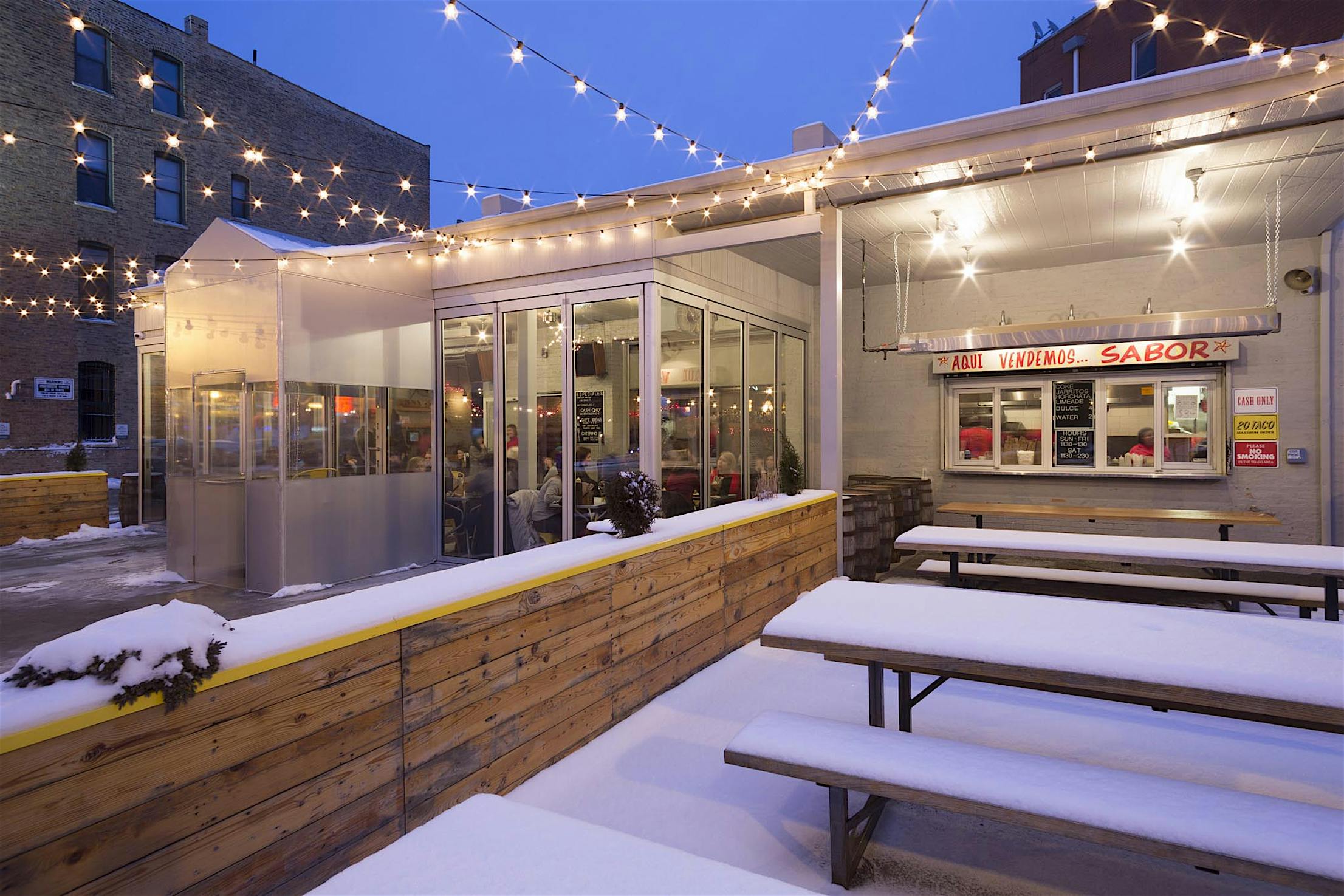

All Climate Ready
The NanaWall HSW60 is engineered to perform in all climates. Completely tested for air, water, and structural performance, the NanaWall HSW60 can be used in almost any environment and has been tested and labeled to NFRC standards for thermal performance.
Options
Larger Panel Sizes
The NanaWall Single Track Sliding system can accommodate openings as high as 12 feet, only limited by the type of glass or other infill desired and the overall weight of an individual panel.

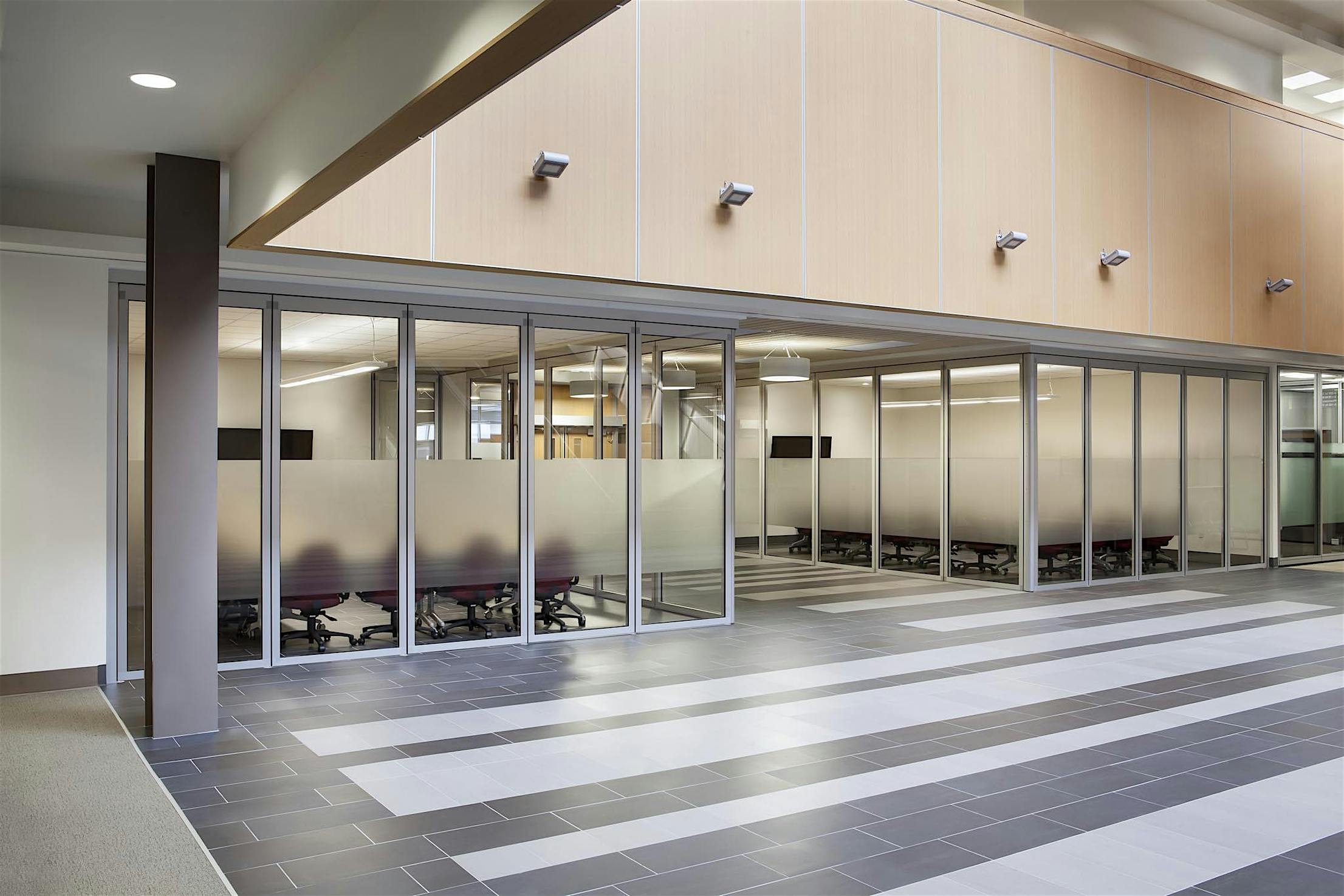

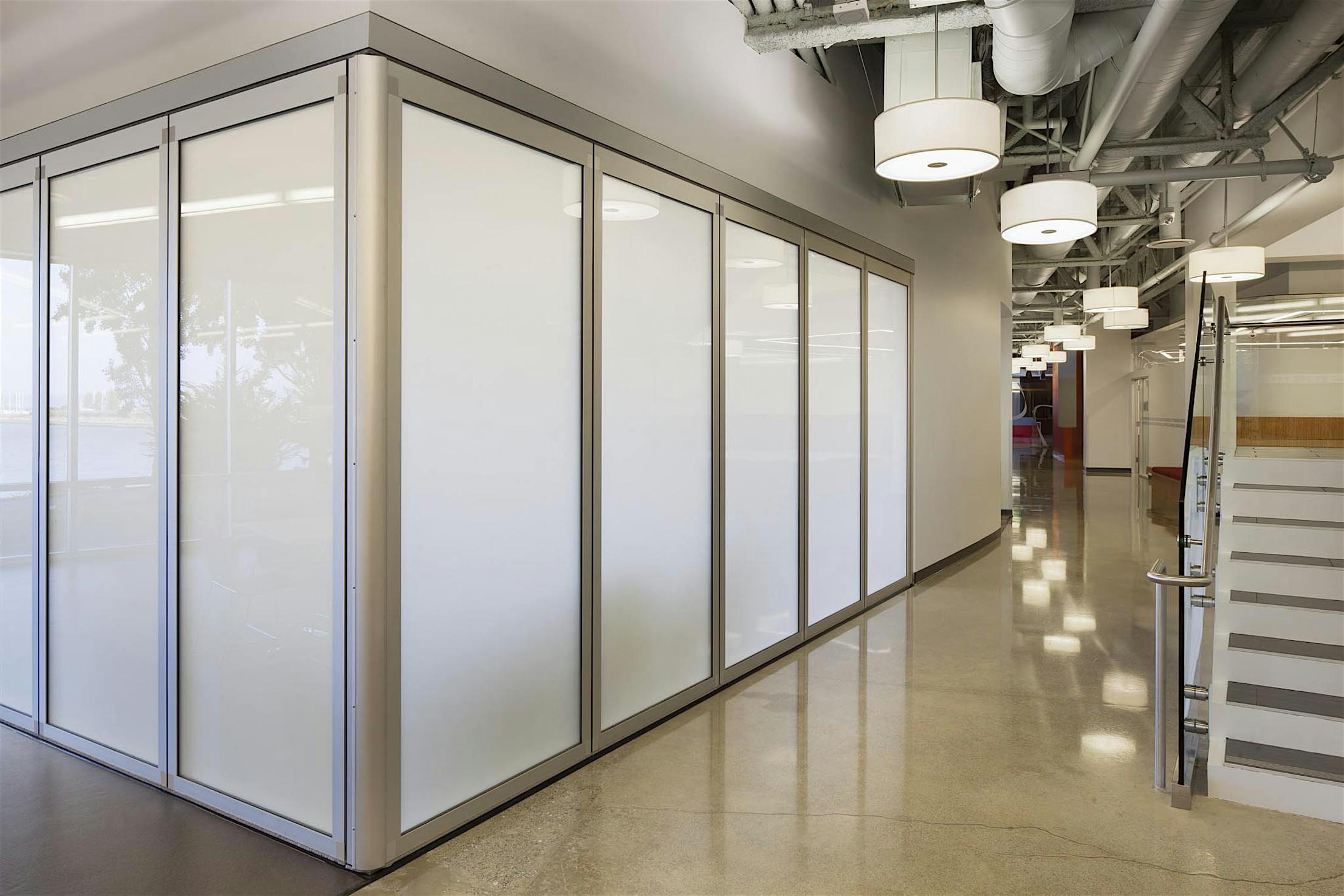

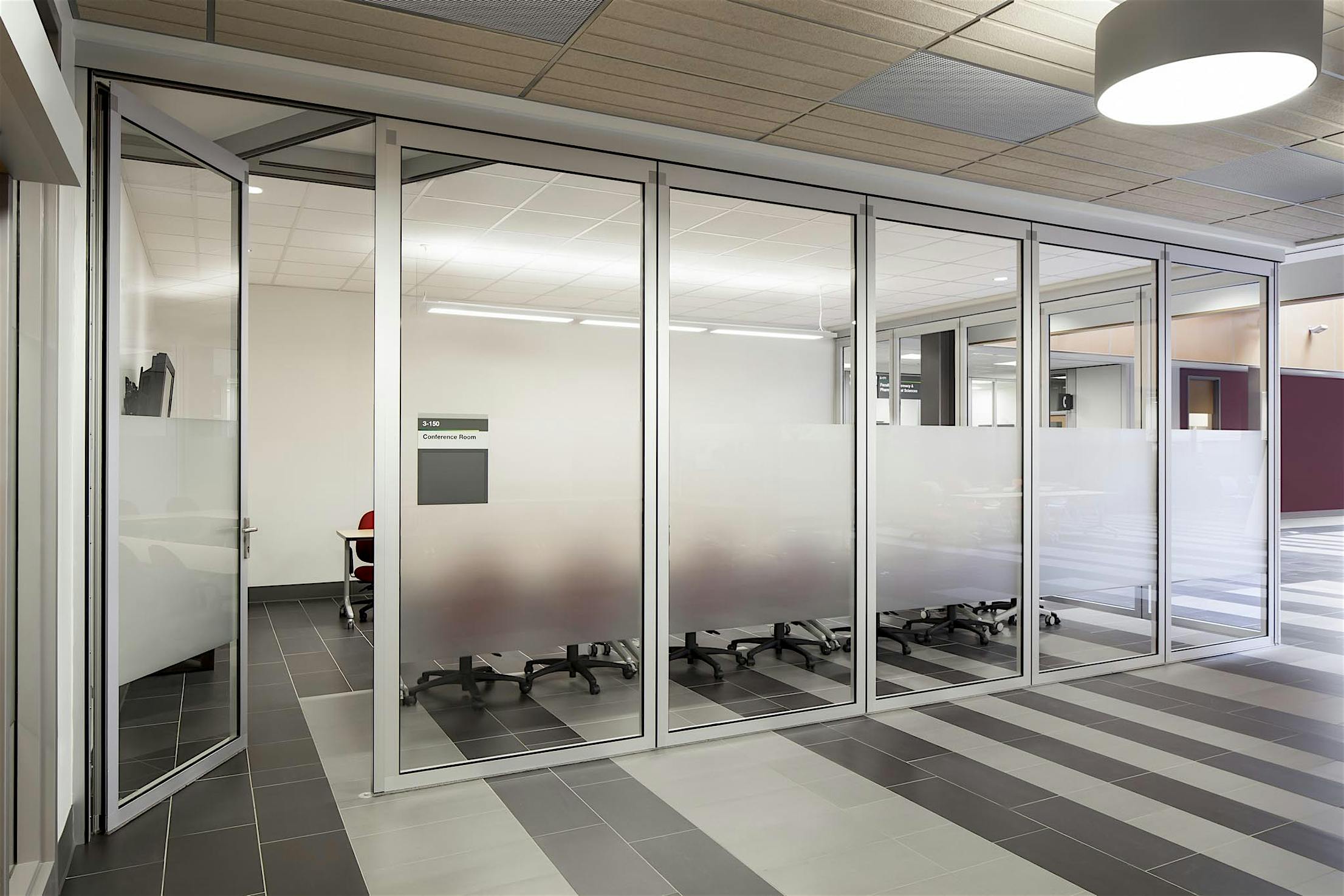

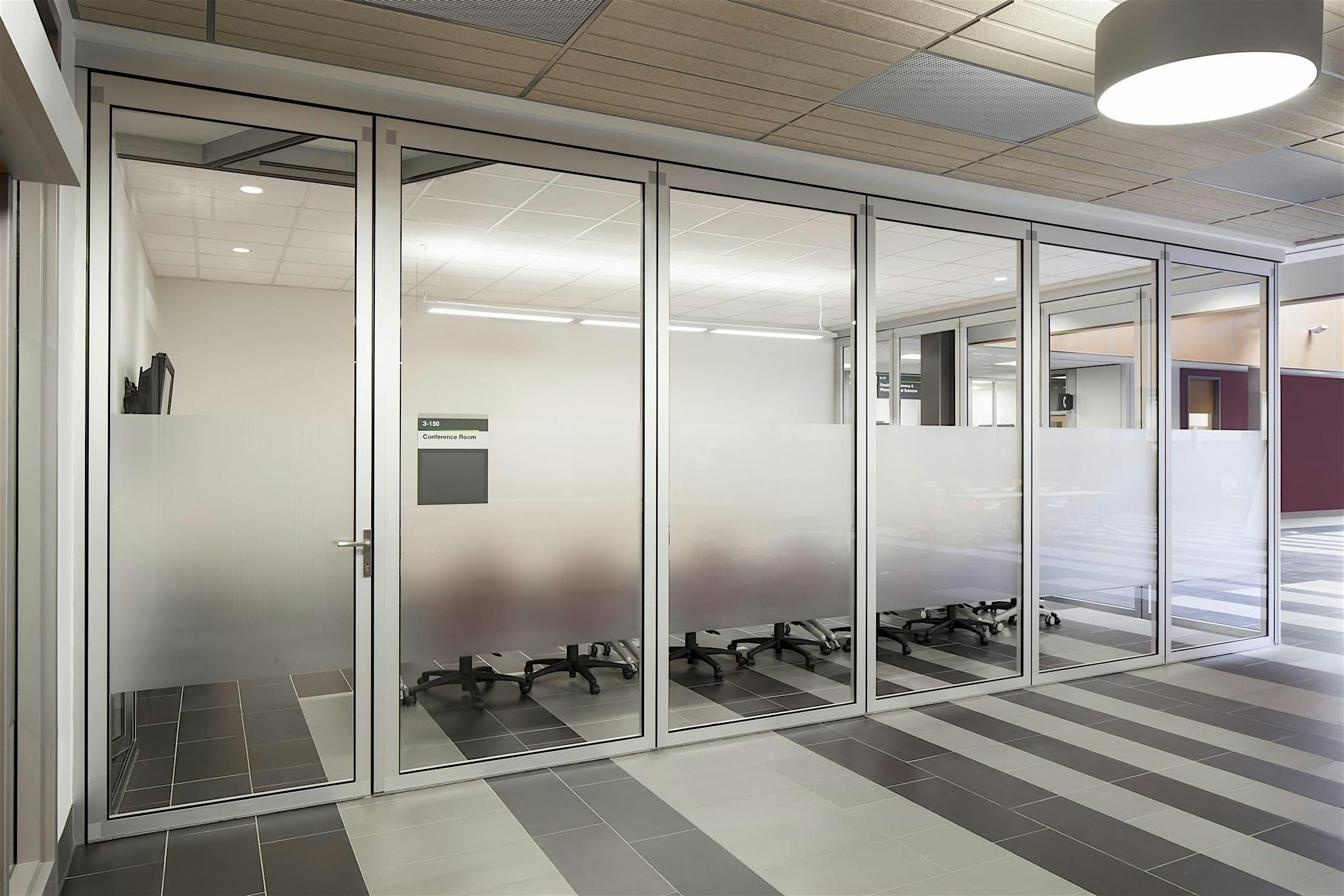

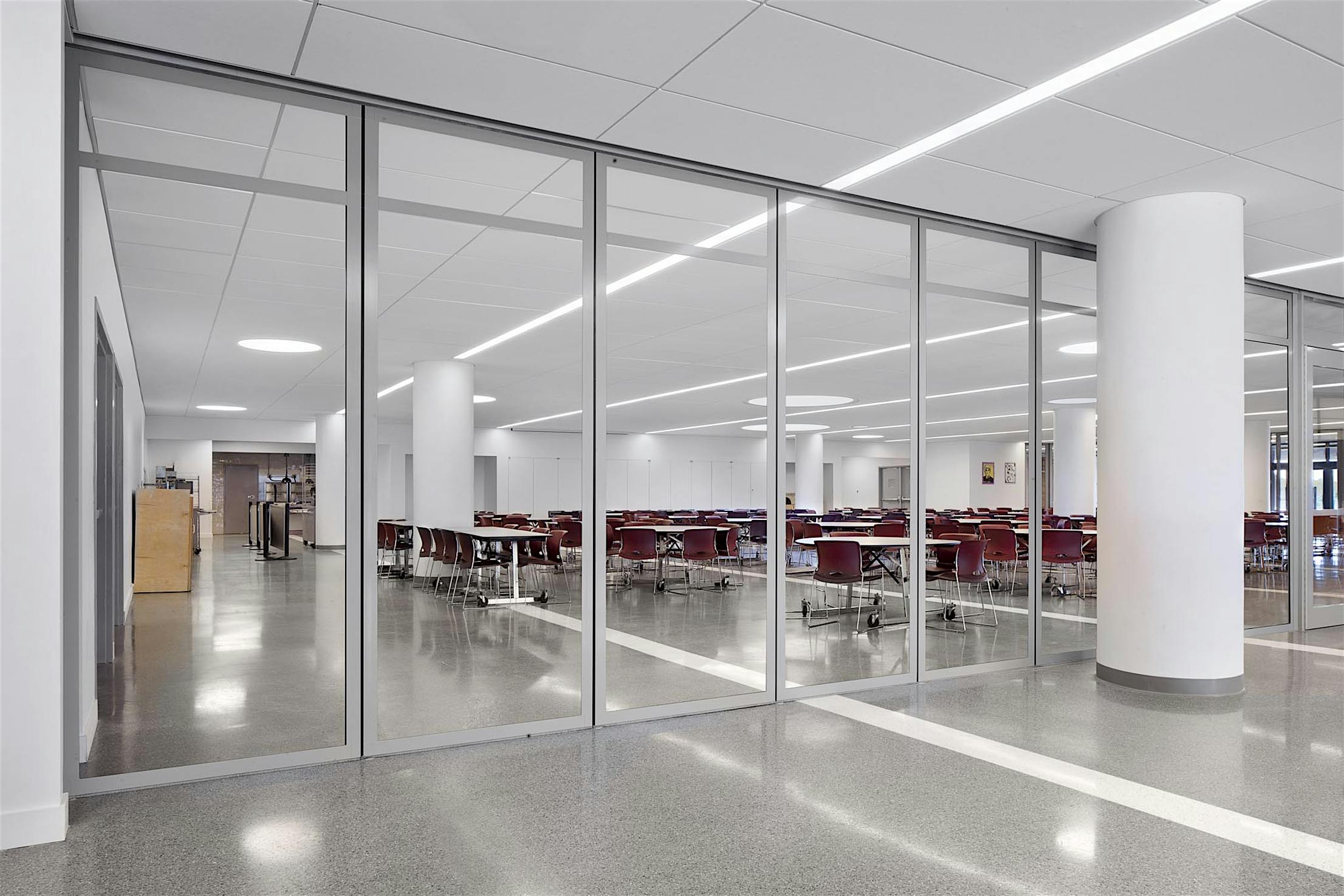

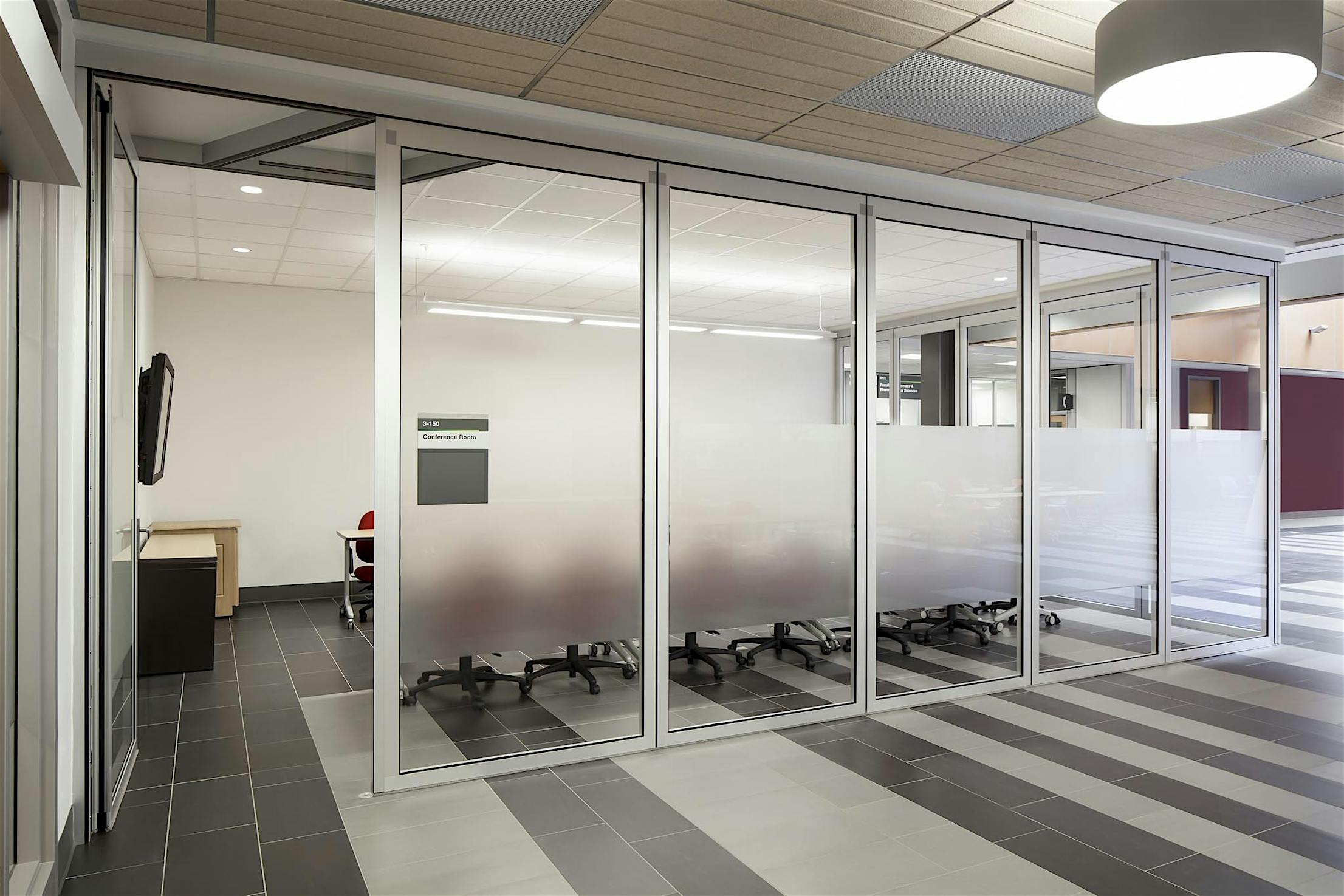

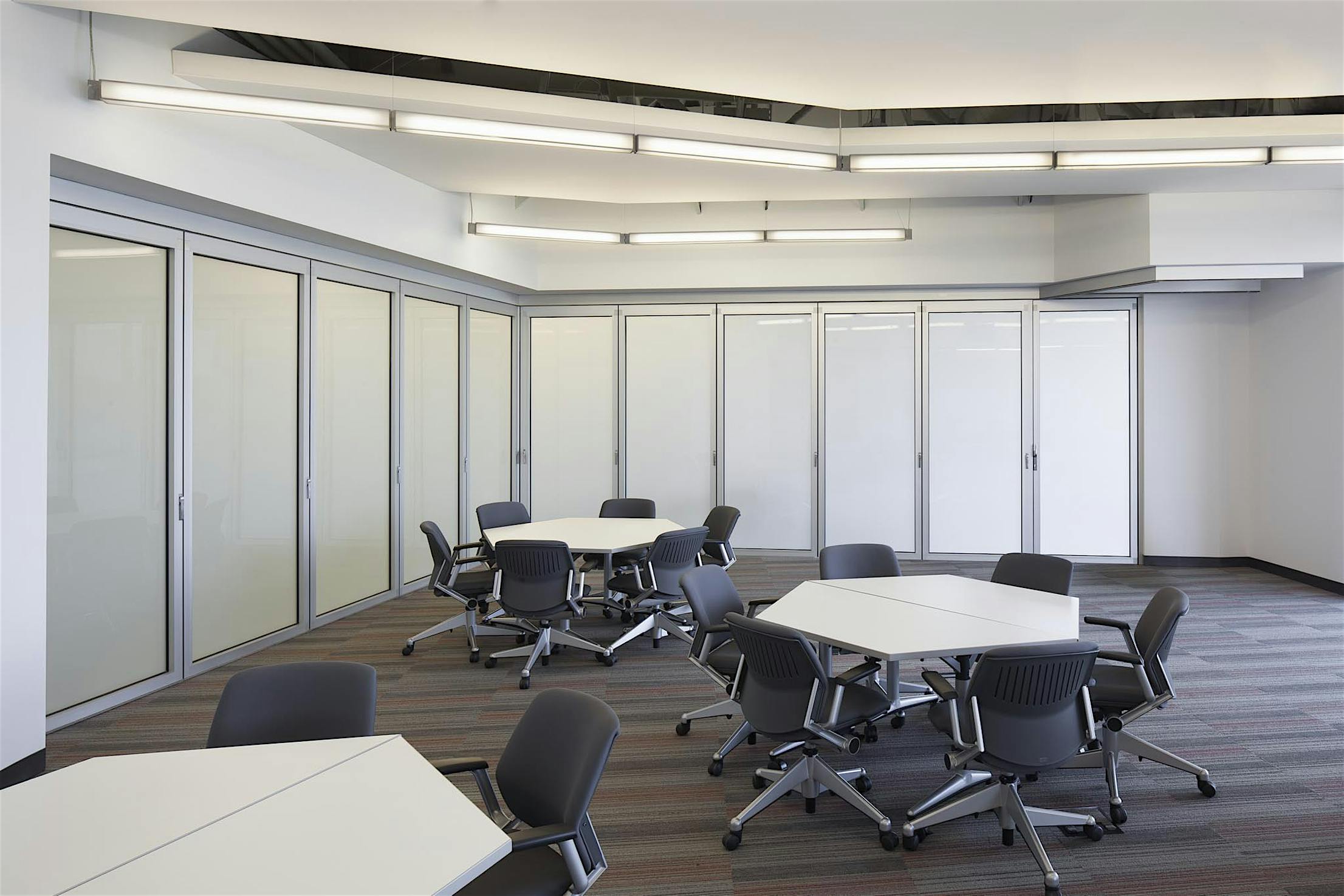

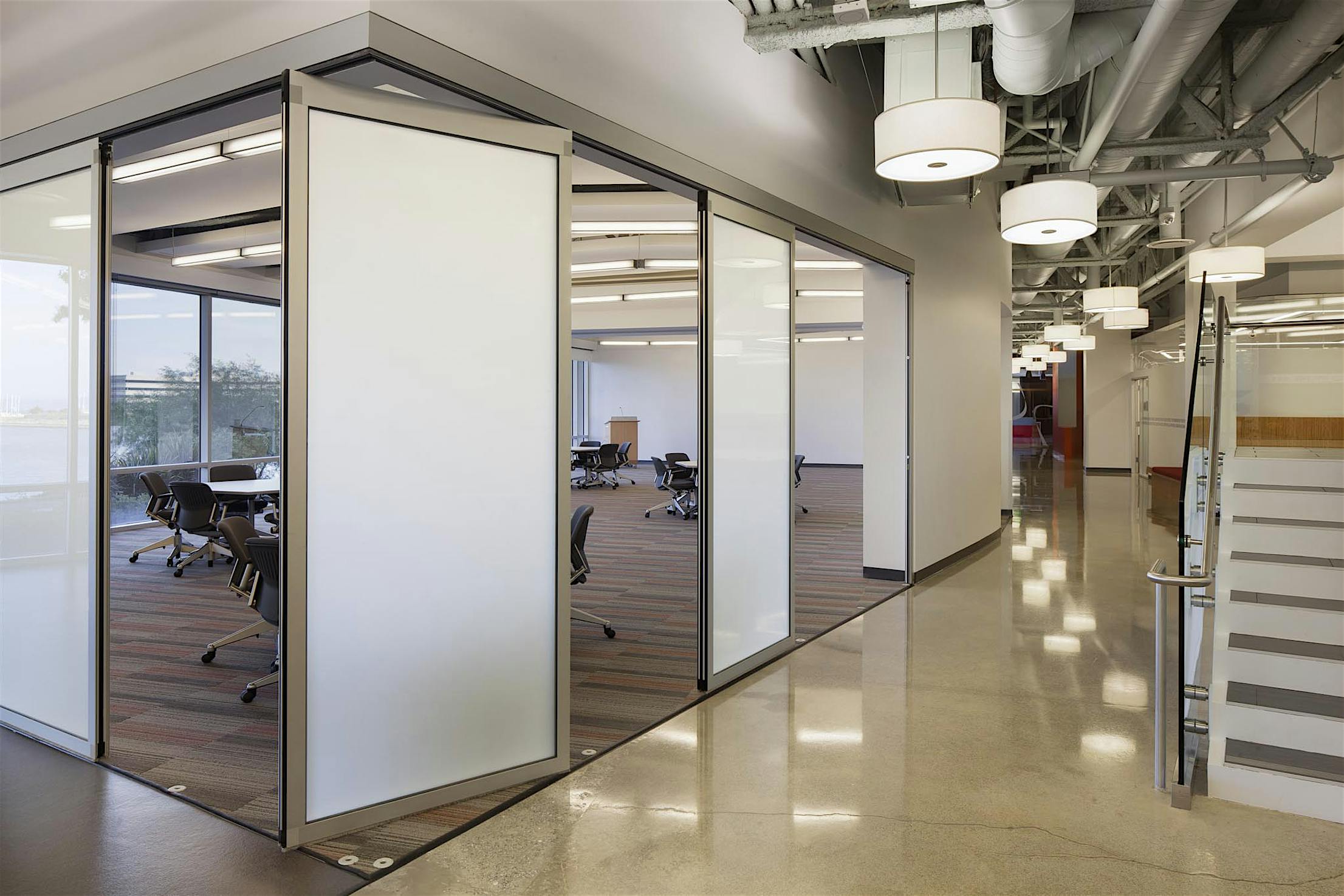

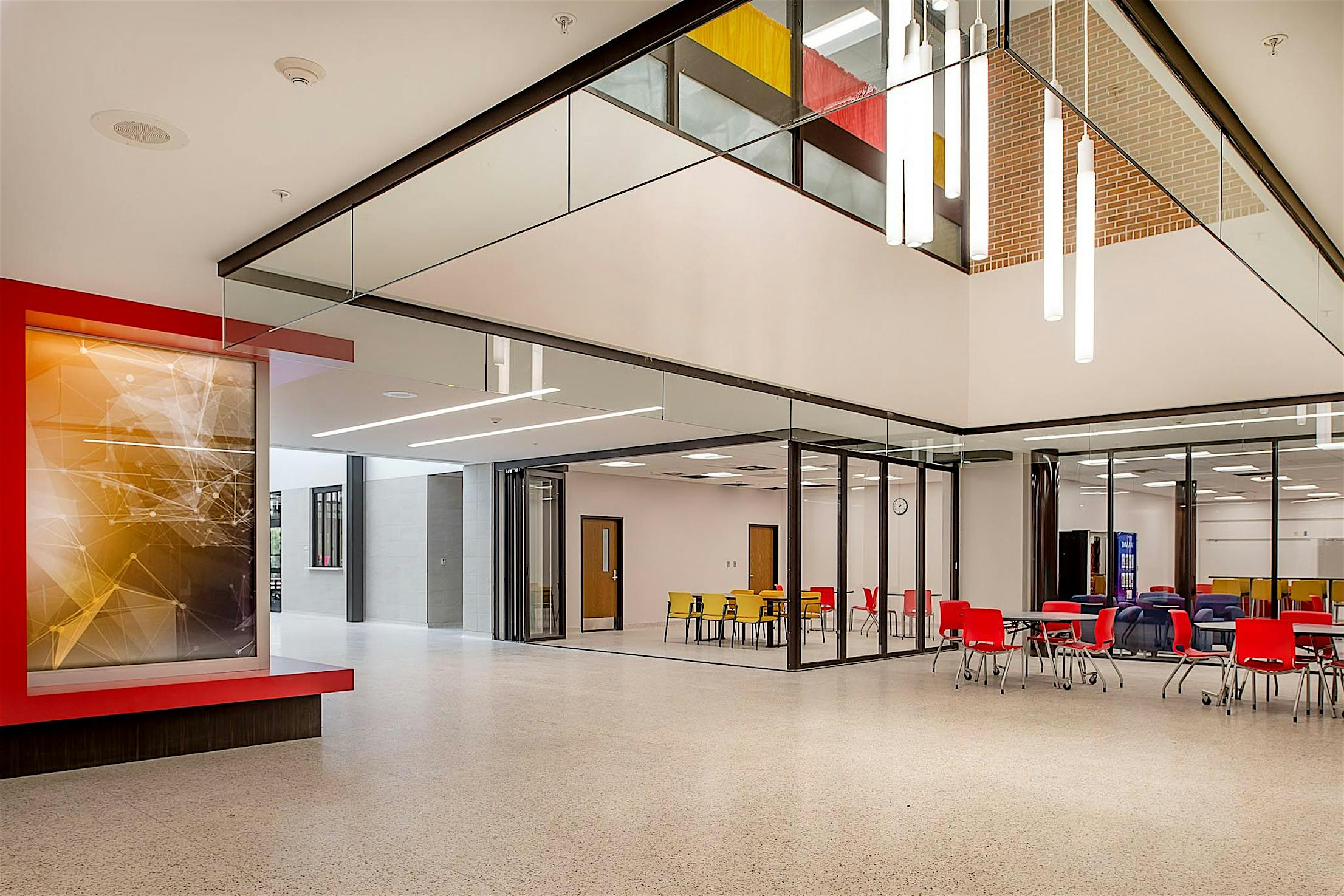

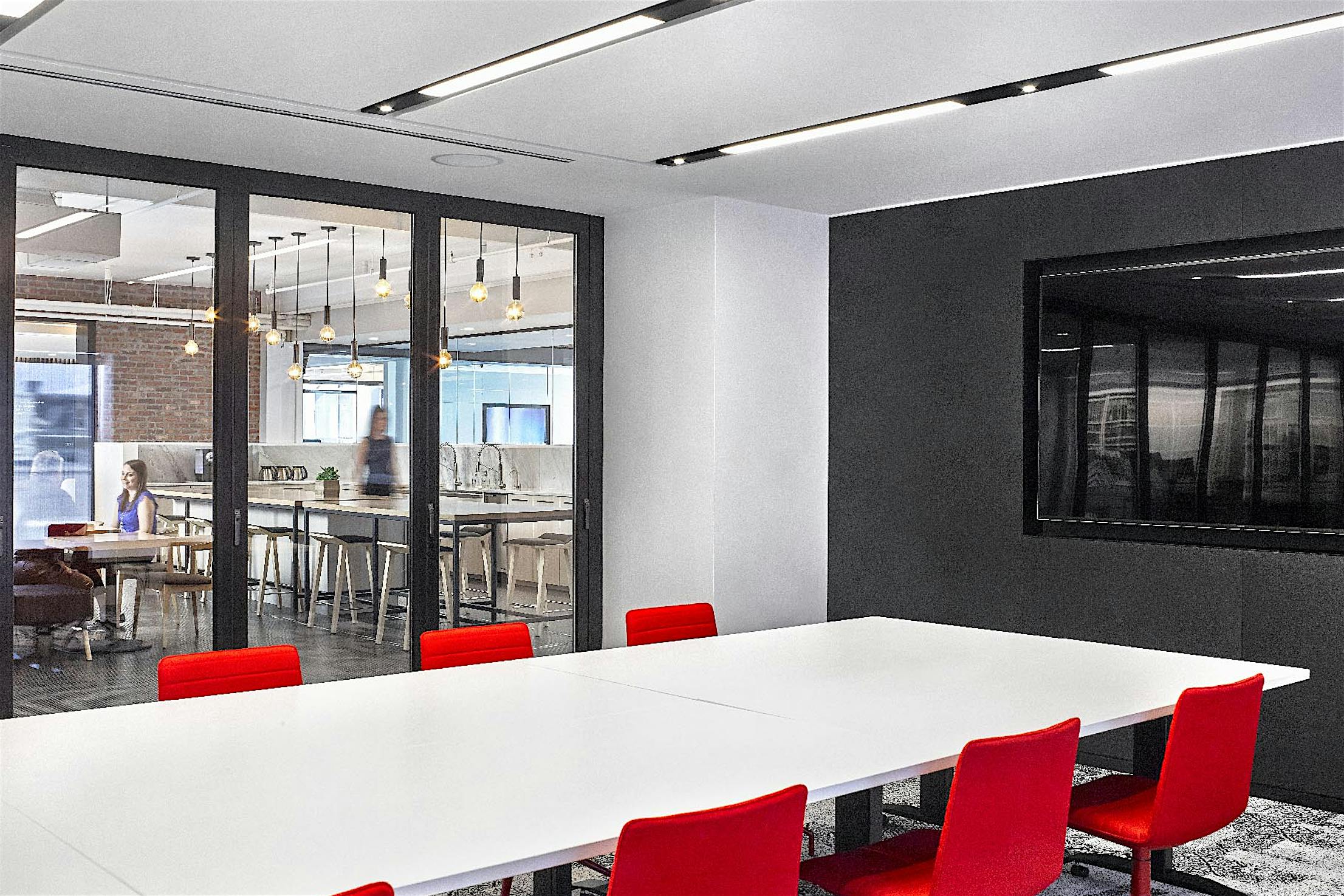

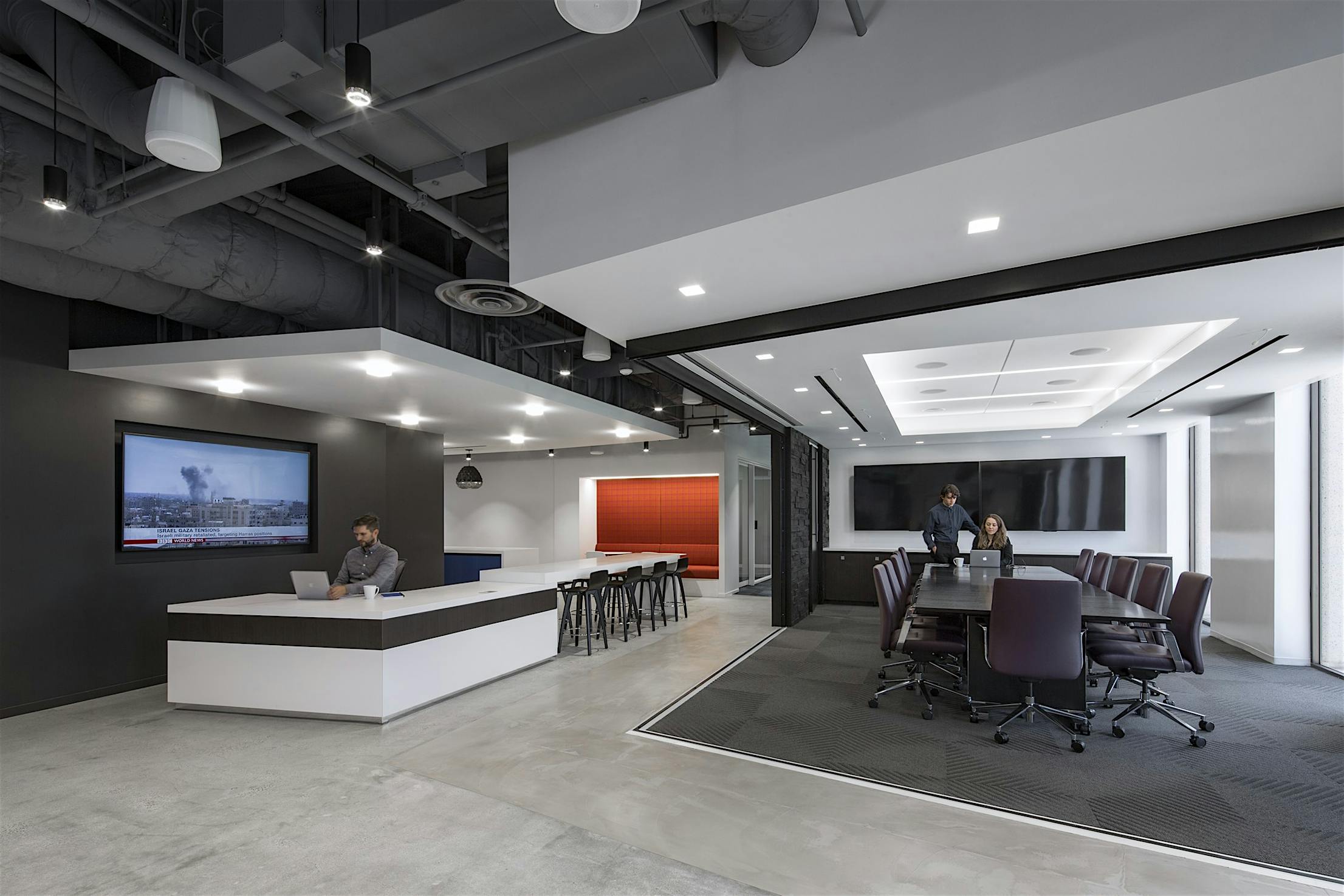

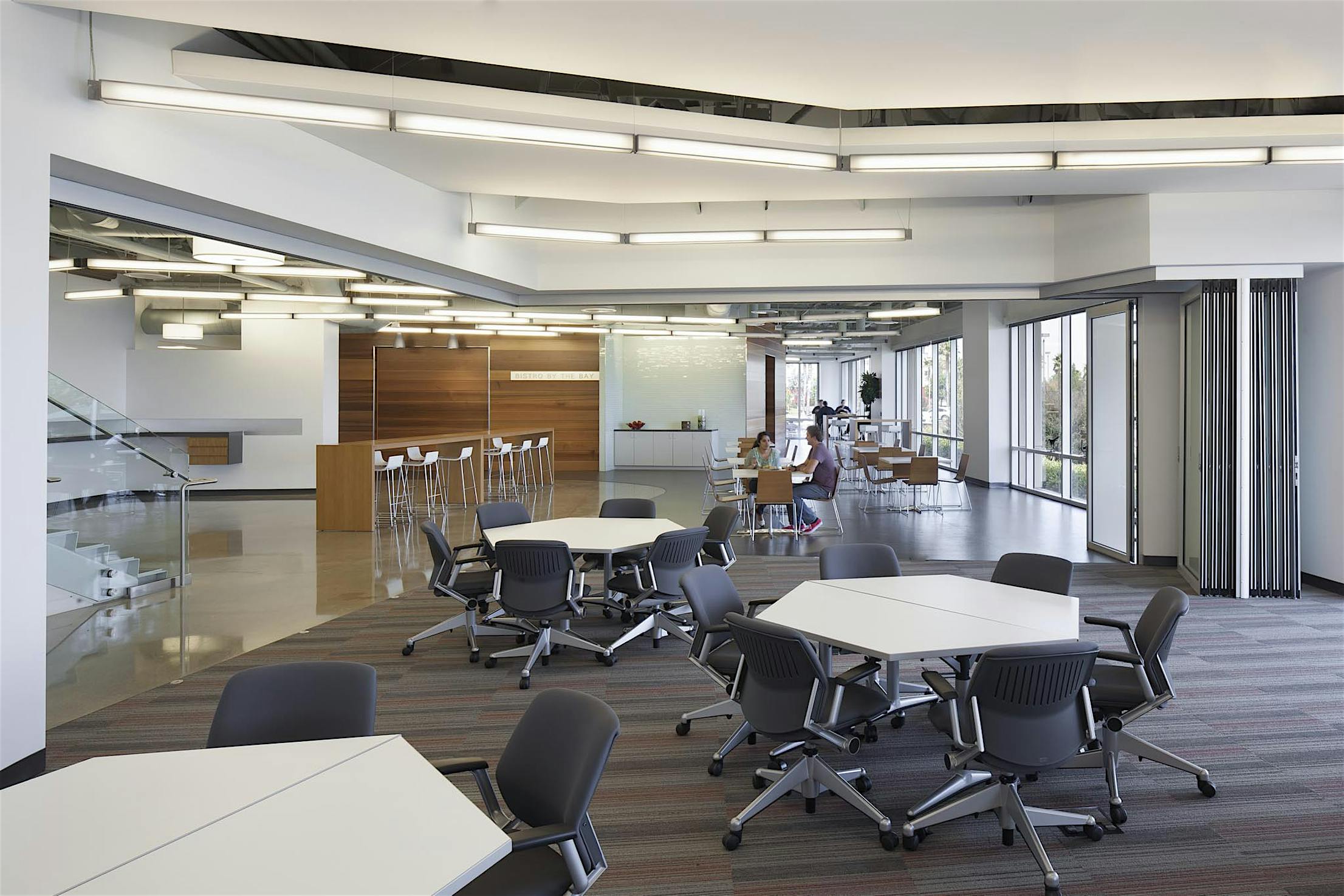

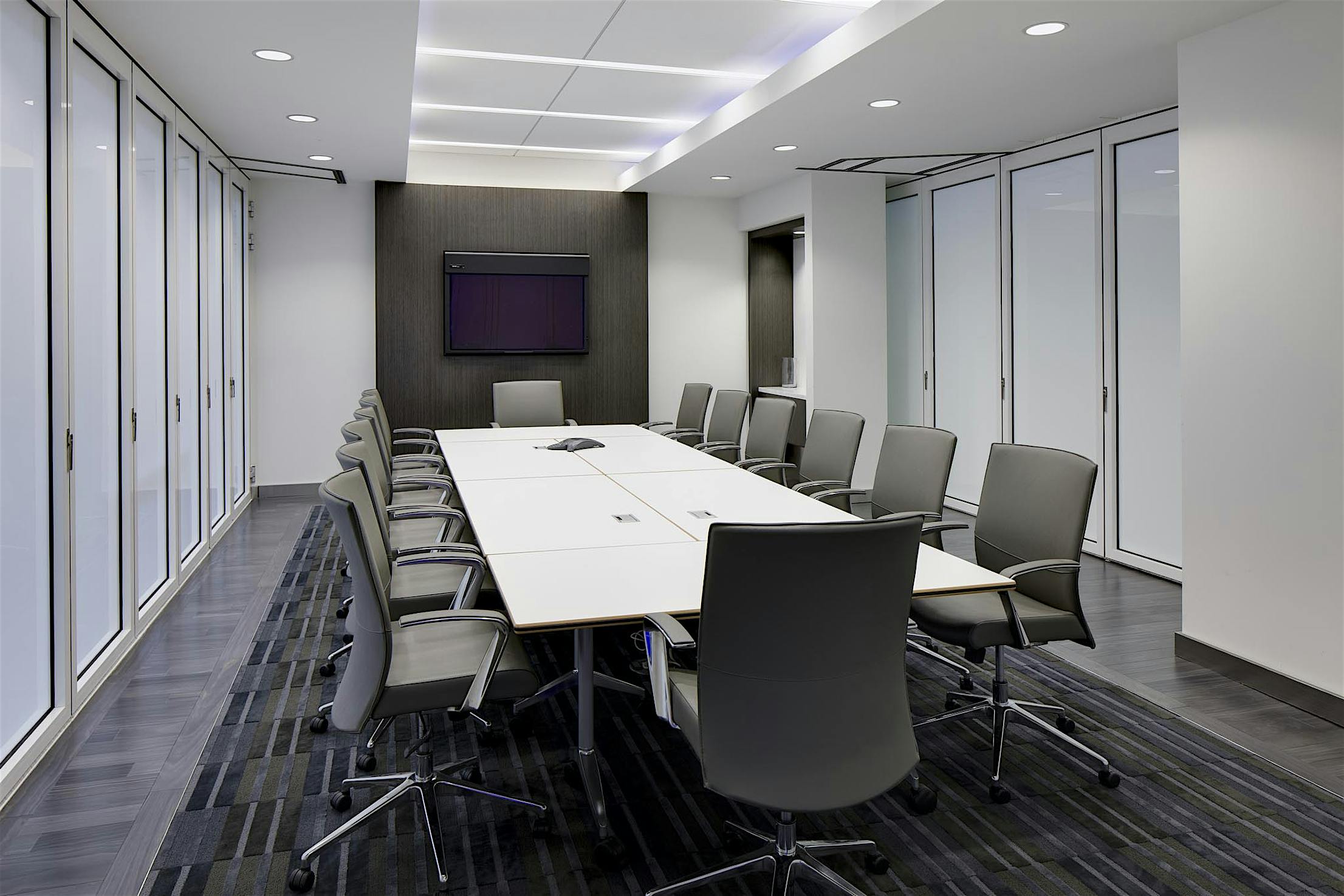

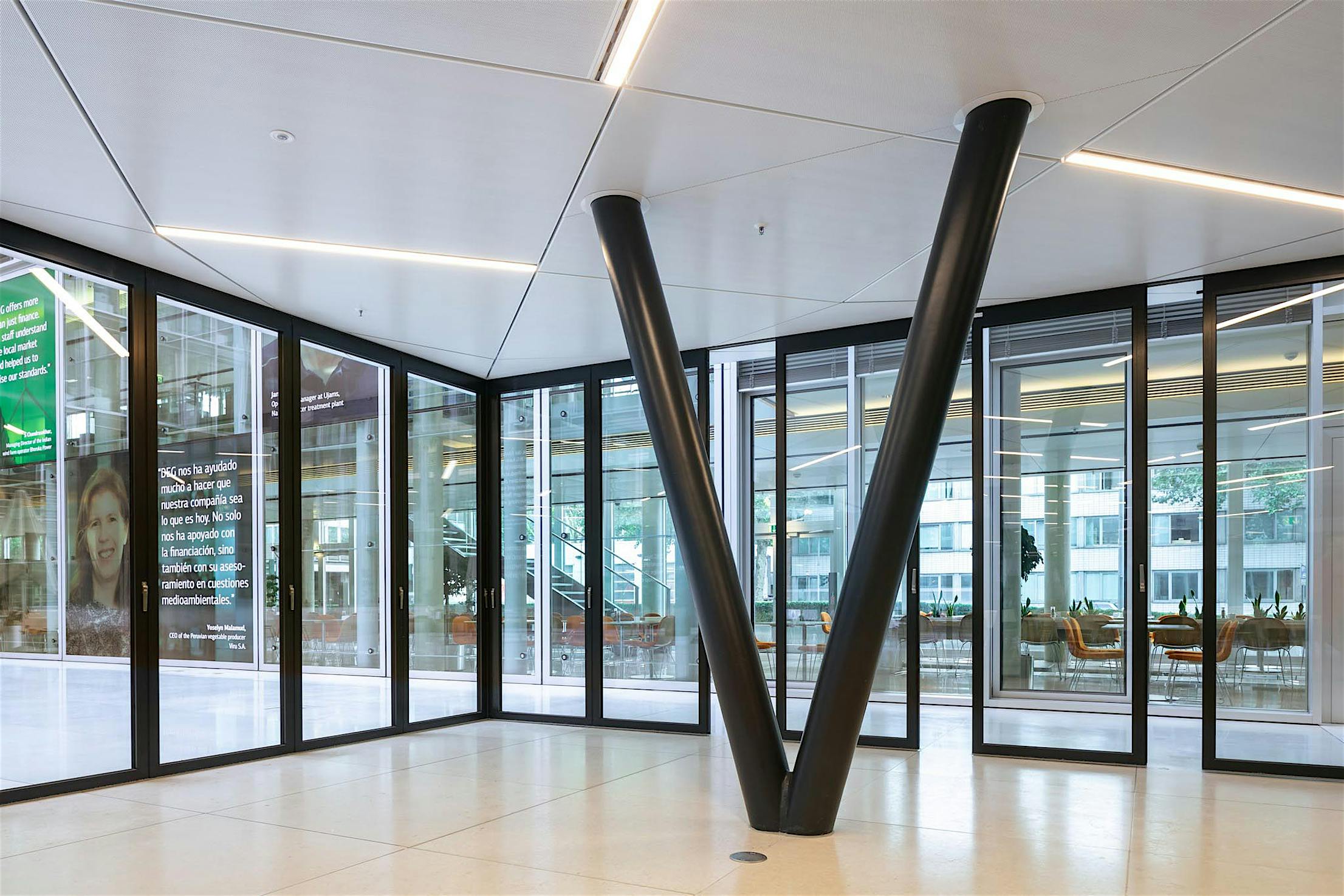

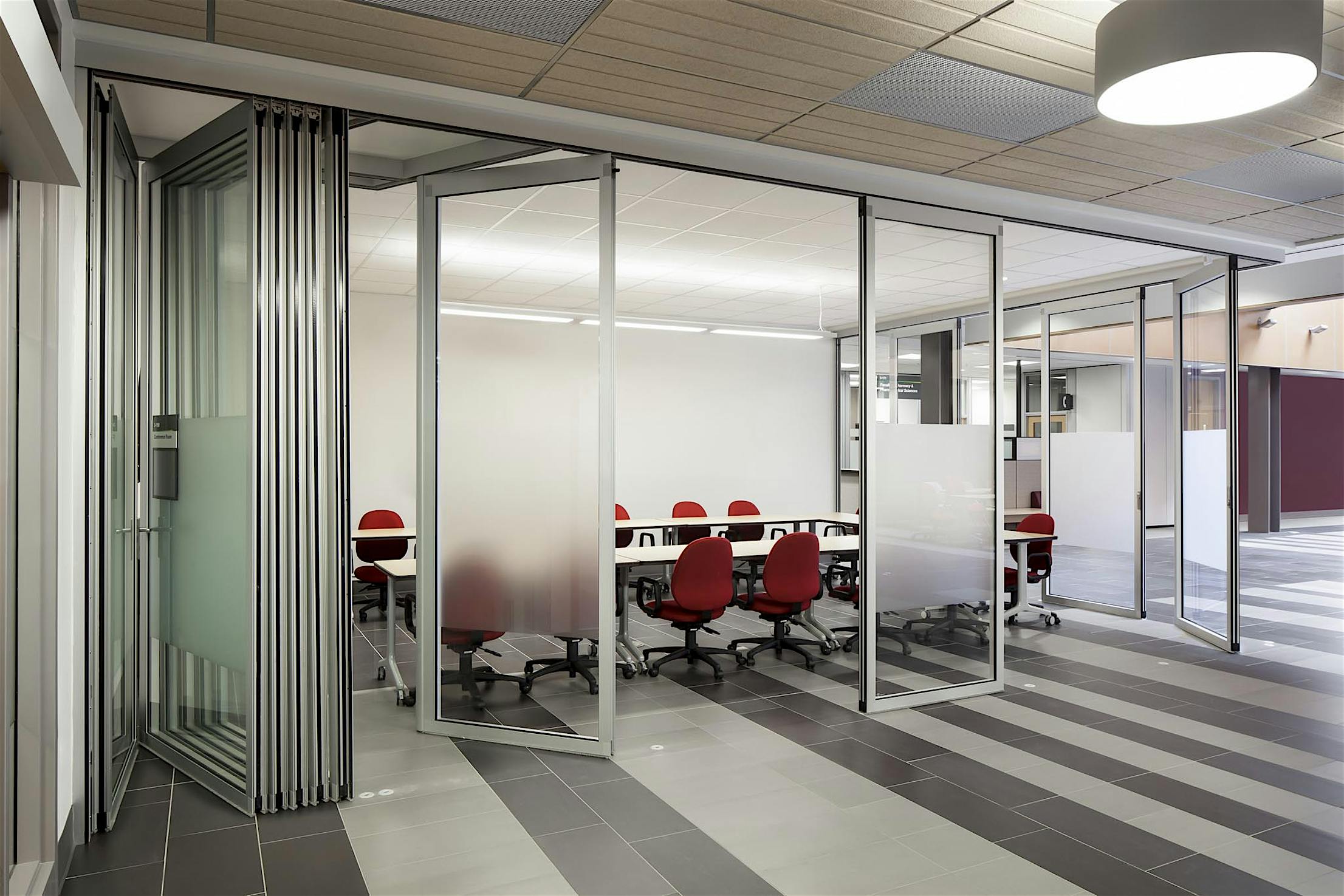

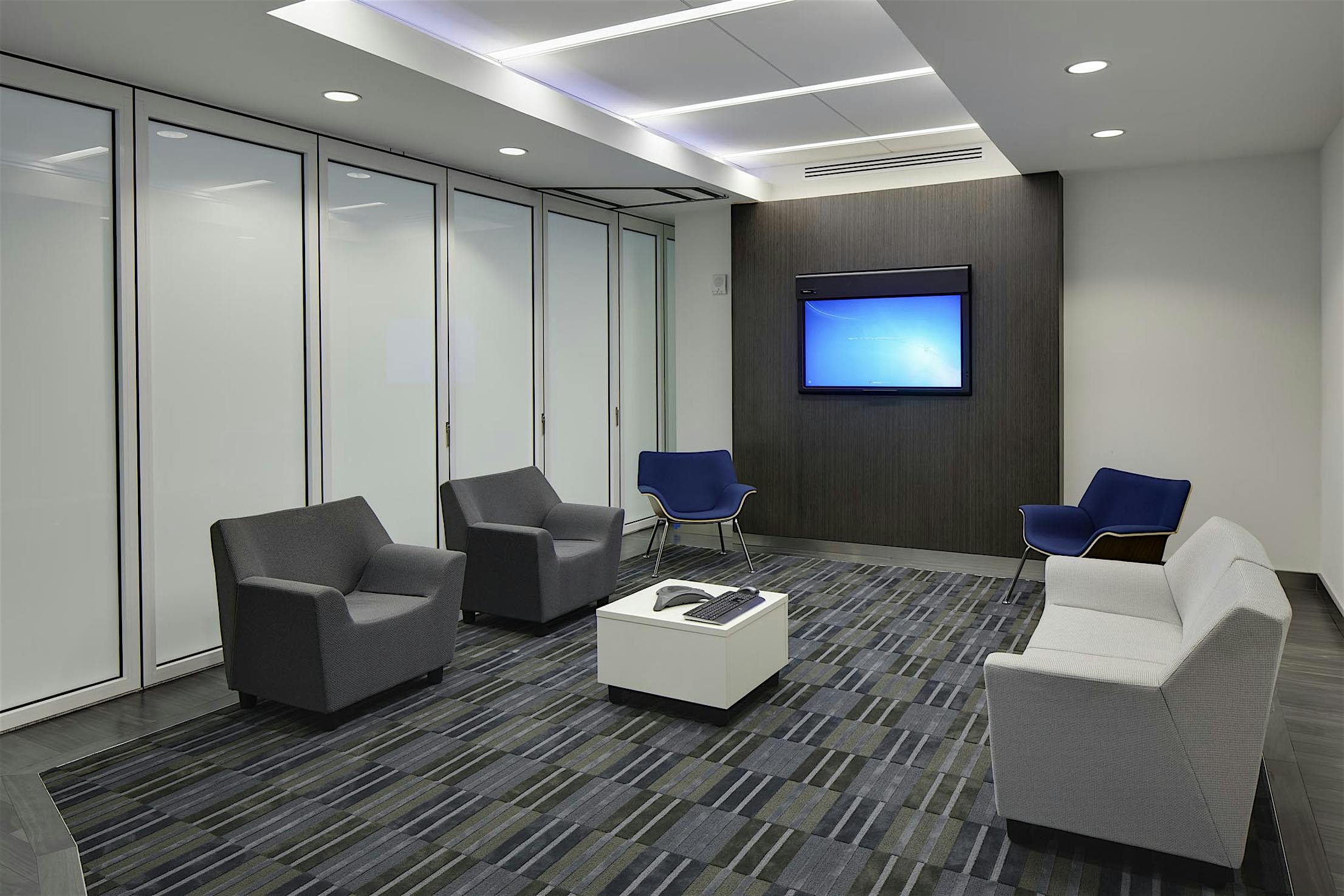

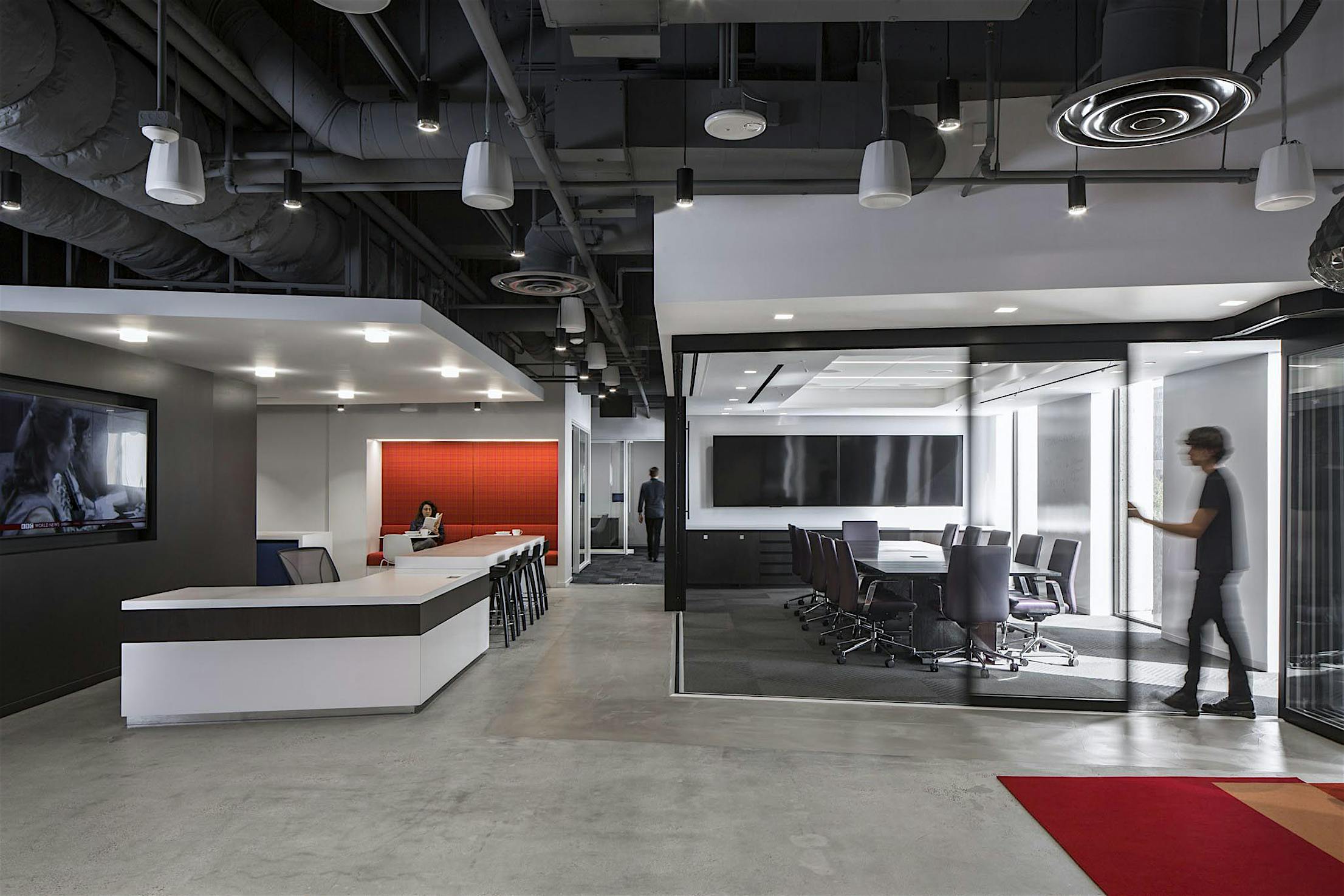

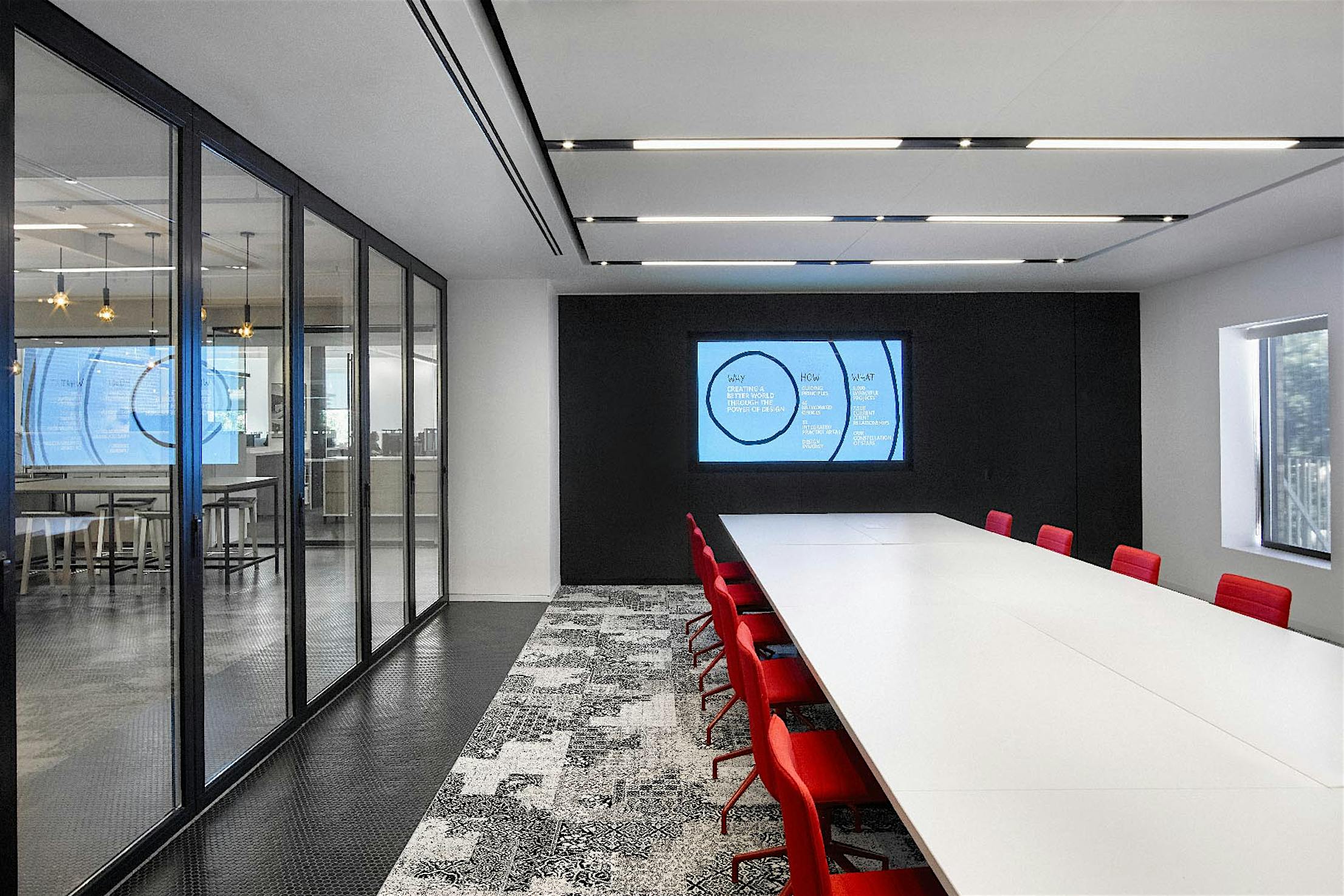

Aesthetically Sophisticated

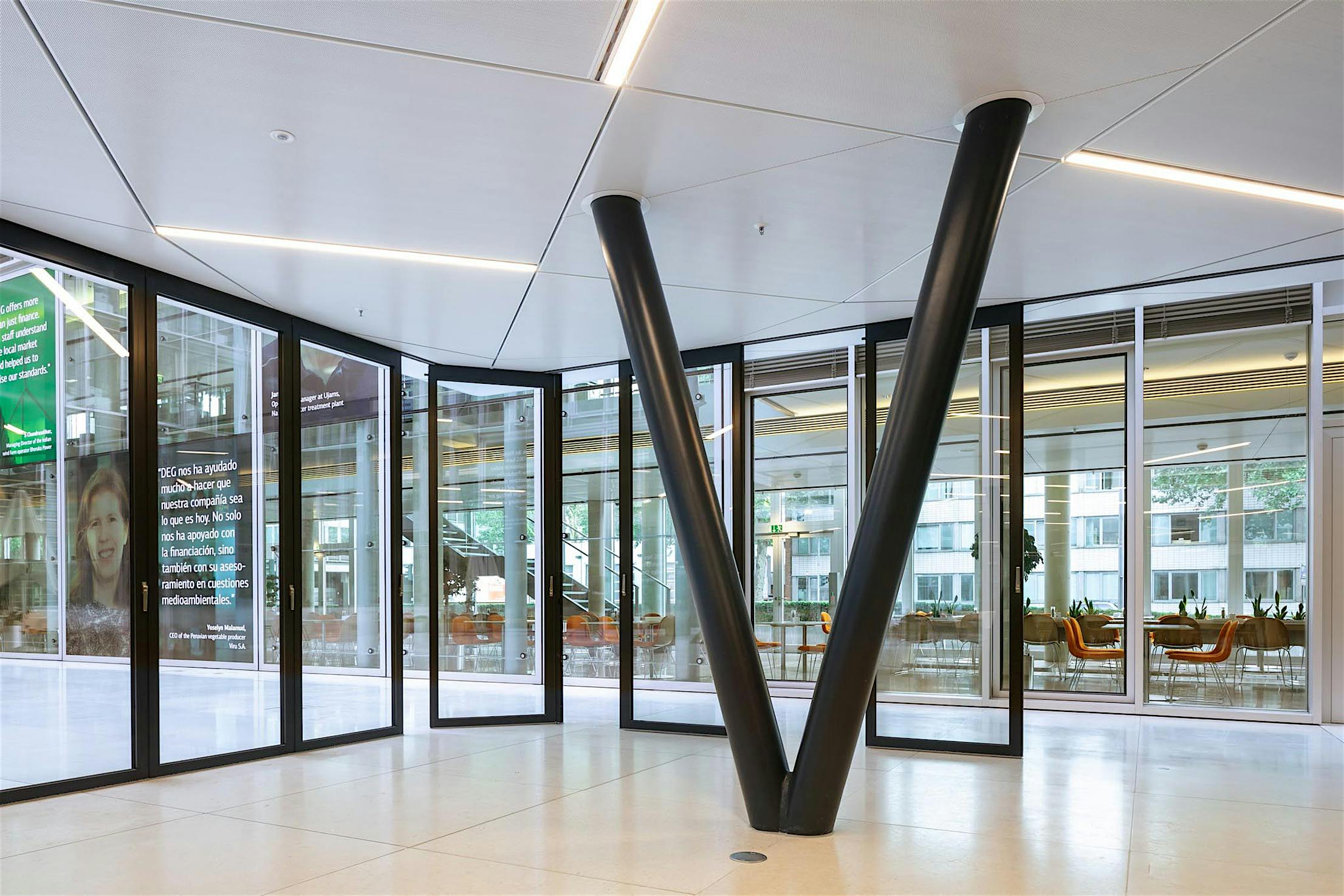

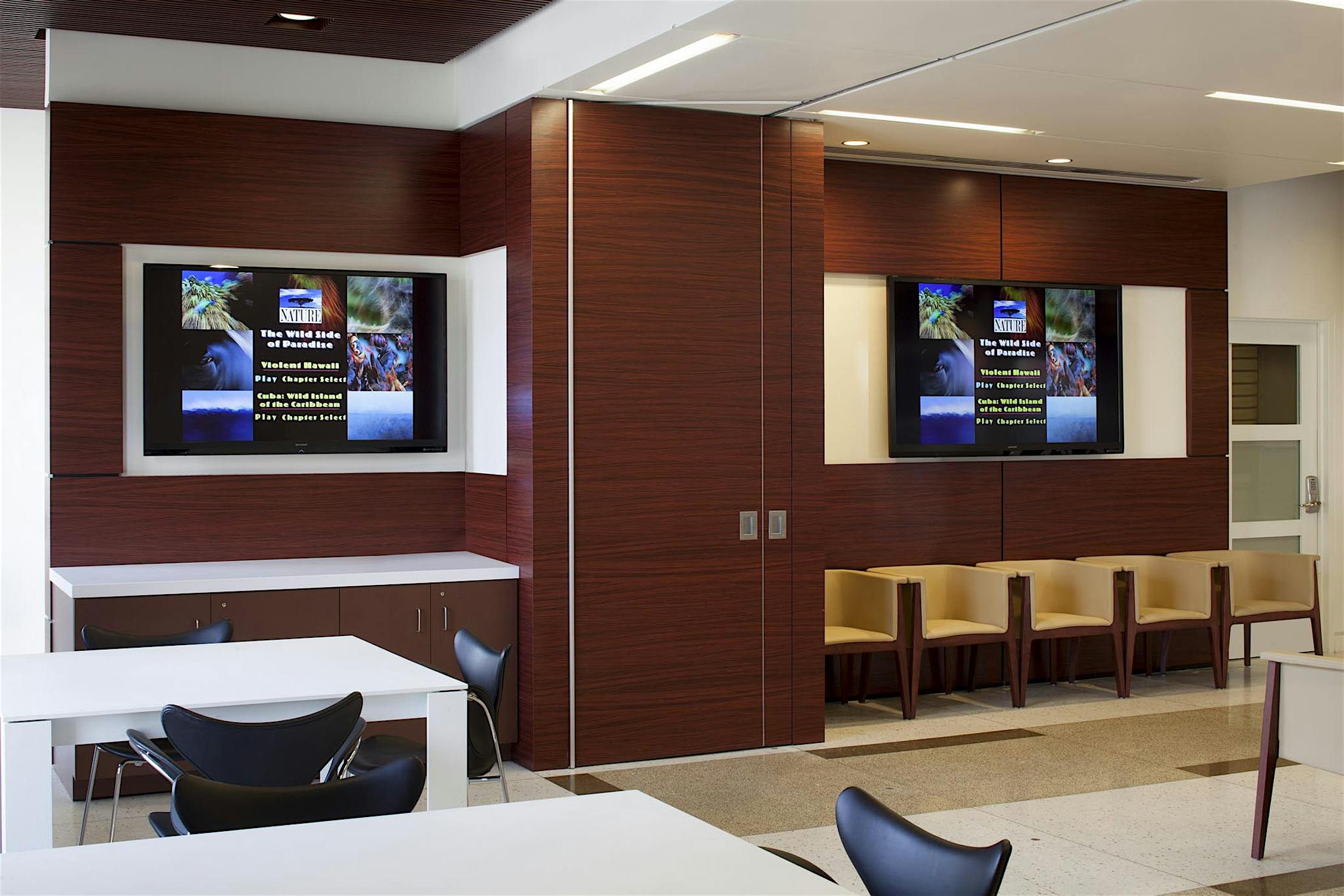

In addition to exterior openings, the NanaWall HSW60 is designed to complement interior spaces both visually and functionally. Choose from a variety of glass options for privacy and sound control, and select from 50 standard powdercoat finishes to coordinate with your design. The head track can be recessed in the ceiling, while even eliminating the floor track for interiors. Adaptable, multi-function office interiors never looked and performed this good.
German Engineering
NanaWall systems are designed in Germany, providing world-class quality and long-term reliability
Unique to You
Each NanaWall system is custom made to order based on your project and your personal preferences
Wide Openings
NanaWall folding systems can replace walls or doors up to 39’ wide, select systems can go even wider if desired
Built to Perform
NanaWall systems meet or exceed air, water, structural, and forced entry tests for weather, durability, and security
Aesthetics
NanaWall systems offer a variety of material options and finishes to coordinate with any design
Ease of Operation
NanaWall systems offer single-handed operation and move smoothly with little effort
PERFORMANCE WHEN CLOSED MATTERS MOST
Large openings are easy to design and there are many options to choose from. When deciding on a product that best for your project, performance when closed needs to be considered.
All Climate Performance
NanaWall products are NFRC rated and certified for true energy efficiency in all climates.
Certified Testing Standards
NanaWall products endure the latest AAMA testing standards for air, water, structural, and forced entry.
Sustainable Design
NanaWall products contribute to multiple LEED rating systems and potentially several credit categories.
Air, Water, Structural, Thermal, Forced Entry & Acoustical Results
Florida Product Approval #25540.1
HSW60 Results
Design Windload Chart
(Derived From Comparative Analysis)
Test Unit Size: 37" W x 113" H
Please note that some jurisdictions may limit the use of these charts or may not accept them at all. Design pressures and/or sizes may be restricted to what was tested.
Please also note that chart is only applicable for units with referenced Nana Wall supplied locking.
BOTH POSITIVE AND NEGATIVE DESIGN PRESSURES
Stacking Concepts for HSW60

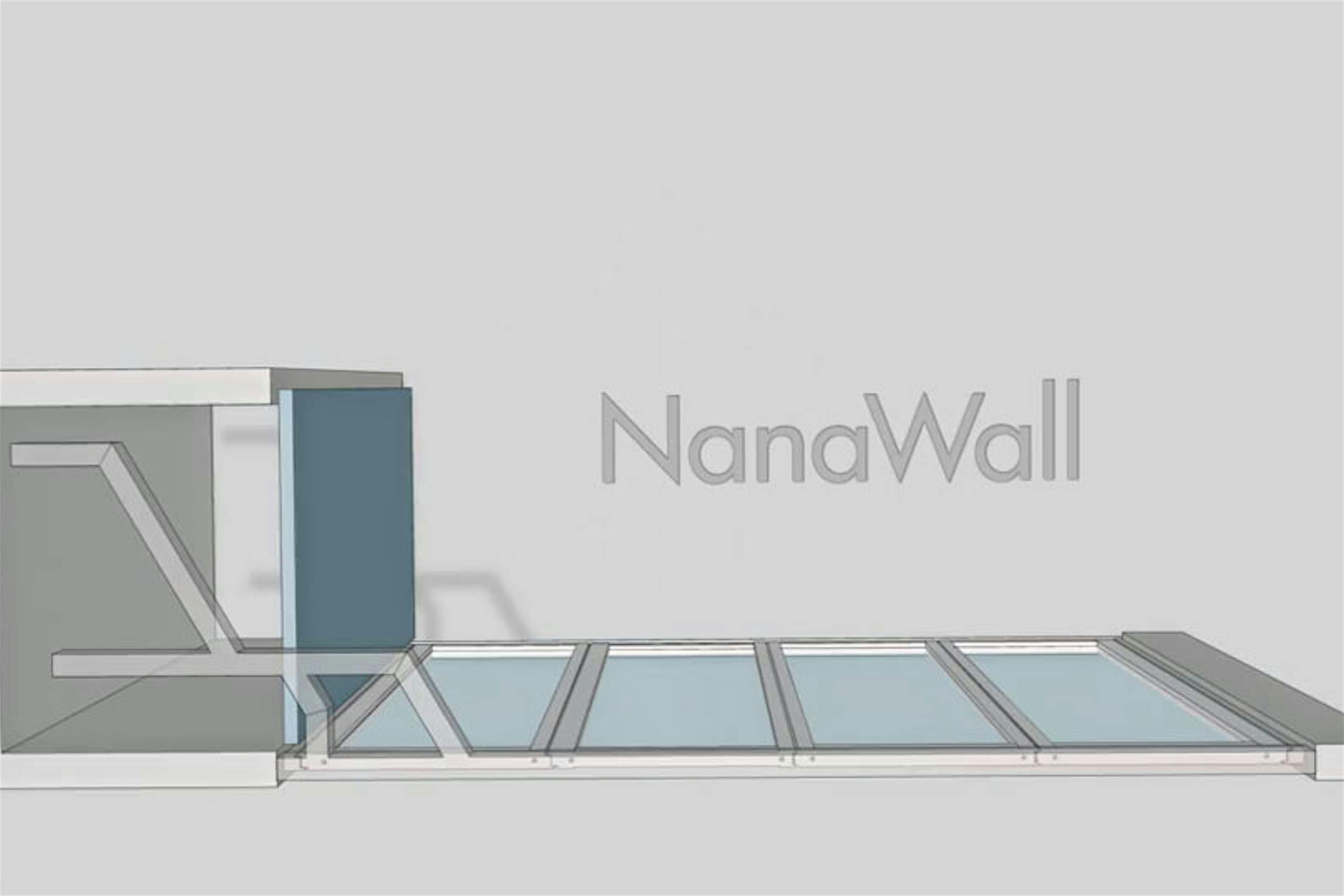

Shown below are animations of some basic stacking concepts. Please note the following:
- The number of panels in a system can be unlimited.
- Stacking can be on the left or right, inside or outside, only on one side or on both sides.
- Incorporated swing panels can be placed almost anywhere. The swing panel can be inswing or outswing. Pairs are possible.
- The stacking area can be wide or narrow and with additional track, can be located almost anywhere, near or far.
- Within certain limits, unequal panel widths may be possible.
- Depending on layout, different panel heights in the same opening are possible.
- Open corners, multi-angle and segmented units are possible.
-
For straight units with a maximum of twenty panels, the concepts marked with an asterisk, *, can be quickly customized with the NanaWall Visual Studio. Schedule a Design Consultation.
HSW60 Stacking Concept A (1)*
HSW60 Stacking Concept O*
HSW60 Stacking Concept M*
HSW60 Stacking Concept N*
HSW60 Stacking CONCEPT G*
HSW60 Stacking Concept B (2)*
HSW60 Stacking Concept E*
HSW60 Stacking Concept l*
HSW60 Stacking Concept D
HSW60 Stacking Concept F
HSW60 Stacking Concept H
HSW60 Stacking Concept I
HSW60 Stacking Concept J
HSW60 Stacking Concept K (NO Air no acoustic rating)
* Further design possible with NanaWall 3D Design Studio
HSW Stacking Concept 8
HSW Stacking Concept 9
HSW Stacking Concept 10
Examples of Enclosing Stack Area By Others
Enclosing Stack Area Example 1
Enclosing Stack Area Example 2
Enclosing Stack Area Example 3
Enclosing Stack Area Example 4
Enclosing Stack Area Example 5
Enclosing Stack Area Example 6
Enclosing Stack Area Example 7
HSW Paired Incorporated Swing Doors
* Further design possible with NanaWall 3D Design Studio
HSW Window Door Combination
Size Charts
Floor Tracks

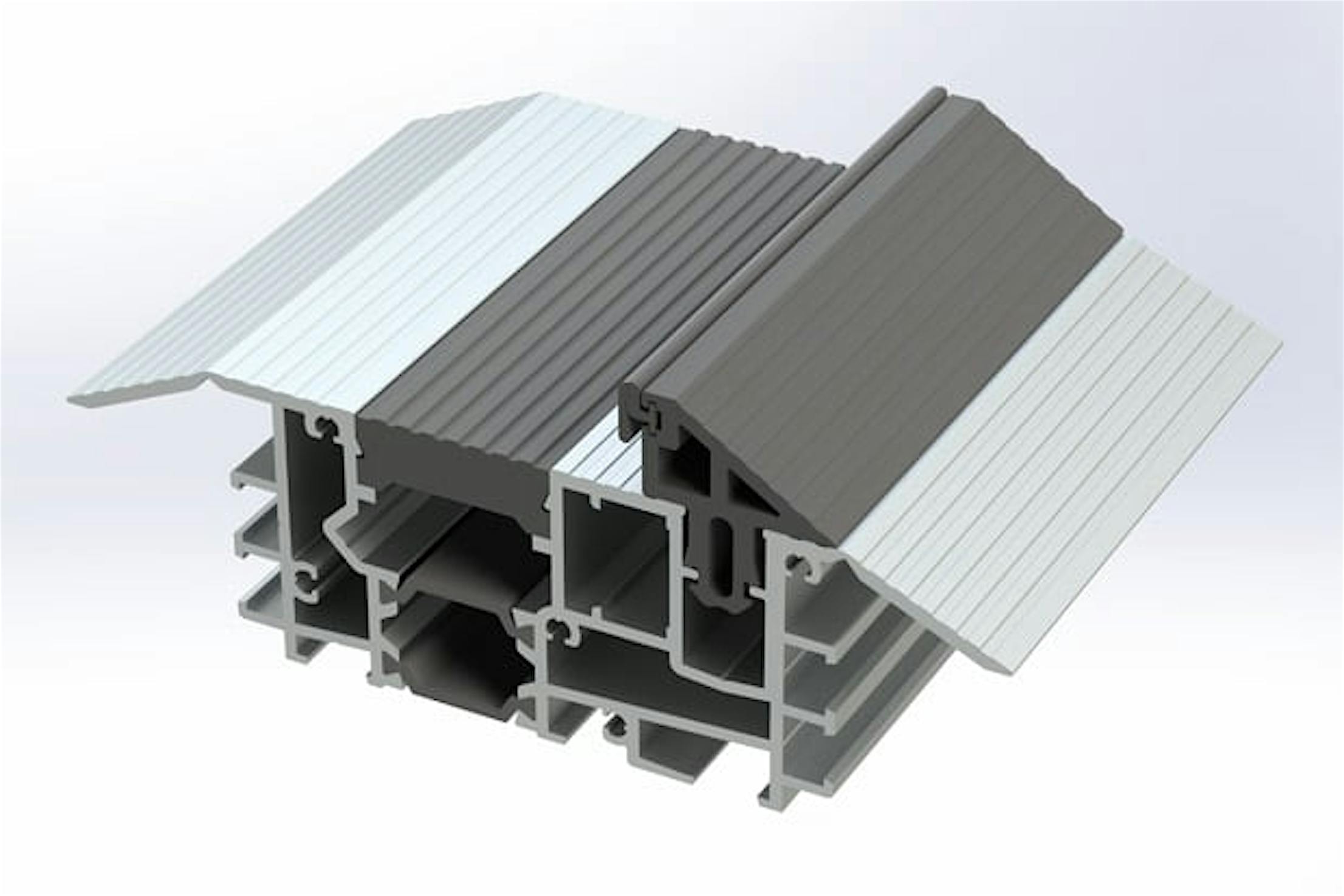

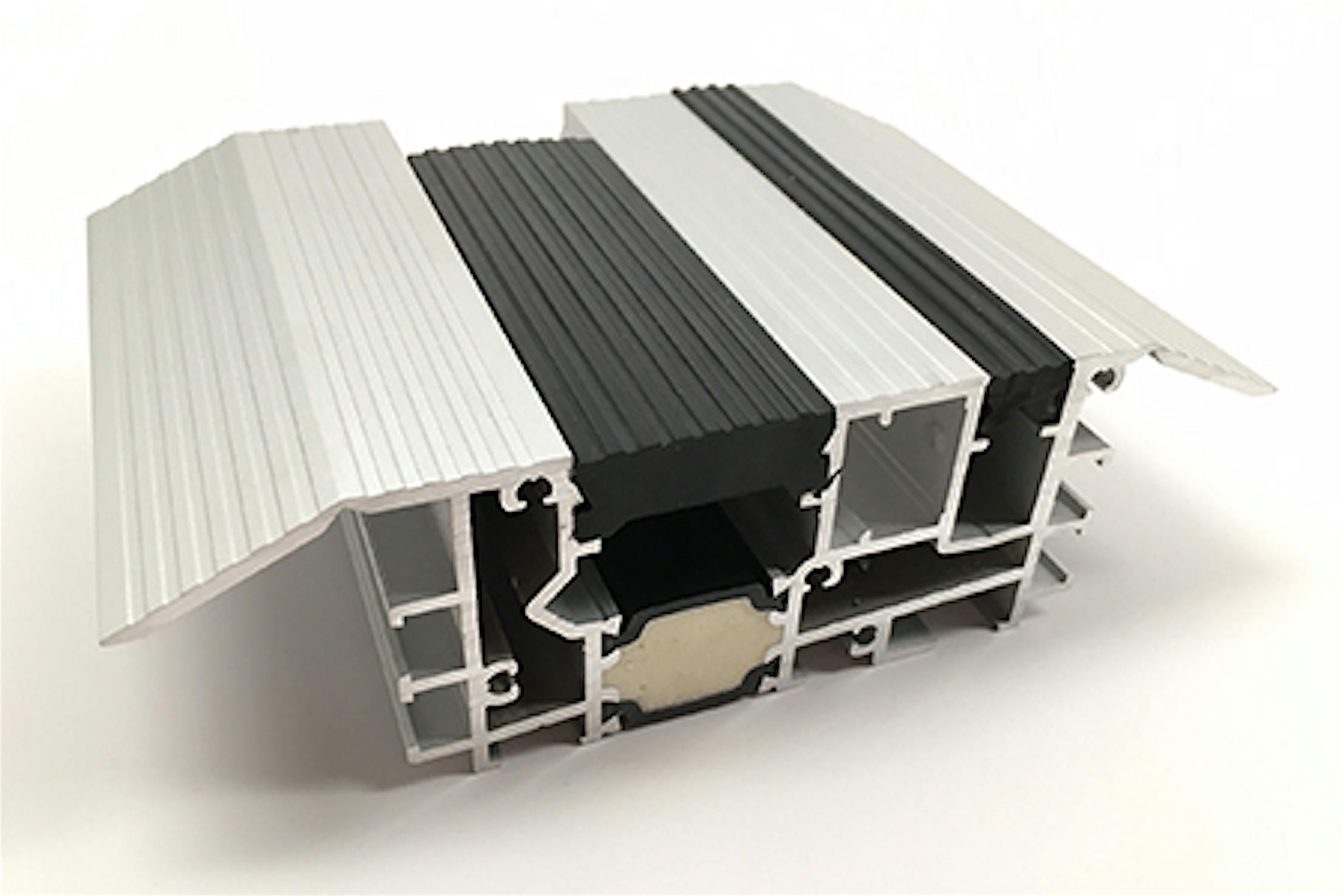

Low Profile Saddle Sill
- Our most popular sill
- Thermally broken for better insulation and energy efficiency
- Partial or full insert available for ADA compliance
- Available in Clear or Bronze Anodized finishes

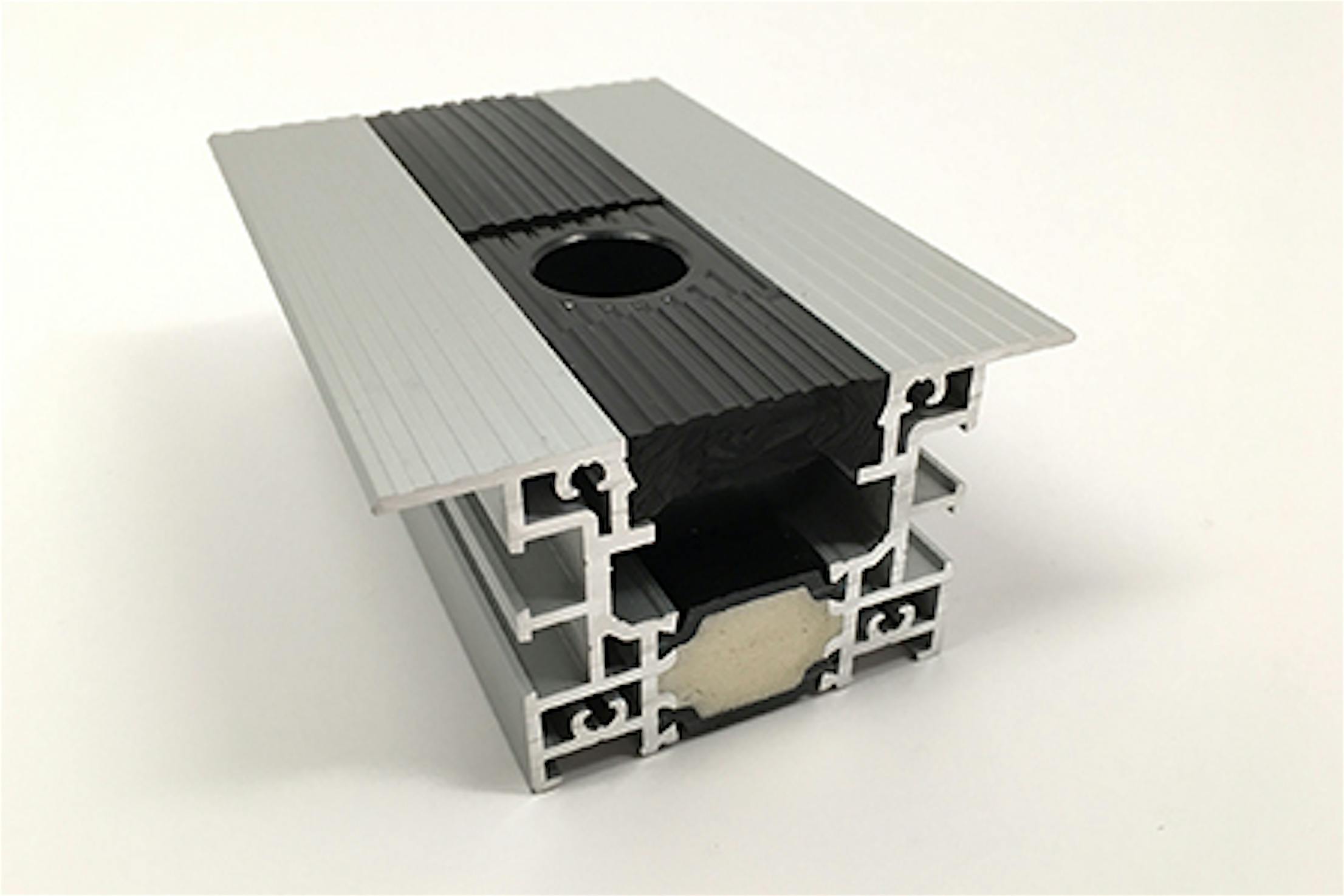

Flush Sill
- ADA Compliant with insert
- For interiors or protected exteriors
- Where water performance is not needed
- Available in Clear or Bronze Anodized finishes

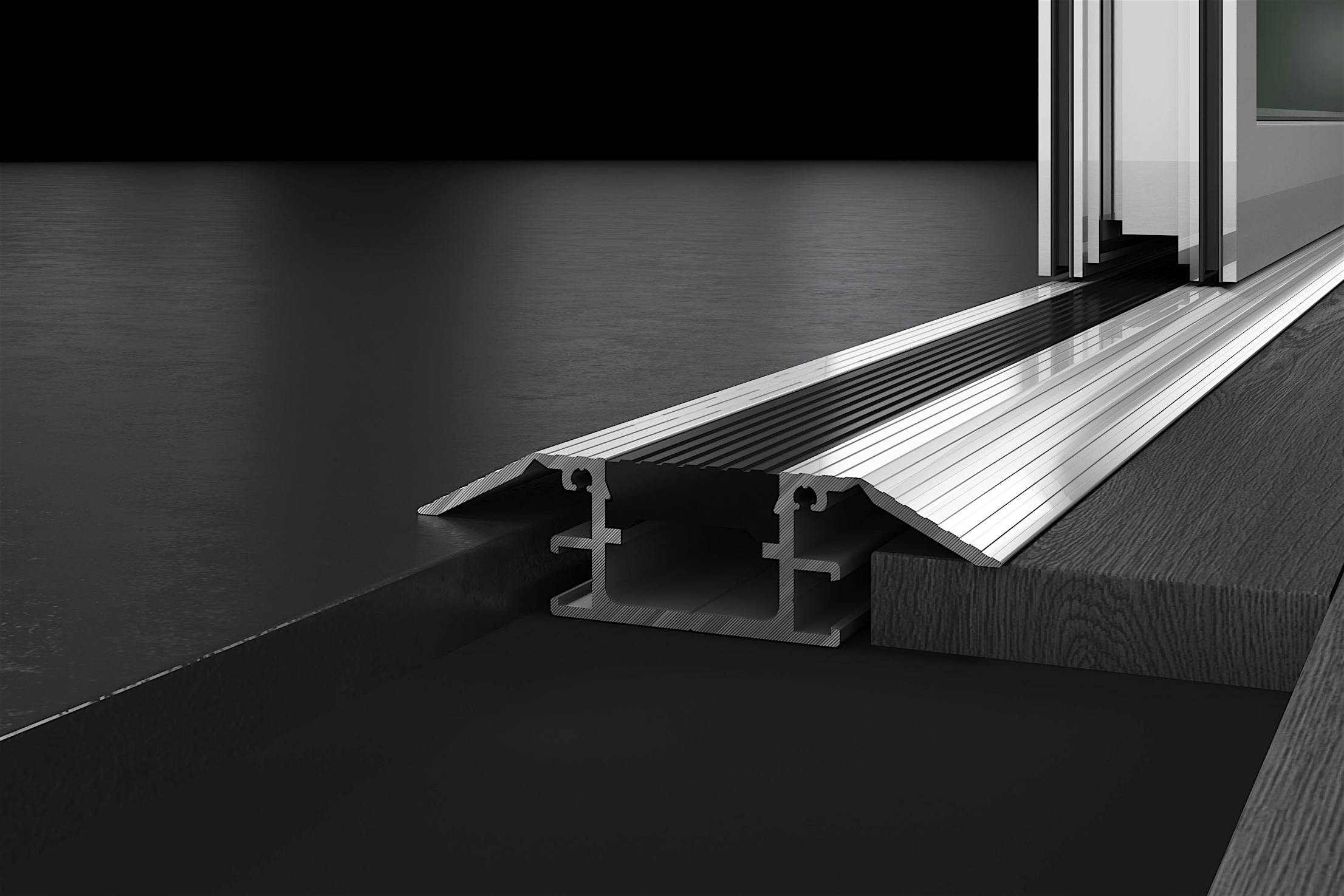

Surface Mounted Sill
- For interiors
- Sill rests above the subfloor for easier installation
- Adjustable flanges and available insert for ADA compliance
- Available in Clear or Bronze Anodized finishes
No Floor Track
- For certain applications, sills can be eliminated completely
- Provides seamless transition between two spaces
- Locking rods in panels engage in adjustable floor sockets
Handles

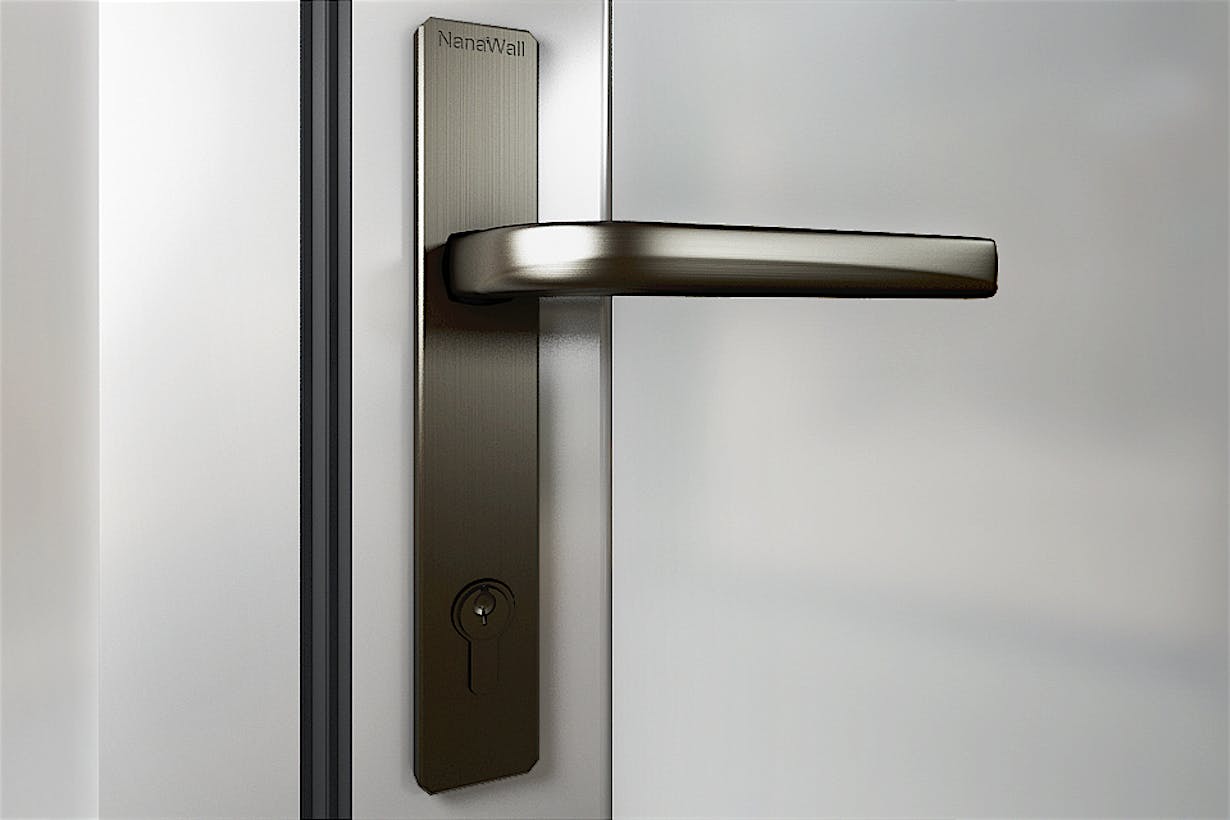

Stainless Steel Lever Handles
Stainless steel lever handles and escutcheon plates are available either in a brushed satin or black titanium finish.
Stainless Steel Flat Handles
Stainless steel flat handles are available either in a brushed satin or black titanium finish.
Solid Brass Lever Handles
Solid brass lever handles and escutcheon plates are available either in a Oil Rubbed Brass, Satin Nickel or a White finish.
Other Flat Handle Options
Flat handles are available in Dark Brown, Dark Grey, Silver Grey (Not Shown) and White.
Custodial Hardware
Custodial hardware is available to protect from unauthorized access or movement of panels.
Compatible Hardware by Other Manufacturers
Locking
Multipoint locking with latch, deadbolt and top/bottom locking rods
This option is possible only on primary swing door.
Includes top and bottom Polyamide capped locking rods, deadbolt, a Schlage compatible lock set with lockable latch and lever handles on the inside and outside. Depression of handles withdraws latch. Lifting of handles engages rods and turn of key or thumb turn engages deadbolt and operates lock.
Operable from inside and outside.
Two Point Locking
Standard between each pair of bi-fold panels and an option for swing panels. 180 degree turn of handle moves locking rods up or down. Uses 7 mm spindle.
Operable from inside only.
Deadbolt Lock
Possible only on primary or secondary swing panel.
Pull handles on both sides with deadbolt(s) operated by a lockset. Lockset option of having key operations on both sides. With a profile cylinder, panel is lockable with a thumbturn from the inside and a key from the outside. To keep the panel from being blown open, this option should be used with a door closer, but note that a door closer is not possible on a swing panel in a folding system that is not attached to a side jamb
Aluminum Colors
Shown are a selection of colors available.Contact NanaWall for other possible finishes. The samples shown here are representative only. Please consult with your sales representative for actual samples.
Standard Anodized Finish
Other anodized finishes are available on request.
NanaWall Standard Powder Coating Finishes
Additional Powder Coating Finishes
NanaWall® offers over 200 RAL GLOSS powder coated and over 200 RAL MATTE powder coated colors for an additional upcharge.
Glass
Units can be supplied glazed with 15/16" clear double insulating safety, 15/16" double insulating Low-E safety, 1 1/2" triple insulating glass, 1/4" single tempered, other high performing safety glass such as Heat Mirror, special tint, etc. or other glass on request. Please contact NanaWall for many other types of glazing that are available. See the Specifications Section of each system for more details.
Glazing Area Options
Most other commercially available glazing can be used with a NanaWall. Custom layouts with horizontal mullions, simulated divided lites, inserts and high bottom rails are available.
Accessories

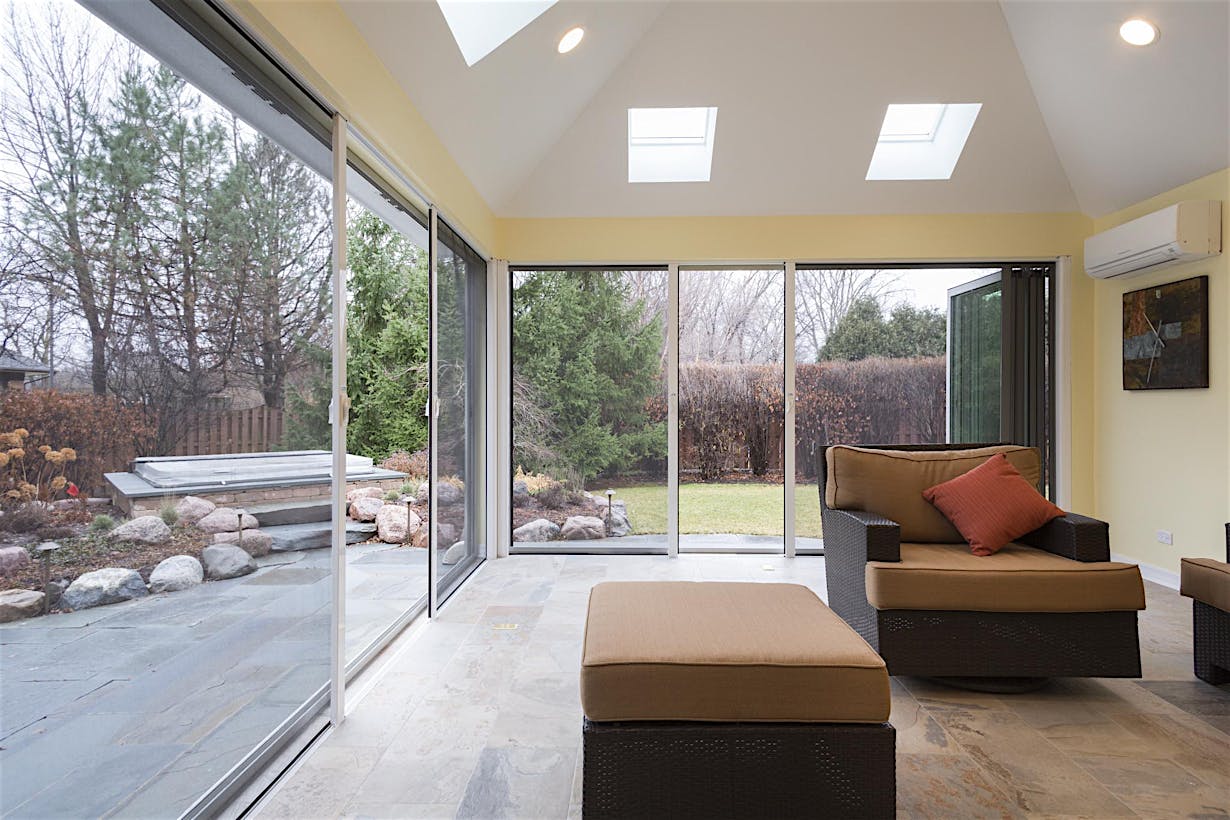

Screening Accessories
Transforming walls and delivering a dream design can be achieved where weather or flying insects would normally prevent the practicality of creating an open space. A retractable screen add-on is perfect for blocking bugs while providing privacy and fresh air. The retractable screens are available in two options:
- Screen ONE
- Screen Classic
Matching Windows
European style dual-action windows, complement a NanaWall system. Offering tilt-in operation and large inswing openings. Choose from both operable and fixed matching windows types for your project.
Matching French Doors
NanaWall Matching French Doors are available as single doors or pairs. Very narrow stiles and rails are possible.
NanaWall French Doors use exactly the same profiles and hardware as the matching NanaWall Folding Glass Walls. Hence, the same size charts, glazing options, wood/finish options and finish hardware options as the matching NanaWall Folding Glass Walls are applicable.
The same testing performance results also apply (within a folding system, with an odd number of panels stacking to one side, the last panel is a swing door).

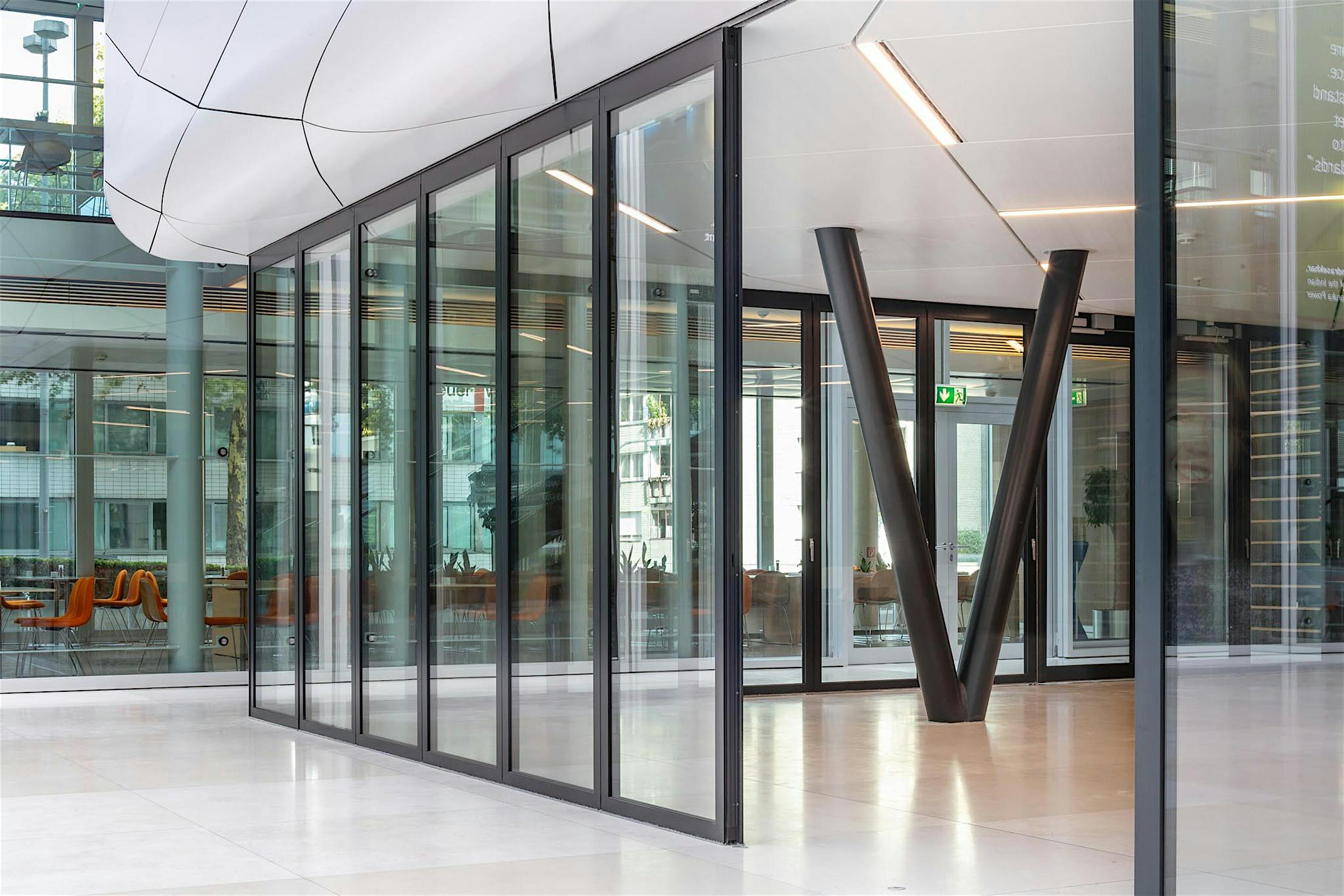

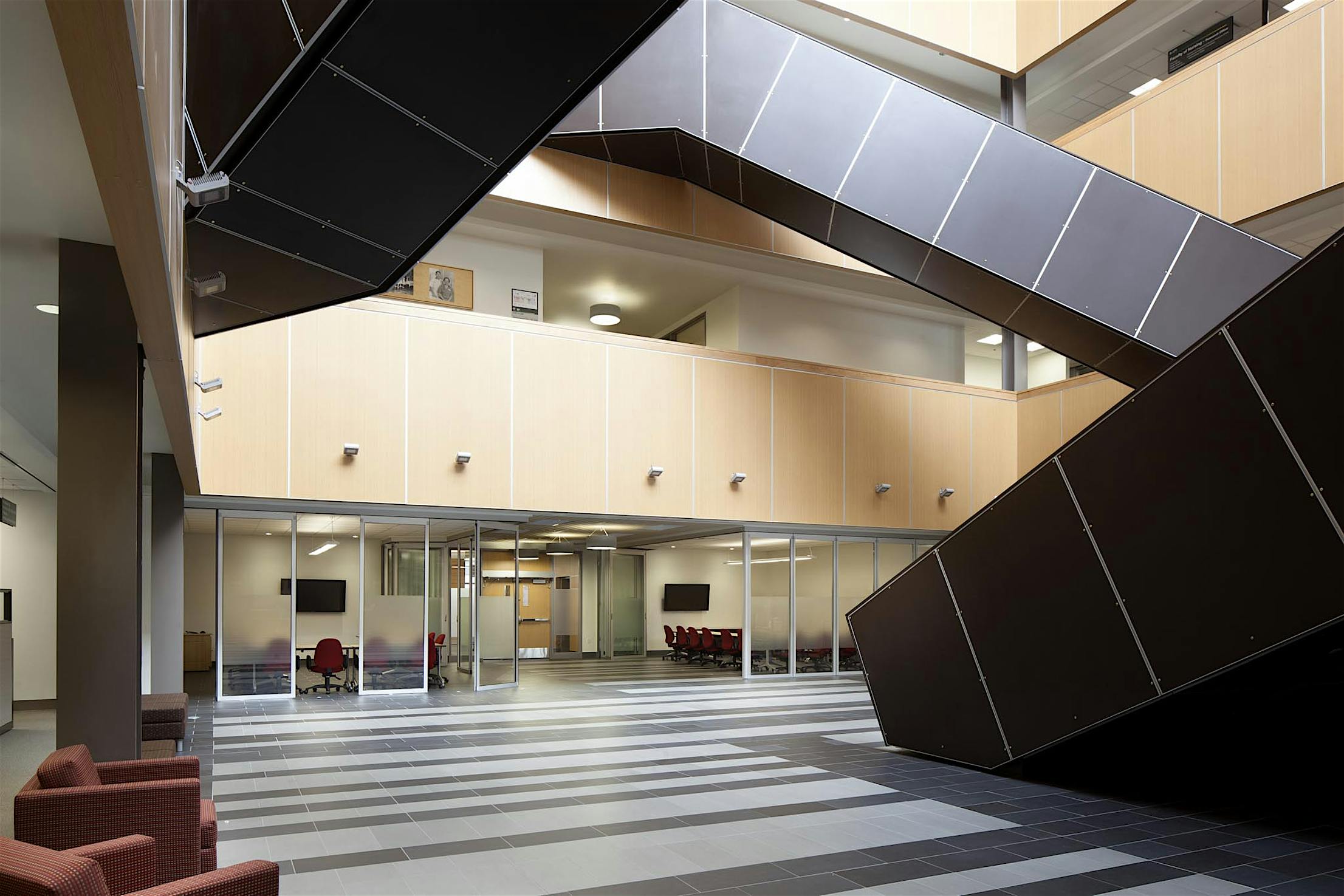

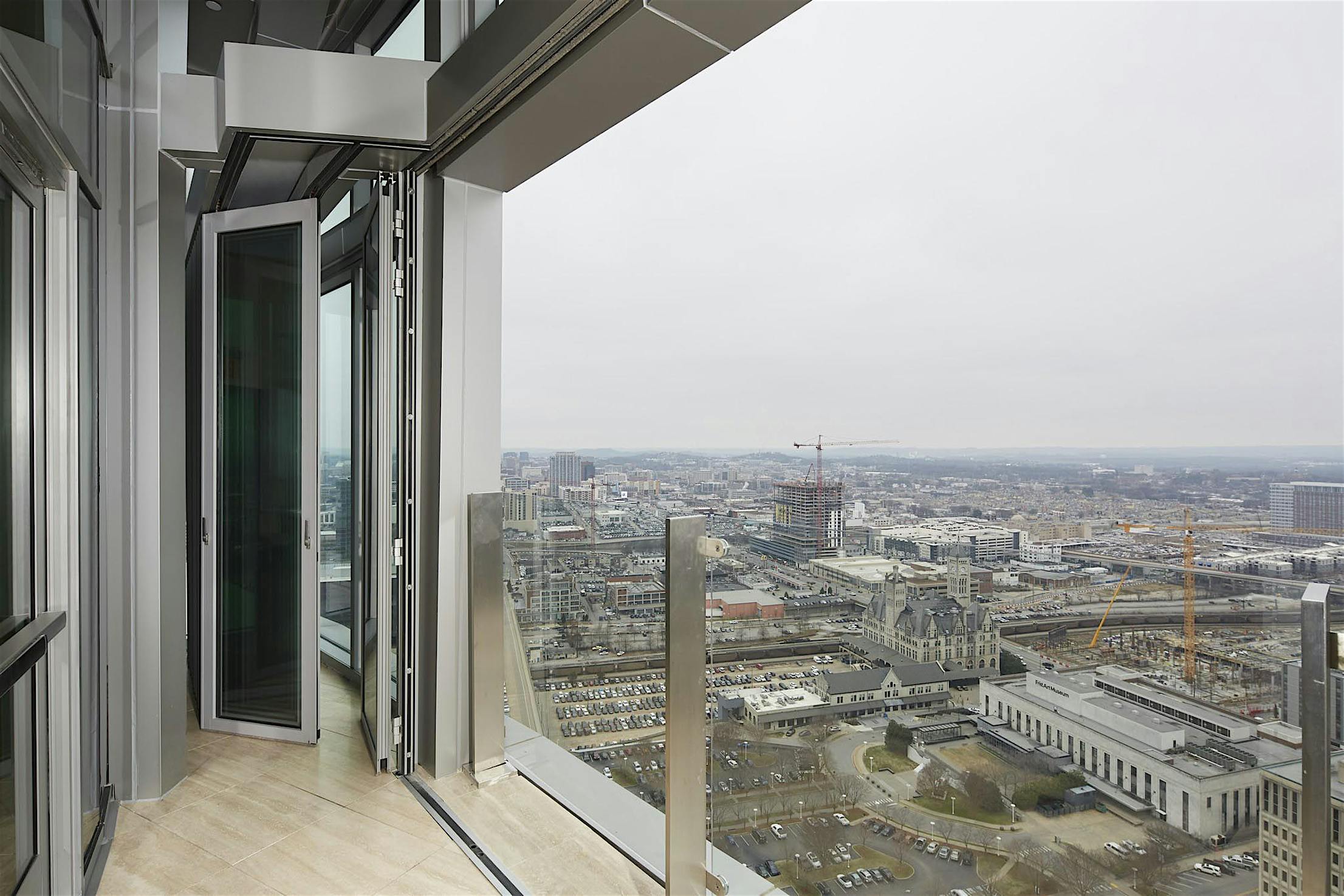

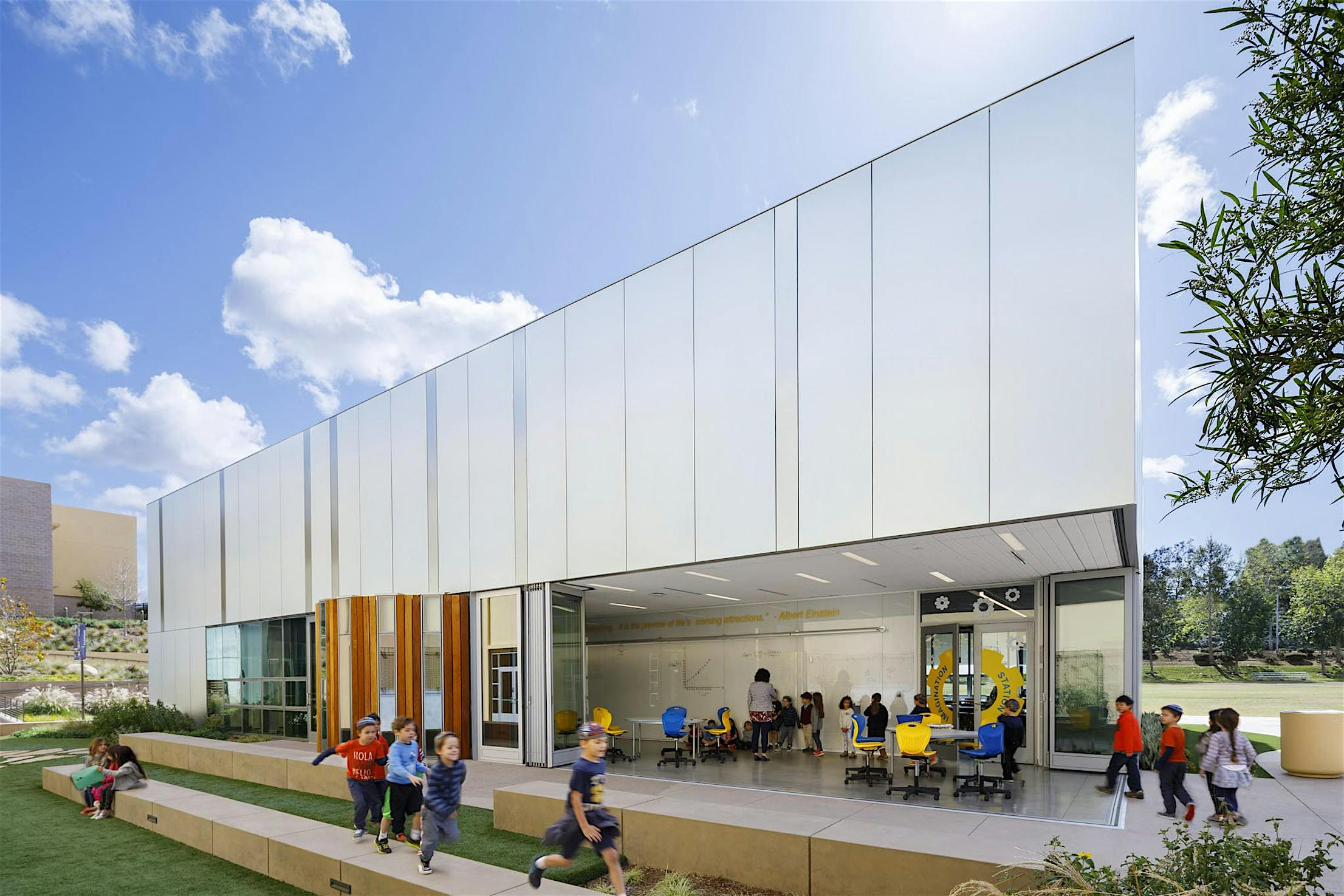

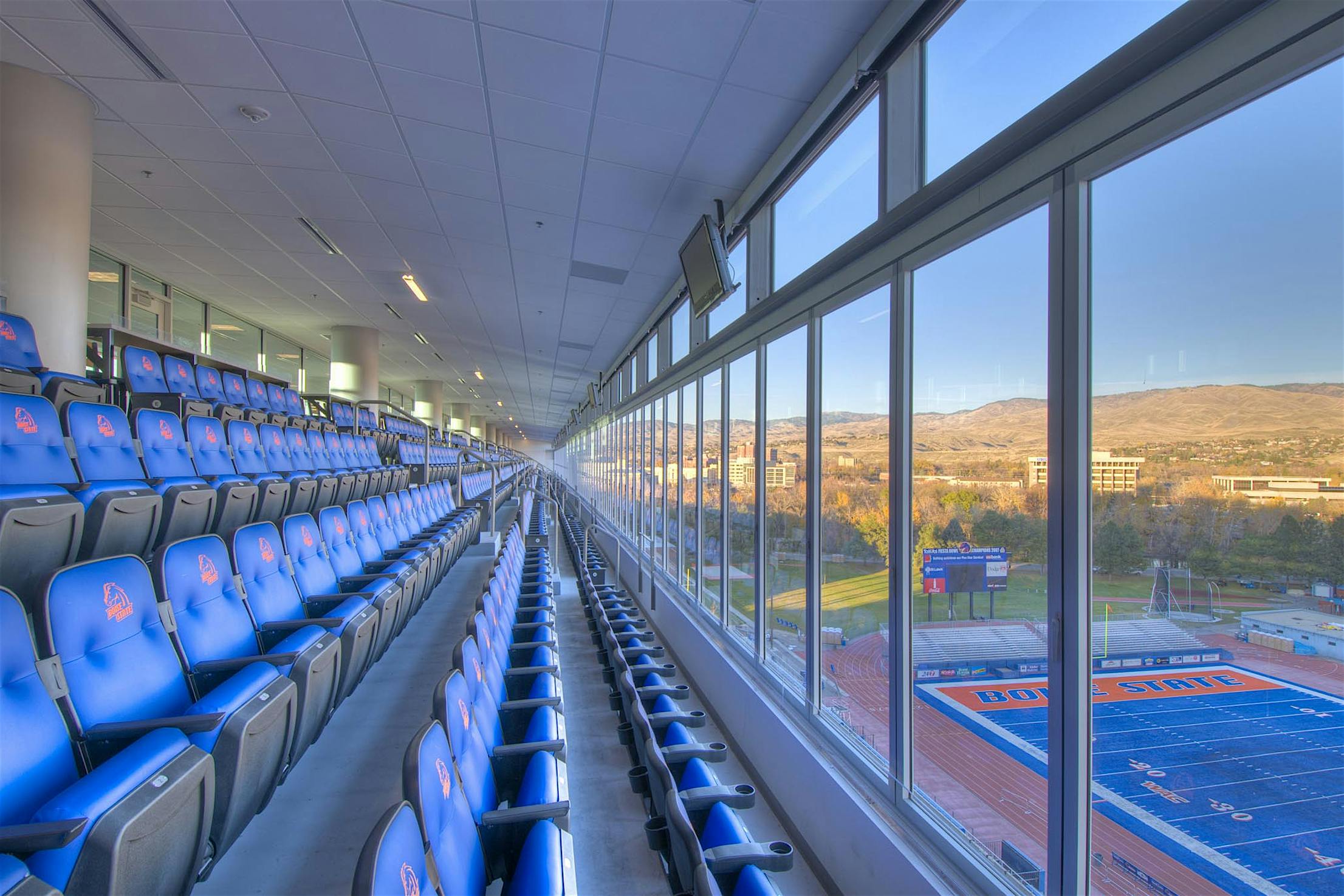

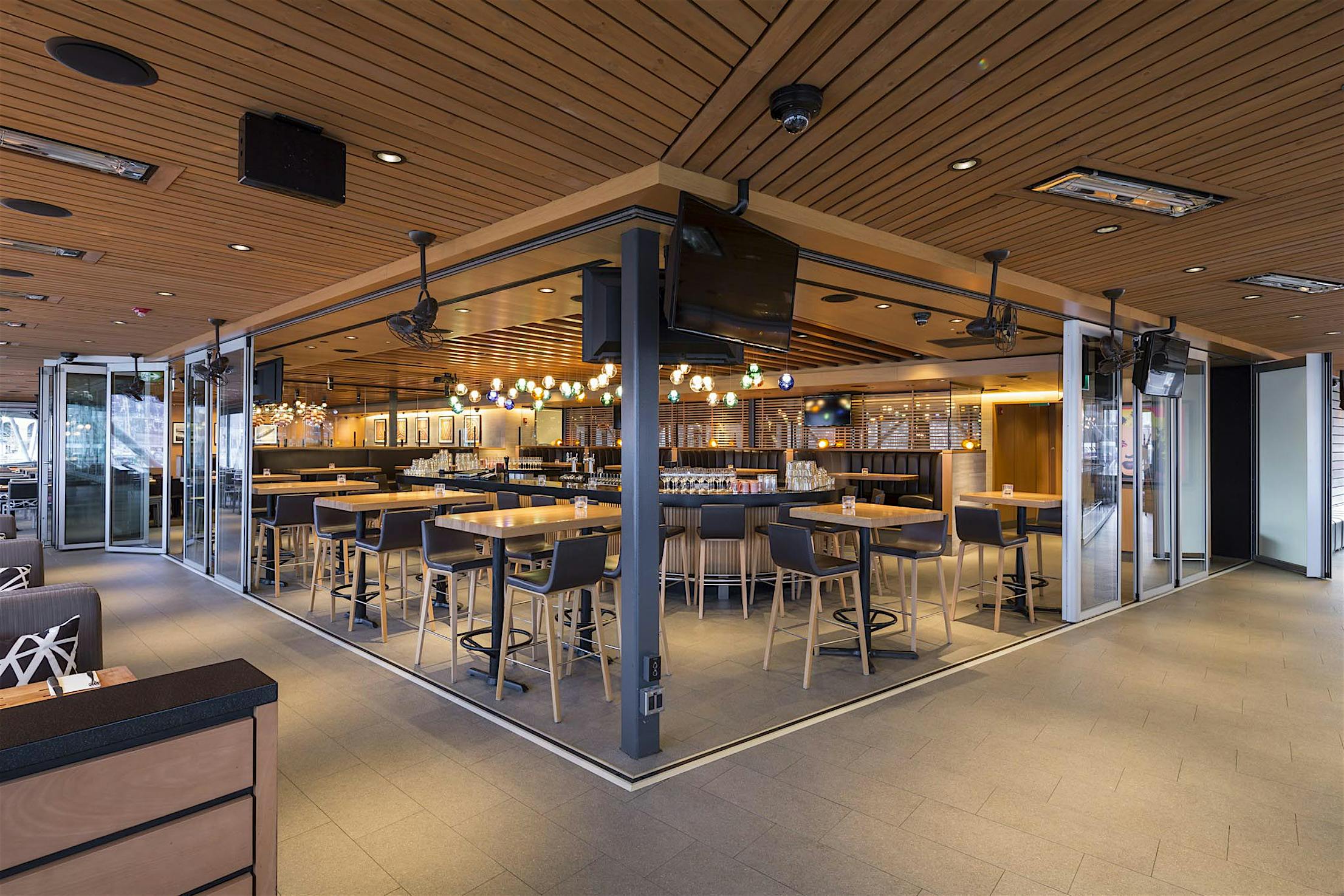

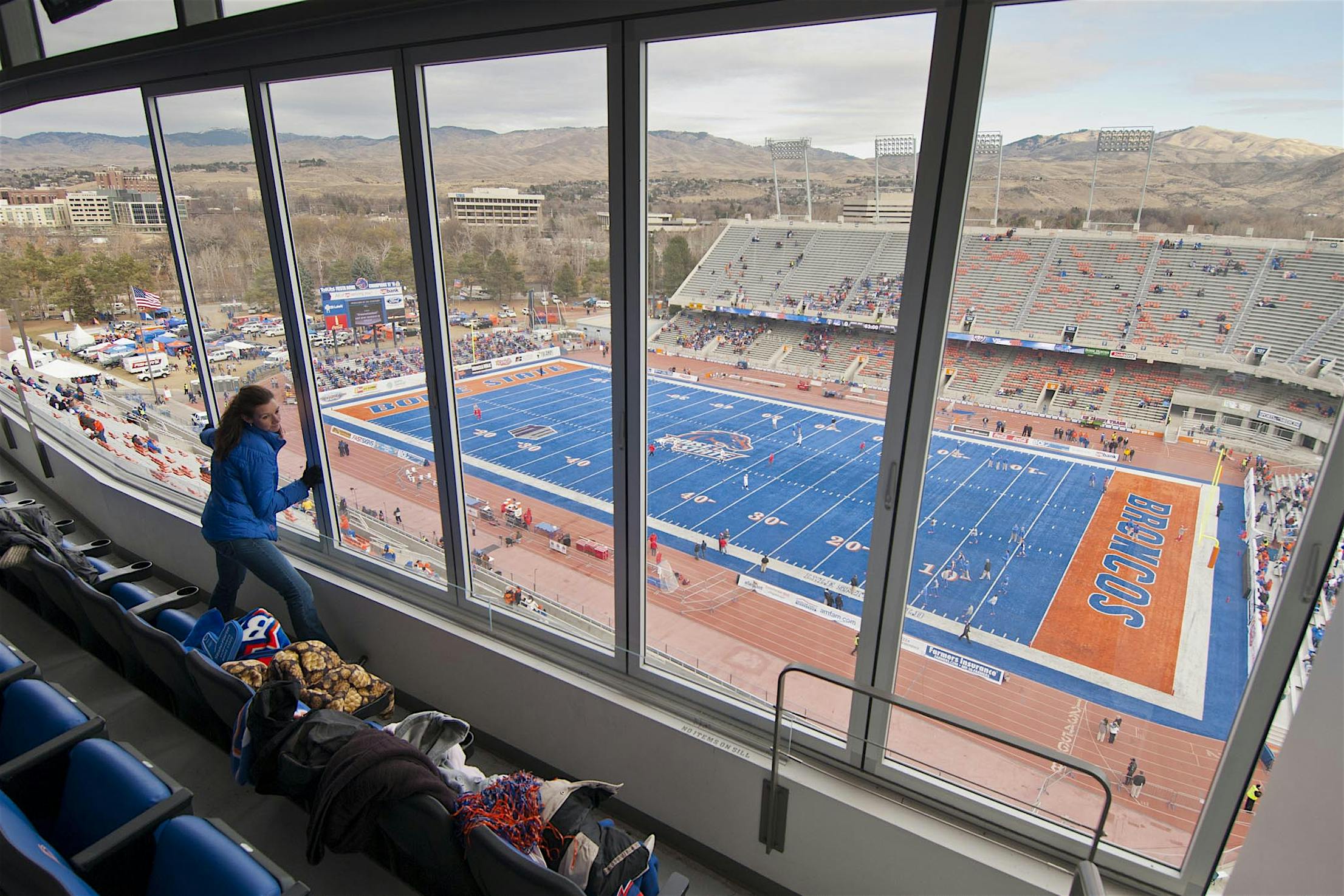

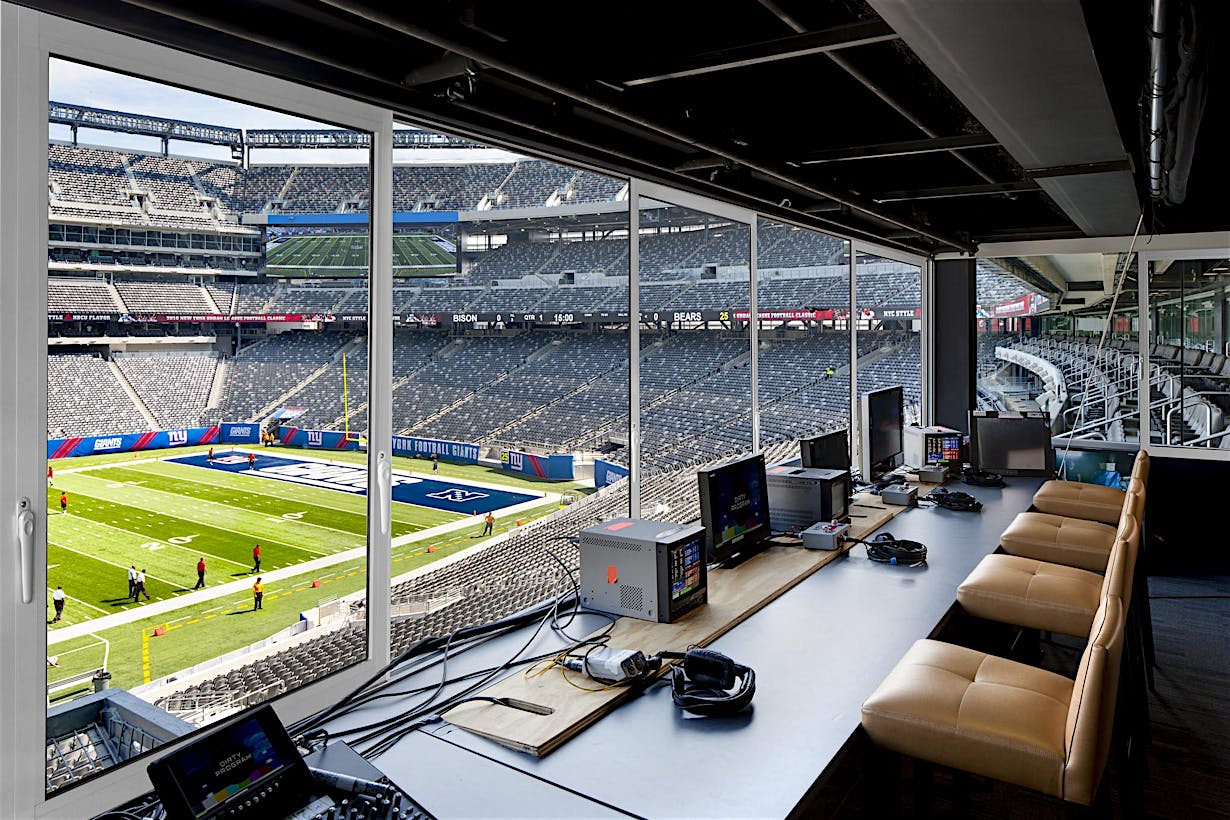

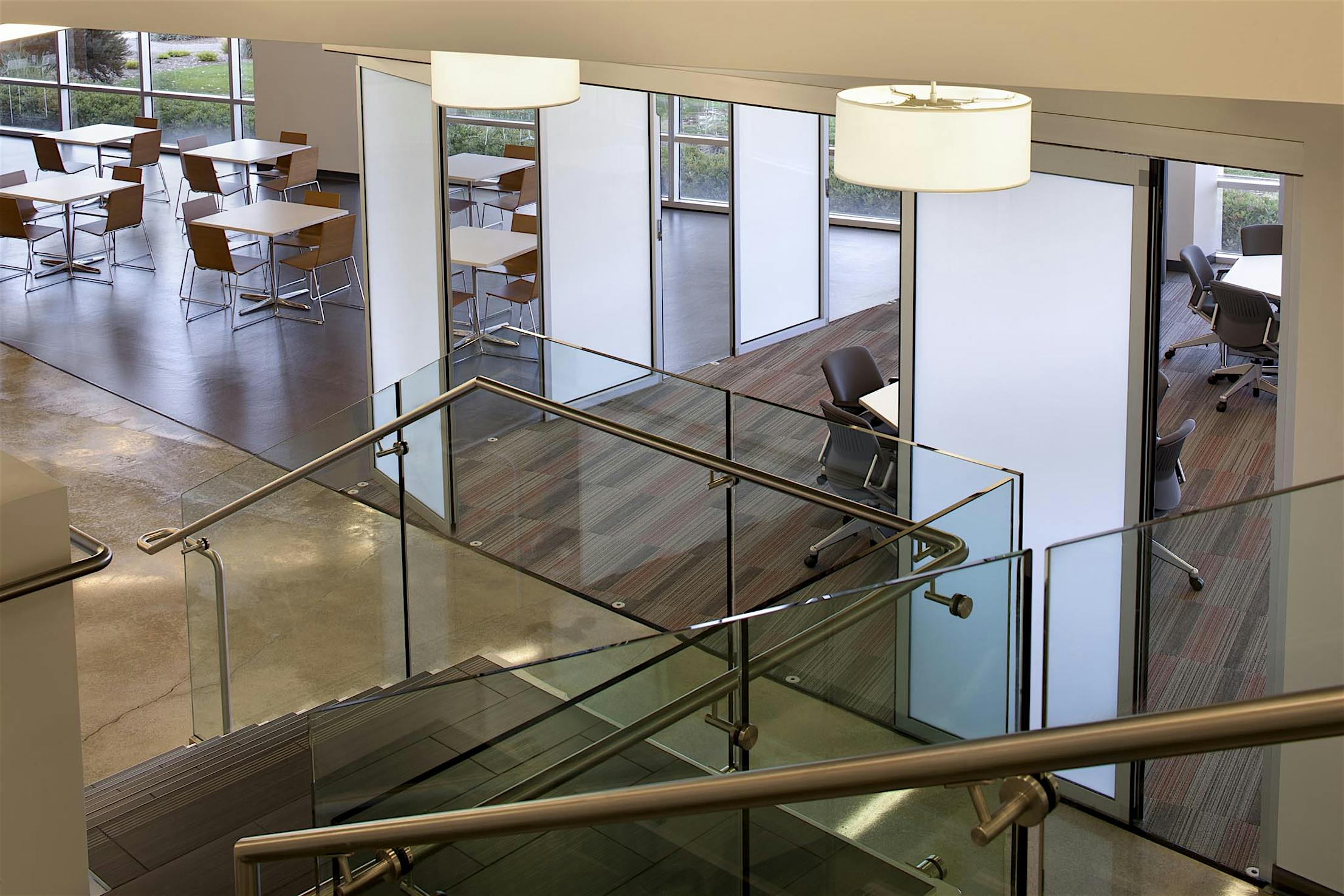

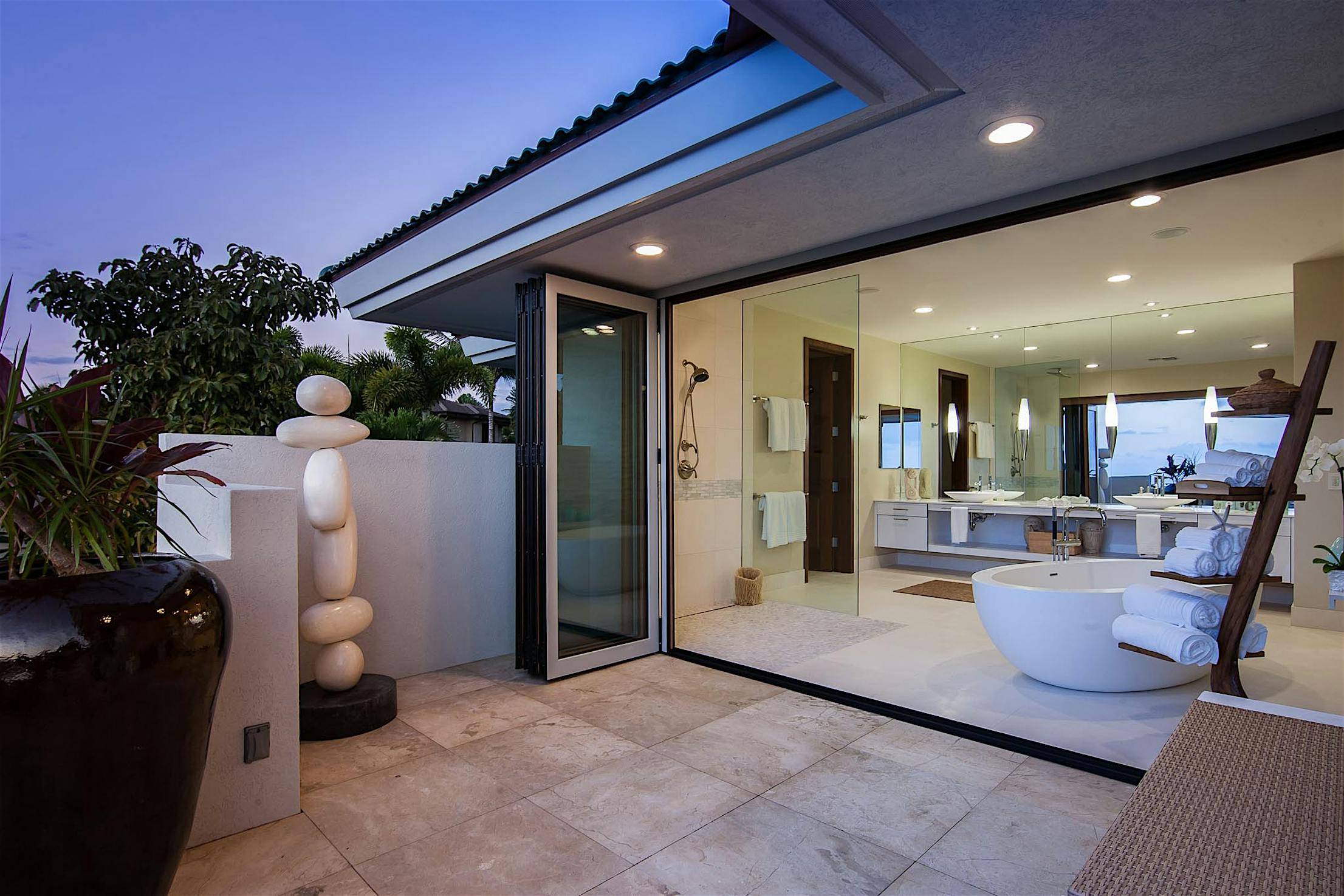

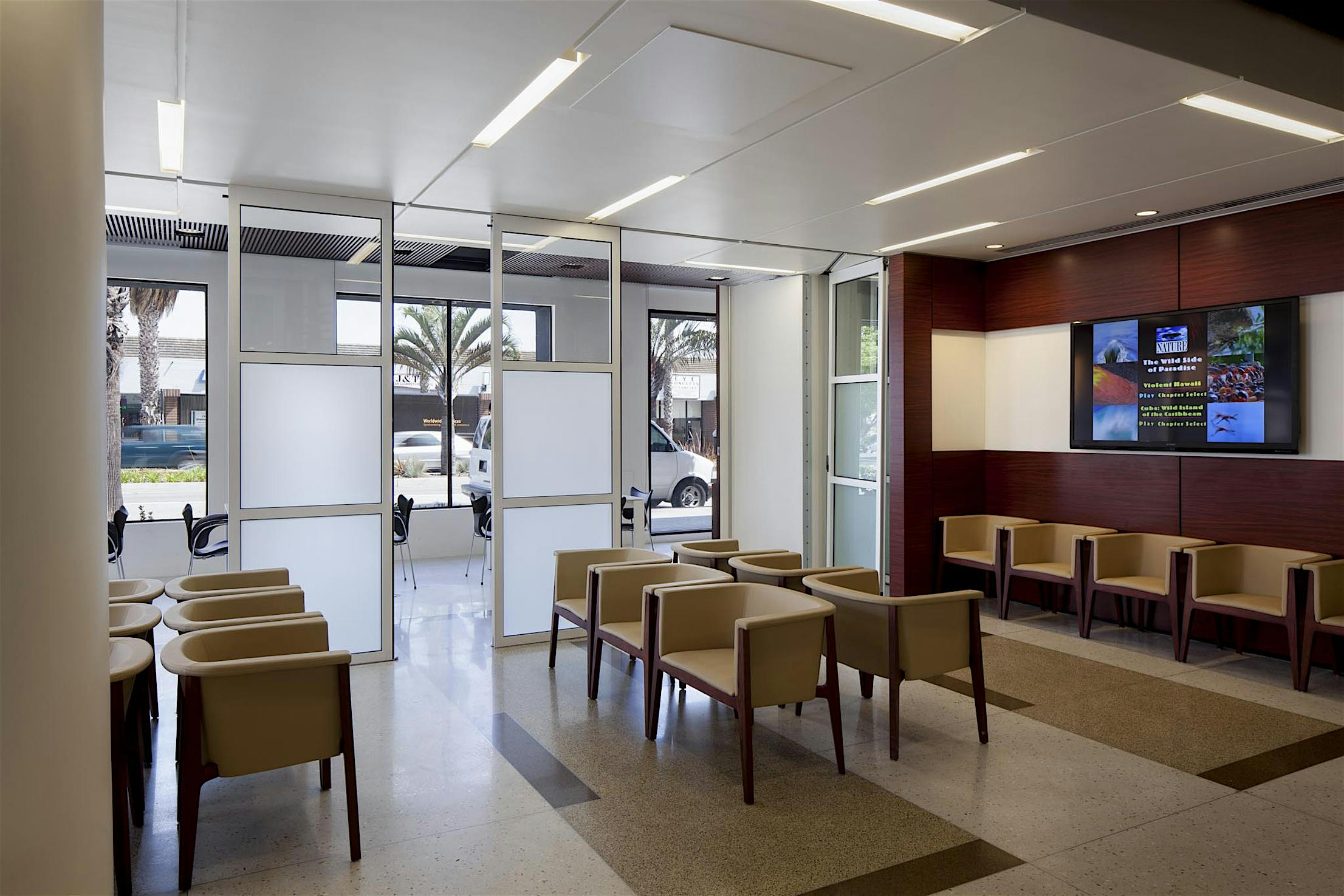

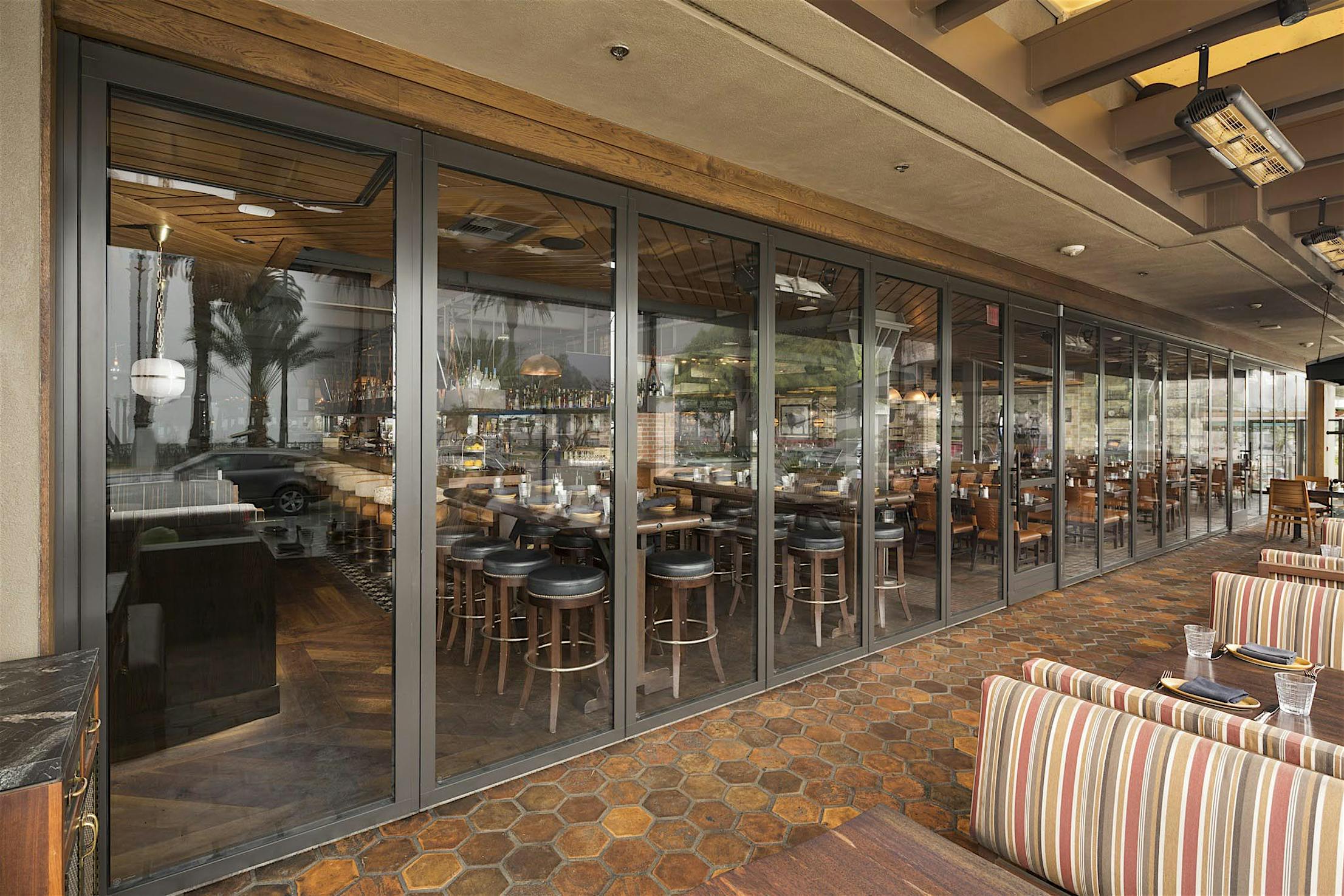

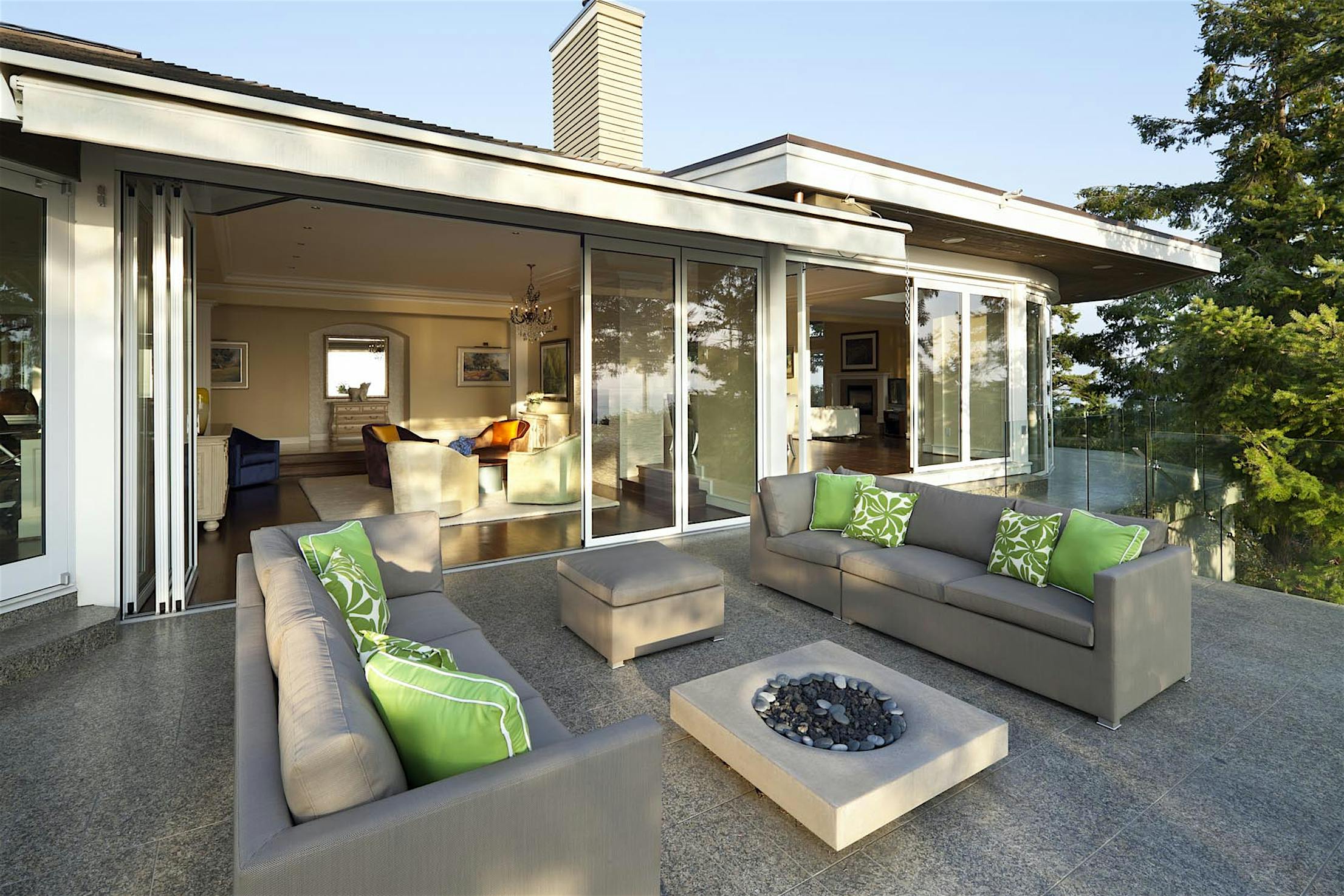

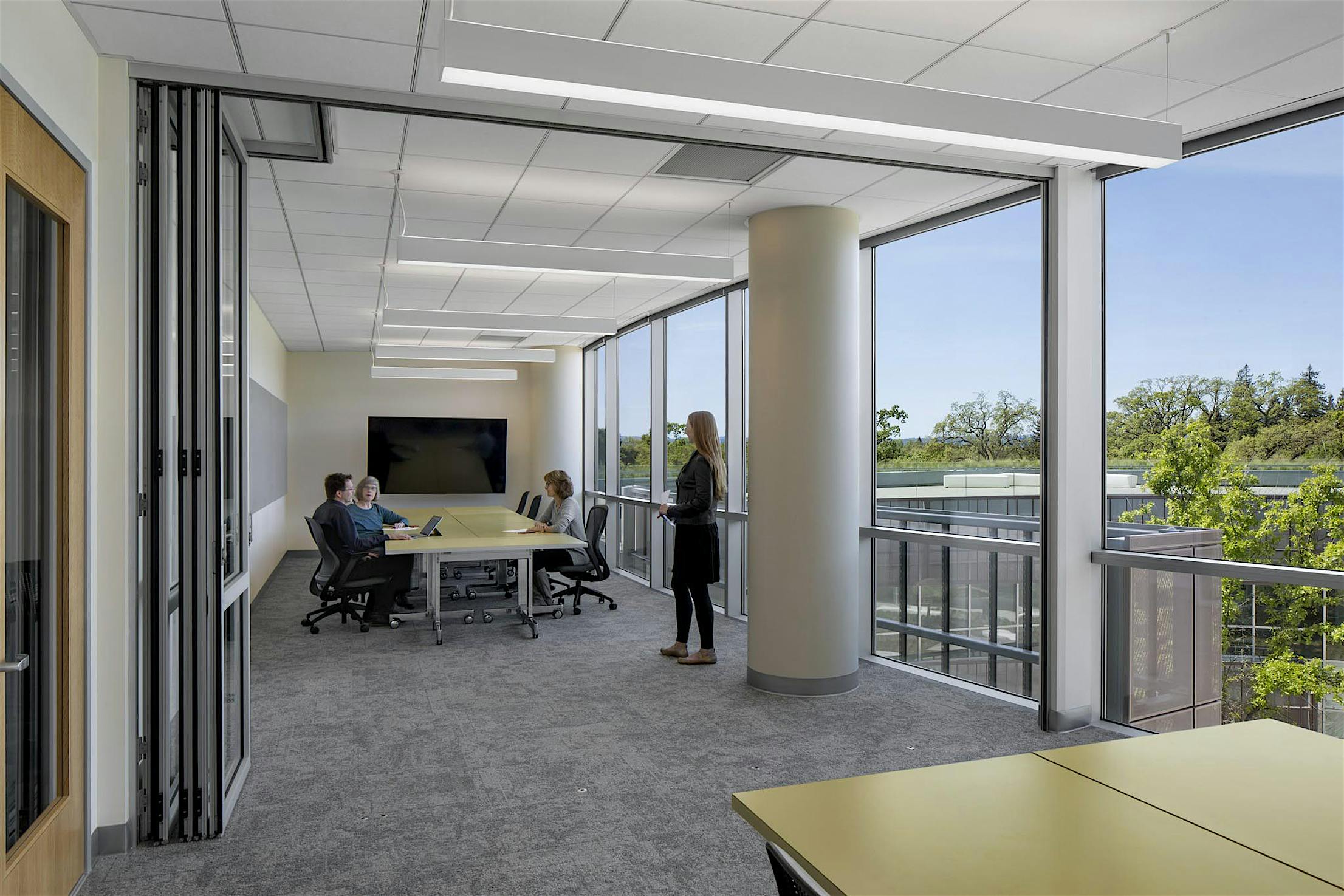

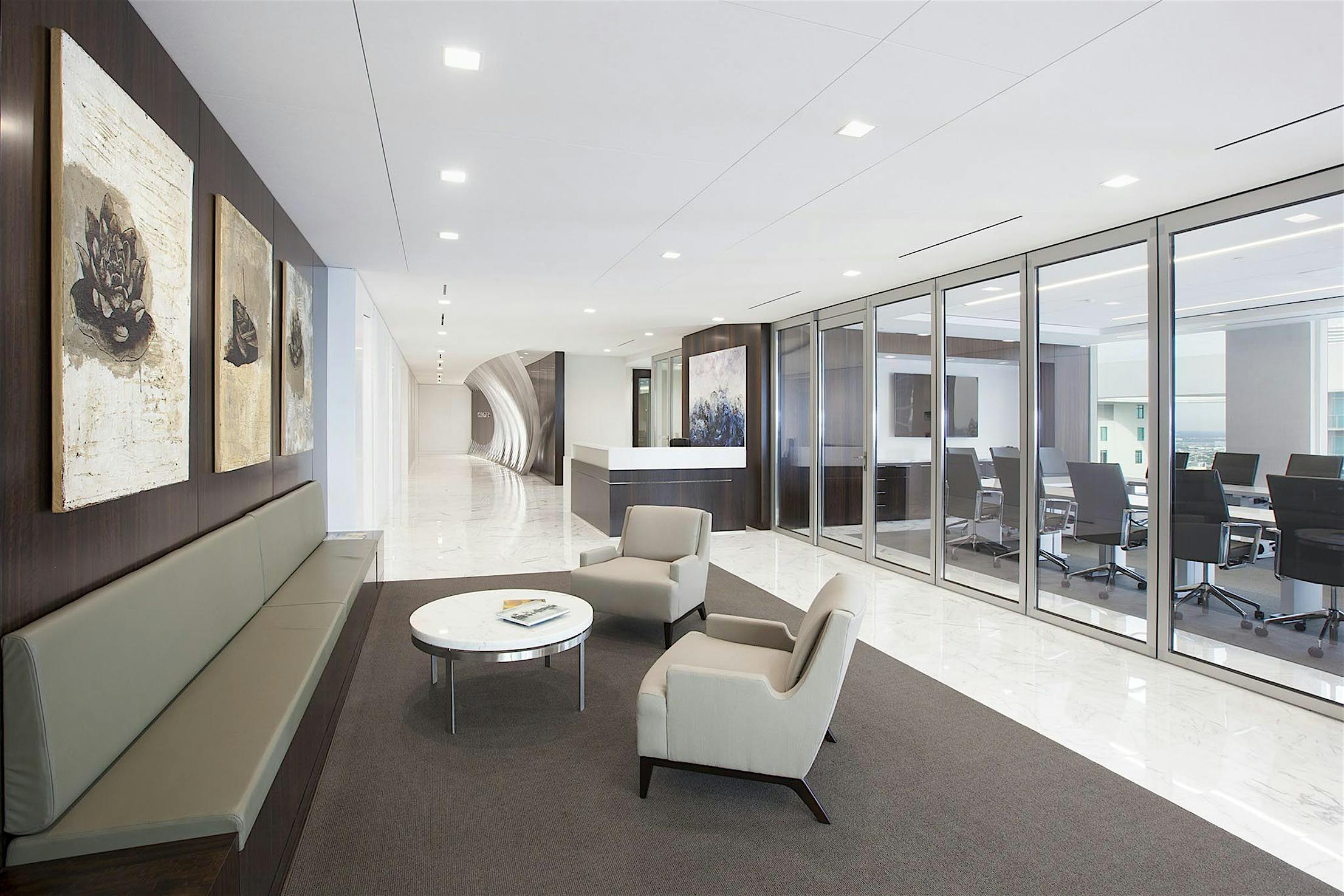

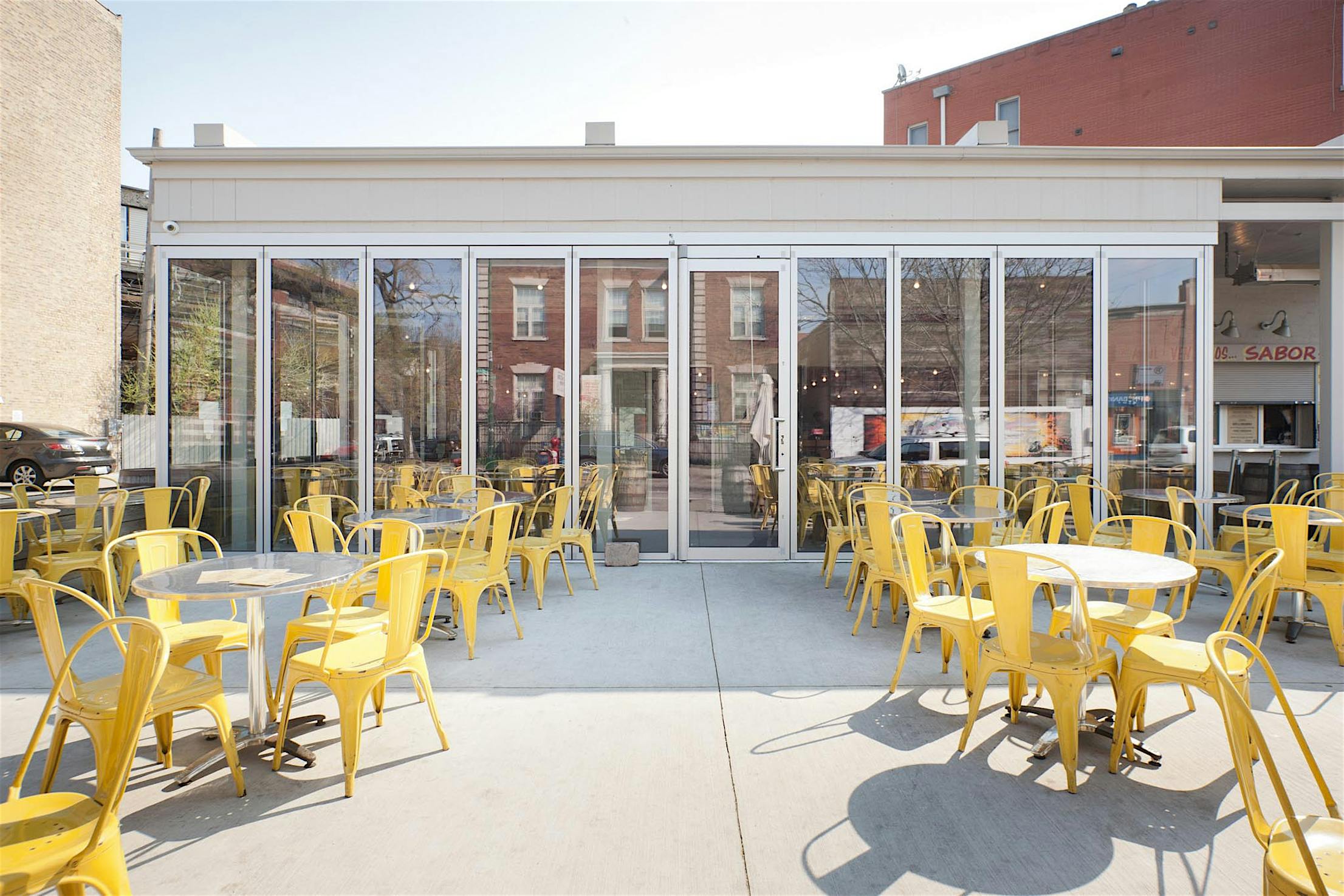

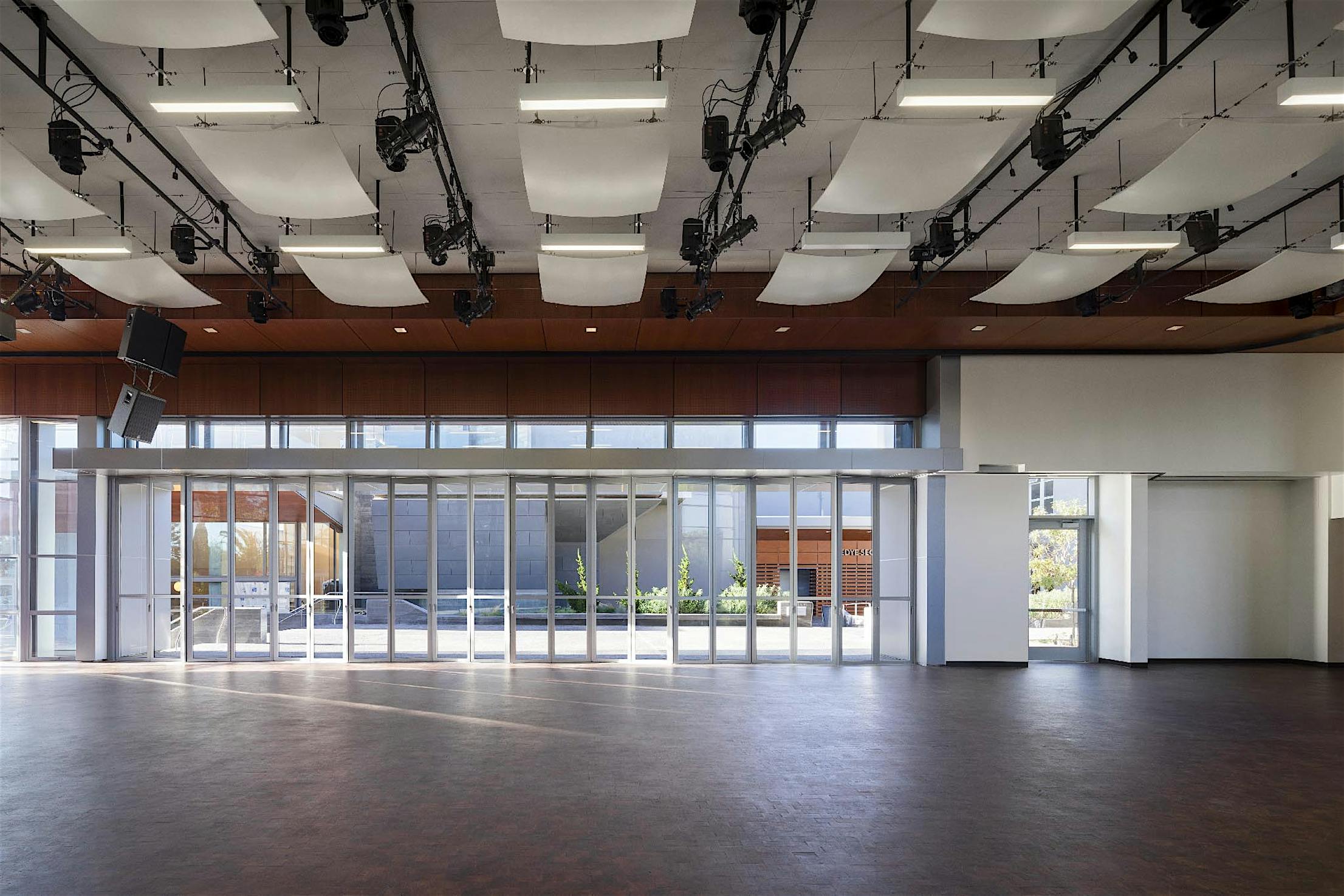

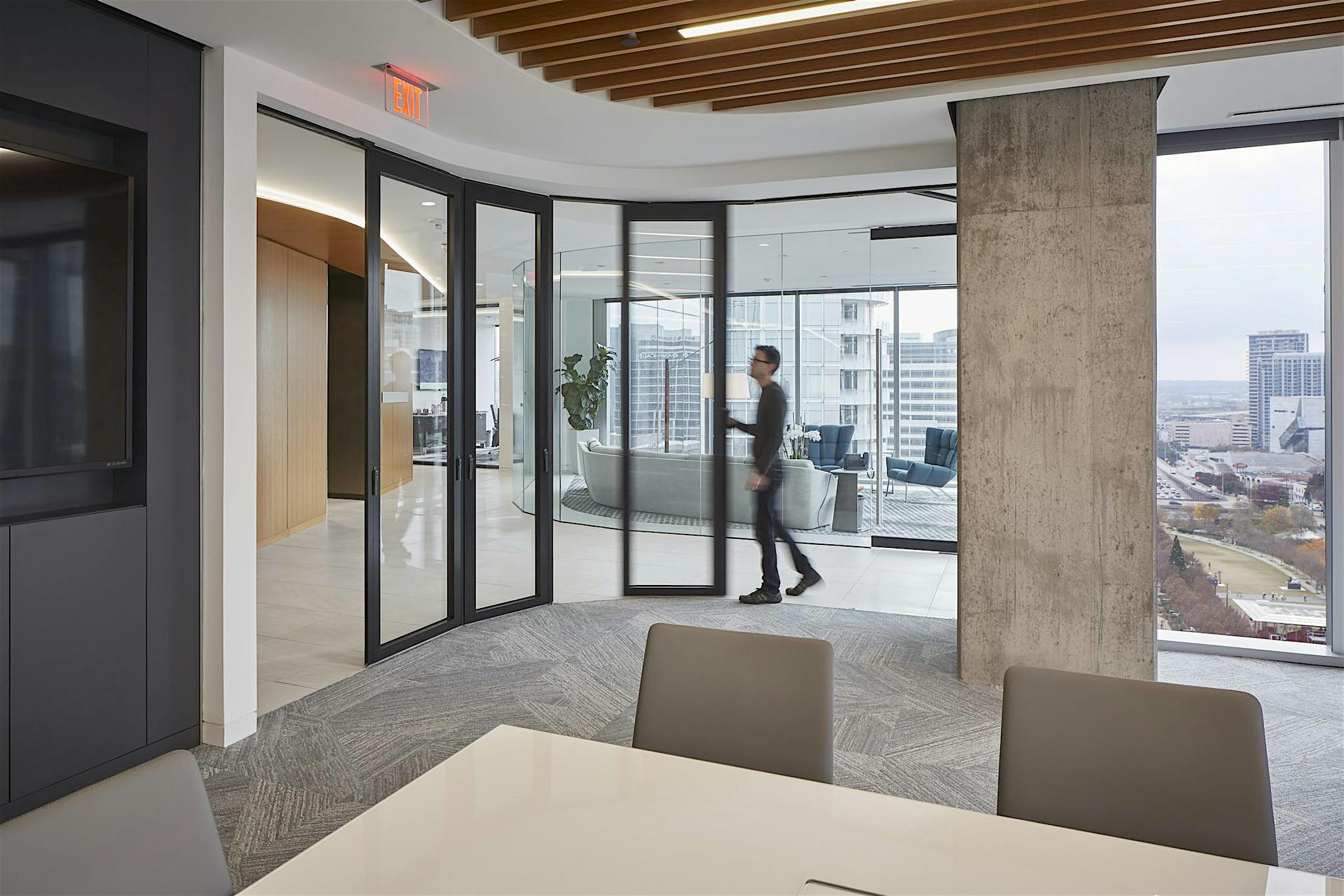

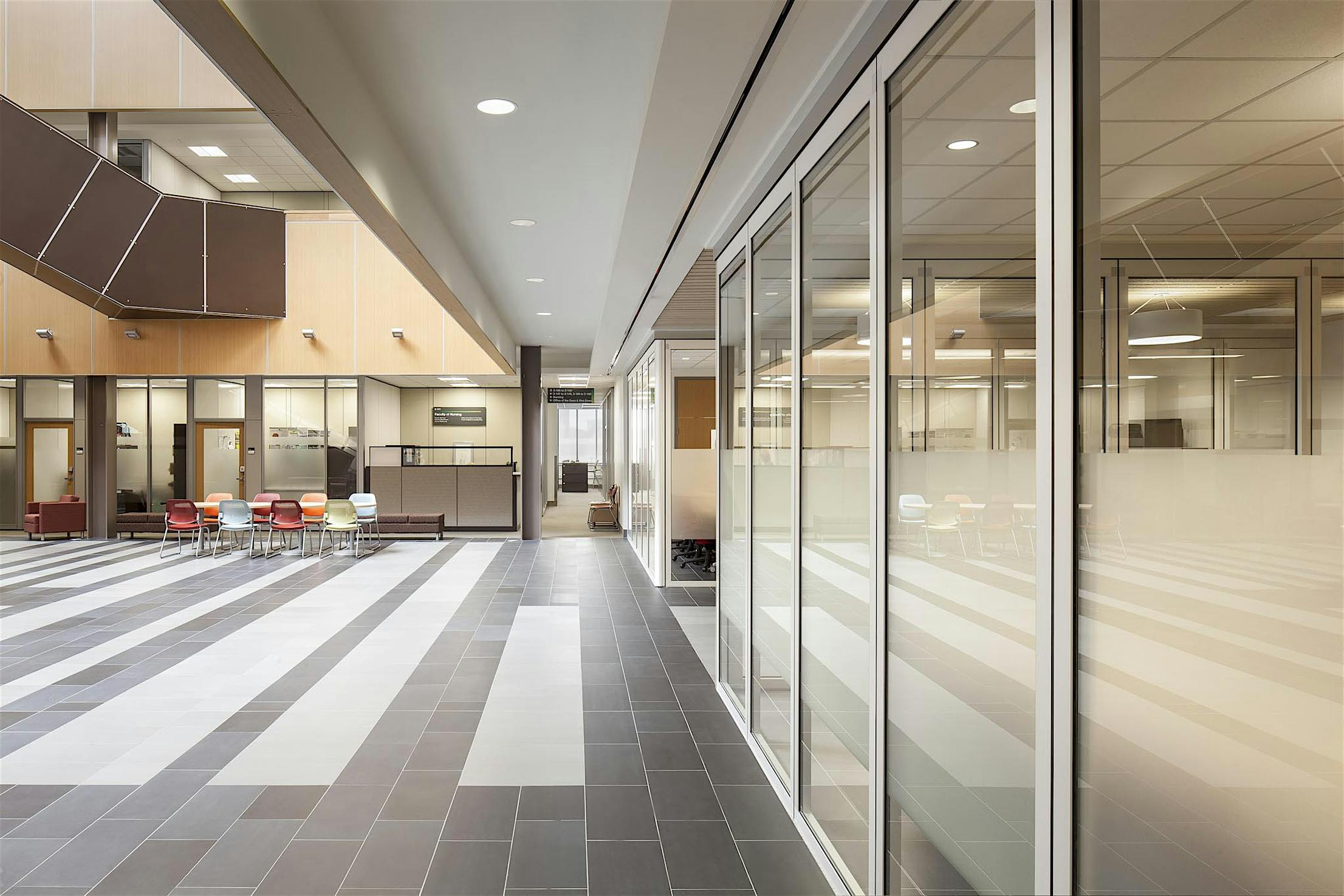

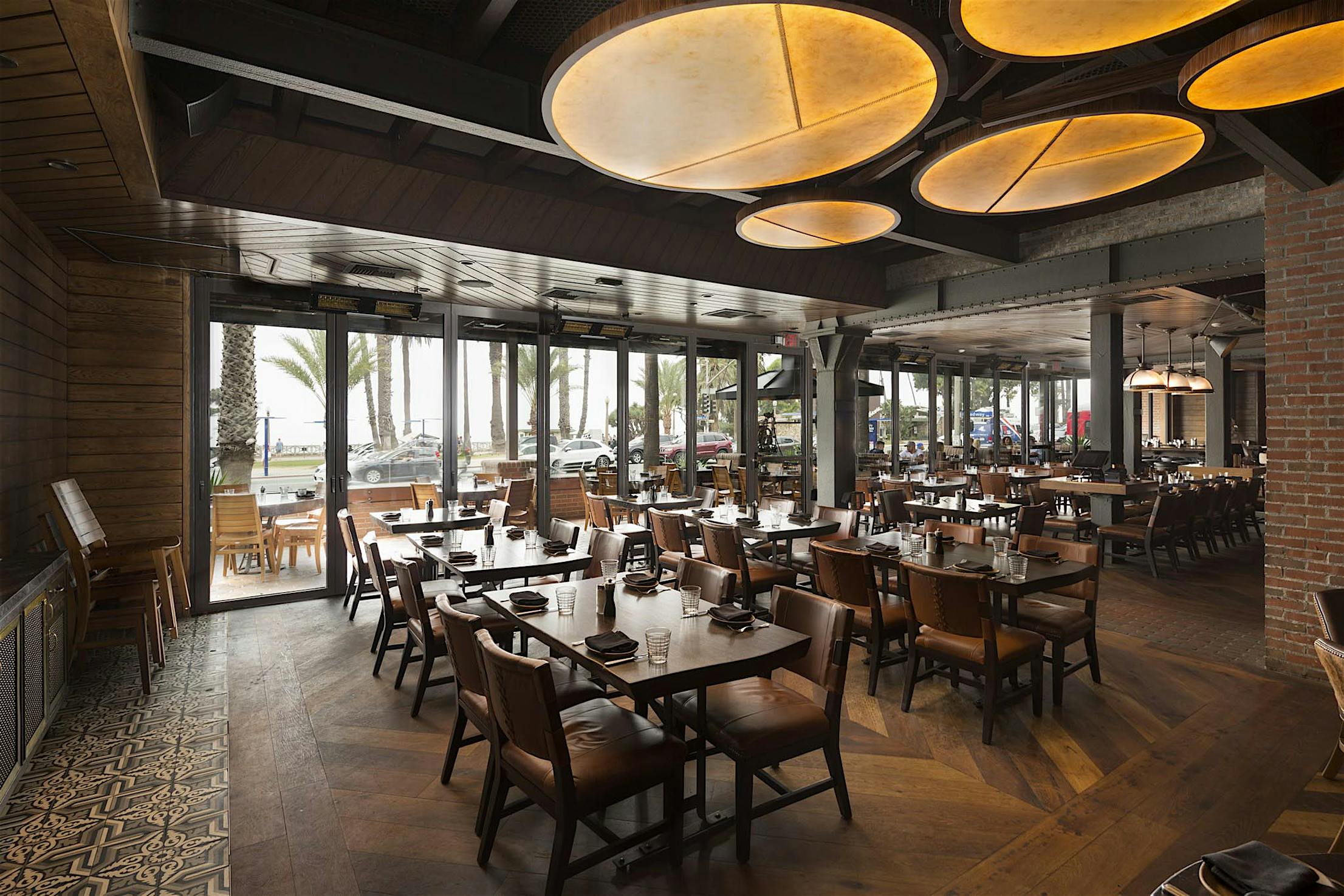

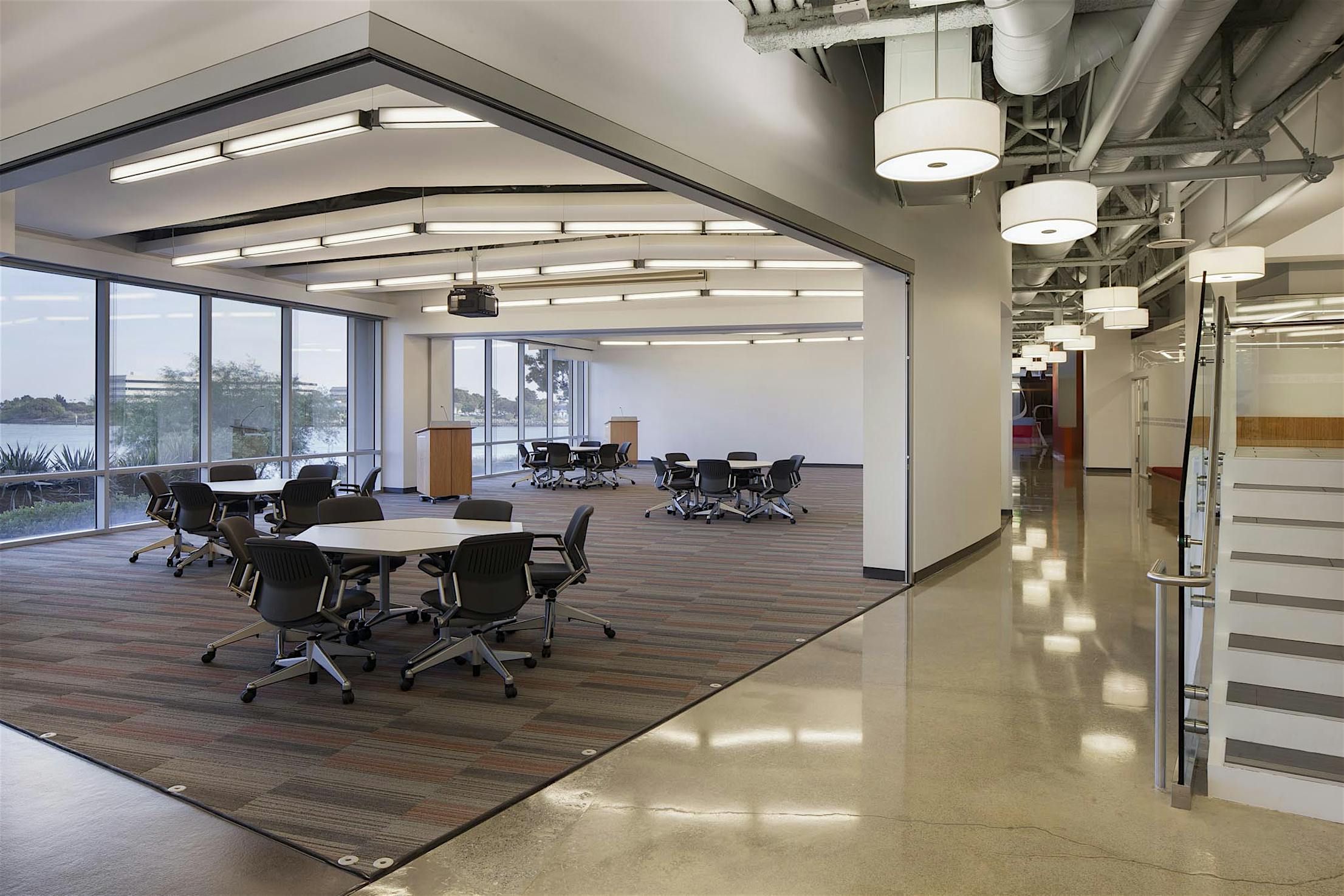

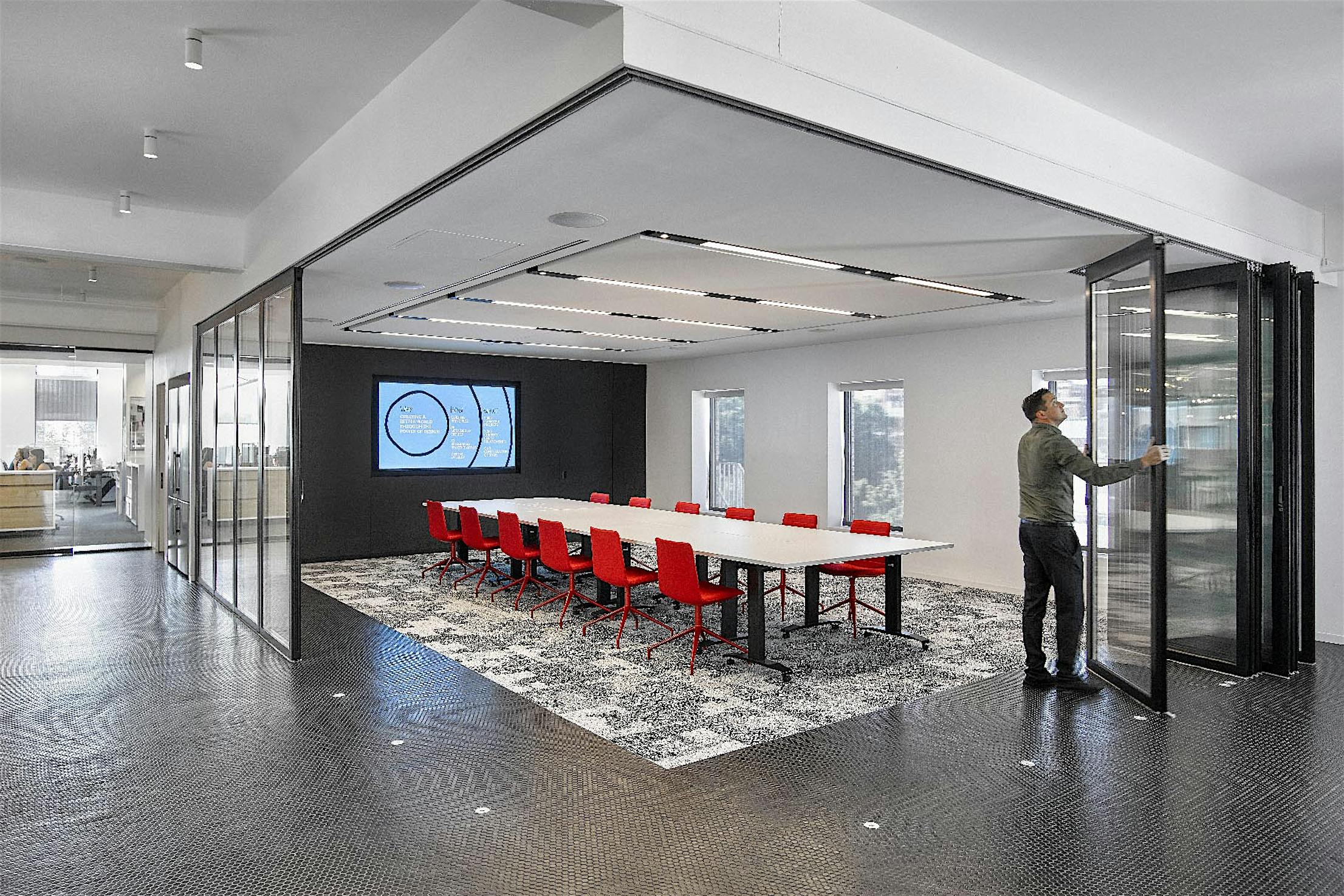

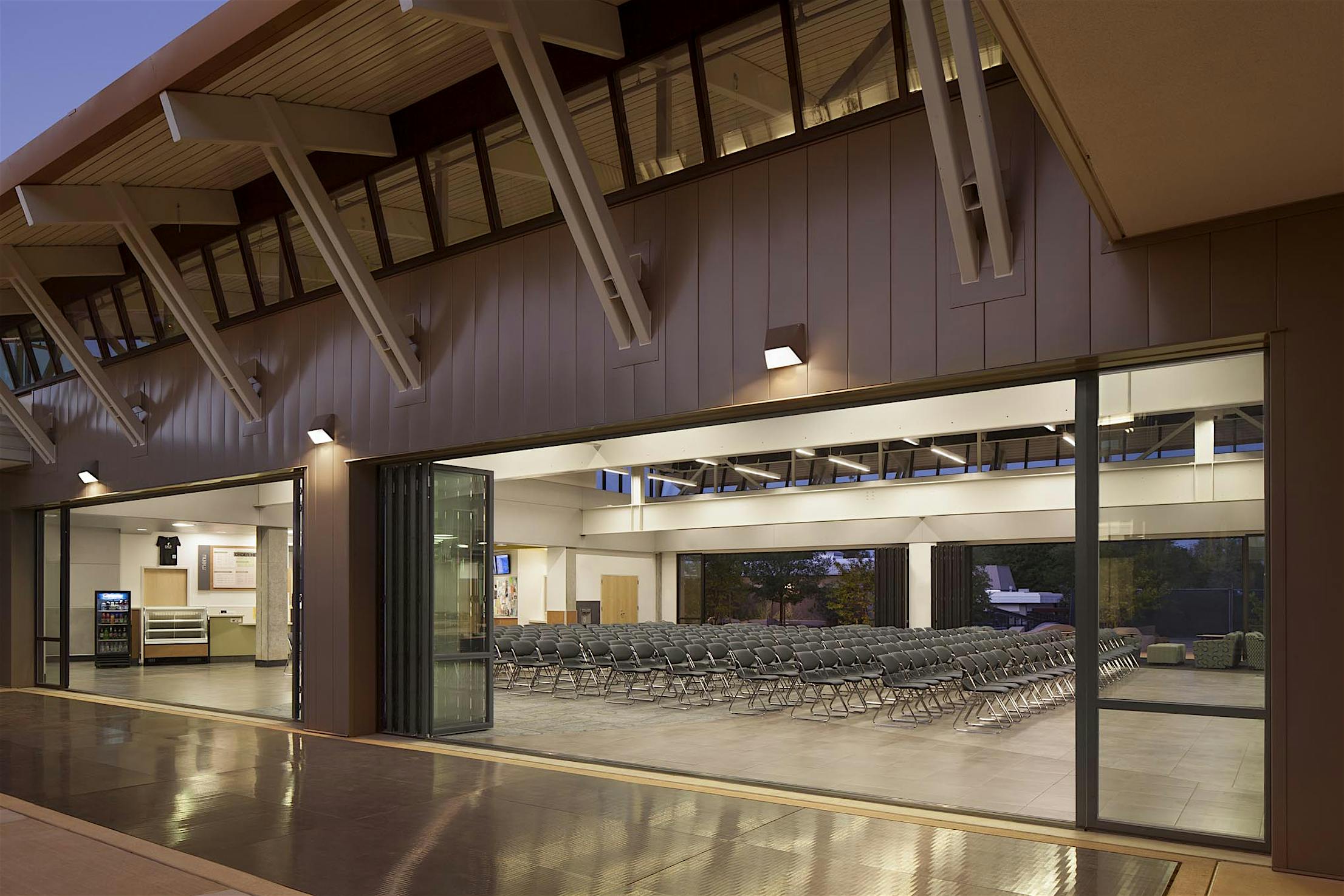

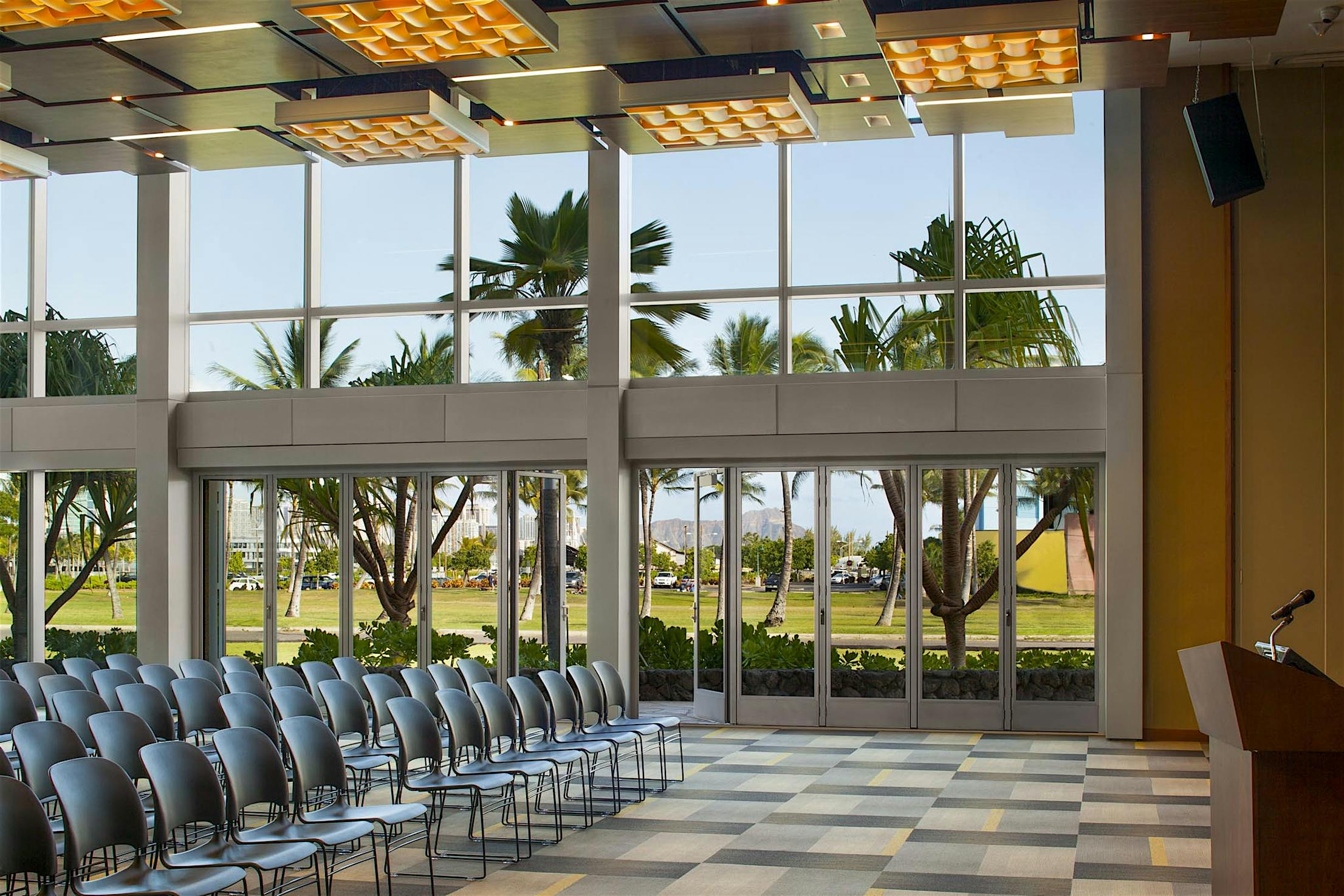

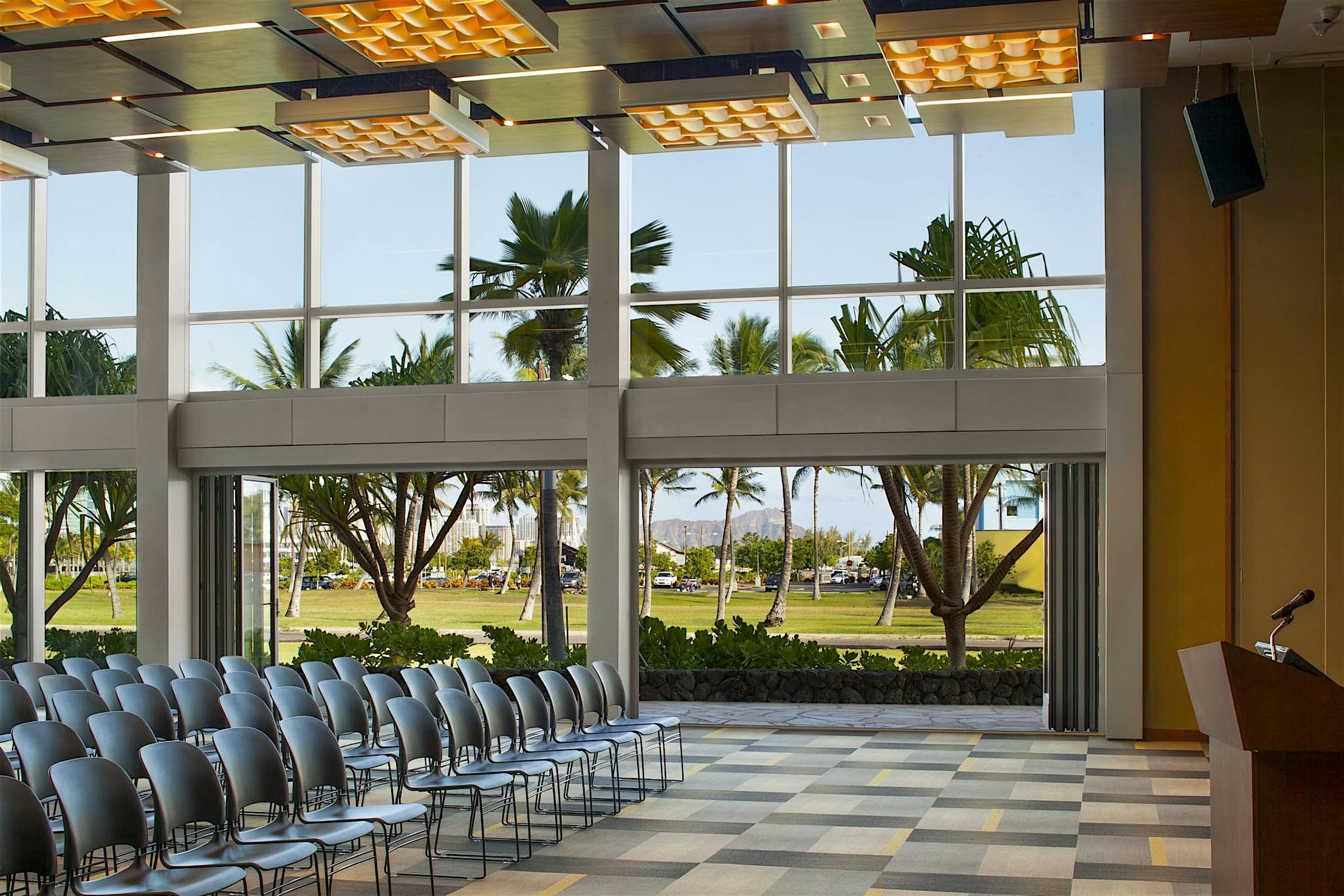

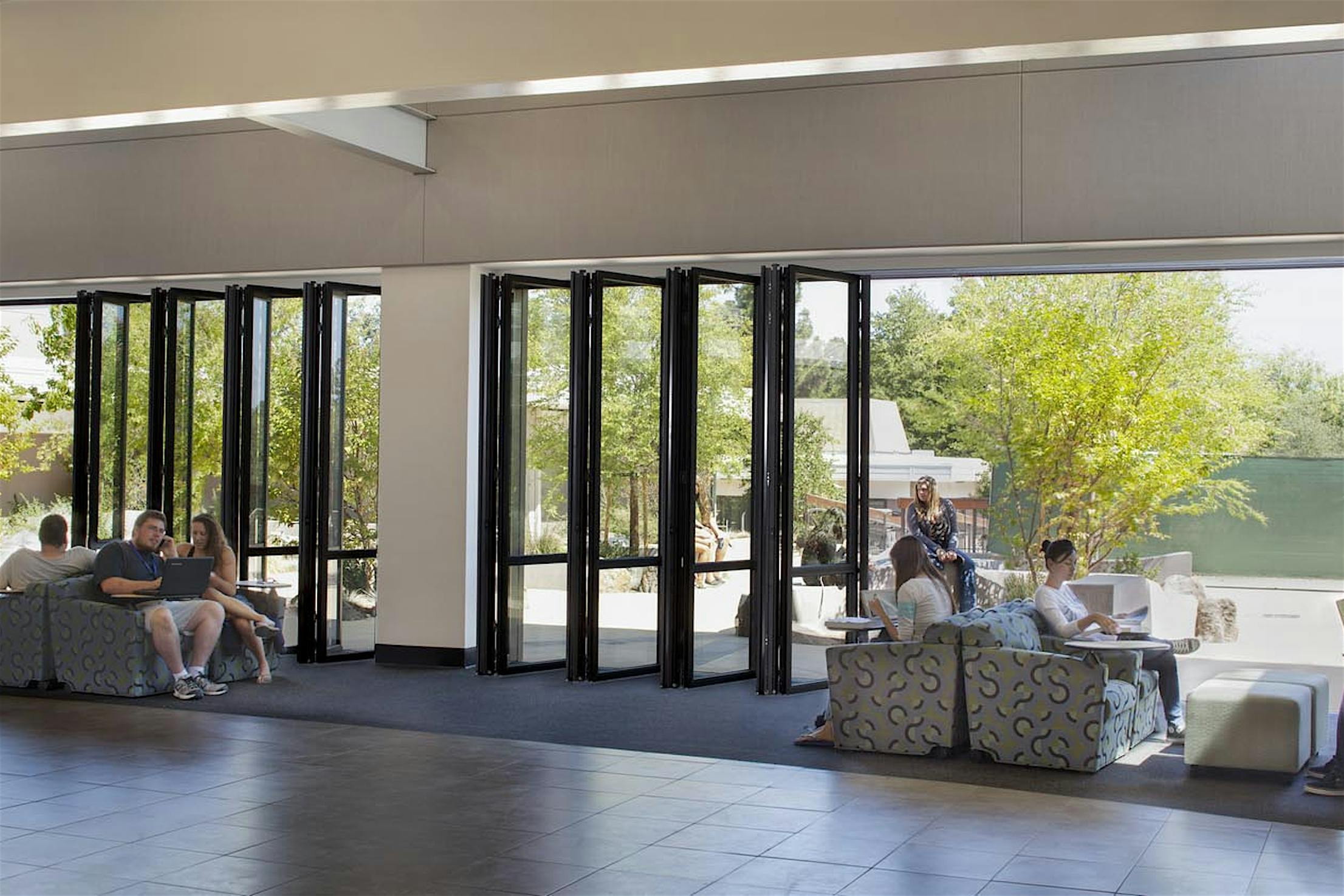

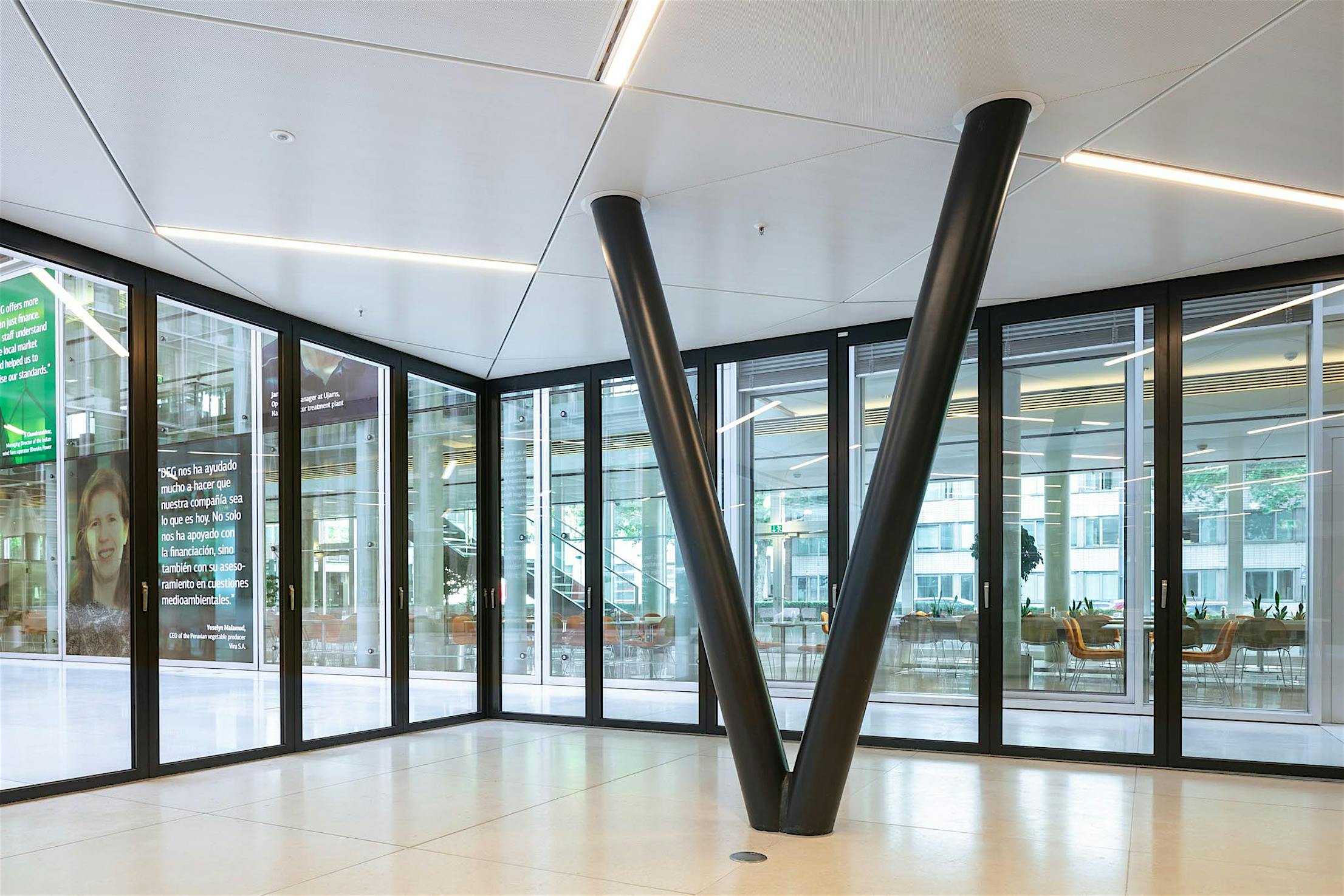

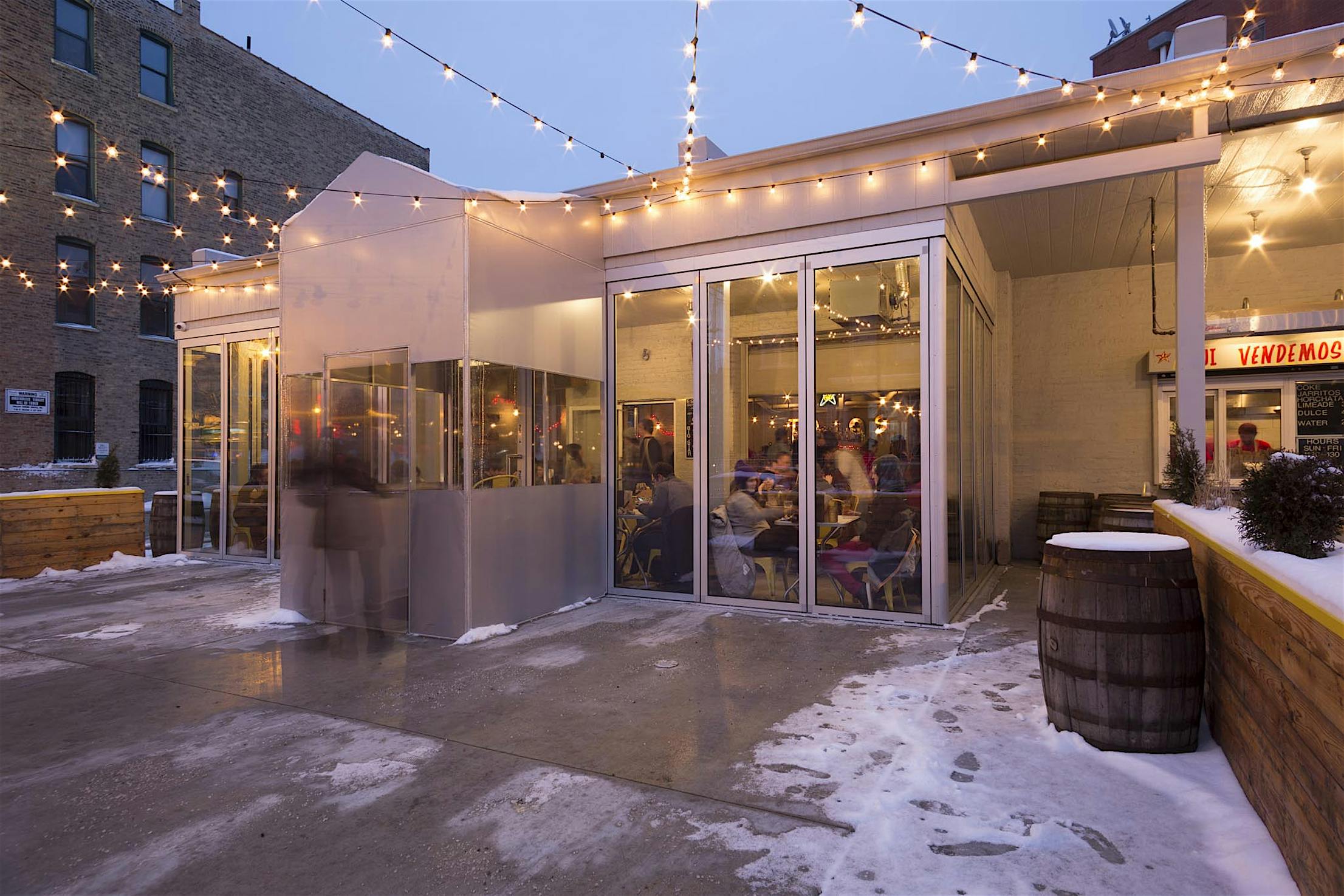

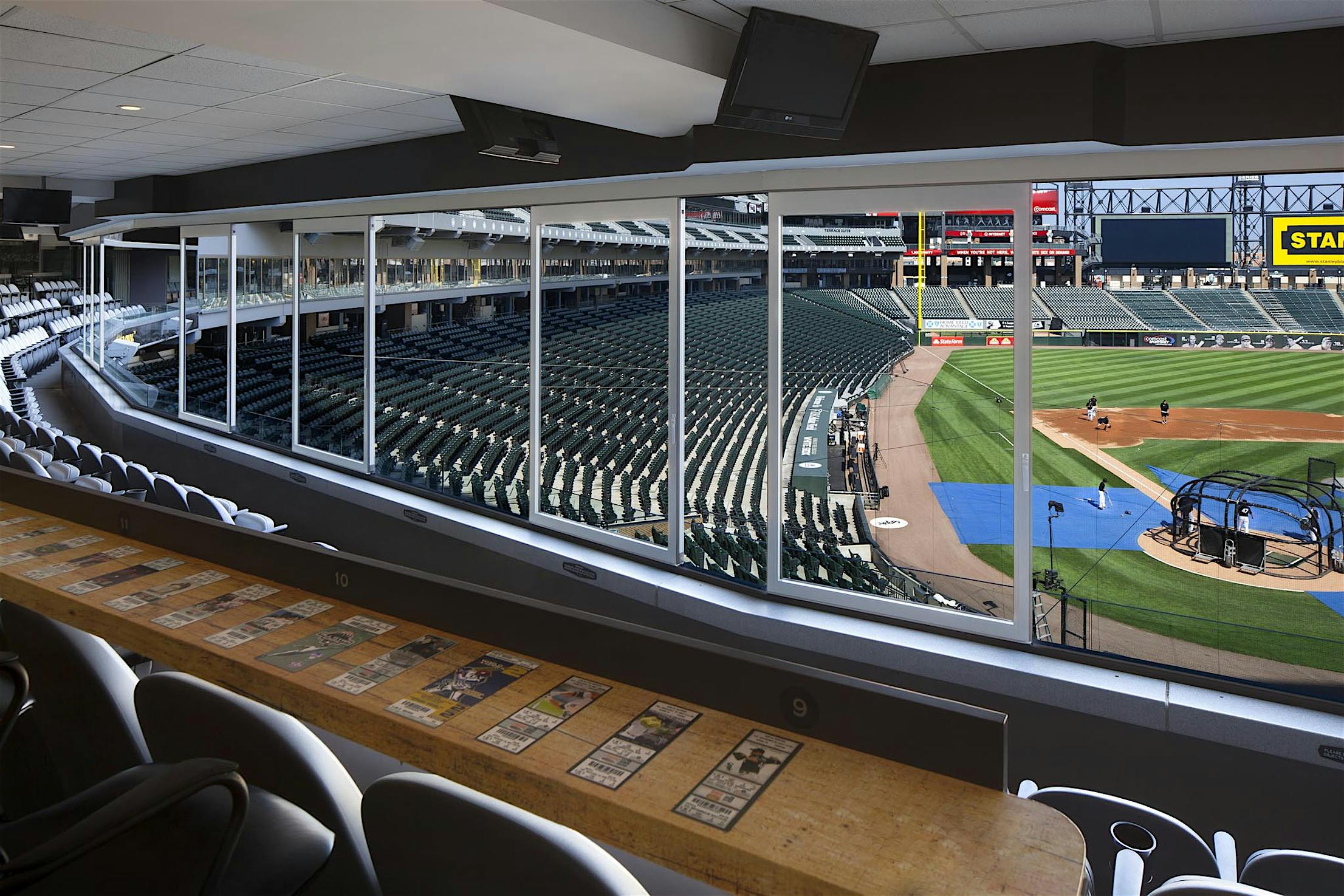

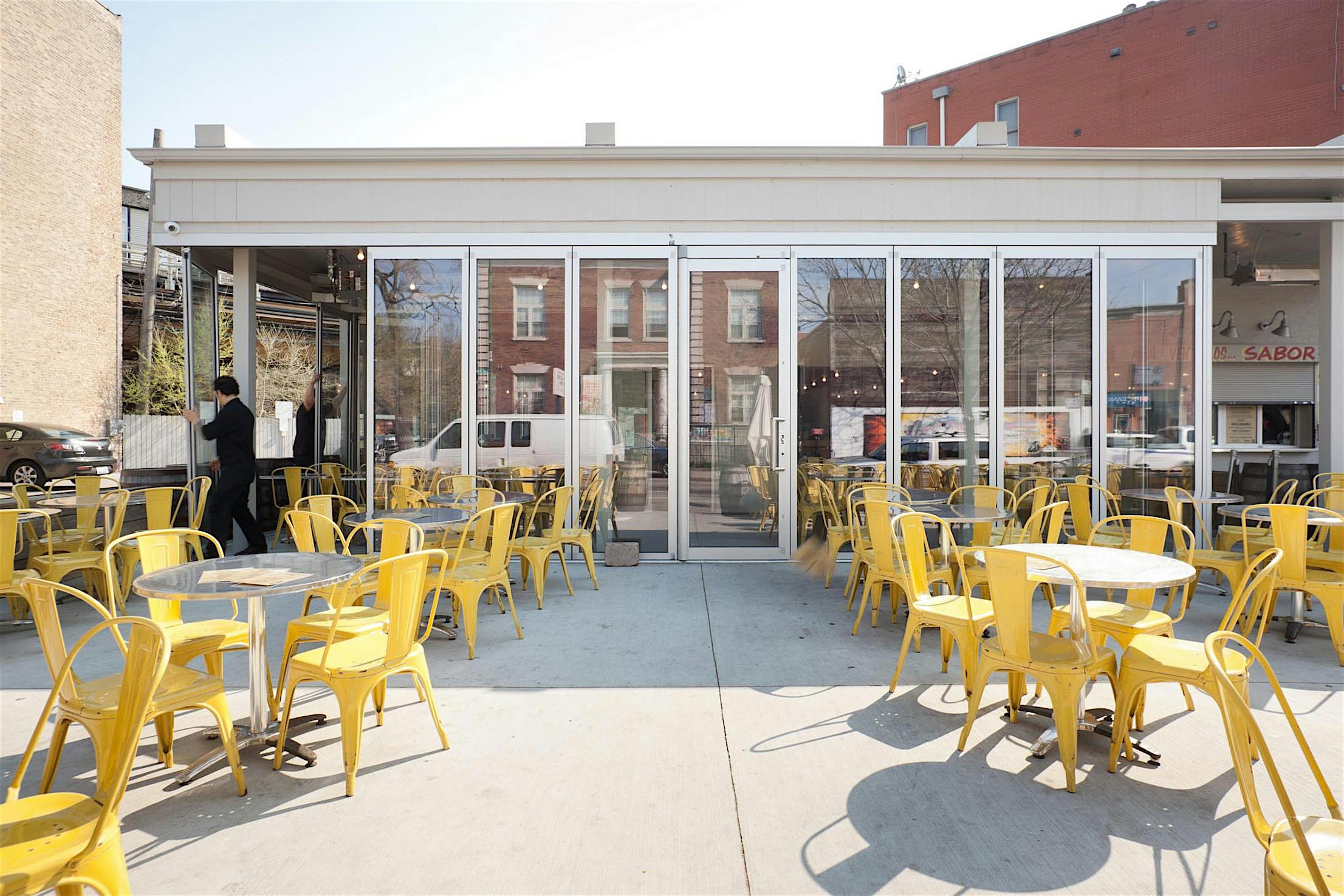

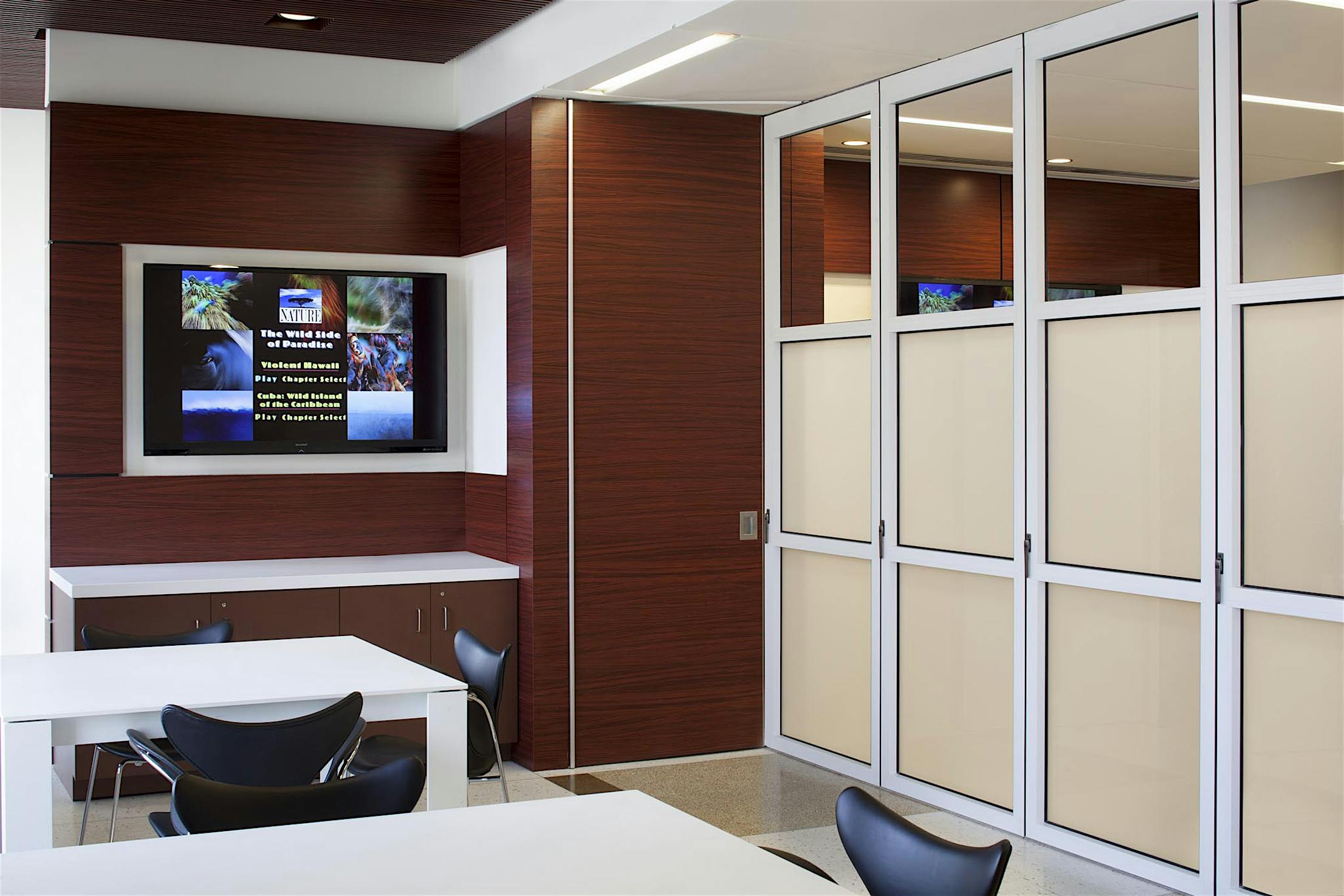

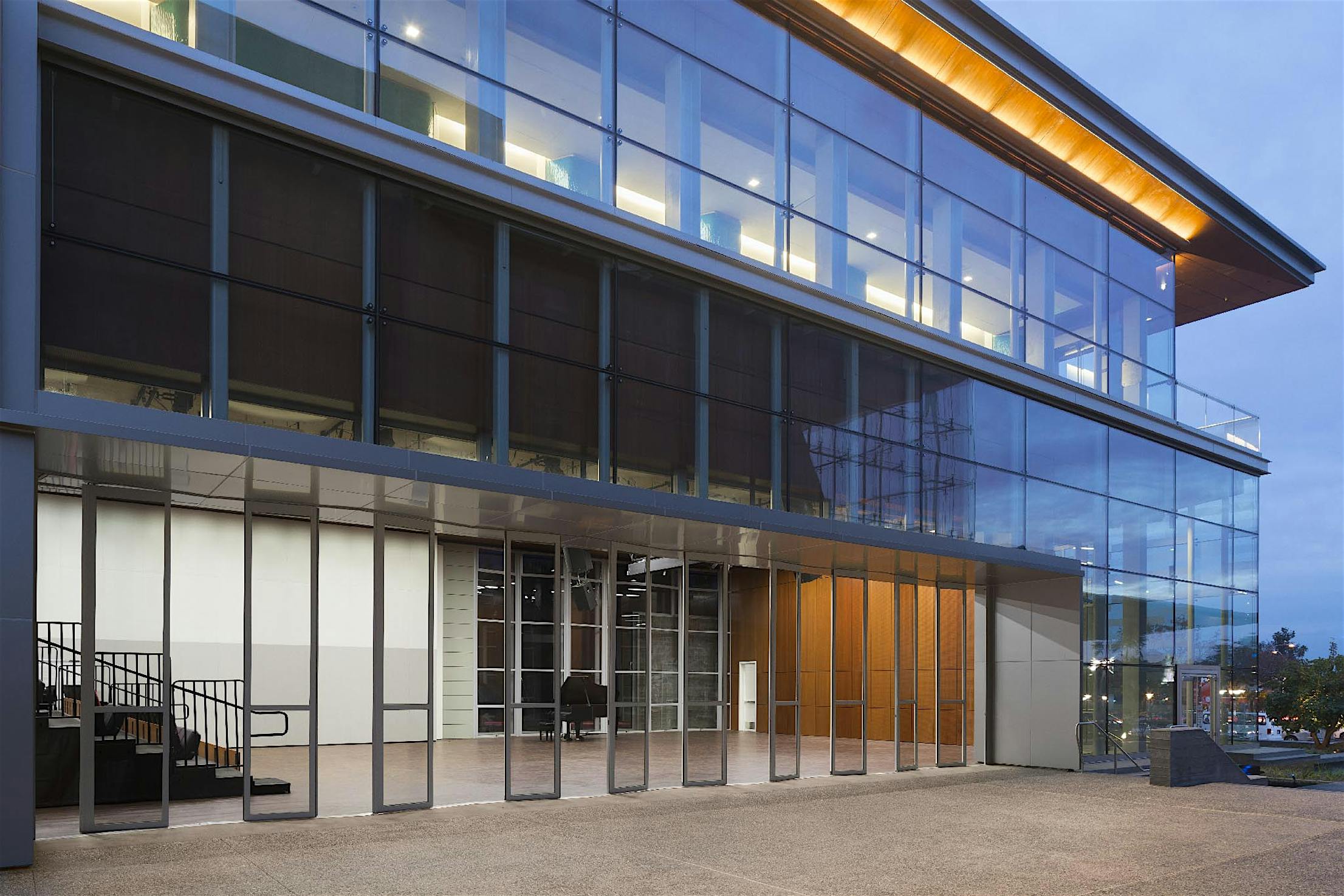

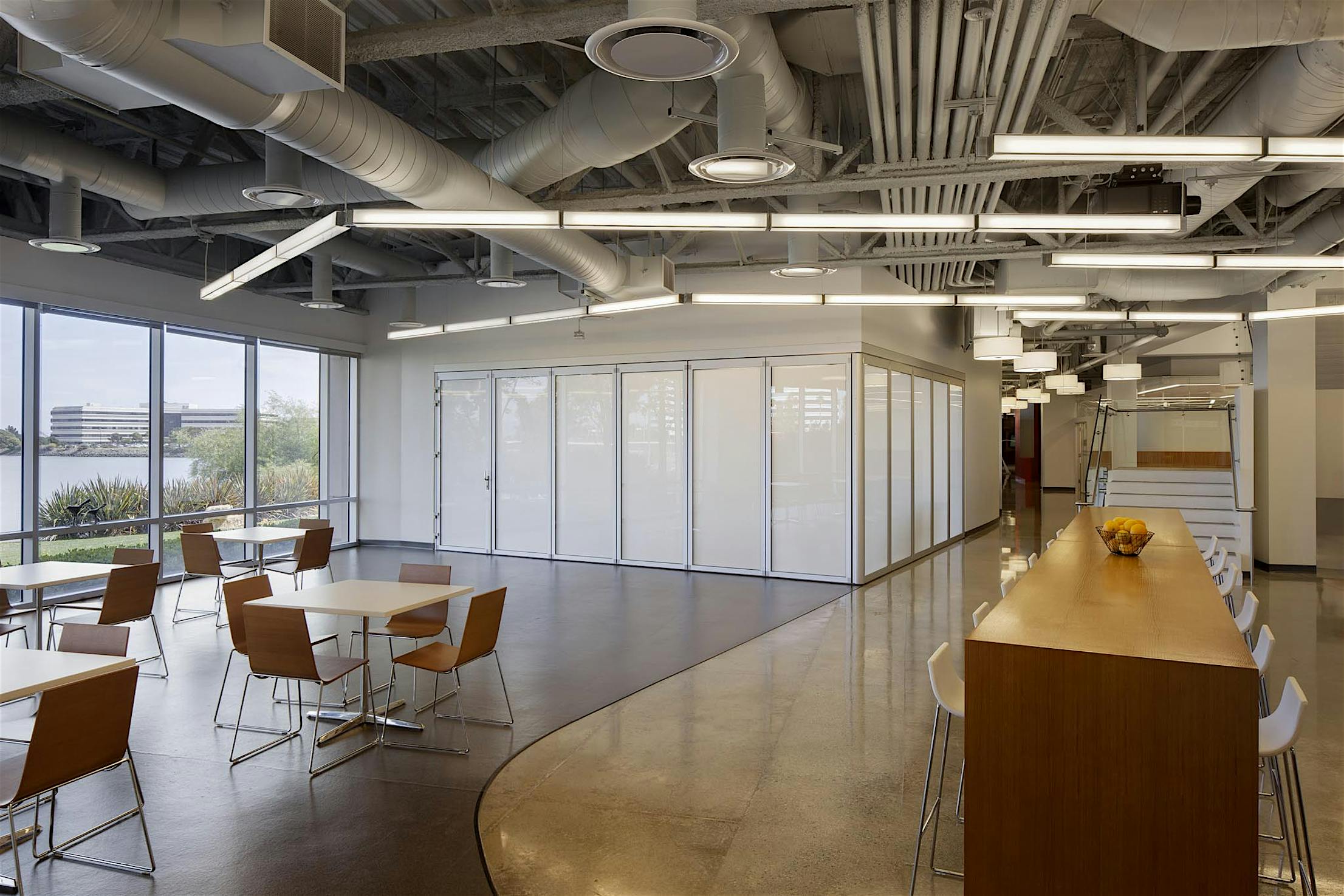

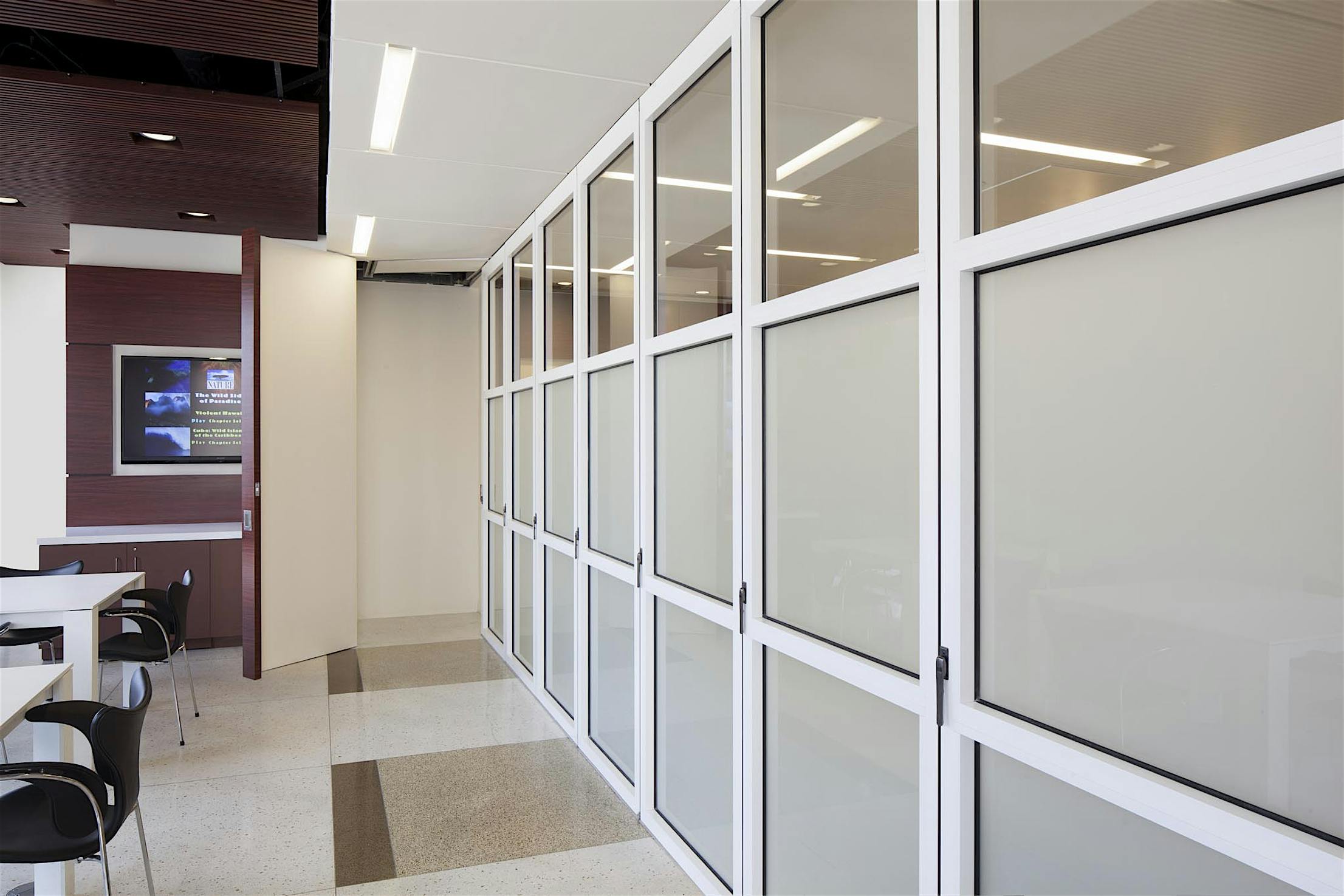

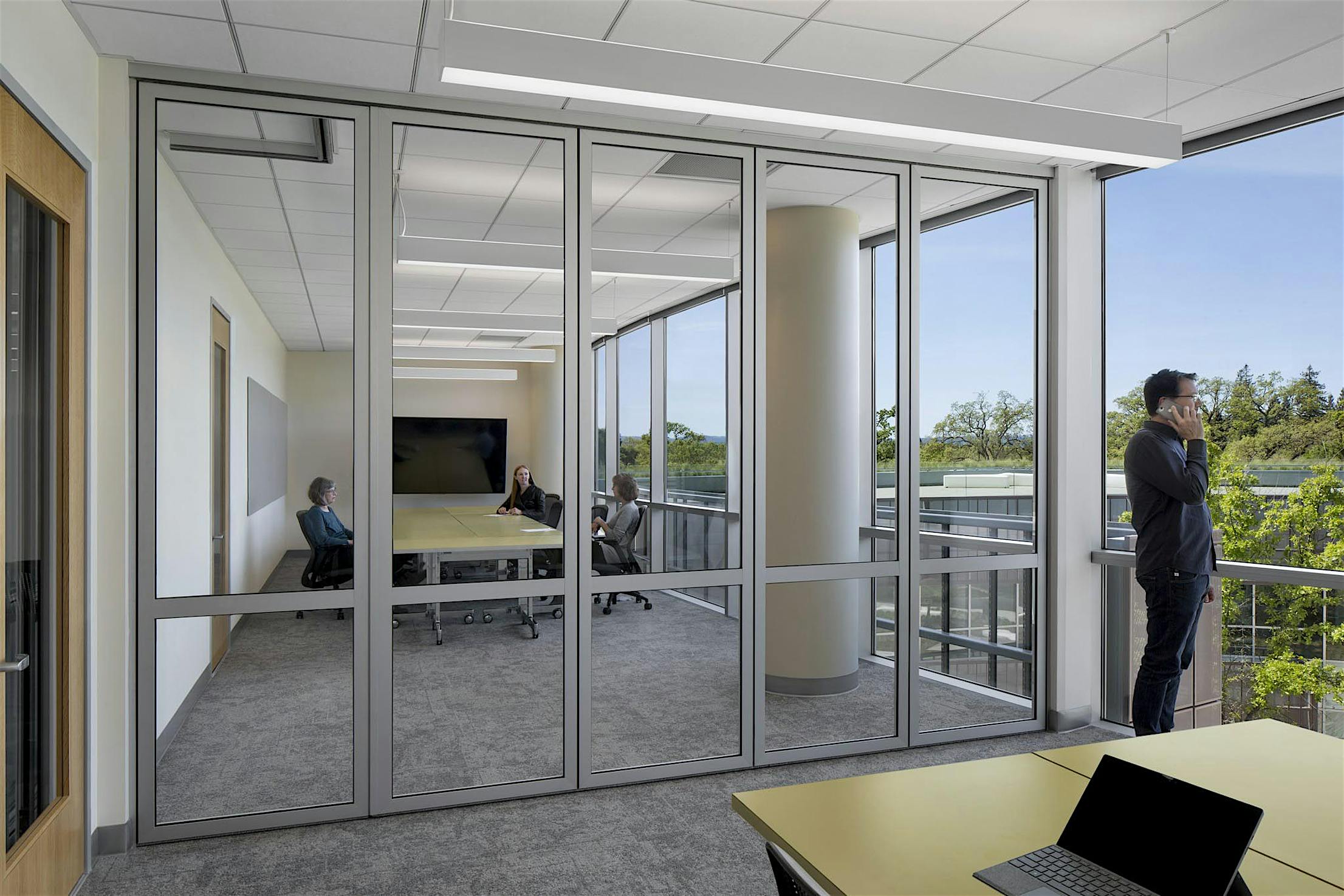

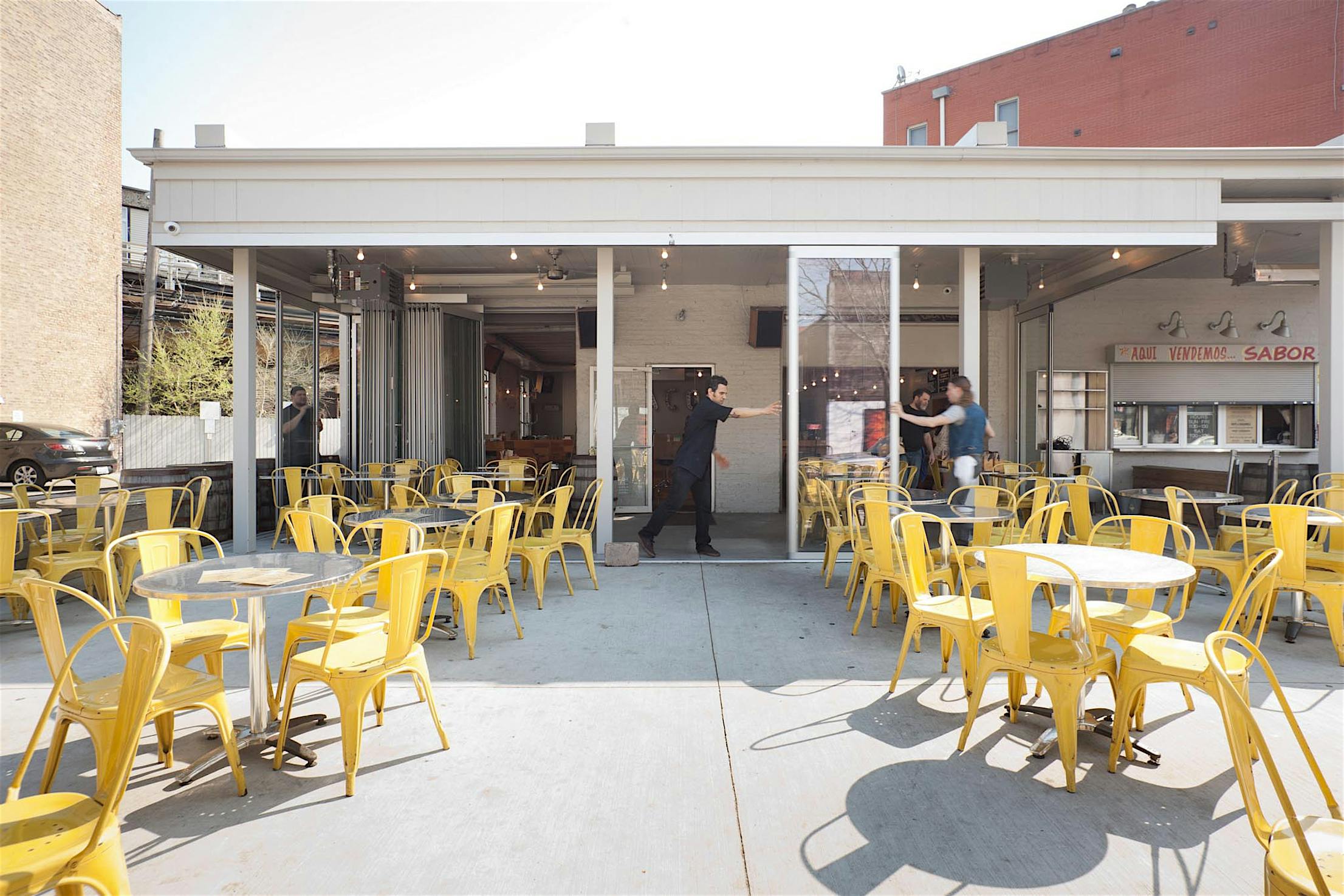

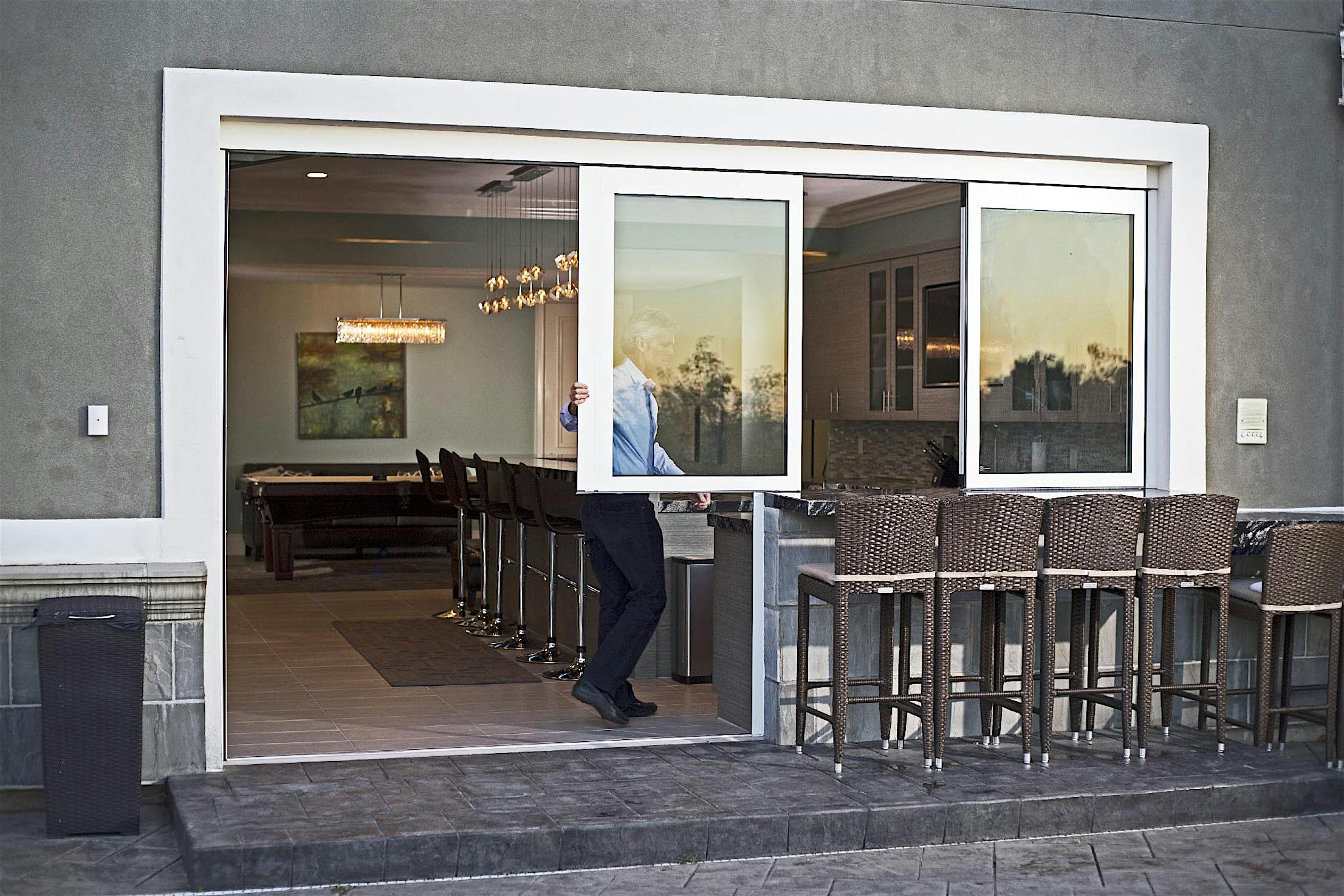

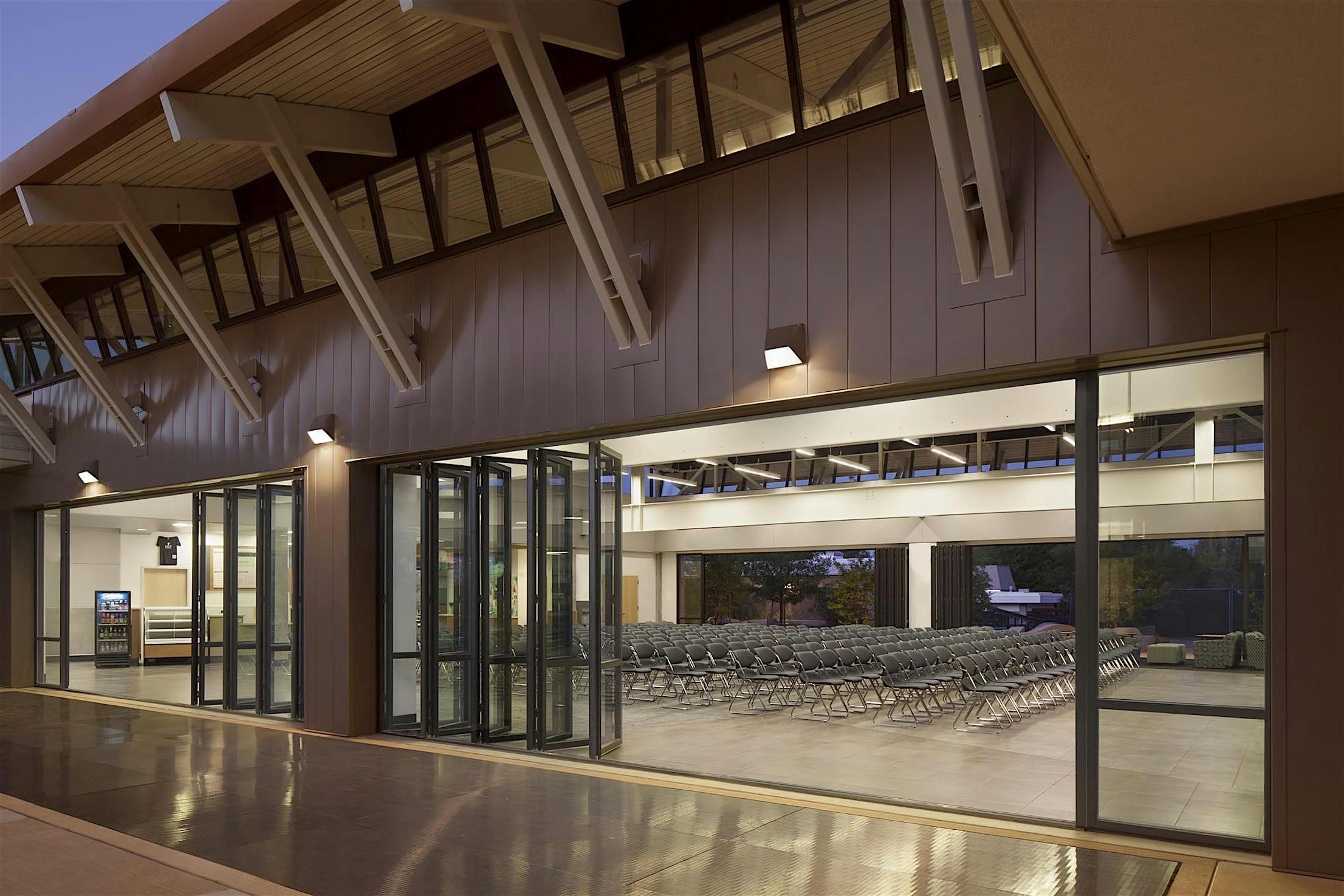

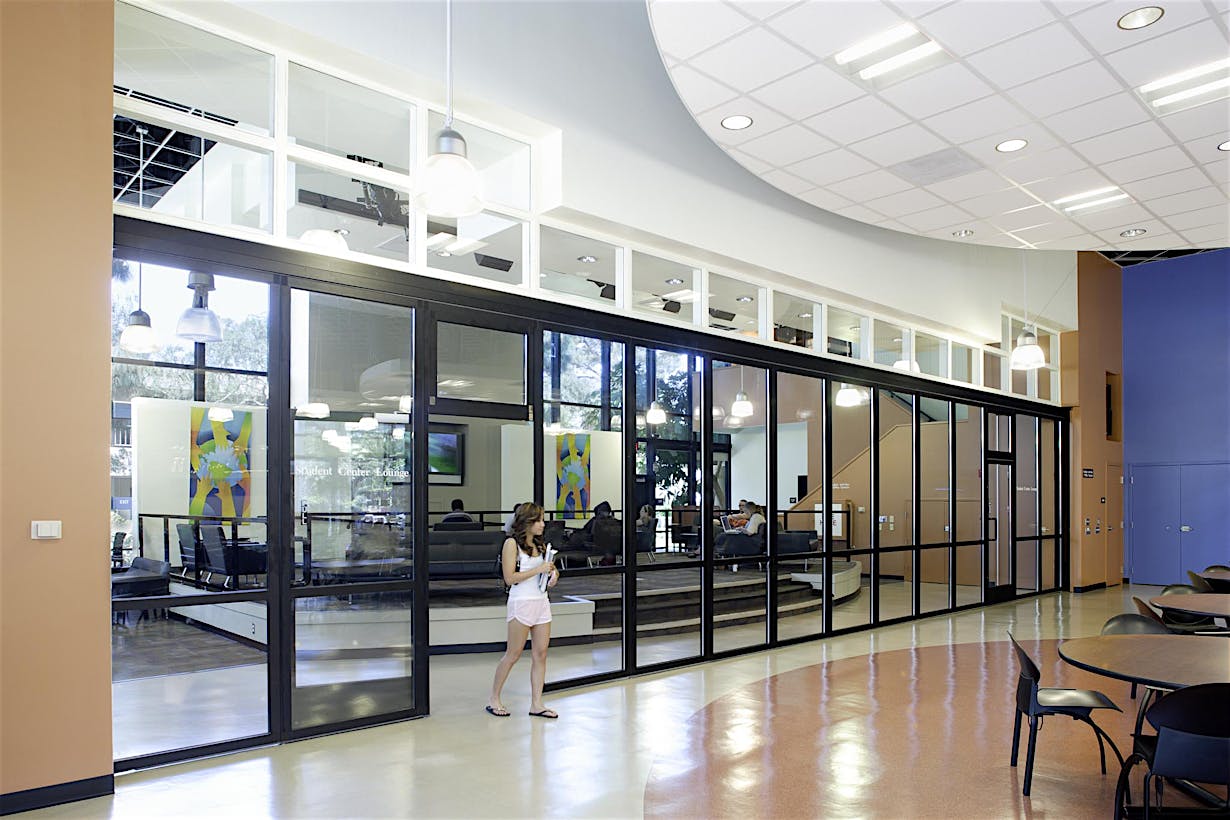

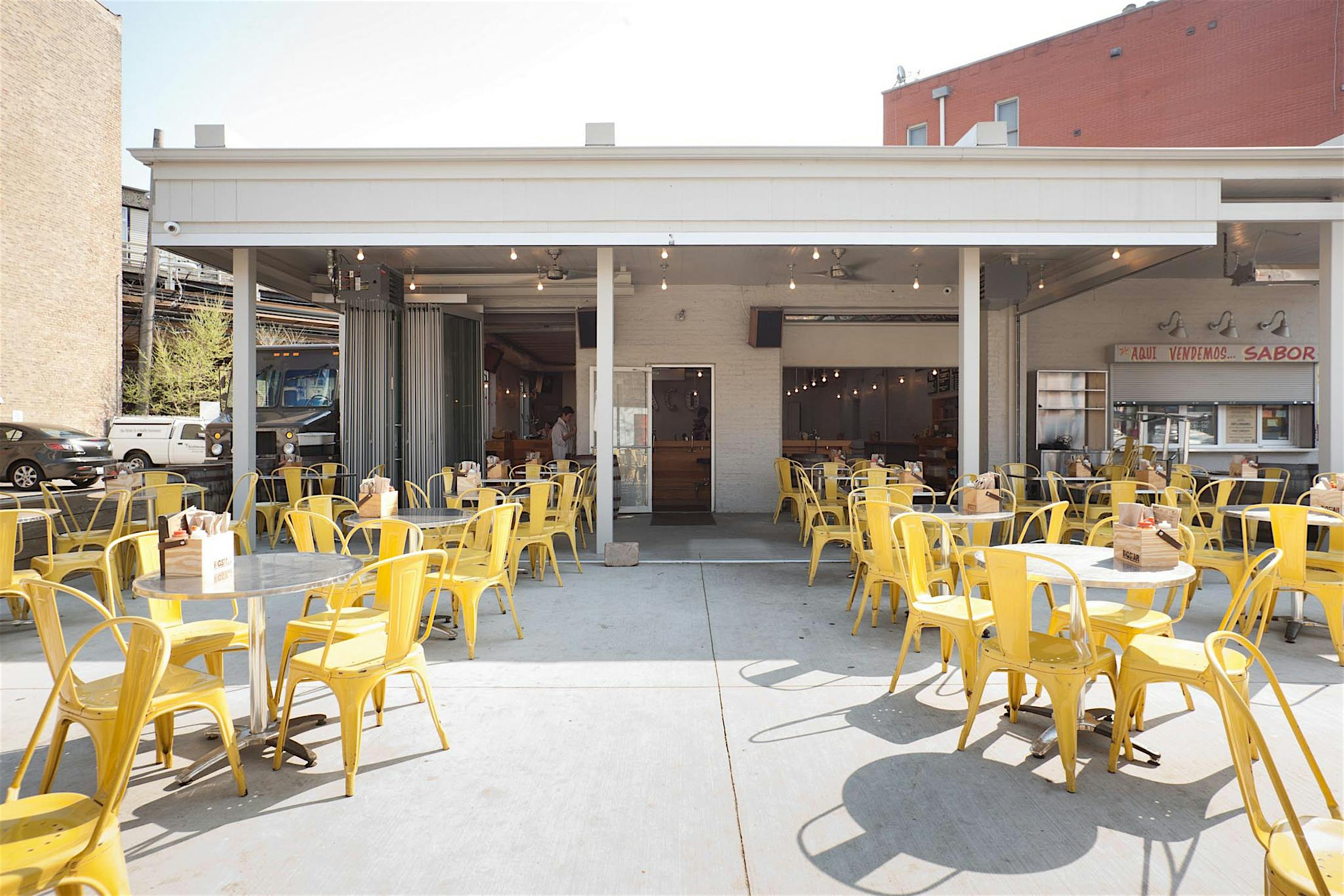

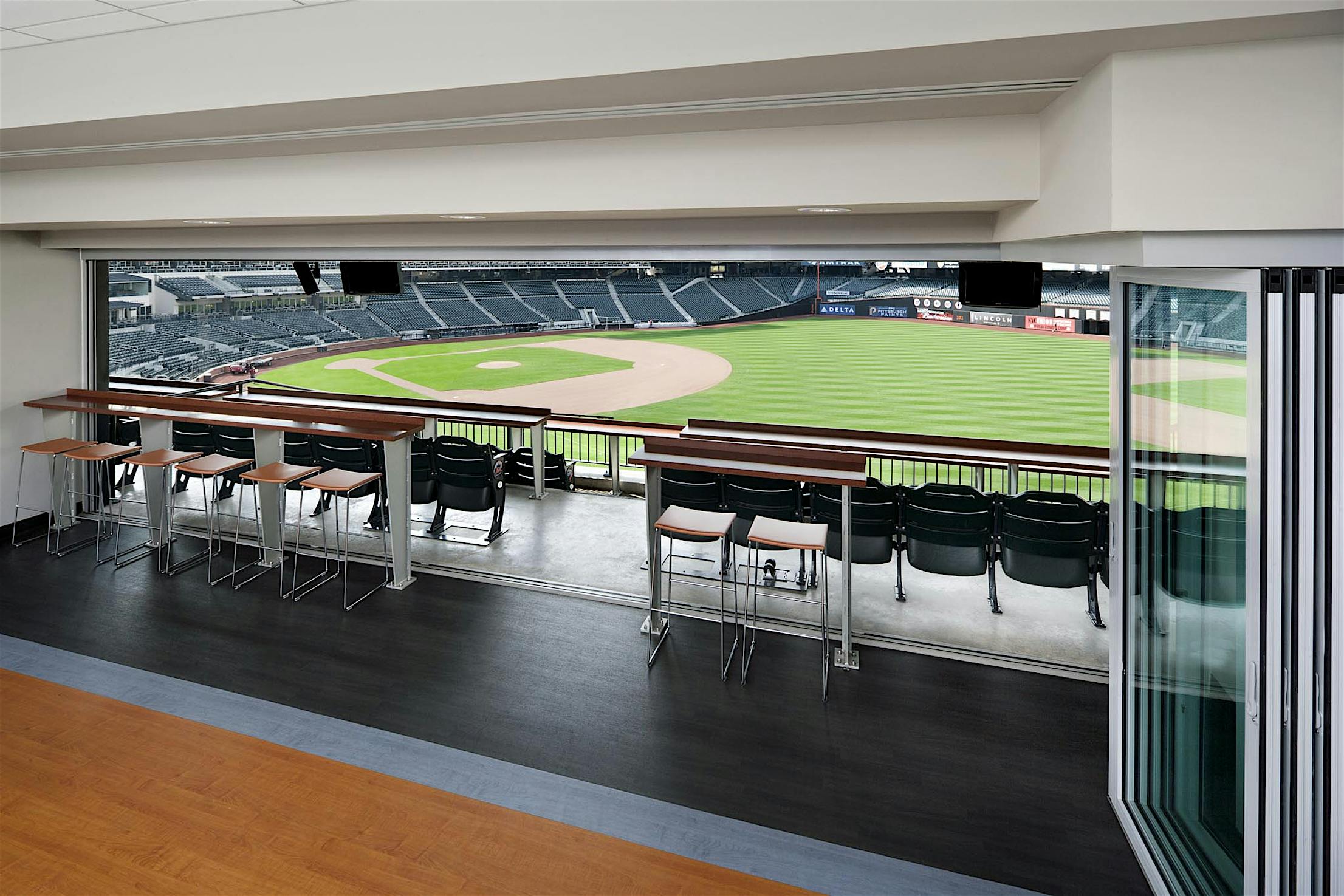

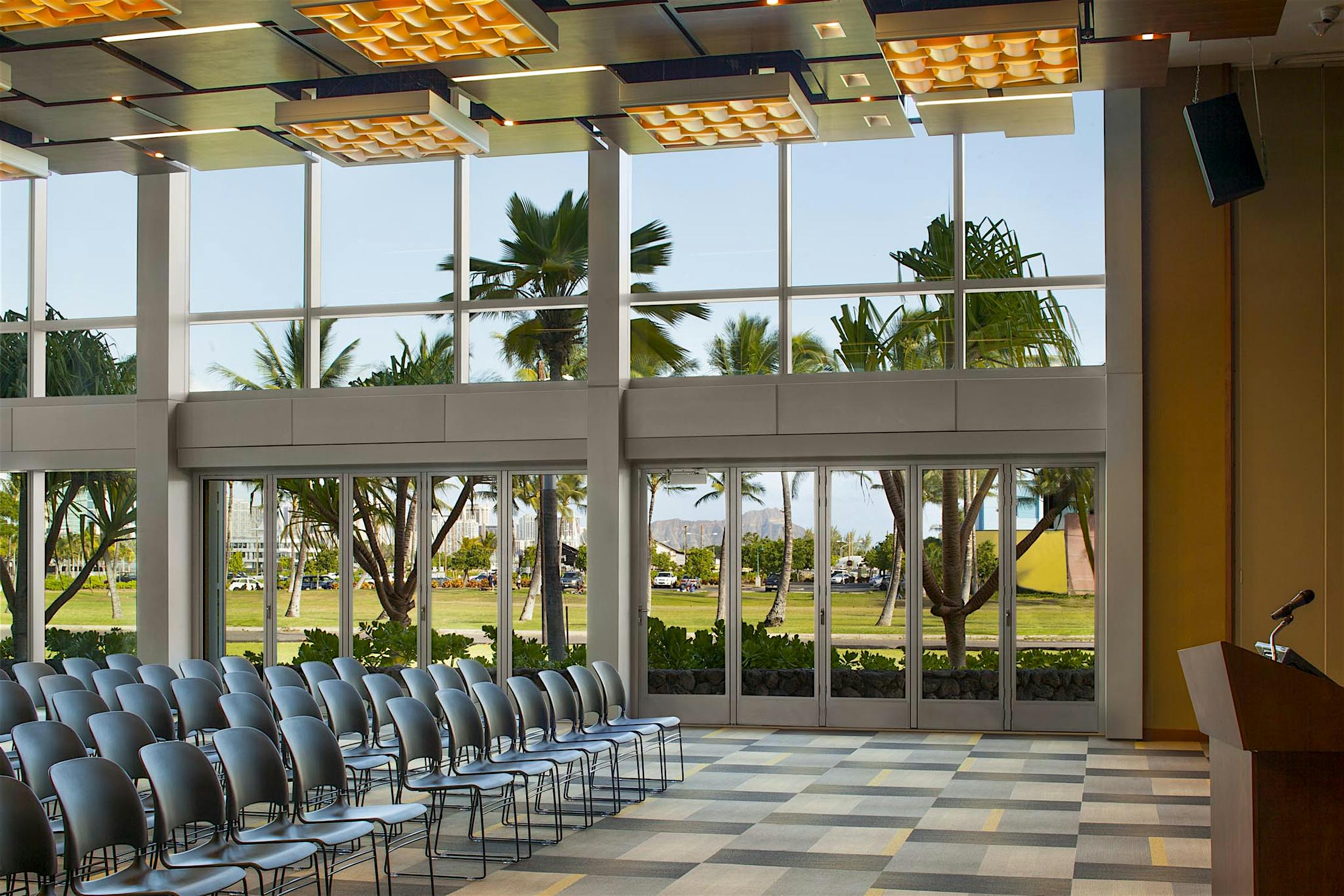

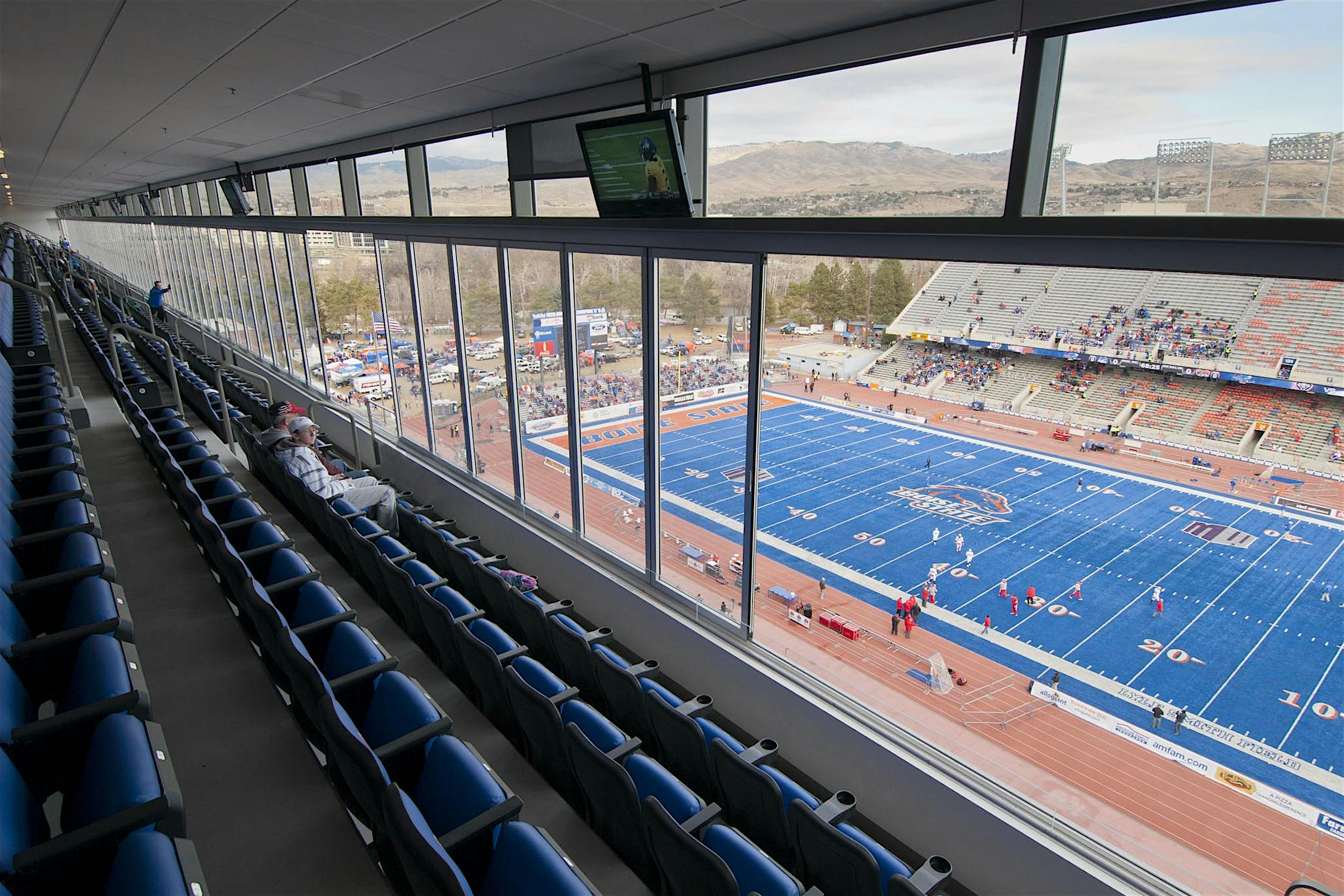

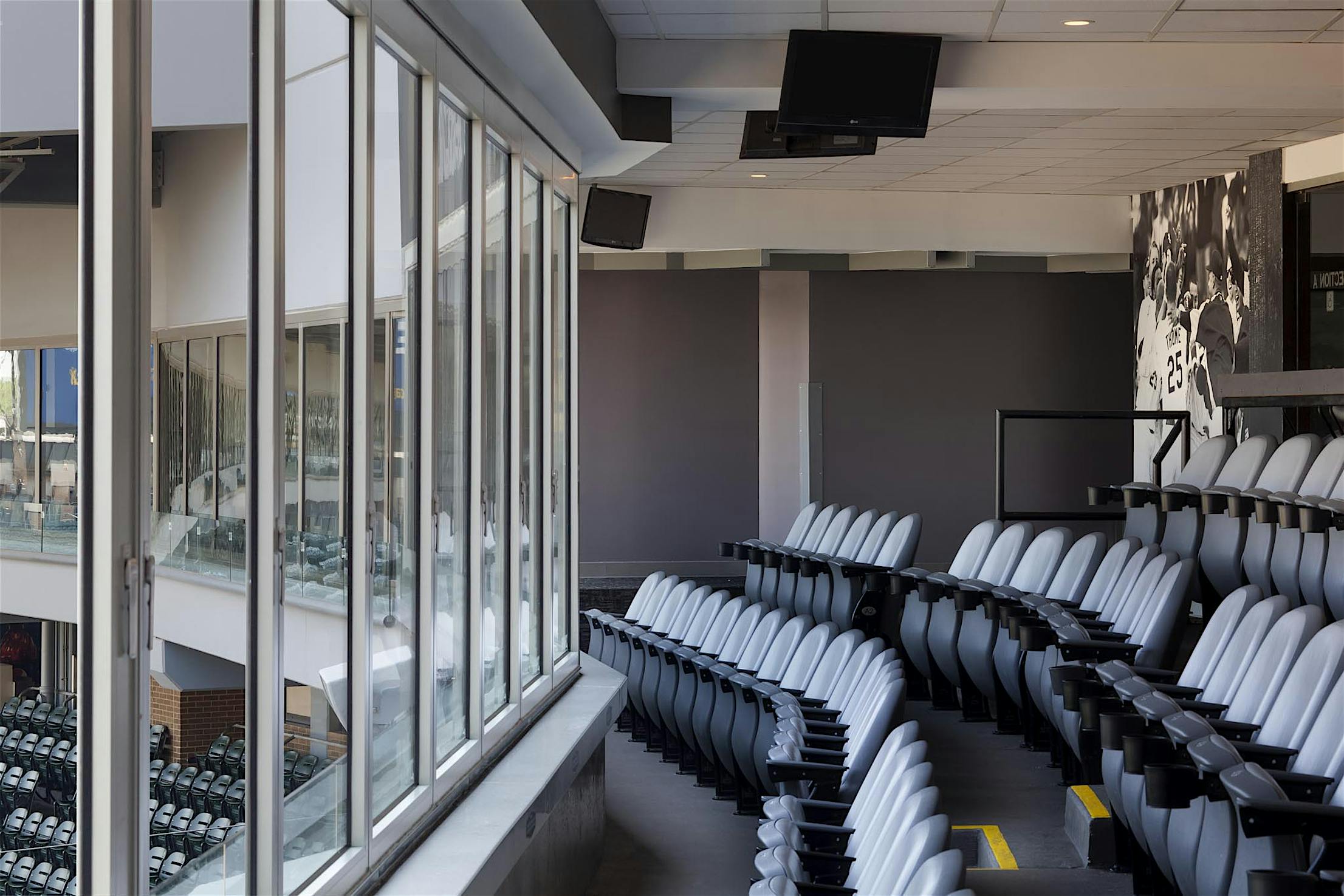

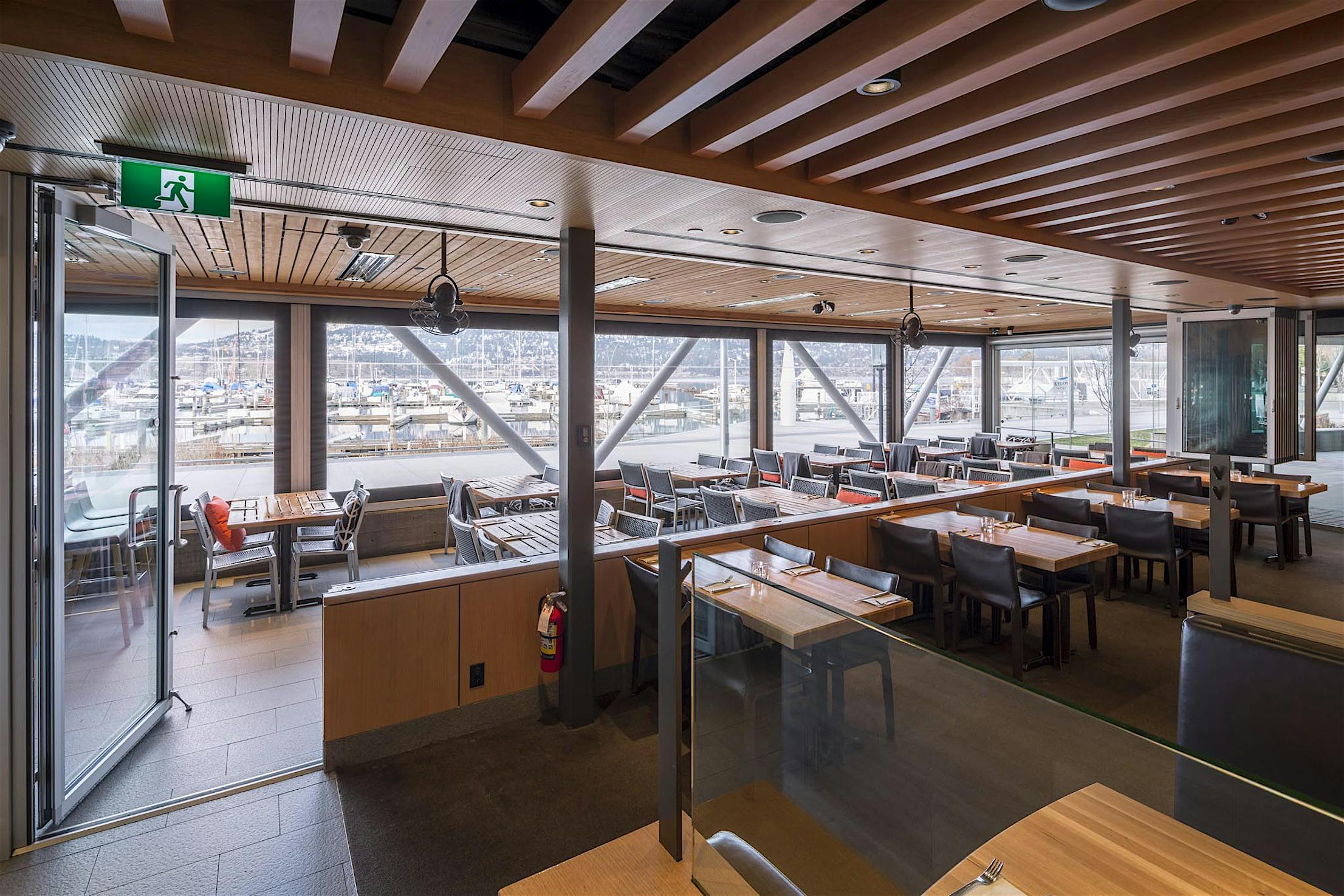

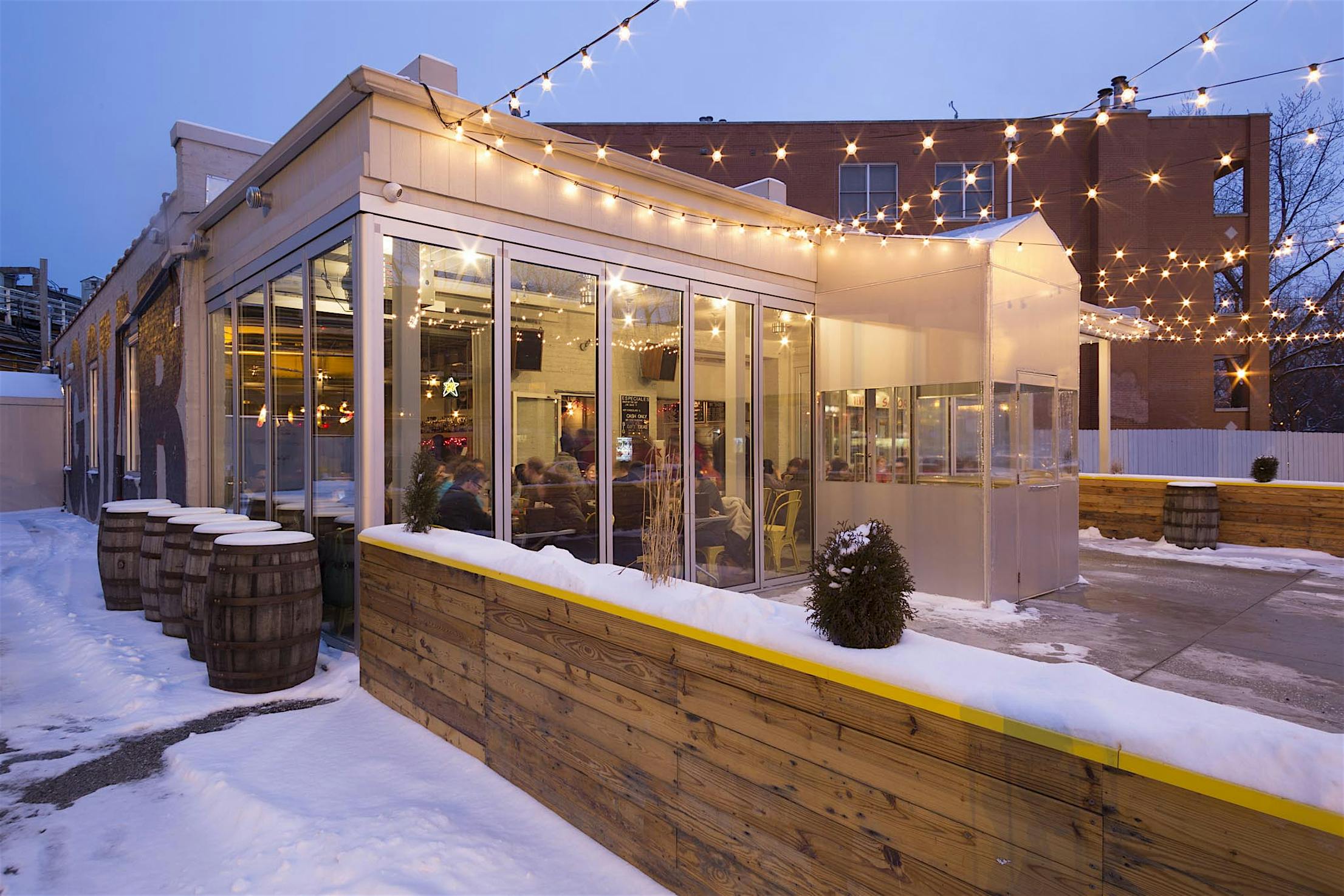

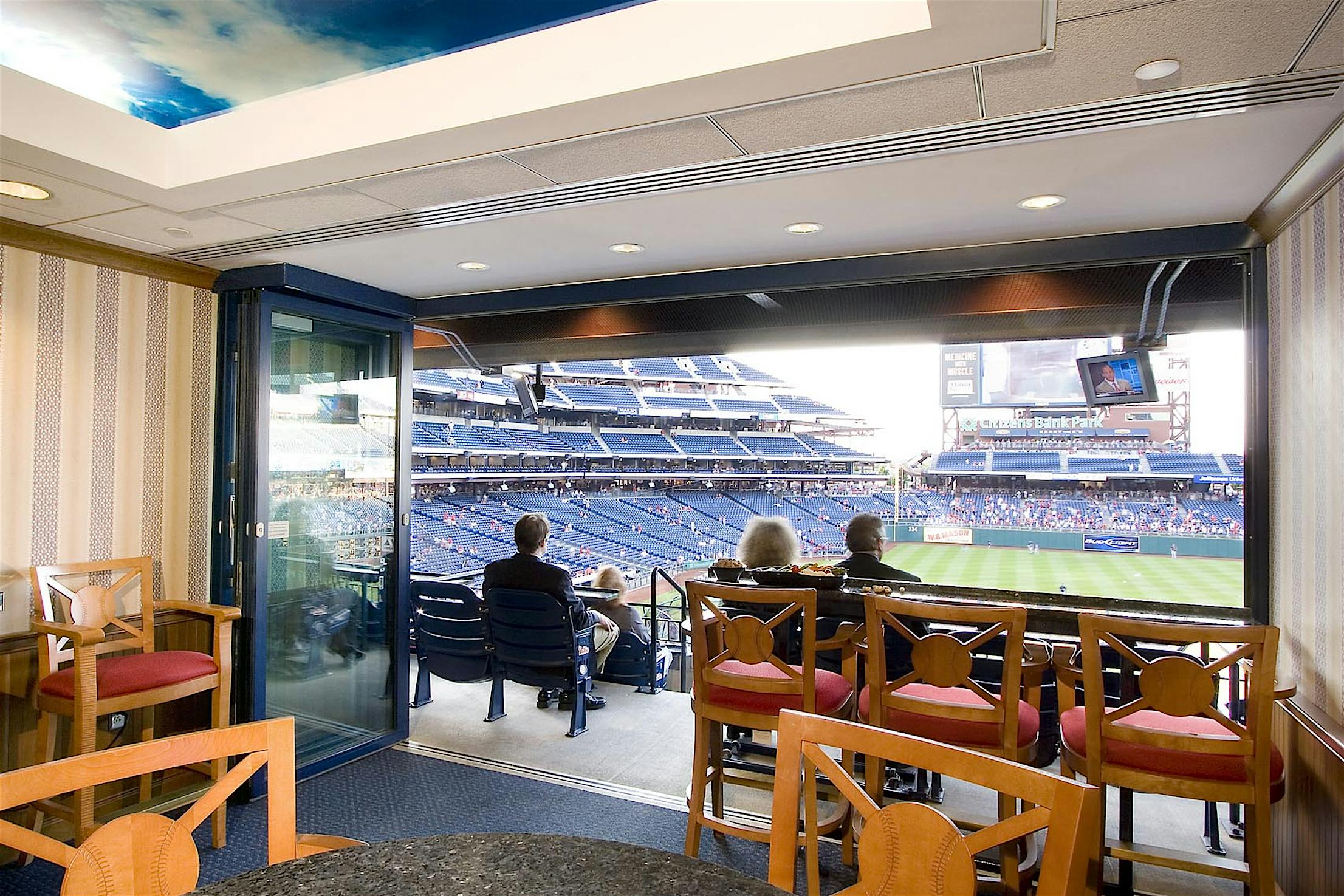

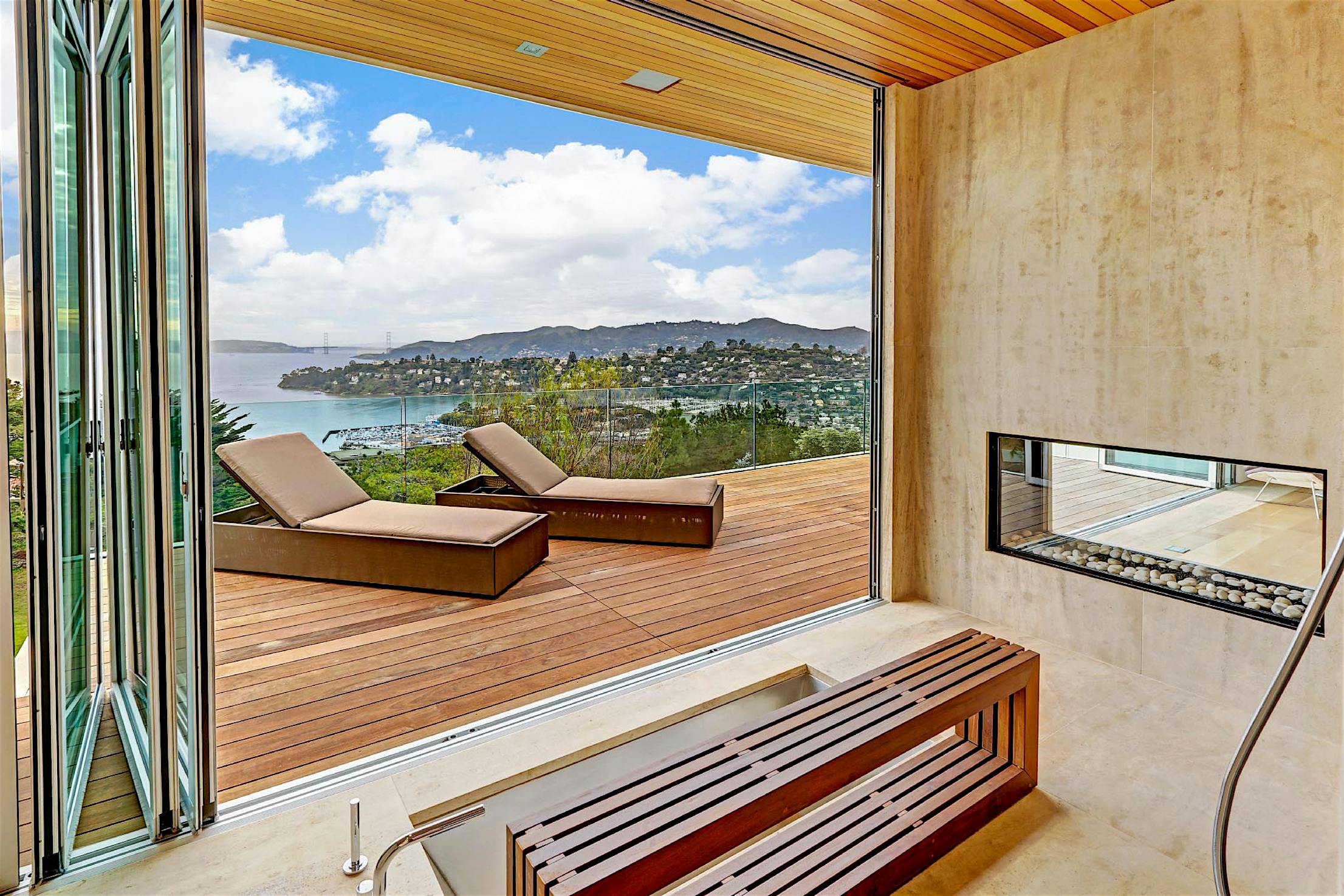

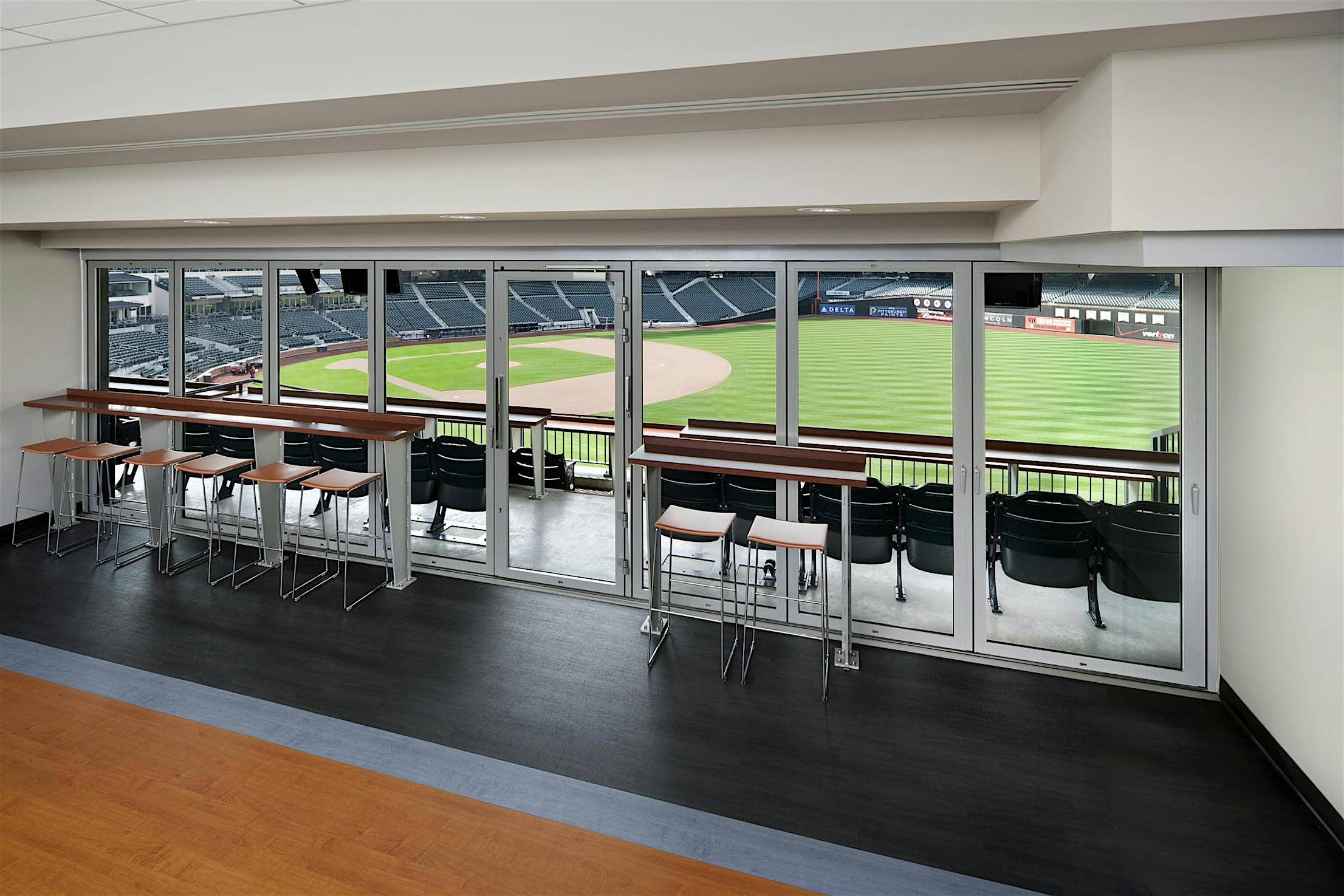

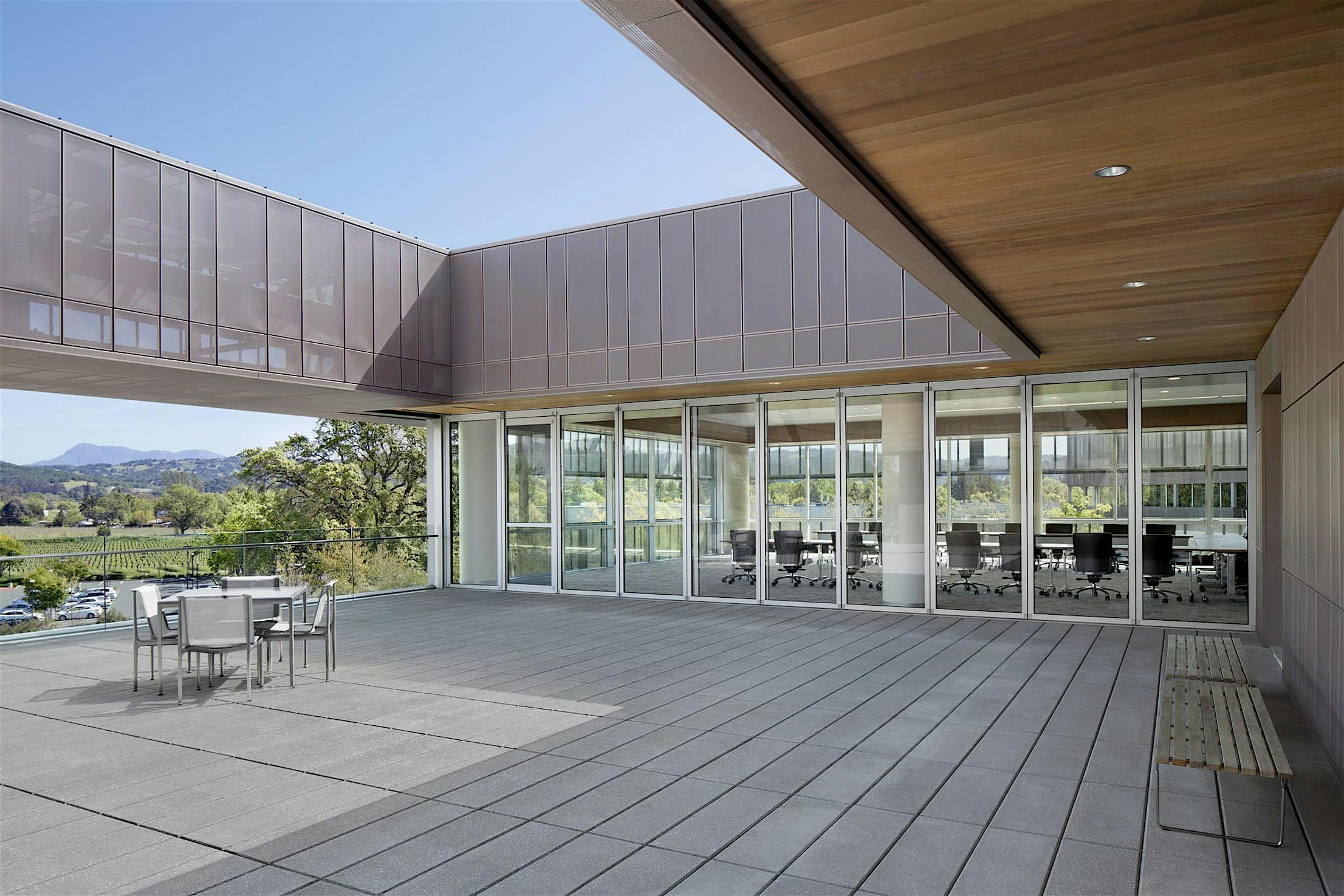

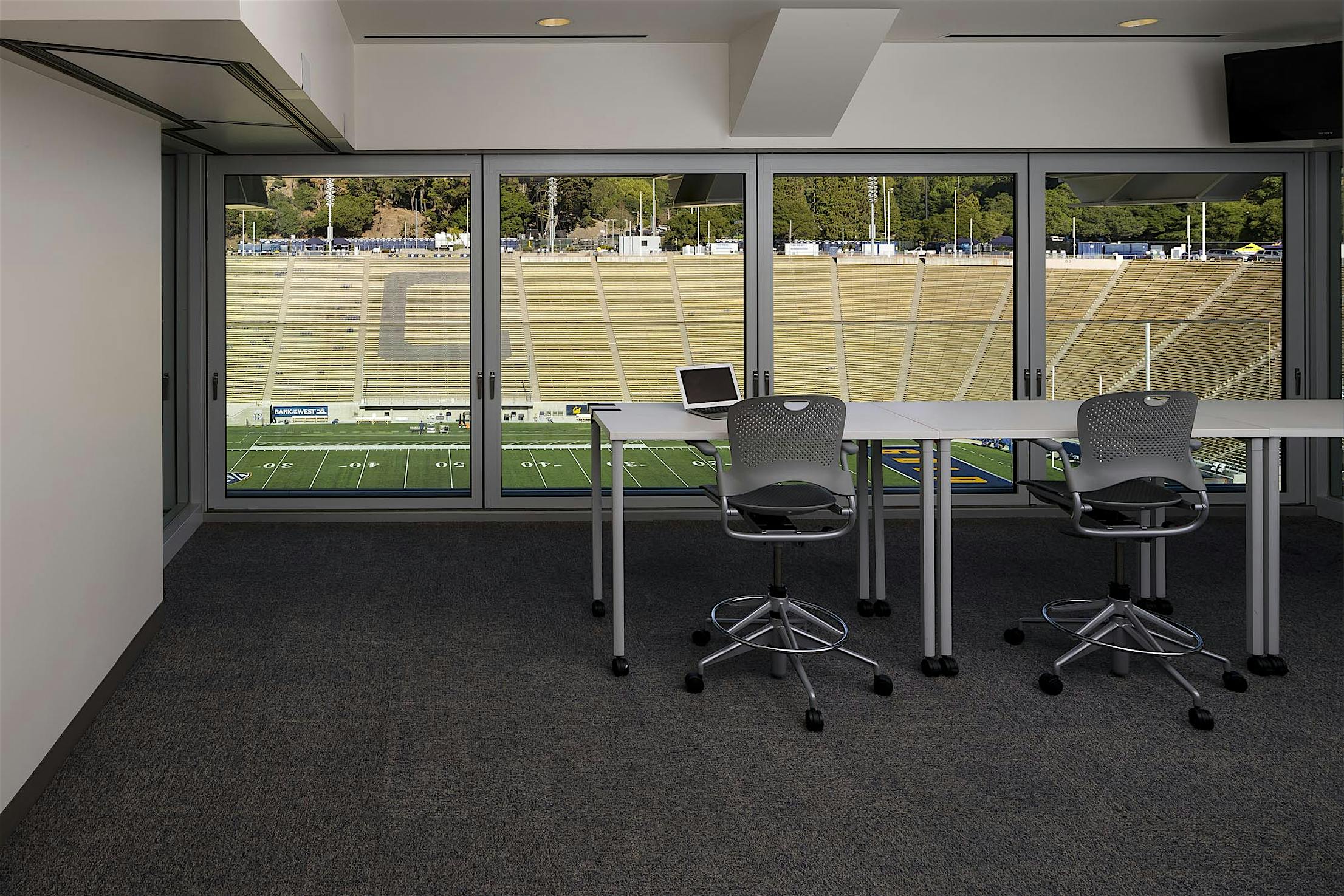

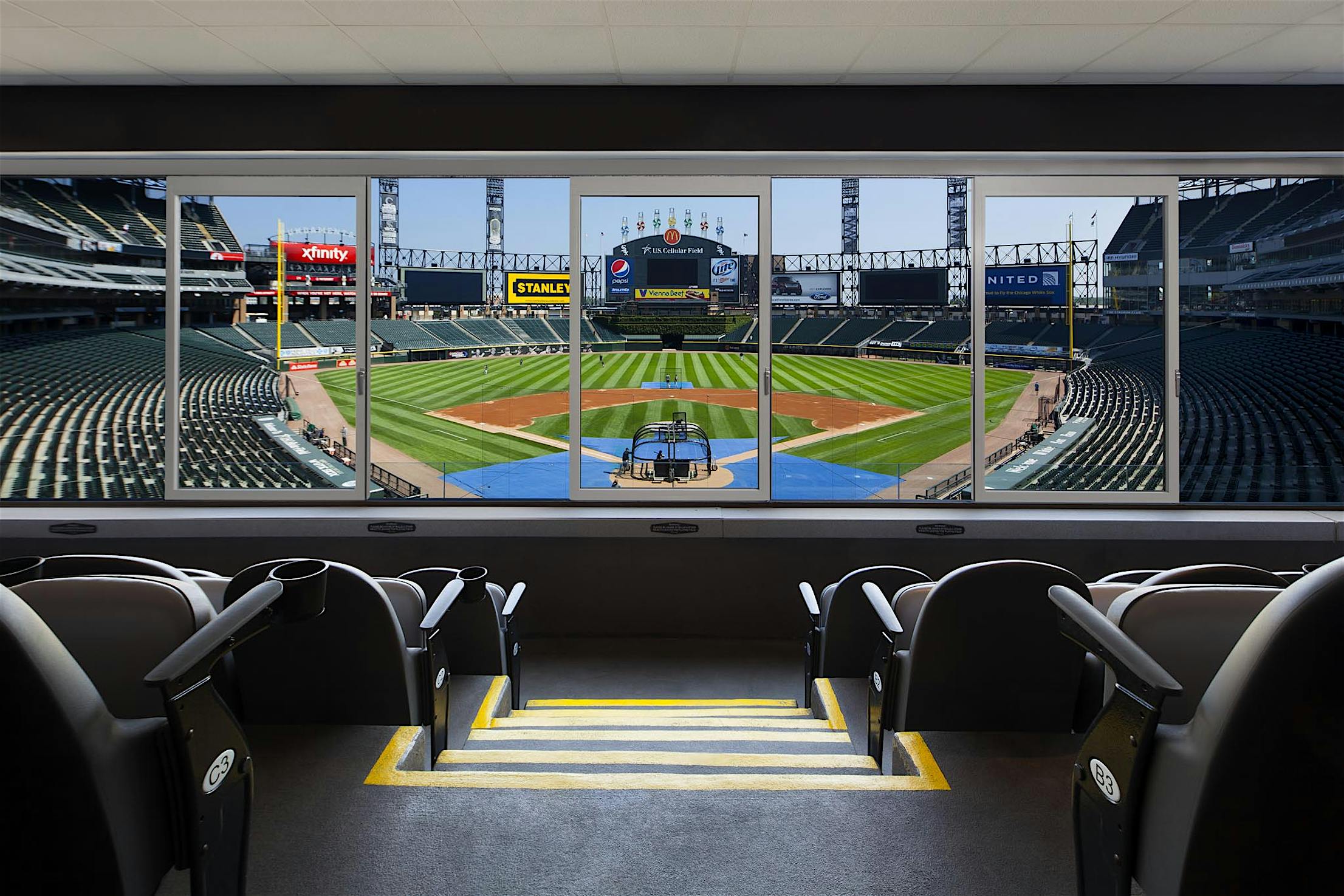

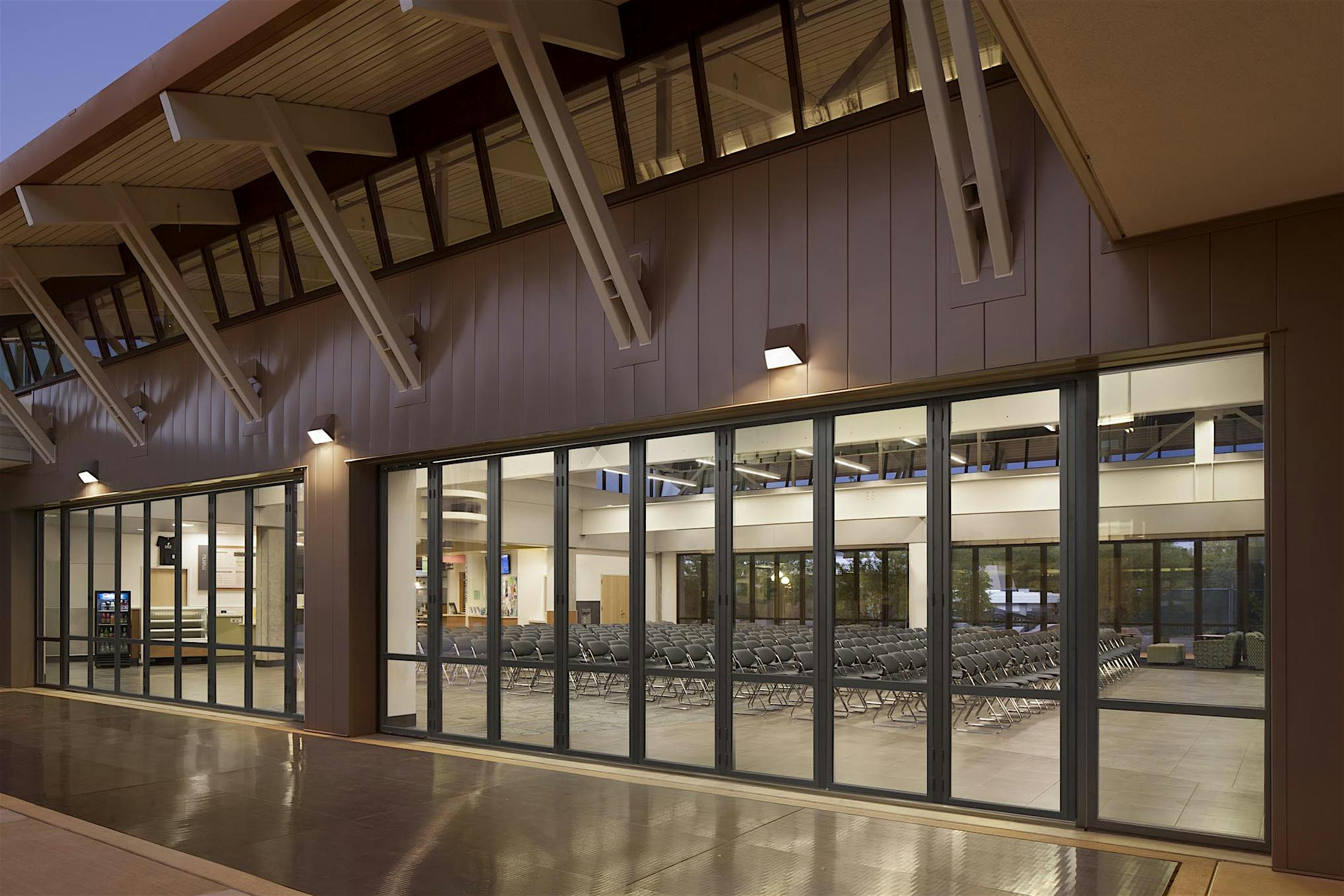

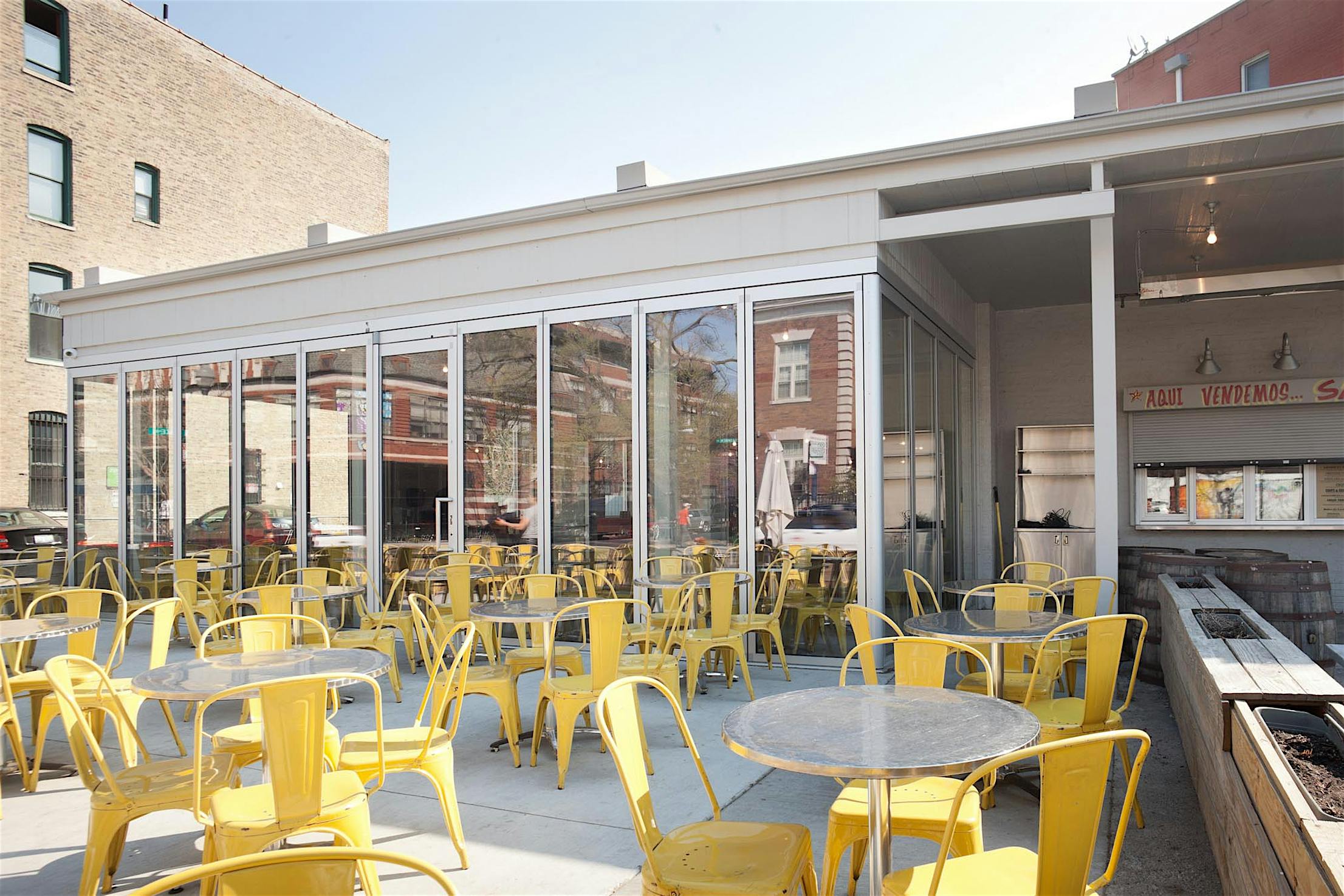

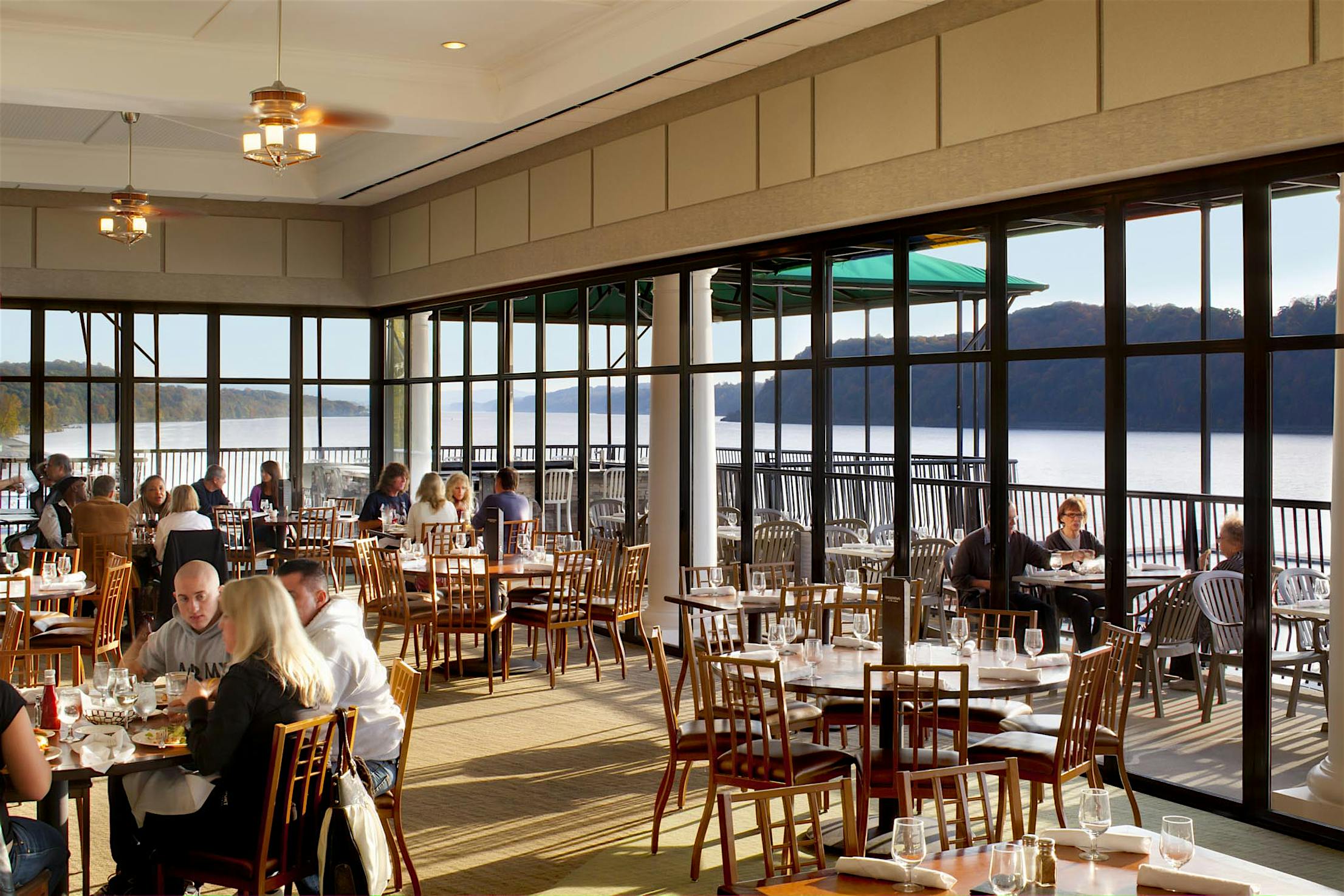

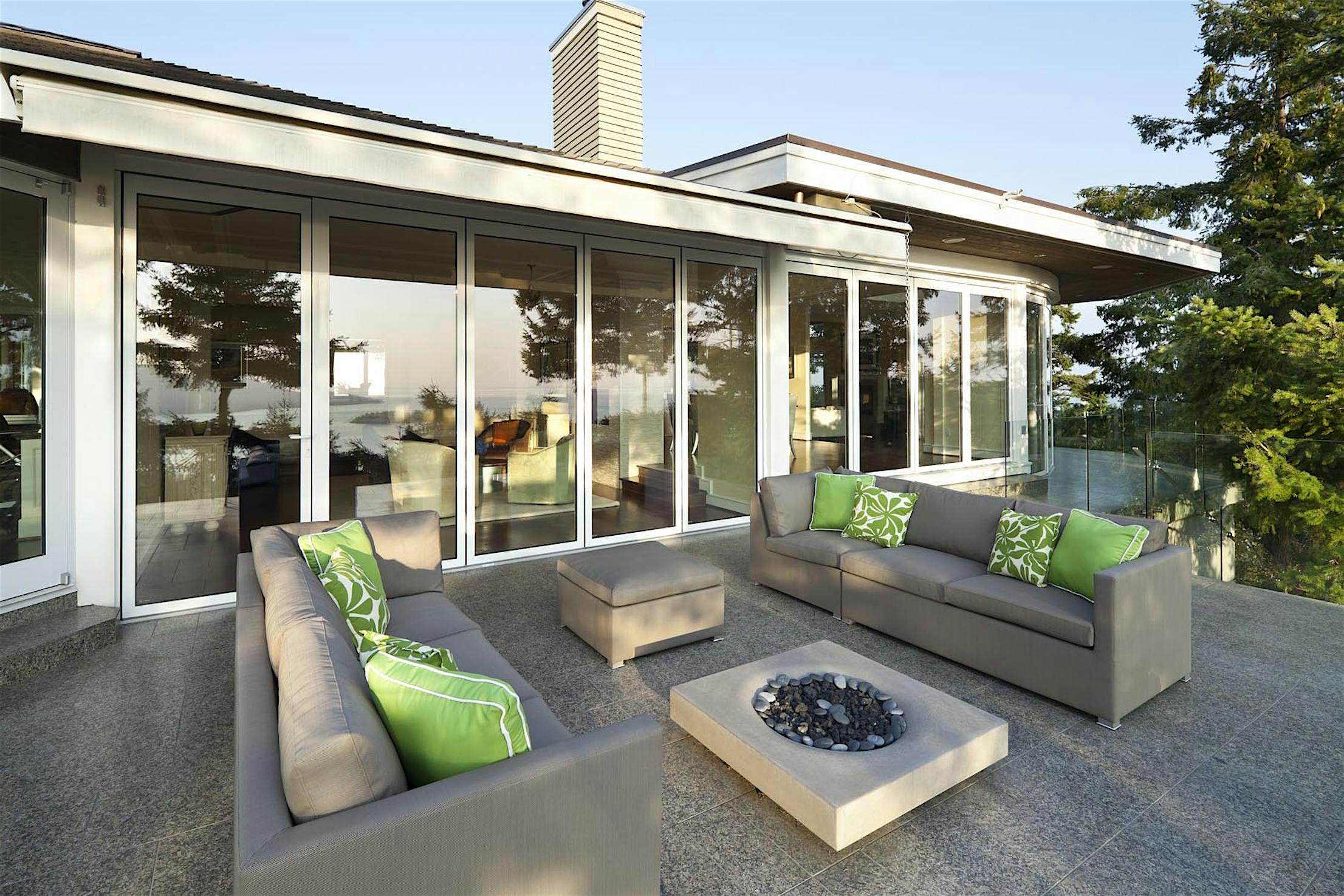

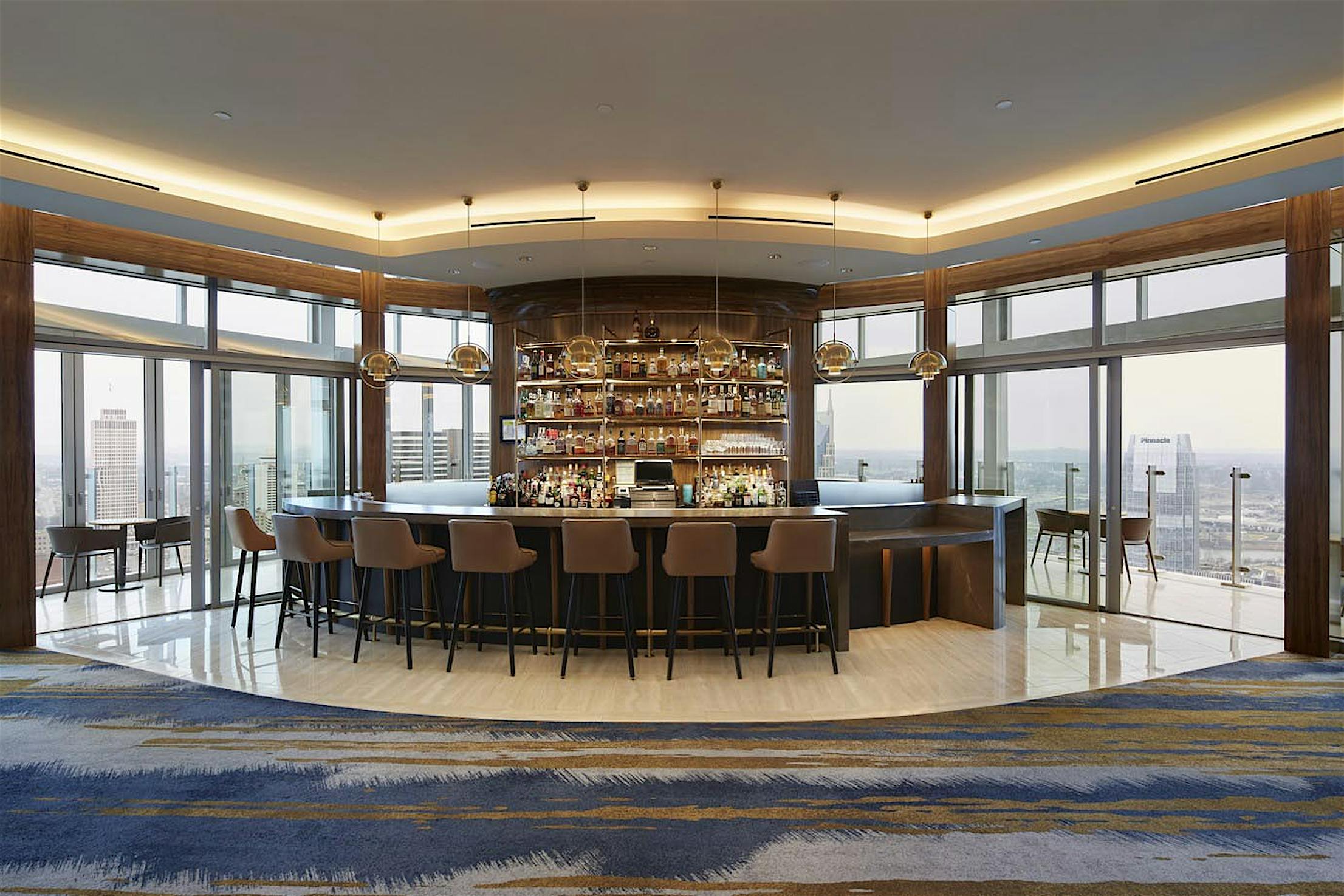

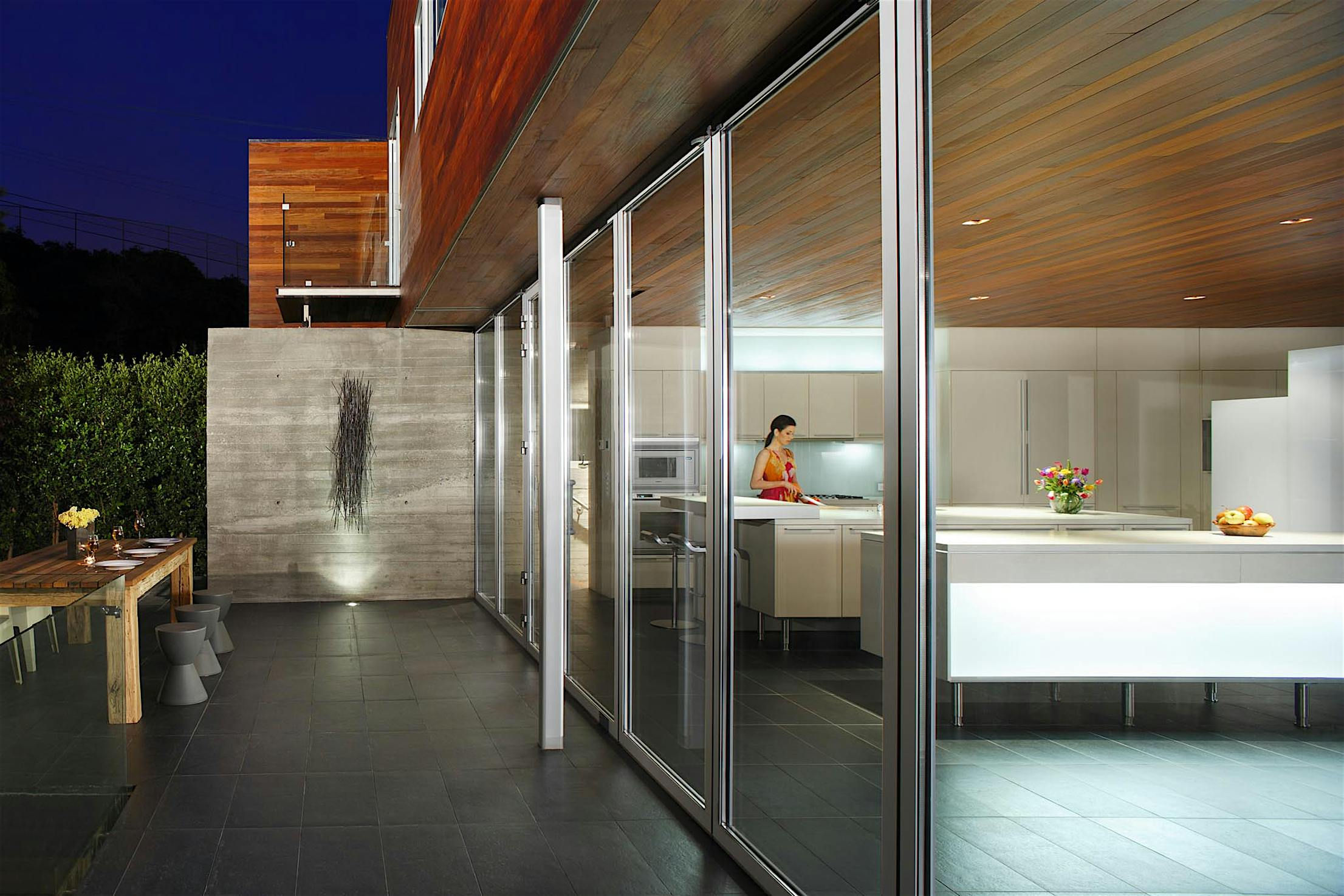

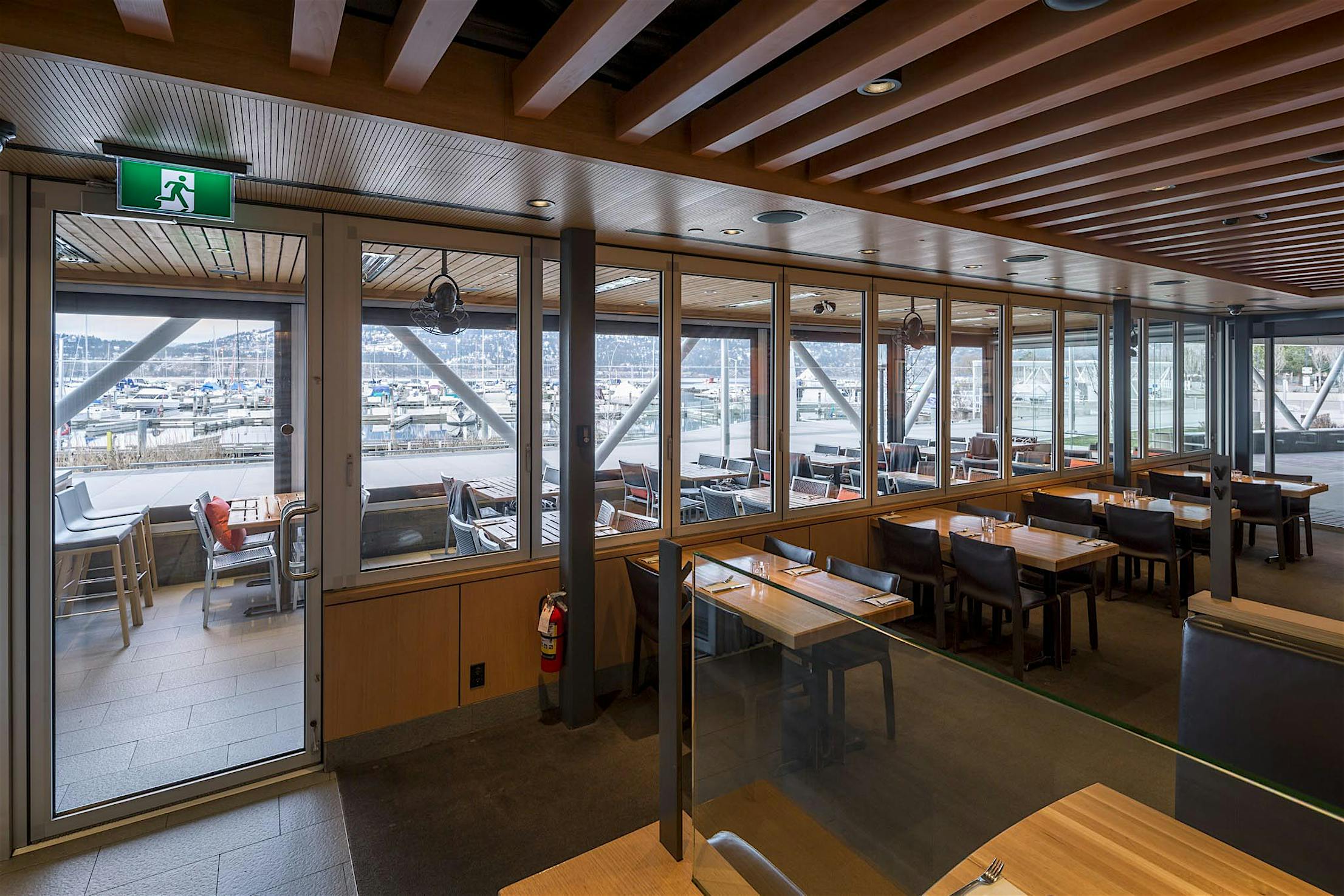

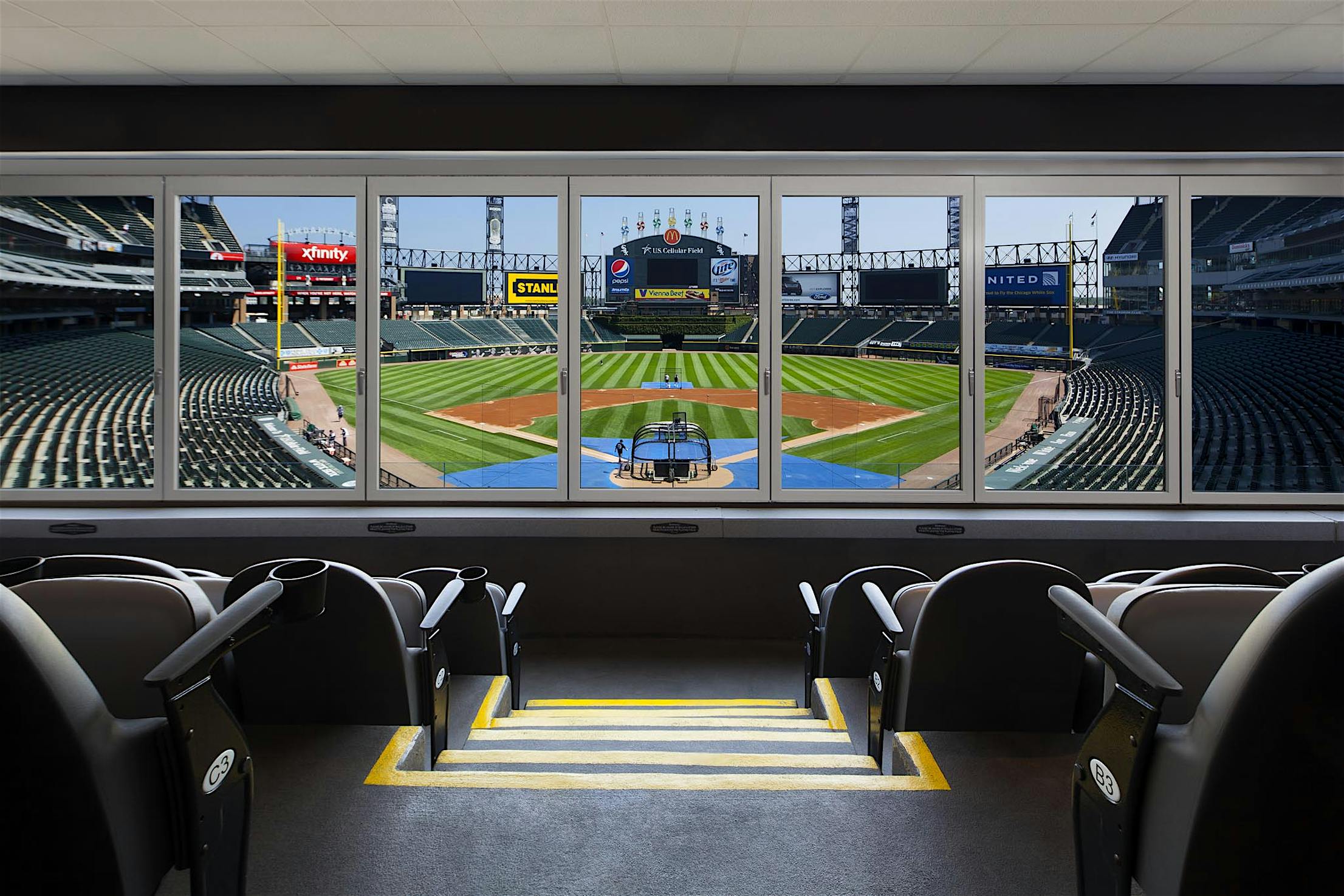

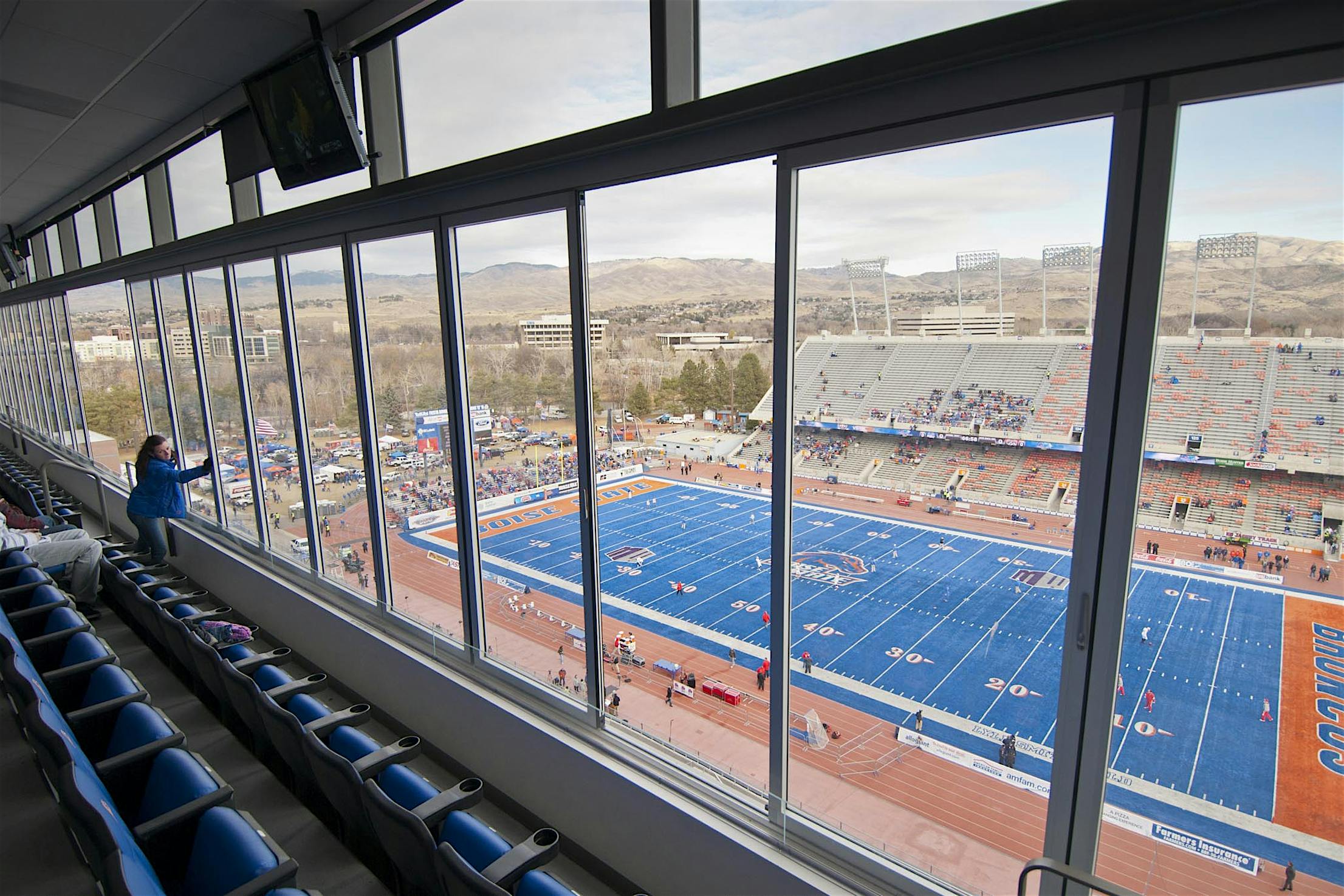

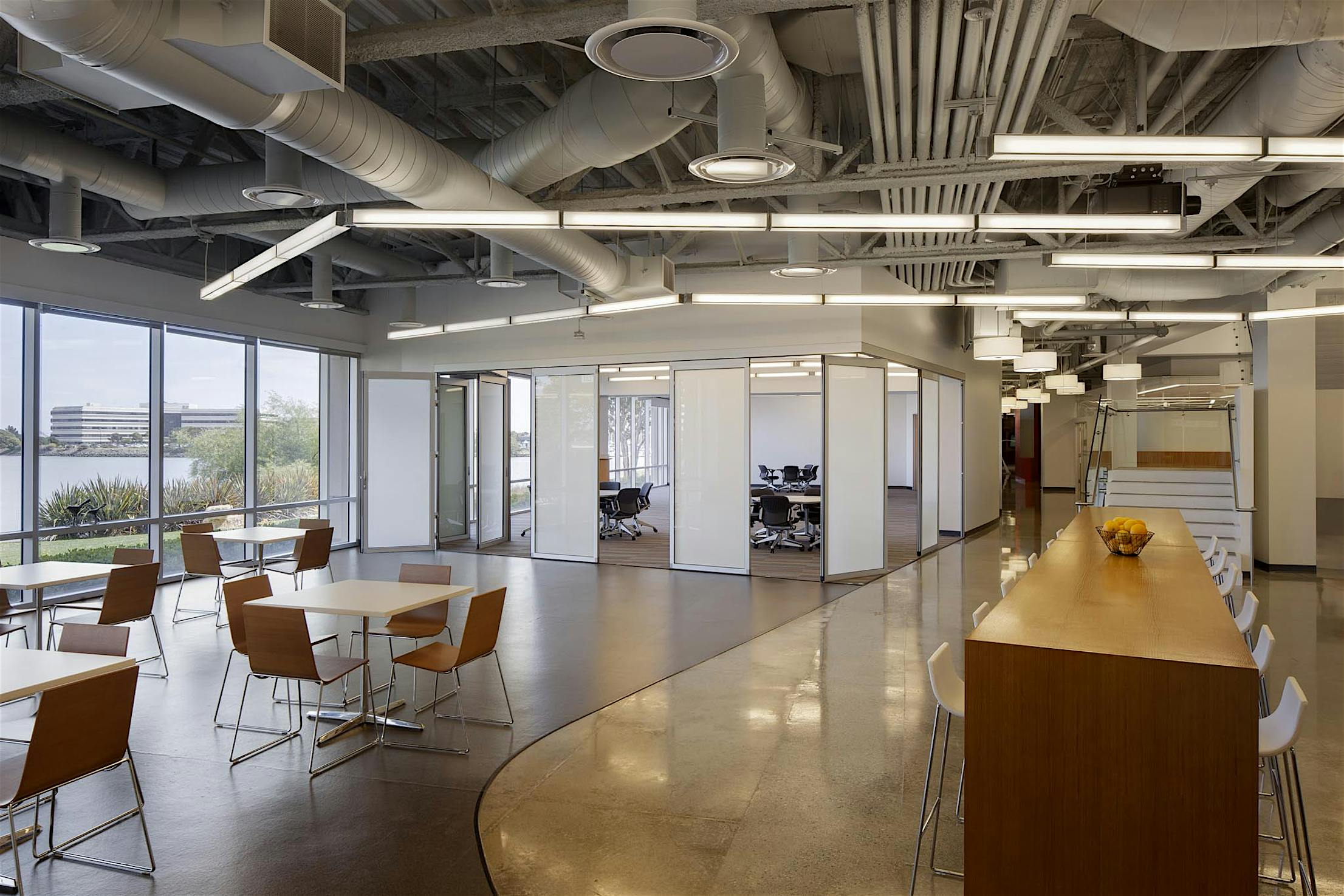

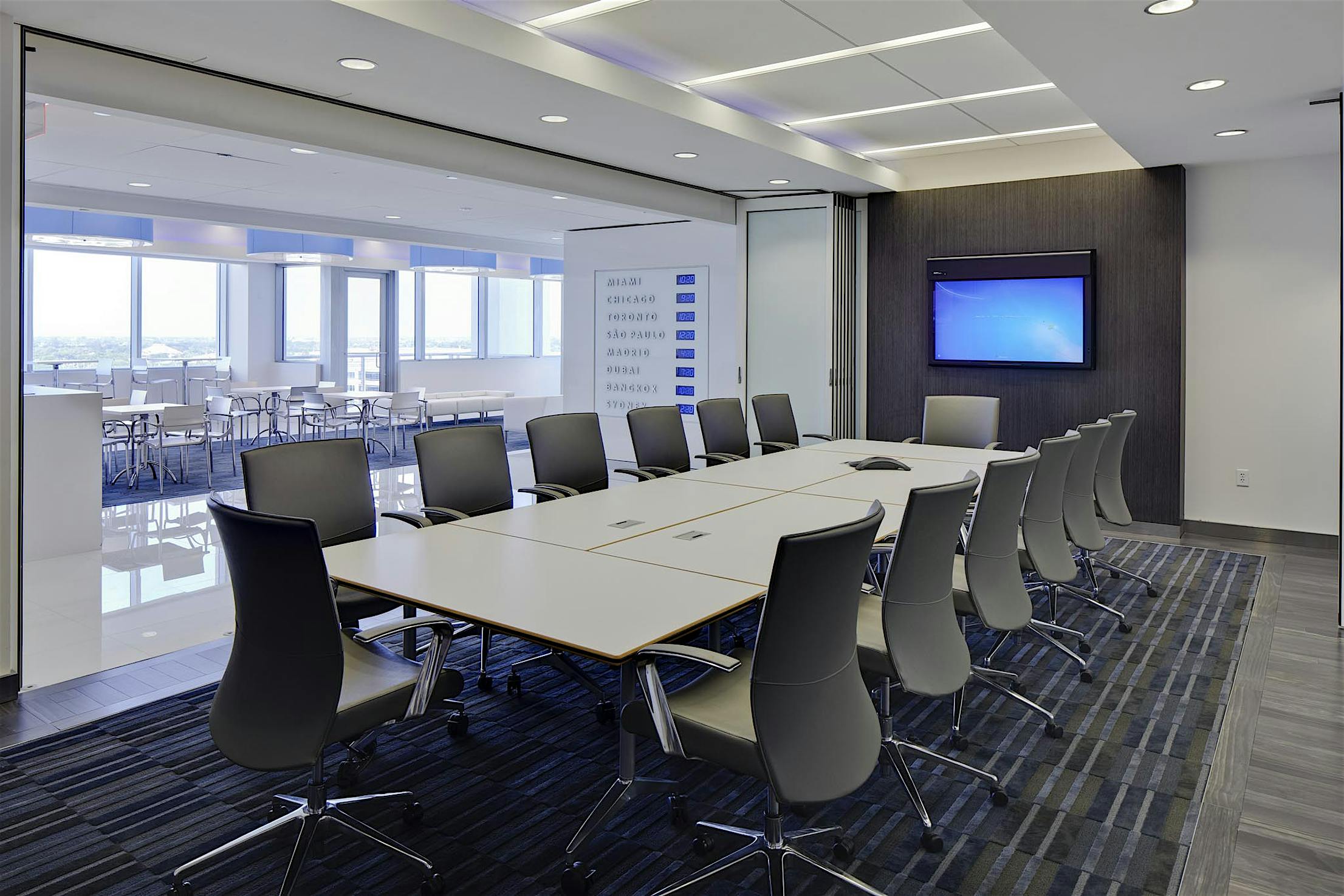

Photos

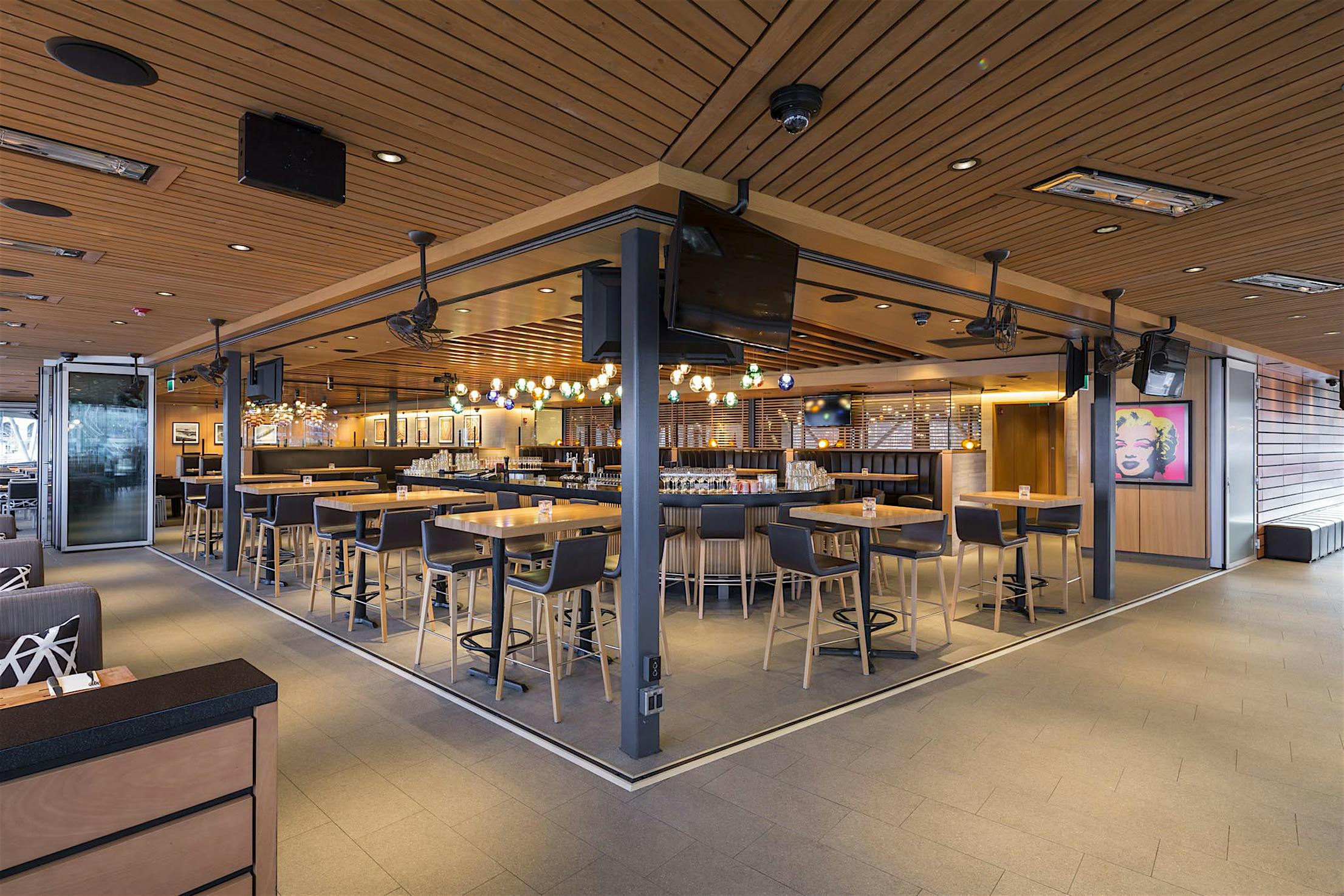

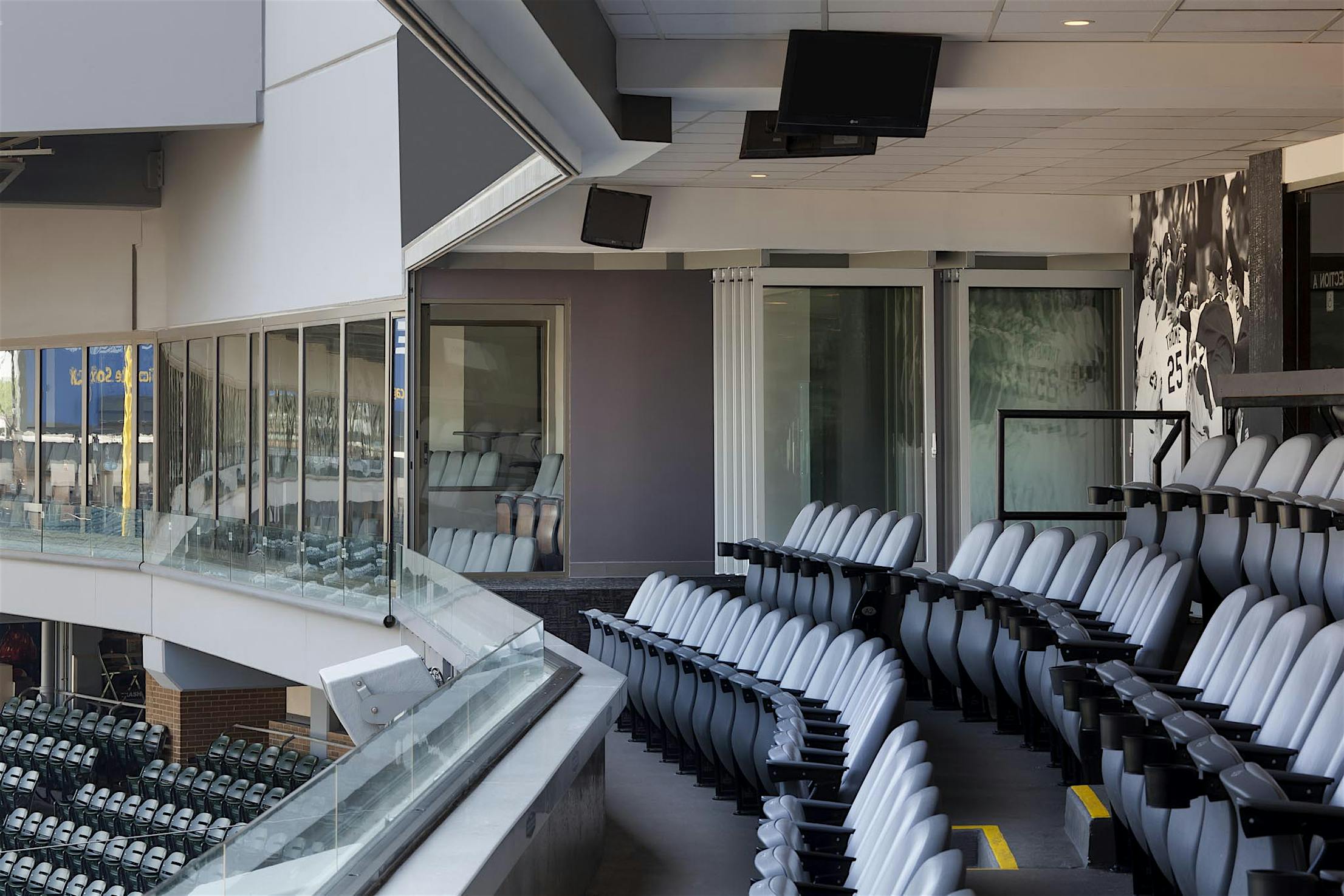

Scottsdale Residence

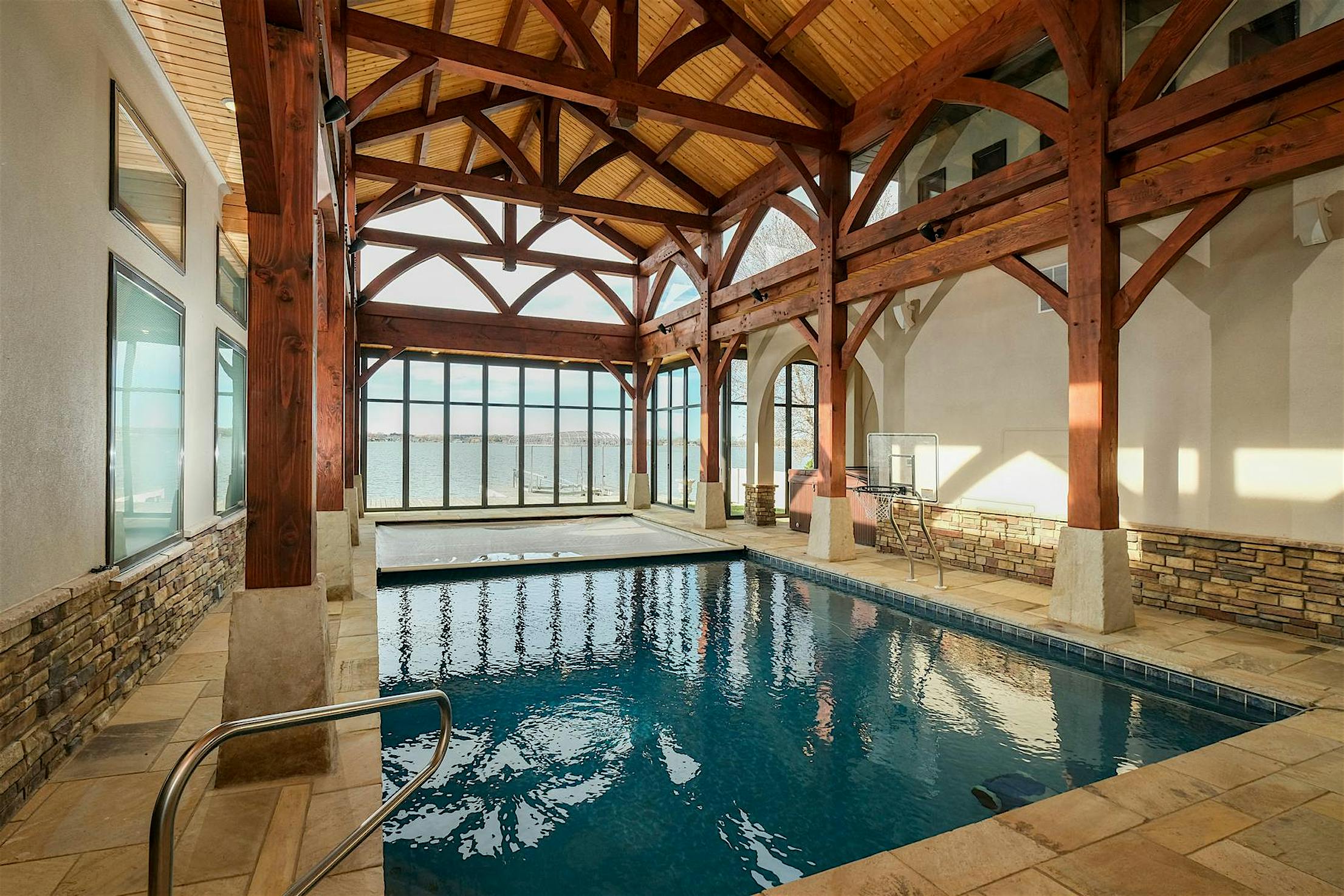

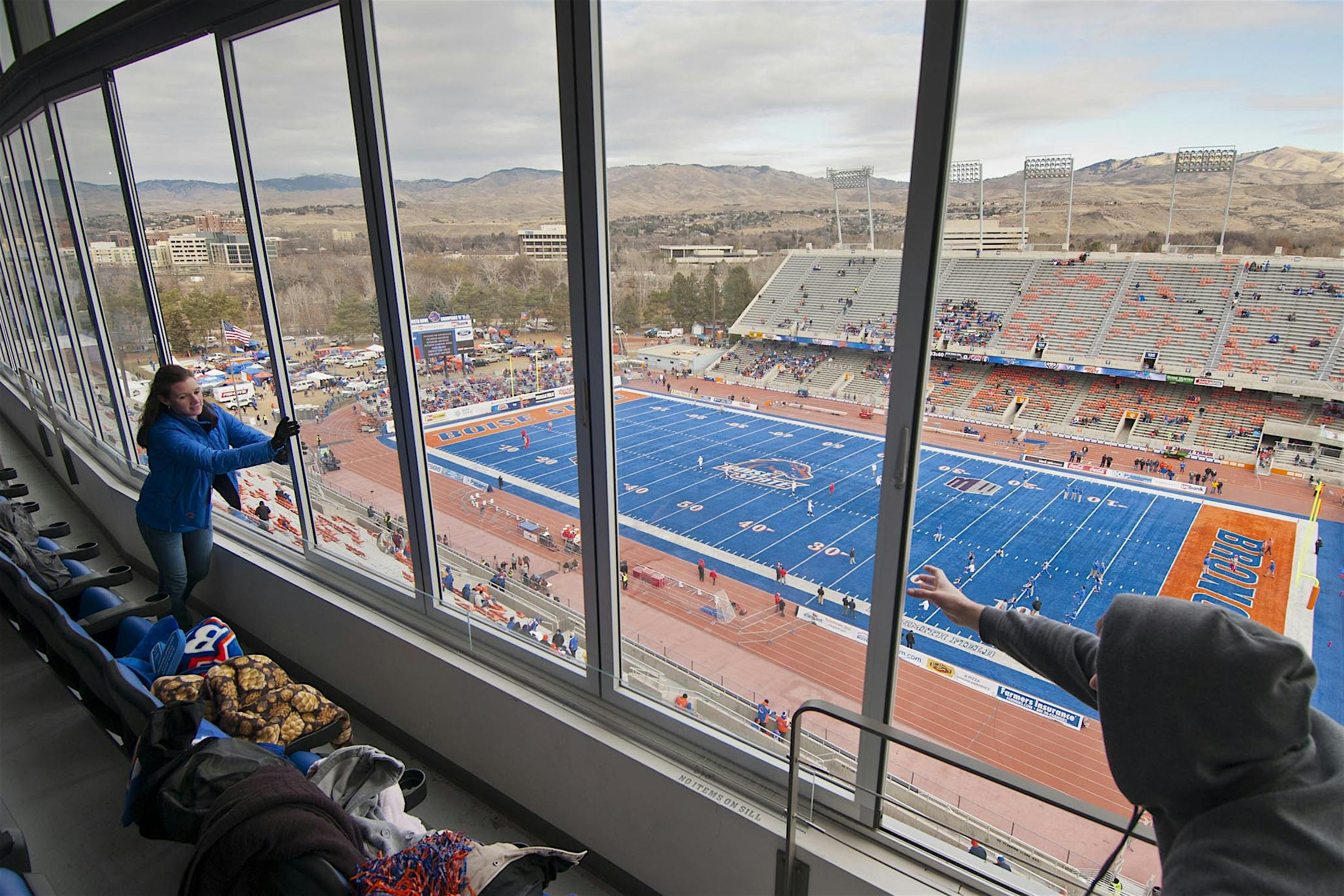

Bahamas Curved Pool House

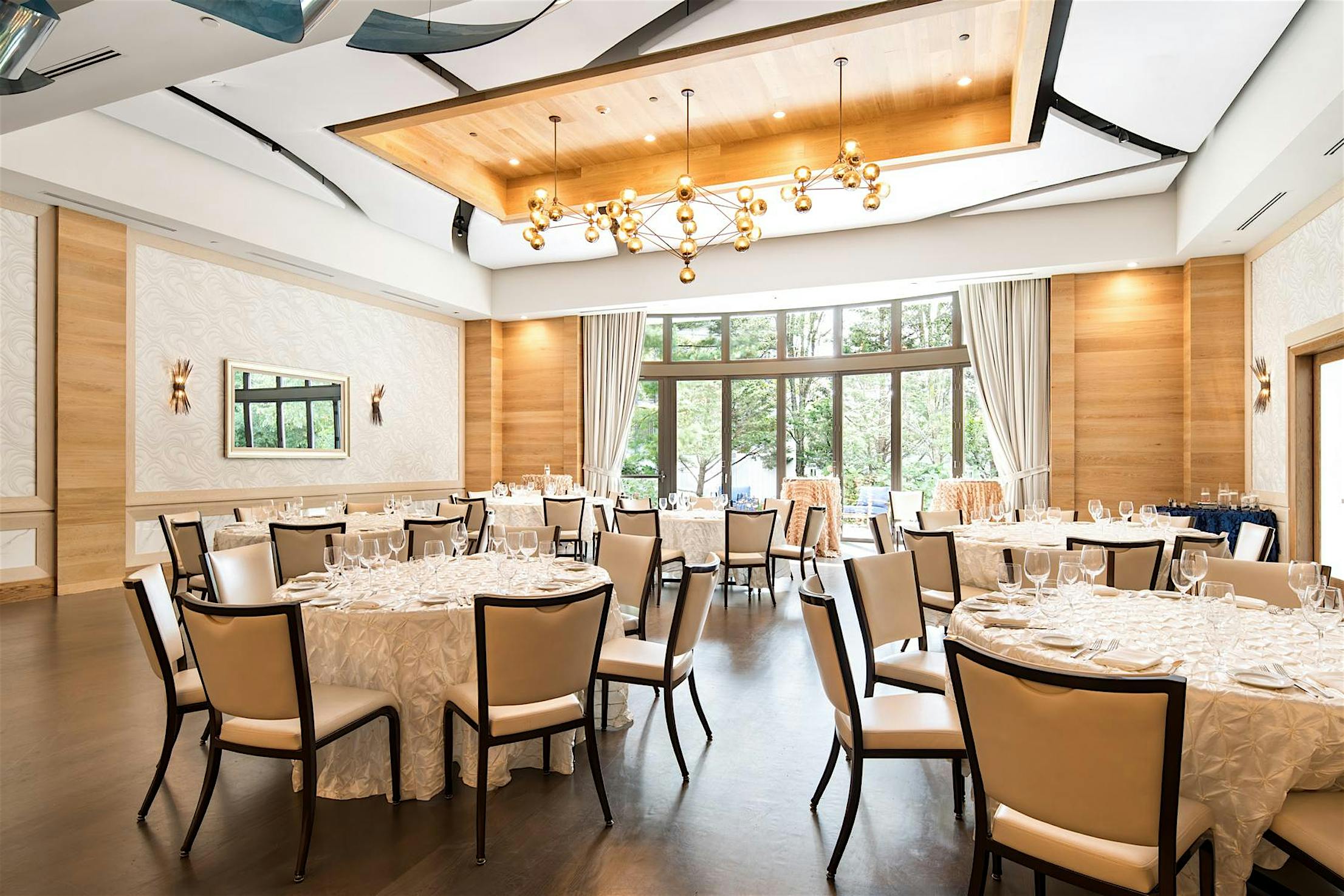

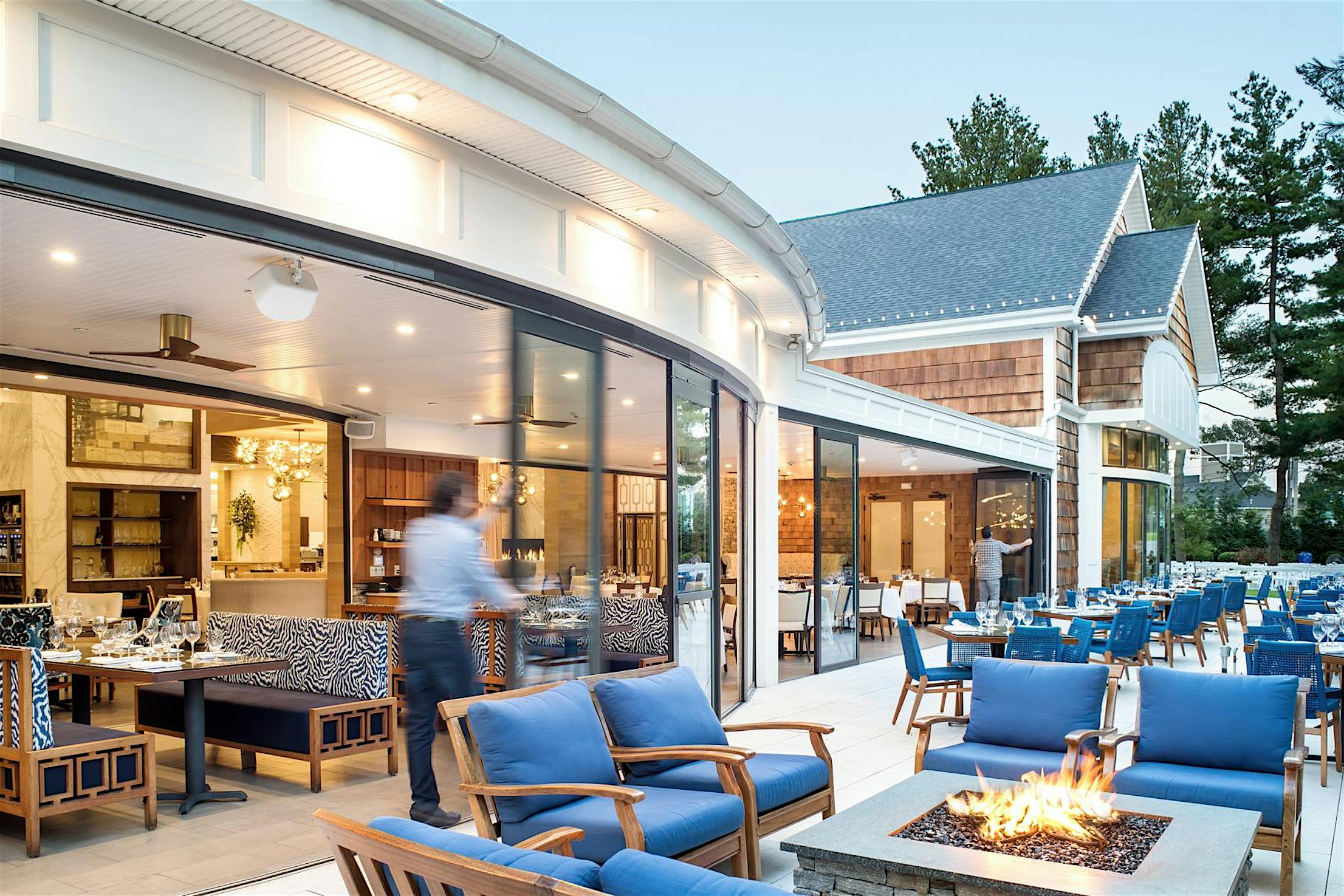

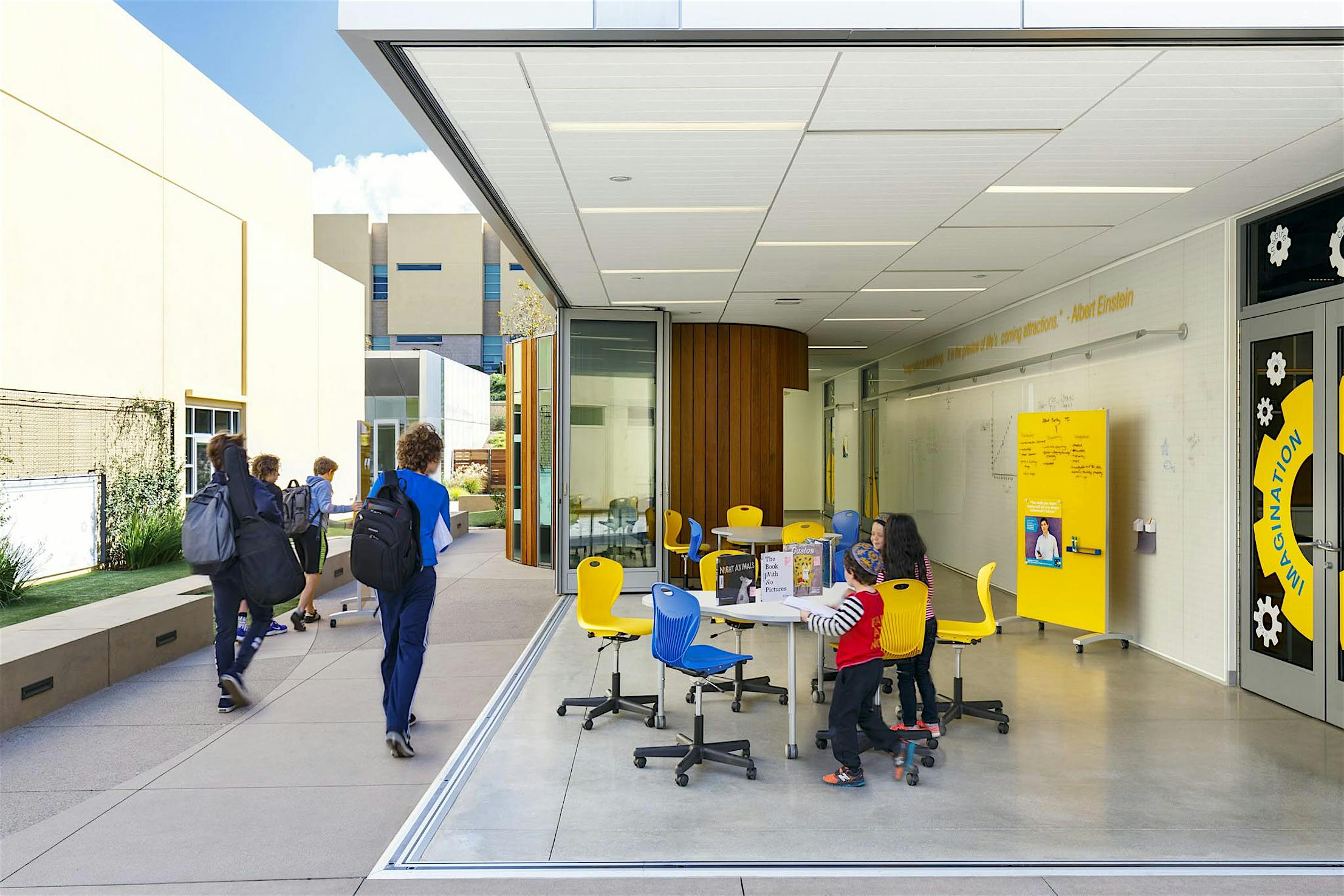

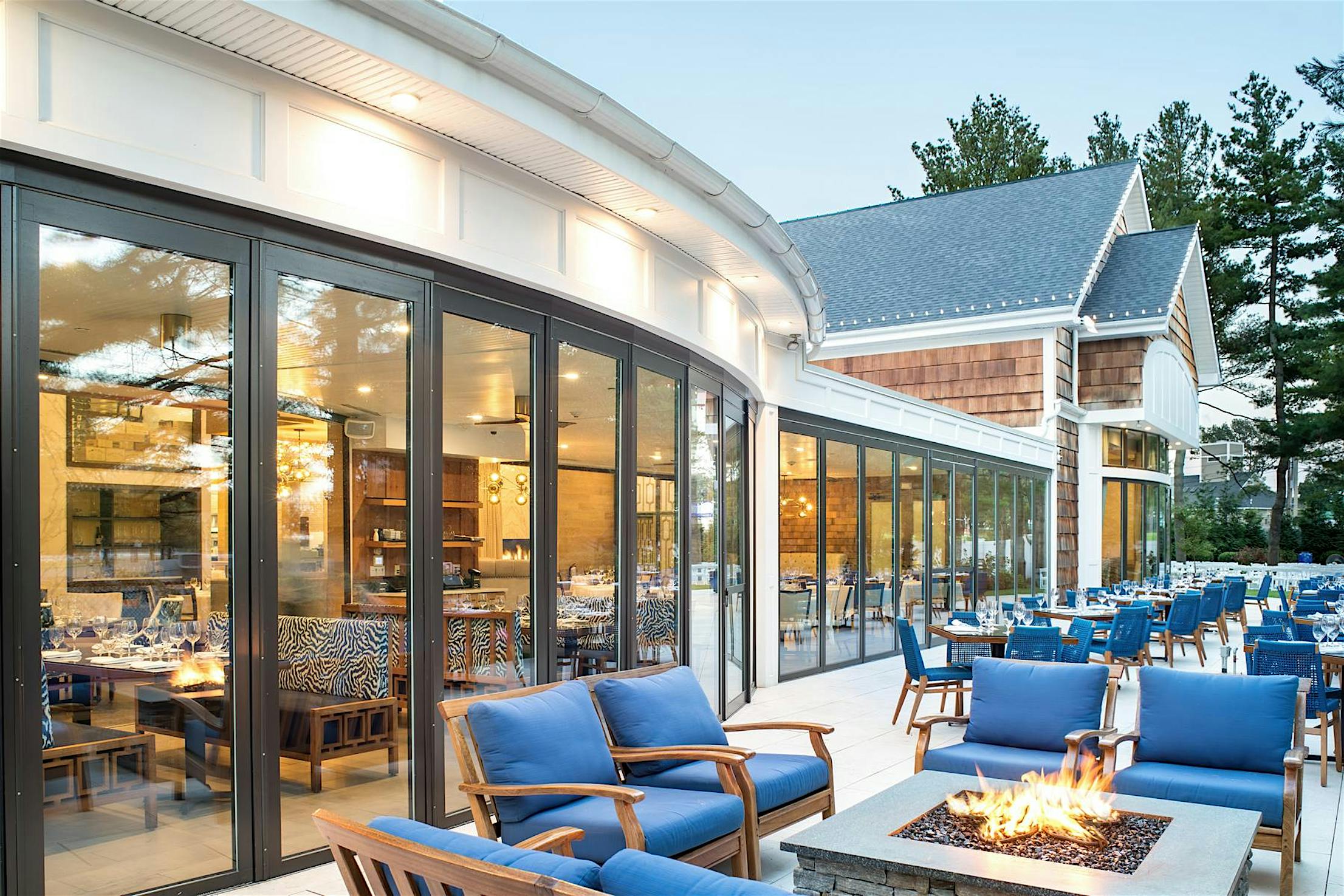

Baltusro Country Club
Seattle Credit Union
Crittenden Middle School
First Bank Canyon Creek
Videos
Animations
Downloads
Technical Resources
ARCHITECTURAL BINDER
Specifications
INSTALLATION MANUALS / OWNER'S MANUAL
View our Brochures and Photo Ideabooks online by clicking on the images below. For mailed copies, please submit the form below.
NanaWall Brochures
NanaWall Product Brochures
NanaWall Vertical Market Brochures
Photo Ideabooks
3D Models, Revit & AutoCAD Details
Specifications
Installation
Certified Installers
All opening requirements and surrounding conditions must be ready and meet the NanaWall supplied drawings before the certified installer arrives. Installers can review the openings before installation to ensure accuracy and verify all opening requirements have been met. Upon completion, the certified installer will ask to have a sign-off sheet completed, this will ensure your satisfaction with the installation of your NanaWall system. The certified installer will be available for a complete operational demonstration at time of installation.
NanaWall helps certified installers through continuous education to make sure they are up to date on all of our 20+ different systems. Their training process includes extensive education for both folding and sliding systems. Our installation management team makes periodic site visits to ensure the high standard of quality installation is maintained. Due to the extensive training your certified installer receives, it will ensure your NanaWall System is installed right, on-time, and hassle-free.
A benefit using certified installers is increased warranty coverage (review for details) of your new NanaWall system. Many areas have both commercial and residential trained installers.
Preventative Maintenance and Repair Services Available
Certified installers are available for servicing, repairs, and routine maintenance of your system.
Please contact your local NanaWall Sales Representative to arrange certified installation services for your project.
Installation Considerations
The approximate weight of a panel is the following:
Tempered Single Glazing: 4 - 4.5* lbs/sqft
Insulated Tempered Glazing: 5.5 - 8* lbs/sqft
Tempered Triple Glazing: 6 - 8.5* lbs/sqft
* The higher values applies to taller units
Single Impact Glazing: 8 lbs/sqft
Insulated Impact Glazing: 11 lbs/sqft
For the HSW75, FSW75, CSW75, PrivaSEE, and ClimaCLEAR systems the weight of a panel with 1/2" glass is 8 lbs/sqft.
For cero II the approximate weight of a panel for double glazed is 10 lbs/sqft and for double glazed laminated is 12 lbs/sqft.
For cero III the approximate weight of a panel for triple glazed is 13 lbs/sqft and for triple glazed laminated is 15 lbs/sqft.
The vertical structural deflection of the header should be the lesser of L/720 of the span and 1/4" under full loads. Structural support for lateral loads (both windload and when the panels are stacked open) must also be provided.
For floor supported systems (SL70, SL73, SL82, SL60u, WA67u and WD66u, please note that there is no vertical load on the header).
It is recommended that all building loads be applied to the header prior to installing the NanaWall. If so and if a reasonable amount of time has been allowed for the effect of this dead load on the header, only then can the building's live can be used to meet the above requirements of L/720 or 1/4". If not, both the dead and live loads needs to be considered.
Installation Information
Please see the Installation Instructions / Owner's Manual for each system.
NanaWall Systems, Inc. has independent, factory trained installers throughout North America, including Mexico, Canada, Caribbean and Central America. Choosing a trained installer ensures the best possible installation of your new NanaWall. Having folding or sliding walls installed has never been easier.
Installation Videos
Pricing
The Question of Pricing
NanaWall is a custom product tailored specifically for your project needs. Numerous features and options make up the price: type of system (we offer 20+), custom opening and panel size, glass type, door hardware, finish choice…to name a few. The best way to determine price is to consult with your local area NanaWall architectural representative and get a quote, directly from NanaWall, for the exact system that best meets your project requirements and budget. Or, better yet, experience our products firsthand by making an appointment to visit by one of our 25 showrooms to learn why NanaWall is your best choice.
Typical Residential Pricing Example
An example pricing guideline for our more versatile residential folding thermally broken aluminum system SL60 with 50 standard color options, choice of standard inswing or outswing, top-hung or floor supported, starts from $700 linear foot. This German engineered and American produced folding glass wall has a lead time of 7 – 9 weeks from order sign off to curbside delivery at your jobsite.
Project Tips For Budgeting
Optimize By Size
Every NanaWall system is customized based on your design requirements. Budgeting starts with overall size of the opening and is dependent on the total number of panels required.
General Pricing Guidelines:
- Total # of panels directly affect pricing
- Larger overall panels affect pricing
- Optimized size and panels offer best pricing
Product Family Matters
There are 3 NanaWall product families each with a specific design specialty, select the best fit based on your project needs.
General Pricing Guidelines:
- Folding products for most common applications and weather performance
- Sliding products for more complex design requirements are priced higher than folding
- Frameless products for interior are priced similarly to sliding products while outdoor rooms or balconies are priced lower than folding
There's Only One NanaWall System
Every NanaWall system is custom produced based on your design. Choose from included options to optimize pricing, all specialty options affect pricing.
General Pricing Guidelines:
- Custom color matching affects pricing
- Specialty glass affects pricing
- Decorative SDL's affect pricing
