Our Most Advanced Single Track SystemEver
Performance when closed matters most
Large openings are easy to design and there are many options to choose from. When deciding on a product that best for your project, performance when closed needs to be considered.

All Climate Performance
NanaWall products are NFRC rated and certified for true energy efficiency in all climates.

Certified Testing Standards
NanaWall products endure the latest AAMA testing standards for air, water, structural, and forced entry.

Sustainable Design
NanaWall products contribute to multiple LEED rating systems and potentially several credit categories.
Air, Water, Structural, Thermal, Forced Entry & Acoustical Results
Florida Product Approval #37259.1
HSW60 Results
Type of Test | Results | |||
---|---|---|---|---|
Air Infiltration 1ASTM E-283, cfm/ft2 |
@ 1.6 psf (75 Pa): 0.30 (1.5 L/s/m2) A2 2 |
|||
Water Penetration 1ASTM E-547 and E-331 (with low profile saddle sills only) |
#1 Unit with weep holes from middle channel: No uncontrolled water entry subject to the following adaptations of the sill in the field by others:
|
#2 Unit with weep holes from inner channel: No uncontrolled water entry subject to the following adaptations of the sill in the field by others:
Please note that due to the varying site requirements and conditions, these sills will not be prepared for drainage by Nana Wall Systems, Inc. If this drainage system is desired, we recommend that qualified professionals construct this system on the project site strictly in accordance with instructions provided by NanaWall Systems, Inc. and in accordance with good waterproofing techniques. If drain connections are not made or are not possible, unit may leak with wind driven rain. Generic Weephole Installation Detail LPSS |
||
Please note that due to the varying site requirements and conditions, these sills will not be prepared for drainage by Nana Wall Systems, Inc. If this drainage system is desired, we recommend that qualified professionals construct this system on the project site strictly in accordance with instructions provided by NanaWall Systems, Inc. and in accordance with good waterproofing techniques. If drain connections are not made or are not possible, unit may leak with wind driven rain. Generic Weephole Installation Detail LPSS |
||||
Structural Load DeflectionASTM E-330: pass See Design Windload Charts for other sized panels. Note that the structural test pressures were 50% higher than the design pressures. |
design pressure
For saddle specimen #2 above, class SP-PG40 (weep holes by others), Panel size - 3′1″ x 9′5″ (940 mm x 2870 mm) 2 |
|||
Forced Entry Resistance 1ASTM F842 |
Type A. Grade: 40 Pass |
|||
Life Cycle PerformanceAAMA 920 |
For incorporated swing panels 500,000 cycles - pass |
|||
Acoustical Performance 2 |
STC 45 special insulated laminated glass achieved STC and Rw values of 43 with head track recessed and 41 with head track exposed and with STC 32 insulated glass achieved STC of 32 with head track recessed or exposed. |
1 Excerpts of results of a 6 panel unit tested by Architectural Testing, Inc., an independent testing laboratory in October 2010 per AAMA/WDMA/CSA 101/I.S.2/A440 Fenestration Standard. Unit was 18′0 1/2″ W x 10′ H with a total of 6 panels consisting of a half swing panel attached to the side jamb, 3 sliding panels and 2 incorporated swing panels. All locking was standard and sill was low profile saddle sill.
2 For Canada, tested to NAFS-08 or equivalent and CSA A44051-09.
3 Excerpts of results of 13′7″ W x 8′8″ H 4 panel unit with swing panel attached to the side jamb tested by Nusing Mobile Trennwandtechnile, Munster, Germany, an independent testing laboratory, in December 2011.
Thermal Performance |
Rated, certified and labeled in accordance with NFRC 100 and NFRC 200 |
|||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Standard Sill | Low Profile Saddle Sill | Sockets Only | ||||||||||||
Type of Glass (1 lite)4 |
Center of Glass U Factor | Glass Thickness |
Unit U-Factor |
SHGC5 | VT6 | 2015 Energy Star |
Unit U-Factor |
SHGC5 | VT6 | 2015 Energy Star |
Unit U-Factor |
SHGC5 | VT6 | 2015 Energy Star |
Double IG Clear (air filled) | .48 | 15/16″ (24 mm) |
.49 | .50 | .54 | - | .50 | .50 | .53 | - | .50 | .50 | .53 | - |
Double IG Standard Low E (argon filled) | .26 | 15/16″ (24 mm) |
.34 | .23 | .46 | - | .34 | .23 | .46 | - | .34 | .23 | .46 | - |
Double IG Standard Low E (air filled) | .30 | 15/16″ (24 mm) |
.37 | .23 | .47 | - | .37 | .23 | .46 | - | .37 | .23 | .46 | - |
Triple IG Low E x 2 (argon filled) | .13 | 1 7/16″ (38 mm) |
.25 | .20 | .36 | * | .25 | .20 | .36 | * | .25 | .20 | .36 | * |
Triple IG Low E x 2 (air filled) | .16 | 1 7/16″ (38 mm) |
.27 | .20 | .36 | * | .28 | .20 | .36 | * | .28 | .20 | .36 | * |
1/4" single clear | 1.02 | 1/4″ (6 mm) |
.84 | .55 | .59 | - | .85 | .55 | .58 | - | .84 | .55 | .58 | - |
Notes
4 NFRC simulated U factors of units with a horizontal mullion will have values of .01 to .03 higher than units with no horizontal mullion. Please contact NanaWall for details.
5 SHGC = Solar Heat Gain Coefficient
6 VT = Visible Transmittance
* 2015 Energy Star Qualification Criteria: U-Factor for doors in all climate zones <.30, SHGC <25 in South/South Central zones and <.40 in North/North Central zones. (For guidance only. NanaWall is not a participant of the Energy Star program.)
Call NanaWall (800.873.5673 | 415.383.3148) for U-Factor & SHGC for other glass types.

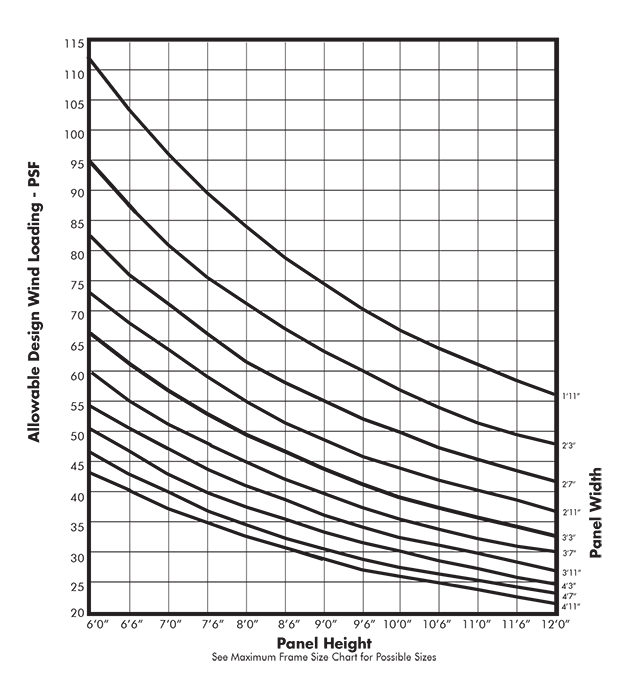

Design Windload Chart
(Derived From Comparative Analysis)
Test Unit Size: 37" W x 113" H
Please note that some jurisdictions may limit the use of these charts or may not accept them at all. Design pressures and/or sizes may be restricted to what was tested.
Please also note that chart is only applicable for units with referenced Nana Wall supplied locking.
Both Positive and Negative Design Pressures
