HSW60
Offers transformative design flexibility
- Extremely large openings are possible with unlimited spans of individual panels
- Virtually any shape is possible, including open corners
- Offers customizable stacking bay options for panels
Unlimited Spans

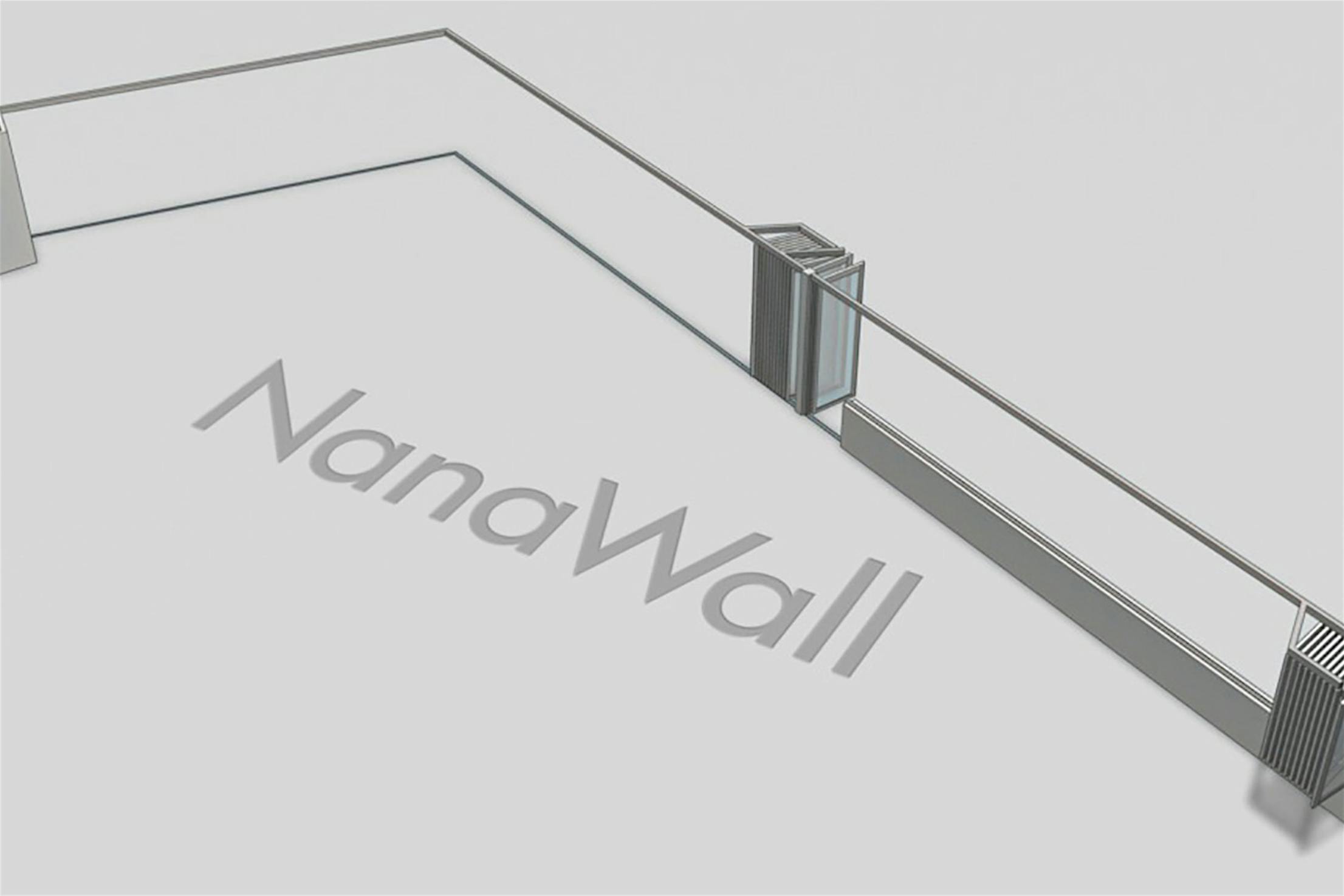

The NanaWall Single Track Stacking system can be designed with any number of panels. The system is a completely top-supported design therefore the number of panels is only limited by the supporting structure in your design.
Stack Panels Anywhere
Panels Can Store Out of Sight
You have the design freedom to store panels in a closet hidden from view when opened
See Configurations
Design Responsively

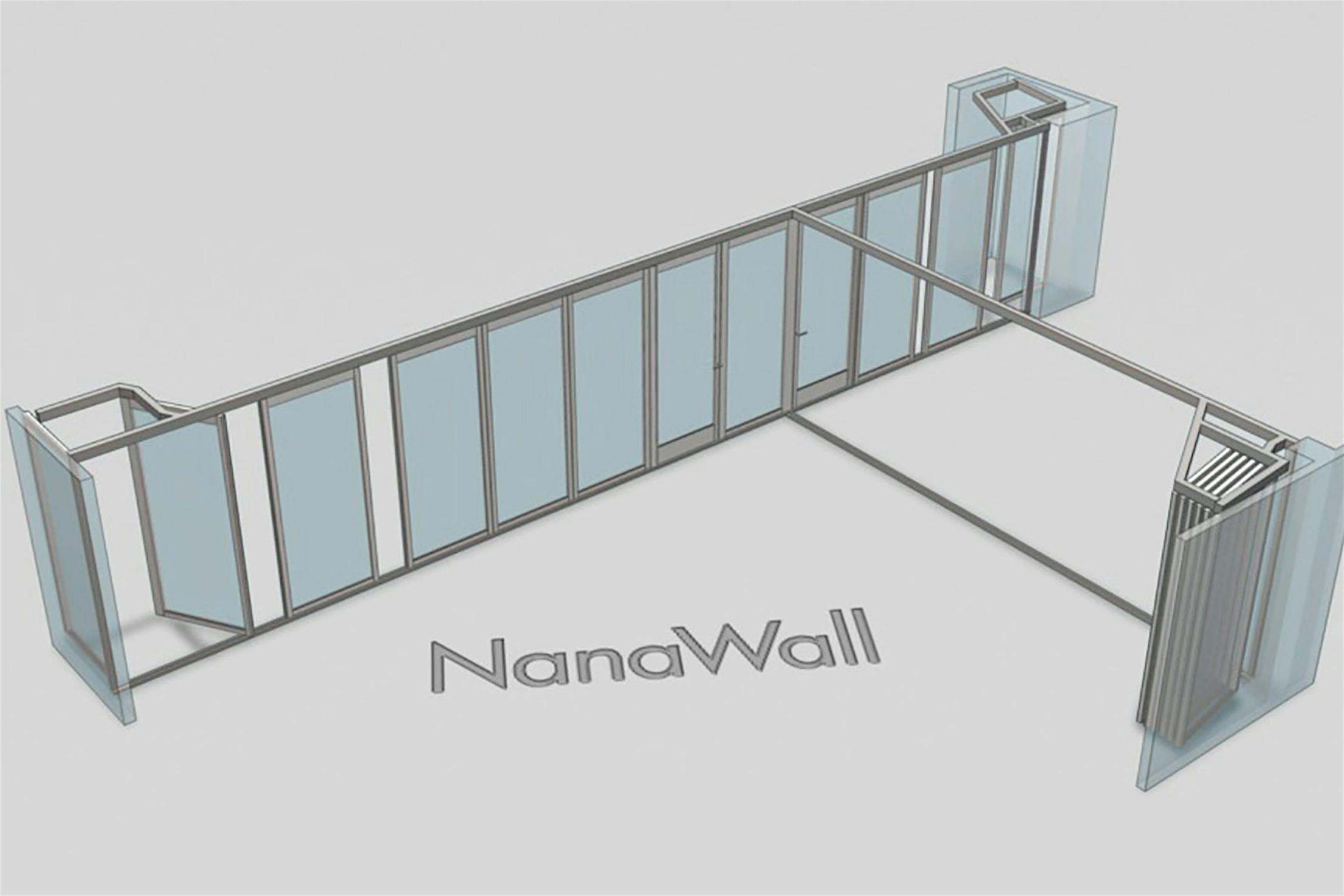

With NanaWall intelligently guided door panels, the user can adapt space by moving panels from one opening to other opening(s). Watch our video to learn more about NanaWall Responsive Design.

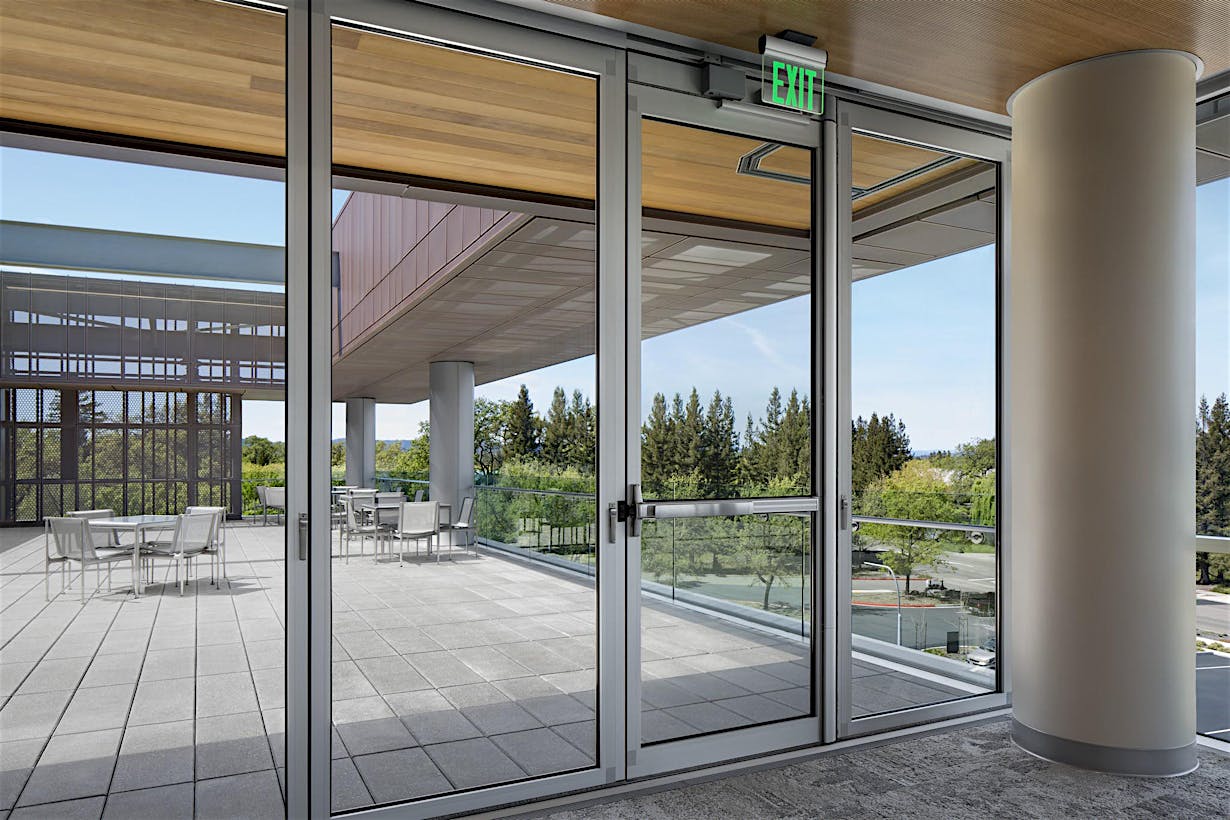

The NanaWall HSW60 offers commercially rated swing doors in multiple locations, wherever needed. Unlike other solutions, the swing doors can convert to sliding panels and are easily stored away. The swing door has been tested to 500,000 opening and closing cycles per the AAMA920 test standard and can accommodate self-closers, panic hardware, and a selection of push/pull handles.
The NanaWall HSW60 can be designed using adjustable floor sockets instead of a floor track if desired. Choose from various sill options to fit your project needs.
Sill Options

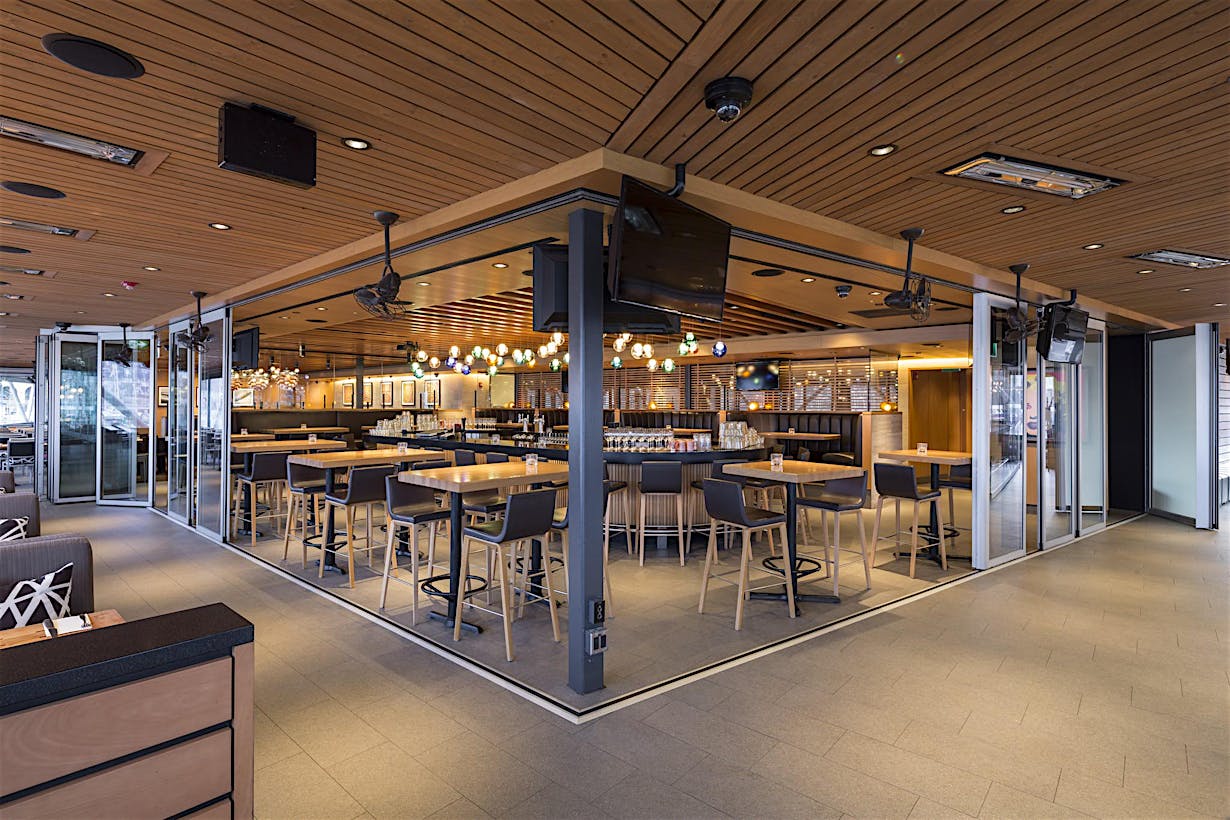

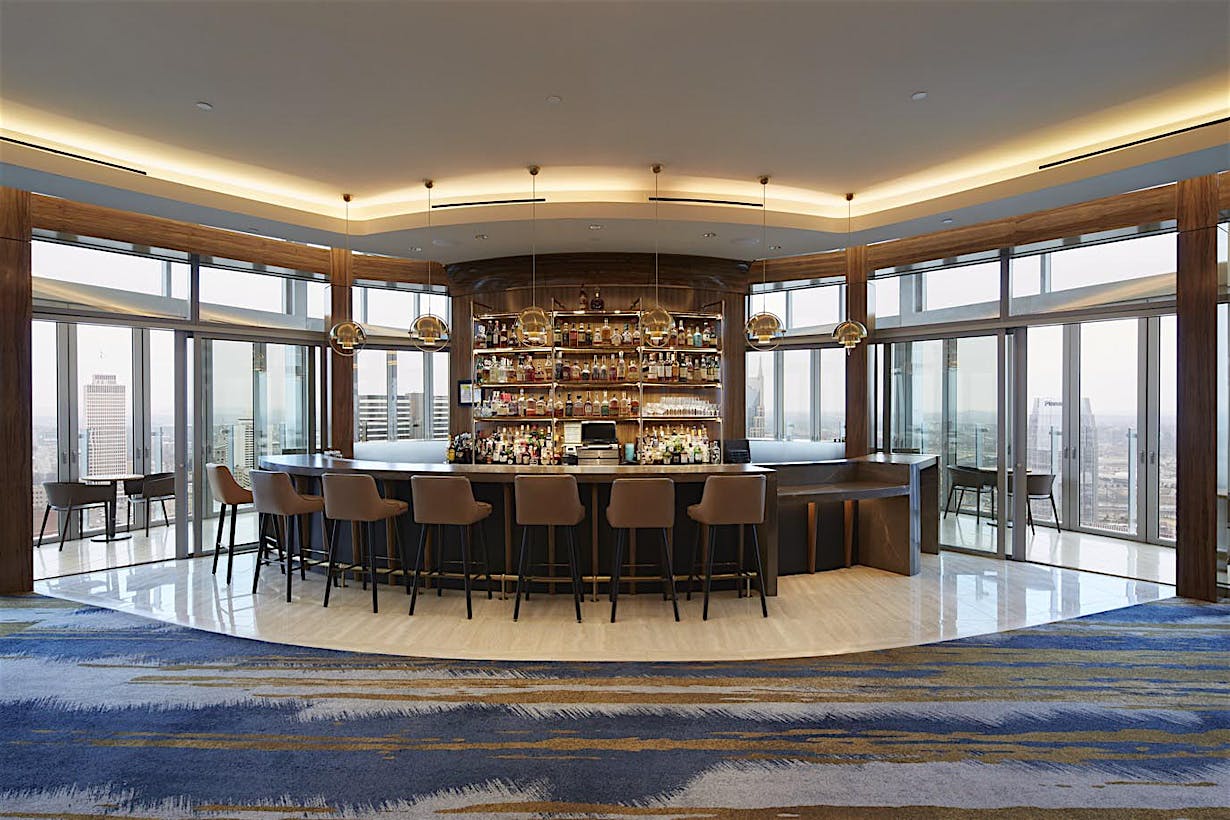

The NanaWall HSW60 can be designed as cornerless, multi-angled, t-section or segmented.

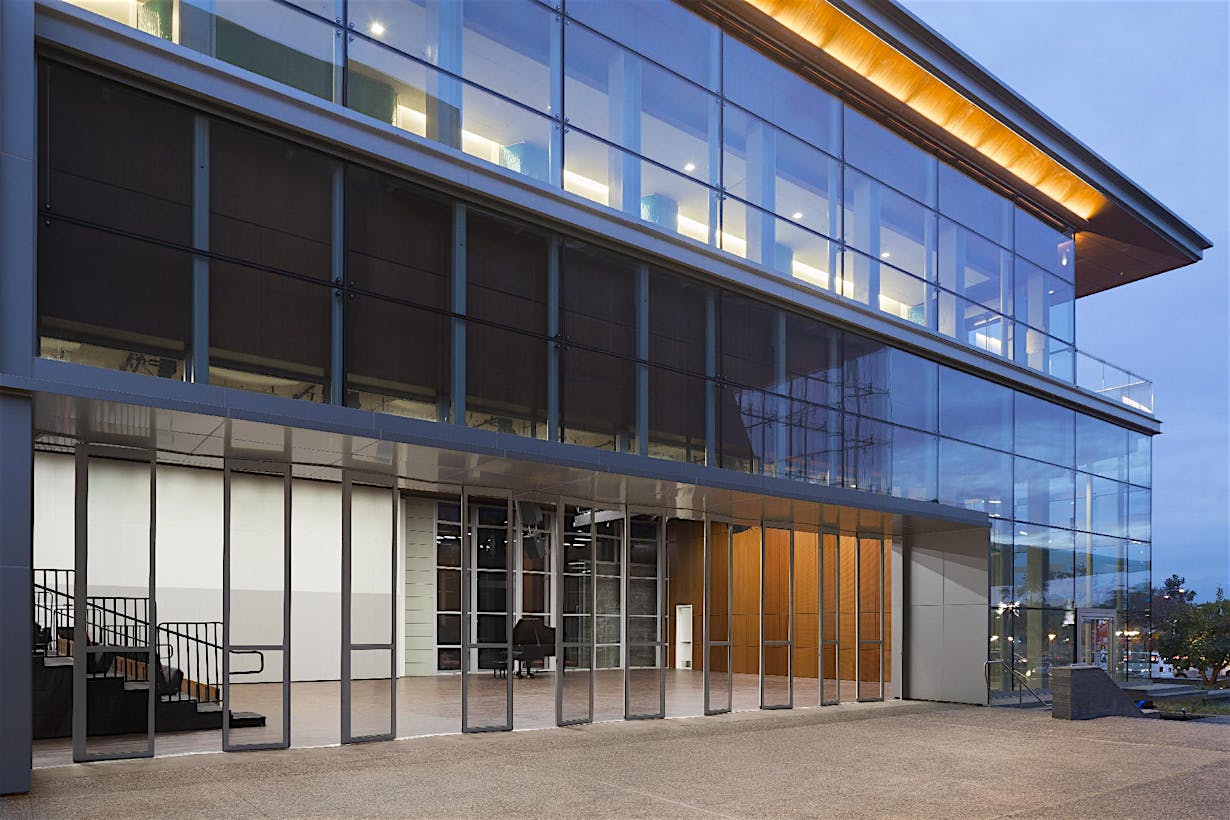

See Examples of Recent Projects

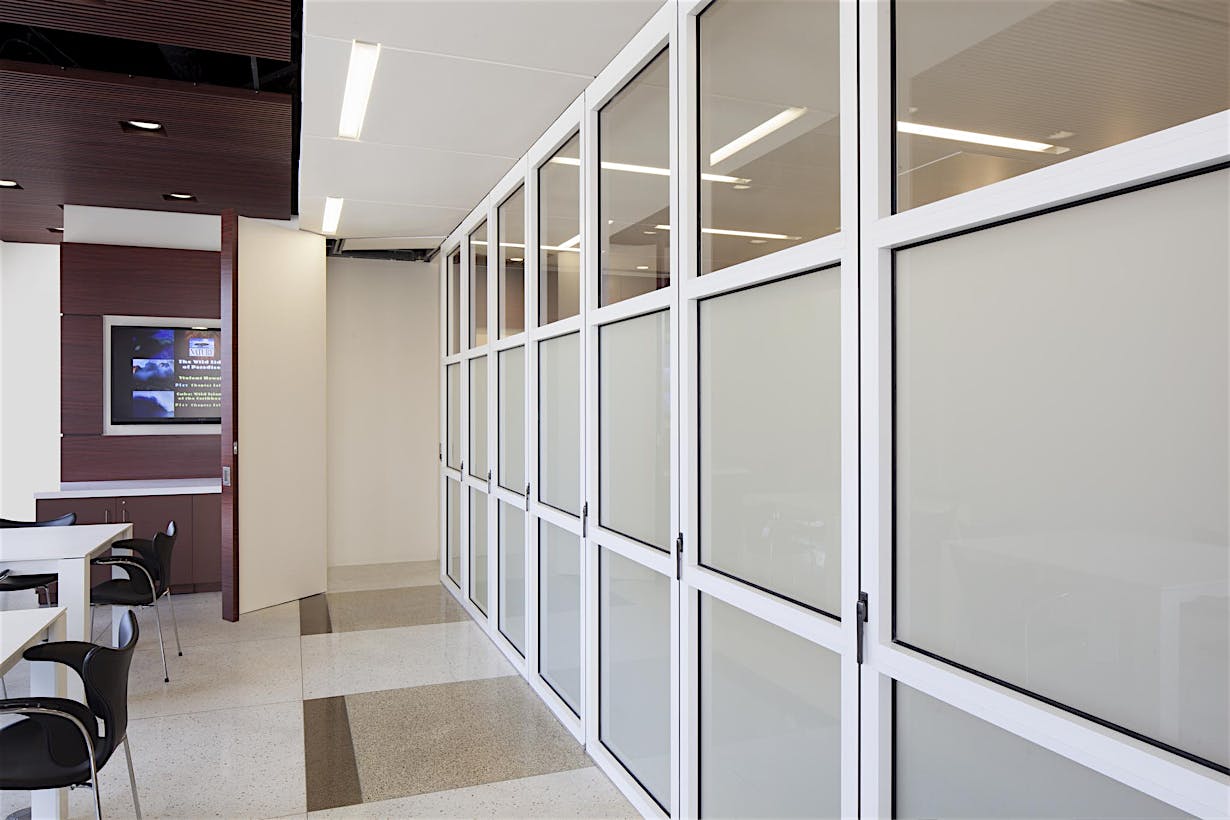

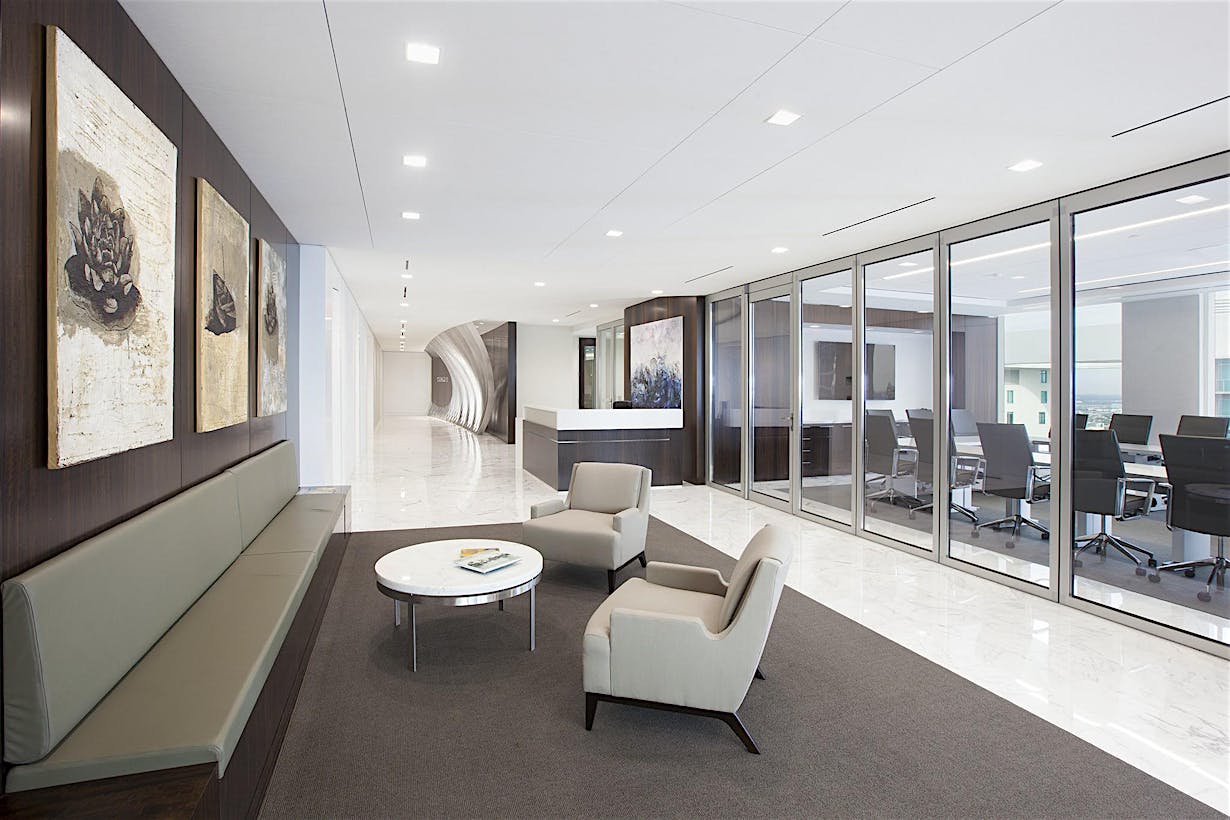

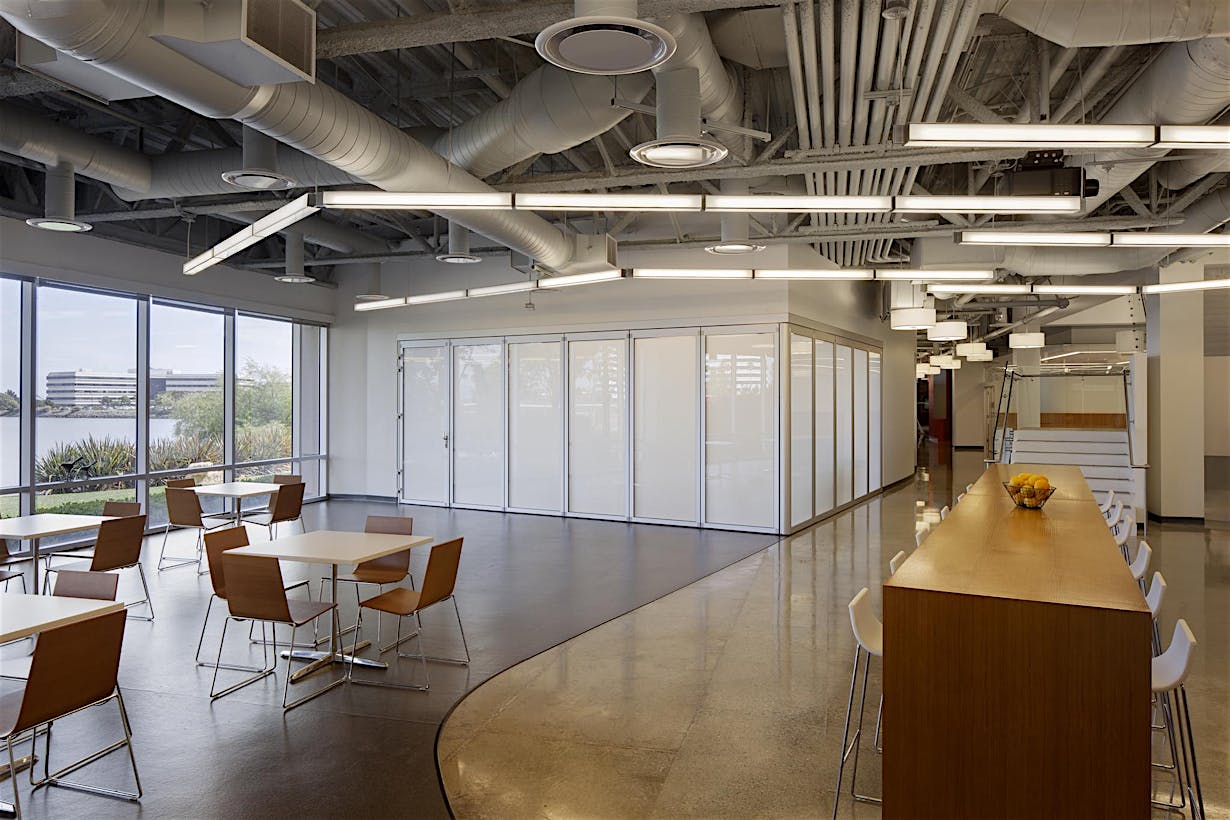

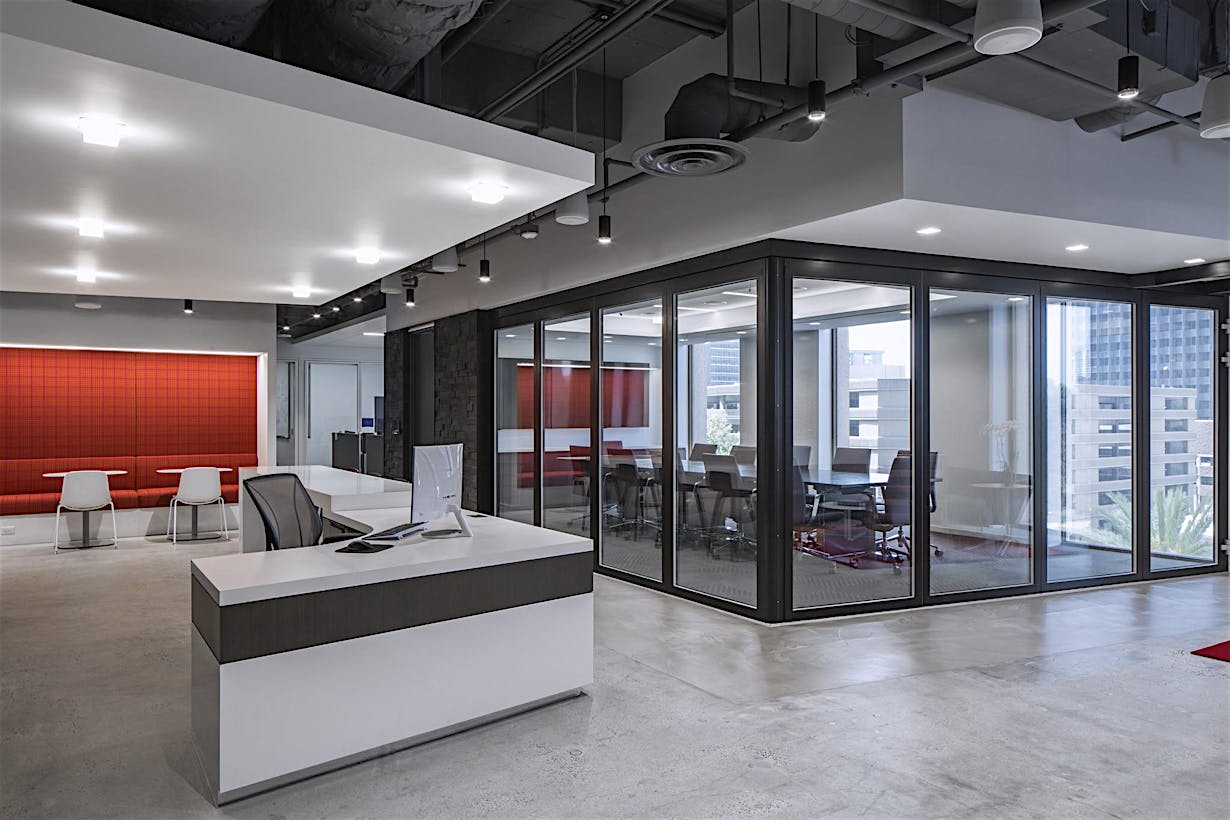

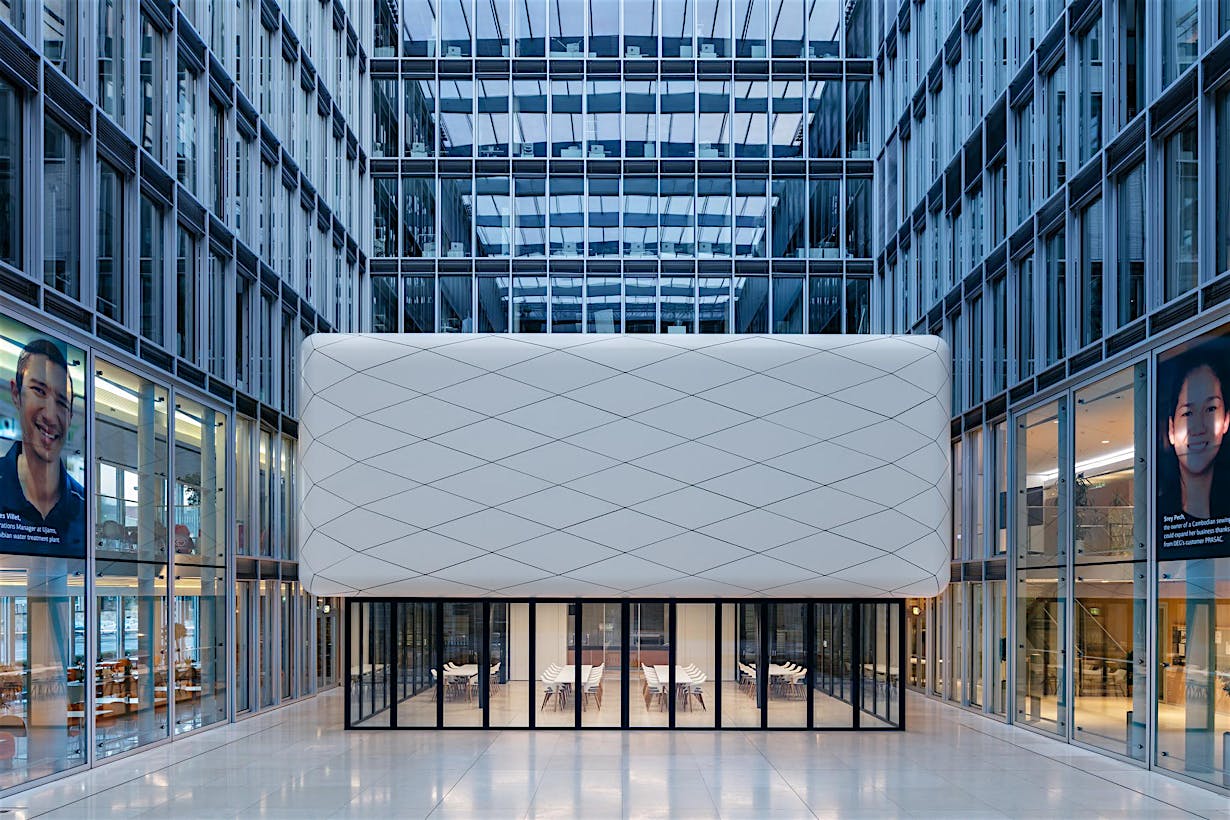

In addition to exterior openings, NanaWall HSW60 is designed to complement interior spaces both visually and functionally. Choose from a variety of glass options for privacy and sound control to meet your design requirements. The head track can be recessed into the ceiling, while even eliminating the floor track for interiors. HSW60 is an acoustic stacking glass door tested and rated up to STC 43.
Intelligent Roller Track
The NanaWall HSW60 features an enhanced horizontal roller and guide track design that allows each individual panel to move effortlessly and intelligently around corners, posts, and anywhere else your design demands.

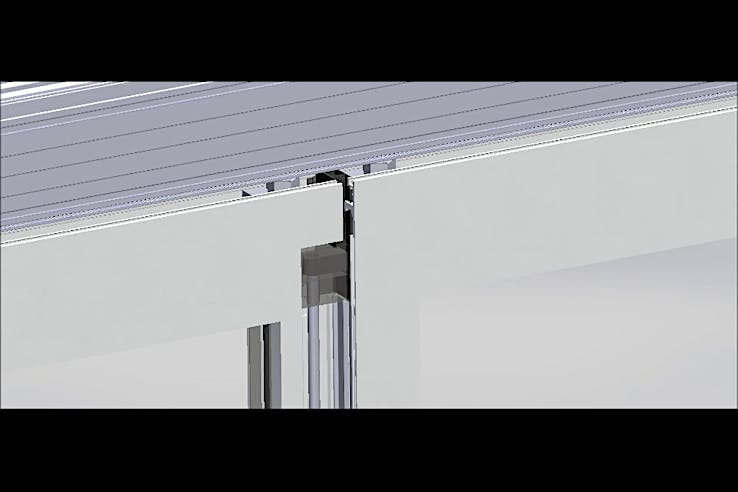

Interlocking Panels
When locking panels together, an additional interlock mechanism engages to create a strong seal and improve performance
Patented Pinchproof Design
The incorporated swing door uses a pivoting rounded door panel to prevent accidental pinching in commercial environments
All Climate Ready
The NanaWall HSW60 is engineered to perform in all climates. Completely tested for air, water, and structural performance, the NanaWall HSW60 can be used in almost any environment and has been tested and labeled to NFRC standards for thermal performance.
Extreme Weather Resistant
Energy-efficient by design, our glass walls keep the elements at bay, ensuring that even as seasons or temperatures change, your interior comfort will always remain the same.
Certified Testing Standards
NanaWall products endure the latest AAMA testing standards for air, water, structural, and forced entry.
Highly Energy-Efficient
Designed to keep the elements at bay, holding warmth inside while acting as a transparent barrier to the weather outside.
Sustainable Design
NanaWall products contribute to multiple LEED rating systems and potentially several credit categories.
Test Results
The NanaWall HSW60 is engineered to perform in all climates. Completely tested for air, water, and structural performance, the NanaWall HSW60 can be used in almost any environment and has been tested and labeled to NFRC standards for thermal performance.
Florida Product Approval #37259
See Air, Water, Structural, Thermal, and Forced Entry Results
Acoustic Performance
NanaWall HSW60 has been tested at an accredited and certified independent laboratory. We test our product to meet the highest standards of ASTM E90, ISO 10140-1, 2, 4, 5. STC calculations meets standards of ASTM E413, and ISO 717-1
Acoustical Performance ResultsWhat Our Customers Have to Say
Lumen
Opening glass walls allowed Lumen Detroit to continue operations in the face of Covid lockdowns while maintaining customer loyalty and revenue.

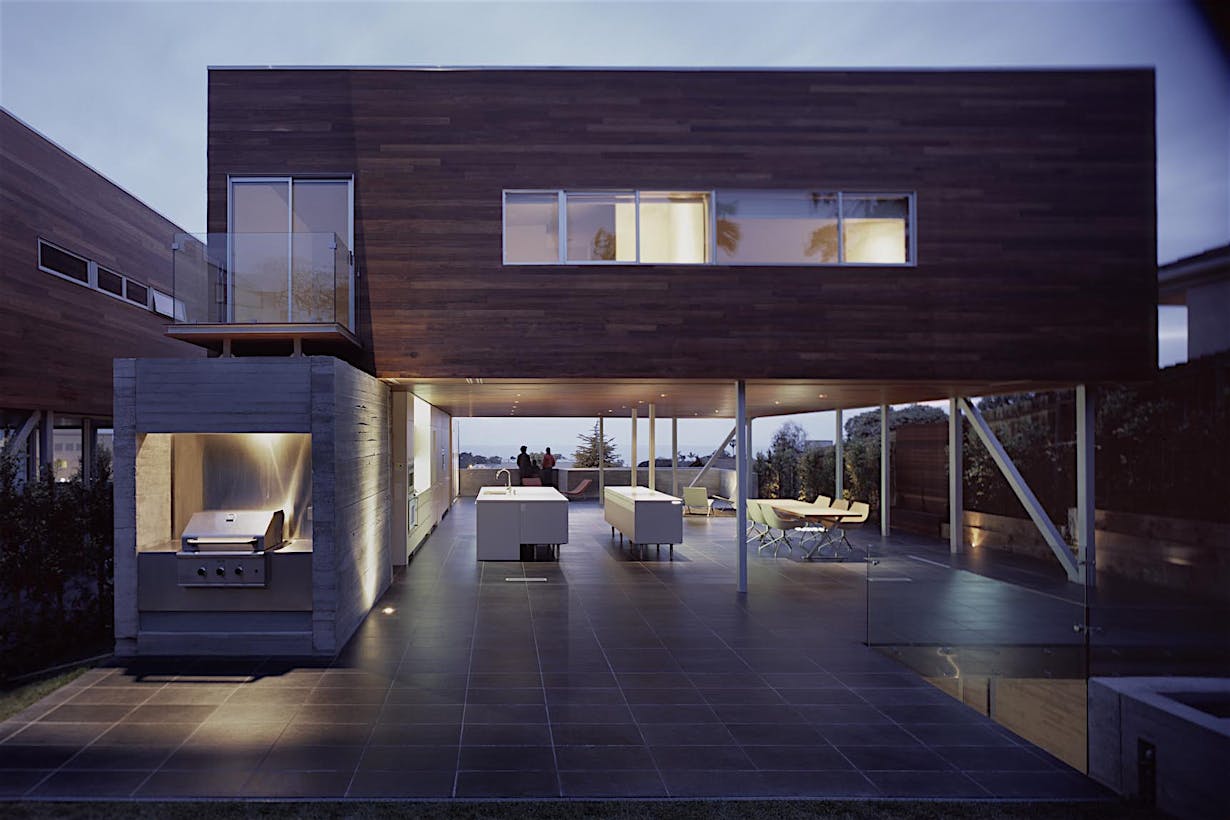

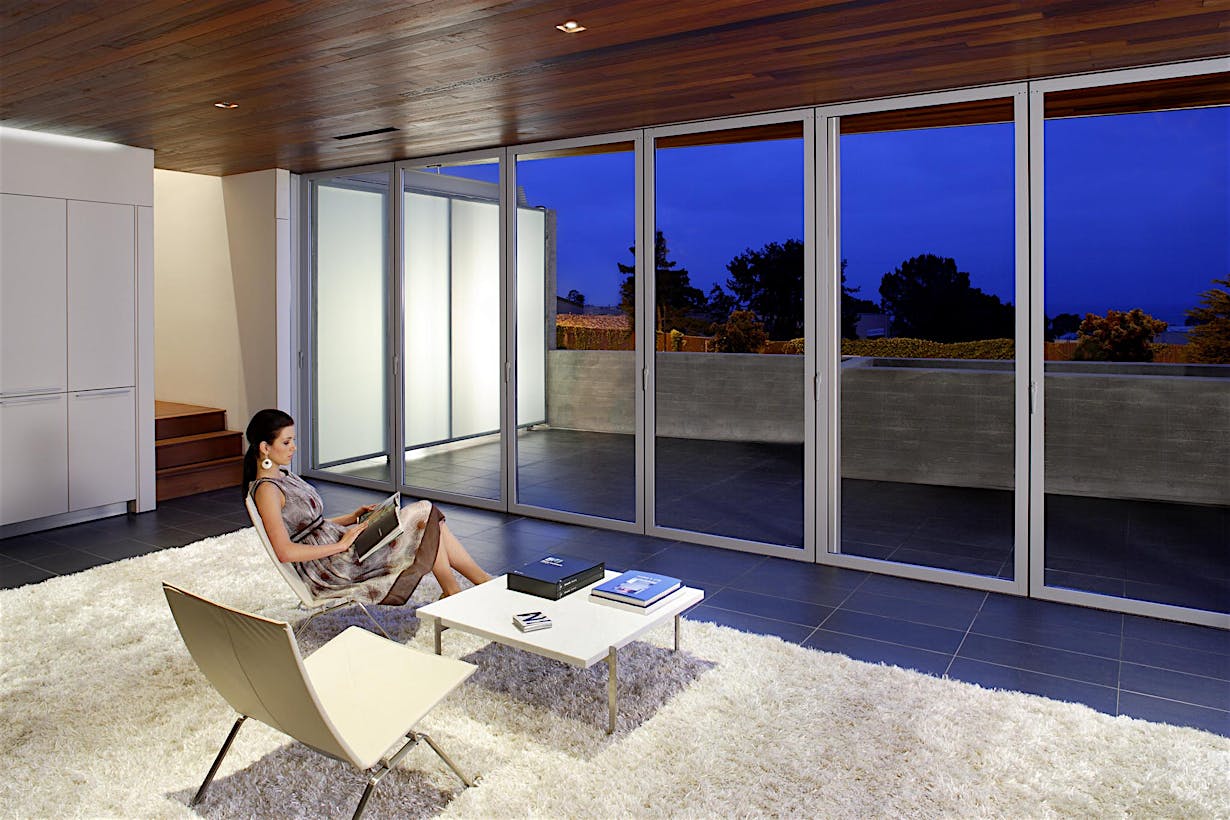

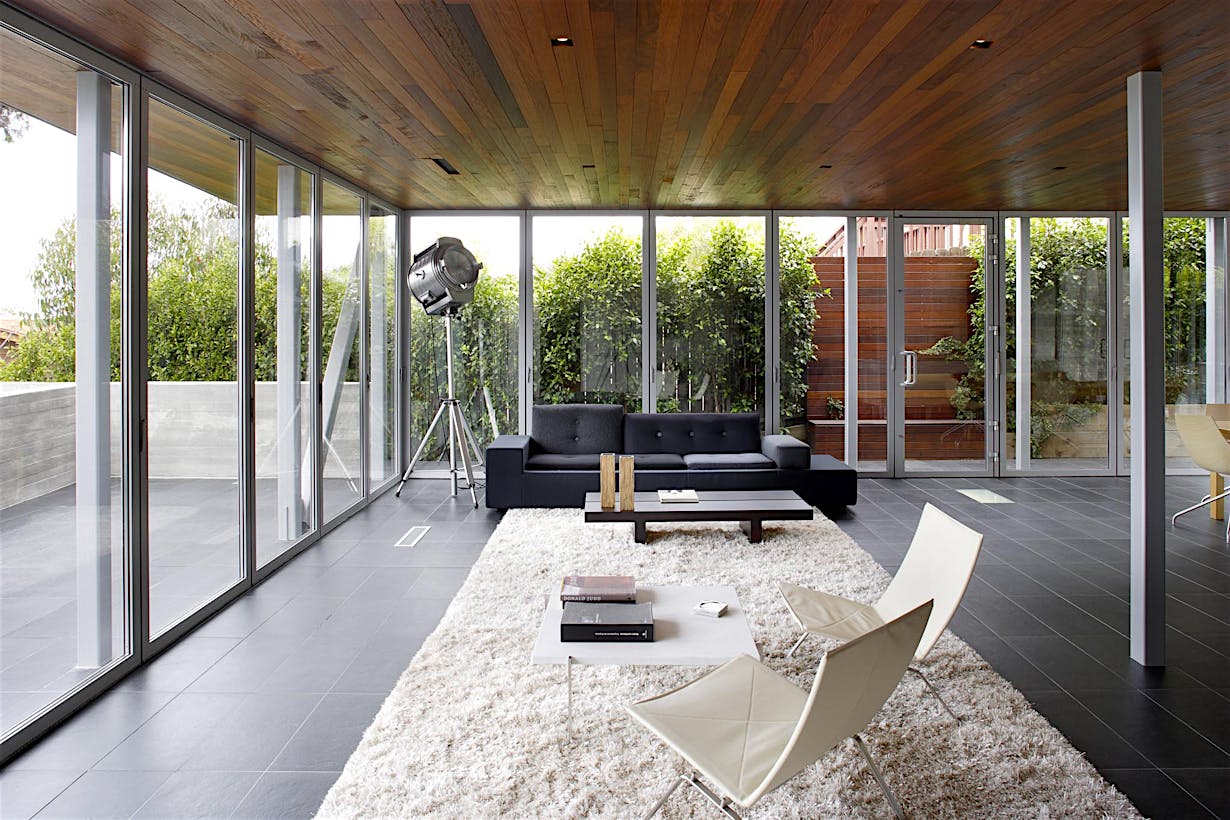

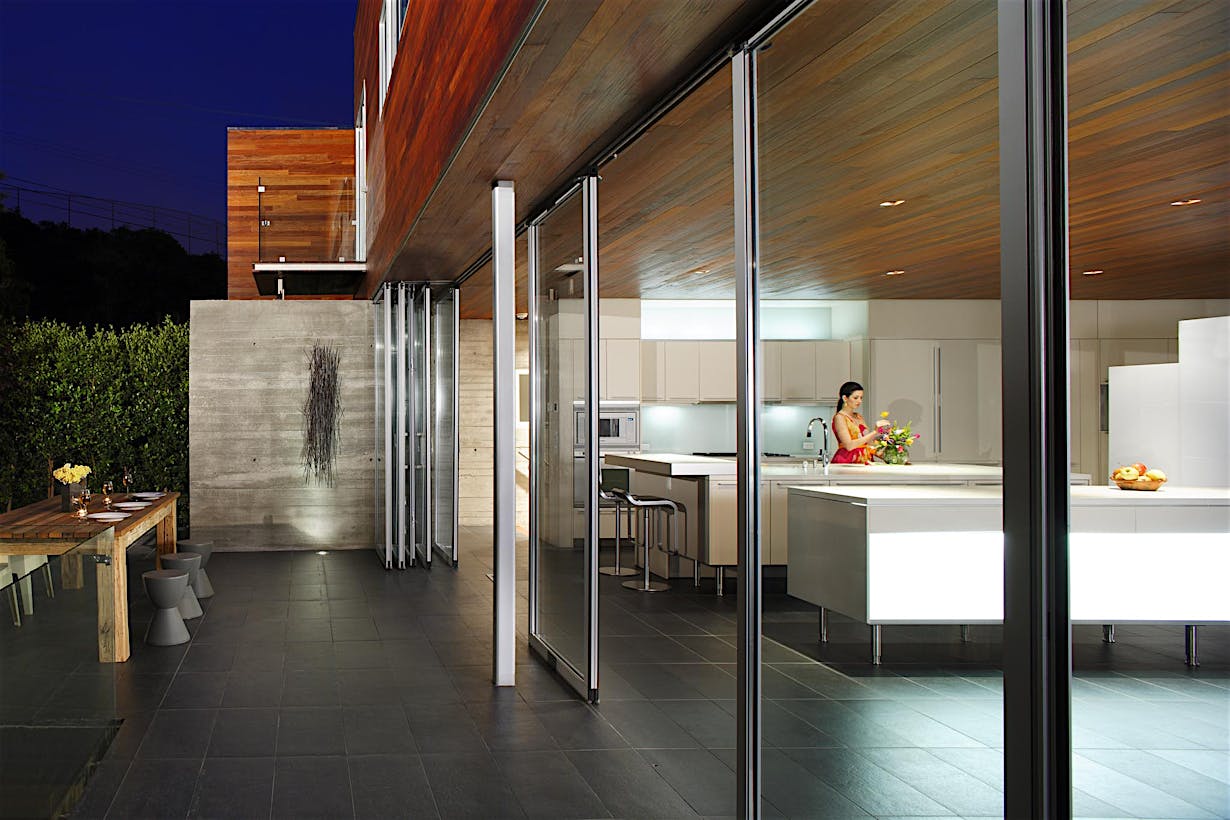

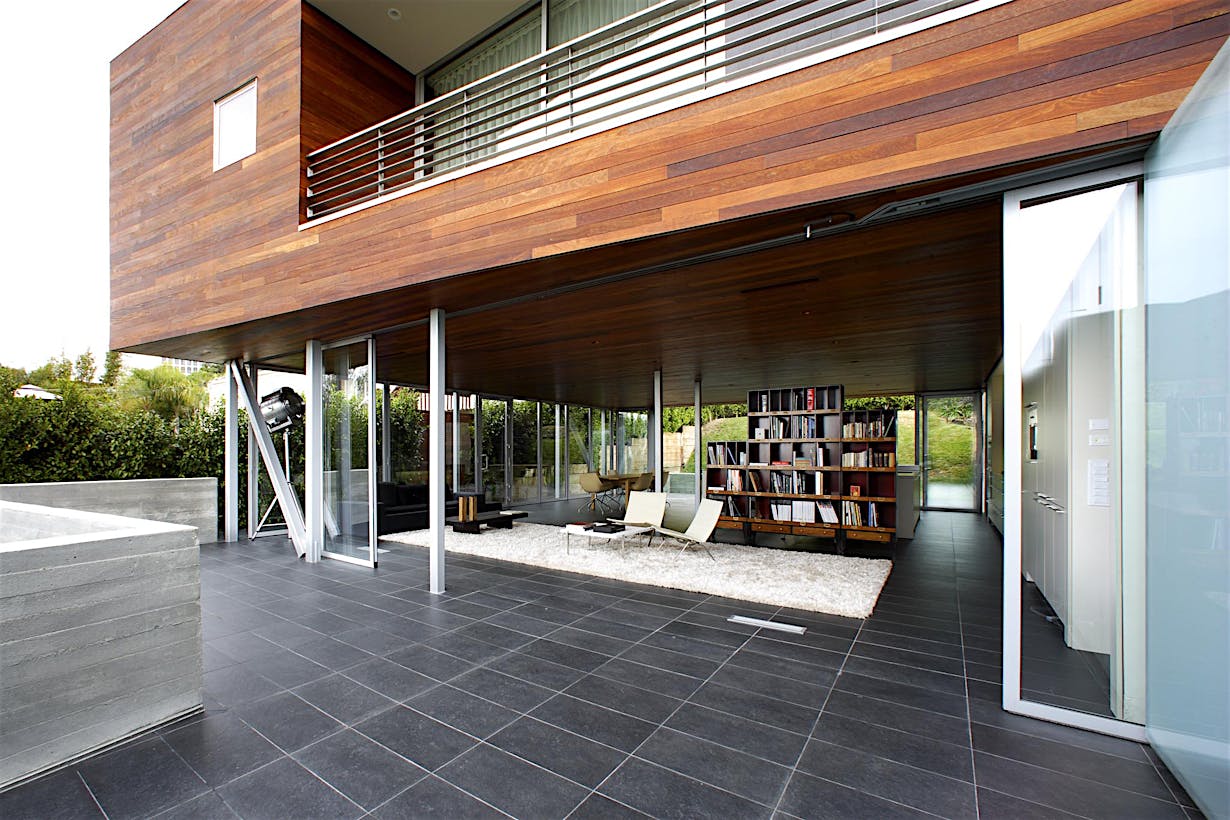

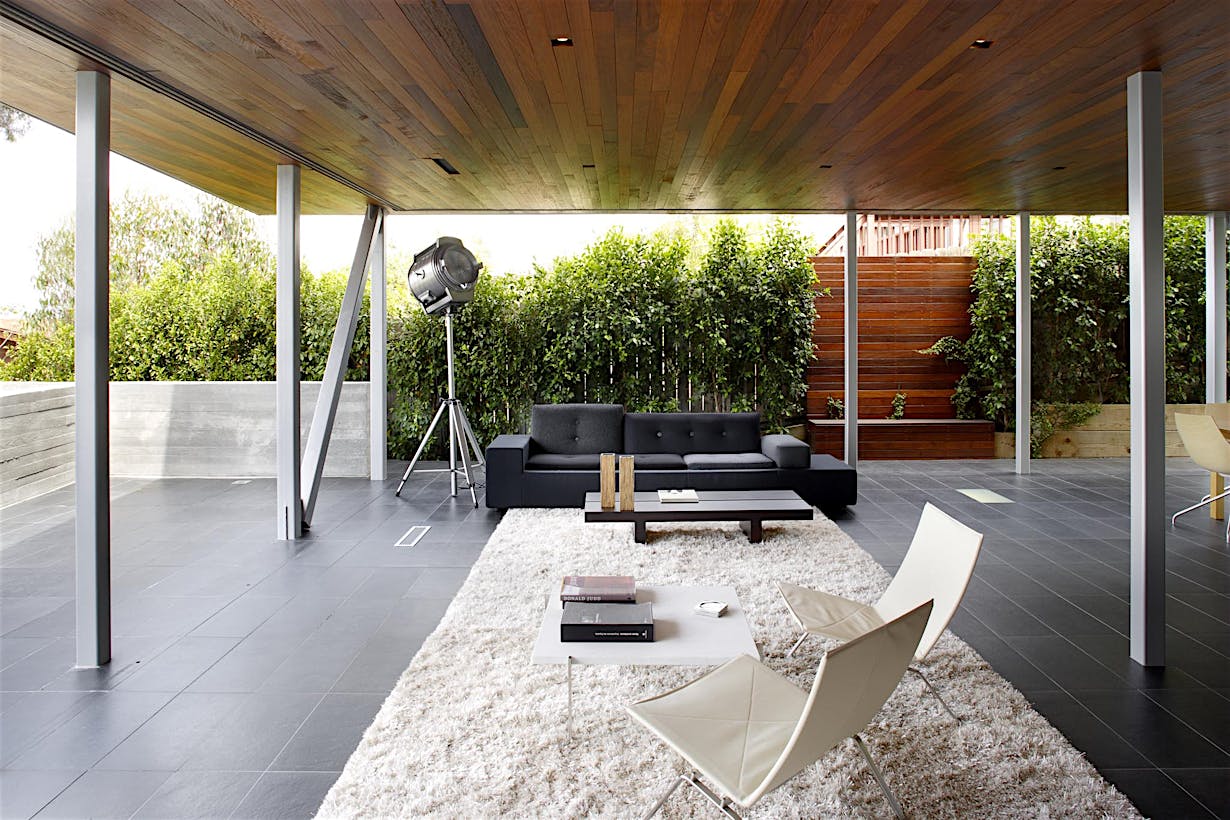

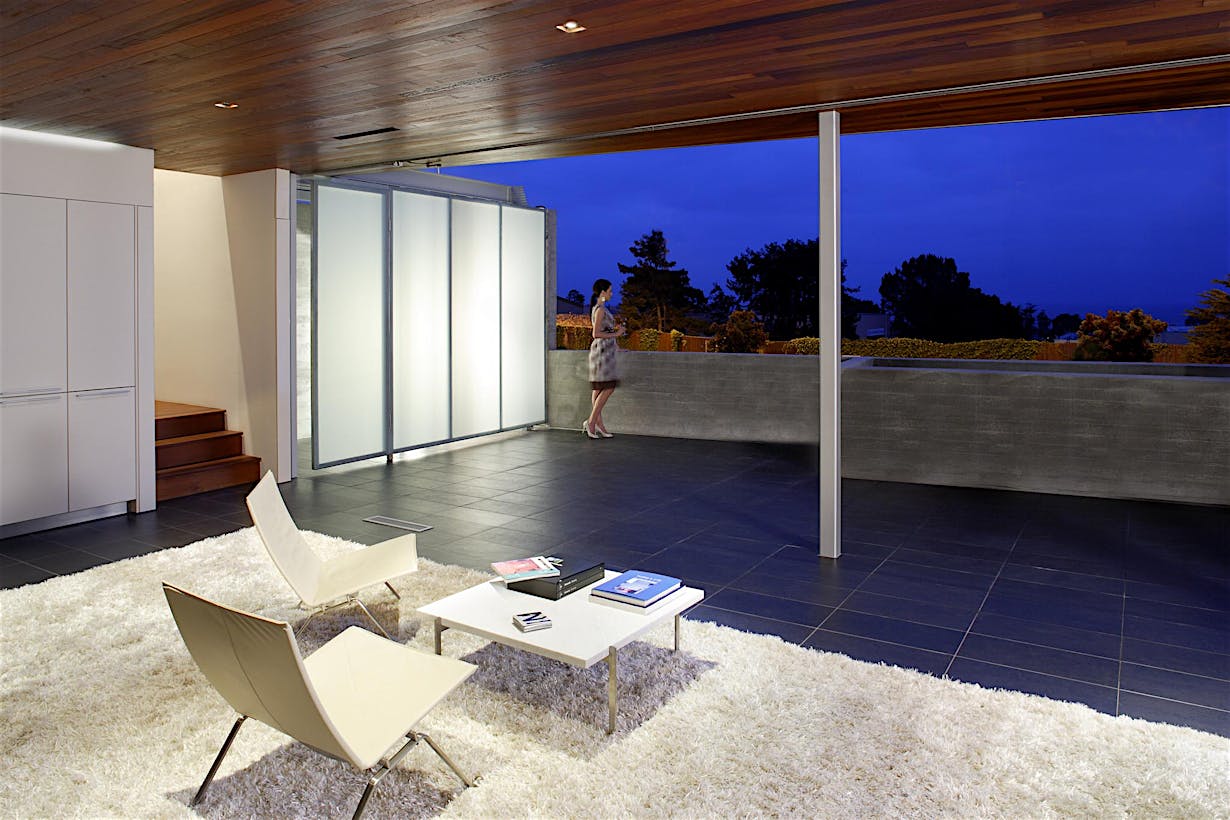

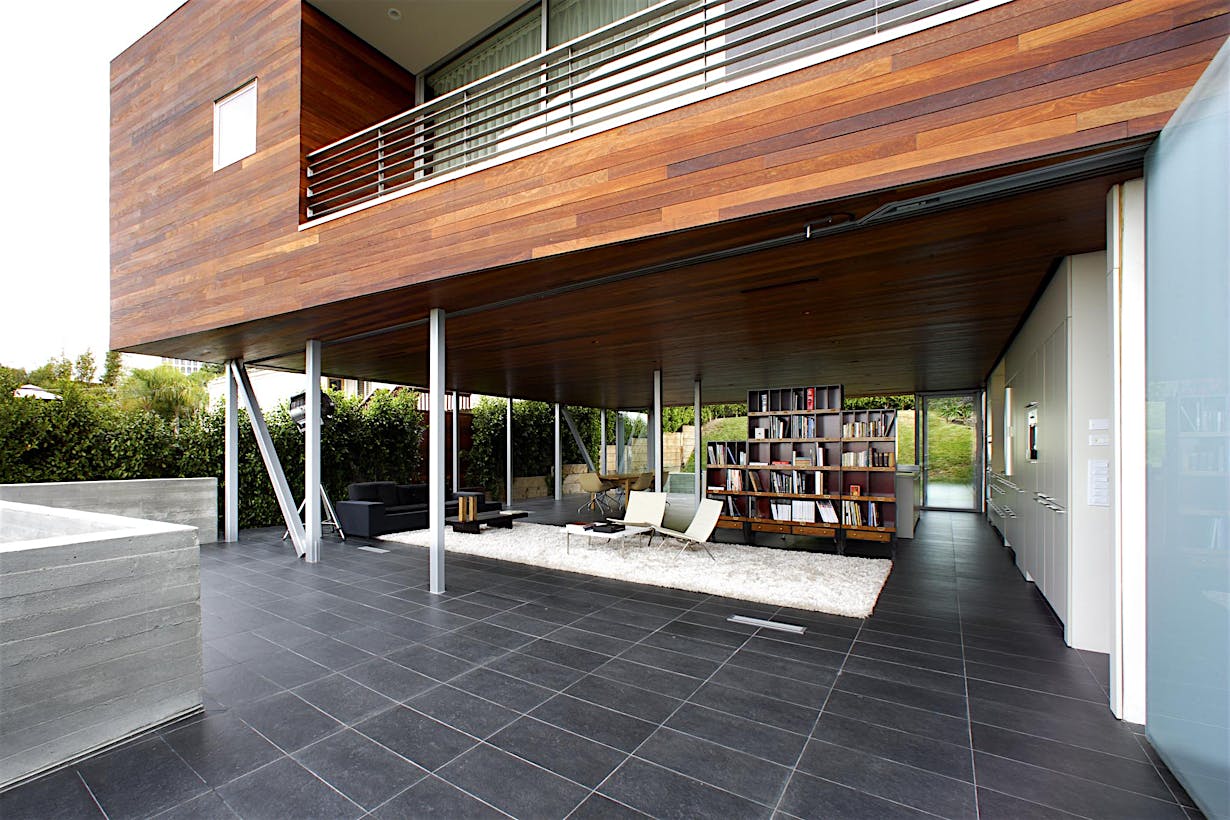

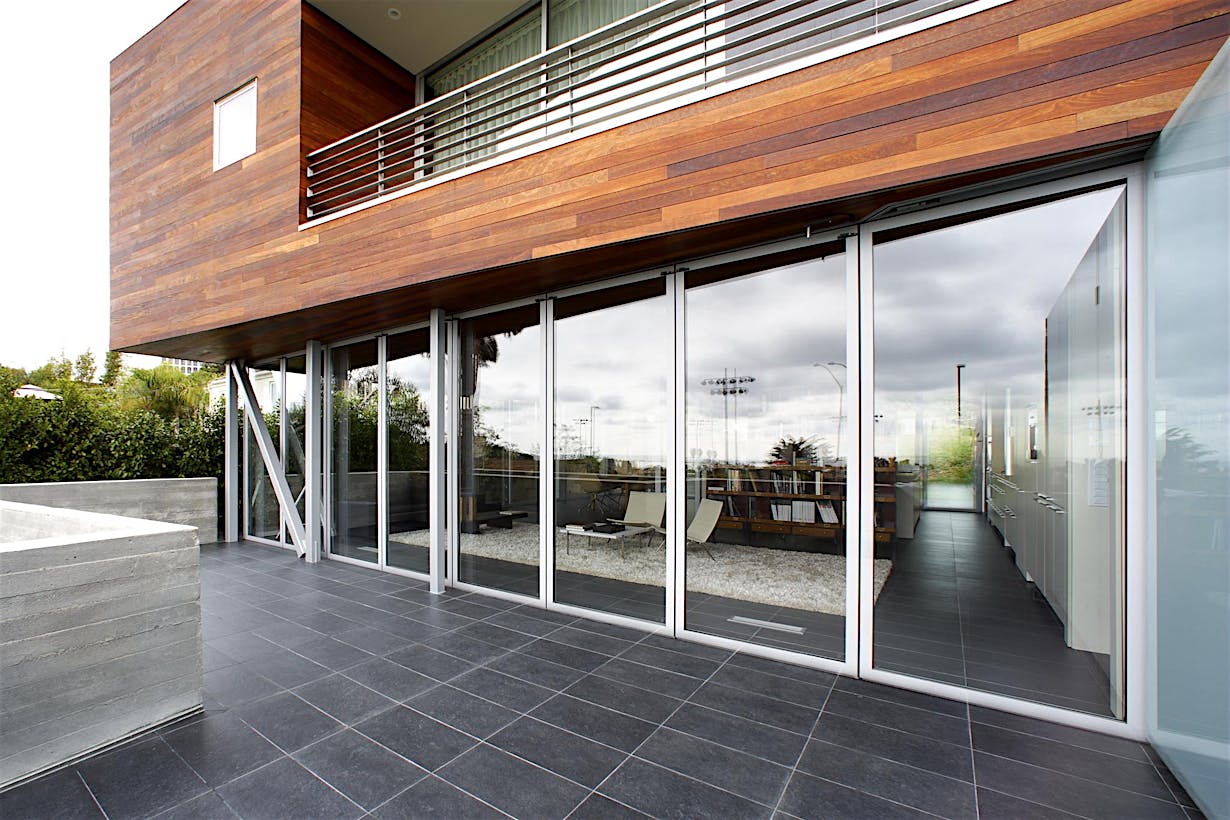

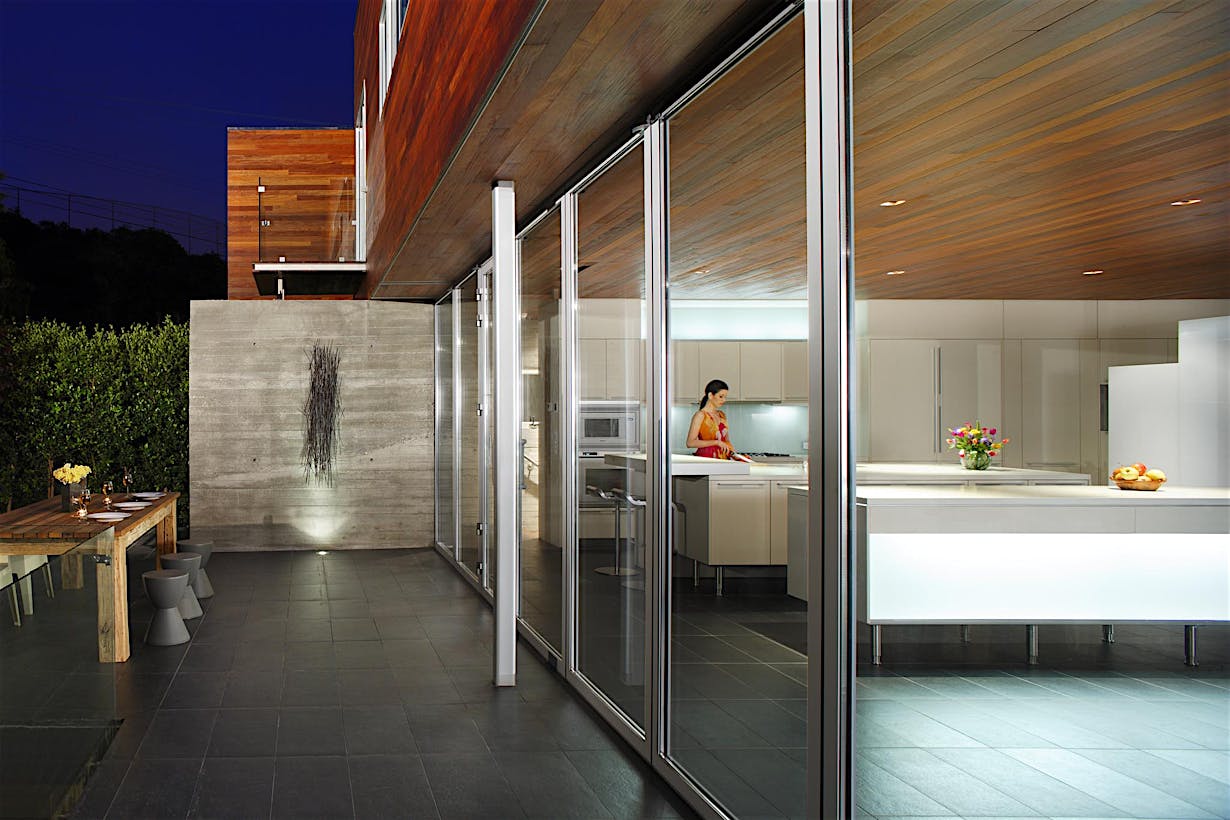

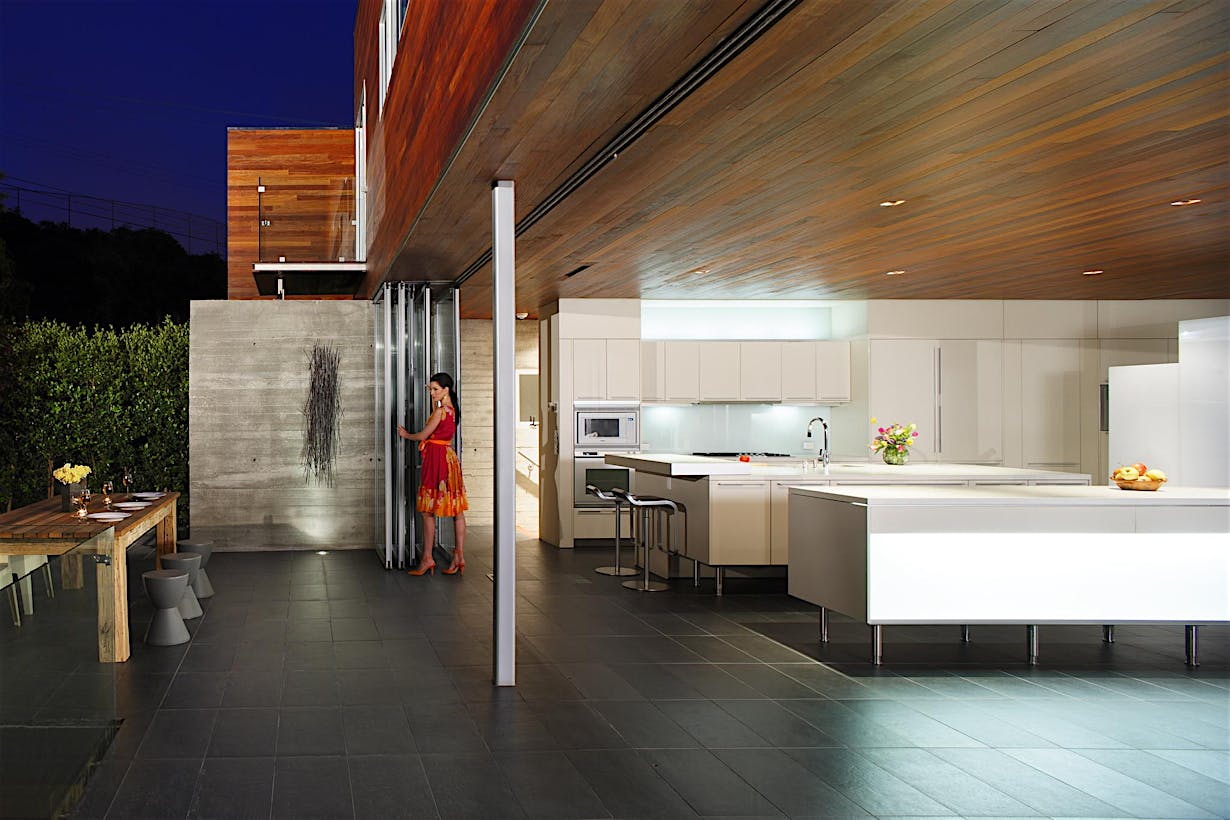

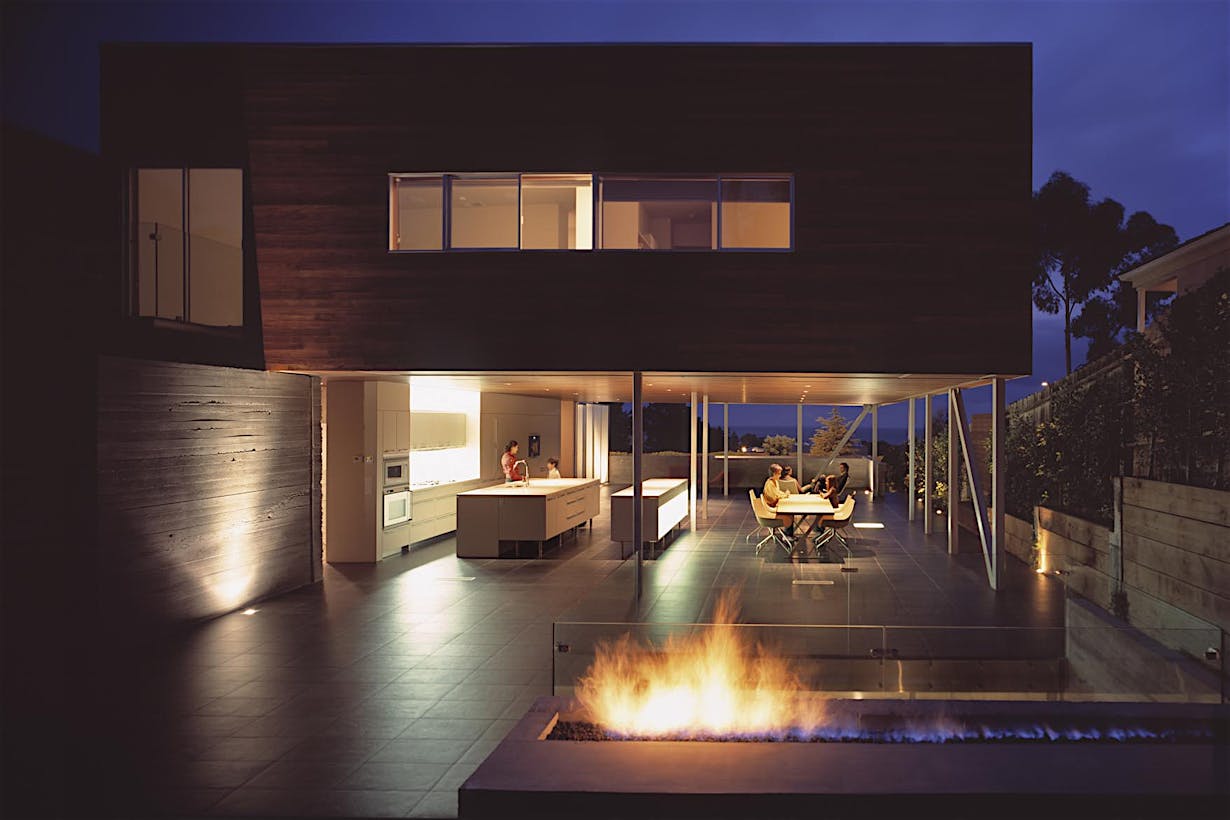

La Jolla Residence
Providing a continuous indoor/outdoor experience, where the house opens completely to the outside without delineating a boundary, was essential in this contemporary residential project. HSW60 stacking glass doors system was the specified solution.
"With NanaWall's HSW60 system the house opens completely without delineating a boundary for a continuous indoor/outdoor experience, while providing superior performance."
— Sebastian Mariscal, President, Sebastian Mariscal Studio, Architect
50 standard colors that come at no additional cost, with an additional 200+ colors to choose from.
See Finish Options Additional Powder Coating Finishes
HSW60 has five sill options: Low Profile Saddle Sill, Low Profile Saddle with UniverSILL®, Flush Sill, Surface Mounted Interior Sill, and No Floor Track (sockets).
See Sill Options
Units can be supplied either glazed with 15/16 (24 mm) clear insulating tempered or insulating Low-E tempered glass or other high performing safety glass such as Heat Mirror, Triple Glazed, acoustic, special tint, etc., or other glass on request. All glazing is reduced iron. Please contact NanaWall Systems for more details.
Glazing Options
Stylish Handles in Multiple Finishes
Our handles are both functional and stylish and can be customized to accentuate your space and reflect your style.
See Handle Options
Locking for Maximum Security
Standard to the system is concealed locking between folding panels that operates with a 180° turn of a flat handle.
See Locking Options
Retractable Screens by Others
A retractable screen add-on is perfect for blocking bugs while providing privacy and fresh air. Screens are not available through NanaWall Systems.
Retractable Screens by Others
Basic stacking concepts.
Explore limitless possibilities with our systems. Design and customize systems using our 3D CAD/Revit/Spec Configurators or contact our dedicated design team for more possibilities.
More Configurations
RemoteSTACK is a fairly unique feature that allows the individual panels of a single track sliding glass wall to park well outside the opening. RemoteSTACK not only facilitates pure openings but allows panels to park virtually anywhere.
Contact our dedicated design team for more possibilities.
More Configurations

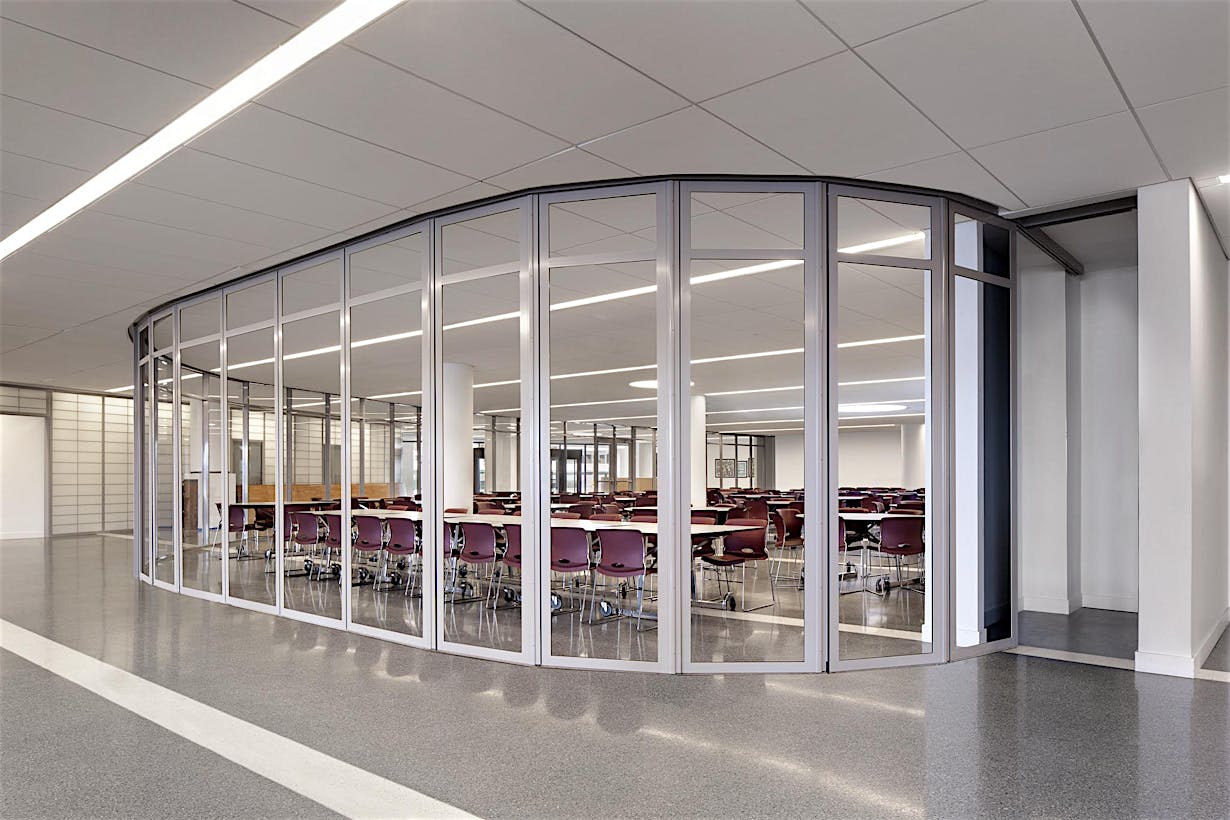

Curvaceous configurations can be created using our single track, bi-folding, frameless, and framed products. We highly encourage their use in your residential or commercial designs.
Contact our dedicated design team for more possibilities.
More Configurations
Explore limitless possibilities with our systems. Contact our dedicated design team for more possibilities.
More Configurations

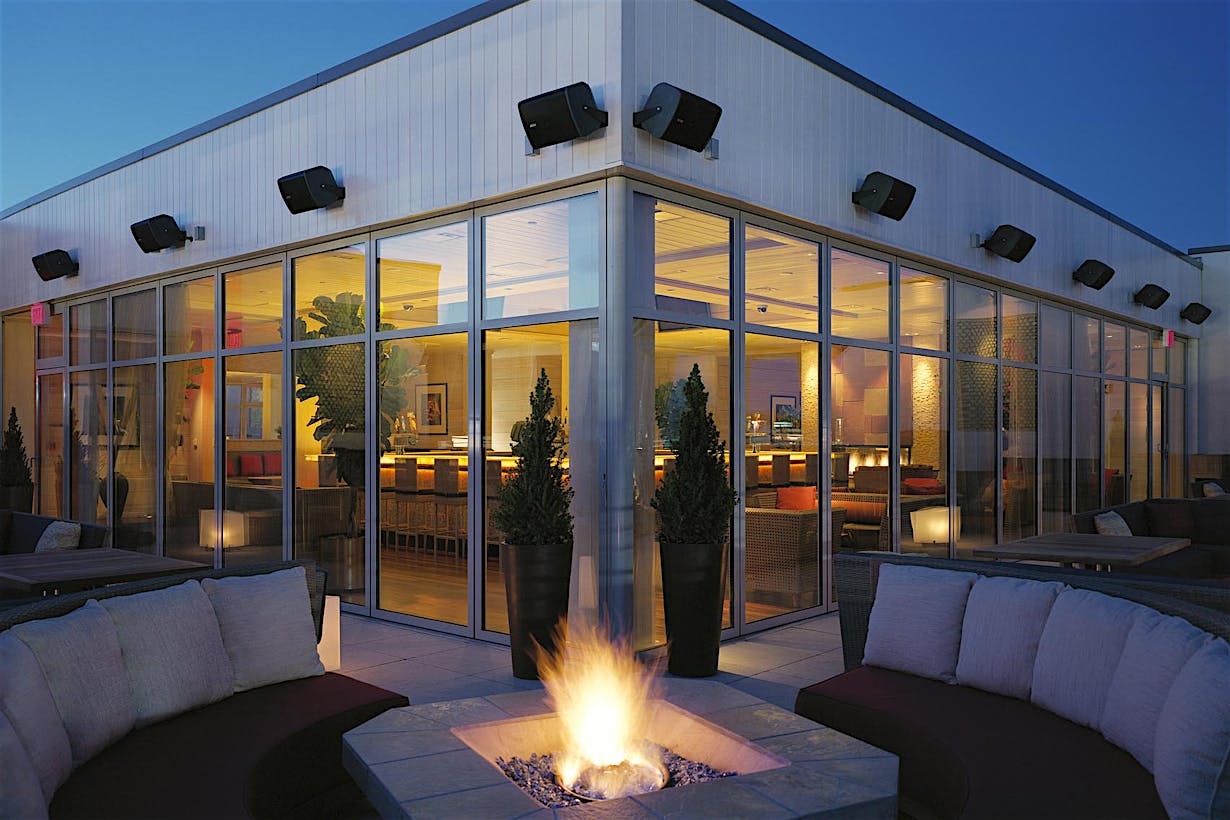

All standard configurations are available in open corner options.
Explore limitless possibilities with our systems. Contact our dedicated design team for more possibilities.
More Configurations
These panel sets are able to move and stack either to the right, left, or center within the same track allowing the panels to be stacked in the most convenient location as needed.
Contact our dedicated design team for more possibilities.

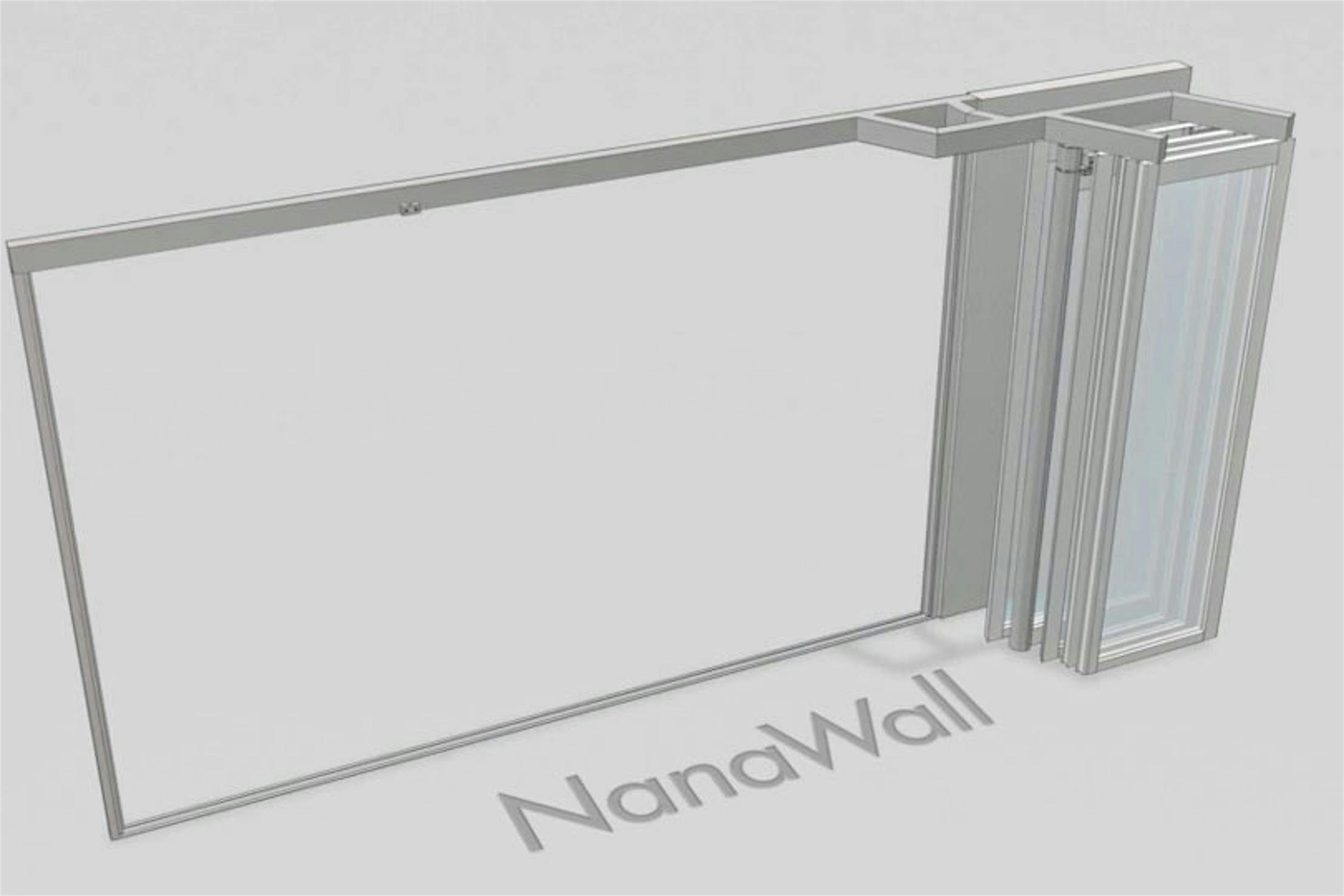

Stack panels out of site, example of enclosed stacking area by others
Contact our dedicated design team for more possibilities.
More Configurations
Explore limitless possibilities with our systems. Design and customize systems using our 3D CAD/Revit/Spec Configurators or contact our dedicated design team for more possibilities.
More Configurations
For every type of space, there is a NanaWall. With more than 20 glass wall systems and endless hardware and configuration options, our products can accommodate most any type of space, indoors or out.
Explore limitless possibilities with our systems. Design and customize systems using our 3D CAD/Revit/Spec Configurators or contact our dedicated design team for more possibilities.
